Detection of Hypertension-Induced Changes in Erythrocytes by SERS Nanosensors

by
Evelina I. Nikelshparg
1,*,
Adil A. Baizhumanov
1,
Zhanna V. Bochkova
1,
Sergey M. Novikov
2,
Dmitry I. Yakubovsky
2,
Aleksey V. Arsenin
2,
Valentyn S. Volkov
2,
Eugene A. Goodilin
3,4,
Anna A. Semenova
3,
Olga Sosnovtseva
5,
Georgy V. Maksimov
1,6 and
Nadezda A. Brazhe
1,*
1
Department of Biophysics, Biological Faculty, Moscow State University, 119991 Moscow, Russia
2
Center for Photonics and 2D Materials, Moscow Institute of Physics and Technology (MIPT), 141700 Dolgoprudny, Russia
3
Faculty of Materials Sciences, Moscow State University, 119991 Moscow, Russia
4
Department of Chemistry, Moscow State University, 119991 Moscow, Russia
5
Department of Biomedical Sciences, Faculty of Health and Medical Sciences, University of Copenhagen, 2200 Copenhagen, Denmark
6
Department of Physical Material Engineering, Federal State Autonomous Educational Institution of Higher Education “National Research Technological University “MISiS”, 119049 Moscow, Russia
*
Authors to whom correspondence should be addressed.
Biosensors 2022, 12(1), 32; https://doi.org/10.3390/bios12010032
Submission received: 22 November 2021 / Revised: 4 January 2022 / Accepted: 5 January 2022 / Published: 8 January 2022
(This article belongs to the Section Biosensors and Healthcare)
Browse Figures
Review Reports Versions Notes

Abstract

:
Surface-enhanced Raman spectroscopy (SERS) is a promising tool that can be used in the detection of molecular changes triggered by disease development. Cardiovascular diseases (CVDs) are caused by multiple pathologies originating at the cellular level. The identification of these deteriorations can provide a better understanding of CVD mechanisms, and the monitoring of the identified molecular changes can be employed in the development of novel biosensor tools for early diagnostics. We applied plasmonic SERS nanosensors to assess changes in the properties of erythrocytes under normotensive and hypertensive conditions in the animal model. We found that spontaneous hypertension in rats leads (i) to a decrease in the erythrocyte plasma membrane fluidity and (ii) to a decrease in the mobility of the heme of the membrane-bound hemoglobin. We identified SERS parameters that can be used to detect pathological changes in the plasma membrane and submembrane region of erythrocytes.

1. Introduction

The development of novel methods and techniques has expanded our understanding of the molecular mechanisms underlying many pathologies and paved the way for the creation of novel diagnostic tools [1,2,3]. Cardiovascular diseases remain the leading cause of death around the world. High blood pressure is one of the most important risk factors for cardiovascular diseases, leading to organ hypoxia and consequent damage, such as heart failure, stroke, vasculopathy, and nephropathy [4,5,6]. Hypoxic conditions can develop as the result of hypertension-induced alterations in vessel structure and hemodynamics [4,7]. Another cause of tissue hypoxia is abnormal changes in hemoglobin’s (Hb) affinity for oxygen (O2), leading to the decreased rate of Hb saturation with O2 in the lungs or to the decreased ability of Hb to release O2 in peripheral tissues. Thus, the fine tuning of Hb properties ensures the optimal supply of O2 to tissue [8,9].
Surface-enhanced Raman spectroscopy (SERS) has been successfully applied to detect different disease biomarkers in blood and other body fluids [3,10,11]. We have proposed an approach for the selective study of the Hbmb in erythrocytes with SERS using a colloidal solution of silver nanoparticles [12] and silver nanostructured surfaces (AgNSS) [13,14]. Plasmonic nanostructures allow us to achieve the enhancement of the Raman scattering from molecules near the nanostructure surface. In the case of erythrocytes, this occurs from membrane-bound Hb (Hbmb) bound to AE1-exchanger (also known as band 3 protein). Erythrocyte plasma membrane lipids can be probed simultaneously [15]. Conventional Raman spectroscopy allows one to assess the degree of oxygenation, the conformation, and the affinity of the heme to O2 of cytosolic Hb (Hbc) in intact erythrocytes. However, it fails to probe Hbmb, a minor fraction of Hb, which is more sensitive to oxidative stress, changes in plasma membrane properties, and ion transport through the membrane than Hbc [16,17].
In the present work, we employed SERS with AgNSS to study the effect of spontaneous hypertension on the properties of the plasma membrane and membrane-bound hemoglobin in erythrocytes. The proposed approach is able to detect changes in erythrocyte properties in the early stages of hypertension, such as a decrease in the erythrocyte plasma membrane fluidity and a decrease in the Hbmb heme mobility.

2. Materials and Methods

2.1. Nanostructure Synthesis

The preparation of AgNSS was performed as described in References [13,18] with modifications. Briefly, 0.3 g of silver nitrate (Sigma, Schnelldorf, Germany, 99.999% purity) was dissolved in 40 mL of MilliQ water under constant stirring, followed by the addition of 30 mL of 20% NaOH solution. The resulting dark precipitate of silver oxide (I) was washed three times with 100 mL of MilliQ water, followed by the addition of 5 mL of 25% aqueous ammonia and 25 mL of MilliQ water, resulting in transparent precursor solution of diamine silver (I) hydroxide. Albedo ultrasonic nebulizer was used to spray the obtained solution of silver complex onto the surface of coverslips placed inside 1000 mL glass on a surface heated up to 340 °C (IKA C-MAG HS 4) for an hour with 5 min breaks every 3–4 min. The coverslips with a silver nanostructured layer were kept at 340 °C for 15 min after the completion of spraying to decompose and desorb possible residual intermediate compounds.

2.2. Characterization of Nanostructures

The fabricated AgNSS were visualized by a scanning electron microscope (SEM) NVision 40 (Carl Zeiss). The near-field optical characterization was performed by scattering-type scanning near-field optical microscope s-SNOM “NeaSNOM” (Neaspec, Munich, Germany) based on an atomic force microscope that uses sharp silicon tips covered with a Pt-Ir coating as a near-field probe. The scanning was carried out in a tapping mode with an oscillation frequency of ~250 kHz. The tip–sample interface was illuminated under ∼50° relative to the sample surface by a linearly P-polarized Avesta TiC, Ti:Sapphire continuous tunable laser (700–1000 nm). In this s-SNOM setup, the laser beam is focused on the nanostructures by an upper parabolic mirror. A tip-scattered near-field signal is collected by the same parabolic mirror and goes to a high-sensitive detector, then analyzed after.

2.3. Animals

Male 15- or 16-week-old rats from two strains (3 rats in each group) were used in the experiments: spontaneously hypertensive rats (SHR), and Wistar–Kyoto rats (WKY) (BIBCh, Pushchino, Russia). The animal studies were carried out in accordance with the Declaration of Helsinki, EU Directive 2010/63/EU, and the Recommendations of the European Laboratory Animal Science Associations 2014 (FELASA), after permission was granted by the Bioethics Committee of Moscow State University (protocol №82-O, 08.06.2017).
Arterial blood pressure (ABP) was measured noninvasively using the photoelectric plethysmography technique [19] at least 3 times for each rat after adaptation and handling. For WKY rats, the ABP was 139 ± 4 mm Hg; for SHR rats, the ABP was 203 ± 4 mm Hg.

2.4. Preparation of Erythrocyte Ghosts

Blood was collected during the decapitation of rats in 15 mL glass tubes containing heparin (10 units/mL). Erythrocyte ghosts (enclosed vesicles consisting of erythrocyte plasma membrane with membrane-bound hemoglobin (Hbmb) and submembrane cytoskeleton without cytosolic Hb) were obtained as described in Reference [12]. Briefly, red blood cell mass was hemolyzed in 20 volumes of phosphate buffer (4.7 mM Na2 HPO4, 0.3 mM NaH2 PO4 (pH 7.4), 4 °C), followed by three washings and centrifugations (3500 g, 40 min). The erythrocyte ghosts were concentrated by centrifugation (13000 g, 40 min).

2.5. SERS Measurements

SERS measurements were performed using an InVia Raman microscope (Renishaw, New Mills, Wotton-under-Edge, Gloucestershire, United Kingdom) equipped with a 20 mW 514 nm argon laser and power neutral density filter (50%). All the spectra were collected using a 20× NA 0.4 objective and 20 s acquisition time. Laser power was 1–5 mM per registration spot. A silicon wafer was used for calibration. The SERS spectra of erythrocytes and erythrocyte ghosts were registered as described previously [12,14]. Before the SERS measurements, suspensions of erythrocyte ghosts were diluted 5 times with the Alen saline (145 mM NaCl, 5 mM KCl, 4 mM Na2 HPO4, 1 mM NaH2 PO4, 1 mM MgSO4, 1 mM CaCl2, pH 7.4). To perform SERS measurements, 300 μL of the suspension of interest were dropped on the AgNSS placed into a glass-bottom Petri dish, then SERS spectra were collected from several places.

2.6. SERS Spectra Analysis and Statistics

SERS spectra were processed using open source software Pyraman available at https://github.com/abrazhe/pyraman accessed on 22 November 2021. The baseline was subtracted in each spectrum and ratios of peaks intensities I1638/I1375, I1175/I1375 and I2872/I2927 were calculated after the baseline substraction.
Statistical data were analyzed using GraphPad Prism 8.4 (https://www.graphpad.com accessed on 22 November 2021). The Mann-Whitney U test was used for group comparisons.

3. Results

3.1. Experimental Design and AgNSS Characterization

Hypertension-related effects were studied in two types of samples obtained from the blood of hypertensive and normotensive rats: on diluted suspensions of erythrocytes and diluted suspensions of erythrocyte ghosts (Figure 1a).
Erythrocyte ghosts serve as a simplified experimental model of the submembrane region of erythrocytes, since they represent enclosed vesicles of the erythrocyte plasma membrane with Hbmb, which maintains its interaction with AE1-exchanger [20,21] (Figure 1b). The submembrane region of intact erythrocytes is more complicated and consists of the plasma membrane, Hbmb interacting with the AE1-exchanger, and the cytoskeleton with some amount of Hbc in close vicinity to the inner membrane surface (Figure 1b). To record SERS spectra from molecules in the submembrane region of the studied preparations a small volume of the diluted erythrocyte or erythrocyte ghost suspension was placed on plasmonic nanostructured surfaces (AgNSS in a glass Petri dish). The AgNSS, which were formed by the ultrasonic spraying method [13], have a complex morphology of intersecting circles consisting of silver nanoparticles of different sizes from 5–20 nm up to 100 nm (Figure 2a).
These nanostructures provide a stable and reproducible SERS signal from purified biomolecules, erythrocytes, and mitochondria, as was demonstrated in our previous works [13,18]. Thus, we have already demonstrated the reproducible SERS spectra from Hbmb in erythrocytes and cytochrome c in mitochondria recorded from various places on the same AgNSS or from different AgNSS. We also showed the stability of SERS spectra of erythrocytes and mitochondria registered from the same region of AgNSS in time proving the absence of AgNSS degradation in the sample and the absence of the erythrocyte or mitochondria damage by nanostructures [13,18].
Before SERS measurements, the AgNSS were characterized by s-SNOM to visualize the light–sample interaction. The s-SNOM image (Figure 2c) revealed the existence of randomly distributed and strongly localized electromagnetic excitations-hot spots [22,23] that originate mainly due to the gaps between conglomerations of Ag nanoparticles. The comparative analysis of the s-SNOM image (recorded at λ = 720 nm) was performed by directly superimposing one on the corresponding topographical image obtained for a typical conglomeration of Ag nanoparticles (Figure 2b,c). The localization of several hot spots can be clearly seen inside the conglomeration; their appearance should be directly attributed to the gaps between individual Ag nanoparticles. The wavelength used for s-SNOM characterization (λ = 720 nm) is far from the 514 nm argon laser that was used in the SERS experiments. However, this is justified since gap-induced field enhancements are associated with the boundary conditions for the electric field [24,25,26] and therefore weakly depend on the excitation wavelength. Such places on AgNSS with high local electric fields ensure the enhancement of Raman scattering from molecules that are localized not only on the AgNSS, but also on some distance from nanoparticles (e.g., all Hb molecules in the submembrane region of erythrocytes and Hbmb in erythrocyte ghosts).

3.2. Spontaneous Hypertension Affects Conformation of Heme in Hb Bound to AE1-Exchanger

The SERS spectra of erythrocytes and erythrocyte ghosts recorded in low-frequency region (600–1800 cm−1) originate mainly from the heme molecules of oxyhemoglobin (oHb) (Figure 3a) [12]. The oxygenation of all hemoglobin molecules in studied samples occurred during the high dilution of blood in erythrocyte suspension and during the procedure of ghost preparation. The complete oxygenation of Hb is attributed to SERS peaks that are sensitive to the Hb oxygenation state: the combination of intensive peaks at 1375, 1585, and 1638 cm−1 is the signature of oHb, whereas peaks assigned to deoxyhemoglobin (1355, 1555, and 1606 cm−1) and methemoglobin (1360–1365, 1565, 1603 cm−1) are absent [16,27,28,29]. The peaks at 1638 and 1585 cm−1 correspond to vibrations of methine bridges; the peaks at 1375 and 1175 cm−1 correspond to symmetric and asymmetric vibrations of pyrrole half rings, respectively; the peak at 1123 cm−1 reflects methyl group vibrations. The SERS spectra of erythrocytes and erythrocyte ghosts were stable over time and reproducible for different AgNSSs or different spots on the same region. Figure S1a (Supporting Information) demonstrates SERS spectra of erythrocyte ghosts recorded from three different regions of AgNSS. It can be seen that the spectrum structure and the input of main peaks into the overall spectrum are similar for all the SERS spectra. The same reproducibility was demonstrated with Hbmb in erythrocytes in our previous work [13], showing the absence of the negative effect of the biological sample on AgNSS and vice versa. An important parameter that is usually used to characterize SERS structures is the enhancement factor (EF). EF is calculated from concentrations of the molecule, giving Raman and SERS spectra and the peak intensities of a chosen peak in Raman and SERS spectra. Figure S1b (Supporting Information) demonstrates the Raman and SERS spectra of erythrocytes with a description of the EF calculation for the peak at 1638 cm−1 estimated to be ≈ 2.5 × 104.
To investigate the conformational properties of Hbmb heme, we calculated the ratios of the SERS peak intensities: I1638/I1375 and I1175/I1375 (Figure 3b,c). The intensity of the peak at 1375 cm−1 is used as a normalizing factor, since its intensity does not depend on the heme conformation and can be regarded as a constant value in our experimental conditions. As was demonstrated earlier [30,31,32], the heme b in Hb predominantly exists in two conformations: planar and domed [30,31,32]. The first ratio, I1638/I1375, shows the probability of the planar heme conformation. The higher this ratio is, the higher the probability of a planar conformation of the heme is [33,34]. Moreover, the use of ratios of peak intensities causes the spectral analysis to be independent of the local SERS signal intensity. Our results clearly indicate the absence of the effect of hypertension on the probability of the planar heme conformation (Figure 3b). The ratio of I1175/I1375 peak intensities represents the probability of the asymmetric pyrrole half-ring vibrations and can be used as a marker of heme mobility: the higher this ratio is, the higher the in-plane mobility of the heme is [33,34]. We found that this ratio is more dispersed in erythrocytes than in erythrocyte ghosts (Figure 3c), which may be explained by the more heterogeneous Hb population in the submembrane region of intact erythrocytes than in erythrocyte ghosts (Figure 1b). We observed no differences in the I1175/I1375 ratio in the SERS spectra of erythrocytes from normotensive and hypertensive rats (Figure 3c). In contrast, we observed a significant decrease in this ratio for erythrocyte ghosts from SHR rats, indicating the decreased in-plane mobility of the heme in Hbmb (Figure 3c). Moreover, this marker negatively correlates with ABP (Figure 4).

3.3. Decreased Fluidity of Plasma Membrane of Erythrocytes under Spontaneous Hypertension

To study the properties of the erythrocyte plasma membrane, we recorded SERS spectra in the high-frequency region (2700–3100 cm−1) from erythrocyte ghosts. The SERS spectra of erythrocyte ghosts contain three main peaks at 2872, 2927, and 2962 cm−1 (Table 1, Figure 3d), corresponding to =CH2 asymmetric, =CH2 symmetric, and –CH3 group vibrations, respectively [35]. These peaks are known to originate from lipids and proteins. In intact erythrocytes, the submembrane region contains different proteins; therefore, we did not record the SERS spectra of intact erythrocytes. In erythrocyte ghosts, lipids are the main component of the membrane region with the only subpopulation of Hb molecules bound to the AE1 protein. Thus, the SERS peaks at 2872, 2927, and 2962 cm−1 are assumed to originate mainly from lipids [15]. The ratio I2872/I2927 may indicate the ordering of the lipid phase. An increase in this ratio indicates an increase in the number of lipids in trans conformation, which make membrane less fluid [36]. We propose the use of the ratio I2872/I2927 to evaluate the fluidity of the erythrocyte ghost membrane (Figure 3e). The observed increase in this ratio indicates a decrease in the membrane fluidity. This ratio is statistically significantly higher in SHR rats (Figure 3e), or rats with elevated ABP. This means that spontaneous hypertension leads to the changes in lipid ordering and fluidity in the plasma membrane of erythrocytes.
We also found that the ratio I2872/I2927 (lipid ordering marker) positively correlates with arterial blood pressure (ABP) in rats (Figure 4a), whereas the ratio I1175/I1375 (reflecting the in-plane mobility of pyrrole half rings in a Hbmb heme) negatively correlates with ABP (Figure 4b). There is no correlation between the ratio I1638/I1375 (the probability of the planar conformation of a Hbmb heme) and ABP (Figure 4c). We notice that there is a strong negative correlation between the ratios I1175/I1375 and I2872/I2927, showing that the in-plane heme mobility in Hbmb decreases with the decrease in the plasma membrane fluidity.

4. Discussion

We applied plasmonic SERS nanostructures to study the properties of the membrane-bound hemoglobin and plasma membrane of erythrocytes and erythrocyte ghosts received from rats with normal and elevated arterial blood pressure. Our results revealed hypertension-induced changes in erythrocyte properties at the molecular level.
It should be noted that high requirements are imposed on SERS nanosensors for biological application–first of all, the reproducibility and stability of the Raman enhancement [37]. The SERS nanosensors used in this study proved themselves to be resistant to the biological preparations and have shown the ability to provide reproducible SERS spectra for a variety of biological objects [13,15,18]. Calculating the ratios of specified SERS peak intensities rather than analyzing absolute peak intensities helps to avoid the influence of variation in signal intensity on the interpretation of the results.
We used the ratio of SERS peak intensities I2872/I2927 to study the microfluidity of erythrocyte plasma membranes. We revealed decreased membrane fluidity in erythrocyte ghost membranes from hypertensive rats (SHR) compared to healthy normotensive rats (WKY) (Figure 3e), which fits well with clinically relevant data [38].
One of the explanations of this phenomenon is the increased level of cholesterol. An increased level of cholesterol in erythrocyte membranes from people with hypertension and other CVD was shown by Raman spectroscopy and EPR [38,39] and commercial enzymatic assays [40,41]. Increasing cholesterol leads to a decrease in membrane fluidity [42,43] and changes in the erythrocyte function [44]. The SERS ratio I2872/I2927 was proposed as a marker of cholesterol amount by Faried et al. [45]. Thus, an increase in this ratio, indicating an increase in the membrane stiffness, may be explained by an increased amount of cholesterol in the erythrocyte plasma membrane.
For the first time, we observed a decrease in the in-plane mobility of heme in Hb bound to AE1-exchanger in hypertensive rats (Figure 3c), which is impossible to detect by other methods. Other powerful techniques such as photoacustics and NIRS [46,47] allow determining only Hbc oxygenation, but not other properties. Raman spectroscopy is able to evaluate oxygenation, the affinity of Hb to oxygen, and the conformational properties of Hbc, but not Hbmb.
We suggest that the detected changes in Hbmb can be explained by the increasing stiffness of the membrane (Figure 4d), which leads to a reduction in the mobility of AE1-exchanger [48], which in turn directly interacts with Hbmb and may affect the conformation and mobility of Hbmb globin. This may reduce the ability of a heme to adapt to changing oxygen concentrations and, thus, to disturb the normal functioning of Hbmb and impair oxygen supply to tissues in hypertensive conditions.

5. Conclusions

The use of SERS plasmonic nanosensors allowed us to detect hypertension-induced changes in the plasma membrane and in the conformation of heme in membrane-bound Hb in erythrocytes and erythrocyte ghosts. We revealed a decrease in erythrocyte plasma membrane fluidity and a decrease in the in-plane mobility of heme pyrrole rings in membrane-bound Hb under hypertension, which may affect the affinity of hemoglobin to oxygen. The proposed SERS-based approach may be used to develop novel diagnostic tools to detect early pathologies and to assess treatment outcomes in CVD and beyond.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios12010032/s1, Figure S1: (a) SERS spectra of erythrocyte ghosts recorded from different places in a randomly chosen AgNSS. X-axis, Raman shift, cm−1; Y-axis, SERS intensity, vertical scale bar corresponds to 1000 arbitr.u. For a clearer representation, the spectra are shifted vertically. Numbers above a peak show maximum positions. The similarity of the spectral structure demonstrates the high reproducibility of the SERS spectra of erythrocyte ghosts. (b) Raman and SERS spectra of erythrocyte suspensions. X-axis, Raman shift, cm−1; Y-axis, Raman or SERS intensity. Raman spectrum (black) was recorded from the erythrocyte suspension obtained by a 50-time blood dilution; SERS spectrum (red) was recorded from an erythrocyte sample obtained by a 2000-time blood dilution. Laser wavelength was 514 nm with a power of 1 mW per registration spot, with 60 s accumulation time; objective 20x, NA 0.4.

Author Contributions

Conceptualization: N.A.B., E.I.N., G.V.M. and O.S. conceived the experiments. N.A.B. and E.I.N. performed SERS experiments and analyzed SERS spectra. A.A.S., E.A.G. and E.I.N. fabricated AgNSS. N.A.B., E.I.N., A.A.B. and Z.V.B. prepared samples. E.I.N., Z.V.B. and A.A.B. measured the parameters of animals. A.A.S. and E.A.G. performed the electron microscopy (SEM) analysis. V.S.V., D.I.Y., S.M.N. and A.V.A. performed SNOM characterization. N.A.B., G.V.M., E.A.G. and O.S. contributed tools and materials. N.A.B. supervised the project. N.A.B., E.I.N., S.M.N. and O.S. drafted the manuscript. All authors discussed the results and edited and commented on the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

E.I.N. and Z.V.B. acknowledge support from Russian Science Foundation for SERS experiments and preparations (RSF, grant number 21–74–00026). s-SNOM studies were funded by the Ministry of Science and Higher Education of the Russian Federation (Agreement No. 075–15–2021–606) and the Russian Foundation for Basic Research (20–07–00475). A.A.S. thanks the Russian Science Foundation for the support used for AgNSS synthesis and SEM characterization (RSF, grant number 20–73–00257). N.A.B. acknowledges support from the Russian Foundation for Basic Research used for the development and the optimization of the Pyraman software for the spectrum analysis (RFBR, grant number 20–04–01011 a). This research has been partially supported by the Interdisciplinary Scientific and Educational School of Moscow University “Molecular Technologies of the Living Systems and Synthetic Biology”.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Bioethics Committee of Moscow State University (protocol №82-O, 08.06.2017).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors acknowledge Artemieva Marina M. for help with the animal study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ganau, L.; Prisco, L.; Ligarotti, G.; Ambu, R.; Ganau, M. Understanding the Pathological Basis of Neurological Diseases Through Diagnostic Platforms Based on Innovations in Biomedical Engineering: New Concepts and Theranostics Perspectives. Medicines 2018, 5, 22. [Google Scholar] [CrossRef] [Green Version]
  2. Beverung, S.; Wu, J.; Steward, R. Lab-on-a-chip for cardiovascular physiology and pathology. Micromachines 2020, 11, 898. [Google Scholar] [CrossRef]
  3. Valpapuram, I.; Candeloro, P.; Coluccio, M.L.; Parrotta, E.I.; Giugni, A.; Das, G.; Cuda, G.; Di Fabrizio, E.; Perozziello, G. Waveguiding and SERS simplified Raman spectroscopy on biological samples. Biosensors 2019, 9, 37. [Google Scholar] [CrossRef] [Green Version]
  4. Pires, P.W.; Dams Ramos, C.M.; Matin, N.; Dorrance, A.M. The effects of hypertension on the cerebral circulation. Am. J. Physiol. Circ. Physiol. 2013, 304, H1598–H1614. [Google Scholar] [CrossRef]
  5. Zhou, W.; Brown, J.M.; Bajaj, N.S.; Chandra, A.; Divakaran, S.; Weber, B.; Bibbo, C.F.; Hainer, J.; Taqueti, V.R.; Dorbala, S.; et al. Hypertensive coronary microvascular dysfunction: A subclinical marker of end organ damage and heart failure. Eur. Heart, J. 2020, 41, 2366–2375. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Semenza, G.L. Oxygen sensing, hypoxia-inducible factors, and disease pathophysiology. Annu. Rev. Pathol. Mech. Dis. 2014, 9, 47–71. [Google Scholar] [CrossRef]
  7. Verbrugge, F.H.; Guazzi, M.; Testani, J.M.; Borlaug, B.A. Altered Hemodynamics and End-Organ Damage in Heart Failure. Circulation 2020, 142, 998–1012. [Google Scholar] [CrossRef]
  8. Böning, D.; Kuebler, W.M.; Bloch, W. The oxygen dissociation curve of blood in COVID-19. Am. J. Physiol.-Lung Cell. Mol. Physiol. 2021, 321, L349–L357. [Google Scholar] [CrossRef] [PubMed]
  9. Yudin, J.; Verhovsek, M. How we diagnose and manage altered oxygen affinity hemoglobin variants. Am. J. Hematol. 2019, 94, 597–603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Smolsky, J.; Kaur, S.; Hayashi, C.; Batra, S.K.; Krasnoslobodtsev, A.V. Surface-enhanced raman scattering-based immunoassay technologies for detection of disease biomarkers. Biosensors 2017, 7, 7. [Google Scholar] [CrossRef] [Green Version]
  11. Pilot, R.; Signorini, R.; Durante, C.; Orian, L.; Bhamidipati, M.; Fabris, L. A review on surface-enhanced Raman scattering. Biosensors 2019, 9, 57. [Google Scholar] [CrossRef] [Green Version]
  12. Brazhe, N.A.; Abdali, S.; Brazhe, A.R.; Luneva, O.G.; Bryzgalova, N.Y.; Parshina, E.Y.; Sosnovtseva, O.V.; Maksimov, G.V. New Insight into Erythrocyte through In Vivo Surface-Enhanced Raman Spectroscopy. Biophys. J. 2009, 97, 3206–3214. [Google Scholar] [CrossRef] [Green Version]
  13. Semenova, A.A.; Goodilin, E.A.; Brazhe, N.A.; Ivanov, V.K.; Baranchikov, A.E.; Lebedev, V.A.; Goldt, A.E.; Sosnovtseva, O.V.; Savilov, S.V.; Egorov, A.V.; et al. Planar SERS nanostructures with stochastic silver ring morphology for biosensor chips. J. Mater. Chem. 2012, 22, 24530–24544. [Google Scholar] [CrossRef]
  14. Sarycheva, A.S.; Brazhe, N.A.; Baizhumanov, A.A.; Nikelshparg, E.I.; Semenova, A.A.; Garshev, A.V.; Baranchikov, A.E.; Ivanov, V.K.; Maksimov, G.V.; Sosnovtseva, O.; et al. New nanocomposites for SERS studies of living cells and mitochondria. J. Mater. Chem. B 2016, 4, 539–546. [Google Scholar] [CrossRef]
  15. Nikelshparg, E.I.; Grivennikova, V.G.; Baizhumanov, A.A.; Semenova, A.A.; Sosnovtseva, V.; Goodilin, E.A.; Maksimov, G.V.; Brazhe, N.A. Probing lipids in biological membranes using SERS. Mendeleev Commun. 2019, 29, 635–637. [Google Scholar] [CrossRef]
  16. Sharma, R.; Premachandra, B.R. Membrane-bound hemoglobin as a marker of oxidative injury in adult and neonatal red blood cells. Biochem. Med. Metab. Biol. 1991, 46, 33–44. [Google Scholar] [CrossRef]
  17. Chu, H.; McKenna, M.M.; Krump, N.A.; Zheng, S.; Mendelsohn, L.; Thein, S.L.; Garrett, L.J.; Bodine, D.M.; Low, P.S. Reversible binding of hemoglobin to band 3 constitutes the molecular switch that mediates O2 regulation of erythrocyte properties. Blood 2016, 128, 2708–2716. [Google Scholar] [CrossRef] [PubMed]
  18. Brazhe, N.A.; Evlyukhin, A.B.; Goodilin, E.A.; Semenova, A.A.; Novikov, S.M.; Bozhevolnyi, S.I.; Chichkov, B.N.; Sarycheva, A.S.; Baizhumanov, A.A.; Nikelshparg, E.I.; et al. Probing cytochrome c in living mitochondria with surface-enhanced Raman spectroscopy. Sci. Rep. 2015, 5, 1–13. [Google Scholar] [CrossRef] [Green Version]
  19. Yamakoshi, K.I.; Kamiya, A. Noninvasive measurement of arterial blood pressure and elastic properties using photoelectric plethysmography technique. Med. Prog. Technol. 1987, 12, 123–143. [Google Scholar] [CrossRef]
  20. Brazhe, N.A.; Parshina, E.Y.; Khabatova, V.V.; Semenova, A.A.; Brazhe, A.R.; Yusipovich, A.I.; Sarycheva, A.S.; Churin, A.A.; Goodilin, E.A.; Maksimov, G.V.; et al. Tuning SERS for living erythrocytes: Focus on nanoparticle size and plasmon resonance position. J. Raman Spectrosc. 2013, 44, 686–694. [Google Scholar] [CrossRef]
  21. Bukara, K.; Jovanić, S.Z.; Drvenica, I.T.; Stančić, A.; Ilić, V.; Rabasović, M.D.; Pantelić, D.V.; Jelenković, B.M.; Bugarski, B.; Krmpot, A.J. Mapping of hemoglobin in erythrocytes and erythrocyte ghosts using two photon excitation fluorescence microscopy. J. Biomed. Opt. 2017, 22, 026003. [Google Scholar] [CrossRef] [Green Version]
  22. Shiohara, A.; Novikov, S.M.; Solís, D.M.; Taboada, J.M.; Obelleiro, F.; Liz-Marzán, L.M. Plasmon Modes and Hot Spots in Gold Nanostar-Satellite Clusters. J. Phys. Chem. C 2015, 119, 10836–10843. [Google Scholar] [CrossRef] [Green Version]
  23. Moskovits, M. Spot the hotspot. Nature 2011, 469, 307–308. [Google Scholar] [CrossRef] [PubMed]
  24. Zenin, V.A.; Andryieuski, A.; Malureanu, R.; Radko, I.P.; Volkov, V.S.; Gramotnev, D.K.; Lavrinenko, A.V.; Bozhevolnyi, S.I. Boosting Local Field Enhancement by on-Chip Nanofocusing and Impedance-Matched Plasmonic Antennas. Nano Lett. 2015, 15, 8148–8154. [Google Scholar] [CrossRef] [Green Version]
  25. Novikov, S.M.; Frydendahl, C.; Beermann, J.; Zenin, V.A.; Stenger, N.; Coello, V.; Mortensen, N.A.; Bozhevolnyi, S.I. White Light Generation and Anisotropic Damage in Gold Films near Percolation Threshold. ACS Photonics 2017, 4, 1207–1215. [Google Scholar] [CrossRef] [Green Version]
  26. Bozhevolnyi, S.I.; Volkov, V.S.; Leosson, K.; Boltasseva, A. Bend loss in surface plasmon polariton band-gap structures. Appl. Phys. Lett. 2001, 79, 1076–1078. [Google Scholar] [CrossRef] [Green Version]
  27. Torres Filho, I.P.; Terner, J.; Pittman, R.N.; Proffitt, E.; Ward, K.R. Measurement of hemoglobin oxygen saturation using Raman microspectroscopy and 532-nm excitation. J. Appl. Physiol. 2008, 104, 1809–1817. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Atkins, C.G.; Buckley, K.; Blades, M.W.; Turner, R.F.B. Raman Spectroscopy of Blood and Blood Components. Appl. Spectrosc. 2017, 71, 767–793. [Google Scholar] [CrossRef]
  29. Gautam, R.; Oh, J.Y.; Marques, M.B.; Dluhy, R.A.; Patel, R.P. Characterization of storage-induced red blood cell hemolysis using Raman spectroscopy. Lab. Med. 2018, 49, 298–310. [Google Scholar] [CrossRef]
  30. Senge, M.O.; MacGowan, S.A.; O’Brien, J.M. Conformational control of cofactors in nature-the influence of protein-induced macrocycle distortion on the biological function of tetrapyrroles. Chem. Commun. 2015, 51, 17031–17063. [Google Scholar] [CrossRef] [Green Version]
  31. Kinschel, D.; Bacellar, C.; Cannelli, O.; Sorokin, B.; Katayama, T.; Mancini, G.F.; Rouxel, J.R.; Obara, Y.; Nishitani, J.; Ito, H.; et al. Femtosecond X-ray emission study of the spin cross-over dynamics in haem proteins. Nat. Commun. 2020, 11, 1–8. [Google Scholar] [CrossRef]
  32. Perutz, M.F.; Wilkinson, A.J.; Paoli, M.; Dodson, G.G. The stereochemical mechanism of the cooperative effects in hemoglobin revisited. Annu. Rev. Biophys. Biomol. Struct. 1998, 27, 1–34. [Google Scholar] [CrossRef] [PubMed]
  33. Brazhe, N.A.; Nikelshparg, E.I.; Baizhumanov, A.A.; Grivennikova, V.G.; Semenova, A.A.; Novikov, S.M.; Volkov, V.S.; Arsenin, A.V.; Yakubovsky, D.I.; Evlyukhin, A.B.; et al. SERS uncovers the link between conformation of cytochrome c heme and mitochondrial membrane potential. bioRxiv 2021, 1–33. [Google Scholar] [CrossRef]
  34. Chertkova, R.V.; Brazhe, N.A.; Bryantseva, T.V.; Nekrasov, A.N.; Dolgikh, D.A.; Yusipovich, A.I.; Sosnovtseva, O.; Maksimov, G.V.; Rubin, A.B.; Kirpichnikov, M.P. New insight into the mechanism of mitochondrial cytochrome c function. PLoS ONE 2017, 12, e0178280. [Google Scholar] [CrossRef] [PubMed]
  35. Czamara, K.; Majzner, K.; Pacia, M.Z.; Kochan, K.; Kaczor, A.; Baranska, M. Raman spectroscopy of lipids: A review. J. Raman Spectrosc. 2015, 46, 4–20. [Google Scholar] [CrossRef]
  36. Kutuzov, N.P.; Brazhe, A.R.; Yusipovich, A.I.; Maksimov, G.V.; Dracheva, O.E.; Lyaskovskiy, V.L.; Bulygin, F.V.; Rubin, A.B. ATP-induced lipid membrane reordering in the myelinated nerve fiber identified using Raman spectroscopy. Laser Phys. Lett. 2013, 10, 075606. [Google Scholar] [CrossRef]
  37. Shvalya, V.; Filipič, G.; Zavašnik, J.; Abdulhalim, I.; Cvelbar, U. Surface-enhanced Raman spectroscopy for chemical and biological sensing using nanoplasmonics: The relevance of interparticle spacing and surface morphology. Appl. Phys. Rev. 2020, 7, 031307. [Google Scholar] [CrossRef]
  38. Luneva, O.G.; Brazhe, N.A.; Maksimova, N.V.; Rodnenkov, O.V.; Parshina, E.Y.; Bryzgalova, N.Y.; Maksimov, G.V.; Rubin, A.B.; Orlov, S.N.; Chazov, E.I. Ion transport, membrane fluidity and haemoglobin conformation in erythrocyte from patients with cardiovascular diseases: Role of augmented plasma cholesterol. Pathophysiology 2007, 14, 41–46. [Google Scholar] [CrossRef] [PubMed]
  39. Yusipovich, A.I.; Braze, N.A.; Luneva, O.G.; Parshina, E.Y.; Churin, A.A.; Rodnenkov, O.V.; Maksimov, G.V. Changes in the state of hemoglobin in patients with coronary heart disease and patients with circulatory failure. Bull. Exp. Biol. Med. 2013, 155, 233–235. [Google Scholar] [CrossRef] [PubMed]
  40. Tziakas, D.N.; Kaski, J.C.; Chalikias, G.K.; Romero, C.; Fredericks, S.; Tentes, I.K.; Kortsaris, A.X.; Hatseras, D.I.; Holt, D.W. Total Cholesterol Content of Erythrocyte Membranes Is Increased in Patients With Acute Coronary Syndrome. A New Marker of Clinical Instability? J. Am. Coll. Cardiol. 2007, 49, 2081–2089. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Zhong, Y.; Tang, H.; Zeng, Q.; Wang, X.; Yi, G.; Meng, K.; Mao, Y.; Mao, X. Total cholesterol content of erythrocyte membranes is associated with the severity of coronary artery disease and the therapeutic effect of rosuvastatin. Ups. J. Med. Sci. 2012, 117, 390–398. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Khatibzadeh, N.; Gupta, S.; Farrell, B.; Brownell, W.E.; Anvari, B. Effects of cholesterol on nano-mechanical properties of the living cell plasma membrane. Soft Matter 2012, 8, 8350–8360. [Google Scholar] [CrossRef] [PubMed]
  43. Ayee, M.A.; Levitan, I. Paradoxical impact of cholesterol on lipid packing and cell stiffness. Front. Biosci. - Landmark 2016, 21, 1245–1259. [Google Scholar] [CrossRef] [Green Version]
  44. Forsyth, A.M.; Braunmüller, S.; Wan, J.; Franke, T.; Stone, H.A. The effects of membrane cholesterol and simvastatin on red blood cell deformability and ATP release. Microvasc. Res. 2012, 83, 347–351. [Google Scholar] [CrossRef] [PubMed]
  45. Faried, M.; Suga, K.; Okamoto, Y.; Shameli, K.; Miyake, M.; Umakoshi, H. Membrane Surface-Enhanced Raman Spectroscopy for Cholesterol-Modified Lipid Systems: Effect of Gold Nanoparticle Size. ACS Omega 2019, 4, 13687–13695. [Google Scholar] [CrossRef]
  46. Yao, J.; Wang, L.; Yang, J.M.; Maslov, K.I.; Wong, T.T.W.; Li, L.; Huang, C.H.; Zou, J.; Wang, L.V. High-speed label-free functional photoacoustic microscopy of mouse brain in action. Nat. Methods 2015, 12, 407–410. [Google Scholar] [CrossRef]
  47. Nolfi-Donegan, D.; Braganza, A.; Shiva, S. Mitochondrial electron transport chain: Oxidative phosphorylation, oxidant production, and methods of measurement. Redox Biol. 2020, 37, 101674. [Google Scholar] [CrossRef]
  48. De Vecchis, D.; Reithmeier, R.A.F.; Kalli, A.C. Molecular Simulations of Intact Anion Exchanger 1 Reveal Specific Domain and Lipid Interactions. Biophys. J. 2019, 117, 1364–1379. [Google Scholar] [CrossRef] [Green Version]
Biosensors 12 00032 g001 550

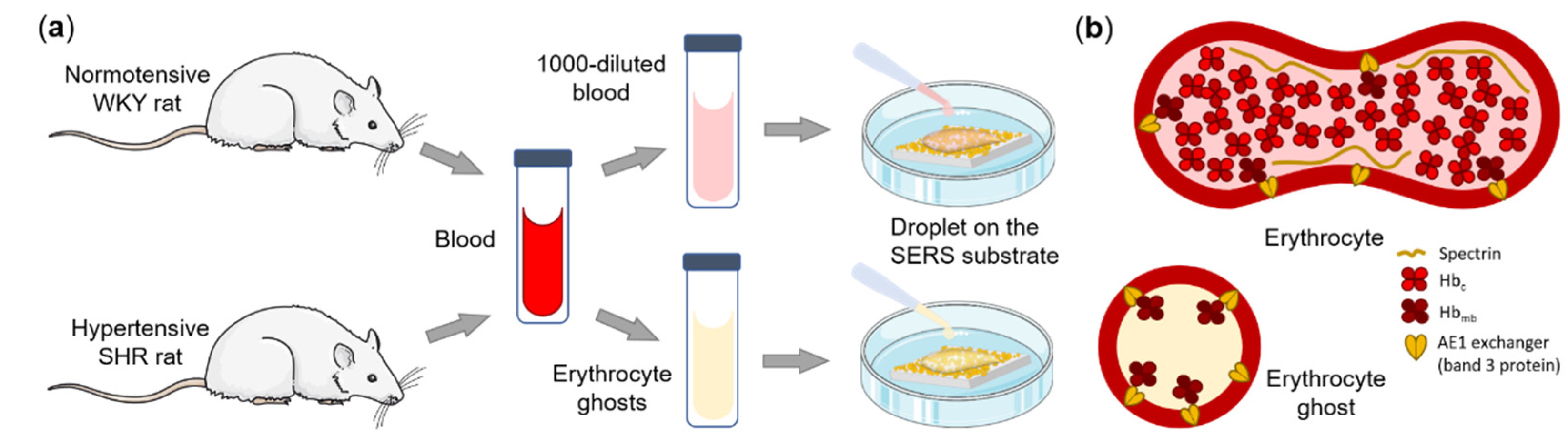

Figure 1. Schematic illustration of (a) the experimental design and (b) cross-sections of an erythrocyte and an erythrocyte ghost demonstrating the non-homogeneity of hemoglobin molecules in the submembrane region of erythrocytes and the homogeneity of hemoglobin bound to AE1-exchanger in erythrocyte ghosts-enclosed vesicles of erythrocyte plasma membrane.
Figure 1. Schematic illustration of (a) the experimental design and (b) cross-sections of an erythrocyte and an erythrocyte ghost demonstrating the non-homogeneity of hemoglobin molecules in the submembrane region of erythrocytes and the homogeneity of hemoglobin bound to AE1-exchanger in erythrocyte ghosts-enclosed vesicles of erythrocyte plasma membrane.
Biosensors 12 00032 g001
Biosensors 12 00032 g002 550

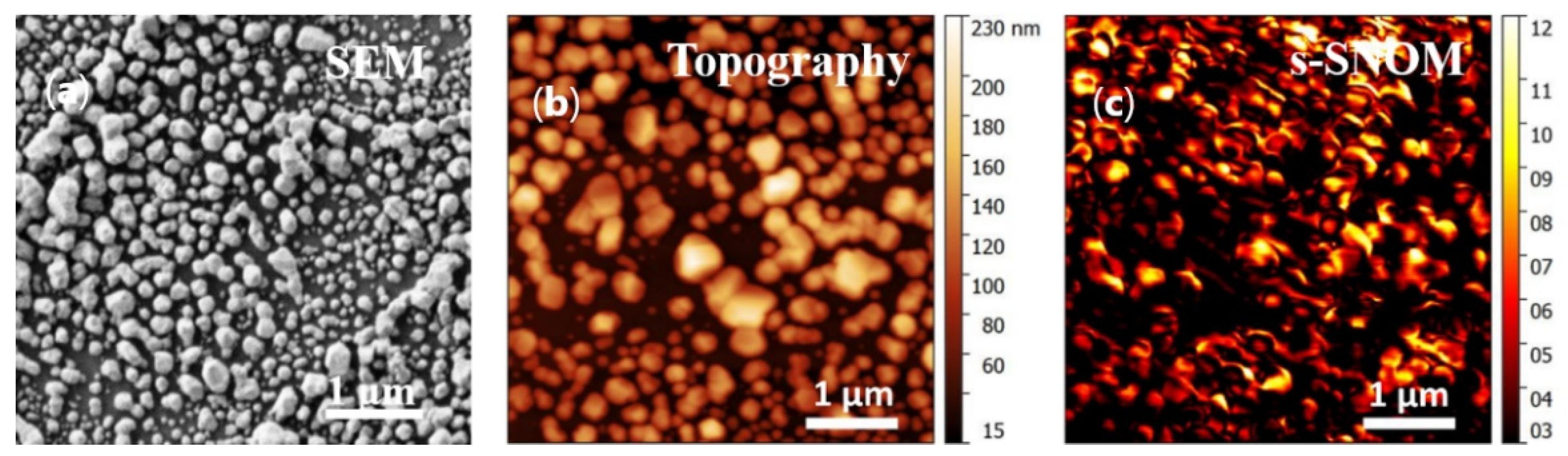

Figure 2. Characterization of plasmonic nanostructured surfaces. (a) SEM image of AgNSS; (b) topographical (AFM) image of AgNSS aggregates; (c) typical pseudo-color s-SNOM image (5 × 5 μm2) of Ag nanoparticles obtained at the wavelength λ = 720 nm. The color scale (c) shows the optical near-field intensity in arbitrary units.
Figure 2. Characterization of plasmonic nanostructured surfaces. (a) SEM image of AgNSS; (b) topographical (AFM) image of AgNSS aggregates; (c) typical pseudo-color s-SNOM image (5 × 5 μm2) of Ag nanoparticles obtained at the wavelength λ = 720 nm. The color scale (c) shows the optical near-field intensity in arbitrary units.
Biosensors 12 00032 g002
Biosensors 12 00032 g003 550

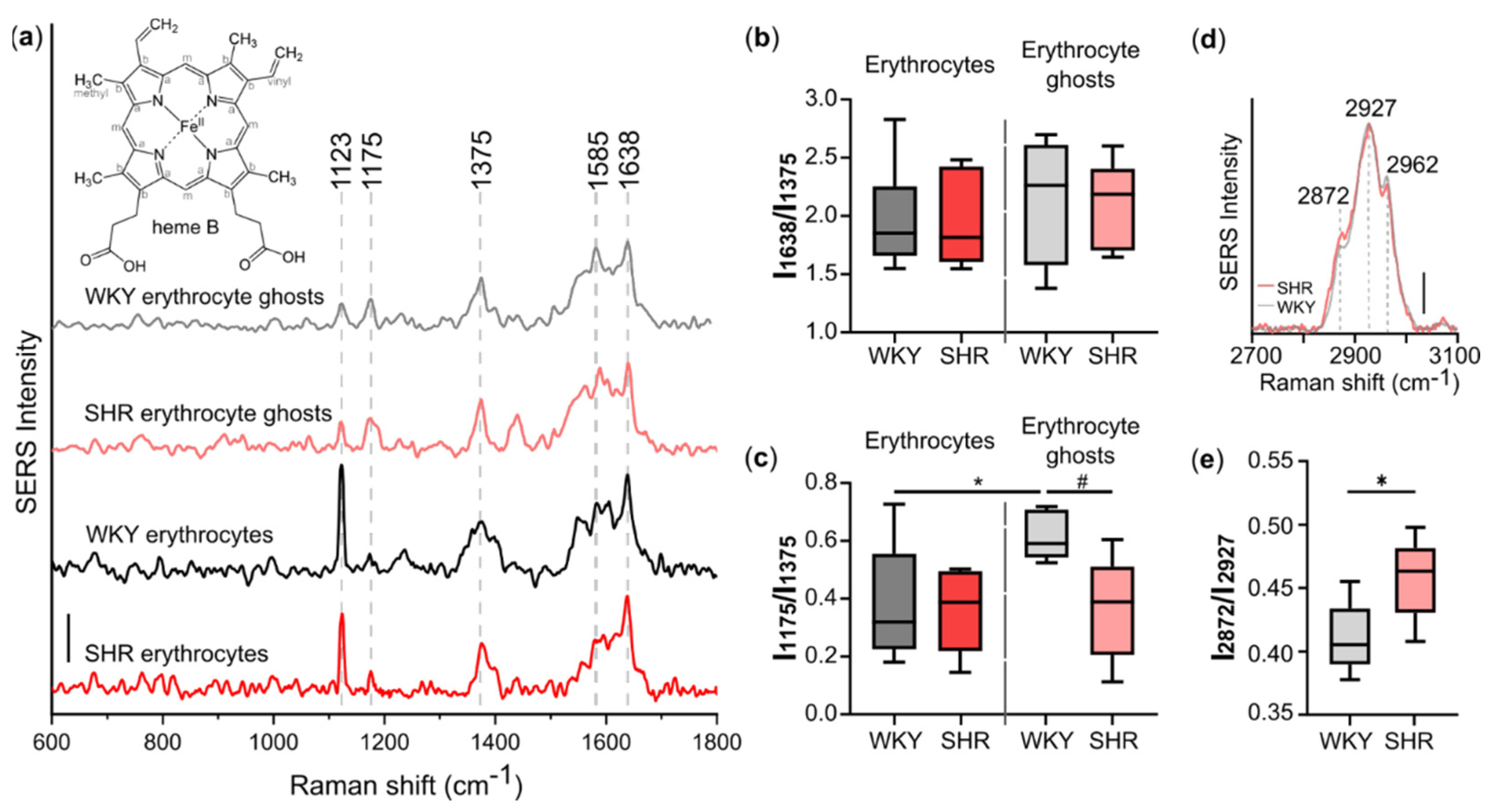

Figure 3. Hypertension-related effects. (a) SERS spectra of erythrocyte ghosts and erythrocytes from WKY rats and SHR in the low-frequency region. Spectra are normalized by the intensity of the peak at 1375 cm−1. Spectra are shifted vertically for a better presentation. Numbers above peaks correspond to the peak positions (in cm−1). Scale 0.5 a. u. (b) The ratio I1638/I1375 (the probability of the planar heme conformation) and (c) the ratio I1175/I1375 (in-plane heme mobility) calculated from the SERS spectra of erythrocytes and erythrocyte ghosts from WKY rats (grey boxes) and SHR (red boxes). * p < 0.05; # p = 0.0556 (Mann-Whitney test). (d) SERS spectra of erythrocyte ghosts from WKY rats (gray) and SHR (red) in the high-frequency region. Spectra are normalized by the intensity of the peak 2927 cm−1. Numbers above peaks correspond to the peak positions (in cm−1). Scale 0.2 a. u. (e) The ratio I2872/I2927 reflects the ordering of the lipid phase in the membrane of erythrocyte ghosts. * p < 0.05 (Mann-Whitney test).
Figure 3. Hypertension-related effects. (a) SERS spectra of erythrocyte ghosts and erythrocytes from WKY rats and SHR in the low-frequency region. Spectra are normalized by the intensity of the peak at 1375 cm−1. Spectra are shifted vertically for a better presentation. Numbers above peaks correspond to the peak positions (in cm−1). Scale 0.5 a. u. (b) The ratio I1638/I1375 (the probability of the planar heme conformation) and (c) the ratio I1175/I1375 (in-plane heme mobility) calculated from the SERS spectra of erythrocytes and erythrocyte ghosts from WKY rats (grey boxes) and SHR (red boxes). * p < 0.05; # p = 0.0556 (Mann-Whitney test). (d) SERS spectra of erythrocyte ghosts from WKY rats (gray) and SHR (red) in the high-frequency region. Spectra are normalized by the intensity of the peak 2927 cm−1. Numbers above peaks correspond to the peak positions (in cm−1). Scale 0.2 a. u. (e) The ratio I2872/I2927 reflects the ordering of the lipid phase in the membrane of erythrocyte ghosts. * p < 0.05 (Mann-Whitney test).
Biosensors 12 00032 g003
Biosensors 12 00032 g004 550

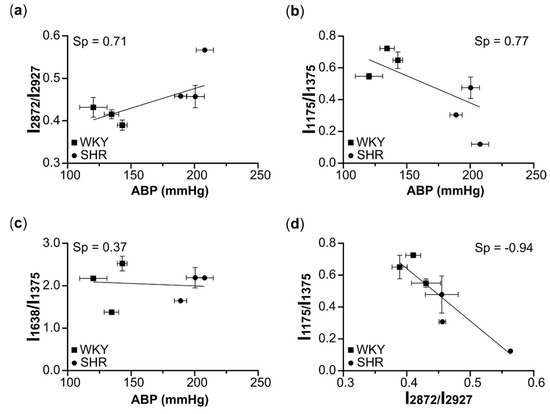

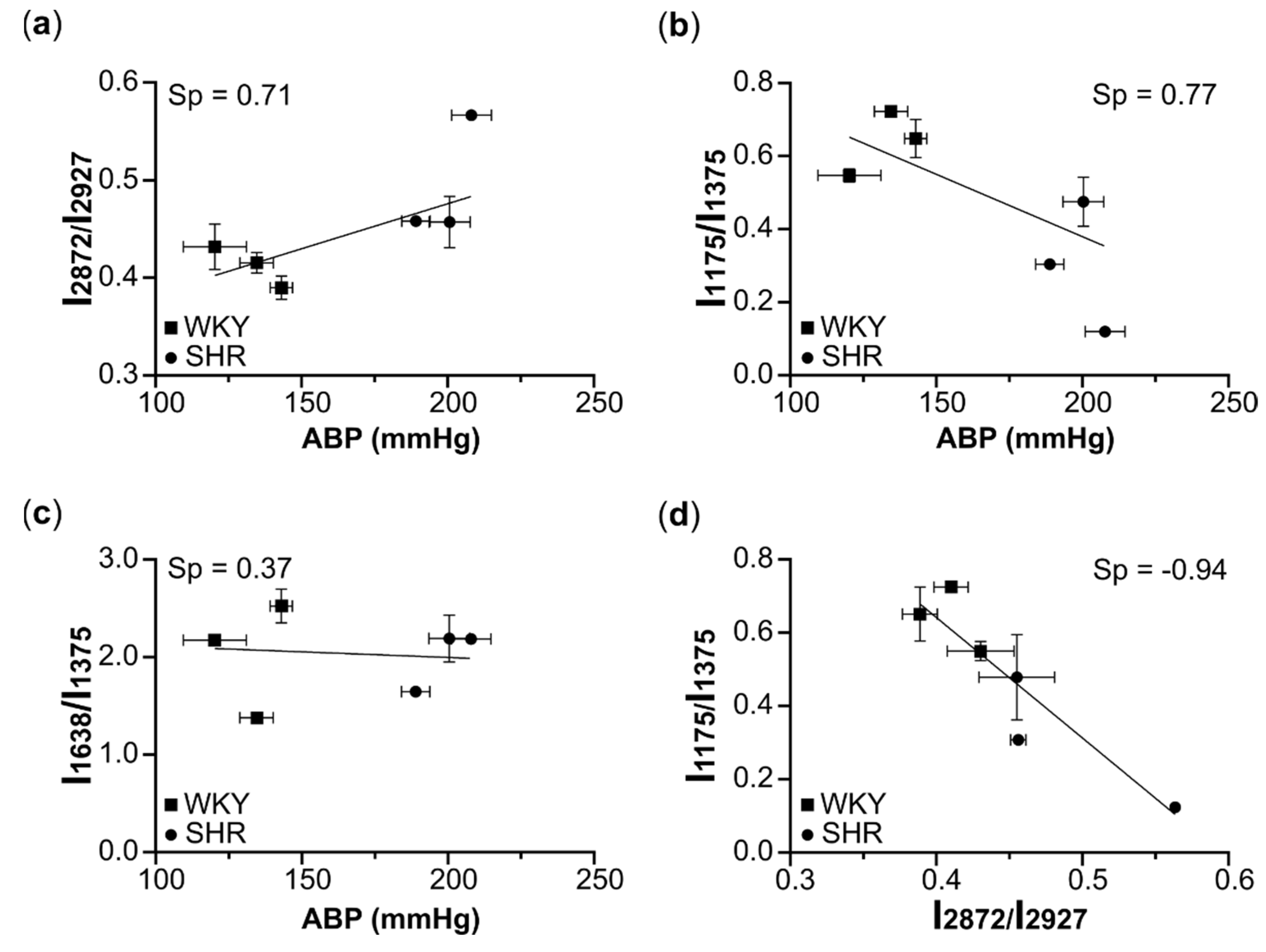

Figure 4. Correlations between different SERS parameters. (a–c) Correlations between arterial blood pressure (ABP) (x-axis) and the ratios (y-axis) of peak intensities in the SERS spectra of erythrocyte ghosts from WKY (squares) and SHR (circles) rats. (d) Correlation between the ratios corresponding to in-plane Hb heme mobility and the stiffness of plasma membrane of erythrocyte ghosts. Sp, Spearman correlation coefficient.
