Microfluidic One-Pot Digital Droplet FISH Using LNA/DNA Molecular Beacons for Bacteria Detection and Absolute Quantification

by
Yu-Ting Kao
1,2,
Silvia Calabrese
3,
Nadine Borst
1,3,
Michael Lehnert
3,
Yu-Kai Lai
1,2,3,
Franziska Schlenker
3,
Peter Juelg
3,
Roland Zengerle
1,3,
Piotr Garstecki
2 and
Felix von Stetten
1,3,*
1
Laboratory for MEMS Applications, IMTEK-Department of Microsystems Engineering, University of Freiburg, Georges-Koehler-Allee 103, 79110 Freiburg, Germany
2
Institute of Physical Chemistry, Polish Academy of Sciences, Kasprzaka 44/52, 01-224 Warsaw, Poland
3
Hahn-Schickard, Georges-Koehler-Allee 103, 79110 Freiburg, Germany
*
Author to whom correspondence should be addressed.
Biosensors 2022, 12(4), 237; https://doi.org/10.3390/bios12040237
Submission received: 5 March 2022 / Revised: 6 April 2022 / Accepted: 10 April 2022 / Published: 12 April 2022
(This article belongs to the Special Issue Lab on a Chip Technology for Pathogen Detection and Disease Diagnosis)
Browse Figures
Versions Notes

Abstract

:
We demonstrate detection and quantification of bacterial load with a novel microfluidic one-pot wash-free fluorescence in situ hybridization (FISH) assay in droplets. The method offers minimal manual workload by only requiring mixing of the sample with reagents and loading it into a microfluidic cartridge. By centrifugal microfluidic step emulsification, our method partitioned the sample into 210 pL (73 µm in diameter) droplets for bacterial encapsulation followed by in situ permeabilization, hybridization, and signal detection. Employing locked nucleic acid (LNA)/DNA molecular beacons (LNA/DNA MBs) and NaCl-urea based hybridization buffer, the assay was characterized with Escherichia coli, Klebsiella pneumonia, and Proteus mirabilis. The assay performed with single-cell sensitivity, a 4-log dynamic range from a lower limit of quantification (LLOQ) at ~3 × 103 bacteria/mL to an upper limit of quantification (ULOQ) at ~3 × 107 bacteria/mL, anda linearity R2 = 0.976. The total time-to-results for detection and quantification was around 1.5 hours.

1. Introduction

Detection and enumeration of bacteria are important in various fields, such as medicine [1], public health [2], food safety [3], and water quality control [4]. The presence of bacteria and their concentration must be determined in order to assess and control health hazards to humans, prevent bacterial outbreaks, diagnose bacterial infections, provide a proper treatment and further avoid antibiotic abuse. Current widely used culture-based gold standards for the detection and enumeration of bacteria relies on manually making dilution series of the sample and cultivating them on agar plates, followed by counting the colony forming units (CFU) [5]. However, this standard method is time-consuming and labor intensive. Although laboratory automation, such as automated spiral plating [6] increases lab throughput by omitting manual dilutions and plating steps, bacteria counting can only be performed after extended incubation, e.g., 18 to 24 hours, to enable colonies of sufficient size for optical counting. These culture-based methods only count the bacteria that grow on the agar plates and underestimate viable but non-culturable (VBNC) bacteria [7] that pose a risk to public health [8,9].
In contrast to culture-based methods, rapid molecular methods can detect both culturable and non-culturable bacteria without an extended incubation time. Among the molecular methods, quantitative real-time polymerase chain reaction (real-time PCR or qPCR) has been demonstrated to be much less time-consuming for identifying and enumerating microbes from complex backgrounds [10,11]. However, DNA extraction is a crucial step in qPCR [12,13]. The presence of inhibitors in complex samples and in the extracted DNA may lead to unreliable results [14,15], especially in samples with low concentrations of the analytes. In addition, the relative quantification of bacteria requires the generation of additional standard curves [10,11,16,17] to obtain the number of bacteria. This number of bacteria is usually obtained from conventional counting methods, which are prone to errors because of the dilution series.
Fluorescence in situ hybridization (FISH) is a molecular cytogenetic technique based on the selective binding of fluorescence-labelled oligo-nucleotide probes to complementary DNA or RNA sequences inside the cells. It is also widely used for microbial identification by targeting ribosomal RNA (rRNA) [18,19]. As an advantage, this technique does not require nucleic acid isolation and is amplification-free without the risks of false-positive results caused by amplicon carry-over, which may occur in amplification based methods such as PCR [14]. On the other hand, a FISH protocol still requires a number of processing steps for fixation/permeabilization, hybridization, and several washing steps to remove excess unbound probes [20]. Insufficient washing can result in high background fluorescence signals, which makes target detection difficult. The enumeration of bacteria by FISH is commonly based on fluorescence microscopy or flow cytometry [19]. Although microscopic counting is frequently used, reliable statistical analyses require that a minimum of 20 random microscopic fields, or a minimum of 350 bacteria, are counted on a glass slide [21]. Even with the help of a counting chamber, particularly a hemocytometer, there is a lower limit for an accurate count of 2.5 × 105 bacteria/mL [22]. Flow cytometers serve as high throughput counting tools that count at least 1000 particles per second [23]. Nevertheless, flow cytometers are often expensive, bulky, and do not provide a visual check for the counted bacteria. In addition, for a direct bacterial count, precise control of the flow and recording of the sample volume is necessary, which is not a feature of all flow cytometers.Accordingly, additional reference beads are required for absolute bacterial counting [24]. To this end, there is a need to further improve the FISH technique and facilitate its quantification method.
Droplet digital assays provide an opportunity for absolute quantification of bacteria with reduced time-to-results compared to plate counting methods [25,26,27,28,29]. Bacteria samples are partitioned into droplets, which results in a statistical distribution. By counting the portion of droplets containing bacteria among the total number of droplets, the bacterial concentration can be determined by Poisson distribution [30]. Most droplet digital assays for bacterial quantification measured the growth of bacteria through either metabolism [25,26,29] or turbidity [27], whereas direct droplet digital PCR (dddPCR) [28] tookadvantage of PCR but omitted the DNA extraction steps by lysing the bacteria directly in the droplets. However, performing PCR requires thermal cycling equipment. In contrast, isothermal amplification, such as loop-mediated isothermal amplification (LAMP), is not suitable for high degrees of multiplexing [31]. Both amplification methods are challenging when designing a multiplex assay since the primer pairs and probes have to be adapted to other primer pairs to decrease mutual complementarity [20]. In contrast, FISH only requires the design of one single probe per target.
In order to perform a FISH assay in droplets, molecular beacons (MBs) offer the potential of avoiding the washing steps since the fluorescent signal is only emitted upon binding to the target sequences [32]. This mechanism allows MBs to detect nucleic acid targets without the separation of excess probes/reagents in a FISH assay. Researchers have developed an amplification-free assay by using peptide nucleic acid (PNA) MBs binding to a bacterial lysate in droplets [33,34]. PNA is a synthetic DNA analogue that has a neutral peptide backbone instead of the deoxyribose phosphate backbone of DNA [35]. The non-charged nature of the PNA backbone improves thermal stability, has more rapid hybridization kinetics, and has higher specificity compared with DNA probes [36]. However, PNA has been shown to have a propensity to self-aggregate and fold that interferes with duplex formation [37]. Moreover, its solubility varies with the PNA sequence [38]. Another possibility for improving the thermal stability of hybridization is using locked nucleic acid (LNA) [39]. LNA is an RNA analogue that has higher solubility rates than PNA. Therefore, LNA MBs could be a good candidate for the integration of the FISH assay in droplets for absolute quantification of bacteria. Even though the hybridization kinetics of the LNA probes are relatively slow when incorporated into MB [40], the high energy barrier for opening the MB can be overcome by adjusting the stem length, the number of integrated LNA monomers, and the sequence composition [37].
In this paper, we demonstrate a workflow for a wash-free digital droplet-FISH assay, merging the advantages of a simple probe design, multiplexing potential, minimum preparatory steps, a short incubation time, and the absolute quantification of bacteria. To our knowledge, there are no quantitative and fully integrated FISH assays taking advantage of the power of droplet microfluidics at present. The novel one-pot digital droplet-FISH assay is presented in Figure 1, which comprises partitioning the bacteria into droplets by centrifugal microfluidic step emulsification, in situ cell permeabilization, probe-to-target hybridization, and fluorescence signal detection. Our guidelines for the design and optimization of the high affinity LNA/DNA molecular beacons is provided in the Supplementary Materials.

2. Materials and Methods

2.1. Bacteria Cultivation

Escherichia coli (E. coli, DSM 6897), Klebsiella pneumonia (K. pneumonia, DSM 30104), and Proteus mirabilis (P. mirabilis, DSM 4479) were cultured in 1.5% Luria-Bertani (LB) (Carl Roth, Germany) agar plates overnight at 37 °C. Cultures were started from single colonies in LB broth. These overnight cultured bacterial suspensions were subcultured in fresh LB broth to mid-log phase for experiments.

2.2. LNA/DNA MB Design

The sequences of the designed MBs were modified from probe EUB338 [18]. Nucleotides, complementary to the 3′ end of the probe, were added to the 5′ end of the original probe, so that a stem-loop structure could form. Furthermore, LNA monomers were incorporated every third base into the MBs since it has been shown to refrain from RNA degradation and exhibit faster hybridization kinetics with greater signal enhancement [37]. The LNA incorporating DNA MBs are referred as LNA/DNA MBs here. The optimal LNA/DNA MB sequence used in this study was ATTO647N-TCCGCTGCCTCCCGTAGGA-BHQ-2. Nucleotides in bold target the domain Bacteria (S-D-Bact-0338-a-A-18 [18]); letters in red are LNA monomers; letters in black are DNA monomers; and the underlined nucleotides form a stem structure due to self-complementarity. The LNA/DNA MBs were synthesized by Integrated DNA Technologies (Coralville, IA, USA).

2.3. Microfluidic One-Pot Digital Droplet-FISH Workflow on a LabDisk

The workflow for microfluidic one-pot digital droplet-FISH (Figure 1A) is as follows: 1 µL of the sample (bacterial culture) is mixed with 9 µL of hybridization and permeabilization buffer containing 0.02 mM Tris-HCl (pH 7.0) (Thermo Fisher Scientific, Darmstadt, Germany), 900 mM NaCl (Promega, Walldorf, Germany), 1 M urea (Thermo Fisher Scientific, Germany), 60 µM cecropin P1 (CP1) (Bachem, Bubendorf, Switzerland), 25 nM LNA/DNA MBs (Integrated DNA Technologies, Coralville, IA, USA) in a 0.2 mL PCR tube (QIAGEN, Hilden, Germany) by pipetting. The microfluidic cartridge (LabDisk) used for partitioning was actuated by a customized centrifuge equipped with temperature control (LabDisk Player 1, Figure S1A, DIALUNOX, formerly QIAGEN Lake Constance, Germany). Details and configurations of the LabDisk are shown in Figure S1B. Partitioning of the sample into ~47,600 droplets with a diameter of 73 µm (210 pL) was performed at room temperature (RT) by centrifugal step emulsification as described in previous work [41]. The size and volume distribution of the droplets are shown in Figure S1C,D. To prepare the LabDisk for partitioning of the sample, 6 μL of 3MTM NovecTM 7500 fluorinated oil containing 5% dSURF surfactants (Fluigent, Le Kremlin-Bicêtre, France) were pre-loaded into each inlet of the droplet generation units and centrifuged at 40 Hz (acceleration 15 Hz/s) for 2 minutes. Next, 10 μL of each sample mixed with hybridization and permeabilization buffer were loaded and centrifuged at 18.5 Hz (acceleration 40 Hz/s) for 8 minutes for droplet generation. The cartridge was incubated for 30 min at 25 °C for permeabilization of bacteria by CP1 and then a further 30 minutes at 70 °C for hybridization of the MBs with bacterial 16S rRNA.

2.4. Detection of Single Bacteria in Droplets and Data Processing for Absolute Quantification

Fluorescence images at excitation/emission wavelengths of 633/685 nm and bright field images were taken by confocal microscopy (LSM 880 Observer, ZEISS, Oberkochen, Germany). Bright field images were used for the analysis of droplet numbers and size, and were analyzed by a customized MATLAB [42] (The MathWorks, Natick, MA, USA) program (Figure S2). Fiji [43] with the function of “Cell Counter” was used to count (mark) the droplets that contained bacteria (red fluorescence dots) (Figure S3), which were considered positive droplets.
The concentration of bacteria was calculated by Poisson distribution. Around 4,000 to 5,000 droplets were analyzed in each reaction chamber. The total number of analyzed droplets (N) and the number of positive droplets (N+) were counted. The concentration of bacteria (C) was determined as C = λ/ν, where λ is the average number of bacteria per droplet, which can be calculated by −ln (1 − N+/N), and ν is the average volume of the droplets. For comparison of digital droplet-FISH count with the reference count, the expected bacterial concentration (reference count) from the initial culture was determined using disposable hemocytometer chips (C-Chips DHC-N01, NanoEnTek, Seoul, Korea) by following the manual instruction (cell/mL = average count per square × dilution factor × 104 (volume factor)) under the microscope (Axio Observer, ZEISS, Oberkochen, Germany) using 400× magnification.

3. Results and Discussion

3.1. Microfluidic One-Pot Digital Droplet-FISH Assay

Our microfluidic one-pot (e.g., wash-free) digital droplet-FISH assay is an amplification-free assay performed in picoliter-droplets using CP1 to permeabilize bacterial cell membranes and permit LNA/DNA MBs to hybridize with 16S rRNA, which generates a fluorescence signal allowing bacteria detection (Figure 1B). This assay circumvents all washing steps that typically exists in conventional FISH assays and can absolutely quantify bacteria by digital counting.
To design the microfluidic one-pot and wash-free digital droplet-FISH assay, a high fluorescence signal-to-noise (S/N) ratio is of importance to differentiate the fluorescence signal from MB-binding bacteria and the background within the droplet, which still contain MBs with quenched fluorescence signals. In addition, the one-pot droplet-FISH assay is a direct probe-target binding assay without amplification of the target sequences, so the fluorescence signal is limited to the gene abundance of the bacteria. Since our target is bacterial 16S rRNA and the cellular abundance of rRNA varies between bacterial species (e.g., Mycobacterium tuberculosis have 102–103 copies of rRNA per bacterial cell, whereas E. coli may have as many as 104–105 copies [44]), those species with a low copy number of rRNA might lead to insufficient signal intensities for detection. Therefore, a higher fluorescence intensity is also preferable for signal detection and direct visualization of bacteria in droplets. For the above reasons, optimization of the hybridization of the MBs is essential.
Detailed optimization process for hybridization conditions is reported in the Supplementary Materials. We found that LNA/DNA MB with 3 stems, ATTO647N as the fluorophore, and BHQ-2 as the quencher hybridized with synthetic templates in a urea-NaCl-based hybridization buffer displayedthe highest S/N ratio and fluorescence intensity (Figure S4). Furthermore, to distinguish single mismatch sequences and provide better specificity, a hybridization temperature of 70 °C was chosen (Figure S5). After the determination of the hybridization temperature, the concentration of LNA/DNA MBs have to be adapted for the low template concentration prevailing in a single bacterium. The results showed that 25 nM of LNA/DNA MBs hybridized with 10 nM synthetic template or a bacterial crude lysate provided the highest S/N ratio for the tested range of concentrations (Figure S6). Therefore, 25 nM of 3 stem LNA/DNA MBs containing a ATTO647N fluorophore and a BHQ-2 quencher hybridized with bacteria in a urea-NaCl-based hybridization buffer at 70 °C was used in our one-pot droplet-FISH assay.

3.2. Microfluidic One-Pot Digital Droplet-FISH Assay for Bacteria Detection at the Single Cell Level

After the optimization of the LNA/DNA MBs and hybridization conditions, the assay was integrated into a microfluidic one-pot digital droplet-FISH assay for bacterial detection. E. coli were encapsulated in 210 pL droplets where in situ permeabilization and in situ hybridization took place. To ensure single cell encapsulation (either 0 or 1 bacteria per droplet), the expected mean occupancy (λ) should be ≤0.1 [45,46]. In this experiment, the mean occupancy of bacteria per droplet was 0.05. This means that approximately 5% of total droplets yielded a single bacterium. As shown in Figure 2, singularization of the bacteria could be achieved. Furthermore, higher magnification of the microscopic images revealed clearly that the fluorescence signal was emitted from a single bacterium inside a droplet (Figure 2B,C) and that positive droplets (yielding a single E. coli) could be differentiated from negative droplets (no bacterial cells inside the droplets), which makes this technique suitable for a digital enumeration assay. In the following section, the results of digital quantification are presented.
The applied permeabilizer, CP1, is a linear cationic α-helical peptide that disrupts the membrane by orienting parallel to the surface of the lipid bilayer and forming pores (carpet mechanism) [47]. CP1 was shown to be highly effective in causing permeabilization of the membrane of bacteria [48]. In the case of the Gram-negative bacteria demonstrated here, CP1 permeabilizes both the outer membrane (primarily a coat of lipopolysaccharide) and the inner membrane (comprised of phospholipid) [49] so that LNA/DNA MBs can diffuse into the bacteria and bind to bacterial 16S rRNA (Figure 1B). It has been demonstrated that CP1-treated E. coli had pores ranging from 4.2–9.6 nm [50]. We then calculated the hydrodynamic radius (Rh) of the presented LNA/DNA MB byliterature [51] and found the size of the LNA/DNA MBs (Rh = 0.04 nm) is much smaller than the pores. Furthermore, there is a peptidoglycan layer between the outer and inner membranes of Gram-negative bacteria that is accessible to molecules with the molecular weight in the range 30–57 kDa [52]. Since the molecular weight of our LNA/DNA MB is 7.27 kDa, the LNA/DNA MBs should easily diffuse and pass through the porous peptidoglycan layer. Accordingly, we observed bacteria presenting a fluorescence signal throughout the entire bacterial cell (Figure 2), which proved the accessibility of LNA/DNA MB for bacterial cells.
As shown in Figure 2A, some droplets displayed a fluorescence signal within the entire droplet, and in some of the droplets, only bacteria had the fluorescence signal. The presence of a fluorescence signal in the whole droplet likely implies that some free bacterial 16S rRNA was released through the pore of the bacterial cell membrane. The formation and dissociation of pores of certain size are random [53]. Therefore, when the pores in the outer and inner membrane are sufficiently large, it may mediate the outflow of cytoplasmic contents [50] into the droplet, resulting in the red signal observed in the whole volume of the droplet. In FISH assays, it is necessary to ensure sufficient cell permeability for the probes to enter and bind to the target site. However, cell permeabilization needs to be carefully balanced in order to maintain cell integrity [54]. It has been shown that the disruption of bacterial cell membranes by CP1 is dose-dependent [55]. Although adding more CP1 could possibly increase the outflow of 16S rRNA and fluorescence signal distribution inside the droplets, the concentration of CP1 should not exceed a critical concentration. If the concentration of the permeabilizer is too high, it could lead to complete lysis of the bacteria or earlier perforation of the bacterial cell wall, which would result in a reduced bacterial concentration by false compartmentation, and therefore, false enumeration. To adapt a simple fluorescence detection system to the one-pot droplet-FISH assay instead of confocal microscopy, other permeabilizers with the ability to form increased pore size diameters while maintaining cell integrity could be implemented into the assay. By decreasing the droplet size in combination with optimal permeabilizers and stronger fluorophores, the local fluorescence intensity per droplet/cavity could be increased due to the concentration effect [45], and hence, the signal intensity would be stronger for a simple instrument readout.

3.3. Absolute Quantification of Bacteria by Microfluidic One-Pot Digital Droplet-FISH Assay

We applied three bacteria species inculding E. coli, K. pneumonia, and P. mirabilis to demonstrate absolute quantification of bacteria in our one-pot droplet-FISH assay. We calculated the ratio of positive droplets to the total droplets in fluorescence images (Figure 3A–C) to determine the value of λ, and used the Poisson formula described in the Materials and Methods to obtain the bacterial concentration (referred as the digital droplet-FISH count). Our results showed a good correlation between the digital droplet-FISH counts and the expected bacterial concentration counted by hemocytometer for bacterial loads ranging from 1.43 × 104 bacteria/mL to 1.72 × 107 bacteria/mL. The coefficient of determination (R2) for all data points including variation in the three tested bacteria species was 0.976 (R2 = 0.976) (Figure 3D). Individually, the R2 for E. coli was 0.998, for K. pneumonia was 0.997, and for P. mirabilis was 0.987. The results showed the compatibility and repeatability of the microfluidic one-pot digital droplet-FISH assay for different strains of bacteria.
Here, we directly compared the true quantity (also known as the population value in statistics) [56] from the reference count with the digital droplet-FISH count to avoid propagation errors from serial dilutions, especially at low concentrations. In fact, even lower concentrations could be detected by the microfluidic one-pot digital droplet-FISH assay (data not shown). However, due to the inherent limitation of a hemocytometer, it was difficult to count bacterial concentrations lower than 104 bacteria/mL accurately for comparison with digital droplet-FISH counts. The chamber of a hemocytometer has a total volume of 0.1 mm3, which gives a volume factor of 104. The number of bacteria per square is multiplied by this volume factor. Therefore, when the bacteria concentration is lower than 104 bacteria/mL, the accuracy of a hemocytometer is very limited. Aside from a microscopic count using a hemocytometer, a standard plate count (SPC) for colony forming units might not be suitable for reference count in this study. A SPC only counts viable bacteria growing as a CFU, but a digital droplet-FISH count enumerates the total bacterial load, which includes both live and dead (or non-active/ non-dividing) bacterial cells.
In our experimental setup, the LabDisk generated about 47,600 droplets with a volume of ~210 pL, which resulted in a lower limit of quantification (LLOQ) of 3 × 102 bacteria/mL and an upper limit of quantification (ULOQ) of 4.6 × 107 bacteria/mL in theory. This calculation is based on the assumption that a sample would have a 95% chance of generating at least one positive droplet at the LLOQ and a 95% chance of generating at least one negative droplet at the ULOQ [57] (refer to Supplementary Materials: formula (2)–(6)). Therefore, the ideal dynamic range of quantification is five orders of magnitude. However, due to the current LabDisk design, we limited our evaluation to the area where droplets were present and arranged in a monolayer [41]. Therefore, we only analyzed 4000 to 5000 droplets in each reaction chamber in one large image scan, so the theoretical LLOQ was set at around 3 × 103 bacteria/mL and the ULOQ was at around 3 × 107 bacteria/mL, resulting in a proven dynamic range of quantification with only four orders of magnitude. Further optimization of LabDisk regarding the pyramidal structure [58] in the reaction chamber is needed in order to analyze all droplets. By analyzing more droplets, the dynamic range can be expanded because the dynamic range of quantification is proportional to the number of analyzed droplets in the digital assays. In addition to analyzing more droplets in one reaction, the dynamic range could also be expanded by integrating the one-pot droplet-FISH assay with a dual-volume centrifugal step emulsification cartridge [59], which produces small-volume droplets to enable the quantification of high concentrations, and large-volume droplets enable the quantification at low concentrations. Furthermore, adopting optimized digital quantification statistics [26,60] is another way to increase the ULOQ. In the case of samples containing a low number of bacteria (such as a water sample), a filtration/concentration step could be incorporated to expand the LLOQ with high sensitivity. In fact, the sensitivity of quantification in a relevant dynamic range for the target bacteria in the samples is essential. To meet the needs of different applications, customized microfluidic cartridges for specific applications that generate theon-demand size and number of droplets should be considered.
The presented one-pot FISH assay (wash-free in situ permeabilization and hybridization in one-step) could work not only with the LabDisk but also other droplet microfluidic systems for the digital enumeration of bacteria. This assay could also work without encapsulation of bacteria in droplets. For example, to quantify the bacteria in water where filtration is essential to concentrate the sample, our one-pot FISH assay could possibly be incorporated with a hydrophobic grid membrane filter [61] or asymmetric membrane [62] that allows random bacterial distribution and isolation into grid compartments through filtration. As a result, digital quantification of the bacteria with Poisson statistics could also be applied.

4. Conclusions

In summary, we have developed a microfluidic one-pot digital droplet-FISH assay to simplify the conventional FISH protocol [63] (Figure S7) with reduced manual handling steps and time-to-results for absolute quantification of bacteria. The users only need to mix the bacteria, MBs, and permeabilizers in the hybridization buffer, and then load into an automated centrifugal microfluidic system for cell encapsulation, in situ permeabilization and in situ hybridization. This assay is straightforward and can be finished in 1.5 hours (including quantification). The time for quantification could be shortened if we could speed up image analysis with artificial neural networks using multiple training algorithms to count the cells [64]. In addition, we optimized the working conditions ofLNA/DNA MBs to improve the S/N ratio and used CP1 to allow the access of LNA/DNA MBs to bacterial 16S rRNA inside the bacteria. These strategies enabled bacteria detection at the single cell level without any amplification steps for the target templates. Furthermore, we quantified E. coli, K. pneumonia, and P. mirabilis as a demonstration and showed a correlation of R2 = 0.976 between the digital droplet-FISH count and the bacterial count by a hemocytometer.
The presented microfluidic one-pot digital droplet-FISH assay showed its potential for quantifying the total amount of bacteria in samples with the possibility of enumerating VBNC bacteria. Although we only designed universal MBs for bacterial detection and enumeration in this study, we assume that our method is directly transferable to selective enumeration and identification of bacteria in mixed cultures. By designing LNA/DNA MBs for targeting species-specific variable regions in the 16S rRNA of bacteria and incorporating these LNA/DNA MBs with different fluorophores/quencher combinations, multiplex FISH analysis should be possible with our microfluidic one-pot digital droplet FISH method.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios12040237/s1, Figure S1: The microfluidic setup for partitioning of the sample [41]; Figure S2: Example image showing the droplet recognition and size analysis using customized MATLAB program [42]; Figure S3: The demonstration of counting positive droplets by Fiji Cell Counter; Figure S4: Screening of the designed LNA/DNA MBs in different hybridization buffers [65,66,67,68,69]; Figure S5: Optimization of the hybridization temperature for better specificity [70]; Figure S6: Determination of the concentration of LNA/DNA MB [44,71,72]; Figure S7: Comparison of the FISH protocols from Cold Spring Harbor protocols12 with one-pot droplet-FISH [63]; Table S1: The sequence of LNA/DNA MBs targeting domain Bacteria; Table S2: The sequences of the synthetic templates (lower case: mismatch bases) [73]; Table S3: Different composition of hybridization buffer [37,57,74].

Author Contributions

Conceptualization, Y.-T.K., S.C., N.B. and F.v.S.; methodology, Y.-T.K., S.C., N.B. and M.L.; software, Y.-K.L.; validation, Y.-T.K.; resources, F.S. and P.J.; writing—original draft preparation, Y.-T.K.; writing—review and editing, all authors; supervision, R.Z., P.G., F.v.S.; funding acquisition, P.G. All authors have read and agreed to the published version of the manuscript.

Funding

This publication is part of a project that has received funding from the European Union’s Horizon 2020 research and innovation program under Marie Skłodowska-Curie grant agreement No. 711859. The scientific work was funded from the financial resources for science in the years 2017–2021 awarded by the Polish Ministry of Science and Higher Education for the implementation of an international co-financed project. This publication is also supported by the Open Access Publication Fund of the University of Freiburg. P.G. acknowledges the support from the National Science Centre, Poland, funding based on decision 2018/30/A/ST4/00036, Maestro 10.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Hui-Ru Chen, Anna Klebes, Ying Zhou, Yu-Hsuan Chu, and Desirée Baumgartner for experimental support and discussion. In addition, the authors thank the staff of the Life Imaging Center (LIC) of the Albert-Ludwigs-University Freiburg for help with their microscopy resources, and the excellent support for image recording and analysis. Last but not least, the authors want to thank the team of Hahn-Schickard Lab-on-a-Chip Foundry for fabrication of the microfluidic cartridges.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Jorgensen, J.H.; Ferraro, M.J. Antimicrobial susceptibility testing: A review of general principles and contemporary practices. Clin. Infect. Dis. 2009, 49, 1749–1755. [Google Scholar] [CrossRef] [PubMed]
  2. Mara, D.D.; Horan, N.J. Handbook of Water and Wastewater Microbiology; Academic Press: Amsterdam, London, 2003; ISBN 0-12-470100-0. [Google Scholar]
  3. Gracias, K.S.; McKillip, J.L. A review of conventional detection and enumeration methods for pathogenic bacteria in food. Can. J. Microbiol. 2004, 50, 883–890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Deshmukh, R.A.; Joshi, K.; Bhand, S.; Roy, U. Recent developments in detection and enumeration of waterborne bacteria: A retrospective minireview. Microbiologyopen 2016, 5, 901–922. [Google Scholar] [CrossRef] [Green Version]
  5. Miller, J.H. Experiments in Molecular Genetics; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, NY, USA, 1972; ISBN 0879691069. [Google Scholar]
  6. Gilchrist, J.E.; Campbell, J.E.; Donnelly, C.B.; Peeler, J.T.; Delaney, J.M. Spiral plate method for bacterial determination. Appl. Microbiol. 1973, 25, 244–252. [Google Scholar] [CrossRef]
  7. Sohier, D.; Pavan, S.; Riou, A.; Combrisson, J.; Postollec, F. Evolution of microbiological analytical methods for dairy industry needs. Front. Microbiol. 2014, 5, 16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Li, L.; Mendis, N.; Trigui, H.; Oliver, J.D.; Faucher, S.P. The importance of the viable but non-culturable state in human bacterial pathogens. Front. Microbiol. 2014, 5, 258. [Google Scholar] [CrossRef] [Green Version]
  9. Ramírez-Castillo, F.Y.; Loera-Muro, A.; Jacques, M.; Garneau, P.; Avelar-González, F.J.; Harel, J.; Guerrero-Barrera, A.L. Waterborne pathogens: Detection methods and challenges. Pathogens 2015, 4, 307–334. [Google Scholar] [CrossRef]
  10. Lyons, S.R.; Griffen, A.L.; Leys, E.J. Quantitative real-time PCR for Porphyromonas gingivalis and total bacteria. J. Clin. Microbiol. 2000, 38, 2362–2365. [Google Scholar] [CrossRef]
  11. Ilha, E.C.; Scariot, M.C.; Treml, D.; Pereira, T.P.; Sant′Anna, E.S.; Prudêncio, E.S.; Arisi, A.C.M. Comparison of real-time PCR assay and plate count for Lactobacillus paracasei enumeration in yoghurt. Ann. Microbiol 2016, 66, 597–606. [Google Scholar] [CrossRef]
  12. Oliveira, J.M.; Cunha, Â.S.; Almeida, A.P.; Castilho, F.B.; Pereira, M.J. Comparison of Methodologies for the Extraction of Bacterial DNA from Mussels—Relevance for Food Safety. Food Anal. Methods 2013, 6, 201–209. [Google Scholar] [CrossRef]
  13. Tian, W.; Zhang, Z.; Liu, D.; Zhou, T.; Shen, Q.; Shen, B. An optimized DNA extraction and purification method from dairy manure compost for genetic diversity analysis. World J. Microbiol. Biotechnol. 2013, 29, 815–823. [Google Scholar] [CrossRef] [PubMed]
  14. Maurer, J.J. Rapid detection and limitations of molecular techniques. Annu. Rev. Food Sci. Technol. 2011, 2, 259–279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Theron, J.; Eugene Cloete, T.; Kwaadsteniet, M.d. Current molecular and emerging nanobiotechnology approaches for the detection of microbial pathogens. Crit. Rev. Microbiol. 2010, 36, 318–339. [Google Scholar] [CrossRef] [PubMed]
  16. Hartley, M.G.; Ralph, E.; Norville, I.H.; Prior, J.L.; Atkins, T.P. Comparison of PCR and viable count as a method for enumeration of bacteria in an A/J mouse aerosol model of Q fever. Front. Microbiol. 2019, 10, 1552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Takahashi, H.; Saito, R.; Miya, S.; Tanaka, Y.; Miyamura, N.; Kuda, T.; Kimura, B. Development of quantitative real-time PCR for detection and enumeration of Enterobacteriaceae. Int. J. Food Microbiol. 2017, 246, 92–97. [Google Scholar] [CrossRef] [PubMed]
  18. Amann, R.I.; Binder, B.J.; Olson, R.J.; Chisholm, S.W.; Devereux, R.; Stahl, D.A. Combination of 16S rRNA-targeted oligonucleotide probes with flow cytometry for analyzing mixed microbial populations. Appl. Environ. Microbiol. 1990, 56, 1919–1925. [Google Scholar] [CrossRef] [Green Version]
  19. Amann, R.; Fuchs, B.M. Single-cell identification in microbial communities by improved fluorescence in situ hybridization techniques. Nat. Rev. Microbiol. 2008, 6, 339–348. [Google Scholar] [CrossRef]
  20. Rohde, A.; Hammerl, J.A.; Appel, B.; Dieckmann, R.; Al Dahouk, S. FISHing for bacteria in food--a promising tool for the reliable detection of pathogenic bacteria? Food Microbiol. 2015, 46, 395–407. [Google Scholar] [CrossRef] [Green Version]
  21. Muthukrishnan, T.; Govender, A.; Dobretsov, S.; Abed, R. Evaluating the reliability of counting bacteria using epifluorescence microscopy. JMSE 2017, 5, 4. [Google Scholar] [CrossRef] [Green Version]
  22. Cadena-Herrera, D.; Esparza-De Lara, J.E.; Ramírez-Ibañez, N.D.; López-Morales, C.A.; Pérez, N.O.; Flores-Ortiz, L.F.; Medina-Rivero, E. Validation of three viable-cell counting methods: Manual, semi-automated, and automated. Biotechnol. Rep. 2015, 7, 9–16. [Google Scholar] [CrossRef] [Green Version]
  23. Nunez, R. Flow cytometry: Principles and instrumentation. Curr. Issues Mol. Biol. 2001, 3, 39–45. [Google Scholar] [PubMed]
  24. Gasol, J.M.; Del Giorgio, P.A. Using flow cytometry for counting natural planktonic bacteria and understanding the structure of planktonic bacterial communities. Sci. Mar. 2000, 64, 197–224. [Google Scholar] [CrossRef] [Green Version]
  25. Hsieh, K.; Zec, H.C.; Chen, L.; Kaushik, A.M.; Mach, K.E.; Liao, J.C.; Wang, T.-H. Simple and precise counting of viable bacteria by resazurin-amplified picoarray detection. Anal. Chem. 2018, 90, 9449–9456. [Google Scholar] [CrossRef] [PubMed]
  26. Scheler, O.; Pacocha, N.; Debski, P.R.; Ruszczak, A.; Kaminski, T.S.; Garstecki, P. Optimized droplet digital CFU assay (ddCFU) provides precise quantification of bacteria over a dynamic range of 6 logs and beyond. Lab Chip 2017, 17, 1980–1987. [Google Scholar] [CrossRef] [Green Version]
  27. Cui, X.; Ren, L.; Shan, Y.; Wang, X.; Yang, Z.; Li, C.; Xu, J.; Ma, B. Smartphone-based rapid quantification of viable bacteria by single-cell microdroplet turbidity imaging. Analyst 2018, 143, 3309–3316. [Google Scholar] [CrossRef]
  28. Pacocha, N.; Scheler, O.; Nowak, M.M.; Derzsi, L.; Cichy, J.; Garstecki, P. Direct droplet digital PCR (dddPCR) for species specific, accurate and precise quantification of bacteria in mixed samples. Anal. Methods 2019, 11, 5730–5735. [Google Scholar] [CrossRef]
  29. Kao, Y.-T.; Kaminski, T.S.; Postek, W.; Guzowski, J.; Makuch, K.; Ruszczak, A.; von Stetten, F.; Zengerle, R.; Garstecki, P. Gravity-driven microfluidic assay for digital enumeration of bacteria and for antibiotic susceptibility testing. Lab Chip 2020, 20, 54–63. [Google Scholar] [CrossRef] [Green Version]
  30. Collins, D.J.; Neild, A.; deMello, A.; Liu, A.-Q.; Ai, Y. The Poisson distribution and beyond: Methods for microfluidic droplet production and single cell encapsulation. Lab Chip 2015, 15, 3439–3459. [Google Scholar] [CrossRef]
  31. Higgins, O.; Clancy, E.; Cormican, M.; Boo, T.W.; Cunney, R.; Smith, T.J. Evaluation of an Internally Controlled Multiplex Tth Endonuclease Cleavage Loop-Mediated Isothermal Amplification (TEC-LAMP) Assay for the Detection of Bacterial Meningitis Pathogens. Int. J. Mol. Sci. 2018, 19. [Google Scholar] [CrossRef] [Green Version]
  32. Zheng, J.; Yang, R.; Shi, M.; Wu, C.; Fang, X.; Li, Y.; Li, J.; Tan, W. Rationally designed molecular beacons for bioanalytical and biomedical applications. Chem. Soc. Rev. 2015, 44, 3036–3055. [Google Scholar] [CrossRef]
  33. Rane, T.D.; Zec, H.C.; Puleo, C.; Lee, A.P.; Wang, T.-H. Droplet microfluidics for amplification-free genetic detection of single cells. Lab Chip 2012, 12, 3341–3347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Mach, K.E.; Kaushik, A.M.; Hsieh, K.; Wong, P.K.; Wang, T.-H.; Liao, J.C. Optimizing peptide nucleic acid probes for hybridization-based detection and identification of bacterial pathogens. Analyst 2019, 144, 1565–1574. [Google Scholar] [CrossRef] [PubMed]
  35. Bakhtiar, R. Peptide nucleic acids: Deoxyribonucleic acid mimics with a peptide backbone. Biochem. Educ. 1998, 26, 277–280. [Google Scholar] [CrossRef]
  36. Egholm, M.; Buchardt, O.; Christensen, L.; Behrens, C.; Freier, S.M.; Driver, D.A.; Berg, R.H.; Kim, S.K.; Norden, B.; Nielsen, P.E. PNA hybridizes to complementary oligonucleotides obeying the Watson-Crick hydrogen-bonding rules. Nature 1993, 365, 566–568. [Google Scholar] [CrossRef]
  37. Yang, C.J.; Wang, L.; Wu, Y.; Kim, Y.; Medley, C.D.; Lin, H.; Tan, W. Synthesis and investigation of deoxyribonucleic acid/locked nucleic acid chimeric molecular beacons. Nucleic Acids Res. 2007, 35, 4030–4041. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Braasch, D.A.; Corey, D.R. Locked nucleic acid (LNA): Fine-tuning the recognition of DNA and RNA. Chem. Biol. 2001, 8, 1–7. [Google Scholar] [CrossRef] [Green Version]
  39. Silverman, A.P.; Kool, E.T. Oligonucleotide Probes for RNA-Targeted Fluorescence In Situ Hybridization. In Advances in Clinical Chemistry; Makowski, G.S., Ed.; Elsevier/Academic Press: Amsterdam, The Netherlands, 2006; pp. 79–115. ISBN 9780123737038. [Google Scholar]
  40. Wang, L.; Yang, C.J.; Medley, C.D.; Benner, S.A.; Tan, W. Locked nucleic acid molecular beacons. J. Am. Chem. Soc. 2005, 127, 15664–15665. [Google Scholar] [CrossRef]
  41. Schlenker, F.; Kipf, E.; Borst, N.; Paust, N.; Zengerle, R.; von Stetten, F.; Juelg, P.; Hutzenlaub, T. Centrifugal microfluidic integration of 4-plex ddPCR demonstrated by the quantification of cancer-associated point mutations. Processes 2021, 9, 97. [Google Scholar] [CrossRef]
  42. Schuler, F.; Siber, C.; Hin, S.; Wadle, S.; Paust, N.; Zengerle, R.; von Stetten, F. Digital droplet LAMP as a microfluidic app on standard laboratory devices. Anal. Methods 2016, 8, 2750–2755. [Google Scholar] [CrossRef] [Green Version]
  43. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [Green Version]
  44. Stender, H.; Fiandaca, M.; Hyldig-Nielsen, J.J.; Coull, J. PNA for rapid microbiology. J. Microbiol. Methods 2002, 48, 1–17. [Google Scholar] [CrossRef]
  45. Basu, A.S. Digital Assays Part I: Partitioning statistics and digital PCR. SLAS Technol. 2017, 22, 369–386. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Terekhov, S.S.; Smirnov, I.V.; Stepanova, A.V.; Bobik, T.V.; Mokrushina, Y.A.; Ponomarenko, N.A.; Belogurov, A.A.; Rubtsova, M.P.; Kartseva, O.V.; Gomzikova, M.O.; et al. Microfluidic droplet platform for ultrahigh-throughput single-cell screening of biodiversity. Proc. Natl. Acad. Sci. USA 2017, 114, 2550–2555. [Google Scholar] [CrossRef] [Green Version]
  47. Brogden, K.A. Antimicrobial peptides: Pore formers or metabolic inhibitors in bacteria? Nat. Rev. Microbiol. 2005, 3, 238–250. [Google Scholar] [CrossRef]
  48. Arcidiacono, S.; Soares, J.W.; Meehan, A.M.; Marek, P.; Kirby, R. Membrane permeability and antimicrobial kinetics of cecropin P1 against Escherichia coli. J. Pept. Sci. 2009, 15, 398–403. [Google Scholar] [CrossRef] [PubMed]
  49. Li, J.; Koh, J.-J.; Liu, S.; Lakshminarayanan, R.; Verma, C.S.; Beuerman, R.W. Membrane active antimicrobial peptides: Translating mechanistic insights to design. Front. Neurosci. 2017, 11, 73. [Google Scholar] [CrossRef] [Green Version]
  50. Lockey, T.D.; Ourth, D.D. Formation of pores in Escherichia coli cell membranes by a cecropin isolated from hemolymph of Heliothis virescens larvae. Eur. J. Biochem. 1996, 236, 263–271. [Google Scholar] [CrossRef]
  51. Kalwarczyk, T.; Tabaka, M.; Holyst, R. Biologistics--diffusion coefficients for complete proteome of Escherichia coli. Bioinformatics 2012, 28, 2971–2978. [Google Scholar] [CrossRef] [PubMed]
  52. Lima, J.F.; Maia, P.; T Magalhães, B.; Cerqueira, L.; Azevedo, N.F. A comprehensive model for the diffusion and hybridization processes of nucleic acid probes in fluorescence in situ hybridization. Biotechnol. Bioeng. 2020, 117, 3212–3223. [Google Scholar] [CrossRef]
  53. Lyu, Y.; Fitriyanti, M.; Narsimhan, G. Nucleation and growth of pores in 1,2-Dimyristoyl-sn-glycero-3-phosphocholine (DMPC) / cholesterol bilayer by antimicrobial peptides melittin, its mutants and cecropin P1. Colloids Surf. B Biointerfaces 2019, 173, 121–127. [Google Scholar] [CrossRef]
  54. Zwirglmaier, K. Fluorescence in situ hybridisation (FISH)--the next generation. FEMS Microbiol. Lett. 2005, 246, 151–158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Boman, H.G.; Agerberth, B.; Boman, A. Mechanisms of action on Escherichia coli of cecropin P1 and PR-39, two antibacterial peptides from pig intestine. Infect. Immun. 1993, 61, 2978–2984. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Ben-David, A.; Davidson, C.E. Estimation method for serial dilution experiments. J. Microbiol. Methods 2014, 107, 214–221. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Kreutz, J.E.; Munson, T.; Huynh, T.; Shen, F.; Du, W.; Ismagilov, R.F. Theoretical design and analysis of multivolume digital assays with wide dynamic range validated experimentally with microfluidic digital PCR. Anal. Chem. 2011, 83, 8158–8168. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Schuler, F.; Trotter, M.; Geltman, M.; Schwemmer, F.; Wadle, S.; Domínguez-Garrido, E.; López, M.; Cervera-Acedo, C.; Santibáñez, P.; von Stetten, F.; et al. Digital droplet PCR on disk. Lab Chip 2016, 16, 208–216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Schulz, M.; Ruediger, J.; Landmann, E.; Bakheit, M.; Frischmann, S.; Rassler, D.; Homann, A.R.; von Stetten, F.; Zengerle, R.; Paust, N. High dynamic range digital assay enabled by dual-volume centrifugal step emulsification. Anal. Chem. 2021, 93, 2854–2860. [Google Scholar] [CrossRef] [PubMed]
  60. Debski, P.R.; Gewartowski, K.; Sulima, M.; Kaminski, T.S.; Garstecki, P. Rational design of digital assays. Anal. Chem. 2015, 87, 8203–8209. [Google Scholar] [CrossRef]
  61. Todd, E.C.; Szabo, R.A.; Peterkin, P.; Sharpe, A.N.; Parrington, L.; Bundle, D.; Gidney, M.A.; Perry, M.B. Rapid hydrophobic grid membrane filter-enzyme-labeled antibody procedure for identification and enumeration of Escherichia coli O157 in foods. Appl. Environ. Microbiol. 1988, 54, 2536–2540. [Google Scholar] [CrossRef] [Green Version]
  62. Lin, X.; Huang, X.; Zhu, Y.; Urmann, K.; Xie, X.; Hoffmann, M.R. Asymmetric membrane for digital detection of single bacteria in milliliters of complex water samples. ACS Nano 2018, 12, 10281–10290. [Google Scholar] [CrossRef]
  63. Parsley, L.C.; Newman, M.M.; Liles, M.R. Fluorescence in situ hybridization of bacterial cell suspensions. Cold Spring Harb. Protoc. 2010, 2010. [Google Scholar] [CrossRef]
  64. Sami, M.A.; Tayyab, M.; Parikh, P.; Govindaraju, H.; Hassan, U. A modular microscopic smartphone attachment for imaging and quantification of multiple fluorescent probes using machine learning. Analyst 2021, 146, 2531–2541. [Google Scholar] [CrossRef] [PubMed]
  65. Zhu, Z. Design, Synthesis, Purification, and Characterization of Molecular Beacons. In Molecular Beacons; Yang, C.J., Ed.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 1–17. [Google Scholar]
  66. Tsourkas, A.; Behlke, M.A.; Rose, S.D.; Bao, G. Hybridization kinetics and thermodynamics of molecular beacons. Nucleic Acids Res. 2003, 31, 1319–1330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Lehnert, M.; Kipf, E.; Schlenker, F.; Borst, N.; Zengerle, R.; von Stetten, F. Fluorescence signal-to-noise optimisation for real-time PCR using universal reporter oligonucleotides. Anal. Methods 2018, 10, 3444–3454. [Google Scholar] [CrossRef] [Green Version]
  68. Sinigaglia, C.; Thiel, D.; Hejnol, A.; Houliston, E.; Leclère, L. A safer, urea-based in situ hybridization method improves detection of gene expression in diverse animal species. Dev. Biol. 2018, 434, 15–23. [Google Scholar] [CrossRef]
  69. Lawson, T.S.; Connally, R.E.; Vemulpad, S.; Piper, J.A. Dimethyl formamide-free, urea-NaCl fluorescence in situ hybridization assay for Staphylococcus aureus. Lett. Appl. Microbiol. 2012, 54, 263–266. [Google Scholar] [CrossRef] [PubMed]
  70. Huang, Q.; Liu, Z.; Liao, Y.; Chen, X.; Zhang, Y.; Li, Q. Multiplex fluorescence melting curve analysis for mutation detection with dual-labeled, self-quenched probes. PLoS ONE 2011, 6, e19206. [Google Scholar] [CrossRef]
  71. Klappenbach, J.A.; Saxman, P.R.; Cole, J.R.; Schmidt, T.M. rrndb: The Ribosomal RNA Operon Copy Number Database. Nucleic Acids Res. 2001, 29, 181–184. [Google Scholar] [CrossRef] [Green Version]
  72. Větrovský, T.; Baldrian, P. The variability of the 16S rRNA gene in bacterial genomes and its consequences for bacterial community analyses. PLoS ONE 2013, 8, e57923. [Google Scholar] [CrossRef] [Green Version]
  73. Zhang, B.; Maimaiti, Y.; Liu, C.; Li, J.; Wang, H.; Lin, H.; Deng, Z.; Lu, X.; Zhang, X. Direct detection of Staphylococcus aureus in positive blood cultures through molecular beacon-based fluorescence in situ hybridization. J. Microbiol. Methods 2019, 159, 34–41. [Google Scholar] [CrossRef]
  74. Silahtaroglu, A.N.; Tommerup, N.; Vissing, H. FISHing with locked nucleic acids (LNA): Evaluation of different LNA/DNA mixmers. Mol. Cell. Probes 2003, 17, 165–169. [Google Scholar] [CrossRef]
Biosensors 12 00237 g001 550
Figure 1. Microfluidic one-pot digital droplet-FISH assay. (A) Detailed workflow of the microfluidic one-pot digital droplet-FISH assay. (i) Sample preparation: cecropin P1, LNA/DNA MBs, and bacteria were mixed in hybridization buffer. (ii) The sample mixture was then added into the LabDisk for partitioning after the first injection and centrifugation of oil. The LabDisk Player 1 was programmed for permeabilization at 25 °C for 30 min and for hybridization at 70 °C for 30 min. (iii) Fluorescence and bright field images were taken directly from the chamber of the LabDisk by confocal microscopy for droplet analysis. (B) Mechanism of the one-pot FISH assay in a partitioned sample. The sample mixture was partitioned into ~47,600 droplets. In a single droplet, closed LNA/DNA MBs entered the bacteria through the pores made by cecropin P1 and then open their stems during binding to bacterial 16S rRNA, resulting in a fluorescence signal.
Figure 1. Microfluidic one-pot digital droplet-FISH assay. (A) Detailed workflow of the microfluidic one-pot digital droplet-FISH assay. (i) Sample preparation: cecropin P1, LNA/DNA MBs, and bacteria were mixed in hybridization buffer. (ii) The sample mixture was then added into the LabDisk for partitioning after the first injection and centrifugation of oil. The LabDisk Player 1 was programmed for permeabilization at 25 °C for 30 min and for hybridization at 70 °C for 30 min. (iii) Fluorescence and bright field images were taken directly from the chamber of the LabDisk by confocal microscopy for droplet analysis. (B) Mechanism of the one-pot FISH assay in a partitioned sample. The sample mixture was partitioned into ~47,600 droplets. In a single droplet, closed LNA/DNA MBs entered the bacteria through the pores made by cecropin P1 and then open their stems during binding to bacterial 16S rRNA, resulting in a fluorescence signal.
Biosensors 12 00237 g001
Biosensors 12 00237 g002 550

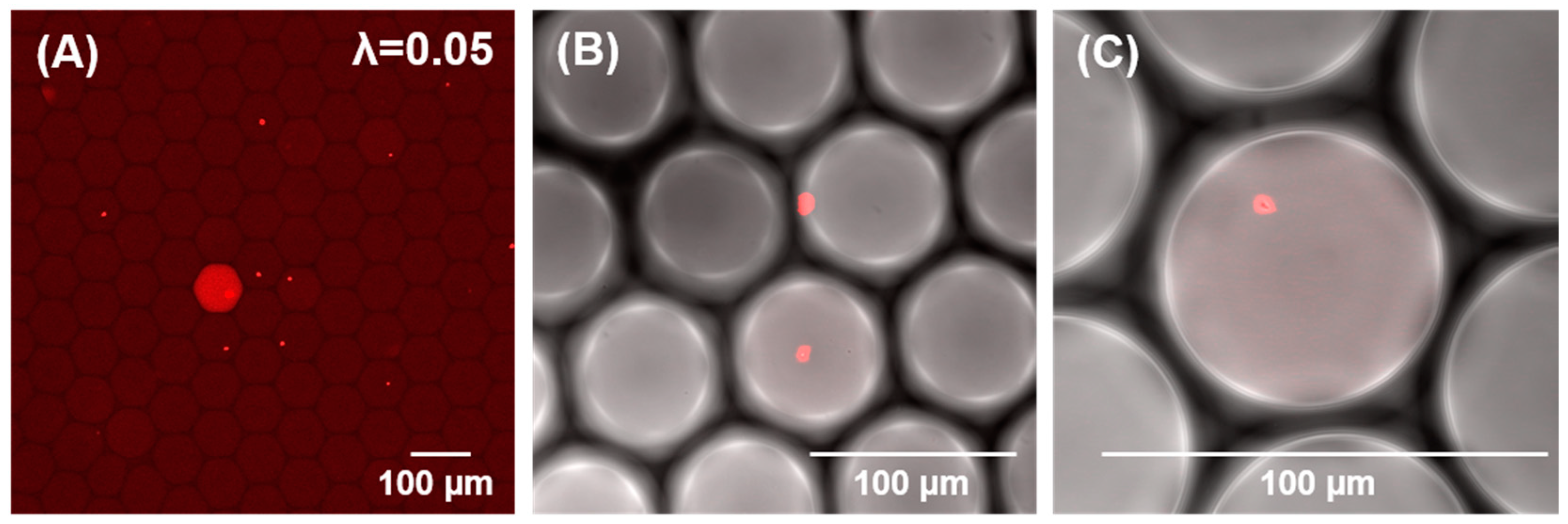

Figure 2. Microfluidic one-pot digital droplet-FISH assay for bacteria detection at the single cell level. Single bacterium encapsulation in droplets. The red fluorescent dot represents a single E. coli. (A) magnification: ×100, (B) magnification: ×400, (C) magnification: ×630.
Figure 2. Microfluidic one-pot digital droplet-FISH assay for bacteria detection at the single cell level. Single bacterium encapsulation in droplets. The red fluorescent dot represents a single E. coli. (A) magnification: ×100, (B) magnification: ×400, (C) magnification: ×630.
Biosensors 12 00237 g002
Biosensors 12 00237 g003 550
Figure 3. Absolute quantification of bacteria by droplet-FISH assay. (A) Representative fluorescence images of different concentrations of E. coli. The average number of E. coli per droplet is presented as λ. (B) Representative fluorescence images of different concentrations of K. pneumoniae. The average number of K. pneumoniae per droplet is presented as λ. (C) Representative fluorescence images of different concentrations of P. mirabilis. The average number of P. mirabilis per droplet is presented as λ. (D) Correlation plot for bacterial concentration measured by one-pot droplet-FISH against the expected bacterial concentration (reference count) for the different bacterial species. Every point represents one bacterial concentration. The orange line is the linear fit based on all data points, hence, it includes variation for all three tested bacterial species. The slope of the fitting line is 0.81 ± 0.03, and the intercept is 1.03 ± 0.16. The gray band is the 95% confidence interval.
Figure 3. Absolute quantification of bacteria by droplet-FISH assay. (A) Representative fluorescence images of different concentrations of E. coli. The average number of E. coli per droplet is presented as λ. (B) Representative fluorescence images of different concentrations of K. pneumoniae. The average number of K. pneumoniae per droplet is presented as λ. (C) Representative fluorescence images of different concentrations of P. mirabilis. The average number of P. mirabilis per droplet is presented as λ. (D) Correlation plot for bacterial concentration measured by one-pot droplet-FISH against the expected bacterial concentration (reference count) for the different bacterial species. Every point represents one bacterial concentration. The orange line is the linear fit based on all data points, hence, it includes variation for all three tested bacterial species. The slope of the fitting line is 0.81 ± 0.03, and the intercept is 1.03 ± 0.16. The gray band is the 95% confidence interval.
Biosensors 12 00237 g003
