Communication

Histostar-Functionalized Covalent Organic Framework for Electrochemical Detection of Exosomes

by
Yuxin Lin
1,
Beibei Nie
1,
Xinyu Qu
1,
Minghui Wang
2,*,
Jie Yang
1 and
Genxi Li
1,3,*
1
State Key Laboratory of Analytical Chemistry for Life Science, School of Life Sciences, Nanjing University, Nanjing 210093, China
2
Jiangsu Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, College of Science, Nanjing Forestry University, Nanjing 210037, China
3
Center for Molecular Recognition and Biosensing, School of Life Sciences, Shanghai University, Shanghai 200444, China
*
Authors to whom correspondence should be addressed.
Biosensors 2022, 12(9), 704; https://doi.org/10.3390/bios12090704
Submission received: 4 August 2022 / Revised: 29 August 2022 / Accepted: 30 August 2022 / Published: 1 September 2022
(This article belongs to the Special Issue Feature Issue of Biosensor Materials Section)
Browse Figures
Review Reports Versions Notes

Abstract

:
Covalent organic frameworks (COFs) are gaining growing interest owing to their various structures and versatility. Since their specific physical–chemical characteristics endow them great usage potentiality in biosensing, we herein have synthesized spherical COFs with regular shape and good dispersion, which are further used for the design of a novel nanoprobe by modifying Histostar on the surface of the COFs. Moreover, we have applied a nanoprobe for the fabrication of an electrochemical biosensor to detect exosomes. Since Histostar is a special polymer, conjugated with many secondary antibodies (IgG), and HRP can increase the availability of HRP at the antigenic site, the biosensor can have a strong signal amplification ability. Meanwhile, since COFs with high porosity can be loaded with a huge amount of Histostar, the sensitivity of the biosensor can be further improved. With such a design, the proposed biosensor can achieve a low exosomes detection limit of 318 particles/µL, and a wide linear detection range from 103 particles/µL to 108 particles/µL. So, this work may offer a promising platform for the ultrasensitive detection of exosomes.

1. Introduction

Covalent organic frameworks (COFs) are regarded as a rising kind of metal-free porous crystalline material, formed by the covalent connection and periodic extension of designed organic structural units [1,2,3,4]. Due to their diverse structure, inerratic porosity, advanced specific surface area, superior thermal stability, and adjustable pore size, COFs are considered to be promising materials with great potential in the field of energy storage [5,6,7], adsorption [8,9,10], catalysis [11,12,13], and drug delivery [14,15,16] and sensing [17,18,19,20,21]. To date, researchers extensively use solvothermal methods to synthesize COFs. Nevertheless, it is relatively difficult to control the crystal structure, uniformity, and size of the as-synthesized COFs, since the solvothermal methods typically require sealed Pyrex tubes, high temperatures, and inert atmospheres [22,23,24]. Recently, the strategies of green room-temperature synthesis for COFs have attracted great attention because they can accurately control the process of reaction, slow down the reaction rate, and easily acquire high-quality COFs [25,26].
Exosomes are vesicles with lipid bilayer membrane structures that are released by most cells and can circulate stably in body fluids [27,28,29]. Exosomes are considered to be important players in intercellular communication, and growing evidence shows that quantities of bioactive molecules are gather in exosomes and can be diverted from donor cells to recipient cells, resulting in cell-to-cell information transfer [30,31,32]. The bioactive substances in exosomes may be taken up by recipient cells, thereby promoting tumorigenesis and progression [33,34,35]. Furthermore, exosomes are not only involved in pre-metastatic niche formation, tumor angiogenesis, and tumor immunosuppression, but can also reflect the changes in the pathological and physiological states of their parental cells [36,37,38,39]. Studies have shown that the presence of the epithelial cell adhesion molecule (EpCAM) in exosomes has diagnostic value for colorectal cancer, while other markers in exosomes such as the EGFR subtypes can predict the efficacy of treatments for glioblastoma [40,41,42,43]. Furthermore, since exosomes can cross the blood–brain barrier, they may also be ideal candidates for advanced therapy in neurodegenerative diseases [44,45,46]. Due to these important functions of exosomes, it is significant to establish methods for exosome analysis with easy operation, high sensitivity, and dependability.
Herein, we have synthesized spherical COFs with a regular shape and good dispersion and have used the material to fabricate an electrochemical biosensor for exosome detection. In order to have a better performance of the biosensor, the COFs are designed to be loaded with a large amount of Histostar. Histostar is a special polymer that couples multiple secondary antibodies and HRP on one chain. This structure can increase the availability of HRP at the antigenic sites and the signal amplification ability. Meanwhile, since COFs can load a large number of Histostar due to their high porosity, and the exoskeleton of COFs can maintain the function of Histostar, the sensitivity can be further improved. So, the electrochemical biosensor fabricated in this work by using Histostar-functionalized COFs can be used for the sensitive detection of exosomes.

2. Materials and Methods

2.1. Materials and Apparatus

The 2,5-divinylterephthalaldehyde (DVA) was purchased from Jilin Chinese Academy of Sciences-Yanshen Technology Co., Ltd. (Changchun, China). Acetonitrile (ACN), tris(hydroxymethyl)aminoethane (Tris), glacial acetic acid (HAc), 1,3,5-Tris (4-aminophenyl) benzene (TPB), and tetrahydrofuran (THF) were supplied by Aladdin. The 3,3′,5,5′-tetramethylbenzidine (TMB) substrate (H2O2 included) was purchased from Sigma-Aldrich. Anti-CD63 mouse monoclonal antibody was purchased from Sangon Biotech Co., Ltd. (Shanghai, China). Anti-EpCAM rabbit monoclonal antibody was obtained from Abcam. Histostar was offered by MBL Beijing Biotech Co., Ltd. (Beijing, China). All other reagents used were analytical grade. Ultra-pure water was purified by Millipore purification system (Milli-Q, 18.2 MΩ).
The size and monodispersity of the spherical COFs were obtained using FEI Tecnai G2 F20 S-TWIN instrument and Hitachi Smur 3400N instrument. Electrochemical studies were performed by a CHI660D electrochemical workstation. Nanoparticle tracking analysis were acquired on Malvern instrument.

2.2. Preparation of Spherical COFs

Spherical COFs are obtained based on previous reports and with certain improvements [47]. Firstly, TPB (70 mg) and DVA (56 mg) were mingled with acetonitrile (25 mL) with 1 min ultrasonic. After that, acetic acid (5 mL, 12 M) was continuously dripped into the solution and oscillate violently for 10 s. Then, the solution was placed at room temperature for 3 days. The solids were collected via 9500 rpm centrifugation, washed several times, and dried in vacuum at 60 °C.

2.3. Preparation of Histostar@COFs

Histostar@COFs was prepared by combining 1 mL of Histostar with COFs dispersion (1 mL, 0.1 mg mL−1) and stirring for 4 h. Then, the product was obtained via centrifugation (9500 rpm) and finally dispersed in PBS (1 mL, 10 mM).

2.4. Cell Culture and Exosome Isolation

The cells were cultured in 1640 medium containing 1% (v/v) penicillin-streptomycin and 10% (v/v) FBS under a moist environment with 5% CO2. When the cells grew to 70%, the supernatant was discarded and the cells were transferred into serum-free medium for two days. Finally, the treated supernatant was collected for exosome isolation.
Centrifuge (2000× g, 20 min) the collected supernatant to remove cell fragments and larger molecules. Then, centrifuge at 11,000× g for 0.5 h, and then ultrafiltration (0.22 μm pore diameter). The exosomes were obtained by centrifuging the solution at 120,000× g for 2 h, and the obtained exosome was kept in −80 °C for further use. Nanoparticle tracking analysis (NTA) was used to measure the concentration of exosome.

2.5. Preparation of the Biosensor

The gold electrodes were pretreated based on the previous literature [48]. The anti-CD63 mouse monoclonal antibody (Ab1) was immobilized onto the gold electrodes via thiol-modification of primary amines (-NH2) of the Ab1 to introduce sulfhydryl (-SH) groups, thus allowing covalent immobilization of the thiolated antibodies to the gold electrode (the electrode was labeled as Ab1/Au). After washing with PBS, the electrode was treated with 3% BSA for 1 h in order to prevent non-specific adsorption. Next, 5 μL of exosomes at different concentrations were dropped onto the Ab1/Au and incubated at 37 °C for 2 h. After washing with PBS, 5 μL of 0.5 mg mL−1 anti-EpCAM rabbit monoclonal antibody (Ab2) was dripped onto the exosome/Ab1/Au electrode surface and incubated at 37 °C for 1 h. The prepared electrode was labeled as Ab2/exosome/Ab1/Au. After washing PBS for three times, the prepared Histostar@COFs was dripped onto the Ab2/exosome/Ab1/Au and incubated for 1 h, and the electrode was labeled as Histostar@COFs/Ab2/exosome/Ab1/Au.

2.6. Electrochemical Detection

Electrochemical impedance spectroscopy (EIS) and amperometric i-t curves were measured by a CHI660D electrochemical workstation. Gold electrodes, saturated calomel electrodes (SCE), and platinum electrodes were used as working electrodes, reference electrodes, and counter electrodes, respectively. EIS was measured in 0.1 M PBS buffer containing 5.0 mM [Fe(CN)6]3−/4− and 0.1 M KCl (pH = 7.4) with a ranging frequency from 0.1 to 105 Hz. The i-t curves were measured in a TMB substrate solution (H2O2 included) at a voltage of −0.1 V.

3. Results and Discussion

3.1. Principle of the Biosensor

Figure 1 depicts the preparation process of the COFs-based nanoprobes as well as the principle of the proposed biosensor for exosome detection. Firstly, COFs are synthesized by TPB and DVA at room temperature. Then, a large amount of Histostar is loaded on the surface of spherical COFs. Histostar is a special polymer that couples multiple secondary antibodies and HRP on one chain. This structure can increase the availability of HRP at antigen sites and, thus, has a very effective signal amplification effect. Meanwhile, due to their high porosity, COFs are able to carry a huge amount of Histostar, and the stability of Histostar can be significantly improved by the exoskeleton of COFs. For the detection of the exosome, the anti-CD63 mouse monoclonal antibody is firstly immobilized on the surface of the electrode. After exosomes are captured on the electrode, the anti-EpCAM rabbit monoclonal antibody will combine with the EpCAM on the exosome surface. After that, through the specific recognition between primary and secondary antibody, the captured anti-EpCAM rabbit monoclonal antibody can further combine with the secondary antibody IgG in Histostar@COFs, thus introducing a large amount of HRP to the electrode surface. Under the action of TMB and H2O2, strong electrochemical signals can be produced for the quantitative detection of exosomes.

3.2. Characterization of Materials

We have characterized the size and morphology of the prepared nanomaterials through SEM and TEM. Figure 2A,B exhibits the typical SEM image (Figure 2A) and the TEM image (Figure 2B) of the spherical COFs. The prepared COFs are of uniform sphere and have good dispersibility. The average diameter is about 450 nm. To verify the performance of the material, the comparison of Histostar@COFs and HRP-labeled mouse anti-rabbit IgG (HRP-IgG) has been provided, and the results are shown in Figure 2C. The experimental results indicate that the current response in the presence of Histostar@COFs is significantly higher than that of HRP-IgG, which suggests that Histostar@COFs can effectively amplify the signal.

3.3. Feasibility Verification of the Method

The preparation process of this biosensor has been characterized by EIS. As shown in Figure 3A, the bare gold electrode (curve a) possesses a negligible semicircle, which indicates that the charge transfer resistance (Rct) is very low. When Ab1 (curve b), exosomes (curve c), and Ab2 (curve d) are modified on the electrode surface, the Rct values increase significantly, because the electron transfer of [Fe(CN)6]3−/4− is hindered by the antibodies and exosomes. When Histostar@COFs (curve e) are modified on the electrode, the Rct further increases, indicating the successful combination between the exosomes and Histostar@COFs. In addition, we have measured the current response of different modified electrodes to confirm the preparation of this biosensor. As shown in Figure 3B, since the Histostar@COFs nanoprobe cannot bind to the electrode, the bare electrode (curve a) and electrode without exosomes (curve b) only exhibit weak currents. Nevertheless, when exosomes are present in the sample, the current increases significantly (curve c). The reason is that a large amount of HRP has been introduced to the electrode surface, which can generate a strong electrochemical signal. So, this method is feasible for the detection of exosomes.

3.4. Analytical Performance of the Biosensor

The proposed biosensor has been used for the analysis of exosomes at various concentrations. Experimental results reveal that the current increases with the increase in exosome concentration from 103 to 108 particles/µL (Figure 4A). There is a linear relationship between the current response and the logarithm of the exosome concentration (Figure 4B). The regression equation is I = 0.4140 logc—0.7615, and the correlation coefficient is 0.9952. The limit of detection is 318 particles/µL (S/N = 3). Compared with some other reports for exosome detection (Table 1), this method possesses a wider linear range and a relatively low detection limit, suggesting its excellent performance.
To assess the selectivity of this sensor, we have selected some substances that may coexist in biological samples as interferences, such as cysteine, glucose, glutathione, and BSA (the concentration of exosomes is 106 particles/μL, and the concentrations of interferents are 1 mM). As shown in Figure 5A, compared with the other three interferers, the current response for exosomes is significantly higher, indicating that the biosensor has good selectivity for exosome detection in biological samples. In addition, we have evaluated the reproducibility of this biosensor through relative standard deviation (RSD). Six tests have been conducted, respectively, with the concentration of exosomes as 106 particles/μL (Figure 5B). The RSD of the six tests is 2.27%, indicating the good reproducibility of this biosensor.

4. Conclusions

In this work, we have synthesized spherical COFs with a regular shape at room temperature by the Schiff base reaction between DVA and TPB. Through the reasonable control of the reaction conditions, the obtained COFs present good crystallinity and morphology, a large specific surface area, and good stability. After preparation, the COFs have been further functionalized with Histostar and then applied for the sensitive detection of exosomes. So, this work may open up a new avenue for the application of COFs in biosensing, while it also provides a simple and effective method for exosome detection. The simple and easy preparation method of spherical COFs as well as their functionalization by Histostar may advance the development of biosensors based on metal-free porous crystalline materials.

Author Contributions

Conceptualization, Y.L. and B.N.; methodology, Y.L., B.N., and X.Q.; software, B.N. and X.Q.; validation, Y.L., B.N. and X.Q.; formal analysis, J.Y.; investigation, Y.L., B.N., and X.Q.; data curation, J.Y. and X.Q.; writing—original draft preparation, Y.L.; writing—review and editing, G.L. and M.W.; visualization, Y.L. and B.N.; supervision, G.L. and M.W.; funding acquisition, G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant No. 81772593) and the Fundamental Research Funds for the Central Universities (Grant No. 14380163).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, S.B.; Chen, Z.X.; Gao, F.; Zhang, C.; Zou, M.Z.; Ye, J.J.; Zeng, X.; Zhang, X.Z. Remodeling extracellular matrix based on functional covalent organic framework to enhance tumor photodynamic therapy. Biomaterials 2020, 234, 119772. [Google Scholar] [CrossRef] [PubMed]
  2. Meng, Y.; Luo, Y.; Shi, J.L.; Ding, H.M.; Lang, X.J.; Chen, W.; Zheng, A.M.; Sun, J.L.; Wang, C. 2D and 3D Porphyrinic Covalent Organic Frameworks: The Influence of Dimensionality on Functionality. Angew. Chem. Int. Edit. 2020, 59, 3624–3629. [Google Scholar] [CrossRef] [PubMed]
  3. Geng, K.; He, T.; Liu, R.; Dalapati, S.; Tan, K.T.; Li, Z.; Tao, S.; Gong, Y.; Jiang, Q.; Jiang, D. Covalent Organic Frameworks: Design, Synthesis, and Functions. Chem. Rev. 2020, 120, 8814–8933. [Google Scholar] [CrossRef] [PubMed]
  4. Das, P.; Chakraborty, G.; Mandal, S.K. Comprehensive Structural and Microscopic Characterization of an Azine-Triazine-Functionalized Highly Crystalline Covalent Organic Framework and Its Selective Detection of Dichloran and 4-Nitroaniline. ACS Appl. Mater. Inter. 2020, 12, 10224–10232. [Google Scholar] [CrossRef]
  5. Wang, Z.L.; Li, Y.J.; Liu, P.J.; Qi, Q.Y.; Zhang, F.; Lu, G.L.; Zhao, X.; Huang, X.Y. Few layer covalent organic frameworks with graphene sheets as cathode materials for lithium-ion batteries. Nanoscale 2019, 11, 5330–5335. [Google Scholar] [CrossRef]
  6. Lv, J.Q.; Tan, Y.X.; Xie, J.F.; Yang, R.; Yu, M.X.; Sun, S.S.; Li, M.D.; Yuan, D.Q.; Wang, Y.B. Direct Solar-to-Electrochemical Energy Storage in a Functionalized Covalent Organic Framework. Angew. Chem. Int. Edit. 2018, 57, 12716–12720. [Google Scholar] [CrossRef]
  7. Yu, M.H.; Chandrasekhar, N.; Raghupathy, R.K.M.; Ly, K.H.; Zhang, H.Z.; Dmitrieva, E.; Liang, C.L.; Lu, X.H.; Kuhne, T.D.; Mirhosseini, H.; et al. A High-Rate Two-Dimensional Polyarylimide Covalent Organic Framework Anode for Aqueous Zn-Ion Energy Storage Devices. J. Am. Chem. Soc. 2020, 142, 19570–19578. [Google Scholar] [CrossRef]
  8. Jiang, W.; Cui, W.R.; Liang, R.P.; Qiu, J.D. Difunctional covalent organic framework hybrid material for synergistic adsorption and selective removal of fluoroquinolone antibiotics. J. Hazard. Mater. 2021, 413, 125302. [Google Scholar] [CrossRef]
  9. Xu, R.H.; Cui, W.R.; Zhang, C.R.; Chen, X.R.; Jiang, W.; Liang, R.P.; Qiu, J.D. Vinylene-linked covalent organic frameworks with enhanced uranium adsorption through three synergistic mechanisms. Chem. Eng. J. 2021, 419, 129550. [Google Scholar] [CrossRef]
  10. Cui, W.R.; Li, F.F.; Xu, R.H.; Zhang, C.R.; Chen, X.R.; Yan, R.H.; Liang, R.P.; Qiu, J.D. Regenerable Covalent Organic Frameworks for Photo-enhanced Uranium Adsorption from Seawater. Angew. Chem. Int. Edit. 2020, 59, 17684–17690. [Google Scholar] [CrossRef]
  11. Singh, M.K.; Bandyopadhyay, D. Design and synthesis of nanoporous perylene bis-imide linked metalloporphyrin frameworks and their catalytic activity. J. Chem. Sci. 2016, 128, 1–8. [Google Scholar] [CrossRef]
  12. Zhang, H.; Lou, L.L.; Yu, K.; Liu, S.X. Advances in Chiral Metal-Organic and Covalent Organic Frameworks for Asymmetric Catalysis. Small 2021, 17, 2005686. [Google Scholar] [CrossRef]
  13. Guo, J.; Jiang, D.L. Covalent Organic Frameworks for Heterogeneous Catalysis: Principle, Current Status, and Challenges. ACS Central Sci. 2020, 6, 869–879. [Google Scholar] [CrossRef] [PubMed]
  14. Fang, Q.R.; Wang, J.H.; Gu, S.; Kaspar, R.B.; Zhuang, Z.B.; Zheng, J.; Guo, H.X.; Qiu, S.L.; Yan, Y.S. 3D Porous Crystalline Polyimide Covalent Organic Frameworks for Drug Delivery. J. Am. Chem. Soc. 2015, 137, 8352–8355. [Google Scholar] [CrossRef]
  15. Ge, L.; Qiao, C.Y.; Tang, Y.K.; Zhang, X.K.; Jiang, X.Q. Light-Activated Hypoxia-Sensitive Covalent Organic Framework for Tandem-Responsive Drug Delivery. Nano Lett. 2021, 21, 3218–3224. [Google Scholar] [CrossRef]
  16. Zhang, G.Y.; Li, X.L.; Liao, Q.B.; Liu, Y.F.; Xi, K.; Huang, W.Y.; Jia, X.D. Water-dispersible PEG-curcumin/amine-functionalized covalent organic framework nanocomposites as smart carriers for in vivo drug delivery. Nat. Commun. 2018, 9, 2785. [Google Scholar] [CrossRef]
  17. Yan, X.; Song, Y.P.; Liu, J.M.; Zhou, N.; Zhang, C.L.; He, L.H.; Zhang, Z.H.; Liu, Z.Y. Two-dimensional porphyrin-based covalent organic framework: A novel platform for sensitive epidermal growth factor receptor and living cancer cell detection. Biosens. Bioelectron. 2019, 126, 734–742. [Google Scholar] [CrossRef]
  18. Martínez-Periñán, E.; Martínez-Fernández, M.; Segura, J.L.; Lorenzo, E. Electrochemical (Bio)Sensors Based on Covalent Organic Frameworks (COFs). Sensors 2022, 22, 4758. [Google Scholar] [CrossRef]
  19. Guo, L.; Yang, L.; Li, M.; Kuang, L.; Song, Y.; Wang, L. Covalent organic frameworks for fluorescent sensing: Recent developments and future challenges. Coord. Chem. Rev. 2021, 440, 213957. [Google Scholar] [CrossRef]
  20. Chen, S.; Yuan, B.; Liu, G.; Zhang, D. Electrochemical Sensors Based on Covalent Organic Frameworks: A Critical Review. Front. Chem. 2020, 8, 601044. [Google Scholar] [CrossRef]
  21. Liu, X.G.; Huang, D.L.; Lai, C.; Zeng, G.M.; Qin, L.; Wang, H.; Yi, H.; Li, B.S.; Liu, S.Y.; Zhang, M.M.; et al. Recent advances in covalent organic frameworks (COFs) as a smart sensing material. Chem. Soc. Rev. 2019, 48, 5266–5302. [Google Scholar] [CrossRef] [PubMed]
  22. Kandambeth, S.; Dey, K.; Banerjee, R. Covalent Organic Frameworks: Chemistry beyond the Structure. J. Am. Chem. Soc. 2019, 141, 1807–1822. [Google Scholar] [CrossRef] [PubMed]
  23. Peng, Y.W.; Wong, W.K.; Hu, Z.G.; Cheng, Y.D.; Yuan, D.Q.; Khan, S.A.; Zhao, D. Room Temperature Batch and Continuous Flow Synthesis of Water-Stable Covalent Organic Frameworks (COFs). Chem. Mater. 2016, 28, 5095–5101. [Google Scholar] [CrossRef]
  24. Liang, X.; Ni, Z.J.; Zhao, L.M.; Ge, B.; Zhao, H.; Li, W.Z. Improving surface areas of covalent organic framework with surfactant assisted solvothermal method and its adsorption properties for rhodamine B. Mater. Chem. Phys. 2021, 270, 124725. [Google Scholar] [CrossRef]
  25. Wang, Y.T.; Chen, J.; Wang, G.P.; Yu, Y.L.; Wang, J.H.; Qiu, H.D. Fluorescent determination of cysteine and homocysteine via adjustable synthesis of flower-shaped covalent organic frameworks. Sensor Actuat. B-Chem. 2022, 359, 131555. [Google Scholar] [CrossRef]
  26. Gomes, R.; Bhattacharyya, A.J. Carbon Nanotube-Templated Covalent Organic Framework Nanosheets as an Efficient Sulfur Host for Room-Temperature Metal-Sulfur Batteries. ACS Sustain. Chem. Eng. 2020, 8, 5946–5953. [Google Scholar] [CrossRef]
  27. Caby, M.P.; Lankar, D.; Vincendeau-Scherrer, C.; Raposo, G.; Bonnerot, C. Exosomal-like vesicles are present in human blood plasma. Int. Immunol. 2005, 17, 879–887. [Google Scholar] [CrossRef]
  28. Zhu, C.; Li, L.S.; Wang, Z.J.; Irfan, M.; Qu, F. Recent advances of aptasensors for exosomes detection. Biosens. Bioelectron. 2020, 160, 112213. [Google Scholar] [CrossRef]
  29. Street, J.M.; Barran, P.E.; Mackay, C.L.; Weidt, S.; Balmforth, C.; Walsh, T.S.; Chalmers, R.T.A.; Webb, D.J.; Dear, J.W. Identification and proteomic profiling of exosomes in human cerebrospinal fluid. J. Transl. Med. 2012, 10, 5. [Google Scholar] [CrossRef]
  30. Zhang, Y.C.; Zhou, Q.; Wu, Y.L. The emerging roles of NGS-based liquid biopsy in non-small cell lung cancer. J. Hematol. Oncol. 2017, 10, 167. [Google Scholar] [CrossRef] [Green Version]
  31. Xiao, Y.W.; Zhong, J.N.; Zhong, B.Y.; Huang, J.Y.; Jiang, L.X.; Jiang, Y.; Yuan, J.M.; Sun, J.C.; Dai, L.Y.; Yang, C.B.; et al. Exosomes as potential sources of biomarkers in colorectal cancer. Cancer Lett. 2020, 476, 13–22. [Google Scholar] [CrossRef]
  32. Cheshomi, H.; Matin, M.M. Exosomes and their importance in metastasis, diagnosis, and therapy of colorectal cancer. J. Cell Biochem. 2019, 120, 2671–2686. [Google Scholar] [CrossRef]
  33. Grigoryeva, E.S.; Savelieva, O.E.; Popova, N.O.; Cherdyntseva, N.V.; Perelmuter, V.M. Do tumor exosome integrins alone determine organotropic metastasis? Mol. Biol. Rep. 2020, 47, 8145–8157. [Google Scholar] [CrossRef]
  34. Kawamura, S.; Iinuma, H.; Wada, K.; Takahashi, K.; Minezaki, S.; Kainuma, M.; Shibuya, M.; Miura, F.; Sano, K. Exosome-encapsulated microRNA-4525, microRNA-451a and microRNA-21 in portal vein blood is a high-sensitive liquid biomarker for the selection of high-risk pancreatic ductal adenocarcinoma patients. J. Hepato-Bil-Pan Sci. 2019, 26, 63–72. [Google Scholar] [CrossRef]
  35. Nimir, M.; Ma, Y.F.; Jeffreys, S.A.; Opperman, T.; Young, F.; Khan, T.; Ding, P.; Chua, W.; Balakrishnar, B.; Cooper, A.; et al. Detection of AR-V7 in Liquid Biopsies of Castrate Resistant Prostate Cancer Patients: A Comparison of AR-V7 Analysis in Circulating Tumor Cells, Circulating Tumor RNA and Exosomes. Cells 2019, 8, 688. [Google Scholar] [CrossRef]
  36. Cheng, L.F.; Wang, Y.H.; Huang, L. Exosomes from M1-Polarized Macrophages Potentiate the Cancer Vaccine by Creating a Pro-inflammatory Microenvironment in the Lymph Node. Mol. Ther. 2017, 25, 1665–1675. [Google Scholar] [CrossRef]
  37. Zhu, L.; Kalimuthu, S.; Gangadaran, P.; Oh, J.M.; Lee, H.W.; Baek, S.H.; Jeong, S.Y.; Lee, S.W.; Lee, J.; Ahn, B.C. Exosomes Derived From Natural Killer Cells Exert Therapeutic Effect in Melanoma. Theranostics 2017, 7, 2732–2745. [Google Scholar] [CrossRef]
  38. Fu, W.Y.; Lei, C.H.; Liu, S.W.; Cui, Y.S.; Wang, C.Q.; Qian, K.W.; Li, T.; Shen, Y.F.; Fan, X.Y.; Lin, F.X.; et al. CAR exosomes derived from effector CAR-T cells have potent antitumour effects and low toxicity. Nat. Commun. 2019, 10, 4355. [Google Scholar] [CrossRef]
  39. Moller, A.; Lobb, R.J. The evolving translational potential of small extracellular vesicles in cancer. Nat. Rev. Cancer 2020, 20, 697–709. [Google Scholar] [CrossRef]
  40. Doldan, X.; Fagundez, P.; Cayota, A.; Laiz, J.; Tosar, J.P. Electrochemical Sandwich Immunosensor for Determination of Exosomes Based on Surface Marker-Mediated Signal Amplification. Anal. Chem. 2016, 88, 10466–10473. [Google Scholar] [CrossRef]
  41. Khodashenas, S.; Khalili, S.; Moghadam, M.F. A cell ELISA based method for exosome detection in diagnostic and therapeutic applications. Biotechnol. Lett. 2019, 41, 523–531. [Google Scholar] [CrossRef]
  42. Qiao, B.; Guo, Q.Q.; Jiang, J.Q.; Qi, Y.L.; Zhang, H.; He, B.S.; Cai, C.X.; Shen, J. An electrochemiluminescent aptasensor for amplified detection of exosomes from breast tumor cells (MCF-7 cells) based on G-quadruplex/hemin DNAzymes. Analyst 2019, 144, 3668–3675. [Google Scholar] [CrossRef]
  43. Elewaily, M.I.; Elsergany, A.R. Emerging role of exosomes and exosomal microRNA in cancer: Pathophysiology and clinical potential. J. Cancer Res. Clin. 2021, 147, 637–648. [Google Scholar] [CrossRef]
  44. Kourembanas, S. Exosomes: Vehicles of Intercellular Signaling, Biomarkers, and Vectors of Cell Therapy. Annu. Rev. Physiol. 2015, 77, 13–27. [Google Scholar] [CrossRef]
  45. Paul, D.; Baena, V.; Ge, S.J.; Jiang, X.; Jellison, E.R.; Kiprono, T.; Agalliu, D.; Pachter, J.S. Appearance of claudin-5+ leukocytes in the central nervous system during neuroinflammation: A novel role for endothelial-derived extracellular vesicles. J. Neuroinflamm. 2016, 13, 292. [Google Scholar] [CrossRef]
  46. Yang, T.Z.; Martin, P.; Fogarty, B.; Brown, A.; Schurman, K.; Phipps, R.; Yin, V.P.; Lockman, P.; Bai, S.H. Exosome Delivered Anticancer Drugs Across the Blood-Brain Barrier for Brain Cancer Therapy in Danio Rerio. Pharm. Res.-Dordr. 2015, 32, 2003–2014. [Google Scholar] [CrossRef]
  47. Ma, W.D.; Zheng, Q.; He, Y.T.; Li, G.R.; Guo, W.J.; Lin, Z.; Zhang, L. Size-Controllable Synthesis of Uniform Spherical Covalent Organic Frameworks at Room Temperature for Highly Efficient and Selective Enrichment of Hydrophobic Peptides. J. Am. Chem. Soc. 2019, 141, 18271–18277. [Google Scholar] [CrossRef]
  48. Sun, Z.; Wang, L.; Wu, S.; Pan, Y.; Dong, Y.; Zhu, S.; Yang, J.; Yin, Y.; Li, G. An Electrochemical Biosensor Designed by Using Zr-Based Metal-Organic Frameworks for the Detection of Glioblastoma-Derived Exosomes with Practical Application. Anal. Chem. 2020, 92, 3819–3826. [Google Scholar] [CrossRef]
  49. Zhang, Y.; Fan, J.; Zhao, J.; Xu, Z. A biochip based on shell-isolated Au@MnO2 nanoparticle array-enhanced fluorescence effect for simple and sensitive exosome assay. Biosens. Bioelectron. 2022, 114373. [Google Scholar] [CrossRef]
  50. Yu, X.; He, L.; Pentok, M.; Yang, H.; Yang, Y.; Li, Z.; He, N.; Deng, Y.; Li, S.; Liu, T.; et al. An aptamer-based new method for competitive fluorescence detection of exosomes. Nanoscale 2019, 11, 15589–15595. [Google Scholar] [CrossRef]
  51. Lu, Z.; Shi, Y.; Ma, Y.; Jia, B.; Li, X.; Guan, X.; Li, Z. Fast and specific enrichment and quantification of cancer-related exosomes by DNA-nanoweight-assisted centrifugation. Anal. Chem. 2022, 94, 9466–9471. [Google Scholar] [CrossRef] [PubMed]
  52. Chen, W.; Li, Z.; Cheng, W.; Wu, T.; Li, J.; Li, X.; Liu, L.; Bai, H.; Ding, S.; Li, X.; et al. Surface plasmon resonance biosensor for exosome detection based on reformative tyramine signal amplification activated by molecular aptamer beacon. J. Nanobiotechnol. 2021, 19, 450. [Google Scholar] [CrossRef] [PubMed]
  53. Xiong, H.; Huang, Z.; Lin, Q.; Yang, B.; Yan, F.; Liu, B.; Chen, H.; Kong, J. Surface Plasmon Coupling Electrochemiluminescence Immunosensor Based on Polymer Dots and AuNPs for Ultrasensitive Detection of Pancreatic Cancer Exosomes. Anal. Chem. 2022, 94, 837–846. [Google Scholar] [CrossRef] [PubMed]
  54. Shen, X.; Wang, S.; Lu, Q.; Guo, Y.; Qian, L. Translating cancer exosomes detection into the color change of phenol red based on target-responsive DNA microcapsules. Anal. Chim. Acta 2022, 1192, 339357. [Google Scholar] [CrossRef]
  55. Kim, C.; Han, B.H.; Kim, D.; Lee, G.; Hong, C.; Kang, J.Y.; Lee, K. Multi-target polydiacetylene liposome-based biosensor for improved exosome detection. Sens. Actuators B Chem. 2022, 355, 131286. [Google Scholar] [CrossRef]
  56. Lu, J.; Wang, M.; Han, Y.; Deng, Y.; Zeng, Y.; Li, C.; Yang, J.; Li, G. Functionalization of Covalent Organic Frameworks with DNA via Covalent Modification and the Application to Exosomes Detection. Anal. Chem. 2022, 94, 5055–5061. [Google Scholar] [CrossRef]
Biosensors 12 00704 g001 550

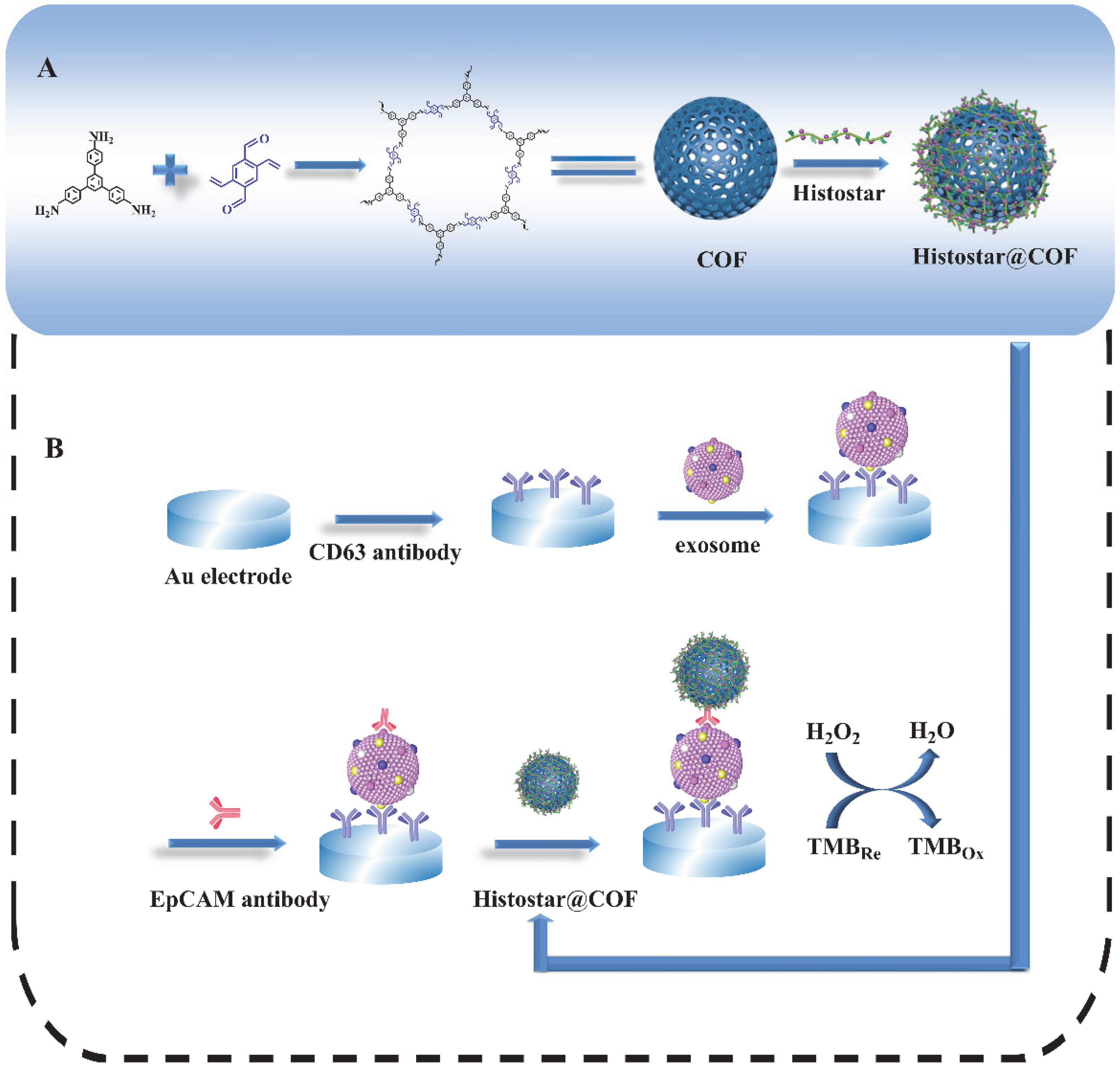

Figure 1. Schematic graph for (A) the preparation process of Histostar@COFs and (B) the principle of the proposed biosensor for the detection of exosomes.
Figure 1. Schematic graph for (A) the preparation process of Histostar@COFs and (B) the principle of the proposed biosensor for the detection of exosomes.
Biosensors 12 00704 g001
Biosensors 12 00704 g002 550

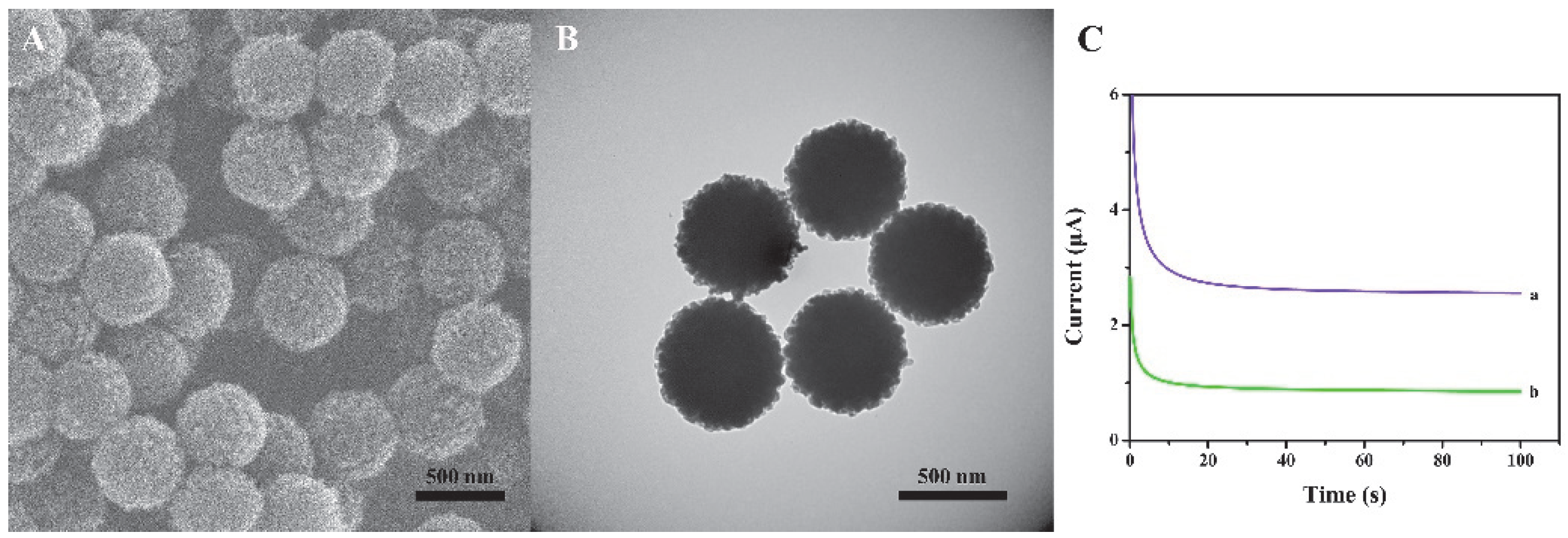

Figure 2. SEM(A) and TEM (B) images of COFs. (C) The current response of (a) Histostar@ COFs and (b) HRP-IgG.
Figure 2. SEM(A) and TEM (B) images of COFs. (C) The current response of (a) Histostar@ COFs and (b) HRP-IgG.
Biosensors 12 00704 g002
Biosensors 12 00704 g003 550

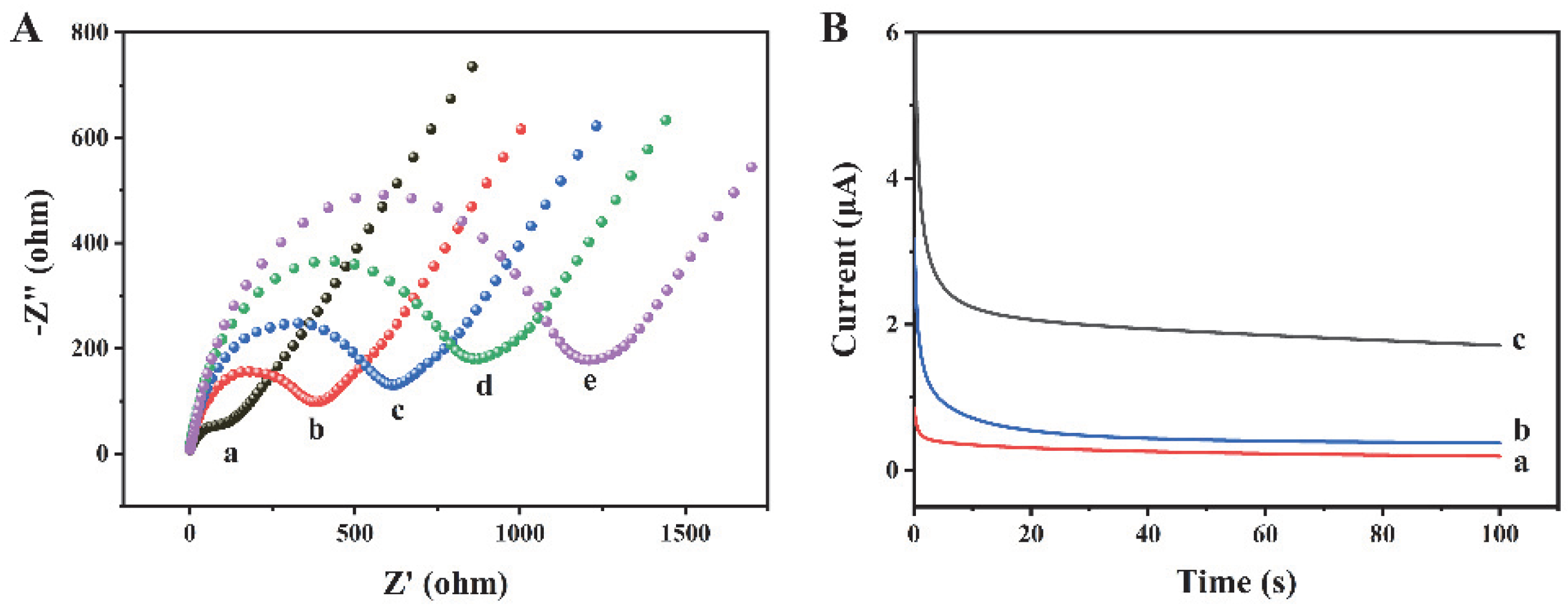

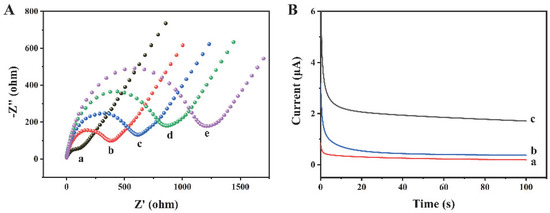

Figure 3. (A) EIS measurements of (a) bare gold electrode, (b) Ab1/Au, (c) exosomes/Ab1/Au, (d) Ab2/exosome/Ab1/Au, and (e) Histostar@COFs/Ab2/exosome/Ab1/Au. (B) Currents of different electrodes in detection buffer: (a) bare Au, (b) Histostar@COFs/Ab2/exosome/Ab1/Au when the exosome concentration was 0 particles/μL, and (c) Histostar@COFs/Ab2/exosome/Ab1/Au with 106 particles/μL concentration exosomes.
Figure 3. (A) EIS measurements of (a) bare gold electrode, (b) Ab1/Au, (c) exosomes/Ab1/Au, (d) Ab2/exosome/Ab1/Au, and (e) Histostar@COFs/Ab2/exosome/Ab1/Au. (B) Currents of different electrodes in detection buffer: (a) bare Au, (b) Histostar@COFs/Ab2/exosome/Ab1/Au when the exosome concentration was 0 particles/μL, and (c) Histostar@COFs/Ab2/exosome/Ab1/Au with 106 particles/μL concentration exosomes.
Biosensors 12 00704 g003
Biosensors 12 00704 g004 550

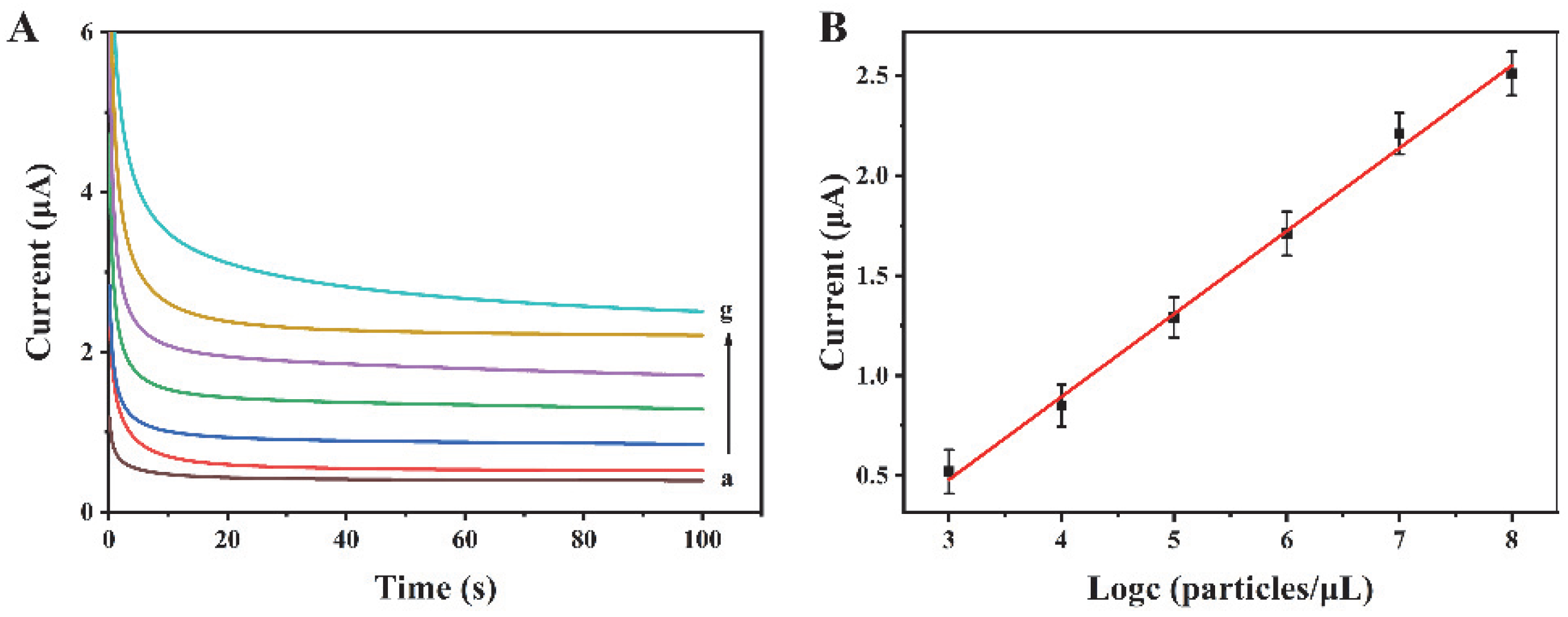

Figure 4. (A) Current curves for different concentrations of exosomes. a–g are 0, 103, 104, 105, 106, 107, and 108 particles/μL, respectively. (B) The linear relationship between the current intensity and the logarithm of exosome concentration.
Figure 4. (A) Current curves for different concentrations of exosomes. a–g are 0, 103, 104, 105, 106, 107, and 108 particles/μL, respectively. (B) The linear relationship between the current intensity and the logarithm of exosome concentration.
Biosensors 12 00704 g004
Biosensors 12 00704 g005 550

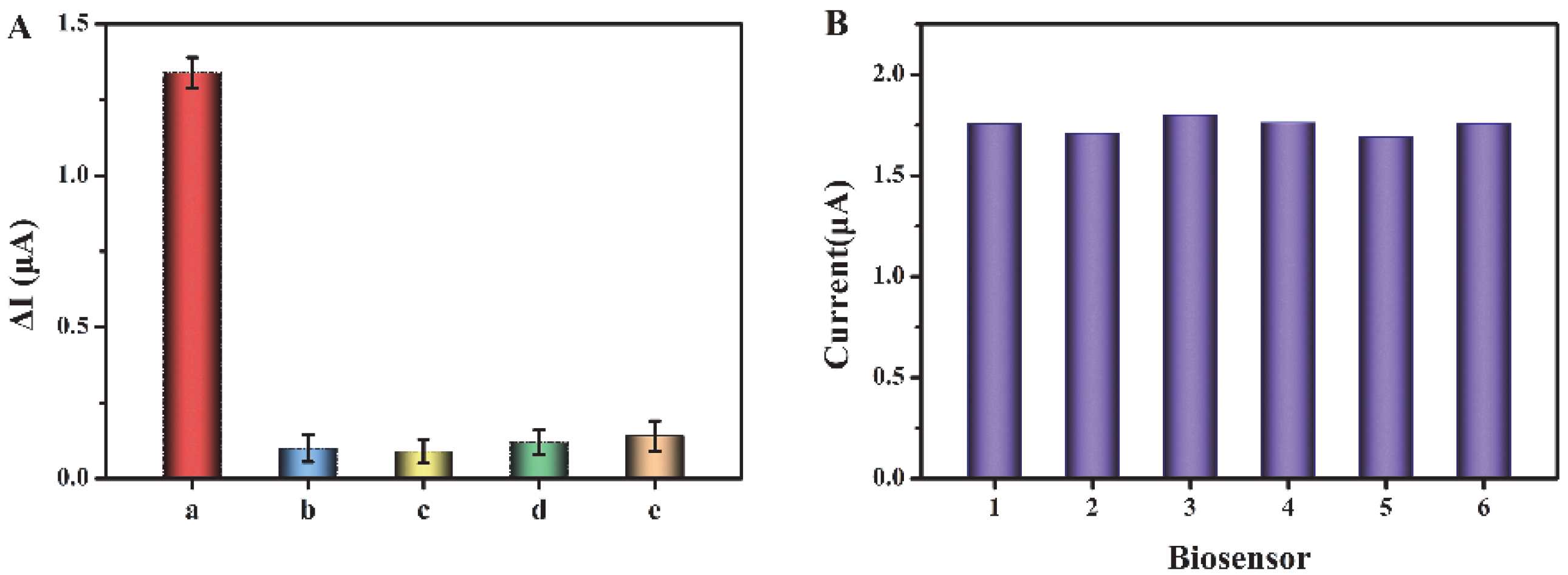

Figure 5. (A) Current change (ΔI) before and after addition of exosomes and interferents. a–e are exosome, cysteine, glucose, glutathione, and BSA, respectively. (B) Reproducibility of the biosensor.
Figure 5. (A) Current change (ΔI) before and after addition of exosomes and interferents. a–e are exosome, cysteine, glucose, glutathione, and BSA, respectively. (B) Reproducibility of the biosensor.
Biosensors 12 00704 g005
Table
Table 1. Comparison of the developed method with some other reports.
Table 1. Comparison of the developed method with some other reports.
TechniqueLinear Range
Particles/µL		Detection Limit
Particles/µL		Reference
Fluorescence8.5 × 103 to 8.5 × 1054.5 × 103[49]
Fluorescence105 to 109 105[50]
Fluorescence1.1 × 104 to 1.1 × 107562[51]
Surface plasmon resonance0.1 to 107 104[52]
Electrochemiluminescence103 to 106400[53]
Colorimetry2.0 × 103 to 5.0 × 1051.2 × 103[54]
Colorimetry108 to 10101.5 × 108[55]
Electrochemistry104 to 1079661[56]
Electrochemistry103 to 108 318This work
