Recent Advancements in Novel Sensing Systems through Nanoarchitectonics

by
Karthick Velu
1,2,
Rekha Goswami Shrestha
1,
Lok Kumar Shrestha
1,3,* and
Katsuhiko Ariga
1,4,*
1
International Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science (NIMS), 1-1 Namiki, Tsukuba 305-0044, Japan
2
Centre for Ocean Research, Sathyabama Institute of Science and Technology, Jeppiaar Nagar, Rajiv Gandhi Salai, Chennai 600119, India
3
Department of Materials Science, Faculty of Pure and Applied Sciences, University of Tsukuba, 1-1-1 Tennodai, Tsukuba 305-8573, Japan
4
Department of Advanced Materials Science, Graduate School of Frontier Sciences, The University of Tokyo, 5-1-5 Kashiwanoha, Kashiwa 277-8561, Japan
*
Authors to whom correspondence should be addressed.
Biosensors 2023, 13(2), 286; https://doi.org/10.3390/bios13020286
Submission received: 23 January 2023 / Revised: 7 February 2023 / Accepted: 14 February 2023 / Published: 16 February 2023
(This article belongs to the Special Issue Nanomechanical Sensors for Gas Detection)
Browse Figures
Versions Notes

Abstract

:
The fabrication of various sensing devices and the ability to harmonize materials for a higher degree of organization is essential for effective sensing systems. Materials with hierarchically micro- and mesopore structures can enhance the sensitivity of sensors. Nanoarchitectonics allows for atomic/molecular level manipulations that create a higher area-to-volume ratio in nanoscale hierarchical structures for use in ideal sensing applications. Nanoarchitectonics also provides ample opportunities to fabricate materials by tuning pore size, increasing surface area, trapping molecules via host–guest interactions, and other mechanisms. Material characteristics and shape significantly enhance sensing capabilities via intramolecular interactions, molecular recognition, and localized surface plasmon resonance (LSPR). This review highlights the latest advancements in nanoarchitectonics approaches to tailor materials for various sensing applications, including biological micro/macro molecules, volatile organic compounds (VOC), microscopic recognition, and the selective discrimination of microparticles. Furthermore, different sensing devices that utilize the nanoarchitectonics concept to achieve atomic-molecular level discrimination are also discussed.

1. Introduction

Fabricating materials through atomic/molecular manipulation, chemical harmonization, tuning to recognize certain functional groups, and spatial design confinements to trap specific molecules based on chemical heterogeneity are techniques that are used to delineate sensors via nanoarchitectonics [1,2]. Interaction of materials at the nanoscale level depends on atomic/molecular level changes that are observed as fluctuations at the quantum level, and vary with interactions at solid, liquid, or air–water interfaces [3,4]. Various non-covalent interactions through supramolecular chemistry, including van der Waals interactions, self-assembly, the Langmuir–Blodgett technique, layer-by-layer assembly, and electrostatic interactions, are used to create unique physical and chemical properties that are suitable for sensing a specific molecule [5,6]. Self-assembled structures for perfect order, such as stimuli responsiveness, hierarchic structures, cross-linking, and degree of porosity, can be useful for such applications [7,8]. Porous materials that are designed via nanoarchitectonics can enable the free flow of ions through a narrow channel, creating a diffusion path and place for confined molecules to interact (i.e., diffusion of solvent/gas molecules) [9,10]. Nanoscale modifications depend on the molecule’s energy and state, including internal dynamics, rotational, vibrational, electronic, and spin states [11,12]. The growth of nanoscale materials at interfaces by weakly interacting layer-by-layer (LbL) assemblies can offer tremendous control over structures, making them suitable for sensing applications through molecular recognition [13,14]. Materials that are structurally transformed via nanoarchitectonics can enhance atomic/molecular level discrimination of solvent vapors, biomolecules, and diagnostic applications [15,16]. Intramolecular vibrations and spatial confinement can make nanoporous/mesoporous platforms effective sensing systems for cooperative adsorption [17,18].

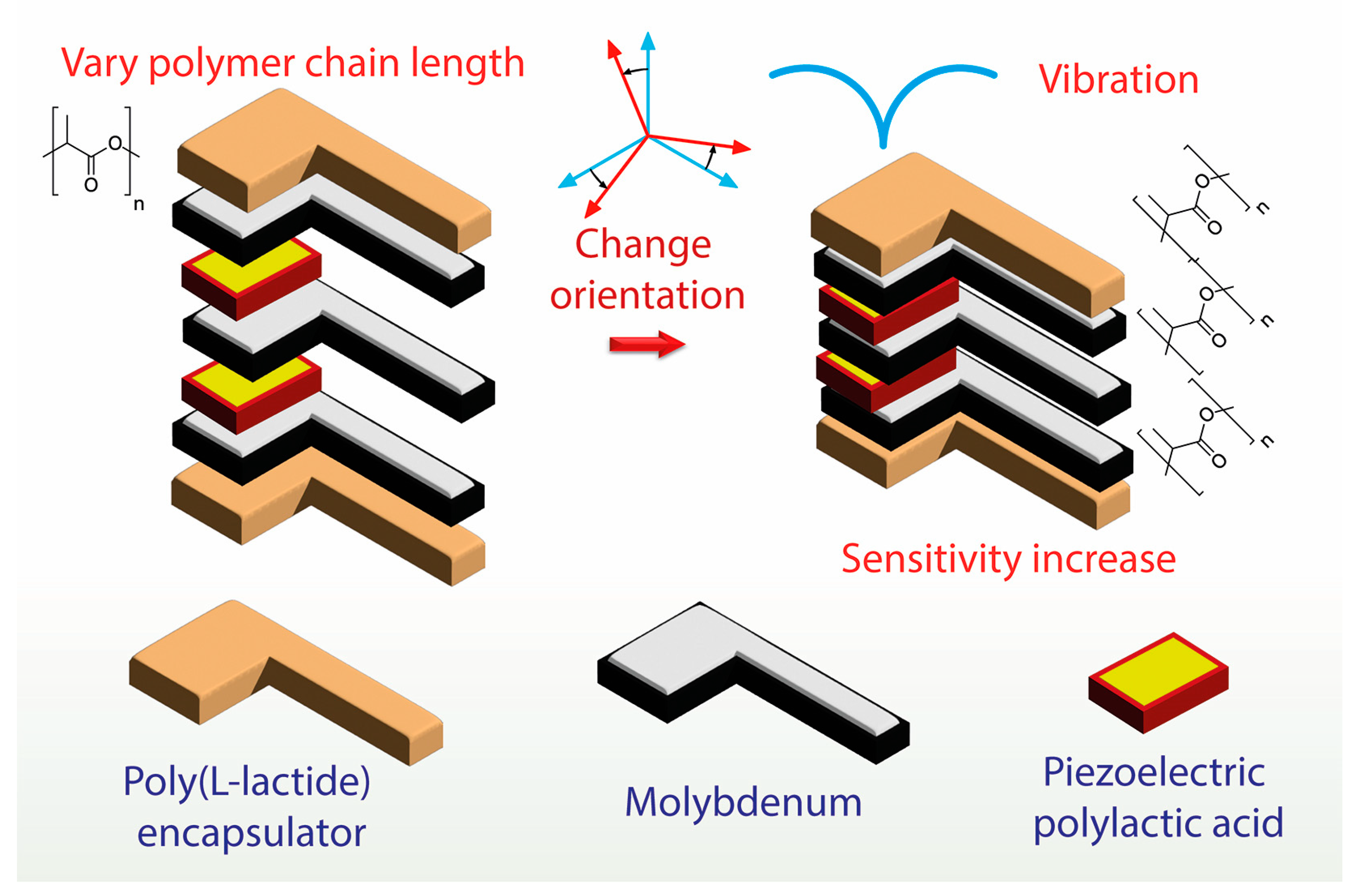

Soft nanoarchitectonics involve delicate processes that can produce highly ordered structures with extraordinary properties [19]. The ability to discriminate specific molecules by manipulating the shape of nanostructures is critical for developing efficient sensing platforms [20,21]. A sensing material’s hallmark is recognizing solvent vapors with similar molecular weights and different properties. Several sensing platforms have been developed, including tunable nanoresonators consisting of free-standing 3D nanoarchitectures for an enhanced Young’s modulus, have been developed [22,23]. Hierarchical nanostructured materials incorporated into nanomechanical sensors can elicit analyte-induced stimuli with nanometer precision [24,25]. Nanoporous materials create prolonged diffusion of guest molecules, which interact with the active sites via host–guest interactions to increase reliability [26,27]. One of the promising methods for detecting biomolecules is the covalent attachment of fluorophores with oligodeoxynucleotide, through fluorescence resonance energy transfer (FRET)-based detection [28,29]. Metal nanomaterials-based sensing platforms reflect changes via spatial proximity, resulting from a mismatch between the size of target molecules, and the decay length of localized surface plasmon resonance (LSPR) signals [30,31]. Sensing platforms that utilize the LSPR capability are used to detect biomolecules in clinical practice. In particular, noble metal nanomaterials with unique shapes and tips can generate hotspots for sensing biomolecules [32,33]. Electromagnetic enhancement, combined with plasmon excitation in metal nanomaterials, serves as a surface-enhanced Raman scattering (SERS) substrate for the detection of molecules that transfer electrons and form a metal–biomolecule interaction [34,35]. Fullerene-based sensing systems are generally regarded as highly selective to aromatic vapors through various mechanisms, such as strong π−π interactions, van der Waals interactions, bonding interplay, and so on [36,37]. Post-modification of fullerene assemblies can have a significant role in improving the sensitivity towards solvent vapor sensing. Chemical etching and amination reactions can be used to create numerous reactive sites (i.e., pores/nanostructures) for sensing applications [38,39]. This review focuses on recently developed sensor systems that apply the nanoarchitectonics concept, including devices and sensor materials. From the viewpoint of nanoarchitectonics, (a) tuning/manipulating shapes for creating hierarchical structures and (b) atomic/molecular fabrications for improving the effectiveness of sensing platforms will be discussed.

2. Sensing Biomolecules via Nanoarchitectonics

The detection of small biomolecules in in vivo systems can be significant for determining the severity of acute diseases, which are often less efficient in medical tests [40,41]. Functional nucleic acid-based sensors gain interest in detecting biomolecules and changes in the chemical and biological environment. Particularly, DNA aptamers, which consist of single-stranded DNA with specific base pairs, are often crucial in detecting metabolites, therapeutic molecules, and so on [42,43]. Aptamer-based sensors are widely used to detect circulating tumor cells via fluorophore labeling, pH responsiveness, and so on [44,45]. In some cases, nucleic acids were employed for the detection of biomolecules through DNA nanoarchitectonics [46,47]. In particular, DNA walkers, made of DNA origami for detecting single-nucleotide polymorphisms, interactions with other biomolecules, mutations, and structural alterations, are considered to be prospective biosensors [48,49]. Nucleic acids are promising materials, with unique electron transfer capacities and chemical heterogeneity [50,51]. Fluorescent dye is usually tagged to the oligodeoxynucleotide to enhance the SERS signal, which alters the conformation of the nucleic acid with respect to pH changes [52,53]. Very recently, our group has developed DNA-based solid thin films for the detection of solvent vapors, using DNA from salmon sperm. The laser molecular beam deposition technique was used to fabricate a flat sensing system that can effectively detect methanol from other solvent vapors [54]. Sun and co-workers have developed an aptamer-based sensing system conjugated with a gold surface to form a nanotetrahedron scaffold to specifically recognize human hepatocellular carcinoma tumor cells [55]. Microcystin-leucine arginine is a toxin that is produced by cyanobacteria, and is present in water for human consumption [56]. The detection of microcystin-leucine arginine is often challenging, as it is present in trace quantities. A recent study found that single-walled carbon nanohorn-based electrochemical immunosensors showed enhanced detection abilities. The presence of carboxylic groups around the tips of carbon nanohorns, and their interactions with the amino group of microcystin-leucine arginine, are critical for the efficiency of the sensing system [57]. Likewise, Pang and collaborators developed an enzyme-free electrochemical immunosensor system for detecting microcystin-leucine arginine, using molybdenum disulfide nanosheet/bovine serum albumin-stabilized gold nanocluster composite and gold-core platinum-shell nanoparticles [58]. Cucurbit[n]urils are a class of novel compounds, which derive their name from pumpkin’s “Cucurbitaceae”, and are known for their unique properties, such as hydrophobic inner cavities and fringed carbonyl portals. Molecules such as thiamine can be detected accurately using cucurbit[7]uril-based sensors via host–guest chemistry from oxidized thiamine (thiochrome) [59,60]. Likewise, cucurbit[6]uril-based hierarchic assemblies are used to detect nitroaromatic compounds in explosives. They make structural changes upon interacting with the nitroaromatic compounds, and produce a fluorescence-quenching effect that is used for detection [61]. Noncovalent interactions between atoms/bonds can be beneficial for the recognition of specific molecules, ranging from biomolecules to VOCs. Guanine-rich sensors utilize non-covalent π-stacking interactions that involve nucleobases for strong sensing of nucleic acid inhibitors [62]. Chen and collaborators developed an α-hemolysin-based nanopore stochastic sensing platform to recognize anions, cations, and hydrophobic molecules [63]. Similarly, Xiang and co-workers developed carbon nanotube/polyurethane-based flexible piezoresistive strain sensors. They used 1-pyrenecarboxylic acid to enhance the interface between carbon nanotubes and polyurethane, via non-covalent interactions [64].

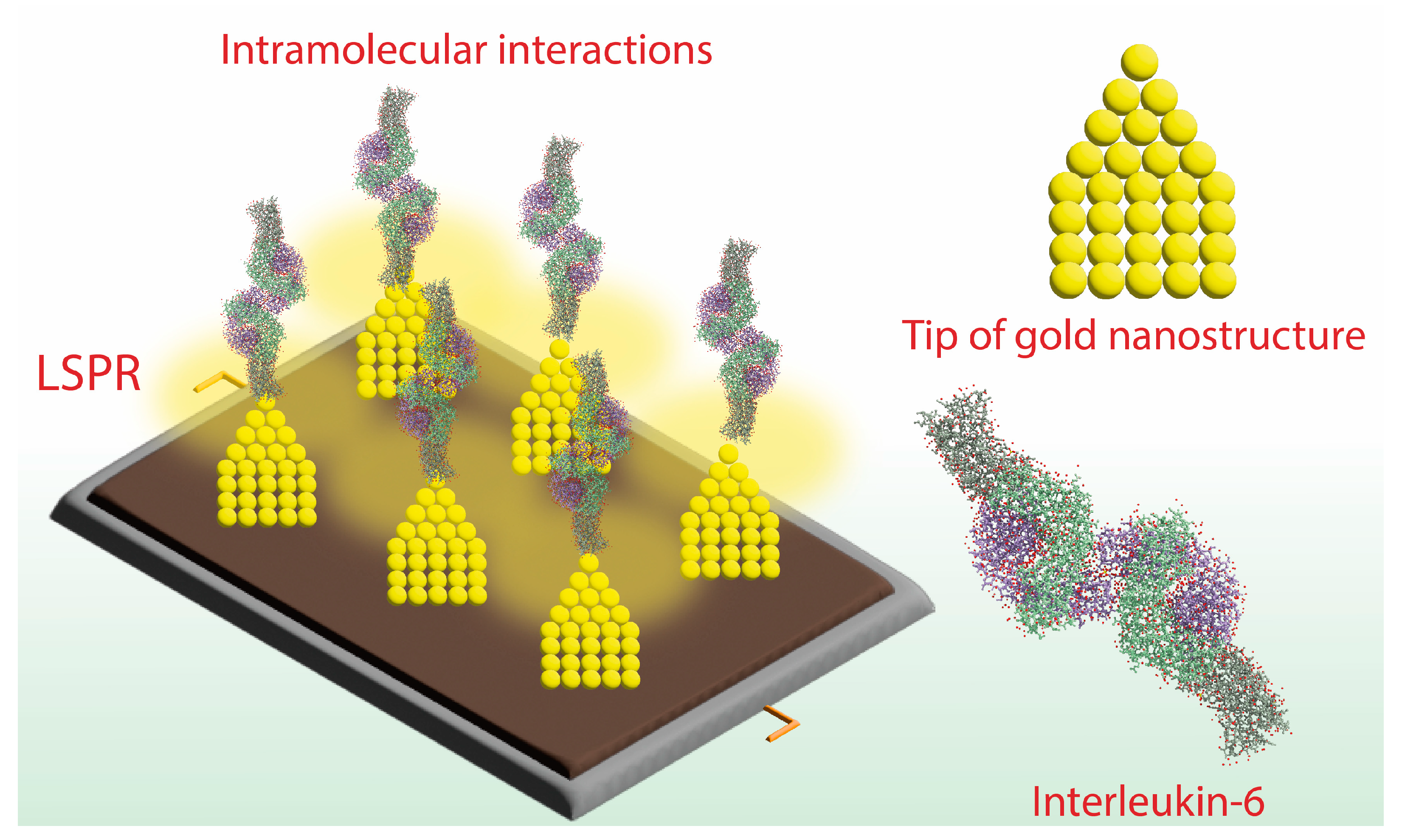

Collective oscillation of free electrons resulting in LSPR, and its biomolecular interactions, cause a change in the refractive index of the sensing surface. Tunable plasmonic nanostructures are ideal for sensing biologicals such as antigens, antibodies, and other sensitive molecules [65,66]. Often, these nanosystems use plasmonic materials such as gold, silver nanomaterials, and so on [67,68]. Luo and co-workers recently developed a cauliflower-like noble metal nanoparticle-based sensing system that utilized the LSPR effect. The developed system was tested for its sensing capability to detect interleukin-6 by measuring changes in the refractive index. The system showed a shift in the plasmon band in the thin film instead of bulk gold, indicating its sensitivity in detecting small biomolecules. The authors believed that the sensing mechanism could be due to the generation of hotspots by dense nanostructures with concavo-convex structures, which improves sensitivity through the enhancement of localized electromagnetic fields [69] (Figure 1).
Chang and collaborators fabricated a metal-insulator-metal nanodisk, in combination with polydimethylsiloxane, for the detection of cancer cells [70]. In another study, human angiotensin-converting enzyme 2 protein functionalized silver nanoparticles system showed rapid detection of severe acute respiratory syndrome coronavirus 2 through a plasmonic effect of the silver nanoparticles [71]. Qiu and co-workers developed gold nanoislands functionalized with poly(m-phenylenediamine-co-aniline-2-sulfonic acid) for the detection of lead cations in drinking water [72]. The researchers developed a boron-affinity magnetic immune SERS sensor for the detection of alpha-fetoprotein [73]. The 4-mercaptophenylboronic acid-modified metal nanoparticles were grafted and used as a detection probe. They used alpha-fetoprotein antibodies for successful tagging onto boric acid-functionalized magnetic silica particles, and used them as a magnetic immunocapture probe [74]. The developed system showed excellent sensitivity in detecting alpha-fetoprotein in both serum and clinical samples. The authors believed that the synergistic effect between “hotspots” caused by magnetic induction and the Raman peak intensity of each “hotspot” could be the reason for the sensitivity [75,76]. The sensing system showed enhanced specificity between antibodies of human liver carboxylesterase-1, Immunoglobulin G, bovine serum albumin, human serum albumin, and lipoprotein lipase [73,77].
The molybdenum disulfide nanosheet/bovine serum albumin-stabilized gold nanocluster composite showed greater surface area for reactivity and excellent biocompatibility. Researchers used gold-core platinum-shell nanoparticles as an enzymatic reporter to recognize microcystin-leucine arginine antibodies [58]. Silicon nanowire-based field effect transistor sensors with a permeable polymer layer were developed for the detection of biomolecules, which overcame the limitation of the Debye screening effect [78]. The authors constructed a permeable polymer layer by adsorption of pyrene butyric acid via π–π stacking, followed by covalent coupling of amine-terminated polyethylene glycol [79]. Curry and co-workers developed poly-L-lactide-based biodegradable piezoelectric force sensors to detect diaphragmatic contraction pressure. The device was fabricated by sandwiching poly-L-lactide layers between molybdenum electrodes and encapsulating them with polylactic acid (Figure 2). The authors found that the efficiency of the piezoelectric sensor depended on the crystallinity and degree of orientation of the polymer chains [80]. For sensitive detection of microRNAs, Salahuddin and co-workers [81] developed a κ-carrageenan-based mesoporous gold sensing system by dip coating κ-carrageenan hydrogel on the gold electrode for enhanced adsorption of microRNAs [82]. The authors found that the κ-carrageenan hydrogel network provides a 3D network for the binding of microRNAs, determined via chronocoulometry [81].

3. Quartz Crystal Microbalance (QCM)-Based Sensing Techniques

The detection of carcinogens, such as aromatic amines via noninvasive techniques, can be seen as a bright prospect in disease diagnostics [83,84]. A mesoporous carbon nanocage-based sensing system was developed to sense aromatic amines effectively. Mesoporous carbon nanocages with a larger surface area and pore volume were prepared using the cage-type mesoporous silica template technique [85]. The sensing system was developed by solvent-casting N, N-dimethylformamide, and poly (methyl methacrylate) films in combination with mesoporous carbon nanocages on a quartz crystal microbalance (QCM). The electrospun nanofibrous film containing carbon nanocages showed a larger surface area and porous membrane structure. Using a gas flow unit, the sensor was evaluated for its sensing capacity against aniline, benzene, toluene, ethanol, acetone, acetic acid, ammonia, and cyclohexane. The results showed that the developed carbon nanocage-based sensing system was more effective against aniline than benzene and toluene. We believe that hydrogen bonding with the amino group of aniline and active sites involving π−π forces could be the key to selective sensitivity [86,87]. Further investigation using density functional theory (DFT) also suggests that hydrogen bonding between the amine group in aniline and carbonyl group in carbon nanocage is necessary for high selectivity [88] (Figure 3).
Naturally derived carbon-based materials are being explored for their potential use in alcohol discrimination. We prepared a porous carbon material from naturally available grass and bamboo via chemical inactivation by phosphoric acid at 400 °C and tested its sensing capabilities. The prepared amorphous carbon materials were found to have hierarchical micro- and mesoporous structures with various oxygen-containing functional groups. We found that the porosity and surface area of the prepared carbon material can be controlled by regulating the impregnation ratio of phosphoric acid and bamboo. X-ray photoelectron spectroscopic (XPS) analysis revealed that hetero-carbon components with oxygen-containing functional groups are essential for sensing applications. The nanoporous bamboo carbon’s sensing capacity for volatile organic solvents was tested against various solvent vapors (methanol, ethanol, benzene, toluene, and acetic acid). The nanoporous carbon showed a higher sensitivity for non-aromatic solvent vapors (acetic acid, methanol, and ethanol) than aromatic solvent vapors (benzene and toluene). It was believed that the interaction between alcohol vapors and oxygen-containing surface functional groups such as –OH, C=O, and COOH on the nanoporous carbon, could be the reason for the sensitivity. The developed system also showed a significant sensitivity difference between methanol and ethanol for discriminating between C1 and C2 alcohols [89]. Hierarchical nanoporous fullerene structures are expected to display greater sensing capacity, owing to their unique π-conjugated structure, bonding interplay, and strong van der Waals reactions [90]. Fullerene and its derivatives have enhanced electronic, redox, and photonic properties, which can be used in sensing applications [91]. They show enhanced redox activity through their strong electron-accepting capacity. In this regard, Bitter melon-shaped nanoporous fullerene crystals were prepared and investigated for their vapor-sensing capacity. Powder diffraction analysis indicated both fcc and hcp phases, and after washing with isopropyl alcohol, the hcp phase disappeared. Raman scattering spectra indicated two Ag and six Hg bands. Particularly, the Ag(2) band (pentagonal pinch mode) of the fullerene assembly is considered as the analytical probe, which showed that the free molecular rotation of the fullerene molecules is preserved in the self-assembled form. The prepared bitter melon-shaped fullerene crystals were subjected to vapors of water, methanol, hexane, benzene, toluene, and aniline. The system was able to sense aromatic solvent vapors such as benzene, toluene, and aniline, as evidenced from the significant frequency shift in QCM. These results suggest that the bitter melon-shaped fullerene crystals could serve more as a preferential host for aromatic vapors than other solvent vapors [92].
Continuing previous efforts, a tubular corn-husk-shaped fullerene assembly with a crystalline pore wall suitable for sensing applications was developed [93]. Corn-husk-shaped fullerene crystals were developed from pristine C60, using the dynamic liquid–liquid interface precipitation (LLIP) technique under ambient conditions. The fullerene crystals were tested for their sensing capacity against various solvent vapors, including methanol, ethanol, 2-propanol, formic acid, acetic acid, formaldehyde, acetone, pyridine, toluene, aniline, hexane, and cyclohexane. The fullerene crystals showed excellent sensitivity to acetic acid vapors by enhanced diffusion via mesoporous walls. The sensitivity towards acetic acid is mainly due to the reactivity of dimeric species from acetic acid in the vapor phase with electron-deficient fullerene molecules. Furthermore, the tubular wall with numerous microporous structures and crystalline pore walls helps to create nano gaps that are required for the adsorption of guest vapors. These results suggest that advanced sensing systems can be developed using fullerene rosette for the more effective sensing of formic acid [93]. In a recent report, Chen and coworkers prepared a micron-sized 2D fullerene rosette by self-assembling C60 with melamine/ethylenediamine and immobilized it onto a QCM resonator; a sensing system was developed. They found that the fullerene rosette exhibited an amorphous structure, unlike numerous fullerene assemblies generated by the LLIP technique. Raman scattering spectra indicated an Ag(2) band shift which contributed to the restriction of free molecular rotation of the fullerene by strong interactions/covalent linking by melamine/ethylenediamine. Attenuated Total Reflection-Fourier Transform Infra-Red (ATR-FTIR) and XPS analysis also revealed the strong interaction of melamine/ethylenediamine components with fullerene molecules, making them suitable for sensing applications. The vapor-sensing property of the fullerene rosette was studied using various solvent vapors such as ethanol, ethyl acetate, formic acid, acetic acid, pyridine, acetone, hexane, aniline, benzene, toluene, and cyclohexane. The fullerene rosette showed better sensitivity against formic acid and acetic acid than other solvent vapors, mainly due to the available amino groups in the assembly [94].
It is well known that the molecular sensing of mesoporous materials can be higher, owing to their larger surface areas [95]. However, fewer studies have reported the control over shape morphology with adjustments in organic solvent diffusion rates [96]. Bairi and co-workers developed a hierarchic fullerene C70 cube with mesoporous rods with crystalline pore walls, which functioned as the sensing antenna for toxic aromatic solvent vapors using ultrasound-assisted liquid−liquid interfacial precipitation [97]. Growth of the nanorods was controlled in the x, y, and z directions by modifying solvent diffusion conditions. Furthermore, the cubes with z-directed nanorods were tested for their vapor-sensing capacity using various solvent vapors (toluene, pyridine, hexane, cyclohexane, and benzene) via the QCM system (Figure 4).

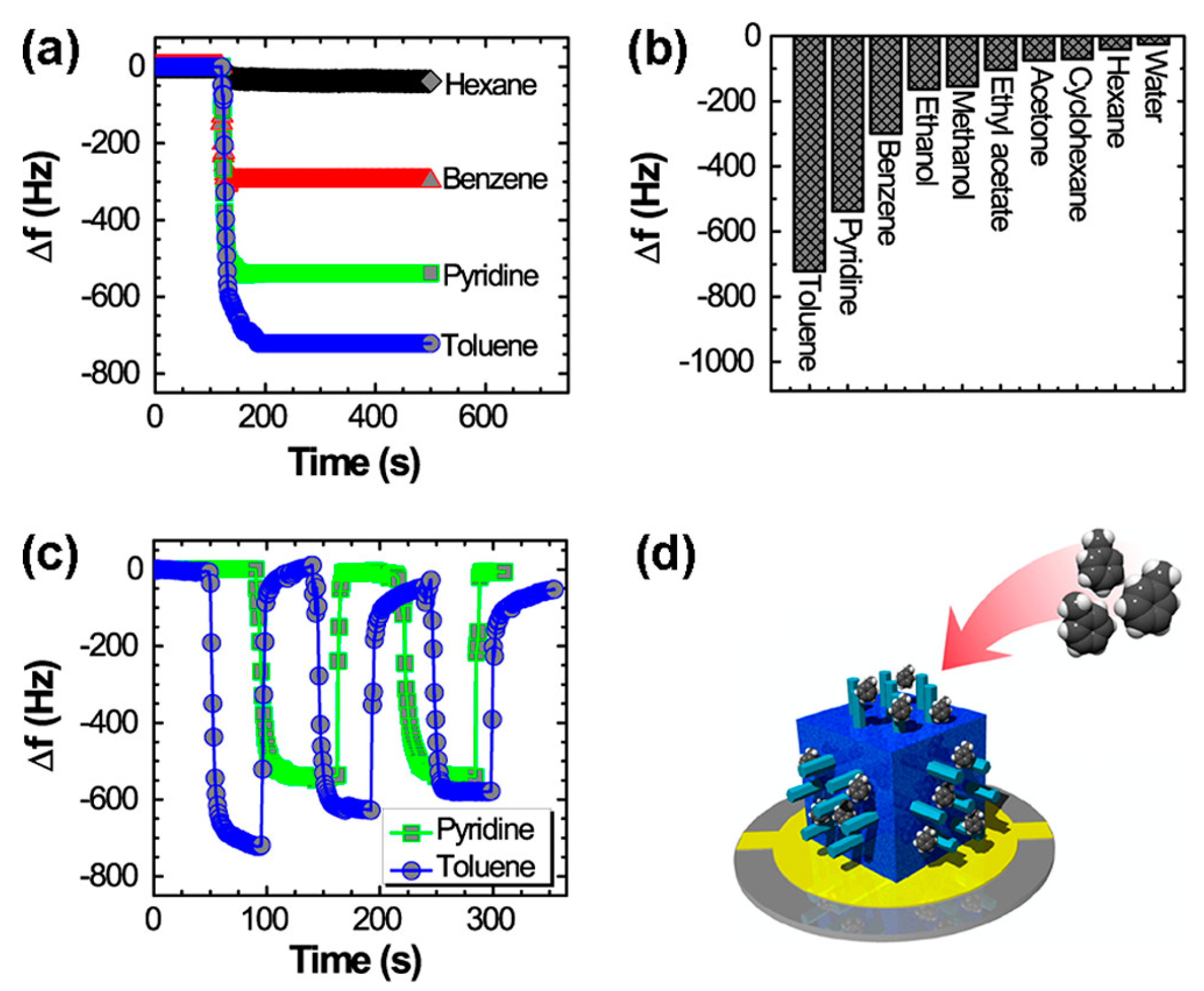

We observed that adsorption of the aromatic solvent vapors (toluene and pyridine) was higher than that for aliphatic hydrocarbon vapors (hexane and cyclohexane). The difference in sensing capacity is believed to be the hallmark of grown nanorods on the surfaces of cubes. Strong π−π interactions with sp2 carbon-rich pore walls, mesoporous architecture, and very strong donor−acceptor charge-transfer interaction prove that fullerene-based structures can be widely used in sensing applications [98,99]. Structural modification is key to enhancing the vapor-sensing performance of fullerene assemblies. Modifying structures in a controlled manner requires several processes, including chemical etching, amination, electrochemical means, and so on [100,101]. Some researchers even increased the hydrophilicity of fullerenes to enhance the application of fullerene assemblies in various fields [102,103]. Surface modification strategies, including covalent and non-covalent adsorption with a range of polymerization techniques, are used to create active LbL films for sensing applications. These strategies offer control over the architecture for enhanced adsorption/recognition of the target molecules. We developed an LbL-based mesoporous carbon platform for the selective sensing of tea compounds. The mesoporous carbon surface was oxidized with the help of ammonium persulfate, and the LbL assembly was performed on a QCM surface using poly(diallyldimethyl chloride). The developed system effectively detected tannic acid via cooperative adsorption on the available nanoporous space [104].
Our group successfully developed a strategy to efficiently control the morphology with face-selective etching on fullerene assemblies via chemical etching. Fullerene assemblies (1D—nanorods, 2D—nanosheets, and 3D—nanocubes) were prepared using the ultrasonic LLIP technique. By adding ethylene diamine (EDA) under gentle sonication, etching was performed to yield hollow tubular structures on the fullerene assemblies. After etching, all fullerene assemblies showed a broad N-H stretching vibration in infra-red spectra, indicating the presence of EDA-containing species. It was observed that the chemical etching did not affect the size and shape of the fullerene assemblies. The chemically etched fullerene nanostructures were tested for their sensing capabilities using various solvent vapors, including formic acid, acetic acid, benzene, and toluene. The hollow, porous nanostructures helped the aminated fullerene assemblies show excellent sensitivity for acid vapors (formic acid or acetic acid) over aromatic vapors (benzene or toluene) [105]. Possessing the sensitivity to differentiate one solvent from another is regarded as an excellent sensing material. A highly nanoporous novel material, fullerphene, was developed for its use in molecular discrimination at the atomic level. Nitrogen-doped fullerphene films were prepared using bottom-up fabrication with micro- and mesoporous structures. XPS analysis revealed that nitrogen exists as nitrogen pyrrolic-N and quaternary-N. It was found that nitrogen doping allows the fullerphene films to selectively absorb the low molecular-weight carboxylic acid vapors through noncovalent interactions. Enhanced surface area and porosity play an efficient role in the transport and diffusion of formic acid vapor over acetic acid (Figure 5). The spatially confined formic acid in the films experienced enhanced intermolecular interaction, resulting in atomic-level molecular discrimination [106].

4. Membrane-Type Surface Stress (MSS)-Based Sensing Platforms

Research on sensing alcohols has been studied using colorimetric discrimination and Raman-based techniques, among others. Membrane-Type Surface Stress sensors (MSS) display greater efficiency in sensing molecules in the gaseous phase and trace quantities [96]. Moreover, they are far more sensitive than the traditionally used piezoresistive cantilever sensors [107]. Several nanomechanical sensor systems with various ligands and functional groups have been attempted for the selective sensing of alcohols [108,109]. Recently, we developed a novel MSS-based sensor system coated with the copper complex, namely Cu (1,10-phenanthroline) ((±)-2,2′-bis(diphenylphosphino)-1,1′-binaphth-yl) hexafluorophosphate. The highly luminescent Cu (1,10-phenanthroline) ((±)-2,2′-bis(diphenylphosphino)-1,1′-binaphth-yl) hexafluorophosphate complex was prepared, and its chemical stability was analyzed using various spectroscopic studies. The MSS-based sensing system was prepared using direct inkjet spotting of the prepared complex over the membrane. The developed system showed excellent selectivity towards methanol vapor over a wide range of volatile organic compounds [110]. Hydrogen atoms from the aromatic C-H bonds and fluorine atoms from the hexafluorophosphate anions make weak interactions for the effective discrimination of methanol and related molecules [111]. Furthermore, the steric hindrance of the ligands forms a densely packed bulk layer that offers minimal intermolecular space for enhanced sensitivity of small molecules. The developed system exhibited clearer discrimination of methanol in n-hexane and gasoline than in ethanol mixtures [112]. We developed a novel hybrid inorganic-organic MSS system by conjugating silica flake−shell capsules with a tetraphenyl porphyrin derivative and its metal complex via covalent bonding. Silica flake−shell capsules were prepared using a self-template dissolution–regrowth mechanism to obtain a larger surface area and large silanol functional groups available for functionalization. Silica flake−shell capsules were functionalized with 5-[4-(N-(3-triethoxysilylpropylbenzamido))]-10,15,20-triphenylporphyrin and their metal complexes, including cobalt, nickel, copper, and zinc. Porphyrin derivatives are known for their excellent binding affinity towards inorganic molecules via various mechanisms, including van der Waals forces, π−π interactions, and coordination chemistry [113,114]. Porphyrins are a class of heterocyclic macrocycles that comprise four conjugated pyrrole rings arranged in a circle. Various hybrid assemblies were obtained, and their sensing properties were studied using MSS on model analytes such as acetone and nitric oxide. We found that the sensitivity of hybrid assemblies greatly relies on their interactions with acetone and nitric oxide via weak intermolecular forces (Figure 6).

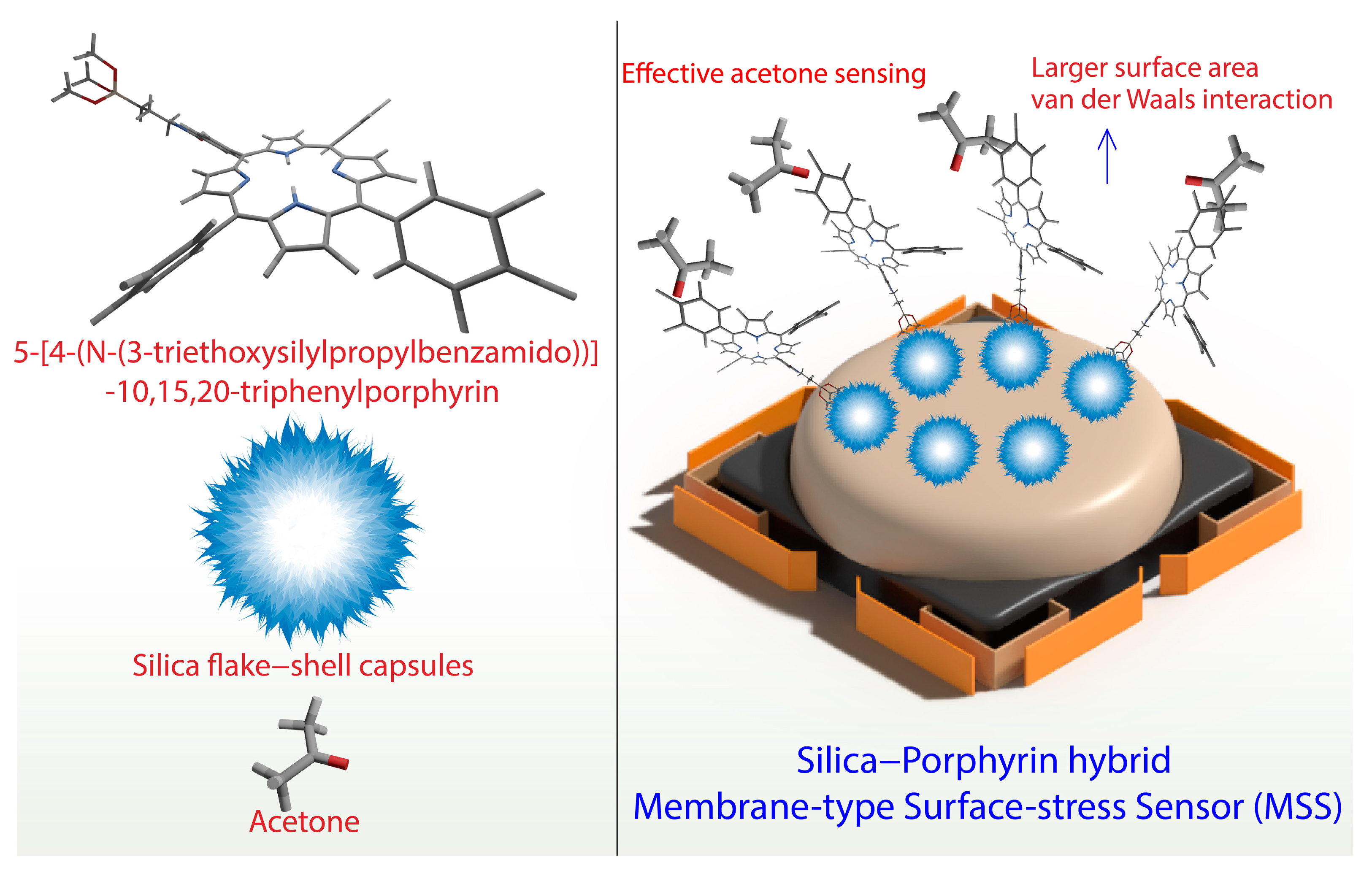

The MSS-based hybrid inorganic-organic system exhibited excellent acetone sensing at ambient temperature conditions. The developed hybrid system showed a significant increase in the MSS response toward acetone vapors, due to the large surface area and available active sites. This can be seen as an excellent prospect in pharmaceutical industries that often rely on the production process where acetone is used under inert conditions [115]. In another study, we attempted to evaluate the sensing properties of gold nanocages deposited in MSS to detect volatile molecules. Gold nanocages were prepared using a galvanic replacement reaction with silver nanocubes as sacrificial templates after alloying and dealloying. Electron microscopic analysis revealed the presence of a hollow nanosized cubic structure with larger pores. The gold nanocages were deposited onto MSS via an inkjet-spotting technique to form a uniform layer and paired with a gas-sensing system. Furthermore, we evaluated the sensing capacity of gold nanocage MSS-based sensors against a wide range of solvents. During the adsorption of solvents, the measured signals reversibly returned to baseline, indicating that analytes briefly reacted with the gold nanocages via weak interactions, as evidenced during adsorption/desorption processes and DFT calculations [116,117]. The gold nanocage MSS-based sensing system showed maximum sensitivity to molecules with oxygen atoms in its structure. Hence, we believe the sensitivity could be due to intermolecular forces between O−Au (electron donor−acceptor bonding). DFT calculations also indicated the possibility of interactions between hydrogen atoms of the methyl group and gold [118,119]. The binding energy of the solvent vapor with the surface, edge, and corner of the gold nanocage was evaluated. It was shown that the energy is higher for solvent vapors, except for heptane, at the corner tip adsorption site (Figure 7). These results suggest that sp2/sp3-hybridized carbon creates electronic repulsion, which significantly influences the binding energy [120]. These nanostructures ultimately are used in the fabrication of sensing systems with effective functions. Some of the novel sensing platforms developed in recent years have been highlighted in Table 1.

5. Particle Systems

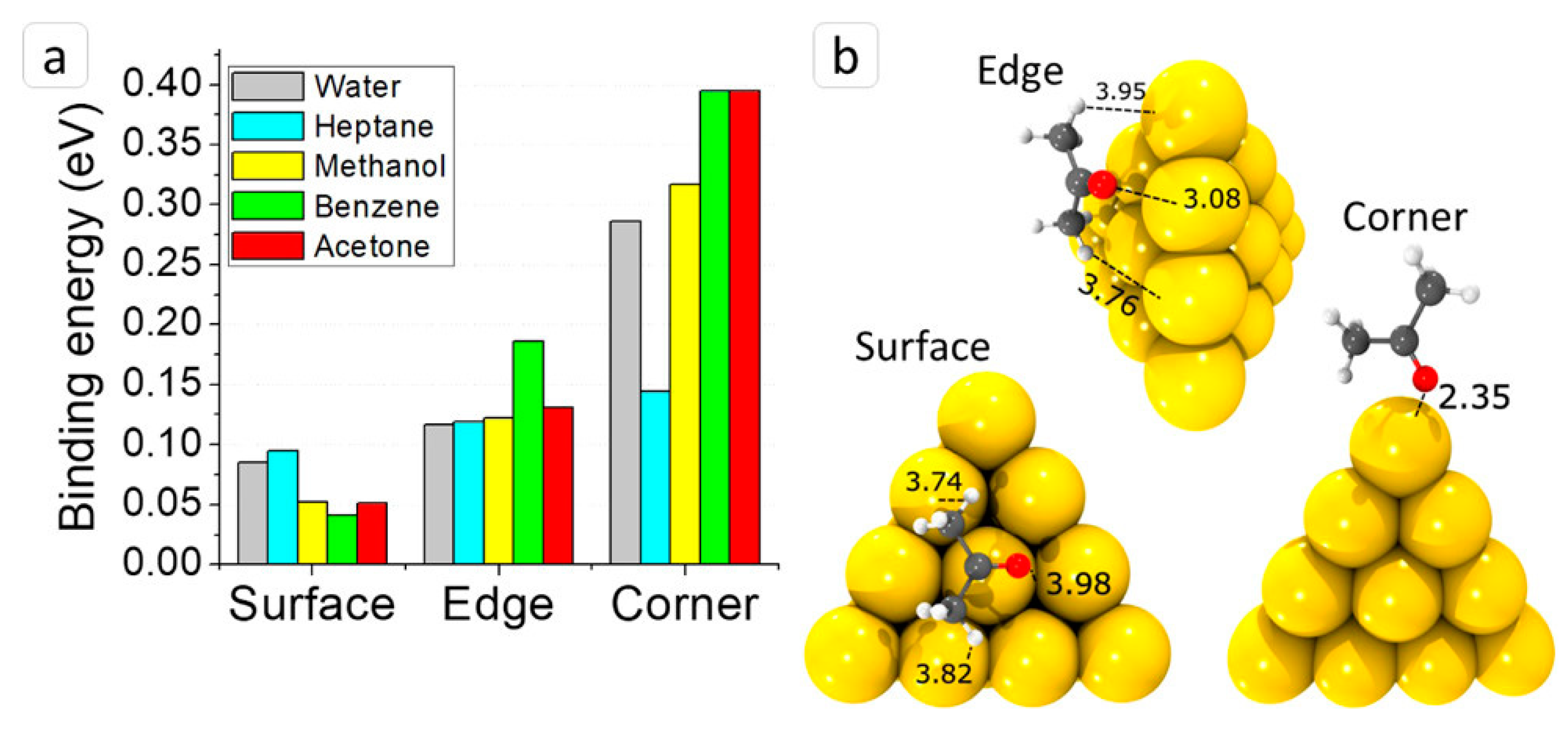

Manipulation of microscale structures is challenging, especially at the atomic and molecular level, for sensing applications [123]. Our group has applied several such strategies with fullerene self-assemblies to offer specific morphology and characteristics [124,125]. Continuing our previous efforts, we developed C70 fullerene cubes with a single open hole on each side, using the dynamic LLIP technique. We found that the growth of the cube follows a two-step process, as a solid core is formed immediately after adding C70 solution into tert-butyl alcohol, which functions as the nucleus for the crystal’s growth in the cubes. Powder diffraction analysis indicated the simple cubic structure of the prepared cubes as that of pristine C70, which possesses a hexagonal close-packed structure. The cubes had a solid core in the interior that can be controlled, as excess addition of C70 closes the hole, and a local electron beam irradiation ion beam can open the hole (Figure 8) [121].

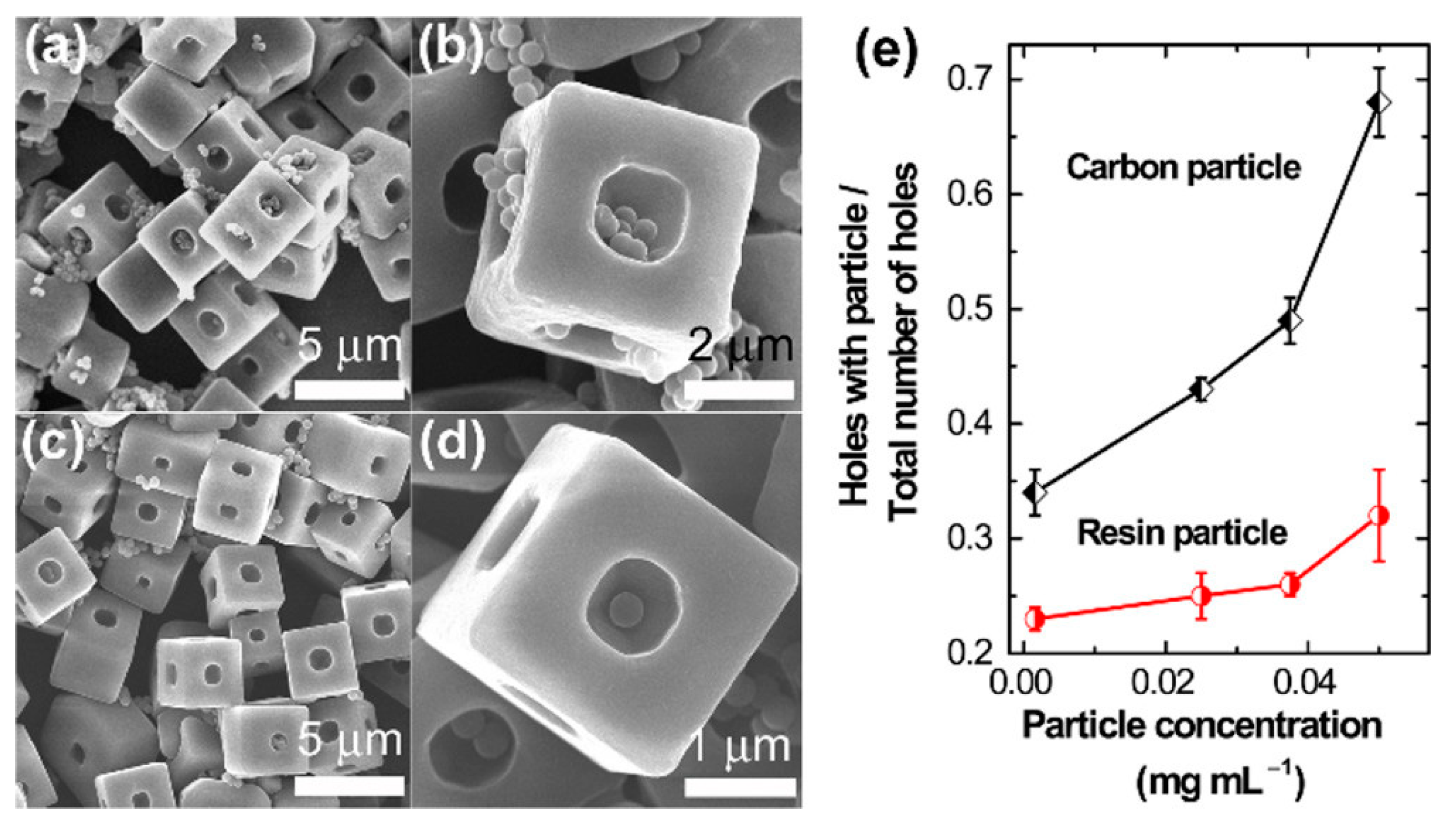

Recognition of nano/microparticles such as graphitic and resin particles was attempted to check the preferential recognition properties. Scanning electron micrographs revealed that the holes in cubes were packed with graphitic particles compared to the resin particles of similar dimensions. The interaction of graphitic molecules with the cubes by strong π−π interaction between 3D sp2 carbon-rich open holes denote supramolecular interactions. Tang and coworkers have demonstrated the structural transformation of the fullerene microtube to the novel fullerene microhorn structure, which showed unusual microscopic particle recognition properties. Fullerene microtubes with a solid core at the center were produced by rapidly adding tert-butyl alcohol into a mixture of C60 and C70 solutions in mesitylene. The fullerene microtube, when treated with a solvent mixture of mesitylene and tert-butyl alcohol (3:1), resulted in the formation of novel fullerene microhorns. Electron microscopic analysis confirmed the presence of open hollow ends on the tubelike structures of fullerene microtubes. In contrast, fullerene microhorns were found to have a conical shape with a sharp solid tip and hollow tubular end. We found that structural transformation does not affect crystallinity. Polarized optical microscopic analysis suggests that fullerene microtubes break at the center to yield microhorns after applying a solvent mixture. Six Hg modes and two Ag modes Raman scattering spectra indicate the persistence of the free rotation of fullerene molecules in the microhorns. We performed the selective discrimination of the microparticles such as silica, polystyrene carboxylate, polystyrene hydroxylate, polystyrene latex, and C70 particles. Among them, the recognition of silica particles and their loading was higher than other particles, including C70 particles, which is anticipated to be more recognized considering its supramolecular π−π interactions. Owing to the net positive charge, preferential recognition was observed between microhorns and silica particles through strong electrostatic interactions [122] (Figure 9).
Similarly, Takashima and co-workers developed a 1,4,5,8-naphthalenediimide-based porous coordination polymer system, which can structurally transform to discriminate VOCs with exceptional sensitivity. They observed that the system could read aromatic molecules and signal them as photoluminescence in the visible light region via charge transfer or the heavy atom effect [126]. Some of the sensing platforms which utilize nanoarchitectonics have been developed as products, such as Breath Biopsy® from Owlstone Medical (Cambridge, UK), exogenous VOC (EVOC®) probes from Owlstone Medical (Cambridge, UK), Cyranose® 320 from Sensigent (Irwindale, CA, USA), etc., are available in the market. These examples indicate the necessity to integrate the nanoarchitectonics concept to achieve high sensitivity and selectivity in sensing industries ranging from chemical, biomedical, clinical, and other industrial settings.

6. Conclusions and Future Prospects

Advances in nanoscale-sensing systems concerning precision and efficacy continue to improve, thanks to advanced research in nanosensors. This review showcases the recent advancements of nanoarchitectonics-based sensing systems, where nanoscale architectures play an essential role in various medical, industrial, and chemical fields. Utilizing enhanced properties of nanoscale materials via nanoarchitectonics, including shape and size, will help better recognize target molecules. Nanoarchitectonics could be essential for fabricating well-defined nanostructures, including self-assembly, supramolecular chemistry, interfacial chemistry, chemical etching, and structural post-modifications, with a certain degree of control for precise discrimination of molecules. We understand that solvent vapors’ atomic/molecular level discrimination via sensing material depends on various chemical reactions/interactions such as electrostatic, host–guest, van der Waals forces, π−π interactions, and so on. Therefore, the ability to detect specific molecules with high sensitivity and spatial resolution via functionalization techniques involving covalent/non-covalent chemistries to achieve high-level selectivity is vital. This creates a desire to focus future research on tuning nanoscale structures for molecular recognition, and ultimately for sensing performance. Some promising materials, including fullerenes, gold nanostructures, DNA aptamers, and porphyrin-based composites, are bright prospects for developing novel yet effective sensing systems. Additionally, utilizing the interaction of light with metal nanostructures for developing nanoplasmonic sensing platforms are some of the novel concepts that are applying the idea of nanoarchitectonics. This understanding greatly improves the need to develop nanoscale sensors with atomic/molecular level discrimination, with advancements that forecast the potential of nanoarchitectonics in nanodevices for in vivo subjects with real-life monitoring of biological, industrial, and domestic environments.

Author Contributions

Conceptualization, K.V. and K.A.; investigation, L.K.S. and K.A.; resources, K.V. and K.A.; writing—original draft preparation, L.K.S.; writing—review and editing, R.G.S.; visualization, L.K.S. and K.A.; supervision, K.A. and L.K.S.; funding, K.A. All authors have read and agreed to the published version of the manuscript.

Funding

This study was partially supported by JSPS KAKENHI Grant Numbers JP20H00392, JP20H00316, JP21H04685, and JP20K05590.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

V.K. would like to thank the Takeda Science Foundation, Osaka, Japan, for his research fellowship to work with the Supermolecules Group at the National Institute for Materials Science (NIMS), Ibaraki, Japan. V.K. also thanks the management of Sathyabama Institute of Science and Technology, Chennai, India, for its staunch support in these research activities.

Conflicts of Interest

The authors declare no conflict of interest.
