Genomic Characterization of Carbapenemase-Producing Enterobacter hormaechei, Serratia marcescens, Citrobacter freundii, Providencia stuartii, and Morganella morganii Clinical Isolates from Bulgaria

by
Stefana Sabtcheva
1,*,†,
Ivan Stoikov
1,2,†,
Ivan N. Ivanov
2,
Deyan Donchev
2,
Magdalena Lesseva
3,
Sylvia Georgieva
1,
Deana Teneva
2,
Elina Dobreva
2 and
Iva Christova
2
1
Laboratory for Clinical Microbiology, National Oncology Center, 1797 Sofia, Bulgaria
2
Department of Microbiology, National Center of Infectious and Parasitic Diseases, 1504 Sofia, Bulgaria
3
Department of Microbiology, University Multiprofile Hospital for Active Treatment and Emergency Medicine “N. I. Pirogov”, 1606 Sofia, Bulgaria
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Antibiotics 2024, 13(5), 455; https://doi.org/10.3390/antibiotics13050455
Submission received: 25 April 2024 / Revised: 11 May 2024 / Accepted: 14 May 2024 / Published: 16 May 2024
(This article belongs to the Special Issue The Evolution of Plasmid-Mediated Antimicrobial Resistance)
Browse Figure
Versions Notes

Abstract

:
Carbapenemase-producing Enterobacter spp. Serratia marcescens, Citrobacter freundii, Providencia spp., and Morganella morganii (CP-ESCPM) are increasingly identified as causative agents of nosocomial infections but are still not under systematic genomic surveillance. In this study, using a combination of whole-genome sequencing and conjugation experiments, we sought to elucidate the genomic characteristics and transferability of resistance genes in clinical CP-ESCPM isolates from Bulgaria. Among the 36 sequenced isolates, NDM-1 (12/36), VIM-4 (11/36), VIM-86 (8/36), and OXA-48 (7/36) carbapenemases were identified; two isolates carried both NDM-1 and VIM-86. The majority of carbapenemase genes were found on self-conjugative plasmids. IncL plasmids were responsible for the spread of OXA-48 among E. hormaechei, C. freundii, and S. marcescens. IncM2 plasmids were generally associated with the spread of NDM-1 in C. freundii and S. marcescens, and also of VIM-4 in C. freundii. IncC plasmids were involved in the spread of the recently described VIM-86 in P. stuartii isolates. IncC plasmids carrying blaNDM-1 and blaVIM-86 were observed too. blaNDM-1 was also detected on IncX3 in S. marcescens and on IncT plasmid in M. morganii. The significant resistance transfer rates we observed highlight the role of the ESCPM group as a reservoir of resistance determinants and stress the need for strengthening infection control measures.

1. Introduction

Enterobacterales such as Enterobacter spp., Serratia marcescens, Citrobacter freundii, Providencia spp., and Morganella morganii (ESCPM group) are increasingly identified as causative agents of nosocomial infections, frequently including bloodstream, urinary tract, gastrointestinal, respiratory, and skin and soft tissue infections [1,2]. These microorganisms produce chromosomally encoded inducible AmpC β-lactamase, belonging to Ambler class C and Bush group 1 [3]. Low-level expression of this enzyme is sufficient for the hydrolysis of aminopenicillins, aminopenicillin/β-lactamase inhibitor combinations, and first-generation cephalosporins. However, AmpC overproduction can occur following exposure to β-lactams, either through induction or selection of derepressed mutants during therapy, which leads to the hydrolysis of third-generation cephalosporins as well. As a result, the use of last-resort antibiotics such as carbapenems may become imperative in managing infections caused by AmpC-producing organisms [4]. Moreover, the intrinsic colistin resistance inherent to S. marcescens, M. morganii, and Providencia spp. further limits therapeutic options and contributes to their growing prevalence [5,6,7].
On the other hand, the widespread use of carbapenems as the preferred therapy for multiresistant ESCPM infections carries the risk of promoting carbapenem resistance. Such resistance can arise from various mechanisms, including diminished outer membrane permeability due to reduced expression or inactivation of outer membrane porins, mutations resulting in increased efflux and alterations in the structure of penicillin-binding proteins, or a combination of AmpC overexpression and extended spectrum of β-lactamase (ESBL) with porin mutations. However, the most concerning scenario is the acquisition of carbapenemases [8,9,10].
In Enterobacterales, five prevalent carbapenemase families have been identified across three Ambler classes: KPC (class A); IMP, NDM, and VIM (class B); and OXA-48-like (class D) [11]. These genes are commonly associated with mobile genetic elements, located on plasmids that facilitate their dissemination through vertical or horizontal transfer [12]. Plasmids also often carry additional genes for non-β-lactam antibiotic resistance, including aminoglycosides (e.g., 16S rRNA methyltransferases) and plasmid-mediated quinolone resistance, leading to further limitation of treatment options for carbapenemase-producing Enterobacterales (CPEs) infections [13].
Different types of plasmids are involved in the transfer of carbapenemases, among which IncF, IncL/M, IncA/C, and IncX are the most abundant in the Enterobacteriaceae family [14]. IncF plasmids, for example, are globally distributed and carry carbapenemases such as KPC and NDM, as well as ESBL enzymes, in particular CTX-M-15. IncX plasmids, especially the IncX3 variant, play a major role in the dissemination of NDM carbapenemases. IncL/M plasmids are also associated with the transmission of NDM among members of the family and can also carry OXA-48. IncA/C plasmids are involved in the dissemination of NDM, VIM, and KPC carbapenemases as well as of cephalosporinases (e.g., CMY) [15].
In Bulgaria, CPE isolates were detected as early as 2007 [16]. Various clinical cases involving KPC-, VIM-, OXA-48-, and NDM-producing strains of Klebsiella pneumoniae, as well as an outbreak of NDM-positive Escherichia coli, were documented up until 2014 [17]. Since then, the incidence of infections caused by K. pneumoniae strains producing NDM-, KPC-, and OXA-48-like enzymes has been steadily rising [11]. However, the role of the CP-ESCPM group remains uncertain, as their reporting is sporadic compared to other CPEs.
This study represents a retrospective genomic analysis of carbapenemase-producing ESCPM isolates collected in Bulgaria between 2014 and 2023. Through a combination of whole-genome sequencing (WGS) and conjugation experiments, our investigation provides insights into the genetic diversity of CP-ESCPM and the plasmids involved in the dissemination of carbapenemases and the associated resistance genes.

2. Results

2.1. Exploring Carbapenemase Diversity and Plasmid-Mediated Resistance in ESCPM Isolates

Carbapenemase genes were detected in all 36 carbapenemase-producing isolates, with the majority containing blaVIM and/or blaNDM metallo-β-lactamases. Notably, carbapenemases from all the detected families were present in S. marcescens and C. freundii (Table 1).
The carbapenemases and their alleles were then confirmed by WGS. They were accompanied by a wide range of plasmid-mediated and chromosome-encoded resistance genes. The most prevalent were the VIM alleles blaVIM-4 (n = 11) and blaVIM-86 (n = 8), found in a total of 19/36 isolates. blaNDM-1 was identified in 12/36 and blaOXA-48 in 7/36 isolates. Interestingly, blaVIM-86 was identified only in P. stuartii isolates, and two of them also co-harbored an additional blaNDM-1 gene. Figure 1 illustrates the correlation among acquired antimicrobial resistance genes, the year and hospital of isolation, MLST profiles (where applicable), as well as the phylogenetic relatedness of isolates within each analyzed species.
All blaVIM-86 and blaOXA-48 genes, as well as all but two blaNDM-1 genes, were successfully transferred by conjugation, confirming their plasmid origin (Table 2). A transconjugant was also obtained for the blaVIM-4-positive C. freundii isolate. The localization of carbapenemase genes in isolates which failed to transfer their plasmids was inferred from WGS data.

2.1.1. Serratia marcescens

We identified a cluster (ST891) of eight epidemiologically unrelated S. marcescens isolates from four hospitals between 2014 and 2020 (Figure 1a and Table 2). This cluster was characterized by a non-transferable VIM-4 along with ArmA and CTX-M-3 on IncM2 plasmid detected in 50% of the isolates. The latter plasmid was similar to the previously described pCTX-M3 [18]. The remaining two VIM-4 positive isolates lacked ArmA and CTX-M-3 and were distant from the VIM-4 cluster. Multiple transfer attempts of VIM-4 failed, and BLAST analysis of the upstream and downstream sequences revealed homology with various chromosomal sequences, suggesting chromosomal origin.
Next, close to the VIM-4 cluster was the SM585 isolate, with a chromosomal CTX-M-15 and IncL plasmid with OXA-48. The last three isolates (SM4015, SM4949, and SM4487) were NDM-positive and shared an IncM2 plasmid carrying CTX-M-3 and ArmA similar to the VIM-4 cluster. Interestingly, the genetic context of NDM-1 seems to differ among those three isolates. According to the mating-out experiments, in SM4949, NDM-1 was situated on the conjugative IncM2 plasmid along with CTX-M-3/ArmA, whereas in SM4487, the BLAST analysis of the surrounding sequences of NDM-1 suggested its chromosomal localization, consistent with the failed mating attempts. In SM4015, an IncX plasmid was identified as the NDM-1 carrier, which was confirmed by PCR.

2.1.2. Providentia stuartii

P. stuartii isolates were collected between 2017 and 2020 and all belonged to ST46. They exhibited close genetic relatedness and consistently harbored an IncC plasmid, with one of the isolates having an additional IncM2 plasmid (Figure 1b and Table 2). Successful transfer of both plasmids was achieved for all studied P. stuartii isolates and the PCR replicon typing confirmed the presence of IncA/C replicons in all of the transconjugants and the IncL/M replicon in TC–PS995/2.
The IncC transconjugants could be divided into three groups based on plasmid transfer and their acquired resistance determinants. The first group of two transconjugants (TC–PS567 and TC–PS1396) harbored both NDM-1 and the recently identified VIM-86 [19], indicative of their co-localization on the same plasmid. Additionally, this plasmid was positive for ArmA, QnrB, and CMY-4. The IncC plasmid of the second group of five transconjugants was associated with VIM-86 and CMY-4. Thirdly, TC-PS3347 demonstrated the transfer of IncC with OXA-1 and AAC(6′)-Ib-cr5 alongside VIM-86, CMY-4, and ArmA.
Lastly, the IncM2 plasmid, carrying only CTX-M-3 and ArmA, initially found to be co-hosted by PS995 together with another IncC plasmid, was successfully conjugated through the mating-out experiments.

2.1.3. Citrobacter freundii

For C. freundii isolates, one distinct cluster was identified (Figure 1c and Table 2). The cluster consisted of four NDM-1 producers, which included CF4015 (Hospital B) from 2018 and three epidemiologically related isolates from 2021—CF2341, CF2068, and CF1976 (Hospital A). WGS identified Col, IncFIB, IncM2, and IncR replicons in all four isolates. They showed a similar resistance profile, but CF4015 also carried the QnrB4 and DHA-1 genes, while CF2068 and CF1976 carried aph(3′)-Ia. Their IncM2 plasmid was successfully transferred, yielding transconjugants positive for NDM-1, ArmA, CTX-M-3, and QnrB, similar to IncM2 from SM4949, suggesting the interspecies dissemination of this plasmid.
The remaining isolates were substantially different from each other. CF2747 carried VIM-4 on an IncM2 plasmid together with ArmA and CTX-M-3, while CF1843 harbored only OXA-48 on an IncL plasmid. Both plasmids were successfully transferred and the replicons were confirmed by PCR. The OXA-48-encoding IncL plasmid in the CF1843 genome appeared to be similar to the plasmids observed in the SM585, EH273, EH3371, and EH1401 isolates. In TC–CF2747, VIM-4 was transferred along with ArmA and CTX-M-3, as confirmed by PCR.

2.1.4. Enterobacter hormaechei

E. hormaechei isolates were mainly associated with OXA-48 (Figure 1d and Table 2). The only exception was EH10088, in which we identified NDM-1 and only a Col replicon. Unfortunately, the latter was not confirmed in the corresponding transconjugant by PCR and this led to the assumption that another non-typeable plasmid or an integrative conjugative element might be involved.
The OXA-48 cluster was formed by isolates collected between 2018 and 2020. All donors from that cluster were able to transfer OXA-48. IncL/M replicons were confirmed in all of them, and the in silico BLAST analysis of donor sequences further confirmed the IncL plasmid as the host of the OXA-48 gene.
In one transconjugant, TC–EH1872, OXA-48 was co-transferred with CTX-M-3 (Table 2). In TC–EH3113, OXA-48 was transferred along with ArmA, OXA-1, AAC(6′)-Ib-cr, and QnrB, and PCR detected only the IncL/M replicon. However, BLAST analysis of donor sequences failed to confirm the co-localization of all those genes within the IncL replicon due to fragmented assembly. In conclusion, we are uncertain that the transconjugant has received a single or more plasmids, because PCR-based replicon typing may also have failed to identify more types.

2.1.5. Morganella morganii

Two epidemiologically unrelated M. morganii isolates recovered from one hospital (A) were identified as producers of NDM-1 (Figure 1e).
Carbapenemase was transferred only in TC–MM4395, suggesting that the gene is encoded by a conjugative IncT plasmid, as this was the only replicon found in the donor. The co-transfer of additional resistance genes, including ArmA, OXA-1, AAC(6′)-Ib, and QnrB, was also confirmed by PCR. Despite the presence of the IncT replicon in the donor, PCR assay failed to confirm it in the transconjugant (Table 2). However, aligning the reads to closely related plasmids provided strong evidence that NDM-1 and the other resistance genes are encoded on IncT plasmid.
In contrast, no plasmid replicons were detected in MM231, and it failed to transfer any resistance determinants through conjugation, implying the chromosomal location of NDM-1 and the associated resistance determinants.

2.2. Antibiotic Susceptibility

The results from the susceptibility testing showed that all isolates were resistant to penicillins, penicillin/inhibitor combinations, cephalosporins, cephamycins, ertapenem, doripenem, quinolones, and tobramycin, but showed variable results for imipenem, meropenem, ceftazidime-avibactam, aztreonam, amikacin, gentamicin, colistin, tigecycline, fosfomycin, trimethoprim–sulfamethoxazole, and cefiderocol. The distribution of MIC values is shown in Supplementary Table S1.
Disc susceptibility testing revealed that 78% (28/36) of all isolates were susceptible to cefiderocol. This included all isolates of ESCM species and excluded the isolates of P. stuartii as they exhibited resistance. Across all isolates, cefiderocol had the highest activity among all antimicrobials tested, followed by amikacin with 42% (15/36) susceptibility. Colistin and tigecycline were effective only against C. freundii and E. hormaechei, which comprised 33% (12/36) of the total isolates. Ceftazidime–avibactam demonstrated in vitro activity limited to OXA-48 producers, accounting for 19% (7/36) of all isolates. The other antimicrobial agents displayed varying levels of activity against ESCPM isolates, necessitating individual treatment regimens with combinations of antibiotics from different classes [4,20].

3. Discussion

In Bulgaria, carbapenem-non-susceptible Enterobacterales isolates are optionally referred to the National Reference Laboratory for Control and Monitoring of Antimicrobial Resistance for verification. Apart from K. pneumoniae, the nationwide frequency of ESCPM isolates reporting and referral remains unknown. We therefore hypothesized that they persist in many hospitals and that their actual numbers, and consequently their impact on human health, are underestimated. To address this issue, thirty-six carbapenemase-positive ESCPM isolates were subjected to WGS analysis and mating-out experiments to determine their plasmid content and resistance transferability.
Most of the carbapenemase-producing ESCPM isolates originated from urine (59.5%) and wound specimens (27.0%), and only 5.4% from blood. The origin of ESCPM pathogens reflects their ability to cause various nosocomial infections, mainly those of the urinary tract as well as intra-abdominal and soft tissue infections, but also bacteremia and respiratory tract infections [2].
In this study, the majority of carbapenemases within the ESCPM group were found on conjugative plasmids. Plasmids belonging to the IncL/M group were most commonly identified among the obtained transconjugants. Originally considered a single plasmid incompatibility group, IncL/M plasmids underwent re-evaluation and were subsequently categorized into two separate groups: IncL and IncM [21].
IncL plasmids have been associated with the global dissemination of the OXA-48 gene, while IncM2 plasmids have been linked to the spread of NDM-1 [21]. Consistent with these observations, our study revealed a strict association between the presence of IncL-type plasmids and the carriage of OXA-48. In the majority of transconjugants, OXA-48 was the sole resistance gene transferred. But instances of co-transfer were also observed, including the transfer of OXA-48 alongside CTX-M-3 in TC–EH1872 and the transfer of ArmA, OXA-1, AAC(6′)-Ib-cr, and QnrB in TC–EH3113 (Table 2). However, the genetic landscape of the detected additional genes remained ambiguous in some cases as the sequences appeared fragmented, probably due to the presence of mobile genetic elements.
IncM2 plasmids are known to harbor genes conferring resistance to various antimicrobial agents, including cephalosporins, carbapenems, aminoglycosides, trimethoprim, sulphonamides, and fosfomycin [22]. In this study, they were mainly involved in NDM-1 and VIM-4 dissemination among isolates of C. freundii (n = 5) and S. marcescens (n = 1) (Table 2). We observed a consistent pattern of co-transfer of CTX-M-3 and ArmA along with carbapenemases through a plasmid with a similar genetic content to the original pCTX-M-3 plasmid [18].
In the two P. stuartii isolates (PS1396 and PS567) harboring both NDM-1 and VIM-86 carbapenemases, we found multiple resistance determinants. Using long-read sequencing, we were able to reconstruct the entire IncC plasmid of PS1396, revealing that the majority of resistance genes (CMY-4, ArmA, VIM-86, NDM-1, and QnrB9) are co-localized within it. Likewise, in PS3347, we identified a similar IncC plasmid bearing ArmA, VIM-86, OXA-1, and AAC(6′)-Ib-cr5. VIM-86 was recently described by Rezzoug and colleagues [19]. The structure of the plasmid hosting this novel allele closely resembles that of the PS1396 plasmid, albeit lacking the NDM-1 gene. While not explored in this study, determining the origin of NDM-1 in the PS1396 plasmid is expected to be a primary focus of our future investigations.
For isolate SM4015, we obtained two distinct transconjugants (TC–SM4015/1 and TC–SM4015/2). TC–SM4015/1 carried an IncX3 plasmid encoding NDM-1, while TC–SM4015/2 harbored an IncM2 plasmid of the pCTX-M-3 type. IncX3 plasmids, known for their narrow host range, have been associated with the dissemination of various NDM variants among Enterobacteriaceae [23]. Their significance as vectors for clinically relevant antibiotic resistance genes has been increasingly recognized in recent years [24,25].
In one isolate (MM4395), NDM-1 was detected alongside ArmA, possibly situated on an IncT-like plasmid. However, we were unable to confirm this since only PCR was employed for the screening of transconjugants, and the assay failed to detect any plasmid replicons in the respective transconjugant. Nevertheless, our investigation using BLAST searches with the sequence containing NDM-1 identified a pZ26CR2253_NDM IncT-type plasmid from Providencia huaxiensis (CP145930.1). Mapping the raw reads to this plasmid revealed substantial 94% template coverage, providing strong evidence for the association of the NDM-1 gene with the donor IncT plasmid. IncT plasmids have a narrow host range and are rarely reported. Previous studies have identified IncT plasmids in various species such as Proteus mirabilis, C. freundii, and Providencia rettgeri, where they were associated with ESBLs (CTX-M-2) [26] and carbapenemases of class D (OXA-181) and class B (NDM-1) [27].
In the present study, all of the identified carbapenemase types were found in S. marcescens and C. freundii. In S. marcescens isolates VIM-4 was localized on the chromosome. NDM-1 was encoded mainly on plasmids and was detected among all of the tested species. VIM-type carbapenemases were mostly detected in P. stuartii and S. marcescens, while OXA-48-like genes were predominantly found in E. hormaechei. These findings are consistent with the results of a recent surveillance study of 6774 ESCPM blood culture isolates from 27 European hospitals [20].
A significant concern was the detection of ArmA methyltransferase in association with carbapenemases in CP-ESCPM with intrinsic resistance to colistin and tigecycline (such as P. stuartii and M. morganii). As ArmA confers high-level resistance to clinically relevant aminoglycosides, infections caused by these pathogens present a serious treatment challenge, as there are almost no treatment options left.
There are a few limitations to this study. First, we did not perform WGS for resulting transconjugants, which could improve the detection and typing of the received plasmids and their exact gene content. Next, the assembly of plasmids is often difficult and incomplete with short-read data only. Consequently, the genetic environment of the detected genes was not examined further. Including long-read data from donor isolates and/or transconjugants will drastically enhance the quality of the assembled genomes and thus the plasmid analysis. Finally, we included a relatively small number of isolates per studied species. Routine WGS molecular surveillance is still not implemented in Bulgaria, but increasing the sequencing capacity will provide more reliable and broader understanding of the plasmid diversity and resistance genes of the ESCPM group.

4. Materials and Methods

4.1. Bacterial Isolates

Thirty-six carbapenem-non-susceptible ESCPM isolates were sent by seven hospital laboratories to the National Reference Laboratory for Control and Monitoring of Antimicrobial Resistance in Bulgaria between July 2014 and January 2023 for molecular validation of carbapenem resistance. The isolates were re-identified using the MALDI-TOF Biotyper (Bruker Daltonics GmbH, Bremen, Germany) with MALDI Reference 2022 Library v.4.0. The studied ESCPM group comprised S. marcescens (n = 14), P. stuartii (n = 8), C. freundii (n = 6), E. hormaechei (n = 6), and M. morganii (n = 2) isolates. They were anonymized and were assigned code names (e.g., MM4395 for Morganella morganii strain number 4395).
All carbapenem-non-susceptible ESCPM isolates were confirmed as carbapenemase producers by CarbaNP test [28]. Sources and years of isolation are summarized in Supplementary Table S2 and Supplementary Table S3, respectively. Hospital laboratories were named with capital letters from A to G depending on the number of the submitted isolates (Supplementary Table S4).

4.2. Antimicrobial Susceptibility Testing and Detection of Carbapenemases

Disc susceptibility testing was performed according to EUCAST guidelines [29] on Mueller–Hinton agar with disks supplied by Becton Dickinson (BD, Sparks, MD, USA). MICs were determined by broth microdilution using the MicroScan NM-EN52 panel (Beckman Coulter, Inc., Brea, CA, USA) and the Micronaut-S MDR plate (Merlin Diagnostika GmbH, Bornheim, Germany) by following the manufacturer’s protocols. Susceptibility testing results were interpreted in accordance with EUCAST clinical breakpoints v13.0. E. coli ATCC 25922 was used for quality control.

4.3. Screening for Carbapenemase Genes

Total genomic DNA for PCR and whole-genome sequencing was extracted using the PureLink™ Genomic DNA Mini Kit (Thermo Fisher Scientific, Missouri, TX, USA) following the manufacturer’s instruction, except that all homogenization steps were performed by pipetting. Primer pairs from prior publications were used in a previously described multiplex PCR [30] to screen all isolates for class A, class B, and class D carbapenemases [31,32,33,34,35]. PCR conditions are detailed in Supplementary Table S5.

4.4. Whole-Genome Sequencing

All isolates that were confirmed to carry carbapenemase genes were subjected to short-read sequencing with an Illumina DNA Prep kit (Illumina, San Diego, CA, USA) with MiSeq V3 (2 × 300 bp) or NextSeq 550 with V2.5 (2 × 150 bp) mid-output flow cell (Illumina, Inc., San Diego, CA, USA). The same DNA extracts of PS1396 and PS995 were also sequenced on a MinION Mk1C with the Rapid Barcoding Kit 96 (SQK-RBK110.96) and FLO-MIN106D (R9.4.1) (Oxford Nanopore Technologies, Oxford, UK) with a slight modification. The final size selection of the library pool was carried out using 0.4x SPRI magnetic particles to eliminate fragments < 1.5 kb [36].

4.5. Bioinformatic Analysis

The quality of the raw reads was assessed using FastQC v0.11.9 (https://www.bioinformatics.babraham.ac.uk/projects/fastqc, accessed on 3 April 2024). Subsequent quality trimming and filtering for short and long reads were carried out using fastp v0.23.2 [37] and filtlong v0.2.1 (https://github.com/rrwick/Filtlong, accessed on 3 April 2024). Short-read assemblies were generated with Unicycler v0.4.8 [38]. For PS1396 and PS995, a long-read-only assembly was produced using Trycycler v0.5.3 [39] followed by polishing with MEDAKA v1.7.3 (ONT, https://github.com/nanoporetech/medaka, accessed on 3 April 2024). KmerFinder v3.0.2 [40] with a database version from 11 July 2022 was used for in silico identification. Assemblies were annotated using Bakta v 1.7 [41] with database v5.0-full. Screening for genes related to antimicrobial resistance and prediction of phenotypes were carried out using AMRFinderPlus v3.11.4 [42] and ResFinder v4.3.1 [43] (database v2022-05-24). The sequences containing carbapenemases were further analyzed with BLAST using the nr/nt database (Update date: 19 March 2024). Plasmid analysis was conducted using Abricate (Seemann T, Abricate, Github, San Francisco, CA, USA, https://github.com/tseemann/abricate, accessed on 3 April 2024) with the PlasmidFinder database (v2023-01-18) [44]. In silico MLST profiling was performed with mlst v2.23.0 (Seemann T, mlst Github, https://github.com/tseemann/mlst, accessed on 3 April 2024).
Phylogenies for individual species were constructed using PhaME v1.0.4 [45], considering only SNPs within the coding regions of the core genome. The resulting maximum-likelihood trees were linked to antimicrobial resistance patterns and visualized with iTOL [46].

4.6. Transfer of Resistance Determinants and Identification of Transconjugant Plasmids

Transfer of carbapenem and 16S rRNA methyltransferase-mediated aminoglycoside resistance was attempted by mating on filters with sodium azide-resistant E. coli J53 recipient strain as previously described [47]. Transconjugants were selected on MacConkey agar containing sodium azide (100 mg/L) supplemented with either meropenem (0.5 mg/L) or amikacin (50 mg/L) and gentamicin (50 mg/L). Transconjugants were confirmed by susceptibility testing and PCR. Detection of carbapenemase genes was performed as described for the donor strains. Other co-transferred antibiotic resistance genes were detected by various multiplex PCRs. CTX-M genes were detected as described previously [48]. OXA-1/2/9/10-like genes [49] were screened with a protocol listed in Supplementary Table S6. Plasmid-mediated AmpC beta-lactamase genes were detected as previously published [50]. Identification of 16S rRNA methyltransferase genes (armA, rmtB, npmA, rmtA, rmtC, rmtD, rmtE, rmtF) [51,52,53] was carried out as described in Supplementary Table S7, whereas plasmid-mediated quinolone resistance determinants (qnrA, qnrB, qnrC, qnrD, qnrS, qepA) [54,55,56,57] were detected as described in Supplementary Table S8. Lastly, the detection of aac(6′)-Ib-cr acetyltransferase was performed as described previously [58].
Replicon typing involved a combination of multiplex and singleplex PCR panels targeting 21 plasmid replicons as detailed in a previous study [59]. All amplicons were visualized on QIAxcel Advanced high-resolution capillary electrophoresis system (Qiagen, Hilden, Germany) with protocol 0M800 for precise size estimation.

5. Conclusions

In this study, we analyzed the genetic characteristics of CP-ESCPM species isolated between 2014 and 2023 in Bulgaria, with an emphasis on the dissemination of carbapenemases and the significance of the self-conjugative plasmids in the transmission of resistance determinants. The predominant carbapenemase was VIM, represented by VIM-4 (n = 11) and VIM-86 (n = 8), found in a total of 19/36 isolates. NDM-1 was detected in 12/36 and OXA-48 in 7/36 isolates. VIM-86 was identified only in P. stuartii isolates, two of which also carried NDM-1. IncL plasmids were responsible for the spread of OXA-48 among E. hormaechei, C. freundii, and S. marcescens. IncM2 plasmids were generally associated with the spread of NDM-1 in both C. freundii and S. marcescens, and also of VIM-4 in C. freundii. IncC plasmids have been implicated in the spread of the recently described VIM-86 in P. stuartii isolates. IncC plasmids carrying NDM-1 and VIM-86 have also been observed. NDM-1 was detected on IncX3 in S. marcescens and on IncT plasmid in M. morganii. The diversity of CP-ESCPM and carbapenemase-encoding plasmids that were identified in this study highlights the role of the ESCPM group as a reservoir of resistance determinants in hospital settings. Our results stress the need to strengthen control and implement surveillance measures for the carbapenemase-producing ESCPM to limit the spread of antibiotic resistance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics13050455/s1, Table S1: MIC distributions for carbapenemase-positive ESCPM isolates; Table S2: Sources of the 36 carbapenemase-producing ESCPM isolates; Table S3: Distribution of 36 carbapenemase producers according to year of isolation; Table S4: Distribution of 36 carbapenemase producers according to submitting hospital; Table S5: Carbapenemase mPCR; Table S6: OXA mPCR; Table S7: 16S rRNA methyltransferase (16S-RMTase) mPCR; Table S8: Plasmid-mediated quinolone resistance (PMQR) mPCR.

Author Contributions

Conceptualization, S.S., I.C. and I.S.; methodology I.C., I.N.I., I.S., D.D., E.D., D.T. and S.S.; software and validation I.N.I., I.S., D.D., E.D., D.T. and S.S.; formal analysis, I.S. and S.S.; investigation, S.S., I.S. and S.G.; resources S.S., M.L. and I.N.I.; writing—original draft preparation, S.S. and I.S.; writing—review and editing, I.S., I.N.I., D.D., M.L., S.S. and I.C.; visualization, I.S. and D.D.; project administration, I.C.; funding acquisition, I.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by The Bulgarian National Science Fund under Grant KП-06-H23/5 and the European Regional Development Fund through the Operational Program Science and Education for Smart Growth 2014–2020; Grant BG05M2OP001-1.002-0001-C04 “Fundamental Translational and Clinical Research in Infection and Immunity”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated during the study are included in this article and its Supplementary Materials. Relevant links and references to other sources are included in the main text. The draft genome sequences were uploaded to the National Center for Biotechnology Information (NCBI) database and are accessible through BioProject ID PRJNA1077246, except for the complete genome sequences of P. stuartii isolates PS1396 and PS995, deposited in the European Nucleotide Archive (ENA) under project accession number PRJEB70804.

Conflicts of Interest

The authors declare no conflicts of interests.

References

  1. Choi, S.H.; Jung, E.L.; Su, J.P.; Choi, S.H.; Lee, S.O.; Jeong, J.Y.; Kim, M.N.; Jun, H.W.; Yang, S.K. Emergence of Antibiotic Resistance during Therapy for Infections Caused by Enterobacteriaceae Producing AmpC Beta-Lactamase: Implications for Antibiotic Use. Antimicrob. Agents Chemother. 2008, 52, 995–1000. [Google Scholar] [CrossRef]
  2. Mizrahi, A.; Delerue, T.; Morel, H.; Le Monnier, A.; Carbonnelle, E.; Pilmis, B.; Zahar, J.R. Infections Caused by Naturally AmpC-Producing Enterobacteriaceae: Can We Use Third-Generation Cephalosporins? A Narrative Review. Int. J. Antimicrob. Agents 2020, 55, 105834. [Google Scholar] [CrossRef]
  3. Jacoby, G.A. AmpC Beta-Lactamases. Clin. Microbiol. Rev. 2009, 22, 161–182. [Google Scholar] [CrossRef]
  4. Harris, P.N.A.; Ferguson, J.K. Antibiotic Therapy for Inducible AmpC β-Lactamase-Producing Gram-Negative Bacilli: What Are the Alternatives to Carbapenems, Quinolones and Aminoglycosides? Int. J. Antimicrob. Agents 2012, 40, 297–305. [Google Scholar] [CrossRef]
  5. Zivkovic Zaric, R.; Zaric, M.; Sekulic, M.; Zornic, N.; Nesic, J.; Rosic, V.; Vulovic, T.; Spasic, M.; Vuleta, M.; Jovanovic, J.; et al. Antimicrobial Treatment of Serratia Marcescens Invasive Infections: Systematic Review. Antibiotics 2023, 12, 367. [Google Scholar] [CrossRef] [PubMed]
  6. Hayakawa, K.; Marchaim, D.; Divine, G.W.; Pogue, J.M.; Kumar, S.; Lephart, P.; Risko, K.; Sobel, J.D.; Kaye, K.S. Growing Prevalence of Providencia Stuartii Associated with the Increased Usage of Colistin at a Tertiary Health Care Center. Int. J. Infect. Dis. 2012, 16, e646–e648. [Google Scholar] [CrossRef] [PubMed]
  7. Osei Sekyere, J.; Govinden, U.; Bester, L.A.; Essack, S.Y. Colistin and Tigecycline Resistance in Carbapenemase-Producing Gram-Negative Bacteria: Emerging Resistance Mechanisms and Detection Methods. J. Appl. Microbiol. 2016, 121, 601–617. [Google Scholar] [CrossRef] [PubMed]
  8. Caliskan-Aydogan, O.; Alocilja, E.C. A Review of Carbapenem Resistance in Enterobacterales and Its Detection Techniques. Microorganisms 2023, 11, 1491. [Google Scholar] [CrossRef] [PubMed]
  9. Eichenberger, E.M.; Thaden, J.T. Epidemiology and Mechanisms of Resistance of Extensively Drug Resistant Gram-Negative Bacteria. Antibiotics 2019, 8, 37. [Google Scholar] [CrossRef]
  10. Meletis, G. Carbapenem Resistance: Overview of the Problem and Future Perspectives. Ther. Adv. Infect. Dis. 2016, 3, 15–21. [Google Scholar] [CrossRef]
  11. Albiger, B.; Glasner, C.; Struelens, M.J.; Grundmann, H.; Monnet, D.L.; Koraqi, A.; Bino, S.; Hartl, R.; Apfalter, P.; Glupczynski, Y.; et al. Carbapenemase-Producing Enterobacteriaceae in Europe: Assessment by National Experts from 38 Countries, May 2015. Eurosurveillance 2015, 20, 30062. [Google Scholar] [CrossRef] [PubMed]
  12. Mathers, A.J.; Peirano, G.; Pitout, J.D.D. The Role of Epidemic Resistance Plasmids and International High-Risk Clones in the Spread of Multidrug-Resistant Enterobacteriaceae. Clin. Microbiol. Rev. 2015, 28, 565–591. [Google Scholar] [CrossRef] [PubMed]
  13. Poirel, L.; Dortet, L.; Bernabeu, S.; Nordmann, P. Genetic Features of BlaNDM-1-Positive Enterobacteriaceae. Antimicrob. Agents Chemother. 2011, 55, 5403. [Google Scholar] [CrossRef] [PubMed]
  14. Carattoli, A. Resistance Plasmid Families in Enterobacteriaceae. Antimicrob. Agents Chemother. 2009, 53, 2227–2238. [Google Scholar] [CrossRef] [PubMed]
  15. Kopotsa, K.; Osei Sekyere, J.; Mbelle, N.M. Plasmid Evolution in Carbapenemase-Producing Enterobacteriaceae: A Review. Ann. N. Y. Acad. Sci. 2019, 1457, 61–91. [Google Scholar] [CrossRef]
  16. Ivanov, I.; Sabtcheva, S.; Dobreva, E.; Todorova, B.; Velinov, T.Z.; Borissova, V.; Petrova, I.; Ivancheva, K.; Asseva, G.; Padeshki, P.; et al. Prevalence of Carbapenemase Genes among 16S RRNA Methyltransferase-Producing Enterobacteriaceae Isolated from Cancer Patients. Probl. Infect. Parasit. Dis. 2014, 42, 10–13. [Google Scholar]
  17. Todorova, B.; Sabtcheva, S.; Ivanov, I.N.; Lesseva, M.; Chalashkanov, T.; Ioneva, M.; Bachvarova, A.; Dobreva, E.; Kantardjiev, T. First Clinical Cases of NDM-1-Producing Klebsiella Pneumoniae from Two Hospitals in Bulgaria. J. Infect. Chemother. 2016, 22, 837–840. [Google Scholar] [CrossRef] [PubMed]
  18. Gołȩbiewski, M.; Kern-Zdanowicz, I.; Zienkiewicz, M.; Adamczyk, M.; Zyliǹska, J.; Baraniak, A.; Gniadkowski, M.; Bardowski, J.; Cegłowski, P. Complete Nucleotide Sequence of the PCTX-M3 Plasmid and Its Involvement in Spread of the Extended-Spectrum β-Lactamase Gene BlaCTX-M-3. Antimicrob. Agents Chemother. 2007, 51, 3789. [Google Scholar] [CrossRef]
  19. Rezzoug, I.; Emeraud, C.; Girlich, D.; Creton, E.; Naas, T.; Bonnin, R.A.; Dortet, L. Characterization of VIM-29 and VIM-86, Two VIM-1 Variants Isolated in Multidrug-Resistant Enterobacterales in France. J. Antimicrob. Chemother. 2024, 79, 683–685. [Google Scholar] [CrossRef]
  20. Boattini, M.; Bianco, G.; Llorente, L.I.; Acero, L.A.; Nunes, D.; Seruca, M.; Mendes, V.S.; Almeida, A.; Bastos, P.; Rodríguez-Villodres, Á.; et al. Enterobacterales Carrying Chromosomal AmpC β-Lactamases in Europe (EuESCPM): Epidemiology and Antimicrobial Resistance Burden from a Cohort of 27 Hospitals, 2020–2022. Int. J. Antimicrob. Agents 2024, 63, 107115. [Google Scholar] [CrossRef]
  21. Carattoli, A.; Seiffert, S.N.; Schwendener, S.; Perreten, V.; Endimiani, A. Differentiation of IncL and IncM Plasmids Associated with the Spread of Clinically Relevant Antimicrobial Resistance. PLoS ONE 2015, 10, e0123063. [Google Scholar] [CrossRef] [PubMed]
  22. Blackwell, G.A.; Doughty, E.L.; Moran, R.A. Evolution and Dissemination of L and M Plasmid Lineages Carrying Antibiotic Resistance Genes in Diverse Gram-Negative Bacteria. Plasmid 2021, 113, 102528. [Google Scholar] [CrossRef] [PubMed]
  23. Guo, X.; Chen, R.; Wang, Q.; Li, C.; Ge, H.; Qiao, J.; Li, Y. Global Prevalence, Characteristics, and Future Prospects of IncX3 Plasmids: A Review. Front. Microbiol. 2022, 13, 979558. [Google Scholar] [CrossRef] [PubMed]
  24. Juraschek, K.; Käsbohrer, A.; Malorny, B.; Schwarz, S.; Meemken, D.; Hammerl, J.A. Dissection of Highly Prevalent QnrS1-Carrying IncX Plasmid Types in Commensal Escherichia Coli from German Food and Livestock. Antibiotics 2021, 10, 1236. [Google Scholar] [CrossRef]
  25. Li, R.; Liu, Z.; Li, Y.; Xiao, X.; Wang, Z. Characterization of BlaNDM-Positive Enterobacteriaceae Reveals the Clonal Dissemination of Enterobacter Hormaechei Coharboring BlaNDM and Tet(X4) along the Pork Production Chain. Int. J. Food Microbiol. 2022, 372, 109692. [Google Scholar] [CrossRef]
  26. Nakano, R.; Nakano, A.; Abe, M.; Inoue, M.; Okamoto, R. Regional Outbreak of CTX-M-2 β-Lactamase-Producing Proteus Mirabilis in Japan. J. Med. Microbiol. 2012, 61, 1727–1735. [Google Scholar] [CrossRef]
  27. Mataseje, L.F.; Peirano, G.; Church, D.L.; Conly, J.; Mulvey, M.; Pitout, J.D. Colistin-Nonsusceptible Pseudomonas Aeruginosa Sequence Type 654 with BlaNDM-1 Arrives in North America. Antimicrob. Agents Chemother. 2016, 60, 1794. [Google Scholar] [CrossRef]
  28. Nordmann, P.; Poirel, L.; Dortet, L. Rapid Detection of Carbapenemase-Producing Enterobacteriaceae. Emerg. Infect. Dis. 2012, 18, 1503. [Google Scholar] [CrossRef]
  29. Matuschek, E.; Brown, D.F.J.; Kahlmeter, G. Development of the EUCAST Disk Diffusion Antimicrobial Susceptibility Testing Method and Its Implementation in Routine Microbiology Laboratories. Clin. Microbiol. Infect. 2014, 20, O255–O266. [Google Scholar] [CrossRef]
  30. Stoikov, I.; Ivanov, I.N.; Donchev, D.; Teneva, D.; Dobreva, E.; Hristova, R.; Sabtcheva, S. Genomic Characterization of IMP-Producing Pseudomonas Aeruginosa in Bulgaria Reveals the Emergence of IMP-100, a Novel Plasmid-Mediated Variant Coexisting with a Chromosomal VIM-4. Microorganisms 2023, 11, 2270. [Google Scholar] [CrossRef]
  31. Gröbner, S.; Linke, D.; Schütz, W.; Fladerer, C.; Madlung, J.; Autenrieth, I.B.; Witte, W.; Pfeifer, Y. Emergence of Carbapenem-Non-Susceptible Extended-Spectrum β-Lactamase-Producing Klebsiella Pneumoniae Isolates at the University Hospital of Tübingen, Germany. J. Med. Microbiol. 2009, 58, 912–922. [Google Scholar] [CrossRef] [PubMed]
  32. Cole, J.M.; Schuetz, A.N.; Hill, C.E.; Nolte, F.S. Development and Evaluation of a Real-Time PCR Assay for Detection of Klebsiella Pneumoniae Carbapenemase Genes. J. Clin. Microbiol. 2009, 47, 322. [Google Scholar] [CrossRef] [PubMed]
  33. Poirel, L.; Naas, T.; Nordmann, P. Pyrosequencing as a Rapid Tool for Identification of GES-Type Extended-Spectrum Beta-Lactamases. J. Clin. Microbiol. 2006, 44, 3008–3011. [Google Scholar] [CrossRef] [PubMed]
  34. Goudarzi, H.; Mirsamadi, E.S.; Ghalavand, Z.; Hakemi Vala, M.; Mirjalali, H.; Hashemi, A. Rapid Detection and Molecular Survey of BlaVIM, BlaIMP and BlaNDM Genes among Clinical Isolates of Acinetobacter Baumannii Using New Multiplex Real-Time PCR and Melting Curve Analysis. BMC Microbiol. 2019, 19, 122. [Google Scholar] [CrossRef]
  35. Mendes, R.E.; Kiyota, K.A.; Monteiro, J.; Castanheira, M.; Andrade, S.S.; Gales, A.C.; Pignatari, A.C.C.; Tufik, S. Rapid Detection and Identification of Metallo-Beta-Lactamase-Encoding Genes by Multiplex Real-Time PCR Assay and Melt Curve Analysis. J. Clin. Microbiol. 2007, 45, 544–547. [Google Scholar] [CrossRef]
  36. Alvarez-Arevalo, M.; Sterndorff, E.B.; Faurdal, D.; Jørgensen, T.S.; Mourched, A.S.; Vuksanovic, O.; Saha, S.; Weber, T. Extraction and Oxford Nanopore Sequencing of Genomic DNA from Filamentous Actinobacteria. STAR Protoc. 2022, 4, 101955. [Google Scholar] [CrossRef] [PubMed]
  37. Chen, S.; Zhou, Y.; Chen, Y.; Gu, J. Fastp: An Ultra-Fast All-in-One FASTQ Preprocessor. Bioinformatics 2018, 34, i884–i890. [Google Scholar] [CrossRef]
  38. Wick, R.R.; Judd, L.M.; Gorrie, C.L.; Holt, K.E. Unicycler: Resolving Bacterial Genome Assemblies from Short and Long Sequencing Reads. PLoS Comput. Biol. 2017, 13, e1005595. [Google Scholar] [CrossRef]
  39. Wick, R.R.; Judd, L.M.; Cerdeira, L.T.; Hawkey, J.; Méric, G.; Vezina, B.; Wyres, K.L.; Holt, K.E. Trycycler: Consensus Long-Read Assemblies for Bacterial Genomes. Genome Biol. 2021, 22, 266. [Google Scholar] [CrossRef]
  40. Clausen, P.T.L.C.; Aarestrup, F.M.; Lund, O. Rapid and Precise Alignment of Raw Reads against Redundant Databases with KMA. BMC Bioinform. 2018, 19, 307. [Google Scholar] [CrossRef]
  41. Schwengers, O.; Jelonek, L.; Dieckmann, M.A.; Beyvers, S.; Blom, J.; Goesmann, A. Bakta: Rapid and Standardized Annotation of Bacterial Genomes via Alignment-Free Sequence Identification. Microb. Genom. 2021, 7, 000685. [Google Scholar] [CrossRef]
  42. Feldgarden, M.; Brover, V.; Gonzalez-Escalona, N.; Frye, J.G.; Haendiges, J.; Haft, D.H.; Hoffmann, M.; Pettengill, J.B.; Prasad, A.B.; Tillman, G.E.; et al. AMRFinderPlus and the Reference Gene Catalog Facilitate Examination of the Genomic Links among Antimicrobial Resistance, Stress Response, and Virulence. Sci. Rep. 2021, 11, 12728. [Google Scholar] [CrossRef] [PubMed]
  43. Bortolaia, V.; Kaas, R.S.; Ruppe, E.; Roberts, M.C.; Schwarz, S.; Cattoir, V.; Philippon, A.; Allesoe, R.L.; Rebelo, A.R.; Florensa, A.F.; et al. ResFinder 4.0 for Predictions of Phenotypes from Genotypes. J. Antimicrob. Chemother. 2020, 75, 3491–3500. [Google Scholar] [CrossRef] [PubMed]
  44. Carattoli, A.; Zankari, E.; Garciá-Fernández, A.; Larsen, M.V.; Lund, O.; Villa, L.; Aarestrup, F.M.; Hasman, H. In Silico Detection and Typing of Plasmids Using PlasmidFinder and Plasmid Multilocus Sequence Typing. Antimicrob. Agents Chemother. 2014, 58, 3895–3903. [Google Scholar] [CrossRef]
  45. Shakya, M.; Ahmed, S.A.; Davenport, K.W.; Flynn, M.C.; Lo, C.-C.C.; Chain, P.S.G.G. Standardized Phylogenetic and Molecular Evolutionary Analysis Applied to Species across the Microbial Tree of Life. Sci. Rep. 2020, 10, 1723. [Google Scholar] [CrossRef] [PubMed]
  46. Letunic, I.; Bork, P. Interactive Tree Of Life (ITOL) v5: An Online Tool for Phylogenetic Tree Display and Annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef]
  47. Livermore, D.M.; Jones, C.S. Characterization of NPS-1, a Novel Plasmid-Mediated Beta-Lactamase, from Two Pseudomonas Aeruginosa Isolates. Antimicrob. Agents Chemother. 1986, 29, 99–103. [Google Scholar] [CrossRef] [PubMed]
  48. Woodford, N.; Fagan, E.J.; Ellington, M.J. Multiplex PCR for Rapid Detection of Genes Encoding CTX-M Extended-Spectrum (Beta)-Lactamases. J. Antimicrob. Chemother. 2006, 57, 154–155. [Google Scholar] [CrossRef] [PubMed]
  49. Mlynarcik, P.; Chalachanova, A.; Vagnerova, I.; Holy, O.; Zatloukalova, S.; Kolar, M. PCR Detection of Oxacillinases in Bacteria. Microb. Drug Resist. 2020, 26, 1023–1037. [Google Scholar] [CrossRef]
  50. Pérez-Pérez, F.J.; Hanson, N.D. Detection of Plasmid-Mediated AmpC Beta-Lactamase Genes in Clinical Isolates by Using Multiplex PCR. J. Clin. Microbiol. 2002, 40, 2153–2162. [Google Scholar] [CrossRef]
  51. Berçot, B.; Poirel, L.; Nordmann, P. Updated Multiplex Polymerase Chain Reaction for Detection of 16S RRNA Methylases: High Prevalence among NDM-1 Producers. Diagn. Microbiol. Infect. Dis. 2011, 71, 442–445. [Google Scholar] [CrossRef]
  52. Davis, M.A.; Baker, K.N.K.; Orfe, L.H.; Shah, D.H.; Besser, T.E.; Call, D.R. Discovery of a Gene Conferring Multiple-Aminoglycoside Resistance in Escherichia Coli. Antimicrob. Agents Chemother. 2010, 54, 2666. [Google Scholar] [CrossRef] [PubMed]
  53. Hidalgo, L.; Hopkins, K.L.; Gutierrez, B.; Ovejero, C.M.; Shukla, S.; Douthwaite, S.; Prasad, K.N.; Woodford, N.; Gonzalez-Zorn, B. Association of the Novel Aminoglycoside Resistance Determinant RmtF with NDM Carbapenemase in Enterobacteriaceae Isolated in India and the UK. J. Antimicrob. Chemother. 2013, 68, 1543–1550. [Google Scholar] [CrossRef] [PubMed]
  54. Cattoir, V.; Poirel, L.; Rotimi, V.; Soussy, C.-J.J.; Nordmann, P. Multiplex PCR for Detection of Plasmid-Mediated Quinolone Resistance Qnr Genes in ESBL-Producing Enterobacterial Isolates. J. Antimicrob. Chemother. 2007, 60, 394–397. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, M.; Guo, Q.; Xu, X.; Wang, X.; Ye, X.; Wu, S.; Hooper, D.C.; Wang, M. New Plasmid-Mediated Quinolone Resistance Gene, QnrC, Found in a Clinical Isolate of Proteus Mirabilis. Antimicrob. Agents Chemother. 2009, 53, 1892–1897. [Google Scholar] [CrossRef] [PubMed]
  56. Cavaco, L.M.; Hasman, H.; Xia, S.; Aarestrup, F.M. QnrD, a Novel Gene Conferring Transferable Quinolone Resistance in Salmonella Enterica Serovar Kentucky and Bovismorbificans Strains of Human Origin. Antimicrob. Agents Chemother. 2009, 53, 603–608. [Google Scholar] [CrossRef] [PubMed]
  57. Yamane, K.; Wachino, J.I.; Suzuki, S.; Arakawa, Y. Plasmid-Mediated QepA Gene among Escherichia Coli Clinical Isolates from Japan. Antimicrob. Agents Chemother. 2008, 52, 1564. [Google Scholar] [CrossRef]
  58. Ivanov, I.; Sabtcheva, S.; T., S.; Y., I.; M., K.; Kantardjiev, T. A rapid and versatile assay for screening of aac(6′)-ib-cr in multidrug-resistant enterocbacteriaceae. In Problems of Infectious and Parasitic Diseases; National Centre of Infectious and Parasitic Diseases: Sofia, Bulgaria, 2018; Volume 46, pp. 5–8. [Google Scholar]
  59. Ruekit, S.; Wangchuk, S.; Dorji, T.; Tshering, K.P.; Pootong, P.; Nobthai, P.; Serichantalergs, O.; Poramathikul, K.; Bodhidatta, L.; Mason, C.J. Molecular Characterization and PCR-Based Replicon Typing of Multidrug Resistant Shigella Sonnei Isolates from an Outbreak in Thimphu, Bhutan. BMC Res. Notes 2014, 7, 95. [Google Scholar] [CrossRef]
Antibiotics 13 00455 g001

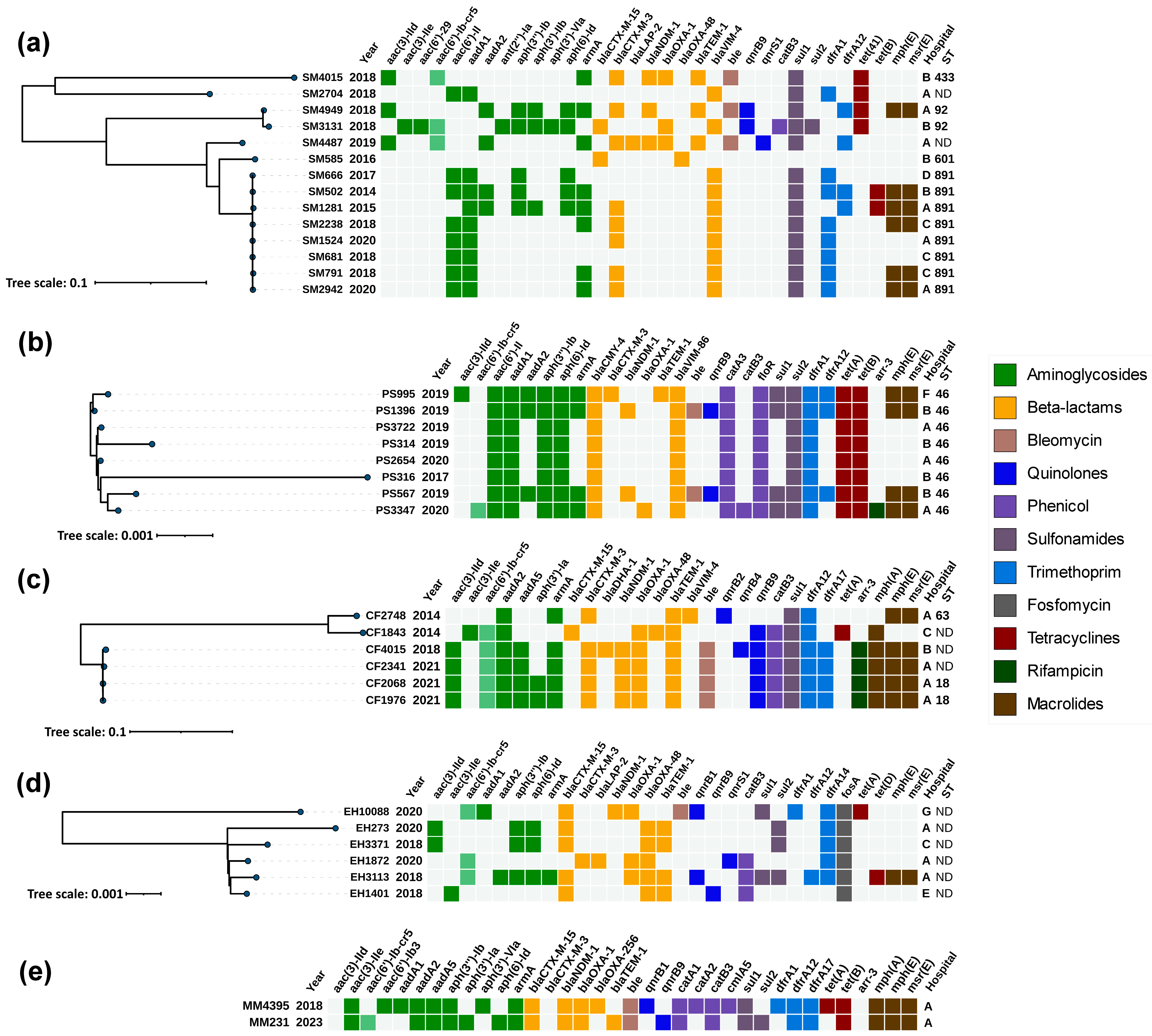

Figure 1. Heatmap representation of the acquired antimicrobial resistance genes of (a) Serratia marcescens; (b) Providentia stuartii; (c) Citrobacter freundii; (d) Enterobacter hormaechei; (e) Morganella morganii. Phylogenetic trees were constructed based on SNP analysis for (a–d) with PhaME v1.0.4 (see Section 4.5). There were only two M. morganii isolates, hence the lack of dendrogram. Drug classes are colored consistently, as shown in the legend (right). The only exception from the legend is aac(6′)-Ib-cr5, colored in pale green to indicate dual resistance. Both dendrograms and heatmaps were displayed and annotated with iTOL v6.8.1 (https://itol.embl.de/about.cgi, accessed on 3 April 2024). Sequence type (ST) was derived for the species with available MLST schemes; ND, not determined either due to missing alleles or imperfect match. SM, Serratia marcescens; PS, Providentia stuartii; CF, Citrobacter freundii; EH, Enterobacter hormaechei; MM, Morganella morganii.
Figure 1. Heatmap representation of the acquired antimicrobial resistance genes of (a) Serratia marcescens; (b) Providentia stuartii; (c) Citrobacter freundii; (d) Enterobacter hormaechei; (e) Morganella morganii. Phylogenetic trees were constructed based on SNP analysis for (a–d) with PhaME v1.0.4 (see Section 4.5). There were only two M. morganii isolates, hence the lack of dendrogram. Drug classes are colored consistently, as shown in the legend (right). The only exception from the legend is aac(6′)-Ib-cr5, colored in pale green to indicate dual resistance. Both dendrograms and heatmaps were displayed and annotated with iTOL v6.8.1 (https://itol.embl.de/about.cgi, accessed on 3 April 2024). Sequence type (ST) was derived for the species with available MLST schemes; ND, not determined either due to missing alleles or imperfect match. SM, Serratia marcescens; PS, Providentia stuartii; CF, Citrobacter freundii; EH, Enterobacter hormaechei; MM, Morganella morganii.
Antibiotics 13 00455 g001
Table 1. Distribution of carbapenemase genes among the 36 CP-ESCPM isolates.
Table 1. Distribution of carbapenemase genes among the 36 CP-ESCPM isolates.
SpeciesVIMNDMVIM + NDMOXA-48-likeTotal
S. marcescens103 114
P. stuartii6 2 8
C. freundii14 16
E. hormaechei 1 56
M. morganii 2 2
Total17 (47.2%)10 (27.8%)2 (5.6%)7 (19.4%)36
Table 2. Characteristics of transconjugants and donor plasmid replicon types.
Table 2. Characteristics of transconjugants and donor plasmid replicon types.
TransconjugantTransferred Resistance Genes and Plasmid Incompatibility GroupAssociated
Phenotypic Resistance a		Donor Plasmid Replicon Type(s) b (WGS)
Carbapenemase Gene(s)Additional Resistance GenesInc Group
(PCR)
TC—SM4015/1blaNDM-1-IncX -IncX3; IncM2
TC—SM4015/2-armA, blaCTX-M-3, blaOXA-1, aac(6′)-Ib-crIncL/M-IncM2; IncX3
TC—SM4949blaNDM-1armA, blaCTX-M-3, qnrBIncL/MSxtIncM2
TC—SM4487-armA, blaCTX-M-3IncL/MSxtIncM2; Col
TC—SM585blaOXA-48-IncL/M-IncL
TC—SM502-armAND-IncFII; IncHI2; IncHI2A; Col
TC—SM1281-armA, blaCTX-M-3IncL/MSxtIncM2; IncFII; IncHI2; IncHI2A CCol
TC—SM2238-armA, blaCTX-M-3IncL/M-IncM2; IncFII
TC—SM791-armA, blaCTX-M-3IncL/M-IncM2; IncFII
TC—SM2942-armA, blaCTX-M-3IncL/M-IncM2; IncFII; Col
TC—PS995/1blaVIM-86blaCMY-4IncA/CSxt Cm Te TmIncC; IncM2
TC—PS995/2-armA, blaCTX-M-3IncL/MSxtIncM2; IncC
TC—PS1396blaVIM-86, blaNDM-1armA, blaCMY-4, qnrBIncA/CSxt Cm TeIncC
TC—PS3722blaVIM-86blaCMY-4IncA/CSxt Cm Te TmIncC
TC—PS314blaVIM-86blaCMY-4IncA/CSxt Cm Te TmIncC
TC—PS2654blaVIM-86blaCMY-4IncA/CSxt Cm Te TmIncC
TC—PS316blaVIM-86blaCMY-4IncA/CSxt Cm Te TmIncC
TC—PS567blaVIM-86, blaNDM-1armA, blaCMY-4, qnrBIncA/CSxt Cm TeIncC
TC—PS3347blaVIM-86armA, blaCMY-4, blaOXA-1, aac(6′)-Ib-crIncA/CSxt Cm TeIncC
TC—CF2748blaVIM-4armA, blaCTX-M-3IncL/MSxtIncM2; IncFIB; IncFII; Col
TC—CF1843blaOXA-48-IncL/M-IncL; IncFII; IncFIA; Col
TC—CF4015blaNDM-1armA, blaCTX-M-3, qnrBIncL/MSxtIncM2; IncFIB; IncR;Col
TC—CF2341blaNDM-1armA, blaCTX-M-3, qnrBIncL/MSxtIncM2; IncFIB; IncR;Col
TC—CF2068blaNDM-1armA, blaCTX-M-3, qnrBIncL/MSxtIncM2; IncFIB; IncR;Col
TC—CF1976blaNDM-1armA, blaCTX-M-3, qnrBIncL/MSxtIncM2; IncFIB; IncR;Col
TC—EH10088blaNDM-1-ND-Col
TC—EH273blaOXA-48-IncL/M-IncL; IncFIB; IncX5; Col
TC—EH3371blaOXA-48-IncL/M-IncL; IncFII; IncFIB; Col
TC—EH1872blaOXA-48blaCTX-M-3IncL/M-IncL; IncFII; Col
TC—EH3113blaOXA-48armA, blaOXA-1, aac(6′)-Ib-cr, qnrBIncL/MSxtIncL; IncFII; IncFIB; Col
TC—EH1401blaOXA-48-IncL/M-IncL; IncFII; IncFIB; IncX3
TC—MM4395blaNDM-1armA, blaOXA-1, aac(6′)-Ib, qnrBNDSxt CmIncT
TC, transconjugant; SM, Serratia marcescens; PS, Providentia stuartii; CF, Citrobacter freundii; EH, Enterobacter hormaechei; MM, Morganella morganii; “-”, absence of gene or resistance; ND, not determined. a Sxt, trimethoprim-sulfamethoxazole; Cm, chloramphenicol; Te, tetracycline; Tm, tobramycin. b The replicon type of donor plasmid in bold is that corresponding to the incompatibility group of the transconjugant plasmid identified by PCR-based replicon typing.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sabtcheva, S.; Stoikov, I.; Ivanov, I.N.; Donchev, D.; Lesseva, M.; Georgieva, S.; Teneva, D.; Dobreva, E.; Christova, I. Genomic Characterization of Carbapenemase-Producing Enterobacter hormaechei, Serratia marcescens, Citrobacter freundii, Providencia stuartii, and Morganella morganii Clinical Isolates from Bulgaria. Antibiotics 2024, 13, 455. https://doi.org/10.3390/antibiotics13050455

AMA Style

Sabtcheva S, Stoikov I, Ivanov IN, Donchev D, Lesseva M, Georgieva S, Teneva D, Dobreva E, Christova I. Genomic Characterization of Carbapenemase-Producing Enterobacter hormaechei, Serratia marcescens, Citrobacter freundii, Providencia stuartii, and Morganella morganii Clinical Isolates from Bulgaria. Antibiotics. 2024; 13(5):455. https://doi.org/10.3390/antibiotics13050455

Chicago/Turabian Style

Sabtcheva, Stefana, Ivan Stoikov, Ivan N. Ivanov, Deyan Donchev, Magdalena Lesseva, Sylvia Georgieva, Deana Teneva, Elina Dobreva, and Iva Christova. 2024. "Genomic Characterization of Carbapenemase-Producing Enterobacter hormaechei, Serratia marcescens, Citrobacter freundii, Providencia stuartii, and Morganella morganii Clinical Isolates from Bulgaria" Antibiotics 13, no. 5: 455. https://doi.org/10.3390/antibiotics13050455

APA Style

Sabtcheva, S., Stoikov, I., Ivanov, I. N., Donchev, D., Lesseva, M., Georgieva, S., Teneva, D., Dobreva, E., & Christova, I. (2024). Genomic Characterization of Carbapenemase-Producing Enterobacter hormaechei, Serratia marcescens, Citrobacter freundii, Providencia stuartii, and Morganella morganii Clinical Isolates from Bulgaria. Antibiotics, 13(5), 455. https://doi.org/10.3390/antibiotics13050455

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
