Impurity Phases and Optoelectronic Properties of CuSbSe₂ Thin Films Prepared by Cosputtering Process for Absorber Layer in Solar Cells

Abstract

When there is a choice of materials for an application, particular emphasis should be given to the development of those that are low-cost, nontoxic, and Earth-abundant. Chalcostibite CuSbSe₂ has gained attention as a potential absorber material for thin-film solar cells, since it exhibits a high absorption coefficient. In this study, CuSbSe₂ thin films were deposited by radio frequency magnetron cosputtering with CuSe₂ and Sb targets. A series of CuSb_xSe₂ thin films were prepared with different Sb contents adjusted by sputtering power, followed by rapid thermal annealing. Impurity phases and surface morphology of Cu–Sb–Se systems were directly affected by the Sb sputtering power, with the formation of volatile components. The crystallinity of the CuSbSe₂ thin films was also enhanced in the near-stoichiometric system at an Sb sputtering power of 15 W, and considerable degradation in crystallinity occurred with a slight increase over 19 W. Resistivity, carrier mobility, and carrier concentration of the near-stoichiometric thin film were 14.4 Ω-cm, 3.27 cm²/V∙s, and 1.33 × 10¹⁷ cm⁻³, respectively. The optical band gap and absorption coefficient under the same conditions were 1.7 eV and 1.75 × 10⁵ cm⁻¹, which are acceptable for highly efficient thin-film solar cells.

1. Introduction

Considerable attention has recently been given to thin-film solar cells based on high-efficiency absorbers owing to their applicability in flexible photovoltaic technology. CuInGaSe₂ thin-film solar cells have already achieved a conversion efficiency of 23.4% [1]; however, the scarcity of In and high cost of Ga have restricted their mass production. Alternative CdTe thin-film absorber was progressed to the commercialization stage, but was stranded by toxicity and environmental pollution of Cd. Cu₂-II-IV-VI₄ (II = Zn; IV = Si, Ge, Sn; VI = S, Se, Te) quaternary compounds, represented by Cu₂ZnSnS₄ or Cu₂ZnSnSe₄, were proposed as an effort to replace the above deficient and expensive elements [2,3]. Up to 12.6% (theoretically 18.47%) of energy conversion efficiency was achieved, but difficulties in the control of composition and morphology still remain in the quaternary compound [4,5]. Hence, thin-film solar cells with Earth-abundant and nontoxic materials need to be investigated as possible candidates. Toward this goal, different compounds of Cu–Sb–Se and Cu–Sb–S are being considered as potential low-cost sustainable absorber materials for inorganic thin-film solar cells. Copper antimony selenide (CuSbSe₂) is a p-type semiconductor, which is due to an excess of volatile components (e.g., Sb and a chalcogen) to cause the formation of copper vacancy acceptors [6]. CuSbSe₂ with an orthorhombic crystalline structure and Pnma space group (No. 62) [7,8] is an important chalcogenide semiconductor owing to its narrow direct band gap (~1.1 eV) [9] and high absorption coefficient (>10⁴ cm⁻¹) [9,10], which favors its application in optoelectronics and photovoltaics [11]. Trivalent Sb (Sb³⁺) with lone-pair 5s² electrons is known to be responsible for the large absorption coefficient of CuSbSe₂ [12]. It was found that the Cu–Sb–Se system is complicated, containing numerous reported phases with low crystallographic symmetry compared with chalcopyrite materials [6,10,13,14,15]. In the Cu–Sb–Se system, besides CuSbSe₂, there are at least five binary or ternary phases including Cu₂Se, CuSe, Sb₂Se₃, Cu₃SbSe₄, and Cu₃SbSe₃ that could exist as secondary phases if the samples are nonstoichiometric or prepared with an inappropriate process [16,17]. Even minor deviations from the CuSbSe₂ stoichiometry lead to the precipitation of impurity phases. The window in Cu:Sb:Se ratio for creating CuSbSe₂ seems to be narrow and needs to be close to 1:1:2 to prevent the formation of these secondary phases. Some of these phases are highly conductive and can cause a shunting effect [18], while some of these phases such as Sb₂Se₃ have excellent optoelectronic properties [11], so strict phase control is important for the prevention of these destructive effects. The importance of rigorous control of the Cu content in thin films for the prevention of phases such as Cu₂Se and Cu₃SbSe₃ has been emphasized in many previous reports [5,6,12], when the Sb content is another important factor for the prevention of these secondary phases. Several methods, such as electrodeposition, pulsed laser deposition, sequential evaporation with selenization, spin-coating, and pre-sputtering of Cu with close-spaced sublimation of Sb₂Se₃, have been reported to prepare CuSbSe₂ thin films [19]. The magnetron sputtering method offers some merits of superior adhesion of thin films, excellent transfer of composition, uniform surface morphology, straightforward control of deposition rate, low-cost equipment, and possibility for large-area deposition in the full-vacuum operation [20]. The cosputtering method can also provide a simultaneous one-step process with controllable composition of the thin films without involving the highly toxic and explosive chemical nature of the post-selenization process in the use of expensive equipment. Only a few studies have reported on the fabrication and characterization of CuSbSe₂ thin films using the cosputtering method with Cu₂Se/Sb₂Se₃ and Cu/Sb₂Se₃ target combinations [9,21,22]. The focus of this study was on the phases and the evolution of orientation of CuSbSe₂ thin films deposited using a radio frequency (RF) magnetron cosputtering system directly with CuSe₂ and Sb targets, while CuSe₂ generally has a cubic and orthorhombic structure that incongruently melts at 347 °C, forming CuSe and a Se-rich liquid [23]. A series of CuSb_xSe₂ thin films were prepared with various levels of Sb content at the same thickness, adjusted by sputtering power for Sb and deposition time. Then, all samples were annealed in a rapid thermal annealing (RTA) system to prevent the volatility of Se. Phase and crystal orientation evolution with changing Sb content were investigated for the absorber materials in thin-film solar cells.

2. Experimental Details

CuSbSe₂ thin films were deposited on 1 × 1 cm² Corning glass substrates using an RF magnetron cosputtering system (IDT Engineering Co., Gyeonggi, Korea) [24,25,26,27], as shown in Figure S1, with CuSe₂ (TASCO, Seoul, Korea, 99.99% purity, 2-inch diameter) target under a fixed power of 40 W and variable power for Sb (TASCO, 99.99% purity, 2-inch diameter) target from 13 to 21 W in increments of 2 W, while other parameters were kept constant using the following conditions: presputtering process for 5 min prior to each run, an Ar gas flux of 20 sccm, base pressure of 1.0 × 10⁻⁶ Torr, substrate-to-target distance of 5.0 cm, and vacuum pressure of 7.5 × 10⁻³ Torr during sputtering at room temperature. During the target cleaning procedure, the substrates were shielded with a shutter. The deposition time was adjusted from 34 to 28 min in order to obtain a constant thickness of approximately 450 nm for the proper comparison of crystallographic properties. After sputtering deposition, the samples were subjected to an RTA (GRT-100, GD-Tech Co., Gyeongsangbuk, Korea) process at 350 °C for 30 min under a N₂ gas atmosphere. The crystalline structure of the thin films was analyzed using X-ray diffraction (XRD, PANalytical B.V., Almelo, The Netherlands, X’pert-PRO-MRD, Cu Kα = 0.15405 nm, 40 kV, 30 mA). A field emission scanning electron microscope (FESEM, Hitachi, Tokyo, Japan, S-4700, without Pt coating) was employed to reveal the morphological characteristics of the Cu–Sb–Se thin films. An energy dispersive X-ray spectrometer (EDS) attached to the FESEM and X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientific Inc., Waltham, MA, USA, K-Alpha⁺) were used to analyze the compositional analysis and chemical nature of the Cu–Sb–Se thin films. The optical properties of the Cu–Sb–Se thin films were measured using a UV-visible spectrophotometer (Varian Techtron, Mulgrave, Australia, Cary500scan) in the range 200–3000 nm. The electrical properties, including the carrier concentration, resistivity, and mobility of the Cu–Sb–Se thin films were characterized using a Hall effect measurement system (Accent Optical Technologies, Bend, OR, USA, HL5500PC) at room temperature.

3. Results and Discussion

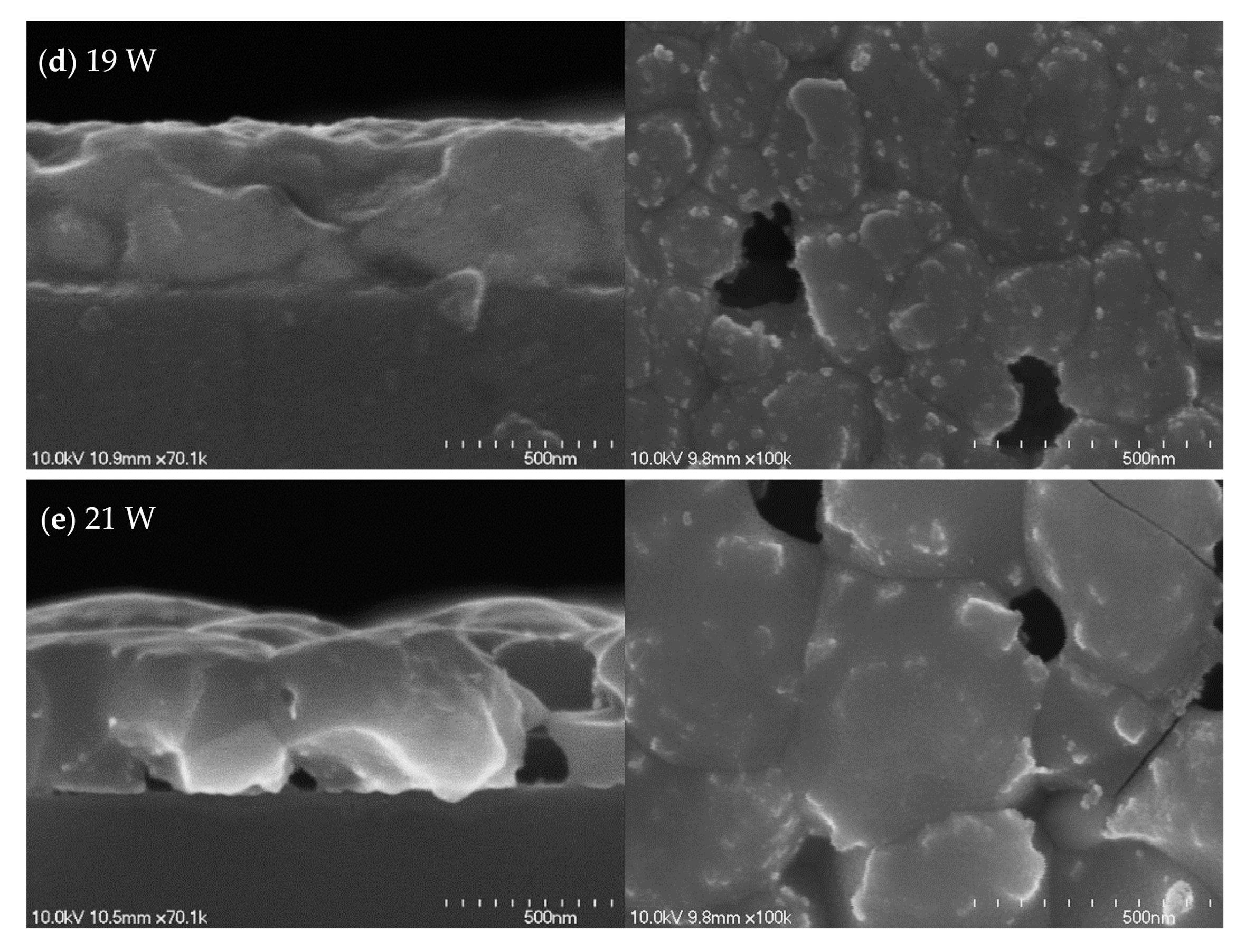

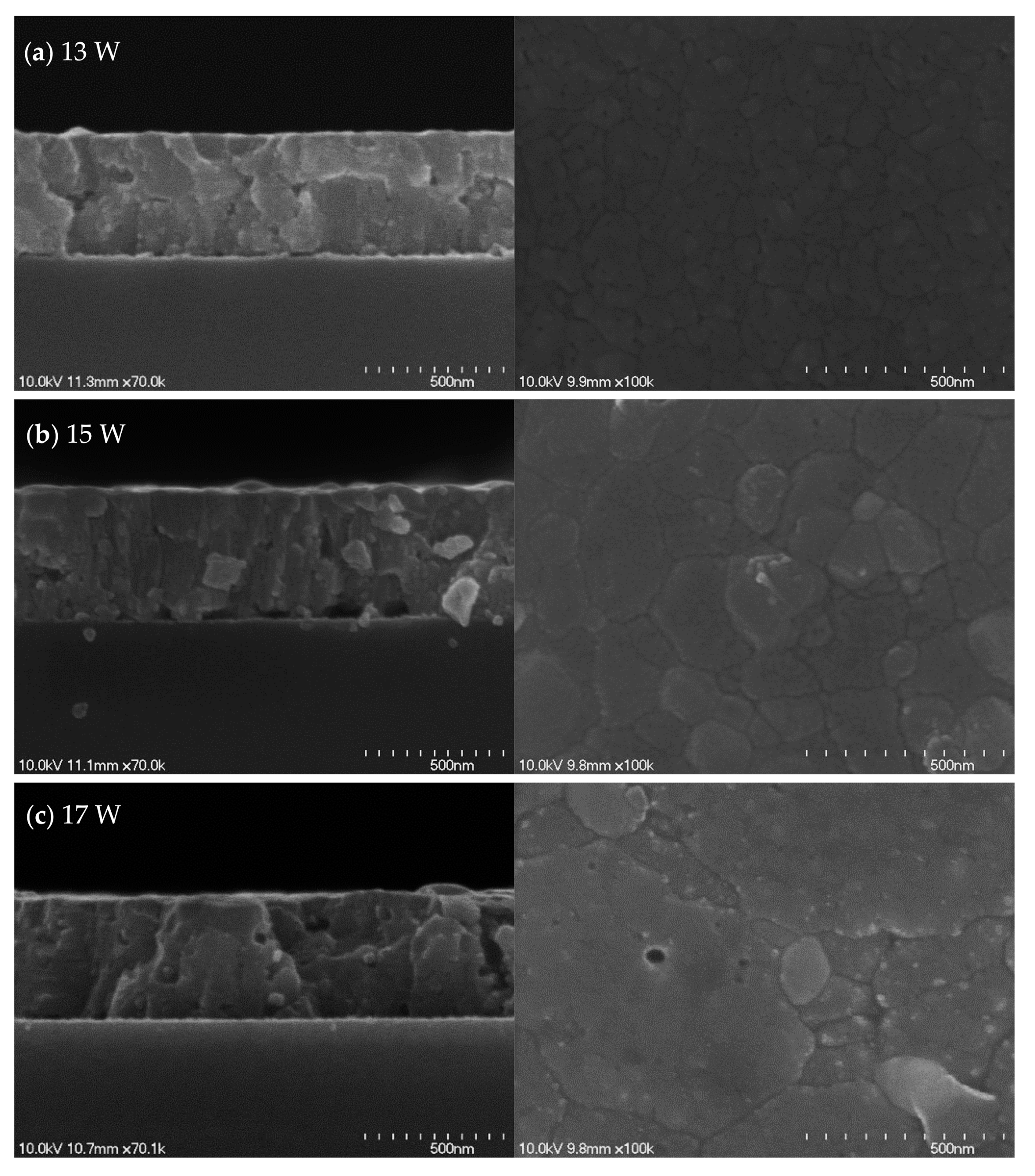

The surface morphology of Cu–Sb–Se thin films deposited at different Sb powers was analyzed using FESEM. Figure 1 shows cross-sectional and surface FESEM images of the Cu–Sb–Se thin films annealed at 350 °C for 30 min. All as-deposited thin films showed a smooth and dense surface morphology (Figure S2). For the annealed thin films, the surface morphology changed with the sputtering power for Sb. Annealed Cu–Sb–Se thin films with a sputtering power for Sb of 13 W showed smooth and dense surface morphology like the as-deposited thin films. Annealed thin films with 15 W of power showed a smooth surface morphology with clear grain boundaries. A gap on the surface appeared in the annealed thin films at 15 W which was not seen in the as-deposited thin films under the same sputtering power. As shown in Figure 1d,e, with an increase in the sputtering power for Sb to 19 and 21 W, the surface showed more pores and larger gaps between particles. Although the Sb content increased at Sb powers of 19 and 21 W and the annealing process was performed at a much lower temperature than the melting point of CuSbSe₂ (480 °C), the CuSbSe₂ could decompose to gaseous Sb₂Se₃ which could leave gaps and escape from the surface of the thin films [10,19]. The resulting porous and nonuniform surface with the large gaps appears to be unsuitable for the absorption layer in solar cells.

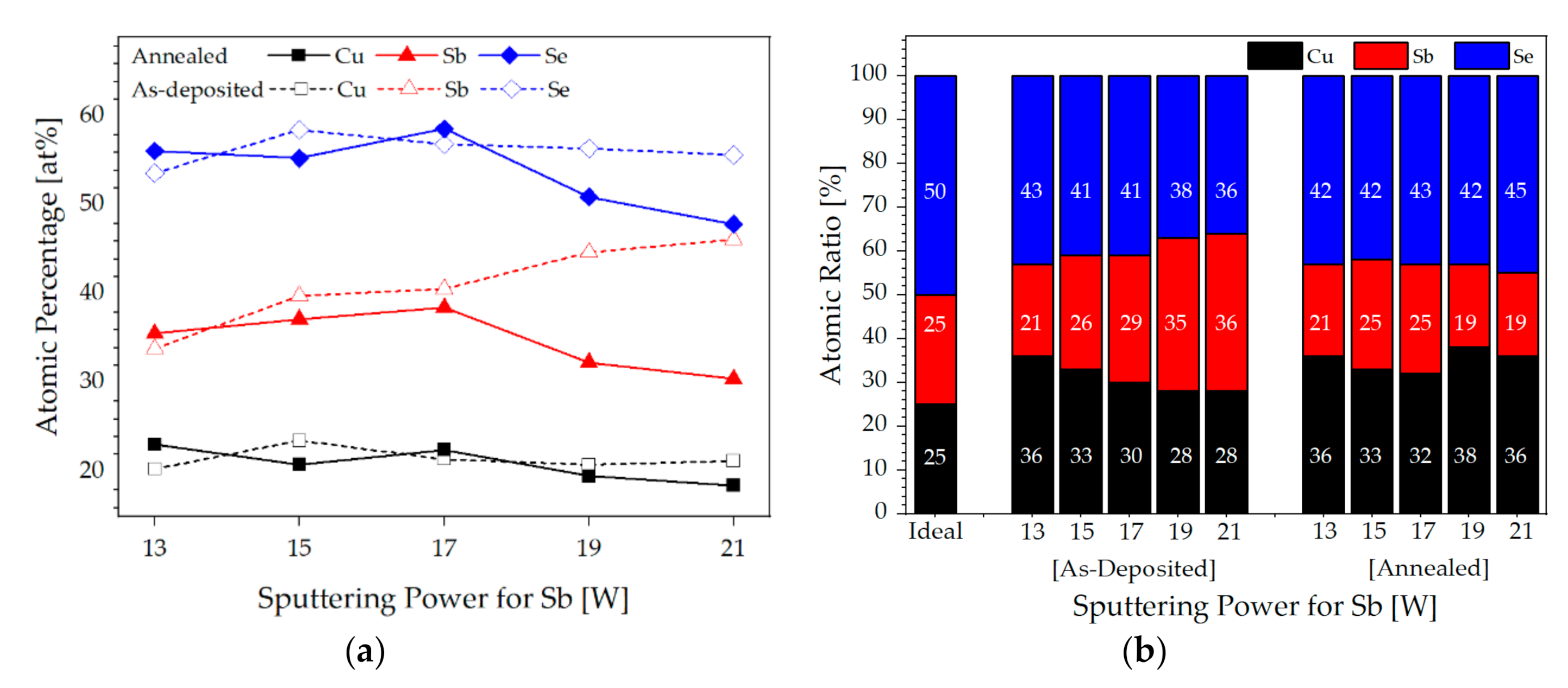

Elemental analysis of the as-deposited and annealed Cu–Sb–Se thin films was carried out through EDS measurements. Figure 2 shows the changes in elemental composition for the as-deposited and annealed thin films, including the atomic percentage for each element as well as the atomic ratio in the thin films. The EDS results for the as-deposited thin film with 13 W show a Cu-rich and Sb-poor composition compared to the ideal stoichiometric ratio, whereas that with 15 W is the closest to the stoichiometric ratio of 1:1:2 among the as-deposited thin films. All the as-deposited thin films exhibit Cu-rich and Se-poor conditions. The atomic percentage of Sb in the as-deposited thin films increase from 8.91% to 21.22% with an increase in the sputtering power for Sb, as shown in Figure 2a. Meanwhile, the atomic percentages of Sb and Se start to decrease together in the annealed thin films above an Sb sputtering power of 17 W, which is attributed to the decomposition of CuSbSe₂ into Sb₂Se₃ and/or sublimation of Sb₂Se₃ into the gaseous state [14,18]. As shown in Figure 1d,e of the FESEM images, the annealed thin films at 19 and 21 W show large gaps on the surface, in good agreement with the EDS results. At higher Sb sputtering powers, the higher atomic percentages of Sb lead to an increase in the probability of forming volatile Sb₂Se₃ (g) with high vapor pressure, and a higher amount of volatile Sb₂Se₃, leading to more and/or larger gaps on the surface. CuSbSe₂ is still stable but starts to decompose at the sputtering powers of 19 and 21 W, corresponding to Cu-rich, Sb-rich, and Se-poor conditions in the as-deposited thin film, while the phases in the thin films may strongly depend on the growth conditions [10,28]. These gaps seem to lead to the degradation of the optical quality of the thin films, so those conditions are not appropriate for the absorption layer in solar cells [19].

All as-deposited Cu–Sb–Se thin films exhibited an amorphous nature (not shown). An RTA treatment was carried out for the purpose of improving the crystallinity of the Cu–Sb–Se thin films. Figure 3 shows the XRD patterns of the annealed Cu–Sb–Se thin films at various Sb sputtering powers. The XRD patterns of the annealed thin film at 13 W show Cu₃SbSe₃ as the dominant peak along the (122) plane at 2θ = 33.2°, while secondary phases corresponding to Cu₂Se also appear with less intensity along the (102), (111), (103), and (211) planes at 2θ = 26.2°, 30.5°, 31.2°, and 45.5°, respectively. Only two intermetallic compounds, Cu₃SbSe₃ and Cu₂Se, were observed under these conditions. These are the typical intermediate phases during the formation of CuSbSe₂ [19] in Cu-rich composition [18], and EDS analysis revealed a Cu:Sb:Se ratio of 36:21:43 in the as-deposited thin film, as shown in Figure 2b. The Cu₃SbSe₃ impurity phase is known as a p-type semiconductor with a low resistivity, a carrier density in the order of 10¹⁸ cm⁻³, and a band gap within the range 1.25–1.50 eV [29,30,31]. The XRD pattern of the annealed thin film at 15 W shows two dominant phases: Sb₂Se₃ and CuSbSe₂. The formation of the Sb₂Se₃ phase is confirmed by the presence of a dominant peak (004) along the preferred orientation at 2θ = 23.7°. The CuSbSe₂ phase shows peaks along the (002), (112), and (304) planes centered at 2θ = 11.8°, 28.6°, and 48.8°, respectively. XRD peaks indicating the presence of other phases, such as Cu₃SbSe₃ and Cu₂Se in the thin film have relatively low intensity. Diffraction peaks along (111) and (103) planes at 30.5° and 31.2° corresponded to the Cu₂Se. Diffraction peaks at 33.2° and 33.8° are indexed to the (122) and (040) planes corresponding to Cu₃SbSe₃. As confirmed from the EDS results (Figure 2), although this condition has the ratio closest to the stoichiometric ratio of 1:1:2, it still shows a Cu-rich and Sb-rich composition. Sb-rich composition causes an increase in the amount of Sb₂Se₃ [10]. Sb₂Se₃ is a p-type semiconductor that exhibits low electrical conductivity with an excellent photoresponse [32,33,34], and crystallizes in a one-dimensional structure where the ribbons are held together by van der Waals forces [35]. This structure contributes to poor carrier transport and mobility between the ribbons [36] with various reported band gaps in the range of 1.2–1.8 eV [37,38]. The XRD pattern of the annealed thin film with 17 W of sputtering power does not show any dominant peak, but there are many peaks with low intensity, as shown in Figure 3c. As the atomic ratio of Sb increases, more Sb₂Se₃ is formed and some of it sublimates on the surface, which is why the intensity of the peak corresponding to Sb₂Se₃ in this condition is less than that using 15 W. The XRD patterns of the annealed thin films at 19 and 21 W of sputtering powers are almost identical, with the atomic ratio of Sb close to that of Se, and extra Sb leading to the formation of a large amount of Sb₂Se₃ in the gaseous phase owing to its high vapor pressure [16]. Sb₂Se₃ sublimates and leaves the thin films to form a porous surface, as shown in Figure 1d,e, which explains the lower intensity of the (004) preferred orientation under these conditions. Several small diffraction peaks are observed at 2θ = 23.7°, 27.3°, and 28.6° along the (004), (130), and (112) preferred orientations corresponding to Sb₂Se₃, Sb₂O₃, and CuSbSe₂, respectively. Other peaks centered at 30.5° and 31.2° are indexed to the (111) and (103) planes corresponding to Cu₂Se. Peaks along the (122) and (040) planes are observed at 33.2° and 33.8°, corresponding to the Cu₃SbSe₃. In Sb-rich conditions, some elemental Sb remains intact on the surface or reacts with oxygen to form Sb₂O₃ [14]. Another peak appears at 2θ = 36.4° along the (111) orientation corresponding to Cu₂O. Slight oxidation of the surface was frequently observed for thin films prepared at sputtering power for Sb of 17, 19, and 21 W.

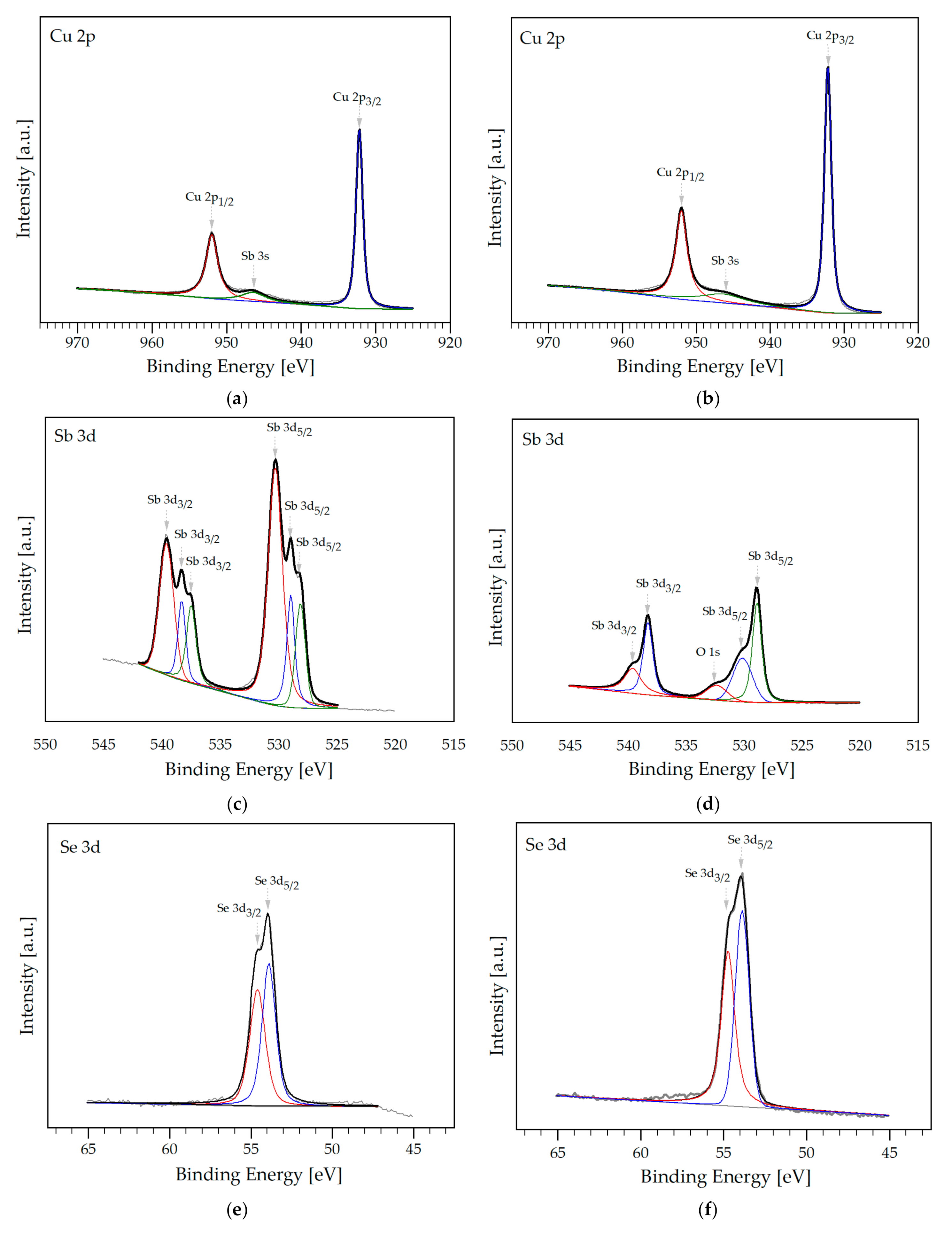

The valence states of each element were evaluated using XPS in the annealed CuSbSe₂ thin films at sputtering powers for Sb of 15 and 21 W, which showed the sharp difference in XRD analysis of Figure 3. All XPS spectra were deconvoluted using XPSPEAK4.1 software. The spectrum of the C 1s peak with a binding energy of 285 eV was used as a reference for data calibration. High-resolution narrow scans were employed to examine the core level elements, such as Cu 2p, Sb 3d, and Se 3d, corresponding to Cu⁺, Sb³⁺, and Se²⁻ oxidation states, respectively, in Cu–Sb–Se composites. The oxidation state of Cu is presented in Figure 4a,b. For both 15 and 21 W, the Cu 2p doublet is symmetric and narrow at a binding energy of 932.18 eV (Cu 2p_3/2) and 952.00 eV (Cu 2p_1/2) with spin-orbit splitting (SOS) energy of 19.82 eV corresponding to Cu⁺ in the thin films reported for Cu₂Se, CuSbSe₂, Cu₃SbSe₃, and Cu₂O [38,39,40,41]. According to Coster–Kronig broadening effects [42], the full width at half maximum (FWHM) of the Cu 2p_3/2 peak is slightly narrower than that of the Cu 2p_1/2 peak. It is well known that Cu⁺ in Cu₂Se, CuSbSe₂, and Cu₃SbSe₃ can be oxidized to Cu²⁺ in CuO [38]; however, no peak related to Cu²⁺ is observed in either Figure 4a or Figure 4b. For Sb, a doublet of the Sb 3d peak is observed, while the peaks around 35–37 eV related to Sb 4d correspond to Sb⁵⁺. For the annealed thin films with 15 and 21 W, intense double peaks for Sb 3d_5/2 and Sb 3d_3/2 are observed at the lower binding energy pair of 528.9 and 538.3 eV and the higher binding energy pair of 530.2 and 539.6 eV with an SOS energy of 9.3 eV corresponding to Sb³⁺ reported for CuSbSe₂, Sb₂Se₃, and Cu₃SbSe₃ [38,40,41]. The 3d_5/2 peaks at 528.1 eV and 3d_3/2 at 537.4 eV are consistent with pure Sb, which was observed in the thin film with 15 W, indicating that some elemental Sb remains intact on the surface of the thin film. For the annealed thin films at 21 W, an O 1s peak overlapping with the Sb 3d peak, corresponding to the O²⁻ oxidation state, is observed in the XPS result related to Sb₂O₃, confirming slight oxidation on the surface, as shown in Figure 4d. The Se 3d peak, showing an Se 3d_5/2 peak at 53.8 eV and an Se 3d_3/2 peak at 54.7 eV with an SOS energy of 0.9 eV, confirms the presence of the Se²⁻ oxidation state in both the annealed thin films at 15 and 21 W reported for Cu₂Se, CuSbSe₂, Cu₃SbSe₃, and Sb₂Se₃ [40,41,42].

The electrical properties, including resistivity (ρ), carrier mobility (μ), and carrier concentration (n), of the annealed CuSbSe₂ thin films were analyzed using Hall effect measurements (Table S1). Electrical conductivity is generally sensitive to multiscale defect scattering carriers, such as point defects, dislocations, pores, and grain boundaries in thin films [43]; point defects can be formed by the growth conditions and can directly affect the electrical conductivity of the thin films. Possible point defects include acceptor-like Cu vacancies (V_Cu) and Cu–Sb antisites (Cu_Sb) as well as donor-like Se vacancies (V_Se), Sb-Cu antisites (Sb_Cu), and Cu interstitials (Cu_i) in the CuSbSe₂ thin films. Among them, the most probable point defect in the CuSbSe₂ thin films is V_Cu, owing to shallow V_Cu defects with the lowest formation energy [44], and it has the greatest influence on the electrical conductivity. All the annealed thin films in this study exhibit p-type conductivity, which should be determined mainly by V_Cu acceptors. With an increase in the sputtering power for Sb, there are more deviations (Figure 2b) from the stoichiometric composition, leading to the formation of intrinsic point defects in the compound [3]. Figure 5 shows that the carrier concentrations are in the order of 10¹⁷ cm⁻³ in all the annealed thin films in accordance with previous reports [9,10,45], except for 17 W of sputtering power, which is in the order of 10¹⁶ cm⁻³. The carrier concentration also slightly increased with an increase in the sputtering power for Sb, while a higher carrier concentration at higher Sb sputtering power is inferred from the higher point defect density [46]. Under Se-poor, Cu-rich, and Sb-rich conditions, which were observed in the as-deposited thin films with Sb powers of 15, 17, 19, and 21 W, the V_Cu acceptors and Cu_i donors are the most easily formed defects and are thus considered to be the dominant defects, leading to high carrier concentration as Sb power increases [14]. On the other hand, the population of other point defects has much higher formation energies for contribution to the carrier concentration than the dominant defects. An excess of Sb with an increase in the Sb sputtering power increases the population of V_Cu, and thus causes the carrier concentration to show an upward tendency. The carrier mobility is in the range 1.89–5.77 cm²/V∙s, as shown in Figure 5, which is less than previously reported values for CuSbSe₂ due to the impurity phases of Sb₂Se₃ and Cu₂Se with lower mobility values than CuSbSe₂ in thin films [45,47]. The carrier mobility at 21 W of sputtering power shows a sudden decrease correlated not only to large gaps interfering with carriers to move from grain to neighboring grain but also to the slight surface oxidation producing a potential barrier [48,49], as shown in Figure 1e and Figure 3. As shown in Figure 5, the resistivity shows a decreasing trend in the range 10⁰–10¹ Ω∙cm with an increase in Sb sputtering power. The resistivity of thin films mainly depends on the carrier concentration and mobility with the relationship ρ = 1/nqµ, where n, q, and μ represent the carrier concentration, the unit carrier charge, and the carrier mobility, respectively. At the condition of 21 W, a slight increase in resistivity is observed, which is correlated to the lower carrier mobility.

Figure 6 illustrates the optical properties of the as-deposited and annealed CuSbSe₂ thin films with a change in Sb sputtering power over the spectral region from 200 to 2000 nm. The absorption edge of the as-deposited thin films shifts toward longer wavelengths (red-shift), indicating that the band gap becomes narrower as Sb sputtering power increases, which is due to the Burstein-Moss effect, as shown in Figure 6a. The optical transmittance of the annealed thin films at 13 W shows a similar trend for the as-deposited thin films, as shown in Figure 6a,b; however, the optical transmittance of the annealed thin films converges into much lower values with an increase in Sb sputtering power above 15 W. As shown in Figure 6b, in the visible spectral region 380–780 nm, the mean transmittance of the annealed thin films is 5.19%, 0.64%, 0.52%, 0.24%, and 1.88% for Sb sputtering power of 13, 15, 17, 19, and 21 W, respectively, and increases to 38.26%, 10.15%, 8.85%, 4.77%, and 3.28% for the same powers in the visible and near-infrared (NIR) spectral region 380–1500 nm (inset of Figure 6b), which means that the annealed CuSbSe₂ thin films show better optical transmittance as an absorber layer and have similar absorbance capability to the as-deposited thin films in the visible to NIR range. Figure 6c shows the absorbance of the annealed CuSbSe₂ thin films. Absorbance is the amount of light absorbed by the sample and can be calculated using the equation A = −logT = log(I₀/I), where T is the optical transmittance, I is the intensity of the transmitted radiation, I₀ is the intensity of the incident radiation, and A is the absorbance. The inset of Figure 6c shows the mean values of the absorbance over the 380–780 nm (visible) and the 380–1500 nm (visible to NIR) spectral ranges. In the visible spectral region, the mean absorbance of the annealed thin films is 2.36, 2.84, 3.26, 3.04, and 1.73 for Sb sputtering power of 13, 15, 17, 19, and 21 W, respectively. These values decrease to 1.01, 1.58, 1.63, 1.85, and 1.52 for the same powers in the visible to NIR spectral region. The absorbance of the annealed thin films increases as Sb sputtering power increases, but starts decreasing when gaps appear on the surface. The absorption coefficient (α) was calculated using the Beer–Lambert law in the high-absorption region α(υ) = (2.303/d), where A is the absorbance, υ is the frequency, and d is the thickness of the thin film. Among all of the annealed thin films, the thin film at 15 W shows a stable absorption coefficient of approximately 1.0 × 10⁵ in the range 250–700 nm, which is in accordance with previous reports [6,9,10]. Figure 6d shows the penetration depth (Γ), a parameter measuring how deep an incident photon penetrates below the surface of the thin films before the irradiance decreases to 37% (i.e., 1/e) of its incident level [50]. All the penetration depths of the annealed thin films were ≤194 nm throughout the entire visible spectral range of 380–780 nm, which corresponds to ~10⁵ cm⁻¹. In the absorption coefficient plotted on the right axis of Figure 6d, a sharp absorption onset appears just after the band gaps, which is usually observed for direct band gap semiconductors, implying a direct band gap nature for the thin films. The band gaps of the annealed CuSbSe₂ thin films were estimated using Tauc’s equation (αhυ)ⁿ = B(hυ − E_g), where α is the absorption coefficient, h is Planck’s constant (4.135667 × 10⁻¹⁵ eV∙s), υ is the photon frequency, B is a constant, and n is the transition probability using 2 for direct allowed transition and n = 1/2 for indirect allowed transition. The Tauc plot in Figure 6e illustrates the extrapolation of the straight line part of the curve to (αhυ)ⁿ = 0. It was observed that for the films with Sb sputtering powers of 13, 15, 17, and 19 W, the best straight line is obtained for a value of n equal to 2, which is typical of direct allowed transitions [51] and n equal to 1/2 applied for the thin film at 21 W of Sb sputtering power to obtain the best straight line, which indicates indirectly allowed transitions. The extrapolated band gaps of the annealed CuSbSe₂ thin films with 13, 15, 17, 19, and 21 W were 1.93, 1.75, 1.74, 1.62, and 3.45 eV, respectively, as shown in Figure 6f. CuSbSe₂ has both direct and indirect band gaps, and the reported values are close to each other in the range 1.10–1.05 eV [9,10,52]. The reported band gaps of Cu₂Se are in the range 1.2–2.3 eV [53]. Cu₃SbSe₃ has an indirect band gap with reported band gaps from 0.5 to 1.7 eV, depending on the calculation method [31]. The reported band gaps of Sb₂Se₃ are in the range 1.1–1.8 eV [54]. The band gap values obtained for the thin film with Sb sputtering power of 15–17 W were in the range 1.62–1.93 eV, which is higher than the expected value for CuSbSe₂, confirming the presence of other phases in the CuSbSe₂ thin films. The band gap value obtained with 21 W was 3.45 eV, which confirms the existence of higher band-gap Sb₂O₃ (3.6–3.9 eV) and sublimation of the lower band-gap phase of Sb₂Se₃ (1.2–1.8 eV) in the CuSbSe₂ thin film [15,55].

4. Conclusions

Chalcostibite CuSbSe₂ thin films were deposited by RF magnetron cosputtering with CuSe₂ and Sb targets with varying sputtering power for Sb and RTA treatment for application as the absorber layer in thin-film solar cells. The carrier concentration and resistivity were in the order of 10¹⁷ cm⁻³ and in the range 10⁰–10¹ Ω∙cm in the annealed thin films, respectively. The annealed CuSbSe₂ thin films showed the good optical properties as an absorber layer in the visible spectral region, such as optical transmittance ≤ 5.19%, penetration depth ≤ 194 nm, absorption coefficient ~10⁵ cm⁻¹, and band gaps of 1.62–1.93 eV. Adequate results were also obtained in the NIR spectral region. As the atomic percentage of Sb increased, the probability of forming volatile Sb₂Se₃ (g) increased, leaving large gaps on the surface. Impurity phases in the CuSbSe₂ thin films strongly depend on the growth conditions, including the sputtering power for Sb, which determines the optoelectronic properties of CuSbSe₂ thin films conclusively. The results of this study reveal the promising optoelectronic characteristics with good morphology and controllable composition in a one-step cosputtering process for CuSbSe₂ thin films as an absorber layer for thin-film solar cells in the future, given their Earth abundance and nontoxicity.
