ITO/SiO2/ITO Structure on a Sapphire Substrate Using the Oxidation of Ultra-Thin Si Films as an Insulating Layer for One-Glass-Solution Capacitive Touch-Screen Panels

by
Shin Yong Joo
1,†,
Chadrasekhar Loka
1,†,
Young Woong Jo
1,
Maddipatla Reddyprakash
1,
Sung Whan Moon
2,
YiSik Choi
2,
Seong Eui Lee
3,
Gue Serb Cho
4 and
Kee-Sun Lee
1,*
1
Department of Advanced Materials Engineering & Smart Natural Space Research Center, Kongju National University, Cheonan-si 331080, Korea
2
Sapphire Technology Co. Ltd., Hwaseong-si 445992, Korea
3
Department of Advanced Materials Engineering, Korea Polytechnic University, 237 Sangidaehak-ro, Siheung-si 406840, Korea
4
Advanced Process and Materials Group, Korea Institute of Industrial Technology, 156 Gaetbeol-ro, Incheon-si 429450, Gyeonggi-do, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Coatings 2020, 10(2), 134; https://doi.org/10.3390/coatings10020134
Submission received: 16 December 2019 / Revised: 23 January 2020 / Accepted: 1 February 2020 / Published: 3 February 2020
(This article belongs to the Section Thin Films)
Browse Figures
Versions Notes

Abstract

:
The SiO2 generated by low-temperature oxidation of ultra-thin metallic silicon (thickness = 50 nm) film was evaluated for implementation in one-glass-solution capacitive touch-screen panels (OGS-TSPs) on sapphire-based substrates. Our results show that the silicon films oxidized at 823 K exhibited the highest visible transmittance about 91% at 550 nm, compared to ~72% transmittance of the as-deposited silicon films which were deposited at room temperature. Additionally, the annealed films exhibited a more uniform, dense, and smooth surface microstructure than that of the as-deposited Si films. X-ray photoelectron spectroscopy (XPS) results revealed that the low-temperature oxidation of Si films at 823 K yielded SiO2. Furthermore, when the insulating SiO2 film obtained by low-temperature oxidation was sandwiched between two indium tin oxide (ITO) layers (ITO/SiO2/ITO) on a sapphire substrate, the SiO2 film resulted in the dielectric strength of approximately 3 MV/cm. In addition, the highest optical transmittance obtained by the ITO/SiO2/ITO films is about 88.3%. The change in capacitance of the ITO/SiO2/ITO structure was approximately 3.2 pF, which indicates the possibility of implementation in capacitive touch-screen panel devices.

1. Introduction

The high demand for touch-screen panels (TSPs) for implementation in various mobile communication and information devices such as cellular phones, navigation systems, and flat-panel devices continues to increase. Various techniques that employ resistive, capacitive or infrared sensors are implemented in TSP designs. Among these techniques, the capacitive touch-sensitive method is most widely used. In this method, the touch activity is identified by detecting minor changes in the electrical charge generated via human contact with a finger or object. Moreover, because capacitive TSPs enable multi-touch function and multi-tasking, they have become a replacement for conventional resistive-type TSPs. Sapphire-based display technology is currently garnering a considerable amount of attention as a means to enhance high-end smartphone devices. The advantages of a sapphire-based display over the conventional glass-based display are good scratch resistance and sensitivity [1]. Despite these advantages, sapphire transparency remains to be a concern, although the transmittance can be optimized in the ultraviolet, infrared, and visible wavelengths by applying a suitable optical coating [2,3,4]. Touch-type display devices have varying types of multilayer stacks that comprise a complex series of layers of glass (or sapphire), optically clear adhesive (OCA), and indium tin oxide/polyethylene terephthalate (ITO/PET). The deposition of ITO on the PET layer has been a widely employed technique used to fabricate a transparent conducting layer in TSPs [5,6,7,8]. Although PET has been confirmed to be effective as an insulating layer, it has been reported to be a cause of the poor crystallinity of the deposited ITO, increased process complexity, and high cost. The low thermal stability of PET limits the heat-treatment temperature of ITO, which thus leads to poor transmittance. Accordingly, the direct deposition of SiO2 on the ITO layer can be employed as an alternative to replacing the PET-based structure, as SiO2 has a relatively high dielectric strength (maximum 10 MV/cm) as compared to PET (150~200 kV/cm). In general, SiO2 films have been extensively employed in various technological domains [9,10], which can be formed via either physical/chemical deposition or Si wafer oxidation. The oxidation process possesses the advantage of contamination prevention, and the disadvantage of an elevated temperature process [11,12]. However, since the impregnation of nanovoids in the sputtered SiO2 thin films is inevitable, the densification of the SiO2 film is required to improve the dielectric strength. Silicon films can undergo a positive volume change (volume expansion) during oxidation; this phenomenon is expected to contribute to the densification of SiO2. It is known that the thermal oxidation of bulk silicon such as silicon wafer has been well established for the formation of SiO2 at temperatures between 1073 K and 1473 K in an oxygen ambient. However, such an oxidation temperature range cannot be suitable in this study because high-temperature annealing beyond 823 K can deteriorate the ITO properties because excessive heat affects the structure by creating voids between the grains [13]. Several researchers reported that ITO films exhibited lower resistivity and high visible transmittance (>80% at 550 nm) after annealing the films about 673 K–823 K [14,15]. Therefore, low-temperature (<873 K) oxidation of Si can be appropriate to form the SiO2. In this paper, we report on low-temperature oxidation of Si film and investigation of its structure and microstructural evolution, and the fabrication of ITO/SiO2/ITO thin-film structure on a sapphire substrate and discuss its potential implementation in one-glass-solution capacitive touch-screen panels (OGS-TSPs).

2. Materials and Methods

The silicon thin films were deposited by radio-frequency (RF) magnetron sputtering on sapphire and ITO/sapphire substrates by using a high-purity (99.999%) silicon target of 2 in. diameter, the sputtering power was fixed at 150 W. A high-purity ITO target (2-in. diameter; 99.99% purity) containing 10 wt.% SnO2 was used for the deposition of ITO films with a target power 150 W. Prior to sputter deposition, the vacuum chamber was evacuated to a base pressure below 2.5 × 10−6 Torr. An ultra-pure Argon (Ar) gas with a flow rate of 110 and 90 sccm was introduced through a mass-flow controller as a sputtering gas for the deposition of ITO and Si films, respectively. The distance between the target to the substrate was maintained constant at 10 cm, and both the films ITO and Si were deposited at room temperature. The sputter-deposited Si films at room temperature were subsequently oxidized at various temperatures between 723 and 823 K for four hours in ambient air via rapid thermal annealing (RTA) process and we have investigated the structural, optical, and dielectric properties of SiO2 films prepared via low-temperature oxidation of Si. After the oxidation of Si/ITO films, a top layer ITO was deposited and further annealed for 1 h to improve the ITO structure. Thus, for the high-quality touch-screen display panel, 50-nm-thick ITO and 70-nm-thick SiO2 films were formed on a sapphire (ITO/SiO2/ITO) substrate by using RF magnetron sputtering. The surface microstructure of the Si and SiO2 were observed via field-emission scanning electron microscopy (FE-SEM, TESCAN MIRAH) (TESCAN MIRA3, Seoul, Korea) and atomic force microscopy (AFM, Park systems, XE-70) (Park Systems, Suwon, Korea). A cross-section of the oxidized Si thin film was observed by performing high-resolution transmission electron microscopy (HR-TEM, Tecnai G2 F20) (Thermo Fisher, Hillsboro, OR, USA). The TEM analysis sample was prepared by using a focused ion beam (FIB), a very thin Pt layer was coated over the SiO2 prior to FIB milling because the SiO2 is an insulator. The transmittance spectra were recorded by using a ultraviolet-visible-near infrared (UV-vis-NIR) spectrophotometer (UV-3600, Shimadzu, Kyoto, Japan) Additionally, a chemical analysis of the surface of each film was enabled by X-ray photoelectron spectroscopy (XPS). Lastly, the capacitive characteristics of the TSP were evaluated via the cylindrical rod touch response by employing the conventional direction method for an LC resonance circuit (TMS 1000, FTLAB Inc., Seoul, Korea).

3. Results and Discussion

Figure 1 shows the X-ray diffraction pattern (XRD) of the as-deposited and oxidized Si/sapphire films. As can be seen, a very high-intensity peak was observed at 2θ = 41.6° corresponding to the sapphire (006) substrate. The Si-related diffraction peaks were not observed in the as-deposited films, which indicate the amorphous nature of the thin films. However, a small diffraction peak appeared around 2θ = 20.3° in the annealed films at 823 K attributed to the polycrystalline SiO2 phase. The diffraction peak was enlarged as shown in the inset of Figure 1a in the 2θ range of 20 to 23°. It clearly suggests that the amorphous Si films were transformed into the polycrystalline SiO2 at low-temperature (823 K). In contrast, several studies were reported that certain thermally grown SiO2 films consist of crystalline domains [16,17], so the polycrystalline SiO2 phase can be plausibly expected along with the amorphous phase in the annealed films. Nagta et al. reported that the thermally grown crystalline SiO2 by means of thermal oxidation possess high density which is about 4.4 g/cm3, while the amorphous phase density was about 2.2 g/cm3 [18]. The cross-sectional TEM image of the Si/sapphire film oxidized at 823 K is presented in Figure 1b. The interface between the SiO2/sapphire was observed to be flat and devoid of any reactions or cavities at the interface, which is an indication of full oxidation and highly dense structure formation via low-temperature oxidation of Si film i.e. SiO2 formation without any structural distortions induced by substantial volume expansion of Si during the oxidation. Such a flat SiO2/sapphire interface also represents that the homogeneous oxidation process. In the case of the inhomogeneous oxidation process, the interface roughness could be generally high that attributes the interface distortion energy [19,20].
Oxidation of the Si film was expected to reflect the optical transmittance change. As is shown in Figure 2, the sapphire substrate exhibits an optical transmittance of about 86% and the as-deposited Si film exhibit approximately 72% at the wavelength of 550 nm. However, the transmittance improved as the oxidation temperature was increased. The Si/sapphire film annealed at 823 K exhibited the highest transmittance of approximately 91%. It should be noted that, as the annealing temperature increased, the transmittance approached the transmittance of SiO2; this phenomenon is believed to be due to changes in the optical constants in SiOx films. Due to the lower refractive index ~1.45 of SiO2 film, higher transmittance is generally expected for the SiO2/sapphire films. In the case of the films oxidized at low-temperatures, there may be lower-valence silicon species that facilitate oxidation of the film. More specifically, oxygen atoms entering into the film increases the thickness of the film, thereby inducing volume expansion and decreasing the refractive index. Lai et al. reported that the transmittance of the films could be described by a single-layer model [21,22], suggesting that the films are homogeneous and that all structural and compositional changes uniformly occur throughout the SiOx films under the condition of low-temperature oxidation. In addition, the uniformly structured film can effectively reduce light scattering, and thus enhance transmittance [23]. We also performed simulations to compare the transmittance of the oxidized films by implementing the optical constants of well-defined SiO2 and physical thickness values as inputs into the Essential Macleod optical coating design program [24]. The simulated and experimentally measured transmittance results were found to be in good agreement, indicating that SiO2 phase formation occurred in the absence of the retained Si phase, and that increased surface roughness significantly increased the amount of light that was scattered.
As is shown in Figure 3a,b, the as-deposited Si film had a defective surface morphology (as denoted by the arrows and the dotted circle), whereas the oxidized film at 823 K shows a smooth and uniform surface microstructure comprised of larger grains. AFM was used to observe the microstructural changes; the resulting images are presented in Figure 4a,b. The root-mean-square (Rrms) and peak-to-valley (Rpv) roughness values for the as-deposited and oxidized Si films were determined to be 7.74 and 48.67 nm, and 5.87 and 41.2 nm, respectively. As can be seen in Figure 4, the as-deposited films possess a rough surface and localized voids (i.e. nano-sized cavities) indicated with the arrow-lines, which are inevitable during the Si deposition process. In contrast, the oxidized films are shown to have a compact and dense microstructure that is generally comprised of overlapped grains and has no significant trace of voids. It has been reported that SiO2 film growth is dependent on Si from the SiO2/Si interface [25], and the oxidation of amorphous Si film is hindered by the reduced transport of oxygen into the amorphous Si film relative to that occurring in crystalline silicon [26]. Furthermore, assuming that the crystalline Si was oxidized, the molar volume of SiO2 has been reported to be approximately 2.27 times higher than that of Si crystal [27]; such an increase in volume is believed to overflow into voids or cavities, leading to the formation of a dense SiO2 film (i.e. densification of the film).
Figure 5 shows the XPS spectra of the surface of the as-deposited and oxidized (at 823 K) Si/ITO/sapphire thin films; the corresponding Si, O, and C peaks have been identified and accordingly labeled. The Si 2p spectra, in addition to the corresponding deconvoluted peaks, are shown in Figure 5b; the peaks in the as-deposited films at the binding energy 100.92 and 103.74 eV are associated with Si0 of Si and Si4+ of Si-O, respectively [28]. For the oxidized films, the Si 2p peaks were slightly shifted to the higher binding energies of 104.4, 105.1, and 106.02, which are attributed to the three oxidation states Si2+, Si3+, and Si4+ of SiO2 and SiOx (x < 2), respectively. In Figure 5c, it is clear that the O 1s deconvoluted peaks at 532.2, 531.6, 533.3, and 532.8 eV are related to the strong Si-O bond in SiO2; this finding is consistent with the relevant literature citing that the binding energies range from 532.2 to 533.1 eV [29]. It is known that SiO2 is characterized by higher Si 2p binding energy; it is for this reason that the Si 2p binding energy is shown to increase with increased oxygen content [30,31]. It can also be seen in Figure 5b that the binding energy difference (i.e., chemical shift) in Si 2p between the as-deposited and oxidized films was approximately 3.5 eV; this indicates that the unstable Si-O bonds in the as-deposited films tended to form more stable stoichiometric SiO2 during the annealing process. Consequently, in the case of the oxidized SiO2 film, the shift of the Si 2p peak to the higher binding energy is indicative of the strong Si-O bond formation in the form of SiO2.
Optical transmittance spectra of both two-layer and three-layer structures i.e. Si/ITO/sapphire and ITO/SiO2/ITO/sapphire were shown in Figure 6. The as-deposited Si/ITO films showed transmittance of 71.2% at 550 nm (Figure 6a). The films were oxidized at low temperatures (723–823 K) to form the SiO2. After the oxidation, the transmittance of the films (SiO2/ITO) was improved to 84.6%. To obtain the ITO/SiO2/ITO structure, ITO layer was deposited over the Si/ITO films which were oxidized at 723, 773, and 823 K. Thus, ITO/SiO2/ITO structure was obtained, and it was further annealed by RTA method in air ambient for one hour to improve the top layer ITO crystallinity (Figure 6b). Finally, the ITO/SiO2/ITO films annealed at 823 K exhibited the highest transmittance of 88.3%, which was higher compared to the sapphire substrate (without films). Enhancement in visible light transmittance of the annealed ITO/SiO2/ITO films can be attributed to the ITO film (top layer) structure. Hu et al. reported that the crystalline ITO films obtained by post-annealing of amorphous films exhibited much higher visible transmittance than amorphous films [32]. As a result, the post-annealing treatment of ITO/SiO2/ITO films was effective to enhance the transmittance in the visible region.
Finally, a capacitive touch-screen panel was fabricated with the films exhibited the highest transmittance (i.e., ITO/SiO2/ITO structure annealed at 823 K) by using conducting pads with an individual pattern size of 1 × 1 mm to pattern the ITO layer, as is shown in schematic design Figure 7a. There are various shapes and structures of capacitive TSPs based on the method used to form the touch sensor electrodes [33]. Among various methods, a method of forming a touch screen pattern in a low surface of a window and an on-cell TSP method for forming a touch screen pattern in an upper surface of a display effectively increases the display area while reducing the thickness [34]. Schematic is shown in Figure 7b represents the cross-sectional view of the ITO/SiO2/ITO TSP in which ITO layer of X-axis or X-channel and Y-axis or Y-channel electrodes were indicated. The capacitive characteristics of the fabricated TSP were evaluated by employing the conventional direction method for an LC resonance circuit (TMS 1000, FTLAB Inc. Seoul, Korea) to measure the touch response. In a self-capacitive display, each pad acts as a single electrode with respect to the ground voltage. Each electrode represents a separate touch-coordination pair and must be individually connected to the controller [35,36]. To evaluate touch-sensitivity, the top ITO layer was transformed into conductive pads by photolithography, and copper lines were implemented as the external contacts to the channel electrodes. Additionally, a pressing force of 0.02 MPa (~500 mN) was applied to evaluate the capacitance changes. Figure 8a,b show the measured changes in TSP capacitance [△C] on the sapphire substrate when the channels are switched between the on/off modes, 5 channels were evaluated. When the screen was touched by a conducting cylindrical rod with an approximate diameter of 5 mm, the capacitance of each channel was measured to change by 10 pF. Irrespective of the channel number, the change in capacitance was not observed to exceed approximately 4 pF; the average change in capacitance for the proposed ITO/SiO2/ITO OGS-TSP was measured as approximately 3.2 pF. Because the changes in capacitance primarily reflect the dielectric properties of the SiO2 interlayer, the dielectric breakdown strength of the proposed structure was evaluated to better understand the breakdown strength of the SiO2 in ITO/SiO2/ITO. In general, the change in capacitance that occurs as a finger approaches an intersection for the capacitive TSP is typically approximately 1 pF or less [37]. As compared to the conventional change in capacitance range ~1 pF, the ITO/SiO2/ITO structure fabricated on a sapphire substrate exhibited excellent sensitivity with the change in capacitance of 3.2 pF. Moreover, its durability and scratch resistance owing to the high degree hardness of the sapphire substrate. Furthermore, the multilayer structure was found to have a dielectric breakdown strength of approximately 3.0 MV/cm, which is enough for TSP applications. This relatively high breakdown strength is related to the quality of the dense SiO2 film. Consequently, in this study, we achieved a high sensitivity OGS-TSP by sandwiching a thin layer of SiO2 formed by low-temperature oxidation of Si in between the ITO layers.

4. Conclusions

In this study, a well-defined smooth and dense SiO2 layer was produced by low-temperature oxidation via RTA of the sputter-deposited ultra-thin Si films. The Si films oxidized at 823 K were found to have high visible transmittance of approximately 91% at 550 nm and the optical simulation results were in good agreement with the observed optical transmittance data. The deconvolution of XPS peaks revealed that a well-defined SiO2 formation with strong Si-O bonding in the films oxidized at 823 K. In order to investigate the potential application of SiO2 generated by low-temperature oxidation of Si/ITO films, ITO/SiO2/ITO multilayer structure was fabricated on a sapphire substrate. The ITO/SiO2/ITO films annealed at 823 K exhibited the highest transmittance ~88.3% in the visible region. Moreover, the proposed ITO/SiO2/ITO multilayer films exhibited a relatively high dielectric breakdown strength of approximately 3 MV/cm owing to the densely formed SiO2 films. The touch-sensitive capacitance results revealed that the proposed design, which entails sandwiching a low-temperature-oxidized SiO2 film in between the ITO layers on a sapphire substrate, has the potential to be implemented in capacitive TSP devices to realize high dielectric breakdown strength.

Author Contributions

Conceptualization, S.Y.J., C.L. and K.-S.L.; methodology, S.Y.J. and C.L.; software, C.L.; validation, Y.W.J., M.R., S.W.M., Y.C., S.E.L and G.S.C.; formal analysis, S.Y.J. and C.L.; investigation, S.Y.J.; data curation, C.L.; writing—original draft preparation, S.Y.J. and C.L.; writing—review and editing, S.E.L. and K.S.L.; visualization, C.L.; supervision, K.-S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Priority Research Centers Program through the National Research Foundation of Korea (NRF), Ministry of Education (2019R1A6A1A03032988). This research was funded by International Science and Business Belt Program through the Ministry of Science and ICT (2015-DD-RD-0068-05).

Acknowledgments

This work was supported by the Priority Research Centers Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2019R1A6A1A03032988). This research was supported by the International Science and Business Belt Program through the Ministry of Science and ICT (2015-DD-RD-0068-05).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dobrovinskaya:, E.R.; Lytvynov, L.A.; Pishchik, V. Properties of Sapphire; Springer: Boston, MA, USA, 2009. [Google Scholar]
  2. Loka, C.; Lee, K.; Moon, S.W.; Choi, Y.; Lee, K.S. Enhanced transmittance of sapphire by silicon oxynitride thin films annealed at high temperatures. Mater. Lett. 2018, 213, 354–357. [Google Scholar] [CrossRef]
  3. Kim, S.; Cho, J.; Char, K. Thermally stable antireflective coatings based on nanoporous organosilicate thin films. Langmuir 2007, 23, 6737–6743. [Google Scholar] [CrossRef] [PubMed]
  4. Yancey, S.E.; Zhong, W.; Heflin, J.R.; Ritter, A.L. The influence of void space on antireflection coatings of silica nanoparticle self-assembled films. J. Appl. Phys. 2006, 99. [Google Scholar] [CrossRef] [Green Version]
  5. Ahn, M.H.; Cho, E.S.; Kwon, S.J. Characteristics of ITO-resistive touch film deposited on a PET substrate by in-line DC magnetron sputtering. Vacuum 2014, 101, 221–227. [Google Scholar] [CrossRef]
  6. Lee, W.J.; Fang, Y.K.; Ho, J.J.; Chen, C.Y.; Tsai, R.Y.; Huang, D.; Ho, F.C.; Chou, H.W.; Chen, C.C. Pulsed-magnetron-sputtered low-temperature indium tin oxide films for flat-panel display applications. J. Electron. Mater. 2002, 31, 129–135. [Google Scholar] [CrossRef]
  7. Qin, H.; Dong, J.; Lee, Y.S. Fabrication and electrical characterization of multi-layer capacitive touch sensors on flexible substrates by additive e-jet printing. J. Manuf. Process. 2017, 28, 479–485. [Google Scholar] [CrossRef]
  8. Xia, N.; Gerhardt, R.A. Fabrication and characterization of highly transparent and conductive indium tin oxide films made with different solution-based methods. Mater. Res. Express 2016, 3, 1–11. [Google Scholar] [CrossRef]
  9. Kingon, A.I.; Maria, J.P.; Streiffer, S.K. Alternative dielectrics to silicon dioxide for memory and logic devices. Nature 2000, 406, 1032–1038. [Google Scholar] [CrossRef]
  10. Ho, W.J.; Lin, J.C.; Liu, J.J.; Bai, W.B.; Shiao, H.P. Electrical and Optical Characterization of Sputtered Silicon Dioxide, Indium Tin Oxide, and Silicon Dioxide/Indium Tin Oxide Antireflection Coating on Single-Junction GaAs Solar Cells. Materials 2017, 10, 700. [Google Scholar] [CrossRef] [Green Version]
  11. Mur, P.; Semeria, M.N.; Olivier, M.; Papon, A.M.; Leroux, C.; Reimbold, G.; Gentile, P.; Magnea, N.; Baron, T.; Clerc, R.; et al. Ultra-thin oxides grown on silicon (1 0 0) by rapid thermal oxidation for CMOS and advanced devices. Appl. Surf. Sci. 2001, 175–176, 726–733. [Google Scholar] [CrossRef]
  12. Lerch, W.; Roters, G.; Münzinger, P.; Mader, R.; Ostermeir, R. Wet rapid thermal oxidation of silicon with a pyrogenic system. Mater. Sci. Eng. B 1998, B54, 153–160. [Google Scholar] [CrossRef]
  13. Ahmed, N.M.; Sabah, F.A.; Abdulgafour, H.I.; Alsadig, A.; Sulieman, A.; Alkhoaryef, M. The effect of post annealing temperature on grain size of indium-tin-oxide for optical and electrical properties improvement. Results Phys. 2019, 13, 102159. [Google Scholar] [CrossRef]
  14. Song, S.; Yang, T.; Liu, J.; Xin, Y.; Li, Y.; Han, S. Rapid thermal annealing of ITO films. Appl. Surf. Sci. 2011, 257, 7061–7064. [Google Scholar] [CrossRef]
  15. Park, J.H.; Buurma, C.; Sivananthan, S.; Kodama, R.; Gao, W.; Gessert, T.A. The effect of post-annealing on Indium Tin Oxide thin films by magnetron sputtering method. Appl. Surf. Sci. 2014, 307, 388–392. [Google Scholar] [CrossRef]
  16. Munkholm, A.; Brennan, S. Ordering in Thermally Oxidized Silicon. Phys. Rev. Lett. 2004, 93. [Google Scholar] [CrossRef] [PubMed]
  17. Iida, Y.; Shimura, T.; Harada, J.; Samata, S.; Matsushita, Y. A structural study of the thermally oxidized Si(001) wafer by X-ray CTR scattering. Surf. Sci. 1991, 258, 235. [Google Scholar] [CrossRef]
  18. Nagata, K.; Ogura, A.; Hirosawa, I.; Suwa, T.; Teramoto, A.; Hattori, T.; Ohmi, T. Structural Analyses of Thin SiO2 Films Formed by Thermal Oxidation of Atomically Flat Si Surface by Using Synchrotron Radiation X-Ray Characterization. ECS J. Solid State Sci. Technol. 2015, 4, N96. [Google Scholar] [CrossRef]
  19. Tokuda, N.; Murata, M.; Hojo, D.; Yamabe, K. SiO2 Surface and SiO2/Si Interface Topography Change by Thermal Oxidation. Jpn. J. Appl. Phys. 2001, 40, 4763. [Google Scholar] [CrossRef]
  20. Hasunuma, R.; Okamoto, J.; Tokuda, N.; Yamabe, K. Nonuniformity in Ultrathin SiO2 on Si(111) Characterized by Conductive Atomic Force Microscopy. Jpn. J. Appl. Phys. 2004, 43, 7861. [Google Scholar] [CrossRef]
  21. Lai, F.; Li, M.; Wang, H.; Jiang, Y.; Song, Y. Effect of oxygen flow rate on the properties of SiOx films deposited by reactive magnetron sputtering. Chin. Opt. Lett. 2005, 3, 490–493. [Google Scholar]
  22. Huang, F.; Song, Q.; Li, M.; Xie, B.; Wang, H.; Jiang, Y.; Song, Y. Influences of annealing temperature on the optical properties of SiOx thin film prepared by reactive magnetron sputtering. Appl. Surf. Sci. 2008, 255, 2006–2011. [Google Scholar] [CrossRef]
  23. Ferriu, F.; Devine, R.A.B. Densification and porosity in low-temperature-deposited oxide. J. Non-Cryst. Solids 1989, 113, 100–102. [Google Scholar] [CrossRef]
  24. MacLeod, A.; Clark, C. The Essential MacLeod Version 9. 6. 415; Thin Film Center Inc.: Tucson, AZ, USA, 2012; pp. 85716–95227. [Google Scholar]
  25. Kageshima, H.; Shiraishi, K. First-principles study of oxide growth on si(100) surfaces and at SiO2/si(100) interfaces. Phys. Rev. Lett. 1998, 81, 5936–5939. [Google Scholar] [CrossRef]
  26. Silva, A.G.; Pedersen, K.; Li, Z.S.; Morgen, P. Oxidation of the surface of a thin amorphous silicon film. Thin Solid Films 2011, 520, 697–699. [Google Scholar] [CrossRef]
  27. Chalmers, A. Physical Metallurgy, 1st ed.; John Wiley & Sons Inc: Hoboken, NJ, USA, 1959. [Google Scholar]
  28. Barr, T.L. An XPS study of Si as it occurs in adsorbents, catalysts, and thin films. Appl. Surf. Sci. 1983, 15, 1–35. [Google Scholar] [CrossRef]
  29. Khassin, A.A.; Yurieva, T.M.; Demeshkina, M.P.; Kustova, G.N.; Itenberg, I.S.; Kaichev, V.V.; Plyasova, L.M.; Anufrienko, V.F.; Molina, I.Y.; Larina, T.V.; et al. Characterization of the nickel-amesite-chlorite-vermiculite system. Part I. Silicon binding in Ni-Mg-Al phylloaluminosilicates. Phys. Chem. Chem. Phys. 2003, 5, 4025–4031. [Google Scholar] [CrossRef]
  30. Alfonsetti, R.; Lozzi, L.; Passacantando, M.; Picozzi, P.; Santucci, S. XPS studies on SiOx thin films. Appl. Surf. Sci. 1993, 70, 222–225. [Google Scholar] [CrossRef]
  31. Wang, L.; Jiang, Y.; Jiang, C.; Liu, H.; Ji, Y.; Zhang, F.; Fan, R.; Chen, D. Effect of oxygen flow rate on microstructure properties of SiO2 thin films prepared by ion beam sputtering. J. Non. Cryst. Solids 2018, 482, 203–207. [Google Scholar] [CrossRef]
  32. Hu, Y.; Diao, X.; Wang, C.; Hao, W.; Wang, T. Effects of heat treatment on properties of ITO films prepared by rf magnetron sputtering. Vacuum 2004, 75, 183–188. [Google Scholar] [CrossRef]
  33. Lee, C.; Park, J.K.; Piao, C.; Seo, H.; Choi, J.; Chun, J. Mutual Capacitive Sensing Touch Screen Controller for Ultrathin Display with Extended Signal Passband Using Negative Capacitance. Sensors 2018, 18, 3637. [Google Scholar] [CrossRef] [Green Version]
  34. Heo, H.D.; Kim, D.S.; Eom, S.Y. On-Cell TSP Display Device. U.S. Patent Application No. 13,214,678, 1 March 2012. [Google Scholar]
  35. Barrett, G.; Omote, R. Projected-Capacitive Touch Technology. Inf. Disp. 2010, 26, 16–21. [Google Scholar] [CrossRef]
  36. Hotelling, S.; Strickon, J.A.; Huppi, B.Q. Multipoint touchscreen. U.S. Patent 0097991 A1, 11 May 2006. [Google Scholar]
  37. Phares, R.; Fihn, M. Introduction to Touchscreen Technologies in Handbook of Visual Display Technology; Springer: Berlin, Germany, 2012; pp. 935–974. [Google Scholar]
Coatings 10 00134 g001 550

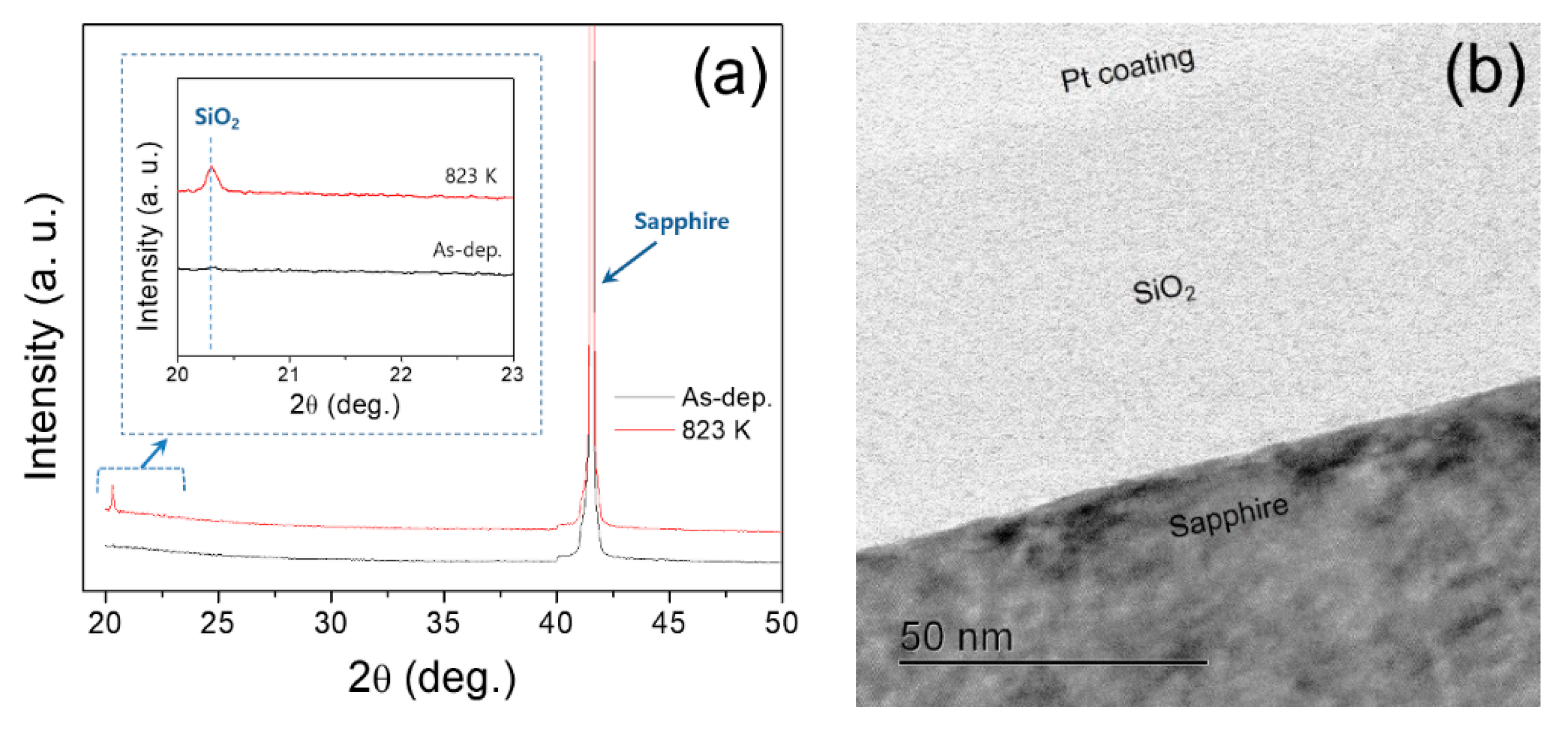

Figure 1. (a) XRD patterns of the as-deposited and oxidized Si/sapphire films; (b) cross-sectional TEM image of the Si/sapphire film oxidized at 823 K.
Figure 1. (a) XRD patterns of the as-deposited and oxidized Si/sapphire films; (b) cross-sectional TEM image of the Si/sapphire film oxidized at 823 K.
Coatings 10 00134 g001
Coatings 10 00134 g002 550

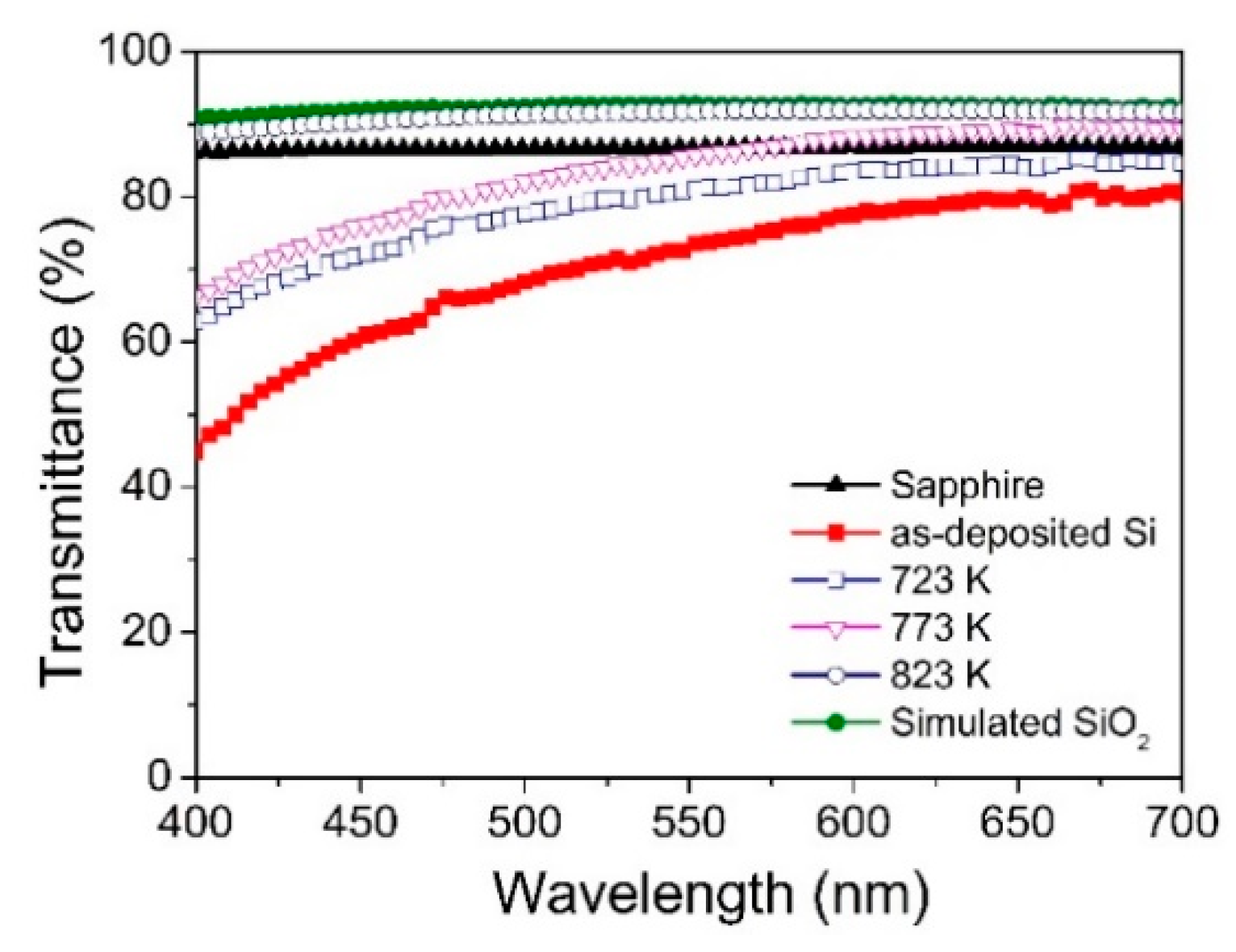

Figure 2. Optical transmittance spectra of the as-deposited and oxidized Si/sapphire films.
Figure 2. Optical transmittance spectra of the as-deposited and oxidized Si/sapphire films.
Coatings 10 00134 g002
Coatings 10 00134 g003 550

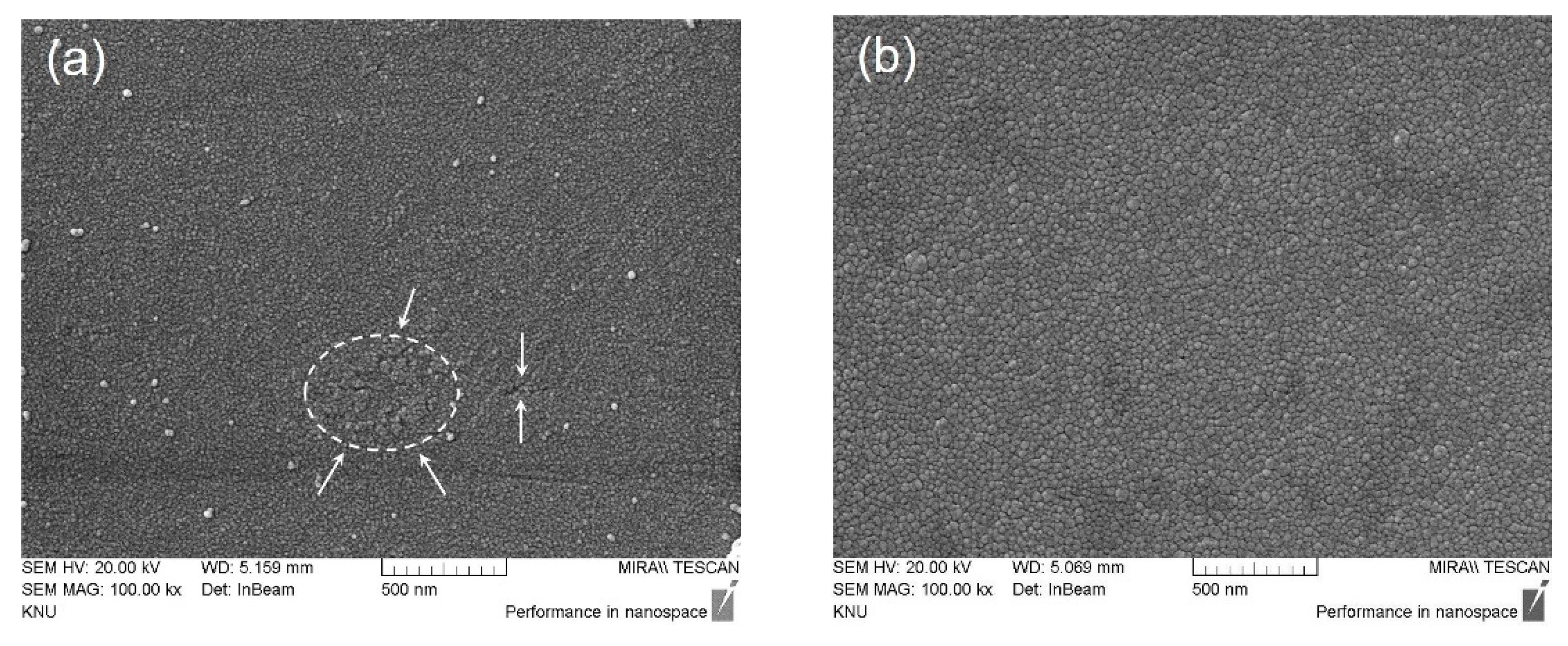

Figure 3. Field-emission scanning electron microscopy (FE-SEM) images of Si/sapphire: (a) as-deposited and (b) oxidized at 823 K.
Figure 3. Field-emission scanning electron microscopy (FE-SEM) images of Si/sapphire: (a) as-deposited and (b) oxidized at 823 K.
Coatings 10 00134 g003
Coatings 10 00134 g004 550
Figure 4. Atomic force microscopy (AFM) images (scan size: 3 × 3 µm) showing the microstructural surface differences between the (a) as-deposited and (b) oxidized Si/sapphire films at 823 K.
Figure 4. Atomic force microscopy (AFM) images (scan size: 3 × 3 µm) showing the microstructural surface differences between the (a) as-deposited and (b) oxidized Si/sapphire films at 823 K.
Coatings 10 00134 g004
Coatings 10 00134 g005 550
Figure 5. (a) X-ray photoelectron spectroscopy (XPS) survey spectra, (b) Si 2p spectra, and (c) O 1s spectra of the as-deposited and oxidized Si/indium tin oxide (ITO)/sapphire thin films.
Figure 5. (a) X-ray photoelectron spectroscopy (XPS) survey spectra, (b) Si 2p spectra, and (c) O 1s spectra of the as-deposited and oxidized Si/indium tin oxide (ITO)/sapphire thin films.
Coatings 10 00134 g005
Coatings 10 00134 g006 550
Figure 6. Optical transmittance spectra: (a) as-deposited and oxidized Si/ITO/sapphire, (b) ITO/SiO2/ITO/sapphire films which are annealed for 1 h after the ITO top layer deposition on SiO2/ITO/sapphire.
Figure 6. Optical transmittance spectra: (a) as-deposited and oxidized Si/ITO/sapphire, (b) ITO/SiO2/ITO/sapphire films which are annealed for 1 h after the ITO top layer deposition on SiO2/ITO/sapphire.
Coatings 10 00134 g006
Coatings 10 00134 g007 550
Figure 7. (a) Schematic design of ITO/SiO2/ITO/sapphire capacitive touch-screen panel (TSP) (10 mm × 10 mm), and (b) cross-section view of the TSP representing the ITO layer (X and Y-axis electrodes) and the SiO2 dielectric layer.
Figure 7. (a) Schematic design of ITO/SiO2/ITO/sapphire capacitive touch-screen panel (TSP) (10 mm × 10 mm), and (b) cross-section view of the TSP representing the ITO layer (X and Y-axis electrodes) and the SiO2 dielectric layer.
Coatings 10 00134 g007
Coatings 10 00134 g008 550

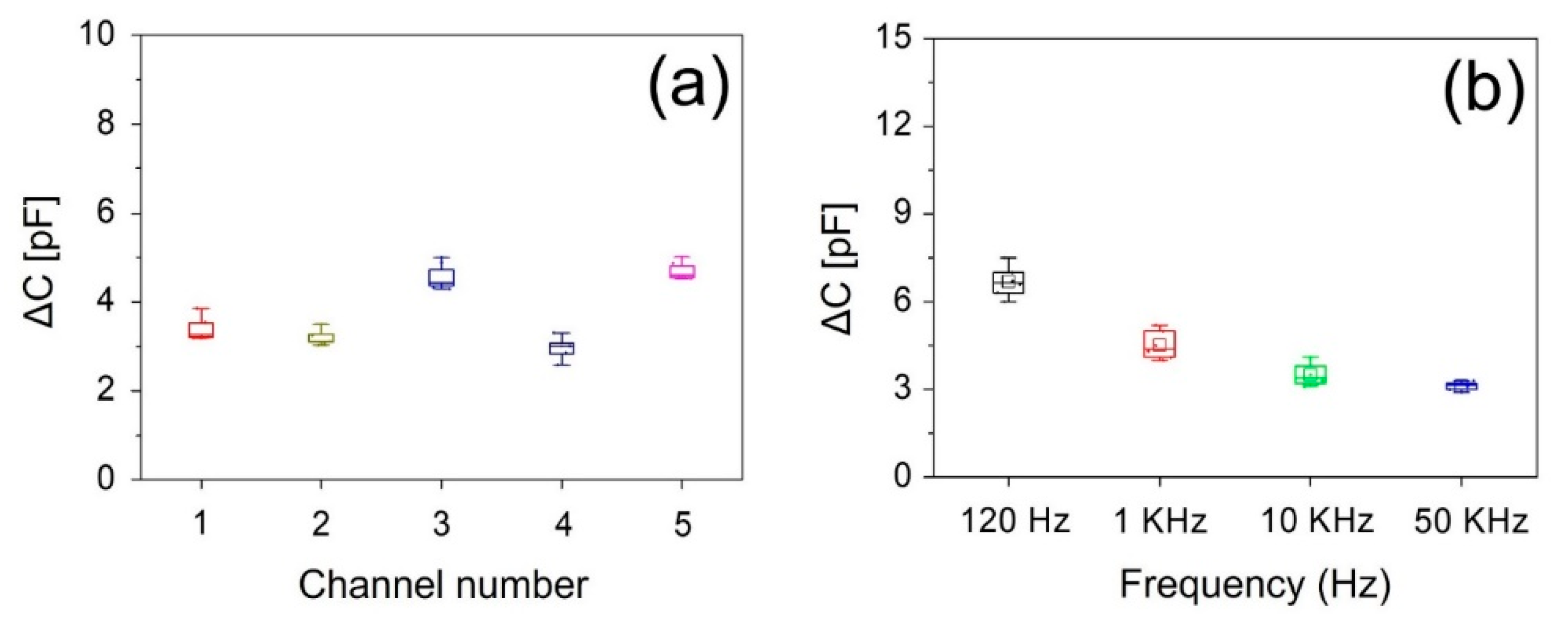

Figure 8. (a) Touch sensor-induced change in capacitance [△C] for each channel, and (b) touch sensor-induced change in capacitance [△C] for various frequencies.
Figure 8. (a) Touch sensor-induced change in capacitance [△C] for each channel, and (b) touch sensor-induced change in capacitance [△C] for various frequencies.
Coatings 10 00134 g008
