The Improvement of Hardness and Corrosion Resistance of Electroplated Pd-Ni Film on 316L Stainless Steel by CeCl₃

Abstract

By using the methods of XRD, SEM/EDS, electrochemical polarization, and a weight loss test, the effects of the rare earth salt CeCl₃ on the adherence, hardness, porosity and corrosion resistance of an electroplated Pd-Ni film on 316L stainless steel were studied. The results showed that by adding 1.0 g L⁻¹ CeCl₃ in the plating bath, the obtained Pd-Ni film was obviously improved. The grain size was refined, and the microstructure was more compact and uniform. The film hardness and the adherence to the substrate increased, and the corrosion resistance in a 20 wt % H₂SO₄ solution (80 °C) obviously increased. Ce³⁺ increased the throwing power of the bath, which resulted in more uniform current distribution and strengthened the cathodic polarization degree during the electroplating process.

1. Introduction

The rare earths have been used in many fields such as electroplating, surface conversion coating, heat treatment, metal corrosion protection, and friction resistance, which makes them good prospects for applications [1,2,3,4,5,6] due to their unique electronic structures and chemical activity. Electroplating is a traditional surface protection technology. In the electroplating process, adding a small amount of soluble rare earth salt in the plating bath can improve the properties of the coatings, such as some physical properties and corrosion resistance [1,3,4] In addition, a rare earth salt can improve the throwing power (T.P.) of the plating solution, reduce the grain size of the plating alloy, and make the microstructure of the coating more uniform [7,8,9]. The T.P. is a measure of an electroplating solution’s ability to plate a uniform film over an irregularly shaped cathode, which can be evaluated by using a Haring–Blum rectangular cell. Under the same plating conditions, the larger the T.P. value, the stronger throwing power of the electroplating solution and the more uniform the film formed on the surface of the substrate [9].

The palladium film has excellent corrosion resistance, abrasive resistance, electrical conductivity, catalytic properties, hydrogen evolution performance, and a white appearance, all of which have led to its use as good hydrogen storage and catalytic materials. It has also been widely used in the electronics industry, in applications such as semiconductors and printed circuit boards, and the decorative industry [10,11]. In our previous study, Pd film plating on stainless steel was shown to greatly improve corrosion resistance in strong reductive corrosive environments, such as a hot, diluted sulfuric solution, by effectively improving the passive ability of the steel [12]. Pd-Ni and Pd-Cu alloy coatings with good surface micro-hardness and adhesive strength were deposited on 316L stainless steel by electroplating, and these coatings showed very good corrosion resistance in a hot sulfuric acid solution and an acetic solution [13,14]. Compared with pure Pd film, a Pd alloy film can reduce the cost of the electroplating. Though previous researchers have studied the influence of rare earths on some electrodeposited coatings, most of them have been applied to the process of chromium, nickel, copper, iron and their alloy plating. There have been few reports that have focused on the role of rare earth compounds in Pd alloy electroplating [1,2,3,7,8]. In order to further improve the performance of Pd-Ni alloy coating and understand the effects of rare earth metals on the electroplating process of Pd-Ni, in this paper, different contents of CeCl₃ were introduced in a Pd-Ni basic plating electrolyte; the throwing power of the rare earth on the plating solution was studied, and the main physical properties of the coating such as bonding strength, hardness, porosity, and corrosion resistance in a hot, diluted H₂SO₄ solution were investigated by weight loss and polarization tests combined with the XRD and SEM/EDS methods.

2. Experimental

2.1. Sample Preparation

316L stainless steel with the chemical composition (wt %) of 16.80 Cr, 13.50 Ni, 0.02 C, 1.40 Mn, 0.32 Si, 0.017 P, 0.014 S, 2.30 Mo, and 65.6 Fe, was used as substrate and machined to dimensions of 25 mm × 10 mm × 1 mm. Before electroplating, the sample surface was ground with SiC abrasive papers up to 1000^# grade and then degreased in an alkali solution at 80 °C for 30 min. After degreasing, the samples were etched in an acidic solution at 45 °C for 10 min at a current density of 20 A dm⁻². Then, the samples were rinsed with deionized water. Finally, the Pd−Ni alloy film was deposited on the steel substrate in a basic plating solution (pH 8–9) at 45 °C for 5 min at a current density of 1 A dm⁻² [13,14]. During the electroplating process, 0–2 g L⁻¹ soluble rare earth salt CeCl₃ was added in order to improve the throwing power of the plating solution and the properties of the films. The anode was graphite with a size of 60 mm × 40 mm × 10 mm. The compositions of the alkali solution, the acidic solution, and the basic plating solution are shown in

Table 1. Compositions of the alkali solution, the acidic solution, and the basic plating solution.

Alkali Solution (g L−1)		Acidic Solution (g L−1)		Plating Solution (g L−1)
Na2CO3	40	H2SO4 (98%)	180	PdCl3	5.53
Na3PO4	40	(NH4)2SO4	80	Na3C6H5O7·2H2O	45
NaOH	25			NH4Cl	75
NaCl	25			NH3·H2O	70
				NiSO4·6H2O	30

.

2.2. Characterization

The surface morphology of the plated sample was observed with SEM. The composition of the film was analyzed with EDS. The structure of the film was analyzed with XRD by a 2500VB2+PC diffractometer (Japan) while using CuKμ radiation filtered and focusing with a Göbel mirror. The crystallite sizes of the plated film were calculated with the Scherrer equation: D = 0.9λ/(βcosθ), where D is the crystallite size, λ is the X-ray wavelength, β is the peak width at half height, and θ is the diffraction angle.

The hardness of the film was measured with an HM2000 micro-hardness tester (Fischer, Germany). The load was 20 mN, and the loading time was 20 s. For each sample, ten parallel tests were performed, and the average value was obtained. The adhesive strength between the film and the steel substrate was measured with a PosiTest Pull-off Adhesion Tester (DeFelsko) according to ISO (International Organization for Standardization) 4624-2002. The film porosity was evaluated by a filter paper method according to the standard QB/T (China light industry standard) 3823-1999 (the polarity measuring for metallic coatings).

The corrosion resistance of the Pd-Ni alloy-plated samples in a 20 wt % H₂SO₄ solution at 80 °C was studied by weight loss (72 h) and polarization tests. The samples for the polarization test were sealed with epoxy resin, leaving an area of 0.5 cm² exposed to the testing solution. Polarization measurements were carried out with a CS350 electrochemical workstation (CorrTest, China). Before polarization, the sample was first immersed in the solution for 25 min until a stable open circuit potential (OCP) was obtained, and then polarization was started at a potential of 0.15 V negative to OCP and ended at a potential 1 V positive to OCP with a scanning rate of 0.66 mV s⁻¹. A three-electrode system, in which a saturated calomel electrode (SCE) was the reference electrode and a platinum electrode was the auxiliary electrode, was used.

The throwing power (T.P.) of the electroplating solution was evaluated by using a Haring–Blum rectangular cell. One anode was fixed between two cathodes where the near-to-far distance ratio was 1:3. The T.P.% was calculated by Formula (1) [9]:

$$\mathrm{T}.\mathrm{P}.=\frac{K-M}{K+M-2}\times 100\%$$

(1)

where K is the current distribution ration (3:1) and M is the alloy weight distribution ratio (the weight of the alloy deposited on the near cathode divided by the weight of the alloy deposited on the far cathode).

For each condition, five parallel tests were measured, and the average values were obtained.

3. Results and Discussion

3.1. Composition and Microstructure of the Pd-Ni Film

Figure 1 shows the cross section morphology of the Pd-Ni film that was plated on the stainless steel sample. It could be seen that the thickness of the film was about 2 μm. The contents of the Pd and Ni elements in the plated film that were determined by EDS are shown in

Table 2. EDS results for the Pd-Ni alloy film that was electroplated in a solution that contained different concentrations of CeCl₃.

CeCl3 (g L−1)	0	0.2	0.5	1.0	1.5	2.0
Pd (at%)	55.2 ± 5.5	57.7 ± 5.8	54.8 ± 5.5	55.7 ± 5.6	55.0 ± 5.5	55.1 ± 5.5
Ni (at%)	44.8 ± 4.5	42.3 ± 4.2	45.2 ± 4.5	44.3 ± 4.4	45.0 ± 4.5	44.9 ± 4.5

. It could be seen that the concentration of CeCl₃ had no significant influence on the film’s composition. It could be inferred that the effect of CeCl₃ on the electrodeposition of Pd and Ni was similar. The Ce element was not detected in the Pd-Ni alloy film. This was probably because the electronegativity of the rare earth element Ce is relatively low and the deposition potential of the rare earth element Ce is very negative (around −2.4 V), so it is difficult for Ce to be directly deposited [15]. In the electrodeposition process of Pd and Ni, the cathode potential was higher than the deposition potential of Ce, so Ce could not enter into the Pd-Ni alloy film by a reduction reaction.

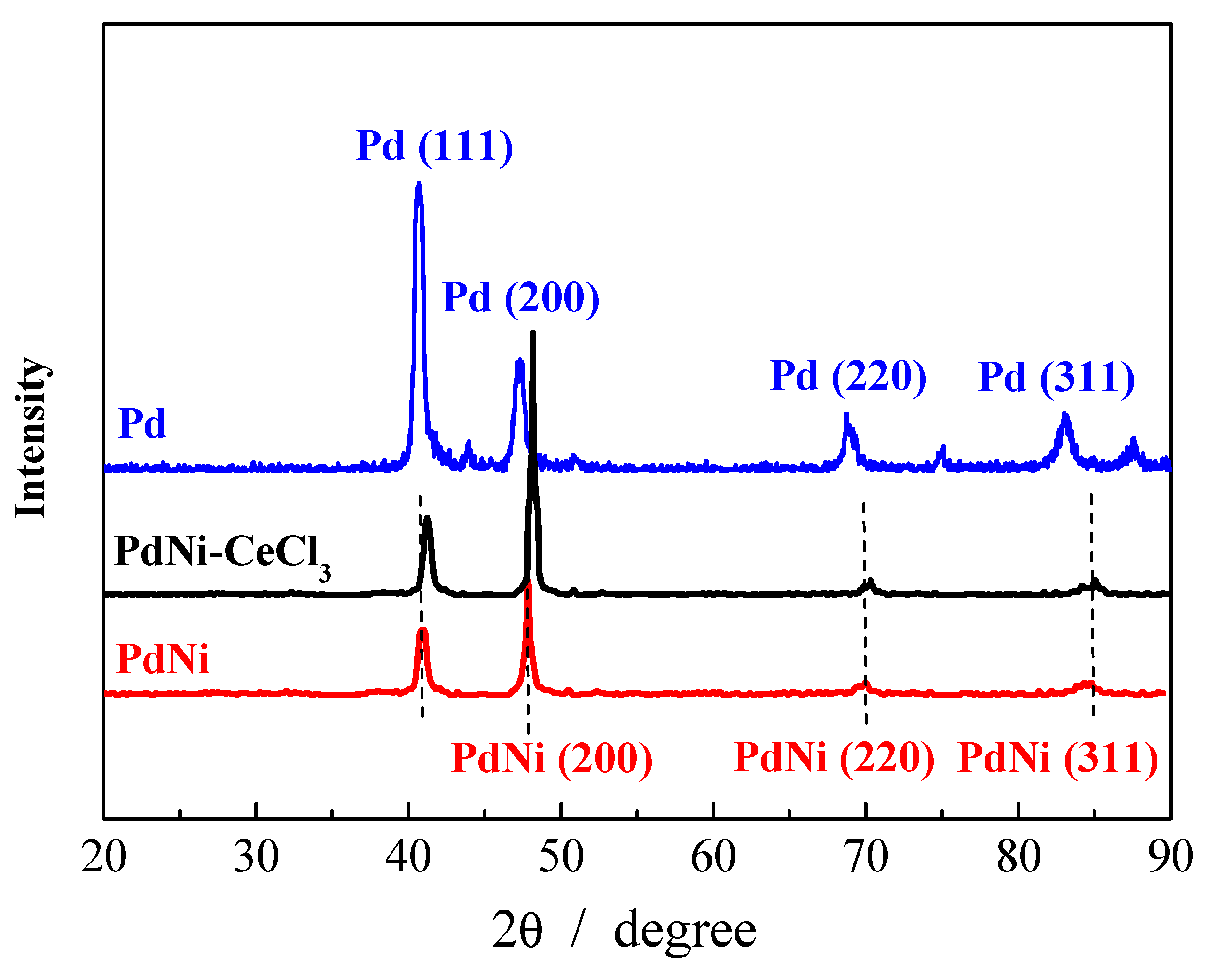

Figure 2 shows the X-ray diffraction pattern of the Pd-Ni film. The film showed a single phase FCC (Face-centered cubic) structure, indicating that a substitution solid solution formed during the electrodeposition. The addition of CeCl₃ did not change the crystal type of the film. It can be seen from Figure 2 that the position of the Pd-Ni diffraction peak is close to but slightly shifted to the right of that of the pure Pd diffraction peak. This is because the lattice constant of Ni is smaller than that of Pd, and the Ni atom partially replaces the position of Pd in crystal, which resulted in the lattice constant of Pd-Ni decreasing compared with that of pure Pd.

Table 3. The crystallite sizes of the Pd-Ni alloy films.

Sample	Diffraction Angle	Crystallite Size (nm)
Pd-Ni film (without CeCl3)	40.867	21.718
	47.641	18.709
Pd-Ni film (with CeCl3)	41.063	17.848
	47.972	15.032

shows the crystallite sizes of the Pd alloy films, as calculated by Scherrer equation. It can be seen that the crystallite size of the Pd-Ni film was reduced after CeCl₃ addition, indicating that the addition of CeCl₃ apparently decreased the crystallite size and refined the microstructure of the Pd-Ni film, which is in agreement with the results in the literature [16,17].

3.2. Hardness and Adhesion Tests Results

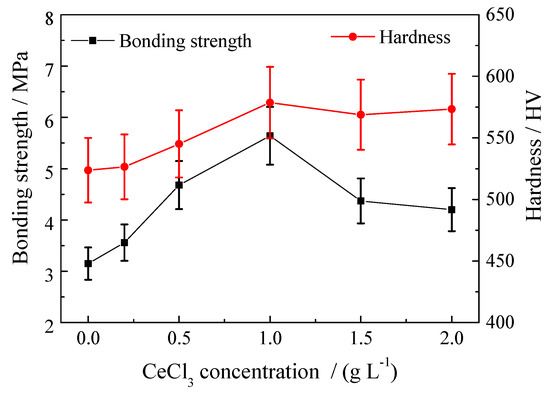

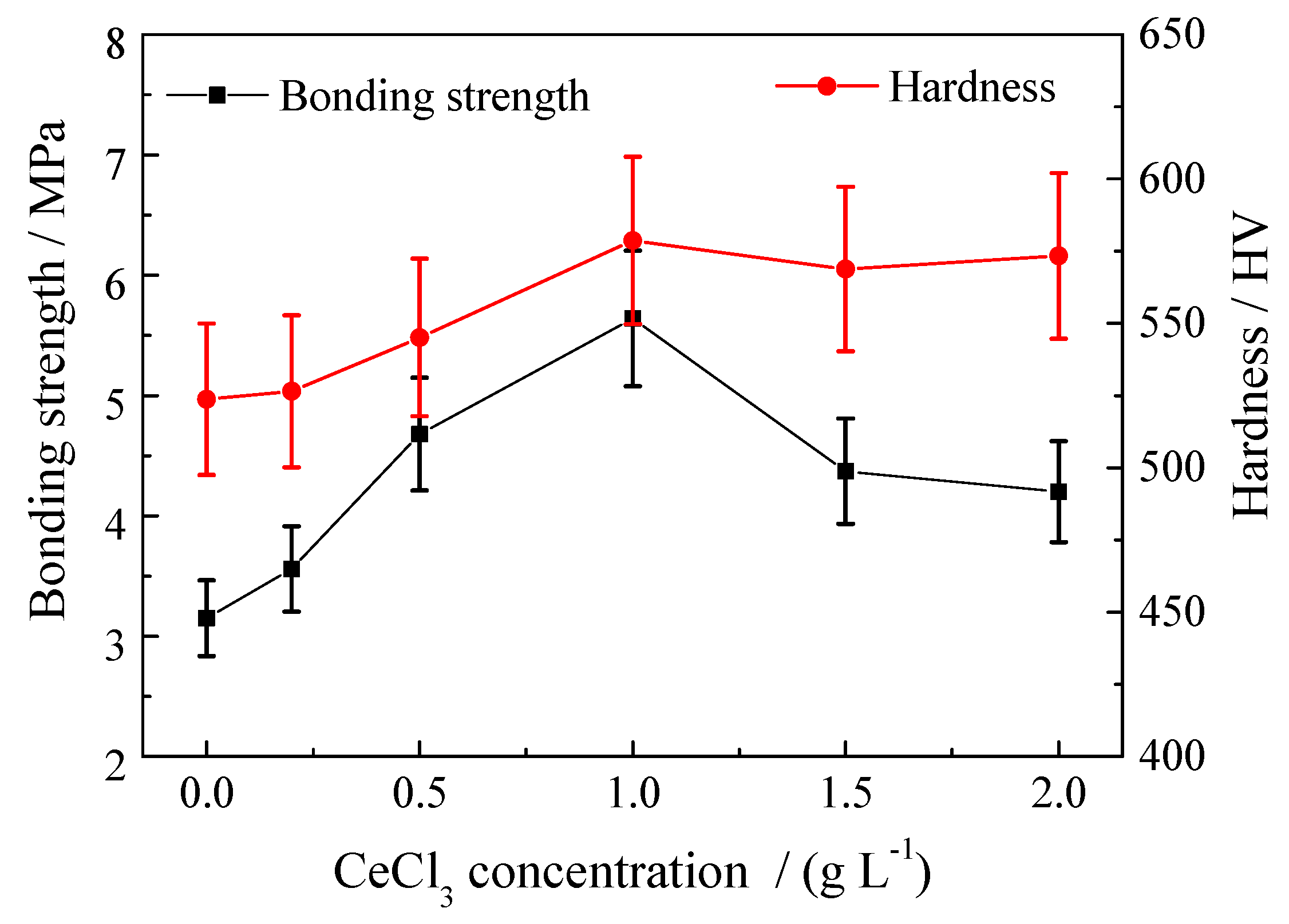

Figure 3 shows the micro-hardness and adhesive strength of the Pd-Ni alloy film that was obtained in the electrodeposition solutions that contained different concentrations of CeCl₃. The hardness of the Pd-Ni film in the solution without CeCl₃ was 524 HV. After CeCl₃ addition, the hardness was improved, and it reached its maximum value (578.7 HV) when the CeCl₃ concentration was 1.0 g L⁻¹. The adhesive strength between the Pd-Ni film and the substrate was also significantly improved after the CeCl₃ addition. With the CeCl₃ concentration increasing, the adhesive strength firstly increased and then decreased; it achieved a maximum (5.64 MPa) at around 1.0 g L⁻¹ of CeCl₃ addition in the electroplating solution. This shows that adding proper concentration of CeCl₃ can enhance the adhesive strength between a film and a substrate, thereby increase the protective effect of a film to a substrate. It can be noted that the adhesive strength and hardness of the Pd-Ni film had the same variation tendency with the concentration of CeCl₃ in the plating solution. This was probably because that the addition of cerium salt could refine the film’s grain size, reduce the film’s pinholes during deposition, and make the surface of the film more compact and uniform [16,17]. These would have resulted in an enhanced bonding force [16]_. Meanwhile, according to the Hall–Petch relationship, the micro-hardness of the film was also improved as the result of the grain refinement [18,19]. However, the excessive addition of cerium salt could have degraded the homogeneity of the film, which resulted in the decrease of the hardness and the adhesive force of the film. This is in agreement with the results of some of the literature [16,17].

3.3. Porosity of the Pd-Ni Alloy Films

Porosity is one of the key indicators of the quality of a film.

Table 4. Porosity of the Pd-Ni alloy films that were obtained in the solutions with different contents of CeCl_3.

CeCl3 (g L−1)	0	0.2	0.5	1.0	1.5	2.0
Porosity (cm−2)	1	1	1	0.5	0.5	1

shows the porosity of the Pd-Ni alloy films that were obtained in the solutions with different concentrations of CeCl₃. Compared with the Pd-Ni film without CeCl₃ addition, the film after adding 1.0 and 1.5 g L⁻¹ of CeCl₃ had a lower porosity. According to the literature, porosity is formed mainly due to the hydrogen evolution occurring on the surface of a substrate [3,16]. When hydrogen generation is suppressed, porosity can be significantly reduced. The adsorption of cerium ions on the surface enhanced the reduction potential of H⁺ and inhibited the adsorption of hydrogen ions. Therefore, it was more difficult for H⁺ to be reduced, and the reaction rate of hydrogen evolution thereby decreased, so the occurrence of pinholes in the film was inhibited to some degree [20]. The trend of the porosity with the variation of the cerium salt concentration was similar to that in the literature [16].

3.4. Weight Loss Tests

Weight loss tests were carried out for electroplated steel samples in a 20 wt % H₂SO₄ solution at 80 °C. After immersion for 72 h, apparent corrosion was observed on the Pd-Ni film that was obtained in the plating solution without CeCl₃, and part of the film was peeled off from the steel substrate. After the addition of CeCl₃, the adhesive force and the corrosion resistance of the film were enhanced.

Table 5. Corrosion rate of the Pd-Ni Film in a 20 wt % H₂SO₄ solution at 80 °C from weight loss tests.

CeCl3 content (g L−1)	0	0.2	0.5	1.0	1.5	2.0
Corrosion rate (g m−2 h−1)	0.1038	0.065	0.0054	0.0039	0.0045	0.0069

shows the corrosion rate of the Pd-Ni film in the 20 wt % H₂SO₄ solution (80 °C), as calculated from weight loss test. With the increase of the content of CeCl₃ in the plating solution, the corrosion rate first decreased and then slightly increased. The lowest corrosion rate, which was 0.0039 g m⁻² h⁻¹, was obtained when the content of CeCl₃ was 1.0 g L⁻¹, and, after 72 h of immersion, the surface film was intact.

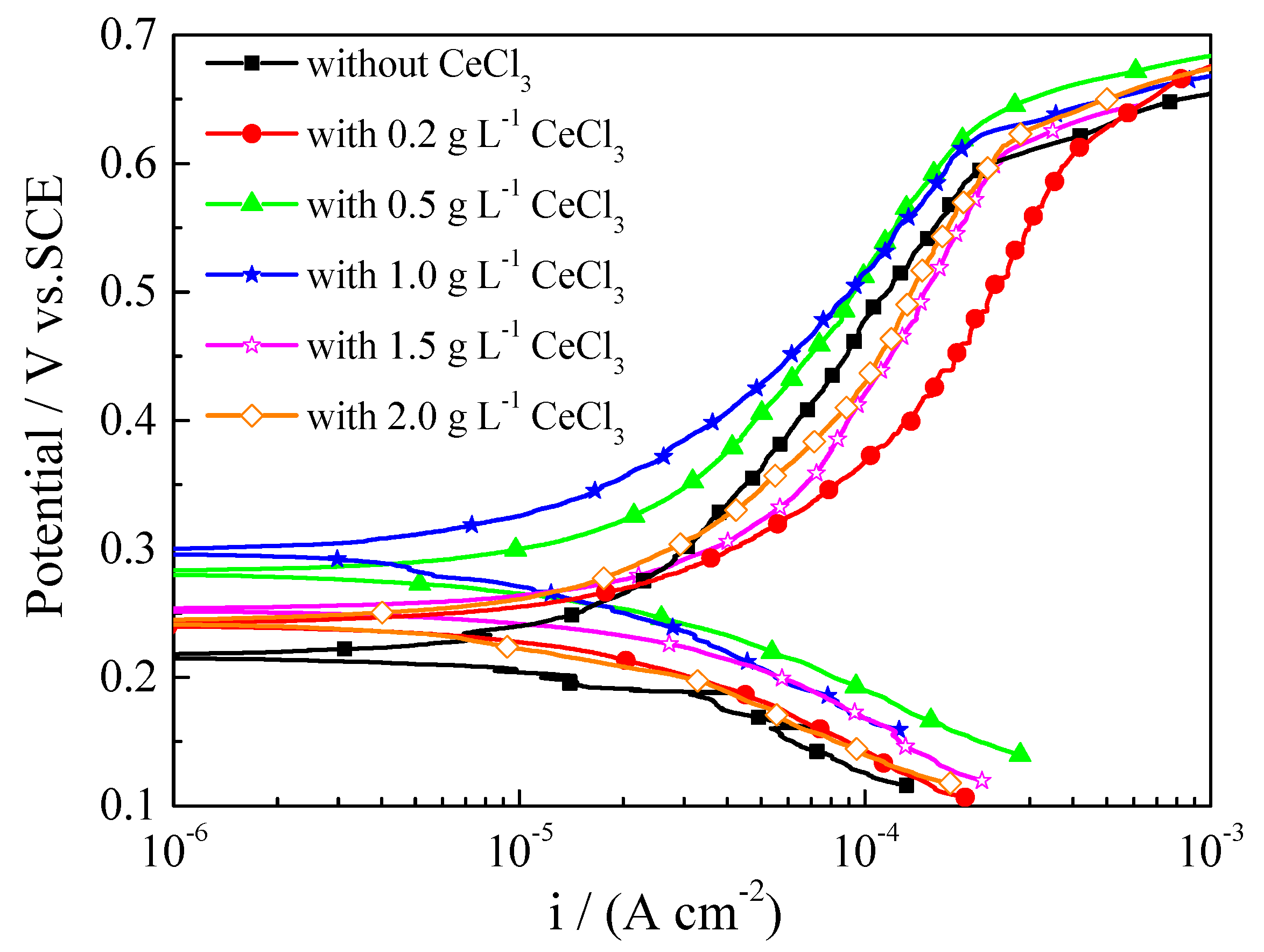

Figure 4 shows the potentiodynamic polarization curves performed in the 20 wt % H₂SO₄ solution (80 ℃). The corrosion current density (i_c) and corrosion potential (E_c) of the electroplated sample were obtained from polarization curves and are shown in

Table 6. The corrosion current density (i_c) and Corrosion Potential (E_c) of the electroplated samples that were obtained from polarization curves.

CeCl3 (g L−1)	0	0.2	0.5	1.0	1.5	2.0
ic × 10−5 (A cm−2)	2.18	1.89	1.68	1.01	2.36	2.03
Ec (V vs. SCE)	0.21	0.18	0.26	0.27	0.22	0.19

. It can be seen that the corrosion potentials of the samples with the Pd-Ni film ranged between 0.18 and 0.27 V, which was in the passive range of the 316L stainless steel in the 20 wt % H₂SO₄ solution at 80 °C [12,21], so electroplating an Pd-Ni alloy film can increase the corrosion potential of stainless steel, thereby maintaining its passivation state and present good corrosion resistance. After CeCl₃ addition, the corrosion current density of the electroplated samples decreased. At the CeCl₃ content of 1.0 g L⁻¹, the corrosion current density reached the lowest value (1.01 × 10⁻⁵ A dm⁻²), which was consistent with result of the weight loss test.

3.5. The Morphology of the Pd-Ni Films

From the above test results, it can be noted that the Pd-Ni film that was deposited in the solution when the CeCl₃ content was 1.0 g L⁻¹ presented better performances. The surface morphology of the Pd-Ni film was observed by SEM and is shown in Figure 5, where it is compared with the morphology of the film in the solution without CeCl₃. It could be seen that after 1.0 g L⁻¹ CeCl₃ was added, the surface of the Pd-Ni film was more homogeneous and continuous, with less rough particles covered on the surface. As we know, the process of electroplating mainly comprises the absorption and the reduction of cations on the surface of the cathode. Cerium is a surface active element with a large atomic radium (0.1824 nm), a unique 4f electron configuration, and a strong adsorption ability. When CeCl₃ is added to a plating solution, Ce³⁺ is preferentially adsorbed on the crystal defects of the cathode and obstructs the reduction of metal cations on the cathode surface [17]; this needs a high cathodic potential to supply the reduction energy of Pd (NH₃)₂²⁺ and Ni (NH₃)₂²⁺, so the nucleation rate of the new crystallite is increased and then grains are refined [19].

3.6. Throwing Power of the Electroplating Solution

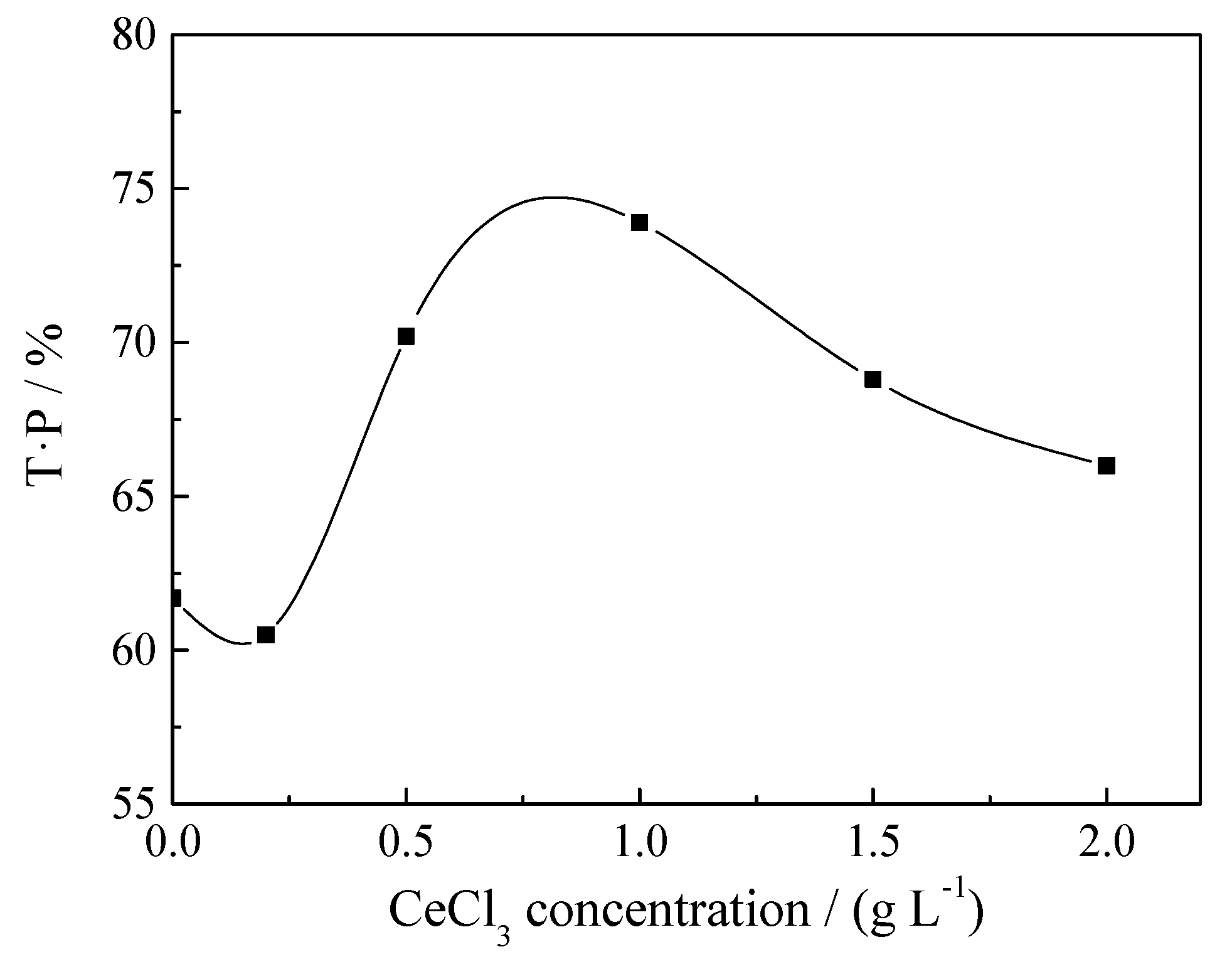

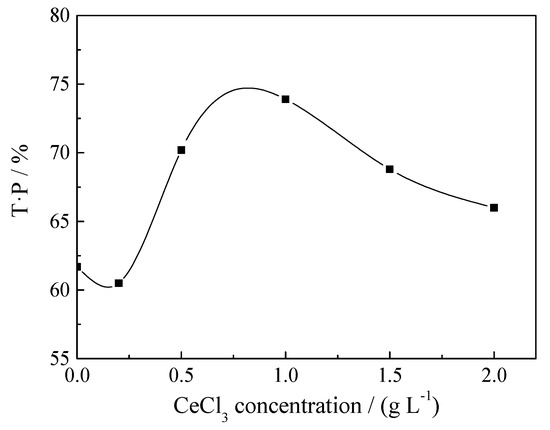

The throwing power (T.P.) of the electroplating solution was evaluated, and the T.P. value was calculated with Formula (1). The results are shown in Figure 6.

It could be seen that the addition of CeCl₃ could improve the throwing power of the bath solution, showing a tendency of first increasing and then decreasing. When the concentration of CeCl₃ was 1.0 g L⁻¹, the percentage throwing power, T.P.%, of the plating solution reached 73.9%, which is relatively high [9]. It is supposed that M (m₁/m₂) is the weight distribution ration in the base plating bath, and M′ (m′₁/m′₂) is the weight distribution ration in the plating bath containing CeCl₃. Based on the result in Figure 6, it can be inferred that:

M = m₁/m₂ > m′₁/m′₂ = M′

(2)

According to the Faraday’s law, a relationship exists between the mass of a film (m) and current density (i), as shown in Formula (3), where t is the plating time, s is the sample area, A is the atomic weight, and F is the Faraday constant.

m = istA/F

(3)

From Formulas (2) and (3), it can be found that:

i₁/i₂ > i′₁/i′₂

(4)

where i₁/i₂ and i′₁/i′₂ are the current density ratios of the near and far cathodes in the plating solution without and with CeCl₃, respectively. Therefore, the difference between the far and near cathode current densities became smaller after the CeCl₃ addition, which means that the distribution of current in the plating solution became more uniform.

There are several factors that affect the near and far cathode current densities (i₁ and i₂), and these are expressed in Formula (5), where l₁ is the distance between the near cathode and anode, Δl is the distance between the near and far cathodes, ρ is the conductivity of the plating solution, and Δφ/Δi is the degree of cathodic polarization. In the case in which the plating bath structure and the conductivity of the plating solution are basically unchanged, the main factor that affects current distribution is the degree of cathodic polarization. Based on the decrease in the near-far current density ratio after the CeCl₃ addition shown in Formula (4), it can be inferred that the cathodic polarization was strengthened because of the rare earth salt addition.

$$\frac{i_1}{i_2}=1+\frac{\Delta l}{l_1+\frac{1}{\rho }·\left|\frac{\Delta {\phi }_k}{\Delta i}\right|}$$

(5)

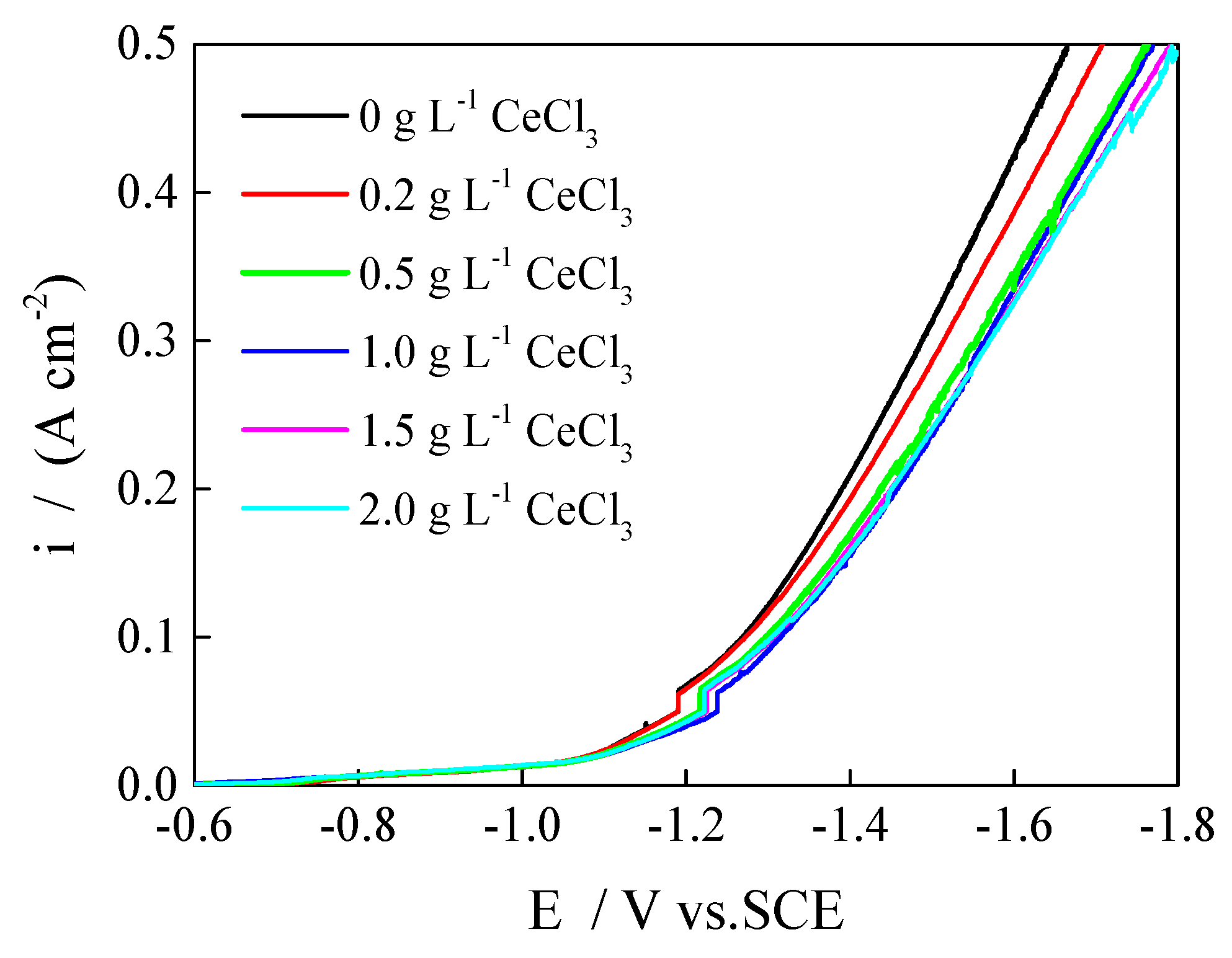

The cathodic polarization curves during the Pd-Ni electrodeposition on the steel substrates were measured, and the results are given in Figure 7. It was observed that the polarization curves were negatively shifted with an increasing rare earth content, indicating that the degree of cathodic polarization improved. However, after the concentration of CeCl₃ was higher than 1.0 g L⁻¹, the increasing degree of polarization became smaller, probably because the amount of Ce³⁺ that was absorbed at the cathode approached saturation. The enhanced cathodic polarization indicated that the deposition overpotential was increased. This could have supplied the reduction energy of Pd²⁺ and Ni²⁺, consequently accelerating the nucleation rate of the Pd-Ni alloys. As the nucleation rate exceeded the growth rate of crystallites, the crystallization of the alloys was inhibited, resulting in the refinement of the grain size of the alloys and the improvement of the performance of the film [19].

From the above, it can be concluded that CeCl₃ improved the properties and played important roles in changing the surface morphology and microstructure of the Pd-Ni alloy films. As for the addition of the cerium salt, the hardness and the adhesive force of the film were increased, and the porosity of the film was decreased. The corrosion resistance of the electroplated stainless steel in the 20 wt % H₂SO₄ solution at 80 °C was improved. CeCl₃ increased the throwing power of the plating bath, so the current distribution was more uniform and the cathodic polarization degree was strengthened during the electroplating process. Consequently, the refinement of grain size and the surface compaction of the alloy film was improved. However, a higher concentration of CeCl₃ (>1.0 g L⁻¹) became deleterious for the electrodepositing film, as manifested by the decrease of the above properties and the corrosion resistance. This is probably because that if too much Ce³⁺ is adsorbed on the surface of a cathode, the cathodic polarization could become so big that the deposition speed decreases [17,20].

4. Conclusions

(1)

The introduction of CeCl₃ to an electroplating solution played important roles in affecting the deposition of a Pd-Ni alloy film on 316 L stainless steel. The hardness of the Pd-Ni film and its adhesive strength to the stainless steel substrate were improved, the porosity of the film was reduced, and the corrosion resistance of the plated samples in the 20 wt % H₂SO₄ solution at 80 °C was enhanced.

(2)

CeCl₃ can improve the throwing power of a plating solution, enhance cathodic polarization during electrodeposition, and promote grain refinement to obtain more compact and uniform films.

(3)

The addition of an appropriate amount of CeCl₃ into the bath benefited the electrodeposition of the Pd-Ni film. In this study, the optimum addition of CeCl₃ was 1.0 g L⁻¹. Under this condition, the Pd-Ni film had better performance.
