Article

Simulation to Microtopography Formation of CBN Active Abrasives on a Honing Wheel Surface

1
Institute of CIMS, Hefei University of Technology, Hefei 230009, China
2
College of Mechatronic Engineering, North Minzu University, Yinchuan 750021, China
3
School of Mechanical and Electrical Engineering, Central South University, Changsha 410083, China
4
Department of Mechanical Engineering, University of Kansas, Lawrence, KS 66045, USA
*
Author to whom correspondence should be addressed.
Coatings 2021, 11(5), 540; https://doi.org/10.3390/coatings11050540
Submission received: 19 March 2021 / Revised: 21 April 2021 / Accepted: 29 April 2021 / Published: 2 May 2021
(This article belongs to the Section Surface Characterization, Deposition and Modification)

Abstract

:
The microtopography of a honing wheel surface composed of active abrasive grains is the key factor affecting the honing characteristics, and control of it is a sufficient condition to realize high-efficiency precision honing. Based on the magnetron sputtering method and phase field method, a theoretical model of cubic boron nitride (CBN) coating formation on a honing wheel surface is established. The physical vapor deposition (PVD) discrete phase field equation is solved by the finite difference method. A MATLAB program is compiled to simulate the formation process and micromorphology of the CBN coating on the honing wheel surface. A Taguchi method is designed to study the relationships of the sputtering time, substrate temperature, gas flow rate, and reaction space with the number of active abrasives and the length, width, height, and size of the abrasives. The simulation results are highly similar to the scanning electron microscopy (SEM) examinations, which shows that the model can accurately and effectively simulate the abrasive morphology of the wheel surface under different process conditions and provide a theoretical basis for the prediction and control of the CBN wear morphology on a honing wheel surface.

1. Introduction

With the increasing requirements of gears for automotive dual clutch automatic transmissions (DCTs), robot joint cycloid reducers, etc., it has become essential to reduce gear noise and improve the accuracy, load capacity, and life span of hardened gears [1,2]. Therefore, the development of coated tools [3,4,5,6] and CNC machines and the advancement of machining technologies such as gear honing [7], gear grinding [8], gear shaving [9], gear turning [10], and gear milling (faced-milled gear) [11,12] have become an even more urgent task. The gear honing technology, with the advantages of high machining efficiency, low cost, low residual stress, no burns on the tooth surface, and regular honing wheel pattern on the tooth surface that helps to reduce gear transmission noise, can be an alternative to grinding and has been applied to the finishing of hardened gears after quenching [6,13].
The key to achieving internal power honing machine processing is the deposition of superhard abrasive coatings such as CBN and diamond on steel substrates to produce high-performance (HP) honing wheels [6]. Compared with the corundum honing wheels made of polyester or ceramic bonds [14], CBN honing wheels can remove interfering workpiece material at higher cutting speeds (6–10 m/s) [15], larger honing forces (>400 N) [16], and more material removal (50–100 μm/flank) [17] without any grinding operation. Thus, it can substantially improve the material removal rate, machining accuracy, and surface quality of hardened gears [1,18]. The micromorphology of the honing wheel tooth surface, composed of the shape, number, size, and spacing of abrasive grains [19], determines the properties of the honing wheel and plays an important role in honing performance. Hence, the performance of honing wheels can be enhanced by controlling and optimizing the determining parameters of the micromorphology [20].
The micromorphology depends on the preparation conditions and the material itself. As reported from the previous cases of CBN film synthesis by magnetron sputtering, processing parameters such as current, temperature, pressure, radio frequency (RF), bias, and gas composition had been found to affect the ion bombardment conditions and the growth of CBN films [21,22,23,24]. However, it is still unclear how the processing parameters affect the micromorphology, which is usually determined by expert empirical knowledge or experimental optimization. The film growth and final microscopic formation at a certain temperature depends mainly on the bombardment of the target by energetic ions in the gas phase, which excites nitrogen and boron atoms to nucleate in the substrate, and then continues to grow under a wider range of deposition conditions. In addition, the microtopography of the substrate surface, the bonding strength of the coating and substrate, and the crystallographic properties of the film also contribute to the film deposition [25,26]. Thus, it is clear that the film microstructure is mainly dependent on the energy introduced into the growing surface by energetic ion bombardment, stimulating nitrogen and boron atoms to nucleate in the substrate, and then continue to grow under a wider range of deposition conditions [27,28].
Based on experimental observations, the growth of film microstructure can be classified into island growth (Volmer–Weber mode, VWM), layer-by-layer growth (Frank–Van der Merwe mode, FVMM), and layer-plus-island growth (Stranski–Krastanov mode, SKM). If physical models do not exist, instead of applying atomistic calculations, machine learning can provide surrogate models bridging the gap between process parameters and the resulting microstructure [29]. For example, Noraas et al. [30] proposed generative deep learning models (GDLM) for material design to identify processing–structure–property relationships and to predict microstructures. Ludwig et al. [29] revealed the intrinsic connection between process parameters and microstructure by predicting the crystallographic partition map for thin film synthesis using a machine learning approach. If physical models exist, the simulations are usually performed by the Monte Carlo method [31,32,33,34] or phase field method [35,36], depending on the choice of the model architecture, the choice of initial values, and the computational power. Chen et al. [37] established the diffusive phase field model based on the Ginzburg–Landaul theory and were the first to apply the phase field method to simulate the crystal growth process of polycrystalline materials. Suwa et al. [38] modeled the three-dimensional kinetics and topology of grain growth at anisotropic grain boundary migration rates using a phase field model, making it possible to calculate larger tissue scales. Since then, based on the Cahn–Hilliard [39] and Allen–Cahn [40] kinetic phase field models, researchers have used ordered variables to describe the instantaneous state of the system and introduced field variables such as time and space to investigate the complex structure as a whole. By solving the kinetic equations in the model, it is possible to get a detailed picture of the evolution of the size, shape, and spatial distribution for each grain and each single-phase region in the tissue at any moment of the structure transformation. By performing further statistical analysis of the simulation results, one can obtain quantitative information regarding the size, number, and spacing of grains over time. They can not only be used directly as final results, but also employed in macroscopic size models for material development and performance investigations. It requires a comprehensive multidisciplinary model to accurately simulate the physical model of microscopic morphology through process parameters, including isoenergetic ion discharge bombardment, plasma-to-substrate motion, and atomic nucleation at the film surface. Despite the progress in all aspects of the above studies, it is still a challenge to apply a unified model for further simulations.
CBN abrasive grains are polycrystalline materials, and the phase field method has significant advantages in simulating the sputtering, coarsening, and growth of grains on the teeth of honing wheels, as well as the movement of grain boundaries [41]. Compared with the traditional method of surface micro-morphology modeling by probabilistic statistics [42], the phase field method considers the various thermodynamic driving forces of long-range and short-range interactions. Thus, it is able to take into account the effects of complex internal and external factors such as physical fields, micro-morphology of grain boundaries, anisotropy, sputtering temperature, and gas flow on the grain growth process [43], making the model closer to reality.
Hence, the main purpose of the present study was to carry out phase field simulations to investigate the grain sputtering, coarsening, and final film formation during the microstructure evolution of magnetron sputtered CBN coatings. In order to verify the reliability of the present model, a comparison between experimental and simulation results was made by comparing the micromorphology and analyzing the intrinsic correlation and interaction mechanism of different processing parameters such as sputtering time, temperature, and gas flow rate with the number, size, and spacing of active CBN abrasive grains.

2. Simulation of the Micromorphology in the CBN Abrasive Growth Process

A honing wheel is used as a grinding tool for gear honing processes. The abrasive grains on the tooth surface of a honing wheel are small and have no fixed shapes, with irregular and uneven distribution, hindering the in-depth study of the morphology of the honing wheel tooth surface. Figure 1 shows the schematic diagram of the gear honing process. In the meshing area, a cell on the tooth surface of the honing wheel is taken arbitrarily, and micromorphological parameters such as the number, shape, size, and spacing of CBN abrasive grains can be obtained using SEM [44]. Under the slippery abrasion of the honing force, the active abrasive grains remove the material of the workpiece tooth surface along the contact traces li, and the 3D micromorphology of the tooth surface after cutting can be observed by AFM (atomic force microscope) [45]. However, the use of SEM and AMF is not only costly and time-consuming for measurement, but also difficult to effectively identify the removal mechanism of active abrasive grains on the workpiece at different times. To solve the above problem, we carried out quantitative simulations of the micromorphology of CBN coating on the tooth surface of the honing wheel based on the magnetron sputtering principle and phase field method.

2.1. Phase Field Method

Magnetron sputtering is a PVD method that ionizes a mixture of argon and nitrogen under the control of a circular magnetic field to produce argon and nitrogen ions that bombard a high-purity h-BN target at a high speed. The momentum is transferred to B and N atoms that are sputtered from the surface of the target to the substrate to prepare high-quality c-BN films [46,47]. To accurately describe the formation process of CBN wear abrasives on the honing surface, the Cahn–Hilliard equation is established for the evolution process of the gas mole fraction as a conserved field variable [48]:
F P C t + ( F P C ) F P C V m Δ F P C + P ( | θ | ) = λ Δ F V D | F V D | + g
where F P C is the total free energy of the system; F V D stands for the free energy function of the model; and , V m , and P are the Laplace operator, the total mole fraction of argon in the reaction process, and the kinetic parameter equation, respectively. θ is the direction of local abrasive growth, within the range of (0, 2π). g is the free energy dissipation correction function, and λ is the derivative of the total free energy of the system with respect to the single well potential energy, λ = F P C f ( ϕ ) .
F P C is constructed by the field variable function f ( r , t ) . It provides a symmetrical double well potential energy between the equilibrium gas phase and the solid phase, which can be expressed as [41]
F P C = ( f ( ϕ ) + α 2 2 | ϕ | 2 + s g ( ϕ ) | θ | + ε 2 2 h ( ϕ ) | θ | 2 ) d Ω
where ϕ is the phase field variable, and s is the entropy density of gas in the reaction process. ε and α are gradient energy coefficients. θ is a phase field variable that has no practical physical significance and can only be used to distinguish the matrix phase from the precipitate phase. g ( ϕ ) and h ( ϕ ) are coefficient functions, which can be combined into coefficient Φ ( r , t ) 2 to reduce or eliminate the influence of disordered regions on abrasive growth orientation and abrasive boundary evolution. f ( ϕ ) is the double well potential energy function, which represents the change in potential energy in the different phase states in the reaction process [41]
f ( ϕ ) = ϕ 2 2 ( 1 - ϕ ) 2 + f s o l p ( ϕ )
where f s o l = 2 ( T T m - 1 ) [49] is a temperature dependent function in which T and T m are the microstructure evolution temperature and the phase transition temperature, respectively. The free energy in the solid phase consists of f ( ϕ ) multiplied by the polynomial step function p ( ϕ ) , with p ( 0 ) = 0 and p ( 1 ) = 1 . Based on the above analysis, the third and fourth terms of Equation (2) express the contribution of the growth process of ordered and disordered abrasives to the free energy during sputtering. The third term requires the orderly growth of abrasives, and the fourth term allows the dynamic evolution of abrasive boundaries in the process of abrasive growth.
The kinetic parameter equation P ( | θ | ) in the evolution process of an abrasive boundary controls the whole sputtering process through local amplification or reduction at the abrasive boundary and inside the abrasive, which reads as [41]
P ( | θ | ) = 1 e β ε | θ | + μ ε e β ε | θ |
P ( | θ | ) τ θ ϕ 2 ϕ t = [ ϕ 2 ( s | θ | + ε 2 ) θ ]
The rotation angle τ θ during abrasive growth is controlled by μ and β , where τ θ = 1 , μ = 10 3 , and β = 10 5 . In Equation (5), the abrasive growth direction and ion movement rate can be artificially controlled by selecting the interfacial dynamic coefficient β and the chemical potential energy μ of dimensionless parameter abrasives. The free energy function F V D in Equation (1) is composed of the field variable function f ( r , t ) and its gradient function, which provides a symmetrical double well potential energy between the gas phase and the solid phase and can be expressed as [50]
F V D = ( 1 2 f 2 + 1 4 f 4 + a ( f ) 2 ) d Ω
where a is the interface gradient function of the surface tension, and the time and space evolution equations of the field variable function are controlled by the following dimensionless motion equations [50]:
f t = 2 F f + B ( f ) 2 g + C ( f ) 2 g η
g t = [ D g A g ] B ( f ) 2 g
Equations (7) and (8) are used to show the growth and evolution of the solid field f ( r , t ) through the consumption of the energy of the gas field entering the simulation space. The free energy function is composed of field variables and their gradient functions. B and C are the polymerization and noise coefficients, respectively. B controls the gas–solid conversion rate, which is capable of converting all incident gas ions into solids at the interface when it is large enough. C ( f ) 2 g η provides the surface relief through the uncorrelated Gaussian distribution η ( r , t ) , and the parameter C controls the overall intensity of the noise. The diffusion coefficient D is modified in response to external force, and the magnitude and direction of the diffusion coefficient are the intensity and direction of the incident gas flux. The field variable f ( r , t ) describes the growth state of the thin film. It defines a solid region for film growth when f ( r , t ) 1 , a vacuum environment or no solid film formation when f ( r , t ) 1 , and a solid–gas interface when f ( r , t ) 0 . The variable g ( r , t ) describes the flux density of the gas entering the system. When g ( r , t ) 0 , no reactive gas enters the flux region, whereas when g ( r , t ) > 0 , gas is transported to the system and sputtered on the coating surface.
This paper uses the magnetron sputtering vapor deposition method to prepare CBN coating on the tooth surface of a steel honing wheel, during which no chemical reaction occurs. Therefore, the system is an energy-conserving system, and the Cahn–Hilliard equation of diffusion, which is consistent with the evolution of conserved field variables, is represented as
1 V m x B ( r , t ) t = M [ F ( x B , η k ) x B x B ( r , t ) ]
where x B ( r , t ) and F ( x B , η k ) denote the state functions of the ion distribution in the system and the total energy of random ions, respectively, and η k is the anisotropic parameter. M is the interface dynamic parameter, which can be expressed as
M = ( 1 V m ) x B ( 1 x B ) [ x B V m D 2 G m / x B 2 + ( 1 x B ) x B D V m R T ]
where V m , G m , and T ( r , t ) are the molar volume of the gas, the free energy of nucleation of the reaction gas, and the temperature field function of energy conduction in the reaction space, respectively.
In the process of vapor deposition, the substrate is heated to the required temperature, which plays an important role in the evolution of the surface morphology, phase nucleation, and microstructure in the growth of thin films. In addition, latent heat is released or absorbed by the film during vapor deposition and subsurface phase transition, which may lead to thermal wave and gradient changes in the system. Therefore, the influence of the temperature distribution and evolution must be considered in the modeling of solid growth during magnetron sputtering. To incorporate the temperature evolution into this study, the multiphase motion equation in Equation (10) is coupled with the temperature field function T through the heat conduction equation, which can be denoted as
ρ i C P T t = k T 2 T + L i k f i t
where ρ i , C P , and k T are the density of the reaction gas in the simulated space, the heat capacity, and the thermal conductivity of the mixed gas, respectively. L i k is the latent heat value from phase i to phase k , and f is the potential energy function of phase i .

2.2. Equation Solution and Parameter Determination

Equation (12) is a discretization form of Equation (2). The interfacial kinetic phase field parameter τ ϕ = 1 and the total free energy of the system are given as [51]
τ ϕ ϕ t = ϕ f t + α 2 2 ϕ 2 s ϕ | θ | ε 2 ϕ | θ | 2
In Equation (12), the latent heat value L = 2 × 10 9 J m 3 , which is selected according to the microstructure evolution energy at the melting temperature of the sputtering material in the system. According to reference [41], the dimensionless model parameters are ε = 0.0141 , α = 0.0265 , and s = 0.0176 . The discretized phase field model can be solved using difference equations as follows:
f ( q ) q 1 d q ( f ( q ) f ( q d q ) )
2 f ( q ) q 2 1 d q 2 ( f ( q + d q ) 2 f ( q ) + f ( q d q ) )
Thus, we can solve Equations (7) and (8) by applying the explicit first-order Euler method of Equation (13) and the central second-order finite difference method of Equation (14).
In the phase field simulation of the microstructure evolution of a CBN coating prepared by magnetron sputtering, the initial configuration of the theoretical simulation space is an involute tooth surface, and the coordinates of five grid points are generated with thickness in the Y direction, where f ( r , 0 ) 1 and g ( r , 0 ) = 0 . This condition is assumed to provide a fixed substrate region below the constant boundary y = 0 . When f ( r , 0 ) = 1 and g ( r , 0 ) = g 0 , the region is vacuum and contains the gas ion flux being sputtered. Outside the boundary of y = 32 μm, this condition can also provide a continuous source of sputtering gas ion flux during the sputtering process. In the substrate region, the initial condition for the formation of polycrystalline microstructures is ϕ ( r , 0 ) = 1 , and θ ( r , 0 ) depends on the orientation of each abrasive in the region. In the vacuum region, ϕ ( r , 0 ) = 0 , and θ ( r , 0 ) takes any value from (−π, π), according to Equation (5).
With the reasonable choice of dimensionless magnetron sputtering parameters in the above equation, it is possible to ensure the grain growth along the perpendicular direction during the simulated perpendicular magnetron sputtering and to provide realistic features for the micromorphology of the film. According to reference [50], the dimensionless space-time motion Equations (7) and (8) are set to 1 and 0.1, respectively. The other dimensionless magnetron sputtering parameters are shown in Table 1.
The noise coefficient C provides enough noise to the surface, allowing the formation of undulating features on the coating surface, but not enough to control the growth and stop the calculation after 1000 steps. The diffusion coefficient D should be smaller than the magnitude of the flux parameter A of the incident gas [50]. The initial value of the phase field density is g 0 = 1 . The dimensionless space is discretized to 0.001, corresponding to the physical value of 1 nm. The minimum and maximum simulation areas of the CBN coating surface are 32 μm × 32 μm and 512 μm × 512 μm, respectively. To ensure the discretization of the simulation space, a parameter value between 1 nm and 100 nm is used to ensure the size of the PVD simulation domain and sufficient time to complete the evolution process of the abrasive evolution dynamics. The temperature for the microstructure evolution of the double well potential driven system is T 0.98 T m , where T m is the phase transition temperature.

2.3. Simulation Experiment

Under the condition that the gas flow ratio of argon and nitrogen is 5:1, the random distribution function of argon ions and nitrogen ions ionized in the reaction chamber of the magnetron sputtering experimental platform is S e i g = l a m 1 × L e i g . The phase field model is solved by discretizing the distribution function, and the calculated results are transformed by inverse two-dimensional discrete cosine to obtain a continuous solution. Thus, we can model the process of grain deposition, coarsening, and final film formation of a magnetron sputtered CBN coating microstructure in VWM.
Taking the 13th group of process parameters in Table 2 as an example, 3D and 2D diagrams, cross-sectional diagrams, discrete particle energy diagrams, and the microscopic morphology of CBN abrasive grains on the tooth surface of the honing wheel under different sputtering times are shown in Figure 2. In the abnormal discharge stage, the target was at a negative potential, resulting in a self-bias effect, which accelerated the sputtering of nitrogen ions and argon ions that bombarded the target with high energy. Meanwhile, the magnetic lines further bonded the plasma in the reaction cavity to enhance the plasma density of the target and substrate, which facilitated the energetic ions to bombard more boron and nitrogen atoms sputtering in the substrate for migration, rearrangement, coalescence, and nucleation. The grains preferentially grew and nucleated along the (110) and (111) planes, forming the spherical islets shown in Figure 2a.
When t = 60 min, the plasma energy obviously increased, and CBN abrasives grew rapidly in a columnar shape at the nucleation point. However, the coating was discontinuous and thin, the surface roughness was too large, and the compactness was poor (Figure 2b). In the actual processing of the honing wheel with this shape, the rough and uneven convex summit increased the contact pressure, and the sharp abrasive grains were more prone to fracturing, breaking, or falling off when they were subjected to force, resulting in increased abrasive grain wear and a shortened tool life. When t = 120 min, the increase in the plasma energy was not obvious, and the abrasive growth in the height direction was faster than that in the width direction, resulting in slender columnar abrasives. Meanwhile, the denseness of the coating improved significantly, the layer thickness was discontinuous yet increased significantly, and the surface roughness became worse, which was somewhat different from the ideal coating morphology (Figure 2d). When t = 240 min, the grains grew faster in the width direction than in the height direction, and the grain shape transformed from slender to coarse. In the width direction, the large grains engulfed the small grains to improve the density of the coating; in the height direction, grains enlarged to the surface of the film to form a continuous coating, leading to a smaller surface roughness and a better overall cutting performance of the coating (Figure 2d).
An L25 (54) experiment was designed by the Taguchi method. Different values of the process parameters of the reaction space P1, substrate temperature P2, sputtering time P3, and gas flow rate P4 were selected to generate maps of the 3D surface appearance. The number of active abrasives Q1, abrasive spacing Q2, height of active abrasives Q31, width of active abrasives Q32, length of active abrasives Q33, and the aspect ratio of abrasive grains Q34 were calculated and measured, as shown in Table 2.

3. Discussion

The significance level of the process parameters on the micromorphological parameters of the abrasive grains in Table 2 was analyzed, and the adequacy of the experimental results was verified. The results show that the significance levels between process parameters P1, P2, P3, P4, and CBN grain spacing were low, but the significance levels between sputtering time and grain size, substrate temperature, gas flow rate, and grain size, reaction space and grain size, effective grain number, substrate temperature, sputtering time, and effective grain height were high.

3.1. Effect of Sputtering Time on Abrasive Size

As shown in Figure 3, the relationship between the sputtering time and the effective grain length, width, and height of CBN was relatively dispersed. After fitting the curves to the discrete points, it was found that the grain length, width, and height showed a more obvious growth trend with the reaction time. With the increase in sputtering time, the size of the grain width showed an oscillating trend. At 150 min, the grain width reached a peak of 1.905 μm for the first time, at 210 min it reached a trough value of 1.696 μm, and at 240 min it reached a new peak of 1.955 μm for the second time. The reason is that during the preparation of the CBN coating, as the reaction time increased, the total free energy of the system rose and the height of the grain increased. However, as the boron and nitrogen atoms were randomly moving, the grain boundaries were constantly diffusing, and the grains could only increase in height directions after the grains had filled the entire space in the length and width directions, and there was a phenomenon of grain refinement at the same time. Macroscopically, the increase in the CBN coating thickness made the absolute width of the abrasive grains oscillate in a trend of first increasing, then decreasing and then increasing. Similarly, with the increase in reaction time, the height of abrasive grains grew slowly, while the length direction of abrasive grains first appeared elongated during the growth process, and then the absolute length decreased and became flat with the migration of grain boundaries. This trend was consistent with the actual test, i.e., the film thickness increase was more difficult with increasing reaction time, but the length and width of the abrasive grains grew in different trends, resulting in a random distribution of the shape and size of each abrasive grain.

3.2. Effect of Substrate Temperature and Gas Flow Rate on Abrasive Size

As shown in Figure 4 and Figure 5, as the substrate temperature increased, the length and width of the abrasive grains showed a gradual increase, while the overall length of the abrasive grains presented an oscillatory trend of increase. Namely, the length of abrasive grains gradually decreased at a temperature of 300 °C–330 °C, and then started to increase, reaching the maximum length of 1.924 μm at a temperature of 390 °C, followed by another decrease. At this point, there was a high nucleation density, clear grain shape, continuous and dense film, and better quality. Therefore, it can be concluded that with the increase in substrate temperature, the driving force of nucleation increases, the migration and nucleation rate becomes faster, and the overall microscopic shape and size of abrasive grains grows larger.

3.3. Effect of Reaction Space on Abrasive Size and Active Abrasive Number

Figure 6 shows the size distribution and variation trend of the length, width, and height of the active abrasive grains in different reaction spaces. The fitted equation of the length of abrasive grains is ( y = 1.34476 + 0.00441 x ( 6.37153 × 10 6 ) x 2 ) , which shows that with the increase of reaction space, the length of abrasive grains followed a trend of first increasing and then decreasing.
The length of abrasive grains was distributed in the range of 1.4 μm–2.5 μm, and the majority of them were around 1.6 μm in length. The fitted equation for the width of abrasive grains is ( y = 1.49641 + 0.005353 x ( 2.32695 × 10 5 ) x 2 + ( 2.87169 × 10 8 ) x 3 ) , indicating that the width of abrasive grains was oscillating upward as the reaction space increased. The width of abrasive grains was concentrated in the range of 1.6 μm–2.0 μm, mainly fluctuating around 1.8 μm. The fitted equation for the height of abrasive grains is y = 0.92249x0.02321. The fitted image shows that the distribution of height was more concentrated and uniform compared to the length and width of abrasive grains. As the reaction space enlarged, the height of the abrasive grains increased, distributed uniformly between 0.95 μm and 1.1 μm. In the simulated reaction space, the average height of active CBN abrasive grains was roughly the same as the height of actual abrasive grains, suggesting that there was no abnormal growth of abrasive grains in the range of simulated process parameters.
Figure 7 illustrates the relationship between the reaction space and the active abrasive grains. The simulations were performed with a magnetron sputtering power of 350 W, gas pressure of 0.4 Pa, nitrogen, argon flow rates of 30 cm3/min and 150 cm3/min, sputtering temperature of 390 °C, sputtering time of 210 min, and reaction spaces of 32 μm × 32 μm, 64 μm × 64 μm, 128 μm × 128 μm, 256 μm × 256 μm, and 512 μm × 512 μm. The results suggest that the number of active abrasive grains increased significantly with the increase in reaction space. The reason is that the number of boron and nitrogen atoms sputtering onto the substrate material per unit space under the same conditions was certain, and as the space became larger, the probability of nucleation within that zone grew, and the number of abrasive grains increased.
The fitted model for the growth of active abrasive number and reaction space is y = ( 0.00962 ± 0.00015 ) x ( 2.0531 ± 0.00250 ) . The ratio of the regression sum of squares to residual sum of squares R 2 = 0.99999 and the residual sum of squares RSS = 88.3308, suggesting that the curve fit well for predicting the number of active abrasive particles involved in the honing process in different reaction spaces.

3.4. Effect of Substrate Temperature and Sputtering Time on the Grain Height

When preparing CBN films by magnetron sputtering, the higher the power, the higher the plasma density in the same reaction space, but too high a power can lead to target poisoning. At a sputtering power of 350 W [43], the reaction cavity just started to glow and the target material had not been poisoned. In addition, since the effect of power on the size of active abrasive grains is much lower than the effect of sputtering time and substrate temperature, the effect of power on the height of active abrasive grains was not considered. Figure 8 shows the contour plots of sputtering temperature and time on the height of abrasive grains under the process conditions of sputtering power 350 W, reaction space 32 μm × 32 μm, and gas flow rate 180 cm3/min. At a sputtering time of 155 min and a sputtering temperature of 300 °C, the height of CBN abrasive grains reached 1.15 μm; at a sputtering time of 180 min and a sputtering temperature of 324 °C, the average height of abrasive grains was 0.925 μm. This indicates that the sputtering time and temperature had a more significant effect on the height of abrasive grains. The coating thickness was greater than 1 μm at a sputtering time of 200–220 min and a sputtering temperature of 390–400 °C, allowing the preparation of CBN coatings with a maximum thickness of 1.178 μm. The higher the average height of active abrasive grains, the sharper the CBN abrasive grains, which helps to improve the material removal rate of the workpiece and enhance the efficiency of the honing process.

3.5. Comparison of Simulation and Experimental Results

According to the preparation and measurement method of CBN coating in the literature [35], a test system consisting of an SP-6A magnetron sputtering experimental bench, 45 steel substrate material, a 99.99% purity CBN sputtering target, argon gas, nitrogen gas, and a field emission scanning electron microscope was built. The experimental parameters were set based on the simulation parameters and conditions, as shown in Table 3. A comparison of the experimental and simulation results of the micromorphology of the honing wheel tooth surface is shown in Figure 9 and Figure 10. In Figure 9a,c, the distribution, aspect ratio, and number of the eight active abrasive grains A, B, C, D, E, F, G, and H in the simulated top view are all confirmed in the top view of the SEM shown in Figure 9b,d. Figure 10a,c,e,g are the main views of Figure 9. To facilitate an in-depth examination of the local details of the grains, partial enlargements of Figure 10b,d,f,h were drawn. Nine positions of I, J, K, L, M, N, O, P, and Q were selected in the SEM plots for comparison with the simulated plots, and the results showed that the height, grain shape, and size of CBN grains simulated by the phase field method were in good agreement with the experimental results.
The experimental results of the 22nd group of process parameters in Table 2 were selected to verify the validity of the simulation results of active grain size, and the distribution of grain size was plotted in Figure 11. The simulation results in Figure 11a show that among the 3505 active abrasive grains, the largest number of grains with similar size and the best consistency of abrasive grain size were found at an increasing density of 10.17–12.70, with about 621 grains, accounting for 16.4% of the total number of grains. The aspect ratio of these grains was 0.94–1.12, and the height of the grains fell in the range of 1.07 μm–1.15 μm. Compared to the experimental results in Figure 11b, the total number of active abrasive grains was 127 less, with an error of 3.62%. The increasing density differed by 0.2–0.25, with an error of 2%. In the red area with the highest concentration of abrasive grains, the number of active abrasive grains was 43 more, with an error of 7.4%; the difference in the aspect ratio of abrasive grains was 0.02–0.06, with an error of 2.2–5.7%; the difference in the height was 0.02 μm–0.06 μm, with an error of 1.8–5.9%. Similarly, comparing the size and number distribution of abrasive grains in other colored areas in Figure 11a,b, the errors of increasing density values were also small and within acceptable limits. The experimental results in Figure 11b indicate that among 3632 active abrasive grains, the largest number of grains with similar size and the best consistency of abrasive size occurred at an increasing density of 9.97–12.45, with about 578 grains, accounting for 15.9% of the total number, with an aspect ratio of 0.92–1.06 and a height of 1.01 μm–1.13 μm.
Based on the above analysis, conclusions can be drawn that the number, size, and spacing of CBN active abrasive grains on the tooth surface of the honing wheel simulated by the phase field method were consistent with those observed in the experiments. Moreover, the micromorphology of the abrasive grains at different locations on the tooth surface observed in the metallographic experiments was highly similar to that of the simulated ones, demonstrating the validity and correctness of the method. More importantly, the micromorphology of CBN active abrasive grains was simulated using the phase field model in physical and mathematical aspects, which helped to clarify the correlation between the process parameters of the CBN coating prepared by magnetron sputtering and the micromorphology parameters such as the number, size, and spacing of active abrasive grains affecting the honing process.

4. Conclusions

In this study, the magnetron sputtering method and phase field method were used to study the surface topography formation mechanism of active abrasive grains in a honing wheel. The relationships of the sputtering time, substrate temperature, gas flow rate, and reaction space with the number of active abrasive grains and the length, width, and height of the abrasives was investigated both by simulations and experiments. Based on the results, the main conclusions were drawn as follows:
(1).
By comparison of the simulation and experimental results, the method in this paper can effectively simulate the growth process of CBN abrasive grains, which grow from a single spherical shape to a long strip at the nucleation point, and the coating thickness grows from discontinuous and thin to a continuous and dense coating.
(2).
Plasma energy (energetic ions) drive the migration, rearrangement, coalescence, and nucleation of boron and nitrogen atoms in the matrix, providing the driving force for the growth, coarsening, and film formation of CBN grains. In addition, a higher plasma energy would increase the growth and coarsening rate of columnar grains and improve the film quality.
(3).
The effects of sputtering time, substrate temperature, gas flow rate, and reaction space on the number and size of CBN abrasive grains are of high significance, and should be mainly controlled. Process parameters have a low level of influence on the shape and spacing of active abrasive grains, and should be controlled as a secondary factor. Therefore, the reasonable selection or optimization of process parameters can quantitatively control the number, size, and distribution state of abrasive grains, optimize the micromorphology of CBN coating on the tooth surface of honing wheels, and promote the processing performance of honing wheels.
(4).
Despite the good agreement between the simulation and SEM experimental results, the model needs to be modified and improved in future studies due to the limitations of the selection of phase field parameters, solution accuracy, and computational volume of simulation. In future work, methods such as machine learning will be considered to optimize the parameters of the phase field model and improve the accuracy of the solution algorithm. In this way, it is possible to efficiently design the micromorphology of CBN grains on the tooth surface of honing wheels and produce high-performance honing wheels, thereby fundamentally improving the material removal rate, machining accuracy, and surface quality of hardened gears.

Author Contributions

Conceptualization, Y.G. and J.H.; methodology, Y.G. and F.W.; software, X.R. and Y.L.; validation, X.R., Y.G., and L.L.; formal analysis, F.W.; investigation, X.R.; data curation, X.R.; writing—original draft preparation, X.R.; writing—review and editing, Y.L.; visualization, L.L.; supervision, J.H.; project administration, Y.G.; funding acquisition, Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research work is supported by National Natural Science Foundation of China (Grant No. 52075142, 51765001), Key research projects of North Minzu University in 2019 (Grant Nos. 2019KJ35, 2019KJ34), and Ningxia Natural Science Foundation (Grant No.2020AAC03203).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mallipeddi, D.; Norell, M.; Sosa, M.; Nyborg, L. Effect of Running-In (Load and Speed) on Surface Characteristics of Honed Gears. Tribol. Trans. 2019, 62, 412–418. [Google Scholar] [CrossRef]
  2. Pathak, S.; Jain, N.K. Critical review of electrochemical honing (ECH): Sustainable and alternative gear finishing process. Part 1: Conventional processes and introduction to ECH. Trans. IMF 2017, 95, 147–157. [Google Scholar] [CrossRef] [Green Version]
  3. He, Q.; Paiva, J.; Kohlscheen, J.; Beake, B.; Veldhuis, S. An integrative approach to coating/carbide substrate design of CVD and PVD coated cutting tools during the machining of austenitic stainless steel. Ceram. Int. 2020, 46, 5149–5158. [Google Scholar] [CrossRef]
  4. Layyous, A.A.; Yehezkeal, L.; Hristo, S.; Renato, B. Coated Cutting Tool. Patent, IHI BERNEX AG (4600 Olten, CH). 2020. Available online: https://www.freepatentsonline.com/EP2148940B1.html (accessed on 2 May 2021).
  5. Rodríguez-Barrero, S.; Fernández-Larrinoa, J.; Azkona, I.; De Lacalle, L.N.L.; Polvorosa, R. Enhanced Performance of Nanostructured Coatings for Drilling by Droplet Elimination. Mater. Manuf. Process. 2016, 31, 593–602. [Google Scholar] [CrossRef]
  6. Karpuschewski, B.; Knoche, H.-J.; Hipke, M. Gear finishing by abrasive processes. CIRP Ann. 2008, 57, 621–640. [Google Scholar] [CrossRef]
  7. Han, J.; Zhu, Y.; Xia, L.; Tian, X. A novel gear flank modification methodology on internal gearing power honing gear machine. Mech. Mach. Theory 2018, 121, 669–682. [Google Scholar] [CrossRef]
  8. Wegener, K.; Bleicher, F.; Krajnik, P.; Hoffmeister, H.-W.; Brecher, C. Recent developments in grinding machines. CIRP Ann. 2017, 66, 779–802. [Google Scholar] [CrossRef]
  9. Liu, J.-H.; Hung, C.-H.; Chang, S.-L. Design and manufacture of plunge shaving cutter for shaving gears with tooth modifications. Int. J. Adv. Manuf. Technol. 2009, 43, 1024–1034. [Google Scholar] [CrossRef]
  10. Inui, M.; Huang, Y.; Onozuka, H.; Umezu, N. Geometric simulation of power skiving of internal gear using solid model with triple-dexel representation. Procedia Manuf. 2020, 48, 520–527. [Google Scholar] [CrossRef]
  11. Deng, X.-Z.; Li, G.-G.; Wei, B.-Y.; Deng, J. Face-milling spiral bevel gear tooth surfaces by application of 5-axis CNC machine tool. Int. J. Adv. Manuf. Technol. 2013, 71, 1049–1057. [Google Scholar] [CrossRef]
  12. Alvarez, A.; Calleja, A.; Ortega, N.; De Lacalle, L.N.L. Five-Axis Milling of Large Spiral Bevel Gears: Toolpath Definition, Finishing, and Shape Errors. Metals 2018, 8, 353. [Google Scholar] [CrossRef] [Green Version]
  13. Klocke, F.; Brumm, M.; Kampka, M. Process model for honing larger gears. In Proceedings of the International Gear Conference 2014, Lyon, France, 26–28 August 2014; pp. 118–128. [Google Scholar]
  14. Zhang, S.; Zhang, G.; Ran, Y.; Wang, Z.; Wang, W. Multi-Objective Optimization for Grinding Parameters of 20CrMnTiH Gear with Ceramic Microcrystalline Corundum. Materials 2019, 12, 1352. [Google Scholar] [CrossRef] [Green Version]
  15. Brinksmeier, E.; Schneider, C. Grinding at very Low Speeds. CIRP Ann. 1997, 46, 223–226. [Google Scholar] [CrossRef]
  16. Bergs, T. Cutting force model for gear honing. CIRP Ann. 2018, 67, 53–56. [Google Scholar] [CrossRef]
  17. Brinksmeier, E.; Giwerzew, A. Hard gear finishing viewed as a process of abrasive wear. Wear 2005, 258, 62–69. [Google Scholar] [CrossRef]
  18. Gao, Y.; Han, J.; Li, L.H.; Liu, L.; Lv, F.G. Research on the internal power gear honing processing technology for hard tooth surface. J. Mech. Eng. Res. Dev. 2016, 39, 500–512. [Google Scholar]
  19. Amini, N.; Westberg, H.; Klocke, F.; Kollner, T. An experimental study on the effect of power honing on gear surface topography. Gear Technol. 1999, 16, 11–18. [Google Scholar]
  20. Klocke, F.; Kuchle, A. Manufacturing Processes 2: Grinding, Honing, Lapping; Springer: Berlin/Heidelberg, Germany, 2009; pp. 19–36. [Google Scholar]
  21. Lundin, D.; Minea, T.; Gudmundsson, J.T. High Power Impulse Magnetron Sputtering. Fundamentals, Technologies, Challenges and Applications; Elsevier: Amsterdam, The Netherlands, 2020. [Google Scholar]
  22. Sarakinos, K.; Alami, J.; Konstantinidis, S. High power pulsed magnetron sputtering: A review on scientific and engineering state of the art. Surf. Coat. Technol. 2010, 204, 1661–1684. [Google Scholar] [CrossRef]
  23. Wang, X.; Mi, W.; Chen, G.; Chen, X.; Yang, B. Surface morphology, structure, magnetic and electrical transport properties of reactive sputtered polycrystalline Ti1−xFexN films. Appl. Surf. Sci. 2012, 258, 4764–4769. [Google Scholar] [CrossRef]
  24. Lattemann, M.; Ulrich, S.; Ye, J. New approach in depositing thick, layered cubic boron nitride coatings by oxygen addition—structural and compositional analysis. Thin Solid Films 2006, 515, 1058–1062. [Google Scholar] [CrossRef]
  25. Kay, E. Microstructure of sputtered metal films grown in high- and low-pressure discharges. J. Vac. Sci. Technol. A 1988, 6, 3074–3081. [Google Scholar] [CrossRef]
  26. Sarakinos, K. A review on morphological evolution of thin metal films on weakly-interacting substrates. Thin Solid Films 2019, 688, 137312. [Google Scholar] [CrossRef]
  27. Harper, J.M.; Cuomo, J.J.; Gambino, R.J.; Kaufman, H.R. Modification of thin film properties by ion bombardment during deposition. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 1985, 7–8, 886–892. [Google Scholar] [CrossRef]
  28. Zhang, X.W.; You, J.B.; Chen, N.F. Recent advances in synthesis and properties of cubic boron nitride films. J. Inorg. Mater. 2007, 22, 385–390. [Google Scholar]
  29. Banko, L.; Lysogorskiy, Y.; Grochla, D.; Naujoks, D.; Drautz, R.; Ludwig, A. Predicting structure zone diagrams for thin film synthesis by generative machine learning. Commun. Mater. 2020, 1, 1–10. [Google Scholar] [CrossRef] [Green Version]
  30. Noraas, R.; Somanath, N.; Giering, M.; Olusegun, O.O. Structural Material Property Tailoring Using Deep Neural Networks. In Proceedings of the 2019 AIAA Science and Technology Forum and Exposition (SciTech), San Diego, CA, USA, 7–11 January 2019. [Google Scholar]
  31. Srolovitz, D.; Anderson, M.; Grest, G.; Sahni, P. Grain growth in two dimensions. Scr. Met. 1983, 17, 241–246. [Google Scholar] [CrossRef]
  32. Wang, P.; He, W.; Mauer, G.; Mücke, R.; Vaßen, R. Monte Carlo simulation of column growth in plasma spray physical vapor deposition process. Surf. Coat. Technol. 2018, 335, 188–197. [Google Scholar] [CrossRef]
  33. Nita, F.; Mastail, C.; Abadias, G. Three-dimensional kinetic Monte Carlo simulations of cubic transition metal nitride thin film growth. Phys. Rev. B 2016, 93, 064107. [Google Scholar] [CrossRef]
  34. Müller, K. Stress and microstructure of sputter-deposited thin films: Molecular dynamics investigations. J. Appl. Phys. 1987, 62, 1796–1799. [Google Scholar] [CrossRef]
  35. Wendler, F.; Mennerich, C.; Nestler, B. A phase-field model for polycrystalline thin film growth. J. Cryst. Growth 2011, 327, 189–201. [Google Scholar] [CrossRef]
  36. Yang, S.; Zhong, J.; Chen, M.; Zhang, L. A Parametric Three-Dimensional Phase-Field Study of the Physical Vapor Deposition Process of Metal Thin Films Aiming at Quantitative Simulations. Coatings 2019, 9, 607. [Google Scholar] [CrossRef] [Green Version]
  37. Chen, L.Q.; Yang, W. Computer simulation of the domain dynamics of a quenched system with large number of non-conserved order parameters: The grain-growth kinetics. Phys. Rev. 1994, 50, 52–57. [Google Scholar] [CrossRef] [PubMed]
  38. Suwa, Y.; Saito, Y.; Onodera, H. Three-dimensional phase field simulation of the effect of anisotropy in grain-boundary mobility on growth kinetics and morphology of grain structure. Comput. Mater. Sci. 2007, 40, 40–50. [Google Scholar] [CrossRef]
  39. Elliott, C.M.; Zheng, S. On the cahn-hilliard equation. Arch. Ration. Mech. Anal. 1986, 96, 339–357. [Google Scholar] [CrossRef]
  40. Allen, S.M.; Cahn, J.W. A microscopic theory for antiphase boundary motion and its application to antiphase domain coarsening. Acta Met. 1979, 27, 1085–1095. [Google Scholar] [CrossRef]
  41. Warren, J.A.; Kobayashi, R.; Lobkovsky, A.E.; Carter, W.C. Extending phase field models of solidification to polycrystalline materials. Acta Mater. 2003, 51, 6035–6058. [Google Scholar] [CrossRef]
  42. Qiang, F.; Wang, Q.; Cheng, Z.R. Three-dimensional simulation of wheel topography. Key Eng. Mater. 2011, 487, 149–154. [Google Scholar]
  43. Ren, X.Q. Research on Coating Preparation and Processing Characteristics of CBN Honing Gear. Ph.D. Thesis, Ningxia University, Yinchuan, China, 2018. [Google Scholar]
  44. Ding, W.-F.; Xu, J.-H.; Chen, Z.-Z.; Su, H.-H.; Fu, Y.-C. Wear behavior and mechanism of single-layer brazed CBN abrasive wheels during creep-feed grinding cast nickel-based superalloy. Int. J. Adv. Manuf. Technol. 2010, 51, 541–550. [Google Scholar] [CrossRef]
  45. Kuriyagawa, T.; Nishihara, K.; Guo, Y.B.; Syoji, K.; Suzuki, S. Improvement of Machined Surface Quality in Ultra-Precision Plane Honing. Key Eng. Mater. 2003, 238-239, 137–142. [Google Scholar]
  46. Xu, F.; Zuo, D.W.; Zhang, X.H.; Hu, H.F.; Zhang, C.; Wang, M. Research Progress on Cubic Boron Nitride Film for Tool Coating. Bull. Chin. Ceram. Soc. 2012, 31, 295–300. [Google Scholar]
  47. Yoshida, T. Vapour phase deposition of cubic boron nitride. Diam. Relat. Mater. 1996, 5, 501–507. [Google Scholar] [CrossRef]
  48. Guillén-González, F.; Tierra, G. Second order schemes and time-step adaptivity for Allen–Cahn and Cahn–Hilliard models. Comput. Math. Appl. 2014, 68, 821–846. [Google Scholar] [CrossRef]
  49. Wang, S.-L.; Sekerka, R.F.; Wheeler, A.A.; Murray, B.T.; Coriell, S.R.; Braun, R.J.; McFadden, G.B. Thermodynamically-consistent phase-field models for solidification. Phys. D Nonlinear Phenom. 1993, 69, 189–200. [Google Scholar] [CrossRef]
  50. Keblinski, P.; Maritan, A.; Toigo, F.; Messier, R.; Banavar, J.R. Continuum model for the growth of interfaces. Phys. Rev. E 1996, 53, 759–778. [Google Scholar] [CrossRef] [PubMed]
  51. Lobkovsky, E.; Warren, J.A. Phase-field model of crystal grains. J. Cryst. Growth 2001, 225, 282–288. [Google Scholar] [CrossRef]

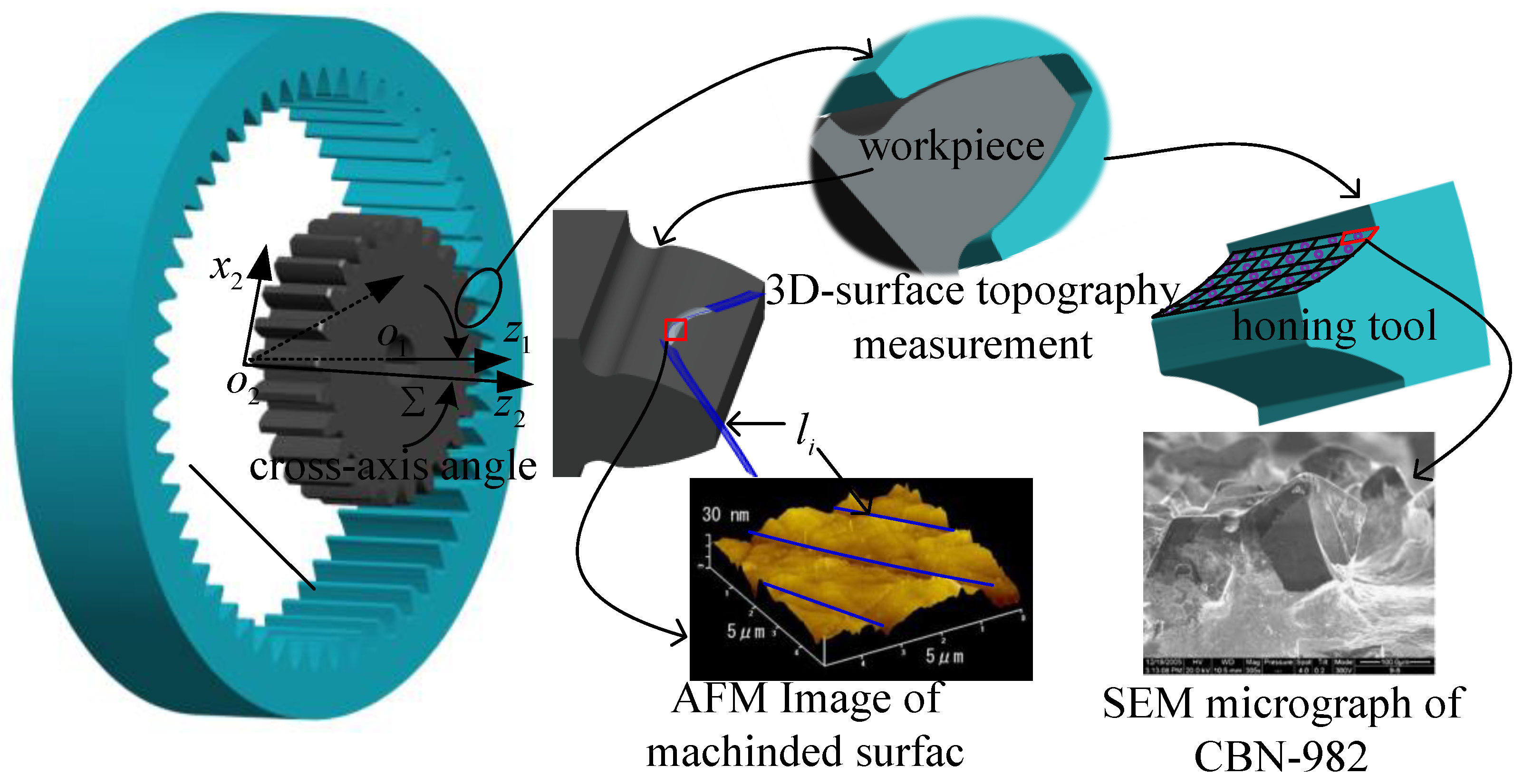

Figure 1. Micromorphology of the honing wheel workpiece tooth surface.
Figure 1. Micromorphology of the honing wheel workpiece tooth surface.
Coatings 11 00540 g001

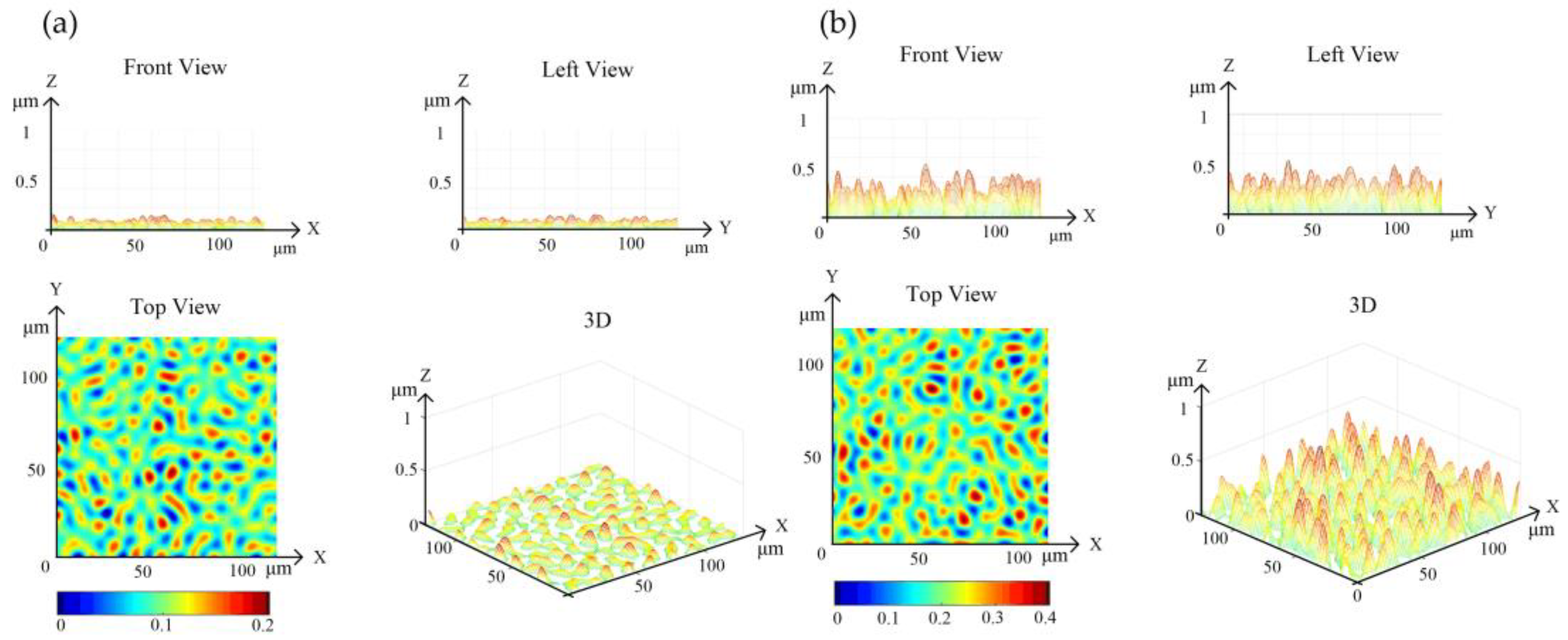

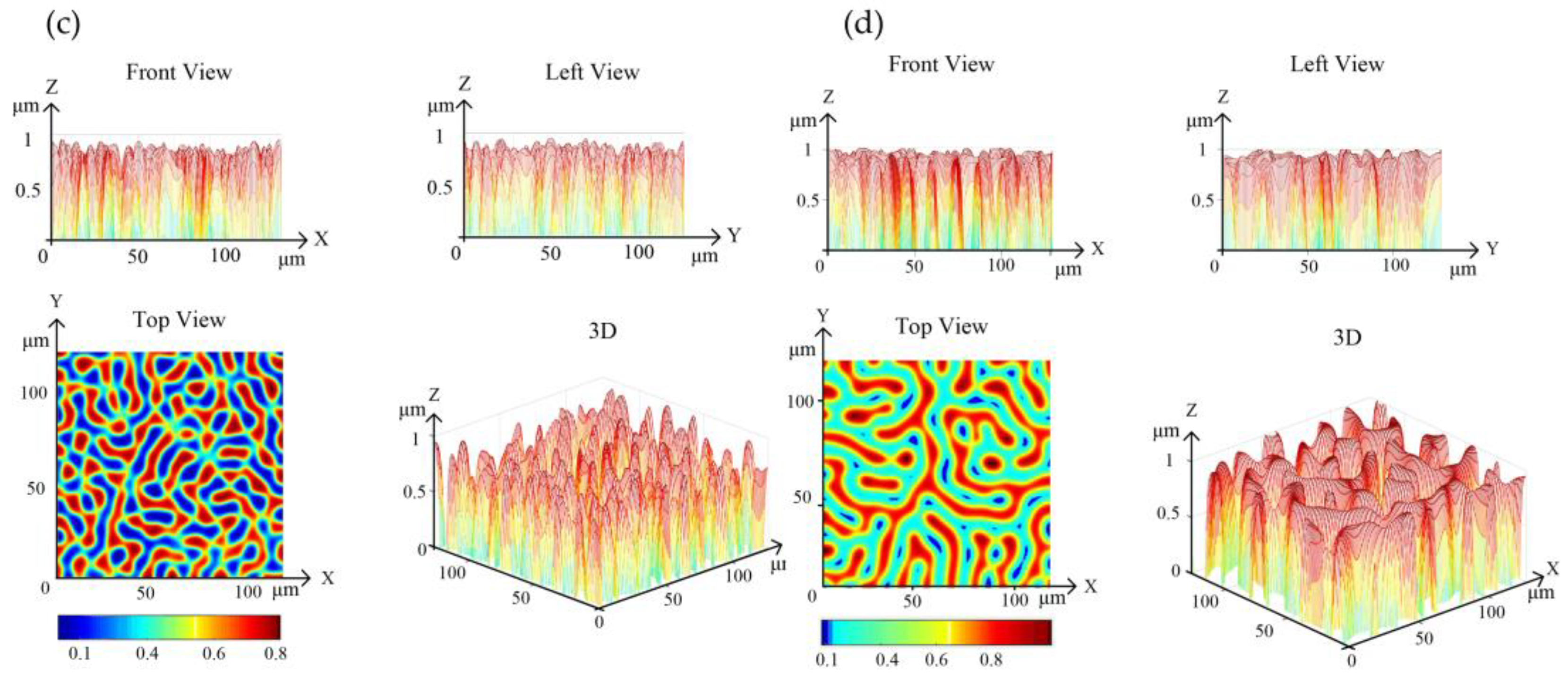

Figure 2. Micrograph and abrasives energy diagram. (a) t = 30 min, (b) t = 60 min, (c) t = 120 min, and (d) t = 240 min.
Figure 2. Micrograph and abrasives energy diagram. (a) t = 30 min, (b) t = 60 min, (c) t = 120 min, and (d) t = 240 min.
Coatings 11 00540 g002aCoatings 11 00540 g002b

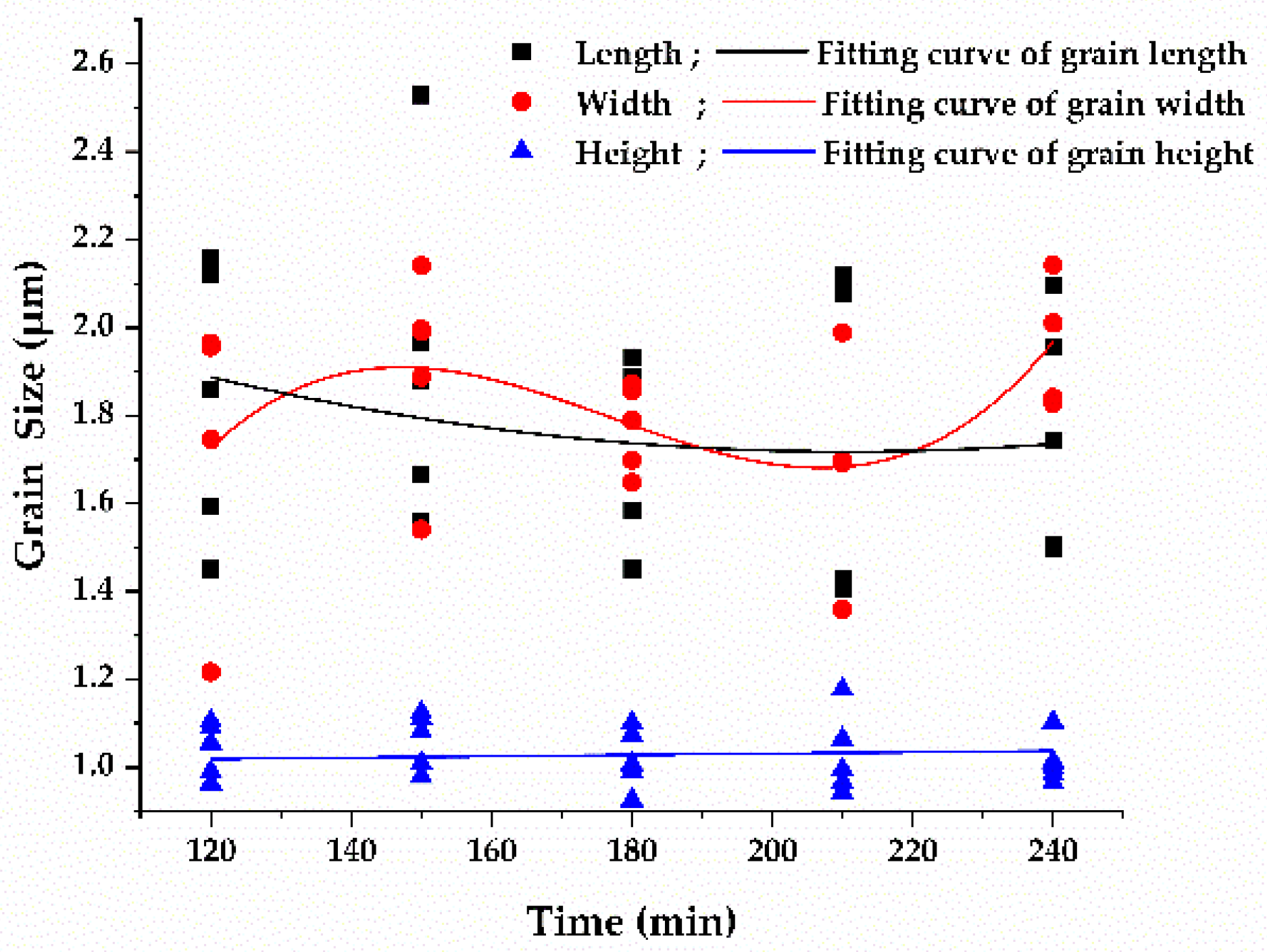

Figure 3. Effect of sputtering time on active abrasive size.
Figure 3. Effect of sputtering time on active abrasive size.
Coatings 11 00540 g003

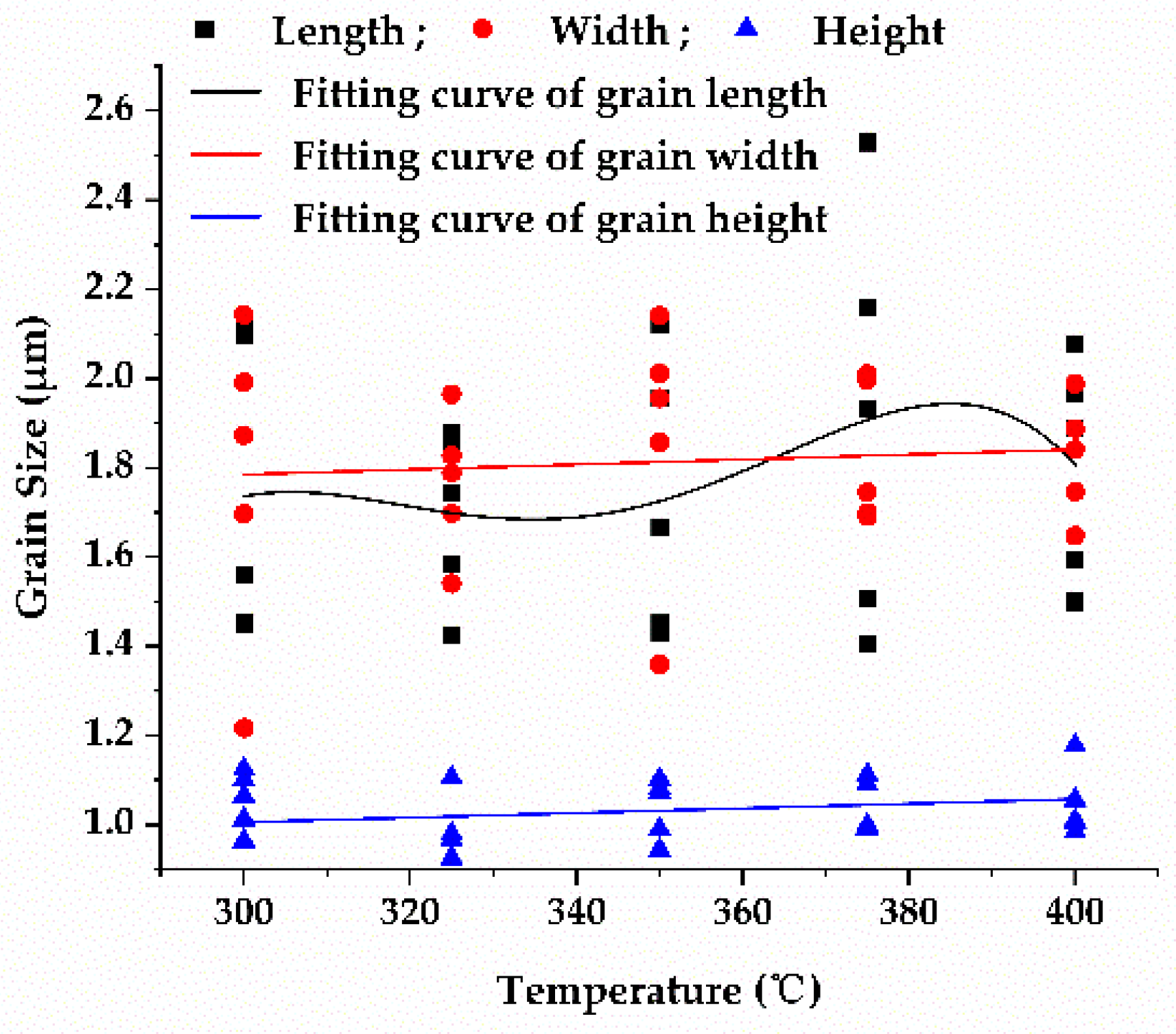

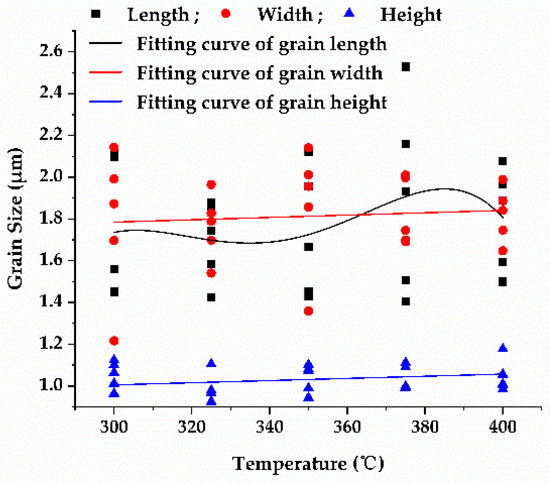

Figure 4. Effect of substrate temperature on active grain size.
Figure 4. Effect of substrate temperature on active grain size.
Coatings 11 00540 g004

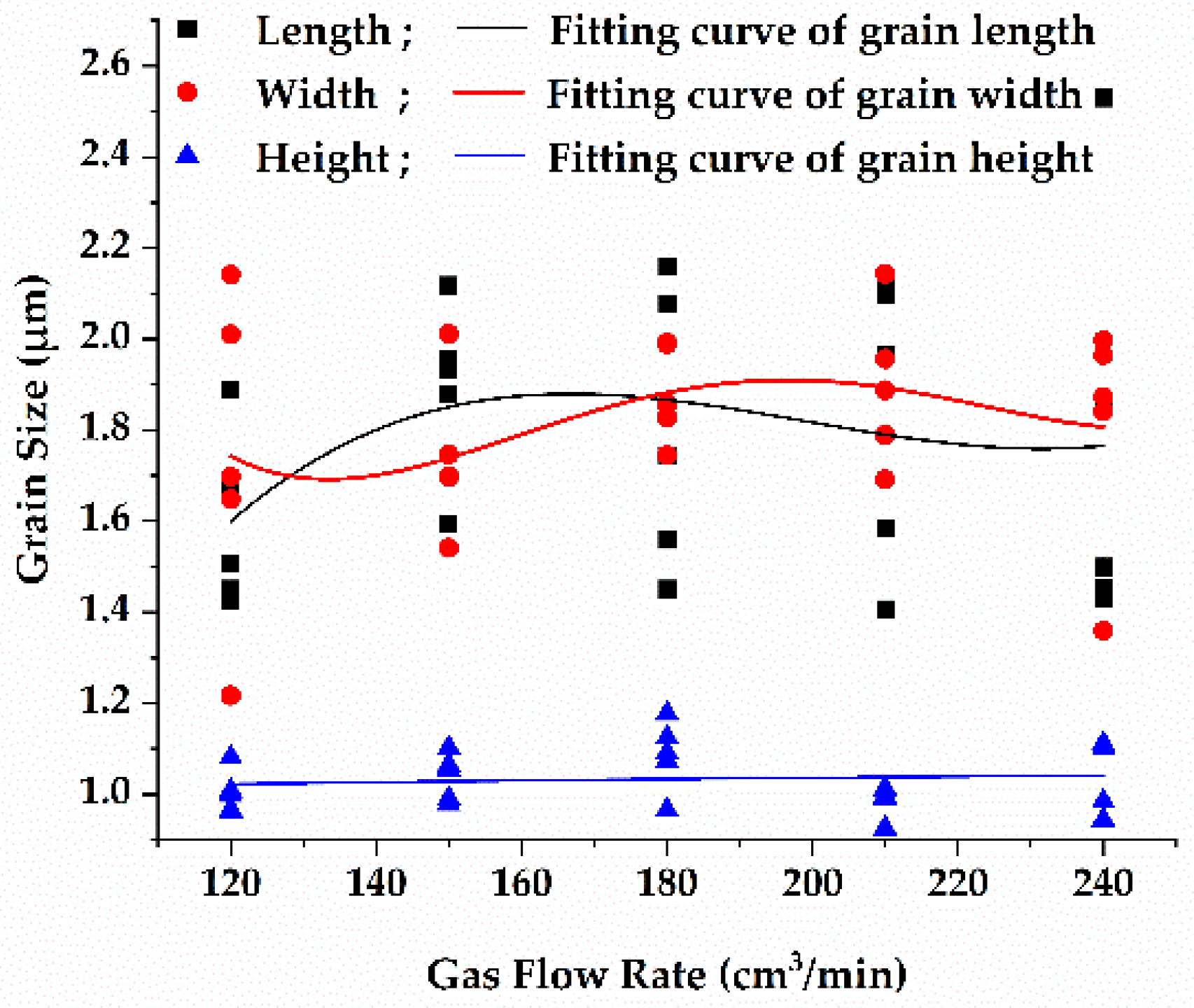

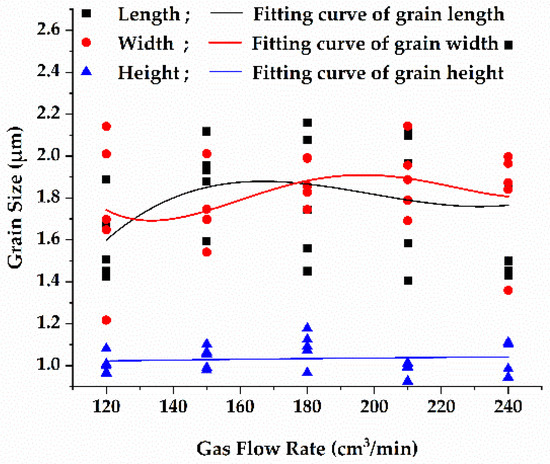

Figure 5. Effect of gas flow rate on active grain size.
Figure 5. Effect of gas flow rate on active grain size.
Coatings 11 00540 g005

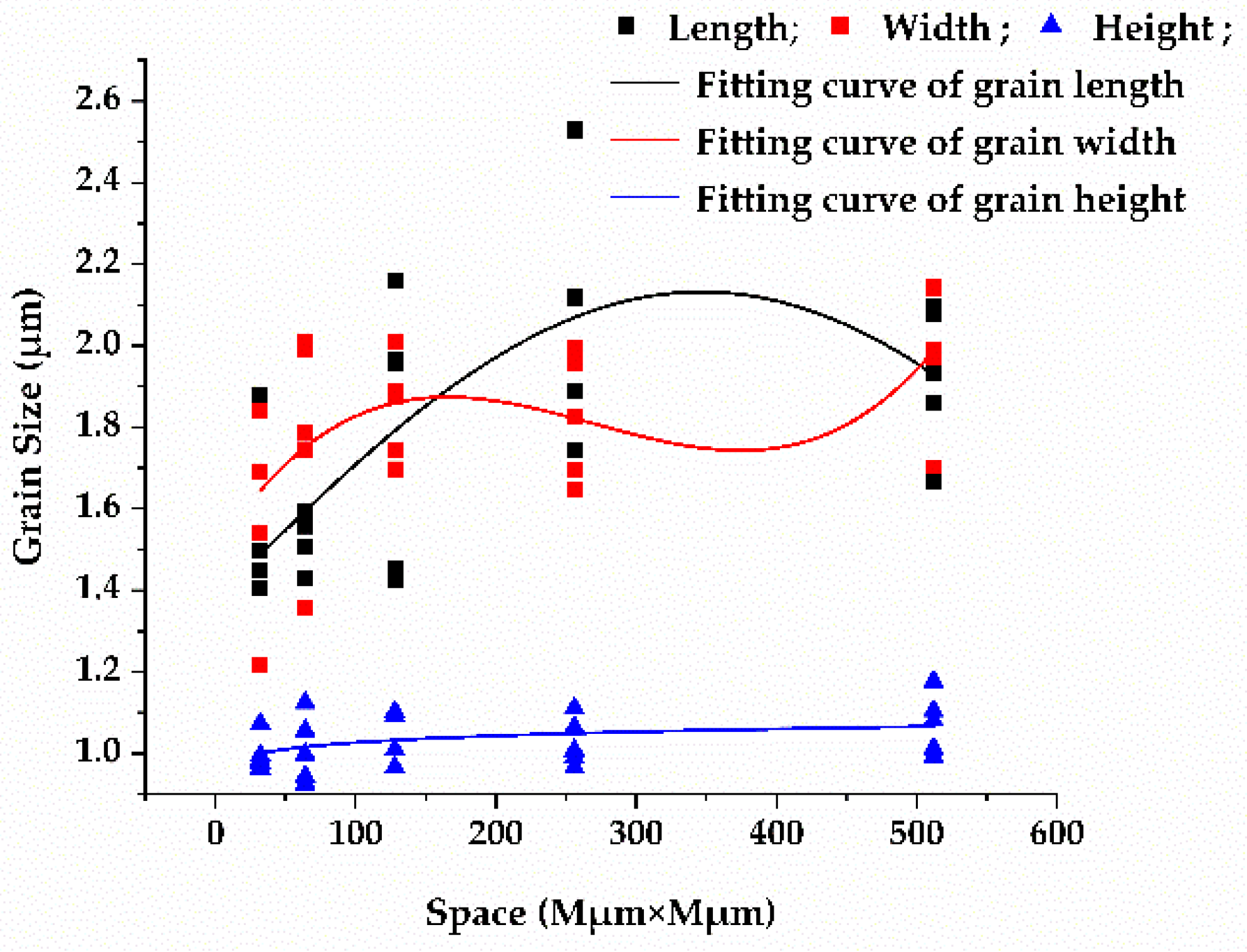

Figure 6. Effect of reaction space on grain size.
Figure 6. Effect of reaction space on grain size.
Coatings 11 00540 g006

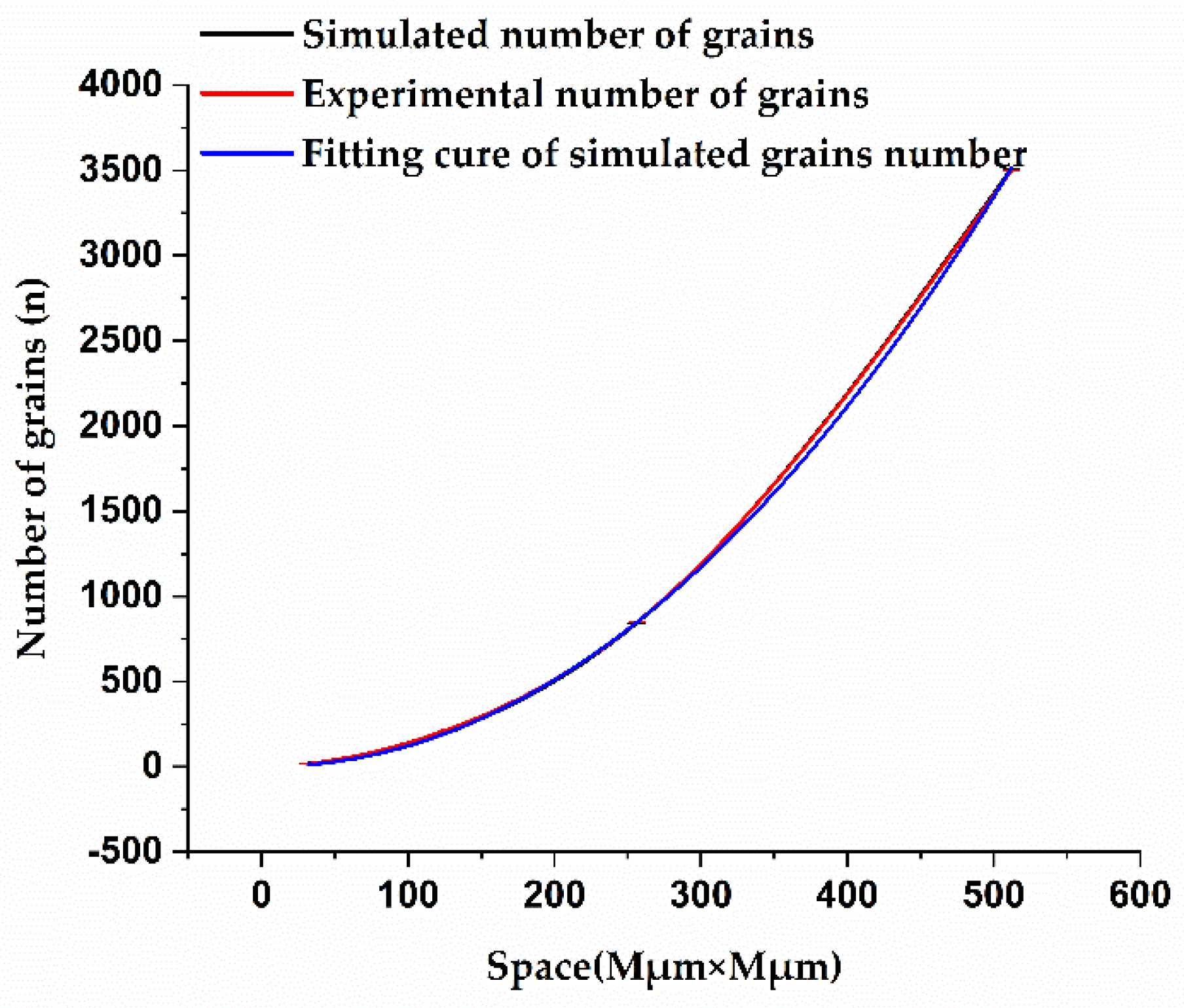

Figure 7. Effect of reaction space on number of active grains.
Figure 7. Effect of reaction space on number of active grains.
Coatings 11 00540 g007

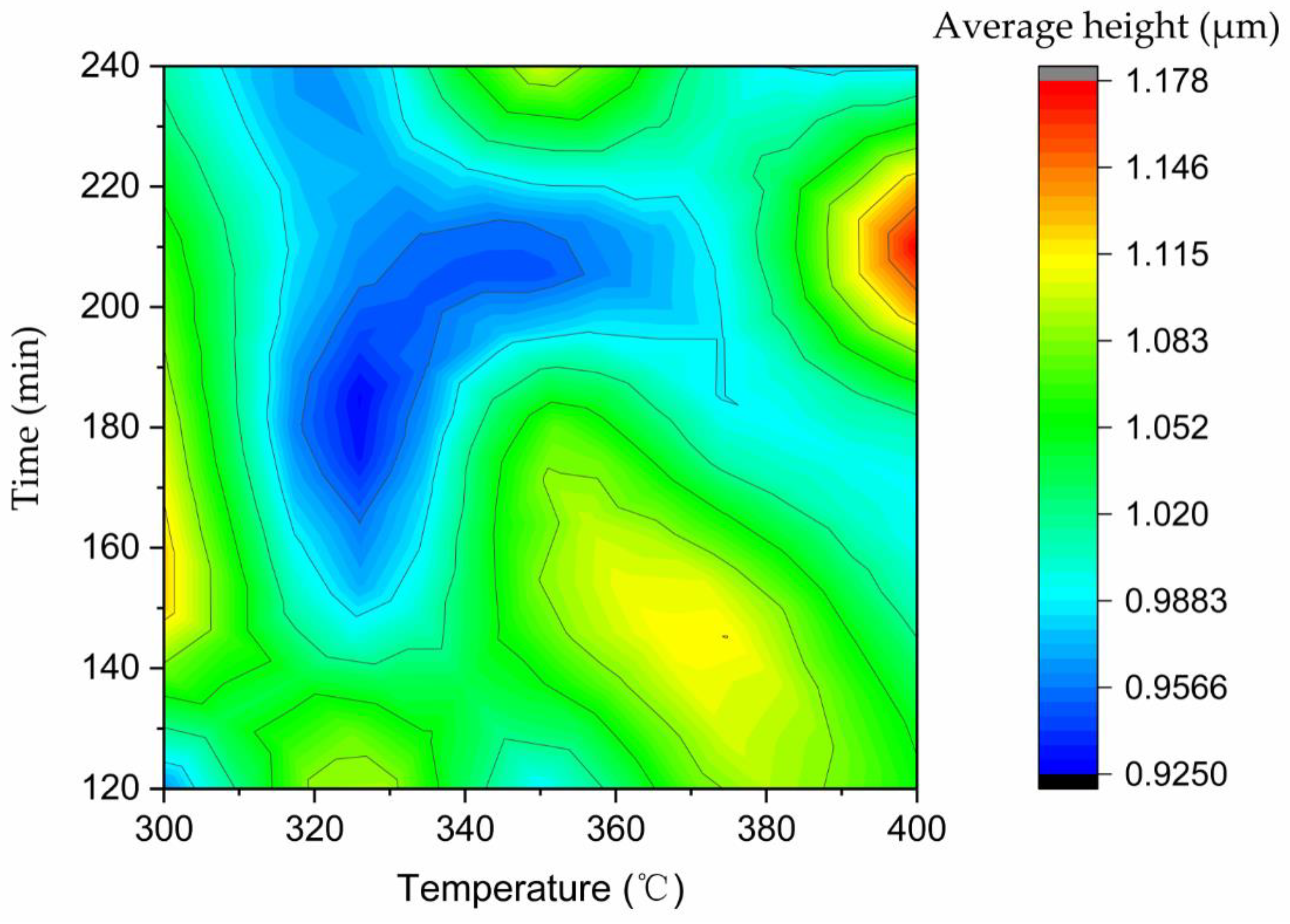

Figure 8. Effect of temperature and time on average height of active grains.
Figure 8. Effect of temperature and time on average height of active grains.
Coatings 11 00540 g008

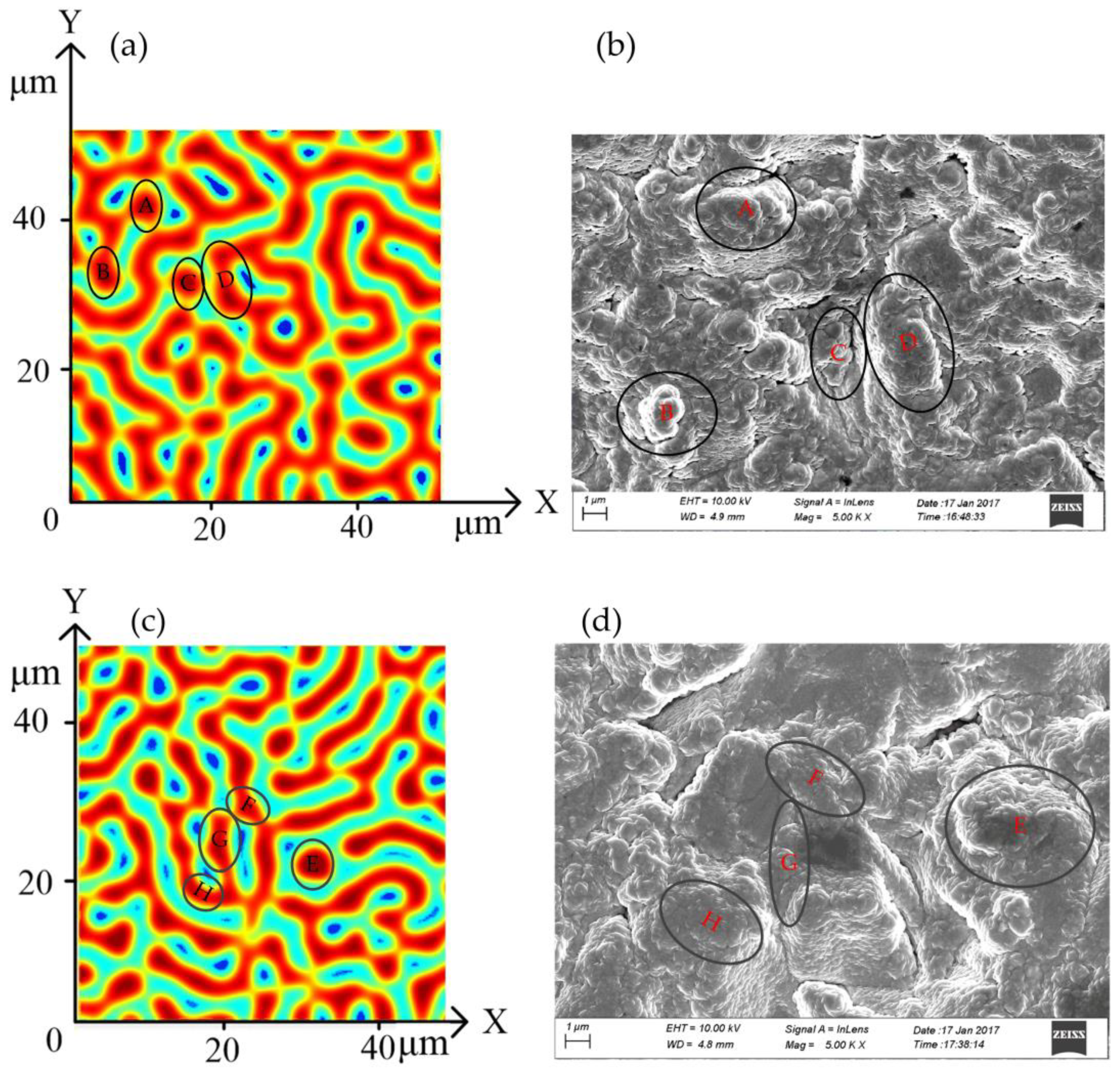

Figure 9. Top view of simulated and experimental microtopography. (a,c) Top view of simulation, and (b,d) top view of SEM.
Figure 9. Top view of simulated and experimental microtopography. (a,c) Top view of simulation, and (b,d) top view of SEM.
Coatings 11 00540 g009

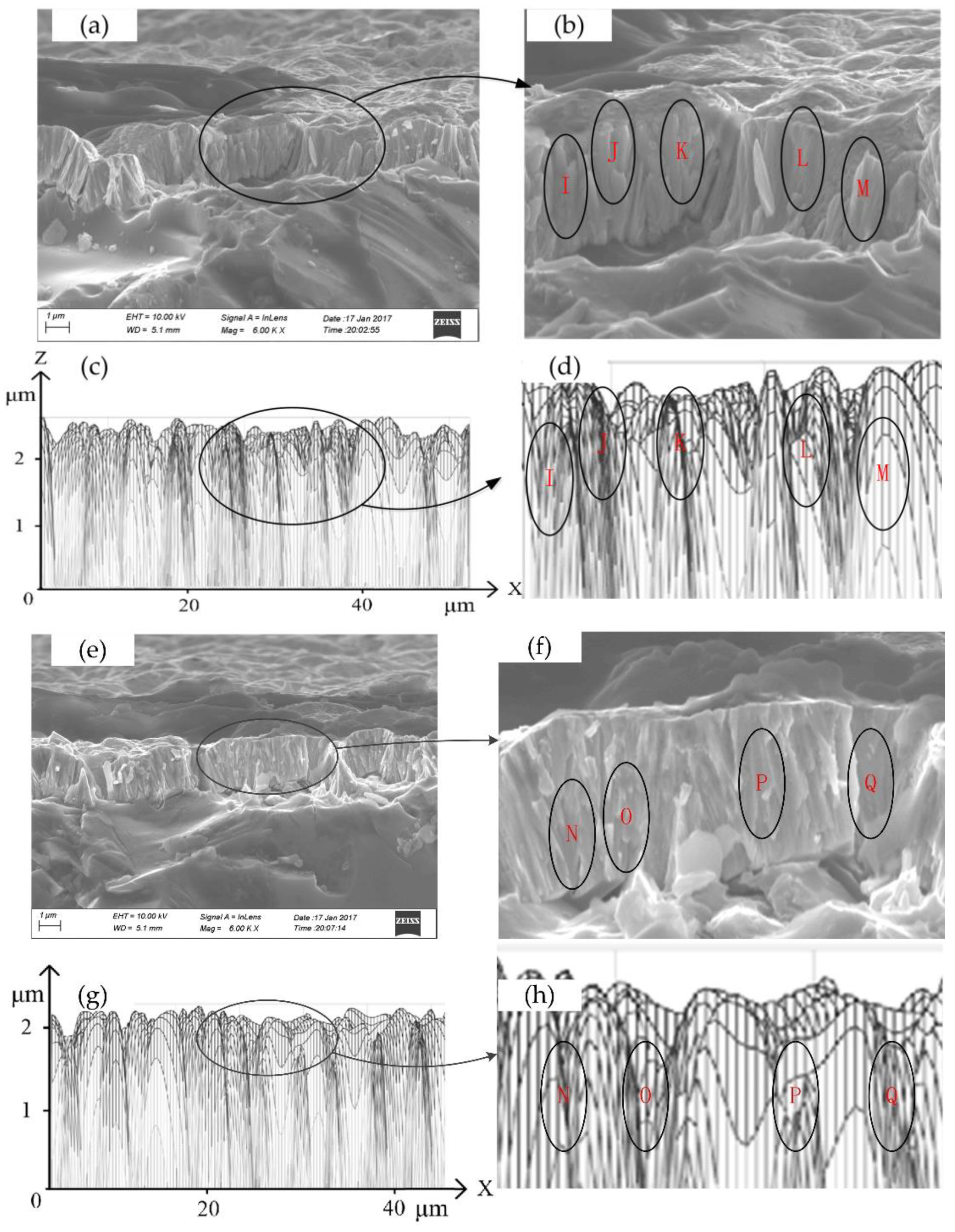

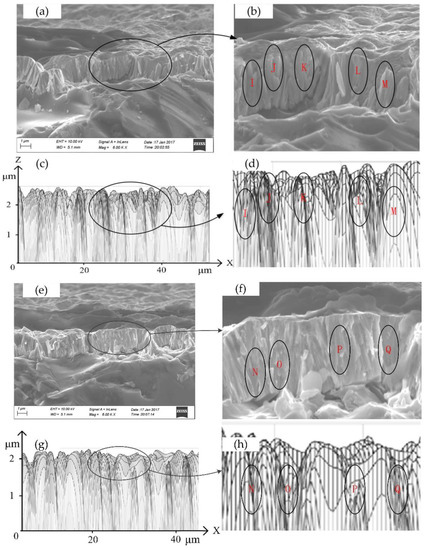

Figure 10. Simulated and experimental real topography. (a) Cross-section of experimental real topography, (c) cross-section of simulation, (b) a local enlarged view of (a), (d) a local enlarged view of (c), (e) cross-section of experimental real topography, (g) cross-section of simulation, (f) a local enlarged view of (e); (h) a local enlarged view of (g).
Figure 10. Simulated and experimental real topography. (a) Cross-section of experimental real topography, (c) cross-section of simulation, (b) a local enlarged view of (a), (d) a local enlarged view of (c), (e) cross-section of experimental real topography, (g) cross-section of simulation, (f) a local enlarged view of (e); (h) a local enlarged view of (g).
Coatings 11 00540 g010

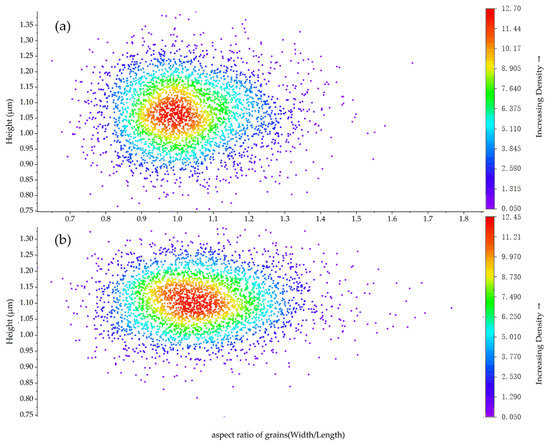

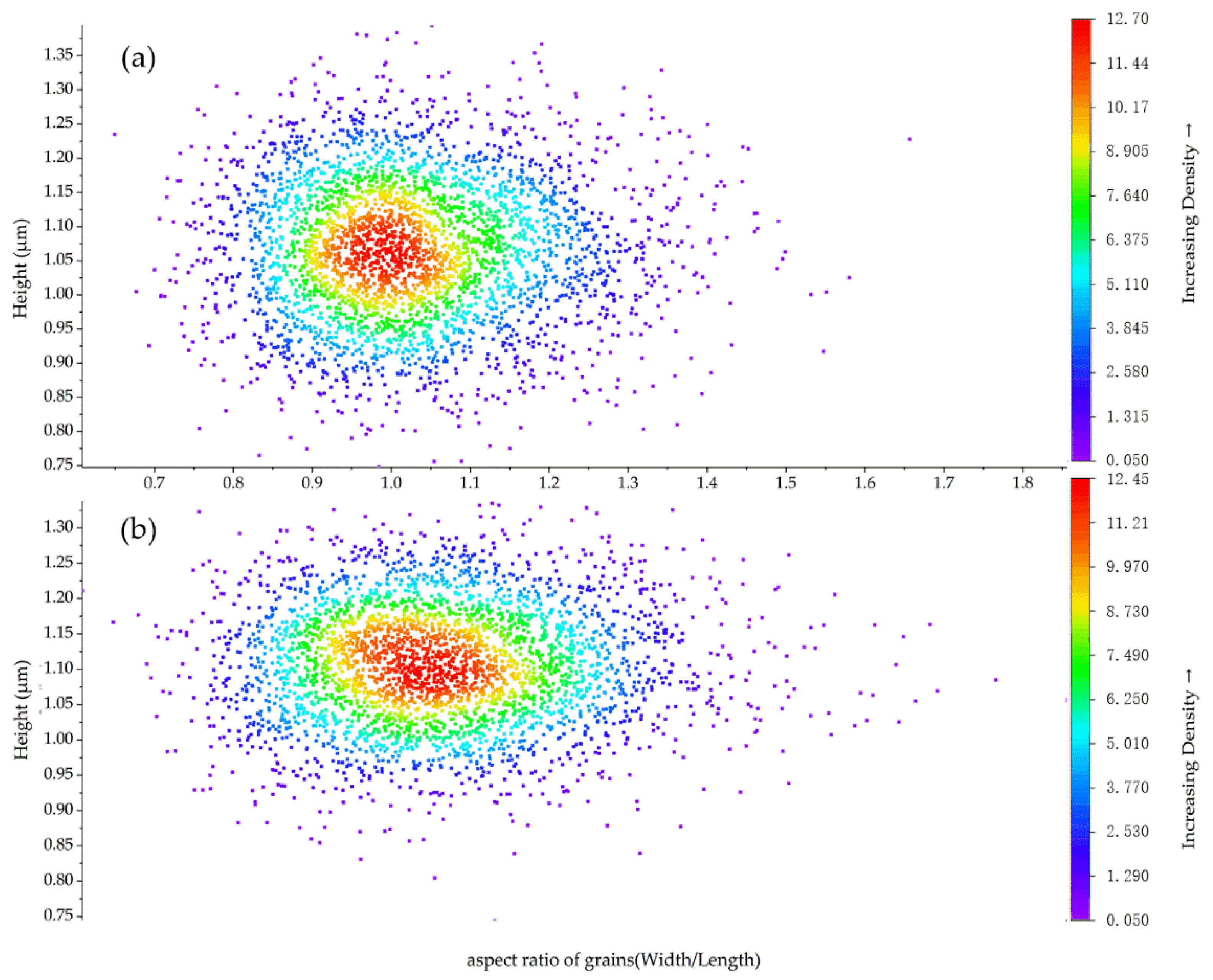

Figure 11. Distribution of grain size. (a) Distribution of 3505 active abrasive grains size in simulation; (b) Distribution of 3632 active abrasive grains size in experiment.
Figure 11. Distribution of grain size. (a) Distribution of 3505 active abrasive grains size in simulation; (b) Distribution of 3632 active abrasive grains size in experiment.
Coatings 11 00540 g011
Table 1. Dimensionless parameters of CBN film growing process.
Table 1. Dimensionless parameters of CBN film growing process.
ParameterABCDg0
Value0.5102.50.011
Table 2. Taguchi L25(54): array design.
Table 2. Taguchi L25(54): array design.
Exp.
No.
Process ParametersAbrasive Morphology Parameters
P1P2P3P4Q1Q2Q3
(μm)(°C)(min)(cm3/min)(n)(μm)Q31(μm)Q32(μm)Q33(μm)Q34
1323001201201914.190.96361.2171.45150.8384
2323251501501615.230.9791.5411.88050.8195
3323501801802015.441.07311.8571.45151.2794
4323752102101813.970.99551.6911.40751.2014
5324002402401915.030.98481.8411.49951.2277
6643001501803916.231.1241.9921.5581.2786
7643251802106313.460.92541.7891.58451.1291
8643502102405713.220.9441.3591.42950.9507
9643752401206613.970.99842.011.5081.3329
10644001201505514.671.0561.7461.59251.0964
1112830018024021216.241.10091.8731.45251.2895
1212832521012019717.070.96641.6981.4241.1924
1312835024015020415.911.10212.0111.95751.0273
1412837512018020713.991.09121.7452.1590.8082
1512840015021022114.781.00931.8881.9680.9593
1625630021015081514.731.06431.6972.1180.8012
1725632524018083416.480.96521.8281.74351.0485
1825635012021085815.980.99011.9562.1210.9222
1925637515024084714.571.11081.9972.52950.7895
2025640018012085815.011.00761.6481.89050.8717
21512300240210354113.921.01262.1432.0981.0214
22512325120240350514.761.10491.9651.8611.0559
23512350150120349315.231.08082.1411.66551.2855
24512375180150352115.920.99081.6991.93350.8787
25512400210180349816.031.17721.9892.07850.9569
Table 3. Experimental parameters.
Table 3. Experimental parameters.
Reaction SpaceSubstrate TemperatureSputtering TimeAr Flow RateN2 Flow FateSputtering Power
48 μm × 48 μm350 °C120 min150 cm3/min30 cm3/min350 W/300 W
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gao, Y.; Ren, X.; Han, J.; Wang, F.; Liang, Y.; Liu, L. Simulation to Microtopography Formation of CBN Active Abrasives on a Honing Wheel Surface. Coatings 2021, 11, 540. https://doi.org/10.3390/coatings11050540

AMA Style

Gao Y, Ren X, Han J, Wang F, Liang Y, Liu L. Simulation to Microtopography Formation of CBN Active Abrasives on a Honing Wheel Surface. Coatings. 2021; 11(5):540. https://doi.org/10.3390/coatings11050540

Chicago/Turabian Style

Gao, Yang, Xiaoqiang Ren, Jiang Han, Fuwei Wang, Yuan Liang, and Lin Liu. 2021. "Simulation to Microtopography Formation of CBN Active Abrasives on a Honing Wheel Surface" Coatings 11, no. 5: 540. https://doi.org/10.3390/coatings11050540

APA Style

Gao, Y., Ren, X., Han, J., Wang, F., Liang, Y., & Liu, L. (2021). Simulation to Microtopography Formation of CBN Active Abrasives on a Honing Wheel Surface. Coatings, 11(5), 540. https://doi.org/10.3390/coatings11050540

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
