Application of Chitosan-Lignosulfonate Composite Coating Film in Grape Preservation and Study on the Difference in Metabolites in Fruit Wine

by
Boran Hu
1,*,
Lan Lin
1,
Yujie Fang
1,
Min Zhou
1 and
Xiaoyan Zhou
1,2,*
1
School of Food Science and Engineering, Yangzhou University, Yangzhou 225127, China
2
Key Laboratory of Chinese Cuisine Intangible Cultural Heritage Technology Inheritance, Ministry of Culture and Tourism, Yangzhou 225127, China
*
Authors to whom correspondence should be addressed.
Coatings 2022, 12(4), 494; https://doi.org/10.3390/coatings12040494
Submission received: 28 February 2022 / Revised: 28 March 2022 / Accepted: 30 March 2022 / Published: 7 April 2022
(This article belongs to the Special Issue Coatings on Food Packaging and Shelf Life)
Browse Figures
Review Reports Versions Notes

Abstract

:
In order to solve the global problem of fruit rotting due to microbial infection and water loss after harvest, which leads to a large amount of food waste, this experiment uses degradable biological composite coating to prolong the preservation period of grapes. Chitosan (CH) and Lignosulfonate (LS) were used as Bio-based film materials, CH films, 1% CH/LS films and 2% CH/LS biomass composite films were synthesized by the classical casting method and applied to grape preservation packaging. Its preservation effect was tested by grape spoilage rate, water loss rate, hardness, soluble solids, titratable acid, and compared with plastic packaging material PE film. At the same time, 1H NMR technology combined with pattern recognition analysis (PCA) and partial least squares discriminant analysis (PLS-DA) was used to determine the nuclear magnetic resonance (NMR) of Cabernet Sauvignon, Chardonnay and Italian Riesling wines from the eastern foothills of Helan Mountain to explore the differences in metabolites of wine. The results of preservation showed that the grapes quality of CH films and 2% CH/LS coating package is better than the control group, the decay rates decreased from 37.71% to 21.63% and 18.36%, respectively, the hardness increased from 6.83 to 10.4 and 12.78 and the soluble solids increased from 2.1 in the control group to 3.0 and 3.2. In terms of wine metabolites, there are similar types of metabolites between cabernet Sauvignon dry red wine and Chardonnay and Italian Riesling dry white wine, but there are significant differences in content. The study found that 2% CH/LS coating package could not only reduce the spoilage rate of grapes, inhibit the consumption of soluble solids and titratable acids, but also effectively extend the shelf life of grapes by 6 days.

1. Introduction

Grapes are fresh and juicy, bright in color, sweet and sour and rich in nutritional value [1]. However, because they are harvested in the high-temperature season, the fruit stem is a typical respiratory climacteric type [2], the physiological metabolism is vigorous after harvest, and the fruit tissue is crisp and tender. During storage, it is very prone to water loss, stem withering, browning and easily infected by bacteria and rot, resulting in a short storage cycle, which seriously affects the appearance quality and commodity value of fresh grapes, causing huge economic losses and food waste. At present, the preservation measures of grapes at home and abroad mainly use sulfur dioxide (SO2) preservatives, coating preservation, low-temperature refrigeration and other technologies to prolong the storage period of grapes [3]. Although SO2 has a good effect on maintaining the quality of grapes, it is easy to cause certain bleaching damage to the fruit, affect the original flavor, and the SO2 remaining in the fruit will be harmful to human health [4]. Packaged food preservation is one of the effective solutions. However, the packaging material commonly used in the preservation process is plastic; for example, PE, PS, or PET [5]. Chitosan is a kind of natural edible macromolecular polysaccharide that is non-toxic, has no smell, with good film forming characteristics [6,7]. After coating treatment, a colorless and transparent biological film is formed on the grape surface, which can prevent water loss and reduce the rate of weight loss in the fruit. It can also effectively prevent microbial invasion, reduce the respiratory intensity of the fruit [8,9,10] to a certain extent, and reduce the decay of the fruit, thus prolonging its storage time [11]. However, the coating effect of single chitosan is not stable [12], the drying time is long, the water permeability is high, and the coating toughness is poor. Sodium lignosulfonate is an anionic polymer surfactant extracted from papermaking waste liquor [13]. Because of its similar structure to lignin, it is often used as a bio-based polymer material [14]. LS has a good function but cannot form a film by itself. We tried adding LS to CH to make films suitable for fruit preservation, because the use of bio-based materials for packaging can not only be used as cheap packaging for fresh fruits and vegetables, but also reduce the pollution of plastic packaging to the environment. It achieves the requirements of highly efficient anticorrosion, low carbon and environmental protection.
Wine is fresh grapes or grape juice as raw materials, through all or part of the fermentation brewing, containing a certain degree of alcohol fermented wine [15]. It is not only a nutritious beverage, but moderate drinking can prevent various chronic diseases and enhance human health [16,17,18]. Fresh grapes are the key raw materials for wine brewing, and the style of wine is closely related to the variety of wine grapes, the climate of the place of origin, soil conditions and the distinctive brewing processes, making the wines produced in different producing areas have different flavors [19]. The eastern foot of Helan Mountain in Ningxia is located in the “golden” area of grape planting at 30 to 40 latitudes from north to south. The superior geographical location, unique landform features, suitable soil and climate conditions mean that wine grapes in the eastern foot of Helan Mountain in Ningxia fully possess excellent brewing characteristics.
With the rapid development of the world economy and the improvement of people’s quality of life, the wine industry has developed rapidly and has become an increasingly popular product for consumers [20], but the consumer’s ability to distinguish is limited. Usually, physical and chemical indexes and sensory evaluation are used to identify the quality of wine grapes and wine, but it is difficult to reflect various metabolites in wine grapes and wine that affect their quality and are beneficial to human health through these indicators [21]. In studies on wine metabolites, a “metabolic fingerprint” is generally provided based on 1H-NMR technology [22,23]. Gregory et al. [24] used NMR to analyze and study metabolites in French red wine in the region of Bordeaux, so as to better distinguish red wine of Bordeaux from other red wines produced in French wine regions. In chemometrics, pattern recognition is the main method used to solve the attribution problem and marker search in complex systems, among which PLS-DA is the most important pattern recognition method applied in metabonomics. It is widely used in plant, drug metabolomics and food source determination and classification research [25]. Godelmann R. et al. [26] used nuclear magnetic resonance technology combined with multivariate statistics and principal component analysis to analyze and study the target compounds and non-target compounds of wine metabolites, and the results showed that the accuracy of variety identification reached 95%, the accuracy of age identification reached 97% and 96%, respectively, and the accuracy of origin identification reached 89%. All these results showed that 1H-NMR combined with multivariate analysis was an extraordinary effective method to identify different wine varieties and region.
This paper investigated the preparation method of separate 2% chitosan film (CH), chitosan—1% sodium lignosulfonate film (1% CH/LS) and chitosan—2% sodium lignosulfonate film (2% CH/LS), and the film forming properties of the three films were studied. The preservation effect of 2% CH/LS film on grape berry was then studied further and compared with PE film (Control) and Chitosan film (CH). The differences in metabolites in Cabernet Sauvignon, Chardonnay and Italian Riesling wines at the eastern foot of Helan Mountain in Ningxia were also studied to determine the biomarkers that contribute to the differences, so as to provide the cornerstone for wine quality control, variety identification and protection, Additionally, we also provide a scientific theoretical basis for consumers to choose high quality wine.

2. Materials and Methods

2.1. Reagents and Equipment

Chitosan(C6H11NO4, Average molecular weight (MW): 150 kDa; Degree of deacetylation ≥ 90%) were purchased from Shanghai Lanji Biological Technology Co., Ltd. (Shanghai, China); Sodium-Lignosulfonate (Content ≥ 98%) were purchased from Hefei BOSF Biotechnology Co., Ltd. (Hefei, China); Ascorbic acid (Vc) was obtained from Sinopharm Group Chemical Reagent Co., Ltd. (Shanghai, China); Oxalic acid, Sodium oxalate were produced by Su Yi Chemical Reagent Co., Ltd., Shanghai, China; DSS was produced by Qingdao Tenglong Microwave Technology Co., Ltd. (Qingdao, China); Heavy water (D2O deuterium degree > 99.9%) is from Tenglong Weibo Technology Co., Ltd., Qingdao, China.
SNL315SV-230 Freeze dryer was produced by Termo Co., Ltd., Waltham, MA, USA; AVANCE 600 Nuclear magnetic resonance spectrometer was supplied by Bruker Co., Ltd., Karlsruhe, German; TG16A-WS Desktop high-speed centrifuge was produced by Lu Xiangyi Centrifuge Instrument Co., Ltd., Shanghai, China; BS-224 Electronic balance was produced by Eppendorf Co., Ltd., Hamburg, German; ULT178-6-V49 Ultra low temperature freezer was supplied by Revco Co., Ltd., Waltham, MA, USA; RE52-4 Rotary evaporator was produced by Huxi Analysis Instrument Co., Ltd., Shanghai, China; XW-80A Swirl mixer was supplied by Huxi Analysis Instrument Co., Ltd., Shanghai, China.

2.2. Methods

2.2.1. Preparation Method CH/LS Bio-Composite Film

LS powder (1 g) was dissolved in 50 mL of distilled water at 5000 rpm for 15 min. CH powder (1 g) was dissolved in 50 mL of distilled water at 5000 rpm for 15 min at 25 °C. Then, VC (1 g) and chitosan was added at 5000 rpm for 15 min by stirring continuously. Finally, the CH/LS film-forming solutions were degassed to remove air bubbles [27]. The 20 mL CH/LS film-forming solution was cast on a 15 cm in diameter flat glass Petri dish (B-SLPYM90, BKMAM Biological Co., Ltd., Changsha, China) and dried in an oven at 35 °C for 24 h until the surface of CH/LS film remained certain firm and viscous. Finally, the CH/LS film was stored in a small desiccator at 50% relative humidity for 20 min at 25 °C. Peel the CH/LS film from the Petri dish for analysis. The prepared films were, respectively added with 0% LS + 2% CH, 1% LS + 2% CH, 2% LS + 2% CH, so they were named as CH/LS, 1% CH/LS, 2% CH/LS, respectively [28].

2.2.2. Determination Method of CH/LS Film on the Preservation Effect of Grape Berry

Seasonal fresh grapes (Cabernet Sauvignon variety, from Ningxia, China) were tested in research packaging material experiments. Grapes of similar size and quality were tightly wrapped with the CH/LS (2%) and CH (2%) films and incubated at a constant temperature of 18 °C in an incubator with relative humidity of 68% to observe the surface changes, compared with those wrapped in polyethylene (20 cm × 20 cm) [29].

2.2.3. Determination of Decay Rates

Decay rates refer to the ratio of the weight of rotten fruit to the total weight of treated fruit [30]. The main observations related to whether the appearance of the fruit is full, whether it has edible value, and whether it is corrupted bacterial infection and deterioration. The decay rates of grapes were then calculated according to Equation (1):
Decay rates (%) = number of rotten fruits (N)/total number of fruits (N0) × 100%

2.2.4. Hardness

The hardness was checked using a fruit hardness tester (GY-1, JC Group Co., Ltd., Qingdao, China). Before measurement, the hardness tester was placed perpendicular to the surface of the grapes (without breaking the skin), the indenter was pressed into the fruit evenly, and the reading indicated when the pointer stops moving was the hardness value of the fruit [31].

2.2.5. Weight Loss Rate

The weight loss rate was measured using the weighing method [32]. The weight of the fruit on the 0th to the 16th day was measured and the average value was taken to calculate the weight loss rate.
The formula for calculating the weight loss rate content is as Equation (2):
Weight loss rate (%) = fruit weight (m) g/fruit original weight (m0) g × 100% in a single measurement.

2.2.6. Soluble Solids

Soluble solids refer to sugars, acids, vitamins and minerals that are soluble in water in fruit juice. After the grapes were broken and homogenized, soluble solids were determined with a PAL-1 hand-held sugar calorimeter [33]; the unit was %. Each group was tested 3 times in parallel.

2.2.7. Titratable Acid Content

The content of titratable acid was determined by acid-base titration. First, 0.5 g of a grapes sample was weighed, ground thoroughly, and then transferred to a 100 mL volumetric flask, where distilled water was added to the mark and thixotropic. Then it was filtered with filter paper and we accurately drew 20 mL of the filtrate into a 100 mL conical flask and added 2 drops of 1% phenolphthalein indicator. Using calibrated 0.01 m mol/L sodium hydroxide to titrate to pH 8.0 as the end point, we recorded the sodium hydroxide consumption. We repeated this 3 times to obtain the average value [34]. The formula for calculating the titratable acid content is as follows:
Total acidity (%) = V × C × N × Conversion factor × 100/(W × V1)
  • V: The total volume of sample dilution (mL); V1: the volume of the sampling solution during titration (mL);
  • C: The number of milliliters of sodium hydroxide standard solution consumed;
  • N: The molar concentration of sodium hydroxide standard solution;
  • W: Sample weight (g);
  • Conversion factor: Tartaric acid—0.075.

2.3. Determination of Metabolites in Wine

The Wine Sample

The grapes and wines used in this experiment were provided by Ningxia (Yinchuan) Helan Mountain Grape Wine Co., Ltd. (Yinchuan, China) and all the single varieties of wine in 2020 were made by standard brewing techniques; the same brewer’s yeast (Lalvin CY 3079) was added during the brewing process for fermentation. The physical and chemical indicators of product quality are in compliance with the national standard GB15037-2006 [35]. The samples were stored at −4 °C for later use.

2.4. NMR Spectroscopic Analysis

2.4.1. Pre-Treatment of Wine Samples

After freeze-drying, the sample was treated with buffer solution: First, 10 mL of wine, was centrifuged at 4000 rpm for 10 min at −4 °C; 3 mL supernatant was then placed into a 20 mL lyophilized bottle and frozen overnight at −70 °C. After, it was then frozen in a freeze dryer for 48 h. Next, 400 μL of 0.2 mol/L oxalate buffer was added with pH = 4 prepared by D2O, 140 μL of D2O and 60 μL of 0.75% DSS, mixed well and centrifuged at 13,000 rpm for 10 min. Finally, 500 μL of the supernatant was taken and loaded into a 5 mm nuclear magnet tube; NMR experiments were carried out.

2.4.2. NMR Experimental Data Collection

1H-NMR spectra of wine samples were collected by AVANCE 600 NMR spectrometer. The NMR experiment was set to a constant temperature of 298 K, the 1H-NMR operating frequency was 600.23 MHz, and the spectral width was 7183.9 Hz. The Noesygppr1d sequence was used to suppress the water peak signal, and all the samples were scanned 256 times.

2.5. Statistical Analysis

Statistical analysis was performed by Microsoft Excel 2011 and one-way analysis of variance (ANOVA) using SPSS Statistics 23.0 software. The confidence level was 95% and p < 0.05 was considered statistically significant. The experimental data shown in all of the results were repeated at least three times.

NMR Spectral Data Processing

After the sampling was completed, Fourier transform was performed, and the phase adjustment and baseline correction of the spectrum were performed; the spectral peaks were assigned according to the chemical shift. Using AMIX software, the spectrum was integrated into the chemical shift interval δ 0.5–10.0 ppm in the 0.005 ppm integration section; −0.5~0.5 ppm, 1.74~1.84 ppm and 2.90~2.95 ppm DSS peaks, 1.18~1.22 ppm and 3.57–3.72 ppm residual ethanol peaks, 4.8~4.96 ppm residual water peaks were not integrated. After the NMR data was normalized, it was imported into SIMCA-P 12.0 software for pattern recognition analysis.

3. Results and Discussion

3.1. The Effect of CH/LS Film on the Preservation of Grapes

3.1.1. Determination of Decay Rates

Grapes still have vigorous life activities after picking, and a series of physiological and biochemical changes occur in the fruit tissue after picking, resulting in fruit rot. The effects of different preservation treatments on the decay rates of grapes are shown in Figure 1. It can be seen that the control, CH and 2% CH/LS film packaging had no significant effect on the decay rate of grapes at the early stage of storage. After 2% CH/LS film, CH, and PE (control) packaging, the decay rates of grapes were 18.36%, 21.63%, 31.71%, respectively. However, with the extension of storage time, the decay rates of grapes demonstrated an increase, and the difference in preservation effect of the three groups was also completely different. After CH and 2% CH/LS coating film packaging, the decay rates of grapes decreased by 10.08% and 13.35%, respectively, compared with the control group. The grapes packaged in control film showed severe spoilage after 10 days of storage at 18 °C, while the grapes packaged with chitosan film and 2% CH/LS film suffered severe spoilage on the 14th and 16th days, respectively.

3.1.2. Hardness

Fruit hardness is an important indicator for measuring fruit quality and reflecting fruit ripening and senescence [36]. The effects of different treatments on the firmness of grapes are shown in Figure 2. The hardness of the grapes in each treatment group showed a downward trend, and the fruit hardness of the control group decreased most significantly: the hardness decreased by 13.05, during the 16th day of the experimental period. The fruit hardness of the experimental group decreased slowly and was significantly different from the control group (p < 0.05). Among them, the 2% CH/LS treatment group had the slowest decline: during the 16-day experimental period, the hardness decreased by only 6. The addition of lignosulfonate improved the coating effect of chitosan to a certain extent [37].The plump appearance of the fruit was maintained; the hardness of grapes treated with CH or 2% CH/LS composite film coating was higher than that of the control group, and the effect of maintaining the hardness was obvious, and there was no significant difference between the two (p > 0.05), indicating that the composite film solution is beneficial for grapes to maintain fruit firmness, delay fruit softening and rot, and prolong the storage period.

3.1.3. Weight Loss Rate

It is generally believed that respiration and transpiration are the main reasons for fruit weight loss. The effect of different coating treatments on the weight loss rate of grapes is shown in Figure 3. With the prolongation of storage time, the weight loss rates of grapes in CH, 2% CH/LS and control groups reached 25.49%, 21.37% and 23.24%, respectively. The weight loss rate of the CH group was higher than the control. The reason for this may be that CH film packaging has a large water vapor transmission coefficient, leading to a high water loss rate [38]. Compared with CH, 2% CH/LS film packaging can more effectively reduce the rapid loss of moisture and organic matter in grapes. The reason may be that LS is hygroscopic, forming a barrier between the fruit epidermis and the surrounding environment to prevent gas exchange, inhibited the respiration and transpiration of grapes, reduced the water loss of grapes, and the nutrient decomposition was slower, so as to reduce the weight loss rate [39]. Although the weight loss rate of different treatment groups increased, 2% CH/LS was significantly lower than that of the rest of the two groups, the water loss of grapes was reduced, and the nutrient decomposition was slower than that of the control group.

3.1.4. Soluble Solids

The effects of different coating treatments on the soluble solids content in grapes are shown in Figure 4. As grapes respiration proceeds, there is no external source of nutrients, resulting in a decrease in the soluble solids content of grapes [40]. The changing trend of soluble solid content among different components is the same. The soluble solid content in the fruit of the control group decreased from 5.92% on 0 d to 2.14% on the 16th day. At the end of storage for 16 days, the 2% CH/LS coating film packaging group and the CH coating film packaging group had a better preservation effect, and the soluble solid content was about 3.05% and 3.28%, respectively. The loss of soluble solid content was the highest in the control group (3.78%), while the loss was 2.87% and 2.64% after CH and 2% CH/LS coating treatments. On the 6th day of storage, the soluble solids in the control group decreased rapidly. The reason may be that PE film group had poor water permeability, accumulated more water on the surface, and had a large number of microbial breeding [41], which accelerated the spoilage and deterioration of grapes. Therefore, the content of PE film group decreased steadily in the early stage, and rapidly decreased to 2.1% in the later stage. The soluble solid content of CH coating group is slightly higher than that of 2% CH/LS packaging, which may be due to that the 2% CH/LS composite film has good water retention and bacteriostasis, which can not only reduce the water loss of grapes but also inhibit the reproduction of spoilage bacteria [42]. However, the CH film has a large water vapor transmission coefficient and a fast water loss rate, leading to a slightly higher soluble solid content [43]. It indicated that CH coating and 2% CH/LS coating could effectively reduce the loss of soluble solids in grapes.

3.1.5. Titratable Acid Content

The content of titratable acid is related to the color, aroma, taste and stability of the fruit [44]. With the prolongation of storage time, the titratable acid content of fruits showed a downward trend. Generally speaking, grapes with lower maturity will continue their physiological activities after picking, and the titratable acid may rise first and then fall [45]. However, mature grapes were selected in this study, so the titratable acid showed a continuous downward trend [46]. Figure 5 shows that the reduction rate of titratable acid of grapes coated with 2% CH/LS decreased slowly than the other two groups; during the 16th day of the experimental period, the titratable acid content decreased by only 1.39, and its content was 3.32 g/kg. In comparison, the control group decreased by 2.3, and its content was only 2.41 g/kg. CH and 2% CH/LS film-coated packaging groups decreased significantly lower than the control group (p < 0.05).

3.2. Identification of Wine Metabolites from Helan Mountain in Ningxia

Figure 6 shows the 1H-NMR spectra of Cabernet Sauvignon dry red wine, Chardonnay and Italian Riesling dry white wine of Helan Mountain in Ningxia. The metabolite displacement information in wine is combined with Figure 6 and references the relevant literature [47,48]. The results are shown in Table 1.
Because 1H-NMR detection hardly needs sample pre-treatment, the inherent properties of the sample are well preserved. Using pattern recognition analysis combined with the chemical shift of nuclear magnetic spectrum, the characteristic variables with a large contribution to the difference between samples can be obtained, so as to identify the metabolites causing the difference between samples. The metabolites in the 1H-NMR spectra of wine were identified, and these substances mainly included amino acids, organic acids, sugars, phenols and so on. It can be found that the composition of metabolites in these three wines is basically the same, which means that the composition of metabolites in wines is relatively stable, but there are differences in the content of metabolites between different types of wines. Each wine has its own fingerprint, and different types of wine metabolic profiles describe their physiological and biochemical states, which need to be processed to find their markers [49]. The positions of the characteristic peaks in the NMR spectra correspond to different types of metabolites in wine, and the peak intensity (such as area) represents the relative content of the corresponding metabolites.

3.3. Differences of Metabolites in Different Wine Varieties from Helan Mountain

In this experiment, the metabolite map data of three wines in the Helan Mountain production area of Ningxia were compared with the PLS-DA model to determine the main metabolites causing the difference between wine varieties. Firstly, Chardonnay and Italian Riesling dry white wine were analyzed by PLS-DA. Then, the pair PLS-DA comparison of dry white and dry red wine was carried out to determine the metabolites causing the difference between dry red and dry white wine varieties.

3.3.1. Analysis of Metabolites of Chardonnay and Italian Riesling Dry White

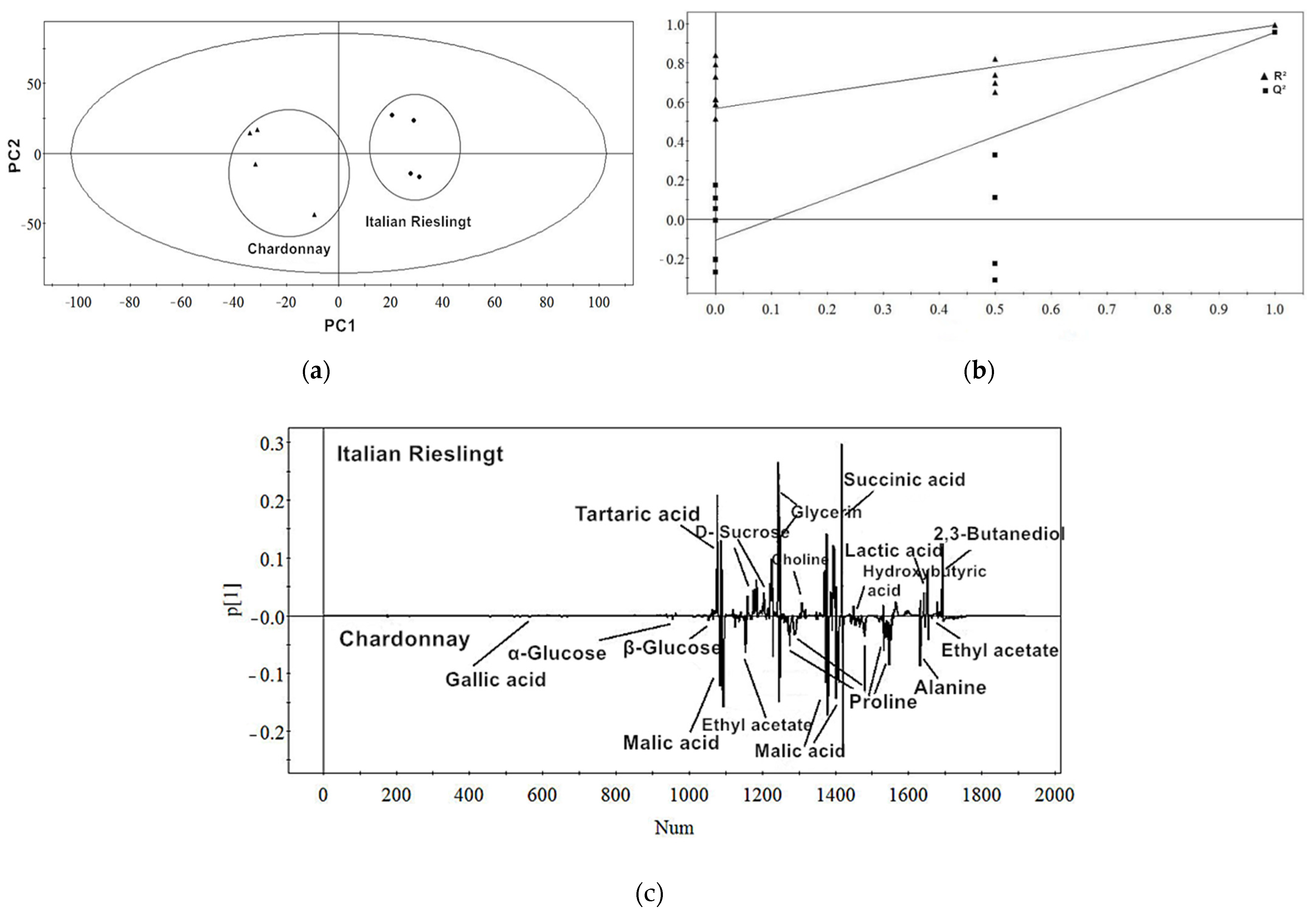

Two pairs of PLS-DA of dry white wine were compared to determine the main metabolites causing the difference between dry white wine varieties. The PLS-DA model of the 2020 Chardonnay and Italian Riesling Dry white wine is shown in Figure 7. In the score graph, Chardonnay and Italian Riesling dry white wine are clearly distinguished on the PC1 axis, and the cumulative contribution rate is R2X = 0.965, R2Y = 0.994 and Q2 = 0.955, indicating that this model is effective. The validation diagram of the model in the permutation experiment further demonstrates the reliability and predictability of the model. It can be seen from the load diagram that compared with Chardonnay dry white wine, the 2,3-butanediol, lactic acid, succinic acid, glycerin, choline, tartaric acid, D-sucrose, and γ- aminobutyric acid content is relatively high in Italian Riesling Dry white wine, while the content of gallic acid, ethyl acetate, proline, malic acid, alanine, α-glucose and β-gluconic acid is relatively low.
In order to ensure the unique taste of dry white wine, the fermentation process of malic acid and lactic acid is properly controlled during the brewing of dry white wine. Malic acid plays an important physiological role in the human body. It can effectively improve the body’s exercise ability, resist fatigue, accelerate the metabolism of carboxylate, protect the heart, improve memory, etc. [50]. From the perspective of organic acids, it can be considered that dry white wine has a relatively high protective effect on the body.

3.3.2. Analysis of Differences of Metabolites between Cabernet Sauvignon Dry Red Wine and Italian Riesling, Chardonnay Dry White Wine

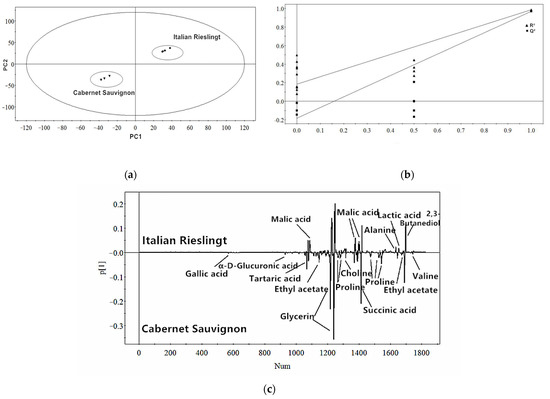

Pairwise comparison PLS-DA were compared between dry white and dry red wines to determine the metabolites that caused the difference between the two wine varieties. Figure 8 shows the PLS-DA model of Cabernet Sauvignon dry red wine and Italian Riesling Dry white wine in 2020. In the score chart, the two wines are clearly distinguished on the PC1 axis, where the cumulative contribution rate is R2X = 0.76, R2Y = 0.987 and Q2 = 0.969, indicating that the quality of this model is good. The validation diagram of the permutation experiment of this model once again shows the reliability and predictability of this model. It can be seen from the load diagram that compared with Cabernet Sauvignon dry white wine, Italian Riesling dry white wine has higher alanine and malic acid content, while 2,3-butanediol, glycerol, choline, lactic acid, valine, proline, ethyl acetate, succinic acid, tartaric acid, gallic acid, α-D-Glucuronic acid is low.
The metabolites of amino acid characteristic differences among wines detected in this experiment are valine, alanine and proline. Among them, valine and alanine contribute less to the difference between wines, while proline contributes more to the difference between different varieties of wines. Song et al. [51] also recognized that the content of proline in wine is affected by environmental factors and different varieties of wine grape berries.

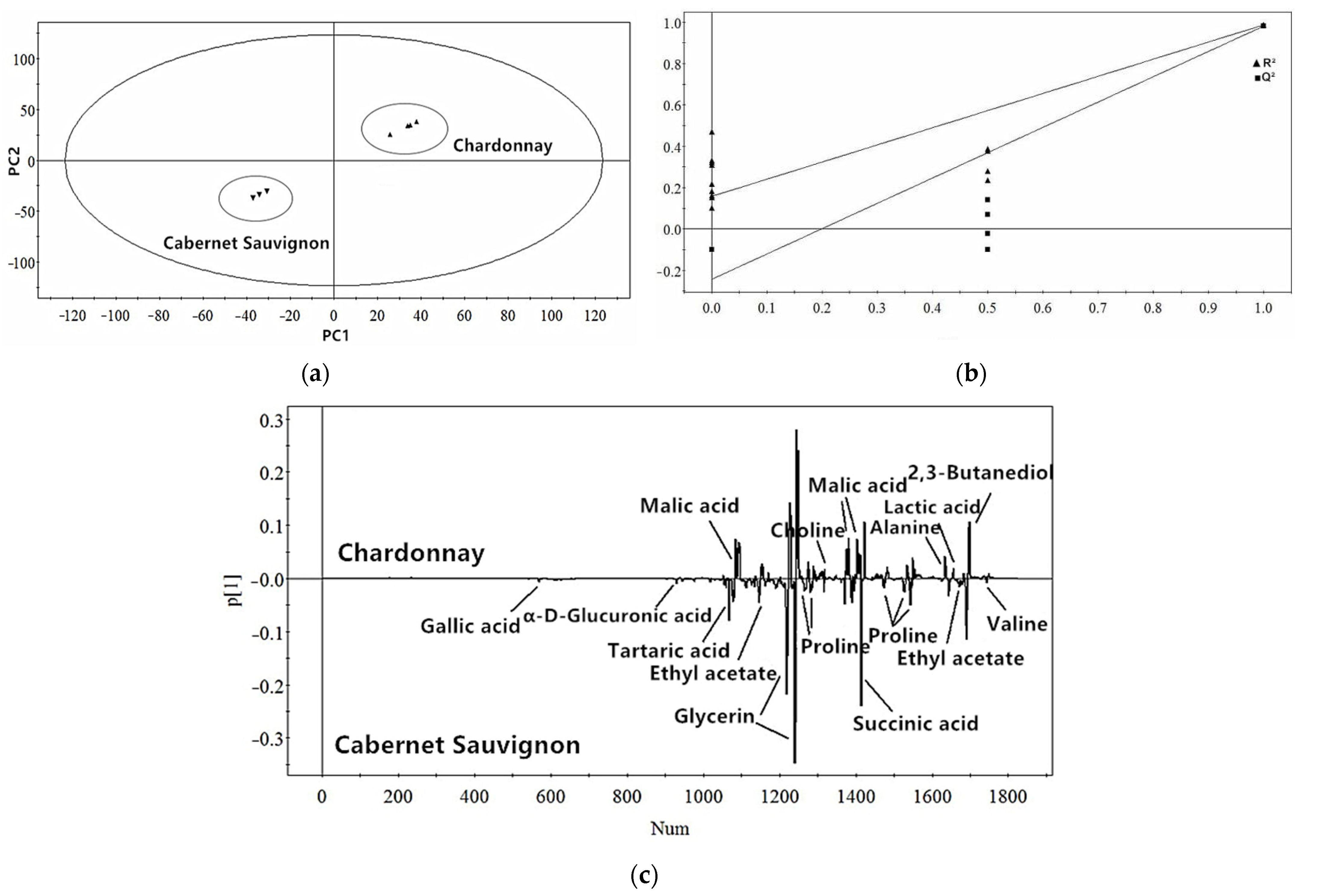

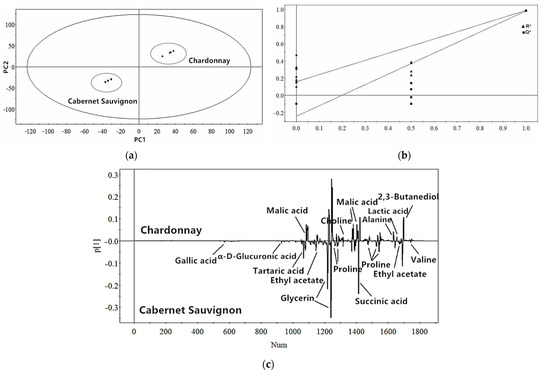

The PLS-DA model of 2020 Cabernet Sauvignon and Chardonnay is shown in Figure 9. In the score graph, the two wines are significantly different on the PC1 axis, where the cumulative contribution rate R2X = 0.798, R2Y = 0.987 and Q2 = 0.979 are relatively high, which also indicates that the model established is effective. The validation diagram of the permutation experiment further demonstrates the reliability and predictability of the model. As can be seen from the load diagram, Chardonnay dry white wine compared with Cabernet sauvignon dry red wine, Chardonnay dry white wine of alanine, malic acid content is higher, and 2,3-butanediol, valine, choline, glycerin, tartaric acid, lactic acid, valine, proline, ethyl acetate, succinic acid, gallic acid, α-D-Glucuronic acid content is low.
As an important flavor substance of wine, organic acids not only determine the quality of wine [52], but also regulate the acid-base balance in the body, enabling the physiological activities of enzymes to be realized [53]. In this experiment, the different metabolites of organic acids were tartaric acid, malic acid, succinic acid and lactic acid. Tartaric acid and malic acid are derived from grape berries, while lactic acid and succinic acid are derived from wine fermentation [54].
Based on PLS-DA analysis of Cabernet Sauvignon, Chardonnay and Italian Riesling of the Helan Mountain region of Ningxia in 2020, it was found that the components of metabolites of different varieties of wine had little difference, but the content of metabolites had great difference. The contents of 2,3-butanediol, ethyl acetate, proline, succinic acid, tartaric acid, lactic acid, glycerin, gallic acid, choline, valine and α-D-Glucuronic acid in Cabernet Sauvignon dry red wine were higher than dry white wine. Ethyl acetate is an aromatic substance abundant in wine, which brings rich aroma to wine. Its content is also related to fermentation technology, grape varieties, fermentation temperature, etc. [55]. Ethyl acetate for wine varieties in this experiment and region identification provides a larger contribution, three different varieties of wine, the ethyl acetate content of Cabernet sauvignon is highest. The contents of malic acid, alanine and γ-aminobutyric acid in Chardonnay and Italian Riesling Dry white wine are higher than Cabernet Sauvignon dry red wine, and the contents of other nutritional metabolites are relatively low, indicating that there are significant differences in nutritional metabolites among different grape varieties. Thus, a quantitative analysis of the main metabolites was carried out, as shown in Table 2. The content of metabolites can be converted by the ratio of the peak area caused by protons on a specified group of the substance to be measured in the 1H-NMR spectrum to the peak area caused by protons on the specified group of the added internal standard DSS. The results were consistent with the results of PLS-DA analysis by comparing the contents of major metabolites by means of multiple samples (SNK method). The highest content of gallic acid was found in Cabernet Sauvignon. The content of alanine and malic acid is the highest in Chardonnay wine, which makes the wine made with different styles, guiding consumers to choose the appropriate wine according to their own needs and improving their health.

4. Conclusions

In this study, lignosulfonate (an underutilized renewable biomass resource) was added to chitosan solution, and a separate 2% chitosan film (CH), chitosan—1% sodium lignosulfonate film (1% CH/LS) and chitosan—2% sodium lignosulfonate film (2% CH/LS) biomass composite films were developed by the classical casting method, to further study the preservation effect of 2% CH/LS film and CH film on grapes. From the test results, it can be concluded that 2% CH/LS films showed the best preservation performance. Compared with the control, CH film and 2% CH/LS coating film packaging not only effectively inhibit the evaporation of water and slow down the weight loss rate of grapes during storage, effectively alleviating the hardness, soluble solids, and titratable acid of grapes and causing the decrease of other nutrients, but they also effectively extend the shelf life of grapes. Therefore, compared with ordinary plastic packaging, 2% CH/LS film packaging is one of the promising strategies for preservation, as well as the Chitosan-lignosulfonate composite coating film. Both will be further investigated for various fruit and vegetable preservation. At the same time, this paper, based on the method of 1H-NMR combined with pattern recognition analysis, analyzed the differences in metabolites in Cabernet Sauvignon dry red wine, Chardonnay and Italian Riesling dry white wine of Helan Mountain in Ningxia. As far as the research results are concerned, the types of metabolites of the three wines are similar, but their content is significantly different. Among them, Chardonnay wine has a more refreshing and delicate taste and more complete flavor, while Cabernet Sauvignon wine has the highest biological activity and health function. This provides theoretical and technical support for the quality control and evaluation of the origin of wine, the identification and protection of varieties, and provides a scientific guide for consumers to aid in the prevention of diseases and the maintenance of human health.

Author Contributions

Writing—original draft preparation, L.L.; writing—review and editing, B.H. and X.Z.; designed research, Y.F. and L.L.; validation, M.Z.; analyzed data, M.Z. and L.L.; supervision, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China “Wine Metabolomics and NMR Fingerprint Stud, grant number NO. 31271857”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All raw data are available at the corresponding author.

Acknowledgments

We acknowledge financial support by the National Natural Science Foundation of China and President Zhou’s Laboratory for its help.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Porat, R.; Lichter, A.; Terry, L.A.; Harker, R.; Buzby, J. Postharvest losses of fruit and vegetables during retail and in consumers’ homes: Quantifications, causes, and means of prevention. Postharvest Biol. Technol. 2018, 139, 135–149. [Google Scholar] [CrossRef] [Green Version]
  2. Del Nobile, M.A.; Sinigaglia, M.; Conte, A.; Speranza, B.; Scrocco, C.; Brescia, I.; Bevilacqua, A.; Laverse, J.; La Notte, E.; Antonacci, D. Influence of postharvest treatments and film permeability on quality decay kinetics of minimally processed grapes. Postharvest Biol. Technol. 2008, 47, 389–396. [Google Scholar] [CrossRef]
  3. Fang, Y.; Wakisaka, M. A Review on the Modified Atmosphere Preservation of Fruits and Vegetables with Cutting-Edge Technologies. Agriculture 2021, 11, 992. [Google Scholar] [CrossRef]
  4. Morata, A.; Loira, I.; Vejarano, R.; González, C.; Callejo, M.J.; Suárez-Lepe, J.A. Emerging preservation technologies in grapes for winemaking. Trends Food Sci. Technol. 2017, 67, 36–43. [Google Scholar] [CrossRef]
  5. Auras, R.; Singh, S.P.; Singh, J. Performance evaluation of PLA against existing PET and PS containers. J. Test. Eval. 2006, 34, 530–536. [Google Scholar] [CrossRef]
  6. Masmoudi, F.; Alix, S.; Buet, S.; Mehri, A.; Bessadok, A.; Jaziri, M.; Ammar, E. Design and Characterization of a New Food Packaging Material by Recycling Blends Virgin and Recovered polyethylene terephthalate. Polym. Eng. Sci. 2020, 60, 250–256. [Google Scholar] [CrossRef]
  7. Aquino, A.D.; Blank, A.F.; Cristina, L.D.A.S.L. Impact of edible chitosan-cassava starch coatings enriched with Lippia gracilis Schauer genotype mixtures on the shelf life of guavas (Psidium guajava L.) during storage at room temperature. Food Chem. 2015, 171, 108–116. [Google Scholar] [CrossRef]
  8. Baris Karsli, Emre Caglak, Witoon Prinyawiwatkul, Effect of high molecular weight chitosan coating on quality and shelf life of refrigerated channel catfish fillets. LWT 2021, 142, 111034. [CrossRef]
  9. Călinoiu, L.-F.; Ştefănescu, B.E.; Pop, I.D.; Muntean, L.; Vodnar, D.C. Chitosan Coating Applications in Probiotic Microencapsulation. Coatings 2019, 9, 194. [Google Scholar] [CrossRef] [Green Version]
  10. Youwei, Y.; Yinzhe, R. Grape Preservation Using Chitosan Combined with β-Cyclodextrin. Int. J. Agron. 2013, 2013, 1–8. [Google Scholar] [CrossRef] [Green Version]
  11. Bilbao-Sainz, C.; Chiou, B.S.; Williams, T.; Wood, D.; Du, W.X.; Sedej, I.; Ban, Z.; Rodov, V.; Poverenov, E.; Vinokur, Y.; et al. Vitamin D-fortified chitosan films from mushroom waste. Carbohydr. Polym. 2017, 167, 97–104. [Google Scholar] [CrossRef] [PubMed]
  12. Yousuf, B.; Qadri, O.S.; Srivastava, A.K. Recent developments in shelflife extension of fresh-cut fruits and vegetables by application of different edible coatings: A review. LWT-Food Sci. Technol. 2018, 89, 198–209. [Google Scholar] [CrossRef]
  13. Sameni, J.; Krigstin, S.; Sain, M. Solubility of Lignin and Acetylated Lignin in Organic Solvents. BioResources 2017, 12, 1548–1565. [Google Scholar] [CrossRef]
  14. Atmajayanti, A.T.; Hung, C.C.; Yuen, T.Y.P.; Shih, R.C. Influences of Sodium Lignosulfonate and High-Volume Fly Ash on Setting Time and Hardened State Properties of Engineered Cementitious Composites. Materials 2021, 14, 4779. [Google Scholar] [CrossRef]
  15. OIV. International Code of Oenological Practices; MAPA: Paris, France, 2006. [Google Scholar]
  16. Mudnic, I.; Modun, D.; Rastija, V.; Vukovic, J.; Brizic, I.; Katalinic, V.; Kozina, B.; Medic-Saric, M.; Boban, M. Antioxidative and vasodilatory effects of phenolic acids in wine. Food Chem. 2009, 119, 1205–1210. [Google Scholar] [CrossRef]
  17. Hubner, A.; Sobreira, F.; Vetore Neto, A.; Pinto, C.A.; Dario, M.F.; Díaz, I.E.; Lourenço, F.R.; Rosado, C.; Baby, A.R.; Bacchi, E.M. The Synergistic Behavior of Antioxidant Phenolic Compounds Obtained from Winemaking Waste’s Valorization, Increased the Efficacy of a Sunscreen System. Antioxidants 2019, 8, 530. [Google Scholar] [CrossRef] [Green Version]
  18. Puškaš, V.; Jović, S.; Antov, M.; Tumbas, V. Antioxidative activity of red wine with the in-creased share of phenolic compounds from solid parts of grape. Chem. Ind. Chem. Eng. Q. 2010, 16, 65–71. [Google Scholar] [CrossRef]
  19. Jin, L.; Huang, Z.; Li, Y.; Sun, Z.; Li, H.; Zhang, J. On Modified Multi-Output Chebyshev-Polynomial Feed-Forward Neural Network for Pattern Classification of Wine Regions. IEEE Access. 2018, 7, 1973–1980. [Google Scholar] [CrossRef]
  20. Williamson, P.O.; Robichaud, J.; Francis, I.L. Comparison of Chinese and Australian consumers’ liking responses for red wines. Aust. J. Grape Wine Res. 2012, 18, 256–267. [Google Scholar] [CrossRef]
  21. Ricardo-Rodrigues, S.; Laranjo, M.; Coelho, R.; Martins, P.; Rato, A.E.; Vaz, M.; Valverde, P.; Shahidian, S.; Véstia, J.; Agulheiro-Santos, A.C. Terroir Influence on Quality of ‘Crimson’ Table Grapes. Sci. Hortic. 2019, 245, 244–249. [Google Scholar] [CrossRef] [Green Version]
  22. Hu, B.; Gao, J.; Xu, S.; Zhu, J.; Fan, X.; Zhou, X. Quality Evaluation of Different Varieties of Dry Red Wine Based on Nuclear Magnetic Resonance Metabolomics. Appl. Biol. Chem. 2020, 64, 24. [Google Scholar] [CrossRef]
  23. Shimizu, H.; Akamatsu, F.; Kamada, A.; Koyama, K.; Okuda, M.; Fukuda, H.; Iwashita, K.; Goto-Yamamoto, N. Discrimination of wine from grape cultivated in Japan, imported wine, and others by multi-elemental analysis. J. Biosci. Bioeng. 2018, 125, 413–418. [Google Scholar] [CrossRef] [PubMed]
  24. da Costa, G.; Gougeon, L.; Guyon, F.; Richard, T. 1H NMR metabolomics applied to Bordeaux red wines. Food Chem. 2019, 301, 125257. [Google Scholar]
  25. Trygg, J.; Holmes, E.; Lundstedt, T. Chemometrics in metabonomics. J. Proteome Res. 2007, 6, 469–479. [Google Scholar] [CrossRef]
  26. Godelmann, R.; Fang, F.; Humpfer, E.; Schutz, B.; Bansbach, M.; Schafer, H.; Spraul, M. Targeted and Nontargeted Wine Analysis by 1H NMR Spectroscopy Combined with Multivariate Statistical Analysis. Differentiation of Important Parameters: Grape Variety, Geographical Origin, Year of Vintage. J. Agric. Food Chem. 2013, 61, 5610–5619. [Google Scholar] [CrossRef]
  27. Tan, Y.M.; Lim, S.H.; Tay, B.Y.; Lee, M.W.; Thian, E.S. Functional chitosan-based grapefruit seed extract composite films for applications in food packaging technology. Mater. Res. Bull. 2015, 69, 142–146. [Google Scholar] [CrossRef]
  28. Yao, X.; Liu, J.; Hu, H.; Yun, D.; Liu, J. Development and comparison of different polysaccharide/PVA-based active/intelligent packaging films containing red pitaya betacyanins. Food Hydrocoll. 2022, 124, 107305. [Google Scholar] [CrossRef]
  29. Li, C.; Tao, J.; Zhang, H. Peach Gum Polysaccharides-Based Edible Coatings Extend Shelf Life of Cherry Tomatoes. Biotech 2017, 7, 168. [Google Scholar] [CrossRef]
  30. Wang, S.; Zhou, Q.; Zhou, X.; Wei, B.; Ji, S. The Effect of Ethylene Absorbent Treatment on the Softening of Blueberry Fruit. Food Chem. 2018, 246, 286–294. [Google Scholar] [CrossRef]
  31. Shariatinia, Z.; Fazli, M. Mechanical properties and antibacterial activities of novel nanobiocomposite films of chitosan and starch. Food Hydrocoll. 2015, 46, 112–124. [Google Scholar] [CrossRef]
  32. Zhang, J.; Li, D.; Xu, W.; Fu, Y. Preservation of Kyoho grapes stored in active, slow-releasing pasteurizing packaging at room temperature. LWT-Food Sci. Technol. 2014, 56, 440–444. [Google Scholar] [CrossRef]
  33. Yu, Y.M. The Starch and Chitosan Film Containing Antibacterial Agent Natamycins Giant Peak Grape Preservation Effect Evaluation; Heilongjiang University: Harbin, China, 2013. [Google Scholar]
  34. Francisco, C.B.; Pellá, M.G.; Silva, O.A.; Raimundo, K.F.; Caetano, J.; Linde, G.A.; Colauto, N.B.; Dragunski, D.C. Shelf-life of guavas coated with biodegradable starch and cellulose-based films. Int. J. Biol. Macromol. 2020, 152, 272–279. [Google Scholar] [CrossRef] [PubMed]
  35. China National Standardization Administration Committee. GB15037-2006; National Wine Standard. China Standards Press: Beijing, China, 2006.
  36. Zhang, M.; Huan, Y.; Tao, Q.; Wang, H.; Li, C.L. Studies on Preservation of Two Cultivars of Grapes at Controlled Temperature. LWT-Food Sci. Technol. 2001, 34, 502–506. [Google Scholar] [CrossRef]
  37. García, M.A.; Pinotti, A.; Martino, M.N.; Zaritzky, N.E. Characterization of starch and composite edible films and coatings. In Edible Films and Coatings for Food Applications; Springer: New York, NY, USA, 2009; pp. 169–209. [Google Scholar]
  38. Zhou, X.; Liu, L.; Li, J.; Wang, L.; Song, X. Extraction and Characterization of Pectin from Jerusalem ArtiChoke Residue and Its Application in Blueberry Preservation. Coatings 2022, 12, 385. [Google Scholar] [CrossRef]
  39. Han, C.; Zhao, Y.; Leonard, S.W.; Traber, M.G. Edible coatings to improve storability and enhance nutritional value of fresh and frozen strawberries (Fragaria × ananassa) and raspberries (Rubus idaeus). Postharvest Biol. Technol. 2004, 33, 67–78. [Google Scholar] [CrossRef]
  40. Youssef, K.; Roberto, S.R. Chitosan/silica nanocomposite-based formulation alleviated gray mold through stimulation of the antioxidant system in table grapes. Int. J. Biol. Macromol. 2021, 168, 242–250. [Google Scholar] [CrossRef]
  41. Wu, Z.; Zhou, W.; Pang, C.; Deng, W.; Xu, C.; Wang, X. Multifunctional chitosan-based coating with liposomes containing laurel essential oils and nanosilver for pork preservation. Food Chem. 2019, 295, 16–25. [Google Scholar] [CrossRef]
  42. Zhang, X.; Wu, H.; Zhang, L.A.; Sun, Q.J. Horseradish peroxidase-mediated synthesis of an antioxidant gallic acid-g-chitosan deriva tive and its preservation application in cherry tomatoes. RSC Adv. 2018, 8, 20363–20371. [Google Scholar] [CrossRef] [Green Version]
  43. Kan, J.; Liu, J.; Yong, H.; Liu, Y.; Qin, Y.; Liu, J. Development of active packaging based on chitosan-gelatin blend films functional ized with Chinese hawthorn (Crataegus pinnatifida) fruit extract. Int. J. Biol. Macromol. 2019, 140, 384–392. [Google Scholar] [CrossRef]
  44. Opara, U.L.; Al-Ani, M.R.; Al-Rahbi, N.M. Effect of Fruit Ripening Stage on Physico-Chemical Properties, Nutritional Com position and Antioxidant Components of Tomato (Lycopersicum esculentum) Cultivars. Food Bioprocess Technol. 2012, 5, 3236–3243. [Google Scholar] [CrossRef]
  45. Jiang, Y.R.; Fu, Y.B.; Li, D.L.; Xu, W.C. Effects of 1-MCP and Controllable-Release SO2 Packaging on Cold Preserva tion of Grapes (C.V. Muscat Hamburg). Adv. Mater. Res. 2013, 750–752, 2335–2339. [Google Scholar] [CrossRef]
  46. Verheul, M.J.; Slimestad, R.; Tjøstheim, I.H. From Producer to Consumer: Greenhouse Tomato Quality As Affected by Variety, Maturity Stage at Harvest, Transport Conditions, and Supermarket Storage. J. Agric. Food Chem. 2015, 63, 5026. [Google Scholar] [CrossRef] [PubMed]
  47. Son, H.S.; Kim, K.M.; Van Den Berg, F.; Hwang, G.S.; Park, W.M.; Lee, C.H.; Hong, Y.S. 1H Nuclear Magnetic Resonance-Based Metabolomic Characterization of Wines by Grape Varieties and Production Areas. J. Agric. Food Chem. 2008, 56, 8007–8016. [Google Scholar] [CrossRef]
  48. Gougeon, L.; Da Costa, G.; Le Mao, I.; Ma, W.; Teissedre, P.L.; Guyon, F.; Richard, T. Wine Analysis and Authenticity Using H-1-NMR Metabolomics Data: Application to Chinese Wines. Food Anal. Methods 2018, 11, 3425–3434. [Google Scholar] [CrossRef]
  49. Goodacre, R.; Broadhurst, D.; Smilde, A.K.; Kristal, B.S.; Baker, J.D.; Beger, R.; Bessant, C.; Connor, S.; Capuani, G.; Craig, A.; et al. Proposed minimum reporting standards for data analysis in metabolomics. Metabolomics 2007, 3, 231–241. [Google Scholar] [CrossRef]
  50. Cassino, C.; Tsolakis, C.; Bonello, F.; Gianotti, V.; Osella, D. Effects of area, year and climatic factors on Barbera wine characteristics studied by the combination of 1H-NMR metabolomics and chemometrics. J. Wine Res. 2017, 28, 259–277. [Google Scholar] [CrossRef]
  51. Nho-Eul, S.; Chan-Mi, L.; Sang-Ho, B. Isolation and molecular identification for autochthonous starter Saccharomyces cerevisiae with low biogenic amine synthesis for black raspberry (Rubus coreanus Miquel) wine fermentation. J. Gen. Appl. Microbiol. 2019, 65, 188–196. [Google Scholar]
  52. Wojdyo, A.; Samoticha, J.; Chmielewska, J. The influence of different strains of Oenococcus oeni malolactic bacteria on profile of organic acids and phenolic compounds of red wine cultivars Rondo and Regent growing in a cold region. J. Food Sci. 2020, 85, 1070–1081. [Google Scholar] [CrossRef]
  53. Ferreira, A.M.; Mendes-Faia, A. The Role of Yeasts and Lactic Acid Bacteria on the Metabolism of Organic Acids during Winemaking. Foods 2020, 9, 1231. [Google Scholar] [CrossRef]
  54. Zheng, Y.J.; Duan, Y.T.; Zhang, Y.F.; Pan, Q.H.; Li, J.M.; Huang, W.D. Determination of Organic Acids in Red Wine and Must on Only One RP-LC-Column Directly After Sample Dilution and Filtration. Chromatographia 2009, 69, 1391–1395. [Google Scholar] [CrossRef]
  55. Lasik, M. Influence of malolactic bacteria inoculation scenarios on the efficiency of the vinification process and the quality of grape wine from the Central European region. Eur. Food Res. Technol. 2017, 243, 2163–2173. [Google Scholar] [CrossRef] [Green Version]
Coatings 12 00494 g001 550

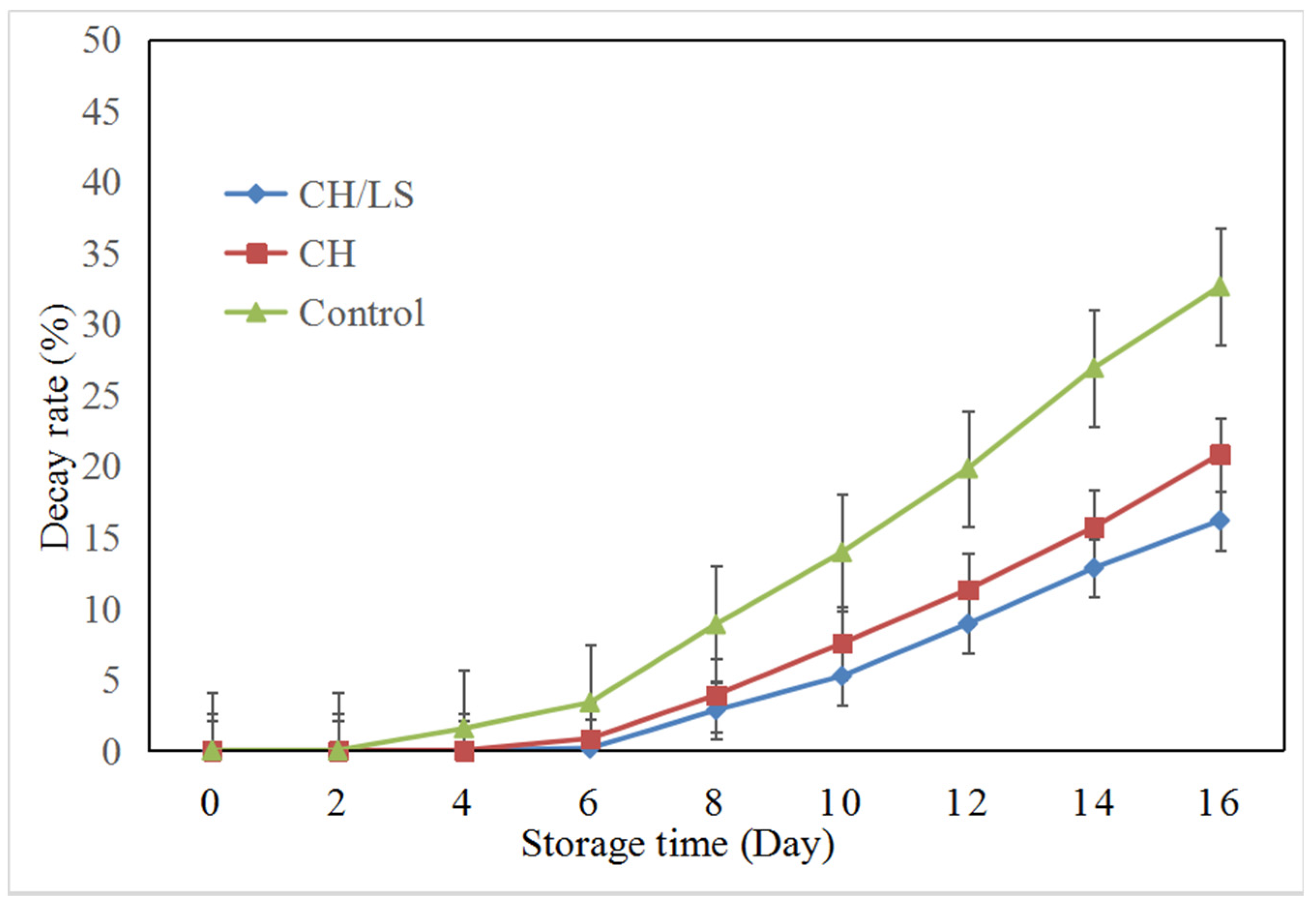

Figure 1. Decay rates of grapes during preservation with packaging films.
Figure 1. Decay rates of grapes during preservation with packaging films.
Coatings 12 00494 g001
Coatings 12 00494 g002 550

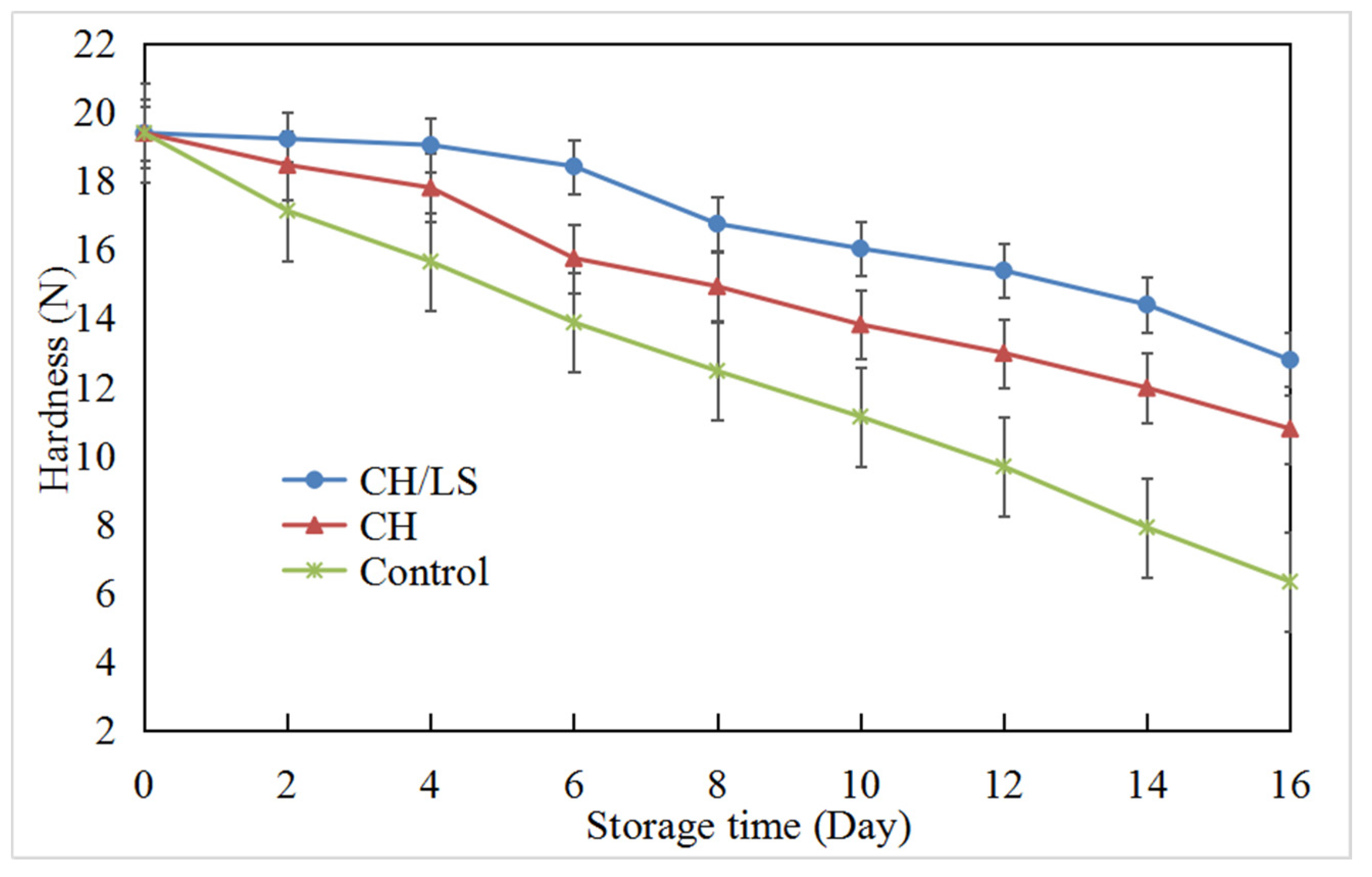

Figure 2. Hardness of grapes during preservation with different packaging films.
Figure 2. Hardness of grapes during preservation with different packaging films.
Coatings 12 00494 g002
Coatings 12 00494 g003 550

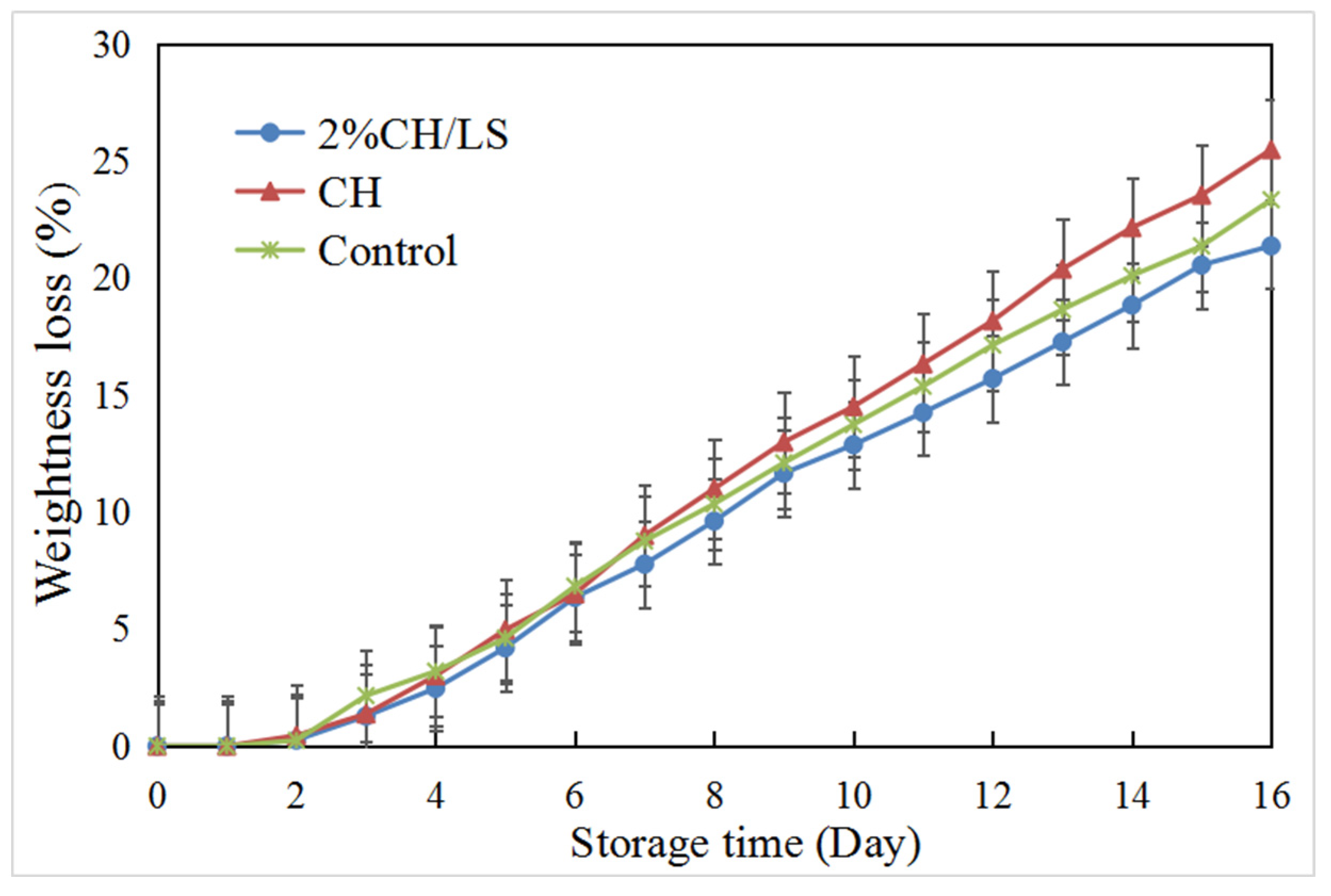

Figure 3. Weight loss rate of grapes during preservation with different packaging films.
Figure 3. Weight loss rate of grapes during preservation with different packaging films.
Coatings 12 00494 g003
Coatings 12 00494 g004 550

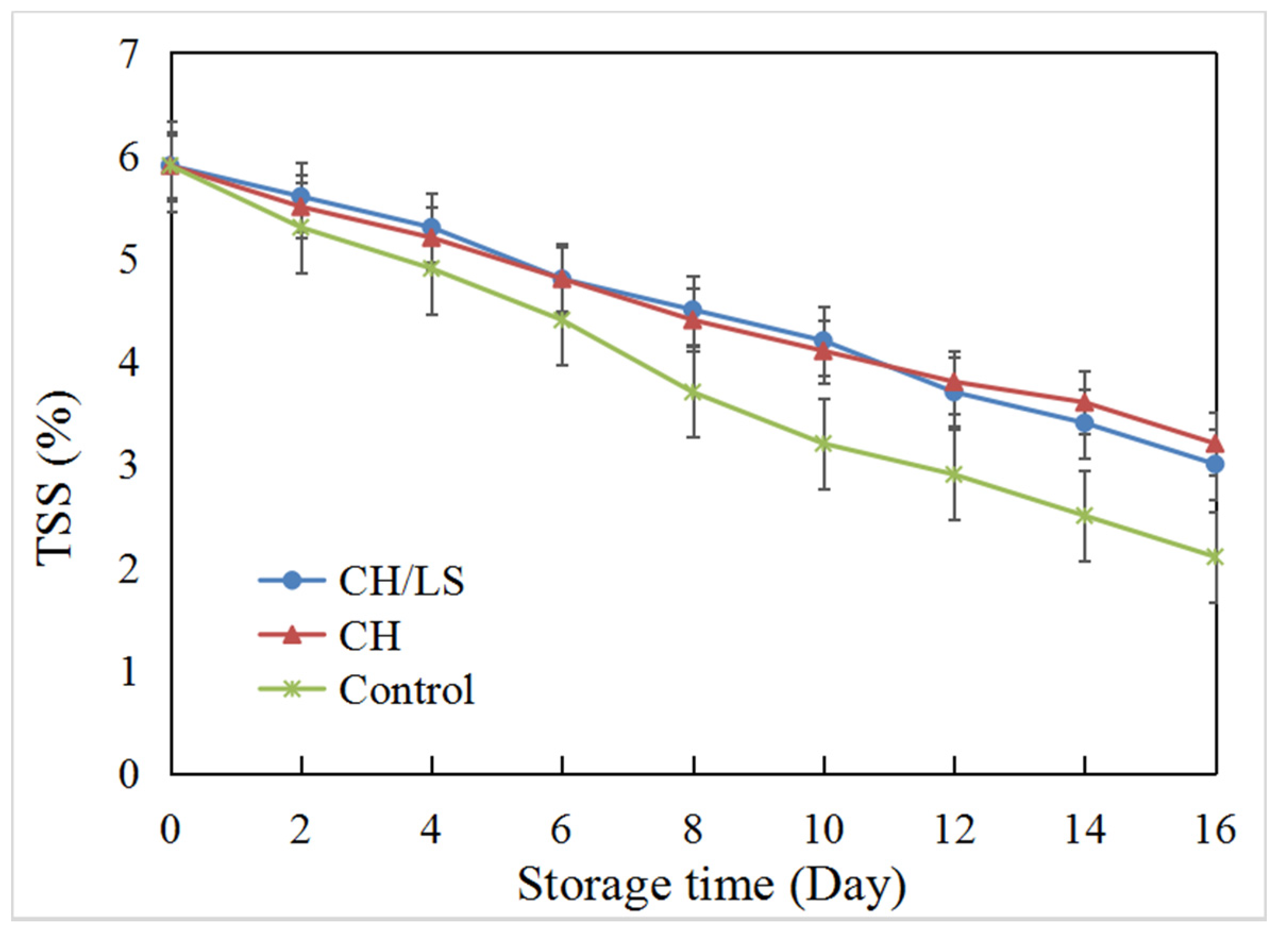

Figure 4. The Soluble solids of grapes during preservation with different packaging films.
Figure 4. The Soluble solids of grapes during preservation with different packaging films.
Coatings 12 00494 g004
Coatings 12 00494 g005 550

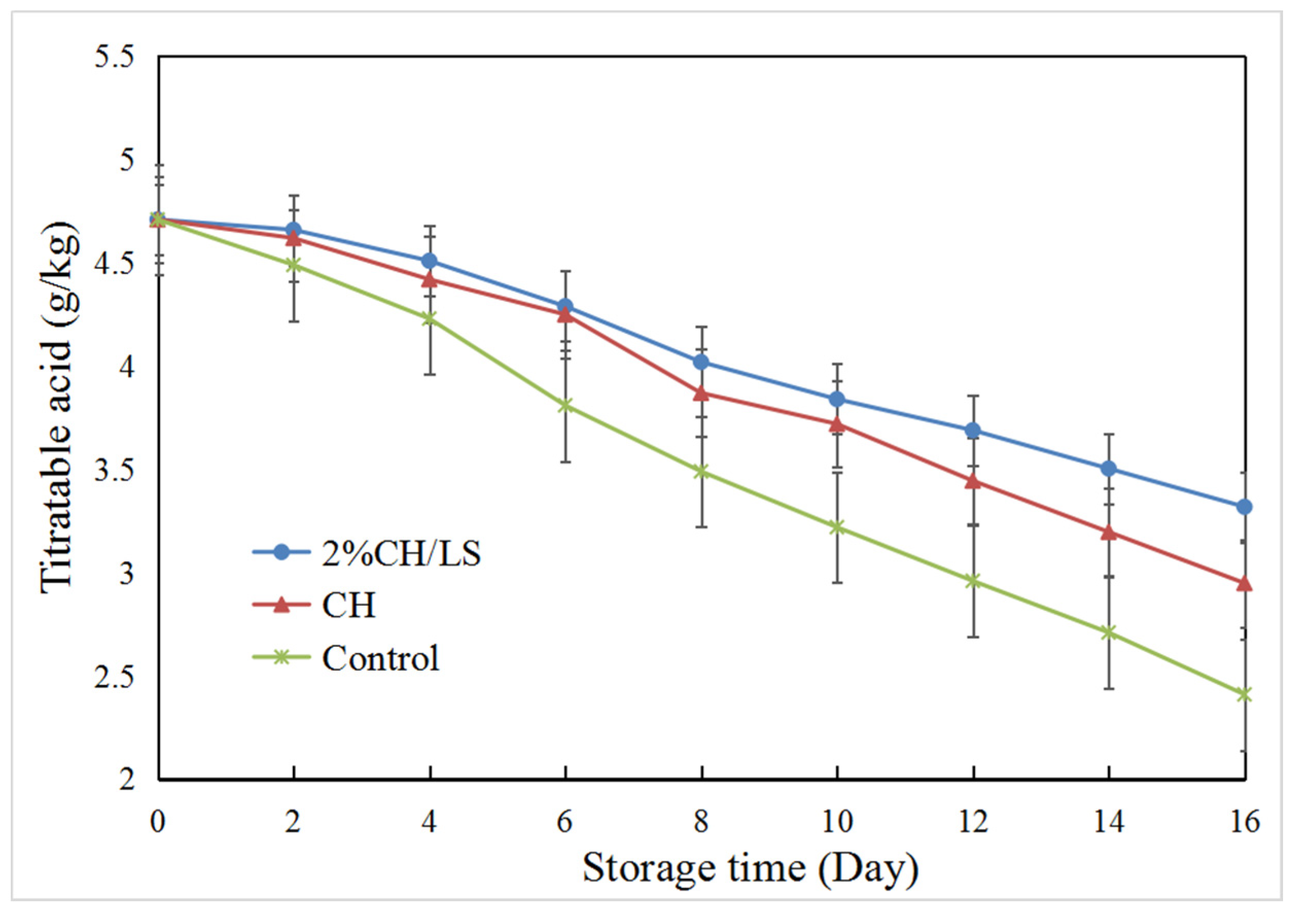

Figure 5. Titratable acid of grapes during preservation with different packaging films.
Figure 5. Titratable acid of grapes during preservation with different packaging films.
Coatings 12 00494 g005
Coatings 12 00494 g006 550

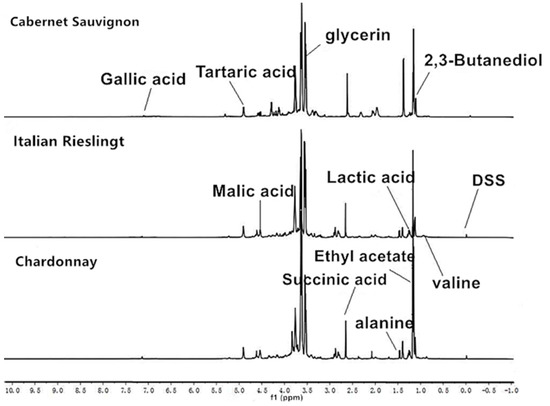

Figure 6. 1H-NMR spectra of wine metabolites from Helan Mountain in Ningxia.
Figure 6. 1H-NMR spectra of wine metabolites from Helan Mountain in Ningxia.
Coatings 12 00494 g006
Coatings 12 00494 g007 550
Figure 7. (a) PLS-DA model derived from the 1H-NMR spectra of Chardonnay and Italian Riesling dry white wine. PLS-DA scores plot; (b) PLS-DA cross-validation plot; (c) PLS-DA loading plot.
Figure 7. (a) PLS-DA model derived from the 1H-NMR spectra of Chardonnay and Italian Riesling dry white wine. PLS-DA scores plot; (b) PLS-DA cross-validation plot; (c) PLS-DA loading plot.
Coatings 12 00494 g007
Coatings 12 00494 g008 550
Figure 8. (a) PLS-DA model derived from the 1H-NMR spectra of Cabernet Sauvignon dry red wine and Italian Riesling dry white wine. PLS-DA scores plot; (b) PLS-DA cross-validation plot; (c) PLS-DA loading plot.
Figure 8. (a) PLS-DA model derived from the 1H-NMR spectra of Cabernet Sauvignon dry red wine and Italian Riesling dry white wine. PLS-DA scores plot; (b) PLS-DA cross-validation plot; (c) PLS-DA loading plot.
Coatings 12 00494 g008
Coatings 12 00494 g009 550
Figure 9. (a) PLS-DA model derived from the 1H-NMR spectra of Cabernet Sauvignon dry red wine and Chardonnay dry white wine. PLS-DA scores plot; (b) PLS-DA cross-validation plot; (c) PLS-DA loading plot.
Figure 9. (a) PLS-DA model derived from the 1H-NMR spectra of Cabernet Sauvignon dry red wine and Chardonnay dry white wine. PLS-DA scores plot; (b) PLS-DA cross-validation plot; (c) PLS-DA loading plot.
Coatings 12 00494 g009
Table
Table 1. 1H-NMR assignment of metabolites in wines.
Table 1. 1H-NMR assignment of metabolites in wines.
KeysMetabolites1H-NMR Chemical Shift
1Valine0.87 (d, C4H3), 1.03 (d, C5H3)
2Ethanol1.18 (t, C2H3), 3.64 (q, C1H2)
32,3-Butanediol1.16 (d, C1H3 + C4H3)
4Succinic acid2.64 (s, C2H2 + C3H2)
5Proline2.00 (m, u, γ-CH2), 2.07 (m, u, β-CH), 2.35 (m, u, β’-CH), 3.35 (m, u, δ-CH), 3.42 (m, u, δ-CH), 4.16 (m, u, α-CH)
6Ethyl acetate1.26 (t, C4H3), 4.16 (q, C3H2)
7Tartaric acid4.53 (s, C2H + C3H)
8α-Glucose5.23 (d, αC1H)
9β-Glucose4.61 (d, βC1H)
10Lactic acid1.36 (d, C3H3), 4.28 (m, C2H)
11Gallic acid7.14 (s, C2H + C6H)
12Glycerol3.56 (q, C2H2), 3.65 (q, C3H2), 3.81 (m, C1H)
13α-D-Glucuronic acid5.34 (d, C1H)
14γ-Aminobutyric acid2.50 (t, α-CH2), 1.96 (m, β-CH2), 3.05 (t, γ-CH2)
15Malic acid2.73 (dd, βCH2), 2.86 (dd, β’CH2), 4.46 (q, CH)
16Alanine1.51 (d, βCH3)
17D-Sucrose5.43 (d, C1H), 3.55 (dd, C2H), 3.72 (dd, C3H), 3.90 (dd, C4H), 4.215 (d, C1′H), 4.05 (dd, C2′H), 3.88 (dd, C3′H)
The characters in brackets refer to peak information: s, singlet; d, doublet; t, triplet; q, quartet; dd, doublet of doublets; m, multiple.
Table
Table 2. Content of main metabolites in Cabernet Sauvignon dry red wine, Chardonnay, Italian Riesling dry white wine (g/L).
Table 2. Content of main metabolites in Cabernet Sauvignon dry red wine, Chardonnay, Italian Riesling dry white wine (g/L).
MetabolitesCabernet SauvignonChardonnayItalian Riesling
Ethyl acetate1.52 ± 0.03 b0.92 ± 0.01 c0.32 ± 0.01 d
Lactic acid0.51 ± 0.03 b0.22 ± 0.02 e0.32 ± 0.02 d
Alanine0.04 ± 0.01 d0.25 ± 0.02 a0.14 ± 0.01 b
Succinic acid1.31 ± 0.02 b0.46 ± 0.02 d0.47 ± 0.01 d
Proline3.23 ± 0.05 c1.50 ± 0.08 d0.49 ± 0.02 e
Malic acid4.95 ± 0.17 c6.08 ± 0.28 a5.37 ± 0.02 b
Choline0.06 ± 0.01 a0.04 ± 0.01 b0.05 ± 0.01 b
Glycerol13.99 ± 0.09 b8.92 ± 0.16 e9.89 ± 0.19 d
Gallic acid0.14 ± 0.01 a0.03 ± 0.00 c0.01 ± 0.00 c
Means followed with different letters are statistically different at the 0.05 probability level with an AVOVA-protected SNK 0.05 test.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hu, B.; Lin, L.; Fang, Y.; Zhou, M.; Zhou, X. Application of Chitosan-Lignosulfonate Composite Coating Film in Grape Preservation and Study on the Difference in Metabolites in Fruit Wine. Coatings 2022, 12, 494. https://doi.org/10.3390/coatings12040494

AMA Style

Hu B, Lin L, Fang Y, Zhou M, Zhou X. Application of Chitosan-Lignosulfonate Composite Coating Film in Grape Preservation and Study on the Difference in Metabolites in Fruit Wine. Coatings. 2022; 12(4):494. https://doi.org/10.3390/coatings12040494

Chicago/Turabian Style

Hu, Boran, Lan Lin, Yujie Fang, Min Zhou, and Xiaoyan Zhou. 2022. "Application of Chitosan-Lignosulfonate Composite Coating Film in Grape Preservation and Study on the Difference in Metabolites in Fruit Wine" Coatings 12, no. 4: 494. https://doi.org/10.3390/coatings12040494

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
