Thin Films Characterization and Study of N749-Black Dye for Photovoltaic Applications

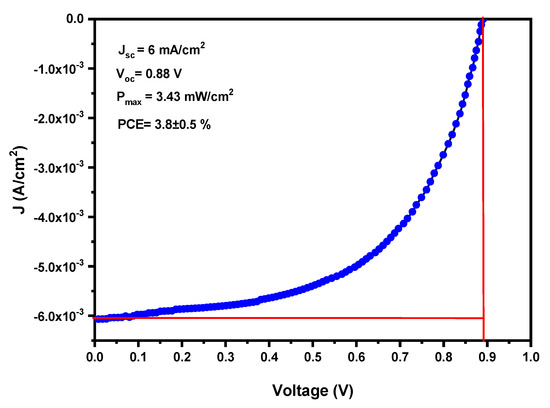

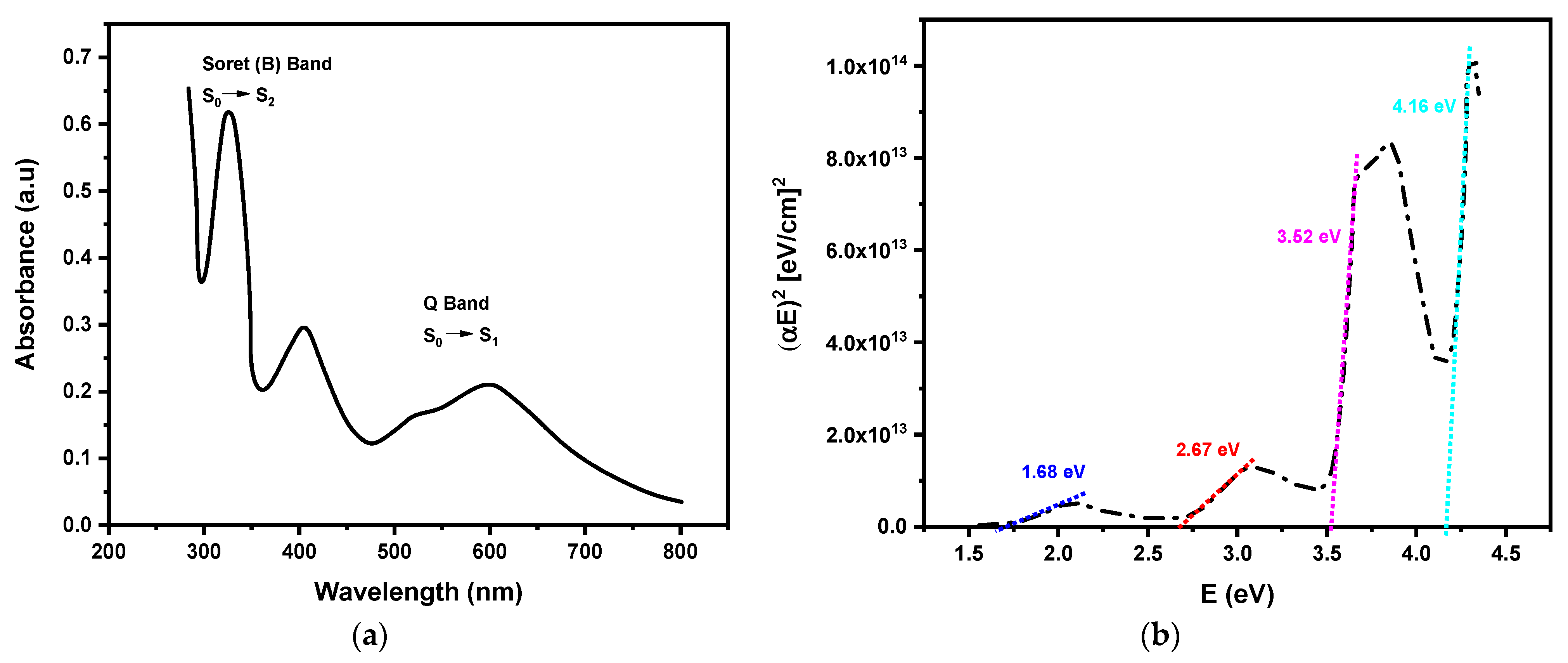

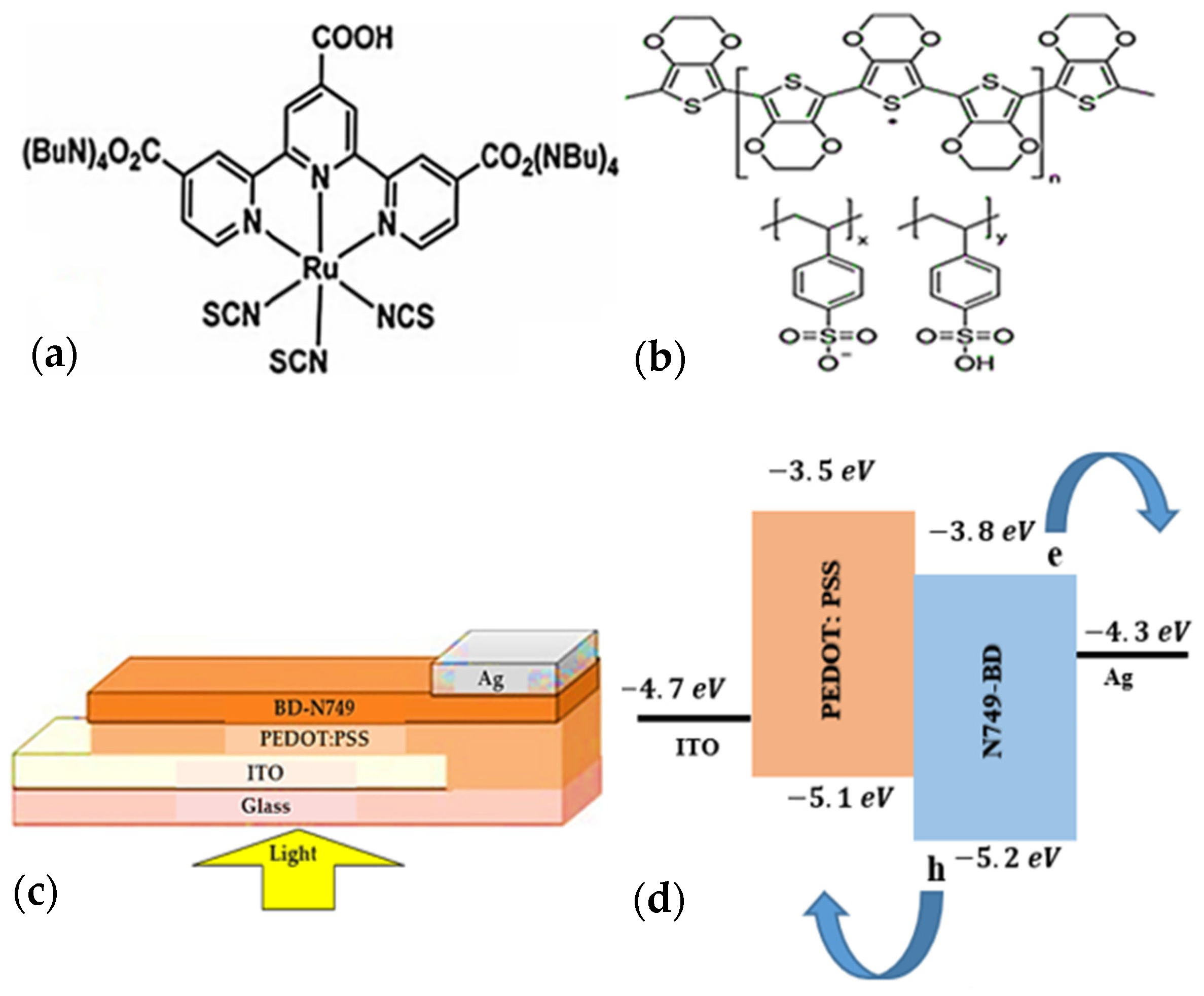

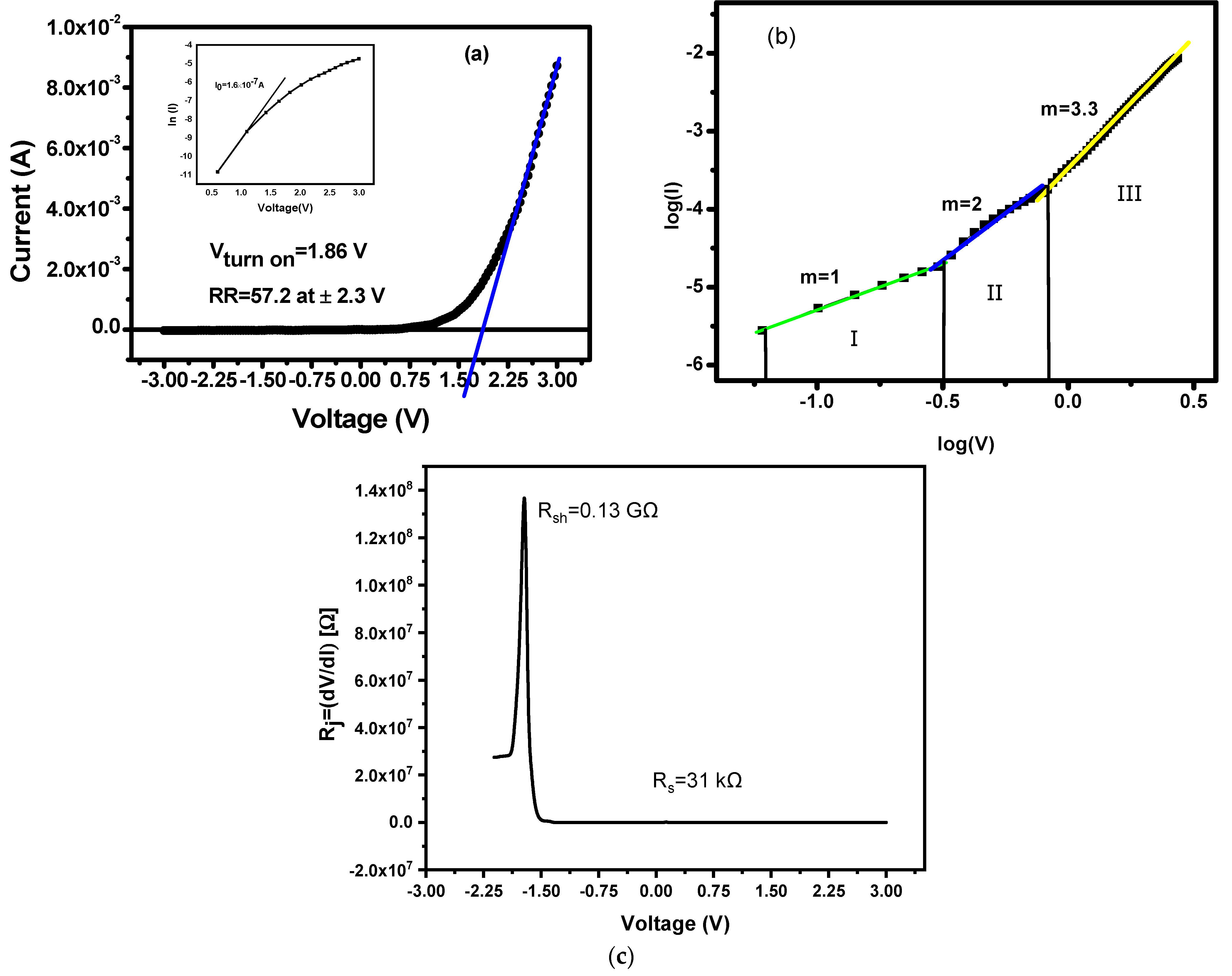

This paper reports on the fabrication and photovoltaic characteristics of a heterojunction solar cell based on an organic small molecular semiconductor, N-749 black dye (N749-BD). To investigate the photovoltaic characteristics of N749-BD, an ITO/PEDOT:PSS/N749-BD/Ag device is prepared by spin casting a 100 ± 5-nm thin film of N749-BD on the poly(3,4, ethylene dioxythiophene):polystyrene sulfonate (PEDOT:PSS) film, which acts as buffer/hole transport layer (HTL) and indium tin oxide (ITO) is employed as a transparent conducting substrate. Under standard testing conditions (STC), i.e., 25 °C, 1.5 AM global and 100 mW/cm² irradiation, the photovoltaic parameters of the device, such as fill factor (FF) and power conversion efficiency (PCE), are found to be 0.65 and 3.8% ± 0.5%, respectively. Current-voltage (I–V) characteristics of the device are also studied in dark conditions to measure reverse saturation current (I₀), series resistance at the interface, rectification ratio (RR), barrier height (ϕ_b) and ideality factor (n). Optical bandgaps (E_g) of N749-BD thin film are found by applying Tauc’s plot on its ultraviolet-visible (UV-Vis) spectrum, which are measured to be 1.68, 2.67, 3.52 and 4.16 eV. External quantum efficiency (EQE) measurements of the fabricated device are studied, which demonstrate large value of EQE$\approx$12.89%, with peak intensity at 626 nm. Bond dynamics and compositional analysis of N749-BD is carried out via Fourier transformed infrared (FTIR) spectroscopy. Morphology of the thin film of N749-BD on quartz glass are investigated via scanning electron microscopy (SEM) with in-situ energy dispersive X-ray (EDX) spectroscopy which exhibits random distribution of N749-BD grains across the surface with nearly uniform grain sizes and shapes. The larger values of FF, PCE and EQE of ITO/PEDOT:PSS/N749-BD/Ag device suggests the potential of N749-BD to be utilized in low cost, simple manufacturing process and high performance of solar cells.
