Article

Study on the Effects and Mechanism of Temperature and AO Flux Density in the AO Interaction with Upilex-S Using the ReaxFF Method

1
Beijing Institute of Spacecraft Environment Engineering, Beijing 100094, China
2
China Aerospace Science and Technology Corporation, Beijing 100048, China
*
Author to whom correspondence should be addressed.
Coatings 2023, 13(9), 1586; https://doi.org/10.3390/coatings13091586
Submission received: 20 July 2023 / Revised: 20 August 2023 / Accepted: 5 September 2023 / Published: 12 September 2023
(This article belongs to the Special Issue Micro-Nano Optics and Its Applications)

Abstract

:
Atomic oxygen (AO), which is one of the most predominant and conspicuous space environmental factors in the low earth orbit, leads to severe deterioration of polymeric materials in spacecraft. The AO flux density and ambient temperature vary while a craft orbits in space; thus, it is necessary to pay close attention to the flux density and temperature effects on the mechanism of the AO interaction with materials. In past years, polyimide has been widely used on spacecraft due to its excellent performance—that is the reason why we chose Upilex-S as the object for study. It was analyzed using the ReaxFF reactive force field molecular dynamics simulation, respectively from the aspect of impact-induced temperature variation, mass loss, reaction product and erosion yield. The results show that dense AO deposition on the surface impedes further erosion at low temperatures, and the AO interaction with Upilex-S is exacerbated as the ambient temperature increases. However, the accelerating rate is inversely proportional to the ambient temperature, which means the higher the ambient temperature is, the slower it increases. On the other hand, the interaction rate of AO induced to Upilex-S is aggravated as the flux density increases at the lower stage, while the interaction rate begins to drop as the flux density increases at the higher level. The AO erosion effect is a complicated process rather than a simple summation of single atomic oxygen interactions. Our study could be used as a technical reference for the wide usage of Upilex-S on spacecraft.

1. Introduction

Atomic oxygen (AO), which largely exists in the low earth orbit (LEO) environment, always grabs a researcher’s attention as it induces serious degradation of space material. Plenty of scientific reports tell us that, although the kinetic energy of AO itself is not that noteworthy, AO bombardment energy can reach 4.5–5 eV with a fierce oxidizing property while spacecrafts orbit at 7–8 km/s in space [1]. Because of this, materials are vulnerable in space, especially polymers [2,3,4,5]. Among these, polyimide is popular and widely used around a spacecraft’s surface, structure and thermal control module due to its excellent performance in mechanical properties, insulation properties, thermal stability, ultraviolet stability, light-weight advantages, etc.; however, it can be damaged so easily in the AO environment [6,7]. Over the years, quantities of AO environment tests have been conducted to aggravate polyimide’s degradation so as to extend the spacecraft lifespan, either using in situ flying tests [8,9,10] or in ground-based test facilities [11,12,13]. Nevertheless, the dynamic procedure of the AO interaction and the atomical bonding and breaking could never be observed using those two methods. Furthermore, it is more challenging and costly to improve the test facility either in space or on the ground to promote authenticity and accuracy.
On the other hand, along with the progression in computing performance and related theoretical research, molecular dynamics simulation is becoming an additional and alternative option that can be used to conduct research at the atomic micro-scaled level. In the research of molecular dynamics simulation, the force field should be selected properly according to different study objects. The method of ReaxFF reactive force field molecular dynamics simulation (ReaxFF MD) developed by van Duin etc. can simulate bond formation and breaking between atoms in a chemical process [14,15,16]. This could lead to a novel and effective way to study the bombardment between AO and polymers.
ReaxFF is trained against quantum mechanics principles but maintains computational efficiency similar to classical force fields, enabling simulations of large-scale systems over extended time frames [15,16]. It has been successfully applied to the research of material pyrolysis [17,18], catalysis [19,20], atomic layer deposition [15,21], carbonization processes [22,23,24,25,26], etc., with ideal achievement. There are also many reports, just like this paper, that have used ReaxFF MD to investigate the impact of AO on polymeric materials in spacecraft, and similarly, they have obtained reliable results. For example, van Duin et al. [27] studied the polyimide materials Kapton, Kapton-POSS, Teflon and amorphous silica for their mass loss, temperature variation, degradation products and erosion yield using the method of ReaxFF for the first time. In their study, they obtained a pleasant consistency between the simulation and the test results; under the same circumstances of AO impact, Kapton had the largest mass loss, while amorphous silica stayed mostly stable. The erosion yield of Kapton and Teflon in the simulation were generally in accordance with the results of the Materials International Space Station Experiment 2 (MISSE 2). Zeng et al. [28] found that the resistance of PVDF to AO is not that outstanding after their study of the AO reaction with PVDF, FP-POSS and their compounds using the method of ReaxFF. However, the capability to withstand AO attack is remarkably enhanced after adding some FP-POSS into PVDF, which is related to the Si-O bond in the FP-POSS. Rahmani et al. [29] compounded POSS, graphene and carbon nanotubes into Kapton, respectively, in which they observed prominent AO resistance improvement after the random compounding of graphene and carbon nanotubes with Kapton. It is worth mentioning that, just recently, Fu et al. [30] studied the polyethylene terephthalate (PET)-AO interaction based on the background engineering requirements in which the PET-AO erosion yield released is rational compared to that from MISSE 2. Although they all demonstrate the promising prospect and potential of ReaxFF MD usage in the analyzation of AO effects on space materials, there are still some defects that need further discussion; all of the simulations are conducted at the initial material temperature of 300 K with a fixed AO bombardment frequency of 5 AO/ps, whereas, in reality, the temperature varies largely in space for the material on the spacecrafts orbiting in the LEO, as well as the AO flux density, which is polytropic depending (but not only) on the altitude of the orbit. Therefore, it is necessary to have a further discussion on the effects and mechanism of temperature and the AO flux density impact on the AO interaction with materials.
In this work, we selected Upilex-S as our research object. Upilex-S is a heat-resistant polyimide film that is the product of the polycondensation reaction between biphenyl tetracarboxylic dianhydride (BPDA) monomers and a diamine. It is an alternative option with excellent performance among polyimide materials. Compared to the most extensively used polyimide material Kapton, Upilex-S has a distinctive molecular structure, but they are both constructed merely by the atoms of hydrogen, nitrogen, carbon and oxygen. The number of atoms in the monomer structure of both materials is the same, except for one oxygen atom less in Upilex-S than in Kapton. Yet, Kapton is more popular around the whole astronautical industry, although Upilex-S possesses a comparatively lower erosion yield, which is revealed from the data of MISSE 2 [31]; this raises our great interest to further explore the process of AO bombardment of the Upilex-S material using ReaxFF MD. Above all, we first established an AO interaction model, and then studied the mechanism of temperature and AO flux density effects on the interaction via bombardment-induced temperature change, mass loss, interaction product, erosion yield, AO number density deposed onto the matrix, etc., so as to provide technical references for the astronautical applications of the Upilex-S material.

2. Computational Details

When we look through the whole process of AO interaction with polymers, bond formation and breaking between atoms should be taken into consideration, where the traditional polymer force fields like COMPASS, CVFF, CHARMM, and AMBER are not appropriate for this study. Here, we adopt the ReaxFF force field proposed by van Duin to conduct the study. ReaxFF verifies the connectivity between atoms using the distance-decided bond order, which is updated at every running iteration in MD, thus providing the allowance of bond formation and breaking. Similar to the empirical non-reactive force field, ReaxFF divides the total system energy into the two parts of bond interaction and nonbond interaction. All the connectivity-dependent interactions are related to bond order, whereas the nonbond interactions such as coulomb and van der Waals are calculated in every atom couple without taking connectivity into consideration. The shielding item is utilized for eliminating any excessive nonbond interactions. A detailed introduction to the ReaxFF force field can be found in the References [14,15,16]. In this work, ReaxFF parameters raised by Rahnamoun and van Duin, which embrace the H, N, C and O elements, were used in the simulation of the AO interaction with Upilex-S; these have found a lot of successful application in the AO interaction with polyimide material molecular dynamics simulations [27,28,32], with reliable achievement in research.
In this work, the module of Upilex-S is constructed using 240 Upilex-S monomers. In the following, the establishment of the Upilex-S mode and simulation of AO bombardment are under the conditions of original temperature of 300 K, AO bombardment energy of 4.5 eV and AO bombardment frequency of 5 AO/ps; this is similar to the other contents of the study. Figure 1 illustrates the establishment of the model of Upilex-S. At the first stage, the monomer structure (C22H12O4N2) of Upilex-S is formed, then the total 240 monomers (9600 atoms in all) are set into a cubic box so as to form an amorphous model with a primary density of 0.1 g/cm3. After that, 2 ns NPT (constant atomic number, N; constant pressure, P; constant temperature, T) simulation under the circumstance of atmospheric pressure at 300 K is conducted, in which the control of pressure and temperature use the Berendsen barostat method and Nosé-Hoover thermostat method [33], respectively. The volume of the cubic box is gradually condensed by the NPT simulation so as to set the density model of Upilex-S stable at 1.333 g/cm3 (close to the actual material density), as shown in Figure 2. The 48.0 Å × 48.0 Å × 56.9 Å Upilex-S model is accomplished in the end.
After the establishment of the initial Upilex-S model, the bombardment simulation is conducted using the lammps software. Firstly, for the subsequent AO insertion, the dimension in the Z direction is extended to enlarge the surface of Upilex-S to expand the vacuum region; the x and y directions of the simulation box are set as periodical boundary conditions, while the z direction is set as a fixed boundary condition; after that, the time step is set to be 0.1 fs. Then, the energy of the Upilex-S model is minimized using the conjugate gradient method [34] to conduct a 20 ps NVT (constant atomic number, N; constant volume, V; constant temperature, T) simulation at 300 K, until reaching a dynamic balanced structure at around 300 K. Lastly, the system simulation is changed into NVE (constant atomic number, N; constant volume, V; constant energy, E) mode after the dynamic balanced structure is acquired, AO atoms are inserted randomly in each 200 fs (5 AO/ps) interval at a distance of 64 Å from the surface of Upilex-S, and the random vertical insertion of AO is set at a speed of 0.074 Å/fs (~4.5 eV) to conduct the bombardment simulation. To prevent the Upilex-S from “drifting” downward which would affect the accuracy of the simulation, the 10 Å height at the bottom of the Upilex-S model is fixed in the procedure so as to be excluded from the AO interaction. The output of the degradation products is released by the command “reaxff/species” in lammps. The visible atom analysis is demonstrated using the Ovito software. The product statistics separated from the surface are conducted using Python programming.

3. Results and Discussion

3.1. The Temperature Effects on the AO Interaction with Upilex-S

When spacecrafts orbit in LEO, their temperature varies between −170–123 °C (103–396 K) [35]. However, according to our research, seldom have we found pervasive studies of temperature effects on the AO interaction with polymers using the ReaxFF MD method. Therefore, for a more comprehensive understanding of the temperature effects, in this section, we examine the mechanism of temperature effects qualitatively by setting the Upilex-S initial temperature at 103, 200, 300, 396, 500 and 600 K (where 103 and 396 K are the extremes in LEO). In the process of AO attack, to avoid the deprived reaction product from the surface which would deviate the subsequent AO bombardment, in this simulation, the product on the Upilex-S surface is removed every 2000 steps (~0.2 ps). The total simulation step lengths of each temperature are all set to be 600,000 steps (~60 ps). The detailed parameter set of the simulations is presented in Table 1.

3.1.1. Temperature Variation

High-speed AO bombardment transmits kinetic energy into the material with the result of causing the temperature to increase. Figure 3 demonstrates the temperature variations of Upilex-S under AO bombardment at initial temperatures of 103, 200, 300, 396, 500 and 600 K. It reveals that, along with the AO impact occurring, the temperature increases linearly, and it is comparatively higher at any time than the higher original temperature. A temperature-normalized graph (Figure 4) and a temperature-normalized linear fitting graph (Figure 5) are presented so as to compare the increase rate, which show that it climbs more quickly from the original temperature (103–300 K) while it slows down obviously from a higher initial temperature (396–600 K), without a noteworthy difference between 396, 500 and 600 K. A further analysis of the temperature increase rate result from the linear fitting in Figure 5 was conducted in order to express the relationship between the increase rate and the initial temperature (under the same AO impact condition); this is illustrated as the curve in Figure 6. It shows an apparently inverse relation that the higher the original temperature is, the slower it climbs. This might be induced by the different mechanisms of AO interaction with Upilex-S at different initial temperatures.

3.1.2. Mass Loss

In the process of AO impact, the mass loss of Upilex-S was calculated using the residual mass. As illustrated in Figure 7, Upilex-S mass variations at different initial temperatures are curved, which indicate that the mass of Upilex-S is increasing at the beginning of the AO attack, with a generally overlapping tendency. The mass increase is mainly attributed to the AO adsorption onto Upilex-S. This phenomenon is consistent with that from the anterior tests and simulations conducted by other researchers [27,36]. Then, as the AO impact continues, mass loss difference begins to appear between each curve representing different initial temperatures, where the higher it is, the more severe the mass loss is. Among these, the lower original temperature has the minimum mass loss, specifically at 103 K. Figure 8 presents the eventual total mass loss of Upilex-S starting from different temperatures and shows that the mass loss grows as the original temperature rises. In detail, it is not a positive proportional relationship; instead, the distribution of the normalized ratio of total mass loss to initial temperature is basically under the positive proportional line, as shown in Figure 9.
Temperature is the macroscopic statistical result of massive microscopic atoms’ thermal motions. The kinetic energy of the polymer’s atoms is relatively lower under cryogenic conditions (especially at 103 K), which results in a stiffer structure of bonds, angles and dihedrals than at higher temperatures; therefore, more kinetic energy is needed during AO impact to trigger Upilex-S’s degradation. That explains the phenomenon of less mass loss induced under conditions of lower original temperature and the same AO attack circumstances. On the other hand, because more active interactive atoms exist at a higher temperature [28], the chemical interaction with AO is easier, which results in a greater mass loss from a higher primary temperature. Nevertheless, further observation of Figure 7 reveals that, in the later period, along with the temperature of Upilex-S increasing, the mass loss of material from a lower initial temperature is still not that severe, which seems to go against the explanation that the higher the temperature is, the more active atoms exist—with more mass loss induced. To dig for the reason underneath the phenomenon for a deeper understanding, a visible AO scattergram and line chart of AO number density distribution in the Upilex-S matrix of 20 ps AO attack at different original temperatures are plotted as illustrated in Figure 10 and Figure 11, respectively. From the perceptual observation of Figure 10, it was found that, at the 20 ps interaction, more and denser AOs deposed onto the matrix in the circumstance of lower original temperature, while the AO number in the matrix decreased obviously and became sparser with the original temperature increase, and it spread more extensively as well. We could also conclude from the AO distribution diagram that the lower the primary temperature is, the higher the peak value of AO distribution in the Upilex-S matrix is, with a narrower width of AO distribution. As the primary temperature increases, the peak value of the AO number density drops, with a more extensive AO distribution; meanwhile, the AO penetration depth is maximized (at 20 ps bombardment, the deepest AO distributions into the Upilex-S matrix under different primary temperatures are 18.86, 19.32, 19.54, 20.21, 21.50 and 22.72 Å, respectively). The information given in Figure 11 is consistent with the presentation in Figure 10. The analysis of Figure 10 and Figure 11 sufficiently indicates that, in the later stage, although the active interactive atoms increase with increasing temperature, the mass loss of Upilex-S tested from a lower temperature is still not that evident. This is because, at the primary stage, more and denser AO deposes onto the Upilex-S attacked at a lower temperature, and although the temperature increases along with the AO sustainable bombarding, more active interaction between atoms in the deeper Upilex-S matrix are still blocked in the subsequent process due to the existence of denser deposition on the surface at the beginning. As a result, the mass loss of Upilex-S tested at a lower temperature is still not that drastic though the temperature increases in the later status. Figure 12 shows the variation in the number of rebounding AO from the surface of Upilex-S during the 0–20 ps impact time at different primary temperatures. It can be seen that, as the primary temperature of Upilex-S increases, the quantity of rebounding AO decreases. This phenomenon may indicate that higher temperatures of Upilex-S allow it to absorb the kinetic energy of AO more effectively.

3.1.3. Reaction Products and Erosion Yield

AOs bombard the polymers and interact with the material, so as to isolate the product from the surface which causes the mass loss. To study the type and quantity variation in the reaction product in the test is challenging, but it is necessary for ReaxFF MD. As shown in Figure 13 and Figure 14, we first provide the structural evolution diagrams of Upilex-S at initial temperatures of 103 and 600 K, respectively, during the AO impact process without removing surface reaction products. By comparing Figure 13 and Figure 14, it is found that, under the same AO impact conditions, Upilex-S at a higher initial temperature is more susceptible to erosion by AO. That is to say, this aligns with the observations in Figure 7, where a higher initial temperature results in more severe mass loss. The variation in reaction product and quantity of Upilex-S separated from the surface after AO bombardment beginning at different temperatures is shown in Figure 15. It can be seen that, as the original temperature increases, the quantity of the reaction product increases. The dominant tiny molecule products are HO, H2O, CO, O2, NO and H2, in which the numbers of HO, O2, NO and H2 do not change evidently, whereas the quantities of H2O, CO and other tiny molecule products classified by carbon atom proportion are larger, along with the primary temperature increases.
The AO erosion yield refers to the mass or volume loss induced by a single AO after attack. Calculating the volume loss is difficult in a ReaxFF MD study, hence, mass loss calculation at different original temperatures is conducted here. Figure 16 shows the erosion yield variation in the AO interaction with Upilex-S at the same moment beginning at different original temperatures, as shown in the graph; for the same initial temperature, the erosion yield increases as the interaction process continues. The lower the original temperature is, the smaller the erosion yield is. The underlying mechanism is the same as for the analyzation of mass loss; more and denser AO deposed on the Upilex-S surface at a lower temperature at the beginning impedes later AO interactions.

3.2. Effects of Flux Density on the AO Interaction with Upilex-S

The essence of AO flux density variation is the change in AO bombardment frequency in each unit of time. Considering the heavy calculation cost using ReaxFF, we studied the AO flux density effects on Upilex-S qualitatively by changing the AO dose rate (AO bombardment frequency) in this ReaxFF MD simulation, so as to save calculation resources. To conduct this study in the same way as the temperature effects study and to avoid blocking the subsequent AO bombardment, the interaction products released from the surface of Upilex-S are removed every 2000 steps (~0.2 ps). A 30 ps AO bombardment is conducted at every dose rate, and the detailed simulation parameters of flux density are shown in Table 2.

3.2.1. Temperature Variation

The Upilex-S temperature variation under different AO dose rates is shown in Figure 17; it can be seen that the temperature increases linearly as the AO bombardment continues under the same AO dose rate, while under different dose rates, the temperature increases faster under a higher AO dose rate. Figure 18 shows the linearly fitted temperature variation lines representing different dose rates. The slopes of every curve in Figure 18 indicate that the rising rate of temperature is not strictly taking the positive proportion of the dose rate. The normalized temperature–dose rate diagram is drawn in Figure 19 for further demonstration. It indicates that, although the increase rate is consistently beneath the positive proportional line, it is nearly a linear relationship between the temperature-increasing velocity and the dose rate in the lower (5–15 AO/ps) zone. At a higher dose rate, the temperature-increasing velocity slows down, indicating that although more AO bombarded the material at each unit time, as well as more kinetic energy, so as to induce a faster temperature increase, the Upilex-S temperature increase could not be deemed as the effect of the simple summation of single AO bombardments. Further AO dose-rate effects are explored in the following via a Upilex-S mass loss discussion.

3.2.2. Mass Loss

As in the study of the temperature effects, the mass loss variation of Upilex-S under different AO dose rates is calculated using the residue mass. The Upilex-S mass variation under different dose rates is shown in Figure 20. It can be seen that, at the primary stage, the mass of Upilex-S reveals an increasing tendency, which indicates that AO is mainly absorbed onto the Upilex-S surface at the beginning, yet seldom interacts with the material. This is still consistent with the results of the AO interaction with Kapton from other researchers using tests and simulations [27,36]. At the same time, it was found that material under different dose rates resulted in different mass increases; in the initial stage, the higher the dose rate is, the larger the increase in mass is. That might be because of the mechanism change in the AO erosion of Upilex-S. As the AO bombardment continues, the mass of the material under different dose rates is generally decreasing linearly, which indicates more interaction product in the later stage.

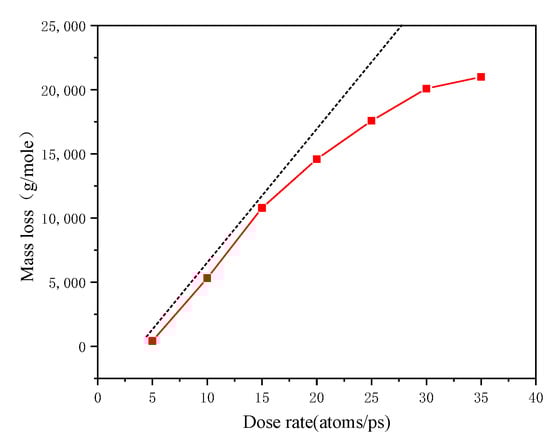

Figure 21 shows the total mass loss of Upilex-S under different AO dose rates and indicates that, along with the increase in AO dose rate, the mass loss rate drops. For further analysis on the relationship between mass loss and AO dose rate, a normalized total mass loss-dose rate diagram is drawn in Figure 22. It illustrates that, at the lower dose rate (5–15 AO/ps), although the mass loss increases along with the dose rate increasing linearly, it is not a positive proportional relationship; however, there is a noteworthy enhancement of mass loss under the 10 AO/ps and 15 AO/ps dose rates compared to the 5 AO/ps dose rate that is correlated with the linearly increasing temperature at low dose rates. With more atoms activated due to the temperature increasing, it is easier for the active atoms to interact with AO, which induces a sharp decrease in mass loss [28]. At a higher dose rate (20–35 AO/ps), along with its increase, the mass loss of Upilex-S is mitigated, which seems a little contradictory to physical and chemical intuition; hence, it is necessary to investigate the reason for the mass loss mitigation at a higher dose rate.
To investigate the Upilex-S mass loss mitigation at high dose rates, we first counted the percentage of AO interacted with Upilex-S under different dose rates, as shown in Figure 23. Along with the dose rate increasing, the quantity percentage of AO atoms interacting with Upilex-S decreases evidently, explaining the reason why AO-induced mass loss did not increase linearly. But what exactly induced the reduction of AO interacting with Upilex-S at high dose rates? As mentioned above, to prevent the influence of the product on the surface on the subsequent interaction, in this section of simulation it is real-time deleted, so the reduction has nothing to do with it. Therefore, to explore the inner mechanism, we created a visible diagram representing the 5 ps deposition under different dose rates using Ovito, as shown in Figure 24, as we did for the temperature effect study as well as the AO distribution in the Upilex-S matrix under 5 ps different dose rates. It can be seen from Figure 24 that, at the same moment, the AO quantity and density are all increasing along with the dose rate increasing. It can be seen from Figure 25 that, at the same moment, the peak value of the AO distribution is increasing as the dose rate increases, while the diffusion is weakened; it shows the consistency between Figure 24 and Figure 25. This phenomenon indicates that, since the AO deposition on the surface is fewer and scattered at lower dose rates, the subsequent AO could contact Upilex-S sufficiently, resulting in a large amount of AOs joining the interaction, whereas AO deposition on the surface is more and denser at higher dose rates, which obstructed the subsequent AO contact with the material rigorously and boosted the chance of rebounding after collision at the same time, ending in a decrease in the amount of AO joining the interaction, so as to reduce the mass loss.

3.2.3. Reaction Products and Erosion Yield

Focusing on the dose-rate effect, discussion on the type and amount of variation in interaction products using ReaxFF MD is an essential part as well. As shown in Figure 26, variation in the total erosion increases along with the dose rate, and the primary tiny molecule yields under different dose rates are basically the same as those of HO, H2O, CO, O2, NO and H2, among which the percentage of CO and other internal tiny molecules divided by the C atom increases evidently, whereas the percentage of HO, H2O and O2 decreases, and H2 and NO show the least variation.
The erosion yield variation is also obtained by calculating the mass loss due to a single AO. As illustrated in Figure 27 depicting the Upilex-S erosion yield variation at different moments under various dose rates, the erosion yield increases as the AO bombardment continues under the same dose rate. The erosion yields at different moments are almost increasing under lower dose rates (5–15 AO/ps), but the speed of the erosion rate increase is slowing down under higher dose rates (20–35 AO/ps), especially at 20 ps, 25 ps and 30 ps. As mentioned above, the underlying reason is the same; AO deposition on the Upilex-S surface is more and denser, thus hindering the subsequent interaction and aggrandizing the consequent AO rebounding simultaneously, which slows the increase in erosion yield.

4. Conclusions

ReaxFF can simulate the forming and breaking of chemical bonds in a system. In this work, our study is carried out quantitatively via the setting of various original temperatures as well as AO bombardment frequencies to explore the mechanism of temperature effects and dose-rate effects on the AO interaction with Upilex-S. The primary conclusion obtained is as follows:
The effects of AO on Upilex-S are different under different surrounding temperatures. If the heat exchange between the system and external environment is ignored, the Upilex-S temperature increases linearly as the AO impact continues under the same environment. The temperature increase rate is inversely proportional to the Upilex-S surrounding environment. The higher the surrounding temperature is, the slower the temperature of Upilex-S climbs; the damage from AO interaction is insignificant at lower surrounding temperatures because the dense AO deposition on the surface blocks the subsequent erosion; and, as the surrounding temperature goes up, the effects of AO impacts on Upilex-S are exacerbated. Therefore, if Upilex-S is applicated onto an LEO satellite, AO erosion could be alleviated via thermal controlling. This protection method is approximately applicable to other polymer materials vulnerable to AO used in space.
In actual orbit, the AO flux density variation is essentially the same as the dose-rate variation in this work, that is to say, the AO bombardment frequency is different during the same period within the same area. Thus, we could deem it as the damage of different flux density AO is to a different extent. It could be more severe as the flux density increases at the lower stage, while the deposition would increase as the flux rises at the higher stage, which would consequently block further erosion, so as to retard the AO interaction with Upilex-S. Meanwhile, the effects of the AO interaction with Upilex-S under different flux densities could not be comprehended as the simple summation of single AO effects. Therefore, we suggest that different protection measures could be chosen for Upilex-S material applied in different altitude orbiting to enhance the cost savings. Meanwhile, the results indicate that the ground-based test method of shortening the test time-span via increasing the dose rate is approximately not that accurate. This study provides a technical reference and guidance for the improvement of ground-based AO test methods and increasing the accuracy of test results.

Author Contributions

Conceptualization, S.Q. and L.J.; methodology, S.Q.; H.J. and L.J; software, S.Q.; validation, S.Q., R.Z. and Y.L.; formal analysis, S.Q.; investigation, S.Q., T.L. and Y.X.; resources, S.Q.; data curation, S.Q. and R.Z.; writing—original draft preparation, S.Q.; writing—review and editing, S.Q. and R.Z.; visualization, S.Q. and Y.L.; supervision, L.J., T.L. and Y.X.; project administration, H.J. and L.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Banks, B.A.; de Groh, K.K.; Miller, S.K. Low Earth Orbital Atomic Oxygen Interactions with Spacecraft Materials. MRS Proc. 2004, 851, NN8-1. [Google Scholar] [CrossRef]
  2. Samwel, S. Low Earth Orbital Atomic Oxygen Erosion Effect on Spacecraft Materials. Space Res. J. 2014, 7, 1–13. [Google Scholar] [CrossRef]
  3. Zhang, L.; Liu, Y.; Dong, S.; Tubi, M.; Ye, Z. The effect of atomic oxygen on spacecraft materials and the protection measures. Spacecr. Environ. Eng. 2012, 29, 185–190. [Google Scholar] [CrossRef]
  4. Qiao, S.; Jiang, H.; Liu, Y.; Li, T.; Jiao, Z.; Cui, N.; Sun, J.; Jiang, L. Overview of atomic oxygen effect to space materials based on molecular dynamics ReaxFF method. Spacecr. Environ. Eng. 2023, 40, 319–329. [Google Scholar]
  5. Duo, S.W.; Song, M.M.; Liu, T.Z.; Hu, C.Y.; Li, M.S. Effect of Atomic Oxygen Exposure on Polyhedral Oligomeric Silsesquioxane/Polyimide Hybrid Materials in Low Earth Orbit Environment. Key Eng. Mater. 2011, 492, 521–524. [Google Scholar] [CrossRef]
  6. Zhao, W.; Li, W.; Liu, H.; Zhu, L. Erosion of a Polyimide Material Exposed to Simulated Atomic Oxygen Environment. Chin. J. Aeronaut. 2010, 23, 268–273. [Google Scholar]
  7. Banks, B.A.; Mirtich, M.J.; Rutledge, S.K.; Swec, D.M. Sputtered coatings for protection of spacecraft polymers. Thin Solid Film. 1985, 127, 107–114. [Google Scholar] [CrossRef]
  8. Jiao, Z.; Jiang, H.; Jiang, L.; Zhai, R.; Yang, Y. The test conditions in the study of synergistic effects of atomic oxygen and far ultraviolet irradiation in low Earth orbit. Spacecr. Environ. Eng. 2022, 39, 230–236. [Google Scholar]
  9. Sechkar, E.; Tollis, G.; Dever, J.; Miller, S.; Messer, R. Exposure of polymer film thermal control materials on the Materials International Space Station Experiment (MISSE). In Proceedings of the 2001 Conference and Exhibit on International Space Station Utilization, Cape Canaveral, FL, USA, 15–18 October 2001. [Google Scholar] [CrossRef]
  10. Gorreta, S.; Pons-Nin, J.; López, G.; Figueras, E.; Jové-Casulleras, R.; Araguz, C.; Via, P.; Camps, A.; Domínguez-Pumar, M. A CubeSAT payload for in-situ monitoring of pentacene degradation due to atomic oxygen etching in LEO. Acta Astronaut. 2016, 126, 456–462. [Google Scholar] [CrossRef]
  11. Stambler, A.H.; Inoshita, K.E.; Roberts, L.M.; Barbagallo, C.E.; de Groh, K.K.; Banks, B.A.; Kleiman, J.I. Ground-Laboratory to In-Space Atomic Oxygen Correlation for the PEACE Polymers. AIP Conf. Proc. 2009, 1087, 51–66. [Google Scholar] [CrossRef]
  12. Miller, S.K.; Banks, B.A.; Waters, D.L. Investigation into the Differences Between Atomic Oxygen Erosion Yields of Materials in Ground-Based Facilities and LEO. High Perform. Polym. 2008, 20, 523–534. [Google Scholar] [CrossRef]
  13. Aghaei, A.A.; Eshaghi, A.; Karami, E. Silicon solar cell performance deposited by diamond like carbon thin film “Atomic oxygen effects”. Acta Astronaut. 2017, 138, 369–373. [Google Scholar] [CrossRef]
  14. Van Duin, A.C.T.; Dasgupta, S.; Lorant, F.; Goddard, W.A. ReaxFF: A Reactive Force Field for Hydrocarbons. J. Phys. Chem. A 2001, 105, 9396–9409. [Google Scholar] [CrossRef]
  15. Senftle, T.P.; Hong, S.; Islam, M.; Kylasa, S.B.; Zheng, Y.; Shin, Y.K.; Junkermeier, C.; Engel-Herbert, R.; Janik, M.J.; Aktulga, H.M.; et al. The ReaxFF Reactive Force-Field: Development, Applications and Future Directions. Comput. Mater. 2016, 2, 15011. [Google Scholar] [CrossRef]
  16. Nayir, N.; Mao, Q.; Wang, T.; Kowalik, M.; Zhang, Y.; Wang, M.; Dwivedi, S.; Jeong, G.-U.; Shin, Y.K.; van Duin, A. Modeling and simulations for 2D materials: A ReaxFF perspective. 2d Mater. 2023, 10, 032002. [Google Scholar] [CrossRef]
  17. Chaney, H.; Lu, K. ReaxFF Simulation of Pyrolysis Behaviors of Polysiloxane Precursors with Different Carbon Content. Chem. Mater. 2023, 35, 3902–3910. [Google Scholar] [CrossRef]
  18. Liu, S.; Wei, L.; Zhou, Q.; Yang, T.; Li, S.; Zhou, Q. Simulation strategies for ReaxFF molecular dynamics in coal pyrolysis applications: A review. J. Anal. Appl. Pyrolysis 2023, 170, 105882. [Google Scholar] [CrossRef]
  19. Jung, C.K.; Braunwarth, L.; Jacob, T. Grand Canonical ReaxFF Molecular Dynamics Simulations for Catalytic Reactions. J. Chem. Theory Comput. 2019, 15, 5810–5816. [Google Scholar] [CrossRef]
  20. Song, L.; Zhao, F.-Q.; Xu, S.-Y.; Ju, X.-H.; Ye, C.-C. Onset of catalytic activity of graphene nanosheets in reaction with energetic materials evaluated by ReaxFF molecular dynamics simulation. Surf. Interfaces 2022, 31, 102024. [Google Scholar] [CrossRef]
  21. Romine, D.; Sakidja, R. Modeling atomic layer deposition of alumina using reactive force field molecular dynamics. MRS Adv. 2022, 7, 185–189. [Google Scholar] [CrossRef]
  22. Kowalik, M.; Ashraf, C.; Damirchi, B.; Akbarian, D.; Rajabpour, S.; van Duin, A.C.T. Atomistic Scale Analysis of the Carbonization Process for C/H/O/N-Based Polymers with the ReaxFF Reactive Force Field. J. Phys. Chem. B 2019, 123, 5357–5367. [Google Scholar] [CrossRef]
  23. Mao, Q.; Rajabpour, S.; Kowalik, M.; van Duin, A.C. Predicting cost-effective carbon fiber precursors: Unraveling the functionalities of oxygen and nitrogen-containing groups during carbonization from ReaxFF simulations. Carbon 2019, 159, 25–36. [Google Scholar] [CrossRef]
  24. Rajabpour, S.; Mao, Q.; Gao, Z.; Talkhoncheh, M.K.; Zhu, J.; Schwab, Y.; Kowalik, M.; Li, X.; van Duin, A.C. Low-temperature carbonization of polyacrylonitrile/graphene carbon fibers: A combined ReaxFF molecular dynamics and experimental study. Carbon 2020, 174, 345–356. [Google Scholar] [CrossRef]
  25. Mao, Q.; Rajabpour, S.; Talkhoncheh, M.K.; Zhu, J.; Kowalik, M.; van Duin, A.C.T. Cost-effective carbon fiber precursor selections of polyacrylonitrile-derived blend polymers: Carbonization chemistry and structural characterizations. Nanoscale 2022, 14, 6357–6372. [Google Scholar] [CrossRef]
  26. Zhang, L.; Kowalik, M.; Mao, Q.; Damirchi, B.; Zhang, Y.; Bradford, P.D.; Li, Q.; van Duin, A.C.T.; Zhu, Y.T. Joint Theoretical and Experimental Study of Stress Graphitization in Aligned Carbon Nanotube/Carbon Matrix Composites. ACS Appl. Mater. Interfaces 2023, 15, 32656–32666. [Google Scholar] [CrossRef] [PubMed]
  27. Rahnamoun, A.; van Duin, A.C.T. Reactive Molecular Dynamics Simulation on the Disintegration of Kapton, POSS Polyimide, Amorphous Silica, and Teflon during Atomic Oxygen Impact Using the Reaxff Reactive Force-Field Method. J. Phys. Chem. A 2014, 118, 2780–2787. [Google Scholar] [CrossRef]
  28. Zeng, F.; Peng, C.; Liu, Y.; Qu, J. Reactive Molecular Dynamics Simulations on the Disintegration of PVDF, FP-POSS, and Their Composite during Atomic Oxygen Impact. J. Phys. Chem. A 2015, 119, 8359–8368. [Google Scholar] [CrossRef] [PubMed]
  29. Rahmani, F.; Nouranian, S.; Li, X.; Al-Ostaz, A. Reactive Molecular Simulation of the Damage Mitigation Efficacy of POSS-, Graphene-, and Carbon Nanotube-Loaded Polyimide Coatings Exposed to Atomic Oxygen Bombardment. ACS Appl. Mater. Interfaces 2017, 9, 12802–12811. [Google Scholar] [CrossRef] [PubMed]
  30. Fu, Y.; Peng, F.; Zhang, C.; Sun, C.; Zeng, Z.; Fang, G. Multi-faceted simulation of atomic oxygen erosion of deorbit sail for cleaning space debris. Acta Astronaut. 2021, 187, 61–69. [Google Scholar] [CrossRef]
  31. De Groh, K.K.; Banks, B.A.; Mccarthy, C.E.; Rucker, R.N.; Roberts, L.M.; Berger, L.A. MISSE 2 PEACE Polymers Atomic Oxygen Erosion Experiment on the International Space Station. High Perform. Polym. 2008, 20, 388–409. [Google Scholar] [CrossRef]
  32. Kim, Y.; Choi, J. Thermal ablation mechanism of polyimide reinforced with POSS under atomic oxygen bombardment. Appl. Surf. Sci. 2021, 567, 150578. [Google Scholar] [CrossRef]
  33. Evans, D.J.; Holian, B.L. The Nose–Hoover thermostat. J. Chem. Phys. 1985, 83, 4069–4074. [Google Scholar] [CrossRef]
  34. Štich, I.; Car, R.; Parrinello, M.; Baroni, S. Conjugate gradient minimization of the energy functional: A new method for electronic structure calculation. Phys. Rev. B 1989, 39, 4997–5004. [Google Scholar] [CrossRef]
  35. Pisacane, V. Fundamentals of Space Systems; Oxford University Press: New York, NY, USA, 1994. [Google Scholar]
  36. Duo, S.W.; Li, M.S.; Zhang, Y.M.; Zhou, Y.C. Mass change and erosion mechanism of the polyimide film during atomic oxygen exposure. Chin. J. Mater. Res. 2005, 19, 337–342. [Google Scholar]

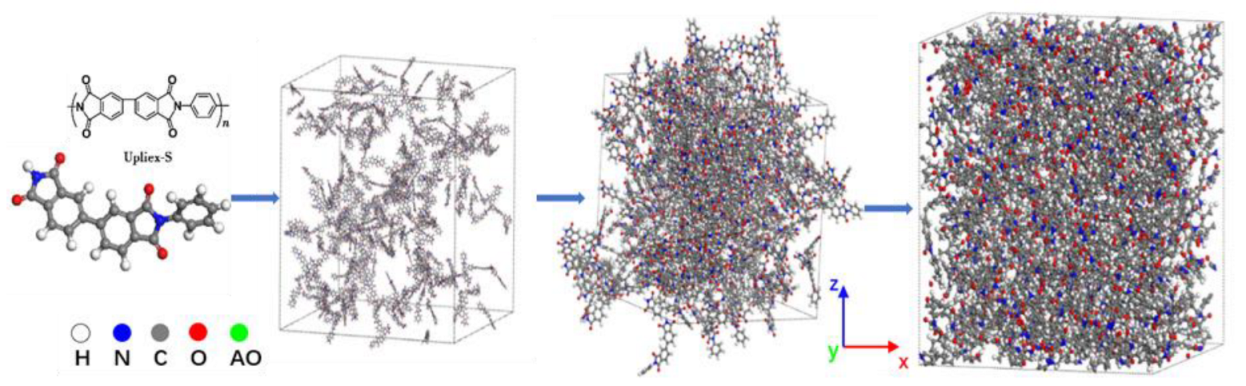

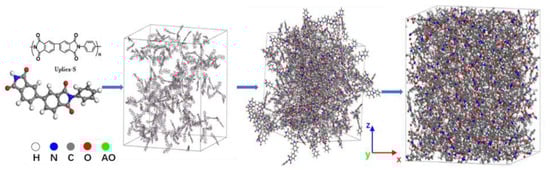

Figure 1. Modeling of Upilex-S.
Figure 1. Modeling of Upilex-S.
Coatings 13 01586 g001

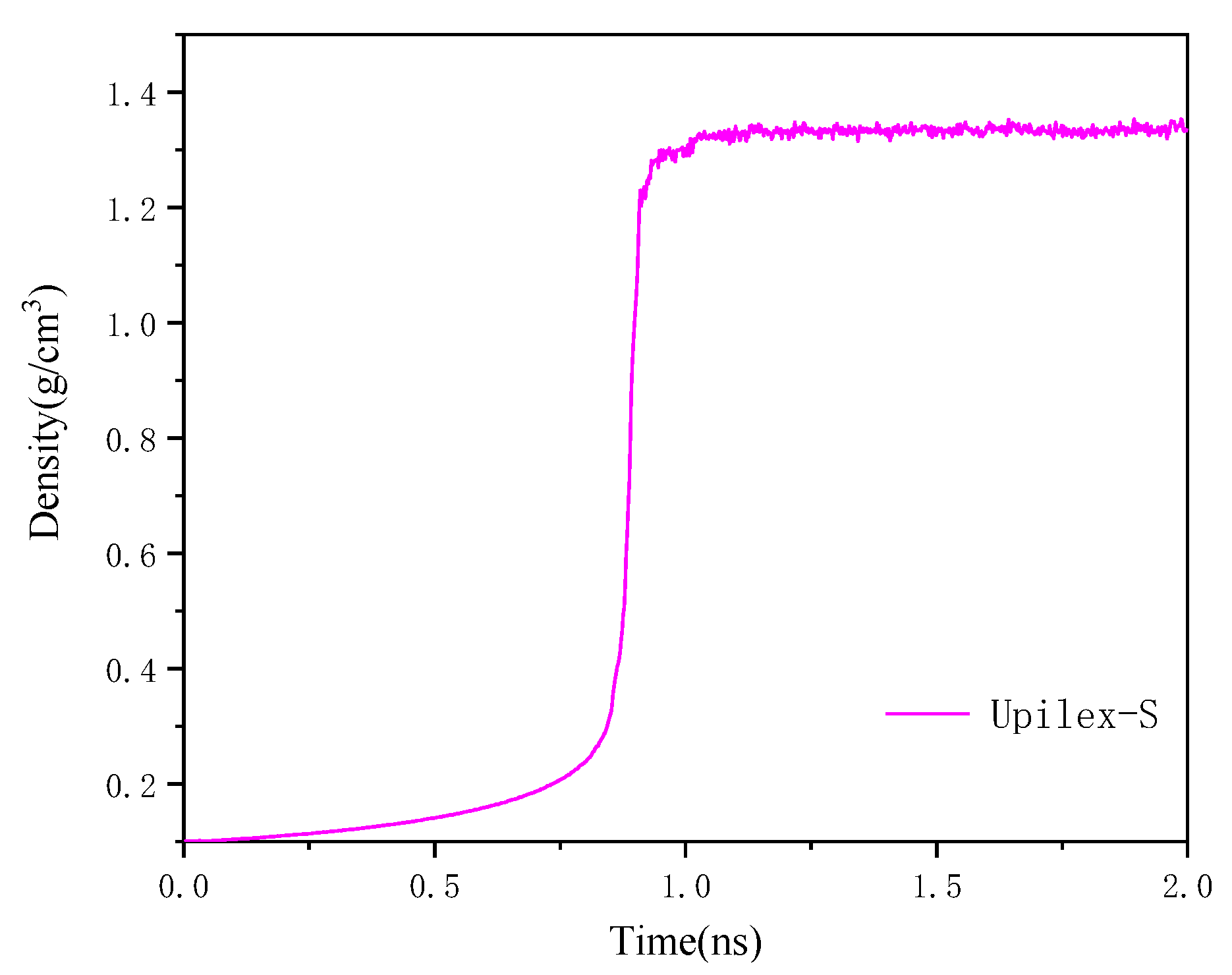

Figure 2. Density evolution of Upilex-S model.
Figure 2. Density evolution of Upilex-S model.
Coatings 13 01586 g002

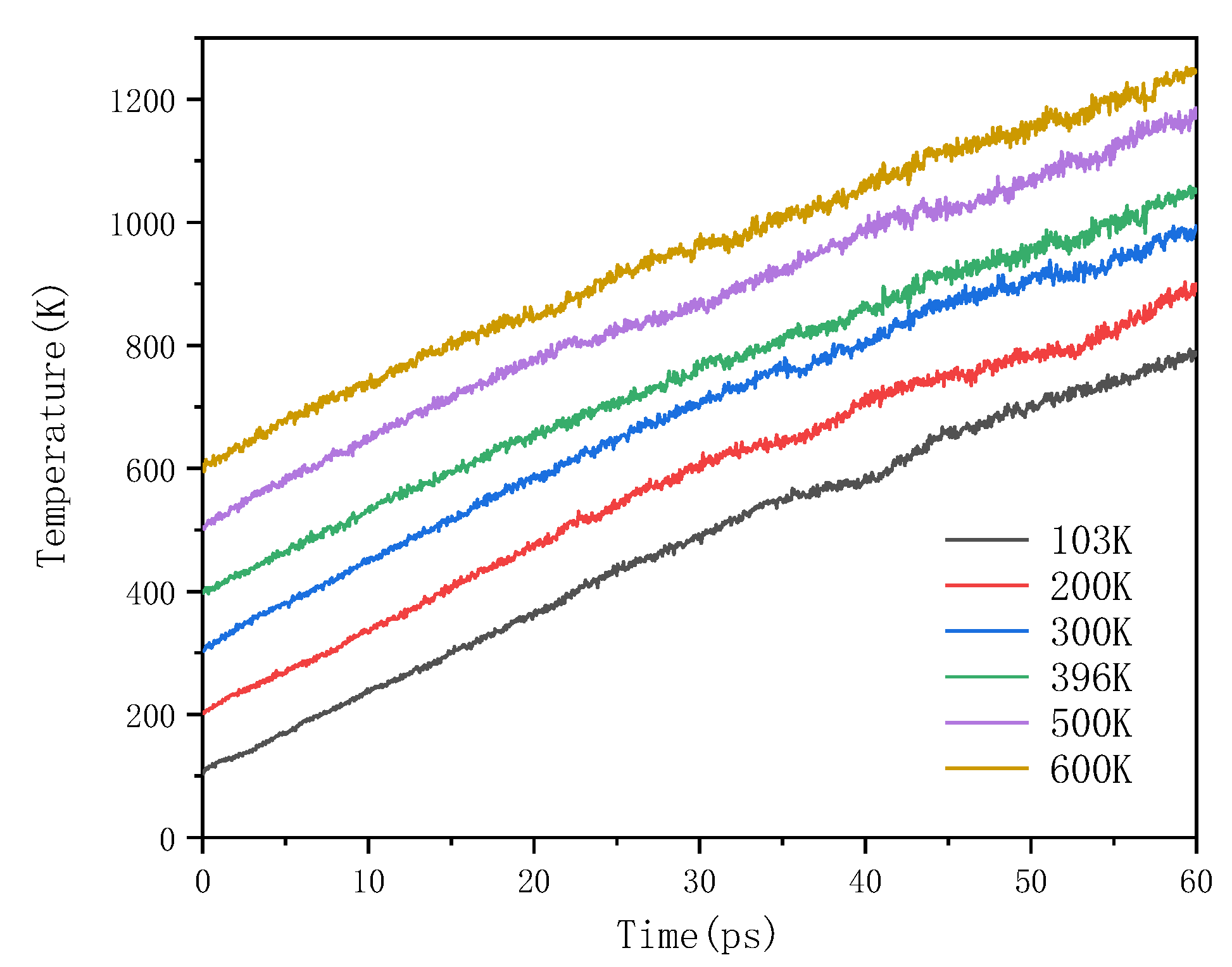

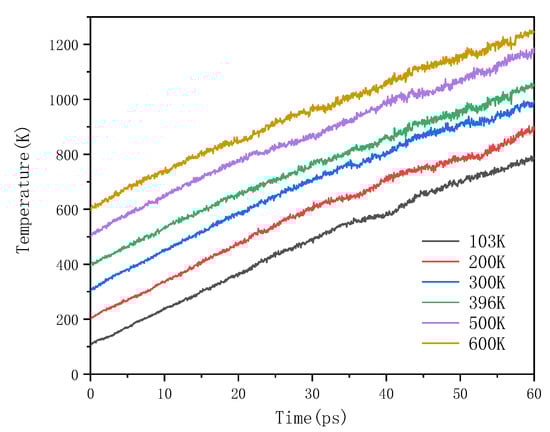

Figure 3. Temperature variation of Upilex-S under atomic oxygen impact at different initial temperatures.
Figure 3. Temperature variation of Upilex-S under atomic oxygen impact at different initial temperatures.
Coatings 13 01586 g003

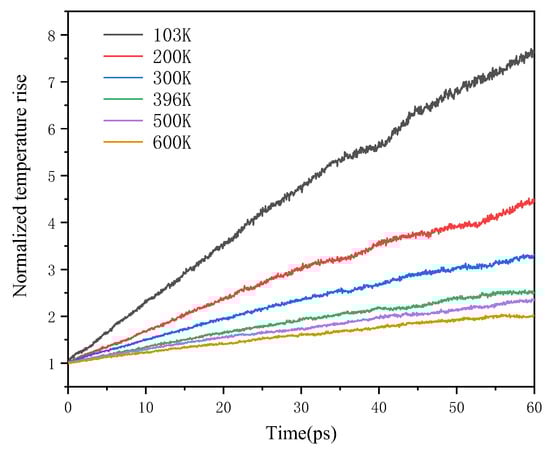

Figure 4. Normalized temperature uptrend of Upilex-S under atomic oxygen impact at different initial temperatures. Here, the normalized temperature is the temperature at any given moment divided by the initial temperature.
Figure 4. Normalized temperature uptrend of Upilex-S under atomic oxygen impact at different initial temperatures. Here, the normalized temperature is the temperature at any given moment divided by the initial temperature.
Coatings 13 01586 g004

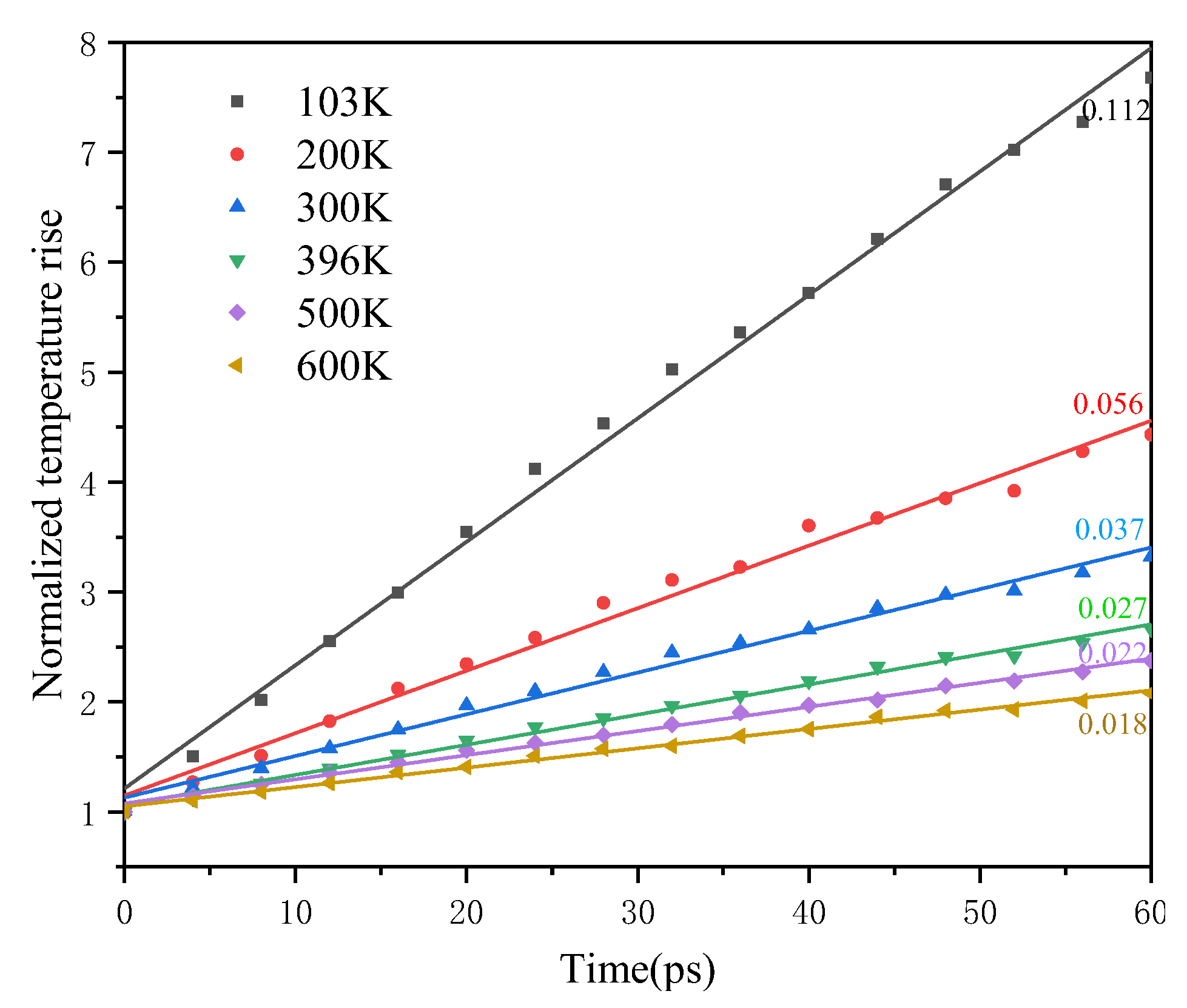

Figure 5. Linearly normalized fitting of temperature increase of Upilex-S under atomic oxygen impact at different initial temperatures.
Figure 5. Linearly normalized fitting of temperature increase of Upilex-S under atomic oxygen impact at different initial temperatures.
Coatings 13 01586 g005

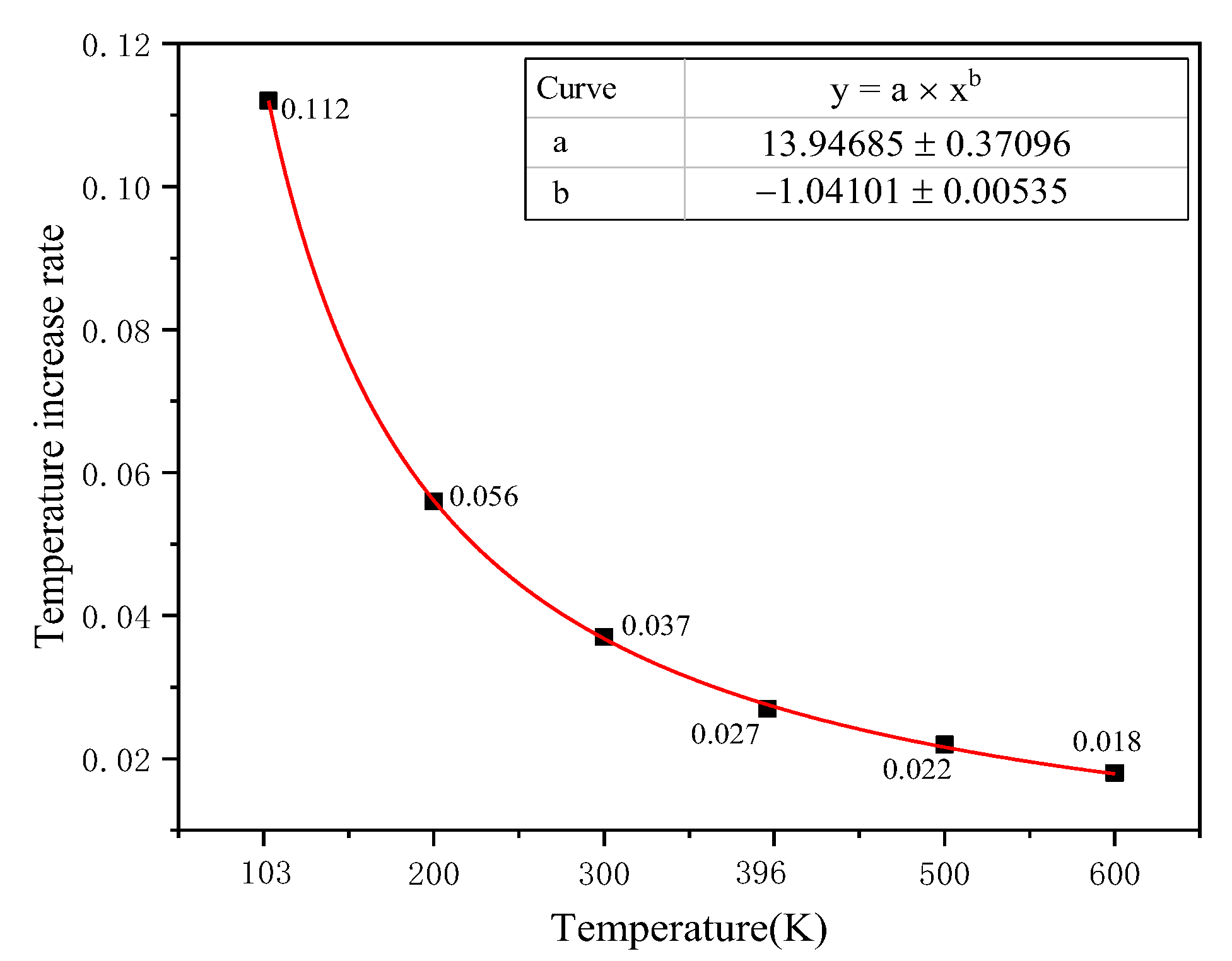

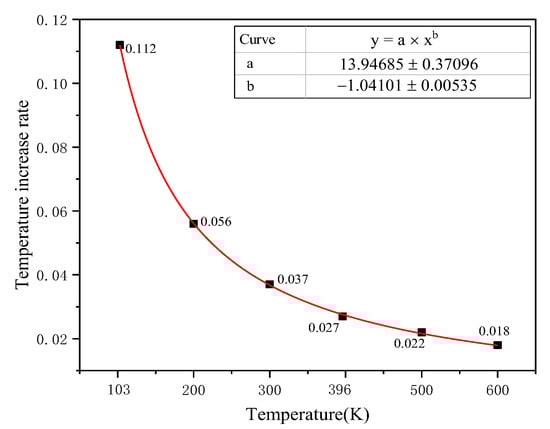

Figure 6. Upilex-S initial temperature versus its increase rate.
Figure 6. Upilex-S initial temperature versus its increase rate.
Coatings 13 01586 g006

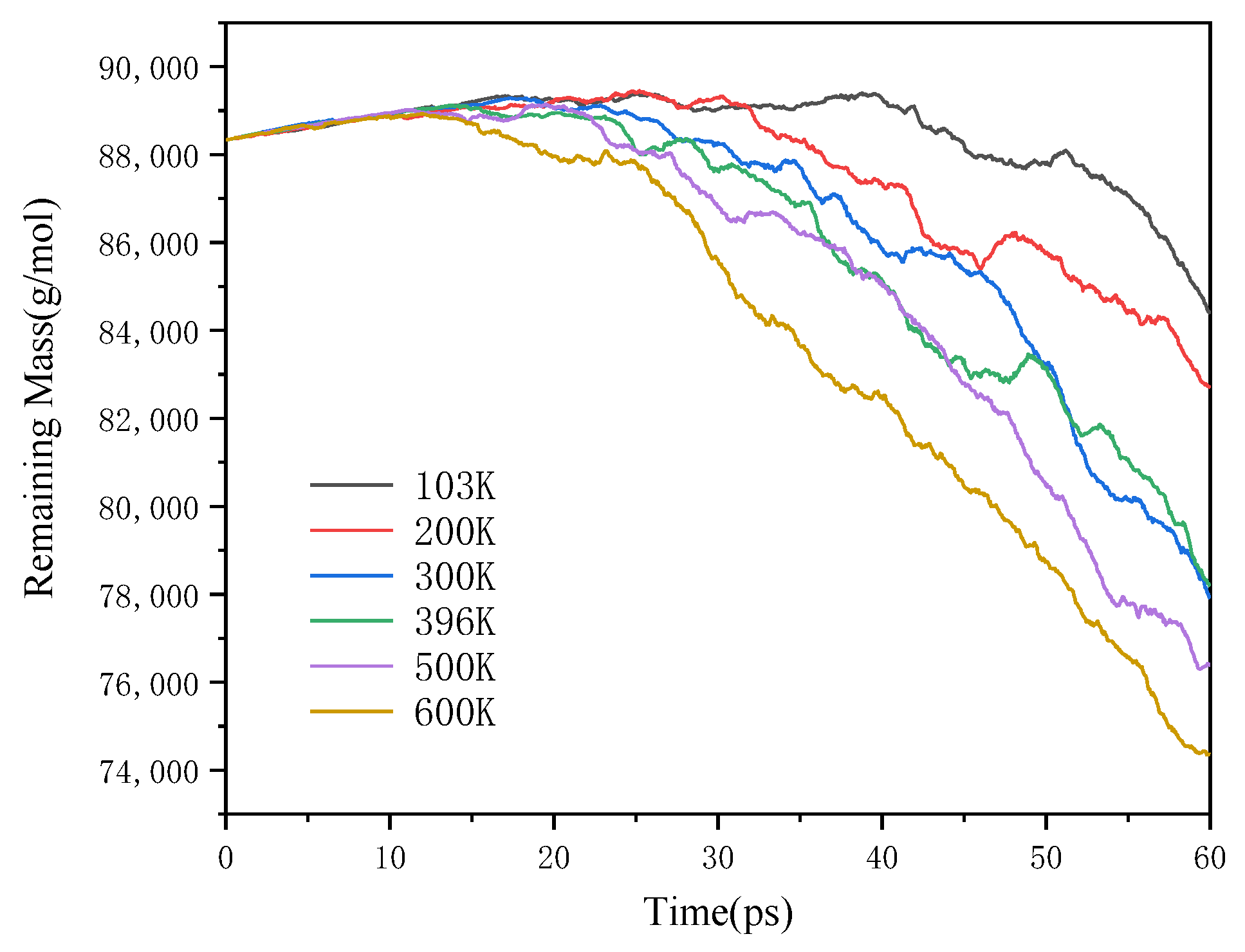

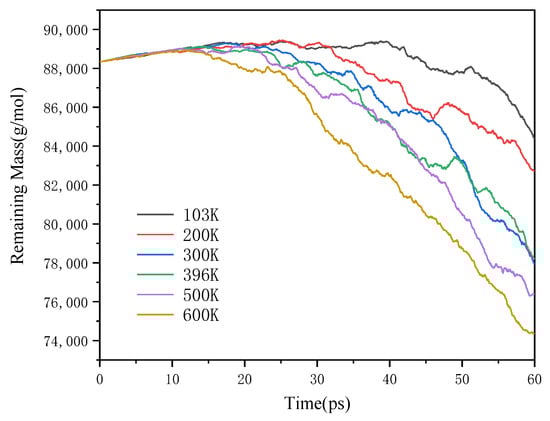

Figure 7. Mass changes of Upilex-S during atomic oxygen impact at different initial temperatures.
Figure 7. Mass changes of Upilex-S during atomic oxygen impact at different initial temperatures.
Coatings 13 01586 g007

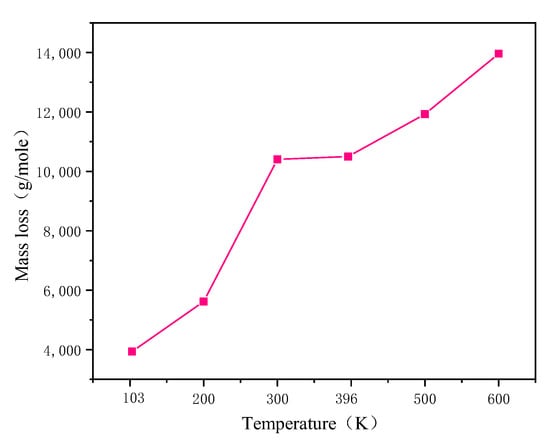

Figure 8. Mass loss after AO bombardment of Upilex-S at different initial temperatures (60 ps).
Figure 8. Mass loss after AO bombardment of Upilex-S at different initial temperatures (60 ps).
Coatings 13 01586 g008

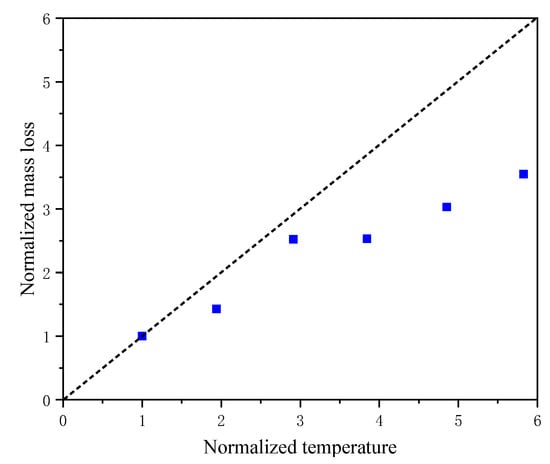

Figure 9. Normalized mass loss after AO bombardment of Upilex-S at different initial temperatures.
Figure 9. Normalized mass loss after AO bombardment of Upilex-S at different initial temperatures.
Coatings 13 01586 g009

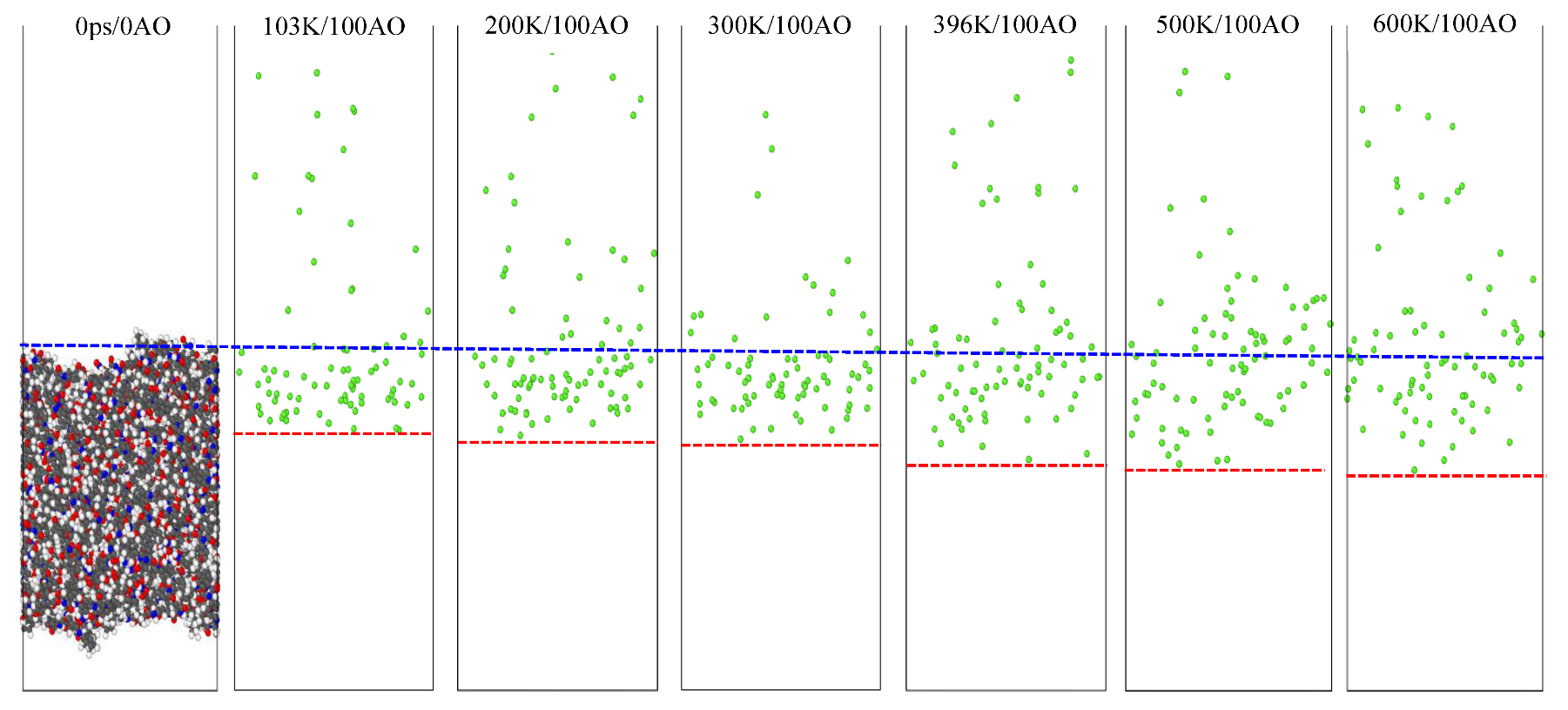

Figure 10. AO deposition on the surface of Upilex-S at 20 ps at different initial temperatures.
Figure 10. AO deposition on the surface of Upilex-S at 20 ps at different initial temperatures.
Coatings 13 01586 g010

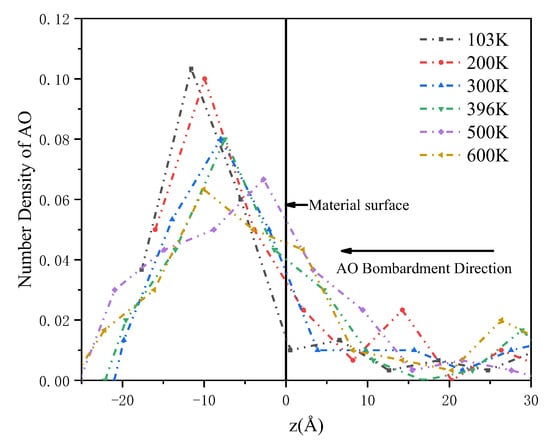

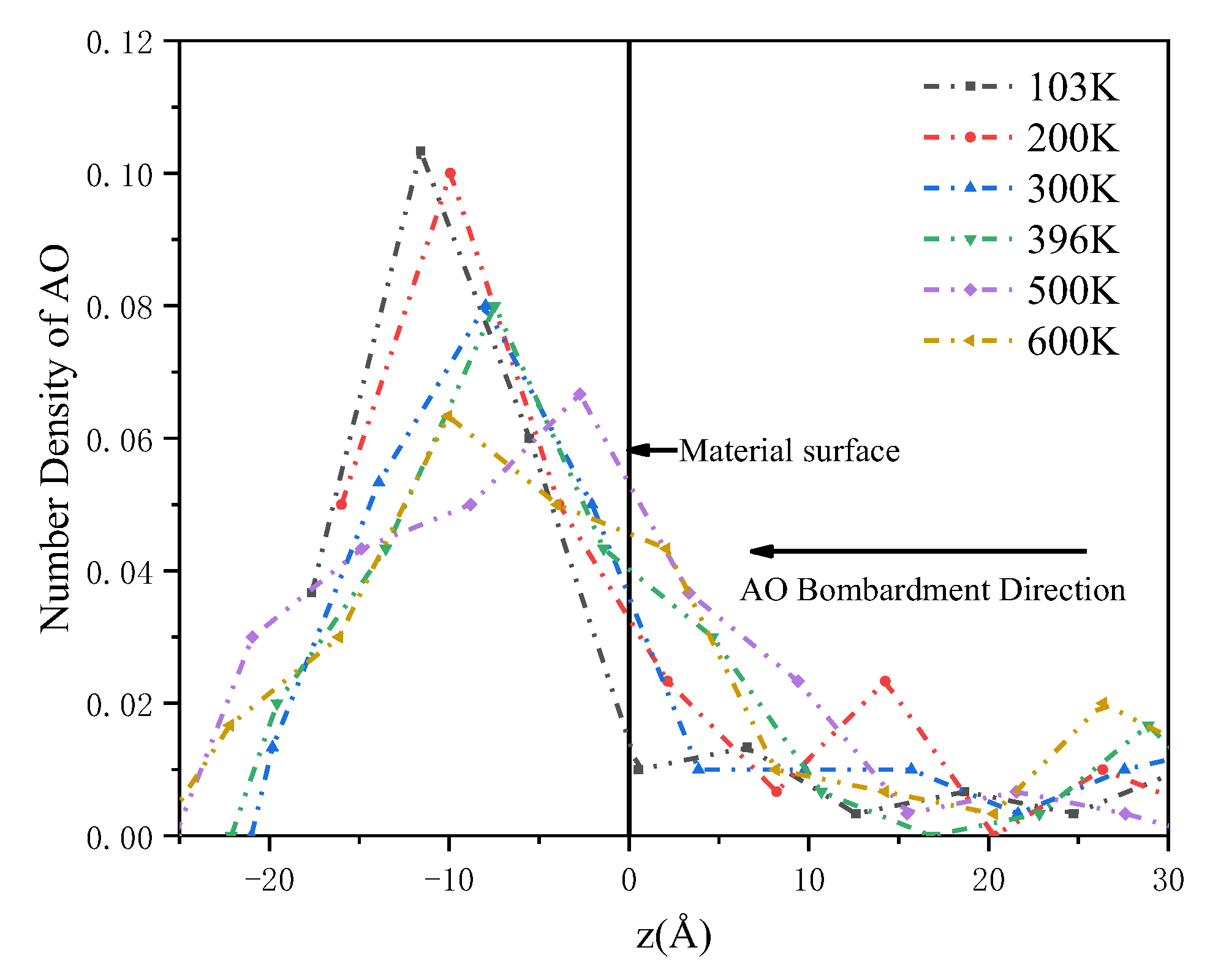

Figure 11. AO number density deposed into the Upilex-S matrix at 20 ps at different initial temperatures (z = 0 Å indicates the Upilex-S’s surface).
Figure 11. AO number density deposed into the Upilex-S matrix at 20 ps at different initial temperatures (z = 0 Å indicates the Upilex-S’s surface).
Coatings 13 01586 g011

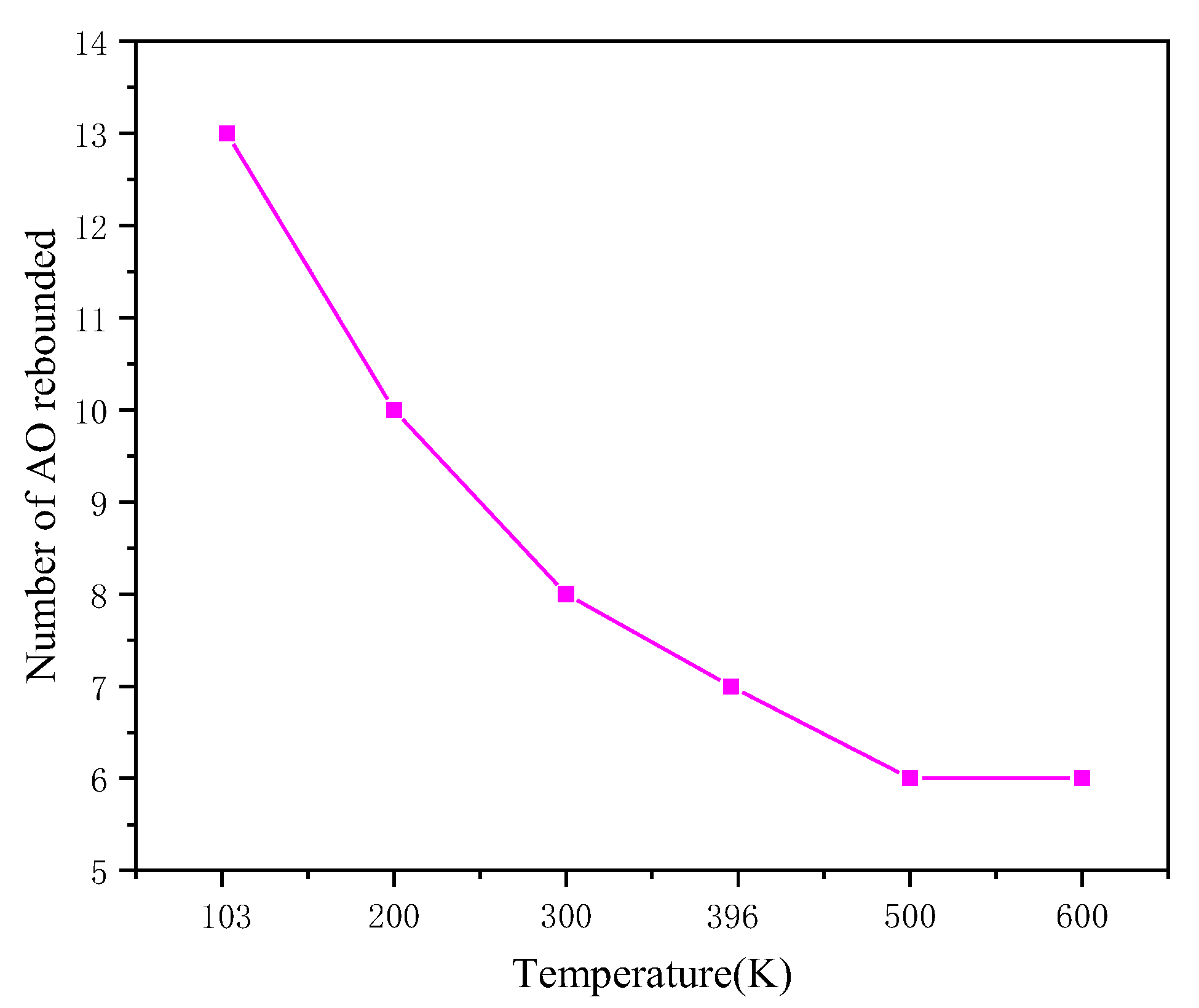

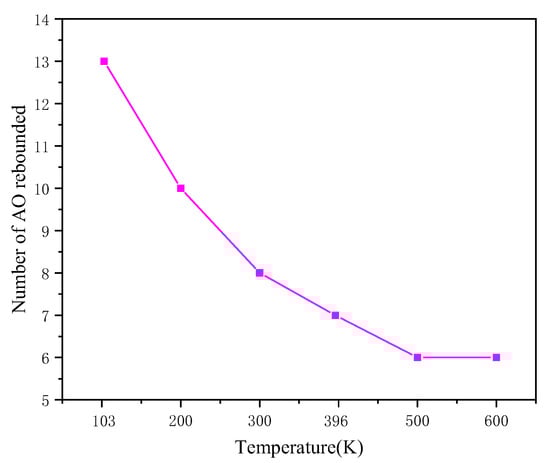

Figure 12. Rebounding AO number during the 0–20 ps impact.
Figure 12. Rebounding AO number during the 0–20 ps impact.
Coatings 13 01586 g012

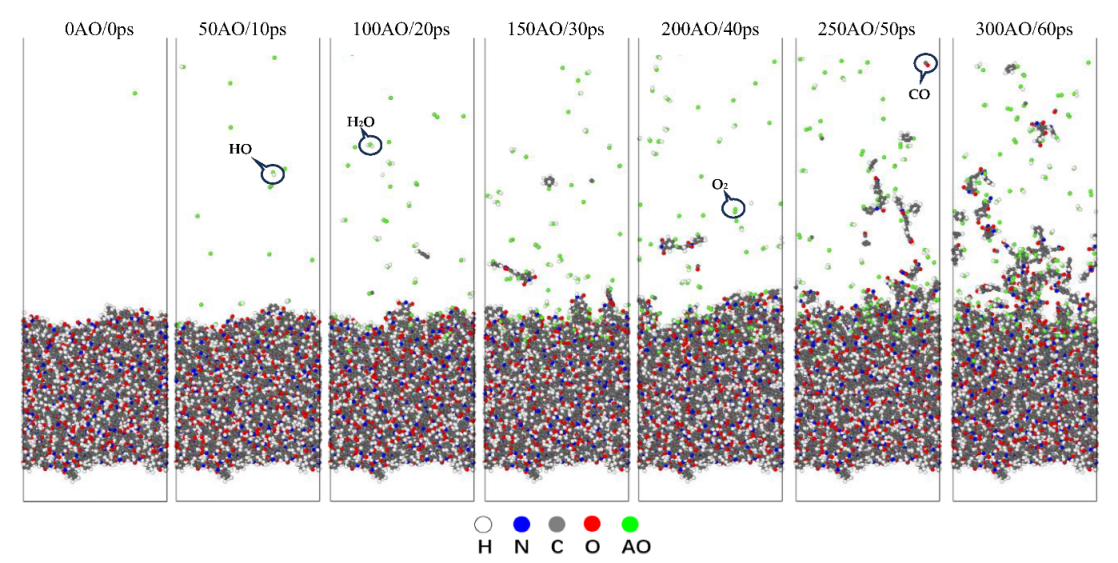

Figure 13. Evolution of Upilex-S structure at an initial temperature of 103 K during AO impact.
Figure 13. Evolution of Upilex-S structure at an initial temperature of 103 K during AO impact.
Coatings 13 01586 g013

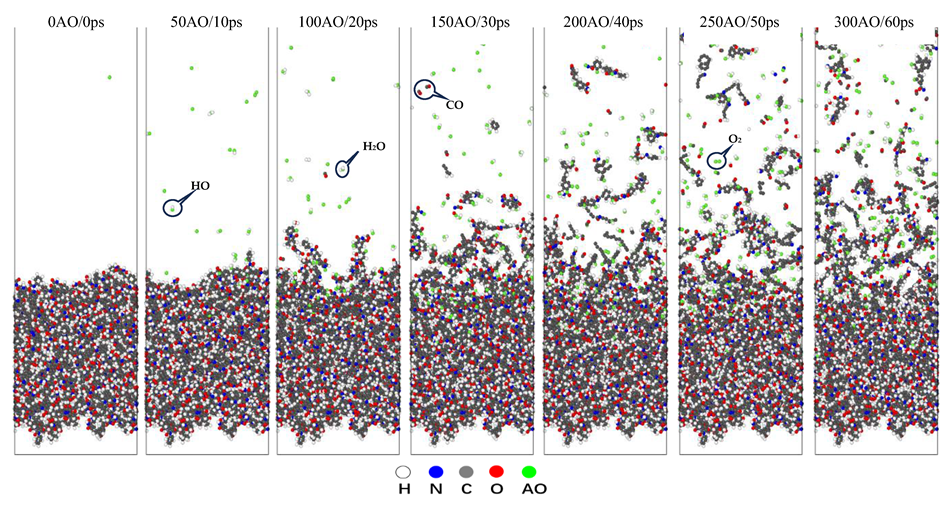

Figure 14. Evolution of Upilex-S structure at an initial temperature of 600 K during AO impact.
Figure 14. Evolution of Upilex-S structure at an initial temperature of 600 K during AO impact.
Coatings 13 01586 g014

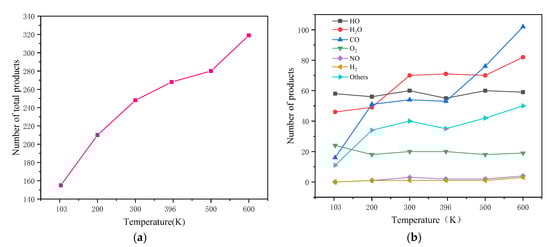

Figure 15. Reaction product information of Upilex-S after AO impact at different initial temperatures: (a) The total quantity of reaction products changes with the initial temperature. (b) The quantity of major small molecule products changes with the initial temperature.
Figure 15. Reaction product information of Upilex-S after AO impact at different initial temperatures: (a) The total quantity of reaction products changes with the initial temperature. (b) The quantity of major small molecule products changes with the initial temperature.
Coatings 13 01586 g015

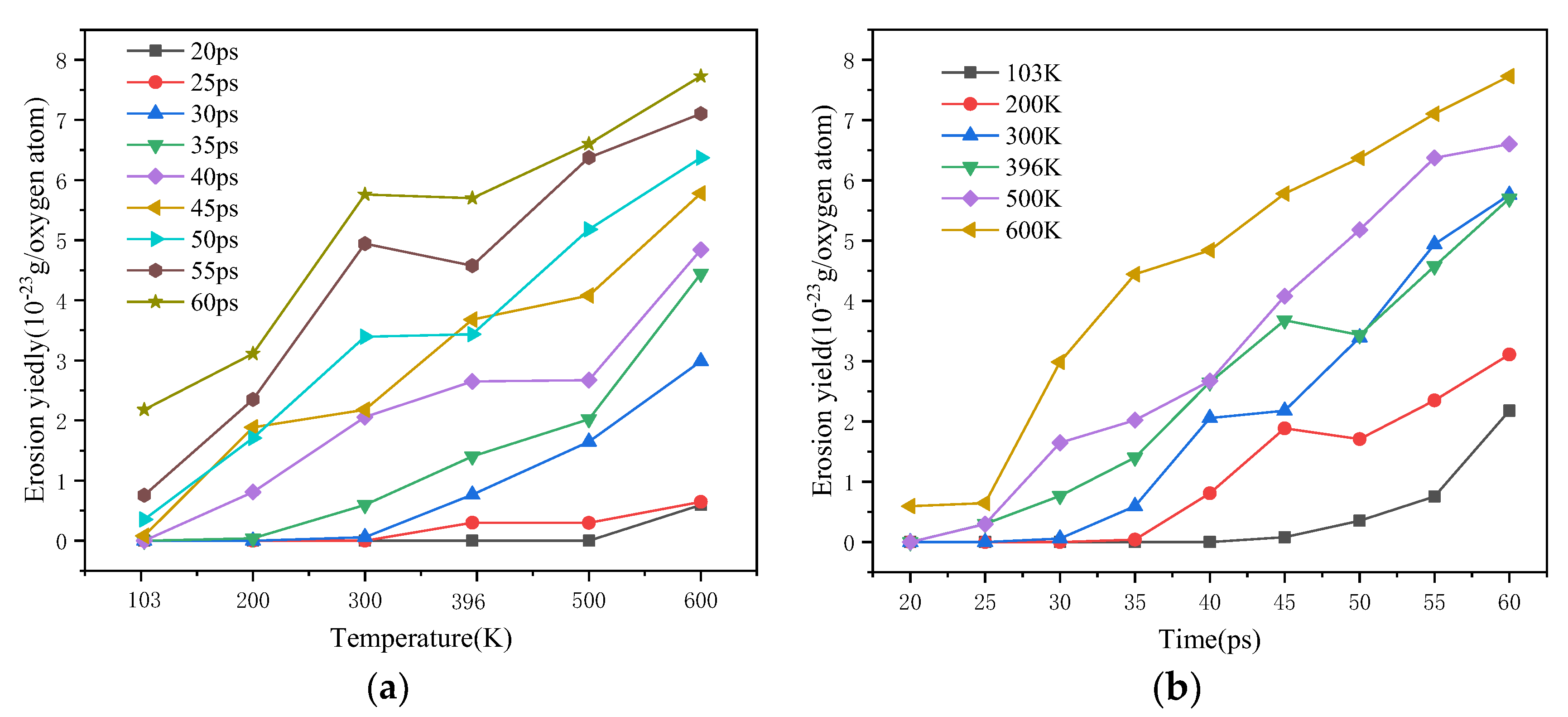

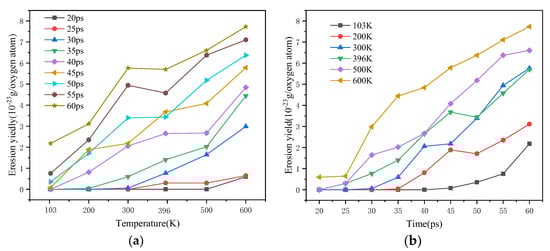

Figure 16. Variation in the AO erosion yield of Upilex-S at different moments at different initial temperatures (a,b).
Figure 16. Variation in the AO erosion yield of Upilex-S at different moments at different initial temperatures (a,b).
Coatings 13 01586 g016

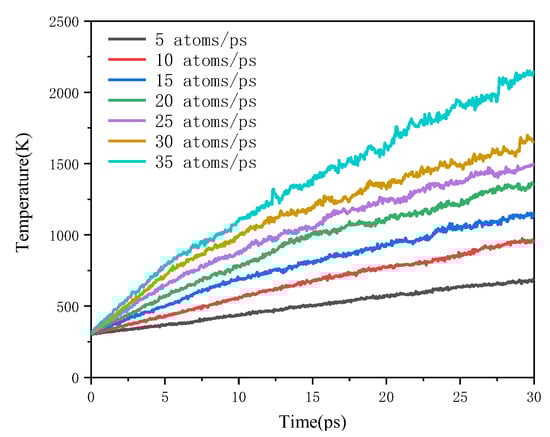

Figure 17. The temperature variation in the AO interaction with Upilex-S under different dose rates (the initial temperature is 300 K).
Figure 17. The temperature variation in the AO interaction with Upilex-S under different dose rates (the initial temperature is 300 K).
Coatings 13 01586 g017

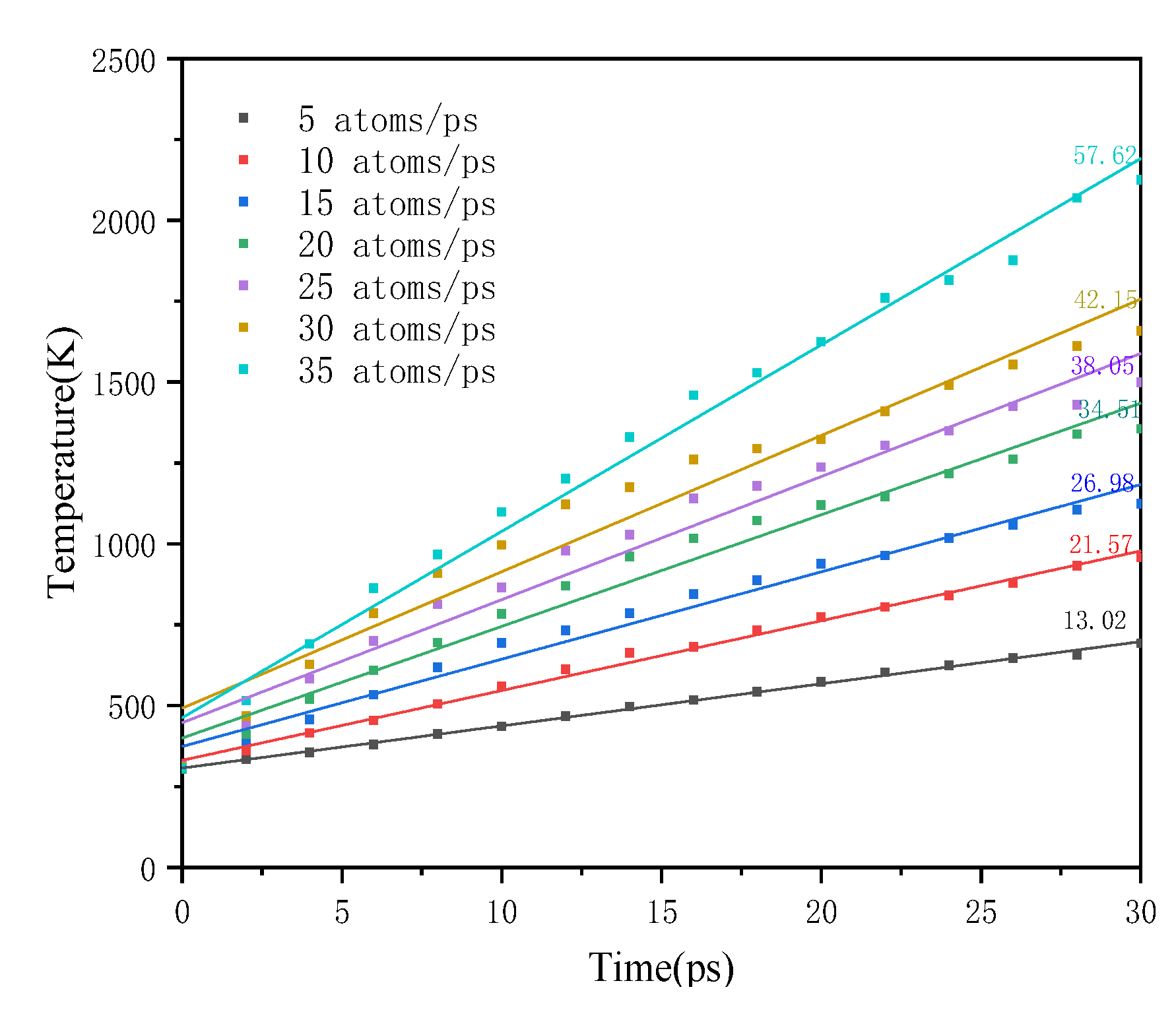

Figure 18. Linear fitting of temperature variation in AO interaction with Upilex-S under different dose rates.
Figure 18. Linear fitting of temperature variation in AO interaction with Upilex-S under different dose rates.
Coatings 13 01586 g018

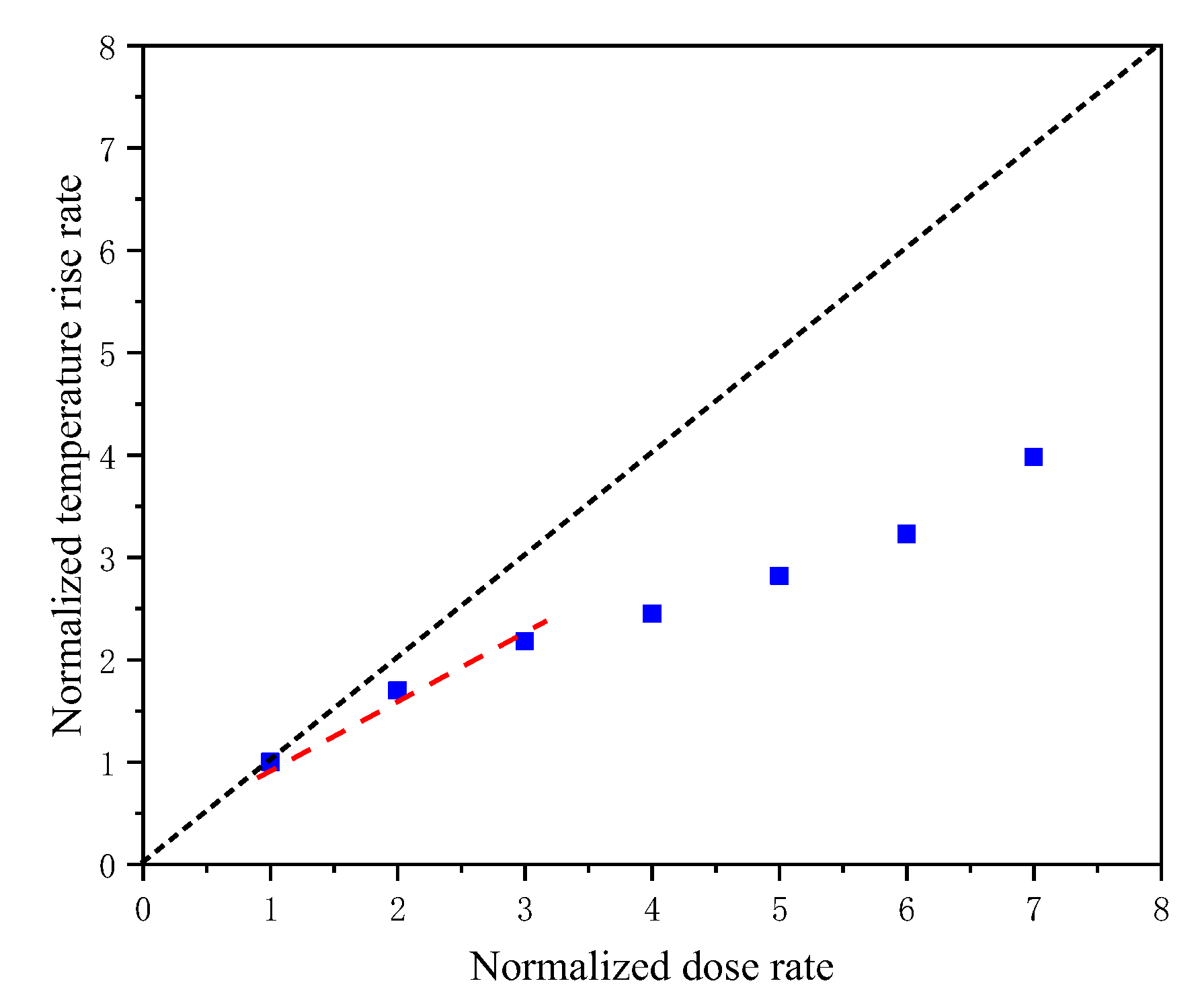

Figure 19. Normalized temperature-increasing velocity in the AO bombardment under different dose rates.
Figure 19. Normalized temperature-increasing velocity in the AO bombardment under different dose rates.
Coatings 13 01586 g019

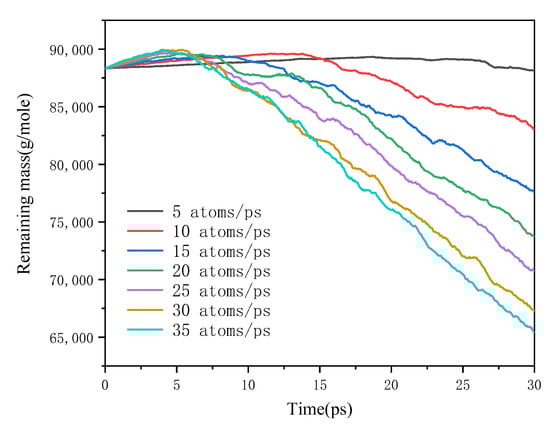

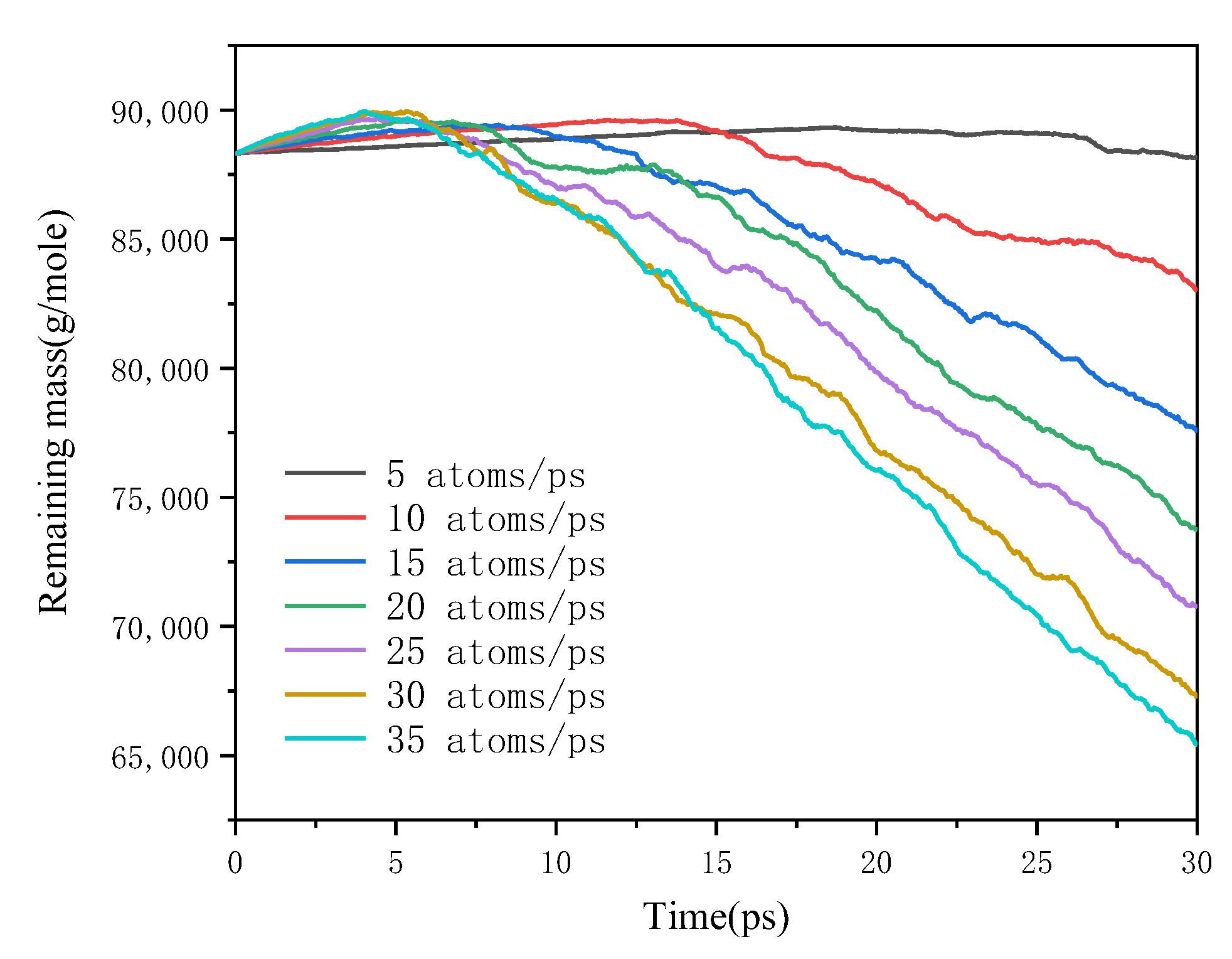

Figure 20. Mass changes of Upilex-S during atomic oxygen impact at different dose rates.
Figure 20. Mass changes of Upilex-S during atomic oxygen impact at different dose rates.
Coatings 13 01586 g020
Figure 21. Upilex-S total mass loss after different dose rates of AO bombardment.
Figure 21. Upilex-S total mass loss after different dose rates of AO bombardment.
Coatings 13 01586 g021

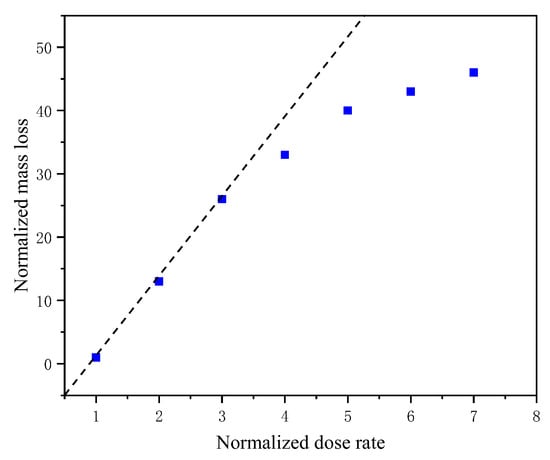

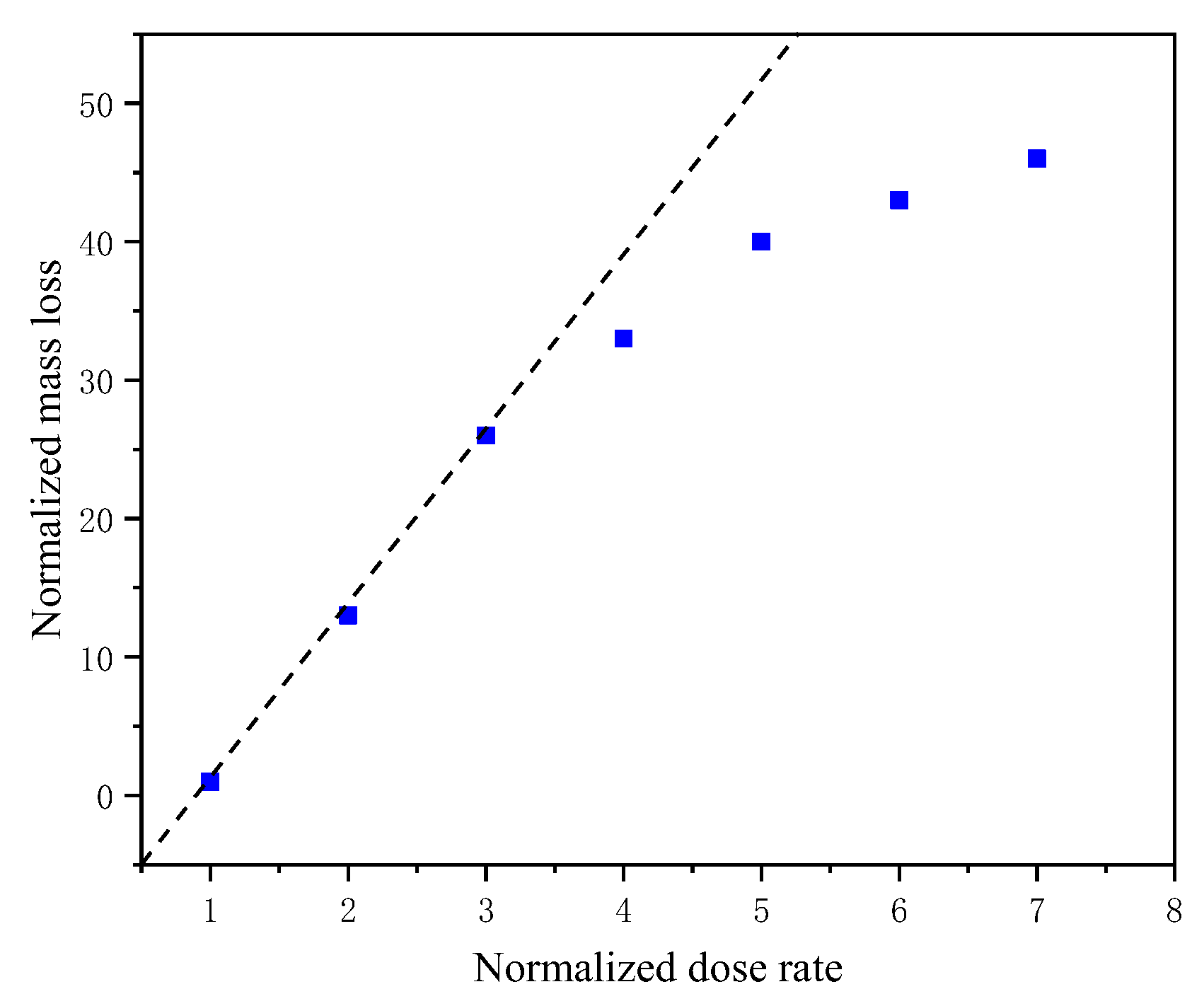

Figure 22. Normalized Upilex-S mass loss after different dose rates of AO bombardment.
Figure 22. Normalized Upilex-S mass loss after different dose rates of AO bombardment.
Coatings 13 01586 g022

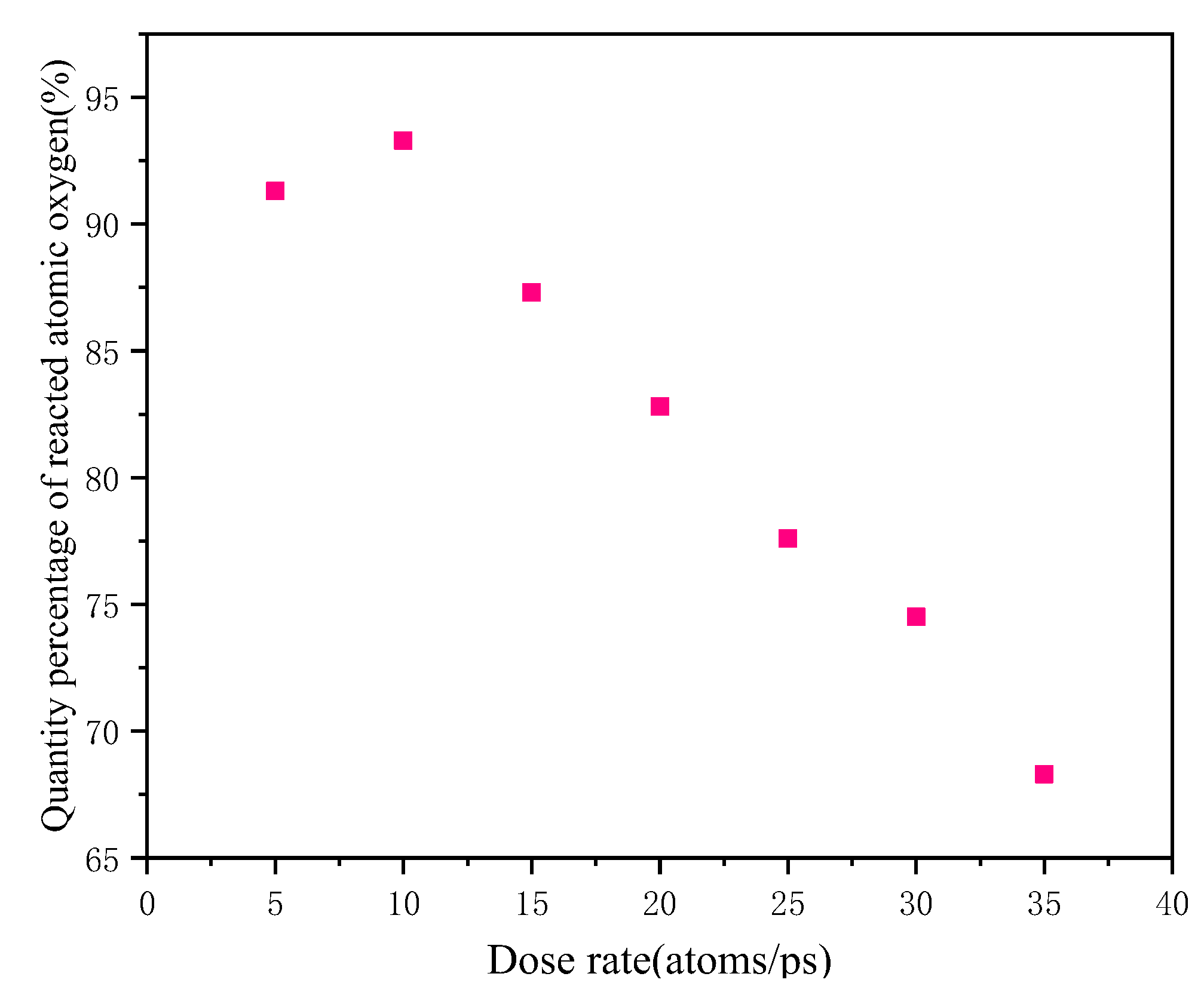

Figure 23. The percentage of AO joining the interaction.
Figure 23. The percentage of AO joining the interaction.
Coatings 13 01586 g023

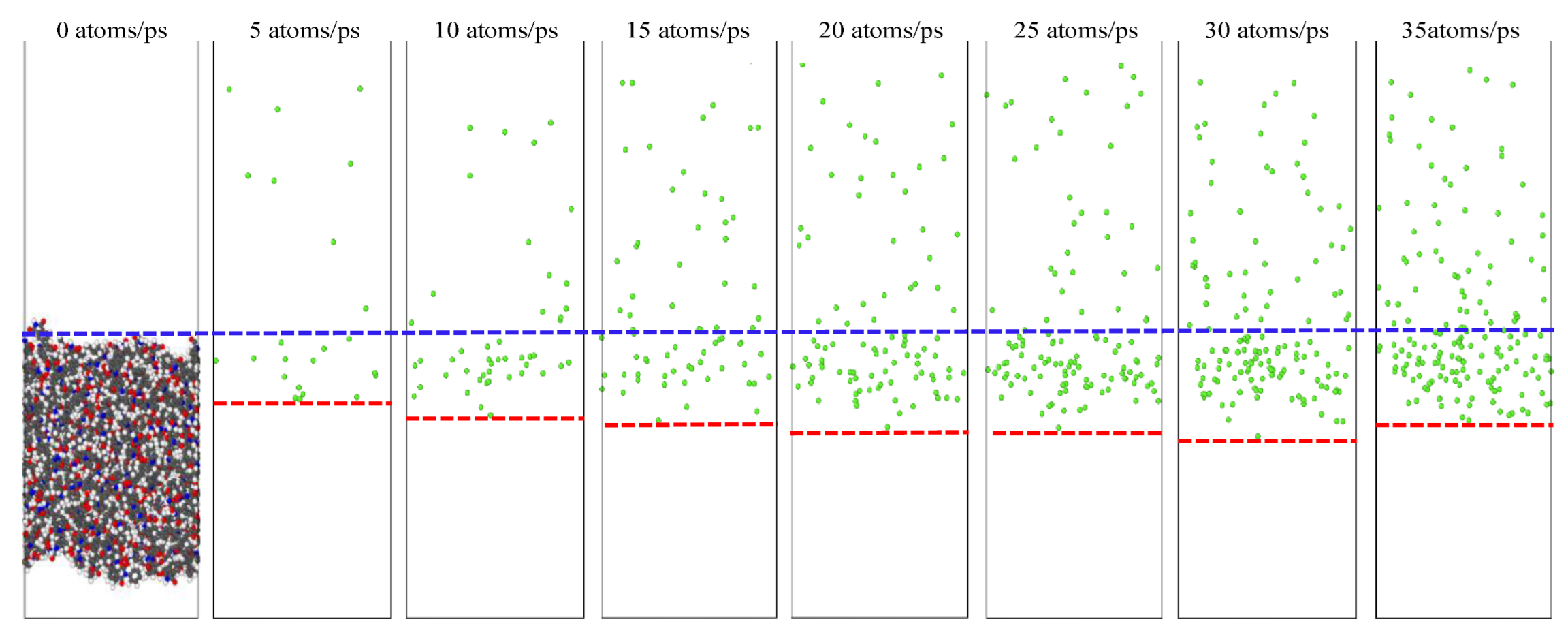

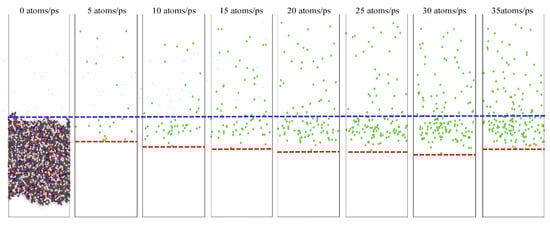

Figure 24. The 5 ps AO deposition on the Upilex-S surface under different dose rates.
Figure 24. The 5 ps AO deposition on the Upilex-S surface under different dose rates.
Coatings 13 01586 g024

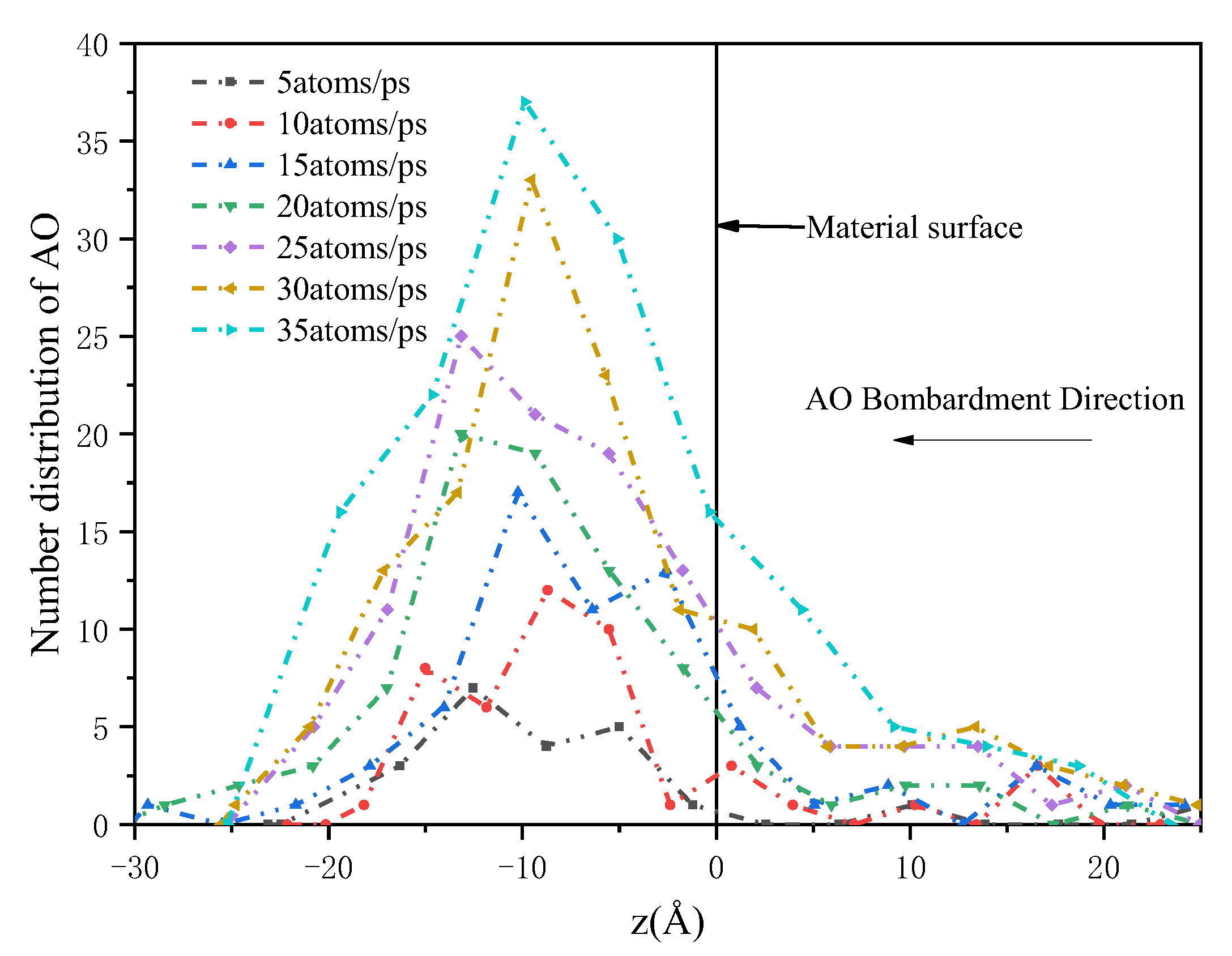

Figure 25. The 5 ps AO number density deposed into the Upilex-S matrix under different initial temperatures (z = 0 Å indicates the Upilex-S’s surface).
Figure 25. The 5 ps AO number density deposed into the Upilex-S matrix under different initial temperatures (z = 0 Å indicates the Upilex-S’s surface).
Coatings 13 01586 g025

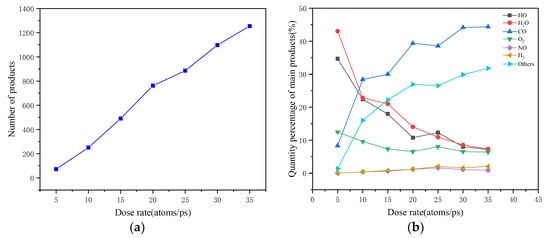

Figure 26. Information of erosion products isolated from Upilex-S surface after AO bombardment under different dose rates: (a) The total quantity of reaction products changes with the dose rate. (b) The proportion of major small molecule products changes with the dose rate.
Figure 26. Information of erosion products isolated from Upilex-S surface after AO bombardment under different dose rates: (a) The total quantity of reaction products changes with the dose rate. (b) The proportion of major small molecule products changes with the dose rate.
Coatings 13 01586 g026

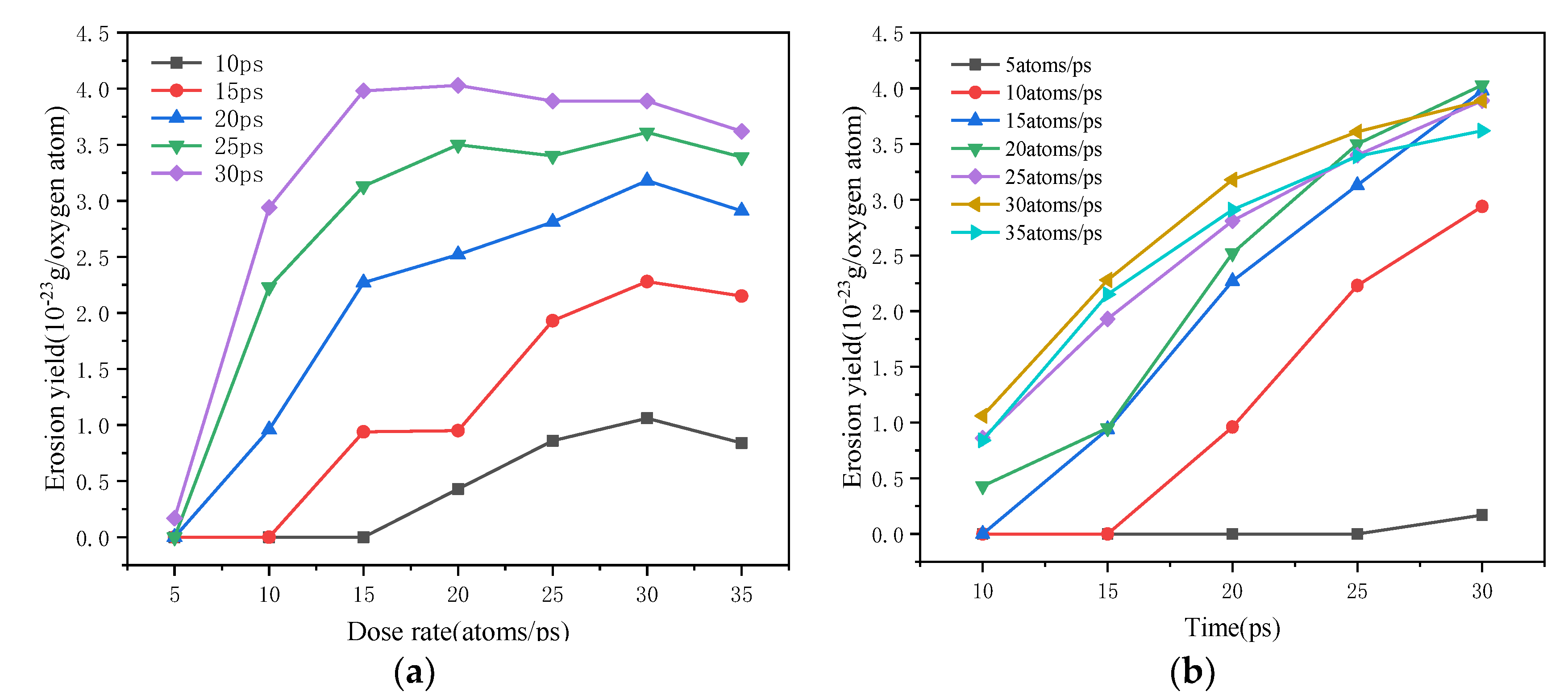

Figure 27. Variation at various moments of Upilex-S erosion yield induced by different dose rates (a,b).
Figure 27. Variation at various moments of Upilex-S erosion yield induced by different dose rates (a,b).
Coatings 13 01586 g027
Table 1. Simulation parameters of temperature effects.
Table 1. Simulation parameters of temperature effects.
ParameterUpilex-S ModelAO Energy
(eV)
Initial Temperature (K)Dose Rate
(Atoms/ps)
AO
(Atoms)
Time
(ps)
Job
1(C22H12O4N2)2404.5103530060
2200
3300
4396
5500
6600
Table 2. Dose-rate effects simulation parameters.
Table 2. Dose-rate effects simulation parameters.
ParameterUpilex-S ModelUpilex-S Temperature
(K)
AO Energy
(eV)
Dose Rate
(Atoms/ps)
AO
(Atoms)
Time
(ps)
Job
1(C22H12O4N2)2403004.5515030
21030030
31545030
42060030
52575030
63090030
735105030
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Qiao, S.; Jiang, H.; Zhai, R.; Liu, Y.; Li, T.; Xu, Y.; Jiang, L. Study on the Effects and Mechanism of Temperature and AO Flux Density in the AO Interaction with Upilex-S Using the ReaxFF Method. Coatings 2023, 13, 1586. https://doi.org/10.3390/coatings13091586

AMA Style

Qiao S, Jiang H, Zhai R, Liu Y, Li T, Xu Y, Jiang L. Study on the Effects and Mechanism of Temperature and AO Flux Density in the AO Interaction with Upilex-S Using the ReaxFF Method. Coatings. 2023; 13(9):1586. https://doi.org/10.3390/coatings13091586

Chicago/Turabian Style

Qiao, Shiying, Haifu Jiang, Ruiqiong Zhai, Yuming Liu, Tao Li, Yanlin Xu, and Lixiang Jiang. 2023. "Study on the Effects and Mechanism of Temperature and AO Flux Density in the AO Interaction with Upilex-S Using the ReaxFF Method" Coatings 13, no. 9: 1586. https://doi.org/10.3390/coatings13091586

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
