Investigation of Polyelectrolyte Multilayers Deposited on Biodegradable Corona-Charged Substrates Used as Drug Delivery Systems

Abstract

Polyelectrolyte multilayers (PEMs) deposited on porous composite polylactic acid/poly(ε-caprolactone) (PDLA/PEC) substrates were studied. The substrates were previously charged in a corona discharge. Time dependences of the normalized surface potential for positively and negatively charged electrets were investigated. The morphology of the obtained porous substrates was examined by means of scanning electron microscopy (SEM). The chitosan and the casein polyelectrolytes were deposited on the substrates using the layer-by-layer (LbL) technique. The drug loading efficiency and the release kinetics were determined spectrophotometrically.

1. Introduction

The rapid development of the polymer industry and the increasing demand for biodegradable alternatives of the most commonly used polymer products have led to more and more research being focused on the creation and characterization of such biodegradable and biocompatible products [1,2]. One major drawback of the implementation of most of the commonly used biopolymers is their poor mechanical properties, which in turn limits their wider applications. A common method for overcoming this drawback is the combination of different biopolymers with the aim of creating composite materials that possess more desirable properties, while maintaining most of the beneficial properties of each of the base polymer components. Composite biopolymers find application in many fields, such as their biomedical application for the creation of drug-carrying multilayers [3,4].

Amongst the most widely used biopolymers in the modern industry are poly-lactic acid (PLA), poly (ε-caprolactone) (PEC) and polyethylene glycol (PEG). These three biopolymers all possess desirable properties and can be used for a variety of products; however, they also present a number of drawbacks that limit their wider application.

Poly-lactic acid (PLA) is a thermoplastic aliphatic polyester that has become one of the most popular biopolymers for the synthesis of biodegradable products [5,6]. As a material, PLA possesses a number of beneficial properties, such as good hydrophilicity, cell affinity and biodegradability. Additionally, PLA is often utilized as a base material for the creation of copolymers with a number of other biodegradable polymers. Poly (ε-caprolactone) (PEC) is another biodegradable polymer that is often utilized for a number of biomedical and environmental applications. Due to its semicrystalline structure and lower degradation rate, when compared to PLA, poly (ε-caprolactone) is often used for the creation of long-term drug delivery applications and tissue engineering. However, its lack of chiral atoms makes it impossible to modify its properties by changing its stereochemistry, which limits its applicability [7]. For that reason, PEC is often copolymerized with PLA in order to tailor its properties [8].

With its high biocompatibility, polyethylene glycol (PEG) has found an increasing number of applications in the field of biomedicine [9]. The covalent grafting of PEG and its derivatives into molecules has been shown to improve the biocompatibility and water solubility of said molecules and is especially useful for the development of different drug delivery mechanisms [10]. PEG can also be used for surface modification, where it produces a biocompatible surface coating [11]. Additionally, PEG can be used in combination with other polymers for the creation of composites with tailored properties [12].

Polymer blending is a proven and easy method of creating composite structures with tailored properties. The most commonly used method for the creation of these composites is the copolymerization of two or more biopolymers, which yields a copolymer structure, whose properties can be adjusted by changing the ratio of each base polymer and the copolymerization conditions [13,14,15]. Another popular method for the creation of composite biopolymers is the use of different mechanical techniques, such as injection molding, extrusion or electrospinning [16,17,18]. All of these methods allow for the modification of the properties of the resulting composites to a certain degree. They can also be combined with different surface modification methods (such as plasma treatment) in order to further improve and modify their properties and create better biomaterials [19].

All of the above-described methods aim to create a more biocompatible structure with desirable properties, which can later be used for numerous biomedical applications. One such application is controlled and targeted drug delivery with the use of biodegradable multilayers, created on the surface of the previously described composite biopolymers [20]. Often, these multilayers are created with the use of a layer-by-layer (LbL) deposition technique. This technique allows for the creation of thin multilayers with controlled properties, which can be loaded with a number of active biomolecules, such as different drugs [21], enzymes [22], nanoparticles, etc. These types of structures can be utilized for many drug delivery applications, such as different types of patches and bandages with prolonged drug release.

A possible application of the constructed multilayer structures could be the buccal route of administration for systems or local drugs. In this sense, benzydamine hydrochloride has been used as a model drug. Benzydamine for oromucosal use is characterized by the relief of pain and irritation of the mouth and throat. It is an indazole derivative, non-steroidal, anti-inflammatory drug, with combined local anaesthetic and analgesic properties and antiseptic activity, marketed under the brand name “Tantum Verde” [23].

In our previous study [24], we investigated the possibility of using chitosan/casein multilayer films deposited on PDLA substrates as dosage forms for the delivery of benzydamine. In this case, chitosan was chosen as a cationic polyelectrolyte due to its excellent mucoadhesive properties, which can ensure a reliable fit to the buccal mucosa [25]. In addition, it is a well-known antimicrobial agent and can work in synergism with the drug [26]. Casein, being a natural protein and an anionic polyelectrolyte, is considered a suitable candidate for the development of polyelectrolyte complexes as drug delivery systems [27].

A major drawback of the thus-obtained systems was the low efficiency of benzydamine loading. Therefore, in the present research paper, we aim to investigate the influence of different ratios of the two chosen polymers (poly (D-lactic acid) and poly (ε-caprolactone)) on the benzydamine loading and delivery properties of porous composite films.

2. Materials and Methods

2.1. Materials

Poly (ε-caprolactone) (PEC) was purchased from Lactel Absorbable Polymers (Birmingham, AL, USA). Poly (D-lactic acid) (PDLA), polyethylene glycol (PEG), chitosan (high molecular mass, degree of deacetylation > 75%), sodium caseinate (casein sodium salt from bovine milk) and benzydamine hydrochloride were purchased from Sigma-Aldrich (Taufkirchen, Germany) and were used without further purification. All other chemicals were of analytical grade.

2.2. Composite Film Creation

The porous composite films were created by first dissolving 4% w/v PDLA and PEC in dichloromethane (DMC) with a magnetic stirrer (Boeco, Hamburg, Germany) at room temperature. Set amounts of the resulting solutions were then mixed to create three different PDLA/PEC mixtures with ratios of 25/75, 50/50 and 75/25. Two additional pure solutions of PDLA and PEC were also prepared. Polyethylene glycol (PEG) was mixed into all five of the prepared solutions at a concentration of 150% w/v and was stirred until a homogenous mixture was achieved. All solutions were then poured into glass plates, placed on a level surface and kept at a room temperature until the complete evaporation of the solvent. After that, the resulting composite porous films were kept in an incubator for 24 h at 35 °C to ensure that any remaining moisture was removed from their surface.

2.3. Corona Charging

The created porous composite films were cut into 2 cm × 2 cm samples and charged under corona discharge in normal atmospheric conditions. The setup (homemade instrument) used for the charging consisted of a needle electrode and a grounded plate, with a steel mesh placed between the two. For the charging process, 5 kV of set polarity was supplied to the needle electrode and 1 kV of the same polarity was supplied to the grid. This was done to ensure uniform distribution of the resulting charge on the surface of the charged samples. All films were charged for 1 minute, with half of the samples being charged under positive corona and the other half under negative corona.

2.4. Surface Charge Distribution Measurement

After charging, the initial surface potential of the samples V₀ was measured by the vibrating electrode method with compensation, where the estimated error was better than 5%. The surface potential of the electrets obtained was measured by the vibrating electrode method with compensation. This method uses an electrode, placed above the charged surface, which is vibrated at a set frequency. The vibrating motion of the electrode within the electric field of the charged surface induces an alternating electric current within the electrode. This current can be compensated for by applying an appropriate amount of outside voltage to the system, which cancels out the electric field of the sample and reduces the induced current to zero. By measuring the amount and polarity of the voltage required for this compensation, one can determine the amount and polarity of the effective surface charge distribution, with the use of the following equation:

σ = (ε₀ε/L)U_k,

(1)

where U_k is the compensation voltage (the surface potential of the electret V), ε is the relative dielectric permittivity of the sample, ε₀ is the dielectric permittivity of vacuum (8.85 × 10⁻¹² F/m), and L is the sample thickness.

2.5. Layer-by-Layer Deposition

For the creation of the polyelectrolyte multilayers (PEMs), the prepared charged samples were attached on sample holders and placed in the deposition apparatus. Two different polyelectrolyte solutions were prepared for the dipping process: 300 mL of 0.1% w/v chitosan solution in acetate buffer (pH 5, 100 mM) and 300 mL of 1% w/v casein solution in phosphate buffer (pH 8, 100 mM). All solutions were kept at room temperature and standard air pressure for the duration of the dipping process. The model drug benzydamine hydrochloride was dissolved in the chitosan solution at a concentration of 10 g/mL. Deposition was carried out in an MSM SLEE Carousel Slide Stainer (SLEE medical GmbH, Nieder-Olm, Germany), using the following automated dipping program:

• Dipping in first polyelectrolyte solution for 15 min.
• Washing in deionized water for 5 min.
• Dipping in second polyelectrolyte solution for 15 min.
• Washing in deionized water for 5 min.

The order of the polyelectrolyte solutions was determined by the charge of the samples, with positive samples starting in the casein solution. The dipping process was carried out until the deposition of 4 bilayers on the surface of the sample.

2.6. Differential Scanning Calorimetry (DSC)

The phase state of the substrates was analyzed using the DSC 204F1 Phoenix instrument manufactured by Netzsch Gerätebau GmbH, Selb, Germany. Calibration of the instrument was carried out using an indium standard (T_m = 156.6 °C, ΔH_m = 28.5 J/g) for both heat flow and temperature. Films were measured in hermetically sealed aluminum pans, with an empty pan serving as a reference. The measurements were conducted under an argon atmosphere, following the steps below:

• Cooling down from 25 °C to −70 °C with a cooling rate of 2 K/min;
• Isothermal step at −70 °C for 15 min;
• Heating from −70 °C up to 300 °C with a heating rate of 10 K/min.

The melting temperature (T_m) and melting enthalpy (ΔH_m) of the samples were determined using Netzsch Proteus—Thermal Analysis software (Version 6.1.0Bversion number, Selb, Germany). The percentage of crystallinity of PEC in the samples was calculated based on the determined melting enthalpy. Equation (2) was used for this calculation:

$${\mathsf{\chi }}_{PEC}=\frac{∆H_m}{∆H_m^0·{\omega }_{PEC}}·100$$

(2)

where ${\mathsf{\chi }}_{PEC}$ is the percentage of crystallinity of PEC; $∆H_m$ is the specific melting enthalpy [J.g⁻¹]; $∆H_m^0$ is the melting enthalpy of 100% crystalline polymer ($∆H_m^0=139.3\mathrm{J}.{\mathrm{g}}^{-1}$ for PEC [28]; and ${\omega }_{PEC}$ is the mass fraction of PEC, which is a dimensionless magnitude.

The crystallinity of PDLA was determined from the melting enthalpy and cold crystallization enthalpy using Equation (3):

$${\mathsf{\chi }}_{PDLA}=\frac{∆H_m}{∆H_m^0·{\omega }_{PDLA}}·100$$

(3)

where ${\mathsf{\chi }}_{PDLA}$ is the percentage of crystallinity of PDLA; $∆H_m$ is the melting enthalpy of PDLA [J.g⁻¹]; $∆H_m^0$ is the melting enthalpy of 100% crystalline polymer ($∆H_m^0=106.0\mathrm{J}.{\mathrm{g}}^{-1}$ [29]; and ${\omega }_{PDLA}$ is the mass fraction of PDLA, which is a dimensionless magnitude.

2.7. Scanning Electron Microscopy (SEM)

The examination of the morphology of the created PEMs was carried out with the use of scanning electron microscopy (SEM) (Prisma E SEM, Thermo Scientific, Waltham, MA, USA). Two milligrams of each of the tested samples was attached onto an aluminium holder and subsequently coated with carbon and gold, using a vacuum evaporator Quorum Q150T Plus (Quorum Technologies, West Sussex, UK). The resulting images were captured using a back-scattered electron detector (Prisma E SEM, Thermo Scientific, Waltham, MA, USA) at an accelerating voltage of 15 kV at different levels of magnification.

2.8. Water Contact Angle Measurement

Water contact angle measurements were carried out under standard atmospheric conditions (at room temperature and normal air pressure). Five measurements for each type of modification were performed on different parts of the surface of the substrates. The collected measurements were averaged and used for the determination of the hydrophobicity of each type of sample. Then, 2 μL droplets were used in order to decrease the impact of the surface roughness on the water contact angle measurements. The drops were carefully placed on the surface with the use of a 10 μL glass microsyringe (Innovative Labor System GmbH, Ilmenau, Germany). The contact angles were determined by measuring the tangent of the drop profile from images captured with a high-resolution camera. The image processing was performed with the use of public domain ImageJ software (ImageJ v1.51k software, National Institutes of Health, Bethesda, MD, USA).

2.9. Benzydamine Hydrochloride (BH) Drug Release

Phosphate buffer saline (PBS) with pH 7.4 and an ionic strength of 100 mM was used for the determination of the drug release rate. Twenty milliliters of the buffer was placed in glass beakers and kept in a water bath at 37 °C for the duration of the experiment. Three samples of each type of multilayer film were placed in the beakers and stirred at 150 rpm for 8 h. At set time intervals, 3 mL samples of the buffer were taken out and replaced with equal amounts of fresh buffer. The collected buffer samples were filtered through a 0.45 µm syringe filter (Sigma-Aldrich, Taufkirchen, Germany), and their absorption was measured at 306 nm with the use of a spectrophotometer. These results were used for the determination of the time rate of the drug release.

2.10. Benzydamine Hydrochloride (BH) Drug Content

Benzydamine-hydrochloride-loaded films were placed into 20 mL of phosphate-buffered saline (pH 7.4) and stirred continuously for 72 h on a magnetic stirrer. Then, the samples were sonicated for 5 min and filtered using a ChromafilVR syringe filter (0.45 mm). Three samples of each type were measured during the test. The amount of BH was determined using UV/Vis spectrophotometer Metertech SP8001 (Metertech Inc., Nangang, Taipei, Taiwan) and monitoring the band at a wavelength of 306 nm. The drug concentration was calculated from a standard calibration curve of BH in phosphate-buffered saline (pH 7.4).

3. Results and Discussion

3.1. Electret Properties—Time Storage Influence

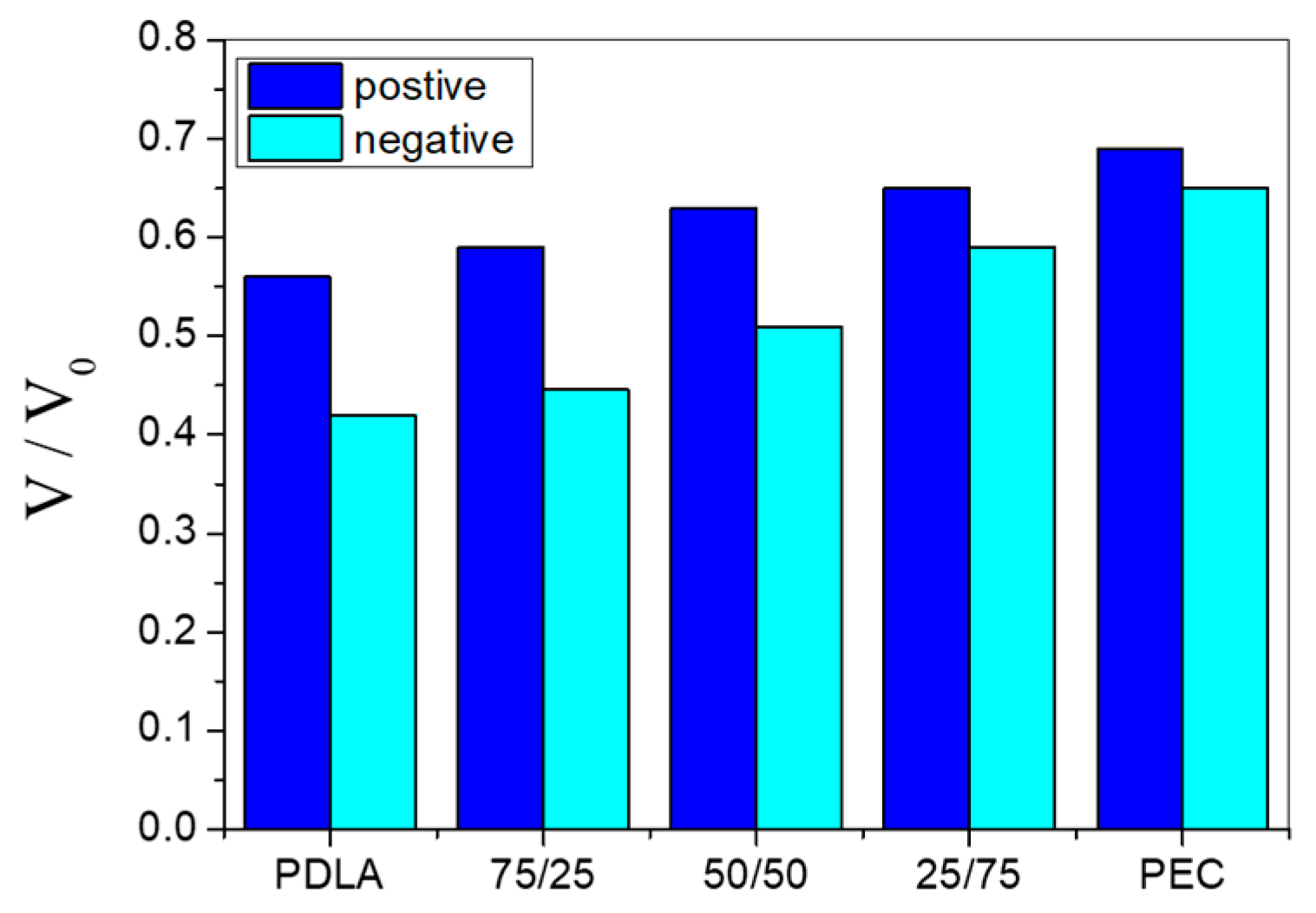

The electret properties of the obtained porous composite substrates were investigated. The time dependences of the normalized surface potential for positively and negatively charged PDLA, PEC and PDLA/PEC electrets were studied for 6 h. The surface potential was measured once every 5 min for the first 30 min, during which the charge was rapidly decaying. After this, the surface potential was measured at longer intervals, due to the steady-state values of the normalized surface potential stabilizing for all of the investigated electrets. The results for the steady-state values of the normalized surface potential for all investigated samples are presented in Figure 1.

The experimental results presented in Figure 1 demonstrate that the steady-state values of the normalized surface potential for samples charged in a positive corona are higher than those charged in a negative corona for all investigated samples.

It was established in [30,31] that during corona discharge in air, at atmospheric pressure, different types of ions can be deposited on a sample, since charging in a corona discharge depends on the corona polarity. In the case of a positive corona, the ions are mainly H⁺(H₂O)n, and the ones for a negative corona are—CO³⁻. These ions are bound in traps of various depths, and their release depends on the surrounding conditions.

It was also established that the values of the normalized surface potential are the highest for pure PEC electrets and decrease when the content of PDLA increases. This is probably due to the very high degree of crystallinity of PEC, as determined by the DSC method.

3.2. Phase State of Polylactic Acid/Poly(ε-Caprolactone) Films

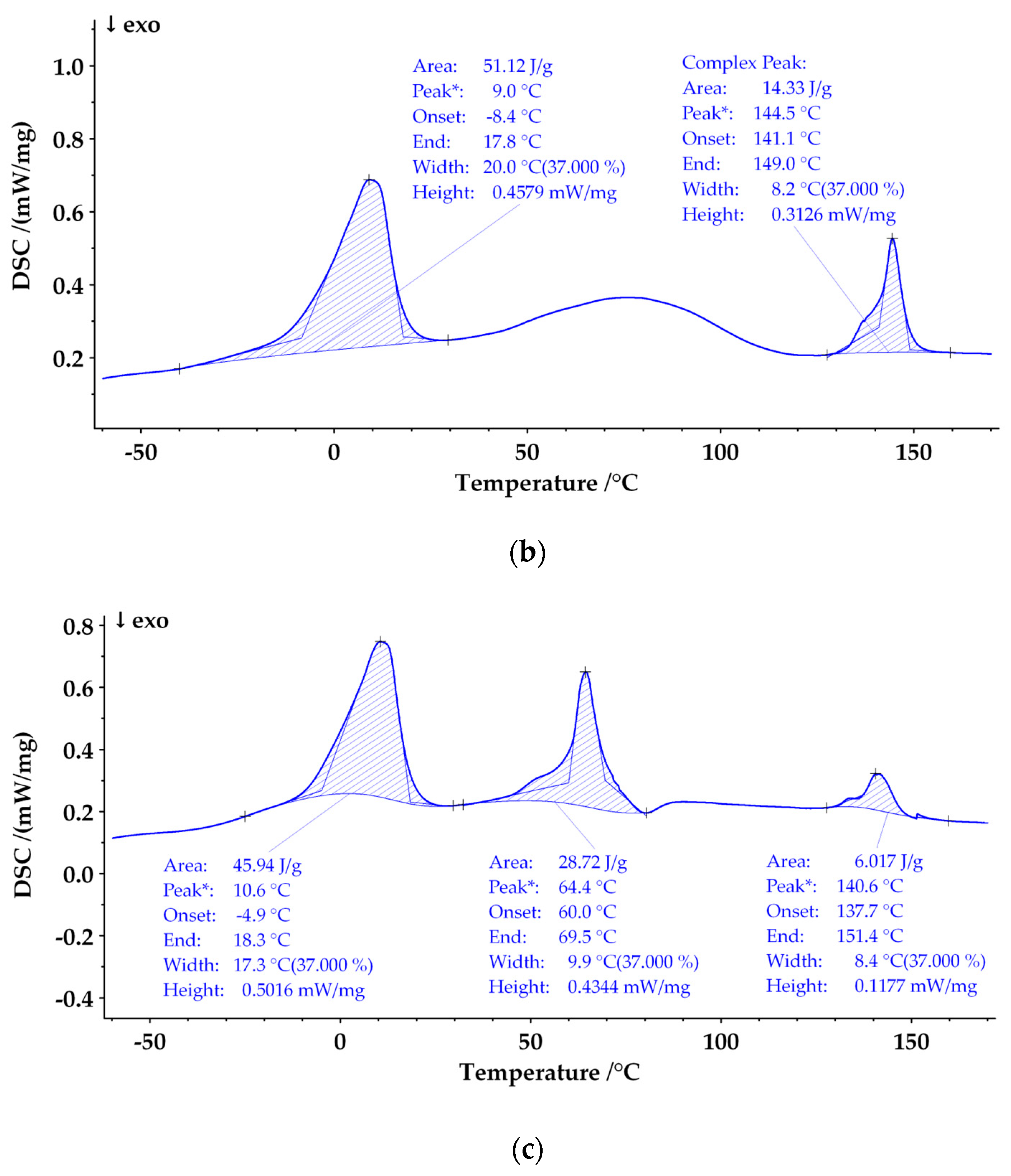

DSC analysis was conducted to ascertain the degrees of crystallinity in the examined samples. The heating curves obtained from this analysis are illustrated in Figure 2.

All thermograms clearly show the endothermic melting peak of polyethylene glycol, which occurs at a temperature of (7–10) °C. Its presence is proof of the presence of polyethylene glycol in the studied structures.

The glass transition temperature of PEC (T_g ≈ −63 °C) was not detected, probably because of the very high degree of crystallinity.

The T_g of PDLA was determined to be 50 °C, which is lower than that cited in the literature [32]. This fact is probably due to the plasticizing effect of polyethylene glycol.

The melting phenomenon of PEC was realized at a lower temperature in comparison with a system without PEG added. A possible reason for this could be an increase in the free volume in the polymer solution and the occurrence of additional interactions with the polyethylene glycol molecules that prevent the formation of larger and more stable crystallites.

The melting transitions in the PDLA/PEC blends were not affected by the blend composition, indicating their immiscibility at the molecular level. Similar results are reported by other authors [33].

3.3. PEMs’ Morphology

The PEMs’ morphology was investigated using scanning electron microscopy (SEM). See Figure 3.

The pore sizes were calculated, and the results are listed in

Table 1. Pore sizes based on measurement of randomly selected pores.

Sample	Pore Size Diameter, µm
PDLA	5.74 ± 1.42
75/25	18.76 ± 1.32
50/50	23.07 ± 1.87
25/75	24.59 ± 3.30
PEC	31.93 ± 2.87

. The presented values are the averages along with their standard deviations.

The demand for the production of biocompatible porous materials in a single-step process without harsh chemical modification is continuously growing. Typical protocols of preparation are the salt leaching method, embedment of nano- or microparticles and the usage of unfavorable types of solvents for the polymer [34,35,36]. A more suitable approach is the application of such types of liquid materials, which will form stable solutions with minimal coalescence of drops to ensure homogenous pore formation. Since PEG 400 is both water-soluble and has a low molecular weight and exists in liquid form, it turns out to be a proper candidate for the preparation of microporous structures out of water-insoluble polymers such as PDLA, PEC and their blends [37]. The results for the pore sizes for all five substrates are presented in Table 1. As can be seen, the pure PDLA substrate possessed the smallest pore size diameter. A similar pore distribution and mean diameter were reported by Phaechamud and co-author [38]. Wang et al. (2019) suggest that the mechanism of void formation in PDLA is due to its plastic deformation in water conditions [39]. With the addition of PEC in sample 25:75, its size increased nearly 3 times. A trend of enlarging void diameters with an increase in the PEC concentration has been observed, and the largest pore diameter was reported for pure PEC samples. Tsuji et al. (2006) reported the same type of behavior [40]. The pore formation process is caused by the phase separation of the immiscible solvents, namely PEG 400 and dichloromethane, and it takes place during the solvent evaporation phase. It was suggested that up to a certain polymer concentration, PDLA chains have better mobility due to partial miscibility with PEG, leading to smaller voids. While in the presence of PEC, PEG formed bigger particles, and subsequently pores, in the matrix, by diminishing the surface energy on the interface between them [41].

3.4. Water Contact Angle Measurements

The wettability and the hydrophilicity of the investigated porous composite substrates was measured using the static water contact angle method. The values of the water contact angle measurements obtained are presented in Figure 4.

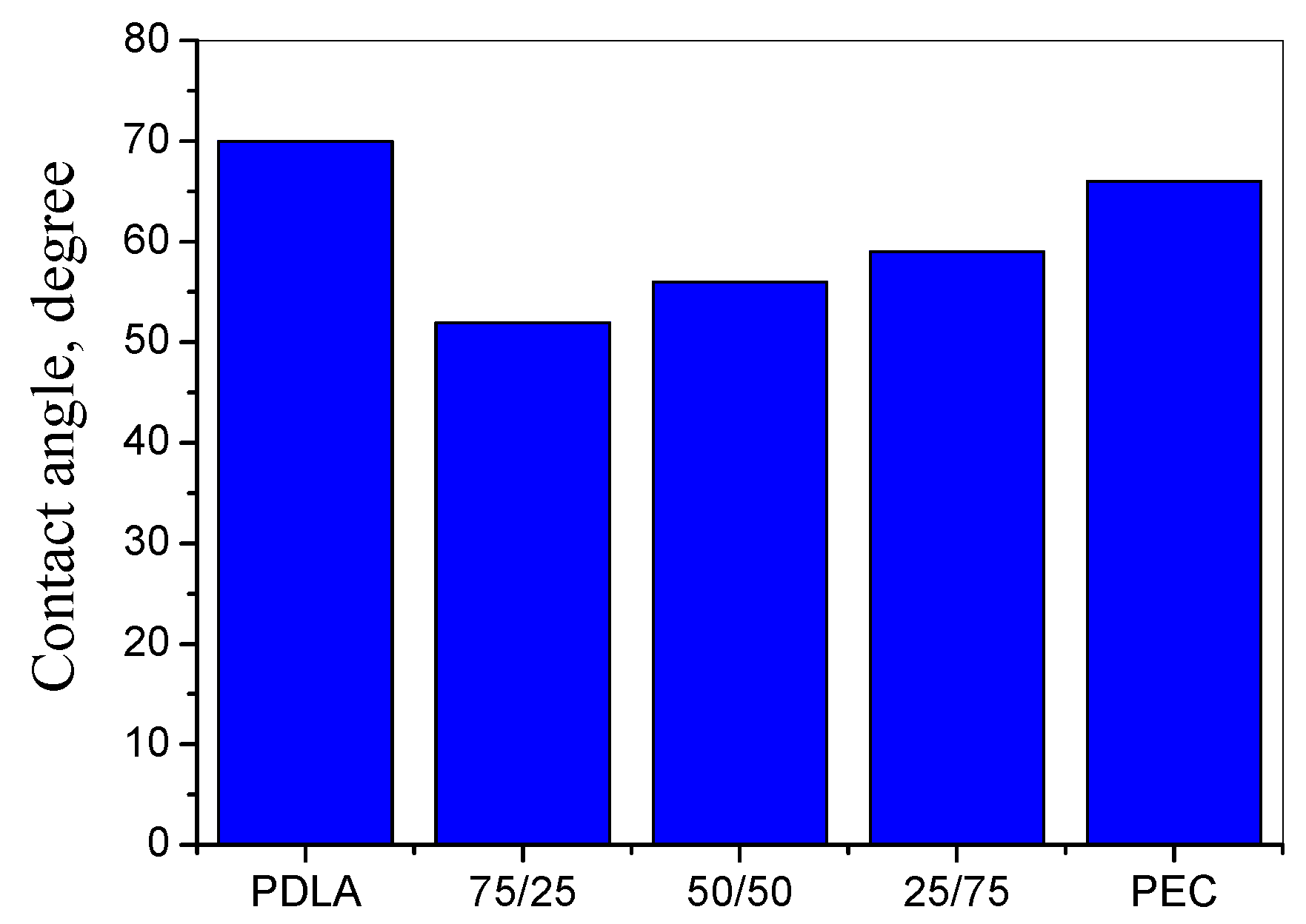

The final value of the contact angle was the mean value of the six measurements. The estimated error was less than 5 %. The results presented in Figure 4 show that PDLA had the largest contact angle (70°), indicating that it was the most hydrophobic material [42]. An increase in the surface wettability was observed with the creation of composites. Upon the addition of PEC into PDLA at different ratios, the contact angle decreased from 70° (pure PDLA) to 52° (75/25). A gradual increase in the contact angle was observed with the increase in PEC content and reached 59° for 25/75 composites. This increase in the contact angle with the increase in the PEC content was likely due to the increase in the pore sizes, as shown in the surface morphology measurements (see SEM morphology) [43].

Following the theory of Owens and Wendt [44], the total surface free energy of all investigated samples was calculated. The results obtained are presented in

Table 2. Surface free energy of all investigated samples.

Sample	Surface Energy, mJ/m2
PDLA	46.39
75/25	55.65
50/50	54.79
25/75	51.83
PEC	49.87

.

It was established that the surface free energy of PDLA/PEC composite substrates showed an increase when compared to pure PDLA and PEC. The values of the surface free energy significantly increased for the modified films compared to base PDLA and PEC. In other words, the modified substrates were more hydrophilic than the original films [45].

3.5. Benzydamine Hydrochloride (BH) Drug Content

Benzydamine hydrochloride was loaded in the chitosan/casein films deposited on composite substrates.

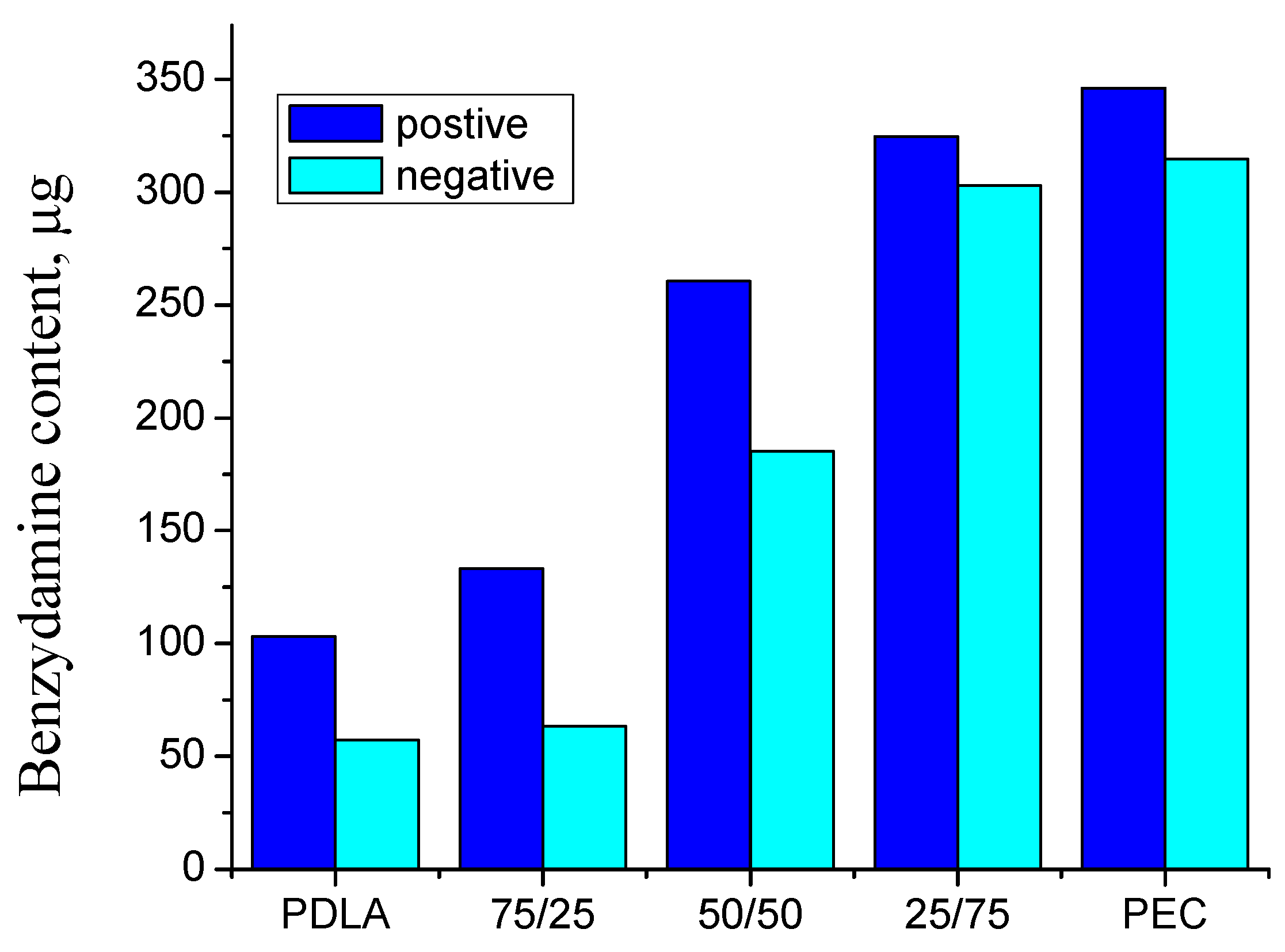

The drug amount, which was loaded to one PEM unit (2 × 2 cm²), is presented in Figure 5.

The data indicate a substantial impact of substrate composition on the loading efficiency of the PEMs. The quantity of loaded benzydamine hydrochloride fluctuated between (50 ± 5) μg and (346 ± 0.3) μg, with an upward trend when PEC predominated in the substrate. The loading was most pronounced in PEMs constructed on PEC substrates. This observation aligns with the elevated values of the normalized surface potential of the PEC films, suggesting a potentially more stable structure for the PEMs under these conditions.

There was also a tendency for the amount of incorporated benzydamine to be greater in the structures deposited on positively charged substrates. Again, this dependence could be attributed to the more stable positive charge of the substrate.

3.6. Benzydamine Hydrochloride (BH) Release

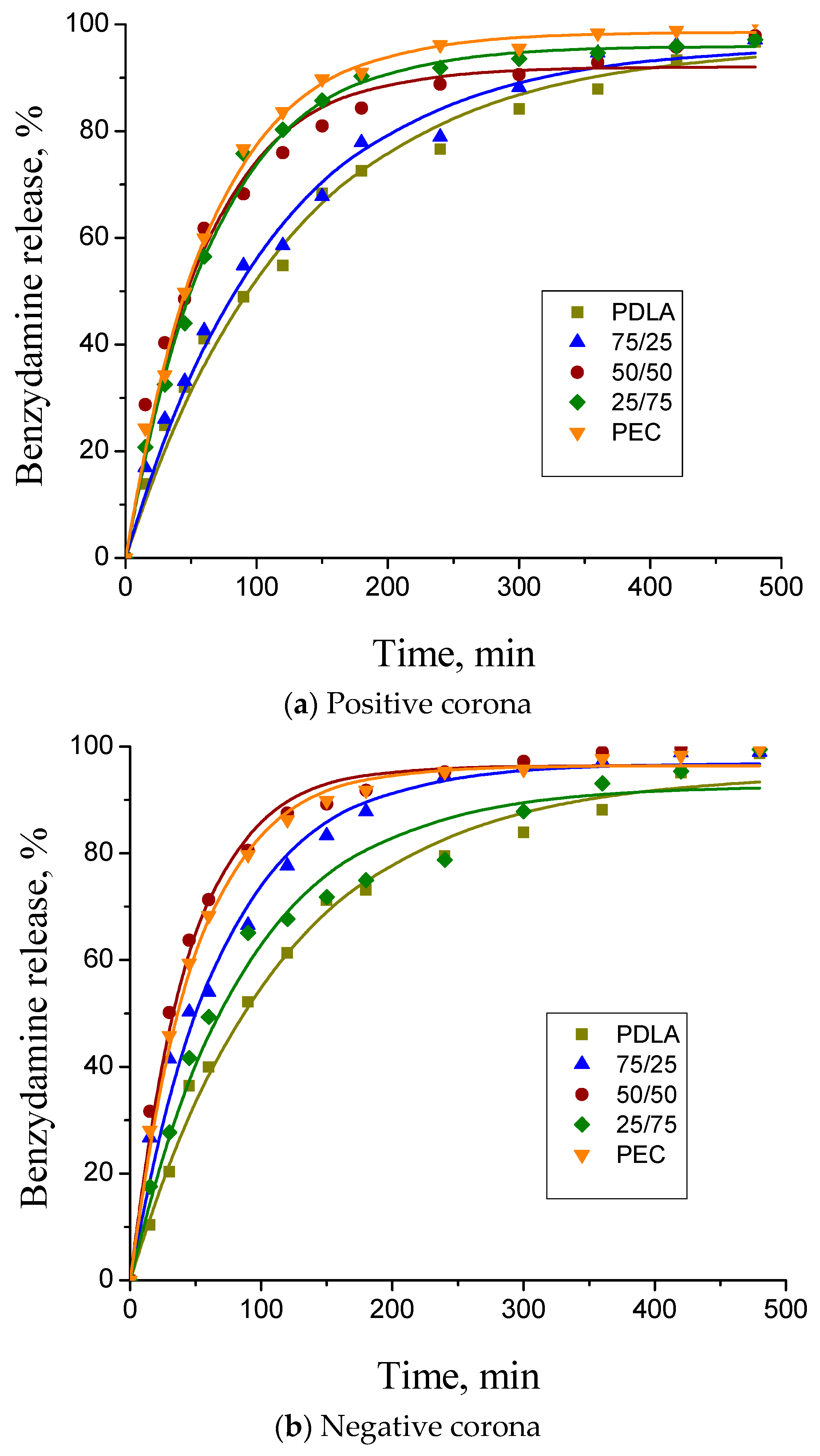

The release kinetics of BH from PEMs assembled at different PDLA/PEC substrates are presented in Figure 6.

The cumulative BH release was between 40% and 75% during the first hour and above 95% during the first 8 h. Therefore, it can be concluded that there was complete drug release within 8 h.

The release kinetics greatly depend on the substrate composition. The observed results indicate the existence of a burst effect in the case of substrates with a predominant PEC content (neat PEC film and composite film 25:75), likely attributable to the porous nature of the films and a larger diffusion coefficient compared to structures without pores. Since the pores of PEC are larger, the tendency is the most pronounced here. Benzydamine incorporated into polyelectrolyte structures built on PDLA-dominated substrates is fluent due to the smaller pore sizes and lower diffusion coefficient.

Usually, the presence of a burst effect is an undesirable phenomenon, and the purpose of including the drug in various forms is to prevent it. According to previous research [46], the best option is a release obeying zero-order kinetics. That is why, in the present study, the structures from which the release was the slowest, namely polylactic acid, can be considered the most successful.

For better characterization of the release, the experimental results were subjected to mathematical processing according to the Weibull model (Equation (4)) [47]:

$$M=M_0\left[1-exp{\left(-\frac{\left(t-T\right)}{\tau }\right)}^{\beta }\right]$$

(4)

where $M$ is the amount of dissolved drug as a function of time; $M_0$ is the total amount of released drug; $t$ is time; $T$ is the lag time caused by dissolution process; $\tau$ is the scale parameter of the time dependence, and $\beta$ is the shape of the dissolution curve progression. In our case, the “T” parameter is zero, because there is no lag time, and the “$M_0$” parameter is 100%.

The values of the Weibull model parameters for the measured release of BH are presented in

Table 3. Weibull model parameters for BH release.

Sample	Positive Corona			Negative Corona
	τ	β	R2	τ	β	R2
PDLA	153.1	1.10	0.991	163.4	1.42	0.991
75:25	120.3	1.07	0.998	150.1	1.74	0.979
50:50	99.1	1.08	0.981	89.5	1.32	0.986
25:75	68.95	1.03	0.996	66.0	1.37	0.996
PEC	68.0	1.07	0.997	57.2	1.32	0.991

.

The calculated values for $\tau$ exhibit an increase as the PDLA content in the substrates rises, indicating a prolonged release.

The value of $\beta$ for the positive-corona-charged substrate is close to 1, suggesting a combined release mechanism involving both Fick diffusion and swelling-controlled transport [48]. In this case, the layers are tightly bound to the surface and do not dissolve.

For the negative-corona-charged samples, values of $\beta$ exceeding 1 signify a complex release mechanism: the release rate initially increases non-linearly up to the inflection point and then decreases asymptotically [49]. This behavior is indicative of drug molecules bound with varying degrees of tightness within the structure. A portion of the drug from the outer layers is released relatively easily and quickly, while the rest, which is bound more securely within the deeper layers, undergoes a slower and more challenging release, resulting in a decreased overall release rate.

Based on the results from the release kinetics, one may suggest that drug release could be successfully controlled by changing the corona polarity and substrate content.

4. Conclusions

In this paper, the BH release from PEMs assembled on different porous composite PDLA / PEC substrates was investigated. It was established that the steady-state values of the normalized surface potential for PEC electrets are the highest compared to other investigated samples. This may be due to them having the highest degree of crystallinity and the biggest pore sizes. The loading is most pronounced in PEMs constructed on PEC substrates. This observation aligns with the elevated values of the normalized surface potential of the PEC substrates, suggesting a potentially more stable structure for the PEMs under these conditions. The cumulative BH release was between 40% and 75% during the first hour and above 95% during the first eight hours. Therefore, it can be concluded that there was complete drug release within 8 h.
