Characterization of Uncoated and Coated Fungal Mycelium-Based Composites from Water Hyacinth

by
Puangpetch Sakunwongwiriya
1,
Wirach Taweepreda
2,
Siwapong Luenram
3,
Juntima Chungsiriporn
4 and
Jutarut Iewkittayakorn
1,*
1
Division of Biological Science, Faculty of Science, Prince of Songkla University, Hat Yai 90110, Songkhla, Thailand
2
Division of Physical Science, Faculty of Science, Prince of Songkla University, Hat Yai 90110, Songkhla, Thailand
3
BIOAXEL Co., Ltd., 6/9 Moo 3 Bophut, Chaweng Beach Road, Koh Samui, Surat Thani 84320, Surat Thani, Thailand
4
Division of Chemical Engineering, Faculty of Science, Prince of Songkla University, Hat Yai 90110, Songkhla, Thailand
*
Author to whom correspondence should be addressed.
Coatings 2024, 14(7), 862; https://doi.org/10.3390/coatings14070862
Submission received: 9 June 2024 / Revised: 4 July 2024 / Accepted: 5 July 2024 / Published: 10 July 2024
(This article belongs to the Section Environmental Aspects in Colloid and Interface Science)
Browse Figures
Versions Notes

Abstract

:
Mycelium-based composites are a promising avenue for innovating sustainable materials from the hyphae of fungi. This study focuses on the use of fibers from four local fungal species, namely, Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr., to produce mycelium-based composites from water hyacinth. An inoculum of each of the mushroom species was cultivated on PDA medium at 25 and 30 °C to determine the optimal temperature based on the growth rate. The obtained optimal condition was used to grow the fungi on water hyacinth (WH) mixed with rice bran in different proportions (100% WH, 70% WH, and 50% WH) with various numbers of fungal inocula (10, 20, and 30 plugs). The obtained composites were coated with a solution of either starch, chitosan, or epoxy resin. Schizophyllum commune Fr. exhibited the highest growth rate and fiber density, with a growth rate of 1.45 ± 1.92 mm/day at 30 °C. Ten inocula of Schizophyllum commune Fr. incubated at 30 °C for seven days on a mixture of 50% WH and 50% rice bran gave the optimal composite. Coating the obtained composite with chitosan improved its mechanical properties, but coating it with epoxy resin improved its water absorbency. Buried in soil, the composite coated with a chitosan solution decomposed within 30 days. The results indicate that Schizophyllum commune Fr. can be used as a binder to produce mycelial composites on a substrate of WH mixed with rice bran. The implications of these results will enable the further development and tuning of mushroom-based materials, especially for the production of sustainable bio-construction materials derived from local mushrooms and bio-waste.

Graphical Abstract

1. Introduction

Mycelium-based composites (MBCs), also known as mycelium biocomposites, are emerging as sustainable alternatives to conventional materials [1]. The manufacturing process of MBCs starts with the inoculation of a substrate with fungal spores under suitable conditions for mycelial growth. The mycelium binds the substrate particles together to form a cohesive composite. MBCs are most commonly produced by growing fungi on substrates of lignocellulosic residues to obtain an easily sourced and cheap, sustainable material [2,3]. Different fungi and substrates can directly influence the functional properties of an MBC and ultimately alter its potential in different applications [4]. MBCs represent a promising biomaterial that is environmentally friendly and biodegradable and is consistent with the broader application of fungal biotechnology [5]. The applications of MBCs include the production of packaging materials, household items [4], and films. These products can replace materials made of plastics, synthetic foams, and certain wood composites [6,7,8,9,10]. The practical difficulties of producing MBCs are currently related to the identification of suitable fungal species, substrates, and production technologies.
The constituent structure of fungi is a network of hyphae, which are spiral branches that form the mycelium. Hyphae grow on many substrates and in a variety of environmental conditions [11]. The fungal species considered for the production of an MBC should be a species that produces leathery or woody fruiting bodies and must simultaneously cause white rot on the substrate [1]. Ganoderma, Pleurotus, Pycnoporus, and Trametes are the most commonly used fungal species, as they produce longer, thinner, and more elastic hyphae than those growing on a complex cellulosic substrate [4,6,7,12]. However, among the mushroom species widely distributed in the southern region of Thailand, four species that grow well stand out. These species are Pleurotus ostreatus (the Hungarian oyster mushroom), Pleurotus sajor-caju (Fr. Singer) (the Sarjou-caju mushroom), Auricularia auricula-judae (the wood ear mushroom), and Schizophyllum commune Fr. (the split mushroom). These fungi produce white rot and grow well on lignocellulosic material. Kohphaisansombat et al. [13] produced MBCs from Pleurotus ostreatus by using natural pineapple fibers (NPFs) at a level of 10% to 30% in spent coffee grounds. It was found that MBCs with 10% NPFs had the highest density and compressive strength, while those with 30% NPFs showed higher flexural strength, water absorption, swelling, and sound absorption. Oyster mushroom-based MBCs with NPFs offer promising environmentally friendly alternatives to certain manufactured products due to their practical advantages and recyclability. Ismail and Abdullah [14] used Pleurotus sajor-caju to produce MBCs from various substrates, including paper, rice husk ash, and rubber sawdust, supplementing each substrate with rice bran and calcium carbonate. Rubber sawdust was the most suitable substrate. Ly and Jitjak [15] produced mycelial composites using four fungi (Pleurotus ostreatus, Auricularia auricula-judae, Lentinus squarrosulus, and Lentinus polychrous) on three agricultural waste substrates: coconut husks, rice husks, and rice straw. The composites made from rice straw showed the highest compressive strength and the highest biodegradability, as measured by weight loss, while the Lentinus squarrosulus-based MBC from rice straw showed the highest moisture uptake. Aiduang et al. [4] found that the type of lignocellulosic residue used as the substrate (sawdust, corn husk, and rice straw) and the fungal species that produced the mycelium (Ganoderma fornicatum, Ganoderma williamsianum, Lentinus sajor-caju, and Schizophyllum commune) affected the properties of the resulting MBC.
Water hyacinth (WH) is a highly invasive aquatic plant that has spread worldwide. Its rapid growth has led to widespread problems, such as the destruction of ecosystems, irrigation problems, and an increase in mosquito populations, as it creates breeding sites in its dense coverage of watercourses [16]. WH consists of about 20% cellulose, 48% hemicelluloses, and 3.5% lignin [17,18,19,20]. Despite being one of the most productive plants on Earth, it poses a serious threat to biodiversity and has been declared a threat by many countries [21]. Efforts to control WH have proved costly and labor-intensive. Various methods have been tried, including biological, physical, and chemical approaches, but none has provided a lasting solution. However, the problem presented by WH can be turned into an opportunity through innovative approaches. Entrepreneurs have seized this opportunity by producing handicrafts, briquettes, and industrial cellulase from the plant [21,22]. Limpiteeprakan et al. [23] reported that cushioning materials made from WH and bagasse fibers passed drop tests without breaking glass ceramics. In Thailand and Zimbabwe, WH has been used as a substrate for mushroom cultivation [21]. Mukhopadhyay [24] showed that WH biomass can be safely used with rice straw (1:1) as an alternative substrate for the cultivation of Pleurotus species. Nguyen [25] reported that WH can be used to reinforce green composites and that composites of WH and rice straw showed significant improvements in flexural and compressive strength. However, the production of MBCs from WH using the fungi Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr. has not yet been investigated.
The present study deals with the characterization of MBCs produced from WH and rice bran using these fungi as binders. WH was mixed with rice bran in different proportions, and the number of mycelial plugs used to inoculate the different substrates was varied. Well-formed composites were coated with a solution of either wet starch, chitosan, or epoxy resin before physical and mechanical properties and biodegradability were investigated.

2. Materials and Methods

2.1. Materials

2.1.1. Mushroom Species and Inoculum Preparation

Pure cultures of four indigenous mushroom species, namely, Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr., were purchased from the DuangDao mushroom farm, Songkhla, Thailand. Inocula of all four species were grown on sorghum seeds in potato dextrose agar (PDA, HIMEDIA, Mumbai, India) at 30 °C for seven days. Plugs of the fungal mycelium (0.5 cm × 0.5 cm) were cut from the edge of an actively growing colony and used to inoculate substrates.

2.1.2. Water Hyacinth and Rice Bran Preparation

WH was collected from water sources in Hat Yai, Songkhla, Thailand. It was thoroughly washed with water to remove dirt and soil particles before being dried at 60 °C to a constant weight and then ground into small particles (1−2 mm) using a blender (Tefal, Sarcelles, France, BL91H). Fine rice bran was purchased from Chokchai Rice Mill, Phatthalung, Thailand. WH and rice bran were mixed in a blender in the following ratios: 100% WH, 70% WH mixed with 30% rice bran, and 50% WH mixed with 50% rice bran. Water was added to the mixed materials to achieve a moisture content of 60%. Then, 60 g of each mixed material was weighed out, placed in a Petri dish, and sterilized in an autoclave at a temperature of 121 °C at 15 psi for 15 min.

2.2. Methods

2.2.1. Culture Conditions to Produce Mycelium-Based Composites

Mycelial plugs (0.5 cm × 0.5 cm) were used to inoculate the substrates according to the method of Daengrot et al. [26]. The plugs were grown in the substrates at 25 °C and 30 °C for seven days. The diameters of the fungal colonies were measured daily. The growth rate was calculated as the diameter of the mycelium divided by the incubation time [27]. The temperature that resulted in the higher growth rate was selected for the optimization study.
The culture conditions of MBC production were varied. The number of mycelial plugs used was varied at 10, 20, and 30 plugs. The mixed substrate material included 100% WH, 70% WH, or 50%WH. All three substrate mixtures were inoculated with 10, 20, and 30 mycelial plugs from each of the four fungi. The plugs were incubated at the optimal temperature for seven days. The resulting MBCs were dried in a hot air oven at 90 °C until a constant weight was achieved.
The MBCs were coated with three different solutions: wet starch, chitosan, and epoxy resin.

2.2.2. Preparation of Coating Solution and Composite Surface Coating

To prevent the absorption of moisture, MBCs were coated with three different solutions: starch, chitosan (from shrimp shell 75%, deacetylated, Loba, Mumbai, India), and epoxy resin (SKC, Bangkok, Thailand). The starch solution was prepared with 20 g of rice flour (16% amylose and 84% amylopectin), 10 g of tapioca starch (17% amylose and 83% amylopectin), and 10 g of preservative (C6H5COONa, Kemaus, Cherrybrook, Australia). The three materials were dissolved in 1000 mL of water and heated until the starch was completely dissolved, and a sticky solution was formed. The chitosan solution was prepared with 3 g of chitosan dissolved in 100 mL of dilute acetic acid (CH3COOH, RCI Labscan, Bangkok, Thailand) (1% v/v) under stirring [28]. The epoxy resin solution consisted of an epoxy resin (A) and a hardener (B, [(CH3)(C2H5)C(O2H)]2O2). The coating was prepared by mixing 2 parts of resin A and 1 part of hardener (B). MBC samples were coated with each of the three solutions to a wet-film thickness of 250 µm. A wire rod coater was used at a constant forward speed. The finished coatings were dried in an oven at 65 °C for 24 h [28].

2.2.3. Physical and Mechanical Characterization

Physical Properties

The density of the MBC samples was determined according to ASTM D 3574-95 (ASTM, 2001) [29]. The rectangular test sample was weighed using a 4-position precision balance. The volume of the test piece was determined by measuring its width, length, and height with a Vernier caliper. The density was calculated as follows:
D = M/V
where D is the density of the test piece (g/cm3), M is the weight of the test piece (g), and V is the volume of the test piece (cm3).
The water absorption of the MBC samples was determined according to the ASTM International D 570-98 protocol (ASTM, 2008) [30]. The rectangular test sample was weighed using a 4-position precision balance and then soaked in water for 24 h. The sample was then dried with blotting paper and weighed. Water absorption was calculated as follows:
Water absorption (%) = ((W1 − W0)/W1) × 100
where W0 is the weight before soaking in water (g), and W1 is the weight after soaking in water (g).

Mechanical Properties

Before testing, the MBC samples were dried at 90 °C for 12 h [31]. At least eight specimens per test were tested at room temperature. The compressive and bending forces of the samples were determined using the INSTRON3365 load platform (Instron, Norwood, MA, USA). Compression specimens had a diameter of 9 cm and a thickness of 1 cm. Bending specimens had dimensions of 2 × 5 × 1.8 cm. To test compressive strength, specimens were compressed up to 50% at a speed of 5 mm/min with a force of 10,000 N. To test flexural strength, specimens were placed on the lower beam and compressed at a rate of 5 mm/min until they were completely broken.

2.2.4. Morphologies of Uncoated and Coated Mycelial Composites

The morphologies of uncoated and coated MBC samples were examined by scanning electron microscopy (SEM, JSM-5800 LV, JEOL; Tokyo, Japan). The surface of the sample was coated with carbon and then gold-plated for electrical conductivity. The SEM acceleration voltage was 20 kV.

2.2.5. Determination of Biodegradation

Uncoated and coated MBC samples were tested for biodegradability using burial tests. The samples were weighed, packed in mesh bags, and buried in soil. Samples were recovered every 15 days after burial. Each piece was cleaned of all adhering debris and dried overnight at room temperature. The dried sample was placed in a desiccator until a constant weight was reached. The weight of each sample was recorded. The deterioration of the sample was expressed as percent weight loss (Ong and Sudesh, 2016 [32]).
Weight loss (%) = ((Wi − Wo)/Wi) × 100
where Wi is the weight of the initial sample (g), and Wo is the weight of the sample after decomposition (g).

3. Results and Discussion

3.1. Mycelial Growth Rates and Optimal Culture Temperature

The growth rates of Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr. were higher when incubated at 30 °C than at 25 °C. At 30 °C, Schizophyllum commune Fr. achieved the highest growth rate of 1.45 ± 1.92 mm/day, followed by Pleurotus ostreatus at 1.19 ± 1.46 mm/day, Pleurotus sajor-caju (Fr. Singer) at 1.06 ± 1.28 mm/day, and Auricularia auricula-judae at 0.94 ± 1.27 mm/day (Table 1). Therefore, incubation at 30 °C was chosen as the optimal incubation temperature.

3.2. Optimization of Composite Production Conditions

None of the mycelia could grow on 100% WH. However, all four fungal mycelia could grow on 50% WH mixed with rice bran. The fungal mycelium of Schizophyllum commune Fr. grew well and covered the surface of the substrate better than other species (Figure 1). The addition of rice bran provided a pool of nutrients that accelerated the growth of the mycelium and promoted a more homogeneous shape [33]. When considering the optimal number of mycelial plugs used to inoculate the substrate, it was found that the fungal hyphae could migrate through the substrate equally well when 10, 20, or 30 plugs were used. Thus, the optimal condition for the production of MBCs was a substrate of 50% WH and 50% rice bran and 10 plugs of Schizophyllum commune Fr, incubated at 30 °C. This condition was chosen for the production of an MBC for further studies.
The morphologies of the four fungal mycelia were also examined using a fluorescence microscope (Olympus, BX51 DP72, Tokyo, Japan). The observations showed that Schizophyllum commune Fr. had the highest fiber density (Figure 2). This finding was consistent with the observed growth rates of the mycelia. Since the network structure of the mycelial binder affects the mechanical properties of MBCs [34], this result indicated that the mycelium of Schizophyllum commune Fr. was potentially a good binder for the production of MBCs.

3.3. Physical and Mechanical Properties of Coated Mycelial Composites

The density of the MBC produced in optimal conditions was determined after applying the three different coating solutions, and the obtained values were compared with the density of the uncoated MBC, which was 0.0389 ± 0.0016 g/cm3. The values for the optimal MBC coated with the starch solution, chitosan solution, and epoxy resin were 0.0399 ± 0.0037 g/cm3, 0.0475 ± 0.0029 g/cm3, and 0.0942 ± 0.0021 g/cm3, respectively (Table 2). The coatings therefore increased the density of the MBC. Coating with epoxy resin gave the highest density because the viscous resin adhered strongly and cured fastest.
The water absorption values of the MBC without a coating and coated with the starch solution, chitosan solution, and epoxy resin were 50.05 ± 0.66%, 51.37 ± 2.09%, 53.32 ± 1.00%, and 43.60 ± 0.73%, respectively (Table 2). Coating with epoxy resin inhibited water absorption because the resin is hydrophobic [35]. Epoxy resin is often used to coat various materials for protection and as an adhesive with high chemical resistance and good processing properties [36].
The compressive strength of the optimal MBC was determined without a coating and with coatings of starch and chitosan solutions and epoxy resin. The respective values were 1.30 ± 0.08 MPa, 0.62 ± 0.04 MPa, 1.46 ± 0.05 MPa, and 0.24 ± 0.09 MPa (Figure 3). The coated MBC with the chitosan coating performed the best in terms of compressive strength. It is difficult to compare the compressive strength of MBCs produced by different types of fungi grown on different lignocellulosic substrates, and it is not easy to determine which conditions are best, but the available data can be used as a guide. In the present study, the compressive strength of the optimal MBC coated with the chitosan solution was 1.46 ± 0.05 MPa. This value is higher than those of MBCs produced from G. resinaceum grown on rose petal debris (1.03 MPa) and on lavender straw (0.72 MPa) [37]. The flexural strength of the optimal MBC without a coating was 0.74 ± 0.139 MPa. When coated with solutions of starch, chitosan, and epoxy resin, the flexural strength of the MBC was 0.66 ± 0.008 MPa, 0.28 ± 0.003 MPa, and 1.18 ± 0.138 MPa, respectively (Figure 4). The MBC coated with epoxy resin exhibited the highest flexural strength, perhaps because fibers from the water hyacinth plant reinforced the resin solution [38].

3.4. Morphologies of Coated Mycelial Composites

The morphologies of the uncoated and coated optimal MBC were examined by SEM. The mycelial hyphae were visible in the uncoated MBC but not in the coated MBC samples (Figure 5). This result indicated that the coatings filled the pores between the cellulose fibers and the mycelium, contributing to compressive strength, which is consistent with [28]. Coating with the wet starch solution gave the best results, followed by the epoxy resin and chitosan coatings. However, when comparing the hydrophobic properties of the composites, it was found that the resin produced the best result. The resin coating therefore helped prevent the absorption of water.

3.5. Biodegradation of Uncoated Mycelial Composites and Chitosan-Solution-Coated Mycelial Composites

To produce sustainable bio-building materials with high compressive strength, an uncoated MBC sample and a sample coated with the chitosan solution were buried in the soil, and the biodegradation of the MBC samples was investigated for 45 days. The uncoated MBC decomposed completely within 45 days, whereas the MBC coated with the chitosan solution decomposed completely within 30 days. Chitosan is a naturally biodegradable substance. It absorbed and retained water in the soil, promoting decomposition [39,40]. The percentage weight loss and physical changes in the uncoated and chitosan-solution-coated MBCs are shown in Figure 6 and Figure 7, respectively.

4. Conclusions

Mycelium-based composite materials were produced by inoculating a water-hyacinth-and-rice-bran substrate with the hyphae of four mushroom species, namely, Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr. The hyphae bound the substrate particles in suitable conditions. The hyphae of Schizophyllum commune Fr. exhibited the fastest growth rate and the highest density of fibers. Its growth rate was 1.45 ± 1.92 mm/day. The optimal conditions for the formation of fungal mycelial composites were a mixture of 50% water hyacinth with 50% rice bran inoculated with 10 mycelial plugs of Schizophyllum commune Fr. incubated on the substrate at 30 °C for seven days. Coating the mycelium-based composite with a chitosan solution improved the mechanical properties, but coating with a resin improved the water absorbency of the material. The mycelial composite coated with the chitosan solution biodegraded fastest, degrading within 30 days. The results show that Schizophyllum commune Fr. can be used to bind water hyacinth mixed with rice bran to produce mycelium-based composites. The findings of this work also provide useful information that not only increases the value of water hyacinth but also can be used as information on a new indigenous fungus for the production of fungal mycelium-based composites.

Author Contributions

P.S. and J.I. wrote the manuscript and analyzed the data; P.S. carried out the experiments; W.T., J.C., S.L., and J.I. supervised and reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This grant was supported by the Higher Education for Industry Consortium (Hi-FI) under the Experiential Learning Program, Office of The Permanent Secretary (OPS), Ministry of Higher Education, Science, Research, and Innovation and Faculty of Science, Prince of Songkla University (PSU), Hat Yai, Songkhla, Thailand.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors would like to thank the Division of Biological Science and the Center for Genomics and Bioinformatics Research, Faculty of Science, Prince of Songkla University (PSU), Hat Yai, Songkhla, Thailand. We thank the International Relations Office, Faculty of Science PSU, and Thomas Duncan Coyne for assistance in editing the English text.

Conflicts of Interest

Author Siwapong Luenram was employed by the company BIOAXEL Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Sydor, M.; Cofta, G.; Doczekalska, B.; Bonenberg, A. Fungi in Mycelium-Based Composites: Usage and Recommendations. Materials 2022, 15, 6283. [Google Scholar] [CrossRef] [PubMed]
  2. Soh, E.; Chew, Z.Y.; Saeidi, N.; Javadian, A.; Hebel, D.; Le Ferrand, H. Development of an extrudable paste to build mycelium-bound composites. Mater. Design. 2020, 195, 109058. [Google Scholar] [CrossRef]
  3. De Lima, G.G.; Schoenherr, Z.C.P.; Magalhães, W.L.E.; Tavares, L.B.B.; Helm, C.V. Enzymatic activities and analysis of a mycelium-based composite formation using peach palm (Bactris gasipaes) residues on Lentinula edodes. Bioresour. Bioprocess. 2020, 7, 58. [Google Scholar] [CrossRef]
  4. Aiduang, W.; Kumla, J.; Srinuanpan, S.; Thamjaree, W.; Lumyong, S.; Suwannarach, N. Mechanical, Physical, and Chemical Properties of Mycelium-Based Composites Produced from Various Lignocellulosic Residues and Fungal Species. J. Fungi 2022, 8, 1125. [Google Scholar] [CrossRef] [PubMed]
  5. Pohl, C.; Schmidt, B.; Nunez Guitar, T.; Klemm, S.; Gusovius, H.J.; Platzk, S.; Kruggel-Emden, H.; Klunker, A.; Völlmecke, C.; Fleck, C.; et al. Establishment of the basidiomycete Fomes fomentarius for the production of composite materials. Fungal Biol. Biotechnol. 2022, 9, 4. [Google Scholar] [CrossRef] [PubMed]
  6. Butu, A.; Rodino, S.; Miu, B.; Butu, M. Mycelium-based materials for the ecodesign of bioeconomy. Dig. J. Nanomater. Biostructures 2020, 15, 1129–1140. [Google Scholar] [CrossRef]
  7. Jones, M.P.; Mautner, A.; Luenco, S.; Bismarck, A.; John, S. Engineered Mycelium composite construction materials from fungal biorefineries: A critical review. Mater. Design. 2019, 187, 108397. [Google Scholar] [CrossRef]
  8. Manan, S.; Ullah, M.W.; Islam, M.; Atta, O.; Yang, G. Synthesis and Applications of Fungal Mycelium-based Advanced Functional Materials. J. Bioresour. Bioprod. 2021, 6, 1–10. [Google Scholar] [CrossRef]
  9. Yang, L.; Park, D.; Qin, Z. Material Function of Mycelium Based Bio-composite: A Review. Front. Mater. 2021, 8, 374. [Google Scholar] [CrossRef]
  10. Mohd Fairus, M.J.; Bahrin, E.; Natasha, E.; Arbaain, E.; Ramli, N. Mycelium-based Composite: A Way Forward for Renewable Material. J. Sustain. Sci. Manag. 2022, 17, 271–280. [Google Scholar] [CrossRef]
  11. Hotz, E.; Bradshaw, A.; Elliott, C.; Carlson, K.; Dentinger, B.; Naleway, S. Effect of Agar Concentration on Structure and Physiology of Fungal Hyphal Systems. J. Mater. Res. Technol. 2023, 24, 7614–7623. [Google Scholar] [CrossRef]
  12. Haneef, M.; Ceseracciu, L.; Canale, C.; Bayer, I.S.; Heredia-Guerrero, J.A.; Athanassiou, A. Advanced Materials From Fungal Mycelium: Fabrication and Tuning of Physical Properties. Sci. Rep. 2017, 7, 41292. [Google Scholar] [CrossRef] [PubMed]
  13. Kohphaisansombat, C.; Jongpipitaporn, Y.; Laoratanakul, P.; Antipaibulvut, S.; Euanorasetr, J.; Rungjindamai, N.; Chuaseeharonnachai, C.; Kwantong, P.; Somrithipol, S.; Boonyuen, N. Fabrication of mycelium (oyster mushroom)-based composites derived from spent coffee grounds with pineapple fibre reinforcement. Mycology 2023, 1–18. [Google Scholar] [CrossRef]
  14. Ismail, S.; Abdullah, A.S. Effect of using various substrates on cultivation of Pleurotus sajor-caju. J. Eng. Sci. Technol. 2017, 12, 1104–1110. [Google Scholar]
  15. Ly, L.; Jitjak, W. Biocomposites from agricultural wastes and mycelia of a local mushroom, Lentinus squarrosulus (Mont.) Singer. Open Agric. 2022, 7, 634–643. [Google Scholar] [CrossRef]
  16. Sornvoraweat, B.; Kongkiattikajorn, J. Separated hydrolysis and fermentation of water hyacinth leaves for ethanol production. KKU Res. J. 2010, 15. [Google Scholar]
  17. Okewale, A. Alternative energy production for environmental sustainability. Br. J. Renew. Energy 2016, 1, 18–22. [Google Scholar]
  18. Gunja, V.G.; Priyanka, J.; Sharma, S.C.; Dixit, A.; Jain, R. Production of bioethanol from water Hyacinth by isolated thermotolerant bacteria. Int. J. Curr. Sci. Technol. 2016, 4, 219–223. [Google Scholar]
  19. Das, S.P.; Gupta, A.; Das, D.; Goyal, A. Enhanced bioethanol production from water hyacinth (Eichhornia crassipes) by statistical optimization of fermentation process parameters using Taguchi orthogonal array design. Int. Biodeterior. Biodegrad. 2016, 109, 174–184. [Google Scholar] [CrossRef]
  20. Shah, F.; Mahmood, Q.; Pervez, A.; Rashid, N.; Shah, M.; Iqbal, A. Anaerobic Digestion of Water Hyacinth, Giant Reed, Maize and Poultry Waste for Biogas Generation. EC Agric. 2015, 2, 277–284. [Google Scholar]
  21. Onchonga, N.A.; Oima, D.; Oginda, D. Utilization of water hyacinth as an alternative substrate for mushroom farming: A study of vihiga mushroom project in western kenya. Int. J. Educ. Res. 2013, 1, 1–10. [Google Scholar]
  22. Lindsey, K.; Hirt, H. Use Water Hyacinth! A Practical Handbook of Uses for the Water Hyacinth from across the World; Anamed: Winnenden, Germany, 1999. [Google Scholar]
  23. Limpiteeprakan, P.; Khrueaphue, A.; Aomchat, A.; Tubtimhin, S.; Nganchamang, T. Development of Cushioning Materials from Water Hyacinth Fibers and Bagasse. Int. Conf. Solid Wastes 2023, 476–479. [Google Scholar]
  24. Mukhopadhyay, S. Oyster Mushroom Cultivation on Water Hyacinth Biomass: Assessment of Yield Performances, Nutrient, and Toxic Element Contents of Mushrooms; Intechopen: London, UK, 2019. [Google Scholar] [CrossRef]
  25. Nguyen, H.T.; Nguyen, T.B.H. Treatment of Water Hyacinth Fibers to Improve Mechanical and Microstructural Properties of Green Composite Materials. Nano Hybrids Compos. 2022, 35, 111–122. [Google Scholar] [CrossRef]
  26. Daengrot, C.; Rukachaisirikul, V.; Tansakul, C.; Thongpanchang, T.; Phongpaichit, S.; Bowornwiriyapan, K.; Sakayaroj, J. Eremophilane Sesquiterpenes and Diphenyl Thioethers from the Soil Fungus Penicillium copticola PSU-RSPG138. J. Nat. Prod. 2015, 78, 615–622. [Google Scholar] [CrossRef] [PubMed]
  27. Tudses, N. Isolation and Mycelial Growth of Mushrooms on Different Yam-based Culture Media. J. Appl. Biol. Biotechnol. 2016, 4, 33–36. [Google Scholar] [CrossRef]
  28. Iewkittayakorn, J.; Khunthongkaew, P.; Wongnoipla, Y.; Kaewtatip, K.; Suybangdum, P.; Sopajarn, A. Biodegradable plates made of pineapple leaf pulp with biocoatings to improve water resistance. J. Mater. Res. Technol. 2020, 9, 5056–5066. [Google Scholar] [CrossRef]
  29. ASTM D3574-95; Standard Test Methods for Flexible Cellular Materials—Slab, Bonded, and Molded Urethane Foams. ASTM International: West Conshohocken, PA, USA, 2001.
  30. ASTM D570-98; Standard Test Method for Water Absorption of Plastics. ASTM International: West Conshohocken, PA, USA, 2022.
  31. Joshi, K.; Meher, M.K.; Poluri, K.M. Fabrication and Characterization of Bioblocks from Agricultural Waste Using Fungal Mycelium for Renewable and Sustainable Applications. ACS Appl. Bio. Mater. 2020, 3, 1884–1892. [Google Scholar] [CrossRef] [PubMed]
  32. Ong, S.Y.; Sudesh, K. Effects of Polyhydroxyalkanoate Degradation on Soil Microbial Community. Polym. Degrad. Stab. 2016, 131. [Google Scholar] [CrossRef]
  33. Sisti, L.; Gioia, C.; Totaro, G.; Erstichel, S.; Cartabia, M.; Camere, S.; Celli, A. Valorization of wheat bran agro-industrial byproduct as an upgrading filler for mycelium-based composite materials. Ind. Crops Prod. 2021, 170, 113742. [Google Scholar] [CrossRef]
  34. Pegler, D.N. Hyphal analysis of basidiomata. Mycol. Res. 1996, 100, 129–142. [Google Scholar] [CrossRef]
  35. Liu, B.T.; Zhu, G.Y.; Ding, P.J. The research progress of epoxy resin coating in building Waterproof. Adv. Mater. Res. 2013, 671–674, 1779–1782. [Google Scholar] [CrossRef]
  36. Ji, W.G.; Hu, J.M.; Zhang, J.Q.; Cao, C.N. Reducing the water absorption in epoxy coatings by silane monomer incorporation. Corros. Sci. 2006, 48, 3731–3739. [Google Scholar] [CrossRef]
  37. Angelova, G.; Brazkova, M.; Stefanova, P.; Blazheva, D.; Vladev, V.; Petkova, N.; Slavov, A.; Denev, P.; Karashanova, D.; Zaharieva, R.; et al. Waste Rose Flower and Lavender Straw Biomass—An Innovative Lignocellulose Feedstock for Mycelium Bio-Materials Development Using Newly Isolated Ganoderma resinaceum GA1M. J. Fungi 2021, 7, 866. [Google Scholar] [CrossRef] [PubMed]
  38. Arivendan, A.; T., W.J.J.; Irulappasamy, S.; Chris, B.N. Water hyacinth (EichhorniaCrassipes) polymer composites properties—Aquatic waste into successful commercial product. Metall. Mater. Eng. 2022, 28, 157–169. [Google Scholar] [CrossRef] [PubMed]
  39. Piotrowska-Kirschling, A.; Brzeska, J. The Effect of Chitosan on the Chemical Structure, Morphology, and Selected Properties of Polyurethane/Chitosan Composites. Polymers 2020, 12, 1205. [Google Scholar] [CrossRef]
  40. Román-Doval, R.; Torres-Arellanes, S.P.; Tenorio-Barajas, A.Y.; Gómez-Sánchez, A.; Valencia-Lazcano, A.A. Chitosan: Properties and Its Application in Agriculture in Context of Molecular Weight. Polymers 2023, 15, 2867. [Google Scholar] [CrossRef]
Coatings 14 00862 g001aCoatings 14 00862 g001b
Figure 1. Growth characteristics of the fungal mycelia of Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr. on 100% WH, 70% WH with 25% rice bran, and 50% WH with 50% rice bran, incubated at 30 °C for seven days.
Figure 1. Growth characteristics of the fungal mycelia of Pleurotus ostreatus, Pleurotus sajor-caju (Fr. Singer), Auricularia auricula-judae, and Schizophyllum commune Fr. on 100% WH, 70% WH with 25% rice bran, and 50% WH with 50% rice bran, incubated at 30 °C for seven days.
Coatings 14 00862 g001aCoatings 14 00862 g001b
Coatings 14 00862 g002
Figure 2. Morphologies of the fungal mycelia of (A) Pleurotus ostreatus, (B) Schizophyllum commune Fr. (C) Auricularia auricula-judae, and (D) Pleurotus sajor-caju.
Figure 2. Morphologies of the fungal mycelia of (A) Pleurotus ostreatus, (B) Schizophyllum commune Fr. (C) Auricularia auricula-judae, and (D) Pleurotus sajor-caju.
Coatings 14 00862 g002
Coatings 14 00862 g003

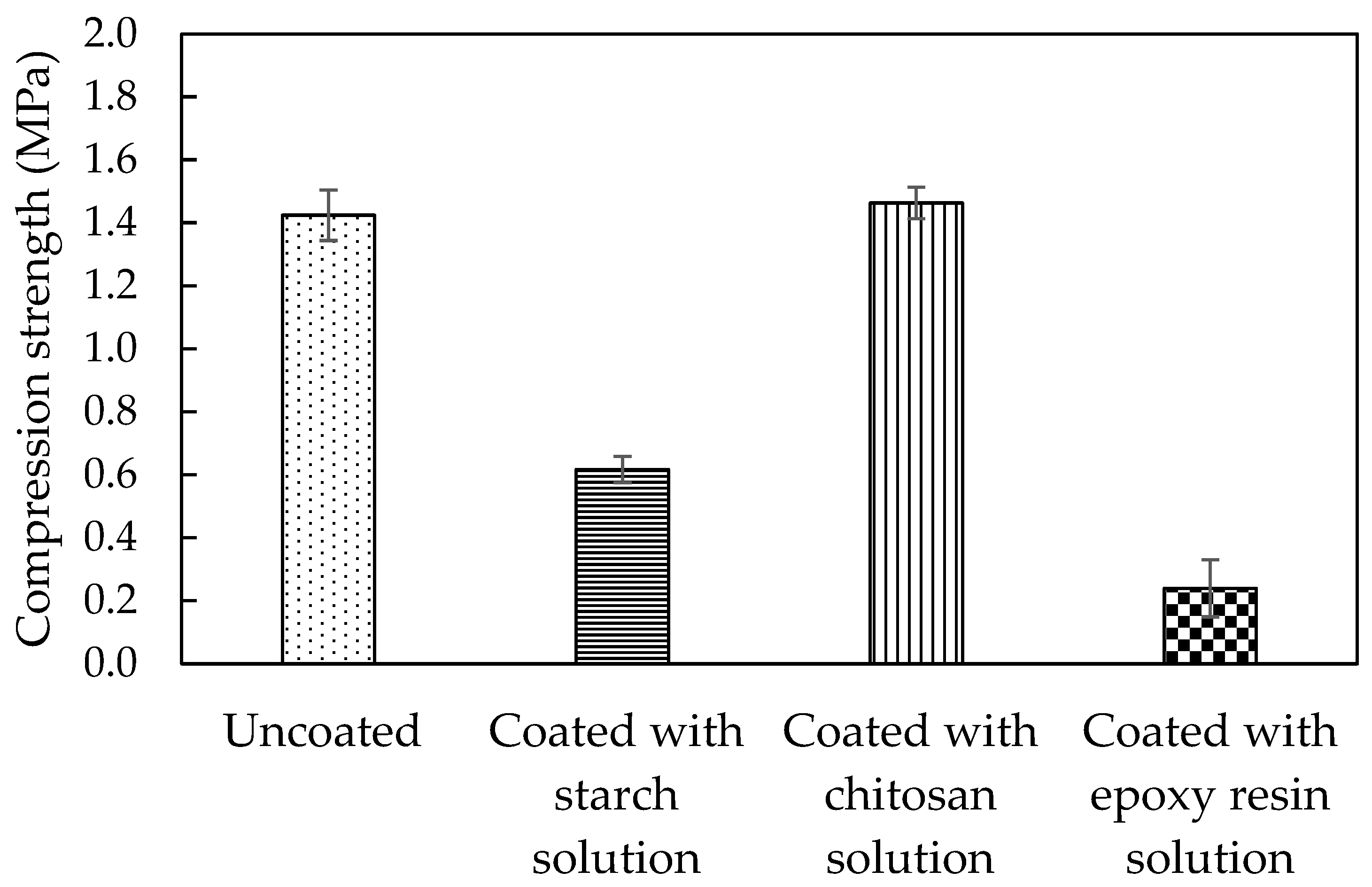

Figure 3. The compressive strength of an uncoated and coated mycelium-based composite of Schizophyllum commune Fr. grown on 50% WH and 50% rice bran incubated at 30 °C for seven days.
Figure 3. The compressive strength of an uncoated and coated mycelium-based composite of Schizophyllum commune Fr. grown on 50% WH and 50% rice bran incubated at 30 °C for seven days.
Coatings 14 00862 g003
Coatings 14 00862 g004

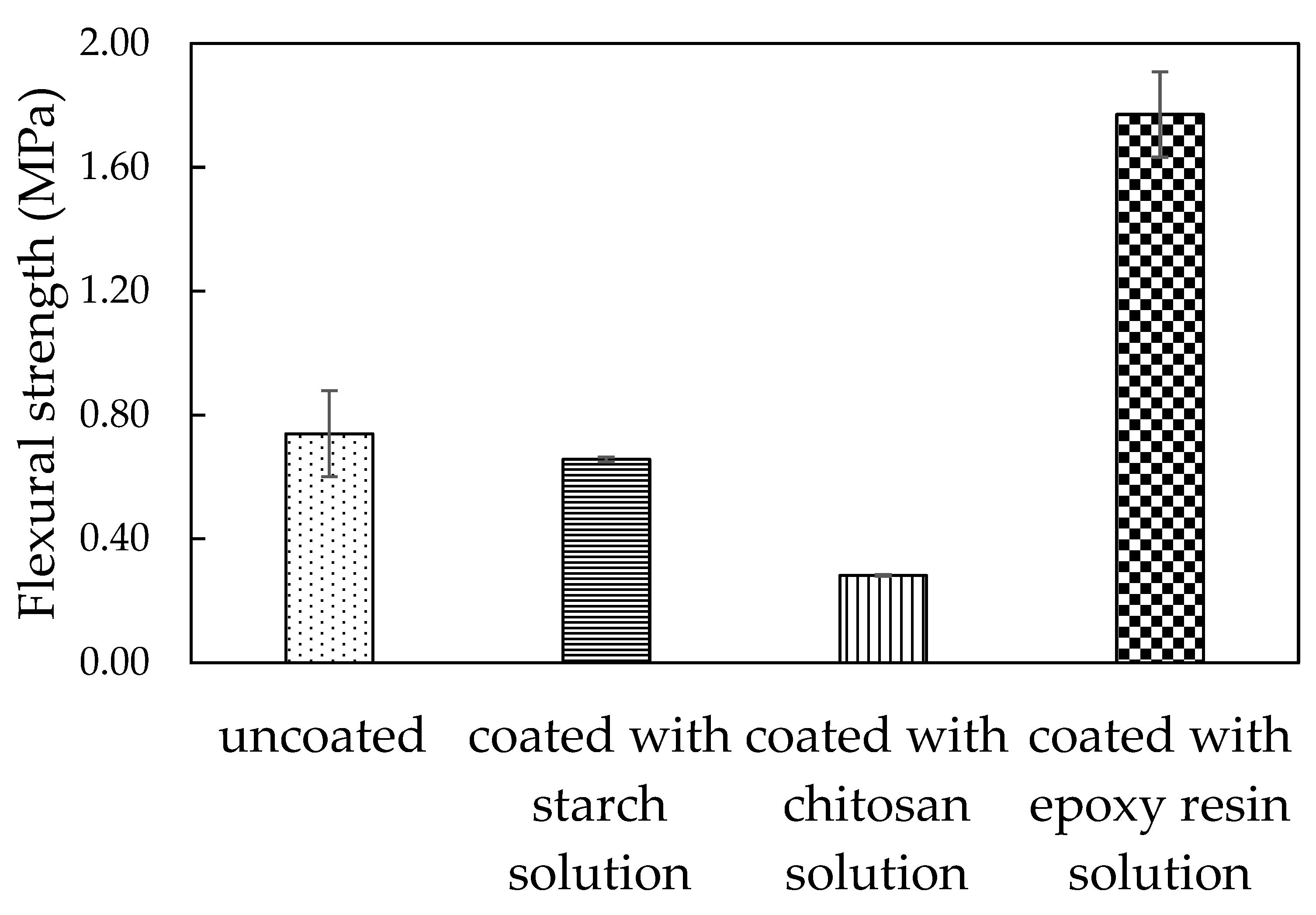

Figure 4. The flexural strength of an uncoated and coated mycelium-based composite of Schizophyllum commune Fr. grown on 50% WH with 50% rice bran incubated at 30 °C for seven days.
Figure 4. The flexural strength of an uncoated and coated mycelium-based composite of Schizophyllum commune Fr. grown on 50% WH with 50% rice bran incubated at 30 °C for seven days.
Coatings 14 00862 g004
Coatings 14 00862 g005
Figure 5. Samples of the mycelial-based composite were observed under a scanning electron microscope. The images show (A) the uncoated mycelium-based composite and the mycelium-based composite (B) coated with a starch solution, (C) coated with a chitosan solution, and (D) coated with epoxy resin.
Figure 5. Samples of the mycelial-based composite were observed under a scanning electron microscope. The images show (A) the uncoated mycelium-based composite and the mycelium-based composite (B) coated with a starch solution, (C) coated with a chitosan solution, and (D) coated with epoxy resin.
Coatings 14 00862 g005
Coatings 14 00862 g006

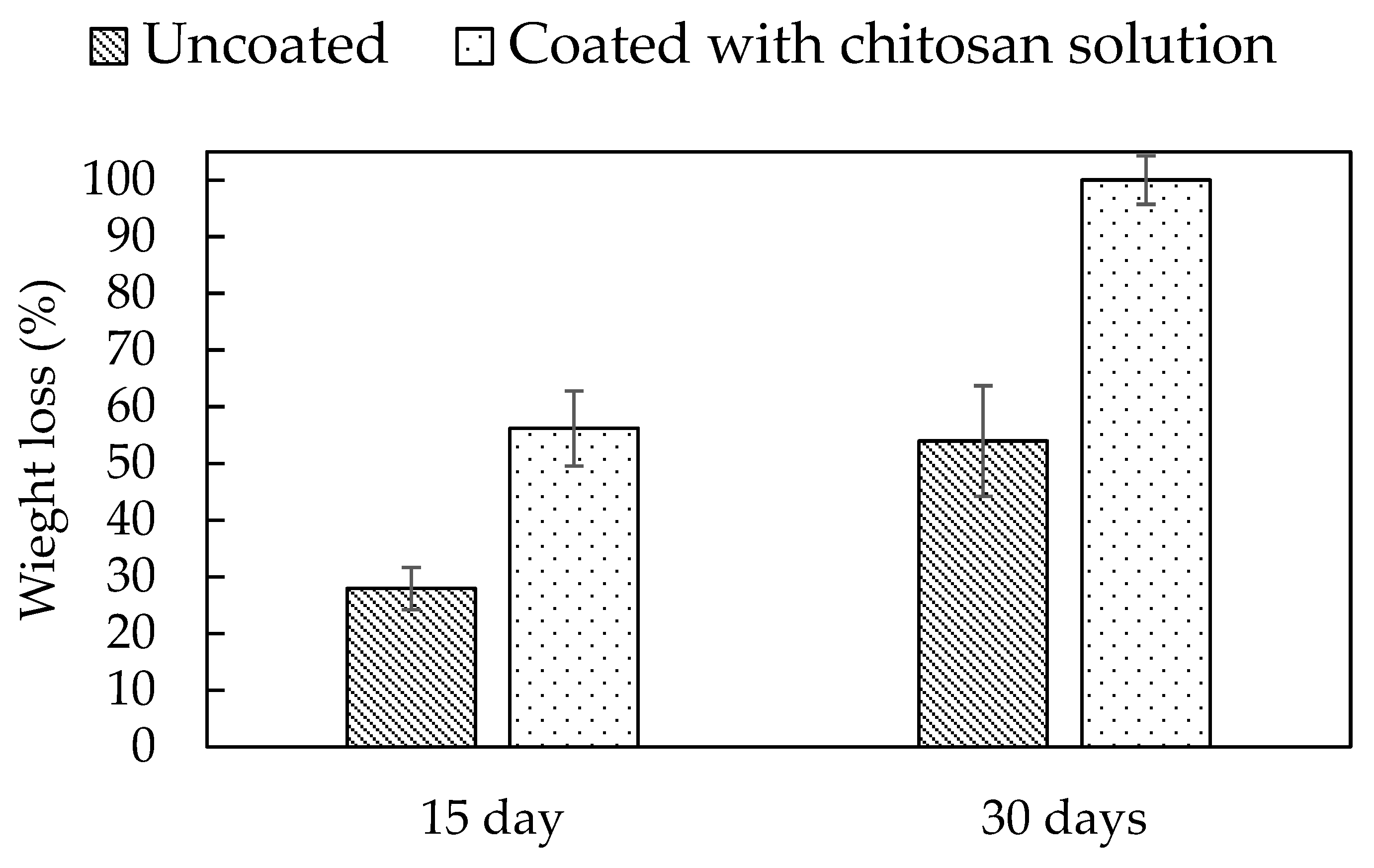

Figure 6. Percentage weight loss of the proposed mycelial composite during 30 days buried in soil. A sample coated with the chitosan solution and an uncoated sample are compared.
Figure 6. Percentage weight loss of the proposed mycelial composite during 30 days buried in soil. A sample coated with the chitosan solution and an uncoated sample are compared.
Coatings 14 00862 g006
Coatings 14 00862 g007

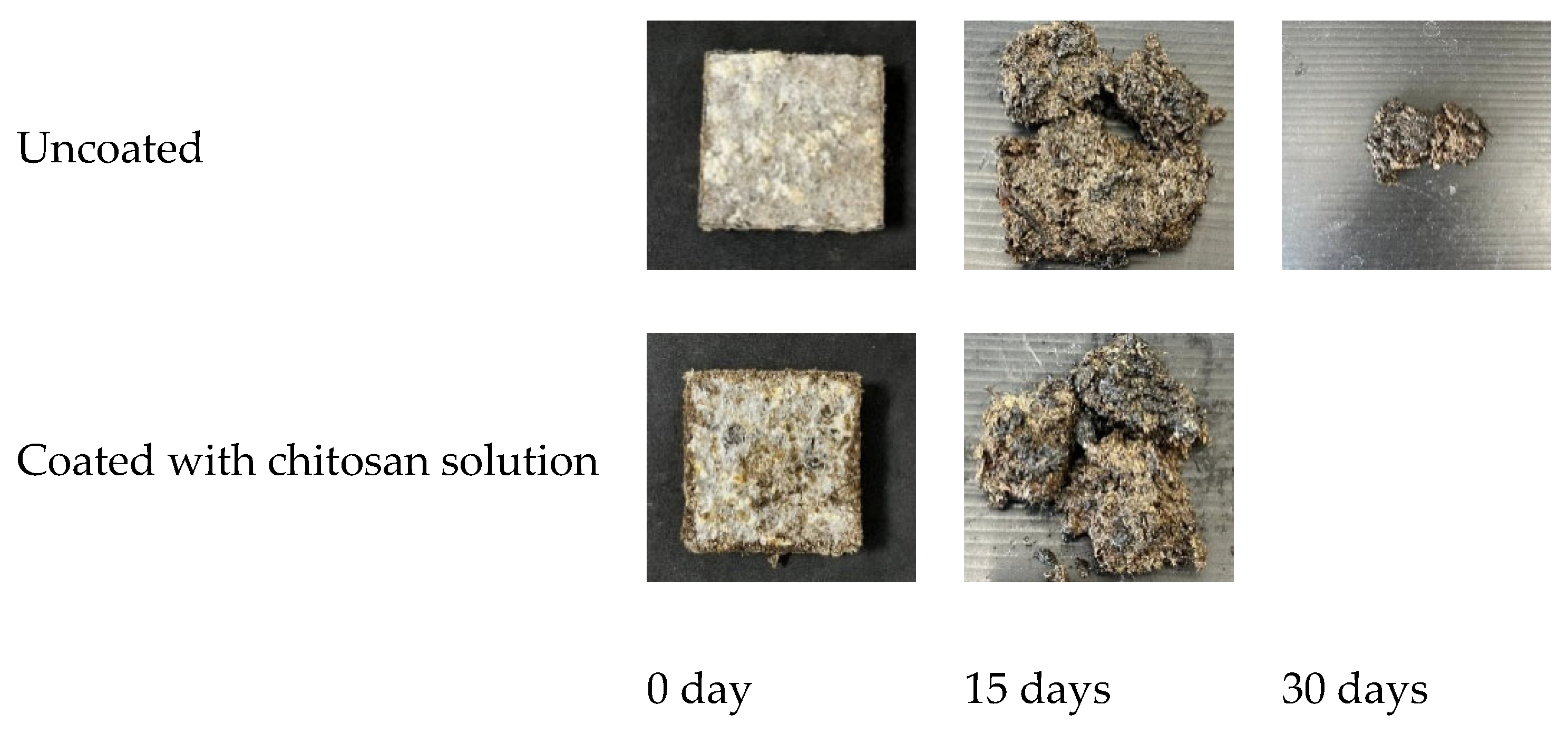

Figure 7. Biodegraded samples of the optimal mycelium-based composite are shown during a burial-in-soil study lasting 30 days. A sample coated with the chitosan solution and an uncoated sample are compared.
Figure 7. Biodegraded samples of the optimal mycelium-based composite are shown during a burial-in-soil study lasting 30 days. A sample coated with the chitosan solution and an uncoated sample are compared.
Coatings 14 00862 g007
Table 1. Growth rates of fungal mycelia cultivated on potato dextrose agar at 25 °C and 30 °C.
Table 1. Growth rates of fungal mycelia cultivated on potato dextrose agar at 25 °C and 30 °C.
Mushroom SpeciesGrowth Rate (mm/day)
At 25 °CAt 30 °C
Pleurotus ostreatus0.61 ± 0.091.19 ± 0.06
Pleurotus sajor-caju (Fr. Singer) 0.79 ± 0.051.06 ± 0.08
Auricularia auricula-judae0.41 ± 0.050.94 ± 0.07
Schizophyllum commune Fr. 1.17 ± 0.031.45 ± 0.92
Table 2. The density and water absorption of the uncoated and coated optimal mycelium-based composite.
Table 2. The density and water absorption of the uncoated and coated optimal mycelium-based composite.
Type of CoatingDensity (g/cm3)Water Absorption (%)
Uncoated composite0.0389 ± 0.001650.05 ± 0.66
Composite coated with starch solution 0.0399 ± 0.003751.37 ± 2.09
Composite coated with chitosan solution 0.0475 ± 0.002953.32 ± 1.00
Composites coated with epoxy resin0.0942 ± 0.002143.60 ± 0.73
