Study on Rheological Properties of Nano Titanium Dioxide High-Viscosity Modified Asphalt

Abstract

The research on nano titanium dioxide (nano-TiO₂)-modified asphalt has received increasing attention. However, further studies are required in order to ascertain the influence of the phenomenon under discussion on the rheological characteristics and ability to resist deformation of bitumen. In the present study, modified bitumen was formulated by adding nano titanium dioxide. Physical property tests, temperature scanning tests, frequency scanning tests, repeated creep recovery tests, bending creep stiffness tests, and long-term aging performance experiments were carried out on the specimen of asphalt that had undergone the process of modification in order to assess the rheological characteristics and ability to resist unrecoverable deformation of the modified bitumen at different temperatures, both high and low. The outcomes of the repeated creep recovery experiment were analyzed using Burgers and fractional derivative models. The microstructure of nano-TiO₂ high-viscosity modified asphalt was observed by Scanning Electron Microscope(SEM). In order to ascertain the manner in which base bitumen and nano-TiO₂ interact, Fourier transform infrared spectroscopy (FTIR) was utilized in the study. The results show that the thermal stability and prolonged aging resistant properties of the modified bitumen binder improved, but nano-TiO₂ made the asphalt binder weaker and more likely to crack at lower temperatures. Taking into account the variation in the road performance of the bitumen binder, 6% is recommended as the optimal amount of nano-TiO₂. Nano-TiO₂ was mainly uniformly distributed in asphalt and nano-TiO₂ was physically mixed with asphalt. In comparison with the Burgers model, the present fractional derivative empirical creep model can fit the creep test data of the asphalt binder well with the advantages of high accuracy and few parameters. The research results provide a reference for promoting the implementation of modified bitumen incorporating nano-TiO₂.

1. Introduction

With the expansion of the urban scale, many negative problems have arisen, such as traffic congestion, air pollution, rising temperatures, etc., which have had adverse effects on humans. Among them, the urban temperature increase caused by the heat island effect is especially severe. Research shows that the annual average temperature inside the city is at least 2 °C higher than that in the outer suburbs, and in hot summer, there exists a 10 °C temperature difference between indoors and outdoors [1,2,3,4].

Urban road paving is an important cause of the heat island problem. Especially during the summer months, the ambient temperature is even more than 20 °C lower than that of asphalt pavements. Under such high environmental temperatures, asphalt pavements often suffer from oil immersion, tire sticking, and rutting under the continuous action of vehicle loads. These diseases will seriously reduce the performance and service life of asphalt roads. To reduce asphalt pavement diseases, scientists use different modifiers to improve the different properties of base asphalt. For polymer modifiers, styrenebutadiene styrene builds a network structure with asphalt by absorbing low molecular asphalt [5]. Styrene butadiene rubber makes asphalt more ductile and increases the fracture resistance of asphalt at low temperatures [6]. Polyethylene could be used to enhance the good fatigue resistance of asphalt [7]. In the context of nanomaterials, the presence of nano-TiO₂ particles has been demonstrated to have a significant impact on the photooxidation behavior of bitumen. Specifically, the incorporation of nano-TiO₂ into modified bitumen has been shown to enhance resistance to photooxidation senescence [8]. The nano-zinc oxide could decrease the irrecoverable strain of hot mix asphalt (HMA) paving [9].

Nano-TiO₂ is a photoactive nanoparticle and an environmentally friendly green material. It was confirmed that titanium dioxide reduced the nitrogen dioxide and sulfur dioxide produced by vehicles in a road environment through its photocatalytic effect to purify the air [10]. Due to its non-toxic and inexpensive, nano-TiO₂ has also been used in road pavements to reduce road temperature and slow down asphalt aging in recent years [11,12]. Many studies have focused on the influence of varying doses of nano-TiO₂ on the physical and rheological characteristics, rutting, prolonged and short-term aging characteristics of bitumen [13,14]. Chen et al. conducted a study on the characteristics of 2% TiO₂ and the organic montmorillonite compound-modified bitumen. The findings demonstrated that the thermal characteristics, ability to resist unrecoverable deformation, thermal oxidation, and resistance to ultraviolet oxidative aging of asphalt were improved [15]. Ji et al. conducted a study on the behavior of modified bitumen with varying characteristics of thermoplastic polyurethane and TiO₂, ranging from 1% to 3% of the total mixture. The results indicated the thermal resistance to oxygen and ability to resist unrecoverable deformation of TiO₂-modified bitumen [16]. Lima et al. modified bitumen using SBS and TiO₂ (0.1%, 0.25% and 0.5%). They investigated the ability to resist the aging impact on bitumen, which was found to decrease over time due to the presence of a carbonyl group [17]. Zheng et al. conducted a study on the performance of asphalt in the presence of titanium dioxide, with concentrations ranging from 2% to 4%. The results indicated that there was an enhancement in resistance to unrecoverable deformation and cracking. The UV aging resistance was improved [8].

These studies provide important technical support for the application of nanosized titanium dioxide. From the above research, it is clear that nano titanium dioxide can improve the aged properties and rheological characteristics of bitumen under small nano-TiO₂ contents. However, further in-depth research is required to ascertain whether the incorporation of large amounts of titanium dioxide exerts a favorable impact on the aging performance and rheological characteristics of bitumen. In addition, there is a lack of necessary research on the viscoelastic deformation characteristics and constitutive model of nano-TiO₂-modified asphalt under a high titanium dioxide content, which is also an important basis for analyzing the deformation characteristics of bitumen binders.

The objective and scope of the research are to explore in-depth the rheological properties and deformation resistance under high temperatures of nano-TiO₂-modified asphalt by physical property tests, temperature scanning tests, frequency scanning tests, repeated creep recovery tests, and bending creep stiffness tests. The Burgers model and the fractional derivative empirical creep equation were utilized to evaluate the experimental outcomes. The microstructure of nano-TiO₂-modified bitumen was observed by SEM. The interplay between base bitumen and nano-TiO₂ was investigated through the utilization of FTIR. The results show that the heightened temperature tolerance of NHV-modified bitumen, augmented with nano-TiO₂, has been enhanced. Nano-TiO₂ has been demonstrated to have a substantial impact on the thermal stability of bitumen at heightened temperatures. Moreover, the incorporation of nano-TiO₂ can reduce their sensitivity and improve the elastic properties of the asphalt binder. The ability to resist rutting has been enhanced, but the resistance to cold-weather cracking has decreased. Taking into account the variation in road performance of nano-TiO₂ high-viscosity modified asphalt with the amount of nano-TiO₂, 6% is recommended as the optimal amount of nano-TiO₂. The fractional derivative empirical creep (FDEC) model offers a superior reflection of the creep properties of modified bitumen and has the advantages of fewer parameters and high precision.

2. Materials and Methods

2.1. Materials

2.1.1. Base Asphalt

The original bitumen with a penetration grade of 60/80 was provided by Alpha (Jiangyin) Asphalt Company, a Chinese enterprise, Jiangyin, China.

2.1.2. BW-HPM High-Viscosity Modifier

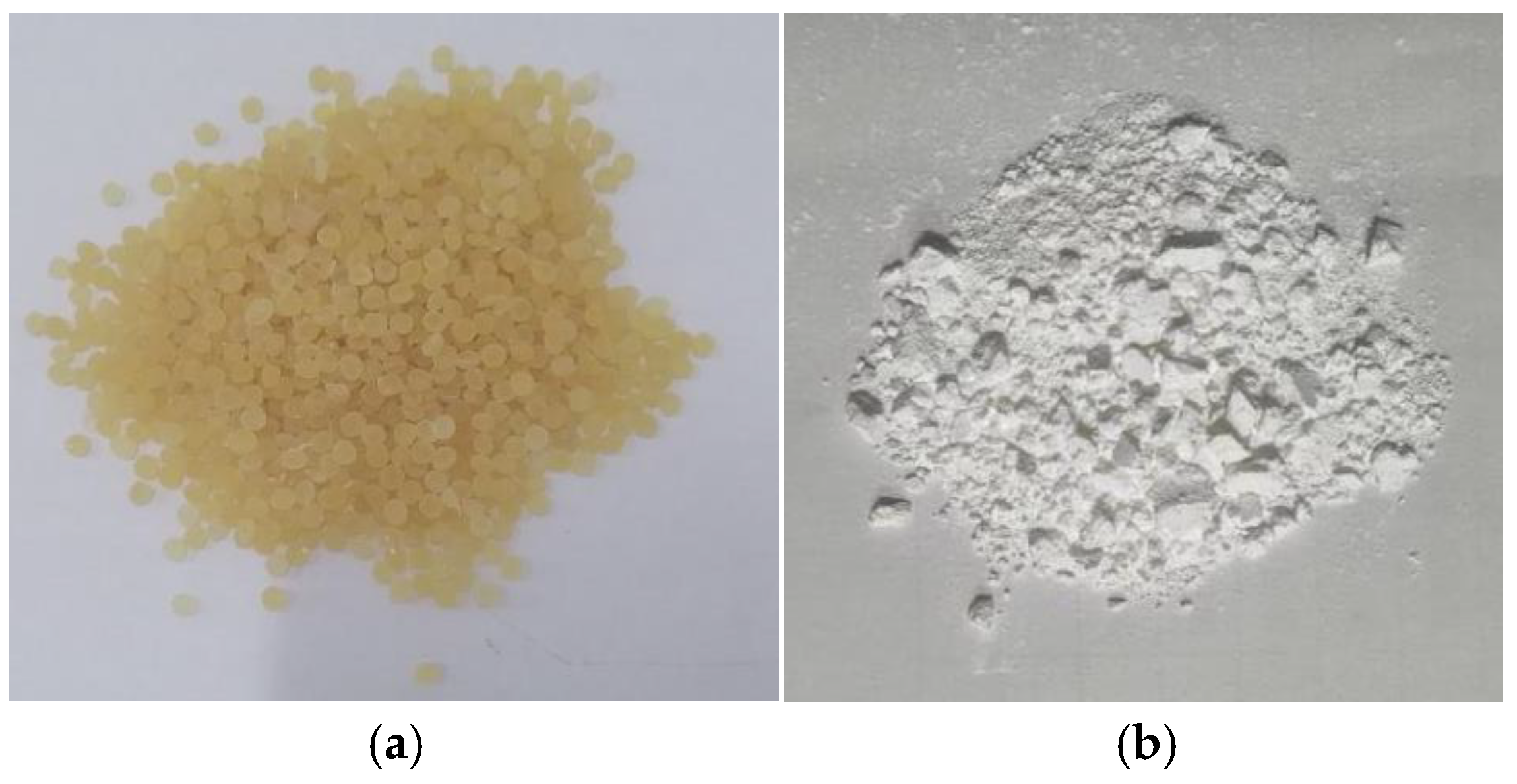

BW-HPM high-viscosity asphalt modifier (as shown in Figure 1a), mainly composed of polymers, was used. BW-HPM can effectively increase the viscosity and strengthen asphalt, and enhance the anti-aging properties, durability, and crack resistance of asphalt pavement. BW-HPM was developed by Xi’an Bowang New Materials Technology Co., Ltd, Xi’an, China.

2.1.3. Nano-TiO₂

The nano-TiO₂ modifier (Figure 1b) employed in our study was supplied by Jinan Zhiding Welding Materials Company, Jinan, China. Nano-TiO₂ is often used as a functional filler or additive, which can enhance the physical characteristics, thermal stability, light stability, and other characteristics of bitumen binder. Its main performance indicators are set out in

Table 1. The primary technical indicators of nano titanium dioxide.

	Average Size (nm)	Purity (%)	Specific Surface Area (m2/g)	Bulk Density (g/cm3)	Density (g/cm3)
Nano- TiO2	20	99.9	70–90	0.22	3.9

. The quantities of nano titanium dioxide are 0%, 3%, 6%, and 9%, correspondingly.

2.1.4. Preparation of Nano-TiO₂-Modified Asphalt

First, the road 70 petroleum asphalt was placed in the oven for more than 4 h (the set oven temperature was 140 °C ± 10 °C), and then it was taken out and heated in the electric furnace at a temperature of 170 °C ± 10 °C. According to the manufacturer’s suggestion, 9% high viscosity agent was added and high-speed shear emulsifier(Fluko-A25, Shanghai Furuk Technology Development Co., Ltd, Shanghai, China) was used to at a 2000 r/min rate for 30 min. Then, we prepared 0%, 3%, 6%, and 9% nano-TiO₂ high-viscosity modified asphalt according to the above steps.

2.2. Experimental Methods

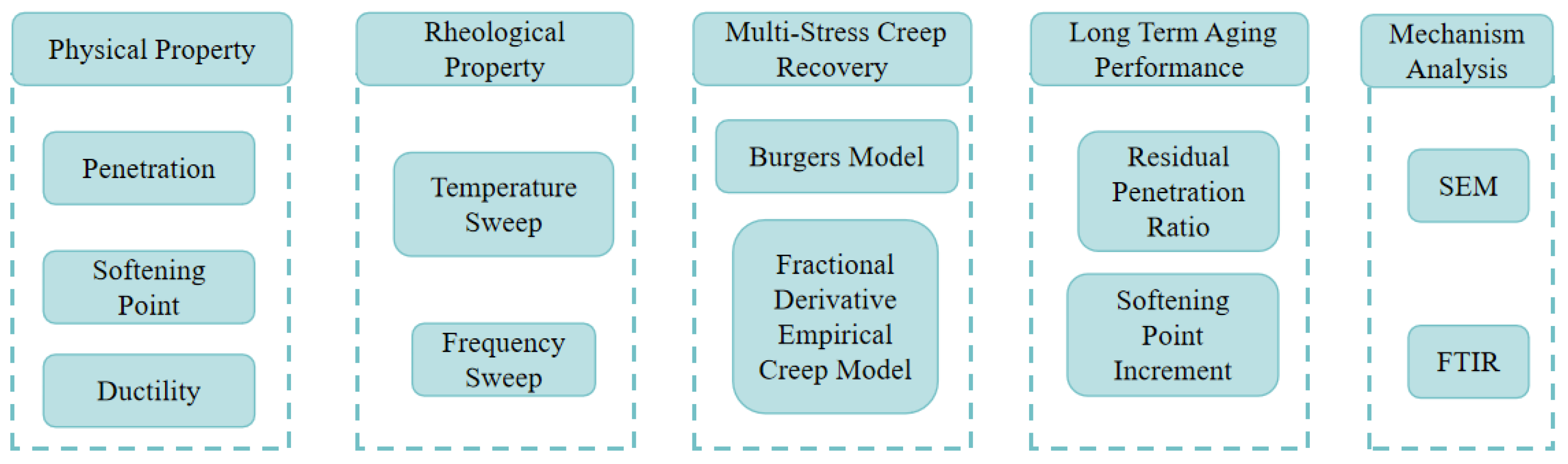

The methodological framework is shown in Figure 2. The parameters designed in all experiments are shown in Section 2.2.1, Section 2.2.2, Section 2.2.3, Section 2.2.4, Section 2.2.5, Section 2.2.6, Section 2.2.7 and Section 2.2.8.

2.2.1. Physical Property Tests

The physical property tests were carried out as stipulated in T0604, T0606, and T0605 in the specification JTG E20-2011 [18]. The physical characteristic tests of nano-TiO₂ high-viscosity modified asphalt were conducted, involving penetration, softening point and ductility tests. The temperature in the penetration tests was set to 25 °C. The temperature in the ductility tests was set at 15 °C with a rate of loading of 50 mm/min. The softening point experiments were performed using the Ring and Ball method.

2.2.2. Temperature Sweep Test

In our study, we conducted a series of temperature sweep tests to evaluate the rheological characteristics of the nano-TiO₂ high-viscosity modified asphalt. The performance index of the modified asphalt binder, including complex shear modulus (G*) and phase angle (δ), was acquired through the utilization of the DHR-1 dynamic shear rheometer. The temperature sweeping experiment was performed at a range of temperatures from 34 °C to 82 °C, with a 6 °C increment and a constant angular velocity of 10 rad/s. The parallel metal plates were as follows: 25 mm in terms of diameter, and 1 mm in terms of gap. The rheological behaviors of the modified bitumen binder at elevated and low temperatures were assessed using the rutting factor obtained through experiments [19].

2.2.3. Frequency Sweep Test

The frequency sweeping experiments conducted involved a scope of 1–100 rad/s at temperatures ranging from 30 °C to 60 °C with an interval of 10 °C. Then, the frequency scanning curve of the bitumen binder was matched and evaluated by employing a straight line equation [20].

2.2.4. Multi-Stress Creep Recovery (MSCR) Test

The DSR instrument was utilized to load asphalt for 1 s and unload asphalt for 9 s under stress of 25 Pa, and the cycle was repeated 60 times within the temperature region of 30 °C–60 °C with an interval of 10 °C. The MSCR test was conducted with the aid of the TA DHR-1 apparatus. The 25 mm parallel plate with a 1 mm gap was selected. Then, the results of the creep recovery test were systematically fitted and analyzed by using the Burgers model of viscoelasticity theory and the fractional derivative empirical creep (FDEC) model [21,22].

2.2.5. Bending Creep Stiffness Test

The creep behavior of pitch under low-temperature conditions was determined by a constant load and by measuring the bending deformation of girder specimens at low temperatures (such as −6 °C, −12 °C and −18 °C). Then, the creep parameters, namely the stiffness, S (t), and the rate, m (t) [23], were computed. The value of the bending creep stiffening and m-value of the bitumen binder were determined by the implementation of a bending beam rheometer. The test temperature conditions were −6 °C, −12 °C, and 18 °C, respectively.

2.2.6. Long-Term Aging Performance Test

As stated in JTG E20-2011 [18], the prolonged aging characteristics of bituminous specimens were tested using a pressure aging oven. The asphalt sample after thermal-oxidative aging treatment was loaded into a sample tray. The container pressure was 2.1 MPa. At 100 °C, the asphalt sample was continuously aged for 20 h, and the prolonged aging of the bituminous specimens was completed. The penetration index and softening point index were conducted following prolonged aging. The material’s behavior when aged was evaluated by calculating its residual penetration ratio and softening point increment.

2.2.7. Scanning Electron Microscope (SEM) Test

Scanning electron microscopy (Quanta 450, FEI, Waltham, MA, USA) was employed to observe the microstructure of asphalt specimen. The asphalt sample was gold-plated due to its weak conductivity. The spraying voltage was 10 mA. The spraying target material was gold–palladium alloy. The spraying time was 45 s. The dried asphalt sample was uniformly pasted onto the conductive adhesive for testing.

2.2.8. Fourier Transform Infrared Spectroscopy (FTIR) Test

The surface functional groups of bitumen were analyzed by Fourier transform infrared spectroscopy (Nicolet iS10, Waltham, MA, USA). Next, 1 mg of asphalt samples and 200 mg of dried KBr were thoroughly mixed and ground. The mixture was evenly placed between the top and bottom molds of the tablet mold. The pressure was set to 8 t/cm² and the pressurization time was 2 min. The transparent sample ingot was prepared. The sample diameter was 13 mm and the thickness was 1 mm. The sample ingot was placed in the instrument. The spectral range was 500–4000 cm⁻¹.

3. Results and Discussion

3.1. Physical Property

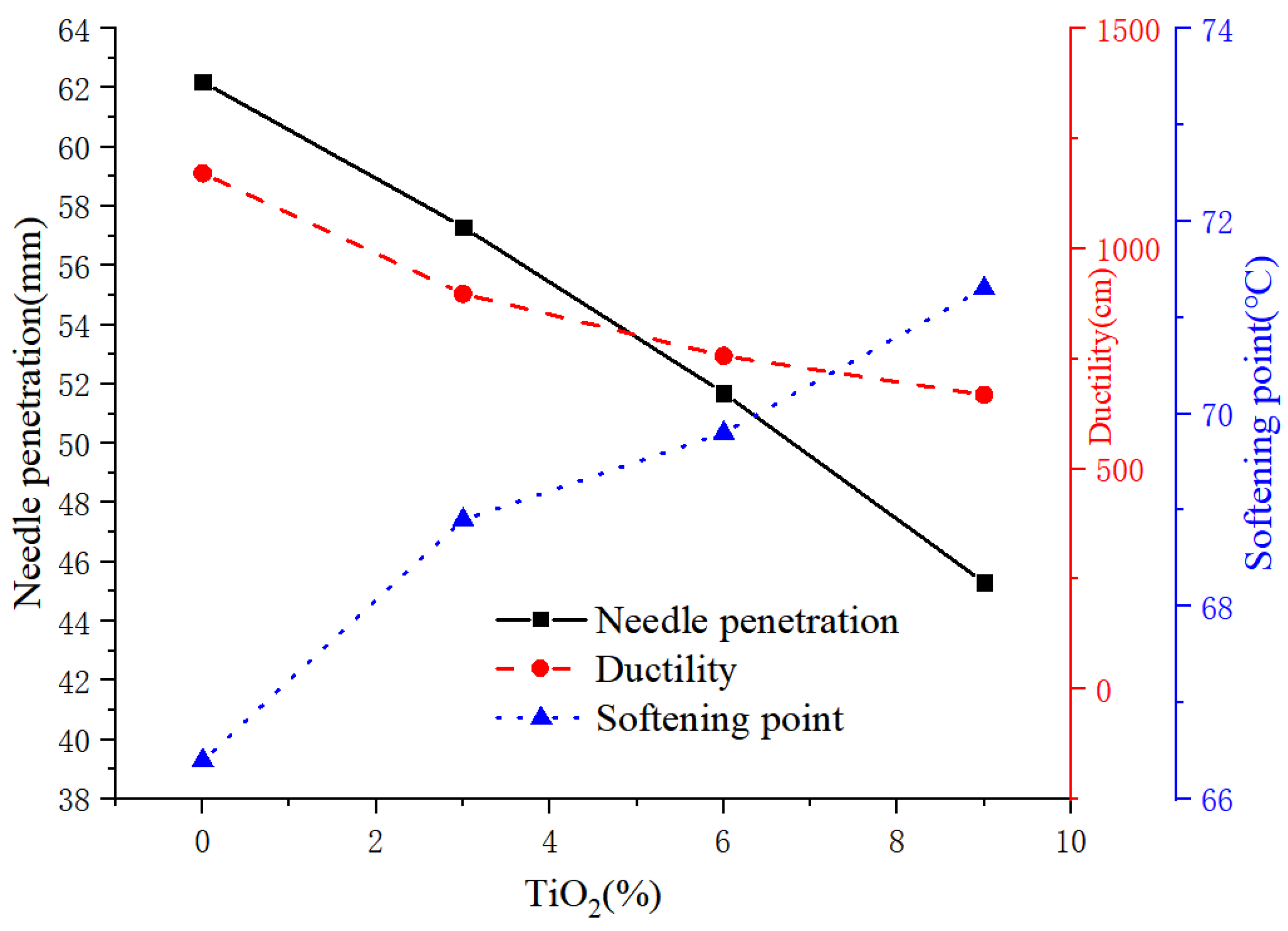

The physical characteristics of the prepared bitumen binder are shown in Figure 3. From Figure 3, it can be seen that with the rising percentage of nanoscale titanium dioxide, the penetration index of the bitumen binder and its ductility undergo a gradual decrease, while its softening point increases concomitantly. Compared with the high-viscosity asphalt, the penetration value of the modified asphalt with a 9% content decreased by 27.2%, the ductility decreased by 43.0%, and the softening point increased by 7.4%. This indicates that the thermal stabilization properties of the high-viscosity bitumen with the addition of nanoscale titanium dioxide have been improved and the resistance unrecoverable deformation ability has been enhanced, but the anti-crack resistance at lower temperatures has decreased and the material’s fatigue resilience is weakened.

These indicators may not be suitable for evaluating thermal stabilization properties at high temperatures and anti-crack resistance at lower temperatures of the bitumen binder, and cannot simulate the flow deformation of asphalt under continuous loading (such as rutting problems). Therefore, further research on the characteristic of rheology of modified bitumen is needed based on rheological theory.

3.2. Temperature Sweep Tests

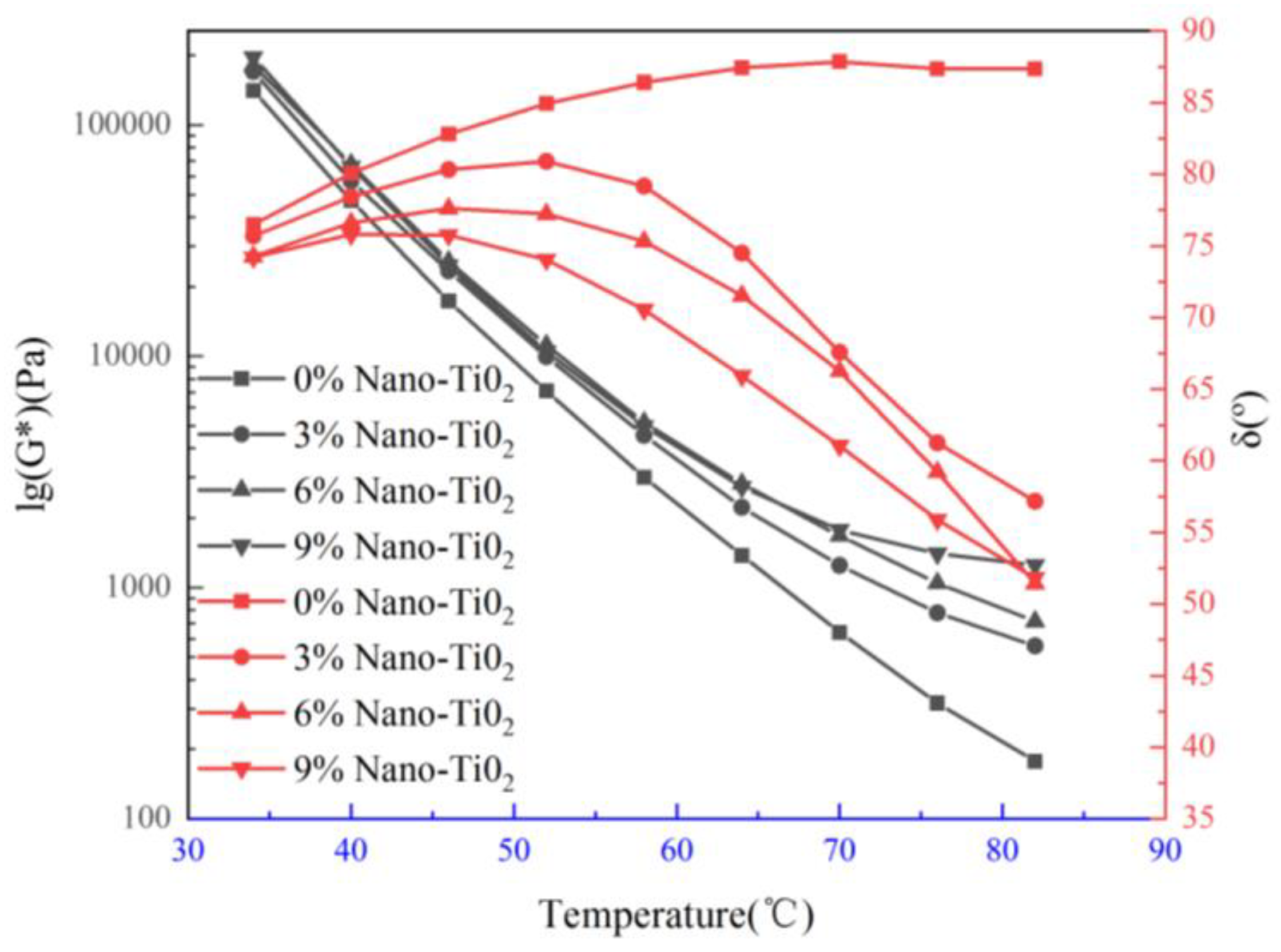

Figure 4 shows the complex modulus and phase angle (δ) values for the NHV-modified bitumen when the temperature was between 34 °C and 82 °C. The higher the complex modulus amount, the stiffer the bitumen binder under high temperature or high-frequency load, and the stronger the resistance to rutting. Figure 4 shows that an increase in test temperature results in a gradual decrease in the complex modulus of bitumen. This indicates that temperature has a significant impact on the anti-deformation ability of the bitumen. The modulus of the treated bitumen is gradually increased with the rise in the dosage of nano-TiO₂. As the test temperature rises, the reduction amplitude of the complex modulus of the treated bitumen decreases gradually. It has been discovered that the modulus of the 9% treated bitumen at 34 degrees is 1.40 times that of the high-viscosity asphalt. Nonetheless, the value of the modulus for the 9% bitumen binder at 82 °C is 7.05 times that of the high-viscosity asphalt. This suggests that nano-TiO₂ greatly improves the thermal stability of the binder.

The viscoelastic ratio of asphalt can be obtained by measuring the phase angle. The bitumen binder becomes more elastic and sensitive to cold temperatures at lower phase angles. As can be noted in Figure 4, as the experimental temperature goes up, the phase angle rises steadily, whereas the phase angle of the bitumen binder incorporating nano-TiO₂ initially rises and then falls. Moreover, as the dosage increases, the phase angle of the bitumen binder decreases gradually. This result further suggests that adding nano-TiO₂ reduces bitumen binder sensitivity and improves its elastic properties.

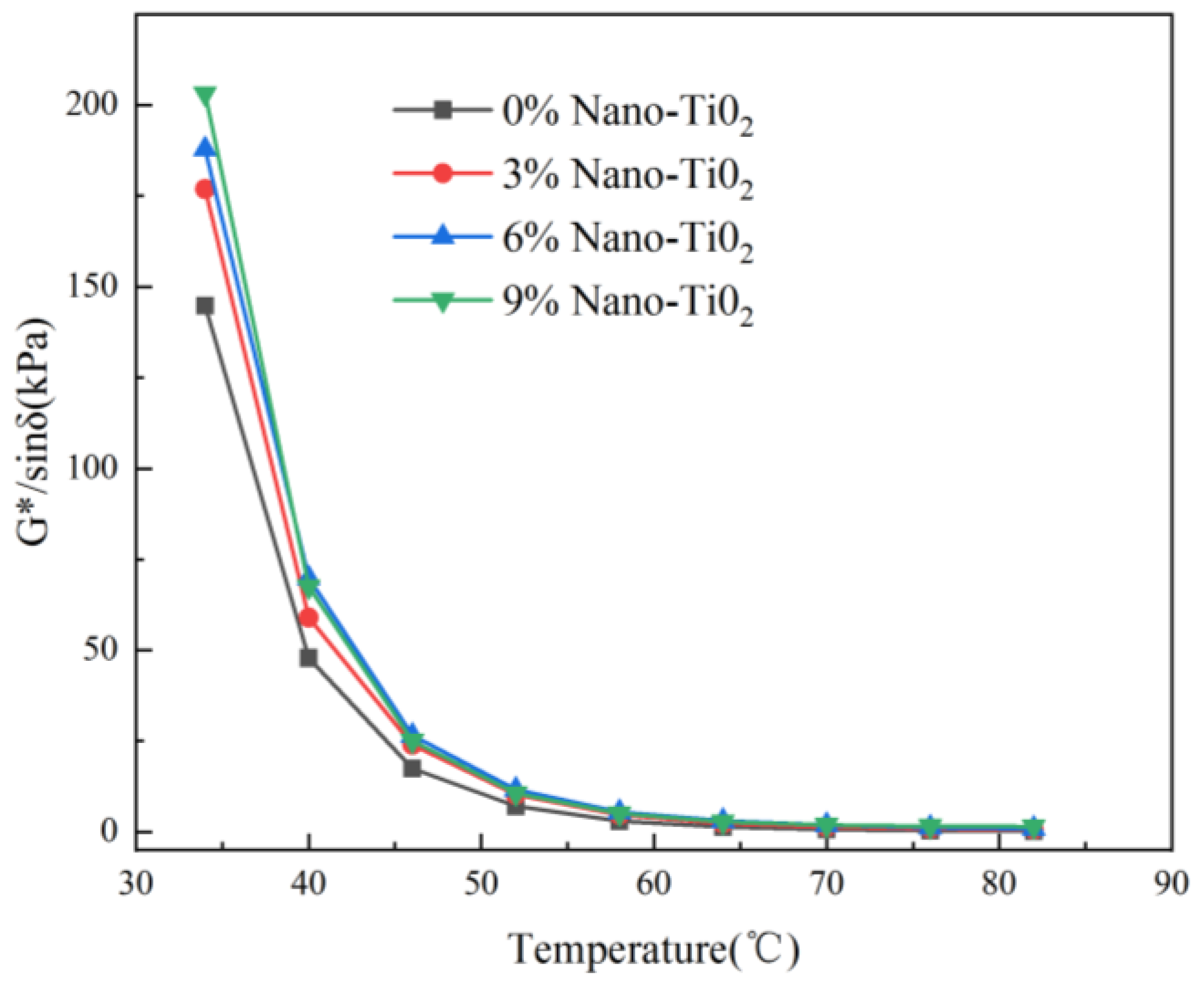

The higher the rutting factor, the better the bitumen binder is at resisting unrecoverable deformation at high temperatures. As seen in Figure 5, the rutting factor decreased across the overall temperature range. The bitumen binder was found to be more susceptible to high-temperature deformation that could not be recovered. The rutting factor of nano titanium dioxide high-viscosity modified asphalt increases with the dosage, under the same temperature conditions, demonstrating that nano-TiO₂ enhances the high-temperature stability of the bitumen binder. The bitumen binder was more prone to high-temperature unrecoverable deformation.

3.3. Frequency Sweep Test

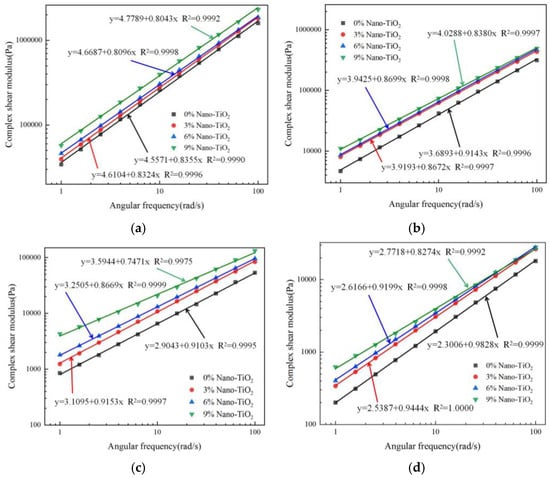

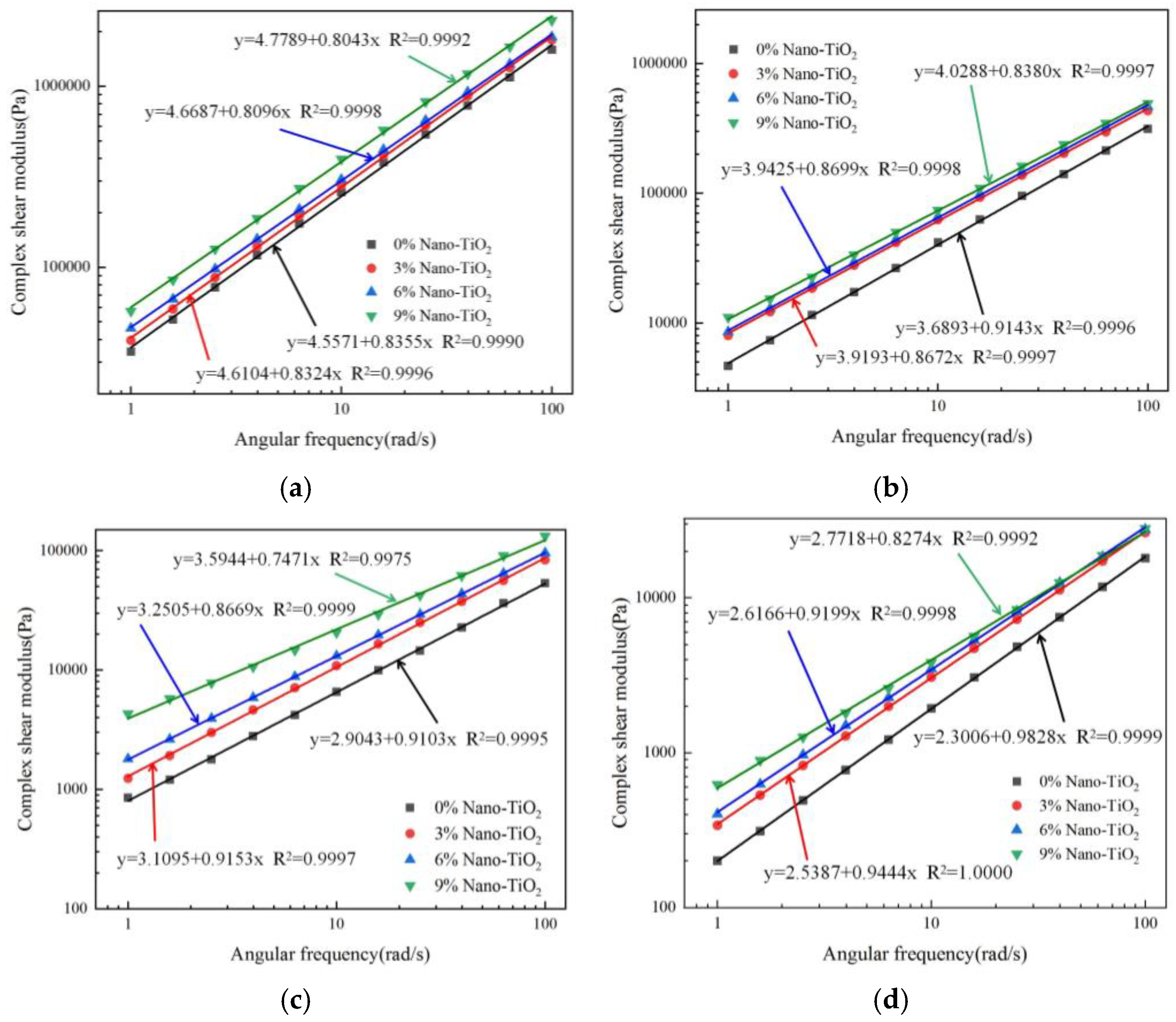

Figure 6 presents the relation between modulus and frequency in the frequency scanning tests. The dots of different colors in the figure represent the results of the frequency scanning test, and the lines of different colors are the fitting straight lines of the test results.

Generally speaking, the high-frequency region can assess the response of pavement under rapid loads, while materials’ long-term stability, creep or relaxation characteristics can be reflected in the low-frequency region. With an increase in experimental temperature, the modulus of the bitumen binder decreases in the entire frequency domain, indicating that the temperature sensitivity of the asphalt binder is still very high. Under the condition of 10 rad/w, and at temperatures of 30 degrees and 60 degrees, the modulus of 9% NHV-modified bitumen is 1.52 times that of high-viscosity asphalt and 1.97 times that of high-viscosity asphalt. It suggests that adding nano-TiO₂ significantly enhances the thermal tolerance of the bitumen binder at high temperatures, which is aligned with the findings shown in Figure 4 and Figure 5. With the increase in angular frequency, the modulus gradually increases, and the increased amplitude of the complex shear modulus becomes larger and larger with the increased frequency. Under the test temperature of 60 degrees and the conditions of 100 rad/w, the complex shear modulus of the NHV-modified bitumen increased by 8327.9, 9573.4, and 10045.9 Pa, respectively. It indicates that the modified bitumen mixed with nano-TiO₂ demonstrates more excellent performance against impact loads under high-temperature conditions. The modulus has a strong negative linear relationship to the angular frequency in the logarithmic coordinate system, and the lowest determination coefficient of the linear fitting analysis is 0.9975.

3.4. Multi-Stress Creep Recovery (MSCR) Test

3.4.1. Burgers Model

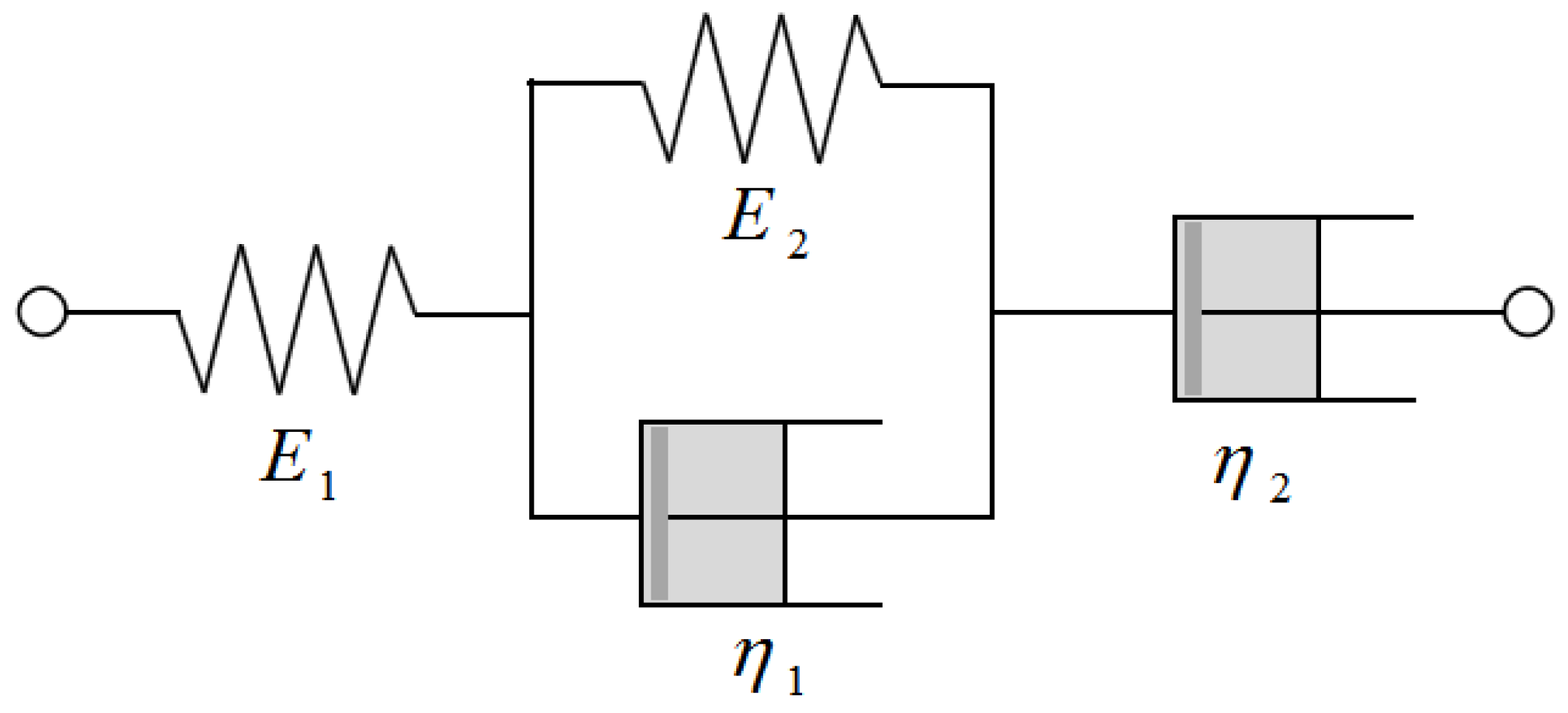

The Burgers model is widely used in viscoelastic mechanics. It is a four-element model (Figure 7). It was used to calculate material parameters and analyze the mechanical characteristics of viscoelastic bitumen binder material [24,25] and the mixture microstructure [26,27]. This model can better characterize the creep deformation characteristics of viscoelastic materials, and its creep compliance is as follows:

$$J(t)=\frac{1}{E_1}+\frac{t}{{\eta }_2}+\frac{1}{E_2}(1-e^{-E_2\times t/{\eta }_1})$$

(1)

In the equation above, $J(t)$ is creep compliance of t time, $P{a}^{-1}$; $E_1$ and $E_2$ are the spring elastic modulus of the Maxwell and Kelvin model, $Pa$; ${\eta }_1$ and ${\eta }_2$ are the viscosity parameters of the Kelvin and Maxwell model, $Pa\cdot s$; and $t$ is the time parameter, $s$.

3.4.2. Fractional Derivative Empirical Creep Model

Various engineering fields have used the FDEC model because it can overcome the shortcoming that the classical integer derivative model and experimental results are not in good agreement [28,29,30,31].

The Riemann–Liouville fractional derivative operator is defined as follows [32,33,34]:

$$(D_{0^{+}}^{\gamma }f)(t)={\displaystyle \frac{1}{\mathsf{\Gamma }(1-\gamma )}}{\displaystyle \frac{d}{dt}}{\displaystyle {\int }_0^t\frac{f(\tau )}{{(t-\tau )}^{\gamma }}}d\tau 0\le \gamma \le 1$$

(2)

When $s=t-\tau$, Equation (3) can be converted into an integral form, as shown below:

$$(D_{0^{+}}^{\gamma }f)(t)={\displaystyle \frac{1}{\mathsf{\Gamma }(1+\gamma )t^{\gamma }}}\ast df$$

(3)

The following is an expression of the Abel adhesive pot element [35]:

$$\sigma =\eta I_{\gamma }(t)\ast d\epsilon$$

(4)

Its creep compliance is as follows:

$$J(t)={\displaystyle \frac{1}{\eta }}\phi (t)\ast {\displaystyle \frac{t^{\gamma -}}{\mathsf{\Gamma }(\gamma )}}={\displaystyle \frac{1}{\eta \mathsf{\Gamma }(\gamma +1)}}{t}^{\gamma }$$

(5)

In this expression, $\varphi (t)$ is unit strain and $\varphi (t)=\left\{\begin{array}{c}1,t\ge 0\\ 0,t<0\end{array}\right.$.

The fractional derivative is equivalent to the convolution of the $I_r(t)$.

The Nutting function [36] is the basis for creep behavior in viscoelastic materials, which is shown below:

$$\epsilon (t)=\lambda t^{\gamma }\sigma , 0<\gamma <1$$

(6)

Its creep compliance is as follows:

$$J(t)=\lambda t^{\gamma }, 0<\gamma <1$$

(7)

The creep flexibility can be expressed as a power function as demonstrated in Equations (5) and (7).

$$\lambda ={\displaystyle \frac{1}{\eta \mathsf{\Gamma }(\gamma +1)}}$$

(8)

The coefficient of viscoelastic material and the order have an effect on $\lambda$, as indicated by Formula (8).

3.4.3. Model Fitting Analysis

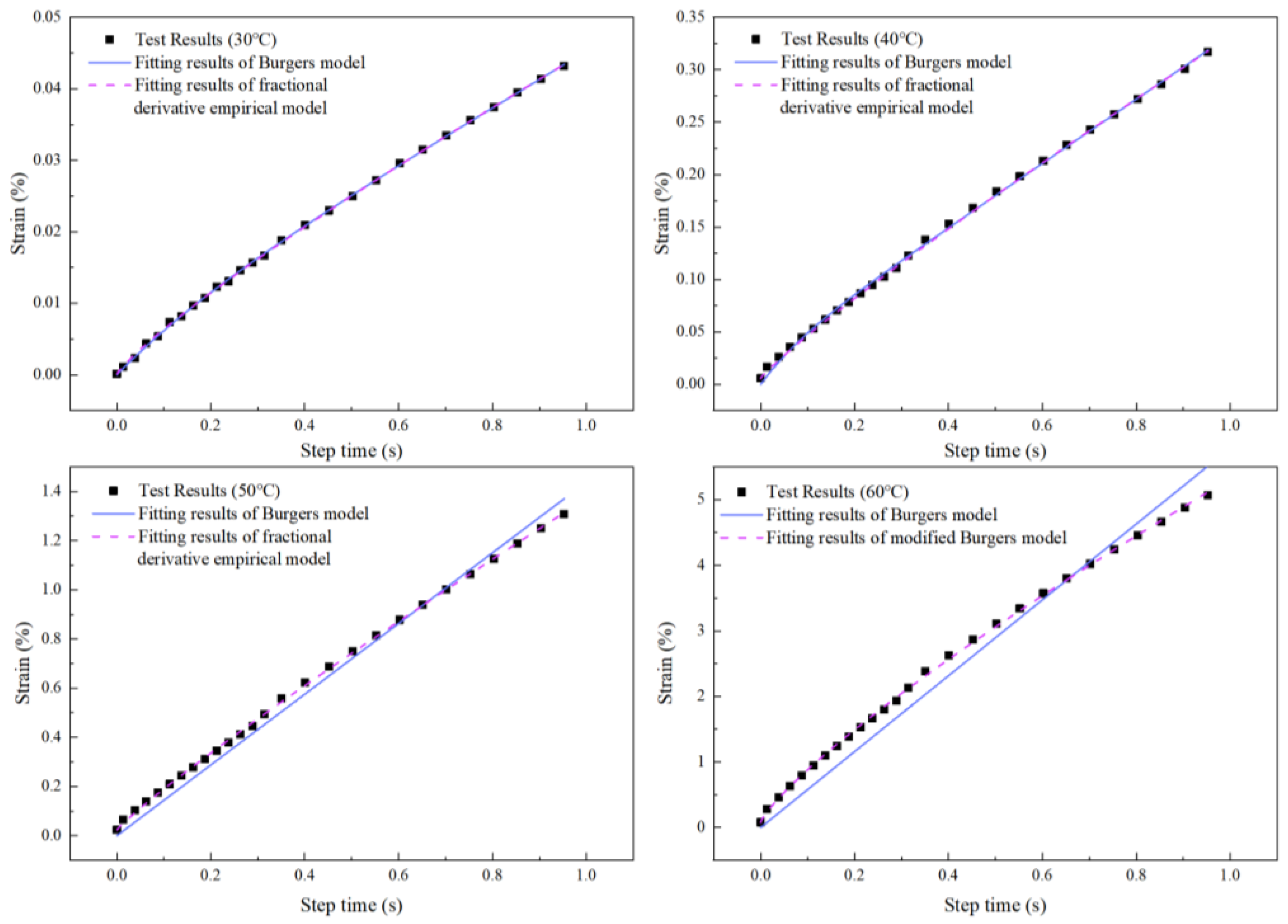

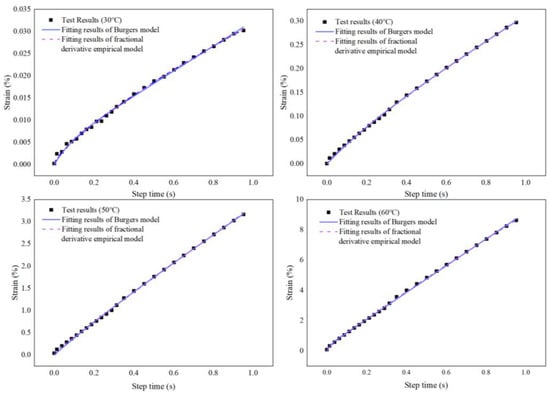

To maintain data stability and analysis reliability, only the test results from the 29th creep recovery cycle were selected for analysis. The parameter determination method of the Burgers model adopts the fixed parameter fitting method. The remaining parameters are calculated by nonlinear fitting regression analysis. The parameters of the Burgers model and fractional derivative empirical creep model are also obtained by matching the experimental data, as depicted in Figure 8, Figure 9, Figure 10 and Figure 11. The parameters values of the model obtained through the fitting analysis of data are presented in Figure 12 and Figure 13.

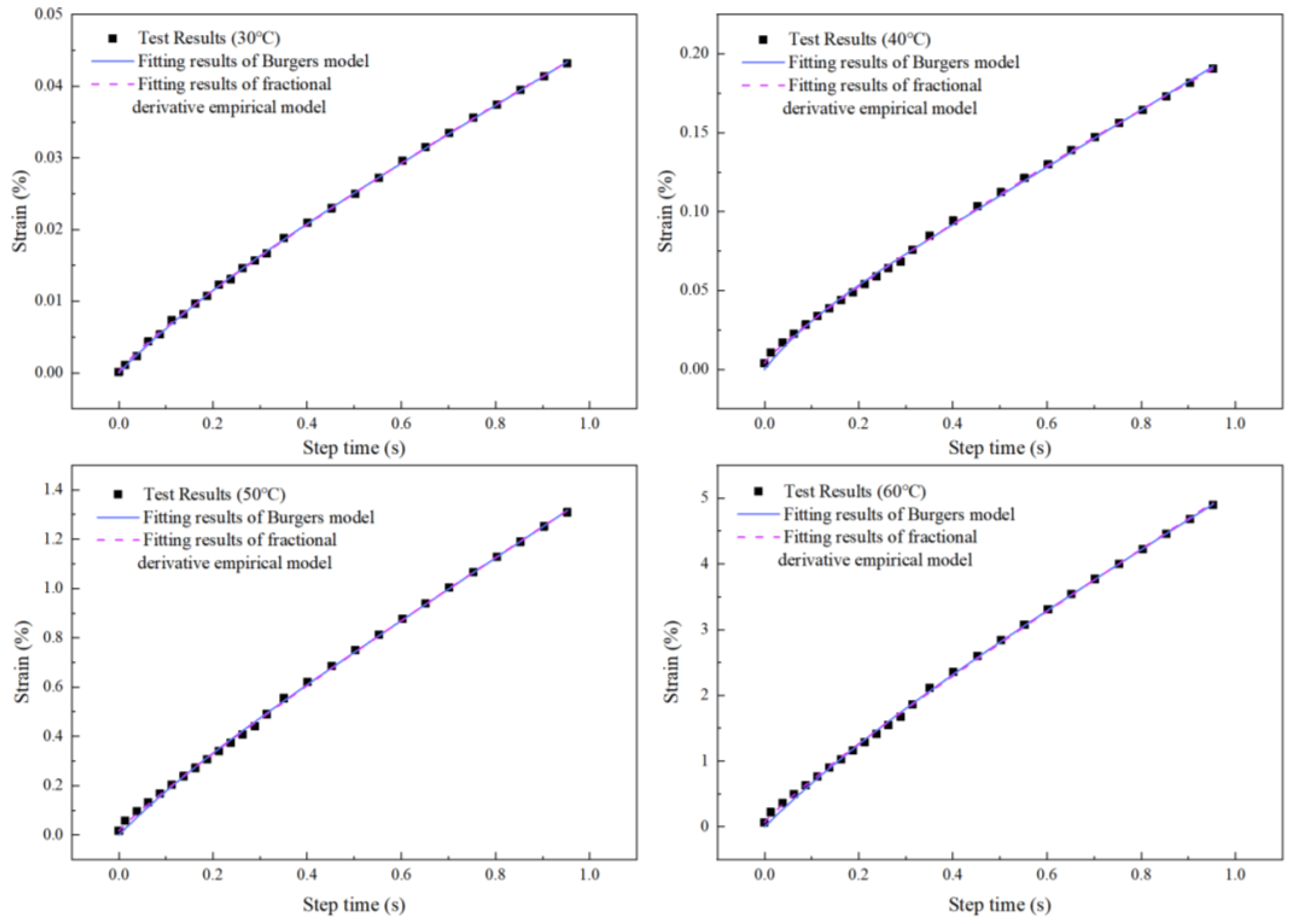

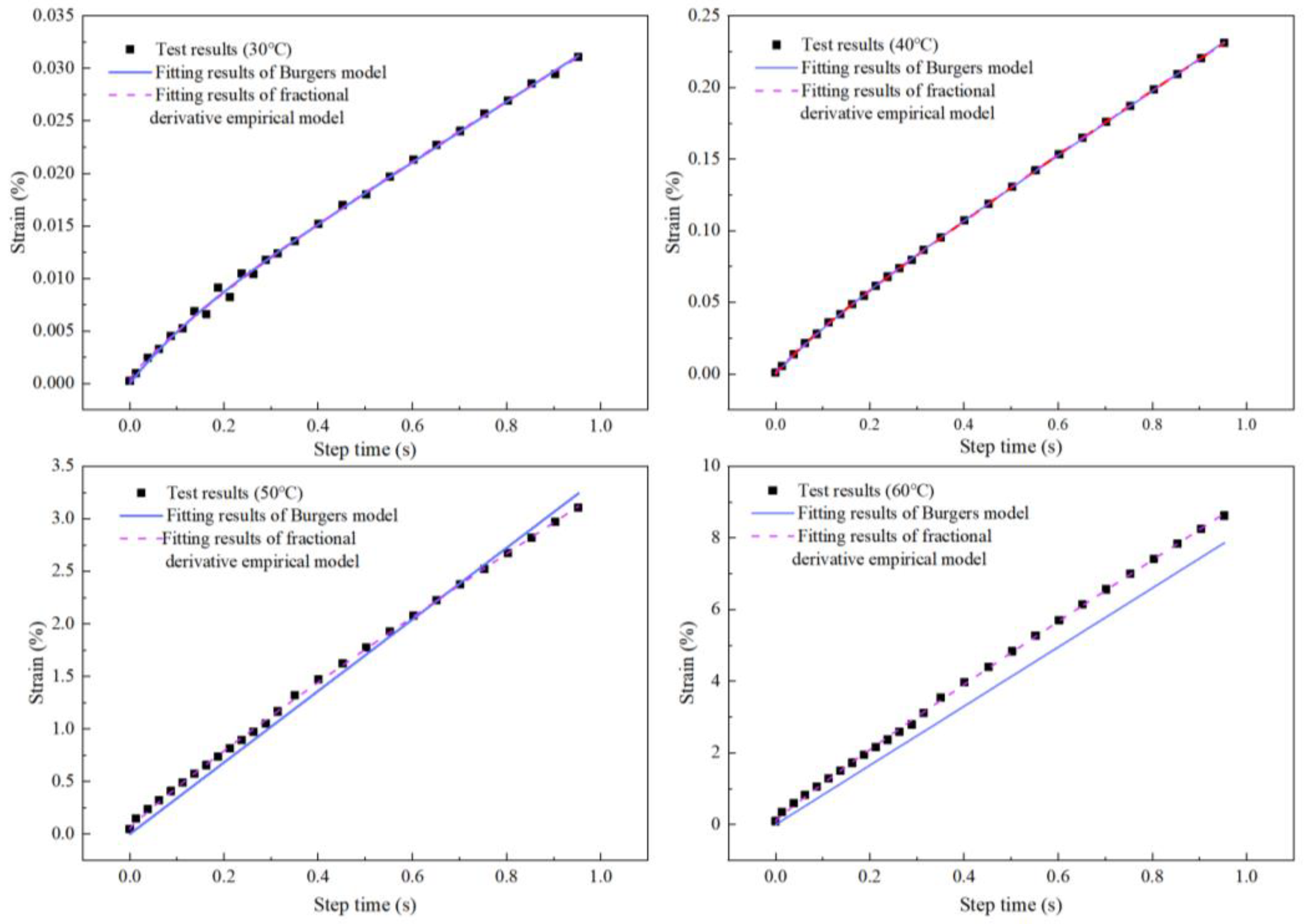

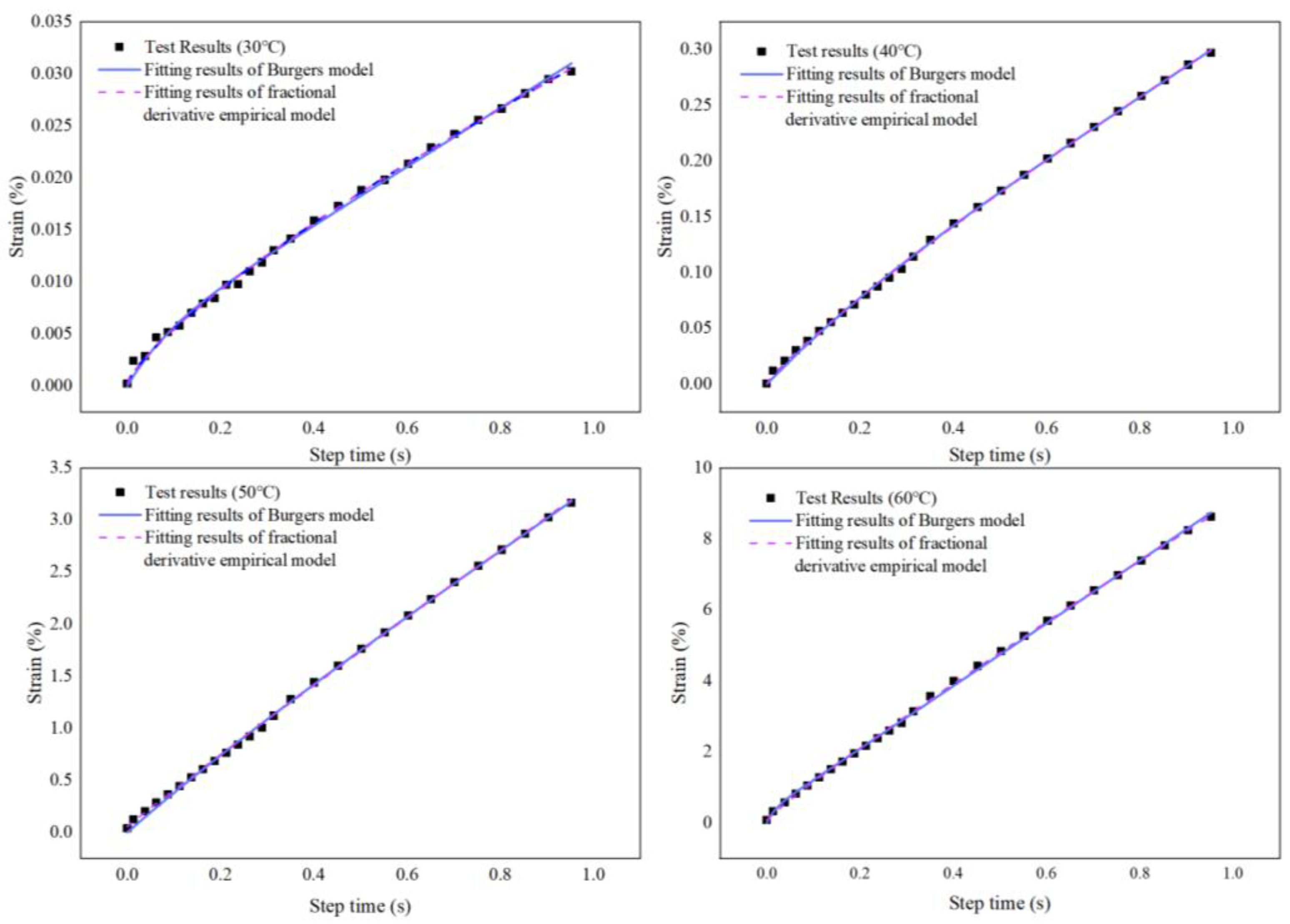

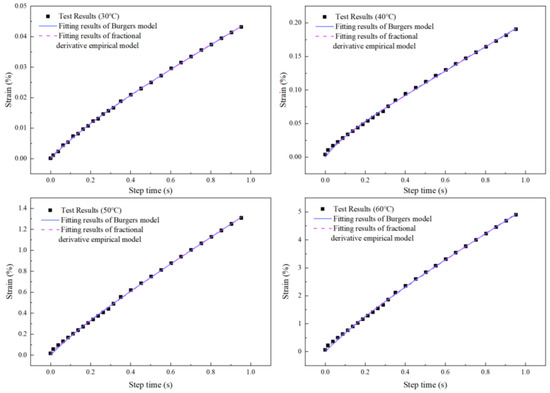

With the gradual increase in nano-TiO₂ content, the deformation behavior of nano-TiO₂-modified bitumen at high temperatures is significantly enhanced, as shown in Figure 8, Figure 9, Figure 10 and Figure 11. At 60 °C, the initial deformation of 3%, 6%, and 9% modified asphalt is reduced by 22.2%, 47.5%, and 54.4%, respectively, compared with the matrix asphalt.

Both the FDEC and the Burgers models can fit the creep deformation of nano-TiO₂ high-viscosity modified asphalt well, but the smallest $R^2$ value after adjusting the fitting curve of the Burgers model is 0.9471. The smallest $R^2$ value after adjusting the fitting curve of the FDEC model is 0.9992. The accuracy of the fit of the FDEC model is higher, and it has fewer parameters. Therefore, the FDEC model has the benefits of fewer parameters and higher fitting accuracy, and it has important theoretical value.

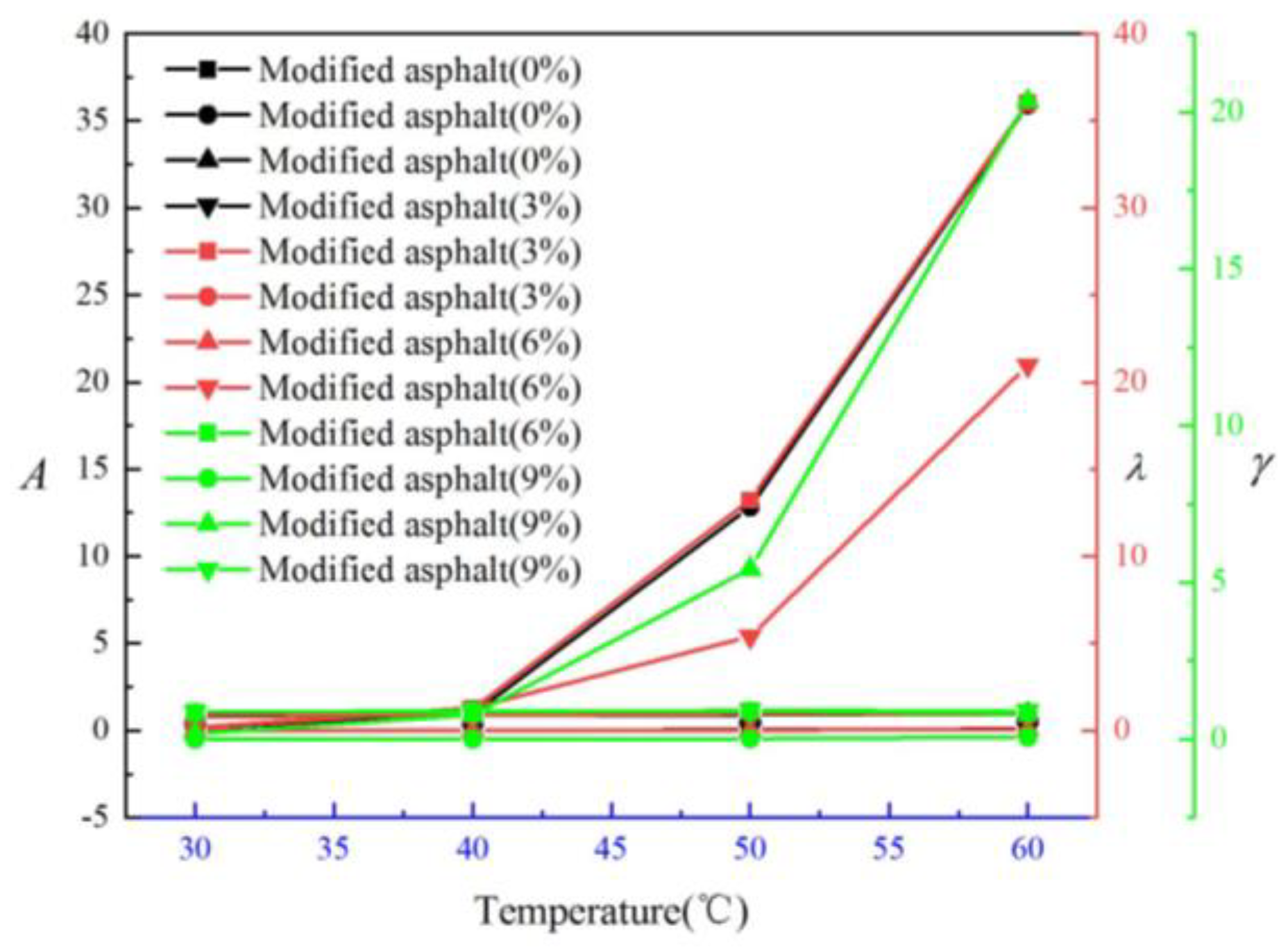

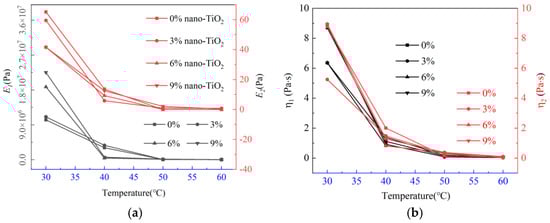

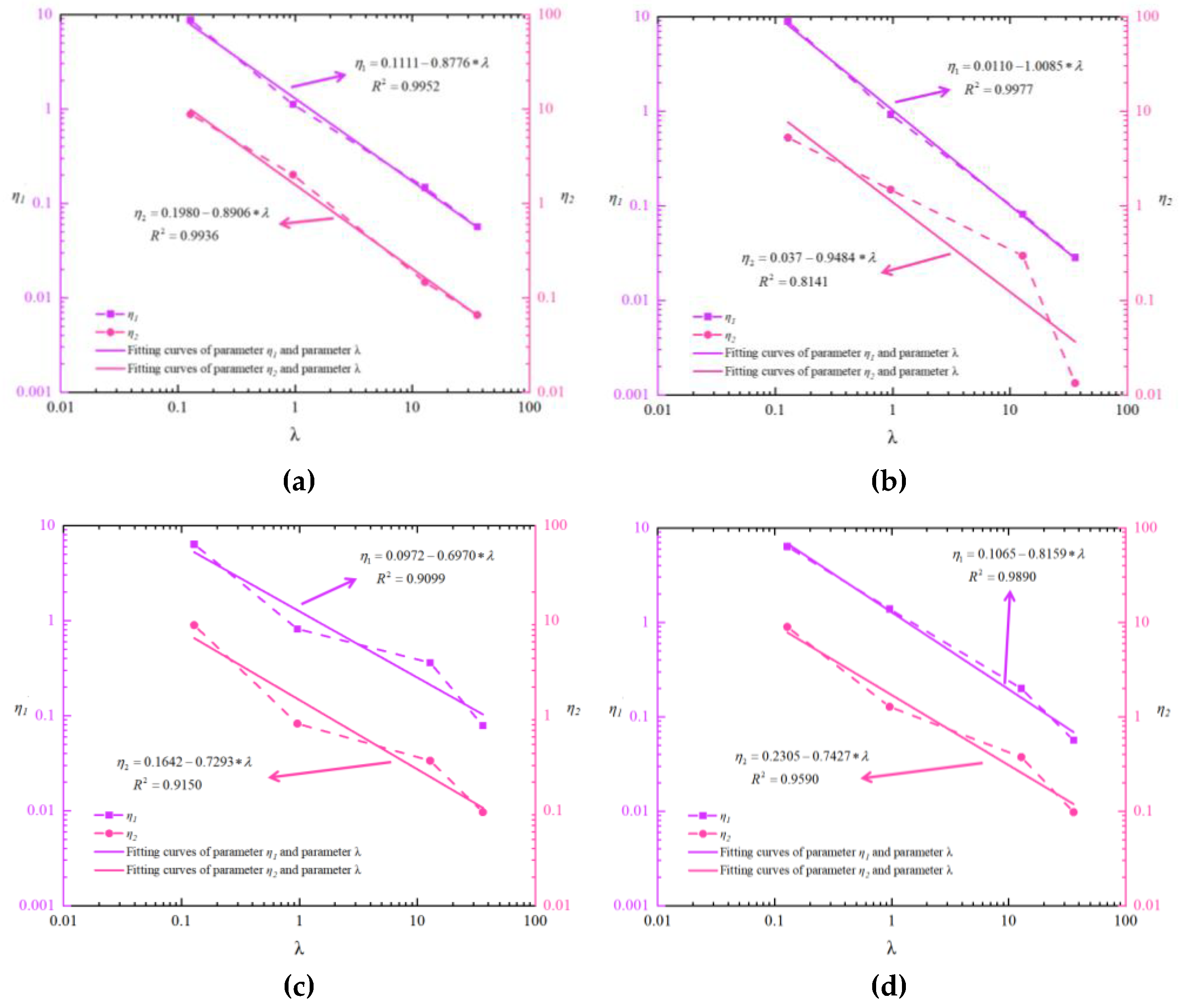

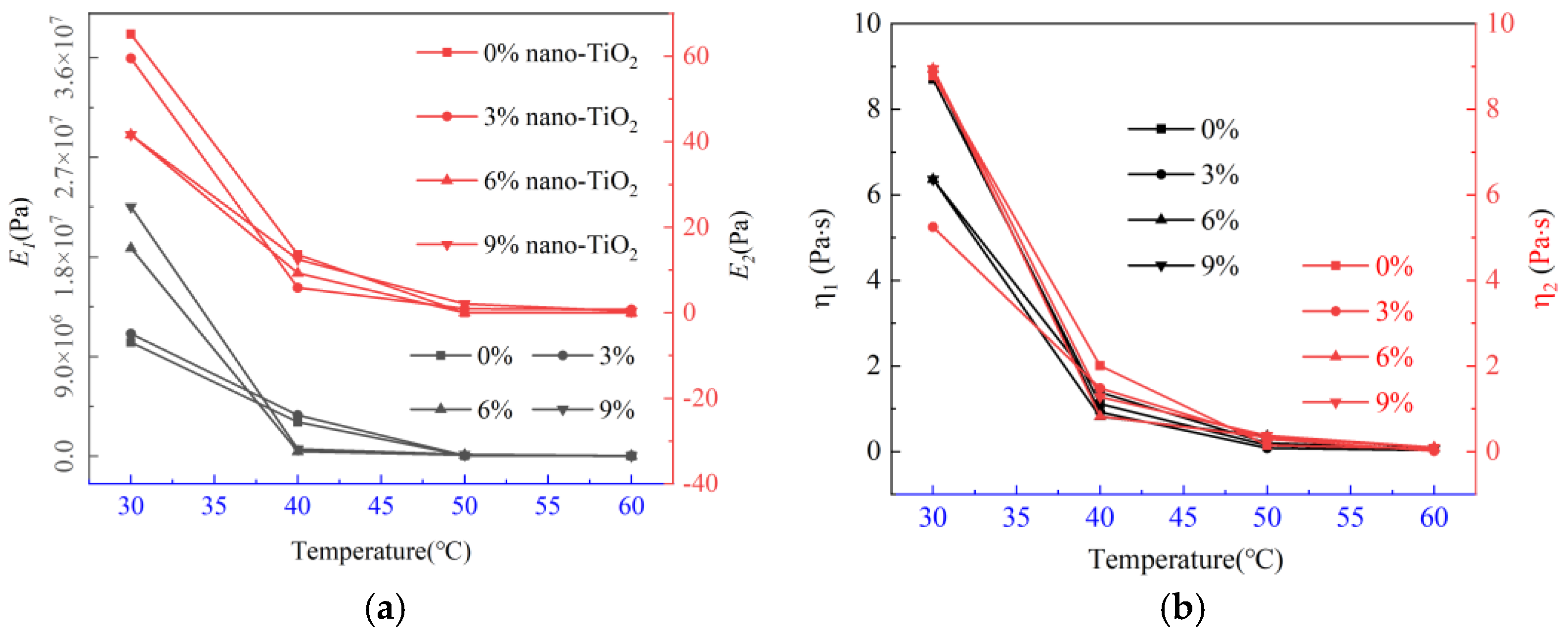

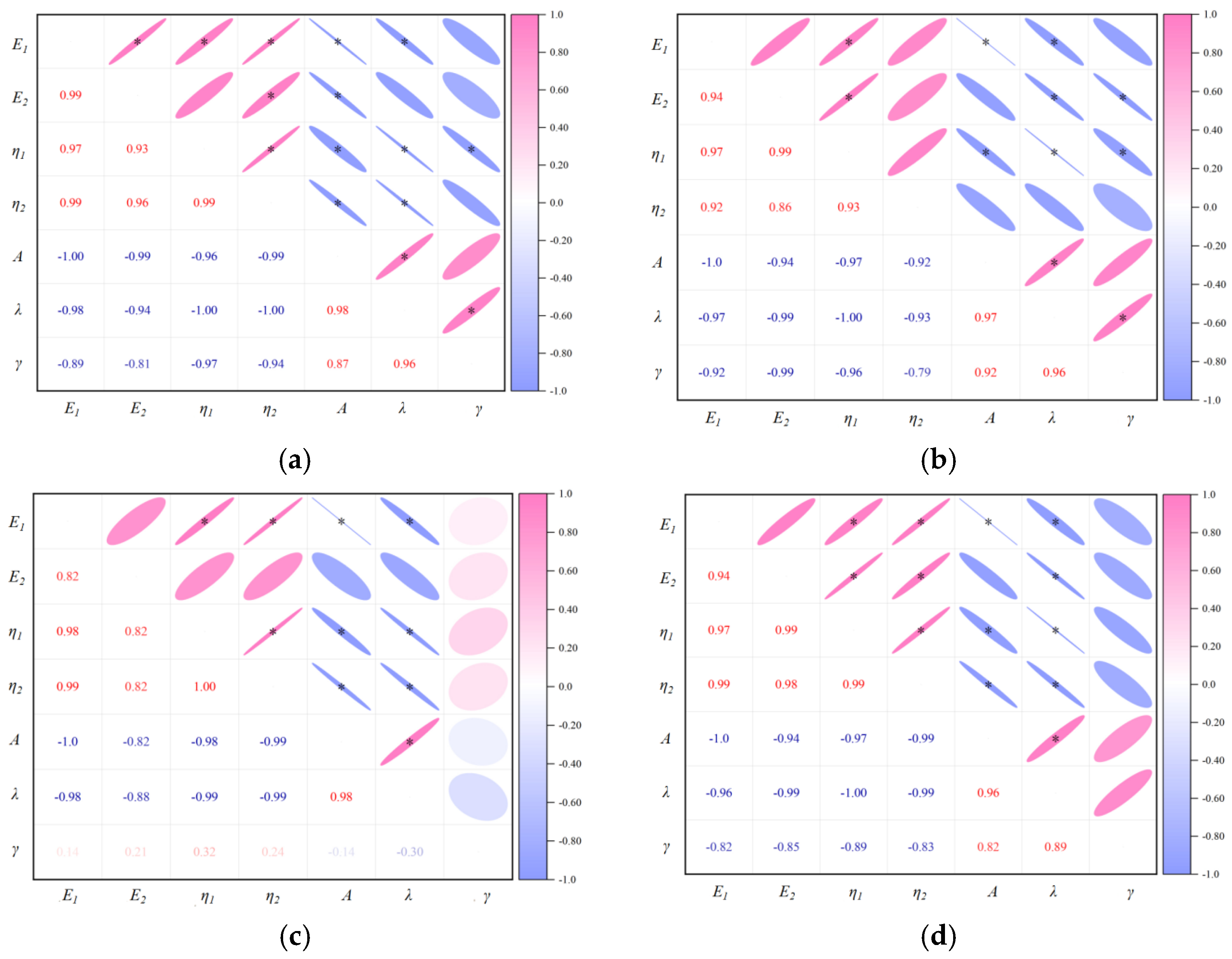

These two models have a certain regularity and physical significance to the fitting parameters of the experimental results. The values of $E_2$, ${\eta }_1$ and ${\eta }_2$ in the Burgers model gradually decline as the experimental temperature increases, while $\lambda$ parameters in the fractional derivative empirical model gradually increase. The correlation between the fitting parameters of the two models is shown in Figure 14 and Figure 15. When p < 0.05 in the correlation heat map, it is marked as *, as shown in Figure 14. The parameters between the two models have a negative correlation. Among them, in the logarithmic coordinate system, the correlation between parameters ${\eta }_1$, ${\eta }_2$, and $\lambda$ indicates that the $\lambda$ parameter can assess the ability of the modified bitumen to resist deformation. That is, the bigger the $\lambda$, the superior the resistance to deformation of the bitumen binder. It further explains that the parameters of the FDEC model have certain physical significance.

3.5. Bending Creep Stiffness Test

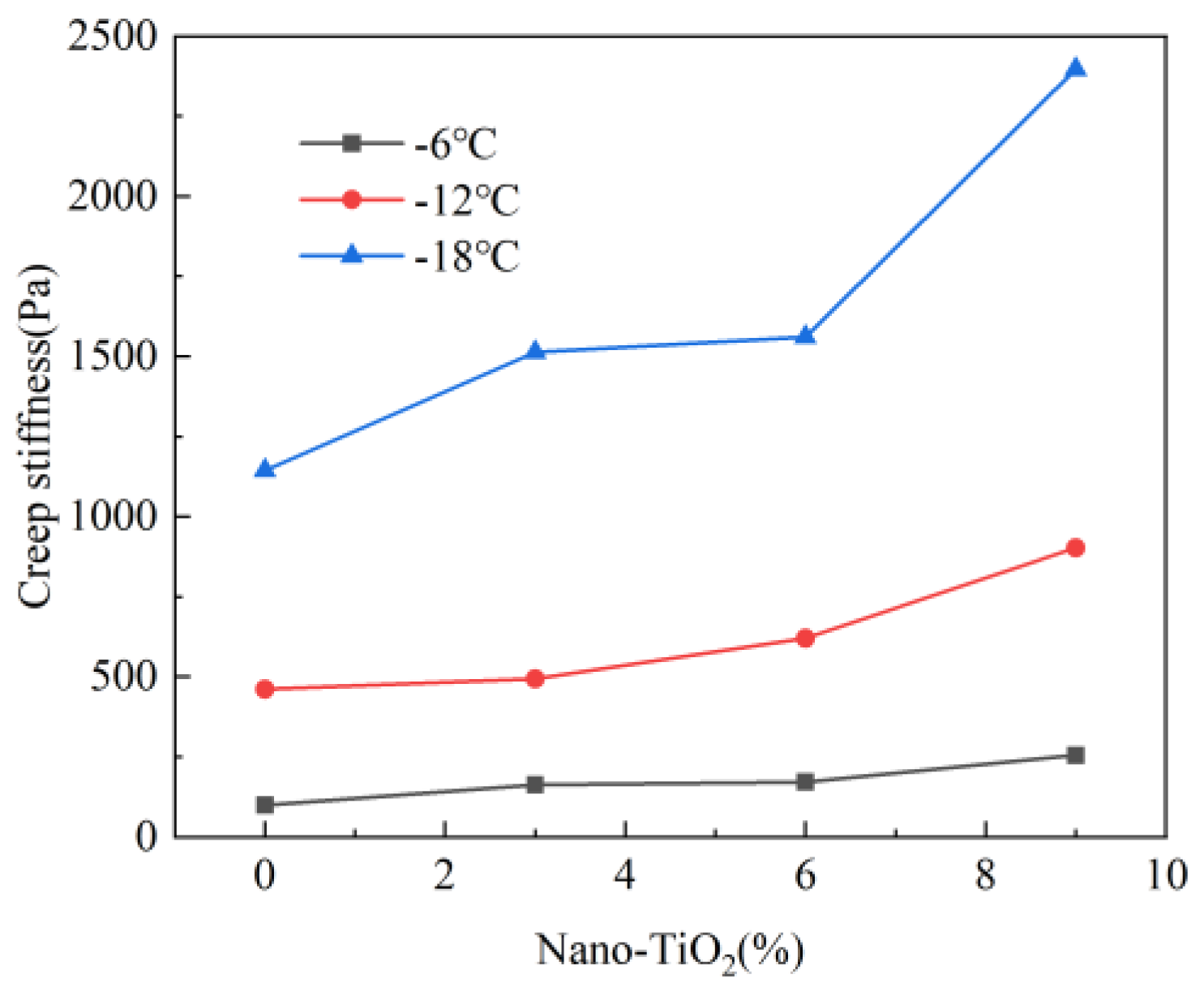

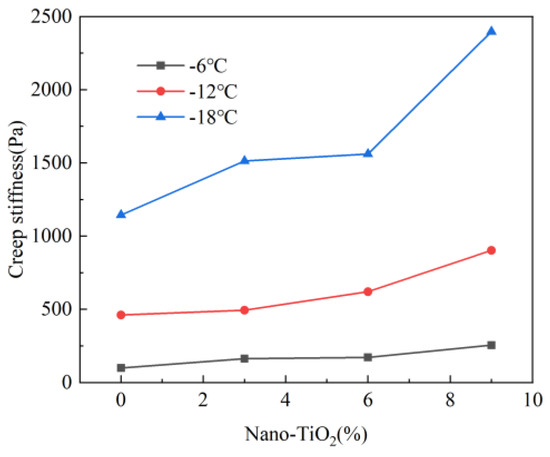

The greater the creep stiffness is, the lower the capability of the NHV-modified bitumen to protect against the risk of deforming at lower temperatures, and it is more likely to crack in cold conditions. The m value represents the temperature sensitivity of the material. The smaller the m, the higher the temperature sensitivity, as Figure 16 and Figure 17 show. As the dosage of nano-TiO₂ increases, the creep stiffness steadily grows under the constant temperature environment. It indicates that using nano titanium dioxide made the modified bitumen more crisp and likely to crack at lower temperatures. When the experimental temperature drops, the bitumen stiffness rises gradually, indicating that with the decrease in temperature, the crack resistance performance of the asphalt binder further decreases. Moreover, the lower the temperature and the larger dosage of nano titanium dioxide, the worse the crack resistance of the bitumen binder. Under the condition of −18 °C, the creep stiffness of 9% NHV-modified asphalt is 9.39 times that of high-viscosity asphalt.

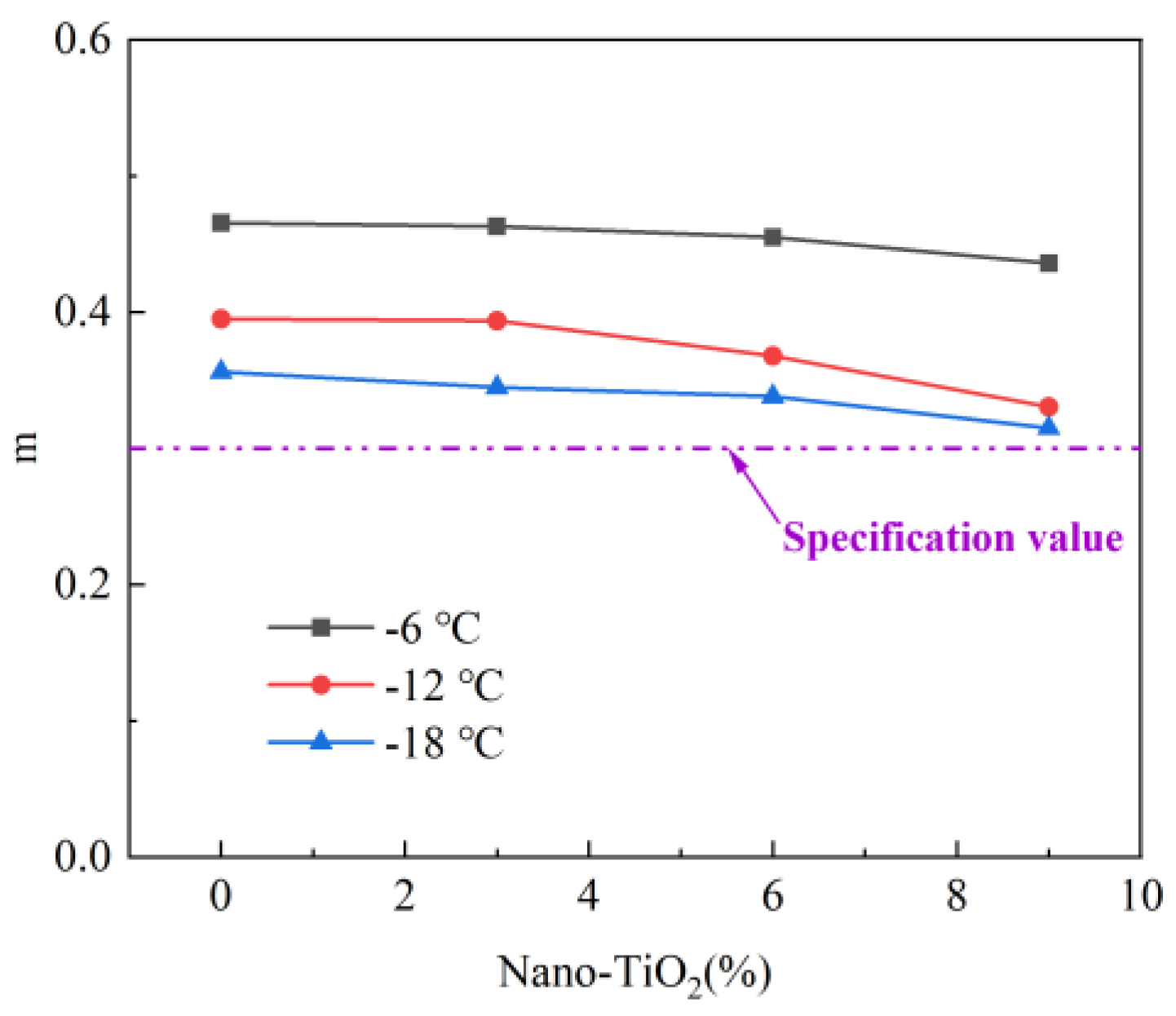

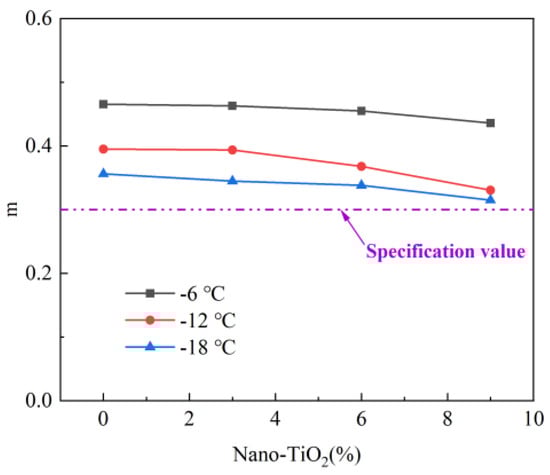

The m values of 3%, 6%, and 9% nano-TiO₂-modified asphalt at different temperatures are all greater than 0.3. This indicates that although the characteristics at low temperatures of nano titanium dioxide high-viscosity modified bitumen decrease with the increase in modifier dosage, the low-temperature performance of 3%, 6%, and 9% nano-TiO₂-modified bitumen meets the specification requirements [15]. However, the m value of 9% nano-TiO₂ high-viscosity modified bitumen at −18 °C is very close to the specification value, so the dosage of nano titanium dioxide should be reduced. Therefore, considering that thermal stability behavior of nano-TiO₂ high-viscosity modified bitumen improves with a higher nano-TiO₂ content, 6% is recommended as the optimal content.

3.6. Long-Term Aging Performance

According to Section 2.2.6, the residual penetration ratio (RPR) and softening point increment (SPI) of nano-TiO₂-modified high-viscosity bitumen after prolonged aging were conducted for investing prolonged aging characteristics. This is clear from Figure 18.

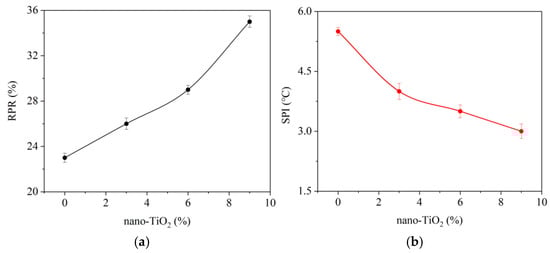

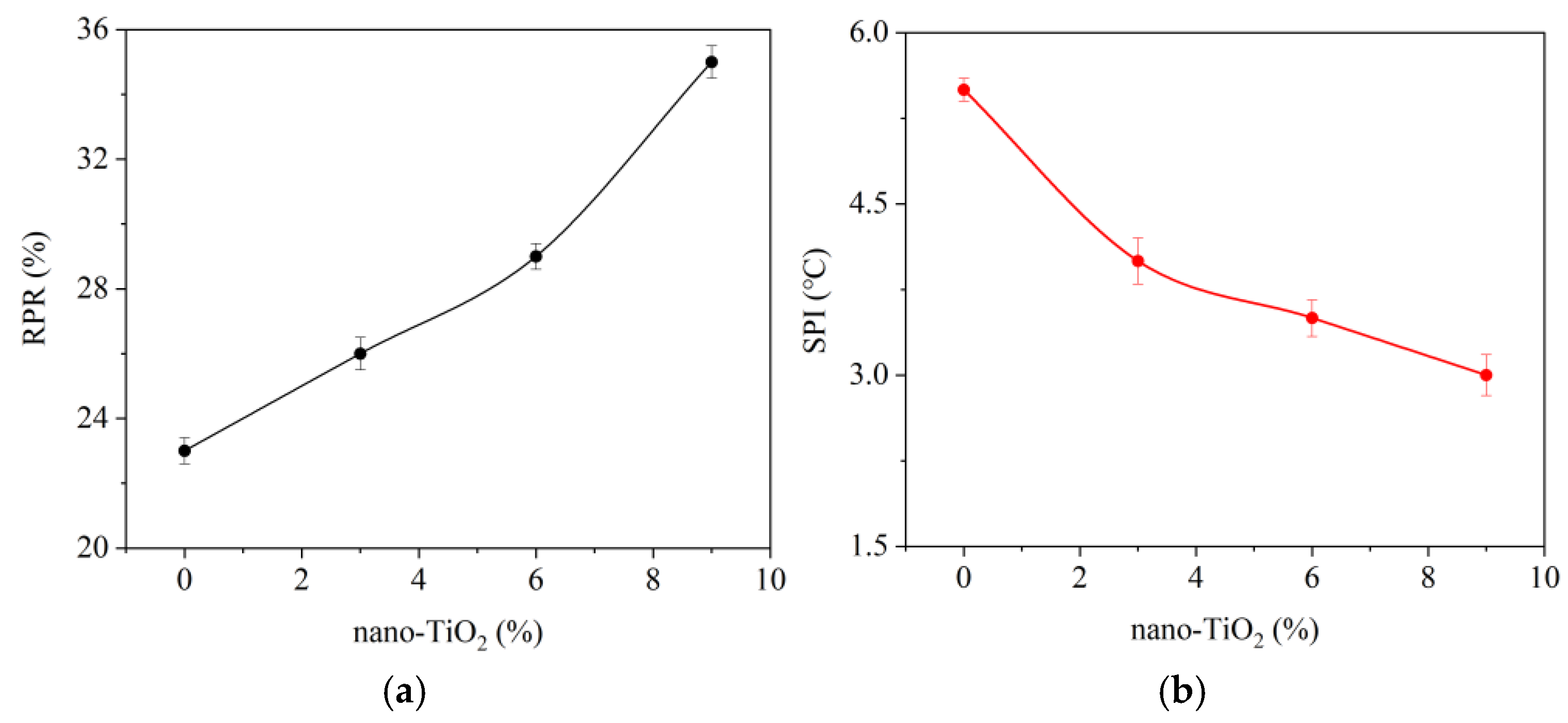

The RPR of nano-TiO₂ high-viscosity modified bitumen increases as the nano-TiO₂ content increases, as shown in Figure 18a. Compared with original bitumen, the RPR of nano titanium dioxide-modified bitumen containing 3%, 6% or 9% of nano-TiO₂ increases by 13%, 24% or 52%, respectively. The prolonged resistance of bitumen binder to aging is enhanced by the rise in nano titanium dioxide content. It is because the added nano-TiO₂ absorbs external energy, and the hardening rate of asphalt under the impact of hot oxygen and reduced pressure. The prolonged aging resistant properties of bitumen have been improved.

As shown in Figure 18b, the SPI of nano titanium dioxide-modified high-viscosity bitumen falls with an increase in the nano-TiO₂ content. Compared with base asphalt, the SPI of nano-TiO₂-modified asphalt increased by 27%, 50%, and 71% with 3%, 6%, and 9% additions, respectively.. The smaller the SPI of asphalt, the higher its long-term aging performance. It demonstrates that nano-TiO₂ can enhance the aging resistance of asphalt. This is because nano-TiO₂ is distributed in a uniform way throughout the bitumen, and creates a stable structure with asphalt to effectively absorb heat. The oxidation process of asphalt is inhibited, which improves the long-term durability of asphalt.

3.7. Modification Mechanism of Nano-TiO₂-Modified Asphalt

3.7.1. SEM

According to Section 2.2.6, SEM pictures of the original bitumen and nano-TiO₂-modified high-viscosity bitumen were taken to study the fusion state of nano-TiO₂ and asphalt as depicted in Figure 19.

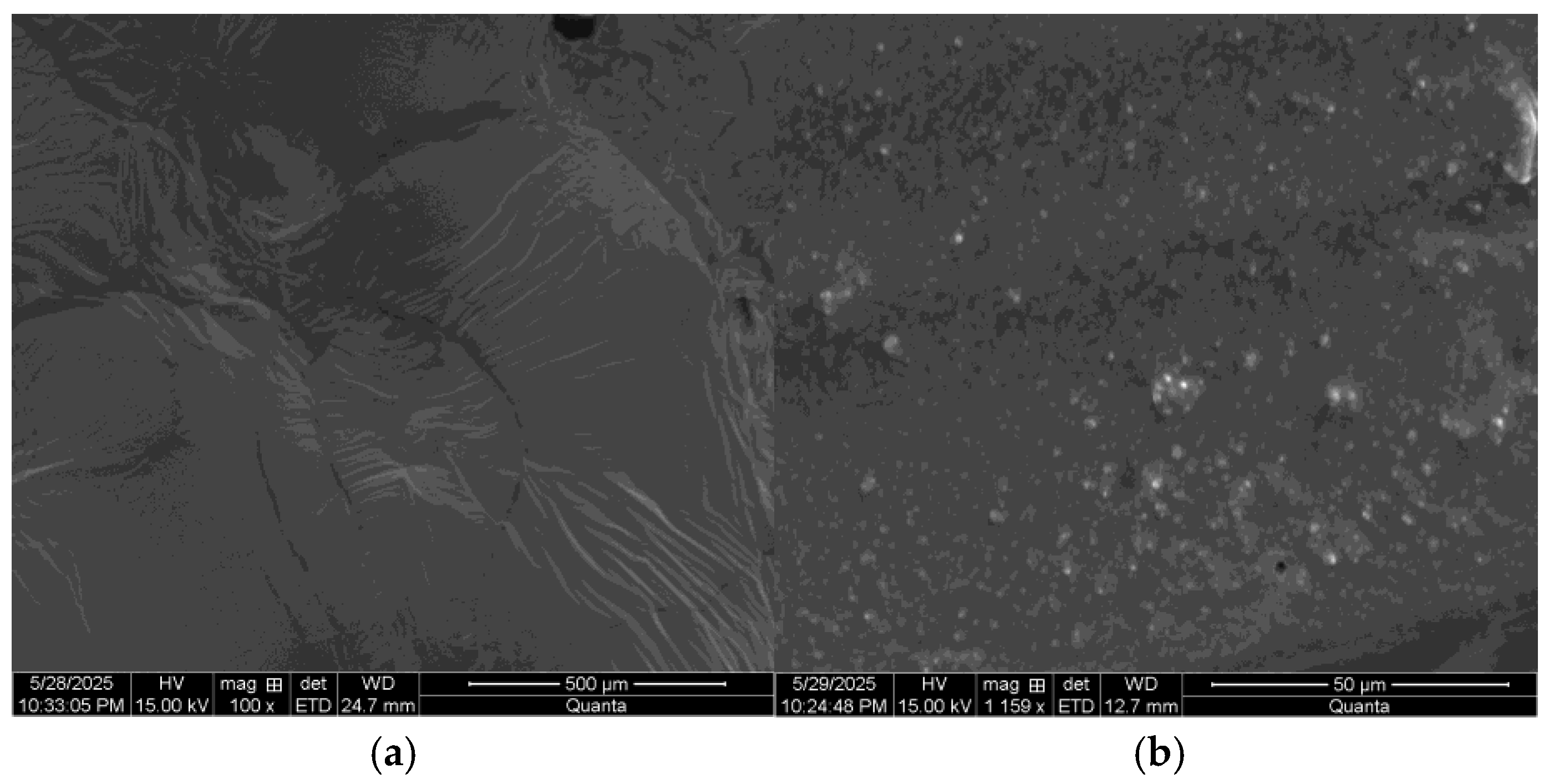

As shown in Figure 19, the original bitumen interface is smooth and free of impurities. Nano-TiO₂ particles are mainly uniformly distributed in asphalt. This is because nano-TiO₂ has high surface energy and active energy, and can be fully mixed with asphalt under a high-speed shear force, avoiding the occurrence of the agglomeration phenomenon. Therefore, nano-TiO₂ can successfully isolate the impact of ultraviolet light on the bitumen binder, and effectively improve the high-temperature and anti-aging performance of the bitumen binder. In addition, the uniform fusion of nano-TiO₂ and asphalt increases the asphaltene percentage, improving thermal stability and temperature sensitivity.

3.7.2. FTIR

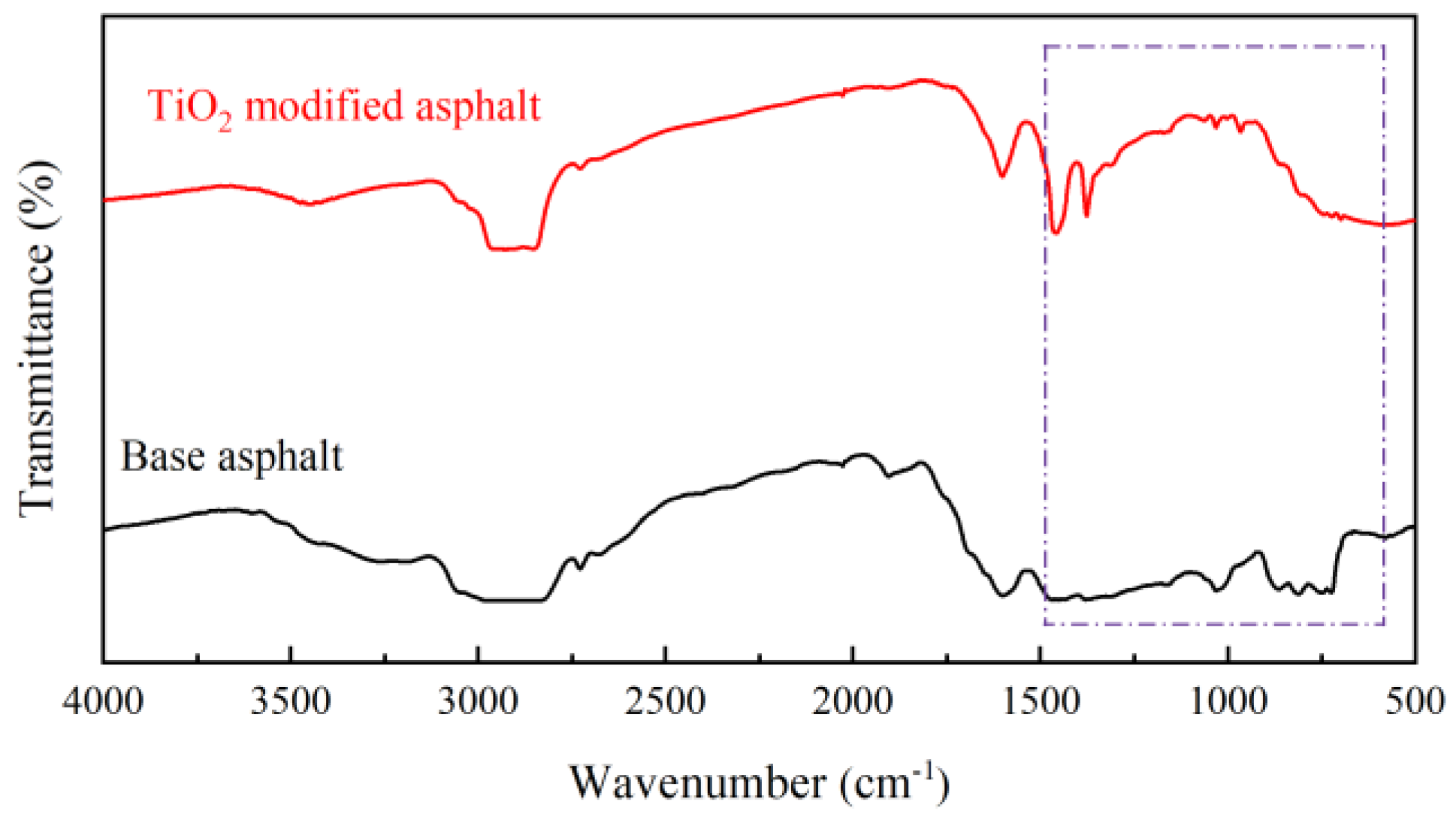

The infrared spectra of the original specimen and nano-TiO₂-modified asphalt were tested according to Section 2.2.7. The interaction between original bitumen and nano-TiO₂ was studied, as shown in Figure 20.

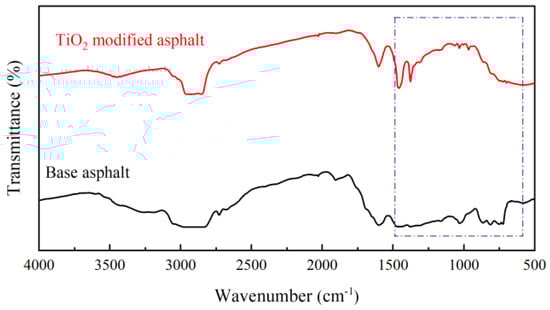

In comparison to the original bitumen, the characteristic peaks in the infrared spectra of nano-TiO₂-modified high-viscosity bitumen are primarily within 1500 cm⁻¹ to 637 cm⁻¹, as shown in the framed area in Figure 20 Specifically, a characteristic peak appears at 914 cm⁻¹ in the infrared spectrum, which is the result of the bending vibration of Ti-Ti bonds. Additionally, characteristic peaks observed between 520 cm⁻¹ and 470 cm⁻¹ arise from the bending vibrations of Ti-O bonds. These observations indicate that the functional groups of TiO₂ nanoparticles are preserved after blending with asphalt, and a nanostructured layer is formed. Furthermore, the peak positions and transmittance values of the spectral curves remain nearly identical. There is no new chemical bond formation. It demonstrates that the nano titanium dioxide-modified bitumen binder undergoes a blending process rather than chemical bonding.

4. Conclusions

(a)

The heightened temperature tolerance of the nano-TiO₂ high-viscosity modified asphalt has been improved, the anti-rutting ability has been enhanced, and the crack resistance performance at lower temperature has decreased.

(b)

The results of temperature scanning tests and frequency scanning tests show that nano titanium dioxide can significantly improve the heightened temperature tolerance of bitumen binders. The sensitivity of the bitumen binder is reduced, and the elastic characteristics of the bitumen are improved. In the logarithmic coordinate system, the complex shear modulus exhibits an excellent linear correlation with the angular frequency. However, under low-temperature conditions, nano-TiO₂ gradually enhances the creep stiffness of the bitumen binder, indicating that nano-TiO₂ makes the bitumen brittle and more liable to cracking at lower temperatures.

(c)

The fitting analysis of the MSCR results of NHV-modified asphalt using the Burgers model and the FDEC model shows that both these two models can fit the creep deformation of nano-TiO₂ high-viscosity modified asphalt well, but the FDEC model has higher accuracy and fewer parameters. The parameters have certain physical meanings, among which $\lambda$ can represent the ability index of modified asphalt to resist unrecoverable deformation at high temperatures.

(d)

In addition to the rheological characteristics of the bitumen binder, critical mechanical characteristic aspects like fatigue life, tensile strength, rutting resistance, and fracture toughness in the field are very important. In future research, these indicators will be thoroughly studied to explore the practical applicability of nano-TiO₂-modified asphalt in real-world pavement design.
