Article

Low Dielectric Loss and Multiferroic Properties in Ferroelectric/Mutiferroic/Ferroelectric Sandwich Structured Thin Films

by
Zhi-Yong Wu
1,* and
Cai-Bin Ma
2
1
College of Traditional Chinese Medicine, Southern Medical University, Guangzhou 510515, China
2
School of Physics & Optoelectric Engineering, Guangdong University of Technology, Guangzhou Higher Education Mega Centre, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(8), 502; https://doi.org/10.3390/coatings9080502
Submission received: 13 July 2019 / Revised: 2 August 2019 / Accepted: 6 August 2019 / Published: 8 August 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
Bismuth ferrite (BiFeO3) has proven to be promising for a wide variety of microelectric and magnetoelectric devices applications. In this work, a dense (Ba0.65Sr0.35)TiO3(BST)/(Bi0.875Nd0.125)FeO3(BNF)/BST trilayered thin film grown on Pt-coated Si (100) substrates was developed by the rf-sputtering. For comparison, single-layered BNF and BST were also prepared on the same substrates, respectively. The results show that the dielectric loses suppression in BST/BNF/BST trilayered thin films at room temperature but has enhanced ferromagnetic and ferroelectric properties. The remnant polarization (Pr) and coercive electronic field (Ec) were 5.51 μC/cm2 and 18.3 kV/cm, and the remnant magnetization (Mr) and coercive magnetic field (Hc) were 10.1 emu/cm3 and 351 Oe, respectively, for the trilayered film. We considered that the bismuth’s volatilization was limited by BST bottom layers making the Bi/Fe in good station, and the action of BST layer in the charge transfer between BNF thin film and electrode led to the quite low leakage current and enhanced multiferroic property. The origin of the mechanism of the highly enhanced dielectric constant and decreased loss tanδ was discussed.

1. Introduction

Multiferroic (MF) materials, such as bismuth ferrite BiFeO3 (BFO), have been widely studied due to their potential applications for ferroelectric (FE) memories, piezoelectric sensor, and magnetoelectric devices [1,2,3]. Due to a large spontaneous polarization, a high Curie temperature (TC = 1103 K), and a high Neel temperature (TN = 643 K), BFO has fascinated researchers since it was first synthesized. However, BFO has remained unsuitable, due to its high leakage current and large dielectric loss [4,5,6]. Magnetic properties can be adjusted by using Nd3+ ions instead of larger Bi3+ ions in the BFO composition [7], and in order to improve leakage current, Ni, Ti, Sm, Mn, Zn, and Ho doped in BFO thin films [8,9,10,11,12,13,14], to improve ferroelectric properties and ferroelectric properties, but there was limited action in reducing leakage current. Due to its nonlinear dielectric properties, (Ba,Sr)TiO3 has been widely used in electronic devices [15,16,17]; however, there is low remnant polarization and coercive electric field in the (Ba,Sr)TiO3 thin film. In order to improve the electrical properties of MF films, the electrical properties and MF properties of MF films can be controlled by interfacial layer. Miao et al. explained the enhanced fatigue properties in MF (Ba,Sr)TiO3/(Bi,La)FeO3 thin films [18]; Feng et al. reported the electrical properties of BiFeO3 thin film with a BaTiO3 (or SrTiO3) buffer layer [19]; and Zhang et al. reduced the leakage current density in Bi2NiMnO6 thin films with double SrTiO3 layers [20]. Guo et al. improved the switching speed of BiFeO3 capacitors by electrodes’ conductivity and magnetic fields [21,22]. The electric field control of magnetism requires deterministic control of the magnetic order, and the magnetoelectric coupling in multiferrous BiFeO3 can be understood [23]. In addition, the others FE/MF heterostructured thin films and FE/MF(FE)/FE trilayered structural thin films were prepared [24,25,26,27], but these films still have a high leakage current density and a dissipation factor.
In this work, Ba0.65Sr0.35TiO3, Bi0.875Nd0.125FeO3 and Ba0.65Sr0.35TiO3–Bi0.875Nd0.125FeO3–Ba0.65Sr0.35TiO3 thin films grown on Pt/Ti/SiO2/Si(100) substrates were prepared by radio frequency magnetron sputtering. The ferroelectric, ferromagnetic, and electrical properties of these film samples were investigated. The low dielectric loss, low leakage current density, and multiferroic properties enhancement mechanism of the sandwich structural thin films are also discussed.

2. Materials and Methods

The single-layered Ba0.65Sr0.35TiO3 (BST), Bi0.875Nd0.125FeO3 (BNF), and trilayered BST(50 nm)/BNF(50 nm)/BST(50 nm) thin films grown on Pt(111)/Ti/SiO2/Si(100) substrates using radio frequency magnetron sputtering with ceramic targets of BNF and BST [28,29]. When BST and BNF thin films sputter, the maintenance of 500 °C is the ideal substrate temperature, and Ar/O2 (pressure ratio 9:1) and nitrogen are the ideal deposition atmosphere, respectively [30]. We annealed the samples at 650 °C by use of a rapid thermal annealing (RTA) furnace. The preparation of a three-layer heterostructure BST/BNF/BST film was completed. By comparison, a BST and BNF thin film with a thickness of 150 nm was also achieved. For electrical measurements, we adopted a vacuum evaporation to deposited 0.2 mm diameter top gold (Au) electrodes onto the BST and BNF and BST/BNF/BST thin films, respectively. The thickness of the thin films on Pt(111)/Ti/SiO2/Si(100) substrates was measured by a surface profiler (KLA-Tencor P-10, Class One Equipment Inc., Decatur, GA, USA), which was about 150 nm. The crystal structure of the BNF, BST and BST/BNF/BST thin films were characterized by X-ray diffraction (XRD) (D-MAX 2200, Rigaku, Tokyo, Japan) with automated powder diffractometer 1710 (PANalytical B.V., Almelo, Netherlands) in θ–2θ configuration with Cu Kα (λ = 1.5406 Å) radiation. The surface and cross-sectional images were probed by field emission scanning electron microscope (FESEM, S-4800, Hitachi, Tokyo, Japan) with 1 and 5 kV, respectively. We measured the dielectric properties of Au/BST/Pt, Au/BNF/Pt, and Au/BST/BNF/BST/Pt capacitors by means of Agilent 4284A impedance analyzers (Shenzhen Shunyuanda Technology Co., Ltd., Shenzhen, China) under room temperature. FE properties were measured using Precision premier II ferroelectric tester (Agilent Technologies Inc., Santa Clara, CA, USA), and the ferromagnetic properties were characterized by Magnetic Property Measurement system MPMS XL-7 (Quantum Design, San Diego, CA, USA).

3. Results and Discussion

Figure 1 illustrates the XRD patterns of the three BNFs, BSTs, and BST/BNF/BST thin films were grown on Pt(111)/Ti/SiO2/Si(100) substrates, respectively. When the BNF film was annealed at 650 °C with nitrogen atmosphere, the film sample (see Figure 1a) crystallized a pure rhombohedral (R3c) distorted perovskite structure [29]. In addition, the BST film was annealed at 650 °C, the film crystallized a pure cubic perovskite structure (see Figure 1b). From Figure 1b,c, it is can be seen that BST was used as buffer-layer, the BNF films grown on Pt/Ti/SiO2/Si(100) substrate with pseudocubic phase was annealed at 650 °C in oxygen atmosphere. From Figure 1, these in-plane lattice parameters of bottom BST, BNF, and top BST thin films were obtained; the results were 4.001(4), 3.961(1), and 3.996(4) Å, respectively for bottom BST, BNF and top BST thin film. Stryukov et al. reported that when the Bi0.98Nd0.02FeO3 thin films growth on the Ba0.8Sr0.2TiO3 buffer-layer with tetragonal phase, the heterostructures Bi0.98Nd0.02FeO3/Ba0.8Sr0.2TiO3 on (100)MgO substrate has a monoclinic structure with the space group Cc at room temperature [29]. Thus, the BST layer is conducive to the growth of BNF crystals. The BST and BST/BNF/BST thin films display polycrystalline structure and without any secondary phases. Typically, the BNF film is annealed in an oxygen atmosphere and a second phase appears [30]. The crystal structure of the BNF thin films can be controlled by using BST buffer-layer and annealing atmosphere.
The FESEM morphologies of BST/BNF/BST heterostructure film on PT/Ti/SiO2/Si(100) substrate annealed at 650 °C for 30 min in oxygen atmosphere was shown in Figure 2. The results show that the structure of the film is dense and uniform. 20 nm is about the average particle size. The thickness of BST at the bottom, BNF at the middle, and BST at the top are ~50, 50, and 50 nm, respectively. The result is consistent with the measurement by the surface profiler.
The dielectric constant (εr) and dissipation factor (loss tanδ) were as a function of frequency in the range of 100 Hz–2 MHz for the three thin film capacitors of the Au/BNF/Pt, Au/BST/Pt, and Au/BST/BNF/BST/Pt at RT. Figure 3 shows the dielectric properties of those thin film capacitors. For the Au/BNF/Pt film capacitor, the εr and loss tanδ decrease from 68 to 59 and from 0.141 to 0.052 with increasing frequency from 100 Hz to 2 MHz, respectively. In addition, for the Au/BST/Pt film capacitor, the εr decrease and loss tanδ increase from 341 to 331 and from 0.017 to 0.018 with increasing frequency from 100 Hz to 2 MHz, respectively. However, for the sandwich structure Au/BST/BNF/BST/Pt film capacitor, the εr and loss tanδ slightly decrease from 277 to 275 and 0.0045 to 0.0032 with increasing frequency from 100 Hz to 2 MHz. At 100 kHz, the εr and loss tanδ were 61 and 0.052, 334 and 0.018, and 275 and 0.0033, respectively for the three film capacitors of Au/BNF/Pt, Au/BST/Pt, and Au/BST/BNF/BST/Pt. Use the single and double layers of BST thin films, the dielectric loss is suppressed in the Au/BST/BNF/BST/Pt thin film capacitors, the results are consistent with those of leakage current measurements. Most of the dielectric loss comes from conductivity loss. The equivalent resistance in multilayer thin films is equal to that in each layer, which reduces the dielectric loss of multilayer thin films [31].
In general, the equivalent capacitor of multilayer structure thin films may be expressed by series capacitors [32,33,34]. For the εr value of multilayer thin films, the effective capacitor was constructed by three capacitors, include of top CBST, CBNF, and bottom CBST capacitors, respectively. Compared the reported about dissipation factor in (Pb,Sr)TiO3/(Bi,La)FeO3/(Pb,Sr)TiO3 trilayered structure [35], there is extremely low loss tanδ in the BST/BNF/BST thin films. In Figure 3b, the multilayers thin films have very low loss tanδ, the degree of the loss tanδ was ~10−3 from 100 Hz to 2 MHz. The bismuth’s volatilization was limited in annealed processing by bottom and top BST layers, making the Bi/Fe in good station in BNF layer; it also improved the technology of preparation bringing down the defect rate of BST/BNF/BST film, and reducing the number of free-carriers.
In Figure 4, the typical polarization (P)–electric field (E) hysteresis loops for the Au/BNF/Pt and Au/BST/BNF/BST/Pt thin film capacitors at RT and 250 Hz. The inset of Figure 4 shows an unsaturated loose P–E loop of the Au/BST/Pt thin layer capacitor, the remnant polarization (Pr), saturation polarization (Ps) and coercive field (Ec) were 0.223 μC/cm2, 1.61 μC/cm2, and 20.3 kV/cm, respectively. Bulk (Ba0.65Sr0.35)TiO3 material is cubic phase at room temperature, but due to the relaxor ferroelectric characteristics of small grain (Ba0.65Sr0.35)TiO3, it still has ferroelectric properties at room temperature and higher temperatures [36]. From Figure 1 and Figure 4, the BST is cubic phase at room temperature, and the ferroelectric properties comes from the polar nanoregions [37,38]. For the Au/BST/BNF/BST/Pt trilayered film capacitor, the loop shows a slim shape and reaches saturation at low electric field (about 145 kV/cm). It exhibited the Pr, Ps and Ec were 3.77μC/cm2, 18.5 μC/cm2, and 21.7 kV/cm, 5.06 μC/cm2, 25.0 μC/cm2, and 18.3 kV/cm, respectively for Au/BNF/Pt and Au/BST/BNF/BST/Pt thin film capacitors. These look like a banana ferroelectric for BNF and BST thin films [39], because the applied electric field is too low. When applied high electric field (>600 kV/cm), the (Bi,Nd)FeO3 thin films show good ferroelectricity [40,41]. From Figure 4, there a gap in the P–E loop in Au/BNF/Pt thin film capacitor, indicating that the degree of leakage current in the Au/BNF/Pt film capacitor was much higher than that of the Au/BST/BNF/BST/Pt film capacitor. The ferroelectric enhancement in the BST/BNF/BST was owed to the coupling between BST and BFO thin films [18,35]. In addition, the remnant polarization, permittivity, and resistivity of BFO thin films have direct correlation with the Bi/Fe ratio [42]. In this work, the bismuth’s volatilization was inhibited by BST layers, which makes the Bi/Fe ratio in preferable situation and brings down the defect rate of the film improved the remnant polarization and saturation polarization.
Figure 5 shows the leakage current density (J)–electric field (E) characteristics of BST/BNF/BST and BNF film on (111) Pt/Ti/SiO2/Si substrate. The current demsity (J) of BST/BNF/BST is ~10−8A/cm2 at RT and 100 kV/cm. Which is lower than that of the BNF film. In addition, in the BNF, the J value increases rapidly with an increasing E value. Scott et al. reported that the J value of PZT films can be reduced by decreasing oxygen vacancies (OVs) [43], and they reduced the Fe3+ valance state in BiFeO3 film by annealed in nitrogen atmosphere [29,44]. In the quite low leakage current system, films annealed in oxygen can be reduced OVs in BST layers and the BST layers cut off the BNF layer with air reducing the Fe3+ valance state. Thus, the J value was low due to reduced OVs and Fe3+ valance state. Moreover, the interface of ferroelectric BST layer and ferromagnetic BNF thin films plays an important role in the charge transfer between thin film and electrode interface and reducing the J value.
Figure 6 shows the magnetization (M)–magnetic field (H) loops of the BNF and BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrates at RT. For the single layer BNF film, the inset of Figure 6 shows the loop in a slim shape and reaches saturation at low magnetic field (about 5 kOe). In the BST/BNF/BST thin film, there are higher remnant magnetization (Mr) and the lower coercive magnetic field (about 10.1 emu/cm3 and 351 Oe). The value of Mr is slightly larger than tha of the saturated magnetizations (Ms = 7.14 emu/cm3) for the PST/BLF/PST [35]. Thakuria and Joy reported that the Ms and Mr values of the nanocrystalline Bi0.875Nd0.125FeO3 are ~1.3 and 0.20 emu/g, respectively [45]. Ederer et al. reported that the OVs can alter the magnetization slightly in the heterostructure BiFeO3/Ba0.25Sr0.75TiO3, and lead to the formation of Fe2+ [46]. The BST/BNF/BST film has a more optimized ferromagnetic than single BNF thin film that might be attributed to the bismuth’s volatilization when inhibited by BST layers, bringing down the defect rate of BNF film and making the Bi/Fe in good station; the BST layers advanced the superexchange coupling of ferrite or double exchange of Fe2+ and Fe3+ ions and the incorporation of OVs in the BNF thin film play a key role in enhanced magnetization in BST/BNF/BST thin film.

4. Conclusions

The sandwich structured BNF film with double BST layers grown on a Pt(111)/Ti/SiO2/Si(100) substrate was produced by radio frequency magnetron sputtering. The dielectric loss was suppressed and enhanced the multiferroic properties, respectively in the trilayered the films. The bismuth’s volatilization by BST layers was limited and brought the Bi/Fe ratio to a desirable situation, maybe leading to quite low leakage current, dielectric loss, and high remnant polarization. It improved the technology of preparation, and by bringing down the defect rate of the BST/BNF/BST film, the leakage current and loss tan δ were ~10−8 A/cm2 at 200 kV/cm and ~10−30, respectively. Moreover, the low leakage current density may be related to the role of BST in charge transfer between BNF and electrodes, involving the coupling reaction between BST and BNF films.

Author Contributions

Conceptualization, Z.-Y.W.; Formal Analysis, Z.-Y.W. and C.-B.M.; Investigation, Z.-Y.W. and C.-B.M.; Writing—Original Draft Preparation, Z.-Y.W. and C.-B.M.; Writing—Review and Editing, Z.-Y.W. and C.-B.M.

Funding

This research was funded by the “Guangdong Natural Science Fund Project of China (No. 2015A030313265)”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Catalan, G.; Scott, J.F. Physics and applications of bismuth ferrite. Adv. Mater. 2009, 21, 2463–2485. [Google Scholar] [CrossRef]
  2. Gao, B.; Lin, L.; Chen, C.; Wei, L.; Wang, J.; Xu, B.; Li, C.; Bian, J.; Dong, S.; Du, J.; et al. Room-temperature ferromagnetic multiferroic BiFe0.5Co0.5O3 thin films with giant piezoelectric response. Phys. Rev. Mater. 2018, 2, 084401. [Google Scholar] [CrossRef]
  3. Hojo, H.; Oka, K.; Shimizu, K.; Yamamoto, H.; Kawabe, R.; Azuma, M. Development of bismuth ferrite as a piezoelectric and multiferroic material by cobalt substitution. Adv. Mater. 2018, 30, 1705665. [Google Scholar] [CrossRef] [PubMed]
  4. Li, Z.; Yang, Z.; Wu, J.; Zhou, B.; Bao, Q.; Zhang, K.; Zhao, J.; Wei, J. Low leakage current resistive memory based on Bi1.10(Fe0.95Mn0.05)O3 films. Semicond. Sci. Technol. 2018, 33, 095002. [Google Scholar] [CrossRef]
  5. Qi, H.; Wang, H.; Xu, X.; Tang, Y.; Xiao, P.; Xiao, M. Microstructure and electrical properties of ferroelectric Bi3.15Nd0.85Ti3O12/BiFeO3/Bi3.15Nd0.85Ti3O12 trilayered thin films on Pt/Ti/SiO2/Si. J. Mater. Sci. Mater. Electron. 2017, 28, 13757–13762. [Google Scholar] [CrossRef]
  6. Liu, G.; Wang, C.; Wang, C.; Qiu, J.; He, M.; Xing, J.; Jin, K.; Lu, H.; Yang, G. Effects of interfacial polarization on the dielectric properties of BiFeO3 thin film capacitors. Appl. Phys. Lett. 2008, 92, 122903. [Google Scholar] [CrossRef]
  7. Hong, N.H.; Huong, N.T.; Kim, T.-Y.; Goumri-Said, S.; Kanoun, M.B. Tuning magnetic properties of BiFeO3 thin films by controlling rare-earth doping: Experimental and first-principles studies. J. Phys. Chem. C 2015, 119, 14351–14357. [Google Scholar]
  8. Wang, L.; Yang, S.; Zhang, F.; Fan, S. Perfection of leakage and ferroelectric properties of Ni-doped BiFeO3 thin films. Micro Nano Lett. 2018, 13, 502–505. [Google Scholar] [CrossRef]
  9. Sun, W.; Zhou, Z.; Luo, J.; Wang, K.; Li, J. Leakage current characteristics and Sm/Ti doping effect in BiFeO3 thin films on silicon wafers. J. Appl. Phys. 2017, 121, 064101. [Google Scholar] [CrossRef]
  10. Yang, S.; Zhang, F.; Xie, X.; Sun, H.; Zhang, L.; Fan, S. Enhanced leakage and ferroelectric properties of Zn-doped BiFeO3 thin films grown by sol-gel method. J. Alloy. Compd. 2018, 734, 243–249. [Google Scholar] [CrossRef]
  11. Zhou, Z.; Sun, W.; Liao, Z.; Ning, S.; Zhu, J.; Li, J. Ferroelectric domains and phase transition of sol–gel processed epitaxial Sm-doped BiFeO3 (001) thin films. J. Mater. 2018, 4, 27–34. [Google Scholar]
  12. Golovina, I.S.; Falmbigl, M.; Plokhikh, A.V.; Parker, T.C.; Johnson, C.; Spanier, J.E. Effect of annealing conditions on the electrical properties of ALD-grown polycrystalline BiFeO3 films. J. Mater. Chem. C 2018, 6, 5462–5472. [Google Scholar] [CrossRef]
  13. Zhang, Y.; Wang, Y.; Qi, J.; Tian, Y.; Sun, M.; Zhang, J.; Hu, T.; Wei, M.; Liu, Y.; Yang, J. Enhanced magnetic properties of BiFeO3 thin films by doping: analysis of structure and morphology. Nanomaterials 2018, 8, 711. [Google Scholar] [CrossRef] [PubMed]
  14. Sharif, S.; Murtaza, G.; Meydan, T.; Williams, P.I.; Cuenca, J.; Hashimdeen, S.H.; Shaheen, F.; Ahmad, R. Structural, surface morphology, dielectric and magnetic properties of holmium doped BiFeO3 thin films prepared by pulsed laser deposition. Thin Solid Films 2018, 662, 83–89. [Google Scholar] [CrossRef]
  15. Zhang, X.; Wang, P.; Sheng, S.; Xu, F.; Ong, C.K. Ferroelectric BaxSr1−xTiO3 thin film varactors with parallel plate and interdigital electrodes for microwave applications. J. Appl. Phys. 2008, 104, 124110. [Google Scholar] [CrossRef]
  16. Lee, J.M.; Kang, S.Y.; Shin, J.C.; Kim, W.J.; Hwang, C.S.; Kim, H.J. Improvements in electrical properties of (Ba,Sr)TiO3 capacitor with chemical vapor deposited Pt top electrode using Pt hexafluoroacetylacetonate. Appl. Phys. Lett. 1999, 74, 3489–3491. [Google Scholar] [CrossRef]
  17. Xiong, H.; Tang, X.; Jiang, L.; Chan, H.L.W. Enhanced dielectric properties of nanocrystalline (Ba0.65Sr0.35)TiO3 thin films grown on CaRuO3 bottom layer. J. Nanosci. Nanotech. 2009, 9, 5834–5838. [Google Scholar] [CrossRef] [PubMed]
  18. Miao, J.; Chew, K.-H.; Zhang, J.X.; Zhan, Q.; Xu, X.G.; Jiang, Y. Enhanced fatigue and ferroelectric properties in multiferroic (Ba0.7Sr0.3)TiO3/(Bi1.05La0.05)FeO3 epitaxial heterostructures. Appl. Phys. Lett. 2013, 102, 232902. [Google Scholar] [CrossRef]
  19. Feng, Y.; Wang, C.; Tian, S.L.; Zhou, Y.; Ge, C.; Guo, H.Z.; He, M.; Jin, K.; Yang, G. Effects of BaTiO3 and SrTiO3 as the buffer layers of epitaxial BiFeO3 thin films. Sci. China Phys. Mech. Astron. 2017, 60, 067711. [Google Scholar] [CrossRef]
  20. Zhang, T.; Tang, X.; Liu, Q.; Jiang, Y.; Lai, J. Improved electric property in SrTiO3–Bi2NiMnO6–SrTiO3 sandwich structural thin films. Superlattices Microstruct. 2015, 85, 653–657. [Google Scholar] [CrossRef]
  21. Guo, E.J.; Herklotz, A.; Roth, R.; Christl, M.; Das, S.; Widdra, W.; Dörr, K. Tuning the switching time of BiFeO3 capacitors by electrodes’ conductivity. Appl. Phys. Lett. 2013, 103, 022905. [Google Scholar] [CrossRef]
  22. Guo, E.J.; Das, S.; Herklotz, A. Enhancement of switching speed of BiFeO3 capacitors by magnetic fields. APL Mater. 2014, 2, 096107. [Google Scholar] [CrossRef]
  23. Chen, Z.; Chen, Z.; Kuo, C.; Tang, Y.; Dedon, L.R.; Li, Q.; Zhang, L.; Klewe, C.; Huang, Y.-L.; Prasad, B.; et al. Complex strain evolution of polar and magnetic order in multiferroic BiFeO3 thin films. Nat. Commun. 2018, 9, 3764. [Google Scholar] [CrossRef] [PubMed]
  24. Khabiri, G.; Anokhin, A.S.; Bunina, O.A.; Golovko, Y.I.; Mukhortov, V.M.; Shirokov, V.B.; Yuzyuk, Y.I.; Simon, P. Structure and lattice dynamics of heterostructures based on bismuth ferrite and barium strontium titanate. Phys. Solid State 2013, 55, 2506–2515. [Google Scholar] [CrossRef]
  25. Stryukov, D.V.; Razumnaya, A.G.; Golovko, Y.I.; Anokhin, A.S.; Lukyanchuk, I.A.; Shirokov, V.B.; Mukhortov, V.M. Lattice dynamics and structural distortions in the multiferroic (Ba,Sr)TiO3/(Bi,Nd)FeO3 heterostructures. Thin Solid Films 2017, 636, 220–224. [Google Scholar] [CrossRef]
  26. Liang, D.; Li, X.; Wang, J.; Wu, L.; Chen, P. Light-controlled resistive switching characteristics in ZnO/BiFeO3/ZnO thin film. Solid State Electron. 2018, 145, 46–48. [Google Scholar] [CrossRef]
  27. Greculeasa, S.G.; Schinteie, G.; Hrib, L.M.; Stancu, V.; Pasuk, I.; Kuncser, A.; Kuncser, V. Complex exchange coupling mechanisms in SRO/BFO/Fe heterostructures. J. Alloy. Compd. 2019, 773, 338–345. [Google Scholar] [CrossRef]
  28. Zou, Y.; Liu, Q.; Tong, J.; Jiang, Y.; Xiong, D.; Tang, X.; Zhou, Y. Effects of annealing temperature on magnetic properties of Bi0.9Nd0.1FeO3 thin films. Surf. Coat. Technol. 2013, 229, 120–124. [Google Scholar] [CrossRef]
  29. Ma, C.; Tang, X.; Chen, D.; Liu, Q.; Jiang, Y.; Xiong, D.; Zhou, Y. Reduced leakage current and enhanced magnetic properties of (Bi,Nd)FeO3 thin films grown on (Ba,Sr)TiO3 bottom layer. Funct. Mater. Lett. 2012, 5, 1250032. [Google Scholar] [CrossRef]
  30. Wang, Y.; Tang, X.; Chen, D.; Liu, Q.; Jiang, Y.; Xiong, D. Influence of sputtering atmosphere on the structural and magnetic properties of (Bi1−xNdx)FeO3 thin films. Vacuum 2014, 107, 108–111. [Google Scholar] [CrossRef]
  31. Lee, H.N.; Christen, H.M.; Chisholm, M.F.; Rouleau, C.M.; Lowndes, D.H. Strong polarization enhancement in asymmetric three-component ferroelectric superlattices. Nature 2005, 434, 792. [Google Scholar] [CrossRef]
  32. Stengel, M.; Spaldin, N.A. Origin of the dielectric dead layer in nanoscale capacitor. Nature 2006, 443, 679–682. [Google Scholar] [CrossRef] [PubMed]
  33. Campbell, D.S.; Hayes, J.A. Capacitive and Resistive Electronic Components; CRC Press: Boca Raton, FL, USA, 1994; p. 122. [Google Scholar]
  34. Zhou, J.; Liu, C.; Li, R.; Chen, W. Effects of heterogeneous interfaces on microstructure and dielectric properties of Ca(Mg1/3Nb2/3)O3/CaTiO3 multilayered thin films. Acta Phys. Sin. 2012, 61, 421–427. (In Chinese) [Google Scholar]
  35. Liu, Q.; Miao, J.; Shao, F.; Ji, Y.; Ren, Z.; Chen, J.; Wu, Y.; Xu, X.; Meng, K.; Jiang, Y. Heteroepitaxial Pb0.9Sr0.1TiO3/Bi0.9La0.1FeO3/Pb0.9Sr0.1TiO3 multiferroic structure: an effective way to improve the electrical, ferroelectric and magnetic performance. J. Mater. Sci. Mater. Electron. 2016, 27, 8080–8086. [Google Scholar] [CrossRef]
  36. Ge, P.; Tang, X.; Liu, Q.; Jiang, Y.; Li, W.; Luo, J. Energy storage properties and electrocaloric effect of Ba0.65Sr0.35TiO3 ceramics near room temperature. J. Mater. Sci. Mater. Electron. 2018, 29, 1075–1081. [Google Scholar] [CrossRef]
  37. Pandya, S.; Wilbur, J.; Kim, J.; Gao, R.; Dasgupta, A.; Dames, C.; Martin, L.W. Pyroelectric energy conversion with large energy and power density in relaxor ferroelectric thin films. Nat. Mater. 2018, 17, 432–438. [Google Scholar] [CrossRef]
  38. Miao, J.; Chew, K.-H.; Zhang, L.X.; Wu, R.; Wang, J.O.; Shao, F.; Zhan, Q.; Jiang, Y. Coexistence of dielectric relaxation and magnetic relaxation in compressively strained BiFeO3/Ba0.7Sr0.3TiO3 superlattices. Appl. Phys. Lett. 2019, 114, 112902. [Google Scholar] [CrossRef]
  39. Scott, J.F. Ferroelectrics go bananas. J. Phys. Condens. Matter 2008, 20, 021001. [Google Scholar] [CrossRef]
  40. Hu, Z.; Li, M.; Yu, B.; Pei, L.; Liu, J.; Wang, J.; Zhao, X. Enhanced multiferroic properties of BiFeO3 thin films by Nd and high-valence Mo co-doping. J. Phys. D Appl. Phys. 2009, 42, 185010. [Google Scholar] [CrossRef]
  41. Ukai, Y.; Yamazaki, S.; Kawae, T.; Morimoto, A. Polarization-induced photovoltaic effects in Nd-doped BiFeO3 ferroelectric thin films. Jpn. J. Appl. Phys. 2012, 51, 09LE10. [Google Scholar] [CrossRef]
  42. You, L.; Chua, N.T.; Yao, K.; Chen, L.; Wang, J. Influence of oxygen pressure on the ferroelectric properties of epitaxial BiFeO3 thin films by pulsed laser deposition. Phys. Rev. B 2009, 80, 024105. [Google Scholar] [CrossRef]
  43. Scott, J.F.; Araujo, C.A.; Melnick, B.M.; McMillan, L.D.; Zuleeg, R. Quantitative measurement of space-charge effects in lead zirconate-titanate memories. J. Appl. Phys. 1991, 70, 382–388. [Google Scholar] [CrossRef]
  44. Singh, S.K.; Tomy, C.V.; Era, T.; Itoh, M.; Ishiwara, H. Improved multiferroic properties in Sm-doped BiFeO3 thin films deposited using chemical solution deposition method. J. Appl. Phys. 2012, 111, 102801. [Google Scholar] [CrossRef]
  45. Thakuria, P.; Joy, P.A. High room temperature ferromagnetic moment of Ho substituted nanocrystalline BiFeO3. Appl. Phys. Lett. 2010, 97, 162504. [Google Scholar] [CrossRef]
  46. Ederer, C.; Spaldin, N.A. Influence of strain and oxygen vacancies on the magnetoelectric properties of multiferroic bismuth ferrite. Phys. Rev. B 2005, 71, 224103. [Google Scholar] [CrossRef] [Green Version]
Coatings 09 00502 g001 550

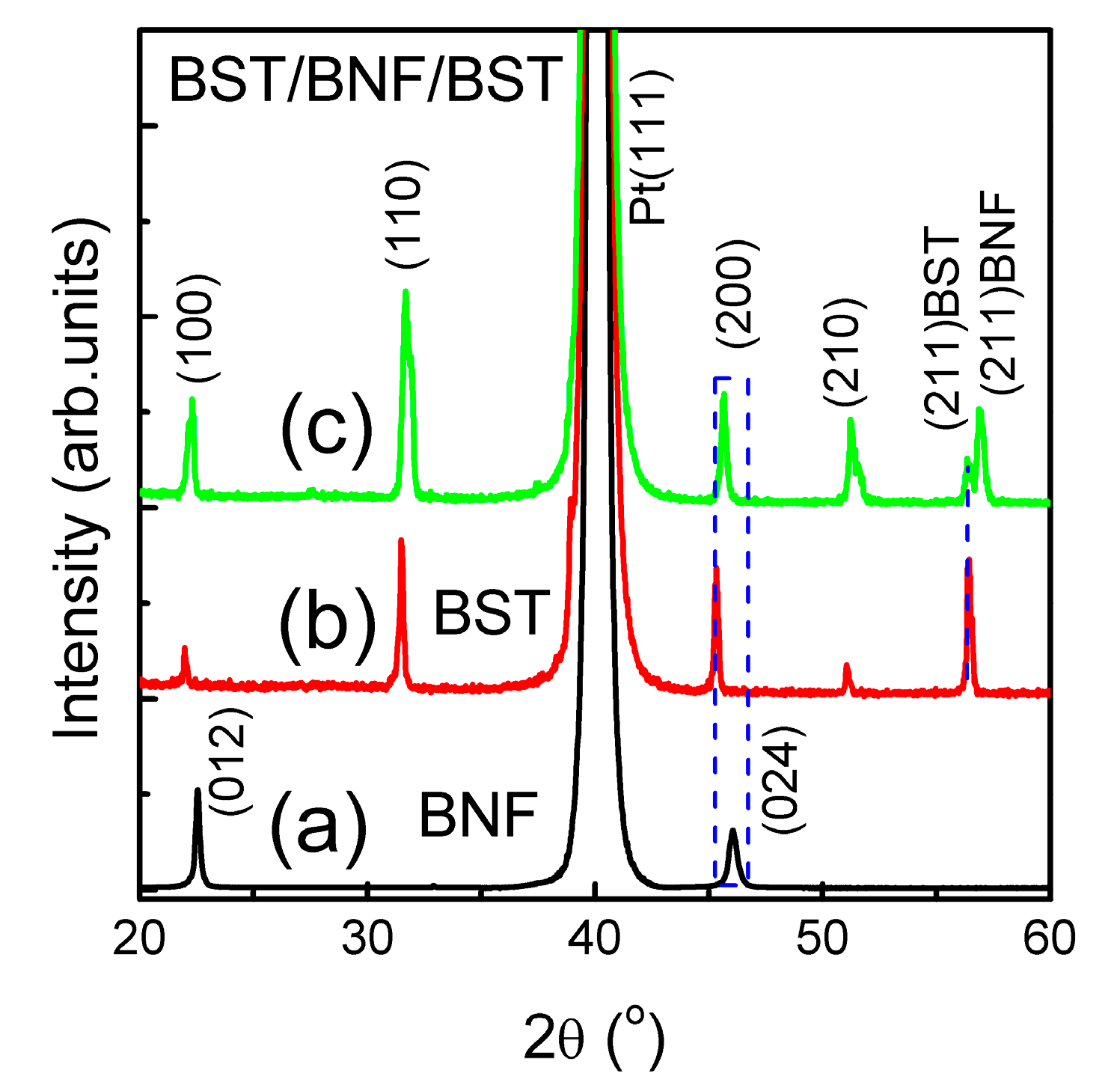

Figure 1. XRD patterns of (a) BNF, (b) BST, and (c) BST/BNF/BST thin films on Pt(111)/Ti/SiO2/Si(100) substrates. When BST and BNF thin films sputter, the maintenance of 500 °C is the ideal substrate temperature, and Ar/O2 (pressure ratio 9:1) and nitrogen are the ideal deposition atmosphere, respectively. We annealed the samples at 650 °C by use of a rapid thermal annealing (RTA) furnace.
Figure 1. XRD patterns of (a) BNF, (b) BST, and (c) BST/BNF/BST thin films on Pt(111)/Ti/SiO2/Si(100) substrates. When BST and BNF thin films sputter, the maintenance of 500 °C is the ideal substrate temperature, and Ar/O2 (pressure ratio 9:1) and nitrogen are the ideal deposition atmosphere, respectively. We annealed the samples at 650 °C by use of a rapid thermal annealing (RTA) furnace.
Coatings 09 00502 g001
Coatings 09 00502 g002 550

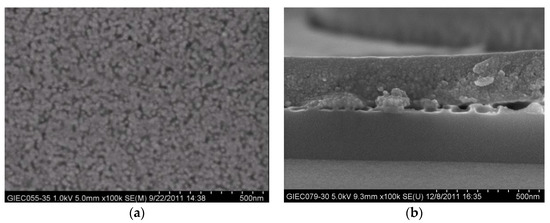

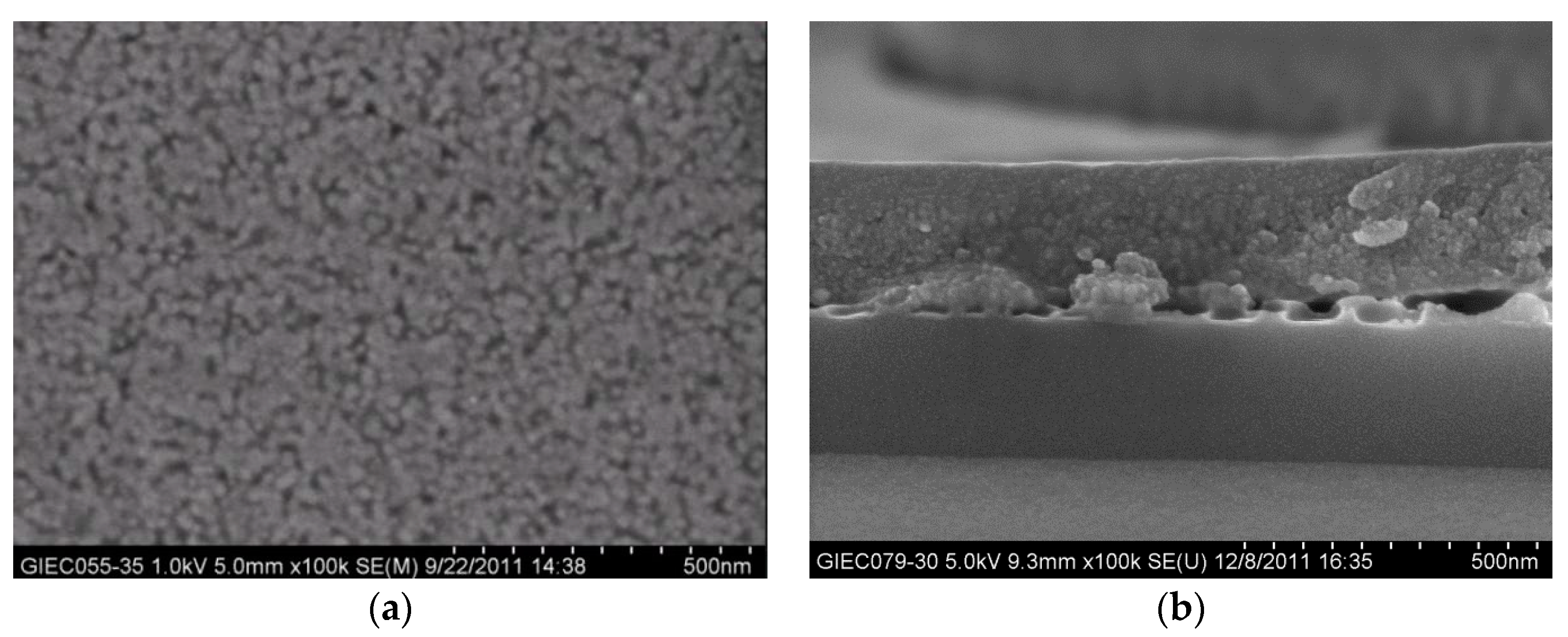

Figure 2. The SEM images of surface (a) and cross-section (b) of the BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrates annealed 650 °C for 30 min in an oxygen atmosphere.
Figure 2. The SEM images of surface (a) and cross-section (b) of the BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrates annealed 650 °C for 30 min in an oxygen atmosphere.
Coatings 09 00502 g002
Coatings 09 00502 g003 550

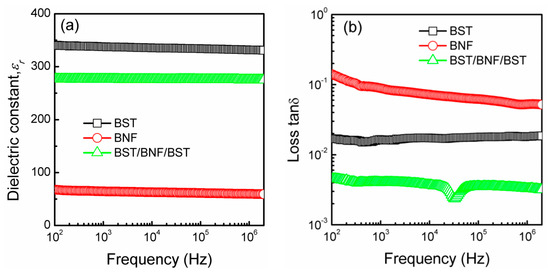

Figure 3. The dielectric constant (a) and loss tanδ (b) versus frequency for BST, BNF and BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrate measured at room temperatures.
Figure 3. The dielectric constant (a) and loss tanδ (b) versus frequency for BST, BNF and BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrate measured at room temperatures.
Coatings 09 00502 g003
Coatings 09 00502 g004 550

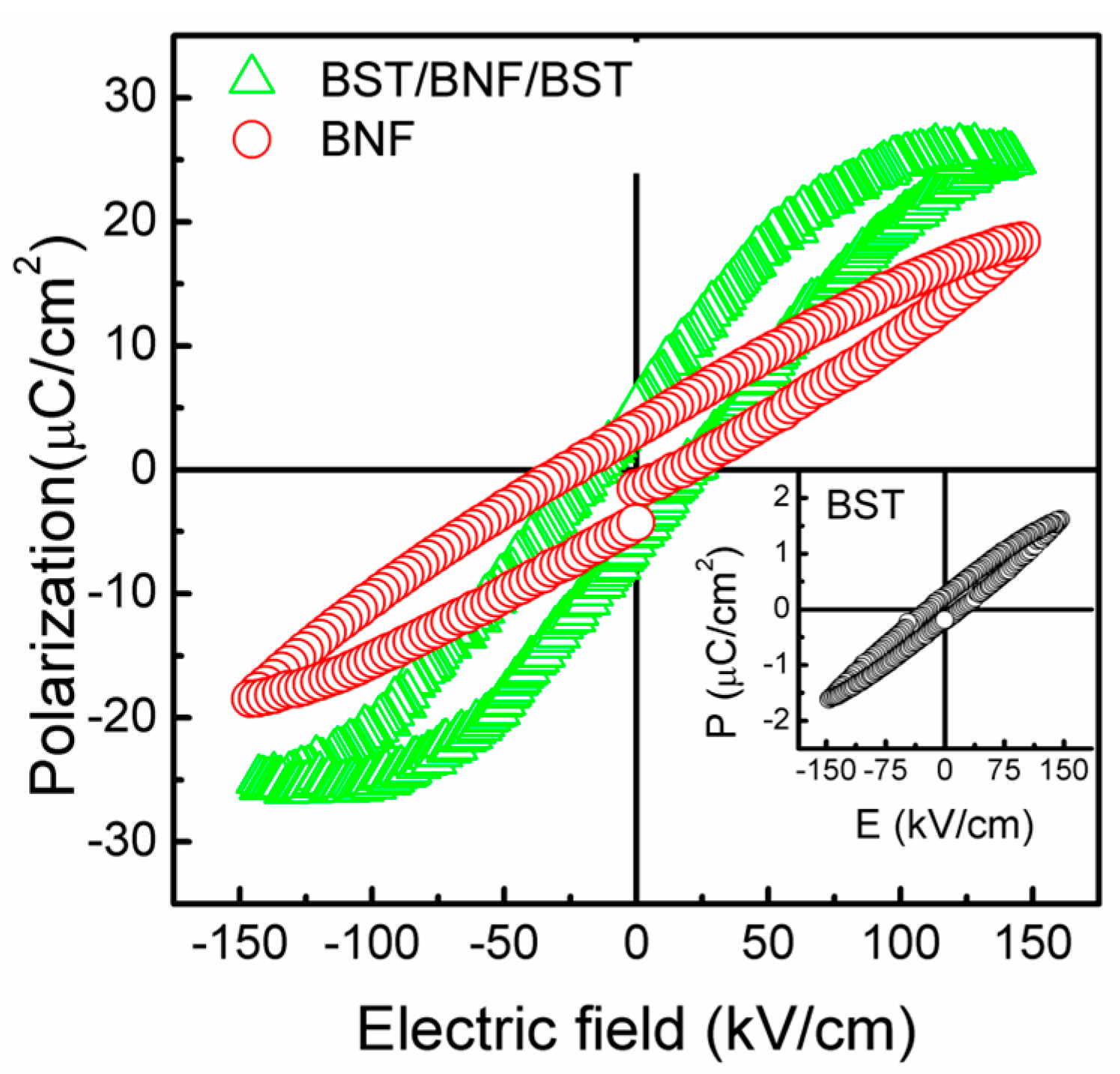

Figure 4. The typical P–E hysteresis loops for the BNF and BST/BNF/BST films on Pt/(111)Ti/SiO2/Si(100) substrate at room temperature and 250 Hz, the inset is the P–E hysteresis loop of single layer BST thin film.
Figure 4. The typical P–E hysteresis loops for the BNF and BST/BNF/BST films on Pt/(111)Ti/SiO2/Si(100) substrate at room temperature and 250 Hz, the inset is the P–E hysteresis loop of single layer BST thin film.
Coatings 09 00502 g004
Coatings 09 00502 g005 550

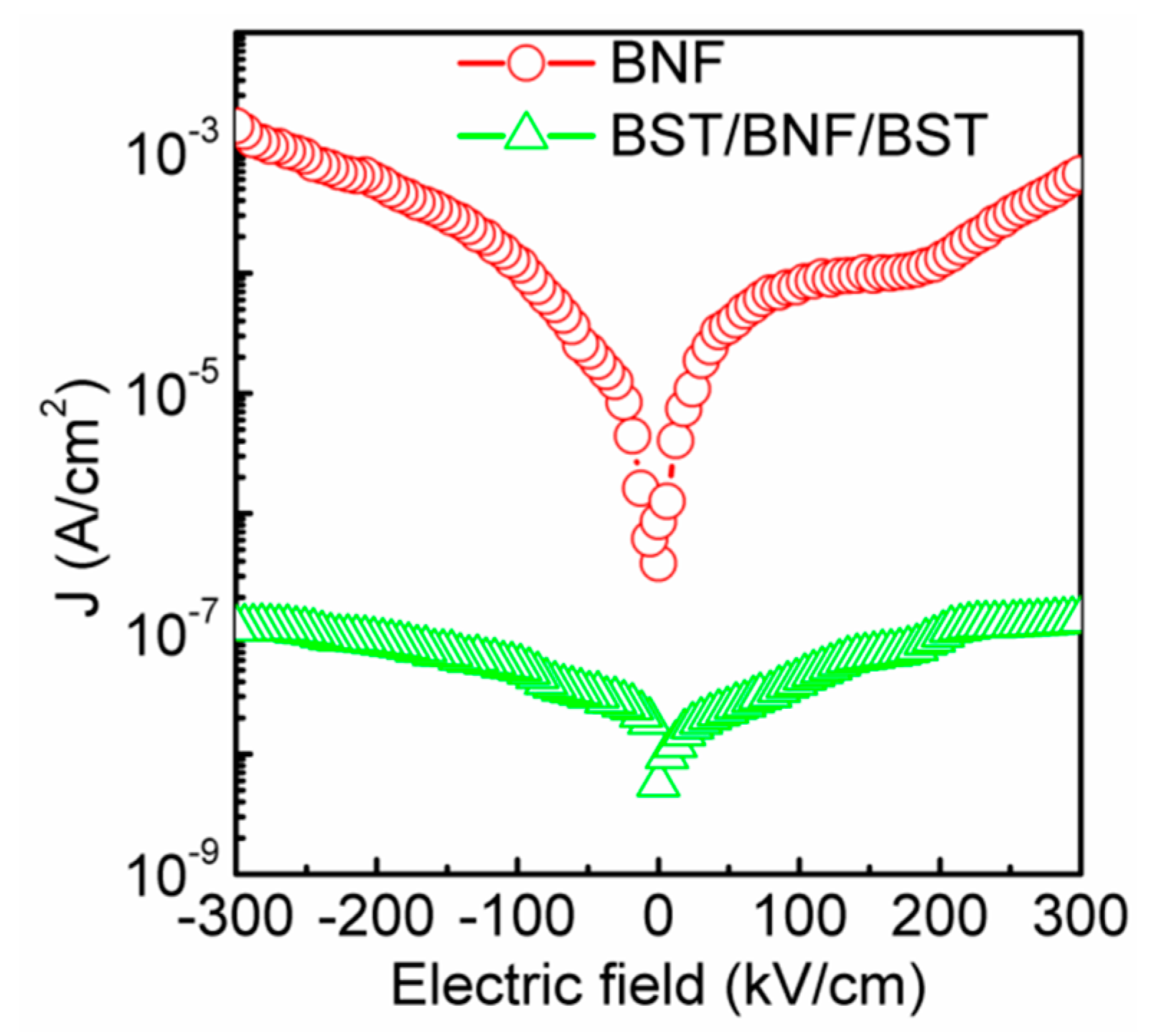

Figure 5. J–E characteristics of BNF and BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrate measured at room temperature.
Figure 5. J–E characteristics of BNF and BST/BNF/BST films on Pt(111)/Ti/SiO2/Si(100) substrate measured at room temperature.
Coatings 09 00502 g005
Coatings 09 00502 g006 550

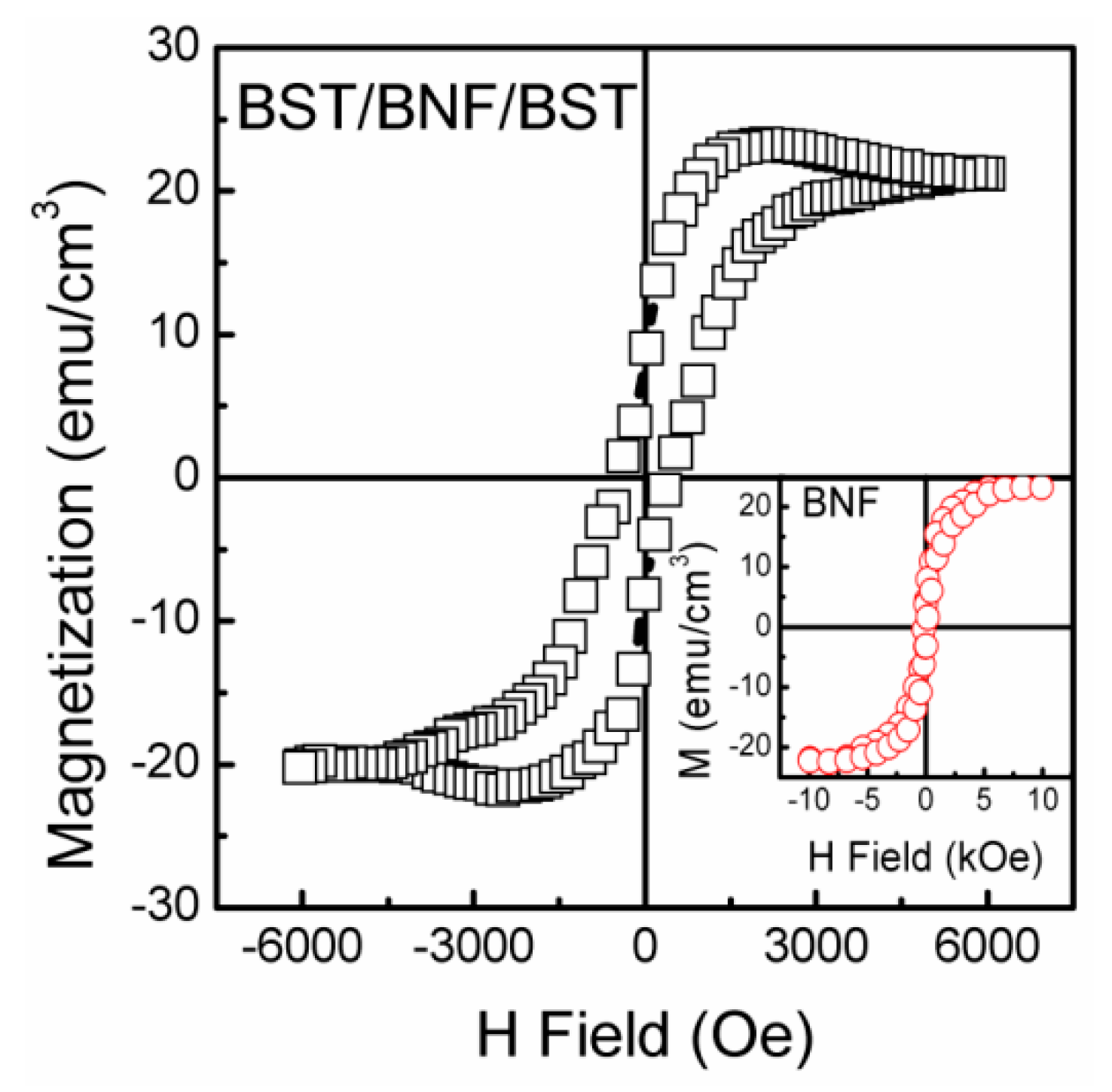

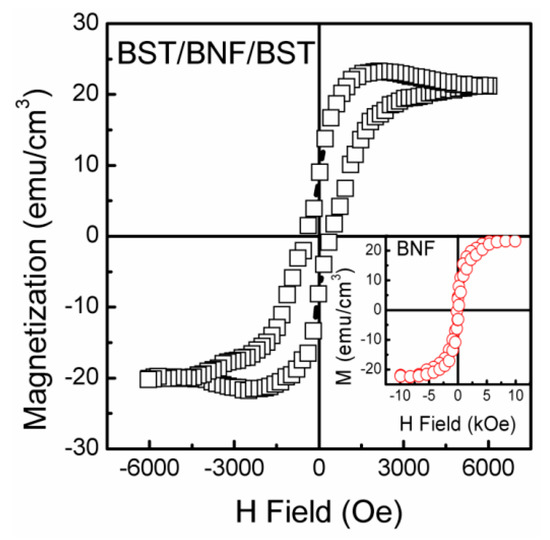

Figure 6. The M–H hysteresis loop of the BST/BNF/BST film on Pt(111)/Ti/SiO2/Si(100) substrate at room temperature, the inset is the M–H loop of single layer BNF thin film.
