Failure Mode Prediction of Unreinforced Masonry (URM) Walls Retrofitted with Cementitious Textile Reinforced Mortar (TRM)

Abstract

The brittle failure of unreinforced masonry (URM) walls when subjected to in-plane loads present low shear strength remains a critical issue. The investigation presented in this paper touches on the retrofitting of URM structures with textile-reinforced mortar (TRM), which enables shifting the shear failure mode from a brittle to a pseudo-ductile mode. Despite many guidelines for applying composite materials for retrofitting and predicting the performance of strengthened structures, the application of TRM systems in masonry walls is not extensively described. A thorough retrospect of the literature is presented, containing research results relating to different masonry walls, e.g., bricks, cement, and stone blocks strengthened with TRM jackets and subjected to diagonal compression loads. The critical issue of this study is the failure mode of the retrofitted masonry walls. Available prediction models are presented, and their predictions are compared to the experimental results based on their failure modes. The novelty of this study is the more accurate failure mode prediction of reinforced masonry with TRM and also of the shear strength with the proposed model, Thomoglou et al., 2020, at an optimal level compared to existing regulations and models. The novel prediction model estimates the shear failure mode of the strengthened wall while considering the contribution of all components, e.g., block, render mortar, strengthening textile, and cementitious matrix, by modifying the expressions of the Eurocode 8 provisions. The results have shown that the proposed model presents an optimum accuracy in predicting the failure mode of all different masonry walls strengthened with various TRM jackets and could be taken into account in the regulations for reliable forecasting.

1. Introduction

Horizontal loads, such as seismic loads and wind, mainly influence the performance of structures made of masonry blocks. Especially in regions where the seismicity is high or where the building structure itself presents increased importance, e.g., monuments, traditional buildings, and cultural heritage, there is a need to upgrade the performance. This paper focuses on reliable predictions of shear failure modes.

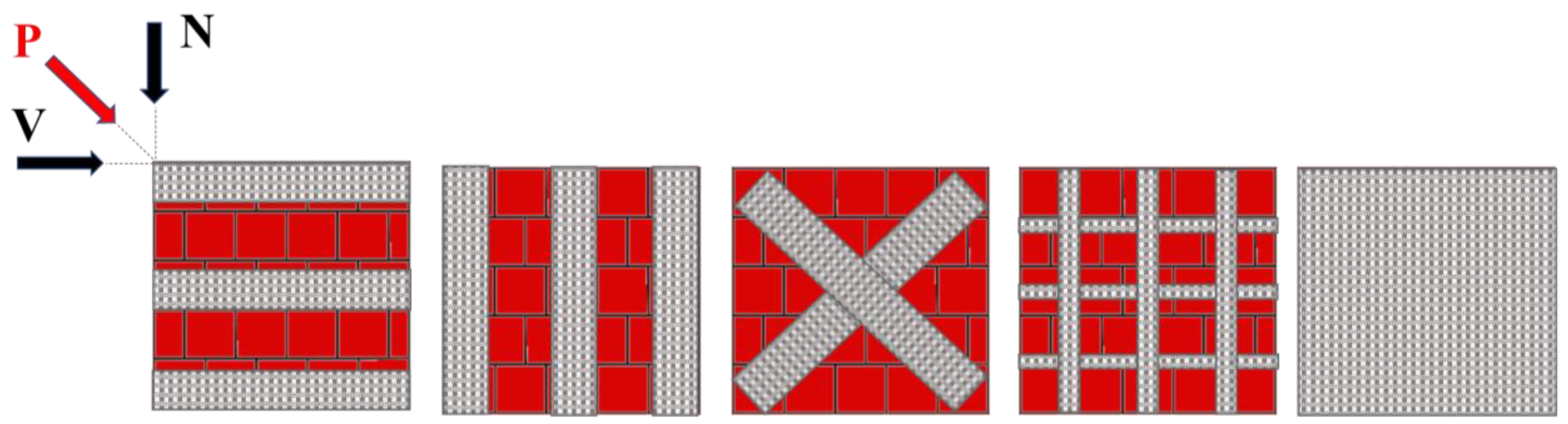

The design of in-plane strengthened masonry walls with textile-reinforced mortar TRM systems is described through the analytical models of ACI 549-20 [1], CNR-DT 215 2018 (2018) [2], and Triantafillou (2016) [3]. On the other hand, CNR-DT 200 R1/2012 (2013) [4], Triantafillou (1998) [5], Triantafillou and Antonopoulos (2000) [6], and Eurocodes 6 and 8 [7,8] do not explicitly cover the use of cementitious matrices in fiber-reinforced constructions. The aforementioned existing guidelines do not explicitly cover the use of inorganic matrices (cement-based) in the production of fiber-reinforced composites for construction. Recently, Thomoglou et al., 2020 [9] proposed an analytical model that modifies the expressions provided by Eurocode 8 [8], enables the mortar contribution in the TRM strengthening shear capacity, and predicts the in-plane shear failure modes of unreinforced masonry walls retrofitted with TRM systems with satisfactory accuracy.

Based on the obtained damage, failure modes, and collapse mechanisms in masonry buildings, a database is assembled. It includes experimental results of masonry walls of various substrates (brick, cement, and stone units) subjected to shear and diagonal compression and strengthened externally with composite materials using TRM or fiber-reinforced cement matrixes [10,11,12]. The term matrix refers to the layer that enables the integration of the textile to the substrate and offers protection to the fiber grid against exposure to environmental conditions. Moreover, there is a special focus on the accurate prediction of failure modes. In Section 1 of this paper, a literature review is presented for three different substrates of masonry walls strengthened using the TRM technique, and a database is created containing the experimental results (shear failure modes) of the strengthened walls under in-plane loads and diagonal compression (Section 2). In the next section (Section 3), a proposed model is developed, based on the expressions of Eurocode 8 [8], taking into consideration the contribution of the strengthening mortar of the TRM system to the shear failure modes of the retrofitted walls. The failure modes of strengthened masonry are quantified according to known code provisions and existing models [1,2,3,4,5,6,7,8], as well as the modified model proposed by the authors [9]. The results show (see Section 4) that the accuracy of predicting the in-plane failure modes using the proposed model is, on average, 62% accurate and 32–57% more successful compared to the other models. This research contributes to the understanding of the shear failure modes of unreinforced masonry walls retrofitted with TRM systems, which are promising in terms of enhancing the design guidelines.

1.1. Literature Overview

The pioneers in the study of TRM strengthening systems and prediction models for the shear strength of strengthened brick, concrete, and stone unreinforced masonry URM walls are [5,6,13,14,15,16]. The results showed the strengthened and non-strengthened URM failure modes. The most important studies are further discussed. Different types of textiles (carbon, glass, and basalt) are used for in-plane strengthening using the cementitious mortar as a matrix and also as a welding interface with the masonry units’ substrate. Experimental and predicted failure modes with existing regulations of strengthened URM made of brick, concrete, or stone with TRM reinforcement are presented in the Annex section (

Table A1. Failure mode prediction with existing regulations of strengthened URM made of brick, concrete, or stone with TRM reinforcement.

Authors	Type of Masonry	Type of TRM	Specimen Code	Experimental Failure Mode	ACI	CNR (2018)	CNR (2013)	TA 2000	Trantafillou 1998	Trantafillou 2016	EC6	EC8	Proposed Model
[12]	brick	G	SO-UMG1	TRM	SF	NA	NA	NA	NA	NA	NA	NA	TRM
	brick	G	SO-UMG2	TC	TRM	M	M	M	M	M	M	TRM	TC
	brick	G	SO-UMG3	TC	NA	NA	NA	NA	NA	NA	NA	NA	TC
[30]	brick	G	1GRWN25	TC	NA	NA	NA	NA	NA	NA	NA	NA	TC
	brick	G	2GRWN15	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	brick	G	2GRWN25	TC	NA	NA	NA	NA	NA	NA	NA	NA	NA
	brick	G	2GRWN25	TC	NA	NA	NA	NA	NA	NA	NA	NA	NA
[29]	brick	G	W16-G	TRM/DT	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	brick	G	W17-G	TRM/DT	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	brick	G	W18-G	TRM/DT	TRM	NA	NA	TRM	NA	NA	NA	NA	TRM
		G
[32]	concrete	G	T1F-3	DT/TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	G	T1F-4	DT/TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	C	T1F-5	DT/TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	C	T1F-6	DT/TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	B	T1F-7	TC/ DT	TRM	NA	NA	TC	NA	NA	NA	NA	TRM
	concrete	B	T1F-8	TC DT	NA	NA	NA	TC	NA	NA	NA	NA	TRM
	concrete	B	T1F-9a	TC/ DT	TRM	NA	TC	TC	NA	NA	NA	NA	TRM
	concrete	G	T2F-10	DT/TC	DT	NA	NA	TC	NA	NA	NA	NA	TC
	concrete	G	T2F-11	DT/TC	DT	NA	NA	TC	NA	NA	NA	NA	TC
	concrete	C	T2F-12	DT-TRM	DT	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	C	T2F-13	TC	NA	NA	NA	NA	NA	NA	NA	NA	TC
	concrete	B	T2F-14	DT/TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	B	T2F-15	DT/TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	concrete	B	T2F-16	DT/TRM	DT	NA	NA	NA	NA	NA	NA	NA	TRM
[29]	brick	G	W4	TRM	NA	NA	NA	NA	NA	NA	NA	NA	TRM
	brick	G	W5	TRM	NA	NA	NA	NA	NA	NA	NA	NA	TRM
	brick	G	W6	TRM	NA	NA	NA	NA	NA	NA	NA	NA	TRM
[23]	brick	C	FRMCom_01	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
[25]	brick	C	CFRCM 01	SS	TC	NA	NA	NA	NA	NA	M	NA	SS-SF
	brick	G	CFRCM 02	SS	TC	NA	NA	NA	NA	NA	M	NA	SS-SF
[24]	brick	C	CD_FRCM	TRM	NA	TRM	TRM	NA	NA	NA	NA	NA	NA
[40]	brick	G	A-3	DT	TC	M	TC	TC	TC	M	TRM	TRM	TC
[34]	stone	G	CD-07-U-IP	SF	NA	NA	NA	NA	NA	NA	NA	NA	NA
[38] *	stone	G	7	DT/TRM	NA	NA	NA	NA	NA	NA	M	DT	DT
	stone	G	SM-10S	DT/TRM	SF/SS	NA	TRM	NA	NA	TRM	NA	DT	DT
[35]	brick	G	CD-11-S-IP	TRM	SF	TRM	TRM	TC	TC	TRM	TRM	TRM	TRM
	stone	G	CD-12-P-IP	DT/TRM	NA	NA	TRM	TRM	TRM	NA	TRM	NA	TRM
	stone	G	CD-13-P-IP	DT-TRM	NA	NA	TRM	TRM	TRM	NA	TRM	NA	TRM
[26]	brick	G	B2A-F33S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2A-F33S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2A-F66S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2A-F66S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2A-F99S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2A-F99S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2C-F33S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2C-F33S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2C-F66S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2C-F66S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2C-F99S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B2C-F99S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F33S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F33S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F66S-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F66S-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F66D-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F66D-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F99D-1	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	brick	G	B3A-F99D-2	DT/TRM	NA	NA	NA	NA	NA	NA	NA	TRM	TRM
	rub stone	G	RA-F33S-1	DT/TRM	NA	NA	TRM	NA	NA	NA	NA	TRM	TRM
	rub stone	G	RA-F33S-2	DT/TRM	NA	NA	TRM	NA	NA	NA	NA	TRM	TRM
	rub stone	G	RA-F66S-1	DT/TRM	NA	NA	TRM	NA	NA	NA	NA	TRM	TRM
	rub stone	G	RA-F66S-2	DT/TRM	NA	NA	TRM	NA	NA	NA	NA	TRM	TRM
	rub stone	G	RA-F66D-1	DT/TRM	NA	NA	TRM	NA	NA	NA	NA	TRM	TRM
	rub stone	G	RA-F66D-2	DT/TRM	NA	NA	TRM	NA	NA	NA	NA	TRM	TRM
[22]	concrete	C	CMU-1 ply-1	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
	concrete	C	CMU-1 ply-2	TC	NA	TC	NA	NA	NA	NA	M	NA	NA
	concrete	C	CMU-1 ply-3	TC	NA	TC	NA	NA	NA	NA	M	NA	NA
	concrete	C	CMU-4 ply-1	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
	concrete	C	CMU-4 ply-2	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
	concrete	C	CMU-4 ply-3	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
	clay brick	C	1 ply-1	TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	clay brick	C	1 ply-2	TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	clay brick	C	1 ply-3	TRM	TRM	NA	NA	NA	NA	NA	NA	NA	TRM
	clay brick	C	4 ply-1	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
	clay brick	C	4 ply-2	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
	clay brick	C	4 ply-3	TC	NA	NA	NA	NA	NA	NA	M	NA	NA
[37]	tuff	G	PRR1	SF/SS	NA	NA	NA	NA	NA	NA	M	NA	NA
	tuff	G	PRR2	DT	NA	NA	NA	NA	NA	NA	M	NA	NA
[39] *	clay brick	C	I10%_SW_RC1	TRM	NA	TRM	NA	NA	NA	TRM	NA	NA	NA
	clay brick	C	I10%_SW_RC2	TC	NA	NA	TC	NA	NA	NA	NA	NA	NA
	clay brick	C	I_SC_PC1	TRM	NA	NA	NA	NA	NA	TRM	NA	NA	NA
	clay brick	C	I_SC_PC2	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	clay brick	C	I25%_F_PC1	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	clay brick	C	I25%_F_PC2	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	stone blocks	B	I3%_SW_LB1	TC	NA	NA	NA	NA	NA	NA	NA	NA	NA
	stone blocks	B	I3%_SW_FB1	TC	NA	NA	NA	NA	NA	NA	NA	NA	NA
[21]	clay brick	C	specimen#4	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	clay brick	C	specimen#5	TRM	NA	NA	NA	NA	NA	TRM	NA	TRM	NA
	clay brick	C	specimen#6	TRM	NA	NA	NA	NA	NA	TRM	NA	TRM	NA
	clay brick	C	specimen#7	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	clay brick	C	specimen#8	DT	NA	NA	NA	NA	NA	NA	NA	NA	NA
	clay brick	C	specimen#9	TRM	NA	NA	NA	NA	NA	TRM	NA	TRM	NA
[33]	tuff	G	PS#3	TC	NA	NA	NA	TC	NA	NA	NA	NA	NA
	tuff	G	PS#4	TC	NA	NA	TC	TC	NA	NA	NA	NA	NA
	tuff	G	PS#1	TC	NA	NA	NA	TC	NA	NA	NA	NA	NA
	tuff	G	PS#2	TC	NA	NA	NA	TC	NA	NA	NA	NA	NA
[14]	tuff	G	PS#1	DT	NA	NA	NA	NA	NA	NA	NA	NA	DT
	tuff	G	PS#2	DT	NA	NA	NA	NA	NA	NA	NA	NA	DT
	tuff	G	PS#3	SS/DT/TRM	NA	NA	NA	NA	NA	NA	TRM	NA	NA
	tuff	G	PS#4	SS/DT	NA	NA	NA	NA	NA	NA	TRM	NA	DT
	tuff	G	PT#1	SS/TRM	NA	NA	NA	NA	NA	NA	TRM	NA	NA
	tuff	G	PT#2	SS/TRM	NA	NA	NA	NA	NA	TRM	TRM	NA	TRM
	tuff	G	PT#3	SS	NA	NA	NA	NA	NA	NA	NA	NA	NA
	tuff	G	PT#4	SS, out-of-plane	NA	NA	NA	NA	NA	NA	NA	NA	NA

Note: C: CTRM; G: GTRM; B: BTRM: shear sliding; SF: shear friction; DT: diagonal tension; TC: toe crushing; TRM: failure of TRM system; NA: Not Accurate, *: shear test, without * diagonal compression test.

). The thickness of the reinforcement mortar varies according to the different layers when the reinforcement is placed on one or two sides. Although the cementitious mortar composite exhibits adequate resistance and durability in the strengthening systems, some researchers propose an alternative feature for cementitious mortar usage, reducing energy consumption and improving the multi-functionalities of the structures [17,18,19,20].

1.2. Brick Masonry Walls

Diagonal compression tests were conducted on 400-mm-thick tuff masonry walls, double-sided strengthened with one layer of a carbon-fiber-reinforced cement matrix [21], and presented in the sliding failure mode. Additional studies were conducted on nine clay brick walls, three 92-mm-thick control walls, and six strengthened with one and four carbon TRM (CTRM), which were subjected to diagonal compression [22]. The thickness of the strengthening cementitious mortar ranged from 10 mm to 40 mm. The failure mode observed is a combined sliding along the substrate’s mortar joints, tensile rupture of the jacket, and the mortar joints of the substrate, as well as large out-of-plane deformations.

The same experimental tests were carried out by [23] on 140-mm-thick ceramic brick walls strengthened with a carbon textile. The strengthening cement mortar had a 15 mm thickness and was reinforced with polypropylene fibers. The reference walls failed under shear friction, whereas the strengthened walls exhibited diagonal tension failure due to the delamination of the TRM layer. Further in situ diagonal compression tests were conducted on three double-leaf URM walls (one reference wall and one with CTRM strengthening systems with a 20-mm-thick mortar layer) [24]. The URM walls failed due to diagonal cracks in the substrate mortar and in the strengthened mortar in the case of the strengthened masonry walls. Other researchers tested clay brick panels reinforced with carbon and glass grid embedded in a 20-mm-thick fiber-reinforced, pozzolanic, lime-based mortar [25]. The strengthened walls presented with sliding failure along the horizontal mortar joints, with the detachment of the grid at the top and bottom of the wall compared to the brittle failure mode with a single diagonal crack in the reference wall.

A focused investigation on the seismic strengthening of two different types of 250-mm- and 380-mm-thick solid brick and rubble stone URM walls, respectively, (14 references and 36 strengthened walls) with glass TRM (GTRM) and 30-mm-thick lime and cement mortar showed cracks in the mortar coating, while the reference wall showed diagonal cracks following the mortar joints [26]. Reversed cyclic in-plane tests of three large-scale pier–spandrel assemblages and out-of-plane tests on three slender URM walls have been carried out [27]. The failure mode of the strengthened URM walls enhanced the deformation load-carrying ability and altered the failure mode from brittle to ductile. Toe crushing, vertical splitting, and diagonal cracking failure modes occurred in the walls strengthened with the glass TRM (GTRM) system, whereas the as-built walls suffered from bed joint sliding brittle failure.

The effectiveness of retrofitting 24 three-leaf brick URM walls, strengthened via the application of a glass grid in a 25-mm-thick cementitious mortar of an epoxy resin matrix, was investigated by [28]. The walls were subjected to cyclic loads. The consequences of diagonal compression tests on three solid brick URM walls and three strengthened with GTRM applied on both sides were reported by [29]. The shear friction failure mode appeared in the URM, and a splitting crack in the TRM was observed in the strengthened masonry walls.

Ten URM walls were single- or double-retrofitted with high-strength GTRM strengthening systems of different thicknesses and subjected to diagonal tension tests [30]. The thickness of the mortar was 15 mm and 25 mm, and one of them had a textile fiber grid. Toe crushing failure in the compression area was noted, followed by diagonal crushing, with no special need for mechanical bonding to the substrate, in both faces of the strengthened walls. The failure mode was different in the one-face strengthened walls, which were controlled by buckle or out-of-plane deformations.

1.3. Cement Masonry Walls

Carbon textile-reinforced mortar of 10 mm thickness per layer was used by [31] to strengthen the diagonal compression capacity of 92-mm-thick concrete walls. The toe-crushing failure eliminated the shear capacity of the 1-ply and 4-ply strengthened specimens. Subsequently, in-plane shear tests of 150-mm- or 200-mm-thick hollow concrete URM walls strengthened with a 5–8 mm single mortar layer of GTRM, CTRM, and basalt TRM (BTRM) and two layers of BTRM [32]. Although the single-sided TRM system enhanced the shear capacity, altering the failure mode from brittle to ductile, it led to a significant out-of-plane slope.

1.4. Stone Masonry Walls

Shear behavior investigation of 250-mm-thick retrofitted tuff stone panels using a cementitious matrix grid (CMG) was carried out with different layouts of glass TRM with 10 mm or 20 mm of mortar [14]. The retrofitted walls presented shear sliding along the bed joints in various arrangements of the GTRM system. An insignificant impact on the initial stiffness was observed. Another piece of research on the in-plane shear behavior of 250-mm-thick tuff stone panels with half and full-filled joints retrofitted with one or two plies of glass TRM system with 16 mm and 24 mm of strengthening mortar showed toe crushing in both the strengthened and the as-built walls [33].

In situ diagonal compression tests were performed on 560-mm-thick historical rubble stone URM panels, which were strengthened with a glass grid fabric introduced into a 30-mm-thick inorganic matrix of cementitious mortar [34,35]. The strengthened panels exhibited a noteworthy shear capacity improvement when compared to the reference walls and failed in shear friction. A proportional increase in shear strength with the number of layers was observed in 85-mm-thick bricks or 95-mm-thick stone masonry walls strengthened with TRM, while the strengthened walls failed due to rocking [15]. Finally, other researchers applied a 20-mm-thick glass polymer coating to strengthen 500-mm-thick three-leaf stone masonry walls [36]. The strengthened walls, which were imposed to constant vertical and cyclic shear loads, failed under diagonal tension.

1.5. Research Gap and Novelty

To date, much research has examined and documented the in-plane failure modes of masonry structures, and existing standards estimate the failure mode. However, the contribution of the strengthening mortar in terms of the shear strength as well as the different textile materials and masonry substrates, have never been taken into account by the existing models used for in-plane reinforced masonry walls. The novelty of this research is the more accurate failure mode prediction of reinforced masonry that uses TRM and also of the shear strength with the proposed model, Thomoglou et al., 2020, at an optimal level compared to the existing regulations and models, also providing a fundamental advantage regarding other predictions by modifying and improving the expression of Eurocode 8. This is an innovative and vital study as it addresses improving the accuracy of strengthened URM failure mode prediction by categorizing the different masonry units (brick, stone, and concrete), but also the different reinforcement textiles (carbon, glass, and basalt), taking into account the important contribution of strengthening mortar in terms of mortar strains, debonding strains, and mortar thickness. The criterion of accuracy is ±25% convergence to the experimental observations, both for the shear failure mode of the masonry substrate as well as for the retrofitted wall. Although the failure modes of the strengthening system (delamination, rupture, or slippage) are not distinguished in any of the models, the proposed model failure mode predictions agree with 90% of the experimental observations. This research contributes to the understanding of the complex stress–transfer mechanism between the masonry and TRM composite that is of fundamental importance in terms of TRM strengthening effectiveness.

2. Database Assembly

In this study, experimental results taken from the international literature are collected regarding masonry walls. The database assembled includes the experimental results of masonry walls made of different substrates (brick, cement, and stone units) subjected to shear and diagonal compression loads. The specimens are retrofitted with various TRM external strengthening systems. The database includes 128 tests (24 tests of URM and 104 of walls strengthened with TRM jackets) that are included in the works of diagonal compression tests [12,14,21,22,23,24,25,26,27,29,30,31,33,34,35,36,37,38] and shear compression tests [39,40]. The majority of the retrofitted walls are subjected to diagonal compression (93 specimens), and the rest are subjected to in-plane shear compression (11 specimens), as depicted in Figure 1.

The strengthened masonry walls were made of different types of units, e.g., brick (57 specimens), concrete (20 specimens), and stone (27 specimens). The strengthening system consisted of single-sided or double-sided TRM from one to four layers, with their textile thickness (t_f) ranging from 4 to 24 mm. The different composite strengthening materials were GTRM (with a modulus of elasticity E_GTRM = 36.9–80 GPa), CTRM (E_CTRM = 73–240 GPa), and BTRM (E_BTRM = 72–89 GPa), orientated in various ways, e.g., horizontally, vertically, diagonally, grid, or full coverage of the exterior surface [41]. The majority of the textile reinforcement layouts coincided with the full coverage of the exterior surface. The masonry specimens provide thickness ranging from 85 mm to 560 mm, with an aspect ratio high/length of masonry walls (H/L) ranging from 0.3 to 3.25, while the masonry unit’s height ranges from 55 mm to 380 mm and the length from 185 mm to 400 mm, with the units’ compression capacity (f_unit) ranging from 2 to 119 MPa, whereas for the masonry walls, the compression strength (f’_m) was 1.27 to 68.25 MPa).

A key observation in several codes and standards [7,8] is that the tensile stress σ_I is designed by considering a uniform shear stress distribution within the panel, which leads to the below-mentioned central stress state: σ_y = σ_x = 0, τ = (1/√2) P/A_n (A_n is the cross-sectional area of the wall). Under these hypotheses, the diagonal tensile strength of the masonry f_dt is calculated, in practice, as if the panel would be in a pure shear stress state (σ_I/σ_II = −1, for 45° loading slope angle) and is calculated as follows: f_dt = σ_I = 0.7 P/A_n [42].

The stresses in the middle of a masonry wall, when considering an infinitesimal element, could be defined in terms of compression stresses and shear stresses, which could be translated in terms of principal stresses, as depicted in Figure 2a. In Figure 2b, the three-linear stress–strain curve of TRM coupon tensile strength is presented, where the different phases are followed by each other. The first part is related to the uncracked mortar phase, whereas the second phase is related to the cracks developing. Finally, the load-bearing capacity of the fiber textile corresponds to the third phase [43,44,45,46].

In

Table 1. Ranges of experimental values of shear stresses and strains of binder mortars, masonry walls, strengthening mortars, and TRM textiles of the strengthened specimens.

	τexp	Range (MPa)	ε	Range (mm/mm)	Failure Mode	Type of TRM
Masonry substrate	τεjoint	0.041–0.088	εjoint	0.000095–0.000410	SS-SF	GTRM-CTRM
	τεmas	0.056–0.058	εmas	0.000330–0.000830	DT-TC	GTRM-CTRM
TRM	τεjoint,d	0.041–0.108	εjoint,d	0.000009–0.000110	TRM Failure	GTRM-CTRM
	τεmortar	0.049–0.057	εmortar	0.000288–0.003590	TRM Failure	GTRM-CTRM
	τTRM	0.070–0.151	εTRM	0.004100–0.011700	TRM Failure	CTRM-CTRM

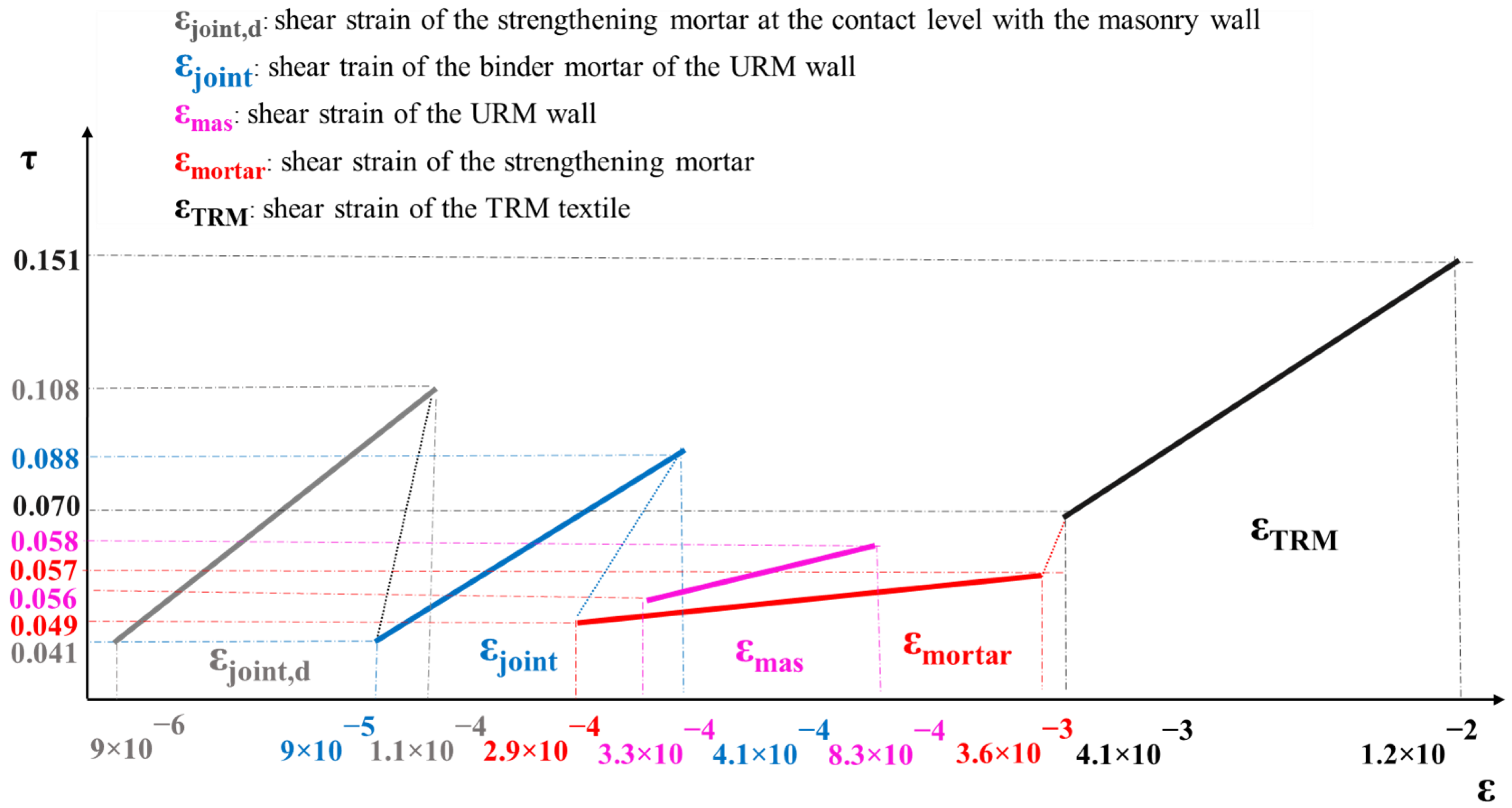

, and more representative in Figure 3, the ranges of the experimental values of the shear stresses and strains of binder mortars, masonry walls, strengthening mortars, and the TRM textiles of the strengthened specimens are depicted. Specifically, τ_εjoint and ε_joint are the shear stress and strain of the binder mortar of the URM wall, τ_εmas and ε_mas are the shear stress and strain of the URM wall, τ_εjoint,d, and ε_joint,d are the shear stress and strain of the strengthening mortar at the contact level with the masonry wall, τ_εmortar, and ε_mortar are the shear stress and the shear strain of the strengthening mortar, and τ_TRM and ε_TRM are the shear stress and strain of the TRM textile.

3. Design Models

3.1. Existing Models

Worldwide design guidelines, as well as many models and semi-empirical expressions found in the literature, quantify the shear strength of masonry panels as the combination of masonry shear resistance and external strengthening system capacity. Part of those models also defines the failure mechanism. Four types of failure modes are recognized for URM walls: (a) shear sliding (SS), (b) shear friction (SF), (c) diagonal tension (DT), and (d) flexural tension toe crushing (TC), as denoted and illustrated in Figure 4, at the failure envelope (V_m–σ_n), which is designed in terms of shear strength versus compressive stress [47,48,49].

Nine known code provisions and existing models, ACI 549-20 [1], CNR-DT 215 2018 (2018) [2], and Triantafillou (2016) [3], CNR-DT 200 R1/2012 (2013) [4], Triantafillou (1998) [5], Triantafillou and Antonopoulos (2000) [6], Eurocodes 6 and 8 [7,8], and Thomoglou et al., 2020 [9], were chosen to examine failure mode prediction. The examined code provisions include detailed instructions and calculations for the shear capacity of epoxy-based matrix-reinforced URM walls but do not provide detailed instructions in the case of a cement-based matrix.

3.2. Proposed Model

The existing regulations and models estimate the shear strength of the strengthened URM with external reinforcement, considering the assumption that the total contribution to the shear capacity is the sum of two terms, the masonry and TRM. The Thomoglou et al., model innovates in the assumption of the unequal contribution of the external reinforcement, instead giving the coefficient of k for the different strengthening systems (see

Table 2. Values of calibration factor of the proposed model.

Types of Masonry Units	Types of Textile Reinforcement	Coefficient k	εtm (%)
brick	glass	0.55	0.057
	carbon	0.60	0.112
cement	glass	0.52	0.038
	carbon	0.52	0.015
stone	glass	0.59	0.038

):

$${\mathrm{V}}_{\mathrm{Rd}}={ \mathrm{V}}_{\mathrm{m}}+\left({\mathrm{V}}_{\mathrm{TRM}}\right)·\mathrm{k}$$

(1)

The proposed prediction model takes into account the contribution of the coating mortar to the shear strength and considers the contribution of TRM as follows:

$${\mathrm{V}}_{\mathrm{Rd}}={ \mathrm{V}}_{\mathrm{m}}+\left({\mathrm{V}}_{\mathrm{fiber}}+{\mathrm{V}}_{\mathrm{mortar}}\right)·\mathrm{k}$$

(2)

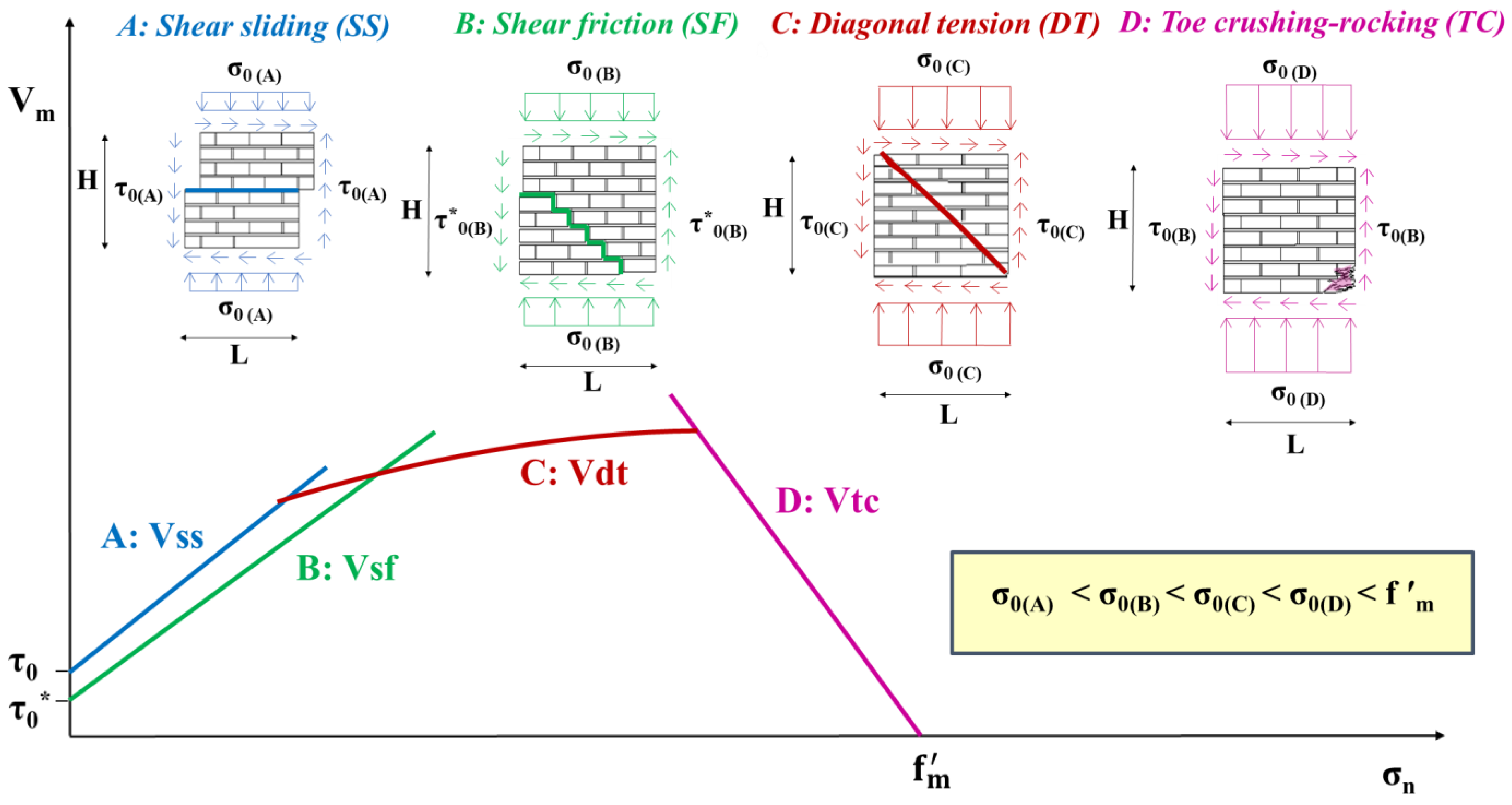

The total shear capacity of the masonry contribution V_m is calculated, and is also proposed by the EC8 design model:

$${\mathrm{V}}_{\mathrm{m}}= \min \left({\mathrm{V}}_{\mathrm{sf}},{ \mathrm{V}}_{\mathrm{dt}},{ \mathrm{V}}_{\mathrm{f}}\right)$$

(3)

where V_dt is the diagonal tension, V_f is the flexural capacity of the unreinforced masonry wall, and V_sf is the shear friction and shear sliding capacity, where shear sliding and shear friction are combined due to the bond strength and friction resistance between the mortar joint and the blocks. Shear sliding and shear friction V_sf are determined according to EC6:

$${\mathrm{V}}_{\mathrm{sf}}=\frac{{\mathrm{f}}_{\mathrm{v},0}}{0.6}·{\mathrm{A}}_{\mathrm{n}}$$

(4)

Table 2 describes the values of the calibration factor of the proposed model considering the three types of URM, while each of them is strengthened with glass or carbon-textile-reinforced concrete, providing the factor k value, with variable strengthening contribution (V_fiber + V_mortar).

When failure due to diagonal tension occurs, crack propagation runs through the masonry units. The shear force capacity V_dt, according to EC8, for this failure mechanism is provided in the following equation, using the upper limit 0.065f_m to ensure that failure in diagonal tension will occur in the compression area when subjected to a combined normal compressive and shear stress.

$${\mathrm{V}}_{\mathrm{dt}}=0.065·{\mathrm{f}}_{\mathrm{m}}·{\mathrm{A}}_{\mathrm{n}}$$

(5)

Because the regulation of EC8 does not differentiate between rocking and the toe-crushing failure mechanism, the shear force capacity of an unreinforced masonry wall, as controlled by flexure under an axial load, may be taken as being equal to:

$${\mathrm{V}}_{\mathrm{f}}=\frac{\mathsf{{\rm N}}·{\mathrm{l}}_{\mathrm{w}}}{2·{\mathrm{h}}_{\mathrm{w}}}·\left(1-1.15·\frac{\mathrm{N}}{{\mathrm{l}}_{\mathrm{w}}·{\mathrm{t}}_{\mathrm{w}}·{\mathrm{f}}_{\mathrm{m}}}\right)$$

(6)

where f_m is the compressive strength of the masonry and N is the axial load. The proposed model innovates, compared to the existing models and regulations, in that it assumes the contribution of the strengthening mortar to the total shear strength of the TRM, and it is calculated according to the equation below:

$${\mathrm{V}}_{\mathrm{TRM}}={ \mathrm{V}}_{\mathrm{fiber}}+{\mathrm{V}}_{\mathrm{mortar}}$$

(7)

The proposed model estimates the value of the ultimate tensile strain of the textile reinforcement ε_fu equal to the fabric or textile debonding strain ε_ffd = 0.27‰. In contrast, existing regulations adopt the value of ε_fu = 0.4‰. Further, the V_fiber is calculated by the following expression:

$${\mathrm{V}}_{\mathrm{fiber}}=2\mathrm{n}·{\mathrm{A}}_{\mathrm{f}}·{\mathrm{L}}_{\mathrm{f}}·{\mathrm{E}}_{\mathrm{f}}·{\mathsf{\epsilon }}_{\mathrm{ffd}}$$

(8)

where A_f is the area of the fabric or textile reinforcement by unit width, n is the number of layers of fabric, L_f is the applied textile length over the wall, and E_f is the tensile modulus of elasticity of the cracked TRM. The shear strength of the mortar V_mortar is calculated using the following expression:

$${\mathrm{V}}_{\mathrm{mortar}}={\mathrm{A}}_{\mathrm{mortar}}·{\mathrm{E}}_{\mathrm{mortar}}·{\mathsf{\epsilon }}_{\mathrm{tm}}$$

(9)

where A_mortar is the area by unit width, ε_tm is the tensile strain of the coating mortar, and E_mortar is the tensile modulus of elasticity of the cracked mortar of the TRM. The values of each tensile stain ε_tm of the external cementitious strengthening mortar for different masonry substrates are depicted in Table 2.

4. Results

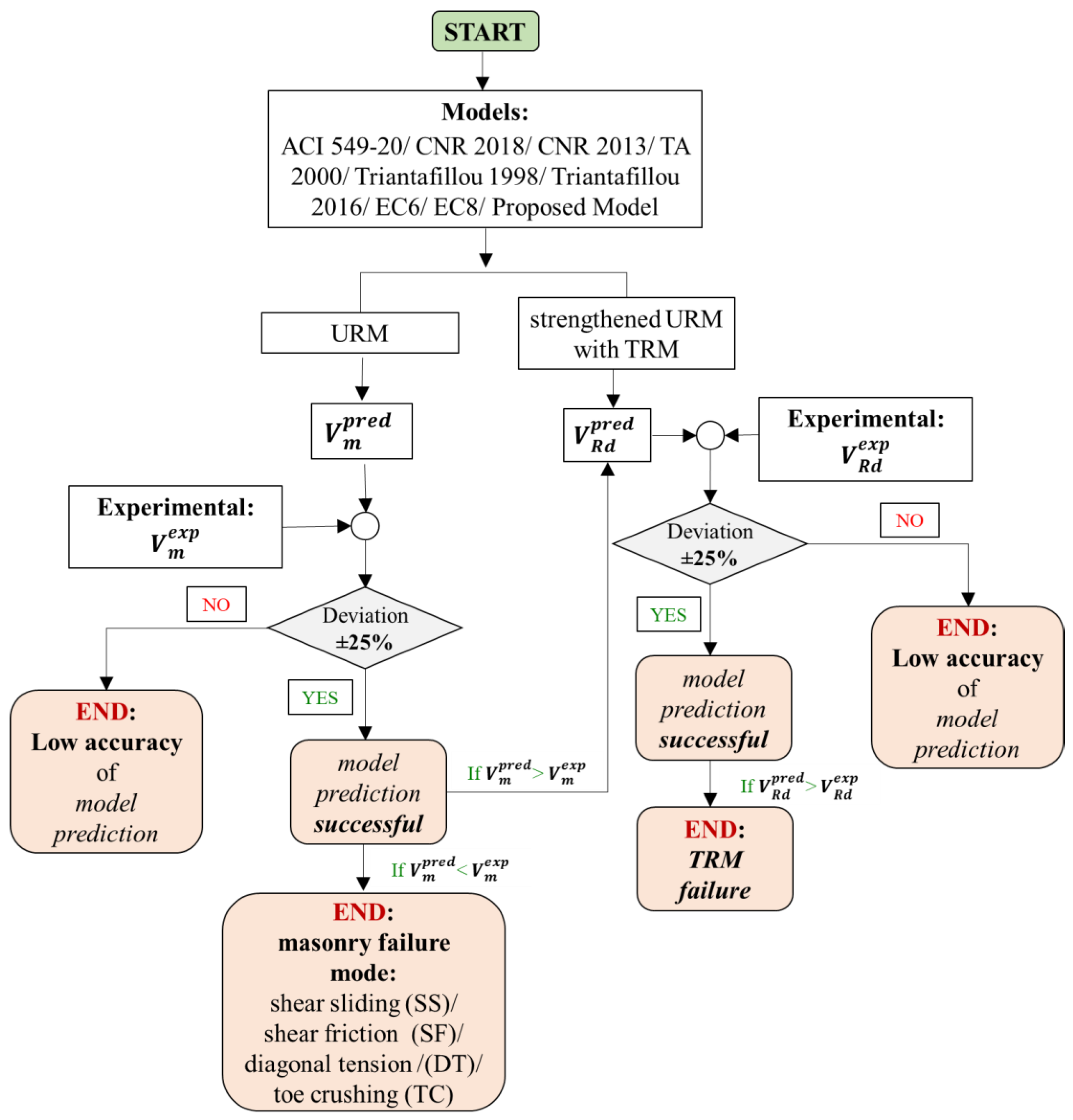

To examine the models’ accuracy within realistic ranges, a criterion of 25% convergence to the experimental observations was chosen. This means that the predictions do not over or underestimate the shear capacities, and hence, failure mode type. The simple algorithm shown in Figure 5 is followed to categorize the kind of failure mode of every prediction calculated using the models’ equations. The first condition that is examined is the comparison of the predicted shear strength of the URM (V_mpred) with the experimental (V_mexp). The failure mode derives from the condition that the predicted shear strength of the masonry substrate is lower than the experimental observation (V_mpred < V_mexp) within the same convergence range (25%). If the shear criterion is satisfied, the failure mode of the masonry substrate is categorized according to the agreement with the experimental observations and falls into the four characteristic modes (shear sliding, -SS; shear friction, -SF; diagonal tension, -DT; and toe crushing, -TC). Else, if V_mpred > V_mexp, the TRM system is damaged and leads to failure. The success of every model is defined as a percentage of the number of predictions that agree with the experimental observations.

Each prediction result for the retrofitted masonry shear capacity (V_Rdpred) is compared to the corresponding experimental shear strength taken from the database assembled (V_Rdexp). A deviation of 25% in terms of the experimental observation was used again as a success criterion of the predictions. If this criterion is not met, then the predicted failure mode presents low accuracy and is not taken into account. In the cases that the deviation criterion is met and the predicted total shear strength is lower than the experimental value (V_Rdpred < V_Rdexp), then the model is considered accurate.

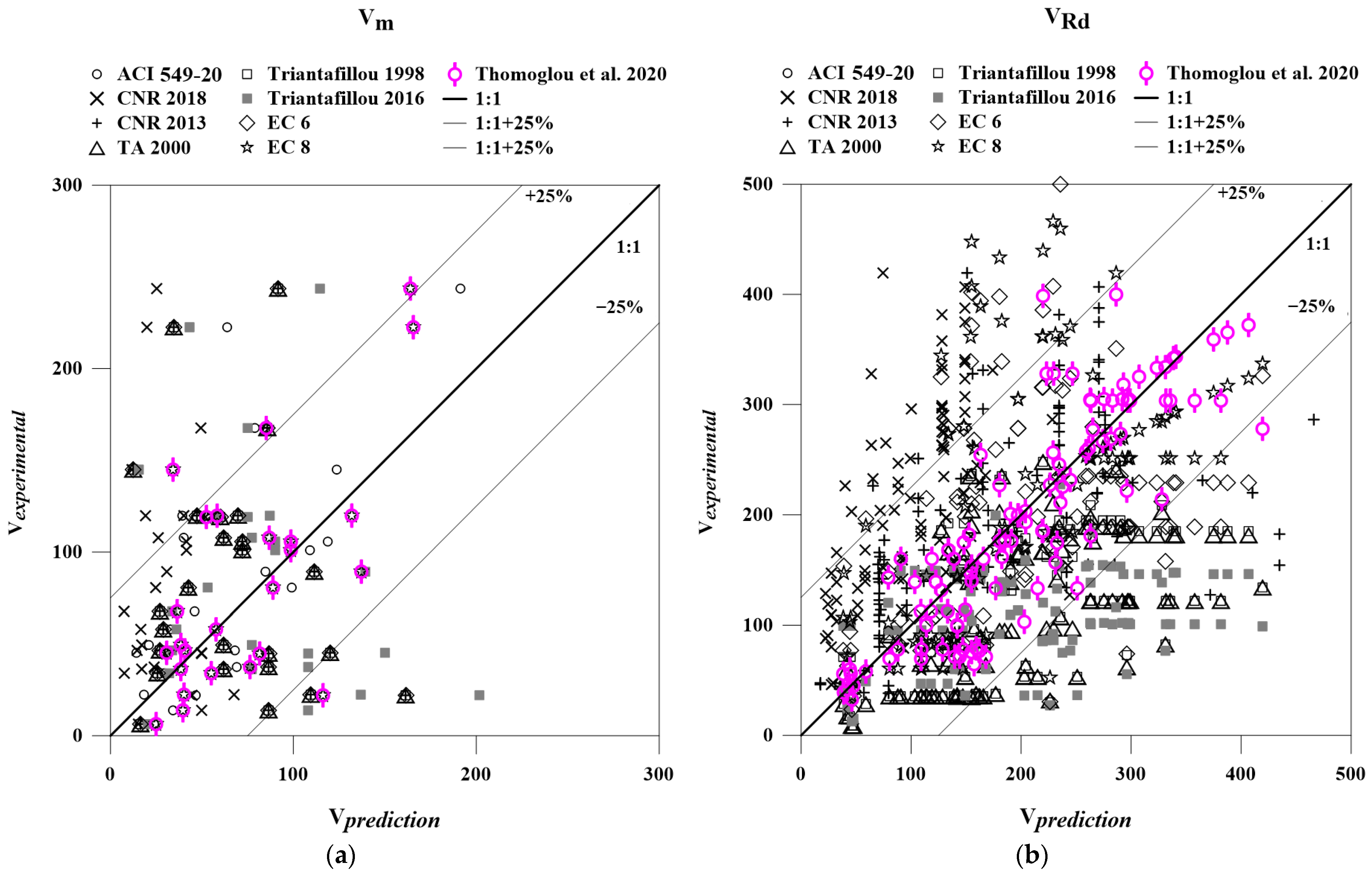

The results regarding the predictions of the shear resistance and the failure modes given by the examined regulations and models are presented in the comparative scattering plots (Figure 6). In order to classify the most accurate model for the shear strength of the non-strengthened masonry substrate units (Figure 6a) and of the URM walls retrofitted with the TRM jacket (Figure 6b), scattering plots are used. In these plots, the horizontal axis refers to the predictions, whereas the vertical axis refers to the experimental shear strength. The significance line (ideal estimator) is also plotted, which is known as the identity line. The identity line has a slope of 1, meaning that it forms a 45-degree angle with the horizontal and vertical axis. If the majority of the observations are located below the ideal estimator, this means that the designed models’ predictions of shear strength are greater than the experimental values. As such, the designed models or regulations overestimate the shear strength. In contrast, if the data emerge above the ideal estimator, the design models’ predictions are considered to be conservative. Two more lines are plotted, representing a 25% convergence to the ideal estimator. It is noted that most of the data are included in the range that the two lines create, which means that, in most cases, the predictions estimate the shear strength with an accuracy of ±25%. This level of accuracy is considered desirable since the predictions neither overestimate nor underestimate the shear strength.

The predictions of the CNR-DT 215 2018 [2] design guideline can be considered conservative since the majority of observations were above the ideal estimator (see the X point symbols in Figure 6). On the contrary, the predictions of Triantafillou’s (2016) [3] model, noted with grey solid square point symbols in Figure 6a, seem to overestimate the shear strength of the non-strengthened URM. The predictions of the proposed model are noted with the magenta color point symbols and coincide totally with Eurocodes 6 and 8 [7,8] (denoted as EC6 and EC8, respectively) since the prediction equation is common, presenting the highest accuracy level of all. The model of ACI 549-20 [1] follows in terms of accuracy (see the hollow circles).

The highest level of accuracy regarding the shear resistance of the retrofitted masonry walls is yielded by the proposed model (also see Figure 6b and the magenta point symbols), presenting the smallest deviation from the significance line. The Italian code provisions of CNR-DT 215 2018 [2] are the most conservative. The predictions of the three models of Triantafillou and Antonopoulos (2000) [6], Triantafillou (1998) [5], and Triantafillou (2016) [3] are marked with triangular, square, and solid grey square point symbols, respectively. These three are the less conservative models since an important percentage of the experimental observations presented much lower values in terms of the total shear capacity of the retrofitted URM walls. The predictions of EC 6 and 8 present the same deviation trend from the significance line, noted with rhombus and star point symbols. The proposed models’ predictions not only lay within a smaller limit deviation (±10%) from the ideal estimator but are also closer to the significance line with respect to all other models, denoting their reliability.

The success of the predictions for every masonry wall with different substrates (brick, cement, and stone) retrofitted with various TRM strengthening jackets, e.g., glass or carbon, is presented in Figure 7a. It is observed that the three most successful models for predicting the failure patterns of all the retrofitted masonry walls are the proposed model, Eurocodes 6 and 8 [7,8], presenting 62%, 29%, and 25% success rates, respectively. This means that the proposed model is more accurate than any other existing design model, presenting from 37% to 64% better accuracy in terms of predictions, irrespective of the failure mode type. For the case of the URM with the brick substrate (vertically striped bars) strengthened with different TRM systems, the most accurate predictions are that of Eurocode 8 [8] and the proposed model. The success was 62% and 43%, respectively.

The success level of the proposed model was higher, ranging from 19% to 60% when compared to the rest. For the examined brick masonry walls strengthened with GTRM, 89% of them presented with a failure in the retrofitted system and none of the four characteristic failure modes in terms of the masonry substrate. The GTRM systems exhibited rupture failures, debonding of the grid, or diagonal tension cracking in the mortar layer.

The transmission of failures from the brick interface to the retrofitting jacket denotes that through the shear mechanisms and the capacity of the mortar to bear tensile strains, the stresses are transferred to the composite grid component of the strengthened wall. The proposed model’s success heavily relies on the fixed tensile strain values agreeing with the transition point (ε_tm = 0.055%), which is the limit of the first crack in the mortar layer. What is more, the contribution of the TRM system calibrated with the factor k (Table 1) is proven to be essential for the success of the predictions.

Similar to the failures of the GTRM system, 52% of the brick masonry walls strengthened with the CTRM system presented three different types of failures: rupture, grid slippage, and the debonding of the composite layer due to loss of adhesion [50,51,52,53,54]. Premature debonding failures of carbon fiber polymer materials have also been obtained in reinforced concrete structural members under shear loading [55,56,57]. The other 48% of the examined specimens failed in the masonry substrate, presenting with toe crushing and diagonal tension damages in the brick units [58,59,60,61].

Similar to the GTRM systems, the proposed model uses a fixed strain value for the transition point of strengthening mortar strain (ε_tm = 0.112%). The CTRM systems exhibit an increased value of factor k, meaning that after the extensive cracking of the mortar beyond the transition point (ε_tm), the carbon fiber grid develops tensile resistance, contributing to the shear resistance of the strengthened wall at a greater level than glass.

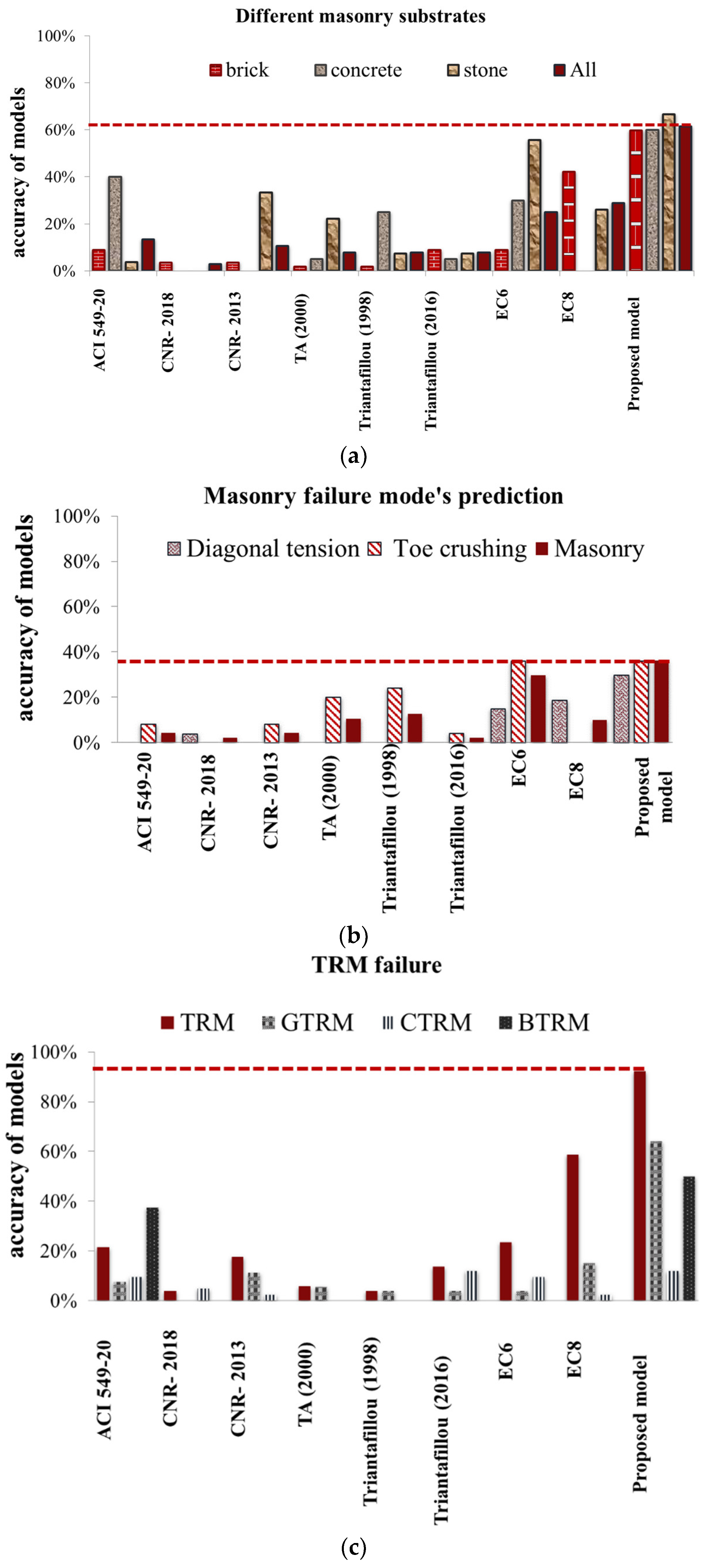

The results regarding the success of the prediction of the shear resistance and the failure modes given by the examined regulations and models are also presented in the bar charts of Figure 7. The accuracy of the model in terms of retrofitted masonry walls made of concrete units is shown with the grey bars in Figure 7a, as produced from the statistical analysis [62]. The two most successful models are the proposed model and ACI 549-20 [1], which predicted failure patterns with 60% and 40% accuracy, respectively. The models of Eurocode [7] and Triantafillou (1998) [5] follow with lower success levels of 30% and 25%, respectively. The fundamental similarity of the two most successful models relies on the ability not only to predict the shear strength of the wall but also to make a clear distinction in terms of the prediction of the kind of failure based on the shear capacity. Even though this distinction is also met in the Eurocode 8 [8] requirements, the ignorance of the mortar’s contribution to the shear resistance leads to great differences regarding the experimental results. The estimations of all models for the case of stone masonry walls retrofitted with various TRM jackets, the final failure mode of the wall is either a kind of failure of the TRM system or toe crushing of the stone units in the substrate. The mortar layer presents great integration with the existing stone substrate. The proposed model, by taking into consideration the mortar’s mechanical properties, inevitably presents a higher ratio of accuracy, reaching the value of 67%.

The provisions of the models are also categorized according to the masonry substrate failure modes, as illustrated in Figure 7b. Regardless of the material that the masonry units are made of and the type of failure that occurs in the wall substrate, two models provide better success in terms of predictions, and these are Eurocode 6 [7] and the proposed model, presenting 30% and 36% accuracy, respectively. It is noteworthy that the rest of the models present a very low percentage of convergence to the observed failure, ranging from 2 to 13%. The three models that differentiate the masonry failure mode types still do not show a high success level. From the four types of all masonry failures that are identified, only two types can be predicted, and these are diagonal tension (grey striped bar) and toe crushing (diagonally striped bar). It is observed that concrete masonry walls strengthened with the CTRM system and controlled by the toe-crushing failure mode are predicted with small accuracy. The reason that the proposed model presents a low success rate for this type of failure mode prediction is that concrete masonry walls are strengthened with CTRM, despite the fact that the number of specimens is small. As a result, the regulation for toe crushing coming from the EC8 model overestimates the shear strength and should be revised and calibrated. This leads to a low success rate for this type of failure mode and strengthening system.

Shear friction and shear sliding provisions are only provided by ACI 549-20 [1], with no convergence with the experimental results. The proposed model and Eurocode 8 [8] provisions consider shear friction and shear sliding as unique failure modes, and again, no convergence of the predictions with the experimental failures is met. The proposed model presents better success in predicting both diagonal tension and toe crushing; however, it is lower than 30% and 40%, respectively. Although the proposed model is based on the equations and theory of Eurocode 8 [8], the success is expected to be exactly the same for the masonry substrate, which is not met. The final failure mode prediction depends on both the shear strength of the masonry substrate and the retrofitted masonry wall. Given this fact, the proposed model presents better convergence to the shear capacity of the substrate and the strengthened wall; hence, its accuracy is higher than that of the Eurocode 8 [8] provisions.

Regarding the different types of failure modes, there is a small number of experimental results relating to masonry walls that are controlled by SS and SF failure modes in order to export accurate results. For this purpose, more experimental results need to evaluate the shear sliding and shear friction regulation. It is correct to propose new individual relationships for these two failure mechanisms. It is worth pointing out that for regulations CNR-DT 215 2018, CNR-DT 200 R1/2013, TA 2000, and Triantafillou 1998, the shear sliding, shear friction, and diagonal tension failure mode prediction are included, while for Triantafillou 2016 and EC6 model the shear sliding, shear friction, diagonal tension, and toe crushing failure mode prediction are included in masonry failure as a general failure mode. This leads to a large percentage of successful predictions without discerning the four different types of masonry in contrast to ACI 549-13, EC8, and the proposed models, which predict the exact failure mode of URM.

The accuracy of the prediction of the failure mode of the TRM jackets using existing regulations and models is presented in the chart of Figure 7c with different bar patterns. The existing design models generally predict the TRM and do not fall into a particular category; thus, TRM failure is considered to be a distinct type of failure mode. The most accurate predictions are given by the expressions of Eurocode 8 [8] and the proposed model, providing 59% and 92% accuracy, respectively. It is obvious that the proposed model provides better success than any existing regulation, while the ACI 549-20 [1] model partially follows in terms of accuracy. Indeed, there is a general design prediction of TRM and no specific predictive relation for the delamination, rupture, or slippage of TRM. Nevertheless, the proposed model is able to predict the TRM failure mode with great accuracy compared to existing models. Further experimental work is needed to confirm the obtained results and, in particular, to understand the shear stress transfer between the fibers in the cementitious matrix and the masonry substrate when increasing the number of TRM layers applied. It will also be important to evaluate the mechanical behavior of the strengthening material with respect to the intermediate debonding phenomenon weakness of the TRM masonry joints at the matrix–fiber interface. Simplified shear stress–slip relationships should be proposed to describe the behavior of the internal and external matrix layers, which can be used to investigate the stress transfer mechanism at the different matrix–fiber interfaces. This issue needs more investigations in the future to be clarified, and more research efforts should take place, specifically experimental campaigns, to solve this gap of knowledge.

Most of the predictions of GTRM systems agree with the experimental observations, especially for the predictions of the proposed model. The general trend is that for the CTRM system, the success of the predictions ranges up to 12%. The CTRM system, the model of Triantafillou (2016) [3], and the proposed one present accuracy equal to 12%, showing better success than the other regulations/models, which are accurate less than 10%. The low success rate for this type of strengthening system derives from the failure mode that controls the retrofitted wall. The dominant failure is met in the masonry substrate and corresponds to toe crushing, which is predicted with small accuracy in the majority of models. For the BTRM strengthening system, the proposed model and ACI 549-20 [1] equations are more successful in terms of predictions.

The proposed model is proven to be more accurate for the cases where the mortar used presents higher values of mortar tensile strain ε_tm. These values of tensile strains permit better collaboration between the substrate, mortar layer, and fiber grid. All of the above is taken into consideration in the model, which is multiplied by the factor k, denoting the shear transfer through the interfaces that leads to TRM failure.

5. Conclusions

Studying TRM strengthening systems as a form of seismic retrofitting means shifting the failure mode of URM walls from brittle to pseudo-ductile. The literature review covers masonry walls comprising three different substrates. A detailed database is assembled from the international literature containing t experimental observations taken from 128 tests applied to a matrix of fiber-reinforced cementitious mortar. The prediction of the URM walls’ shear performance is examined in terms of the failure modes exhibited.

The Eurocode 8 equations were the basis for the development of the proposed model, which considers the involvement of the mortar matrix in the stress allocation at the retrofitting layers and the shear failure modes of the retrofitted wall. The novelty of this proposed model is in the more accurate failure mode predictions for URM with TRM compared to the existing regulations and models, which consider the strains of the mortar at the transition point (ε_t1) and the debonding strains rather than the ultimate strain of the textile. What is more, the matrix strength is calibrated in relation to the substrate’s mechanical performance to predict if the failure happens in the substrate or in the strengthening system. The model’s provisions are compared not only to each specimen that is contained in the database but also to the provisions of the existing design/prediction models. The criterion of accuracy is ±25% convergence to the experimental observations, both for the shear failure mode of the masonry substrate as well as the retrofitted wall.

The preceding discussion shows that the proposed model also provides a fundamental advantage over other predictions and that it is a modified and improved expression of the Eurocode 8 provisions. The novel model predicts the type of retrofitted URM wall failure regardless of the material used in the substrate units and the TRM jacket, as well as the position of the failure. The model is calibrated based on the kind of materials; therefore, overall, it yields a successful prediction rate of 62%. In the cases where the masonry substrate fails, the provisions of the model are less accurate (30–40%), yet more reliable compared to the other examined models and also expand on the type of masonry failure mode (shear sliding, shear friction, diagonal tension, and toe crushing). TRM failure modes (delamination, rupture, or slippage) are not distinguished in any of the models. However, the estimations of the proposed model coincide by up to 90% with the experimental observations.

Further analytical and experimental research is essential to calibrate the predictions of the shear failure modes according to the existing substrate and retrofitting materials’ mechanical behavior. Great care must be given to the intermediate debonding phenomenon between the layers of the TRM strengthening systems. Specifically, focusing on the shear transfer mechanisms among the different matrix–fiber interfaces or the cementitious matrix and the masonry substrate can provide insight into reliable predictions for shear failure modes and act as a reference for design models.
