3.1. Morphology of Arundo Donax Fibers
In
Figure 1, the surface morphology of an
Arundo donax fiber is shown. As other lignocellulosic fibers, the cross-section morphology of
Arundo donax fibers is constituted by several fibrils (known also as fiber cells) along the fiber direction that are linked to each other by pectin and other non-cellulosic compounds [
25,
30], which act as a bonding matrix, thus forming a mechanically effective fiber bundle.
A morphological structure with vascular bundles can be clearly identified. The fiber cells are constituted by a non-regular-sized polygonal shape with a central hole, named the lumen [
25], that gives the bundle its lightweight morphology. In particular, by analyzing the micrograph reported in
Figure 1, it is possible to detail the morphology of the fiber cells’ structure.
Arundo donax fiber has large porous lumens with very wide and dispersed channels with a circular-type geometry along the preferential orientation of the fibrils. However, the channel size is not regular, with a wide dispersion in diameter. Furthermore, defects and heterogeneities can be evidenced on the structure. The high diameter size variation of fiber cells and lumens have a relevant effect on the physic-chemical and mechanical performances of the AD fibers [
30]. Concerning the application of
Arundo donax fibers as an oil spill remedy, a key point that needs to be addressed is therefore to assess the structure morphology and to relate it with the AD fiber performances to be able to effectively define the relationship between the structure and sorption performances of the AD fibers used as sorbent particulate. In such a context, the morphological peculiarity of being lightweight and the high internal porosity observed in the AD fibers plays a crucial role in the adsorption performances of the sorbent at varying oil pollutant present as environmental contaminants.
Arundo donax fibers show a porous orthotropic morphology with lamellar structure that identifies a preferential orientation and several interconnected pores, as observed in
Figure 1. Consequently, depending on the particulate size used as absorbent material, more or less regular morphological structures can be obtained. On this concern, samples belonging to three different sizes were analyzed. The AF-L (
Figure 2a) has a mean length and width size higher than 1500 μm and 500 μm, respectively. The morphology is characterized by circular channels of the fiber cells, with fibers regularly oriented along the fiber length. Some cell interconnections can be identified among the fibrils, obtaining a porous beehive-like inter-communicating structure. AF-M samples (
Figure 2b) are characterized by a mean length size is in the range of 1000 to 1500 μm. It is constituted by smaller
Arundo donax particles than the AF-L one. The cellular structure of the fibers, although a decreased channel size and amount is observed, is still preserved. However, considering the reduced width (~300–500 μm) a limited fiber cells interconnection occurred. In
Figure 2c, a micrgraphy of the AF-S sample is reported. The particulate sorbent is characterized by a mean length and width size lower than 1000 and 300 μm, respectively. The original beehive structure, clearly observed in AF-L samples, is completely destroyed. The lightweight structure of
Arundo donax fibers with large porous channels (subsequently to their low density) is drastically modified. Preferential oriented fibrils along the fiber length are still present, but the interconnected porous structure, due to the shredding step, was damaged, thus limiting its potential efficiency as a sorbate container.
3.2. Sorption Performances

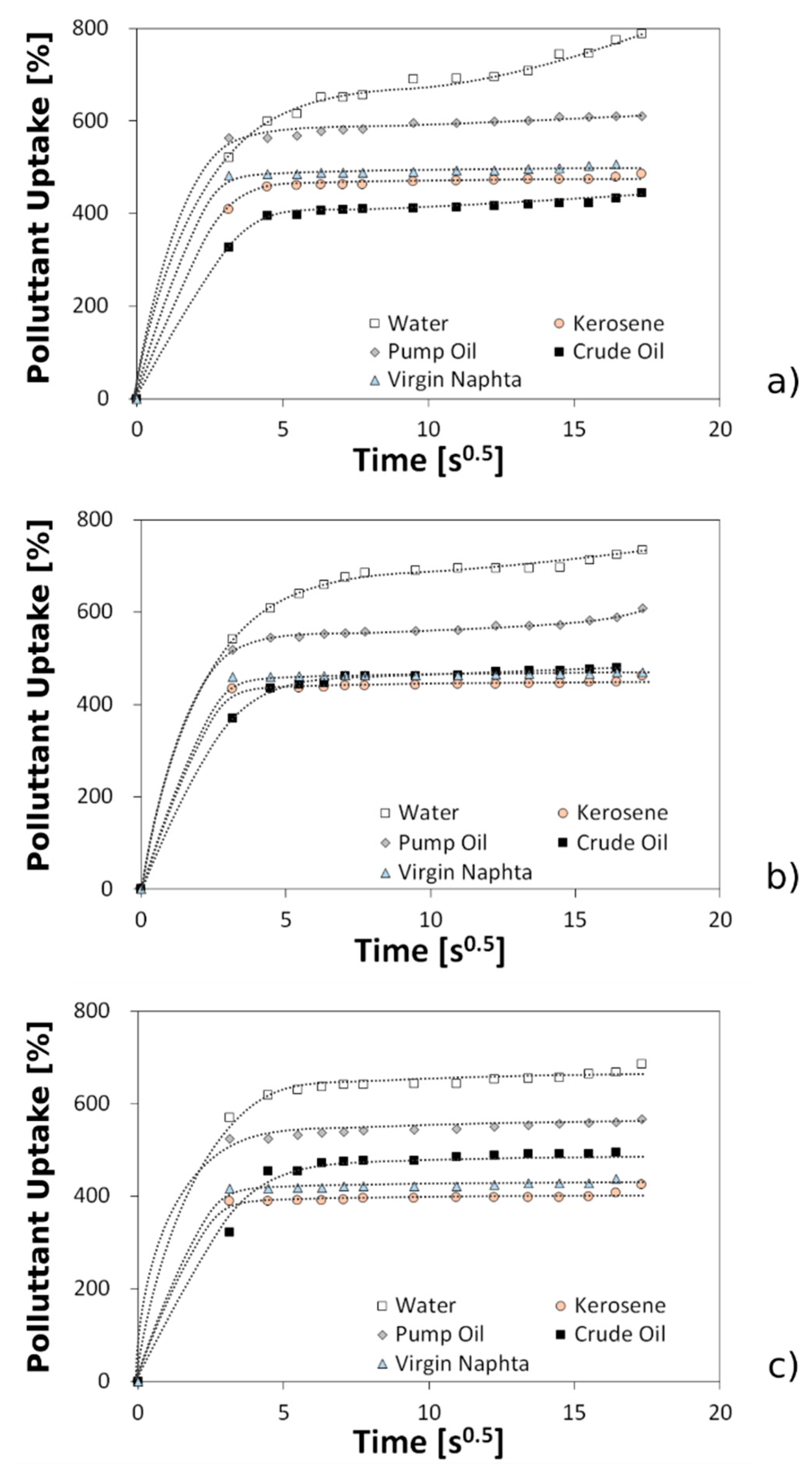

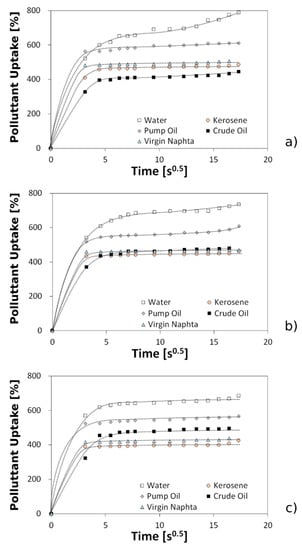

The sorption capacity evolution,
Qt (%), indicated as the pollutant uptake, at varying sorption time for all AD sorbent fibers for different oil pollutants is shown in
Figure 3.
All curves evidence a monotone trend with a progressive increase at increasing adsorption time until a constant weight at saturation is reached. In particular, three steps in the sorption evolution can be identified:
At first, at low sorption time (range 0–30 s), a rapid increase of the sorption capacity, due to a high sorption rate, can be highlighted.
Afterwards, at an intermediate sorption time, the pollutant uptake increases with a reduced sorption rate as confirmed by the low uptake versus time slope. This region occurs at different time ranges depending on the selected pollutant (rough range of about 30 to 60 s).
Finally, the pollutant uptake reaches a plateau, due to a stabilization of the sorption capacity, where an equilibrium condition occurs. In this stage, only a very limited increase in the sorption capacity takes place due to the reduced active sorbent sites available in the bulk and surface of the AD fibers for oil sorption and entrapment [
31].
By analyzing AF-L samples,
Figure 3a, high absorption performances at saturation were observed in the water and pump oil: 788% and 611%, respectively. Conversely, the lowest sorption capabilities were observed in the crude oil pollutant with a sorbate uptake at a saturation of 443%.
Progressively, at an increasing fiber size in the AD sorbent, the pollutant uptake appears to be apparently similar, although a slight deviation in trend can be found. For example, by analyzing the crude oil in the AF-L batch, the adsorption at saturation is the lowest than the other pollutants. Instead, kerosene and virgin nafta pollutant induced the lowest sorption capacity in AF-M and AF-S batches (in the range 460–470 for the AF-M batch and 425–435 for the AF-S batch.
This implies that the size of the fibers leads to an interaction modification of the material surface and bulk with each specific pollutant, thus affecting its adsorbent capacities. In order to better assess the effect of the sorbent fiber size on absorption performances,

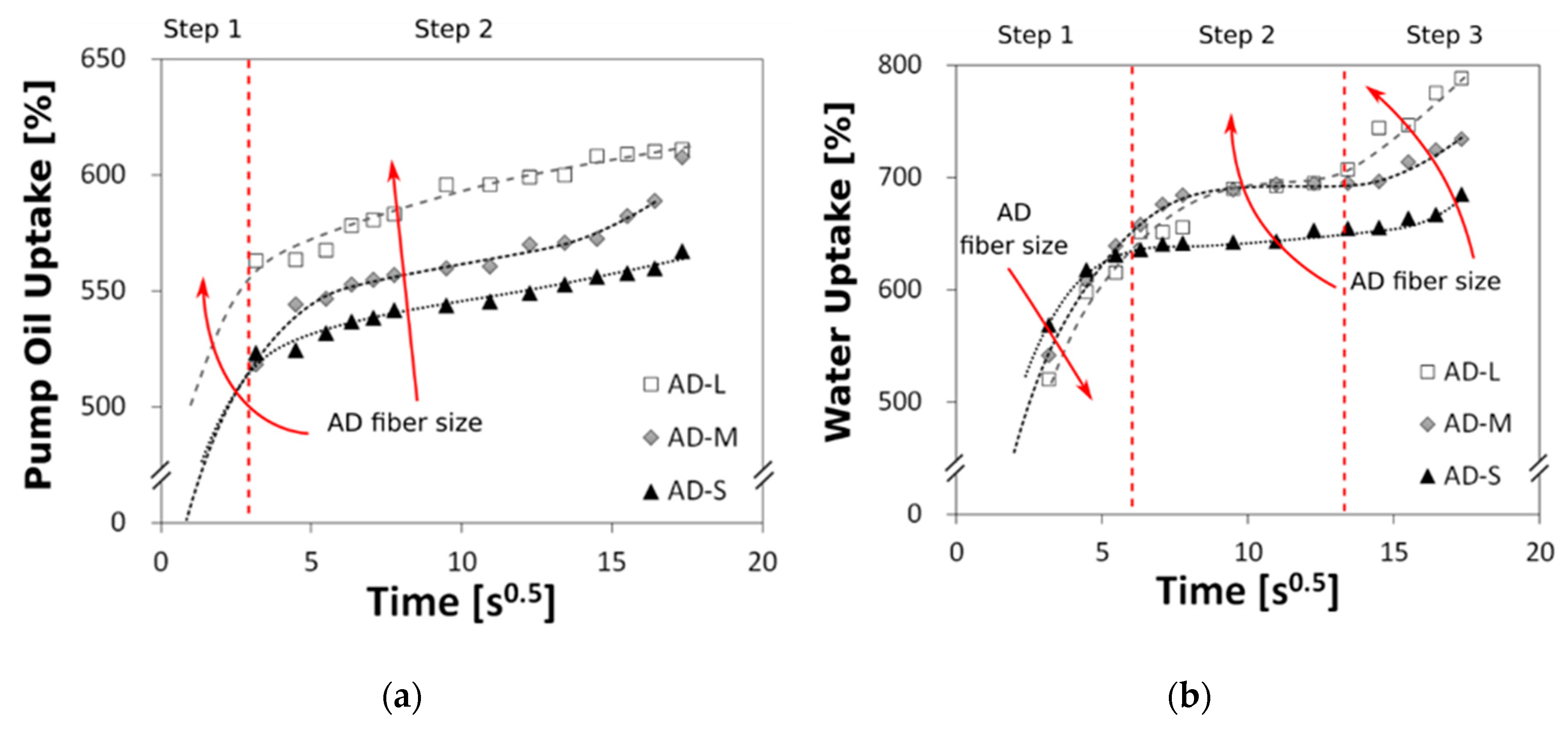

Figure 4 shows the uptake trend at increasing time for two reference liquids, at low and high viscosity: Pump oil and water, in
Figure 4a,b, respectively. The pump oil pollutant does not show a significant modification in the uptake trend at increasing particle size. Although, a difference in uptake at saturation can be evidenced. In particular, for an increasing AD fiber size, the pump oil uptake at saturation increases by about 10%, from 567 to 610 for AF-S and AF-L, respectively (step 2 in
Figure 4a). This discrepancy is also visible at a low sorption time, step 1 in
Figure 4a, where the AF-L batch preserves a relevant higher pump oil uptake compared to the AF-S one.
Different considerations can be extrapolated analyzing the sorption trend in water for Arundo donax fibers. It is worth noting that in water, several phenomena compete in the sorption process.
In particular, the initial phase (step 1 in
Figure 4b) is slight kinetically favored in small-sized AD fibers. Conversely, the water uptake at saturation (step 3 in
Figure 4b) is very high for the large-sized fibers. In fact, AF-M and mainly AF-L batches show a very extensive intermediate stage (step 2 in
Figure 4b), in which a slow but progressive increase in weight can be observed. This trend was not observed for AF-S specimens.
In summary, by analyzing the pump oil uptake trend at an increasing time, a bilinear trend can be identified. The initial phase at short times is associated with the rapid absorption phenomena that occurs thanks to a coupled action of mass transfer (i.e., transport phenomena from the pollutant solution toward the adsorbent surface) and intra-particle diffusion (i.e., diffusion phenomena toward the surface pores). The second phase can be identified when the uptake plateau occurs. In this stage, the absorption equilibrium is reached. This phase is identifiable by a quite horizontal straight line indicating the independence of the pollutant uptake percentage from time. In fact, as confirmed by Wahi et al. [
32] in their study on sago bark fiber waste for the removal of oil from palm oil mill effluent (POME), a saturation step is reached when the adsorption–desorption process that occurs at saturated sorbent surfaces takes place. They ascribed the quite constant oil removal to the limited availability of sorbent surfaces for oil entrapment. Compatible consideration can be argued for AD fibers. It is worth noting that
Arundo donax fibers, compared of sago bark fibers, are characterized by much faster adsorption kinetics and almost compatible adsorption values at saturation, assessing a more effective costs:benefits ratio.
Conversely, using water, a further intermediate step takes place. This step extends over a quite wide range (range: ~50–250 s). This stage can be related to the coupled action of two competing mechanisms: (i) The film diffusion, where the diffusion of the liquid film from the sorbent surface toward the fiber bulk occurs, and (ii) the surface interactions of the sorbent liquid on the active sites that gradually decreases, increasing the uptake.
Step 1 is relatively fast considering the rapid superficial absorption of the water and its diffusion on the superficial pores of the AD fibers. Instead, the intermediate stage (step 2 in
Figure 4b) is related to the diffusion of the adsorbate in the structural interconnected channels of the porous adsorbent fibers [
33].
The first phase, related to the pollutant interaction with the adsorbent, is influenced by the hydrophilic nature of AD fibers and is strongly favored for a large surface area. In such a context, the slope of the water uptake curve versus time is steeper as the smaller
Arundo donax fiber size. Afterward, step 2, which is the intermediate stage, can be linked to the diffusion of adsorbate within the microporosity of the AD fiber structure. A catalytic contribution could be offered by the tortuosity of the fiber surface that acts as an active site for oil adsorption enhancing sorption efficiency [
34]. As evidenced by the SEM images (
Figure 2), these interconnections are evident in large-shaped fibers. In fact, AF-L samples are characterized by a well-structured morphology with ordered fibrils and circular-shaped channel longitudinal to the fibrils’ direction. The large interconnection among these channels exalt the water sorption in this stage. Instead, the AF-S samples highlighted a very fine structure, comparable to the micro-fibrils’ size. Therefore, a large amount of the porous fibrillar structure has been significantly damaged or destroyed.
These considerations indicate that the sorption mechanism is influenced by the fiber morphology and its porous microstructure if preserved, especially during the sorption of high viscose oils. Al-Din et al. [
35] evidenced that the pores can make oil enter into the sorbent internal sections more easily, enhancing the sorption process and giving, in this way, a significant role to the sorption performance in oil spilling. Moreover, higher mean-sized samples (and consequently low density samples for the channels’ presence) increase and speed up the sorption capabilities of pollutants. Therefore, step 2 for small fibers (AF-S) is short and the water uptake saturation is rapidly reached, with a lower maximum adsorption level than the AF-L batch for which the liquid has spread inside the porous structure, thus increasing the adsorption efficiency per unit of weight.

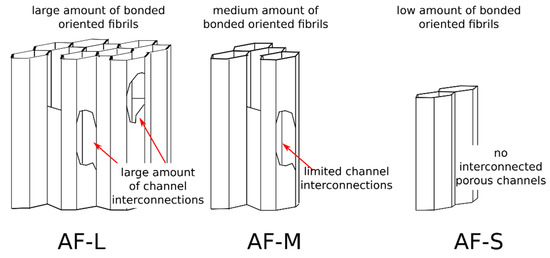

These considerations are summarized in
Figure 5. The AF-L batch is characterized, as reported in SEM images in
Figure 2, by a bamboo-like structure characterized by interconnected porous channels. These porous channels have a key role in the high sorption capacity of the material. In fact, adsorbed oil may fill them, enhancing the pollutant uptake. In the AF-M sample, the number of interconnection channels is limited, therefore the pollutant sorption is an obstacle toward the inner porous channels due to sub-optima mass transport. Therefore, the adsorption is mainly performed externally on the fibers’ surface. This aspect is drastically exalted in the AF-S batch, where the interconnection channels are completely absent and only surface interaction with the pollutant oil can take place.
In order to better compare the sorption capabilities’ evolution at varying pollutant and sorbent size,
Table 3 summarizes the equilibrium sorption capacity,
Se, at equilibrium time,
te, for all
Arundo donax fiber batches at varying pollutants. It is worth noting that in water sorbate, all AD fibers are able to guarantee high sorption performances, with
Se values in the range of 788% to 684%, with the highest value for the AF-L batch. Furthermore, a very high equilibrium time,
te, can be highlighted. This indicates a good interaction of
Arundo donax fibers with water, thanks to a surface hydrophilic behavior. At the same time, as previously discussed, the intra-particellar diffusion of low viscosity liquid takes place at a long sorption time. That extends the sorption stabilization at longer times in low viscosity sorbate liquids. Instead, with oil pollutants, the sorption capacity is lower than with water liquid coupled to a low equilibrium time, indicating that a fast sorption saturation condition is reached.
All samples showed an equilibrium time,
te, in the range 13–80 s, significantly lower than water (270–290 s). In particular, all the investigated samples showed a good affinity with pump oil, revealing among the analyzed oils, the highest sorption capacity. In particular, the AF-L sample reached 610.9% of the saturation sorption capacity, approaching the result obtained in water even if in less than a third of time. Conversely, AF-S evidences the highest equilibrium sorption value, among the other samples, in crude oil (517.9%). This behavior could be related, probably to the high density and viscosity, 890 kg m
−3 and 0.27 Pa s, respectively [
36], of the crude oil compared with the other pollutant oils. Due to the peculiar characteristics of the crude oil, its diffusion in interconnected channels is limited and the adsorption is, therefore, mainly ascribed to the superficial interaction of the fiber with the pollutant. Instead, in high viscosity oil, the pollutant sorption is favored on smaller sizes and fewer channel AD fibers (such as the AF-S batch) than those with more interconnected channels and a larger particulate size (such as the AF-M and AF-L batches).
Instead, for lighter and less viscous pollutants (i.e., kerosene and virgin naphtha oils), the liquid diffusion toward the interconnected channels is favored. Thus, it is confirmed by analyzing the performances of AF-L sample that shows a high equilibrium sorption capability in these liquids. The surface interaction of the fiber with the pollutant liquid have a relevant role on sorption performances. As indicated by Dong et al. [
37], the wettability of the surface with the sorbate liquid determines specific sorption mechanisms. In particular, three conditions can be schemed: (i) A bad wettability and adhesiveness oil fiber can lead to an easy loss of oil drops from pores of fibrous filter with subsequent low sorption capabilities; (ii) for intermediate wettability and weak adhesiveness, oil droplets are attached to the fiber surface. Although, due to a sub-optimal adhesion, they can be easily detached, limiting the sorption capabilities; (iii) finally, if the fiber presents high wettability and excellent adhesion properties, oil droplets can be captured and adsorbed by the fiber. In these conditions, the higher sorption capabilities can be forecasted if the liquid–fiber surface interaction is the driving force in the sorption mechanism.
Further information can be acquired by evaluating the sorption performances of AD-sized fibers at varying pollutant viscosity. In this concern, a dimensionless parameter that relates the sorption performances with fiber size was defined (coded as ESS—effect of sorbent size) as in the following:
where
mL is the sorption capacity (%) of the AF-L AD fibers at a specific pollutant.
mi is the sorption capacity (%) in the same pollutant of AF-M or AF-S batches, obtaining the ESSM and ESSS parameter, respectively. A negative
ESS value indicates that the sorption capacity of the large-sized AD fiber is higher than the smaller one. Therefore, with high or low values, this parameter indicates a relevant contribute of the fiber size on the adsorption performances of the AD fibers in the specific pollutant.

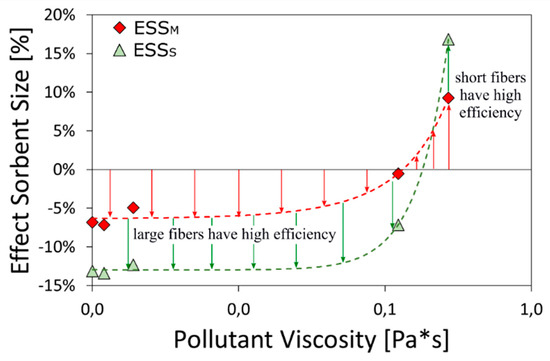

Figure 6 compares the evolution of the ESSM and ESSS indices at an increasing pollutant viscosity. It is possible to evidence a monotonous trend, with a progressive growth of ESSM and ESSS values at increasing liquid viscosity. In particular, the index has a negative value in low viscosity pollutants. Afterwards, it progressively increases until a positive value is reached for liquids with a viscosity higher than about 0.2 Pa s. These results indicate that in low viscosity oil pollutants, the large-sized fibers have a higher sorption efficiency than the small-sized one. On the other hand, in high viscosity liquids, short AD fibers are more effective in sorption, showing higher adsorbent performances than long fibers. This behavior can be related to the
Arundo donax fiber microstructure and the relative surface interaction with the liquid used as adsorbate. The presence of the structural porosity in the lumen and interconnected channels among the fibrils, as in the case of the AF-L batch, have a key role in the process. This morphology allows enhanced sorbent capabilities in low viscous liquids, where the mass flow into the porous fiber bulk is kinetically favored. Therefore, due to the low viscosity of the oil pollutant, a large amount of the internal channels can be imbibed, increasing the sorption efficiency of the natural fibers. In fact, the ESSS index is about −15% compared to ESSM, which is approximately one-third lower (ESSM ~−5%), confirming the larger effectiveness of large-sized fibers on pollutant uptake.
On the other hand, for high pollutant viscosity, the mass diffusion toward the inner part of the fiber is significantly inhibited. The surface interaction can be considered as the main driving force in the sorption phenomenon. The AF-S batch, characterized by short-sized fiber with a subsequent large surface area, allows a higher sorption capacity than long-sized fiber batches. Considering that micro channel diffusion of pollutants is avoided in high viscous liquids, AF-L samples showed ineffective capabilities in these conditions. That occurs, as previously discussed, because of the low ability of large-sized fibers to host the adsorbed pollutant oil in their intrinsically interconnected porosity, limiting their sorption efficiency. In
Figure 7, the high selectivity in the pump oil of AD fibers is shown. In
Figure 7a, crude oil drops are poured into the water. Afterwards, the sorbent fibers, located in a plastic bag, are put into the contaminated beaker (
Figure 7b). It is worth noting that after a few seconds, the sorbent material is dipped out and the crude oil drops clearly disappear (
Figure 7c), remaining trapped in the adsorbent fibers (
Figure 7d) and the water is cleaned up (
Figure 7e).
This experimental evidence clarifies that although the AD fibers have a relevant adsorption capacity in water (
Figure 3), the diffusion kinetics in oil pollutants is higher than in water, as identifiable by evaluating the shorter equilibrium time found in oil pollutants than in water solution (
Table 3). Therefore, when fibers interact with a mixed oil–water solution, the fibers will be rapidly impregnated by oils, inhibiting kinetically the possible adsorption of water. As shown in
Figure 7,
Arundo donax fibers feasibly enabled the water to be decontaminated from crude oil in a few seconds. The results indicate a suitable adsorption efficiency (in terms of pollutant uptake speed) and oil selectivity. These two factors represent an effective and reliable precondition for the use of these natural fibers on the industrial scale for oil spill recovery, thanks also to the cheapness of the sorbent material, which can offset the sub-optimal adsorbing performance with respect to some new emerging materials [
36,
38,
39]. According to [
40], natural fibers are characterized by an acceptable sorption efficiency and capacity for different kinds of oil. Furthermore, these materials have been identified as promising fibers due to all advantages of agricultural wastes coupled to the high resistance, which exalt their stability and durability during its use.
3.3. Morphological and Structural Aspects of Oil Spill AD Materials
The morphology and microstructure of the natural fiber has a relevant role on the adsorption process of adsorbent materials. Surface asperities and local porosity are required to favor oil adsorption and trapping. The porosity size and distribution have key roles in the adsorption capacity of the sorbent material. Baker et al. [
41] evidenced that the water selectivity of a membrane is related to the microstructure and chemistry of the material. Piperopoulos et al. [
38], examining carbon nanotubes sponges for oil recovery applications, defined the sorption mechanism on porous structure in three main steps: (i) Oil molecules diffuse from bulk liquid and wet the sorbent; (ii) at the same time, physical (van der Waals forces between adsorbate molecules and the adsorbent surface) and/or chemical interactions take place, (iii) increasing the sorption time; liquid diffusion occurs with difficulty due to the limited hydrophilic or oleophilic (depending on the pollutant) active sites, not filling the internal micropores.
Analogously, Alaa El-Din et al. [
35] ascribed the effective sorption performances of banana fibers to the irregular morphology and porous surface of the banana peels. The pores can promote the diffusion of oil toward the internal parts of the material more easily, thus favoring the sorption process.
On the other hand, Abdelwahab et al. [
40] indicated that the oil adsorption capacity of palm fibers waste can be described as a single mechanism due to the monolayer coverage of the pollutant around the natural fiber, indicating that these fibers as excellent biomaterials for the removal of oil from aqueous environments.
The natural surface roughness of green adsorbent materials is an added value for this kind of application. Cui et al. [
42] investigated adsorption phenomena on cattail fiber sorbents. They assessed that oil sorption evidenced by these natural fibers can be identified by combining different mechanisms, i.e., oil adsorption by interactions with waxes on the fiber surface and adsorption by physical trapping on the irregular fiber surface. Furthermore, the surface roughness and the open porous structure of the cattail fibers provide the high surface area able to guarantee suitable oil trapping.
Based on the previous remarks and on the supposed approaches, more competing adsorption stages could be recognized for Arundo donax sorption mechanism:
- I
Mass flow towards the fiber bulk (external mass transfer and film diffusion);
- II
Liquid diffusion toward the inner part (intraparticle diffusion).
For water adsorption, there is a further intermediate stage:
- III
Surface interaction on active sites and film diffusion.

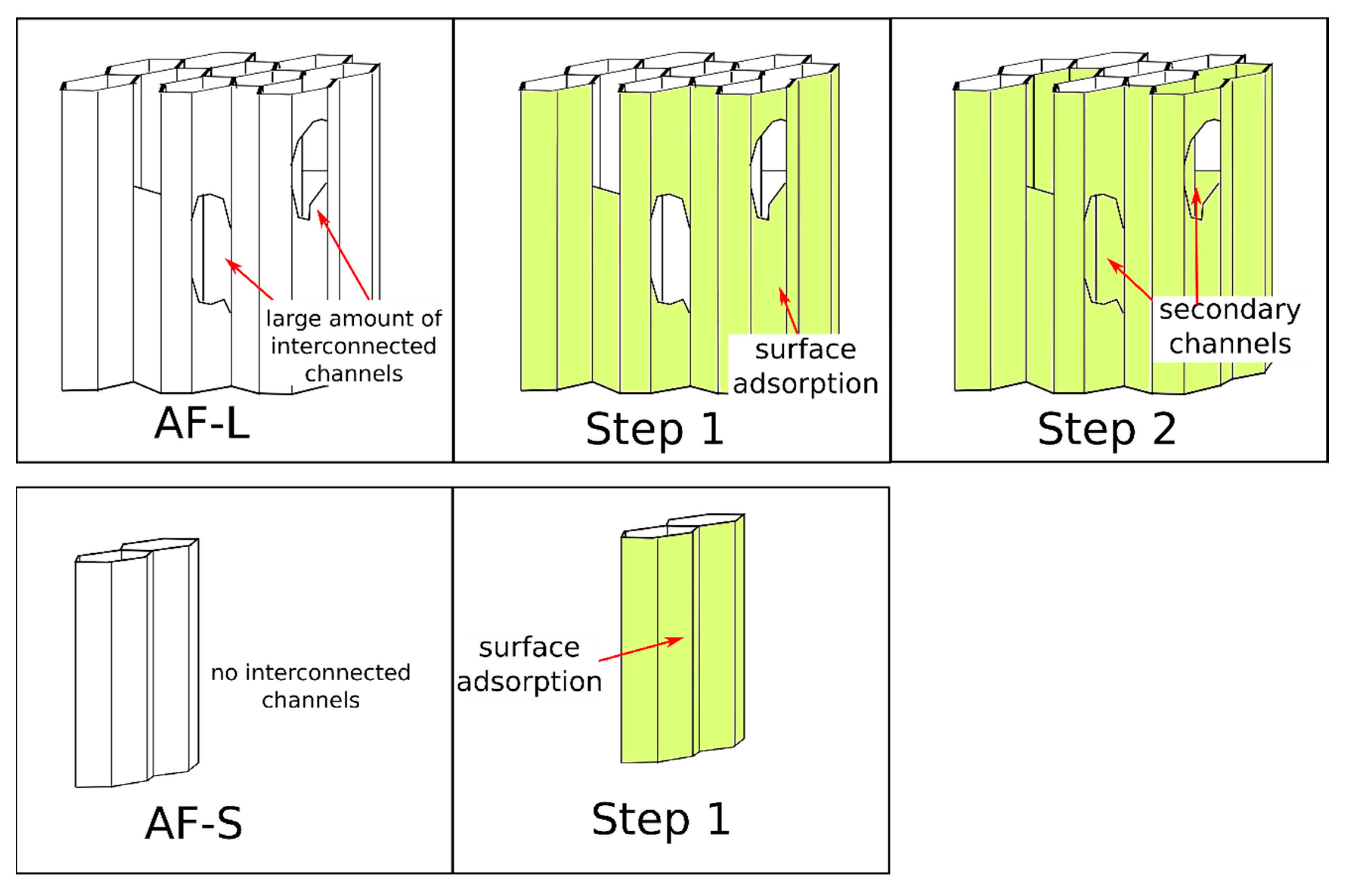

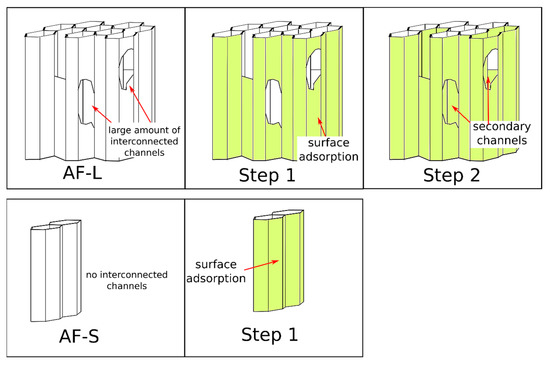

Based on this scheme, evaluating the oil adsorption process in AF-L fibers, an intra-particle diffusion mechanism can be indicated as the rate limiting factor of the sorption process, and instead external mass transfer is generally rapid. So, in step 1, as represented in
Figure 8, oil molecules diffuse from the bulk liquid and soak the AD sorbent. Subsequently, in step 2, oil diffusion into sorbent micropores takes place (
Figure 8, step 2), increasing the oil sorption capacity of the AD fibers [
42]. Instead, for the AF-S sample, the interconnection in the porous channels of the fibrils are almost absent. Therefore, the adsorption mechanism is carried out mainly by a single step (
Figure 8, step 1) and saturation occurs more quickly (
Table 3). In water, the first stage is fast, due to the superficial adsorption and the subsequent diffusion on the superficial pores. The intermediate stage is described by the water diffusion from the sorbent surface toward the fiber bulk and the surface interactions on the active sites.
These preliminary results evidenced good potential applicability of this type of green adsorbents in oil recovery application, indicating a suitable interaction with large common oil pollutants. Certainly, further research developments are required in order to better relate the adsorption performances with the microstructure of the AD fiber. In addition, the assessment of the adsorption kinetic can represent a benefit in terms of an improved knowledge of the phenomenon to better discriminate the applicative value of these natural fibers.
In order to fill the gap compared to the other classes of materials currently in use for oil spill recovery, greater selectivity towards oils and absorption capacity are welcome, always preserving the environmental sustainability of the improved solutions. Therefore, the obtained results represent a stimulus aimed at enhancing this class of materials in unconventional application fields, such as oil spill recovery, allowing the use of a biodegradable, ecofriendly, and safe materials on this environmentallly sensitive application.
