Field-Deployable Recombinase Polymerase Amplification Assay for Specific, Sensitive and Rapid Detection of the US Select Agent and Toxigenic Bacterium, Rathayibacter toxicus

by
Mohammad Arif
1,2,3,
Grethel Y. Busot
2,3,4,
Rachel Mann
3,5,
Brendan Rodoni
3,5,6 and
James P. Stack
2,3,*
1
Department of Plant and Environmental Protection Sciences, University of Hawaii at Manoa, Honolulu, HI 96822, USA
2
Department of Plant Pathology, Kansas State University, Manhattan, KS 66506, USA
3
Plant Biosecurity Cooperative Research Centre, Canberra, Australia
4
Inari Agricultural Inc., One Kendall Square, Cambridge, MA 02139, USA
5
Department of Economic Development, Jobs, Transport and Resources, Biosciences Research Division, Bundoora, VIC 3083, Australia
6
School of Applied Systems Biology, La Trobe University, Bundoora, VIC 3086, Australia
*
Author to whom correspondence should be addressed.
Biology 2021, 10(7), 620; https://doi.org/10.3390/biology10070620
Submission received: 18 May 2021 / Revised: 15 June 2021 / Accepted: 30 June 2021 / Published: 3 July 2021
(This article belongs to the Section Microbiology)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Early, accurate, and rapid detection of R. toxicus is extremely important to improve inspections of imported annual ryegrass hay and seed at ports of entry and enhance in-field detection. RPA is a comparatively new, easy to use, and robust technology that can be performed in the palm of the hand without losing specificity. The RPA assay was more sensitive than endpoint PCR and did not require lab equipment in the field. The developed assay has tremendous applications for in-field plant diagnostics and biosecurity surveillance.

Abstract

Rathayibacter toxicus is a toxigenic bacterial pathogen of several grass species and is responsible for massive livestock deaths in Australia and South Africa. Due to concern for animal health and livestock industries, it was designated a U.S. Select Agent. A rapid, accurate, and sensitive in-field detection method was designed to assist biosecurity surveillance surveys and to support export certification of annual ryegrass hay and seed. Complete genomes from all known R. toxicus populations were explored, unique diagnostic sequences identified, and target-specific primers and a probe for recombinase polymerase amplification (RPA) and endpoint PCR were designed. The RPA reaction ran at 37 °C and a lateral flow device (LFD) was used to visualize the amplified products. To enhance reliability and accuracy, primers and probes were also designed to detect portions of host ITS regions. RPA assay specificity and sensitivity were compared to endpoint PCR using appropriate inclusivity and exclusivity panels. The RPA assay sensitivity (10 fg) was 10 times more sensitive than endpoint PCR with and without a host DNA background. In comparative tests, the RPA assay was unaffected by plant-derived amplification inhibitors, unlike the LAMP and end-point PCR assays. In-field validation of the RPA assay at multiple sites in South Australia confirmed the efficiency, specificity, and applicability of the RPA assay. The RPA assay will support disease management and evidence-based in-field biosecurity decisions.

1. Introduction

Annual ryegrass toxicity (ARGT) is a fatal disease of livestock caused by a toxin produced by the plant-pathogenic bacterium Rathayibacter toxicus [1,2,3,4,5]. Outbreaks of lethal toxicoses in livestock and horses that graze on infected plants have been reported in South Australia and Western Australia for over fifty years, with hundreds to thousands of animal deaths in each outbreak [1,6]. Rathayibacter toxicus may have been introduced into South Africa in ryegrass hay or seed from Australia; lethal toxicoses in South Africa resulted, affecting sheep in the original outbreaks in 1980s and horses more recently, from 2009 to the present [6,7]. The R. toxicus bacterium is vectored by nematode species in the genus Anguina; Anguina funesta is the primary vector for R. toxicus in annual ryegrass (Lolium rigidum) [8,9,10]. Rathayibacter toxicus causes gummosis diseases on annual ryegrass and other grass hosts in the Poaceae family [1]. The presence of plant host species and favorable climatic conditions in the United States suggest that R. toxicus is an animal health and economic threat to vulnerable U.S. livestock industries and, hence, was designated a U.S. Select Agent (https://www.selectagents.gov/sat/list.htm, accessed on 17 May 2021).
Early detection and accurate identification of the pathogen is a prerequisite for preventing dissemination to other geographical regions within and/or among states/countries. Recently, Yasuhara-Bell and Stack [11] developed a LAMP assay matrix to discriminate all five populations of R. toxicus, to be used in conjunction with a generic LAMP assay developed by Arif et al. [12]. Luster et al. [13] also develop immunoreagents for detection of R. toxicus. At present, there is no validated field-deployable detection method for R. toxicus to support biosecurity surveillance, export certification, and outbreak response. Arif et al. [14] developed multiplex TaqMan and endpoint PCR assays to specifically detect and discriminate R. toxicus. However, polymerase chain reaction (PCR)-based methods require sophisticated and expensive equipment and are not practical for field application [15]. Recent advancements in isothermal amplification technologies have provided pathogen detection tools with high sensitivity and rapid assay results—ideal attributes for applications in biosecurity and point-of-care diagnostics [16]. Numerous isothermal methods, including LAMP [17], strand displacement amplification (SDA) [18], helicase-dependent amplification (HDA) [19], nicking enzyme amplification reaction (NEAR) [20], rolling circle amplification (RCA) [21], and recombinase polymerase amplification (RPA) [22], are available. LAMP is the most popular among these isothermal methods [23,24] but has some drawbacks, including complex primer design and a high reaction temperature (65 °C) requirement [25]. In recent years, RPA has become more popular because of its low sensitivity to PCR inhibitors commonly found in environmental matrices (e.g., plant tissues), high target signal sensitivity, and moderate temperature (37–39 °C) requirement for amplification [26,27]. Importantly, results can be visualized on lateral flow devices (LFDs) in less than five minutes [26,27]. Unlike LAMP, RPA protocols only require two long primers (forward and reverse) of approximately 32–35 bp in length and a probe of approximately 48–52 bp. Recently, a multiplex RPA assay, coupled with LFDs, was developed by Larrea-Sarmiento and co-workers [16] for the specific detection of Clavibacter species, widely prevalent Gram-positive plant-pathogenic bacteria. They too demonstrated that RPA reactions can be performed in a closed-hand palm without the need for lab equipment. RPA reactions have high target specificity and sensitivity, low sensitivity to amplification inhibitors, and rapid generation of the target amplicon within 10 min [16].
Interpretation of diagnostic assay results is dependent upon inclusion of appropriate positive and negative (non-template) controls; confidence in the conclusions drawn from those results can be substantially enhanced by the inclusion of internal controls in each reaction tube [14,28]. For in-field detection of plant-associated microbes, the addition of controls that target the host genome enhance confidence in the DNA preparation procedures [26], especially when dealing with plant tissues containing high concentrations of amplification inhibitors [29]. The objective of this research was to develop a genome-informed, reliable, sensitive, and accurate RPA assay to specifically detect the U.S. Select Agent bacterium, R. toxicus, from pure cultures in the lab and from infected plant materials in the field to support routine diagnostics, biosecurity surveillance, disease outbreak response, and epidemiology research.

2. Materials and Methods

2.1. Source of Cultures, Infected Plant Samples, and DNA Isolation

Rathayibacter toxicus strains were isolated from infected annual ryegrass samples collected from South Australia and Western Australia in 2013 and 2014 [30] (Table 1). Some strains of R. toxicus and other Rathayibacter species were obtained from independent culture collections (Table 1). The closely related species R. agropyri, R. rathayi, R. iranicus, and R. tritici were included in the exclusivity panel (Table 1). Strains were grown on 523M medium [3] and genomic DNA was extracted using the DNeasy Blood & Tissue Kit (Qiagen, Valencia, CA) following the manufacturer’s instructions. DNA from plant samples was isolated using Plant Material Lysis Kits (OptiGene, West Sussex, UK) as per the manufacturer’s instructions. DNA concentration was determined using a NanoDrop 1000 spectrophotometer (Thermo Fisher Scientific Inc., Worcester, MA, USA).

2.2. Gene Selection and RPA Primer and Probe Design

Whole-genome sequence analysis was performed to identify unique gene regions of R. toxicus to specifically detect this pathogen [31]. Six genomes of R. toxicus representing the known genetic populations RT-I to RT-V (respectively, RT-I: SA03-04, RT-II: SAC7056, RT-III: WAC3373 and WA40-23C, RT-IV: CS36, and RT-V: CS39) along with the genomes of six other Rathayibacter species, including the R. tritici strain NCPPB1953 (GenBank: CP015515), R. rathayi strain DSM7485 (GenBank: CP028129), R. iranicus strain NCCPB2253 (GenBank: CP028130.1), R. caricis strain DSM15933 (GenBank: GCF_003044275.1), R. festucae strain DSM15932 (GenBank: CP028137), and R. oskolensis strain VKM Ac-2121 (GenBank: GCF_900177245.1); the genomes of other Rathayibacter species were retrieved from the NCBI GenBank database (reference numbers provided). Alignment of the genomes was performed using progressiveMauve 2.4.0 [32] and generated locally collinear blocks (LCBs) were individually screened with Geneious Prime to locate the candidate gene, UDP-glucose 4-epimerase (galE). The genome of R. toxicus SA03-04 was used as a reference to generate a comparative genome ring image using the BLAST Ring Image Generator (BRIGS) [33]; the NCBI GenBank ”ncbi-blast 2.6.0+” database was used to compare and generate BRIG images (Figure 1). The RPA primers and probe were designed using the galE target gene region sequence unique to R. toxicus. Specificity of the primers and probe was assessed in silico against the genomes of R. tritici, R. rathayi, R. iranicus, R. caricis, R. festucae, R. oskolensis, and R. tanaceti. The primers and probe sequences were also blasted against the NCBI GenBank database; the only similar sequences found were in R. toxicus (data not shown). To compare the two technologies (RPA and PCR), the same galE target region was used to design endpoint PCR primers using Primer3 [34] following the protocol of Arif and Ochoa-Corona [35], and thermodynamic parameters were evaluated [36]. The Rtox primers (Table 2) were used for the endpoint PCR assays while the RT-RPA primers and probe (Table 2) were used for the R. toxicus RPA assay.
For the plant host control, multiple ITS sequences of the main host, Lolium rigidum, as well other grass hosts of R. toxicus (Agrostis stolonifera, A. capillaris, Polypogon monspeliensis, Avena sativa, Vulpia myuros, and Phalaris minor) were retrieved from the NCBI GenBank database and aligned. The RPA primers and probe were designed targeting portions of a conserved region of the ITS gene. The IC-RPA primers and probe (Table 2) were used for the RPA assay for the host plant L. rigidum internal control.

2.3. RPA, Endpoint PCR, and Artificial Positive Control

TwistDx nfo kit (TwistDx Limited, Maidenhead SL6 4XE, UK) was used for DNA amplification following the manufacturer’s protocols. A 50 μL reaction contained 29.5 μL of rehydration buffer, 0.6 μL of (10 μM) of probe, 2.1 μL (10 μM) of each forward and biotin-labeled reverse primer (Table 2), 1 μL of purified DNA template from R. toxicus culture or 5 μL of plant tissue DNA isolated using Plant Material Lysis Kits, 2.5 μL of magnesium acetate (280 mM) to activate the RPA reaction, and nuclease-free water to complete the reaction volume (12.2 μL or 8.2 μL). All RPA assays were performed at 37 °C for 30 min in a Genie II (OptiGene) and each run was conducted with a positive control and a non-template control. After amplification, 2 μL of amplified product was mixed with 400 μL of nuclease-free water plus 100 μL of buffer (Milenia Biotec, Giessen, Germany). A Lateral Flow Device (Milenia HybriDetect 1; single analyte detection) was vertically inserted into the dilution mix and left for 1–2 min. A similar protocol was followed for the host control RPA assay using the relevant primers and probe for L. rigidum (Table 2). Biotin was added at the 5′ position of the RPA reverse primers to facilitate LFD detection of amplicons. FAM is a fluorescent dye incorporated for the LFD detection of RPA amplicons by gold particle-bound antibodies.
Endpoint PCR primers targeting the same gene were also designed and validated (Table 2). The GoTaq Green Master Mix (Promega, Madison, WI) was used for PCR amplification. The reaction components were as follows: a 25 μL reaction contained 12.5 μL of GoTaq Green Master Mix, 1 μL (5 μM) of each forward and reverse primer, 1 μL of DNA template, and 9.5 μL of nuclease free water. The conditions were: initial denaturation at 94 °C for 2 min, followed by 35 cycles of 94 °C for 20 s, 56 °C for 30 s, and 72 °C for 30 s, and a final extension of 3 min at 72 °C. PCR amplifications were performed in a PTC-200 Peltier thermal cycler and DNA Engine (Bio-Rad, Hercules, CA, USA). Amplicons were separated using agarose gel (1.5%) electrophoresis in 1X TAE buffer, stained with 0.4 μg/mL ethidium bromide, and amplicons were visualized under a UV illuminator.
A positive control plasmid was developed by inserting the RPA primer/probe sequences into pUCIDT-AMP (synthesized by IDT). The total size of the plasmid with insert was 3183 bp. Using the appropriate primers and probe, the positive control plasmid produced amplicons of 151 bp and 169 bp for RPA and PCR, respectively.

2.4. RPA and Endpoint PCR Specificity and Sensitivity Assays

The specificity of the developed RPA primers and probes was evaluated using an inclusivity panel comprised of 67 strains from the five known genetic populations of R. toxicus collected during the last four decades—and the exclusivity panel comprised of multiple strains of R. tritici, R. agropyri, R. iranicus, R. rathayi, Dietzia cinnamea, and Clavibacter nebraskensis (Table 1). The specificity of the endpoint PCR was also evaluated with the same inclusivity and exclusivity panels. The specificity was also evaluated by performing an assay with the DNA isolated from the field samples (SA03, SA08, SA19, SA70, WA06, WA08, WA41, WA61, WA64, WA68, and WA69) collected from South Australia and Western Australia in 2014.
The limit of detection for the RPA assay, with and without host background, was determined using tenfold serial dilutions—1 ng to 1 ag—of R. toxicus genomic DNA. The spiked assay was performed by adding 5 µL of crude host DNA into each tenfold serially diluted sensitivity reaction. A No-Template Control (NTC) was included to confirm the reliability and accuracy of the assay. The endpoint PCR sensitivity and spiked sensitivity assays were also performed using the same dilutions to compare the results. RPA and endpoint PCR sensitivity assays were also performed with tenfold serial dilutions of plasmid DNA (positive control) containing the target primer and probe sequences.

2.5. Hand-Held RPA Amplification

To preclude the need for a heat block in the field in order to maintain a constant reaction temperature, the efficacy of running the RPA reaction while holding the reaction tubes in a closed hand was evaluated for performance and specificity. Four reactions were performed with DNA from two R. toxicus strains (SA08-08 and WAC7056), one R. rathayi strain (ICMP 2579), and one NTC. The RPA assay components were used as mentioned above.

2.6. In-Field Performance

The in-field performance of the RPA assay was tested at different locations in South Australia previously determined to be positive sites for R. toxicus [14,30]. At each field site, multiple plant samples were collected from different areas and the RPA assay run for the detection of R. toxicus. A Plant Material Lysis Kit was used for DNA extraction (crude DNA) following the manufacturer’s instructions (OptiGene), eliminating the need for standard lab equipment [23]. In addition to the R. toxicus RPA assay, each sample was tested with the host control RPA assay to confirm successful DNA preparation. The RPA protocol was followed as mentioned above except 5 μL of DNA extract was added in each reaction instead of 1 μL. Each sample was also tested with an R. toxicus-specific LAMP assay [12] to compare performance in the field.

2.7. Comparative Plant Inhibitory Effect

Extracts of rose leaf tissue, known for PCR inhibitors [29], and ryegrass seed, a common host for R. toxicus, were used to evaluate potential inhibitory effects from plant tissue components on the RPA assay. A 100 mg sample of rose leaves or annual ryegrass seeds was placed into a 1.5 mL Eppendorf tube with 1.0 mL of sterile water and macerated using a small pestle. Three techniques with four different chemistries were used (endpoint PCR, LAMP with no kit, LAMP with OptiGene kit, and RPA) with four reactions for each chemistry (1—R. toxicus purified genomic DNA; 2—R. toxicus purified genomic DNA + 2 µL rose leave extract; 3—R. toxicus purified genomic DNA + 2 µL annual rye grass seed extract; 4—NTC/water).

3. Results

3.1. Primer and Probe Design and in Silico Specificity

Representative genomes of all five genetic populations of R. toxicus (SA03-04, SAC7056, WAC3373, WA40-23C, CS36, and CS39) along with other Rathayibacter species, including R. tritici, R. rathayi, R. iranicus, R. caricis, R. festucae, R. oskolensis, and R. tanaceti, were evaluated to identify taxon-specific diagnostic markers in R. toxicus (Figure 1). Based on the genomes of different populations of R. toxicus [11,30,31] and other Rathayibacter species, galE was selected for primers and probe design. The BLASTn outcomes showed 100% query coverage and 100% identity only with R. toxicus genomes when the primers and probe were evaluated using NCBI GenBank database; no 100% matching with any other species was observed. The primers/probes were also evaluated with 18 R. toxicus genomes present in our in-house database [31]—the selected signature region was highly conserved among all the genomes and showed 100% identity with all R. toxicus-specific primers and probe. Primers were thermodynamically competent to obtain the highest sensitivity.

3.2. Specificity Assays

RPA assay specificity was determined with an inclusivity panel comprised of 67 strains of R. toxicus from the five known genetic populations, RT-I, RT-II, RT-III, RT-IV, and RT-V. RPA and endpoint PCR assays were performed and the results compared; no discrepancy between the two assays was observed (Table 1). No amplification was observed with any of the strains in the exclusivity panel that was comprised of strains representing the other Rathayibacter species: R. tritici, R. agropyri, R. iranicus, and R. rathayi (Table 1; Figure 2). The annual ryegrass samples from 11 sites (SA03; SA08; SA19; SA70; WA06; WA08; WA41; WA61; WA64; WA68; WA69) from South Australia and Western Australia were tested for R. toxicus; three sites (SA03, SA08, and SA19) were positive for R. toxicus (Figure 3A; previously confirmed sites for R. toxicus infection) [30]. The samples were also tested with the host RPA assay (Figure 3B). Endpoint PCR was also tested with R. toxicus specific primers; results were concordant. The specificity was also tested by incubating the RPA reactions in the closed palm of the hand—no false positive or false negative results were obtained (Figure 4). Overall, the developed R. toxicus-specific RPA assay was highly specific and robust.

3.3. Sensitivity Assays

The sensitivities of the R. toxicus-specific RPA assay and the endpoint PCR assay were compared; the endpoint PCR and RPA primers were designed from the same genomic region to more directly compare the performance of the RPA assay. Three sensitivity assays were performed (Figure 5): (A) tenfold dilution of the positive control (plasmid DNA carrying primers and probe target sequences; (B) tenfold serially diluted R. toxicus genomic DNA; and (C) tenfold serially diluted R. toxicus genomic DNA plus 5 µL of crude host (ryegrass) DNA. The detection limits were 10 fg (approximately 4 R. toxicus cells) for the RPA assay and 100 fg (approximately 40 R. toxicus cells) for the endpoint PCR assays. However, with the endpoint PCR assay, a faint band was observed with 10 fg. The sensitivity with plasmid DNA was ~100 ag; this higher sensitivity may have been due to the smaller size of the plasmid (total size ~3.1 kb including target) compared to R. toxicus genomic DNA of about ~2.3 Mb (Figure 5), which resulted in higher copy numbers in the same amount of DNA. Overall, the RPA assay was highly sensitive, thus reducing the probability of false negatives in cases of low (latent) infection levels.

3.4. Plant Inhibitory Effect

The developed RPA assay was also compared for resistance to plant inhibitors. Three commonly used techniques based on four chemistries were compared. The R. toxicus DNA was spiked with rose extract or ryegrass seed extract. Endpoint PCR was very sensitive to inhibitors present in both the rose and ryegrass plant extracts. The results clearly indicated that RPA was not affected by inhibitors from either plant extracts (Figure 6). The LAMP assay performed using the OptiGene kit was more resistant to plant inhibitors compared to the LAMP reaction with no kit (individual reagents were used to prepare the reaction mix in place of the master mix kit). The LAMP assays were sensitive to reaction inhibitors in the rose extract but less so to the ryegrass extracts (Figure 6).

3.5. On-Site Detection of R. toxicus

The performance and specificity of the RPA assay was tested at two known R. toxicus positive field sites in South Australia. At each site, annual ryegrass samples were collected, and the RPA assay performed on-site for the detection of R. toxicus (Figure 7). All samples from each area were positive when tested with the host control ITS RPA assay, indicating that the DNA preparation was successful for each sample. The R. toxicus RPA assay detected R. toxicus-positive samples at both sites. Not all samples were positive; R. toxicus is typically patchy in distribution. The accuracy of the RPA results was cross-confirmed using a LAMP assay [12] on the same samples; both assays yielded the same results (Figure 7). This also supports the observation that the LAMP assay was not negatively affected by potential inhibitors in the ryegrass. On-site, the assays were consistently performed by multiple operators with no false positives and negatives in any tests.

4. Discussion

Comparative genomics analysis to identify distinctive genomic regions of high diagnostic value has now become a common approach to support the design of robust and highly specific assays for genus-, species-, and strain-level discrimination [14,24,26,31,36,37]. Designing primers and probes from unique genomic regions enhances assay robustness and reduces the probability of non-specific amplification. In this study, we designed, developed, and field tested a reliable, sensitive, and rapid field-deployable recombinase polymerase assay and an endpoint PCR assay for the specific detection of the Select Agent R. toxicus based on the signature gene region within galE, present only in R. toxicus. All primers and probes designed to be used in the RPA and endpoint PCR assays showed 100% identity with R. toxicus genomes when aligned using BLASTn with the NCBI GenBank database. The primers and probes were thermodynamically competent to achieve high sensitivity [35], thus minimizing the likelihood of false negatives in the case of latent infections.
The application of isothermal amplification technologies is increasing in both lab and field settings. LAMP assays have a moderately high temperature of ~65 °C for amplification of the target genome region which requires some type of thermal device [24]. One of the main advantages of RPA over other amplification technologies is the relatively low reaction temperature of 37–42 °C and a rapid reaction time of 15–30 min with high accuracy [26,38]. The TwistDx nfo kit is available in lyophilized form and can easily be transported and used in field settings without the need for sophisticated instruments. The R. toxicus RPA assay showed high specificity when tested on broad and extensive inclusivity (strains from all reported populations of R. toxicus) and exclusivity (strains from several Rathayibacter spp.) panels (Table 1). The RPA inclusivity results were comparable with the endpoint PCR results; no discrepancy was observed. The high specificity of genome-informed RPA assays for the detection of other target organisms was also reported by Ahmed et al. [26] and Boluk et al. [27]; both used a similar methodology (RPA amplification using TwistDx nfo coupled with LFDs). The developed assays also accurately detected the target genome sequence when reactions were performed in a closed fist (Figure 4), further demonstrating the lack of a requirement for additional equipment in the field.
One of the most important characteristics of a diagnostic assay is high sensitivity, the ability to detect the target signal at low concentrations. From a biosecurity perspective, this is critical to reduce the likelihood of false negative assay results that may lead to the introduction of potentially harmful organisms into new environments. The R. toxicus RPA assay developed in this study detected target DNA to 10 fg with and without a background of host genomic DNA; RPA assay sensitivity was approximately tenfold higher than the endpoint PCR sensitivity. Two additional challenges to successful detection of a target DNA sequence include target dilution by host DNA and the presence of compounds that inhibit the polymerases that amplify the target sequence. Tolerance of amplification inhibitors present in the sample matrix is a critical attribute for diagnostic assays. Amplification inhibitors are common in tissues of several plant species. No adverse effects were observed when 5 µL of host crude DNA were added into each RPA reaction containing tenfold serially diluted R. toxicus DNA and, importantly, there was no evidence of amplification inhibition caused by plant-derived compounds. Similarly, Ahmed et al. [26] and Boluk et al. [27] reported that RPA was not affected by plant inhibitors, even when the plant tissues were macerated in TE buffer and the extract used for target amplification. In this study, no inhibition was observed when rose tissue extract or ryegrass seed extract was added into RPA reaction mixtures; rose tissue and plant seed are known for high PCR inhibition [29].
Diagnostic results inform the decision making that supports response to incursions of potentially harmful organisms. Confidence in the performance of diagnostic assays is, in part, a function of the inclusion of proper and verified positive and negative controls in assay execution. Designing positive controls by inserting primer sequences into a plasmid is an easy and effective method to generate and maintain positive controls based on multiple primer sets [28], thus providing direct assessment data for determination of assay quality control, accuracy, and reliability. In this study, we designed and synthesized a positive control plasmid containing target sequences for the R. toxicus RPA primers and probe. This plasmid was used as a positive control as well as to accurately determine assay sensitivity. The developed plant host DNA control also enhanced the reliability of the assays. The likelihood of either false positive or false negative assay results was greatly reduced, increasing the confidence in the results that ultimately may support biosecurity surveillance and response.
The developed R. toxicus-specific RPA assay coupled with LFDs was highly specific and detected the target in 30 min or less, in the lab and in the field. The assay was not affected by plant inhibitors, thereby precluding the need for DNA isolation (often a challenge in some field settings); a crude DNA preparation using the OptiGene Plant DNA isolation kit or tissue macerated using TE buffer was sufficient. The following characteristics made this assay fully field-deployable: no DNA isolation required, lyophilized assay reagents, LFD-based visualization, no equipment required, no detectable effect of sample matrix inhibitors, and robust and rapid performance. Applications for the developed RPA assay include routine diagnostics, biosecurity surveillance, microbial forensics, and disease epidemiology and management.

5. Conclusions

Early detection and accurate identification of potentially harmful organisms, including plant pathogens, is essential for successful prevention and mitigation outcomes. Nucleic acid-based technologies (NATs) based on the polymerase chain reaction (PCR) have provided the specificity and sensitivity required for effective detection and identification in the lab. However, PCR-based methods require sophisticated lab equipment and are most often not conducive for on-site detection of plant pathogens in environmental or agricultural settings. Applications using isothermal nucleic acid amplification methods are increasing due to ease of use and rapid performance. RPA is gaining in popularity because of its unique characteristics including low reaction temperature (37 °C–39 °C) for amplification and insensitivity to plant inhibitors. Here, we developed a field-deployable RPA assay coupled with LFDs that can detect and identify R. toxicus from bacterial culture and infected plant tissues. The developed assay was tested with extensive inclusivity and exclusivity panels to confirm high specificity and accuracy. The assay is highly insensitive to plant inhibitors and does not require any DNA isolation. Moreover, DNA amplification can be obtained in a closed-hand palm at body temperature without any non-specific outcome. The developed method described here provides a framework to develop and validate field-deployable RPA assays for other plant pathogens.

Author Contributions

M.A. and J.P.S. conceived and wrote the work presented here, M.A. conducted the experiments and analyzed the data, G.Y.B., R.M., and B.R. participated in discussion for experimental design and sample collection; all authors reviewed and approved the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

Australian Government’s Cooperative Research Centres Program, Canberra, Australia. Contribution no. 20-127-J from the Kansas Agricultural Experiment Station.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the sequences were downloaded from the NCBI GenBank database and are freely available.

Acknowledgments

The authors thank Ian Riley and Alan McKay for providing background information on R. toxicus populations and guidance on collecting R. toxicus in Australia. We also thank Jeremy Allen and Alan McKay for providing isolates of R. toxicus from the Western Australia Culture Collection and the South Australia Culture Collection, respectively.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McKay, A.C.; Ophel, K.M. Toxigenic Clavibacter/Anguina associations infecting grass seedheads. Annu. Rev. Phytopathol. 1993, 31, 151–167. [Google Scholar] [CrossRef] [PubMed]
  2. McKay, A.C.; Ophel, K.M.; Reardon, T.B.; Gooden, J.M. Livestock deaths associated with Clavibacter toxicus/Auguina sp. infection in seedheads of Agrostis auenacea and Polypogon monspeliensis. Plant Dis. 1993, 77, 635–641. [Google Scholar] [CrossRef]
  3. Riley, I.T.; Ophel, K.M. Clavibacter toxicus sp. nov., the bacterium responsible for annual ryegrass toxicity in Australia. Int. J. Syst. Bacteriol. 1992, 42, 64–68. [Google Scholar] [CrossRef] [Green Version]
  4. Edgar, J.A.; Frahn, J.L.; Cockrum, P.A.; Anderton, N.; Jago, M.V.; Culvenor, C.C.J.; Jones, A.J.; Murray, K.; Shaw, K.J. Corynetoxins causative agents of annual ryegrass toxicity; their identification as tunicamycin group antibiotics. J. Chem. Soc., Chem. Commun. 1982, 4, 222–224. [Google Scholar] [CrossRef]
  5. Finnie, J. Review of corynetoxins poisoning of livestock, a neurological disorder produced by a nematode-bacterium complex. Aust. Veter. J. 2006, 84, 271–277. [Google Scholar] [CrossRef]
  6. Allen, J. Annual ryegrass toxicity—An animal disease caused by toxins produced by a bacterial plant pathogen. Microbiol. Aust. 2012, 33, 18–21. [Google Scholar] [CrossRef]
  7. Grewar, J.; Allen, J.; Guthrie, A. Annual ryegrass toxicity in Thoroughbred horses in Ceres in the Western Cape Province, South Africa. J. S. Afr. Veter. Assoc. 2009, 80, 220–223. [Google Scholar] [CrossRef] [Green Version]
  8. Riley, I.T. Anguina Tritici is a potential vector of Clavibacter toxicus. Australas. Plant Pathol. 1992, 21, 147–149. [Google Scholar] [CrossRef]
  9. Riley, I.; McKay, A. Invasion of some grasses by Anguina funesta (Nematoda: Anguinidae) Juveniles. Nematologica 1991, 37, 447–454. [Google Scholar] [CrossRef]
  10. Murray, T.D.; Schroeder, B.; Schneider, W.L.; Luster, D.G.; Sechler, A.; Rogers, E.E.; Subbotin, S.A. Rathayibacter toxicus, other Rathayibacter species inducing bacterial head blight of grasses, and the potential for livestock poisonings. Phytopathology 2017, 107, 804–815. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Yasuhara-Bell, J.; Stack, J.P. Panel of three loop-mediated isothermal amplification assays differentiates Rathayibacter toxicus populations RT-I, RT-II, RT-III, RT-IV and RT-V. J. Plant Pathol. 2019, 101, 707–717. [Google Scholar] [CrossRef]
  12. Arif, M.; Busot, G.Y.; Mann, R.; Rodoni, B.; Stack, J.P. In-field detection of the select agent Rathayibacter toxicus using loop-mediated isothermal amplification. Phytopathology 2016, 106, S4.1. [Google Scholar]
  13. Luster, D.G.; McMahon, M.B.; Carter, M.L.; Sechler, A.J.; Rogers, E.E.; Schroeder, B.K.; Murray, T.D. Immunoreagents for development of a diagnostic assay specific for Rathayibacter toxicus. Food Agric. Immunol. 2020, 31, 231–242. [Google Scholar] [CrossRef] [Green Version]
  14. Arif, M.; Busot, G.Y.; Mann, R.; Rodoni, B.; Stack, J.P. Multiple internal controls enhance reliability for PCR and real time PCR detection of Rathayibacter toxicus. Sci. Rep. 2021, 11, 8365. [Google Scholar] [CrossRef] [PubMed]
  15. Panno, S.; Matić, S.; Tiberini, A.; Caruso, A.G.; Bella, P.; Torta, L.; Stassi, R.; Davino, A.S. Loop mediated isothermal amplification: Principles and applications in plant virology. Plants 2020, 9, 461. [Google Scholar] [CrossRef] [Green Version]
  16. Larrea-Sarmiento, A.; Stack, J.P.; Alvarez, A.M.; Arif, M. Multiplex recombinase polymerase amplification assay developed using unique genomic regions for rapid on-site detection of genus Clavibacter and C. nebraskensis. Sci. Rep. 2021, 11, 12017. [Google Scholar] [CrossRef]
  17. Notomi, T.; Okayama, H.; Masubuchi, H.; Yonekawa, T.; Watanabe, K.; Amino, N.; Hase, T. Loop-mediated isothermal amplification of DNA. Nucleic Acids Res. 2000, 28, E63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Little, M.C.; Andrews, J.; Moore, R.; Bustos, S.; Jones, L.; Embres, C.; Durmowicz, G.; Harris, J.; Berger, D.; Yanson, K.; et al. Strand displacement amplification and homogeneous real-time detection incorporated in a second-generation DNA probe system, BDProbeTecET. Clin. Chem. 1999, 45, 777–784. [Google Scholar] [CrossRef] [Green Version]
  19. Vincent, M.; Xu, Y.; Kong, H. Helicase-dependent isothermal DNA amplification. EMBO Rep. 2004, 5, 795–800. [Google Scholar] [CrossRef] [PubMed]
  20. Van Ness, J.; Van Ness, L.K.; Galas, D.J. Isothermal reactions for the amplification of oligonucleotides. Proc. Natl. Acad. Sci. USA 2003, 100, 4504–4509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Dean, F.B.; Nelson, J.R.; Giesler, T.L.; Lasken, R.S. Rapid amplification of plasmid and phage DNA using Phi 29 DNA polymerase and multiply-primed rolling circle amplification. Genome Res. 2001, 11, 1095–1099. [Google Scholar] [CrossRef] [Green Version]
  22. Piepenburg, O.; Williams, C.H.; Stemple, D.L.; Armes, N.A. DNA Detection using recombination proteins. PLoS Biol. 2006, 4, e204. [Google Scholar] [CrossRef]
  23. Ocenar, J.; Arizala, D.; Boluk, G.; Dhakal, U.; Gunarathne, S.; Paudel, S.; Dobhal, S.; Arif, M. Development of a robust, field-deployable loop-mediated isothermal amplification (LAMP) assay for specific detection of potato pathogen Dickeya dianthicola targeting a unique genomic region. PLoS ONE 2019, 14, e0218868. [Google Scholar] [CrossRef] [Green Version]
  24. Dobhal, S.; Larrea-Sarmiento, A.; Alvarez, A.M.; Arif, M. Development of a loop-mediated isothermal amplification assay for specific detection of all known subspecies of Clavibacter michiganensis. J. Appl. Microbiol. 2019, 126, 388–401. [Google Scholar] [CrossRef]
  25. Jia, B.; Li, X.; Liu, W.; Lu, C.; Lu, X.; Ma, L.; Li, Y.-Y.; Wei, C. GLAPD: Whole genome based LAMP primer design for a set of target genomes. Front. Microbiol. 2019, 10, 2860. [Google Scholar] [CrossRef] [Green Version]
  26. Ahmed, F.A.; Larrea-Sarmiento, A.; Alvarez, A.M.; Arif, M. Genome-informed diagnostics for specific and rapid detection of Pectobacterium species using recombinase polymerase amplification coupled with a lateral flow device. Sci. Rep. 2018, 8, 15972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Boluk, G.; Dobhal, S.; Crockford, A.B.; Melzer, M.; Alvarez, A.M.; Arif, M. Genome-informed recombinase polymerase amplification assay coupled with a lateral flow device for in-field detection of Dickeya species. Plant Dis. 2020. [Google Scholar] [CrossRef] [PubMed]
  28. Arif, M.; Opit, G.; Yerbafría, A.; Dobhal, S.; Li, Z.; Kucerova, Z.; Ochoa-Corona, F.M. Array of synthetic oligonucleotides to generate unique multi target artificial positive control and molecular probes based discrimination of Liposcelis species. PLoS ONE 2015, 10, e0129810. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Dobhal, S.; Olson, J.D.; Arif, M.; Suarez, J.A.G.; Ochoa-Corona, F.M. A simplified strategy for sensitive detection of Rose rosette virus compatible with three RT-PCR chemistries. J. Virol. Methods 2016, 232, 47–56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Arif, M.; Busot, G.Y.; Mann, R.; Rodoni, B.; Liu, S.; Stack, J.P. Emergence of a new population of Rathayibacter toxicus: An ecologically complex, geographically isolated bacterium. PLoS ONE 2016, 11, e0156182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Yasuhara-Bell, J.; Arif, M.; Busot, G.Y.; Mann, R.; Rodoni, B.; Stack, J.P. Comparative genomic analysis confirms five genetic populations of the select agent, Rathayibacter toxicus. Microorganisms 2020, 8, 366. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Darling, A.E.; Mau, B.; Perna, N.T. progressiveMauve: Multiple genome alignment with gene gain, loss and rearrangement. PLoS ONE 2010, 5, e11147. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Alikhan, N.-F.; Petty, N.K.; Ben Zakour, N.L.; Beatson, S.A. BLAST Ring Image Generator (BRIG): Simple prokaryote genome comparisons. BMC Genom. 2011, 12, 402. [Google Scholar] [CrossRef] [Green Version]
  34. Rozen, S.; Skaletsky, H.J. Primer3 on the WWW for general users and for biologist programmers. In Bioinformatics Methods and Protocols: Methods in Molecular Biology; Krawetz, S., Misener, S., Eds.; Humana Press: Totowa, NJ, USA, 2000; pp. 365–386. [Google Scholar]
  35. Arif, M.; Ochoa-Corona, F.M. Comparative assessment of 5′ A/T-rich overhang sequences with optimal and sub-optimal primers to increase PCR yields and sensitivity. Mol. Biotechnol. 2012, 55, 17–26. [Google Scholar] [CrossRef] [PubMed]
  36. Larrea-Sarmiento, A.; Alvarez, A.M.; Stack, J.P.; Arif, M. Synergetic effect of non-complementary 5′ AT-rich sequences on the development of a multiplex TaqMan real-time PCR for specific and robust detection of Clavibacter michiganensis and C. michiganensis subsp. nebraskensis. PLoS ONE 2019, 14, e0218530. [Google Scholar] [CrossRef] [Green Version]
  37. Arizala, D.; Arif, M. Genome-wide analyses revealed remarkable heterogeneity in pathogenicity determinants, antimicrobial compounds, and CRISPR-Cas systems of complex phytopathogenic genus Pectobacterium. Pathogens 2019, 8, 247. [Google Scholar] [CrossRef] [Green Version]
  38. Deng, H.; Gao, Z. Bioanalytical applications of isothermal nucleic acid amplification techniques. Anal. Chim. Acta 2015, 853, 30–45. [Google Scholar] [CrossRef]
Biology 10 00620 g001 550
Figure 1. A ring image (BLAST Ring Image Generator) was used to locate the target UDP-glucose 4-epimerase (galE) gene region. Six genomes of Rathayibacter toxicus representing all known genetic populations RT-I to RT-V (respectively, RT-I: SA03-04, RT-II: SAC7056, RT-III: WAC3373 and WA40-23C, RT-IV: CS36, and RT-V: CS39) along with other Rathayibacter species, including R. tritici (CP015515), R. rathayi (CP028129), R. iranicus (CP028130), R. caricis (GCF_003044275.1), R. festucae (CP028137), and R. oskolensis (GCF_900177245.1); from the center out: genome coordinates (kbp), GC content (black), GC skew (purple/green). The remaining rings show the BLASTn comparison of the 11 complete genomes as labelled. Rathayibacter toxicus population RT-I strain SA03-04 was used as the reference genome for comparison with the other genomes and to generate the ring image using BRIGS.
Figure 1. A ring image (BLAST Ring Image Generator) was used to locate the target UDP-glucose 4-epimerase (galE) gene region. Six genomes of Rathayibacter toxicus representing all known genetic populations RT-I to RT-V (respectively, RT-I: SA03-04, RT-II: SAC7056, RT-III: WAC3373 and WA40-23C, RT-IV: CS36, and RT-V: CS39) along with other Rathayibacter species, including R. tritici (CP015515), R. rathayi (CP028129), R. iranicus (CP028130), R. caricis (GCF_003044275.1), R. festucae (CP028137), and R. oskolensis (GCF_900177245.1); from the center out: genome coordinates (kbp), GC content (black), GC skew (purple/green). The remaining rings show the BLASTn comparison of the 11 complete genomes as labelled. Rathayibacter toxicus population RT-I strain SA03-04 was used as the reference genome for comparison with the other genomes and to generate the ring image using BRIGS.
Biology 10 00620 g001
Biology 10 00620 g002 550

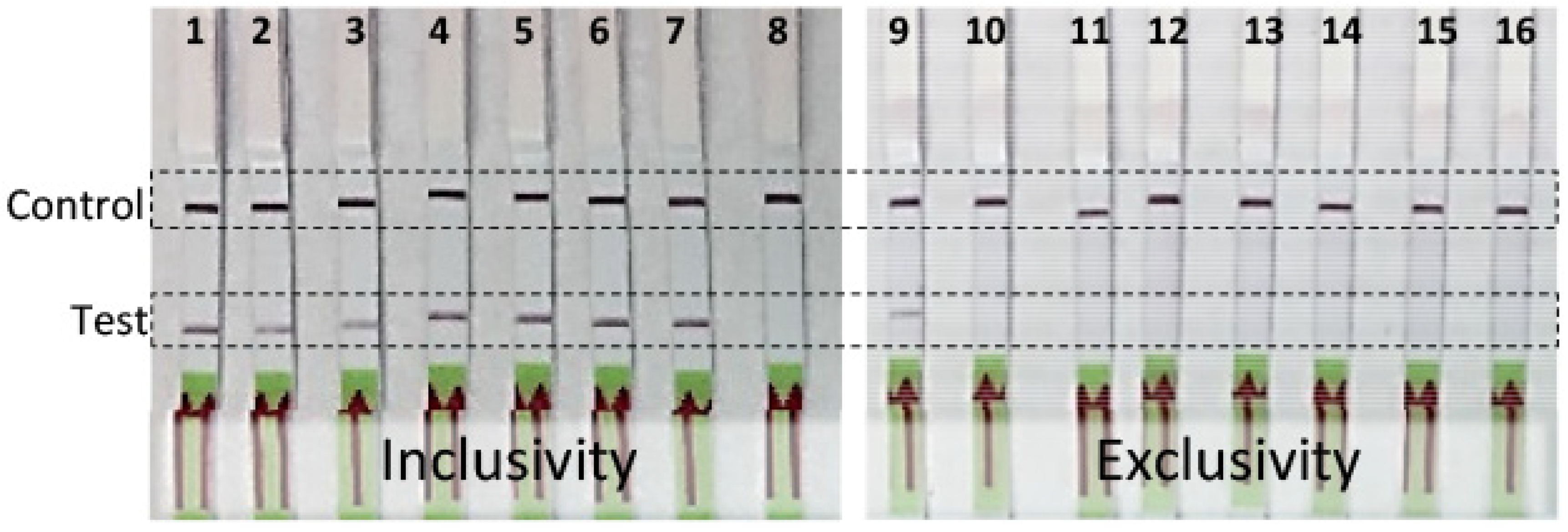

Figure 2. Validation of a Rathayibacter toxicus-specific recombinase polymerase amplification (RPA) assay with inclusivity and exclusivity panels; panel details are provided in Table 1. RPA amplification products were visualized with lateral flow strips. The upper bands on the lateral flow strips are the internal lateral flow strip control, the lower bands are the RPA reaction products. Lanes 1–8 (inclusivity panel results): 1—R. toxicus (SA03-04, RT-I); 2—R. toxicus (SA08-08, RT-I); 3—R. toxicus (SA19-02, RT-I); 4—R. toxicus (CS14, RT-II); 5—R. toxicus (CS28, RT-III); 6—R. toxicus (CS33, RT-II); 7—R. toxicus (CS34, RT-II); 8—water (non-template control). Lanes 9–16 (exclusivity panel results): 9—R. toxicus (SA08-08, positive control); 10—R. tritici (WAC7055); 11—R. agropyri (WAC9621); 12—R. iranicus (ICMP 3494); 13—R. rathayi (ICMP 2574); 14—Dietzia cinnamea (SA03-14M); 15—Clavibacter michiganensis subsp. nebraskensis (Cmn); 16—water (non-template control).
Figure 2. Validation of a Rathayibacter toxicus-specific recombinase polymerase amplification (RPA) assay with inclusivity and exclusivity panels; panel details are provided in Table 1. RPA amplification products were visualized with lateral flow strips. The upper bands on the lateral flow strips are the internal lateral flow strip control, the lower bands are the RPA reaction products. Lanes 1–8 (inclusivity panel results): 1—R. toxicus (SA03-04, RT-I); 2—R. toxicus (SA08-08, RT-I); 3—R. toxicus (SA19-02, RT-I); 4—R. toxicus (CS14, RT-II); 5—R. toxicus (CS28, RT-III); 6—R. toxicus (CS33, RT-II); 7—R. toxicus (CS34, RT-II); 8—water (non-template control). Lanes 9–16 (exclusivity panel results): 9—R. toxicus (SA08-08, positive control); 10—R. tritici (WAC7055); 11—R. agropyri (WAC9621); 12—R. iranicus (ICMP 3494); 13—R. rathayi (ICMP 2574); 14—Dietzia cinnamea (SA03-14M); 15—Clavibacter michiganensis subsp. nebraskensis (Cmn); 16—water (non-template control).
Biology 10 00620 g002
Biology 10 00620 g003 550

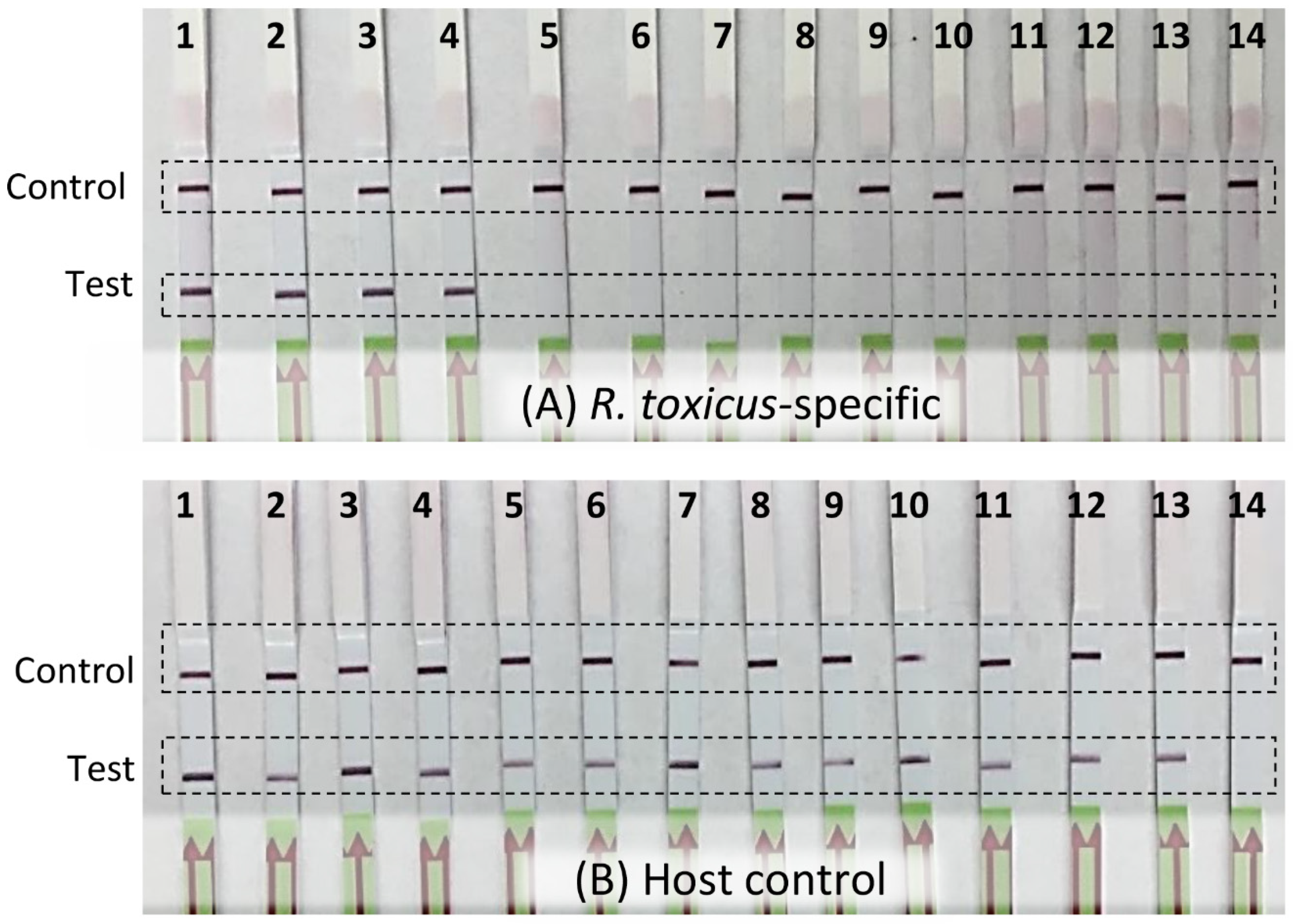

Figure 3. Detection of Rathayibacter toxicus from annual ryegrass samples using a recombinase polymerase amplification (RPA) assay. Annual ryegrass samples were collected in 2014 at multiple locations in South Australia and Western Australia; DNA was isolated and RPA assays were performed using (A) R. toxicus-specific primers/probe and (B) host plant-specific primers/probe. Lane A1: positive control (R. toxicus strain SA03-04); lane B1: positive control (annual ryegrass DNA); lanes A2–A12 and B2–B12: field sample SA03; SA08; SA19; SA70; WA06; WA08; WA41; WA61; WA64; WA68; WA69; lanes A13 and B13: negative control (host DNA); lanes A14 and B14: water (non-template control).
Figure 3. Detection of Rathayibacter toxicus from annual ryegrass samples using a recombinase polymerase amplification (RPA) assay. Annual ryegrass samples were collected in 2014 at multiple locations in South Australia and Western Australia; DNA was isolated and RPA assays were performed using (A) R. toxicus-specific primers/probe and (B) host plant-specific primers/probe. Lane A1: positive control (R. toxicus strain SA03-04); lane B1: positive control (annual ryegrass DNA); lanes A2–A12 and B2–B12: field sample SA03; SA08; SA19; SA70; WA06; WA08; WA41; WA61; WA64; WA68; WA69; lanes A13 and B13: negative control (host DNA); lanes A14 and B14: water (non-template control).
Biology 10 00620 g003
Biology 10 00620 g004 550

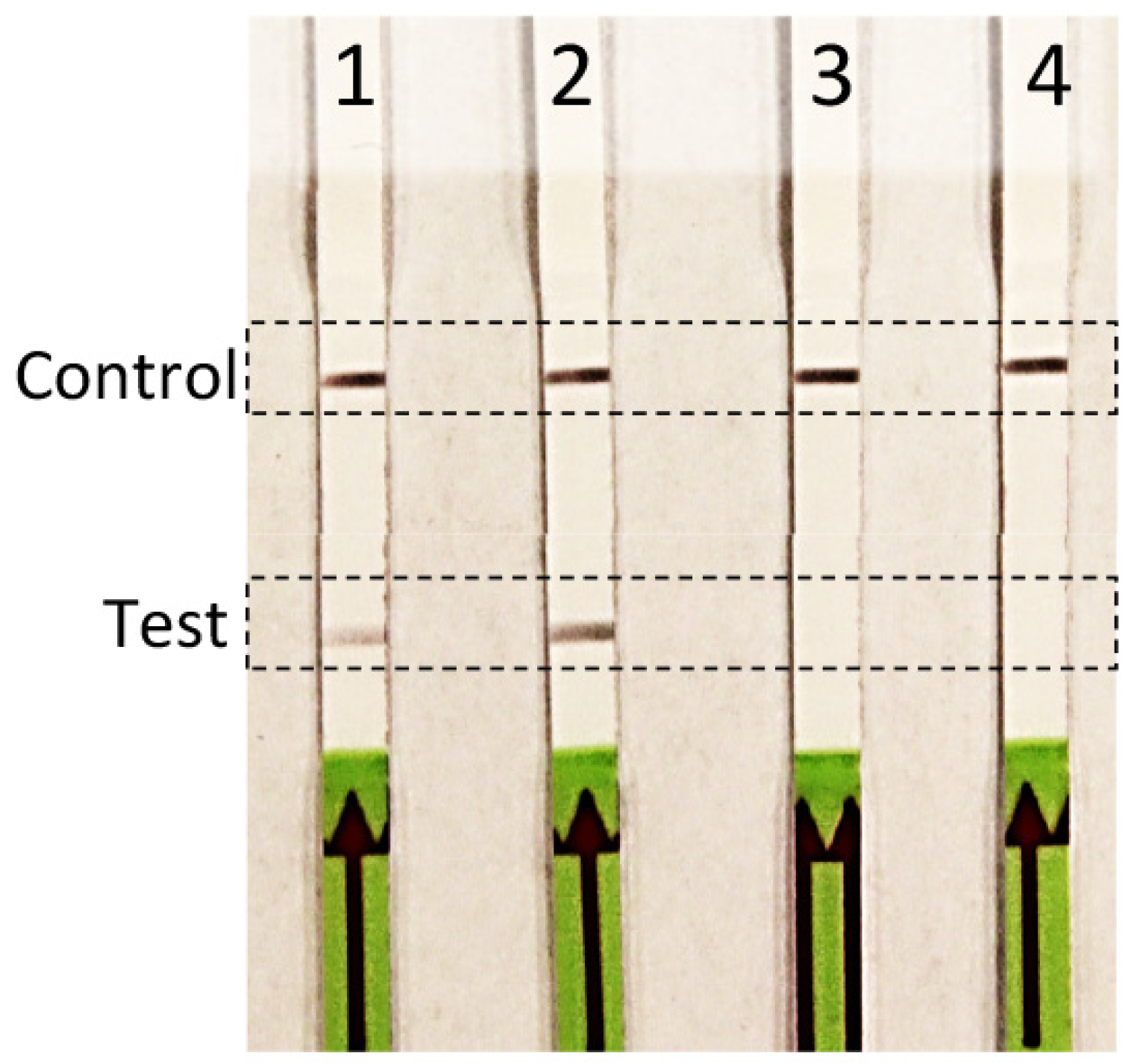

Figure 4. Verification of efficacy for hand-held Rathayibacter toxicus-specific recombinase polymerase amplification (RPA) assay; reaction tubes were enclosed in the palm of the hand (no heat block was required). Four RPA reactions were performed with genomic DNA from two R. toxicus strains (lane 1: SA08-08 and lane 2: WAC7056), one R. rathayi strain (lane 3: ICMP 2579), and water, a non-template control (lane 4).
Figure 4. Verification of efficacy for hand-held Rathayibacter toxicus-specific recombinase polymerase amplification (RPA) assay; reaction tubes were enclosed in the palm of the hand (no heat block was required). Four RPA reactions were performed with genomic DNA from two R. toxicus strains (lane 1: SA08-08 and lane 2: WAC7056), one R. rathayi strain (lane 3: ICMP 2579), and water, a non-template control (lane 4).
Biology 10 00620 g004
Biology 10 00620 g005 550
Figure 5. Sensitivity and spiked sensitivity validation of the Rathayibacter toxicus-specific recombinase polymerase amplification (RPA) assay. The RPA assay results were compared to the results of a R. toxicus-specific endpoint PCR assay. Tenfold serial dilutions (1 ng to 1 ag) were used to perform the assays; upper images are the RPA results and lower images are the endpoint PCR results. (A) RPA and endpoint PCR assays with tenfold dilution of positive control (plasmid DNA-carrying primers and probe target sequences); (B) RPA and endpoint PCR assays with tenfold serially diluted R. toxicus genomic DNA; (C) RPA and endpoint PCR assays with tenfold serially diluted R. toxicus genomic DNA plus 5 µL of crude host (ryegrass) DNA.
Figure 5. Sensitivity and spiked sensitivity validation of the Rathayibacter toxicus-specific recombinase polymerase amplification (RPA) assay. The RPA assay results were compared to the results of a R. toxicus-specific endpoint PCR assay. Tenfold serial dilutions (1 ng to 1 ag) were used to perform the assays; upper images are the RPA results and lower images are the endpoint PCR results. (A) RPA and endpoint PCR assays with tenfold dilution of positive control (plasmid DNA-carrying primers and probe target sequences); (B) RPA and endpoint PCR assays with tenfold serially diluted R. toxicus genomic DNA; (C) RPA and endpoint PCR assays with tenfold serially diluted R. toxicus genomic DNA plus 5 µL of crude host (ryegrass) DNA.
Biology 10 00620 g005
Biology 10 00620 g006 550
Figure 6. Effects of plant inhibitors on the detection of Rathayibacter toxicus using (A) endpoint PCR, (B,C) loop-mediated isothermal amplification (LAMP), and (D) recombinase polymerase amplification; detection assays based on the three technologies using four chemistries were compared. (A–D) Lane 1—purified R. toxicus genomic DNA; lane 2—purified R. toxicus genomic DNA plus 1 µL of rose leaf extract; lane 3—purified R. toxicus genomic DNA plus 1 µL of ryegrass seed extract; and lane 4—water (non-template control). (B,C) Upper pictures were taken in daylight with a regular camera; lower pictures were taken under UV light in a GelDoc system. The RPA assay was unaffected by either the rose tissue extract or the ryegrass seed extract whereas the endpoint PCR was inhibited by both. The LAMP assay was inhibited by the rose tissue extract and sensitive to the ryegrass seed extract depending on the reagents used.
Figure 6. Effects of plant inhibitors on the detection of Rathayibacter toxicus using (A) endpoint PCR, (B,C) loop-mediated isothermal amplification (LAMP), and (D) recombinase polymerase amplification; detection assays based on the three technologies using four chemistries were compared. (A–D) Lane 1—purified R. toxicus genomic DNA; lane 2—purified R. toxicus genomic DNA plus 1 µL of rose leaf extract; lane 3—purified R. toxicus genomic DNA plus 1 µL of ryegrass seed extract; and lane 4—water (non-template control). (B,C) Upper pictures were taken in daylight with a regular camera; lower pictures were taken under UV light in a GelDoc system. The RPA assay was unaffected by either the rose tissue extract or the ryegrass seed extract whereas the endpoint PCR was inhibited by both. The LAMP assay was inhibited by the rose tissue extract and sensitive to the ryegrass seed extract depending on the reagents used.
Biology 10 00620 g006
Biology 10 00620 g007 550
Figure 7. In-field detection of Rathayibacter toxicus from cultivated and non-cultivated annual ryegrass (Lolium rigidum) plants using a validated recombinase polymerase amplification (RPA) assay and a R. toxicus-specific loop mediated isothermal amplification (LAMP) assay: (A) annual ryegrass seeds were separated from plants; (B) samples were processed (OptiGene Plant Lysis Kit); (C) seed extract (one loopful, ca. 10 µL) was transferred into a 1.0 mL OptiGene tube with buffer; (D) post-reaction, lateral flow strips (LFDs) were placed in a 500 µL buffer (400 µL water + 100 µL buffer provided with the kit) containing 2 µL of RPA amplified product; (E) RPA reaction products visualized with LFD; (F) RPA reaction products visualized with LAMP assay—there was no discrepancy between the RPA and LAMP results.
Figure 7. In-field detection of Rathayibacter toxicus from cultivated and non-cultivated annual ryegrass (Lolium rigidum) plants using a validated recombinase polymerase amplification (RPA) assay and a R. toxicus-specific loop mediated isothermal amplification (LAMP) assay: (A) annual ryegrass seeds were separated from plants; (B) samples were processed (OptiGene Plant Lysis Kit); (C) seed extract (one loopful, ca. 10 µL) was transferred into a 1.0 mL OptiGene tube with buffer; (D) post-reaction, lateral flow strips (LFDs) were placed in a 500 µL buffer (400 µL water + 100 µL buffer provided with the kit) containing 2 µL of RPA amplified product; (E) RPA reaction products visualized with LFD; (F) RPA reaction products visualized with LAMP assay—there was no discrepancy between the RPA and LAMP results.
Biology 10 00620 g007
Table
Table 1. Strains included in inclusivity and exclusivity panels to confirm specificity of the developed PCR and recombinase polymerase assays to specifically detect Rathayibacter toxicus.
Table 1. Strains included in inclusivity and exclusivity panels to confirm specificity of the developed PCR and recombinase polymerase assays to specifically detect Rathayibacter toxicus.
SpeciesStrain NameYearHostGeographical LocationResults PCRResults RPA
Rathayibacter toxicusSA03-022014ARGCorny Point, SA++
R. toxicusSA03-032014ARGCorny Point, SA++
R. toxicusSA03-042014ARGCorny Point, SA++
R. toxicusSA03-082014ARGCorny Point, SA++
R. toxicusSA03-142014ARGCorny Point, SA++
R. toxicusSA03-152014ARGCorny Point, SA++
R. toxicusSA03-162014ARGCorny Point, SA++
R. toxicusSA03-172014ARGCorny Point, SA++
R. toxicusSA03-182014ARGCorny Point, SA++
R. toxicusSA03-192014ARGCorny Point, SA++
R. toxicusSA03-202014ARGCorny Point, SA++
R. toxicusSA03-212014ARGCorny Point, SA++
R. toxicusSA03-222014ARGCorny Point, SA++
R. toxicusSA03-232014ARGCorny Point, SA++
R. toxicusSA03-242014ARGCorny Point, SA++
R. toxicusSA03-252014ARGCorny Point, SA++
R. toxicusSA03-262014ARGCorny Point, SA++
R. toxicusSA03-272014ARGCorny Point, SA++
R. toxicusSA03-282014ARGCorny Point, SA++
R. toxicusSA08-032014ARGLake Sunday, SA++
R. toxicusSA08-072014ARGLake Sunday, SA++
R. toxicusSA08-082014ARGLake Sunday, SA++
R. toxicusSA08-092014ARGLake Sunday, SA++
R. toxicusSA08-112014ARGLake Sunday, SA++
R. toxicusSA08-132014ARGLake Sunday, SA++
R. toxicusSA08-162014ARGLake Sunday, SA++
R. toxicusSA19-022013ARGYorketown, SA++
R. toxicusSA19-032013ARGYorketown, SA++
R. toxicusSA19-042013ARGYorketown, SA++
R. toxicusSA19-052013ARGYorketown, SA++
R. toxicusSA19-062013ARGYorketown, SA++
R. toxicusSA19-072013ARGYorketown, SA++
R. toxicusSA19-082013ARGYorketown, SA++
R. toxicusSA19-092013ARGYorketown, SA++
R. toxicusSA19-102013ARGYorketown, SA++
R. toxicusSA19-112013ARGYorketown, SA++
R. toxicusSA19-122013ARGYorketown, SA++
R. toxicusSA19-132013ARGYorketown, SA++
R. toxicusSA19-142013ARGYorketown, SA++
R. toxicusSAC33681981ARGSA++
R. toxicusSAC33871981ARGSA++
R. toxicusSAC70561983ARGMurray Bridge, SA++
R. toxicusWAC33711978LCGGnowangerup, WA++
R. toxicusWAC33721978BOGnowangerup, WA++
R. toxicusWAC33731978PGGnowangerup, WA++
R. toxicusWAC33961980OatGnowangerup, WA++
R. toxicusCS1 SA++
R. toxicusCS3 ARGWA++
R. toxicusCS281978ARGWA++
R. toxicusCS291981ARGWA++
R. toxicusCS301980OatWA++
R. toxicusCS311981Phalaris sp. WA++
R. toxicusCS321981DCWA++
R. toxicusCS331984ARGSA++
R. toxicusCS341983ARGSA++
R. toxicusCS361990PBGGongolgon, NSW++
R. toxicusCS381990ABGLucindale, SA++
R. toxicusCS391990ABGLucindale, SA++
R. toxicusWA40-18A2015ARGWA++
R. toxicusWA40-18B2015ARGWA++
R. toxicusWA40-20A2015ARGWA++
R. toxicusWA40-20B2015ARGWA++
R. toxicusWA40-21A2015ARGWA++
R. toxicusWA40-21B2015ARGWA++
R. toxicusWA40-23A2015ARGWA++
R. toxicusWA40-23B2015ARGWA++
R. toxicusWA40-23C2015ARGWA++
R. triticiWAC70551991WhaetCarnamah, WANegativeNegative
R. triticiWAC9601-RG NegativeNegative
R. triticiWAC9602-RG NegativeNegative
R. rathayiICMP 25741968DGNew ZealandNegativeNegative
R. rathayiWAC3369-ARGWANegativeNegative
R. rathayiICMP 2579-DGUnited KingdomNegativeNegative
R. iranicusICMP 131261994WheatIranNegativeNegative
R. iranicusICMP 131271994WheatIranNegativeNegative
R. iranicusICMP 128311994WheatIranNegativeNegative
R. iranicusICMP 3496-Wheat-NegativeNegative
R. agropyriWAC9620 RG NegativeNegative
R. agropyriWAC9621 NegativeNegative
R. agropyriWAC9622 NegativeNegative
R. agropyriWAC9594 RG NegativeNegative
Dietzia cinnameaSA03-14M2014ARGCorny Point, SANegativeNegative
Clavibacter nebraskensisCmn---NegativeNegative
SoilNon-infested soil---NegativeNegative
HostHealthy ryegrass---NegativeNegative
PBG—Pacific bent grass (Agrostis avenacea); ABG—annual beard grass (Polypogon monspeliensis); ARG—annual ryegrass (Lolium rigidum); RG—ryegrass (Lolium sp.); LCG—lesser canary grass (Phalaris minor); BO—black oat (Avena fatua); PG—paradoxa grass (Phalaris paradoxa); DC—Danthonia caespitosa; Oat (Avena sativa); DG—Dactylis glomerata. NSW—New South Wales; SA—South Australia; WA—Western Australia.
Table
Table 2. Characteristics of the primers and probes used in the endpoint PCR (Rtox-F1 and Rtox-R1) and recombinase polymerase assays for the detection of Rathayibacter toxicus (RT-RPA-F, RT-RPA-R*, and RT-RPA-P) and its host Lolium rigidum (host control: IC-RPA-F, IC-RPA-R*, and IC-RPA-P.
Table 2. Characteristics of the primers and probes used in the endpoint PCR (Rtox-F1 and Rtox-R1) and recombinase polymerase assays for the detection of Rathayibacter toxicus (RT-RPA-F, RT-RPA-R*, and RT-RPA-P) and its host Lolium rigidum (host control: IC-RPA-F, IC-RPA-R*, and IC-RPA-P.
NameSequence (5′-3′)GC %Length (bp)Amplicon Size (bp)
Rtox-F1GACAATTTATCGACGGGTGA45.020170
Rtox-R1AGCGGCTCGCTTACAGATT52.619
RT-RPA-FAAGTGACGGTGATCGACAATTTATCGACGGGTGAC4935189
RT-RPA-R* BiosG-ATATCAGCGGCTCGCTTACAGATTCTTTGACCGAC4935
RT-RPA-P** FAM-CAGATATTTCGGAAGTTGATCACATAGTCG-dSpacer-CGGAACTCAGTGGTGTTTCT-SpacerC35044
IC-RPA-FTAATCCACACGACTCTCGGCAACGGATATCTC3250123
IC-RPA-R* BiosG-CAACTTGCGTTCAAAGACTCGATGGTTCGCG3152
IC-RPA-P** FAM-CTCGCATCGATGAAGAACGTAGCGAAATGC-dSpacer-ATACCTGGTGTGAATTGCA-SpacerC34947
* Biotin was added at the 5′ position of the RPA reverse primers to facilitate LFD detection of amplicons. ** FAM is a fluorescent dye incorporated for the LFD detection of RPA amplicons by gold particle-bound antibodies. The Rtox primers were used for the endpoint PCR assays. The RT-RPA and the IC-RPA primers and probe were used for the recombinase polymerase assays (RPA) for the R. toxicus target and the host plant L. rigidum internal control.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arif, M.; Busot, G.Y.; Mann, R.; Rodoni, B.; Stack, J.P. Field-Deployable Recombinase Polymerase Amplification Assay for Specific, Sensitive and Rapid Detection of the US Select Agent and Toxigenic Bacterium, Rathayibacter toxicus. Biology 2021, 10, 620. https://doi.org/10.3390/biology10070620

AMA Style

Arif M, Busot GY, Mann R, Rodoni B, Stack JP. Field-Deployable Recombinase Polymerase Amplification Assay for Specific, Sensitive and Rapid Detection of the US Select Agent and Toxigenic Bacterium, Rathayibacter toxicus. Biology. 2021; 10(7):620. https://doi.org/10.3390/biology10070620

Chicago/Turabian Style

Arif, Mohammad, Grethel Y. Busot, Rachel Mann, Brendan Rodoni, and James P. Stack. 2021. "Field-Deployable Recombinase Polymerase Amplification Assay for Specific, Sensitive and Rapid Detection of the US Select Agent and Toxigenic Bacterium, Rathayibacter toxicus" Biology 10, no. 7: 620. https://doi.org/10.3390/biology10070620

APA Style

Arif, M., Busot, G. Y., Mann, R., Rodoni, B., & Stack, J. P. (2021). Field-Deployable Recombinase Polymerase Amplification Assay for Specific, Sensitive and Rapid Detection of the US Select Agent and Toxigenic Bacterium, Rathayibacter toxicus. Biology, 10(7), 620. https://doi.org/10.3390/biology10070620

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
