Article

Transcriptional Dynamics Induced by Diapause Hormone in the Silkworm, Bombyx mori

by
Lijuan Chen
1,†,
Zhongjie Zhang
2,3,†,
Kai Chen
2,3,
Ye Yu
4,5,
Bo Hu
2,3,
Hongsheng Song
1,* and
Xiaojing Liu
2,3,*
1
College of Life Sciences, Shanghai University, Shanghai 200444, China
2
Jiangsu Key Laboratory of Sericultural Biology and Biotechnology, School of Biotechnology, Jiangsu University of Science and Technology, Zhenjiang 212100, China
3
Key Laboratory of Silkworm and Mulberry Genetic Improvement, Ministry of Agriculture, The Sericultural Research Institute, Chinese Academy of Agricultural Sciences, Zhenjiang 212100, China
4
CAS Key Laboratory of Insect Developmental and Evolutionary Biology, CAS Center for Excellence in Molecular Plant Sciences, Institute of Plant Physiology and Ecology, Shanghai 200032, China
5
University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biology 2022, 11(9), 1313; https://doi.org/10.3390/biology11091313
Submission received: 20 May 2022 / Revised: 3 June 2022 / Accepted: 8 June 2022 / Published: 4 September 2022
(This article belongs to the Special Issue Molecular Mechanisms of Insects Metamorphosis and Sex Determination)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Most insects species enter a diapause period to ensure their survival under unsuitable environments. In the silkworm, Bombyx mori, diapause occurs at the embryonic stage and is regulated by the diapause hormone (DH). Here, we directly injected DH into the female pupae and investigated the DH receptor expression pattern. Using RNA sequencing, we analyzed the gene expression profile in the developing ovaries after the injection of DH.

Abstract

Diapause is a form of dormancy that organisms use to adapt to extreme environments by exhibiting developmental arrest. In the silkworm, Bombyx mori, diapause is thought to be elicited by diapause hormone (DH) signaling, which consists of interactions between DH and the DH receptor (DHR). However, the steps downstream of the DH signaling pathway are largely unknown. In the present study, we directly injected synthesized DH into the female pupae of a multivoltine, non-diapausing strain at 36 h after pupation. We found that the mRNA level of DHR declined at 4 h and recovered at 12 h after the injection of DH. Thus, we sequenced the transcriptome of the ovaries at 4 h and 12 h after the injection of DH. We identified 60 and 221 differentially expressed genes at 4 h and 12 h after the injection, respectively. All DEGs were identified, relating to 20E-related genes, JH-related genes, cellular detoxification, ribosomal proteins, lipid metabolism, and epigenetic modifications. Eleven genes were selected from the above categories to verify the transcriptome data. The qRT-PCR and RNA-Seq expression patterns of the genes were consistent, which indicated the authenticity and reliability of the transcriptome data. This study dramatically expands upon our knowledge of gene expression variation at the early phase of DH release.

1. Introduction

To ensure survival under adverse environmental conditions, most insect species have evolved a special stage of developmental arrest called diapause [1]. During the diapause phase, the insects show reduced respiration, an arrest of development, hormonal and metabolic mechanisms of change, and resistance to enhancement [2]. Diapause can occur during different developmental stages, including embryonic [3], larval [4], pupal [5], or adult stages [6].
The silkworm, Bombyx mori, is a typical insect that enter the diapause phase during the embryonic stage [7]. In natural conditions, B. mori strains can be divided into monovoltine, bivoltine, and multivoltine. Most silkworm strains experience one generation of breeding cycle (monovoltine) or two generations (bivoltine) per year [8]. Several tropical strains have evolved to be multivoltine and no longer experience diapause. When eggs are incubated under continuous darkness at 25 °C (25DD) or 15 °C (15DD), the resultant moths produce diapause or non-diapause eggs, respectively [8,9]. If the eggs are incubated at 20 °C under continuous illumination (20LL) or darkness (20DD), the resultant moths lay diapause or non-diapause eggs, respectively [10]. Thus, the diapause of the bivoltine strain is transgenerationally induced as a maternal effect, and is mainly determined by the environmental temperature and the photoperiod conditions during the embryonic development of the mother [11,12].
In B. mori, diapause is regulated by the diapause hormone (DH), a member of the FXPRLa neuropeptide family that is secreted and synthesized by the subesophageal ganglion (SG) [13]. DH released into the hemolymph and acts on ovary-expressed DH receptor (DHR) specificity, which induces the initiation of diapause [14]. Under the control of DH, a diapause-destined silkworm lays diapause eggs with certain changes, such as the color gradually changing from light yellow to brown within 48 h after oviposition [15] and cell cycle arrest the G2 stage [3]. Although DH is also expressed in insects other then B. mori, it is interesting that DH only effects diapause induction in B. mori [2]. In Helicoverpa armigera, the function of DH even terminates diapause [16,17].
In the bivoltine strain, the null mutants of either DH or DHR produce non-diapause eggs [12]. However, the overexpression of DH and DHR in the multivoltine silkworm is not enough to induce diapause, and they only cause changes in the gene expression that are related to diapause [18] The Bombyx TRPA1 ortholog (BmTrpA1) acts as a thermosensitive transient receptor potential channel that is activated at temperatures above ~21 °C, and that regulates progeny diapause via DH release [19]. Recently, the γ-aminobutyric acid (GABA)ergic and corazonin signaling system have been confirmed to modulate progeny diapause via diapause hormone release, which may be finely tuned by the temperature-dependent expression of GABA transporter via BmTrpA1 [20].
The steps upstream of the DH signaling pathway are well-studied in silkworms. In contrast, the steps downstream of the DH signaling pathway are still unclear. In the diapause silkworm strains, the ovaries are sensitive to DH release during the period from 24 to 48 h of pupal age. Direct injection of DH at the sensitive period can induces diapause in a multivoltine strain, which is suitable for an analysis of the gene expression response of the ovaries to the stimulation of DH. In the present study, we injected the DH into the pupas of a multivoltine strain, Nistari, at 36 h, and performed RNASeq analysis.

2. Materials and Methods

2.1. Animals and Sample Preparation

A multivoltine and non-diapause silkworm strain, Nistari, was provided by JiangSu University of Science and Technology. Larvae were feed on fresh mulberry leaves under standard conditions at 25 °C with a 12 h light/dark cycle and 65–75% relative humidity. DH is a neuropeptide composed of 24 amino acids, and the sequence is as follows: Thr-Asp-Met-Lys-Asp-Glu-Ser-Asp-Arg Gly-A1a-His-Ser-Glu-Arg Gly-Ala-Leu-Cys-Phe-GIy-Pro-Arg-Leu-NH2 [7]. DH (sequence: TDMKDESDRGAHSERGALWFGPRL-NH2) was synthesized by Sangon Biotech (Shanghai, China). The injection was performed on female pupae at the intersegment membrane of the third abdominal segment at 36 h after pupation. The normal physiological titer of DH in Bombyx mori is 8.85 ± 2.71 pmol [12]. Cui et al. found that the diapause rate was approximately 100% only when the pupa was supplemented with 10 μg (3780 pmol) of DH [21]. In the experimental group, the female pupae were injected with 2 μL DH (5 μg/μL) in order to achieve the best diapause effect. In control group, the female pupae were injected with 2 μL UltraPure™ DNase/RNase-Free distilled water (Invitrogen, Waltham, CA, USA). The silkworm pupae were placed in the same growing environment as the larval stage, and then mated and laid eggs as adults. The silkworm eggs were incubated in darkness at 25 °C, and the diapause rate of 15 egg circles was calculated 48 h after oviposition. Female pupae were anesthetized on ice for 30 min, and then ovarian tissue was collected in phosphate-buffered saline after injection at 4 h and 12 h. The ovaries of three silkworms were collected from each sample. The samples were quickly frozen in liquid nitrogen, and stored at −80 °C for RNA extraction.

2.2. RNA Extraction and cDNA Library Construction

Total RNA was extracted with TRIzol reagent (Invitrogen, Waltham, CA, USA) and digested with DNase I (Invitrogen, Waltham, CA, USA) according to the manufacturer’s protocol. RNA quality was determined using a NanoDrop ND-1000 Spectrophotometer and agarose gel electrophoresis (NanoDrop, Wilmington, DE, USA) (Figure S1). The cDNA libraries were constructed from the quantified total RNA using a TruSeq™ RNA Sample Preparation kit (Illumina, San Diego, CA, USA), following the manufacturer’s recommendations. Three biological replications were performed with each treatment.

2.3. RNA Sequencing (RNA-Seq) and De Novo Assembly of Sequences

The constructed cDNA library was sequencing on an Illumina HiSeq™ 2000 platform (Mega, Shanghai, China). Low-quality reads, reads with adapters, and unknown nucleotides were removed from the raw reads prior to assembly, to obtain clean reads. Low-quality reads, reads with adapters, and unknown nucleotides were removed from the raw reads prior to assembly, to obtain clean reads. The reference genome was downloaded from the SilkBase website (https://silkdb.bioinfotoolkits.net/main/species-info/-1, accessed on 16 July 2019). The high-quality clean reads were de novo reassembled by Trinity software [22].

2.4. Differentially Expressed Genes (DEGs) Analysis

Gene expression levels were calculated by the FPKM [23] (the expected number of fragments per kilobase of transcript sequence per millions of base pairs sequenced) method, based on the length of the gene and the gene length for the read counts. Differential expression analysis between the treatment and control groups (three biological replicates per condition and the ovaries of three silkworms were collected per sample) was performed using DESeq software [24]. Genes with an adjusted p-adjust of <0.05 and a |log2 (fold change)| > 1 as found by DESeq2 were assigned as differentially expressed. To determine the main biological functions of DEGs, Blast2GO software was used to annotate them with GO terms [25]. The GO enrichment analysis of DEGs was implemented by Goatools software [26]. Corrected GO terms with p-adjust < 0.05 were considered to be significantly enriched in DEGs. To explore the biological interactions between the DEGs, KEGG pathways were enriched using KOBAS software and corrected using hypergeometric tests and the Benjamini–Hochberg false discovery rate (FDR) [27].

2.5. Quantitative Real-Time PCR (qRT-PCR) Verification

To verify the accuracy of the RNA-seq, a total of 11 genes were selected for qRT-PCR verification. Total RNA was isolated from the ovaries using a TRIzol reagent (Invitrogen). The RNA was treated with DNase I (Invitrogen) to remove genomic DNA. One μg of total RNA was used to synthesize cDNA using the ReverAid First Strand cDNA Synthesis Kit (Fermentas). Relative mRNA levels were determined by qRT-PCR using SYBR Green real-time PCR master mix (TOYOBO, Osaka, Japan). The PCR conditions used were as follows: initial incubation at 95 °C for 1 min, followed by 40 cycles of 95 °C for 15 s, and 60 °C for 1 min. The 2−∆∆CT method was employed to calculate relative gene expression, and the data were normalized to BmRP49. The primers used for qRT-PCR are listed in Table S1.

2.6. Statistical Analysis

The normality of data distribution was checked using the Shapiro–Wilk test. Experimental data from multiple groups were analyzed using a one-way analysis of variance with the Bonferroni post hoc test. Experimental data from two groups were analyzed using a Student’s t-test (*, p < 0.05; **, p < 0.01; ***, p < 0.001). At least three independent replicates were used for each treatment, and the data are reported as means ± standard errors of the mean (SEM).

3. Results

3.1. The Injection of DH Induces Progeny Embryonic Diapause in a Non-Diapause Silkworm Strain

To characterize the effect of DH, which induces the occurrence of silkworm egg diapause, on a non-diapause silkworm strain, Nistari, the female pupae were injected with synthetic DH (10 µg) at a pupal age of 36 h. In the control group, the eggs laid by the moths injected with distilled water (CK) were all light yellow non-diapause eggs (Figure 1a). In contrast, we found that the percentage of brown diapause eggs laid by the moths injected with DH reached up to 86.6% (Figure 1b,c). These results indicate that a direct injection of DH can induce diapause in the Nistari strain. In the diapause strains, DH acts on the DHR specificity expressed in ovary, which induces the initiation of diapause [13]. Thus, we detected the mRNA expression level of DHR after the DH injection. We found that the mRNA level of DHR gradually declined from 2 h to 4 h, and it recovered at 12 h after the injection of DH (Figure 1d and Figure S2). The change trend of DHR in female pupae after DH injection from 0.5 h to 12 h suggests that 4 h and 12 h might be the key point of DH action. In order to understand the physiological and biochemical effects of DH binding to DHR on oocytes, ovarian tissues at 4 h and 12 h after DH injection were collected for transcriptome sequencing.

3.2. Overview of Transcriptome Sequencing Data

Based on the expression level of DHR, we sequenced the transcriptomes of the ovaries at 4 h and 12 h after the injection of DH. The 12 independent cDNA libraries constructed from the control group treated with distilled water (CK) and from the experiment group treated with DH were sequenced on the Illumina HiSeq™ 2000 platform. The clean data of each sample was more than 6.06 Gb, and the percentage of Q20 and Q30 bases was more than 97% and 93%, respectively. The GC values of all samples ranged from 45% to 46% (Table 1). The result showed that the sequencing results were accurate and reliable, and could be used for subsequent analysis. PCA analysis showed a clear spatial separation of the gene expression profiles for the control and DH treatments (Figure S3).

3.3. DH-Induced Transcriptional Changes

When considering the p-adjust < 0.05 and a |log2 (fold change)| > 1, 259 differentially expressed genes (DEGs) were found at 4 h and 12 h after DH injection. Among the 259 DEGs, there were 60 and 221 genes that were differentially expressed at 4 h and 12 h after DH injection, respectively (Figure 2a,b; Tables S2 and S3). It is worth noting that the number of DEGs showed an upward trend, which indicated that the effect of DH on the ovaries increased gradually. Furthermore, 22 were differentially expressed in both periods (common), while 38 (4 h-specific) and 199 (12 h-specific) were only differentially expressed at 4 h and 12 h after DH injection, respectively (Figure 2b). DH led to significant changes in five times as many genes at 12 h than at 4 h. The DH treatment after 12 h significantly elicited more down-regulated genes, with more than half of the DEGs in both phases being down-regulated compared with the control larvae.
We further analyzed the 22 differentially expressed in both period after DH injection (Figure 3). The common genes can be divided into three categories. In the first category, compared with the control group, 13 genes were up-regulated in the DH-treated group at both 4 h and 12 h after injection, including Juvenile hormone binding protein (JHBP), fatty acyl-CoA reductase (Wat), cytochrome P450 CYP4G25 (CYP4G25), heparan sulfate 2-O-sulfotransferase pipe (pip), UDP-glycosyltransferases (UGT2A3) and Glutathione S-transferase (GST1), serine protease inhibitor 11 precursor (Spn42Dd), and diacylglycerol kinase eta-like, etc. In the second category, compared with the control group, the DH-treated group only had one gene: WD repeat-containing protein 18 (Wdr18), which was down-regulated at 4 h after injection but up-regulated at 12 h after injection. In the third category, compared with the control group, eight genes in the DH-treated group were up-regulated at 4 h after injection but down-regulated at 12 h after injection, including Broad (br), single-minded homolog 2(Ahr), reticulon-1-A isoform X2(rtn1-a), histone H3(His3), serine proteinase-like protein(PPAF2), and endochitinase A isoform X1, etc.

3.4. Gene Ontology (GO) Classification of DEGs

To investigate the functional significance of the DEGs identified above, GO function annotations and enrichment analysis were executed. All DGEs were classified into three main GO categories: biological process, cellular component, and molecular function, and then to 45 functional categories. In these functional groups, GO terms in CK4h_vs._DH4h were similar to CK12h_vs._DH12h (Figure 4 and Table S4). GO term enrichment analysis showed that when considering p-adjust < 0.05, none of the GO terms were significantly enriched between CK_4h and DH_4h. The DEGs between CK_12h and DH_12h were significantly enriched for 25 GO terms (Figure 5 and Table S5). The majority of the DEGs were engaged in the biological process, including immune response. In the cellular component group, the DEGs were all involved in chromatin formation, including nucleosome, DNA packaging complex, and protein–DNA complex. In the molecular function group, the majority of DEGs were engaged in protein heterodimerization activity, structural molecule activity, and structural constituent of ribosome.

3.5. KEGG Enrichments Analysis of DEGs

To investigate the influence of metabolism pathways after DH injection between 4 h and 12 h, we carried out KEGG enrichment analysis for DEGs in CK4h_vs._DH4h group (Table S6) and CK12h_vs._DH12h group (Table S7). The top 20 abundant pathways were shown in Figure 6. The result showed that DEGs in CK4h_vs._DH4h group were mostly enriched in apoptosis, which were related to cell growth and death. In addition, several pathways related to metabolism were also enriched, like metabolism of xenobiotics by cytochrome P450, steroid hormone biosynthesis and glycine, serine and threonine metabolism et al. (Figure 6a). However, DEGs in CK12h_vs._DH12h were also enriched in a variety of immune related pathways, such as toll and imd signaling pathway and leukocyte transendothelial migration (Figure 6b). These results indicated that inject DH can affect the metabolism and immune of early ovary development.

3.6. Validation of DEGs by qRT-PCR

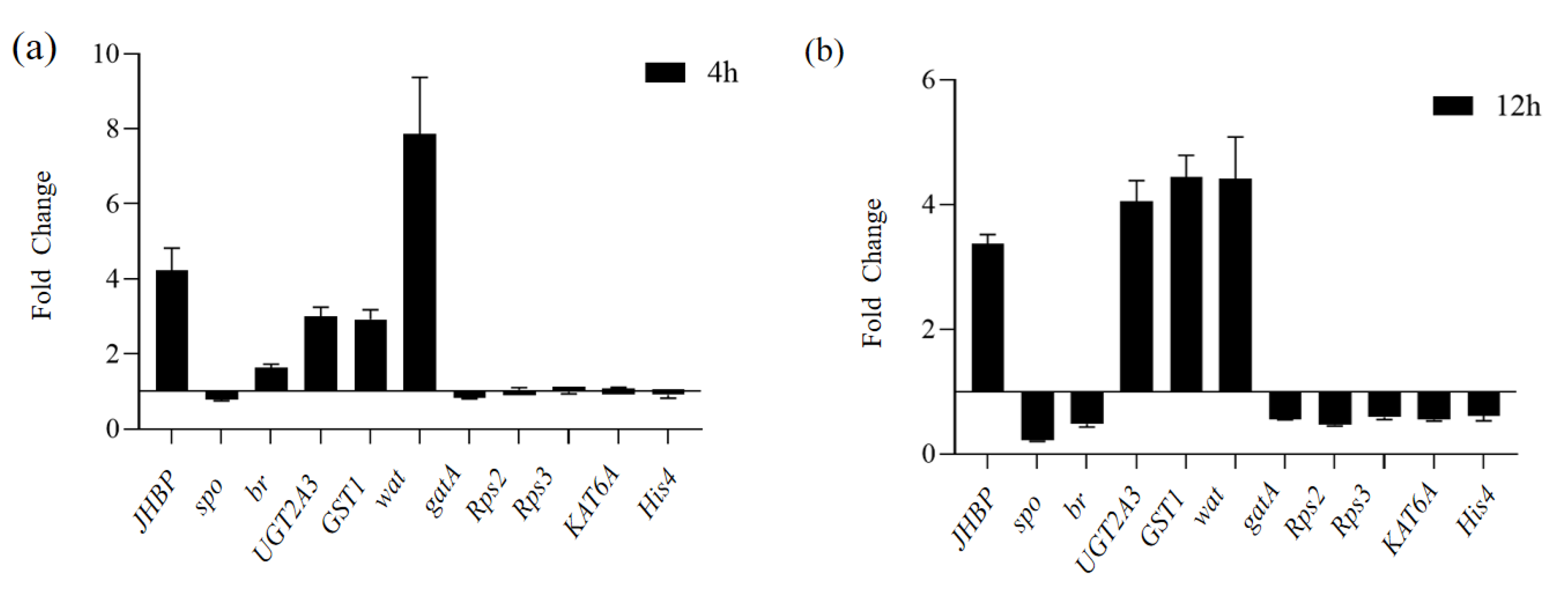

In order to confirm the reliability of the RNA-Seq data in the present study, the 11 genes including JHBP, spo (spook), br, UGT2A3, GST1, Wat, gatA (fatty-acid amide hydrolase 2-like), Rps2 (ribosomal protein S2), Rps3 (ribosomal protein S3), KAT6 (histone acetyltransferase KAT6A isoform X1), and His4 (histone H4) were selected to perform qRT-PCR. The results showed that the qRT-PCR and RNA-Seq expression patterns of these 11 differential genes were consistent (Figure 7 and Figure S4), indicating that the transcriptome data are authentic and reliable, and can be used for subsequent analysis. The 11 DEGs showed remarkable differences, which are also consistent with the results obtained from the RNA sequencing data.

4. Discussion

Insects enter diapause to ensure their survival under unfavorable environmental conditions, often under the control of photoperiod, humidity, and temperature [2,28]. In B. mori, the photoperiod and temperature of embryonic development regulate the release of DH at the middle pupal stages, during which the developing ovaries are sensitive to DH [29]. The released DH acts on DHR that is expressed in the developing ovaries, which induces the initiation of embryonic diapause. In the present study, gene expression changes were compared in the developing ovaries after the induction of DH by RNAseq. We identified 60 DEGs 4 h after DH injection compared with CK, of which 46 were up-regulated and 14 down-regulated. At 12 h after DH injection, 221 DEGs were identified compared with CK, with 45 up-regulated and 176 down-regulated. GO classification and KEGG enrichment analysis showed that most of the DEGs were involved in ribosomal proteins, epigenetic modification, metabolism process, and immune response. At the same time, we focused on hormone-related genes in DEGs, such as 20E-related genes and JH-related genes.
Diapause is induced by various hormones and peptides in different insect species [30,31]. In Helicoverpa armigera, pupal diapause is mainly regulated by the molting hormone 20-hydroxyecdysone (20E) [32]. A previous study showed that the low titer of ecdysteroids may be involved in the induction of embryonic diapause in B. mori [33]. Currently, we find that a Halloween gene, spo, is involved in 20E biosynthesis, which was significantly down-regulated 12 h after DH injection in the ovaries. Earlier studies on Drosophila melanogaster and B. mori showed that the Spo worked in a black box [34,35]. Spo is expressed in the prothoracic gland (PG) of B. mori, and its transcriptional peak is consistent with the increase of 20E secretion [34]. In female mosquitoes, transient spo knockout resulted in the decreased secretion of 20E in the ovaries, suggesting that its secretion was related to spo [36]. Therefore, we speculated that the down-regulated expression of spo in the ovarian tissues of the DH injection group would lead to the involvement of 20E in the induction of diapause in the offspring of the silkworm. Therefore, we hypothesized that spo also participates in diapause induction at an early pupal stage by controlling the synthesis of 20E. Br, a vital regulator factor of the ecdysone cascade, plays crucial roles during insect growth processes [37]. Br is also involved in the regulation of reproduction in many insects, such as the cockroach Blattella germanica and the mosquito Aedes aegypti [38,39]. It has been reported that br can directly regulate the transcription of vitellogenin (vg) to control vitellogenesis and egg formation through the transmission of ecdysone signal in B. mori [40]. In this study, we found that the expression level of Br was significantly up-regulated at 4 h, and down-regulated at 12 h after DH injection. The results suggest that the 20E cascade was involved in inducing progeny diapause by DH injection in the silkworm pupal stage.
Insect growth and development are orchestrated by 20E and juvenile hormone (JH) [41,42]. In addition to the gene expression changes involved in the 20E cascade, the JH-related genes expression level was also affected after the induction of DH. Our results showed that JHBP was significantly up-regulated in the DH group, compared with the control group. The function of JHBP is to bind JH in hemolymph to protect JH from nonspecific degradation, and to transport hormones to target tissues [43,44]. There are few reports regarding JH in the insect pupal stage, and most studies focus on the larvae and adults. In the larval stage, JH can maintain a larval state after molting. In the adult stage, JH can directly regulate reproductive maturation [45], such as Locusta migratoria [46]. It is generally believed that JH is low in pupal insects. In Philosamia cymhia ricini, the JH titers in the pupal stage were gradually increased [47]. JH titers in the hemolymph of Galleria mellonella was generally low in the pupal stage, but they increased drastically in the late pupal stage [48]. Similarly, JH was also expressed in the pupal stage of Bombyx mori [49]. Studies have shown that injecting juvenile hormone analogue (JHA) into female pupae can affect the maturation of silkworm eggs [50]. Our results suggest that JHBP may also be involved in inducing progeny diapause by DH injection in the silkworm pupal stage.
Ribosomal proteins (Rp) are mainly involved in protein synthesis, cell metabolism, and other important physiological functions, including ovarian and embryonic development [51,52,53,54]. In this study, we found that 10 DEGs involved in ribosome biogenesis were significantly down-regulated in CK_12h. In Culex pipiens, the RNA interference of Rps3a can mimic “diapause-like” ovarian arrest in non-diapause females [55]. In Drosophila, a string of pearls (SOP) encoding Rps2 is necessary for successful oogenesis [56]. The silencing of RpS2 induces diapause in adult females of C. pipiens [30]. In addition, the ribosomal protein in diapause eggs was lower than that in non-diapause eggs in B. mori [57]. Therefore, we speculated that the downregulation of genes involved in ribosome biogenesis was responsible for the low content of ribosomal protein in diapause eggs. However, detailed functions remain to be investigated.
Lipid metabolism is critical for energy homeostasis [58]. We noticed that fatty acyl-CoA reductase (Wat) was significantly up-regulated in DH_4h and DH_12h. Wat plays an important role in the formation of long-chain fatty alcohols, which are precursors of insect wax lipids and ether lipids. Wax lipids can reduce water evaporation and enhance defenses against microorganisms; ether lipids are important membrane components [59,60]. We speculated that the up-regulation of Wat expression contributes to the enhanced stress resistance of silkworms.
UDP-glycosyltransferase (UGT) and Glutathione S-transferase (GST) play important roles in cellular detoxification in insects [61,62]. In DH_4h and DH_12h, the expressions of UGT2A3 and GST1 were significantly up-regulated. UGT protects cellular systems from toxic compounds by catalyzing the binding of a sugar provided by UDP-glycosides to lipophilic molecules to produce water-soluble products that are easily excreted [63]. On the other hand, GST catalyzes the reaction between reduced glutathione (GSH) and toxic substances to reduce their toxicity and to enhance their dissolubility and excretion, thus achieving the purpose of detoxification [64]. In some diapause insects, such as Trichogramma dendrolimi, the expression levels of UGT and GST are also increased to enhance resistance to adverse environmental conditions [65]. Thus, the high expression of UGT2A3 and GST1 in the developing ovaries may also be associated with improved stress resistance.
The immune system remains active at diapause [66]. In diapausing Colorado potato beetle, several serine protease transcripts in the immune response were up-regulated in both the fat body and the flight muscle [67]. Genes involved in the immune response were up-regulated during diapause in Tetrapedia diversipes [68]. In our study, we found that various DEGs involved in the immune response were affected in DH_12h. This result suggests that the immune response may play an important role in the diapause of B. mori induced by DH.
Epigenetic modification refers to changes in gene expression levels through DNA methylation, small regulator RNA, and histone acetylation, without changing the nucleotide sequences of genes [69]. Epigenetic modification has recently been proven to play an important role in diapause induction in many insects [70,71,72]. In Sarcophaga bullata, the total histone H3 acetylation was significantly reduced during the diapause period. The expression levels of histone acetyltransferases and histone deacetylases were changed at pre-diapause, diapause, and post-diapause periods, supporting histone modifications involved in diapause regulation [72]. In this study, we found 11 histones and one histone acetyltransferase KAT6A in the set of down-regulated gene in CK12h_vs._DH12h, indicating that histone modifications are involved in the regulation process of DH-induced diapause in silkworms.

5. Conclusions

We injected synthetic DH into the female multivoltine silkworm at 36 h after pupation. According to the expression level of DHR, ovarian tissues at 4 h and 12 h after the injection of DH were collected for transcriptome sequencing. GO analysis and KEGG enrichment analysis were performed on the DEGs, which could be divided into the following categories according to their biological functions: 20E-related genes, JH-related genes, cellular detoxification, ribosomal proteins, lipid metabolism, and epigenetic modifications. Eleven genes were selected from the above categories to verify the transcriptome data. Our results provide important information for the steps downstream of the DH signaling pathway, and they have important guiding significance for the further study of diapause in Bombyx mori.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology11091313/s1, Figure S1: Agarose gel electrophoresis diagram of RNA quality detection; Figure S2: The expression pattern of BmDHR; Figure S3: PCA analysis; Figure S4: RNA-Seq expression patterns; Table S1: Primers of the genes for qRT-PCR validation in this study; Table S2: Differentially expressed genes (DEGs) among CK4h_vs._DH4h; Table S3: Differentially expressed genes (DEGs) among CK12h_vs._DH12h; Table S4: GO annotation analysis of DEGs in CK4h_vs._DH4h group and CK12h_vs._DH12h group; Table S5: GO enrichment of DEGs in CK12h_vs._DH12h group; Table S6: KEGG enrichment of DEGs from different groups in CK4h_vs._DH4h; Table S7: KEGG enrichment of DEGs from different groups in CK12h_vs._DH12h.

Author Contributions

Conceptualization, H.S., L.C., X.L., Z.Z., B.H., K.C. and Y.Y.; methodology, L.C. and X.L.; software, L.C. and X.L.; validation, L.C., X.L. and Z.Z.; formal analysis, L.C. and X.L.; investigation, L.C.; resources, X.L. and Z.Z.; data curation, L.C. and X.L.; writing—original draft preparation, L.C.; writing—review and editing, H.S., X.L. and Z.Z.; visualization, H.S., L.C., X.L., Z.Z., B.H., K.C. and Y.Y.; supervision, H.S., L.C., X.L., Z.Z., B.H., K.C. and Y.Y.; project administration, H.S., X.L., Z.Z., B.H., K.C. and Y.Y.; funding acquisition, X.L. and Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (32000336, 32000339).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ragland, G.J.; Armbruster, P.A.; Meuti, M.E. Evolutionary and functional genetics of insect diapause: A call for greater integration. Curr. Opin. Insect Sci. 2019, 36, 74–81. [Google Scholar] [CrossRef] [PubMed]
  2. Delinger, D. Regulation of diapauses. Annu. Rev. Entomol. 2002, 47, 93–122. [Google Scholar] [CrossRef] [PubMed]
  3. Nakagaki, M.; Takei, R.; Nagashima, E.; Yaginuma, T. Cell cycles in embryos of the silkworm, Bombyx mori: G2-arrest at diapause stage. Dev. Genes Evol. 1991, 200, 223–229. [Google Scholar] [CrossRef] [PubMed]
  4. Bean, D.W.; Beck, S.D.; Goodman, W.G. Juvenile hormone esterases in diapause and nondiapause larvae of the European corn borer, Ostrinia nubilalis. J. Insect Physiol. 1982, 28, 485–492. [Google Scholar] [CrossRef]
  5. Fraenkel, G.; Hsiao, C. Manifestations of a pupal diapause in two species of flies, Sarcophaga argyrostoma and S. bullata. J. Insect Physiol. 1968, 14, 689–705. [Google Scholar] [CrossRef]
  6. Kotaki, T. Relationships between JH-biosynthetic activity of the corpora allata in vitro, their size and adult diapause in a stink bug, Plautia crossota stali Scott. Entomol. Sci. 1999, 2, 307–313. [Google Scholar]
  7. Yamashita, O. Diapause hormone of the silkworm, Bombyx mori: Structure, gene expression and function. Insect Physiol. 1996, 42, 669–679. [Google Scholar] [CrossRef]
  8. Hasegawa, K. Studies on the voltinism in the silkworm, Bombyx mori L., with special reference to the organs concerning determination of voltinism (a preliminary note). Proc. Jpn. Acad. 1951, 1, 83–124. [Google Scholar] [CrossRef]
  9. Morita, A.; Niimi, T.; Yamashita, O. Physiological differentiation of DH-PBAN-producing neurosecretory cells in the silkworm embryo. J. Insect Physiol. 2003, 49, 1093–1102. [Google Scholar] [CrossRef]
  10. Li, X.; Song, Y. Effect of Diapause-inducing Temperature and Photoperiod on the Expression of Circadian Rhythm Gene per in the Silkworm, Bombyx mori. Sci. Sericult. 2010, 36, 0052–0059, (In Chinese with English abstract). [Google Scholar]
  11. Yamashita, O.; Hasegawa, K. Embryonic diapause. Compr. Insect Physiol. Biochem. Pharmacol. 1985, 1, 407–434. [Google Scholar]
  12. Shiomi, K.; Takasu, Y.; Kunii, M.; Tsuchiya, R.; Mukaida, M.; Kobayashi, M.; Sezutsu, H.; Ichida Takahama, M.; Mizoguchi, A. Disruption of diapause induction by TALEN-based gene mutagenesis in relation to a unique neuropeptide signaling pathway in Bombyx. Sci. Rep. 2015, 5, 15566. [Google Scholar] [CrossRef] [PubMed]
  13. Imai, K.; Konno, T.; Nakazawa, Y.; Komiya, T.; Yamashita, O. Isolation and Structure of Diapause Hormone of the Silkworm, Bombyx mori. Proc. Jpn. Acad. Ser. B Phys. Biol. Sci. 1991, 67, 98–101. [Google Scholar] [CrossRef] [Green Version]
  14. Yamashita, O.; Hasegawa, K.; Seki, M. Effect of the diapause hormone on trehalase activity in pupal ovaries of the silkworm, Bombyx mori L. Gen. Comp. Endocrinol. 1972, 18, 515–523. [Google Scholar] [CrossRef]
  15. Huang, J.Z.; Xia, J.W.; Xiang, Z. Complete Works of Sericultural Technology in China; Sichuan Publishing House of Science & Technology Press: Chengdu, China, 1996; pp. 519–521. [Google Scholar]
  16. Zhang, Q.; Denlinger, D.L. Dynamics of diapause hormone and prothoracicotropic hormone transcript expression at diapause termination in pupae of the corn earworm, Helicoverpa zea. Peptides 2012, 34, 120–126. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, Q.; Nachman, R.J.; Denlinger, D.L. Diapause hormone in the Helicoverpa/Heliothis complex: A review of gene expression, peptide structure and activity, analog and antagonist development, and the receptor. Peptides 2015, 72, 196–201. [Google Scholar] [CrossRef]
  18. Gong, C.; Zeng, W.; Zhang, T.; Liu, R.; Ou, Y.; Ai, J.; Xiang, Z.; Xu, H. Effects of transgenic overexpression of diapause hormone and diapause hormone receptor genes on non-diapause silkworm. Transgenic Res. 2017, 26, 807–815. [Google Scholar] [CrossRef]
  19. Sato, A.; Sokabe, T.; Kashio, M.; Yasukochi, Y.; Tominaga, M.; Shiomi, K. Embryonic thermosensitive TRPA1 determines transgenerational diapause phenotype of the silkworm, Bombyx mori. Proc. Natl. Acad. Sci. USA 2014, 111, E1249–E1255. [Google Scholar] [CrossRef]
  20. Tsuchiya, R.; Kaneshima, A.; Kobayashi, M.; Yamazaki, M.; Takasu, Y.; Sezutsu, H.; Tanaka, Y.; Mizoguchi, A.; Shiomi, K. Maternal GABAergic and GnRH/corazonin pathway modulates egg diapause phenotype of the silkworm Bombyx mori. Proc. Natl. Acad. Sci. USA 2021, 118, e2020028118. [Google Scholar] [CrossRef]
  21. Cui, W.Z.; Qiu, J.F.; Dai, T.M.; Chen, Z.; Li, J.L.; Liu, K.; Wang, Y.J.; Sima, Y.H.; Xu, S.Q. Circadian Clock Gene Period Contributes to Diapause via GABAeric-Diapause Hormone Pathway in Bombyx mori. Biology 2021, 10, 842. [Google Scholar] [CrossRef]
  22. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.; et al. Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat. Biotechnol. 2011, 29, 644–652. [Google Scholar] [CrossRef] [PubMed]
  23. Dewey, C.N.; Li, B. RSEM: Accurate transcript quantification from RNA-Seq data with or without a reference genome. BMC Bioinform. 2011, 12, 323. [Google Scholar]
  24. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome Biol. 2010, 11, R106. [Google Scholar] [CrossRef] [PubMed]
  25. Conesa, A.; Gotz, S.; Garcia-Gomez, J.M.; Terol, J.; Talon, M.; Robles, M. Blast2GO: A universal tool for annotation, visualization and analysis in functional genomics research. Bioinformatics 2005, 21, 3674–3676. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Klopfenstein, D.V.; Zhang, L.; Pedersen, B.S.; Ramirez, F.; Warwick Vesztrocy, A.; Naldi, A.; Mungall, C.J.; Yunes, J.M.; Botvinnik, O.; Weigel, M.; et al. GOATOOLS: A Python library for Gene Ontology analyses. Sci. Rep. 2018, 8, 10872. [Google Scholar] [CrossRef] [PubMed]
  27. Mao, X.; Cai, T.; Olyarchuk, J.G.; Wei, L. Automated genome annotation and pathway identification using the KEGG Orthology (KO) as a controlled vocabulary. Bioinformatics 2005, 21, 3787–3793. [Google Scholar] [CrossRef]
  28. Houten, Y.M.V.; Veenendaal, R.L. Effects of photoperiod, temperature, food and relative humidity on the induction of diapause in the predatory miteAmblyseius potentillae. Exp. Appl. Acarol. 1990, 10, 111–128. [Google Scholar] [CrossRef]
  29. Yamashita, O.; Hasegawa, K. Ocyte age sensitive to the diapause hormone from the standpoint of glycogen synthesis in the silkworm, Bombyx mori. J. Insect Physiol. 1970, 16, 2377–2383. [Google Scholar] [CrossRef]
  30. Kim, M.; Denlinger, D.L. A potential role for ribosomal protein S2 in the gene network regulating reproductive diapause in the mosquito Culex pipiens. J. Comp. Physiol. B 2010, 180, 171–178. [Google Scholar] [CrossRef]
  31. Guo, S.; Tian, Z.; Wu, Q.W.; King-Jones, K.; Wang, X.P. Steroid hormone ecdysone deficiency stimulates preparation for photoperiodic reproductive diapause. PLoS Genet. 2021, 17, e1009352. [Google Scholar] [CrossRef]
  32. Zhe, S.; Yang, Y.P.; Xu, W.H. PTEN expression responds to transcription factor POU and regulates p-AKT levels during diapause initiation in the cotton bollworm, Helicoverpa armigera. Insect Biochem. Mol. Biol. 2018, 100, 48–58. [Google Scholar]
  33. Sonobe, H.; Yamada, R. Ecdysteroids during early embryonic development in silkworm Bombyx mori: Metabolism and functions. Zool. Sci. 2004, 21, 503. [Google Scholar] [CrossRef] [PubMed]
  34. Namiki, T.; Niwa, R.; Sakudoh, T.; Shirai, K.; Takeuchi, H.; Kataoka, H. Cytochrome P450 CYP307A1/Spook: A regulator for ecdysone synthesis in insects. Biochem. Biophys. Res. Commun. 2005, 337, 367–374. [Google Scholar] [CrossRef] [PubMed]
  35. Niwa, R.; Matsuda, T.; Yoshiyama, T.; Namiki, T.; Mita, K.; Fujimoto, Y.; Kataoka, H. CYP306A1, a cytochrome P450 enzyme, is essential for ecdysteroid biosynthesis in the prothoracic glands of Bombyx and Drosophila. J. Biol. Chem. 2004, 279, 35942–35949. [Google Scholar] [CrossRef]
  36. Pondeville, E.; David, J.P.; Guittard, E.; Maria, A.; Jacques, J.C.; Ranson, H.; Bourgouin, C.; Dauphin-Villemant, C. Microarray and RNAi analysis of P450s in Anopheles gambiae male and female steroidogenic tissues: CYP307A1 is required for ecdysteroid synthesis. PLoS ONE 2013, 8, e79861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Kiss, I.; Beaton, A.H.; Tardiff, J.; Fristrom, D.; Fristrom, J.W. Interactions and developmental effects of mutations in the Broad-Complex of Drosophila melanogaster. Genetics 1988, 118, 247–259. [Google Scholar] [CrossRef] [PubMed]
  38. Piulachs, M.D.; Pagone, V.; Belles, X. Key roles of the Broad-Complex gene in insect embryogenesis. Insect Biochem. Mol. Biol. 2010, 40, 468–475. [Google Scholar] [CrossRef]
  39. Chen, L.; Zhu, J.; Sun, G.; Raikhel, A.S. The early gene Broad is involved in the ecdysteroid hierarchy governing vitellogenesis of the mosquito Aedes aegypti. J. Mol. Endocrinol. 2004, 33, 743–761. [Google Scholar] [CrossRef]
  40. Yang, C.W.; Lin, Y.; Liu, H.L.; Shen, G.W.; Luo, J.; Zhang, H.Y.; Peng, Z.X.; Chen, E.X.; Xing, R.M.; Han, C.S.; et al. The Broad Complex isoform 2 (BrC-Z2) transcriptional factor plays a critical role in vitellogenin transcription in the silkworm Bombyx mori. BBA-Gen. Subj. 2014, 1840, 2674–2684. [Google Scholar] [CrossRef]
  41. Henrich, V.C.; Rybczynski, R.; Gilbert, L.I. Peptide hormones, steroid hormones, and puffs: Mechanisms and models in insect development. Vitam. Horm. 1999, 55, 73–125. [Google Scholar]
  42. Dubrovsky, E.B. Hormonal cross talk in insect development. Trends Endocrin. Met. 2005, 16, 6–11. [Google Scholar] [CrossRef] [PubMed]
  43. Zalewska, M.; Ozyhar, A.; Kochman, M. Identification of specific interaction of juvenile hormone binding protein with isocitrate dehydrogenase. Acta Biochim. Pol. 2011, 58, 119–124. [Google Scholar] [CrossRef] [PubMed]
  44. Kramer, K.J.; Sanburg, L.L.; Kezdy, F.J.; Law, J.H. The Juvenile Hormone Binding Protein in the Hemolymph of Manduca sexta Johannson (Lepidoptera: Sphingidae). Proc. Natl. Acad. Sci. USA 1974, 71, 493–497. [Google Scholar] [CrossRef] [PubMed]
  45. Riddiford, L.M. Juvenile hormone action: A 2007 perspective. J. Insect Physiol. 2008, 54, 895–901. [Google Scholar] [CrossRef]
  46. Zhou, S.T.; Guo, W.; Song, J.S. The research of molecular mechanism of juvenile hormone. Appl. Entomol. 2012, 49, 1087–1094. (In Chinese) [Google Scholar]
  47. Wang, Z.T.; Zheng, W.H.; Guo, F. Determination of juvenile hormone titer in hemolymph of Philosamia cymhia ricini. Chin. Sci. Bull. 1998, 15, 1182. (In Chinese) [Google Scholar]
  48. Plantevin, G.; Reggi, M.; Nardon, C. Changes in ecdysteroid and juvenile hormone titers in the hemolymph of Galleria mellonella larvae and pupae. Gen. Comp. Endocrinol. 1984, 56, 218–230. [Google Scholar] [CrossRef]
  49. Strambi, C.; Strambi, A.; Reggi, M.L.; Hirn, M.H.; Delaage, M.A. Radioimmunoassay of Insect Juvenile Hormones and of Their Diol Derivatives. FEBS J. 1981, 118, 401–406. [Google Scholar] [CrossRef]
  50. Zhang, J.Y.; Huang, L.Q. Studies on the Oviposition Mechanism of Bombyx mori regulated by Hormones i. Effects of juvenile hormone analogized during larval stage of Bombyx mori and ecdysone on reproduction. Sericult. Sci. 1991, 1, 28–32. (In Chinese) [Google Scholar]
  51. Goudarzi, K.M.; Lindstrom, M.S. Role of ribosomal protein mutations in tumor development (Review). Int. J. Oncol. 2016, 48, 1313–1324. [Google Scholar] [CrossRef]
  52. Reynaud, E.; Bolshakov, V.N.; Barajas, V.; Kafatos, F.C.; Zurita, M. Antisense suppression of the putative ribosomal protein S3A gene disrupts ovarian development in Drosophila melanogaster. Mol. Gen. Genet. 1997, 256, 462–467. [Google Scholar] [CrossRef] [PubMed]
  53. Zurita, M.; Reynaud, E.; Kafatos, F.C. Cloning and characterization of cDNAs preferentially expressed in the ovary of the mosquito, Anopheles gambiae. Insect Mol. Biol. 1997, 6, 55–62. [Google Scholar] [CrossRef]
  54. Niu, L.L.; Fallon, A.M. Differential regulation of ribosomal protein gene expression in Aedes aegypti mosquitoes before and after the blood meal. Insect Mol. Biol. 2000, 9, 613–623. [Google Scholar] [CrossRef] [PubMed]
  55. Kim, M.; Sim, C.; Denlinger, D.L. RNA interference directed against ribosomal protein S3a suggests a link between this gene and arrested ovarian development during adult diapause in Culex pipiens. Insect Mol. Biol. 2010, 19, 27–33. [Google Scholar] [CrossRef] [PubMed]
  56. Cramton, S.E.; Laski, F.A. string of pearls encodes Drosophila ribosomal protein S2, has Minute-like characteristics, and is required during oogenesis. Genetics 1994, 137, 1039–1048. [Google Scholar] [CrossRef] [PubMed]
  57. Jing, G.; Tian, S.; Zhou, X.; Yang, H.; Yong, Z.; Yong, H. Transcriptional Response of Silkworm (Bombyx mori) Eggs to O2 or HCl Treatment. Int. J. Mol. Sci. 2016, 17, 1838. [Google Scholar]
  58. Hahn, D.A.; Denlinger, D.L. Meeting the energetic demands of insect diapause: Nutrient storage and utilization. J. Insect Physiol. 2007, 53, 760–773. [Google Scholar] [CrossRef]
  59. Hofvander, P.; Doan, T.T.; Hamberg, M. A prokaryotic acyl-CoA reductase performing reduction of fatty acyl-CoA to fatty alcohol. FEBS Lett. 2011, 585, 3538–3543. [Google Scholar] [CrossRef]
  60. Cheng, J.B.; Russell, D.W. Mammalian wax biosynthesis—II. Expression cloning of wax synthase cDNAs encoding a member of the acyltransferase enzyme family. J. Biol. Chem. 2004, 279, 37798–37807. [Google Scholar] [CrossRef]
  61. Krempl, C.; Sporer, T.; Reichelt, M.; Ahn, S.J.; Heidel-Fischer, H.; Vogel, H.; Heckel, D.G.; Joußen, N. Potential detoxification of gossypol by UDP-glycosyltransferases in the two Heliothine moth species Helicoverpa armigera and Heliothis virescens. Insect Biochem. Mol. Biol. 2016, 71, 49–57. [Google Scholar] [CrossRef]
  62. Roncalli, V.; Cieslak, M.C.; Passamaneck, Y.; Christie, A.E.; Lenz, P.H. Glutathione S-Transferase (GST) Gene Diversity in the Crustacean Calanus finmarchicus--Contributors to Cellular Detoxification. PLoS ONE 2015, 10, E0123322. [Google Scholar] [CrossRef] [PubMed]
  63. Bock, K.W. Vertebrate UDP-glucuronosyltransferases: Functional and evolutionary aspects. Biochem. Pharm. 2003, 66, 691–696. [Google Scholar] [CrossRef]
  64. Josephy, P.D. Genetic variations in human glutathione transferase enzymes: Significance for pharmacology and toxicology. Hum. Genom. Proteom. 2010, 2010, 876940. [Google Scholar] [CrossRef] [PubMed]
  65. Zhang, X.; Du, W.; Zhang, J.; Zou, Z.; Ruan, C. High-throughput profiling of diapause regulated genes from Trichogramma dendrolimi (Hymenoptera: Trichogrammatidae). BMC Genom. 2020, 21, 864. [Google Scholar] [CrossRef]
  66. Nakamura, A.; Miyado, K.; Takezawa, Y.; Ohnami, N.; Sato, M.; Ono, C.; Harada, Y.; Yoshida, K.; Kawano, N.; Kanai, S.; et al. Innate immune system still works at diapause, a physiological state of dormancy in insects. Biochem. Biophys. Res. Commun. 2011, 410, 351–357. [Google Scholar] [CrossRef] [PubMed]
  67. Lebenzon, J.E.; Torson, A.S.; Sinclair, B.J. Diapause differentially modulates the transcriptomes of fat body and flight muscle in the Colorado potato beetle. Comp. Biochem. Physiol. Part D Genom. Proteom. 2021, 40, 100906. [Google Scholar] [CrossRef]
  68. Santos, P.K.F.; de Souza Araujo, N.; Francoso, E.; Zuntini, A.R.; Arias, M.C. Diapause in a tropical oil-collecting bee: Molecular basis unveiled by RNA-Seq. BMC Genom. 2018, 19, 305. [Google Scholar] [CrossRef]
  69. Tammen, S.A.; Friso, S.; Choi, S.W. Epigenetics: The link between nature and nurture. Mol. Asp. Med. 2013, 34, 753–764. [Google Scholar] [CrossRef]
  70. Snell-Rood, E. The importance of epigenetics for behavioral ecologists (and vice versa). Behav. Ecol. 2013, 24, 328–329. [Google Scholar] [CrossRef]
  71. Reynolds, J.A.; Clark, J.; Diakoff, S.J.; Denlinger, D.L. Transcriptional evidence for small RNA regulation of pupal diapause in the flesh fly, Sarcophaga bullata. Insect Biochem. Mol. Biol. 2013, 43, 982–989. [Google Scholar] [CrossRef]
  72. Reynolds, J.A.; Bautista-Jimenez, R.; Denlinger, D.L. Changes in histone acetylation as potential mediators of pupal diapause in the flesh fly, Sarcophaga bullata. Insect Biochem. Mol. 2016, 76, 29–37. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Biology 11 01313 g001 550

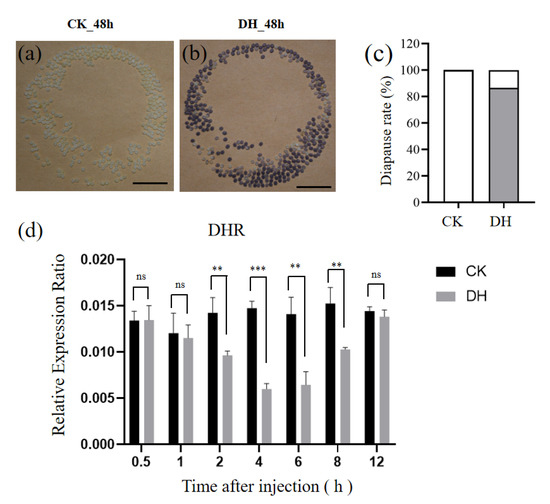

Figure 1. DH induces diapause in the Nistari strain. (a–c) The typical egg batches 48 h after oviposition from each distilled water-injected (CK_48h) and DH-injected (DH_48h) silkworm in the Nistari strain. Scale bar: 1 cm. (d) The expression patterns of BmDHR. qRT-PCR was used to detect the expression levels of BmDHR gene in the ovary at 0.5 h, 1 h, 2 h, 4 h, 6 h, 8 h, and 12 h. B. mori ribosomal protein gene RP49 was used as a control for normalization. The data shown are mean values ± S.E.M. (n = 3). The asterisks indicate the significant differences with a two-tailed t-test, ** p < 0.01; *** p < 0.0001. The ns indicate the no significant differences.
Figure 1. DH induces diapause in the Nistari strain. (a–c) The typical egg batches 48 h after oviposition from each distilled water-injected (CK_48h) and DH-injected (DH_48h) silkworm in the Nistari strain. Scale bar: 1 cm. (d) The expression patterns of BmDHR. qRT-PCR was used to detect the expression levels of BmDHR gene in the ovary at 0.5 h, 1 h, 2 h, 4 h, 6 h, 8 h, and 12 h. B. mori ribosomal protein gene RP49 was used as a control for normalization. The data shown are mean values ± S.E.M. (n = 3). The asterisks indicate the significant differences with a two-tailed t-test, ** p < 0.01; *** p < 0.0001. The ns indicate the no significant differences.
Biology 11 01313 g001
Biology 11 01313 g002 550

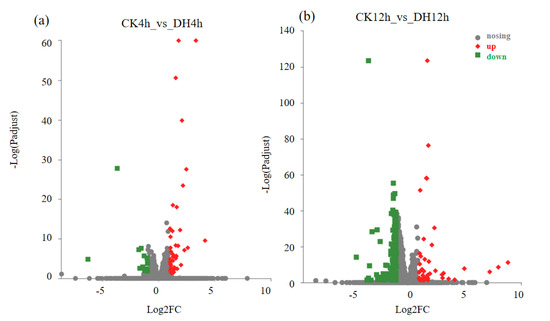

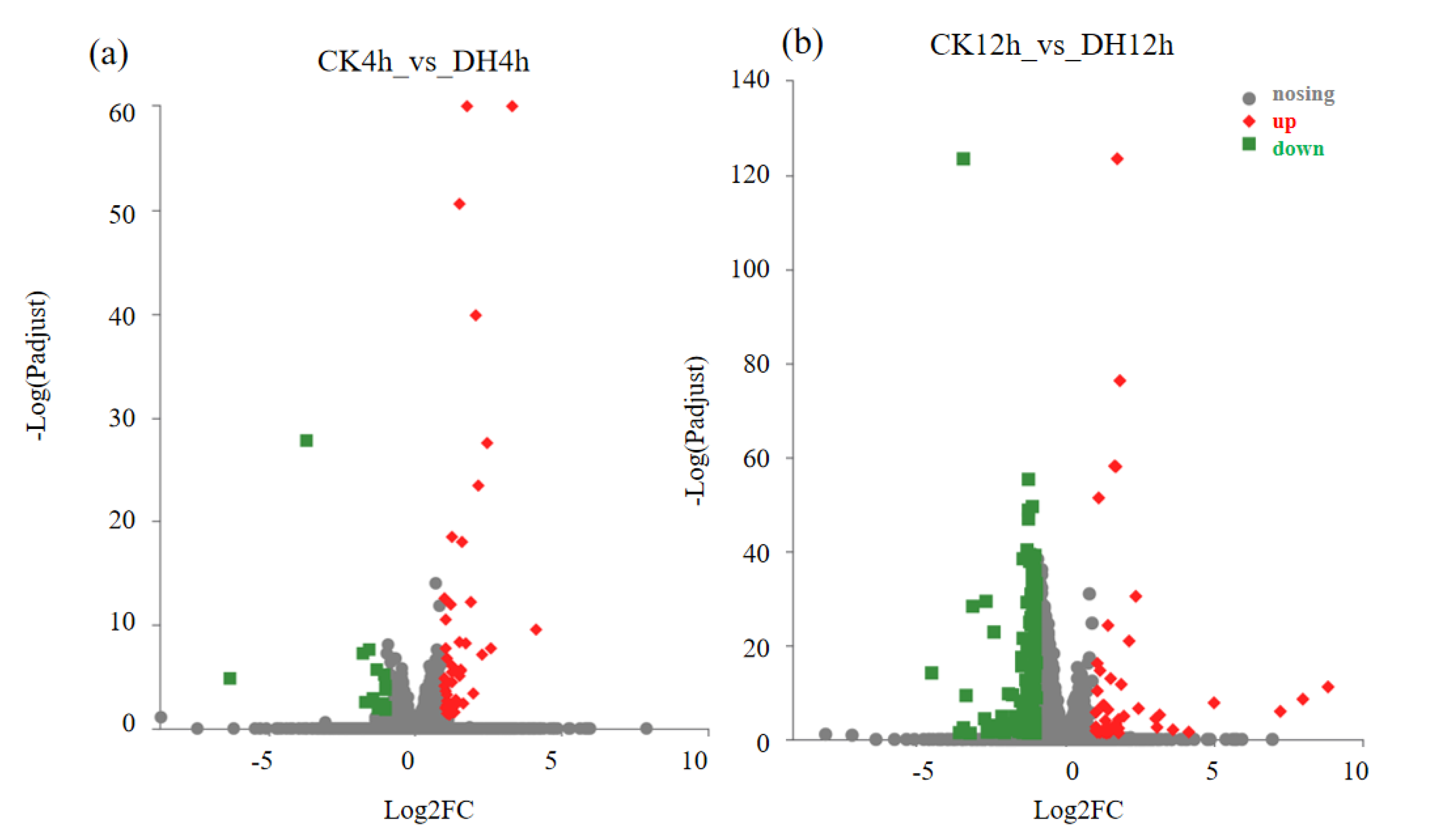

Figure 2. Volcano plot of DEGs identified in ovaries at 4 h (a) and 12 h (b) after DH injection. X-axis: log2−fold change (treatment/control). Y-axis: log10(FDR). Red data points indicated up-regulated unigenes and green data points indicated down-regulated unigenes.
Figure 2. Volcano plot of DEGs identified in ovaries at 4 h (a) and 12 h (b) after DH injection. X-axis: log2−fold change (treatment/control). Y-axis: log10(FDR). Red data points indicated up-regulated unigenes and green data points indicated down-regulated unigenes.
Biology 11 01313 g002
Biology 11 01313 g003 550

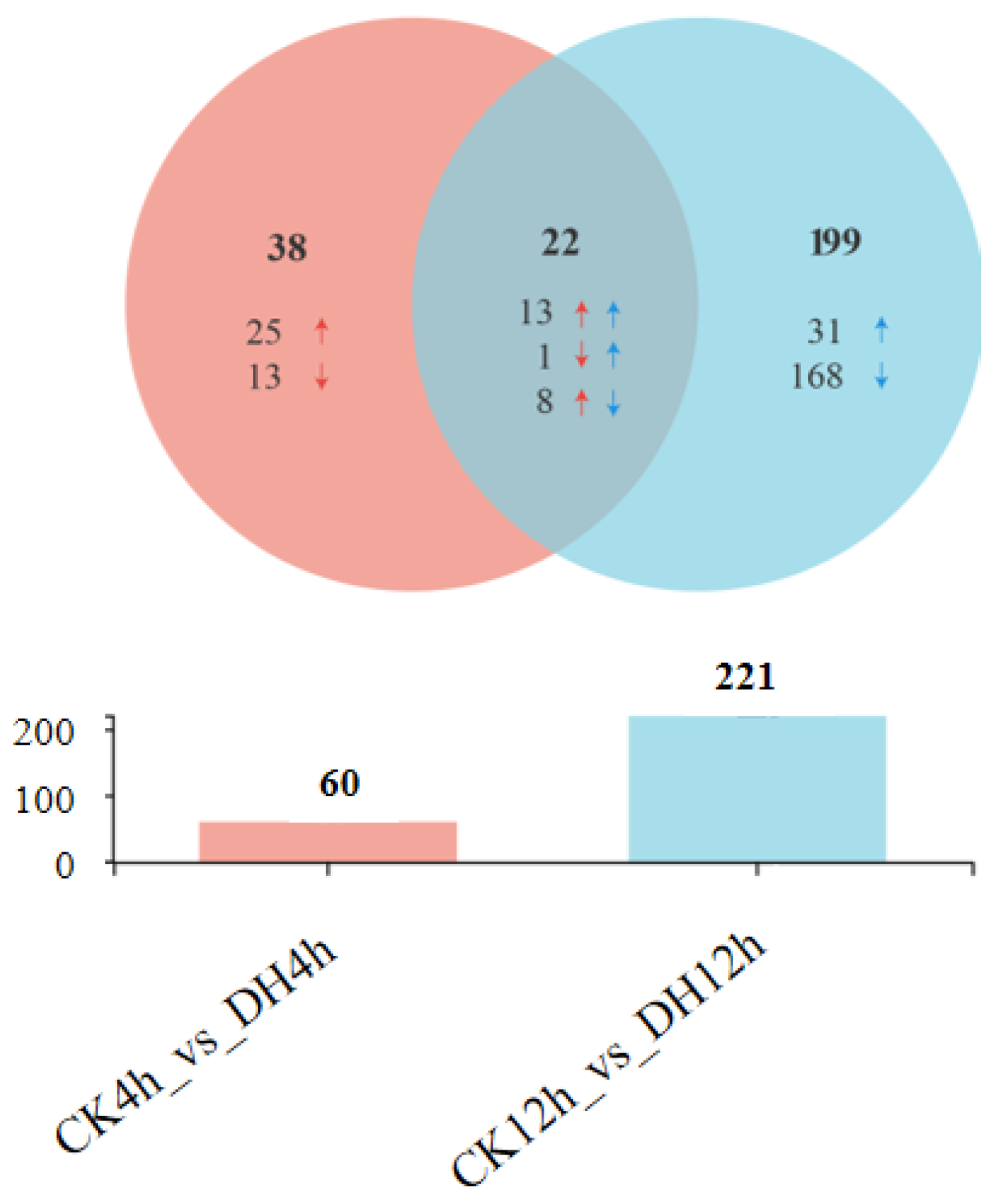

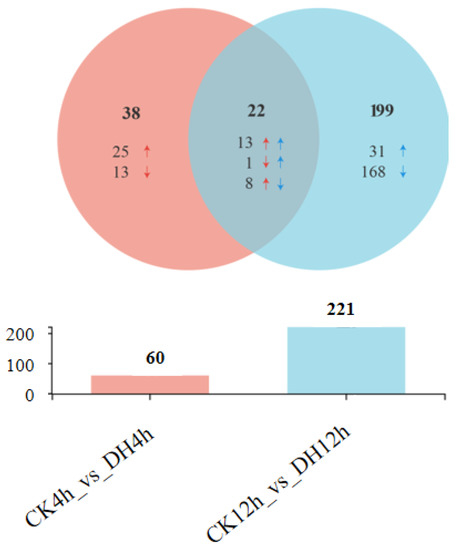

Figure 3. Number of differentially regulated genes in response to DH. Numbers of DEGs (|FC| > 2 and p-adjust < 0.05) between control and DH-treated for 4 h and 12 h. The circles of different colors represent the genes in a gene set, where the value represents the number of genes shared or unique between CK4h_vs._DH4h and CK12h_vs._DH12h.
Figure 3. Number of differentially regulated genes in response to DH. Numbers of DEGs (|FC| > 2 and p-adjust < 0.05) between control and DH-treated for 4 h and 12 h. The circles of different colors represent the genes in a gene set, where the value represents the number of genes shared or unique between CK4h_vs._DH4h and CK12h_vs._DH12h.
Biology 11 01313 g003
Biology 11 01313 g004 550

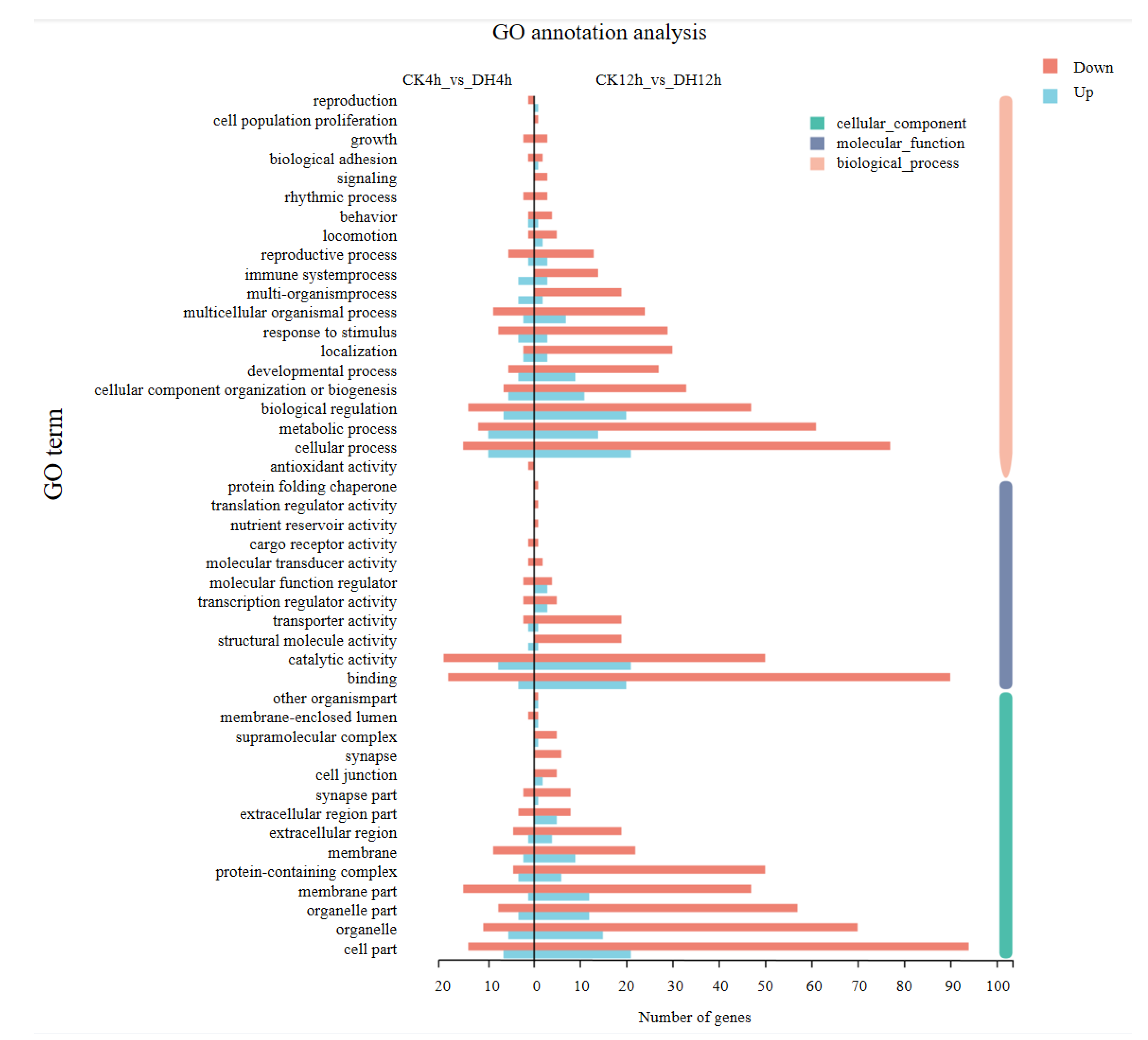

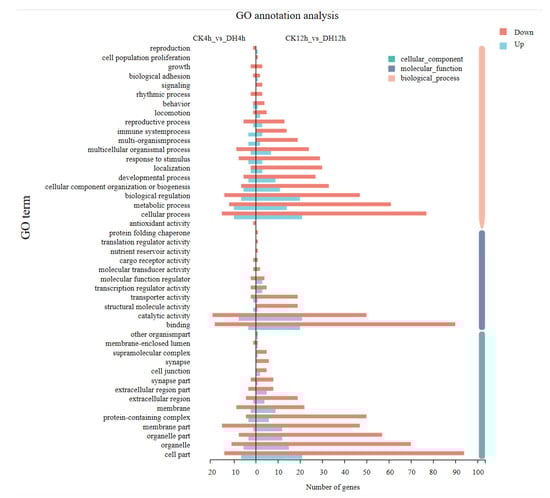

Figure 4. GO annotation analysis of DEGs in CK4h_vs._DH4h group and CK12h_vs._DH12h group. The vertical axis represents number of DGEs mapped to indicated GO term, and the horizontal axis represents each GO term. Red and blue bars represent up-regulated and down-regulated genes, respectively.
Figure 4. GO annotation analysis of DEGs in CK4h_vs._DH4h group and CK12h_vs._DH12h group. The vertical axis represents number of DGEs mapped to indicated GO term, and the horizontal axis represents each GO term. Red and blue bars represent up-regulated and down-regulated genes, respectively.
Biology 11 01313 g004
Biology 11 01313 g005 550

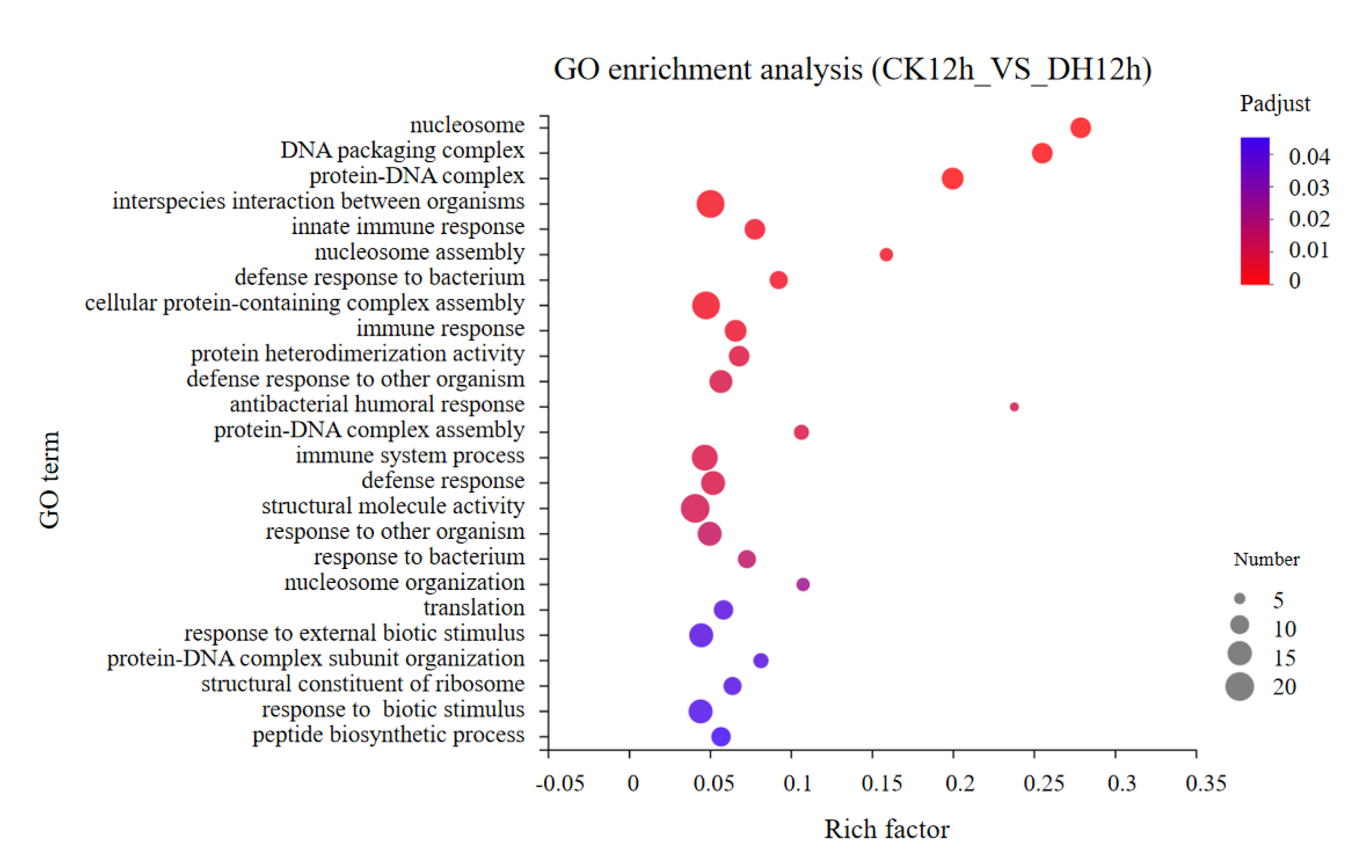

Figure 5. GO enrichment of DEGs in CK12h_vs._DH12h group. The vertical axis represents GO term and the horizontal axis represents rich factor. A greater rich factor indicates a greater degree enrichment. The size of the plot represents the number of DEGs in this GO term. The color of the plot corresponds to different p−adjust ranges.
Figure 5. GO enrichment of DEGs in CK12h_vs._DH12h group. The vertical axis represents GO term and the horizontal axis represents rich factor. A greater rich factor indicates a greater degree enrichment. The size of the plot represents the number of DEGs in this GO term. The color of the plot corresponds to different p−adjust ranges.
Biology 11 01313 g005

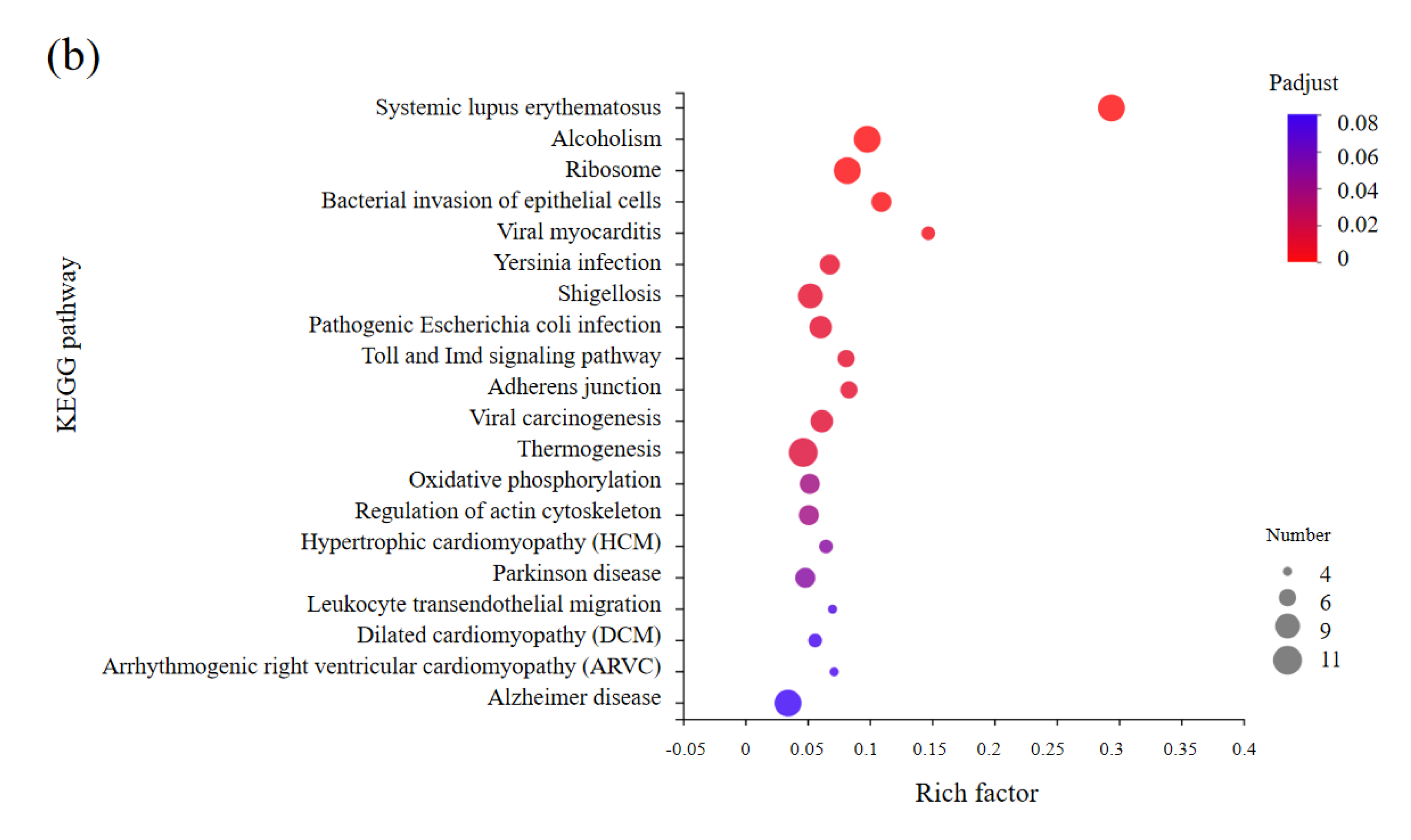

Biology 11 01313 g006a 550Biology 11 01313 g006b 550

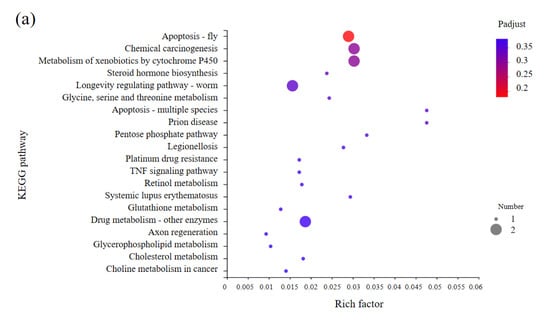

Figure 6. Top 20 pathways of KEGG enrichments analysis. (a) DEGs in CK4h_vs._DH4h group; (b) DEGs in CK12h_vs._DH12h group. The vertical axis represents pathway name and the horizontal axis represents rich factor. A greater rich factor indicates a greater degree enrichment. The size of the plot represents the number of DEGs in this pathway. The color of the plot corresponds to different p−adjust ranges.
Figure 6. Top 20 pathways of KEGG enrichments analysis. (a) DEGs in CK4h_vs._DH4h group; (b) DEGs in CK12h_vs._DH12h group. The vertical axis represents pathway name and the horizontal axis represents rich factor. A greater rich factor indicates a greater degree enrichment. The size of the plot represents the number of DEGs in this pathway. The color of the plot corresponds to different p−adjust ranges.
Biology 11 01313 g006aBiology 11 01313 g006b
Biology 11 01313 g007 550
Figure 7. Quantitative real-time PCR analysis of candidate gene expression of ovaries induced by DH after 4 h (a) and 12 h (b). The vertical axis represents the -fold change of candidate genes in DH group compare with CK group.
Figure 7. Quantitative real-time PCR analysis of candidate gene expression of ovaries induced by DH after 4 h (a) and 12 h (b). The vertical axis represents the -fold change of candidate genes in DH group compare with CK group.
Biology 11 01313 g007
Table
Table 1. Summary of the transcriptome sequencing data from the control and DH-treated samples.
Table 1. Summary of the transcriptome sequencing data from the control and DH-treated samples.
SampleRaw ReadsClean ReadsError Rate (%)Q20 (%)Q30 (%)GC Content (%)
DH12h_342,895,92642,586,7080.025997.5993.3345.15
DH12h_242,493,30242,166,5580.025897.6693.4944.97
DH12h_143,438,60243,116,9740.026197.5393.1545.14
CK12h_342,469,50442,131,6340.025597.7793.7646.18
CK12h_246,026,05245,682,1020.025697.7293.6146.68
CK12h_145,596,57845,186,5540.02697.5793.346.73
DH4h_344,528,42844,154,4260.025697.7293.6245.96
DH4h_244,029,40643,654,3020.025897.6393.4345.94
DH4h_141,634,52241,229,9160.02697.5693.3246.29
CK4h_344,979,16244,663,3540.025597.7893.7345.02
CK4h_246,506,40246,104,8240.026397.4392.9645.5
CK4h_144,441,65644,079,8900.02697.5693.2745.46
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, L.; Zhang, Z.; Chen, K.; Yu, Y.; Hu, B.; Song, H.; Liu, X. Transcriptional Dynamics Induced by Diapause Hormone in the Silkworm, Bombyx mori. Biology 2022, 11, 1313. https://doi.org/10.3390/biology11091313

AMA Style

Chen L, Zhang Z, Chen K, Yu Y, Hu B, Song H, Liu X. Transcriptional Dynamics Induced by Diapause Hormone in the Silkworm, Bombyx mori. Biology. 2022; 11(9):1313. https://doi.org/10.3390/biology11091313

Chicago/Turabian Style

Chen, Lijuan, Zhongjie Zhang, Kai Chen, Ye Yu, Bo Hu, Hongsheng Song, and Xiaojing Liu. 2022. "Transcriptional Dynamics Induced by Diapause Hormone in the Silkworm, Bombyx mori" Biology 11, no. 9: 1313. https://doi.org/10.3390/biology11091313

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
