Environmental Siting Framework for Wind Farms: A Case Study in the Dodecanese Islands

Abstract

The increasing rate of energy consumption, the depletion of conventional energy sources and the environmental degradation caused has led to thorough research on Renewable Energy Sources (RES), which have been seen as a sustainable solution to climatic change. However, RES installation has a considerable environmental impact, which should be taken into consideration. The present study deals with the development of an integrated framework so as to evaluate land environmental suitability for RES installation, especially for Wind Farm (WF) siting. The proposed methodology consists of the Analytical Hierarchy Process, the Geographic Information System and Remote Sensing tools. In the first part, a set of constraints, which are based on Greek legislation and international research, identifies the potential sites for wind park installation. In the second part, a variety of criteria are employed to evaluate the area under consideration. To exemplify the utility of the methodology, an application of the proposed framework to the Dodecanese Islands is further illustrated. One of the first findings is that, despite the implemented restrictions, 1/4 of the land remains suitable for WF siting. The necessity of the method used is confirmed through the comparison of results with the already installed wind parks.

1. Introduction

The production and consumption of electricity is a key factor for economic growth and its demand notes an upward trend. At the same time, it is considered among the most polluting activities, having a great impact on the natural and human environment (pollution, greenhouse effect, climate change). RES have been introduced as a counterproposal against the polluting conventional energy production.

Despite the fact that RES are committed to clean energy without the harmful effects of pollution, they still have an adverse environmental impact, which should be taken into consideration for an integrated and sustainable spatial-energy design.

The present paper focuses on Wind Energy (WE) as it has gained a leading role in energy production industry internationally. In Greece, according to current legislation, WE participates in the mix of RES of the national target “20-20-20”, having a percentage of more than 50%.

The aim of siting policy should be the formulation of a clear framework of spatial criteria, allowing both the emergence of viable RES installations and the harmonious integration of them into the natural and human environment locally. At the same time, it should look forward to achieving the energy targets that have been set at a national and European level. The legislative framework for RES siting in Greece has been lately reformed in order to address the main development barriers arising due to bureaucratic constraints, lengthy licensing procedures and deficiencies of the national spatial planning [1]. It consists mainly of two Laws: “Special Framework for Spatial Planning and Sustainable Development for RES" (SFSPSD-RES) in 2008 and Law 3851/2010 "Accelerating the development of Renewable Energy to address climate change and other provisions [...]" in 2010. WF siting policies have to take into consideration all vulnerable ecosystems and land-uses of potential conflict [2]. However, the existing framework provides mapping of the Wind Priority Areas (WPA), based on the existing wind energy potential which is high at mountains and ridges, without showing installation exclusion areas or areas of special protection. It should be noted that 95% of the existing WFs in Greece are located in forested areas [3]. Thereby, the mapping does not exclude the protected areas.

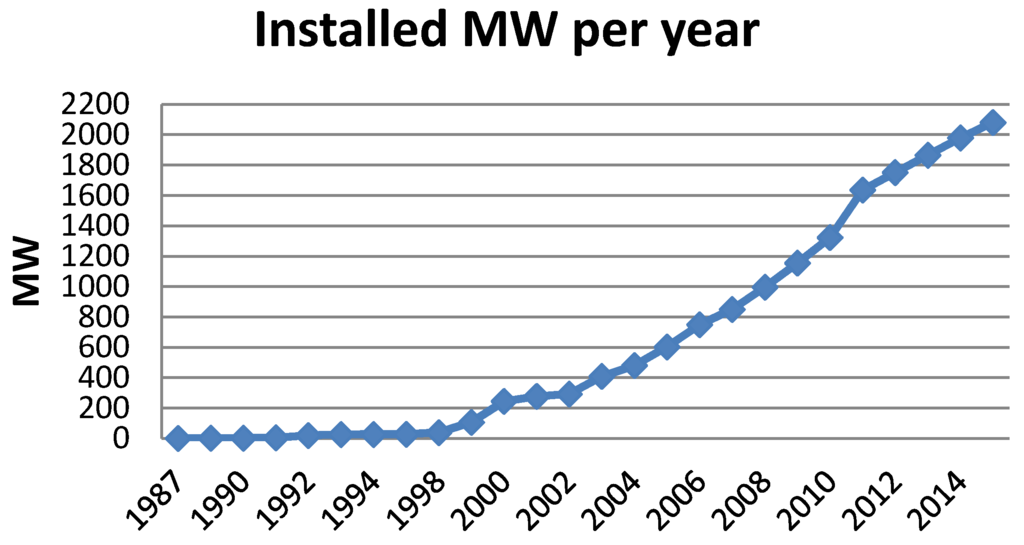

The WF development in Greece has been effectively started since 2001 and the liberalization of the electricity market. During the years 2010–2011, despite the severe economic crisis, there was a rapid investment growth as demonstrated in Chart 1. This could partly be attributed to the aforementioned reform of the legal framework. It should also be mentioned that according to Kambezidis et al. [4], there is a tendency for new developments to be placed in the mainland, not the non-interconnected island, as units of the mainland run up to 79.6% in 2005 and 87.1% in 2010 of total RES units.

There is great research effort on the development of WF siting methodology, which is presented and discussed in depth in Section 3. The vast majority of them are oriented to techno economic issues, such as the maximization of WE potential exploitation. On the other hand, there is a lack of studies addressing the minimization of the environmental damage of WF installation.

The main objective of the study is the development of a methodological framework for WF siting, focusing on the environmental protection. More specifically, the aim of the method is to identify the environmentally optimal locations for WF installation. There is special consideration to the particular characteristics of insular areas in order to supplement the existing legislation on WF siting. The methodology formed could be used by the competent authorities as an auxiliary tool for the assessment of the numerous installation applications that have already been submitted to the Regulatory Authority for Energy (RAE), as it is applicable throughout the Greek territory.

The method is experimentally applied in the group of the Dodecanese Islands. The area has been selected mainly because of its fragmented insular nature, as it is a group of islands that is remote, and not interconnected to the energy grid of the mainland [6]. Additionally, there is an increased difficulty in WF siting policy making because of the intense tourism taking place.

2. Islands’ Energy Challenges

The present section briefly discusses the major energy challenges islands face for a better understanding of the broader issue of energy planning for insular areas nationally and internationally. Globally, islands occupy 1/6 of the earth’s surface and accommodate 10% of its population [7]. Remote islands require special care, regarding the energy planning. Therefore, there are a great number of cooperation programs referring to the islands at international, EU and local levels [8,9,10,11,12]. The EU also has ambitious plans such as the “Pact of Islands” and “Towards 100% Renewable Energy for Small Islands”, which promote the fulfillment of European objectives by 2020 and the energy autonomy of islands [13,14].

The major concern is that non-interconnected islands use imported oil or similar fuels, which are both polluting and expensive sources of energy [15]. Mondol and Koumpetsos [1] name as additional problems economically challenging conventional energy production, the failure of base load due to the small size of power plants, the rapid growth of consumption rate and the seasonal demand, caused by tourism. Because of the intense annual seasonality of the energy consumption, the installed power plants are proportionally much larger in order to cover demand peaks.

2.1. RES Integration Increase

Beyond the economic dimension of the problem, a large number of studies propose increased RES penetration in the micro-energy network of islands, in order to reduce the environmental impacts of petroleum combustion. Interconnected islands have the privilege of being part of a large power grid which allows them have a 100% renewable energy production. Similar studies have been conducted for Samsoe Island, Denmark [16], Pellworm Island, Germany [17] and Fox Island, United States [18].

Non-interconnected islands face the difficulties of small energy networks, which are the low frequency and voltage [19]. At the same time, RES do not provide sustained energy supply as they depend on the changing climatic conditions such as sunshine and wind. Penetration limitations are due to the technical minimum operation of thermal power plants, the network stability and reliability issues.

Studies on island electricity networks powered by conventional power production give a 25%–35% maximum RES penetration [19,20,21]. Neves et al. [21] argue that the optimum application of a hybrid system for islands of more than 5000 inhabitants is the combination of diesel engines, wind turbines and photovoltaic systems. Similar studies have been conducted for a great number of islands, including the Maldives [22] and Kutubdia Island Bangladesh [23].

The only way to achieve greater RES penetration rates in the energy network is to store energy. There are three main types of energy storage: batteries [24,25], pumped storage [26,27] and hydrogen storage [28,29,30,31]. The advantages and disadvantages of each one need to be studied in association with the possibilities and limitations of installation areas.

Finally, "smart grids" is another powerful tool for the integration and penetration increase of RES in the electricity generation system. It is the cutting-edge technology for the reliable integration and efficient control of multiple power units of the same distribution electricity network. The tool is designed to reduce transmission losses, to optimize the energy capacity of the network and facilitate the integration of renewable energy [32].

2.2. Energy Interconnection

According to the international bibliography, island interconnection to the electricity network of the mainland is the proposed solution wherever possible. Unfortunately, in Greece, the application of it is complicated because of the great number and the scattered nature of islands, especially in the Aegean Sea. Technically, it is possible to interconnect even the most remote group of islands. According to Κaramanou et al. [33], the criterion whether to develop the interconnection or not is the investment viability. The condition for a sustainable investment is the electricity production and distribution expenses in the mainland to be less expensive than the insular ones, including interconnection costs. In addition, the possibility of RES development at local level as well as the technical advantages of the new system, including reliability and quality of provision, are taken into consideration.

The last few years, the scientific community shows an increasing concern about the issue of island electricity interconnection to the mainland [6,33,34,35,36]. There are also numerous studies, undertaken by the Public Power Corporation (PPC), the RAE and academic institutions. More specifically, in 1988, PPC had conducted a study on the interconnection of Crete Island with the electricity network of the mainland and in 1989, a study on the interconnection of Cyclades. National Technical University of Athens had also conducted a number of studies for the interconnection of Cyclades in 2004–2005 [37] and the entire Aegean Sea, including Crete [38]. All interconnection proposals for the Aegean Islands are illustrated in Figure 1.

Similar studies have been carried out by individuals who are willing to bear the cost of islands interconnection to the electricity grid of the mainland, in order to install large farms in island regions, especially in the Cyclades and the North Aegean Sea. Those studies, both at international [18] and national level [40], suggest extensive RES installations, way larger than the local energy demand.

It is worth mentioning that the issue of island interconnection came back to the fore in the 1990s because of the exploitability of high potential renewables (wind, solar) islands have. In the Aegean Sea alone, there is an enormous number of MWs of wind power installation applications waiting for approval.

2.3. Siting Policy on Greek Islands

In Greece, there is an institutional gap regarding WF siting on islands. The legal framework addresses the mainland and the island the same way, thus not taking into account the specificities of insular areas, which occupy a large spatial proportion of the country. The only parameter that changes is the maximum wind turbine density per km², which is slightly smaller than the rest of the country. For non-interconnected islands, the installed capacity of wind power stations should not exceed twice the peak level of demand, as stipulated in the medium-long term (ten years) plan.

Despite the fact that there are a significant number of studies concerning WF siting on islands since 1998 [40,41,42,43], there is not use any special provision for these areas. Most of the times, they simply apply the existing insufficient legislation.

3. Methodology

3.1. A Review

It was during early 2000s when the first wind farm siting studies took place [39,40]. They were limited to the delimitation of exclusion zones around urban areas, historic sites and water bodies, in order to protect sensitive areas from wind farm development. These criteria were used in order simple exclusion maps to be formed.

In the following years, with more detailed datasets, spatial assessment developed acquiring its current form of spatial multi-criteria evaluation [41,44,45,46,47,48,49,50,51,52,53,54]. This process has two types of quantifiable parameters, constraints and criteria. Constrains are based on Boolean criteria (0–1) and thereby exclude areas. Similarly, criteria get satisfaction degrees for all geographical areas. Removing exclusion areas, the criteria used define suitability areas, which take continuous values between one (1) and zero (0). The individual satisfaction degrees of each criterion are aggregated, using multi-criteria decision methods (MCDM).

There are several weighted summation procedures commonly used: the Linear Weighting Average (LWA), the Ordered Weighted Average (OWA) and the Analytical Hierarchy Process (AHP). Baban and Parry [44] used the LWA method to work on wind turbines siting in Britain, Hansen [45] to locate suitable areas for wind turbines siting at Northern Jutland and Denmark and Rodman and Meentmeyer [46] to work on wind turbine placement in Northern California. Yonca et al. [47] applied the OWA process to evaluate wind energy systems for spatial planning in western Turkey. AHP has been used by Bennui et al. [48] for site evaluation of wind farm installation in Thailand and Tegou et al. [41] in Lesvos Island, Greece.

Al-Yahyai et al. [49] combined OWA and AHP for result aggregation of different criteria to assess land suitability for wind farm siting in Oman. AHP and OWA do not operate at the same level [50] as AHP creates a hierarchical model using weighted linear combination [51], while OWA operators make series of local aggregations [52]. According to Yager and Kelman [53], together they create a powerful MCDM tool for spatial decision problems.

There are also different decision making methods, based on a spatial cost-revenue optimization. Haaren and Fthenakis [54] have applied such a process on wind farm site selection in New York.

3.2. Methodology Used

Wind farm siting is a multi-criteria decision making problem. The selection is made by a number of alternative locations in accordance with a set of selection criteria. All available options include a degree of uncertainty as to the overall efficiency degree in various areas such as economic, technical, environmental and social [55]. The optimum choice is made based on the level of criteria satisfaction and the degree of optimism or pessimism of the decision maker. The AHP, firstly introduced by Saaty [51], is a popular and flexible method as it allows decision-makers to structure a complex problem in a hierarchical way.

The method will be integrated into the Geographic Informational System (GIS) environment. GIS has emerged as an important tool for planning and spatial management. The reason is that it includes decision making processes for multi-criteria problems [56]. Therefore, it does not only serve for data management and the visualization of results but also for the evaluation of alternatives, based on spatial criteria [57]. Thus, a really powerful tool is formed that can manage complex geospatial data, integrating stakeholders’ preference into the decision-making process [58].

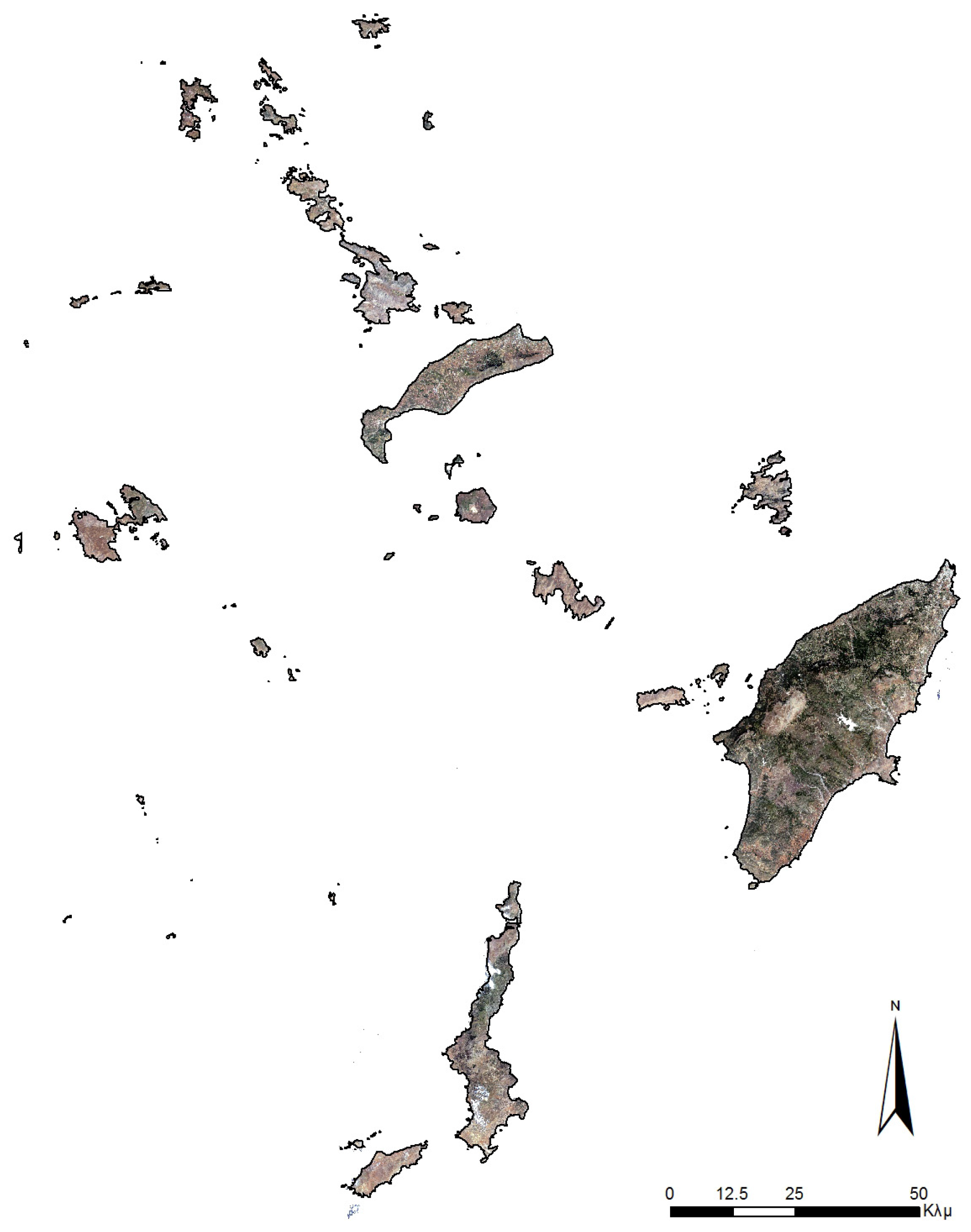

For the needs of the study, satellite remote sensing images and data analysis methods will be employed. Earth observation satellites carry sensors that record representations, in different regions of the spectrum (channels) of electromagnetic radiation, which are either absorbed or reflected by earth surface, depending on the wavelength. The above technique is used to record vegetation density of the study area, using mathematical formulas between channels of a remote-sensing imaging.

However strong the method is, WF siting is a spatial issue having social, cultural, political and other aspects, which are hard to quantify in order to be part of the process. The method is designed to be used as a first-level assessment tool, not a final one. Hence, in order the final decision to be made, in situ inspections have to be occurred.

The process is presented at Section 4, accompanied by the necessary data and tools used. Results are presented and discussed in Section 5. The final section ties up the key points of the study.

3.2.1. The AHP Method

It has already been mentioned that the AHP belongs to the MCDM and is prevalent in sustainable energy planning. The process starts by identifying the important parameters for the decision making process. The AHP creates a hierarchical structure consisting of successive levels, starting from the overall objective, criteria and sub-criteria, and ending on the alternatives given.

The method employs a pair-wise comparison measurement mode to quantify the importance of each criterion or sub-criterion, using a nine point internal scale. The comparison matrix created shows the relative importance of one criterion over another. For criteria i, j and k, relative weights are consistent only when Τ_ik = T_ij × T_jk. The weight of each criterion and the total Consistency Ration (CR) are calculated, composing the pairwise comparison data [51].

3.2.2. Software and Data

The proposed methodology was performed in the ArcMap 10.1 GIS environment, where a number of data were selected and processed, after being transformed to raster datasets. The satellite data used came from the satellite Landsat 8. The data cell size of Landsat 8 is 30 × 30 m, the size adopted for all raster datasets used. Satellite images are processed through ER Mapper 7.0 software, which offers capabilities for enhancing, visualizing and processing surface interpretations in order to extract the quantitative information needed.

4. Case Study: The Dodecanese Islands

4.1. Area of Study

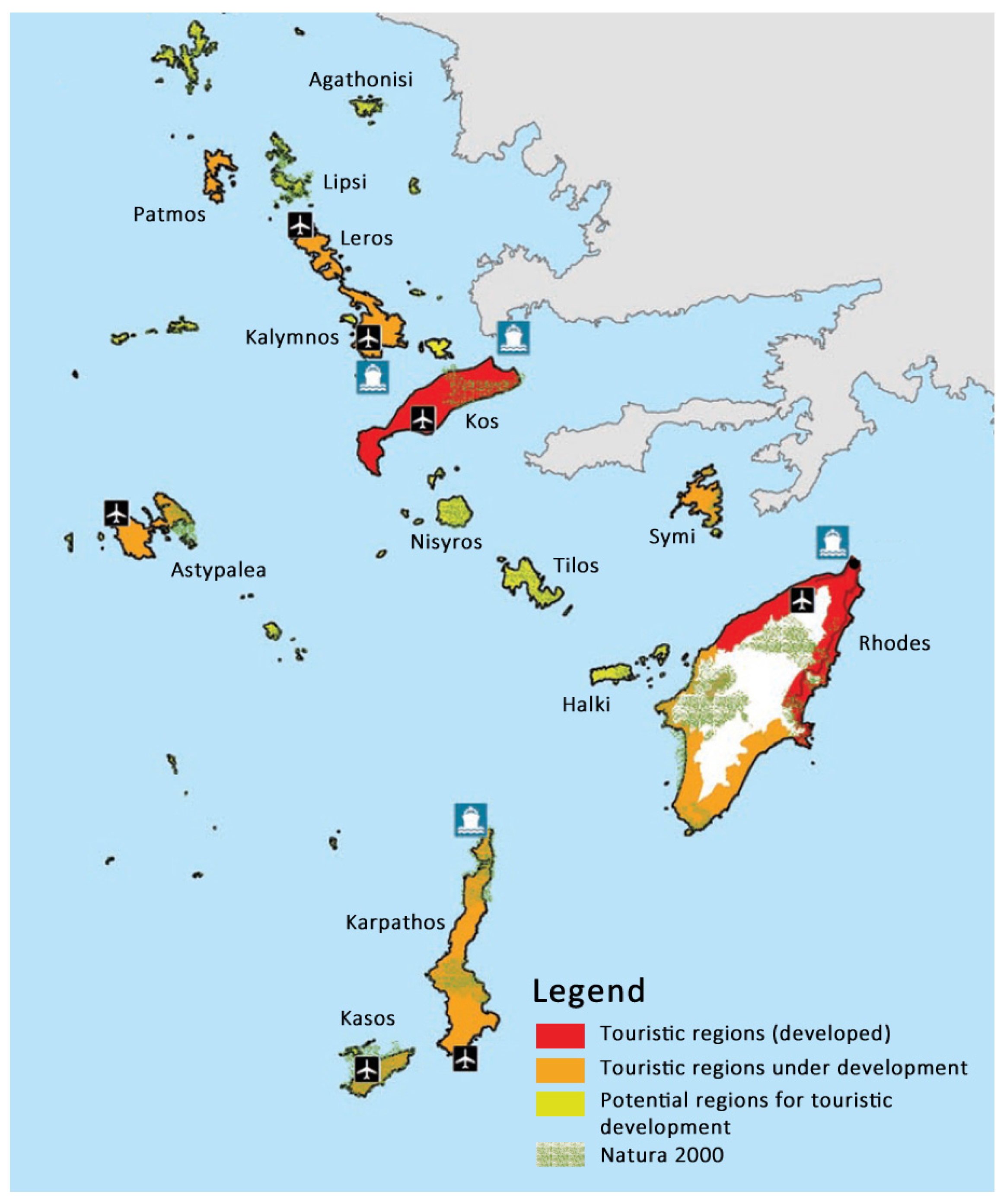

The Dodecanese are located at the southeast of the Aegean Sea, as seen in Figure 2, which is the farthest frontier of Southeastern Europe. It is a group of 27 inhabited and numerous uninhabited islands and they occupy an area of 2714 km². They operate as a number of small or medium size isolated electric systems, which serve the needs of a single island or a group of islands. Today, there are 11 autonomous electric systems (AES), consisting mainly of oil units as well as other types of thermal stations.

Unfortunately, there is no short or medium term prospect of electricity network interconnection to the mainland. According to the Hellenic Transmission System Operator [39], there are two probable scenarios: either a straight interconnection to the mainland or an interconnection through Crete.

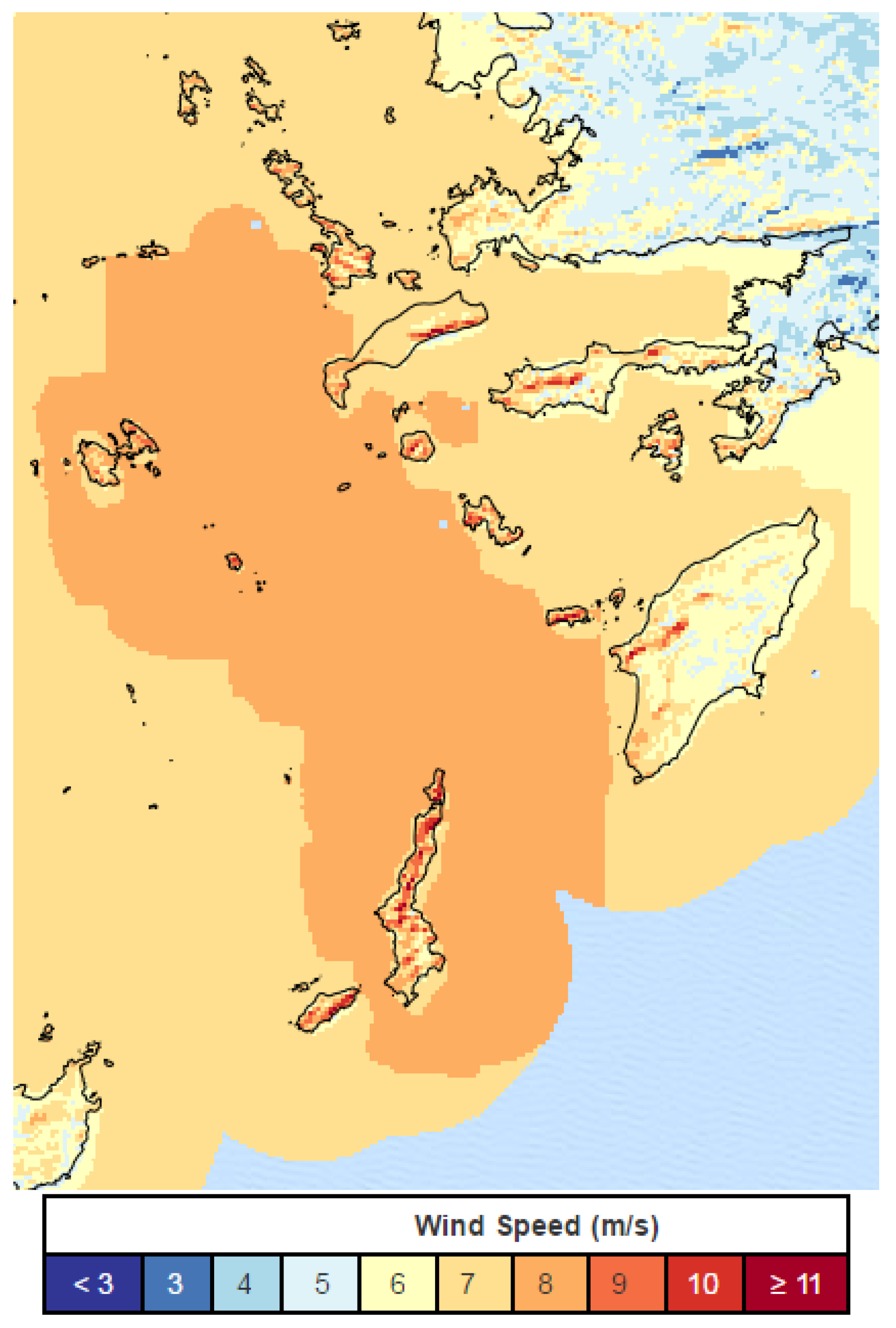

The Dodecanese Islands have great potential for solar and wind energy. Nisyros Island has a quite remarkable geothermal potential (high enthalpy geothermal fields). The study of the Centre for Renewable Energy Sources and Saving [59] on the wind potential of the country has demonstrated that most the Dodecanese Islands show more than 7 m/s average wind speed. Figure 3 is a mesoscale map of the aggregated mean wind energy of the area, measured 100 m above sea level.

Nevertheless, RES exploitation for electricity production has started 10 years earlier. Today, the installed capacity of WFs reaches 14% of the total and is concentrated at Rhodes, Kos and Karpathos Islands (

Table 1. Installed capacity per electric system, Dodecanese–2014 [61,62].

Autonomous Power Stations	Powered Islands	Installed Capacity of Thermal Units (MW)	Installed Capacity of WFs (MW)
Soroni	Rhodes	218.08	49.15
	Halki	0	0
Agathonisi	Agathonisi	0.51	0
Astypalea	Astypalea	3.60	0
Megisti	Megisti (Kastelorizo)	1.82	0
Patmos	Patmos	6.60	1.20
Kos-Kalymnos	Kos	101.90	11.20
	Kalymnos	18.15	0
	Leros	0	4.00
	Nisyros	0	0
	Tilos	0	0
	Lipsi	0	0
	Giali	0	0
	Teledos	0	0
	Pserimos	0	0
Karpathos	Karpathos	17.90	1.23
	Kasos	0	0
Arki	Arki	0.36	0
Symi	Symi	8.20	0
Total		377.12	66.78

), while the produced energy of them does not exceed the average of 9% of the yearly energy production of the area.

According to National Action Plan for RES, the total installed capacity of WFs in Greece should be 7.5 GW by 2020. Correspondingly, the Dodecanese that consume 2.15% of the total energy consumption of the country and have 66.78 MW already installed WFs, approximately need another 161.25 MW.

4.2. The Process, Step-by-Step

The overall goal is to determine the suitability of wind farm potential locations, considering a set of attributes. These attributes are of a technical, environmental, economic, social and cultural nature and correspond to constraints and criteria of the decision making problem. Constraints are based on a true/false relation, which means that an area is either included or excluded. Criteria get continuous values to express the suitability degree of an area to each alternative. An overall suitability index is calculated for every location, based on criteria weights. Finally, the overall map is produced, combining the exclusion map with the evaluation map.

4.2.1. Constraints

At the present study, both constraints (exclusion areas) and criteria are based on the existing legal and institutional framework and on the literature review, concerning the impact of wind farms on the natural and human environment. More specifically, the additional restrictions are the exclusion of all Natura 2000 areas, both SCI and SPA, as well as a 500 m buffer zone of the seashore. According to EU Habitats Directive, a plan or project having significant negative effect on a Natura 2000 site is granted only if there is no other feasible alternative. For the case of WF developments, there are considered to be enough locations available in order to avoid their installation into a Natura 2000 area.

SFSPSD-RES designates as exclusion areas only the coasts included in the bathing water quality monitoring program. However, according to the Special Framework for spatial planning and sustainable development of tourism [63], the vast majority of seashores of the Dodecanese are categorised either as developed touristic areas (red colour) or as developing (orange colours), because of the intense touristic activity, as seen in Figure 4. An additional exclusion zone of 500 m was added in order to bridge the mismatch between legislation and actual needs of touristic areas.

For a more efficient surveillance and imaging, restrictions are presented in three groups which are associated with environmental, land use and proximity to infrastructure topics and are depicted in Figure 4.

Table 2. Exclusion areas.

	Minimum Distance (m)	Data Source Reference
Environmental reasons
Protection Areas and Absolute Protection Areas	0	[64]
Aesthetic Forests	0	[64]
Nature Protection Areas	0	[64]
Preserved Natural Monuments	0	[64]
Cores of National Parks	0	[64]
National Parks	0	[64]
Wetlands of International Importance (Ramsar)	0	[64]
Natura SCI (Sites of Community Importance)	0	[64]
Natura SPA (Special Protection Area)	0	[64]
Lakes	150	[64]
Rivers	150	[64]
Seashore	500	[64]
Wildlife Refuges	0	[64]
Land Use reasons
Agricultural land (Corine 211,212,221,222,223,241,242,243,244)	0	[64]
Quarrying–Mining Activities	500	[65]
Cities and Settlements >200 residents or Settlements <2000 residents, classified as dynamic, touristic or of significant	1000	[64]
Traditional Settlements	1500	[66]
Other Settlements	500	[64]
Organised settlements of A or B degree of residence or organised areas of B degree of residence	1000	[64]
Monasteries	500	[67]
Swimming Beaches (blue flags)	1500	[64]
World Heritage Sites (unesco)	3000	[67]
Absolute protection zone (Zone Α) other archaeological sites	500	[67]
Declared cultural monuments and historical sites	500	[67]
Proximity to infrastructure reasons
High-voltage electricity grid	50	[64]
Main roads	50	[64]
Aviation facilities	2250	[66]
Harbours	500	[66]

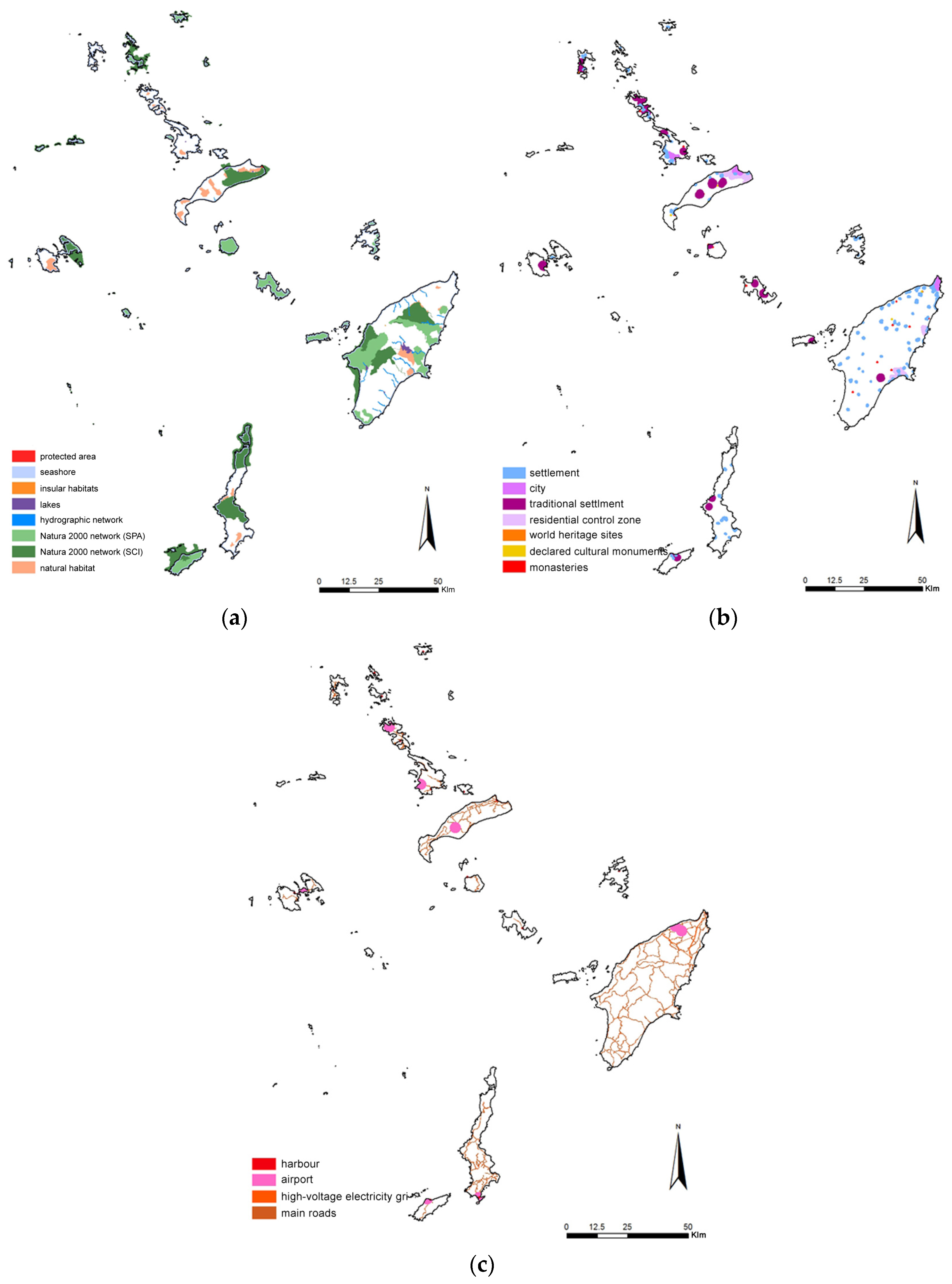

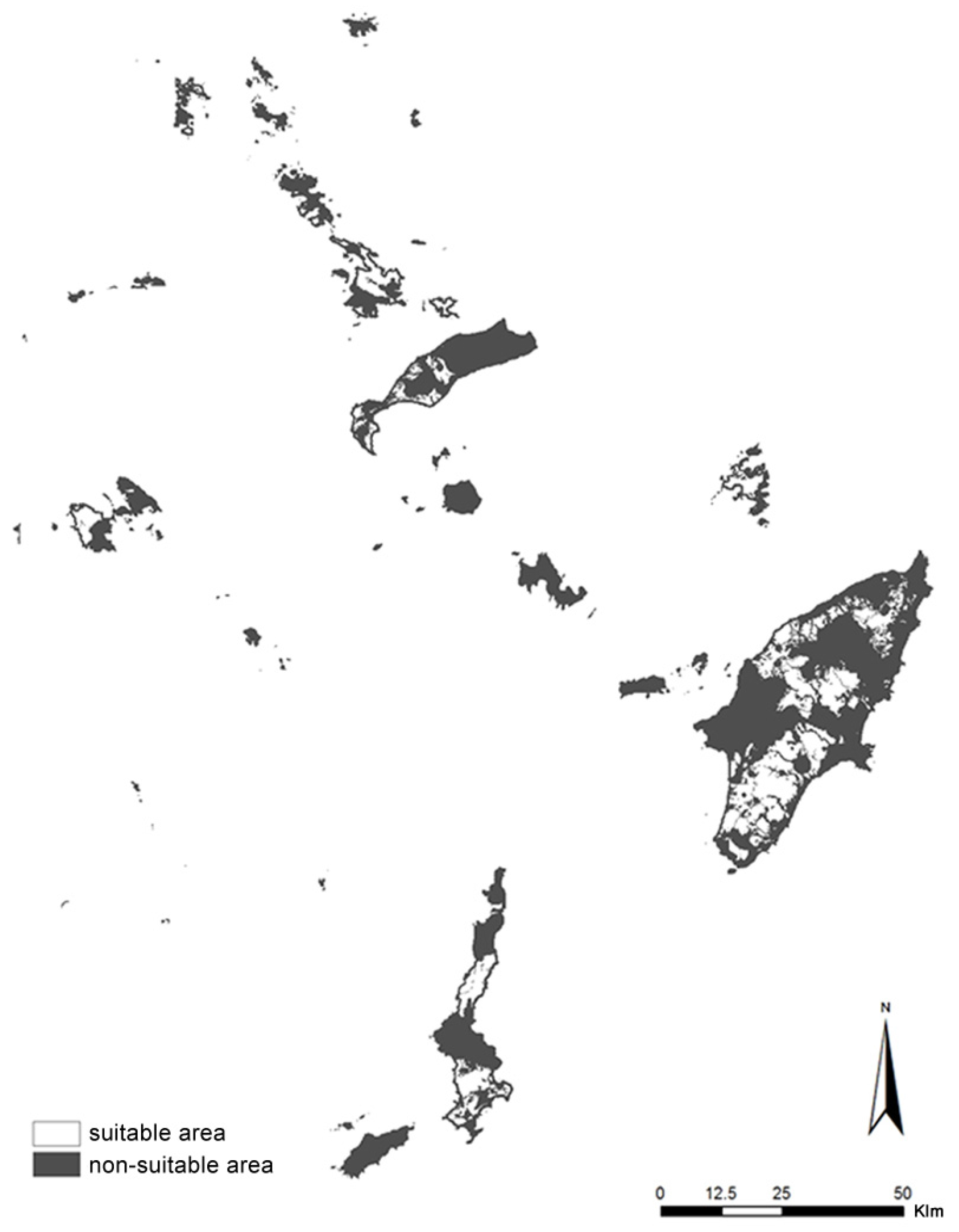

defines exclusion zones and the minimum distances required and Figure 5 illustrates them. Figure 6 is the binary exclusion map produced by the aggregation process of all Table 2 areas.

4.2.2. Evaluation Criteria

The next step is the determination of the evaluation criteria for suitability assessment of land in Dodecanese Islands. The evaluation criteria were selected on the basis of environmental protection and based on legislation and a literature review. There are five criteria within four categories: environmental, economic, technical and social, as shown in

Table 3. Evaluation criteria.

Category	Criteria
Environmental	Vegetation density
	Power consumption
Economic	Distance from the road network
Technical	Slope
Social	Visual impact

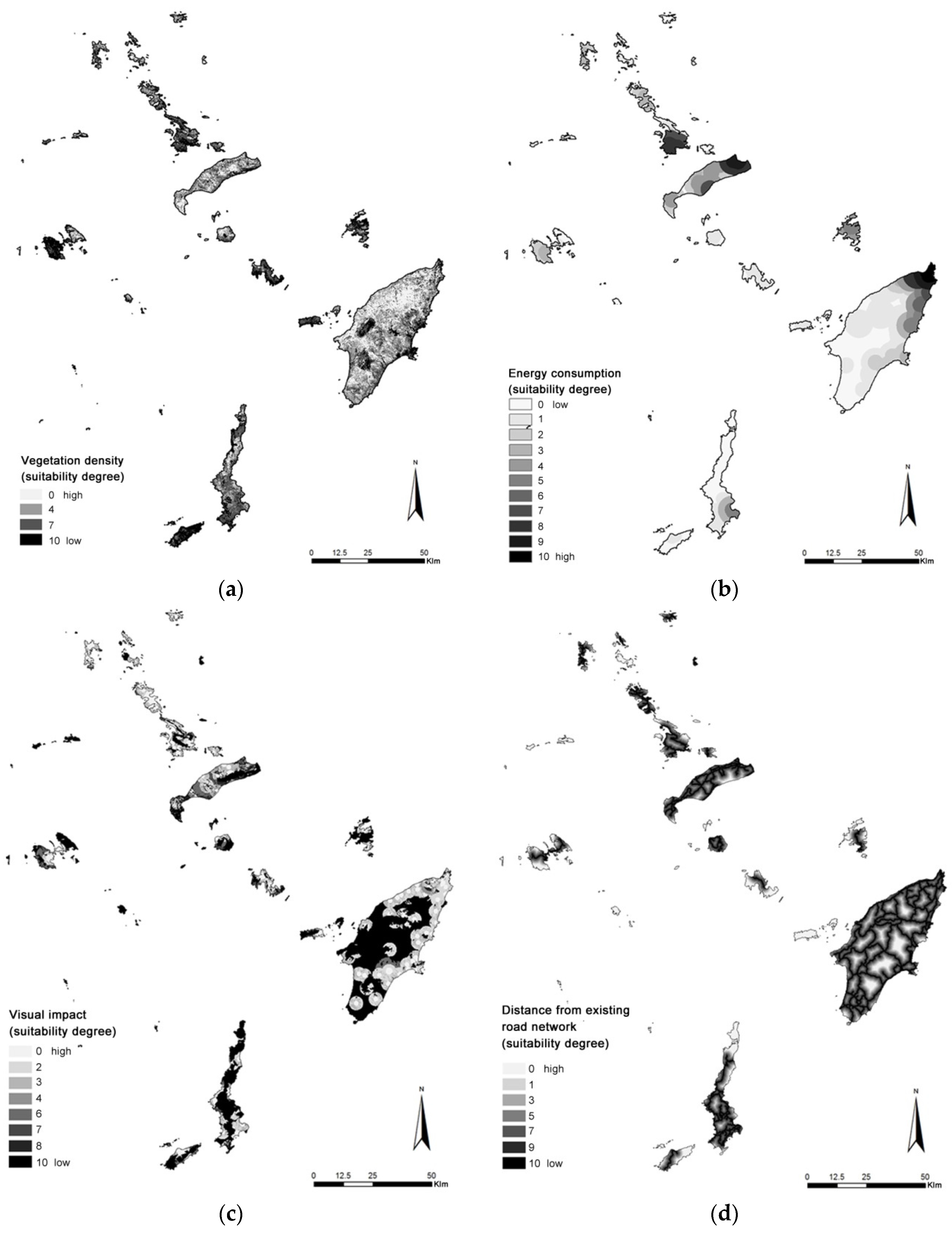

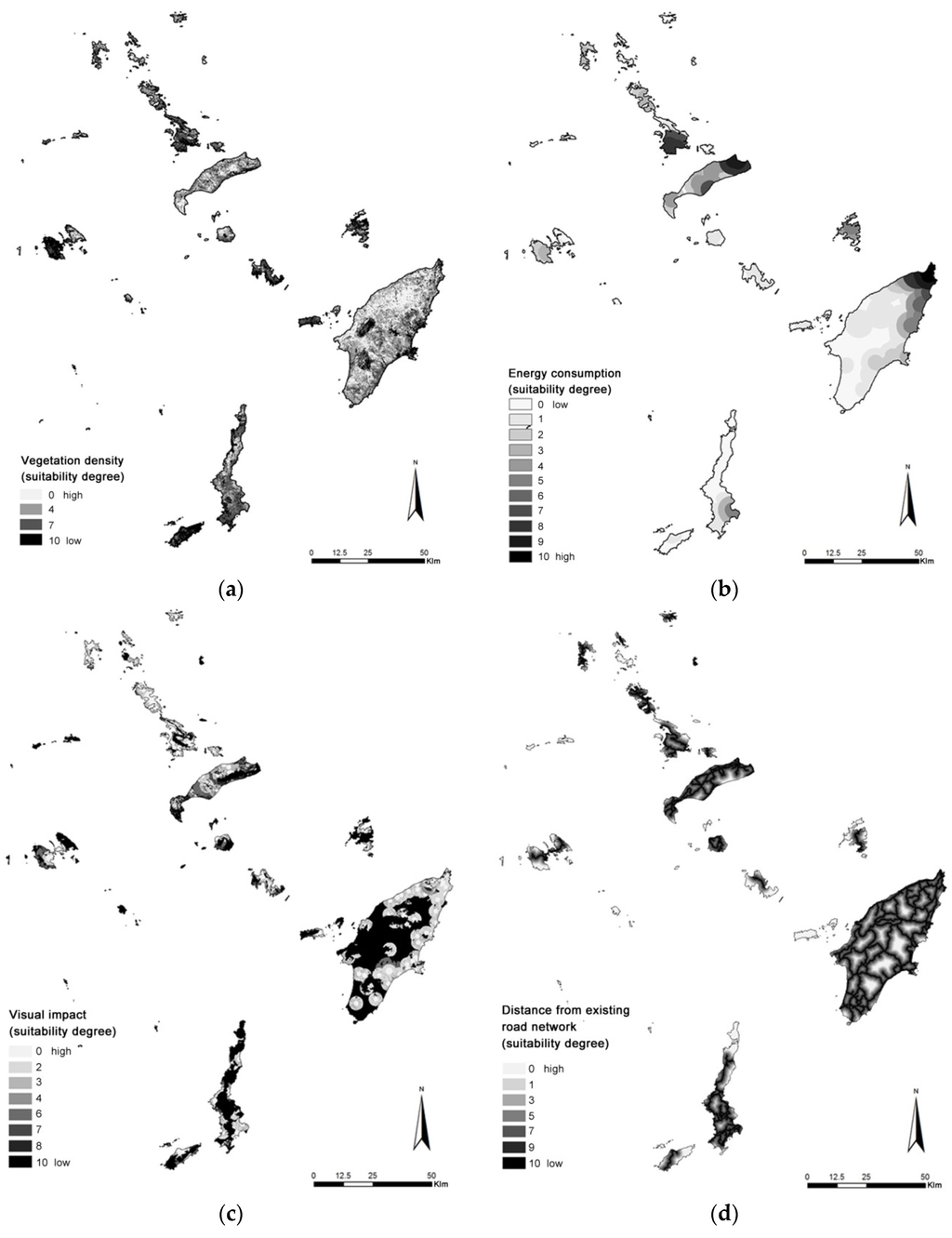

. The layers of evaluation criteria need to be standardized, using a 0 to 10 scale. It should be mentioned that the wind potential, despite the fact that it is one of the most important criteria for the location selection process, it hasn’t been included in the present methodology for two main reasons. The first one is that the scope of the present venture is to create the methodological framework for the evaluation of WF installation applications submitted, aiming at the environmental protection, not to identify the optimal installation locations in terms of comparative advantage in wind energy. The second one is the absence of reliable wind potential measurements at the Dodecanese Islands.

Vegetation Density

The protection of greenery is of particular importance because of the fact that WFs are allowed to be installed into forests and reforested areas. At the same time, green areas need to be protected from deforestation occurring during the construction period of a wind farm. In order to estimate vegetation density, Landsat 8 OLI satellite imagery were used, acquired during July 2014. The specific summer period is ideal for the study of vegetation density as most plants are in full leaf while low vegetation, which grows during spring and leads to abnormally high prices of vegetation index, has already wilted. The widely used Normalized Difference Vegetation Index (NDVI) has been used for vegetation density estimation, which is calculated by the following equation:

$$\mathrm{NDVI}=\frac{\text{Nir}-\text{Red}}{\text{Nir}+\text{Red}}$$

(1)

Red is the red band and NIR is the near infrared band of Landsat 8 OLI sensor. The land NDVI values ranged from 0.03 to 0.37. Based on the Landsat 8 OLI NDVI values, four categories were defined: dense, medium, sparse and no vegetation (

Table 4. Vegetation density grading values.

Vegetation Density Category	NDVI Value	Suitability Value
No vegetation	0 ≤ x ≤ 0.15	10
Sparse vegetation	0.15 < x ≤ 0.20	7
Medium vegetation	0.20 < x ≤ 0.25	4
Dense vegetation	x > 0.25	0

). Due to lack of ground truth, these categories have been defined after thorough interpretation of recent high resolution satellite imagery (Google maps) and comparison of the interpreted vegetation densities with the NDVI values in GIS environment. The dense category (NDVI > 0.25) mainly contains dense forests and dense sclerophyllous vegetation, the medium category (0.20 < NDVI < 0.25) represents sparser trees and bushes, the sparse category (0.15 < NDVI < 0.20) mostly contains sparse low vegetation (phrygana) and the no vegetation category (NDVI < 0.15) represents either impervious areas or natural areas that are not covered by vegetation.

Energy Consumption

Energy production and consumption are considered to be two spatially independent processes. Nevertheless, the proximity of production and consumption reduces not only energy losses caused by the electric power distribution but also spatio-social inequalities. In this proceeding, as regards the criterion of electricity consumption, the fitness grade is determined by proximity to areas of high energy demand. Suitability degree of power consumption is higher closer to areas of high energy demand.

Results were presented in

Table 5. Energy consumption grading values.

Energy Consumption (MWh)	Suitability Value
0–1207	0
1207–3620	1
3620–7240	2
7240–9650	3
9650–14,480	4
14,480–20,510	5
20,510–24,130	6
24,130–31,370	7
31,370–63,950	8
63,950–154,440	9
154,440–307,672	10

, after being reclassified from 0 to 10, making use of Natural Jenks sorting method, whereby class boundaries were placed at relatively large differences of data values.

Visual Impact

Despite the fact that social aspects are outside the scope of the present study, visual impact is defined as an evaluation criterion because of its environmental implications (landscape deterioration).

Kokologos et al. [68] claim that the most popular method for visual impact calculation is the Spanish evaluation method [69], followed by the multi-criteria method, the zone determination method and the realistic 3D simulation method. The common factors taken into consideration are the number of installed wind turbines, the distance from points of interest and the number of residents and houses of a settlement located at a given distance from wind turbines, having visual contact with them. Viewshed Analysis of GIS is a useful tool for visual impact calculation. Using a terrain model, it defines all visible areas from a point of interest [70].

The method used in this study takes two parameters into account: the number of points of interest that a specific area is visible from and the buffer zones provided by SFSPSD-RES for each category of points of interest. According to Greek legislation, points of interest are the monuments, the settlements and the ports. The number of visible points of interest that came as a result from Viewshed Analysis function has been classified in three categories, using the Natural Jenks sorting method, as seen in

Table 6. Visual impact grading values.

Number of Points of Interest Visible from the Area	Zone Α	Zone Β	Zone C	Outside A,B,C Zones
1–4	0	4	8	10
5–9	0	3	7	10
10–20	0	2	6	10

.

Distance from the Existing Road Network

As noted, in most cases, wind farm construction involves road opening of several kilometers that causes deforestation, disruption of habitats and wildlife crossing, urban sprawl and increased cost and transport of construction materials over long distances, which increases the emitted pollutants. Therefore, the construction of wind farms close to the existing road network is more preferable.

Baban and Parry [44] consider 0.1 to 9.0 km as an acceptable distance, while Azizi et al. [71] limit it to 4.5 km and Tegou et al. [41] to 2.5 km, giving a range from 100% to 0% criterion satisfaction degree. Considering the special characteristics of the Dodecanese,

Table 7. Distance from existing road network grading values.

Distance (m)	Suitability Value
0–200	10
200–500	9
500–1000	7
1000–1500	5
1500–2000	3
2000–2500	1
>2500	0

provides the selected categories. The map of Figure 7d is calculated by means of Euclidean (linear) distance.

Slope

Slope is a commonly used technical criterion as the installation of wind turbines on a land of steep slopes either increases manufacturing costs or is impossible. Azizi et al. [71] exclude areas of more than 45% slope, while Tegou et al. [41] those of more than 25% and Baban and Parry [44] lower the limit to 20%. The present study excludes all areas of more than 25% slope.

Table 8. Slope grading values [41].

Slope (%)	Suitability Value
0	10
0–10	9
10–15	6
15–20	2
20–25	1
>25	0

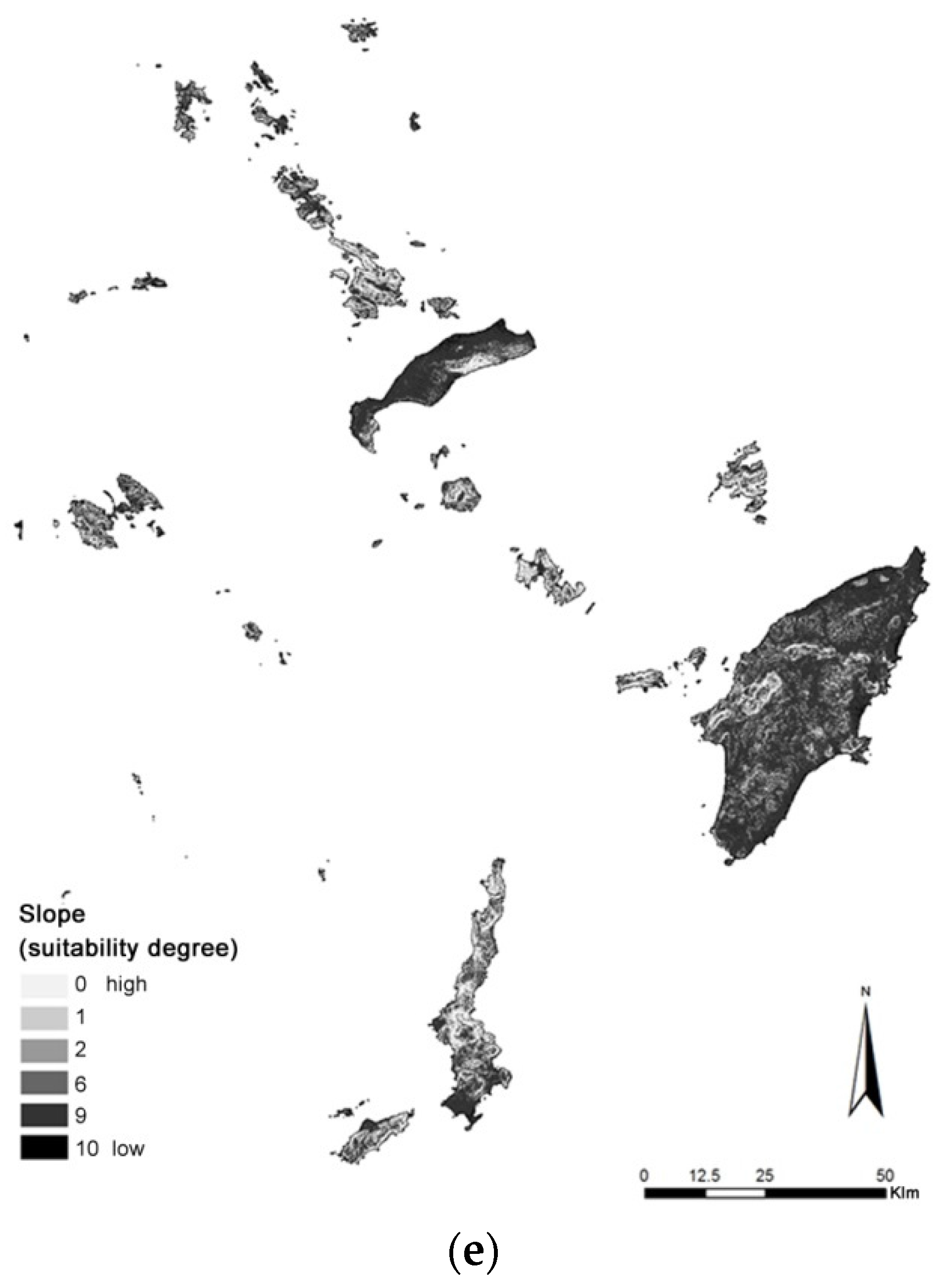

shows the classification used. Results are mapped in Figure 7e.

4.2.3. Estimation of Weights

AHP employs a pair-wise comparison method to assess criteria relative importance and calculate their weights, using the matrix of

Table 9. Pair-wise comparison table and evaluation criteria weights.

Criteria	Visual Impact	Vegetation Density	Slope	Distance from Existing Road Network	Energy Consumption	Weights (%)
Visual impact	1	0.14	0.5	0.11	0.2	4.0
Vegetation density	7	1	3	0.5	2	26.8
Slope	2	0.33	1	0.2	0.5	8.4
Distance from existing road network	9	2	5	1	3	44.7
Energy consumption	5	0.5	2	0.33	1	16.2

Note: CR: 0.008.

. Decision makers have an effect on results as they provide the grades of the comparison. For the needs of the study, the authors provided the weighting used, which is considered to serve the environmental protection. The distance from the road network has been set as the most important criterion, since it involves extended installation works and a great number of environmental consequences. Vegetation density ranks second as there is no constrain for deforestation prevention, which is a common wind farm installation consequence. Energy consumption criterion is considered to be of medium significance as it is related to energy loss. Land slope is a less important criterion as it is connected mainly with cost increase rather than the environmental degradation. Finally, visual impact is the least important criterion.

4.2.4. Suitability Map

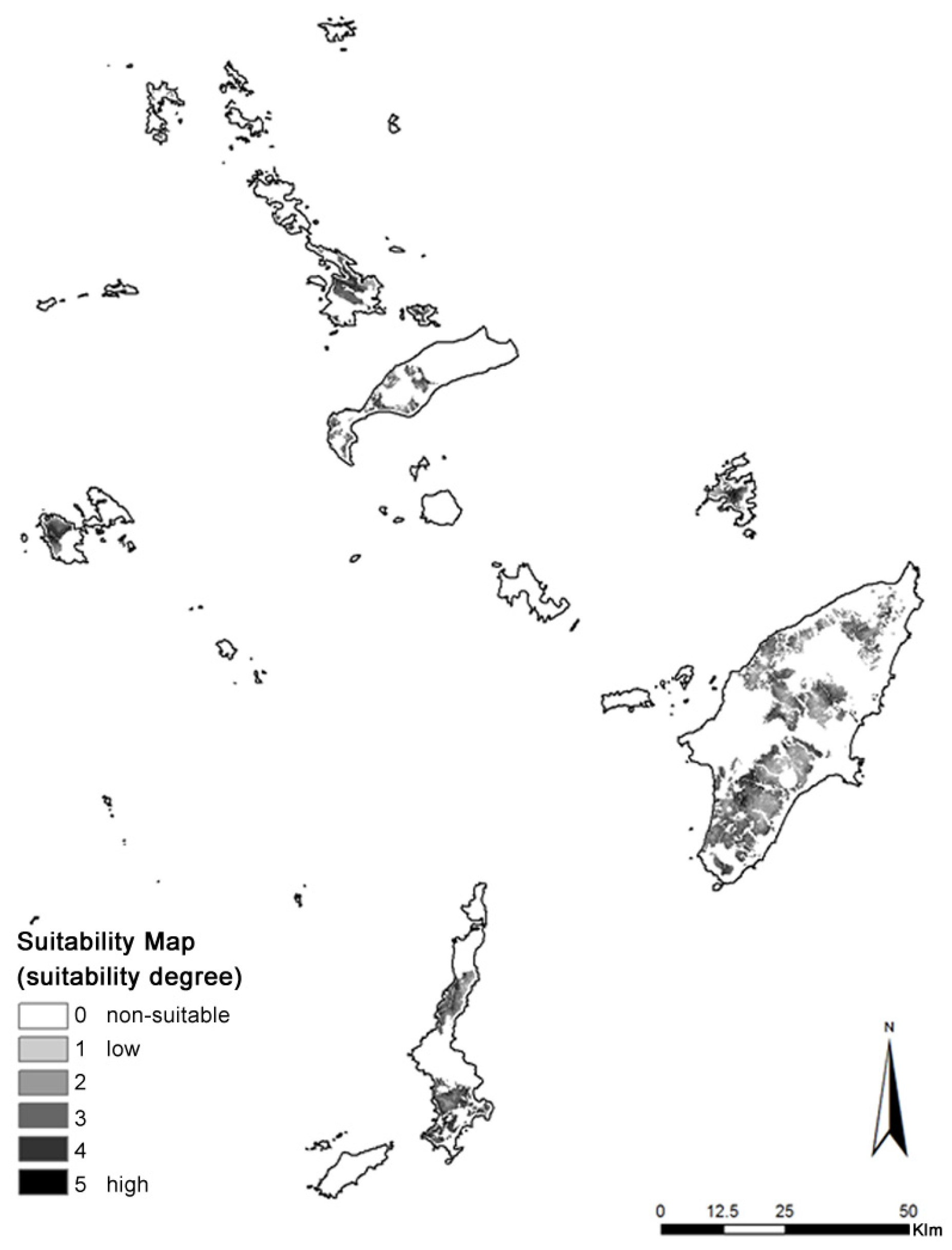

The weighted sum aggregation function has been used to produce the overall land suitability degree. The evaluation map of Figure 8 is the outcome of the reclassification process of results into five categories. Removing the exclusion areas of the first step the final suitability map of Figure 9 is derived. A percentage of 23.4% of the Dodecanese area is suitable for wind farm installation. Some 7.5% of them belong to the two lower-ranked sites, while the two best-ranked categories represent 5.7% of the whole area.

4.2.5. Sensitivity Analysis

Sensitivity analysis is the most prevalent process used to assess results [41,71,72]. The aim is to get an indication of the level of importance of each criterion to the decision making process. The way is to modify criteria weights and observe distribution variation of the number of pixels of suitability categories.

The study will examine three cases. In the first case, all criteria have the same weight. In the second one, zero weights are assigned to environmental criteria (vegetation density and energy consumption), while in the third one, zero weights are given to economic criteria (distance from the existing road network).

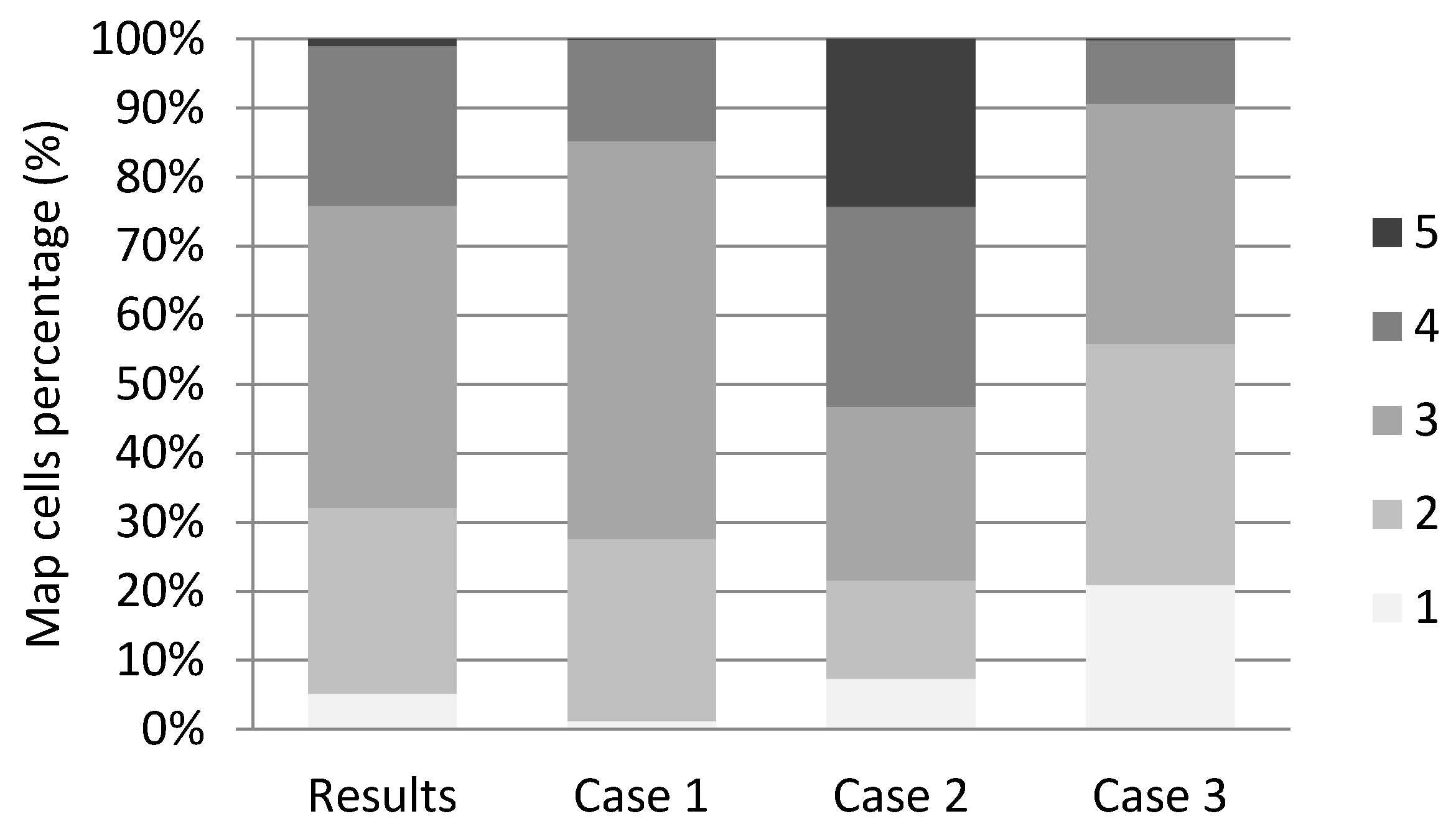

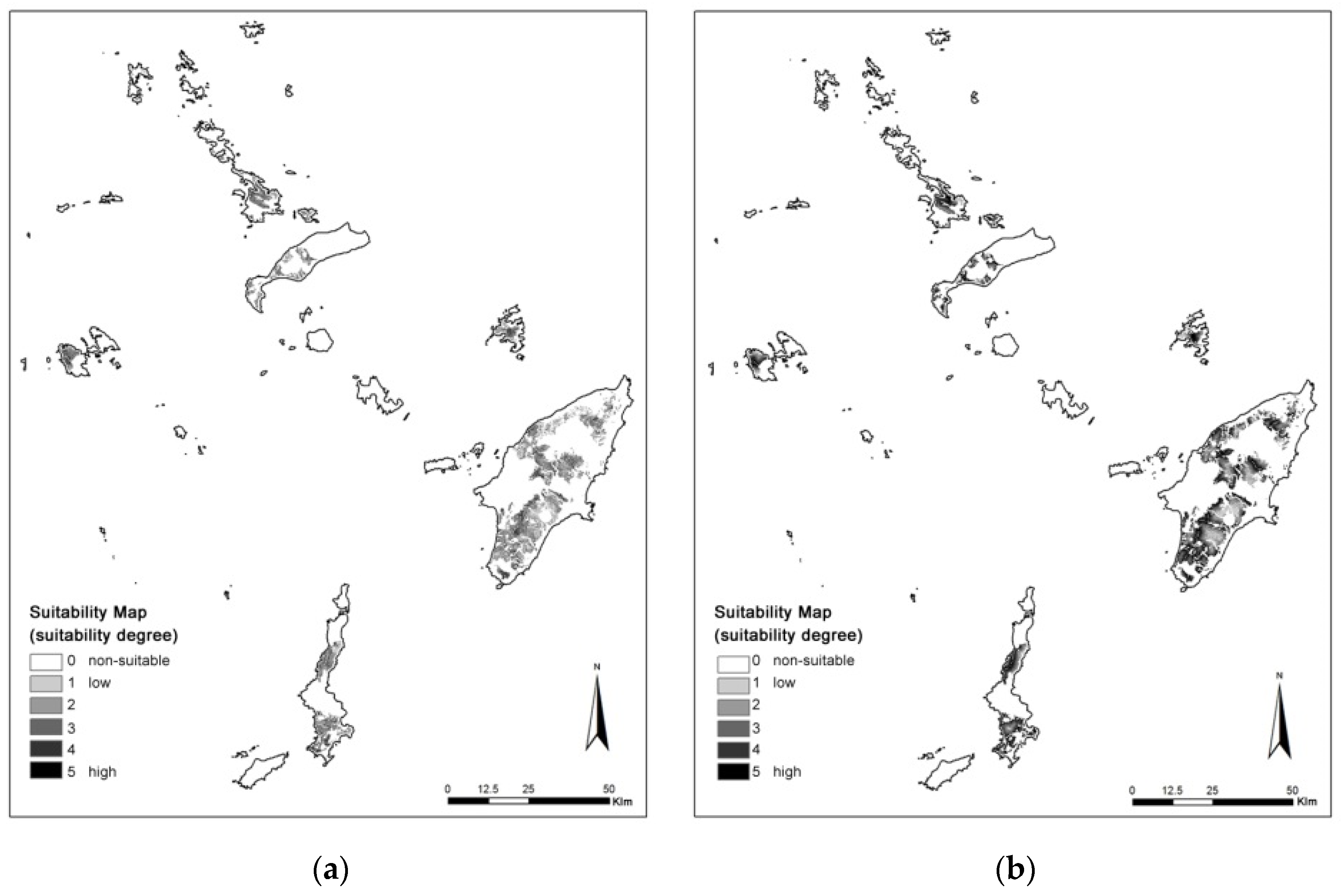

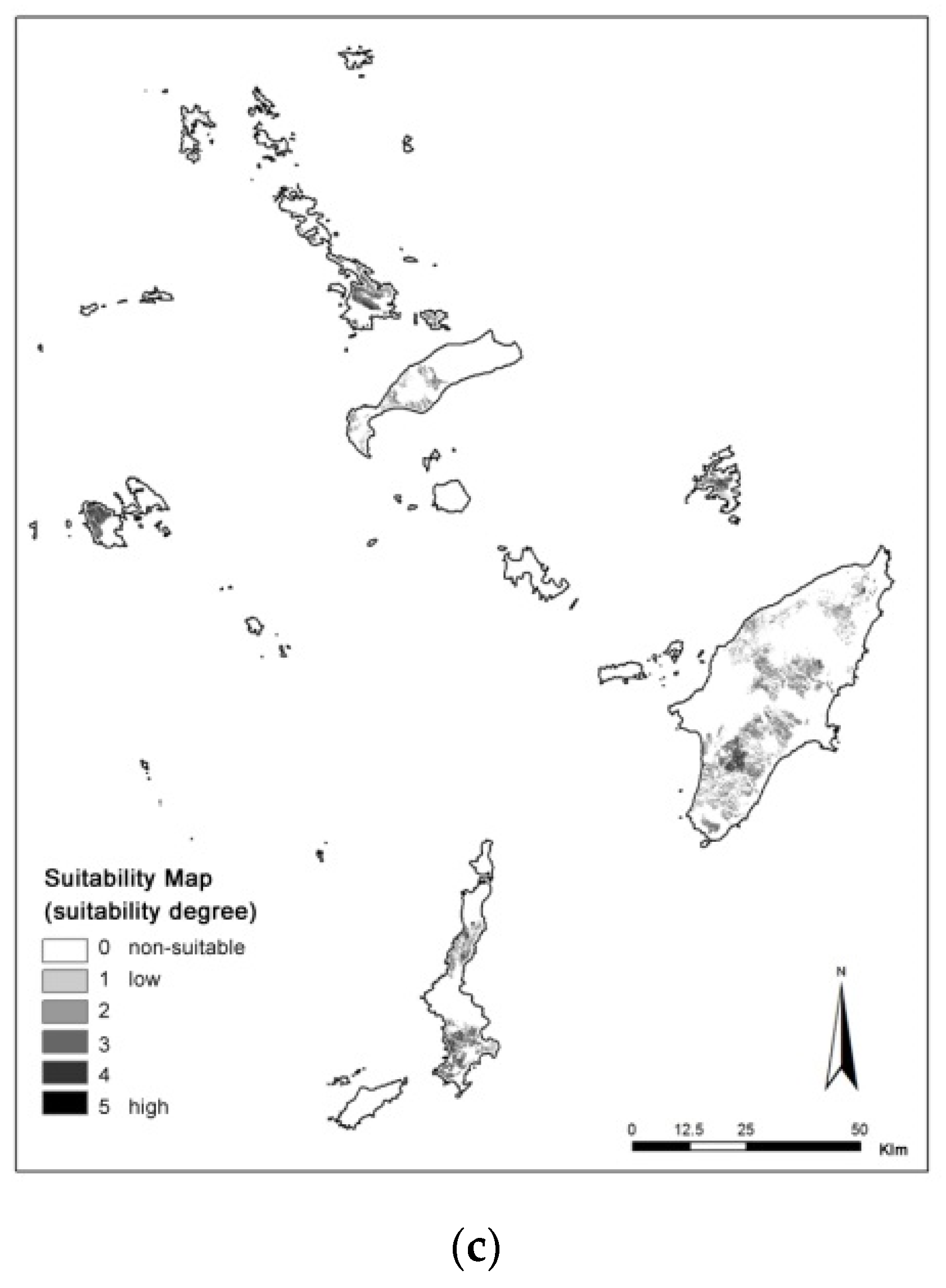

Chart 2 and Figure 10 present the results of the three cases, in comparison with those of the main process. The constant change of pixel allocation at each category implies that results are sensitive to criteria that have been set and all criteria are influential in the evaluation process.

5. Discussion

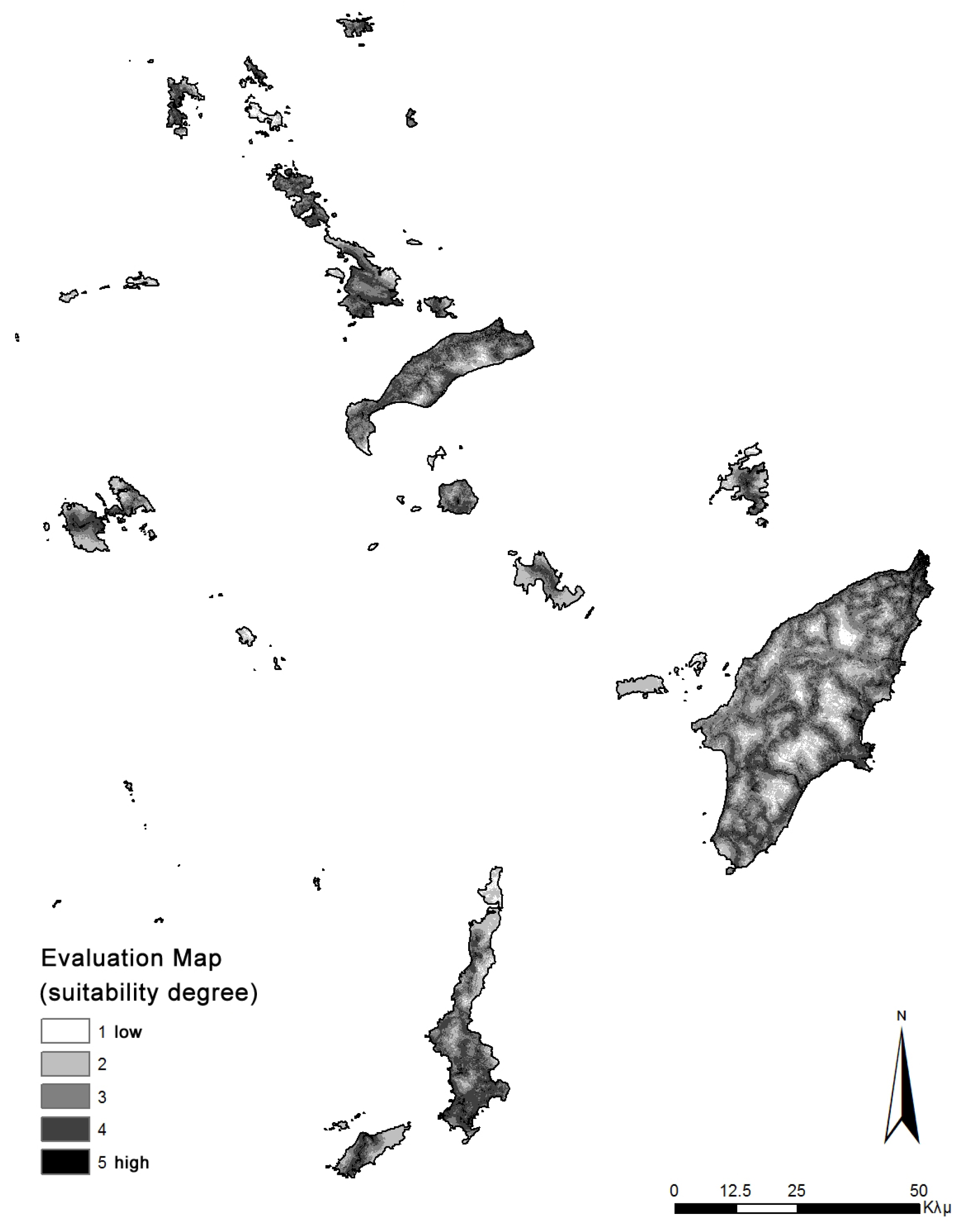

Taking a deeper look at the evaluation map of Figure 8, the spatial pattern of the outcome strongly reflects the influence of the two highly weighted criteria. The distance from road network criterion has created a “distance decay” effect, where the most suitable areas are located closer to the road. The grey pallet of the rest of the area is similar to the vegetation density map with the addition of three dark areas around Rhodos, Kos and Kalymnos cities, as a result of the energy consumption map influence. The impact of the rest criteria is not expected to be obvious.

The overlapping process for the production of the overall suitability map revealed that around 23.4% of the land is suitable for WF siting. That was expected as the process has adopted numerous constraints, such as the exclusion of all Natura 2000 areas and the 500 m seashore buffer zone. However, there is still a remarkable rate of the total area of the Dodecanese. The vast majority of these areas are located on the islands of Rhodes, Karpathos, Kos, Kalymnos and Astypalea, thus there are islands which are completely excluded, such as Tilos, Nisyros, Kasos, Lipsi and Halki.

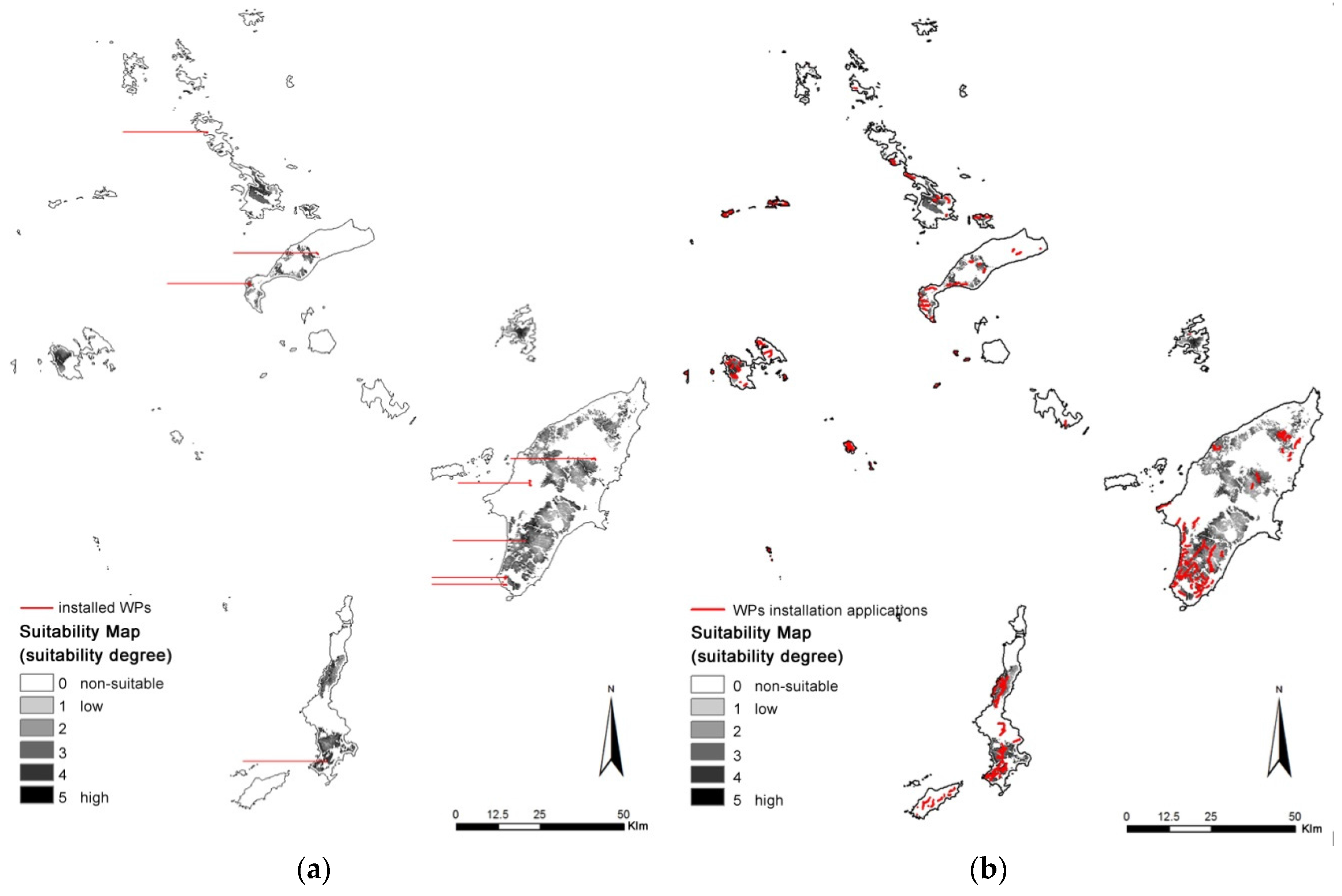

The juxtaposition of existing WFs over the suitability map of Figure 9 is presented in Figure 11a, in order their siting to be assessed. It is evident that a great number of the installed WFs are within exclusion areas (SPA-Natura 2000 and seashore), fact that illustrates the lack of environmental protection principles incorporation into the licensing process. It can be assumed that WF siting is driven by other incentives such as the maximization of high wind potential exploitation or the application of the technically optimal solution. Developers and competent authorities make a barren interpretation and enforcement of sitting legislation without any further assessment of the optimal location.

The aforementioned argument is further enhanced by Figure 11b, which shows the WF siting applications that have been lodged for the Dodecanese Islands. The majority of applications regard the southern areas, where the wind potential is high. Kasos Island is part of Natura 2000 (SPA) network, which is considered to be an exclusion area at the present study. Nevertheless, a significant number of applications fall within this area. In contrast, for Karpathos Island, which is part of Natura 2000 (SCI) network, all applications are inside suitable areas.

6. Conclusions

The present study reports on the development of a methodological framework for WF site selection focusing on the environmental protection. It is based on the current legislation while incorporating environmental challenges coming out of equivalent scientific research and the international literature. Additionally, the special characteristics of the insular areas are taken into consideration as the Greek territory contains a large number of islands.

The objective of the study is to find environmentally suitable sites for wind farm installation, taking into account a number of constraints and emerging criteria. The pair-wise comparison method (AHP) is utilized to assign weights to the evaluation criteria. The method is hosted in a GIS environment in order the spatial dimension of the problem to emerge and the overall suitability map to be produced. A pioneering use of remote sensing techniques takes place, where satellite data are processed for the location and classification of vegetation density in order to be used as a land suitability evaluation criterion.

The proposed modelling as well as the selection and use of the evaluation criteria to classify land suitability in terms of environmental protection, in conjunction with the constraints imposed by legislation or emerge by research, under a multi-criteria decision making and spatial analysis framework is the main innovation of the study.

The method is experimentally applied on the group of the Dodecanese Islands. The area has been selected mainly because of its fragmented insular nature, as it is a remoted, non-interconnected to the energy grid of the mainland, group of islands. Additionally, there is an increased difficulty in WF siting policy making because of the intense tourism that takes place.

The major result is that, despite the adoption of numerous constraints, there is still a 23.4% suitable for WF siting, while highly suitable areas have 5f.7% land coverage. An initial comparison of the existing and proposed WF installation locations with the overall suitability map highlights the environmental assessment lack of the siting process under the current legislation

The proposed methodology can be a powerful tool by the competent authorities for the evaluation of WFs installation applications submitted to the competent body, RAE.
