Ultra-Wideband MIMO Array for Penetrating Lunar Regolith Structures on the Chang’e-5 Lander

Abstract

The Chang’e-5 lunar exploration mission of China is equipped with a Lunar Regolith Penetrating Radar (LRPR) for measuring the thickness and structures of the lunar regolith in the landing area. Since the LRPR is stationary, an ultra-wideband multiple-input multiple-output (MIMO) array is designed as a replacement for conventional mobile subsurface probing systems. The MIMO array, with 12 antenna elements and a switch matrix, operates in the frequency band from 1.0 to 4.75 GHz. In this work, the design and layout of the antenna elements were optimized with respect to the lander. To this end, the antenna elements were designed as miniaturized Vivaldi antennas with quarter elliptical slots (i.e., quarter elliptical slotted antenna, or QESA). QESAs are significantly small while being able to mitigate the impact of the lander on antenna electrical performances. QESAs also have a wide operating bandwidth, flat gain, and excellent time domain characteristics. In addition, a high-temperature resistant ultra-light radome with high transmissivity is designed to protect the external antenna array. After calibration, the MIMO array is used to detect targets embedded in volcanic ash. The detection depth reaches 2.5 m, and the detection effect is good.

1. Introduction

At the end of 2020, China will conduct the Chang’e-5 (CE-5) lunar exploration mission. The Chang’e-5 lander is equipped with a Lunar Regolith Penetrating Radar (LRPR). The LRPR is a high-resolution lunar regolith probing imaging radar for detecting the thickness and fine structure of the lunar regolith in the landing area. The radar is used for studying the structure, electromagnetic characteristics and mineral composition of lunar regolith, and analyzing the formation and evolution of lunar regolith. The structure information of lunar regolith detected by LRPR can support the work of drilling and sampling.

Since the 1970s, the Apollo Lunar Sounder Experiment (ALSE) on the Apollo-17 and Lunar Radar Sounder (LRS) onboard the SELENE have successively explored the subsurface structure of the moon in lunar orbit [1,2]. In 2012 and 2018, the Lunar Penetrating Radar (LPR), carried by Chang’e-3 and Chang’e-4, implemented high-resolution sounding on the surface of the lunar with a depth of hundreds of meters [3,4]. The Mars Penetrating Radar (MPR) system onboard Tianwen-1 mission of China and the Radar Imager for Mars’ Subsurface Exploration (RIMFAX) system for National Aeronautics and Space Administration’s (NASA) Mars 2020 rover mission will be detecting on the surface of Mars in 2021 [5,6]. All of the above radar systems are satellite or rover borne systems and detected by mobile scanning. Since the CE-5 lander is stationary, it is necessary to design a new sub-surface probing mode to replace the conventional mode. For this reason, an ultra-wideband multiple-input multiple-output (MIMO) array is designed, which performs two-dimensional scans of the area below the array by using a switch matrix to switch antennas between the transmitting and receiving states. This is the first application of this method in aerospace, and there is almost no ground-based precedent, except that Motoyuki Sato has used a similar method [7].

The proposed MIMO array consists of 12 elements which uses miniature quarter elliptical slotted Vivaldi antennas (QESAs), with the thoroughly optimized placements on the CE-5 lander. This design reduces the impact of the lander on antenna performance and ensures that the standing wave ratio (SWR) of the antenna elements is <2.0 throughout the range of 1.0–4.75 GHz. QESAs are capable of providing 2–8 dBi of realized gain and there are no grating lobes in the operating band. The length and width of the QESA are both one-third the wavelength of the lowest operating frequency, which is significantly smaller than conventional Vivaldi antennas [8]. The MIMO array uses a switch to set an antenna element in the transmitting or receiving state, one of the 12 elements transmits the impulses, and the remaining elements receive the echo signals at the same time. In one full scan, each element will be transmitted one-by-one, forming 132 traces of data. In addition, three radomes are designed to ensure that the array can withstand the temperature from −150 to +250 °C and protect the antennas from the pollution of lunar dust.

Section 2 introduces the design requirements and application requirements of the antenna array. Section 3 describes the design of the antenna element and the array, and some simulation and measurement results are shown. In the Section 4, the calibration and test verification methods of antenna array are given, and the effectiveness of calibration is demonstrated. The detection effect of the array is verified by testing. Section 5 and Section 6 provide the discussion and conclusion.

2. Antenna Design Requirements

The design requirements of MIMO array mainly come from the scientific objectives of LRPR and mission requirements. The operating frequency of LRPR is defined from 1.0 to 4.75 GHz, because LRPR is necessary to detect the structure of lunar regolith within 2.5 m thickness and achieve the depth resolution of a few centimeters. Since the CE-5 lander is stationary, which is different from all previous subsurface structure exploration on Lunar or Mars, the LRPR antenna system adopts MIMO array and replaces the traditional detection mode by electrical scanning. The array is divided into three groups, which are respectively installed at the bottom and side of the lander. The radiation direction of each element is ensured to point to the lunar surface. The bottom structure of the lander is complex and the coupling between the antenna and the lander is strong, which changes the radiation characteristics and impedance characteristics of the antenna. Therefore, it is necessary to optimize the element design and array layout combined with the lander.

The installation position of the array is only 0.7 m away from the landing engine. During the landing process, part of the plume generated by the engine directly diffuses to the array position, and part of the plume is reflected to the antenna position by the lunar surface. The plume will heat the array rapidly. By the thermal analysis, the maximum temperature of the antenna may reach 250 °C, so the MIMO array should be able to adapt the temperature from −150 to +250 °C. The main design indexes of the MIMO array are listed in

Table 1. Multiple-input multiple-output (MIMO) array design requirements.

Parameter	Value
Operating band	1.0–4.75 GHz
Gain	GLF ≥ 1dBi GHF ≥ 6 dBi, increase with frequency
Polarization	linear
Match (S11)	≤−10 dB
Beam width	≥50°, direct to lunar surface
Temperature range	−150 to +250 °C
Total mass	≤1.6 kg
Volume	Group A: 800 × 120 × 120 mm3 Group B: 300 × 240 × 120 mm3 Group C: 120 × 60 × 120 mm3

.

3. MIMO Array System Design

3.1. Antenna Element Design

The width and length of a conventional Vivaldi antenna are generally not less than λ/2 and 2 λ, respectively [9,10]. Since conventional antenna designs cannot meet the strict weight and volume requirements of space exploration, a miniaturized antenna must be designed specifically for this purpose. If the miniaturization problem is addressed in isolation, these weight and volume requirements may be met using current techniques for the miniaturization of Vivaldi antennas [8,11]. The electrical performance of the antenna is deteriorated due to the strong coupling between the antenna and the lander which makes the existing methods difficult to satisfy the mission requirements. Therefore, the impact of the lander should be properly considered in the design.

The QESA design was developed on the basis of analyses on how the array configuration and lander affect antenna performance. The QESAs are made of ceramic filled polyimide laminate with relative permittivity of 3.8, loss tangent of 0.006 and thickness of 1 mm. The structure of the QESA is shown in Figure 1. The tapering lines represent the shape of the metallic edge of the radiating area, which can be mathematically expressed as Formulas (1) and (2) [12].

$$y=\pm \left(\frac{w}{2}\times \frac{e^{\alpha t}-1}{e^{\alpha }-1}+\frac{w_{throat}}{2}\right)$$

(1)

$$z=(l-d-l_1-l_{throat})\times t$$

(2)

In these equations, t varies from 0 to 1, and α = 6.2 defines the taper profile in y direction. According to Figure 1, l is the total length of the antenna along axis z, w_sub is the total width of the antenna along axis y, w_throat is the gap between the two tapered curves at the feed point, and l_throat is the length of parallel line at the feed point, l_slot and w_slot are the sizes of the quarter elliptical slots which are symmetrically distributed on both sides of the antenna.

The QESA uses a microstrip-to-slotline transition as its feed. To create a broadband matching antenna, the slotline and microstrip terminals were designed as wideband short stub and open stub, respectively. The characteristic impedances of the slotline and microstrip are 71 and 50 Ω.

3.2. Array Design

The MIMO antenna array consists of 12 elements. To ensure that the MIMO array would be able to image the drilling site, the elements layout was optimized such that all elements were installed around the driller. Elements 1–10 were placed on the sides of the drilling mechanism, while elements 11 and 12 were placed close to the mechanism to enhance the imaging capability. All the elements maintain the same polarization and form array along the H-plane. The distance between two adjacent antennas is 120 mm. All of the antennas’ main beams were directed at the lunar surface. The layout of the antenna elements is shown in Figure 2. The 12 elements were divided into three groups: Group A, B, and C. Groups A and B were installed on the bottom of the lander, while Group C was installed on the side of the lander. The MIMO array has a switch matrix that switches the elements between their transmitting and receiving states. In a full scan, each of the 12 elements will transmit, one after another, while the 11 remaining elements act as receivers to receive echo signals. In this way, 132 traces of valid data will be formed, thus allowing the MIMO array to probe the structure of the lunar regolith beneath the lander.

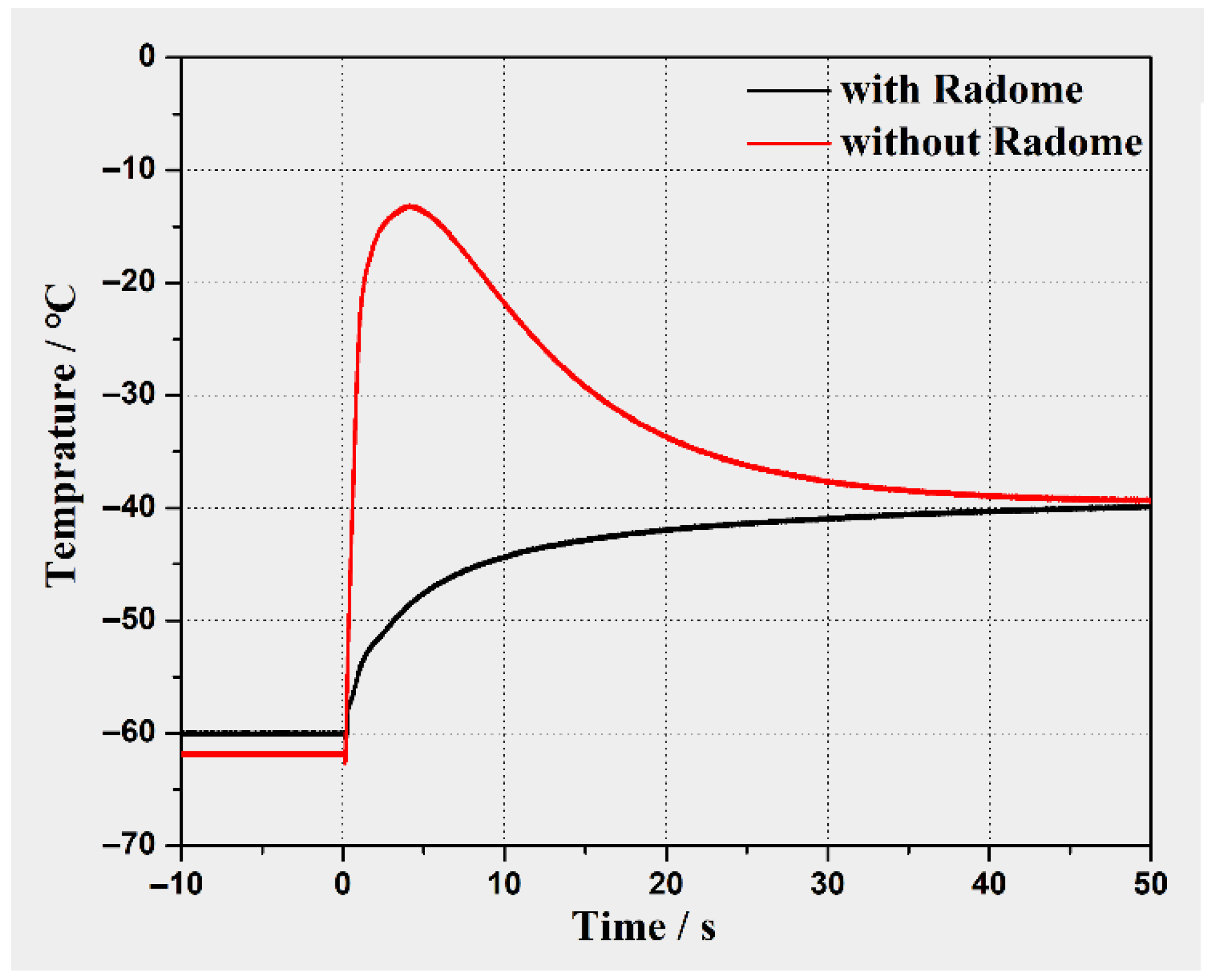

In the process of lunar landing, the plume of the engine may heat the antenna to 250 °C. At the same time, the plume will stir up charged lunar dust. If a large amount of lunar dust adheres to the elements, the performance of the antenna will be affected. In order to protect the array, ultra-light radomes with high transmission rate are designed for each group of elements. The radomes are made of polyimide composite with a density of 1.8 g/cm³ and temperature resistance of 350 °C. In the 1–5 GHz frequency band, the relative permittivity of the radome is between 3.6 and 4.2, and the loss tangent is between 0.012 and 0.016. The test results are shown in Figure 3. The dielectric properties were measured by the syntonic cavity method. In the production of the radomes, three standard size test pieces with size of Ø162 × 3 mm were produced at the same time with the same raw materials and techniques. The test error is better than 10% in the 1–1.7 GHz band and better than 5% in the 1.7–5 GHz band. Through the mechanical analysis, the radome is designed as a 0.6 mm thick thin-walled cavity structure, and the lightweight design is realized. The transmission rate of the radome is tested, and the result is better than 97%. The measured results are shown in Figure 3. The radome can effectively isolate the lunar dust and prevent the engine plume from directly splashing onto the elements, which reduces the heating rate of the array. In order to verify the protective effect of the radome, an engine plume test was carried out. The array was installed on a plate to simulate the real installation position. The test device was placed in a vacuum tank, and the ambient temperature was −60 °C. The engine ignited in pulse mode for 3 s. The temperature response data is shown in Figure 4. When the engine works for a short time, the maximum temperature of the core components of the array is effectively reduced, and the temperature adaptability of the array is improved. In order to verify the extreme temperature tolerance of the array, a 250 °C storage test was carried out. The high temperature lasted for 30 min. After the test, the color of the radome and elements changed slightly, but the electrical properties remained. The MIMO array with the radomes installed is shown in Figure 5.

3.3. Simulation and Measurement

As displayed in Figure 6, whether it is an individual antenna or an element in the array, the S11 shows excellent performance in the range of 1.0 to 4.75 GHz, which ensures that the antenna will not produce impedance mismatch in the array. The test status and results of the QESA are shown in Figure 7 and Figure 8, respectively. The realized gain fluctuates between 2 and 8 dBi through the measurement of the QESA in a microwave anechoic chamber. By and large, the gain of QESA increases with the frequency.

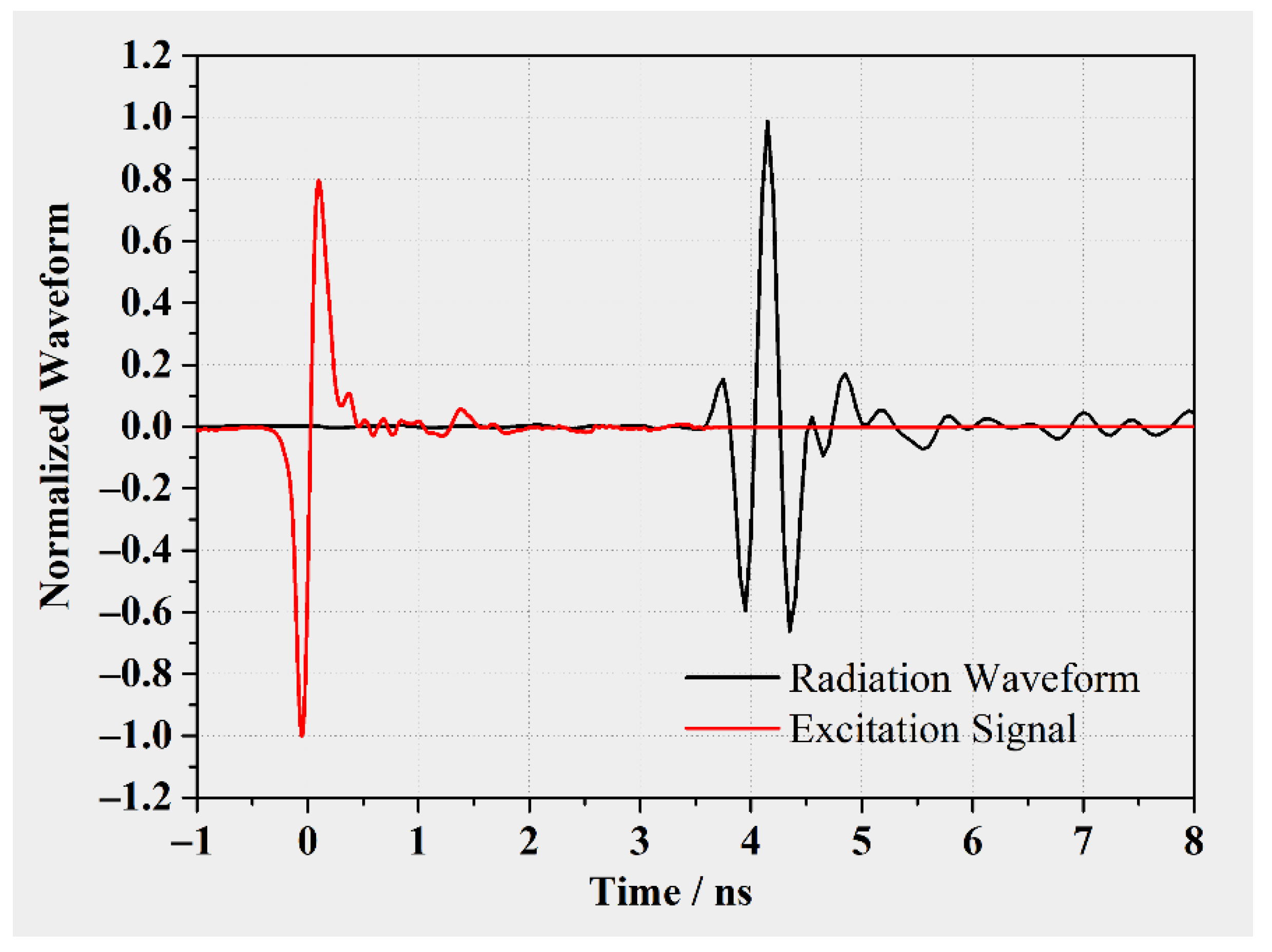

It can be observed from Figure 9 that the simulated and measured forward radiation patterns of the antenna are in good agreement. In order to reduce the influence of the turntable, the absorber is used during the test to block the mechanism which results in obvious difference between the measured and simulated backward radiation. When the QESA was excited by a monocycle pulse with width of 0.5 ns, it exhibited an excellent waveform with a short tail (see Figure 10).

4. Calibration and Experimental Validation

It is necessary to calibrate the system to ensure the detection effect of the MIMO array. The system calibration is designed as two parts: internal calibration and external calibration. In the internal calibration, an attenuator is used to loop back the transmitting and receiving ports. By switching the switch matrix, the characteristics of delay and insertion loss of each channel are tested respectively. The signal of each channel is calibrated with the measured data, and the calibration method is shown in the Formula (3) [13]:

$$f_{internal}(t)=a\times f_{mea}(t+{\tau }_{shift})$$

(3)

where $f_{internal}(t)$ is a signal after internal calibration, $f_{mea}(t)$ is a measured signal, $a$ is an amplitude calibration factor, ${\tau }_{shift}$ is a delay calibration factor.

The external calibration of the system is also needed. Strong crosstalk exists due to the short distance between antenna elements. In addition, there are complex metal structures near the array, and the multiple reflections will make the received signals messy and have a long tail. If the external calibration is not carried out, the weak reflected signals from subsurface may be masked by clutter. The core of external calibration is to remove the background signal, and the method is as Formula (4) [13]:

$$f_{external}(t)=f_{internal}(t)-f_{freespace}(t)$$

(4)

where $f_{external}(t)$ is the measured signal after external calibration, $f_{freespace}(t)$ is the signal in free space after internal calibration.

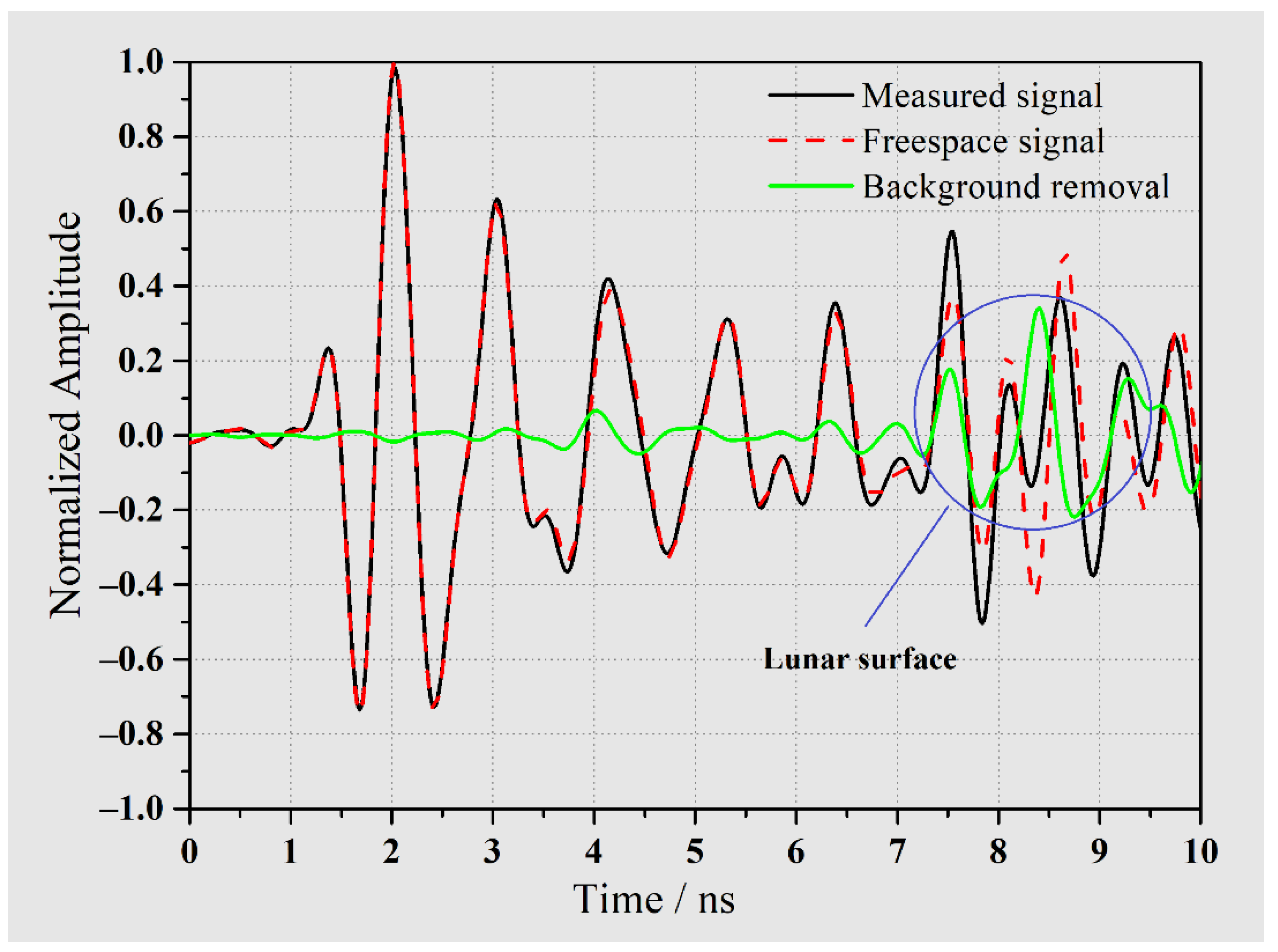

The signal in free space is obtained by testing in the microwave anechoic chamber. The lander and MIMO array are lifted to 1.5 m high. At the same time, the ground and walls are paved with absorbing materials to simulate the free space; the test status is shown in Figure 11. After calibration, the background signal caused by crosstalk and lander coupling can be removed well, while retaining the effective signal. Figure 12 shows the result of background removal.

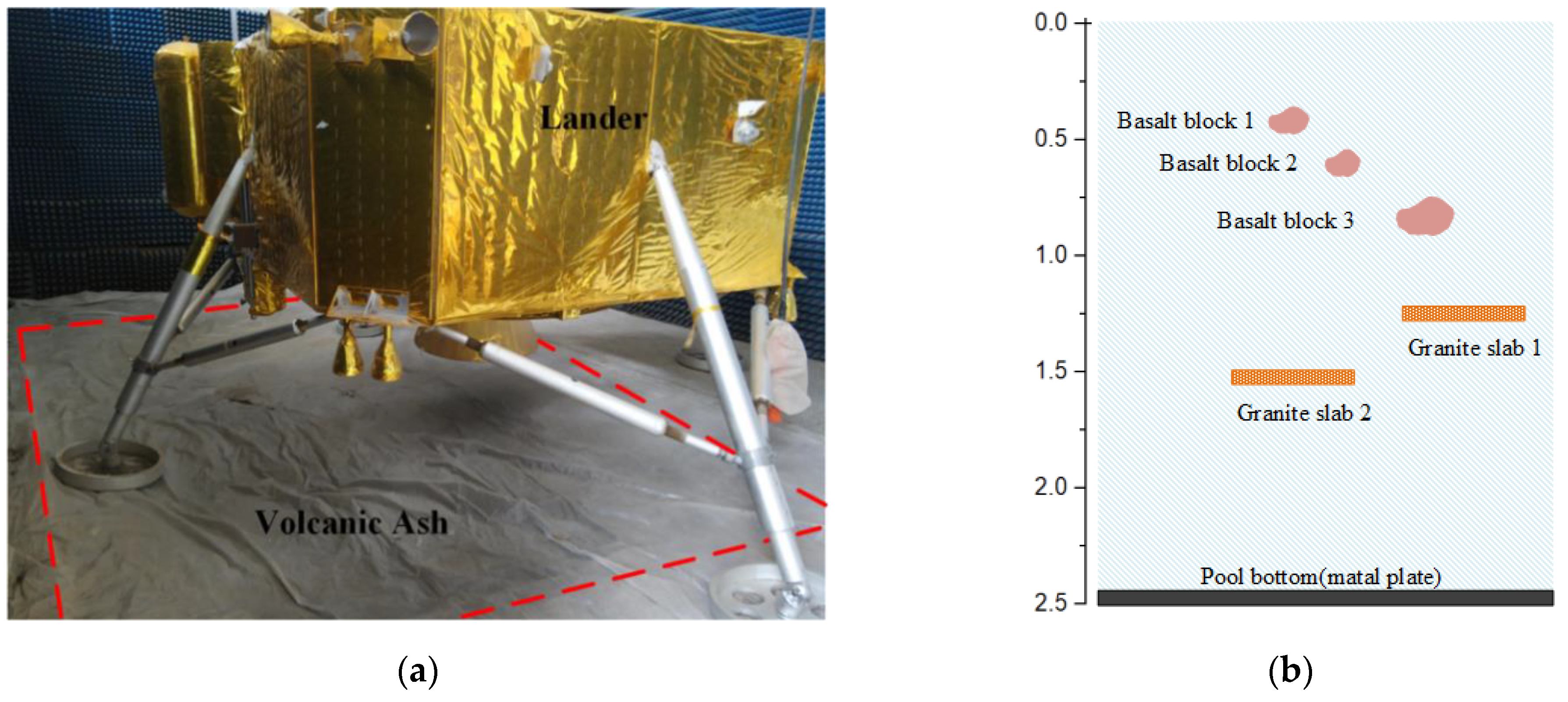

Because the dielectric constant and loss tangent of dry volcanic ash are similar to lunar regolith, a simulated test site filled with volcanic ash with a relative permittivity of about 3 was established. The site area is 5 × 9 m², and a 7 × 3 × 2.5 m³ pool is set in the central position. In order to reduce the interference of walls and other structures, the surrounding walls are covered with absorber. Several targets at different depths, such as basalt blocks and granite slabs, are embedded in volcanic ash. The site layout and targets distribution are shown in Figure 13.

The lander was placed above the volcanic ash pool to detect embedded targets. The back projection (PB) imaging method is used in the calibration and imaging process. Before calibration, it is difficult to distinguish the locations of shallow targets in the image, as shown in Figure 14a. As displayed in Figure 14b, after internal calibration, the image quality is slightly improved, but the shallow targets are still covered by coupling signals and multiple reflection signals and cannot be identified. After the external calibration, all embedded targets can be clearly distinguished, and the pool bottom with a depth of 2.5 m can be clearly identified (see Figure 14c). More details of experimental validation were given by Li and Lu [13,14].

5. Discussion

The proposed MIMO array is suitable for stationary detection of subsurface targets and layered structures, especially for deep space exploration, such as Lunar exploration, Mars exploration and asteroid exploration, because many probes for deep space exploration are difficult to move. Due to the limitation of array length and number of elements, the detection capability of static MIMO system is slightly insufficient compared with the GPR system of mobile detection mode. However, it is still of great significance to study the subsurface structures and mineral composition of the moon and planets.

6. Conclusions

In this study, an ultra-wideband MIMO array capable of sub-surface probing from a stationary position was designed for the LRPR of the CE-5 lander. The elements of the array were designed as miniaturized QESAs. Ultra-light and high temperature resistant radomes with high transmission rate were designed to protect the array. Through effective calibration, the MIMO array system can detect lunar regolith structures and targets within 2.5 m depth below the lander, which can achieve the scientific goals of LRPR. In the near future, CE-5 LRPR data will be widely available via the Data Publishing and Information Service System of China’s Lunar Exploration Program (http://moom.bao.ac.cn).
