Memory-Efficient Deep Learning for Botnet Attack Detection in IoT Networks

Abstract

Cyber attackers exploit a network of compromised computing devices, known as a botnet, to attack Internet-of-Things (IoT) networks. Recent research works have recommended the use of Deep Recurrent Neural Network (DRNN) for botnet attack detection in IoT networks. However, for high feature dimensionality in the training data, high network bandwidth and a large memory space will be needed to transmit and store the data, respectively in IoT back-end server or cloud platform for Deep Learning (DL). Furthermore, given highly imbalanced network traffic data, the DRNN model produces low classification performance in minority classes. In this paper, we exploit the joint advantages of Long Short-Term Memory Autoencoder (LAE), Synthetic Minority Oversampling Technique (SMOTE), and DRNN to develop a memory-efficient DL method, named LS-DRNN. The effectiveness of this method is evaluated with the Bot-IoT dataset. Results show that the LAE method reduced the dimensionality of network traffic features in the training set from 37 to 10, and this consequently reduced the memory space required for data storage by $86.49\%$. SMOTE method helped the LS-DRNN model to achieve high classification performance in minority classes, and the overall detection rate increased by $10.94\%$. Furthermore, the LS-DRNN model outperformed state-of-the-art models.

1. Introduction

The Internet of Things (IoT) and the Industrial IoT (IIoT) are part of the main information and communication technologies of the fourth industrial revolution (Industry 4.0) [1,2,3]. To a large extent, the global coronavirus (COVID-19) pandemic that started in 2020 has restricted human contacts and economic activities in most countries. In view of this, IoT and IIoT technologies will help in connecting people, homes, and businesses to a large-scale of computers, smart devices, sensors, vehicles, and industrial machines in smart cities. Unfortunately, IoT has become the primary target of malicious botnet (A botnet is a network of computing devices that are coordinated by a botmaster to perform specific tasks [4].) operators due to their proliferation and distributed nature. A large number of connected IoT devices are insecure because their default usernames and passwords remain unchanged [5,6]. A malicious botnet poses a serious cybersecurity threat to the Internet of Things (IoT) networks and their applications [7,8,9,10]. IoT devices are vulnerable to various botnet attacks such as Denial of Service (DoS), Distributed DoS (DDoS), Operating System (OS) fingerprinting, service scanning, data exfiltration, and keylogging [11]. Recently, a new IoT Peer-to-Peer (P2P) botnet, named HEH, exploited insecure Telnet services on ports 23 and 232 to wipe out all the data in IoT devices using the brute force method [12]. Therefore, IoT networks must be properly monitored and protected to detect and prevent cyberattacks.

Cybersecurity mechanisms such as encryption, authentication, and access control may not be strong enough to protect IoT networks against botnet attacks [13,14]. Therefore, an efficient Network Intrusion Detection System (NIDS) is needed to complement existing security mechanisms. NIDS will scan and monitor all the network traffic traces generated in IoT networks to detect botnet attacks. Signature-based NIDS can detect known attacks with high accuracy but it cannot identify zero-day (unknown) attacks. On the other hand, anomaly-based NIDS can detect unknown attacks but it has a higher False Positive Rate (FPR) than signature-based NIDS. Machine Learning (ML) method can be used to detect both known and unknown malicious network traffic traces in IoT networks [15,16,17,18,19]. Popular ML methods include Random Forest (RF), Support Vector Machine (SVM), Decision Tree (DT), k-Nearest Neighbour (kNN), Random Tree (RT), and Naive Bayes (NB). However, IoT networks generate massive network traffic data at very high velocity, and shallow neural networks cannot handle such big data because they have a limited number of trainable parameters.

Deep Learning (DL) is an advanced ML method that has more than one hidden layer in its neural network and it learns the feature representation of training data using multiple levels of abstraction [20,21,22]. Common DL architectures include Deep Neural Network (DNN), Convolutional Neural Network(CNN), Recurrent Neural Network (RNN), Deep Belief Network (DBN), Autoencoder (AE) and Restricted Boltzmann Machine (RBM). RNN is a type of neural network in which the connections between the neurons form a directed graph along a temporal sequence. Unlike other DL methods, it considers the temporal dependencies among the features in the training set. Most times, RNN is combined with fully-connected dense layer(s) to improve model’s classification performance. The integrated model architecture is referred to as Deep RNN (DRNN). In fact, DRNN models have been successfully applied to botnet detection in recent literature [11,21,22,23]. Therefore, we select DRNN model architecture because of its ability to model the temporal relationships among the features in network traffic data. However, for high feature dimensionality in the training data, a high network bandwidth and a large memory space will be needed to transmit and store the data, respectively in IoT back-end server or cloud platform for DL. Furthermore, given a highly imbalanced network traffic data, DRNN models will produce poor classification performance in minority classes.

In this paper, we propose a memory-efficient DL method, named LS-DRNN, for botnet attack detection in IoT networks. S-DRNN method employs SMOTE and DRNN algorithms only but LS-DRNN combines Long Short-Term Memory Autoencoder (LAE), SMOTE, and DRNN algorithms to achieve an efficient performance. AE is an unsupervised DL that is particularly suitable for feature representation as well as feature dimensionality reduction. There are different variants of AE including Stacked AE (SAE), Variational AE (AE), Sparse AE (SpAE), Convolutional AE (CAE), Deep AE (DAE), Denoising AE (DeAE), and Long Short-Term Memory AE (LAE). Unlike other variants of AE and similar to RNN, LAE uses Long Short-Term Memory (LSTM) to account for long-term dependencies among features while learning their representation and reducing the dimensionality. So, LAE is a good fit for feature dimensionality reduction in the botnet detection task. The main contributions of this paper are as follows:

• LAE reduces the feature dimensionality of large-scale network traffic data using unsupervised DL method;
• SMOTE generates additional samples for minority classes in low-dimensional network traffic data to achieve class balance;
• DRNN performs multi-class classification of network traffic samples in balanced, low-dimensional data using supervised DL method;
• DRNN, S-DRNN, and LS-DRNN models are trained, validated, and tested with network traffic samples in the Bot-IoT dataset [11], and their classification performance in 11-class classification scenario is evaluated.

2. Review of Related Works

In this section, we review related works to establish the novelty and the main contributions of this paper.

Table 1. Review of related works.

Dimensionality Reduction Method	Class Balance Method	References
Feature selection	None	[11,24,25,26,27,28,29,30,31,32,33,34,35,36]
PCA	None	[37,38,39]
t-SNE	None	[40]
LAE	None	[10]
None	Up-sampling	[41]
None	SMOTE	[42,43,44,45]
Feature selection	Focal loss	[46]
Feature selection	SMOTE	[47]
LAE	SMOTE	This paper

presents a summary of the state-of-the-art feature dimensionality reduction methods and class balance methods proposed for botnet detection in IoT networks.

Koroniotis et al. [11] used Pearson Correlation Coefficient (PCC) and joint entropy techniques to select the 10 most relevant features. Support Vector Machine (SVM), DRNN, and Long Short-Term Memory (LSTM) models were trained with these features to perform binary classification. The reduction in the number of features shortened the time taken to train the ML and DL models, but the classification performance was lower than when the full features were used for model training. Furthermore, the authors did not evaluate the performance of the feature selection method in a multi-class classification scenario. The same set of features was also used for ML-based intrusion detection in [24,25,26,27,28,29,30].

Kumar et al. [31] proposed a hybrid feature selection method, which combined PCC with Random Forest Mean Decrease Accuracy (RFMDA) and Gain Ratio (GR), to select the 10 most important features. Random Forest (RF), k-Nearest Neighbour (kNN), and Extreme Gradient Boosting (XGBoost) models were trained with these features to perform 5-class classification. Kumar et al. [32] used a mutual information-based feature selection method to select the 10 most relevant features. RF and XGBoost models were trained with these features for the 5-class classification task. Shafiq et al. [33,35] proposed a new feature selection algorithm based on the wrapper technique and Area Under Curve (AUC) metric. Then, C4.5, Naive Bayes (NB), RF, and SVM models were trained for 8-class classification. Koroniotis et al. [34] developed Multilayer Perceptron (MLP) and RNN models using 13 network traffic features. Asadi et al [36] proposed Particle Swarm Optimisation (PSO) algorithm to select 10 outstanding features. These features were used to train ML/DL models for binary classification. Popoola et al. [10] performed feature dimensionality reduction based on the LAE algorithm, while the Bidirectional LSTM (BLSTM) algorithm was used for the 5-class classification task. Other feature dimensionality reduction methods include Principal Component Analysis (PCA) in [37,38,39], and t-distributed Stochastic Neighbour Embedding (t-SNE) in [40].

Khan and Kim [48] proposed a hybrid intelligent model using both anomaly-based and misuse-based NIDS approaches. At the first stage, Logistic Regression (LR) and XGBoost algorithms were used to develop anomaly-based NIDS, while the LAE algorithm was used for misuse-based NIDS in the second stage of the system. The effectiveness of the hybrid model was evaluated with the ISCX-2012 data set. Roopak et al. [49] investigated the effectiveness of Multi-Layer Perceptron (MLP), CNN, LSTM, and CNN-LSTM models for DDoS attack detection in IoT networks. The authors simulated these models with the CICIDS2017 data set. Liaqat et al. [41] used the up-sampling method to increase the number of benign samples in the training data set. In [42,43,44,45], Synthetic Minority Oversampling Technique (SMOTE) method was used to generate additional samples for the minority classes. Mulyanto et al. [46] performed feature selection to reduce dimensionality while focal loss function was used to address class imbalance problem. Similarly, Injadat et al. [47] selected the most relevant features and additional minority samples were generated using SMOTE.

3. LS-DRNN: A Memory-Efficient Deep Learning Method

In this section, we explain how the LS-DRNN method is developed for botnet attack detection in IoT networks. LS-DRNN employs an unsupervised DL method (LAE), a sampling method (SMOTE), and a supervised DL method (DRNN).

3.1. LSTM Autoencoder

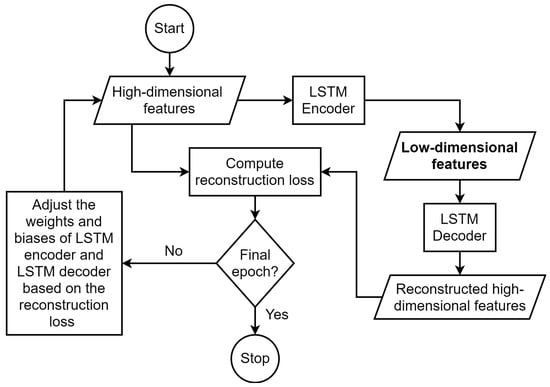

LAE method is an unsupervised DL method and it was used to reduce the dimensionality of network traffic features. Consequently, this process is expected to reduce the amount of memory space that will be required to store training data for DL in IoT back-end server or cloud platform.

A high-dimensional network traffic feature set is represented with $\mathbf{X}\in {\mathbb{R}}^{n\times a}$, where n is the total number of network traffic samples, and a is the feature dimensionality. This matrix was reshaped to form a sequential 3D tensor, $\mathbf{X}\in {\mathbb{R}}^{n\times 1\times a}$. LSTM is a recurrent neural network which learns latent space representation of network traffic features using input gate, forget gate, memory cell state, output gate, and hidden state. A single LSTM layer was used to reduce the dimensionality of the feature set based on Equations (1)–(6):

$${\mathbf{i}}_1={\sigma }_r\left({\mathbf{W}}_{ix1}\mathbf{x}+{\mathbf{W}}_{ih1}{\mathbf{h}}_0+{\mathbf{b}}_{i1}\right),$$

(1)

$${\mathbf{f}}_1={\sigma }_r\left({\mathbf{W}}_{fx1}\mathbf{x}+{\mathbf{W}}_{fh1}{\mathbf{h}}_0+{\mathbf{b}}_{f1}\right),$$

(2)

$$\widetilde{{\mathbf{c}}_1}={\sigma }_h\left({\mathbf{W}}_{\tilde{c}x1}\mathbf{x}+{\mathbf{W}}_{\tilde{c}h1}{\mathbf{h}}_0+{\mathbf{b}}_{\tilde{c}1}\right),$$

(3)

$${\mathbf{c}}_1={\mathbf{i}}_1\odot \widetilde{{\mathbf{c}}_1}+{\mathbf{f}}_1\odot {\mathbf{c}}_0,$$

(4)

$${\mathbf{o}}_1={\sigma }_r\left({\mathbf{W}}_{ox1}\mathbf{x}+{\mathbf{W}}_{oh1}{\mathbf{h}}_0+{\mathbf{b}}_{o1}\right),$$

(5)

$${\mathbf{h}}_{enc}={\mathbf{o}}_1\odot {\sigma }_h\left({\mathbf{c}}_1\right),$$

(6)

where $\mathbf{i}$ is the input gate vector; $\mathbf{f}$ is the forget gate vector; $\mathbf{c}$ is the memory cell state vector; $\mathbf{o}$ is the output gate vector; $\mathbf{h}$ is the hidden state vector; ${\mathbf{W}}_{(·)}$ are the weight matrices; ${\mathbf{b}}_{(·)}$ are the bias vectors; ${\sigma }_r$ is a sigmoid activation function; and ${\sigma }_h$ is a Rectified Linear Unit (ReLU). The weight matrices were initialised using He uniform technique [50].

Similarly, a single LSTM layer was also used to reconstruct the original high-dimensional features from the encoded, low-dimensional features based on Equations (7)–(12):

$${\mathbf{i}}_2={\sigma }_r\left({\mathbf{W}}_{ix2}{\mathbf{h}}_{enc}+{\mathbf{W}}_{ih2}{\mathbf{h}}_0+{\mathbf{b}}_{i2}\right),$$

(7)

$${\mathbf{f}}_2={\sigma }_r\left({\mathbf{W}}_{fx2}{\mathbf{h}}_{enc}+{\mathbf{W}}_{fh2}{\mathbf{h}}_0+{\mathbf{b}}_{f2}\right),$$

(8)

$$\widetilde{{\mathbf{c}}_2}={\sigma }_h\left({\mathbf{W}}_{\tilde{c}x2}{\mathbf{h}}_{enc}+{\mathbf{W}}_{\tilde{c}h2}{\mathbf{h}}_0+{\mathbf{b}}_{\tilde{c}2}\right),$$

(9)

$${\mathbf{c}}_2={\mathbf{i}}_2\odot \widetilde{{\mathbf{c}}_2}+{\mathbf{f}}_2\odot {\mathbf{c}}_0,$$

(10)

$${\mathbf{o}}_2={\sigma }_r\left({\mathbf{W}}_{ox2}{\mathbf{h}}_{enc}+{\mathbf{W}}_{oh2}{\mathbf{h}}_0+{\mathbf{b}}_{o2}\right),$$

(11)

$${\mathbf{h}}_{dec}={\mathbf{o}}_2\odot {\sigma }_h\left({\mathbf{c}}_2\right).$$

(12)

3.2. Synthetic Minority Oversampling Technique

High class imbalance adversely affects the classification performance of ML/DL models. The class imbalance problem is usually handled by either under-sampling or over-sampling the data in the training set to achieve class balance. However, the under-sampling approach is not suitable for cases where the number of samples in one of the minority classes is very small (<10). In our case, there are only four samples in one of the minority classes (more details will be provided later in Section 4). Therefore, we simply ruled out the option of the under-sampling approach.

Recent studies recommended SMOTE as an efficient over-sampling method [42,43,44,45,47,51]. Therefore, SMOTE algorithm was proposed to deal with the high class imbalance problem in the training set in an 11-class classification scenario. Unlike the method in [52,53], which over-samples minority classes with replacement, the method employed in this paper generates synthetic examples by using techniques such as rotation and skew in order to achieve class balance [54].

These synthetic network traffic data were generated along the line segments joining any or all of the k nearest neighbours of the minority classes, where k $=3$. Therefore, neighbours from the three nearest neighbours were randomly selected. The step-wise process of SMOTE is presented in Algorithm 1. The generation of synthetic samples (S) in the minority classes depends on the number of minority class samples (T), the over-sampling rate ($N\%$), and the number of nearest neighbours (k). If N is less than $100\%$, the minority class samples are randomised. We compute k nearest neighbours for each of the minority class only. This is a function of N, the current minority class sample (i), the integral multiples of 100 in N (j), and an array of random numbers ($nn\_array$). $\mathbf{Z}$ is an array of original minority class samples; r is the count of a number of synthetic samples generated, and $\mathbf{V}$ is an array of synthetic samples.

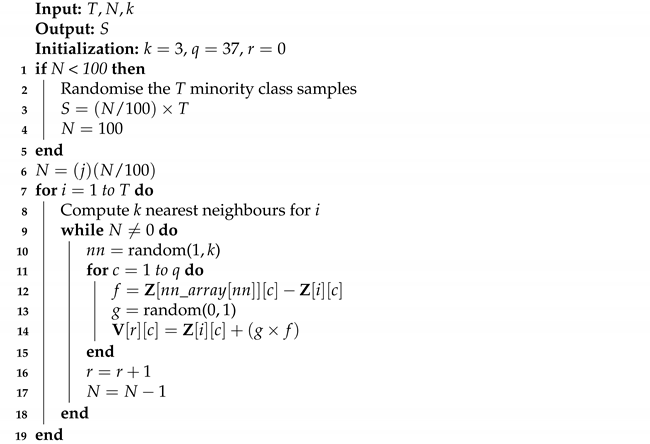

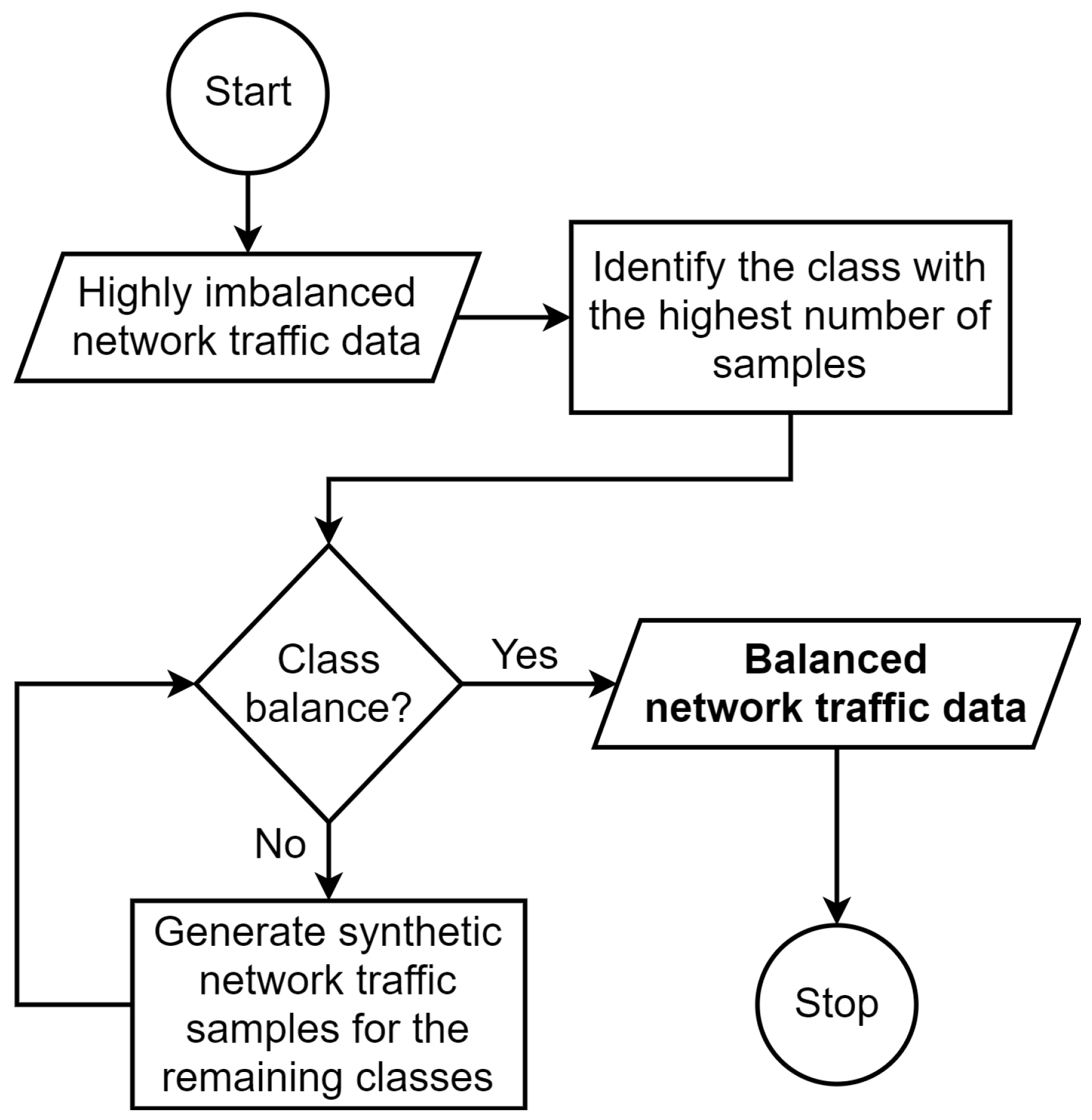

Algorithm 1: SMOTE Algorithm

3.3. Deep Recurrent Neural Network

Given a low-dimensional network traffic feature set, $\mathbf{X}$, and a corresponding ground truth label vector, $\mathbf{y}$, the goal of DRNN is to learn the function that determines the output target whenever the input data sequences are presented. First, a new hidden state vector, $\mathbf{h}$, is produced at each time step implementing an activation function on the previous hidden state, ${\mathbf{h}}_0$, and the current input, $\mathbf{x}$.

Unlike Feedforward Neural Network (FNN), RNN has a hidden state which helps to model temporal dynamics of input data. RNN learns the temporal dynamics of a mini-batch of highly imbalanced network traffic features, ${\mathbf{X}}_k$, by transforming the input data and initial hidden state, ${\mathbf{h}}_{init}$, with trainable parameters as stated in Equation (13):

$${\mathbf{h}}_{1k}={\sigma }_h\left({\mathbf{W}}_x{\mathbf{X}}_k+{\mathbf{W}}_h{\mathbf{h}}_{init}+{\mathbf{b}}_h\right),$$

(13)

where ${\mathbf{h}}_{1k}$ is the new hidden state when RNN is trained with the $k^{th}$ mini-batch; ${\mathbf{W}}_x$ and ${\mathbf{W}}_h$ are the weights used for linear transformation of ${\mathbf{X}}_k$ and ${\mathbf{h}}_{init}$ respectively; and ${\mathbf{b}}_h$ is the bias. RNN layer output is further processed based on Equations (14)–(20) to produce DRNN layer output. Complete information about DRNN is presented in Algorithm 2.

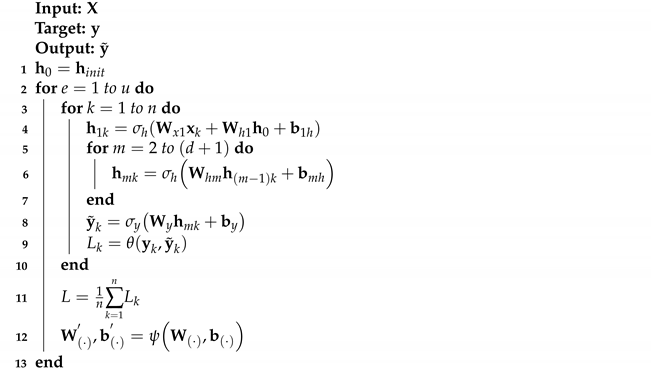

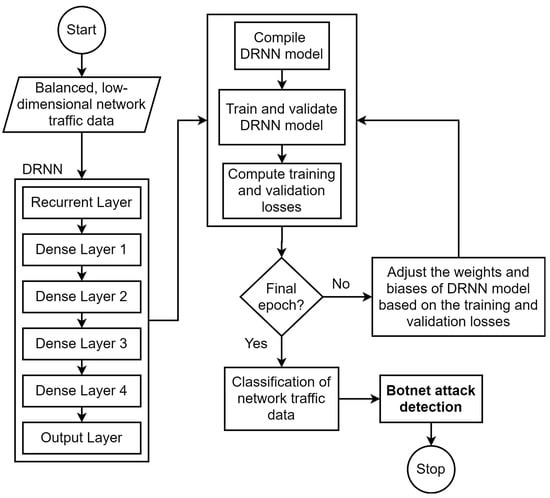

Algorithm 2: DRNN Algorithm

The hidden states of the four dense hidden layers are obtained by Equation (14):

$${\mathbf{h}}_{mk}={\sigma }_h\left({\mathbf{W}}_{hm}{\mathbf{h}}_{(m-1)k}+{\mathbf{b}}_{mh}\right)$$

(14)

where $m=[2,3,4,5]$; ${\mathbf{h}}_{mk}$ is the hidden state of $m^{th}$ hidden layer; ${\mathbf{h}}_{1k}={\mathbf{h}}_k$; ${\mathbf{W}}_{hm}$ is the weight used for linear transformation of previous hidden state, ${\mathbf{h}}_{(m-1)k}$; ${\mathbf{b}}_{mh}$ is the bias of $m^{th}$ hidden layer; and ${\sigma }_h$ is a Rectified Linear Unit (ReLU) activation function given by Equation (15):

$${\sigma }_h\left(a\right)=max(0,a).$$

(15)

If a is a negative value, the function returns 0; but the same a is returned when it is a positive value.

The hidden state of the fourth dense layer, ${\mathbf{h}}_{5k}$, is transformed by the dense output layer as stated in Equation (16):

$${\tilde{\mathbf{y}}}_k={\sigma }_y\left({\mathbf{W}}_y{\mathbf{h}}_{5n}+{\mathbf{b}}_y\right),$$

(16)

where n is the sample size of mini-batch of $\mathbf{X}$ and $n=p/\mu$; $\mu$ is the batch size and $\mu =512$; ${\mathbf{W}}_y$ is the weight used for linear transformation of ${\mathbf{h}}_{5k}$; ${\mathbf{b}}_y$ is the bias of dense output layer; and ${\sigma }_y$ is the activation function of dense output layer.

In multi-class classification scenario, ${\sigma }_y$ is a softmax function given by Equation (17):

$${\tilde{\mathbf{y}}}_k=\frac{e^{\left({\mathbf{W}}_y{\mathbf{h}}_{5k}+{\mathbf{b}}_y\right)}}{{\displaystyle \sum _{\omega =1}^{\gamma }}{e}^{\left({\mathbf{W}}_y{\mathbf{h}}_{5k}+{\mathbf{b}}_y\right)}},$$

(17)

where $\gamma$ is the number of classes in $\mathbf{y}$. while the difference between $\tilde{\mathbf{y}}$ and $\mathbf{y}$ is measured by categorical cross-entropy loss function $\left({\theta }_c\right)$ in Equation (18):

$$L={\theta }_c({\mathbf{y}}_k,{\tilde{\mathbf{y}}}_k)=-\frac{1}{n}\sum _{\tau =1}^n\sum _{\omega =1}^{\gamma }\left[y_{\tau ,\omega }log\left({\tilde{y}}_{\tau ,\omega }\right)\right].$$

(18)

The performance of DRNN was validated with a different previously unknown highly imbalanced network traffic data, ${\mathbf{X}}_{va}$, and its corresponding ground-truth labels, ${\mathbf{y}}_{va}$. Training loss and validation loss are minimized in mini-batches over u epochs using an efficient first-order stochastic gradient descent algorithm named Adam in [55]. Trainable parameters of densely-connected DL model are represented by Equation (19):

$${\Phi }=\left[{\mathbf{W}}_{(·)},{\mathbf{h}}_{(·)},{\mathbf{b}}_{(·)}\right].$$

(19)

For each epoch, Adam optimizer, $\psi$, updates ${\Phi }$ to minimize L as stated in Equation (20):

$${{\Phi }}^{{}^{\prime }}=\psi \left({\Phi },L,\alpha ,{\beta }_1,{\beta }_2\right),$$

(20)

where ${{\Phi }}^{{}^{\prime }}$ is the new set of trainable parameters; $\alpha$ is the learning rate ($0.0001$); and ${\beta }_1$ and ${\beta }_2$ are the exponential decay rates ($0.9$ and $0.999$ respectively).

4. Simulation and Performance Evaluation

In this section, we implement and evaluate the effectiveness of DRNN, S-DRNN, and LS-DRNN models with the Bot-IoT data set [11]. The research methodology involves data pre-processing, model development, and model evaluation, as shown in Figure 1.

Bot-IoT data set [11] contains the information about the features of 477 benign network traffic samples that were generated by five IoT scenarios, namely: a weather station, a smart fridge, motion-activated lights, a remote-controlled garage door, and a smart thermostat. Furthermore, the data set contains the features and the corresponding labels of 3,668,045 malicious network traffic samples that represent different botnet attack scenarios including DDoS, DoS, reconnaissance, and data theft. All the network traffic samples in the Bot-IoT dataset were grouped into 10 attack classes and a benign class namely: DDoS-HTTP (DDH), DDoS-TCP (DDT), DDoS-UDP (DDU), DoS-HTTP (DH), DoS-TCP (DT), DoS-UDP (DU), normal, OS Fingerprinting (OSF), Service Scanning (SS), Data Exfiltration (DE), and Key Logging (KL).

Data pre-processing stage involved input feature selection, label encoding, input feature normalization and random data splitting as described in [10]. The sample distribution of the BoT-IoT data set for training, validation and testing in

Table 2. Network traffic samples in the training, validation, and testing sets.

Class	Training	Validation	Testing
DDH	588	197	204
DDT	586,393	195,713	195,274
DDU	568,760	189,407	190,088
DH	906	311	268
DT	369,965	122,861	122,974
DU	619,414	206,772	206,789
Norm	290	86	101
OSF	10,795	3537	3582
SS	43,949	14,806	14,413
DE	4	1	1
KL	48	14	11

shows that the network traffic data is highly imbalanced across the 11 classes. All the 37 network traffic features have continuous values; and these values were scaled to a range of $[0,1]$ using min-max transformation given by Equation (21):

$$\tilde{X}=\frac{X-X_{min}}{X_{max}-X_{min}}$$

(21)

where $X_{min}$ and $X_{max}$ are the minimum and maximum values of X respectively. Data pre-processing operations were implemented using Numpy, Pandas and Scikit-learn libraries developed for Python programming language.

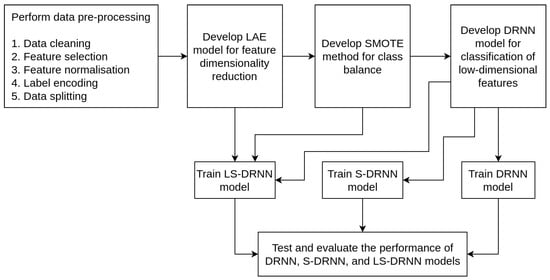

Figure 2, Figure 3 and Figure 4 show the overview of the implementation of LAE, SMOTE, and DRNN methods, respectively. The classification performance of ML/DL model depends on the quality of the training data and the choice of the right network topology. Therefore, we performed extensive experimentation with different recurrent layer, dense layer, activation function, batch size, and epochs to determine the most suitable DRNN architecture. The optimal DRNN structure shown in Figure 4 has a single recurrent layer, four dense layers, and an output layer. There were 100 neurons each in the recurrent layer and the four dense layers. On the other hand, the number of neurons in the output layer depends on the number of classes in the training set. Hence, the number of neurons in the output layer was set to 11. ReLU activation function was used in the recurrent and dense layers, while softmax activation function was employed in the output layer. DRNN, S-DRNN, and LS-DRNN models were trained using mini-batch stochastic gradient descent algorithm [55], and we used a batch size of 64. These models were trained and validated for a period of 20 epochs using categorical cross-entropy loss function. Data processing were performed using open-source frameworks and libraries such as Pandas (https://pandas.pydata.org/), Numpy (https://numpy.org/), Sklearn (https://scikit-learn.org/stable/), and Imblearn (https://pypi.org/project/imblearn/). Model training, validation and testing were implemented using TensorFlow (https://www.tensorflow.org/) and Keras (https://keras.io/) frameworks developed for Python programming running on Ubuntu 16.04 LTS workstation with the following specifications: RAM (32 GB), processor (Intel Core i7-9700K CPU @ 3.60 GHz × 8), Graphics (GeForce RTX 2080 Ti/PXCIe/SSE2) and OS type (64-bit). The data sizes of the features in the training sets are analysed to determine the amount of storage space required for DL in memory-constrained IoT devices. Then, training losses and validation losses are analysed to evaluate the robustness of DL models against under-fitting and over-fitting, respectively. Lastly, the accuracy, precision, recall, F1 score, FPR, Negative Predictive Value (NPV), Balanced accuracy (BACC), Geometric Mean (GM), and Matthews Correlation Coefficient (MCC) of DL models are analysed to evaluate their classification performance. The time required to train DL models with the network traffic samples in the training sets and the time required to test the models with the network traffic samples in the testing sets is analysed to evaluate their training speed and detection speed, respectively.

5. Results and Discussion

In this section, we evaluate and compare the effectiveness of learning the discriminative features of benign network traffic and botnet attack traffic from highly imbalanced data using DRNN, S-DRNN, and LS-DRNN methods.

5.1. Results of DRNN Model

The data size of the feature set used for the training of the DRNN model was $1085.88$ MB, as shown in

Table 3. Data size and computation time.

Model	Data Size (MB)	Encoding Time (s)	Sampling Time (s)	Train Time (s)	Test Time (s)
Ferrag et al. [21]	1085.88	-	-	-	-
Ferrag et al. [22]	1085.88	-	-	-	-
Ferrag et al. [56]	1085.88	-	-	-	-
Alkadi et al. [23]	1085.88	-	-	-	-
DRNN	1085.88	-	-	207.72	0.7552
S-DRNN	2680.24	-	548.72	603.83	0.7558
LS-DRNN	146.74	204.67	15.37	616.96	0.7181

. This implies that a large memory space (>1 GB) will be required to store training data for DL-based botnet attack detection in IoT back-end server or cloud platform. Figure 5 shows that the training loss of the DRNN model decreased from $0.1762$ to $0.0027$ as the number of epochs increased from 1 to 20. Similarly, its validation loss decreased from $0.0601$ to $0.0036$, as shown in Figure 6. The consistent decrease in training loss and validation loss, as the number of epochs increased, implies that the DRNN model neither under-fit nor over-fit the network traffic data in the training and validation sets, respectively.

Table 4. Classification performance of DRNN model.

Metric	DDH	DDT	DDU	DH	DT	DU	Norm	OSF	SS	DE	KL	Overall
Accuracy	99.99	99.94	100.00	99.99	99.95	100.00	100.00	100.00	100.00	100.00	100.00	99.99
Precision	95.04	99.79	99.99	92.09	99.99	100.00	100.00	100.00	99.98	0.00	87.50	88.58
Recall	85.35	100.00	100.00	94.29	99.68	99.99	97.65	100.00	100.00	0.00	100.00	88.81
F1 score	89.93	99.89	99.99	93.18	99.84	99.99	98.81	100.00	99.99	0.00	93.33	88.63
FPR	0.00	0.08	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.01
NPV	100.00	100.00	100.00	100.00	99.94	99.99	100.00	100.00	100.00	100.00	100.00	99.99
BACC	92.67	99.96	100.00	97.14	99.84	99.99	98.82	100.00	100.00	50.00	100.00	94.40
GM	97.48	99.89	99.99	95.96	99.96	100.00	100.00	100.00	99.99	0.00	93.54	89.71
MCC	90.06	99.86	99.99	93.18	99.80	99.99	98.82	100.00	99.99	0.00	93.54	88.66

shows that DRNN model achieved high accuracy (>99%), high NPV (>99%), and low FPR (≈0%) in each of the 11 classes. In addition, the precision, recall, F1 score, BACC, GM, and MCC of the DRNN model were high for the majority classes; however, the values of these performance metrics were relatively low for the minority classes. Consequently, the mean values of precision ($88.58\%$), recall ($88.81\%$), F1 score ($88.63\%$), BACC ($94.40\%$), GM ($89.71\%$), and MCC ($88.66\%$) were not very close to $100\%$ as expected. This means that high class imbalance in the training set degraded the ability of the DRNN model to correctly classify the network traffic samples in the minority classes. Furthermore, the time taken to train the DRNN model with 2,201,112 network traffic samples in the training set and the time taken to test the model with 1,467,410 samples in the testing set were $207.72$ s and $0.7552$ s, respectively.

5.2. Results of S-DRNN Model

SMOTE method was introduced to mitigate the adverse effect of high class imbalance on the classification performance of the DRNN model as earlier discussed in Section 5.1. This method generated a total of 4,612,442 synthetic network traffic samples in $548.72$ s to achieve class balance across the 11 classes.

Table 5. Sample distribution of training set for S-DRNN model.

Class	Original Data	After Sampling	Generated Samples
DDH	588	619,414	618,826
DDT	586,393	619,414	33,021
DDU	568,760	619,414	50,654
DH	906	619,414	618,508
DT	369,965	619,414	249,449
DU	619,414	619,414	0
Norm	290	619,414	619,124
OSF	10,795	619,414	608,619
SS	43,949	619,414	575,465
DE	4	619,414	619,410
KL	48	619,414	619,366
Total	2,201,112	6,813,554	4,612,442

shows the distribution of network traffic samples that were used to train the S-DRNN model. Figure 5 shows that the training loss of the S-DRNN model decreased from $0.0917$ to $0.0005$ as the number of epochs increased from 1 to 20. Similarly, its validation loss decreased from $0.0473$ to $0.0009$. Compared to the DRNN model, the initial training loss of the S-DRNN model reduced by $48\%$, and its final training loss reduced by $83\%$. Likewise, the initial validation loss of the S-DRNN model reduced by $21.19\%$, and its final validation loss reduced by $76.08\%$. Therefore, the S-DRNN model was more robust against under-fitting and over-fitting than the DRNN model. Table 4 and

Table 6. Classification performance of S-DRNN model.

Metric	DDH	DDT	DDU	DH	DT	DU	Norm	OSF	SS	DE	KL	Overall
Accuracy	100.00	99.99	100.00	100.00	99.99	100.00	100.00	100.00	100.00	100.00	100.00	100.00
Precision	100.00	99.99	100.00	99.52	99.94	100.00	100.00	100.00	99.99	100.00	100.00	99.95
Recall	100.00	99.97	100.00	99.52	99.99	100.00	100.00	99.96	100.00	100.00	100.00	99.95
F1 score	100.00	99.98	100.00	99.52	99.97	100.00	100.00	99.98	100.00	100.00	100.00	99.95
FPR	0.00	0.00	0.00	0.00	0.01	0.00	0.00	0.00	0.00	0.00	0.00	0.00
NPV	100.00	99.99	100.00	100.00	100.00	100.00	100.00	100.00	100.00	100.00	100.00	100.00
BACC	100.00	99.98	100.00	99.76	99.99	100.00	100.00	99.98	100.00	100.00	100.00	99.97
GM	100.00	99.99	100.00	99.76	99.97	100.00	100.00	100.00	100.00	100.00	100.00	99.97
MCC	100.00	99.97	100.00	99.52	99.96	100.00	100.00	99.98	100.00	100.00	100.00	99.95

shows that the classification performance of the S-DRNN model was better than that of the DRNN model, most especially in minority classes. Specifically, the SMOTE method that was introduced in the training of the S-DRNN model increased the:

• precision by $4.96\%$, recall by $14.65\%$, F1 score by $10.07\%$, BACC by $7.33\%$, GM by $2.52\%$, and MCC by $9.94\%$, for DDH class;
• precision by $7.43\%$, recall by $5.23\%$, F1 score by $6.34\%$, BACC by $7.33\%$, GM by $2.52\%$, and MCC by $9.94\%$, for DH class;
• recall by $2.35\%$, F1 score by $1.19\%$, BACC by $1.18\%$, and MCC by $1.18\%$, for Norm class;
• precision by $100\%$, recall by $100\%$, F1 score by $100\%$, BACC by $50\%$, GM by $100\%$, and MCC by $100\%$, for DE class; and
• precision by $12.50\%$, F1 score by $6.67\%$, GM by $6.46\%$, and MCC by $6.46\%$, for KL class.

However, Table 3 shows that the increase in the number of network traffic samples increased the data size of the feature set used for the training of the S-DRNN model by $146.80\%$, compared to the data size of the feature set used for the training of the DRNN model. The time taken to train the S-DRNN model with 6813554 network traffic samples in its training set was $603.83$ s, and the time taken to test the model with 1,467,410 samples in its testing set was $0.7558$ s. Therefore, more time was spent on training the S-DRNN model than the DRNN model.

5.3. Results of LS-DRNN Model

LAE method was introduced to address the challenge of large memory space required for the storage of the network traffic data that was used to train the S-DRNN model, as previously discussed in Section 5.2. This method reduced the feature dimensionality of 3,668,045 network traffic samples in the training set from 37 to 10 in $204.67$ s. Consequently, Table 3 shows that the data size of the feature set of the LS-DRNN model reduced by $86.49\%$ and $94.53\%$, compared to the data size of the feature sets that were used to train DRNN and S-DRNN models, respectively. Figure 7 shows that the reconstruction loss of the LAE method decreased from $0.0333$ to $0.0009$ as the number of epochs increased from 1 to 20. Similarly, its validation loss decreased from $0.0085$ to $0.0037$. Low reconstruction loss implies that the output of LAE (i.e., low-dimensional network traffic features) is similar to the high-dimensional network traffic features without any significant loss of information.

SMOTE method generated a total of 4,612,442 synthetic network traffic samples in $15.37$ s to achieve class balance across the 11 classes. Table 3 shows that the LAE method that was introduced in the LS-DRNN model reduced the sampling time by $97.20\%$, compared to the sampling time in the S-DRNN model. Figure 5 shows that the training loss of the LS-DRNN model decreased from $0.1860$ to $0.0068$ as the number of epochs increased from 1 to 20. Similarly, its validation loss decreased from $0.1313$ to $0.0128$. The consistent decrease in training loss and validation loss, as the number of epochs increased, implies that the LS-DRNN model neither under-fit nor over-fit the network traffic data in the training and validation sets, respectively.

Table 4 and

Table 7. Classification performance of LS-DRNN model.

Metric	DDH	DDT	DDU	DH	DT	DU	Norm	OSF	SS	DE	KL	Overall
Accuracy	100.00	99.68	99.93	99.99	99.69	99.93	100.00	100.00	100.00	100.00	100.00	99.93
Precision	86.67	99.16	99.95	87.14	99.51	99.79	93.41	100.00	99.98	100.00	100.00	96.87
Recall	99.36	99.66	99.77	100.00	98.65	99.95	100.00	99.93	99.94	100.00	100.00	99.75
F1 score	92.58	99.41	99.86	93.13	99.08	99.87	96.59	99.96	99.96	100.00	100.00	98.22
FPR	0.00	0.31	0.02	0.01	0.10	0.08	0.00	0.00	0.00	0.00	0.00	0.05
NPV	100.00	99.88	99.92	100.00	99.73	99.98	100.00	100.00	100.00	100.00	100.00	99.95
BACC	99.68	99.67	99.87	100.00	99.28	99.93	100.00	99.96	99.97	100.00	100.00	99.85
GM	93.09	99.52	99.93	93.35	99.62	99.88	96.65	100.00	99.99	100.00	100.00	98.37
MCC	92.80	99.19	99.81	93.34	98.89	99.82	96.65	99.96	99.96	100.00	100.00	98.22

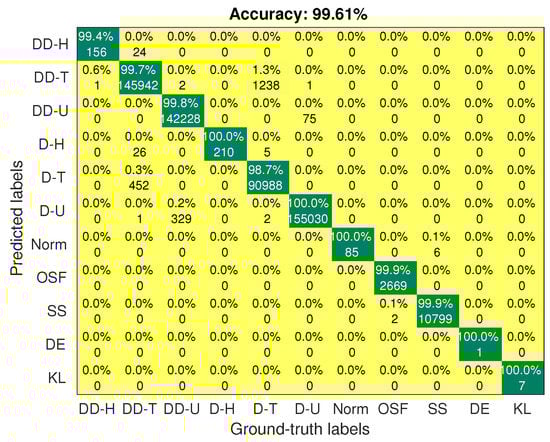

shows that the classification performance of the LS-DRNN model was better than that of the DRNN model, and it is similar to that of the S-DRNN model. Specifically, the LAE and SMOTE methods that were introduced in the training of the LS-DRNN model increased the:

• recall by $14.01\%$, F1 score by $2.65\%$, BACC by $7\%$, and MCC by $2.74\%$, for DDH class;
• recall by $5.71\%$, and BACC by $2.86\%$, for DH class;
• recall by $2.35\%$, and BACC by $1.18\%$, for Norm class;
• precision by $100\%$, recall by $100\%$, F1 score by $100\%$, BACC by $50\%$, GM by $100\%$, and MCC by $100\%$, for DE class; and
• precision by $12.50\%$, F1 score by $6.67\%$, GM by $6.46\%$, and MCC by $6.46\%$, for KL class.

The detail of the detection rates and misclassification rates of the LS-DRNN model in each of the 11 classes is available in Figure 8.

Table 8. Recall of ML and DL models across 11 classes.

Model	DDH	DDT	DDU	DH	DT	DU	Norm	OSF	SS	DE	KL
RNN [21]	100.00	100.00	100.00	100.00	100.00	100.00	-	92.22	87.91	99.75	77.91
SVM [21]	62.24	89.56	98.14	70.14	71.26	100.00	-	70.14	72.82	89.67	65.12
RF [21]	82.26	88.28	55.26	82.20	81.77	82.99	-	82.20	69.82	86.55	81.56
NB [21]	50.78	78.67	78.50	68.68	65.56	100	-	68.68	65.21	66.55	65.62
DNN [22]	96.62	96.22	96.12	96.70	96.63	96.53	-	96.14	96.43	100.00	96.76
RNN [22]	96.56	96.65	96.67	96.87	96.77	96.76	-	96.76	96.87	100.00	97.00
CNN [22]	97.01	97.00	97.01	97.51	97.11	97.11	-	97.00	97.10	100.00	98.10
RBM [22]	96.54	96.51	96.52	96.80	96.57	96.56	-	96.30	96.30	100.00	97.11
DBN [22]	96.72	96.60	96.62	96.91	96.72	96.83	-	96.61	96.60	100.00	97.66
DBM [22]	96.21	96.08	96.11	96.99	96.33	96.65	-	96.08	96.07	100.00	98.22
DAE [22]	97.99	97.71	97.99	98.41	98.00	98.03	-	97.72	97.71	100.00	98.33
RDTIDS [56]	93.17	95.84	98.66	77.47	100.00	100.00	-	98.16	99.47	100.00	100.00
BLSTM [23]	99.25	99.10	99.45	99.75	99.65	99.79	-	92.77	92.20	96.50	89.90
LS-DRNN	99.36	99.66	99.77	100.00	98.65	99.95	100.00	99.93	99.94	100.00	100.00

and

Table 9. Overall classification performance of ML and DL models.

Model	Accuracy	Precision	Recall	F1 Score	FPR	NPV	AUC	GM	MCC	${\mathit{T}}_{\mathit{train}}$ (s)	${\mathit{T}}_{\mathit{test}}$ (s)
RNN [21]	99.91	-	-	-	1.28	-	-	-	-	201.70	44.23
SVM [21]	-	-	-	-	2.99	-	-	-	-	-	-
RF [21]	-	-	-	-	4.29	-	-	-	-	-	-
NB [21]	-	-	-	-	3.24	-	-	-	-	-	-
DNN [22]	98.22	-	-	-	1.14	-	-	-	-	991.60	-
RNN [22]	98.31	-	-	-	1.10	-	-	-	-	1400.60	-
CNN [22]	98.37	-	-	-	1.00	-	-	-	-	1367.20	-
RBM [22]	98.28	-	-	-	1.13	-	-	-	-	2111.90	-
DBN [22]	98.31	-	-	-	1.12	-	-	-	-	2921.70	-
DBM [22]	98.38	-	-	-	1.11	-	-	-	-	2800.10	-
DAE [22]	98.39	-	-	-	1.11	-	-	-	-	2816.20	-
RDTIDS [56]	97.00	-	-	-	1.12	-	-	-	-	195.50	2.27
BLSTM [23]	98.91	-	-	-	1.20	-	-	-	-	149.60	69.10
LS-DRNN	99.93	96.87	99.75	98.22	0.05	99.95	99.85	99.37	98.22	616.96	0.72

show that the LS-DRNN model demonstrated better classification performance and faster detection speed than state-of-the-art ML and DL models. The time taken to train the LS-DRNN model with 6,813,554 network traffic samples in its training set was $616.96$ s, and the time taken to test the model with 1,467,410 samples in its testing set was $0.7181$ s. Table 3 shows that having the lowest testing time, the LS-DRNN model achieved the fastest detection speed, compared to DRNN and S-DRNN models. In summary, the results of this study show that the LAE method reduced the dimensionality of network traffic features in the training set from 37 to 10, and this consequently reduced the memory space required for data storage by $86.49\%$. SMOTE method helped the LS-DRNN model to achieve high classification performance in minority classes, and the overall detection rate increased by $10.94\%$.

6. Conclusions

In this paper, we developed a memory-efficient DL method, named LS-DRNN, to detect botnet attacks in IoT networks. This method exploited the combined benefits of an unsupervised DL method (LAE), a sampling method (SMOTE), and a supervised DL method (DRNN) for efficient performance. The effectiveness of the LS-DRNN method was evaluated with the highly imbalanced network traffic features and their corresponding labels in the Bot-IoT dataset. First, the LAE method reduced the dimensionality of the network traffic features to minimise the memory space required for the storage of training data in IoT back-end server or cloud platform. Then, SMOTE method generated a total of 4,612,442 synthetic network traffic samples to achieve class balance across the 11 classes. Lastly, DRNN performed a multi-class classification of balanced, low-dimensional network traffic features to identify botnet attacks in IoT networks.

The results of our experiments showed that the dimensionality of the network traffic features reduced from 37 to 10. Consequently, the memory space required for the storage of training data reduced by $86.49\%$. Furthermore, the LS-DRNN model achieved high classification performance in the minority classes. Compared to the DRNN model, the overall precision, recall, F1 score, BACC, GM, and MCC of the LS-DRNN model increased by $8.29\%$, $10.94\%$, $9.59\%$, $5.45\%$, $8.66\%$, and $9.56\%$, respectively. Furthermore, the LS-DRNN model demonstrated better classification performance and faster detection speed than state-of-the-art ML and DL models. Therefore, the findings of this study validate the effectiveness of the LS-DRNN model for efficient botnet attack detection in IoT networks.
