1. Introduction
Node.js [
1] is a JavaScript (JS) runtime built around V8 [
2], the JS engine used in Chromium, which is the base for Google’s Web browser. It has gained massive adoption by developers and organizations around the world because of its ease of development as well as the efficient event-driven and non-blocking input/output (I/O) model. Following JS’s rise in popularity, the practicality of end-to-end JS cross-platform applications was studied in our previous work by creating a social application named Proximity [
3]. Gains in productivity were observed when targeting multiple platforms from the same code-base, by minimizing the impact of context-switching, while moving from back-end to front-end logic and inversely. Another advantage that can be attributed to the success of JS-based systems is Node.js’s package manager, npm [
4], which houses the largest distribution of open-source libraries in the world. According to Modulecounts [
5], a service monitoring language module repositories, npm is averaging over a thousand new modules/day, which is followed by Maven with about 200 modules/day. It is noteworthy that npm module submissions follow an exponential growth curve clearly outpacing all the other repositories. Publicly available modules provide building blocks for the rapid prototyping of systems with minimal effort through code re-use maximization. The possible benefits of implementing Web services utilizing Node.js have been investigated in our previous work, and evidence has been provided establishing JS as a viable option for realizing efficient and scalable applications, even more so in conjunction with Web-based client implementations, where end-to-end JS may provide synergistical effects [
6]. Such applications can be useful in practice when implementing, e.g., educational [
7] and medical [
8] interactive tools. Although Node.js applications are most commonly written in pure JS, the underlying interoperability with foreign compiled code is abstracted. According to Node.js’ announcement for version 8.0.0 of the platform, 30% of all modules rely indirectly on native modules [
9]. The reason is that JS is a highly dynamic, garbage-collected, single-threaded scripting language, lacking the capabilities required to directly access system resources and perform low-level operations, i.e., system-calls, threading, direct bit manipulations, etc. Such functionalities are a requirement for basically every I/O operation, be it logging to the screen, network access via sockets, filesystem access, etc. Hence, C and C++ modules have been directly bound to V8 and accessed through a JS Application Programming Interface (API).
In addition to the native core modules of Node.js, developers can provide their own bindings to C/C++ libraries in order to extend the platform’s capabilities and optimize performance. For example, uWebSockets [
10] is a popular WebSocket protocol implementation for Node.js that out-scales all known pure JS implementations. Moreover, libxmljs [
11] provides bindings to the popular XML parsing C library, libxml, fulfilling the lack of XML support in Node.js. Another example is node-serialport [
12] enabling access to serial ports for reading and writing via a JS API.
Although C and C++ have been used extensively as systems programming languages, they do not share much with JS’s mental model. Furthermore, discipline and experience are integral requirements for avoiding memory-related faults, data races and other unwanted situations, setting the integrity of Node.js applications relying upon bindings to native libraries at risk. Mozilla, mostly known as the vendor of the open-source Web Browser Firefox, noticed challenges during the maintenance and development of non-trivial code bases in C/C++. They observed that whole classes of logical faults and bugs were caused by misuse of dynamic memory handling, which can be rather hard to detect [
13]. For this reason, they were led to examine possible solutions to such cases where software could be driven into vulnerable states and be maliciously manipulated by adversaries. The goal was to maintain the high performance of systems programming languages while simultaneously increase memory-safety guarantees without incorporating a garbage-collector (GC). Furthermore, multiple cores of modern systems had to be taken advantage of safely through parallelism.
The Rust [
14] programming language was developed at the Mozilla Research department in order to fulfill the aforementioned requirements. The compiler is based on the LLVM infrastructure [
15], which is the toolchain responsible for the emission of efficient machine instructions theoretically for all platforms supported by it. Thereafter, a large group of independent programmers and researchers alike started contributing to Rust’s development and studying its capabilities. The feasibility of a UNIX operating system has been studied by Alex Light [
16]. The performance of the language has been evaluated in a cross-comparison with C and Go, in high-performance computing environments with positive results [
17]. In a recent study, Rust appears to be suitable for performance-critical GC infrastructure when compared to the equivalent C implementation [
18]. Furthermore, the integrity of the memory-corruption protection has been researched by Eric Reed [
19]. A prototype Web browser, named Servo, has exhibited techniques of heterogenous parallelism in processors and graphics hardware alike, with innovative rendering of hundreds of frames per second [
13,
20]. Simultaneously, professional interest has driven technology companies such as Dropbox, which re-implemented central parts of their infrastructure based on Rust with multiple benefits [
21].
Additionally, the WebAssembly format is a low-level assembly-like language with a compact binary format that runs with near-native performance and provides languages such as C/C++ and Rust with a compilation target so that they can run on the Web. It is also designed to run alongside JavaScript, allowing both to work together. Currently, it is implemented in all major Web browsers and is under the process of standardization via the W3C WebAssembly Working Group [
22]. In our previous work, we supplied evidence that Web browser vendors appear to be investing heavily in optimizing the cost of WebAssembly function calls, prioritizing its performance even over their respective JS engine’s implementations [
23]. By acting as a compilation target for a conceptual machine, it features language and platform independence, safe execution and has shown promising performance gains of up to 86 times when replacing JS components with Rust code in real-use parsing scenarios [
24,
25]. In its present form, not all planned features have been finalized, and garbage collection, SIMD, etc. are in progress. Recent advancements have made the compilation of lower-level languages utilizing threads for parallelism to the WebAssembly binary format possible. Although numerous studies have been conducted to determine the performance benefits of WebAssembly [
26,
27,
28,
29], to the best of our knowledge, there have been none focusing on multi-threaded execution. Hence, we were motivated to explore how the performance of multi-threaded Rust code executed inside of Node.js would compare to cross-compiled WebAssembly executed inside of Web browsers.
On a different note, Bjarne Stroustrup, the father of C++, when interviewed about the unification of programming languages, has stated that the future of programming will not be a single language and instead, the unification of different paradigms will be achieved as a set of guidelines, leading to the interoperability among those paradigms [
30]. Following this line of thought, in this paper, the examination of how Rust can be used to complement JS in Node.js application realization is presented, and the implications derived from such a coupling are discussed. Node.js provides access to the largest open-source module repository, and together with JS’s dynamic, weakly typed and event-driven, object-oriented nature, the rapid-prototyping of systems can be achieved. Rust may provide efficient C bindings and low-level capabilities as well as enhanced performance, type safety, memory safety, and data-race freedom in a way that is more suitable for JS developers. We consider the exploration of the combined space that JavaScript, Node.js, Rust and WebAssembly occupy important, because it can potentially lead to innovation by setting the stepping stones for novel paradigms in computing.
In
Section 2, the tendencies in Node.js application development are presented, coupled with arising challenges, as well as the ongoing related work. In
Section 3, the design and implementation principles of various approaches leading to JS modules enhanced with Rust native code are presented, which set upon a pragmatic point of view.
Section 4 describes the experimental environment and the methodology followed, while
Section 5 presents the results as well as an elaboration on the findings. Finally, in
Section 6, the findings of conducted research are summarized.
3. Application Architecture and Implementation
3.1. Pure JavaScript Node.js Application Architecture
A complete analysis of the possibilities in architecting Node.js applications is well outside the scope of this study. For that reason, the creation of a relatively simple application will be demonstrated, following common practices in order to provide the basis for discussion in the next section. A CPU-bound and computation intensive task had to be chosen in order to provide customizable load on the CPUs. It is assumed that the assigned task is to prototype a pi number estimator using the Monte Carlo method. For this task, a pseudo-random number generator following a uniform distribution is needed, and since the goal is to determine its performance characteristics, seeding must be incorporated for reproducible deterministic outputs. The implementation steps are described in the following paragraphs. In pure JavaScript Node.js applications, the project workspace consists of a single directory in the file system.

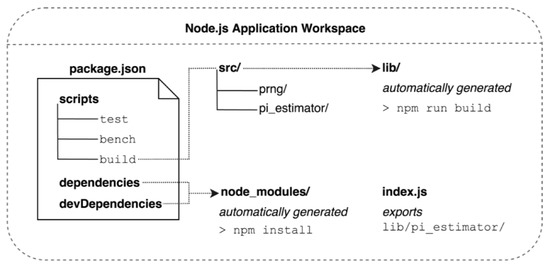

Figure 2 serves as visual reference to the examined workflow.
New projects are initialized by invoking
npm with the
init command, which requests for some input, i.e., a package name, the initial version number, a description, the entry point of the application, a test command, a git repository, keywords, authors and the license, interactively. This is how package.json, a standard JSON file, is created in the project’s root directory [
43]. This file contains metadata relevant to the project, handles dependencies and may hold scriptable commands to automate aspects of the development process, such as testing invocation, benchmarking, linting, documenting, publishing, etc.
Node.js utilizes a modules’ specification known as CommonJS modules [
44]. Application logic is broken down into discrete chunks of logic and is recombined to produce the desired behavior. Although JavaScript is not an ahead-of-time compiled language, compile-to-JavaScript languages, e.g., CoffeeScript [
45] and TypeScript [
46], are commonly employed, or different builds may be produced for debug, release, and other builds, hence the practice of keeping all code in a separate folder, usually named
src/. Furthermore, since the release of the ES6 standard, newer JS features are added on an annual time-frame. Hence, developers may be agnostic toward the Node.js runtime on the targeted infrastructure, and JS-to-JS trans-compilers are employed to resolve this issue, e.g., Babel [
47]. In our previous work, we examined such implications and proposed a solution based around the distribution of hygienic macros to address this challenge [
48].
In package.json’s script field, a build command to produce the final module in the lib/ directory is usually specified.
At this point, the first module can be written, the seedable Pseudo-Random Number Generator (PRNG). A modified version of the Park–Miller algorithm is chosen because of its simplicity [
49]. By convention, modules can be referenced by path whenever an
index.js file is present inside the directory. A unit test should be written to determine whether the JavaScript implementations aligns with the assigned requirements. A commonly used practice to differentiate between different builds is to use the
NODE_ENV environment variable. Node.js includes an assertion module which is chosen to be resolved only when we request a test invocation of the library by checking whether the
NODE_ENV variable is set to
test. Test cases are created for the seedable reproducibility and uniformity of results.
Additionally, a second implementation of the PRNG module was implemented, where the mathematical operations have been converted to more optimized bitwise operations.
In order to evaluate the performance, a benchmarking framework is included,
benchmark.js [
50], which will be resolved and run only when the
NODE_ENV variable is set to
bench. By issuing the command
npm install --save-dev benchmark, the dependencies are installed and added as development dependencies in the
package.json file. Then, benchmarks for integer and floating point numbers generation are created. Following the same workflow, the pi estimation module is written in the
pi_estimator/ directory, requiring the aforecreated
prng module. Finally, a test is written in the same manner for checking the accuracy of the computed pi value and a benchmark.
3.2. Node.js Addon Architecture and Compilation
It is common to utilize the Node.js building tool, based on Google’s Meta-Build system,
GYP [
51], for building
Addons. The
node-gyp [
52] module, which bundles the
GYP project used by the Chromium team and takes away the pain of dealing with the various differences in build platforms and Node.js versions, may be added as a dependency. Because developers are agnostic toward the targeted V8 engine, native bindings should use some form of abstraction mechanism in order to normalize the underlying API. The most popular choice is
NAN [
53], standing for Native Abstractions for Node.js. It consists of a C++ header file with helpful macros and utilities. Furthermore, a helpful tool to remove debug/release paths confusion is
bindings [
54].

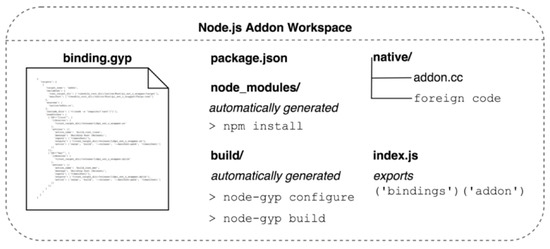

Figure 3 illustrates the Addon architecture discussed in this section.
The dependencies are included in the project with the command npm install --save node-gyp nan bindings. A gypfile is responsible for orchestrating the build process. It is by convention named binding.gyp and describes the configuration to build the native module in a JSON-like format. This file is placed in the root of the package alongside the package.json file. In order to keep native code separated, the native directory is created containing a C++ source file, addonc.cc, which will serve as the top-level module to export C++ constructs to JS. It is added to binding.gyp, the file instrumenting the build process, as a source file. By depending upon the V8 and NAN header files, interoperability is achieved; hence, pre-existing or new C++ valid code may be included and called directly. Once the code is written, it is automatically built in the build/ directory by issuing the node-gyp configure, which is followed by node-gyp build commands. An index.js file is responsible for exporting the modules defined in addon.cc for re-use.
3.3. Porting a Sample Application from JavaScript to Rust
Rust, although a systems programming language, shares commonalities with the Node.js workflow and project structure. The equivalent workspace is a directory as well, and the term used to describe a module is
crate. First, a
crate is created in the
native directory by invoking
cargo, the equivalent of Node.js’
npm tool, which is capable of declaring dependencies and ensuring the repeatability of builds. When the command
cargo new pi_estimator is issued, a new directory named
pi_estimator is produced, including a default structure similarly to how
npm init works.

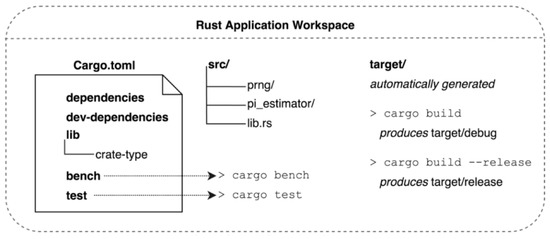

Figure 4 holds the reference
crate structure discussed in this section.
The equivalent of package.json is generated, named Cargo.toml, and all code resides in the src/ directory by convention. Rust has the notion of modules, and the PRNG module can be re-created in the src/prng/ directory, where the equivalent of index.js is mod.rs. It can be used from the entry point, lib.rs, similarly to the way Node.js modules are required in index.js.
The
PRNG module can be ported from JS by translating each line of code to Rust syntax. In more complex applications, the logic may need to be revised, but thanks to Rust’s zero-cost abstractions and syntactic similarities with JS, the procedure should not bear burdens. Rust’s syntax may be familiar to JS developers because of the C syntax similarities and the first-class support for functional programming style, e.g.,
closures, series of element processing via
map, filter, fold, etc. Although not as efficient as possible, numerical operations can be copied directly, because JS’s number representation follows the same standard as Rust’s double precision float, the IEEE 754 [
34]. Optimizations can be performed at a later point by utilizing lower-level code, which JS may be incapable of producing. Furthermore, Rust does not utilize the classical inheritance of C++; instead, methods can be implemented for structures similarly to JS’s prorotypal chain and factory functions. Tests may be ported as well, because assertions as seen in the JS module are present in Rust as well. The conditional execution of tests is performed by issuing the
cargo test command, which acts in a similar fashion as the
npm test command. A benchmarking library, i.e.,
Bencher, is included in Rust, and benchmarks may be ported over as well.
Having completed the porting of the PRNG module, the pi estimator function is ported as well, including tests and benchmarks. Direct performance comparisons can be made at this point to conclude whether converting from the JS implementation to the Rust version can offer performance benefits or not.
If the benchmarking results show promise, all that is left is to create bindings and connect them to Node.js. Because the Addons are written in C++ and have no notion of calling Rust code directly, a C compatible wrapper may be produced. This procedure is possible, because Rust can pretend to be C by using C types and exposing C-compatible symbol definitions, just like a C++ library would have to expose a C-compatible API. This procedure is performed effortlessly, as the aforecreated crate can be re-used with the new function definition wrapping the pi estimator directly, and a header file defining the prototype of the function can be written. By adding the cdylib option to Cargo.toml, the library will be compiled as a C-compatible shared object. It must be noted that no extra configurations or Makefiles are required for a development build or an optimized production build. The commands cargo build and cargo build – release produce debug and production objects, respectively.
At this point, the Node.js Addon described in the previous section can be ordered to link against the C/Rust wrapper and expose the functionality as a JS function. The binding.gyp file may be updated to build the Rust object automatically whenever node-gyp is invoked.
4. Scenarios and Testbed
Following the aforementioned principles in
Section 3, separate modules were created for various approaches to synchronous as well as asynchronous modules. Modules that utilize the event-loop are referenced to as
asynchronous because they run on a separate thread without blocking the main thread, while modules that do not are referenced as
synchronous or
blocking. The basic implication of synchronous modules is the potential lock-up of the main thread, exhibiting diminished performance. Henceforth, the naming of the scenarios examined is made to contain the
Sync or
Async suffix for differentiating among synchronous and asynchronous operations, respectively. The
pureJSSync module is the pure JS implementation as discussed in
Section 3.1. All pure JS functions are synchronous; hence, no asynchronous implementation was derived. Additionally, the
pureJsBwSync optimized version utilizing bitwise operations was created. An external library that automates the invocation of foreign functions is
ffi-napi. It is the simplest method of using a C library for synchronous module invocation. Thus, the
ffiSync module is created, requiring no additional work to be bridged to Node.js. By implementing separate bindings manually, the following modules are created.
The
addonSync and
addonAsync modules are the standard synchronous and asynchronous
Addons, as discussed in
Section 3.2 and
Section 3.3, respectively. The
addonAsync module runs on a separate thread and thus does not block the single thread JS runs on. The
addonConAsync module utilizes the
piEstRustAsync module and splits the work into chunks to be independently handled by Node.js’s thread-pool, potentially in parallel. The number of chunks assigned is 24 based on the available processing cores of the testbed. The corresponding optimized
addonBwSync, addonBwAsync and
addonBwConAsync versions utilizing bitwise operations were also created.
In order to leverage Rust’s parallel data-race freedom, the
rayon crate may be utilized. It implements a work-stealing algorithm [
55] inspired by C’s Cilk [
56]. Unlike Node.js’ thread pool, work stealing solves the problem of executing a dynamically multi-threaded computation, one that can “spawn” new threads of execution, on a statically multi-threaded computer with a fixed number of processors or cores. It does so efficiently both in terms of execution time, memory usage, and inter-processor communication. Hence, the concurrency strategy can easily be swifted from Node.js’ thread-pool model on demand, without alteration to the JS source code, or Node.js’ internals. Such modules produced are the blocking
addonWsSync and the asynchronous
addonWsAsync, potentially parallel modules by splitting the workload into chunks. Finally, the
addonBwWsSync and
addonBwWsAsync versions utilizing bitwise operations were also created. The source code is publicly accessible in a GitHub repository [
57].
In order to evaluate the performance in the context of Web applications, the addonBw Sync and addonBwWsSync implementations were cross-compiled to WebAssembly, implementing single and multi-threaded execution, respectively. In order to not block the main thread, these versions rely on the Web Workers API as well as the SharedArrayBuffer API to achieve parallelism.
The first test regards the CPU utilization in order to prove that modules expected to utilize a single core do so, and modules with possible parallelism utilize additional cores. This approach helped detect misconfigurations early, leading to non-representative results. For this metric, the
perf Linux tool was used. Each module was measured ten times for each power of ten from one to ten, according to the formula:
Similarly, the memory allocations were measured for each module. The
time Linux tool was used to record the minimum, maximum and average kilobytes allocated per module, based on the following formula:
The performance of the resulted modules was measured via the
benchmark.js framework in the form of operations per second metric [
50], in both Node.js and Web browsers. Each module was tested with inputs as powers of ten from one to ten, according to the following formula:
All the aforementioned scenarios were executed on the same testbed, which was based on the Asus Z10PA-D8 dual socket motherboard, dual Intel Xeon E5-2620 v3 CPUs clocked at 2.4 GHz with a max turbo frequency of 3.2 GHz, providing 24 total cores via Hyper-Threading and 4 Hynix 16GB 2133 MHz DDR4 ECC RAM modules for a total of 64 GB of available memory. The operating system was Arch GNU/Linux, running the 5.19.5 kernel, Node.js version 18.8.0, gcc version 12.2.0, rustc 1.65.0-nightly, perf version 5.19 and GNU time version 1.9. The open source Web browsers that were used to evaluate WebAssembly were Mozilla Firefox 104.0 and Chromium 104.0.5112.101.
5. Performance Evaluation: Results and Discussion
The results of the performance evaluation conducted are presented and discussed in this section. CPU utilization, maximum memory allocation and computation performance were the metrics evaluated, as presented in
Section 4.

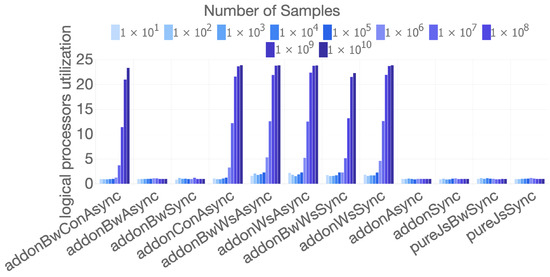

Figure 5 depicts the CPU utilization. The Y-axis represents the cores utilized, while the X-axis lists the names of individual implementations of the measured algorithm. The sampling rates provided to load the CPU are colored and grouped by separate cases. The modules incapable of any sort of parallelism have all achieved the utilization of about one core as expected, while the modules implementing concurrency strategies have started showing trivial gains at 1 × 10
samples, while at 1 × 10
or greater samples, the gains are more noticeable. In more detail, at the 1 × 10
samples mark, the
addonConAsync implementation has utilized about three cores, while the work-stealing addons have all utilized about five cores. The gains are more pronounced at the 1 × 10
samples point, where all work-stealing approaches reach utilization of 12 cores, while the concurrent implementations reached utilization of only three cores. At the 1 × 10
samples point, about 22 cores are utilized, and the theoretical maximum limit of 24 cores is approached at 1 × 10
and 1 × 10
samples showing more than 23.7 utilized cores. This metric has provided the insight required in order to fine tune the thread-pool of Node.js, which is utilizing the
libuv project [
32]. The
UV_thread-pool_SIZE environment variable is responsible for statically defining the number of threads available to a Node.js process. Since the default value is predefined to 4, our 24 core testbed showed diminished utilization in the async addon modules until it was fine-tuned. At the same time, the work-stealing addons did not suffer any utilization losses because of the dynamically multi-threaded computation capabilities provided by Rust’s
rayon library, i.e., the work-stealing strategy. This behavior was also apparent in the computational performance measured later in this section.

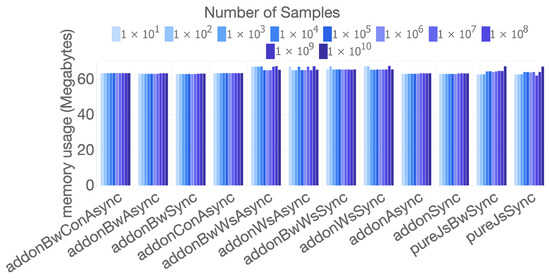

Figure 6 displays the results of the memory allocation measurements per individual implementation. Following the aforementioned CPU utilization figure, the X-axis holds the names of individual implementations of the measured algorithm, and the Y-axis is formatted in MB of peak allocated memory. A minor fluctuation was observed, showing that initial memory allocation is not deterministic. Node.js modules included via the
require method are read from the filesystem and stored in-memory. Hence, modules utilizing external libraries were expected to allocate more initial memory space. However, all implementations performed similarly, occupying 63 to 67 MB of system memory. This metric can be used as an indication that the algorithm tested is CPU bound, as there is no correlation evident between the increase in the number of samples and the memory allocations. Furthermore, complementing JS with Rust or any other foreign code can be expected to impose an optional overhead, which is attributed to helper modules binding the compiled
Addons.

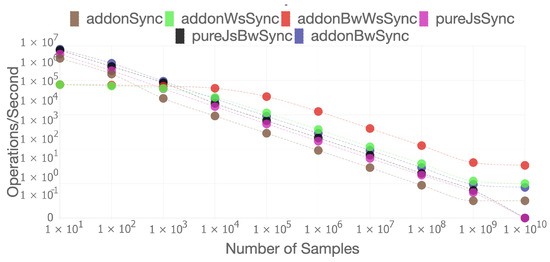

The computational performance of each approach is presented in
Figure 7 and
Figure 8, for synchronous and asynchronous implementations, respectively. Both axes are log scaled in order to accommodate for the broad range of of measurements.
The pureJSSync implementation was found to be performing very well up to the 1 × 109 samples mark; however by the 1 × 10 samples mark, the achieved operations per second reached zero. On the contrary, the addonSync implementation performed worse until the 1 × 10 mark, where it outperformed the pureJSSync implementation. Because no evident overhead is induced when measuring the execution time of the addonSync version in relation to its raw performance outside of Node.js, JS’s greater performance can be attributed to the Just-In-Time (JIT) compilation optimizations performed by V8 in relation to the unoptimized code translated directly to Rust. Disabling the JIT would de-optimize the JS code, leading to unrealistic comparisons. Hence, this observation can serve as a signal that the Rust ported code could benefit from manual optimizations.
For that reason, but also in order to compare how JS responds to optimizations in comparison to Rust, the bitwise optimized implementations were included. The pureJSBwSync implementation performed 1.3 to 2.2 times better than the pureJSSync implementation; however, by the 1 × 10 samples mark, the achieved operations per second exhibited the same behavior by reaching zero. Even so, it was outperformed by the addonBwSync implementation by 1.15 to 2.18 times in the [1 × 10, 1 × 10] samples range and over 6 times at the 1 × 10 samples mark. Thus, Rust reacts much better to the same code optimizations, as it became over 10 times faster than the addonSync implementation.
The same pattern was observed in the addonWsSync and addonBwWsSync versions with bitwise implementation displaying over 10 times the performance of the unoptimized version for the majority of the samples. When compared to the pure JS implementations, both modules were performing worse until the 1 × 10 samples mark, which can be attributed to the overhead from rayon setting up its own thread-pool. However, they outperformed all other implementations starting at the 1 × 10 samples mark until the end of the measurements. Specifically, addonWsSync displayed 3.4 to over 10 times the performance of pureJSSync, and addonBwWsSync displayed 7.5 to over 115 times the performance of pureJSBwSync. Thus, by comparing the synchronous implementations, the observation is that porting JS code to a native Rust addon does not guarantee better performance; nonetheless, manual optimizations performed in Rust lead to better performance for quickly processed logic, and the ease of safely parallelizing work yields greater gains for more intensive tasks. By combining these observations, the synchronous Rust implementations were able to outperform JS by 1.15 to over 115 times across the range of measurements, producing greater gains as the workload was increased.

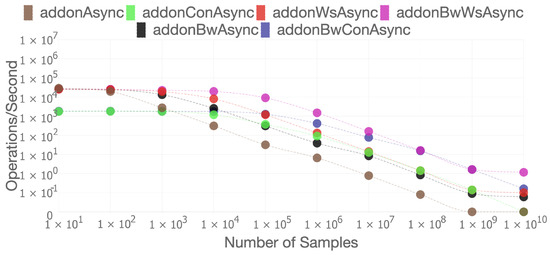

By examining
Figure 8, the first observation is that utilizing Node.js’s thread-pool leads to non-trivial performance degradation for quickly processed logic. All implementations, regardless of the level of parallelism and optimizations, were bottle-necked at 29,000 operations per second. Additionally, the implementations utilizing Node.js’s thread-pool exclusively were limited to about 1800 operations per second. Compared to
Figure 7, this translates as 0.4% to 15% the performance of the equivalent synchronous implementation in the range of (1 × 10
, 1 × 10
) samples, as seen in the case of
addonBwSync and
addonBwAsync.
In order to take advantage of the Node.js thread-pool, concurrency must be introduced as shown by the addonConAsync and addonBwConAsync implementations. These implementations display even worse performance until the 1 × 10 and 1 × 10 samples mark compared to addonAsync and addonBwConAsync, respectively. This is a sign of potential thread starvation, which is closely related to the sUV_thread-pool_SIZE environment variable as well as the number of chunks the work is split into. Thus, finding optimal values requires heuristics and is hardware dependent, since they are static values. This is where the work-stealing addon implementations with Rust’s rayon crate shows promise.
The addonWsAsync and addonBwWsAsync implementations outperform their equivalent multi-threaded implementations, i.e., addonConAsync and addonBwConAsync, by 1.4 to 14.5 times and by 2 to over 14 times, respectively, for the majority of the data points. In addition, the performance of both addonConAsync and addonBwConAsync implementations appears to plummet when reaching the most intensive 1 × 10 samples mark. By combining these observations, the asynchronous implementations utilizing the work-stealing technique were able to outperform Node.js’s concurrency model by 14.5 times or more, producing greater gains for light as well as heavier workloads, without the need for fine-tuning.
In

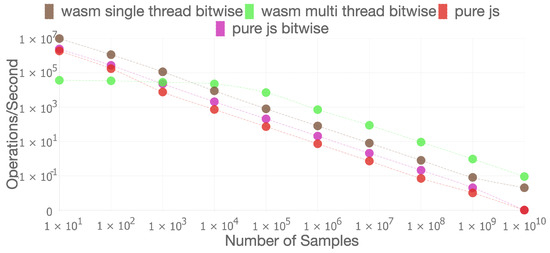

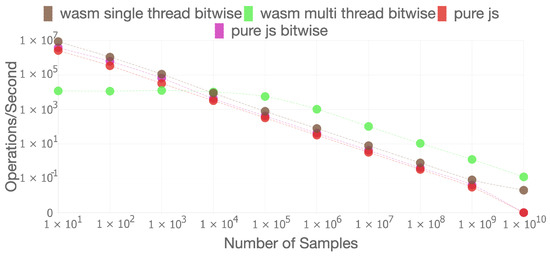

Figure 9 and
Figure 10, the computational performance of some implementations running inside the Chromium and Firefox Web browsers, respectively, is presented.
Both browsers have shown similar response, with the wasm single thread bitwise implementation outperforming the respective pure JS bitwise implementation by about four times in Firefox and by about two times in Chromium and without showing signs of abrupt slowdowns until the end of the measurements. The wasm multi thread bitwise implementation showed reduced performance until it reached the 1 × 10 samples mark when it outperformed all implementations. Relatively to the wasm single thread bitwise implementation, in Chromium, it reached 13 times the performance and in Firefox about nine times for the majority of data points. Firefox outperformed Chromium until the 1 × 10 samples mark by about three times, but for the rest of the datapoints starting at 1 × 10, Chromium showed slightly better performance. When Chromium is compared to the Node.js measurements, the potential of WebAssembly code running in the browser becomes apparent. In single-threaded performance, WebAssembly was able to deliver 93.5% the performance of addonBwSync at the 1 × 10 mark and 67.86% the performance of addonBwWsAsync, which translates to 1.87 to over 24 times greater performance than the equivalent manually optimized pure JS implementation.
6. Conclusions
The state of Node.js application development tendencies and practices was presented from the prototyping stage to the stage where optimizations and higher performance become a requirement. Additionally, the possible benefits that can be derived from utilizing the Rust programming language instead of the more canonical C/C++ approach were explored. The similarities in the mental model and workflow of JS and Rust were presented as well as the possibilities for attaining interoperability. This study was concluded with the results of the performance evaluation conducted for each possible approach over a large range of computational loads. In the case of computation-intensive algorithms, Rust was found to be an enhancement to Node.js’ utilization of system resources with minimal effort. Furthermore, interoperability is easily achieved, while the produced modules are free of memory-related issues and data-races, which is something that was not possible to be guaranteed in the past by utilizing C/C++ code exclusively. Porting code to Rust was found to be a straightforward procedure, which was mostly because of the class-free structures and first-class functional programming practices available. For a JS developer, Rust can match their expectations more reasonably than C/C++ due to the availability of modules, a single build instruction, embedded tests and benchmarks, conformance to the same floating-point standard and the overall modern similarities, i.e., a similar package manager and general workflow, etc. All of the benefits that Rust provides over C/C++, i.e., memory safety and data-race freedom, are applicable directly in Node.js Addon development and can eliminate whole classes of bugs, leading to more robust applications.
By performing the same optimizations to the equivalent Rust and JS implementations, Rust was shown to react much better to the optimizations, as it became over 10 times faster, while JS gained just 1.3 to 2.2 times its unoptimized performance. Rust’s synchronous implementations were able to outperform JS by 1.15 to over 115 times across the range of measurements, producing greater gains as the workload was increased. Furthermore, the bottlenecks of utilizing Node.js’s thread-pool exclusively were explored, potentially leading to thread starvation. Rust’s asynchronous implementations utilizing the work-stealing technique were able to outperform Node.js’s concurrency model by 14.5 times or more, producing greater gains for light as well as heavier workloads, without the need for fine-tuning. By performing the first-ever performance evaluation of multi-threaded execution of cross compiled Rust code to WebAssembly in browsers and the same implementation executed inside of Node.js, the benefits of utilizing Rust for high-performance Web Application’s development were fortified. The single thread implementation outperformed the respective pure JS implementation by about 4 times in Firefox and by about 2 times in Chromium. WebAssembly executed inside of Chromium compared to the equivalent Node.js implementations was able to deliver 93.5% the performance of the single-threaded implementation and 67.86% the performance of the multi-threaded implementation, which translates to 1.87 to over 24 times greater performance than the equivalent manually optimized pure JS implementation.
This study suffers from a few limitations. First, it does not take into account cold starts vs. warm starts, and second, it is centered around a single algorithm. Additionally, in the Web browser benchmarks, the cost of WebAssembly compilation and memory allocations were not taken into account. In the future, we would like to experiment with other types of parameters such as comparing cold start versus warm start, calculating the actual cost of WebAssembly compilation, and to further extend our benchmarks to include more algorithms.
The concept of combining JS and Rust appears to be a reasonable approach to convergence, retaining the versatile prototyping characteristics of JS and complementing them with unmatched performance when required without the risks resulting from C/C++ misuse. This study has presented the evidence toward a path of convergence, as well as synergy between a safe system programming language and a high-level interpreted language, offering dynamic productivity via prototyping and performance when needed.
