JUpdate: A JSON Update Language

Abstract

Although JSON documents are being used in several emerging applications (e.g., Big Data applications, IoT, mobile computing, smart cities, and online social networks), there is no consensual or standard language for updating JSON documents (i.e., creating, deleting or changing such documents, where changing means inserting, deleting, replacing, copying, moving, etc., portions of data in such documents). To fill this gap, we propose in this paper an SQL-like language, named JUpdate, for updating JSON documents. JUpdate is based on a set of six primitive update operations, which is proven complete and minimal, and it provides a set of fourteen user-friendly high-level operations with a well-founded semantics defined on the basis of the primitive update operations.

1. Introduction

Nowadays, the JavaScript Object Notation (JSON) data format [1], which is endorsed by the Internet Engineering Task Force (IETF), is widely used in the context of several emerging applications, such as Big Data applications, Internet of Things (IoT), mobile computing, streaming applications, smart cities, and online social networks, since it is a lightweight serialization data format that makes storage, interchange, and querying of data easy. Such application environments are highly dynamic by nature and, thus, require a continuous update of the managed data repositories. To fulfill this requirement, application developers need to rely on a suitable low-level proprietary Application Programming Interface (API) exposed by the data management system or on the existence and support of a high-level data update language. The latter only would also bring about desirable properties of reusability, portability, and interoperability and, thus, is the option of choice from a software engineering standpoint.

However, by studying the state-of-the-art of JSON data management (e.g., [2,3,4,5,6,7,8,9,10,11,12]), we have not found a recommended, consensual, and/or standard language for updating (native) JSON data (such as SQL for relational data, XQuery Update Facility for XML data, or SPARQL 1.1 Update for RDF data). Several JSON query languages have been proposed, such as Jaql [13], JSONiq [14], JPQ [15], SQL++ [16,17], JNL [18], JSON-λ [19], JSONata, GROQ, and JMESPath, which all lack modification statements making up a JSON update language. Notice that with the locution “JSON update language”, we mean a language that allows users to insert, delete, and modify valid data portions in a JSON document; hence, the term “update” is used in this work in such a broader sense.

After having surveyed the state-of-the-practice of JSON data management, we have concluded that JSON-based NoSQL DBMSs [20] can be divided into two categories: (i) those that provide their own (proprietary) query languages, such as the MongoDB language and several languages that are SQL-like, e.g., N1QL of Couchbase, CQL of Cassandra, and AQL of AsterixDB, and (ii) those that only provide low-level programmatic APIs for accessing, querying, and updating JSON data, such as Redis and Amazon Dynamo. Moreover, an extension of SQL, named SQL/JSON [21,22,23], has been standardized by ANSI to allow the SQL language to also support queries on JSON data. However, according to the discussion of the SQL/JSON standard presented in [24], this new language does not support the modification of portions of a JSON document through the SQL UPDATE statement.

In this context, it is our conviction that a JSON data update requires more attention and that the definition of a JSON update language is necessary. Moreover, such a language should be powerful and user-friendly but also defined with a well-founded and DBMS-independent semantics in order to facilitate its use and implementation. For these reasons, we propose in this paper a language, named JUpdate, for updating JSON data. JUpdate is composed of a set of fourteen user-friendly high-level operations with a SQL-like syntax for the insertion, deletion, and various modifications of valid portions of JSON documents. Its operational semantics is based on the implementation of a set of low-level, primitive update operations, which will be also introduced in the paper. The completeness and the minimality of the proposed set of primitives, on which also the completeness and consistency of JUpdate is founded, will be proven. In sum, our contributions could be summarized as follows:

• We propose JUpdate, an SQL-like update language for JSON. The objective of defining JUpdate similarly to the SQL language is to facilitate the use/acceptance of this new language to users who are familiar with SQL and developers who have been used to write SQL code for decades.
• JUpdate provides fourteen user-friendly high-level operations to satisfy the different update requirements, either simple or complex, of JSON data users and JSON-based application developers.
• The semantics of JUpdate is founded on a minimal and complete set of six primitives (i.e., low-level operations) for updating JSON documents.
• The JUpdate definition has been based on the IETF standard JSON data model. Therefore, it is DBMS-independent, on one hand, and it can be used for the maintenance of generic JSON documents, on the other hand.

The rest of this paper is structured as follows. Section 2 presents the JUpdate language by introducing the fourteen update high-level operations (HLOs) it is composed of. Section 3 presents a short example that illustrates the use of JUpdate. Section 4 introduces the set of primitive update operations underlying the definition of JUpdate. Section 5 provides a completeness and minimality proof for this proposed set and proves the completeness of the JUpdate language. Section 6 deals with the definability of the JUpdate HLOs. Section 7 discusses related work. Section 8 summarizes our contributions and gives some remarks on our future research directions.

2. High-Level Update Operations on JSON Documents: The JUpdate Language

In this section, we present the set of powerful HLOs for updating JSON documents, which make up the JUpdate language. JUpdate is composed of fourteen HLOs with an SQL-like syntax, so that it could be considered, for instance, as a complement of SQL++ to make up a complete JSON data manipulation language (DML). An equivalent alternative specification of JUpdate is also provided as an API composed of fourteen procedure interfaces, where the names of the procedures correspond to the names of the JUpdate HLOs.

The proposed set of HLOs making up JUpdate includes fourteen operations: JUpdate = { CreateDocument, DropDocument, InsertValue, DeleteValue, UpdateValue, CopyValue, MoveValue, InsertMember, DeleteMember, RenameMember, ReplaceMember, CopyMember, MoveMember, UpdateObject }. We have organized them into four subsets of HLOs, each one of which is inspired by a subset of the SQL statements, as shown in

Table 1. The four subsets of HLOs of JUpdate and their inspiration by the SQL statements.

HLOs Subset	Objective
CreateDocument, DropDocument	They are used to manage JSON documents as a whole, with a syntax based on the SQLCREATE/DROPTABLE statements.
InsertValue, DeleteValue, UpdateValue, CopyValue, MoveValue	They are used to manage (possibly complex) values in JSON documents, with a syntax based on the SQLINSERT/DELETE/UPDATE statements.
InsertMember, DeleteMember, RenameMember, ReplaceMember, CopyMember, MoveMember	They are used to manage the structure of JSON objects, with a syntax based on the SQL ALTER TABLE statement. Notice that JSON objects have to be used to represent (nested) relational tables.
UpdateObject	It is used to change at once the value of more than one members of a JSON object, with a syntax based on the SQL UPDATE statement using the SET clause.

.

Path expressions based on JSONPath [25] are used in JUpdate statements to locate the target position for updates in JSON documents. Moreover, filters embedded in JSONPath expressions are used as selection conditions for document portions to be modified, without the need of a WHERE clause in JUpdate statements. The JUpdate operations will be individually presented in the following, whereas a full syntax listing of the JUpdate language is provided in Appendix A. Then, we will show in Section 6 how each one of these operations can be defined (and, thus, also implemented) on the basis of a complete and minimal set of primitive update operations.

2.1. CreateDocument

The CreateDocument HLO is defined by the statement:

   CREATE DOCUMENT doc

   VALUE value

and can be used to create a new JSON instance document named “doc”, using “value” as its initial contents. The corresponding API procedure is CreateDocument(doc, value).

An error exception is raised if the JSON instance document “doc” already exists or if “value” is not a correct JSON value.

2.2. DropDocument

The DropDocument HLO is defined by the statement:

   DROP DOCUMENT doc

and can be used to delete a JSON instance document named “doc”, regardless of its contents. The corresponding API procedure is DropDocument(doc).

An error exception is raised if the doc.json JSON instance document does not exist.

2.3. InsertValue

The InsertValue HLO is defined by the statement:

   INSERT INTO doc

   PATH path VALUE value

and is used to insert a possibly complex value “value” as an object member value or new array element to the JSON document “doc”, where “path” denotes the point of insertion. The corresponding API procedure is InsertValue(doc, path, value).

Since “path” (i.e., the point of insertion) is a JSONPath path, it can denote zero, one, or many JSON components, where a JSON component is an object, an object member, an array, or an array element.

If “path” has the form “p[index]”, then the path prefix “p” must denote an array, and a “value” is inserted before the index-th element of the array (so that it becomes itself the index-th element after the update). If the literal “last” is used instead of the index (i.e., path has the form “p[last]”), then “value” is inserted as the last element of the array.

An error exception is raised if “value” is not a correct JSON value or if “path” does not denote a null object member or a valid array location (i.e., when path has the form “p[index]”, where “p” does not denote an array or it denotes an array but the index is either a number greater than the array length or index is not the literal last).

2.4. DeleteValue

The DeleteValue HLO is defined by the statement:

   DELETE FROM doc

   PATH path

and is used to delete a possibly complex value designated by “path”, which either can denote an object member or an array element location in the “doc” document.

If “path” denotes an object member, its value is set to “null” after the execution of the deletion operation. Notice that this operation preserves the structure of the object (i.e., although with a null value, the member denoted by “path” is still present in the object after its execution). The corresponding API procedure is DeleteValue(doc, path).

An error exception is raised if “path” does not denote an object member or a valid array element location (i.e., when “path” has the form “p[index]”, where “p” does not denote an array or it denotes an array but the index is greater than the array length).

2.5. UpdateValue

The UpdateValue HLO is defined by the statement:

   UPDATE doc

   PATH path VALUE value

and is used to replace the value denoted by “path” with a new (possibly complex) value “value” in the JSON document “doc”. The corresponding API procedure is UpdateValue(doc, path, value).

An error exception is raised if “value” is not a correct JSON value or if “path” does not denote an object member or a valid array element location (i.e., when “path” has the form “p[index]”, where “p” does not denote an array or it denotes an array but the index is neither a number less than the array length nor is the literal last).

2.6. CopyValue

The CopyValue HLO is defined by the statement:

   UPDATE doc

   COPY FROM path TO newpath

and is used to copy the value designated by “path” to a new location denoted by “newpath” in the JSON document “doc”. The corresponding API procedure is CopyValue(doc, path, newpath).

An error exception is raised if “path” or “newpath” do not denote an object member or a valid array element location.

2.7. MoveValue

The MoveValue HLO is defined by the statement:

   UPDATE doc

   MOVE FROM path TO newpath

and is used to move the value designated by “path” to a new location denoted by “newpath” in the JSON document “doc”. In fact, it is equivalent to the execution of the two statements:

   UPDATE doc

   COPY FROM path TO newpath;

   DELETE FROM doc

   PATH path.

The corresponding API procedure is MoveValue(doc, path, newpath).

An error exception is raised if “path” or “newpath” do not denote an object member or a valid array element location or if “path” is a prefix of the “newpath” location (i.e., a value cannot be moved into itself).

Whereas the statements dealing with (possibly complex) values are modeled on the SQL DML INSERT/DELETE/UPDATE statements (as shown in the five HLOs above), the JUpdate statements acting on JSON objects are modeled on the SQL ALTER DDL statement (as shown in the six HLOs below), where members of an object in a JSON document are assimilated to columns in a relational table. In fact, modifications that involve members deal with the structure of objects and, thus, can be considered for all intents (implicit) schema changes [26,27].

Notice that the enforcement at the language level of the distinction between the management of JSON values and JSON objects is also a precise design choice that prevents from the “interchangeability” of arrays and objects to store data collections. JSON allows indeed for a sort of equivalence between an array [“foo”, “bar”] and an object {“0”:”foo”, “1”:”bar”} (deriving from the equivalence of dot and bracket notations in JSONPath), which we consider rather a severe flaw in its design and which should be fixed by disallowing numbers to be used as object member names. In fact, from a conceptual modeling perspective, arrays and objects are clearly different constructs with a different semantics and serving different data design purposes (e.g., such as Lists and Dictionaries used as data collections in Python [28]). In this respect, JSON is considered somewhat superior to XML as data modeling language precisely because of its native support of arrays. Moreover, admitting the above equivalence would make one of the two constructs actually redundant and the commonly used JSON syntax (see Section 5) in some sense ambiguous, as two different syntactic trees would correspond to equivalent data expressions.

2.8. InsertMember

The InsertMember HLO is defined by the statement:

   ALTER DOCUMENT doc OBJECT path

   ADD MEMBER name VALUE value

and is used to insert an object member with name “name” and a possibly complex value “value” into the JSON document “doc”, where “path” denotes the point of insertion. The VALUE clause is optional; if omitted, a null value is assigned to the new member. The corresponding API procedure is InsertMember(doc, path, name, value).

An error exception is raised if “path” does not denote an object.

Notice that there is no need to have in JUpdate also an InsertArray or DeleteArray HLO, since the InsertValue and DeleteValue HLO, respectively, can be used with an array-type value. For instance, the whole array [0,5] can be deleted from the JSON instance (1), as shown below:

doc.json =

{“X”:[{“A”:null,”B”:10},{},{“A”:true,”Z”:[0,5]},{“C”:”xy”}]}(1)

via the statement:

   DELETE FROM doc.json

   PATH $.X[2].Z

producing the JSON instance (2) which follows:

doc.json =

{“X”:[{“A”:null,”B”:10},{},{“A”:true,”Z”:null},{“C”:”xy”}]}.(2)

2.9. DeleteMember

The DeleteMember HLO is defined by the statement:

   ALTER DOCUMENT doc OBJECT path

   DROP MEMBER name

and is used to delete the member “name” from an object denoted by “path” (with a possibly complex value) from the JSON document “doc”. The corresponding API procedure is DeleteMember(doc, path.name), where “path.name” is the path denoting the member to be deleted.

An error exception is raised if “path.name” does not denote an object member.

2.10. RenameMember

The RenameMember HLO is defined by the statement:

   ALTER DOCUMENT doc OBJECT path

   RENAME MEMBER name TO newname

and is used to rename the member “name” of an object denoted by “path” to “newname” in the JSON document “doc”. The corresponding API procedure is RenameMember(doc, path.name, newname).

An error exception is raised if “path.name” does not denote an object member.

2.11. ReplaceMember

The ReplaceMember HLO is defined by the statement:

   ALTER DOCUMENT doc OBJECT path

   REPLACE MEMBER name WITH newname VALUE value

and is used to replace the name and the value of the object member denoted by “path.name” in the JSON document “doc” with “newname” and “value”, respectively. The VALUE clause is optional; if omitted, a null value is assigned to the replacing member. The corresponding API procedure is ReplaceMember(doc, path.name, newname, value).

An error exception is raised if “path.name” does not denote an object member.

2.12. CopyMember

The CopyMember HLO is defined by the statement:

   ALTER DOCUMENT doc OBJECT path

   COPY MEMBER name TO newpath

and is used to copy the member “name” of an object denoted by “path” to a new location denoted by “newpath” in the JSON document “doc”. The corresponding API procedure is CopyMember(doc, path.name, newpath).

An error exception is raised if “path.name” does not denote an object member or if “newpath” does not denote an object.

2.13. MoveMember

The MoveMember HLO is defined by the statement:

   ALTER DOCUMENT doc OBJECT path

   MOVE MEMBER name TO newpath

and is used to move the member “name” of an object denoted by “path” to a new location denoted by “newpath” in the JSON document “doc”. In fact, it is equivalent to the execution of the two statements:

   ALTER DOCUMENT doc OBJECT path

   COPY MEMBER name TO newpath;

   ALTER DOCUMENT doc OBJECT path

   DROP MEMBER name.

The corresponding API procedure is MoveMember(doc, path.name, newpath).

An error exception is raised if “path.name” does not denote an object member or if “newpath” does not denote an object or if “path” is a prefix of the “newpath” location (i.e., an object member cannot be moved to a location inside its value).

2.14. UpdateObject

Finally, we add an UpdateObject HLO defined by the statement:

   UPDATE doc OBJECT path

   SET name1=value1, name2=value2, …, nameN=valueN

as an SQL-like operation for updating several members of an object at the same time. In fact, it can be used to replace with “value1”, “value2”, …, “valueN” the values of the members “name1”, “name2”, …, “nameN”, respectively, of the JSON object denoted by “path” in the JSON document “doc”. The corresponding API procedure is UpdateObject(doc, path, name1, value1, name2, value2, …, nameN, valueN).

An error exception is raised if “value1”, “value2”, …, “valueN”, are not correct JSON values or if “path” does not denote a JSON object.

Notice that the UpdateObject operation above is just syntactic sugar for the JUpdate statement sequence:

   UPDATE doc

   PATH path.name1 VALUE value1;

   UPDATE doc

   PATH path.name2 VALUE value2;

   …

   UPDATE doc

   PATH path.nameN VALUE valueN.

Similarly, the UpdateObject API procedure can be considered as a macro defined as an equivalent sequence of UpdateValue procedure calls.

In all the statements listed above are equipped with a VALUE clause supporting a constant value, we assume it can also be replaced, as it happens with INSERT in SQL, by a subquery dynamically returning a computed JSON value. Such a subquery can be expressed via a JSONPath expression (possibly defined on a JSON document different from that under modification) or via a SELECT statement expressed in an SQL-like JSON query language such as SQL++. An error exception is raised if this subquery, specified as a JSONPath expression or as a SQL-like SELECT statement, returns a collection of values and not a single value. On the other hand, if the subquery result is empty, a “null” value is assumed.

3. Illustrative Example

To illustrate the use of our JUpdate language, we assume to have a JSON NoSQL database in use in a research laboratory, including a JSON instance document, named “scientificProduction.json”, which stores information about the publications of the members of the laboratory. The initial state of such a document is displayed in Figure 1.

Suppose an end user of this database wants to add the information about a new journal paper (with its details: ID, title, journal name, volume, issue, year of publication, and pages). To this purpose, as papers are stored as objects in the array “papers” (as shown in Figure 1), he/she could use the InsertValue JUpdate operation as follows:

 INSERT INTO scientificProduction.json

 PATH $.papers[last]

 VALUE { "paperID":"J-2019-001",

      "authors":["Layla Ahmad","Mario Rossi"],

      "title":"JSON Query Languages",

      "journalName":"Emerging Databases",

      "volume":5,

      "issue":1,

      "year":2019,

      "pages":null }.

The result of the execution of this operation is shown in Figure 2, where added parts are evidenced in red bold type.

After that, suppose that the end user wants to perform the following tasks:

• To change the name of the array from “papers” to “publications”;
• To fix an error concerning the authors of the paper with ID “C-2019-001”. In fact, the user acknowledged that this paper has not been written by “Adnan Burhan”, but actually by “Anna Lorenzi” and “Ihsan Fakhri”. In order to apply the correction, the user wants to have the current wrong value of the “authors” array replaced by a new value including the two proper authors;
• To replace the “confChair” property of the conference having the acronym “NoSQL-DB-2019”, with the publisher “Zprinter” of the conference proceedings;
• To update from “C” to “B” the rank of the conference with acronym “NoSQL-DB-2019”;
• To add the missing page numbers “23–43” to the paper with ID “J-2019-001”;
• To add journal quartile information, with value “Q2”, to the paper with ID “J-2019-001”;
• To copy the publisher information from the paper with ID “C-2019-001” to the paper with ID “J-2019-001”, as the publisher is the same;
• To delete the issue property of the journal with name “Emerging Databases”, since it has no longer had issue numbers since its fifth volume;
• To move the paper with ID “J-2019-001” at the beginning of the list of papers.

Hence, to this aim, he/she can use the following sequence of JUpdate statements:

 ALTER DOCUMENT scientificProduction.json OBJECT $

 RENAME MEMBER papers TO publications ;

 UPDATE scientificProduction.json

 PATH $.publications[?(@.paperID==’C-2019-001’)].authors

 VALUE ["Anna Lorenzi","Ihsan Fakhri"] ;

 ALTER DOCUMENT scientificProduction.json

 OBJECT $.publications[?(@.confAcronym==’NoSQL-DB-2019’)]

 REPLACE MEMBER confChair WITH publisher VALUE "Zprinter" ;

 UPDATE scientificProduction.json

 OBJECT $.publications[?(@.confAcronym==’NoSQL-DB-2019’)]

 SET confRank="B" ;

 INSERT scientificProduction.json

 PATH $.publications[?(@.paperID==’J-2019-001’)].pages

 VALUE "23-43" ;

 ALTER DOCUMENT scientificProduction.json

 OBJECT $.publications[?(@.paperID==’C-2019-001’)]

 COPY MEMBER publisher

      TO $.publications[?(@.paperID==’J-2019-001’)] ;

 ALTER DOCUMENT scientificProduction.json

 OBJECT $.publications[?(@.paperID==’J-2019-001’)]

 ADD MEMBER journalQuartile VALUE "Q2" ;

 ALTER DOCUMENT scientificProduction.json

 OBJECT $.publications[?(@.journalName==’Emerging Databases’),

                       ?(@.volume>=5)]

 DROP MEMBER issue ;

 UPDATE scientificProduction.json

 MOVE FROM $.publications[?(@.paperID==’J-2019-001’)]

      TO $.publications[0].

Notice that for the update of an object member value, in order to exemplify both options, we used either the UPDATE…VALUE… form (i.e., the UpdateValue HLO) and the UPDATE…SET… syntactic variant (i.e., the UpdateObject HLO). The result of the execution of this sequence of operations is shown in Figure 3, where changes are evidenced in red bold type.

4. Primitive Update Operations

In this section, we propose a set of six primitive update operations PO = { CreaDoc, DropDoc, InsMemb, InsVal, DelMemb, DelVal }, on which the definition and implementation of the JUpdate language can be based. As it will be shown in the next section (and precisely in Section 5.1), the proposed primitive operation set PO is complete and minimal, and it is given two arbitrary (and possibly empty) JSON instance documents doc1.json and doc2.json; doc1.json can always be transformed into doc2.json via the application of a suitable sequence of primitive operations taken from PO. The chosen names of the proposed operations are derived from corresponding JUpdate HLOs: whereas high-level operations have been assigned full names (e.g., InsertValue), the strictly related PO operations have shortened names (e.g., InsVal). The semantics of the PO operations is defined as described in the following.

4.1. CreaDoc

The CreaDoc(doc)primitive creates a JSON instance document, named “doc”, initialized with a null content. An error exception is raised if an instance file named “doc” already exists.

4.2. DropDoc

The DropDoc(doc)primitive removes the JSON file named “doc” from the database with the constraint that the argument represents a JSON file with a null content. Any other contents must have been removed before. An error exception is raised if the instance file named “doc” does not exist or it does not have a null content.

4.3. InsMemb

The InsMemb(doc, path, name) primitive adds an initially empty (i.e., with a “null” value) member named “name” to an object (possibly empty) denoted by the path “path” of the JSON instance document “doc”. An error exception is raised if “path” does not denote an object.

4.4. InsVal

The InsVal(doc, path, name) primitive assigns a value to an empty object member (i.e., whose value is “null”) located at path “path” in the JSON instance document “doc”. The supplied value “value” can be either a valid number, string, or Boolean (i.e., a true or false literal) value, or the literal “object” or “array”. If “value” is “object” or “array”, the corresponding structure is created initially empty (i.e., “{}” or “[]”, resp.). If path has the form “p[index]”, then the path prefix “p” must denote an array and “value” is inserted before the index-th element of the array (so that it becomes itself the index-th element after the update). If the literal “last” is used instead of index (i.e., the path has the form “p[last]”), then a value is inserted as the last element of the array. An error exception is raised if the path does not denote an empty object member or if the path has been specified as p[index] but p does not denote an array or denotes an array with fewer index components.

The InsVal primitive is also used to initialize an empty document (i.e., with a “null” content) with a non-null value (e.g., “object” or “array”).

After having been created empty with the CreaDoc operation, any complex JSON file can be built with a suitable sequence of InsMemb and InsVal operations.

4.5. DelVal

The DelVal(doc, path) primitive removes from the JSON instance document “doc” the value denoted by “path”, which must be a simple-type (i.e., string, number, or Boolean) value or an empty object or array. An error exception is raised if “path” does not denote either a simple-type value or an empty object or array.

4.6. DelMemb

The DelMemb(doc, path) primitive removes from the JSON instance document “doc” the empty (i.e., with a null value) object member located at the path “path”. An error exception is raised if “path” does not denote an empty object member.

5. Completeness and Minimality

In this section, we first show that the proposed set of primitive updates PO is complete and minimal. Then, we use this result to prove the completeness of the JUpdate language.

5.1. Completeness and Minimality of the Proposed Primitive Update Operations Set PO

Let us consider the complete JSON grammar as composed of the six production rules in BNF format listed in Figure 4.

For the sake of brevity, in the grammar, we do not expand further the <string>, <number>, and <boolean> non-terminals, but we assume instead they can produce the desired terminal data value through a call to a function eval() (e.g., when the <number> non-terminal has to produce the value 123, we assume the function eval(<number>) returns 123). The non-terminal <boolean> produces the true or false literal names. However, other than that (and non-explicitation of “insignificant whitespace” specifications), the grammar in Figure 4 is perfectly equivalent to the standard JSON grammar presented in EBNF format in [1].

Furthermore, if PR is a variable denoting a production rule, we employ a dotted notation such that PR.type, PR.H, and PR.B refer to the type, head, and body of the rule, respectively. For example, if PR is the P5-type production rule <elements>::=<elements>,<value> then PR.type is P5, PR.H is <elements>, and PR.B is <elements>,<value>.

Then, we consider a consistent set of production rule applications, giving rise to the syntax tree corresponding to a valid JSON instance. For example, Figure 5 shows the syntax tree corresponding to the JSON instance (3) shown below.

doc.json =

{“X”:[{“A”:null,”B”:10},{},{“C”:”xy”}]} (3)

In particular, intermediate nodes of the syntax tree contain the head of a production rule, and their (one or two) children node(s) contain the non-terminal(s) in the body of such a rule. The root node always contains the start non-terminal <json>, which is the head of the only P0-type production rule used in the tree. The leaves of the tree are terminal values: strings, numbers, Boolean, or null values. Obviously, for any given valid JSON instance, there is such a set of production rule applications. We further consider a linear order of the production rule applications corresponding to the depth-first traversal of the syntax tree, which represents the order in which the production rules are applied. We will use a function next(PR) that returns the production rule that follows PR in such an order (the superscripts preceding the non-terminal in each node of the tree in Figure 5 correspond to the position in such an order). For example, if PR is ⁶<value>::=<array>and is the 6th production rule applied in the syntax tree of Figure 5, next(PR) is the 7th production rule applied, that is ⁷<array>::=[<elements>].

Hence, we can prove that the set of primitive change operations introduced in Section 4 is minimal and complete. In particular, any given JSON instance can be constructed (or destroyed) via the execution of a sequence of such operations.

We start by proving the completeness of the construction primitive operation set { CreaDoc, InsVal, InsMemb } by showing how any set of production rule applications corresponding to the syntax tree of a valid JSON instance can be translated into a sequence of primitive operations, whose execution produces the same JSON instance from scratch. To this end, we introduce a recursive procedure applyPR(PR, doc, path), which applies the production rule PR to the document “doc” starting at path “path”. The applyPR procedure is defined as follows:

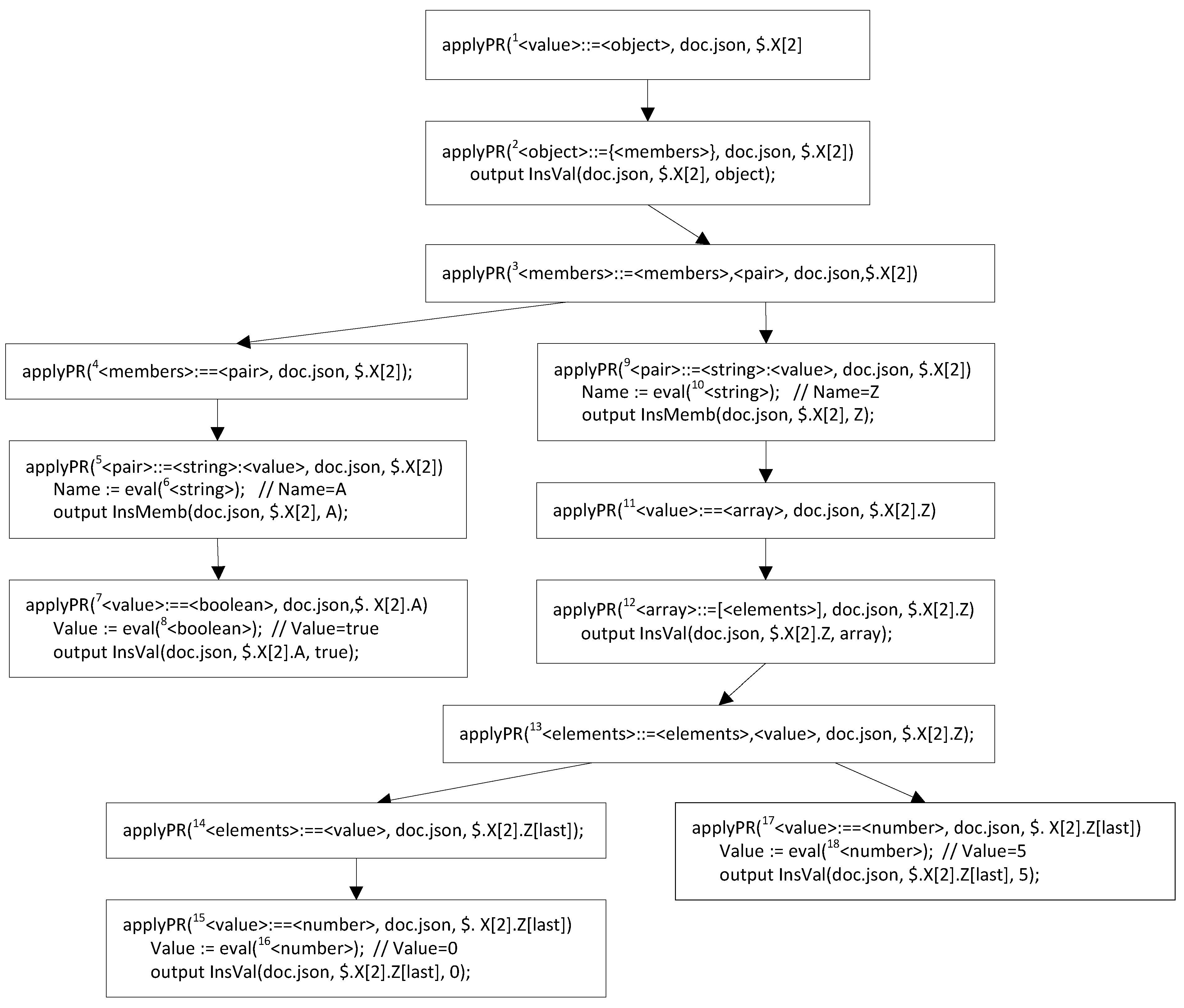

procedure applyPR(PR, doc, path)

  case PR.type of

   P0: // PR.H = <json>

  output CreaDoc(doc);

  applyPR(next(PR), doc, $); // next(PR) must be P6-type

   P1: // PR.H = <object>

  output InsVal(doc, path, object);

  if (PR.B ≠ {}) then applyPR(next(PR), doc, path) endif;

                  // next(PR) must be P2-type

   P2: // PR.H = <members>

  if (PR.B ≠ <pair>) then applyPR(next(PR), doc, path) endif;

      // next(PR) must be P2-type

  applyPR(next(PR), doc, path); // next(PR) must be P3-type

   P3:  // PR.H = <pair>

  Name := eval(next(PR)); // next(PR) must be <string>

  output InsMemb(doc, path, Name);

  applyPR(next(PR), doc, path.Name); // next(PR) must be P6-type

   P4:  // PR.H=<array>

  output InsVal(doc, path, array);

  if (PR.B ≠ []) then applyPR(next(PR), doc, path) endif;

                  // next(PR) must be P5-type

   P5:  // PR.H = <elements>

  if (PR.B≠<value>) then applyPR(next(PR), doc, path) endif;

                  // next(PR) must be P5-type

  applyPR(next(PR), doc, path[last]); // next(PR) must be P6-type

   P6:  // PR.H = <value>

  if (PR.B = <object>) then applyPR(next(PR), doc, path)

                  // next(PR) must be P1-type

  else if (PR.B = <array>) then applyPR(next(PR), doc, path)

                  // next(PR) must be P4-type

  else if (PR.B ≠ null) then Value := eval(next(PR)) ;

             // next(PR) must be <string>, <number> or <boolean>

          output InsVal(doc, path, Value)

  end if;

 end case;

end procedure.

The full translation involving the construction of the doc.json JSON instance can be done by invoking applyPR(PR, doc.json, null), where PR is the first production rule to be applied (i.e., ¹<json>::=<value>), that is the P0-type production rule whose head is the root of the syntax tree of the JSON instance. It easy to see that each case in the body of the procedure translates the semantics of a production rule of the grammar into the corresponding action(s) performed via change primitives. For example, the applyPR procedure translates the set of production rule applications depicted in Figure 5 and corresponding to the JSON instance (3) into the sequence of operations that follows:

CreaDoc(doc.json);

       → doc.json = null

InsVal(doc.json, $, object);

       → doc.json = {}

InsMemb(doc.json, $, X);

       → doc.json = {"X":null}

InsVal(doc.json, $.X, array);

       → doc.json = {"X":[]}

InsVal(doc.json, $.X[last], object);

       → doc.json = {"X":[{}]}

InsMemb(doc.json, $.X[last], A);

       → doc.json = {"X":[{"A":null}]}

InsMemb(doc.json, $.X[last], B);

       → doc.json = {"X":[{"A":null,"B":null}]}

InsVal(doc.json, $.X[last].B, 10);

       → doc.json = {"X":[{"A":null,"B":10}]}

InsVal(doc.json, $.X[last], object);

       → doc.json = {"X":[{"A":null,"B":10},{}]}

InsVal(doc.json, $.X[last], object);

       → doc.json = {"X":[{"A":null,"B":10},{},{}]}

InsMemb(doc.json, $.X[last], C);

       → doc.json = {"X":[{"A":null,"B":10},{},{"C":null}]}

InsVal(doc.json, $.X[last].C, xy);

       → doc.json = {"X":[{"A":null,"B":10},{},{"C":"xy"}]}

which clearly produce the same JSON instance (3) from scratch (the step-by-step construction of the contents of the doc.json instance is also shown above). A full trace of the execution of the applyPR procedure applied to this example can be found in Figure A1 of Appendix B.

In addition, to be complete, the proposed set of construction primitive changes { CreaDoc, InsVal, InsMemb } is also minimal, as all of them are needed in the definition of the translation procedure applyPR.

As far as the destruction primitives are concerned, we observe that DropDoc(doc) is the inverse operation of CreaDoc(doc), DelVal(doc, path) is the inverse operation of InsVal(doc, path, val), and DelMemb(doc, path) is the inverse operation of InsMemb(doc, path, name), as each of the former undoes the effects of the latter. For example, it can be easily seen that the JSON instance (3) can be completely destroyed via the application of the sequence of primitive changes that follows:

DelVal(doc.json, $.X[last].C);

DelMemb(doc.json, $.X[last], C);

DelVal(doc.json, $.X[last]);

DelVal(doc.json, $.X[last]);

DelVal(doc.json, $.X[last].B);

DelMemb(doc.json, $.X[last], B);

DelMemb(doc.json, $.X[last], A);

DelVal(doc.json, $.X[last]);

DelVal(doc.json, $.X);

DelMemb(doc.json, $,X);

DelVal(doc.json, $);

DropDoc(doc.json).

In general, given any JSON instance doc.json defined by a production rule application set corresponding to its syntax tree, in order to find the sequence of primitive changes that completely destroys it, we can:

• Use the applyPR procedure in order to derive from the production rule application set the sequence of creation primitives that could have been used to construct the doc.json instance;
• Scan the sequence of creation primitives in reverse order and replace each of them by its inverse destruction primitive.

Hence, also the set of destruction primitives { DropDoc, DelVal, DelMemb } comes out as complete and minimal, as all of them and only them are needed to destroy any arbitrary JSON instance.

Therefore, the full set PO = { CreaDoc, DropDoc, InsVal, DelVal, InsMemb, DelMemb } of change primitives presented in Section 4 is complete and minimal.

5.2. Completeness of JUpdate

In this section, we prove that the JUpdate language is complete by showing that a suitable use of a subset of its operations is equivalent to the set of primitive operations PO presented in Section 4, which is complete. In fact, starting from the JUpdate API procedures, the primitive operations can be defined as follows:

procedure CreaDoc(doc)

  CreateDocument(doc, null);

end procedure;

procedure DropDoc(doc)

  DeleteDocument(doc);

end procedure;

procedure InsVal(doc, path, value)

  if value=object then InsertValue(doc, path, {});

  else if value=array then InsertValue(doc, path, []);

  else InsertValue(doc, path, value);

  end if;

end procedure;

procedure InsMemb(doc, path, name)

  InsertMember(doc, path, name, null);

end procedure;

procedure DelVal(doc, path)

  DeleteValue(doc, path);

end procedure;

procedure DelMemb(doc, path)

  DeleteMember(doc, path);

end procedure.

Owing to the equivalence with the primitives in PO, the subset of JUpdate operations used in this proof constitutes a complete and minimal subset of HLOs necessary for applying any given transformation to a JSON instance document. The other proposed HLOs, together with the other possible uses of the HLOs in this subset, provide syntactic sugar for putting powerful and friendly operations at the user’s disposal.

6. Definability of the HLOs Making up JUpdate

In this section, we show how the HLOs presented in Section 2 and making up the proposed JUpdate language can be defined starting from the primitive operations presented in Section 4. In particular, the operational semantics of JUpdate API procedures is given in terms of operations in PO.

To this purpose, we distinguish between two basic HLOs, InsertValue and DeleteValue, which we will show how can be defined from primitive operations only, and the rest of the HLOs, which can be more conveniently defined from primitive operations and previously defined HLOs.

We assume that the applicability errors that have been described in the definitions of Section 2 are dealt with separately and, thus, the procedures presented in the following are executed when errors are absent and, thus, exceptions have not been raised.

6.1. Basic HLOs: InsertValue and DeleteValue

The operational semantics of the InsertValue HLO can be defined in terms of primitive operations as follows:

procedure InsertValue(doc, path, value)

  ST := syntaxCheck(value, jsonSyntax);

  PR := ST.root;

  if PR.type = P6 then

    call applyPR(PR, doc, path);

    execute the resulting sequence of primitive operations;

  else alert(“Syntax error in value”);

  end if;

end procedure;

where jsonSyntax corresponds to the encoding of the JSON grammar in Figure 4 and the syntaxCheck() procedure, which can be implemented via a simply adapted standard JSON parser, returns the syntactic tree of the “value” expression. Hence, the syntactic check on the correctness of “value” is successful if the root PR of ST is a P6-type production rule.

For instance, consider the JSON instance (3) introduced in Section 5.1 and an object-type value {“A”:true,”Z”:[0,5]}, which we want to insert between the last two elements of the array in doc.json. This can be done by executing the HLO InsertValue(doc.json, $.X[2], {“A”:true,”Z”:[0,5]}). Then, the syntactic check on “value” is successful and produces the syntactic tree ST depicted in Figure 6. Then, the effect of the applyPR procedure is the generation of the primitive operation sequence:

InsVal(doc.json, $.X[2], object);

InsMemb(doc.json, $.X[2], A);

InsVal(doc.json, $.X[2].A, true);

InsMemb(doc.json, $.X[2], Z);

InsVal(doc.json, $.X[2].Z, array);

InsVal(doc.json, $.X[2].Z[last], 0);

InsVal(doc.json, $.X[2].Z[last], 5);

whose execution eventually updates the JSON instance (3) as follows:

doc.json =

{“X”:[{“A”:null,”B”:10},{},{“A”:true,”Z”:[0,5]},{“C”:”xy”}]}.(4)

A full trace of the execution of the applyPR procedure applied to this example can be found in Figure A2 of Appendix B.

In practice, there is no need for applying the above definition in order to execute anInsertValueHLO, as it is sufficient (after the syntactic checks on “value” and “path”) to directly insert the JSON text “value” as a whole at the desired point “path” in the document.

The operational semantics of the DeleteValue HLO can be defined in terms of primitive operations as follows:

procedure DeleteValue(doc, path)

  ST := syntax Check(doc.path, jsonSyntax);

  PR := ST.root;

  if PR.type=P6 then

    call applyPR(PR, doc, path);

    scan the resulting sequence of primitive operations in reverse order

     and replace each one by its inverse one;

    execute the resulting sequence of primitive operations;

  else alert(“Syntax error in path”);

  end if;

end procedure;

where jsonSyntax corresponds to the encoding of the JSON grammar in Figure 4 and the syntaxCheck() procedure, which can be implemented via a simply adapted standard JSON parser, returns the syntactic tree of value. The syntactic check on the correctness of “path” is successful if the root PR of ST is a P6-type production rule.

For instance, consider the JSON instance (4) presented above and the deletion of the array-type value of the object member with label Z. This can be done by executing the HLO DeleteValue(doc.json, $.X[2].Z). Then, the syntactic check on “value” is successful (the path $.X[2].Z denotes an array-type value), and the effect of the applyPR procedure is the generation of the primitive operation sequence:

InsVal(doc.json, $.X[2].Z, array);

InsVal(doc.json, $.X[2].Z[last], 0);

InsVal(doc.json, $.X[2].Z[last], 5).

Then, the scan in reverse order and substitution with inverse primitive operations produces the sequence:

DelVal(doc.json, $.X[2].Z[last]);

DelVal(doc.json, $.X[2].Z[last]);

DelVal(doc.json, $.X[2].Z, array);

whose execution eventually updates the JSON instance (4) as follows:

doc.json =

{“X”:[{“A”:null,”B”:10},{},{“A”:true,”Z”:null},{“C”:”xy”}]}.(5)

In practice, also in this case, there is no need for applying the above definition in order to execute aDeleteValueHLO, as it is sufficient (after the syntactic checks on “value” and “path”) to directly delete the JSON text “value” as a whole from the desired point “path” in the document.

6.2. Derived HLOs

In this subsection, we show how all the other HLOs making up JUpdate can be defined starting from primitive operations presented in Section 4 and the two basic HLOs InsertValue and DeleteValue described above.

The CreateDocument HLO can be simply defined from the CreaDoc primitive operation and the InsertValue basic HLO as follows:

procedure CreateDocument(doc, value)

  CreaDoc(doc);

  InsertValue(doc, $, value);

end procedure.

The DropDocument HLO can be simply defined from the DropDoc primitive operation and the DeleteValue basic HLO as follows:

procedure DropDocument(doc)

  DeleteValue(doc, $)

  DropDoc(doc);

end procedure.

The UpdateValue HLO can be simply defined from the basic InsertValue and DeleteValue HLOs as follows:

procedure UpdateValue(doc, path, value)

  DeleteValue(doc, path);

  InsertValue(doc, path, value);

end procedure.

The CopyValue HLO can be simply defined using the basic InsertValue HLO as follows:

procedure CopyValue(doc, path, newpath)

  InsertValue(doc, newpath, doc:path); /* inserts at location newpath in doc

                   the value of doc:path

                   which is the value of path in doc */

end procedure.

The MoveValue HLO can be simply defined from the CopyValue and DeleteValue HLOs as follows:

procedure MoveValue(doc, path, newpath)

  CopyValue(doc, path, newpath);

  DeleteValue(doc, path);

end procedure.

The InsertMember HLO can be simply defined from the InsMemb primitive operation and the basic InsertValue HLO as follows:

procedure InsertMember(doc, path, name, value)

  InsMemb(doc, path, name);

  InsertValue(doc, path.name, value);

end procedure.

The DeleteMember HLO can be simply defined from the DelMemb primitive operation and the basic DeleteValue HLO as follows:

procedure DeleteMember(doc, path)

  DeleteValue(doc, path);

  Let name be such that path=p.name;

  DelMemb(doc, p, name);

end procedure.

The RenameMember HLO can be simply defined from the InsertMember and the DeleteMember HLOs as follows:

procedure RenameMember(doc, path, name)

  Let oldname be such that path=p.oldname;

  InsertMember(doc, p, name, doc:path); /* creates a new member p.name

                    with the value doc:path which is

                    the value of p.oldname in doc */

  DeleteMember(doc, path);

end procedure.

In practice, theRenameMemberHLO can be more efficiently implemented by directly replacing with “name” the string representing the name of the member denoted by “path”.

The ReplaceMember HLO can be simply defined using the RenameMember and UpdateValue HLOs as follows:

procedure ReplaceMember(doc, path, name, value)

  RenameMember(doc, path, name);

  UpdateValue(doc, path, value);

end procedure.

The CopyMember HLO can be simply defined using the InsertMember HLO as follows:

procedure CopyMember(doc, path, newpath)

  Let path be such that path=p.name;

  InsertMember(doc, newpath, name, doc:path);

              /* creates a new member newpath.name

                with the value doc:path

                which is the value of p.name in doc */

end procedure.

The MoveMember HLO can be simply defined from the CopyMember and DeleteMember HLOs as follows:

procedure MoveMember(doc, path, newpath)

  CopyMember(doc, path, newpath);

  DeleteMember(doc, path);

end procedure.

As already observed in Section 2, the UpdateObject HLO is equivalent to a sequence of UpdateValue operations.

7. Related Work Discussion

The problem of updating JSON data/documents has not been previously studied in the literature, whereas many works have dealt with JSON data querying. Indeed, several JSON query languages have been proposed such as JSONiq [14], which is an XQuery-like language, SQL++ [16,17], which is a SQL-like language, and JSONPath [25], which is an XPath-like language. Notice that since our JUpdate language is SQL-like, it could be combined with SQL++ to produce a full JSON DML.

As far as mainstream NoSQL data stores are concerned, each one of them provides, for managing JSON data, either a proprietary query language, such as Couchbase whose language is N1QL, Cassandra whose language is CQL, and AsterixDB whose language is AQL, or some low-level programmatic APIs, such as Amazon Dynamo and Redis. In the following, we try to compare our JUpdate language to the three languages N1QL, CQL, and AQL, which also provide for update operations.

• N1QL, CQL, and AQL, similarly to JUpdate, are SQL-like. However, contrary to them, JUpdate is DBMS-independent. Moreover, such languages are based on predefined precise data models based on collections of homogeneous JSON objects (e.g., key-value/keyspaces for N1QL, tables for CQL, and ADM/dataspaces for AQL), to be used as relational tables (with objects playing the role of table rows). CQL also supports collections (i.e., lists/sets/maps) to store structured multiple values in a table. JUpdate is not based on any predefined data model and, thus, it best suits the JSON philosophy and can be used for the maintenance of generic JSON documents.
• N1QL and AQL support an UPSERT operation that behaves as an UPDATE if corresponding data (which are JSON object members) are found or as an INSERT if corresponding data are not found, such as the RECORD operation proposed in [29]. Such operations are based on the precise data models based on collections of JSON objects recalled above and cannot be used on generic JSON documents. On object members, the JUpdate UPDATE operation works as an UPSERT, since it behaves as INSERT if the value to be updated has a null value. On a JSON array, the JUpdate UPDATE operation still works as an UPSERT if used on the “[last]” component of the array (such component is replaced if present or a new component is inserted if the array is empty). Hence, JUpdate does not need an UPSERT, as the UPDATE operation can be used in a more general and powerful way (i.e., to make “upsertions” in both objects and arrays placed at any nesting level of the structure of a generic JSON document).
• Contrary to CQL, which supports a BATCH operation (i.e., a sequence of multiple INSERT, UPDATE, and DELETE operations that are grouped together in a single operation so that they can be executed together), JUpdate does not support it. In fact, JUpdate allows its users to specify any valid sequence of operations among the set of fourteen operations of JUpdate and not only among a set of three operations.

As for the well-known NoSQL DBMS, MongoDB, it provides also a proprietary data manipulation language for performing CRUD (https://docs.mongodb.com/manual/crud/ (accessed on 31 December 2021)) (create, read, update, and delete) operations on JSON documents. However, its syntax is neither SQL- nor XQuery-like.

Furthermore, several authors have dealt with the integration of JSON data in relational DBMSs, such as [11,30,31,32,33], focusing only on JSON data querying in such a context. In the present work, we consider JSON data stored in a native JSON (NoSQL) environment and focus on JSON data updating in such a framework. Moreover, an ANSI SQL/JSON standard [21,22,23] has been created to extend the specifications of SQL to support the management of JSON documents. However, in [24], the author shows that this standard does not allow users to change single parts of JSON documents and proposes to improve it in this direction via an extension of the SQL UPDATE statement syntax and semantics.

Thus, the investigation of the state-of-the-art and the state-of-the-practice shows that there is no consensual or standard language for updating native JSON data.

Considering formal aspects, logical foundations of JSON structures and JSON querying have been studied in [3,5], respectively. Our paper deals with an operational formalization of JSON updates.

JSON Patch [34] is a standard for specifying a sequence of changes to a JSON document through the definition of another JSON document, which is suitable to be used with the HTTP PATCH method, called a JSON Patch document,. This latter consists of an array of objects where each object describes a change operation on the corresponding JSON document through three members: (i) “op”, which represents the desired operation; notice that JSON Patch provides six operations: “add”, “remove”, “replace”, “move”, “copy”, and “test”; (ii) “path”, which represents the path of the target node; (iii) “value”, which represents a new value if needed, or “from”, which represents a source path if needed. The specified operations have to be executed in their defined order. Similarly to the concept of “transaction” in relational DBMSs, the sequence of these operations is either completely executed or not executed at all if one of its operations fails. In Appendix C, we show how a JSON Patch processor can be set up using JUpdate operations. It is also shown how JSON Patch can be considered less powerful and less user-friendly than JUpdate, owing to the overload of its supplied operators.

As far as high-level update languages are concerned, no other proposals can be found in the literature on JSON data management. Even existing JSON NoSQL DBMSs do not provide any support for this type of operations. Notice that in a previous work [35], we have dealt with high-level operations but for changing XML schemas in a temporal XML environment that supports schema versioning [36,37,38].

Furthermore, it is worth mentioning that the well-known W3C XML language [39] has many similarities with JSON. Indeed, they are both based on tree/hierarchical data models to be used for the storage and exchange of structured, semi-structured, and unstructured data, including all emerging and NoSQL data. However, although there are two languages that are recommended by the W3C to query and to update XML data (i.e., XQuery [40] and XQuery Update Facility (XUF) 1.0 [41], respectively), there are no similar recommendations by the IETF to query and to update JSON data. Notice that several XML update languages have been proposed before the recommendation of XUF 1.0, such as XUpdate [42], SiXDML [43], UpdateX [44], XML-RL update language [45], GLASS^U [46], and FLUX [47]. XUF 1.0 (its 3.0 release is yet under development [48]) provides a set of update operations, which includes update primitives that are the components of pending update lists, and update routines that are used in defining XQuery semantics but do not appear on pending update lists. The update primitives whose number is twelve are as follows: insertBefore, insertAfter, insertInto, insertIntoAsFirst, insertIntoAsLast, insertAttributes, delete, replaceNode, replaceValue, replaceElementContent, rename, and put. The update routines whose number is six are as follows: mergeUpdates, applyUpdates, revalidate, removeType, setToUntyped, and propagateNamespace. As for the pending update list, it is defined in [41] as an unordered collection of update primitives, which represent node state changes that have not yet been applied. Notice also that recently, Brahmia et al. [49] have provided a survey of the proposals (approaches, languages, tools, etc.) that have dealt with XML data update, in a conventional (i.e., non-temporal) or a temporal environments. Furthermore, the authors of [50] have extended the XUF 1.0 language, with a VALID clause that allows the specification of an applicability period of an update (i.e., insert, replace, delete, or rename) operation, to support the manipulation of temporal XML data.

In [51], we have used the high-level JSON update operations of JUpdate to define the operational semantics and to provide a basis for the implementation of the high-level JSON Schema change operations of our JSON Schema change language previously proposed in [52], based on the fact that a JSON Schema [3,53] file is also a plain JSON [1] file.

8. Conclusions

In this paper, we have proposed JUpdate, a JSON Update language, which includes a complete set of fourteen user-friendly high-level operations. The definition of the semantics of the proposed JUpdate operations has been based on a set of six primitive update operations, which has been proved complete and minimal. This theoretical underpinning, which was not provided before for other JSON update (sub)languages, shows that JUpdate is actually all that is needed for the maintenance of generic JSON documents.

To the best of our knowledge, we are the first to propose (i) a user-friendly SQL-like JUpdate language composed of high-level operations for manipulating valid portions of JSON instance documents and (ii) a set of primitive operations for updating native JSON data, on which the semantics of JUpdate is based and for which completeness and minimality properties have been proved. Moreover, our primitives and high-level operations are so general, well-founded, and DBMS-independent that on one hand, they can easily be implemented to set up a stand-alone JUpdate processor, and on the other hand, they could also be exploited to support high-level declarative (and not low-level programmatic) JSON update APIs.

Since several JSON-based emerging advanced applications (e.g., e-government and e-health applications) require bookkeeping of the history of data changes and, therefore, need to manage the evolution over time of JSON data, it will be interesting to extend JUpdate to also support updating of temporal JSON data. For this purpose, we intend in our future work to propose a temporal extension of JUpdate, named τJUpdate (Temporal JUpdate), to equip our temporal JSON-based NoSQL framework τJSchema (Temporal JSON Schema) [7,54].
