Frequency Reconfigurable Quad-Element MIMO Antenna with Improved Isolation for 5G Systems

Abstract

In this paper, a frequency reconfigurable multiband multiple-input-multiple-output (MIMO) antenna is developed for 5G communication systems. The presented MIMO antenna element consists of a 50 Ω microstrip line, a rectangular monopole divided into two patches, and a partial ground plane. A split-ring resonator (SRR) is introduced into the upper patch to cover multiple 5G application bands, and an RF PIN diode is embedded between the upper and lower patches to enable the frequency diversity feature. In order to design a MIMO antenna with improved inter-element isolation, four antenna elements are orthogonally located with ground planes connected to each other. The antenna design covers the n41/n46/n48/n79 5G application bands. The prototype MIMO antenna is developed on the FR-4 substrate, and the measured results match with the simulated outcomes. The overall footprint of the prototype antenna is 70 × 70 × 1.6 mm³.

1. Introduction

Modern communication devices support multiple wireless standards to achieve high data rate transmission. The multiple-input-multiple-output (MIMO) system exhibiting frequency diversity is an excellent choice for improved coverage and higher data rates. Of late, different techniques have been reported for antenna miniaturization, multiband operation, and frequency diversity [1,2]. However, coupling amongst resonating elements is a challenge in MIMO antenna designs. The inter-element coupling in densely packed MIMO antennas can be encountered by using parasitic reflectors, defected ground planes, neutralization lines, and decoupling elements such as split-ring resonators (SRR) [1,2,3]. Several MIMO antenna designs have been described in recent years [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. In ref. [3], different substrate materials were investigated for the sub-6 GHz band. In ref. [4], a single-band four-port MIMO antenna configuration was reported for the n79 5G band, where the antenna elements were arranged orthogonally to decrease mutual coupling. A MIMO antenna with orthogonally arranged antenna elements covering the 3.4–3.6 GHz band was reported in [5]. However, multiple defects were introduced on the ground plane [4,5], which impacts the radiation performance of the antenna. In ref. [6], a double-layered meta-surface antenna was proposed with improved gain and isolation for the sub-6 GHz 5G band. However, the reported antenna design complexity was high while occupying more substrate area. In ref. [7], a coplanar waveguide (CPW)-fed two-element MIMO antenna with interconnected ground planes was presented. Reconfigurable antenna designs for sub-6 GHz 5G systems were reported in [8,9]. However, the antenna designs investigated in [8,9] require a greater number of active elements 2/4 RF PIN diodes to achieve reconfigurability. In ref. [10], a quad-port log-periodic dipole antenna array was investigated with epsilon near zero metamaterial for the upper 5G application band. In refs. [11,12], circularly polarized quad-port MIMO antenna designs were presented for ultra-wideband and sub-6 GHz bands. The antenna design examined in [12] demonstrated a single band of operation and a lower isolation level, as well as isolated ground planes, limiting its practical application. Dual-port wearable MIMO antenna designs with circular and liner polarization were studied in [13,14].

Various designs of four-port MIMO antennas with and without notched bands were analyzed for wideband applications in [15,16,17]. In refs. [18,19], MIMO antennas were reported for Bluetooth/WLAN applications. A frequency agile MIMO antenna for cognitive systems was investigated in [20], where a stop band filter was used to reduce mutual coupling. In refs. [21,22], eight-port MIMO antennas were presented for 5G smartphones. In ref. [21], loop antennas were printed on non-metal frames for the 3.4–3.6 GHz band, whereas CPW-fed T-ring antenna elements were employed in [22]. However, the reported eight-port MIMO antenna designs demonstrated a single band of operation. In refs. [23,24,25], SRR and parasitic elements were loaded between antenna elements to improve isolation. However, these antenna configurations demonstrated a lower level of inter-element isolation and fixed-band operation. Dual-port MIMO antennas with frequency diversity were investigated in [26,27,28,29,30,31,32]. In ref. [26], a frequency agile MIMO antenna operating in multiple modes was investigated for cognitive radio. A tunable antenna with a varactor diode embedded in the ground plane was reported in [27]. In ref. [28], an RF-MEMS switch was integrated into an antenna to operate in multiple bands by changing the switch’s operating mode. The coupling conductors and PIN diodes were used to switch between upper/lower WLAN and m-WiMAX systems in [29]. Varactor diodes were implanted at the end of the feed line in [30] to tune its operating band for low-frequency applications. However, the reported design consumed more substrate area. In ref. [31], a Yagi-Uda antenna integrated with a varactor diode was investigated. But, the double-layer fabrication adds complexity and limits the practical applications of the presented antenna. In ref. [32], a dual-band MIMO antenna was proposed with frequency diversity. In ref. [33], a four-port MIMO antenna was proposed with fixed band operation for 5G. In refs. [34,35], four-element MIMO antennas with frequency diversity were designed, where varactor diodes and RF MEMS were implanted in SRR and rectangular slots for frequency diversity. However, the above-reported [29,30,31,32,33,34,35] antenna configurations required more substrate volume, a greater number of active elements/switches, which complicates antenna design, and high inter-element coupling. Poor isolation implies that adjacent resonators are correlated, resulting in poor antenna performance.

In this work, a quad-element frequency agile MIMO antenna is developed for n41/n46/n48/n79 5G bands. The radiator of the MIMO antenna consists of a rectangular monopole divided into two patches and a partial ground plane. Also, an SRR is introduced into the upper patch and an RF PIN diode is embedded between the upper and lower patches to enable the frequency diversity feature. The four radiating elements are arranged orthogonally with an inter-element distance of 0.17λ₀ to improve isolation, where λ₀ is calculated at the lowest operating band. The presented frequency agile antenna is simple to design and can be easily integrated with other RF devices due to the connected ground planes of the resonators. The antenna has a reasonable gain, excellent inter-element isolation, and covers a wide range of 5G application bands. The introduction is presented in Section 1, Section 2 presents the antenna element and MIMO antenna arrangement, Section 3 shows the results of the proposed MIMO antenna, Section 4 presents the MIMO/diversity parameters, and Section 5 states the conclusion of the proposed work.

2. Antenna Configuration

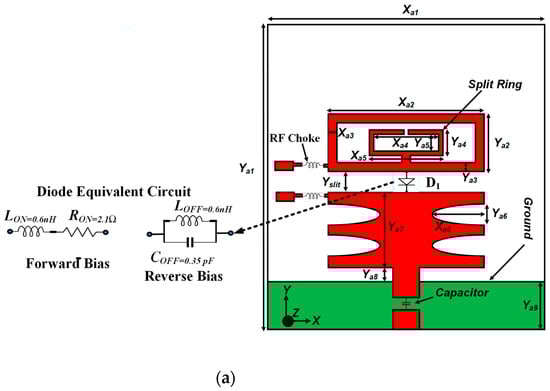

Figure 1a shows a schematic of the proposed antenna element. The antenna element consists of a feed line, two radiators connected through a PIN diode, and a partial ground plane. The lower rectangular-shaped patch is truncated with a pair of ellipses on its edges to lengthen the current path. The upper patch is composed of a rectangular ring and an SRR. The four-unit cells are organized orthogonally to develop a MIMO antenna, as shown in Figure 1b. The ground surfaces of the antenna elements are connected to an equal voltage level in the MIMO arrangement. The antenna is developed on the FR-4 substrate with a relative permittivity of 4.4, and the simulations are performed in the ANSYS HFSS software. The overall volume of the proposed MIMO antenna structure is 70 × 70 × 1.60 mm³, and its physical dimensions are shown in

Table 1. Geometrical attributes of the presented antenna.

Attribute	Values (mm)	Attribute	Values (mm)	Attribute	Values (mm)	Attribute	Values (mm)
Xa1	35	Xa2	18	Xa3	1.75	Xa4	7.5
Xa5	8.5	Xa6	6.0	Xa7	0.5	Xa8	20.5
Xa9	1	Ya1	35	Ya2	6.5	Ya3	1
Ya4	2.5	Ya5	1.5	Ya6	2.4	Ya7	8.5
Ya8	1.5	Ya9	5.5	Ya10	20.5	Xma	70
Yma	70	Ya11	1.4	Ya12	1.3	Yslit	1
Xcut	14.5	Ycut	4.5

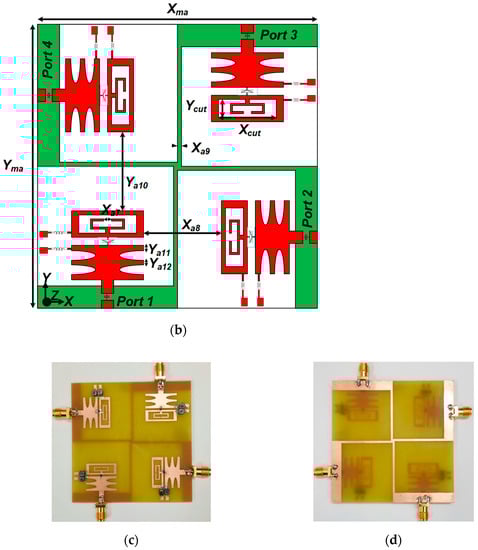

. Figure 1c,d shows photographs of the top and back sides of the MIMO antenna prototype, respectively.

Evolution Steps of the Antenna

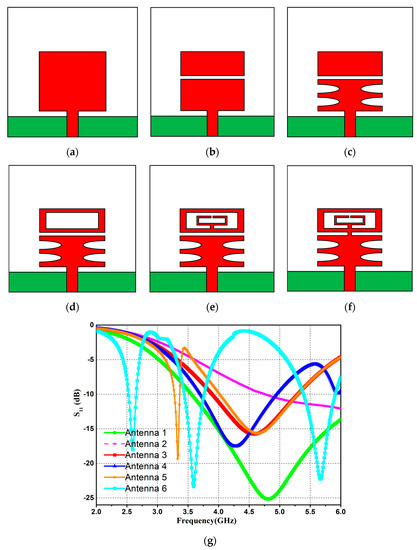

Figure 2 depicts the design steps of the antenna element. The resonating frequency of the antenna element is evaluated as [11]

$$f_c=\frac{c}{2\sqrt{{\epsilon }_r}}\sqrt{{\left(\frac{m}{L}\right)}^2+{\left(\frac{n}{W}\right)}^2}$$

(1)

where c is the speed of light in vacuum, f_c is the center frequency, and L and W are the length and width of the patch antenna, respectively. Initially, a rectangular radiator with dimensions of 18 mm × 16 mm (antenna-1), is developed for a center frequency of 4.80 GHz, as shown in Figure 2a. The scattering parameters of the design stages are displayed in Figure 2g. In the second step, antenna-1 is divided into two patches, resulting in antenna-2, as shown in Figure 2b. The resonating band of antenna-2 shifts to the higher frequency side. The lower patch of antenna-2 is modified by etching a pair of ellipses (antenna-3), as shown in Figure 2c. Then, a rectangular slot (size of 4.5 mm × 14.5 mm) is etched out from the upper patch (shown in Figure 2d), resulting in antenna-4, which resonates at 4.30 GHz.

In the next step, an SRR is loaded into the upper patch of antenna-4, shown in Figure 2e, resulting in dual-band operation (antenna-5) at 3.30 GHz and 4.60 GHz. Then, a 1 mm × 1 mm metal strip is embedded between the lower and upper patches, resulting in the development of antenna-6, shown in Figure 2f. The antenna-6 resonates at 2.50 GHz, 3.50 GHz, and 5.20 GHz. The metal strip is used as an RF PIN diode to switch the operating states of the antenna elements. When diodes are in the OFF state, the antenna element function as antenna-5 with two operating bands, while in the ON state, it functions as antenna-6 with three operating bands.

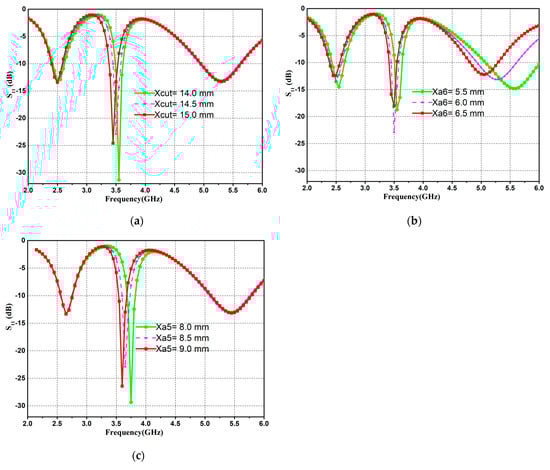

The parametric analysis of the antenna element is shown in Figure 3. When performing parametric analysis, when X_cut is changed from 14 to 15 mm in 0.5 mm steps, the frequency of 3.5 GHz changes, as shown in Figure 3a, whereas when X_a6 changes from 5.5 to 6.5 mm in 0.5 mm steps, the upper band changes, as illustrated in Figure 3b. Similarly, when X_a5 changes from 8.0 to 9.0 mm, the center band changes, as illustrated in Figure 3c. Consequently, the optimum values of X_cut, X_a6, and X_a5 are considered 14.5 mm, 6.0 mm, and 8.5 mm, respectively.

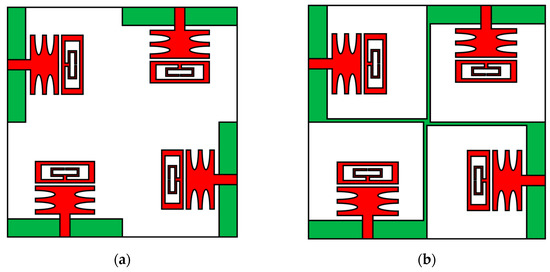

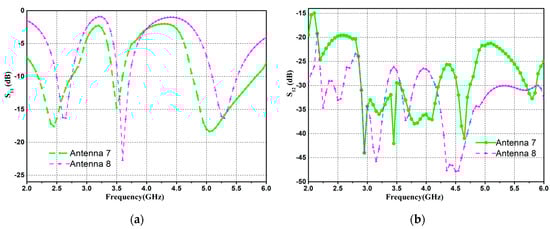

Figure 4 depicts the design steps of the MIMO antenna. In the proposed design, four identical antenna elements are placed orthogonally, as shown in Figure 4a. Also, in order to make practical use of the developed antenna, the ground planes of all four elements are connected by a metal strip of a width of 1 mm, as shown in Figure 4b. The ground planes of the MIMO antenna elements are connected to form a common reference plane for practical systems, where voltage should have a common signal level, that is, zero or ground level. In split ground MIMO antenna designs, it cannot be promised that the MIMO system will work efficiently, as the assumption that all ground planes have the same voltage level becomes invalid [36]. The inter-element distance is kept as 0.17λ₀, where λ₀ is calculated at the lowest operating band (2.50 GHz), and the isolation level is satisfactory without the use of any special/complex decoupling or isolation network. Figure 5 depicts the scattering (reflection and transmission) parameters of the presented MIMO antenna.

In the presented MIMO antenna, the inter-element isolation is greater than 28 dB, whereas the 5G MIMO antennas studied in [4,5,6,12,21,22,23,24,25,28,33] had a lower isolation level. Since the antenna elements are orthogonal to each other, the direction of the coupling current vectors differs from each other. Due to the metal strip and orthogonal arrangement of the resonating elements, which supports polarization diversity, the proposed MIMO/diversity antenna could achieve high isolation. The higher level of isolation implies that adjacent elements are uncorrelated, resulting in maximum channel capacity.

3. Results and Discussion

The prospective frequency agile quad-port MIMO antenna physical size is 70 × 70 × 1.60 mm³. Modifications to the lower patch result in antenna element miniaturization, whereas etching a slot and loading an SRR to the upper patch results in multiband operation. The frequency diversity feature is enabled by inserting RF PIN diodes between the lower and upper patches by changing the operating state of the diodes. When the diode is in the ON state, antenna operation is referred to as state-1, and when the diode is turned OFF, antenna operation is referred to as state-2. In state-1, both patches (lower and upper) are physically connected, and the antenna operates in tri-band mode with center frequencies of 2.50 GHz, 3.50 GHz, and 5.20 GHz, covering the n41, n46, and n48 bands, respectively.

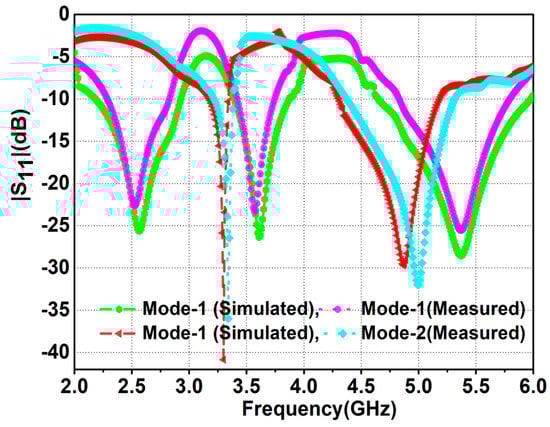

Figure 6 depicts the simulated and measured scattering attributes of the MIMO antenna design for the working states. During simulation, the PIN diode (BAP64-02 NXP) is modeled with metal strips by assigning different RLC boundary conditions for modes-1 and -2. A 20 pF DC blocking capacitor and a 22 nH inductor are used to separate biasing and excitation supply (DC/RF). Also, the biasing lines are printed in such a way that their influence on resonator performance is minimized. The small metal pads of 1 mm × 1 mm are used for the biasing circuit. The PNA-L series vector network analyzer is used for the measurement of reflection coefficients, which are plotted in Figure 6. A very small difference between experimental and simulated outcomes is seen, which is due to fabrication tolerance and SMD device pasting.

Table 2. Summary of the measured and simulated results.

Working Modes	Working Bands (GHz)	Impedance Bandwidth (MHz)		Isolation (dB)
		Measured	Simulated	Measured	Simulated
1 (ON State)	2.50	550	740	24	34
	3.50	330	480	26	31
	5.20	1010	1320	24	28
2 (OFF State)	3.30	170	180	31	28
	4.70	940	880	26	28

presents a summary of the simulated and measured results.

3.1. Surface Current Distribution

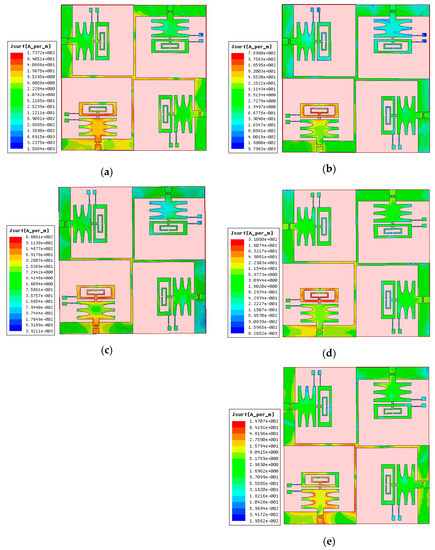

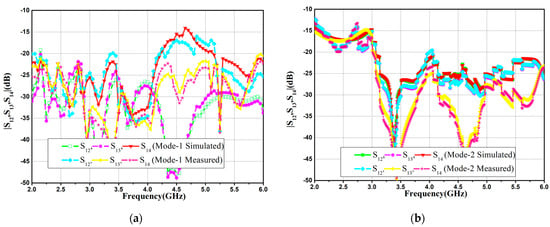

The surface current and mutual coupling of the MIMO antenna are analyzed and plotted in Figure 7 and Figure 8, respectively. The density of coupling current from element-1 to elements-2, -3, and -4 is too weak, as shown in Figure 7, which results in improved isolation.

3.2. Radiation Attributes and Gain

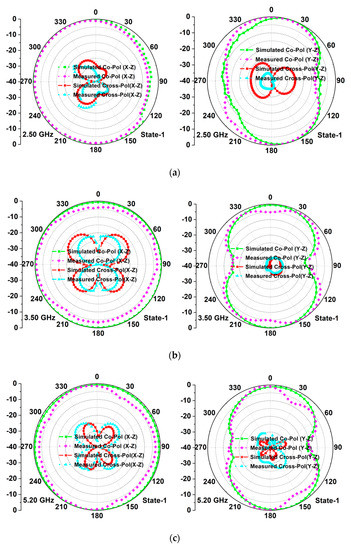

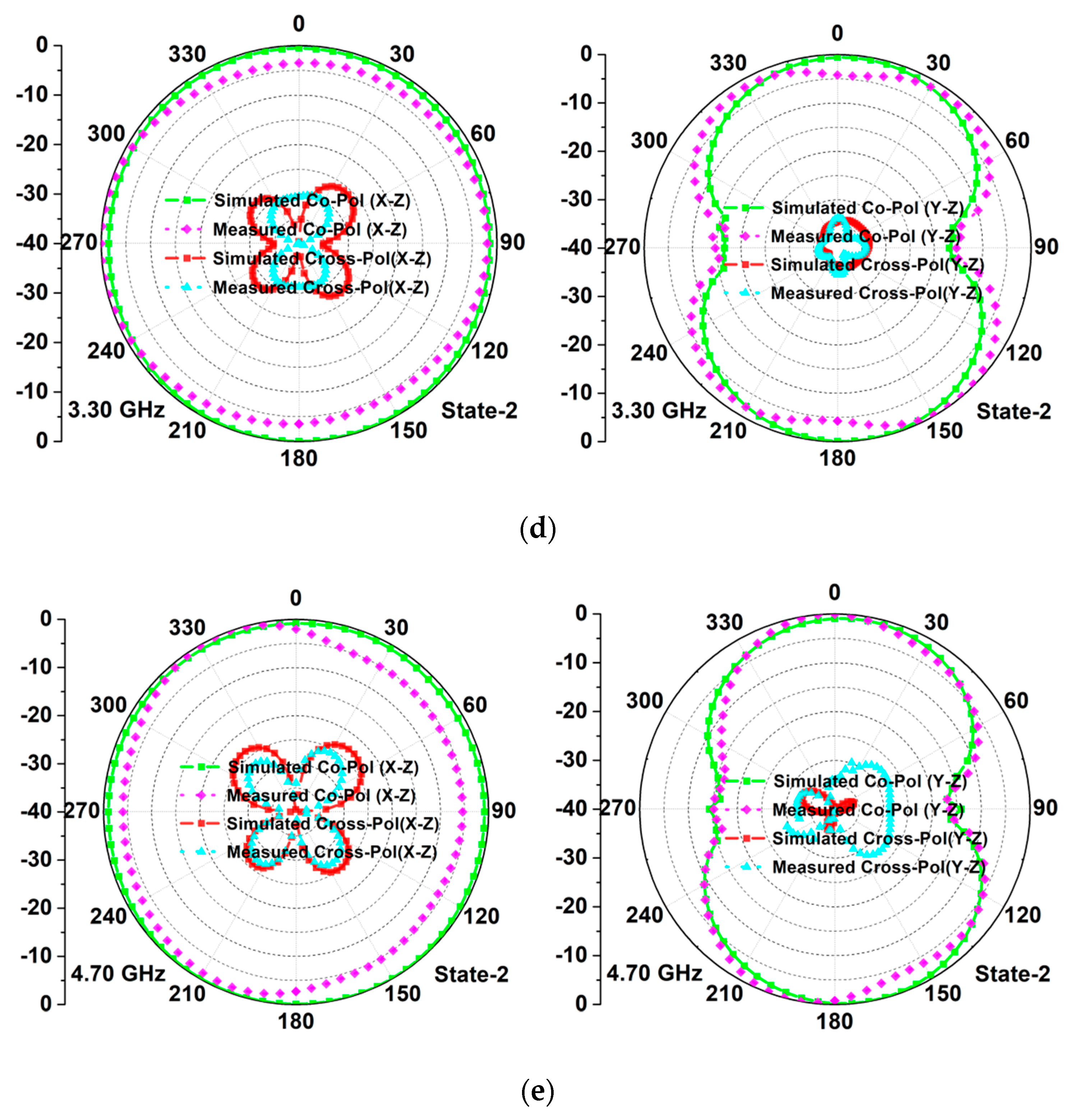

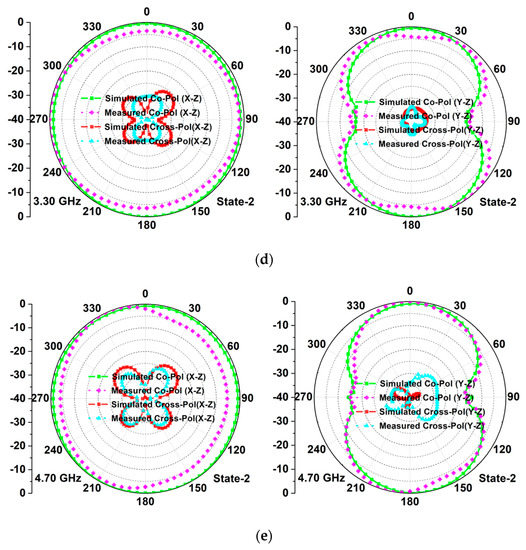

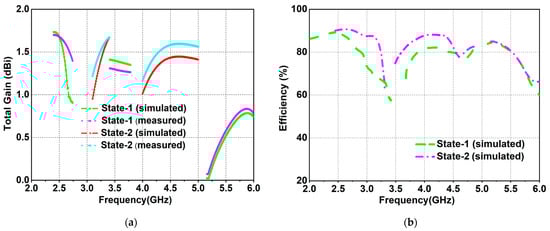

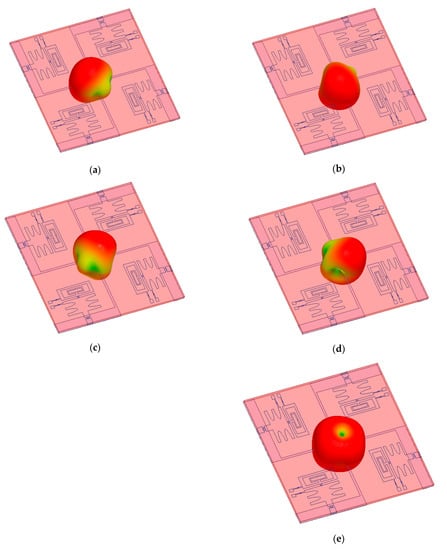

To characterize the far-field performance of the developed quad-element MIMO antenna, its 2-D radiation attributes (for modes-1 and -2) are plotted in Figure 9. The radiation graphs illustrate that the antenna exhibits a high level of cross-polarization (>20 dB) for both planes across all operating bands. This is validated by comparing simulated and experimental data. Figure 10a–d present 3-D polar plots of the developed MIMO antenna when individual ports (1, 2, 3, and 4) are in the ON state, and Figure 10e shows when all antenna elements (1–4) are excited (ON state) at the same time. The gain and efficiency curves of the antenna are shown in Figure 11a,b, respectively. The antenna exhibits stable gain performance for both working modes.

4. MIMO/Diversity Parameters

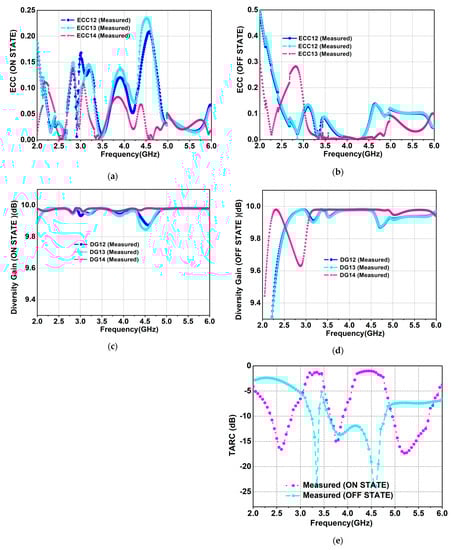

The various diversity parameters (envelope correlation coefficient (ECC), diversity gain (DG), and total active reflection coefficient (TARC)) are computed to validate the MIMO antenna design and are plotted in Figure 12 for modes-1 and -2.

4.1. Envelope Correlation Coefficient (ECC)

The ECC is a measure of the coupling current between MIMO antenna elements. ECC varies with the physical orientation/arrangement of the antenna elements, and for practical implementation, its numerical value should be <0.5. A low ECC indicates that the antenna elements are uncorrelated to one another and that less power is coupled to other elements in the vicinity of the excited element. The following expressions are used to calculate the ECC [37,38].

$$EC{C}_{p\times q}=\frac{{\left|{\displaystyle \underset{4\pi }{\iint }\left. [F_1(\theta ,\varphi )\times F_2(\theta ,\varphi )\times \left. [F_3(\theta ,\varphi )\times F_4(\theta ,\varphi )\right]\right]d\mathsf{\Omega }}\right|}^4}{{\displaystyle \underset{4\pi }{\iint }{\left|F_1(\theta ,\varphi )\right|}^{4}d\mathsf{\Omega }{\left|F_2(\theta ,\varphi )\right|}^{4}d\mathsf{\Omega }{\left|F_3(\theta ,\varphi )\right|}^{4}d\mathsf{\Omega }{\left|F_4(\theta ,\varphi )\right|}^{4}d\mathsf{\Omega }}}$$

(2)

where $\overrightarrow{F_i}\left(\theta , \varphi \right)$ is the radiation pattern of the antenna when the ith port is excited. For a quad-port (N = 4) system, the ECC between elements i = 1 and j = 2 is expressed as

$$ECC\left(1, 2, 4\right)=\frac{{\left|{\mathrm{S}}_{11}^{*}{S}_{12}+S_{21}^{*}{S}_{22}+{\mathrm{S}}_{13}^{*}{S}_{32}+S_{14}^{*}{S}_{42}\right|}^2}{\left(1-{\left|S_{11}\right|}^2-{\left|S_{21}\right|}^2-{\left|S_{31}\right|}^2-{\left|S_{41}\right|}^2\right)\left(1-{\left|S_{12}\right|}^2-{\left|S_{22}\right|}^2-{\left|S_{32}\right|}^2-{\left|S_{42}\right|}^2\right)}$$

(3)

The ECC between other ports can be calculated by changing the values of i and j. The ECC is calculated using S-parameters for the presented MIMO antenna, and it is found to be less than 0.3 between various antenna ports.

4.2. Diversity Gain (DG)

Another diversity parameter for validating MIMO configuration is DG. DG demonstrates the superiority of the MIMO over the SISO system. It must ideally be close to 10 dB. The DG is related to ECC and is calculated using the following expression [39].

$$D{G}_{p\times q}=10\sqrt{1-EC{C}_{p\times q}{}^2}$$

(4)

4.3. Total Active Reflection Coefficient (TARC)

TARC is also an important attribute to validate diversity performance in terms of incident and reflected powers. In a lossless system, TARC can be computed using scattering parameters, but practically, it must also consider frequency and scan angle. TARC values can be calculated using the following relation [13].

$$\mathrm{TARC}=\frac{\sqrt{{\sum }_{i=1}^q{\left|S_{i1}+{\sum }_{p=2}^q{S}_{ip}{e}^{i{\theta }_{p-1}}\right|}^2}}{\sqrt{q}}$$

(5)

It is clear from Figure 12 that the measured and simulated values of the MIMO/diversity parameters, ECC (<0.5), DG (~10 dB), and TARC (<−10 dB), are within acceptable limits.

Table 3. Comparison of the developed frequency agile MIMO antenna and existing MIMO antennas.

Ref.	Operating Frequency (GHz)	Size (λ0 × λ0)	Peak Gain (dB)	Common Ground	No. of Ports	Frequency Agility	Isolation (dB)
[4]	4.7–5.1	0.626 × 0.626	2.8	Yes	4	No	>25
[5]	3.4–3.6	0.85 × 1.70	2.87	Yes	8	No	>12
[6]	3.08–7.75	0.821 × 0.821	8.3	No	4	No	>15.5
[12]	3.4–3.8	0.68 × 0.68	4.5	No	4	Yes	>19
[20]	1.77, 4.75	0.283 × 0.141	6.63	Yes	2	Yes	>26.52
[21]	3.5	1.75 × 0.875	1.57	Yes	8	No	>20
[22]	3.4–4.4	1.70 × 0.850	---	Yes	8	No	>16
[23]	3.4–3.6, 4–8	0.238 × 0.521	3.40	Yes	2	No	>15
[24]	2.40, 5.7	0.32 × 0.32	4	Yes	4	No	>14
[25]	2.6, 3.6	---	6.5	---	2	No	---
[27]	2.12–2.32	0.353 × 0.706	2.67	Yes	2	Yes	>12
[28]	0.60, 1.8, 2.4, 3.5, 5.5	0.64 × 0.196	5.14	Yes	2	Yes	>15
[33]	3.3–5	1.32 × 0.715	4.71	Yes	4	No	>18.8
[34]	1.7–2.28, 2.5–2.85, 2.9–3.1	0.34 × 0.68	2.95	Yes	4	Yes	>11.5
Prop.	2.5, 3.3, 3.5, 4.7, 5.2	0.583 × 0.583	1.74	Yes	4	Yes	>28

shows a comparative analysis of the developed frequency agile quad-port MIMO antenna and existing MIMO antennas. The MIMO antenna designs investigated in [6,12] were quad-port with isolated ground planes, but demonstrated single-band operation. The four-port MIMO antenna designs investigated in [6,33] occupied more substrate area and were not frequency agile. The four-element MIMO antenna designs proposed in [4,24] were compact, but had fixed single- or dual-band operation. The MIMO antennas reported in [20,23,25,27,28] were only two-port antenna configurations, with only a few designs displaying frequency diversity.

5. Conclusions

In this paper, a frequency agile quad-port MIMO antenna is designed and tested for multiple 5G application bands. The MIMO elements are made up of two patches, where the lower patch edges are modified by etching a pair of ellipses to increase the current path to achieve miniaturization. The upper patch is slotted and loaded with an SRR to achieve multiband operation. An RF PIN diode is embedded between both patches (lower and upper) to enable the frequency diversity feature, enabling the presented antenna structure to achieve multi-functionality. The antenna is developed on the FR-4 substrate, which is a low-cost substrate, and occupies a relatively small area. The antenna has a reasonable gain, which can be further increased by employing a reflector or meta-surface placed at the back side of the radiator at an appropriate distance. Furthermore, the orthogonal placement of the radiating elements on the edges of the antenna’s substrate (with an inter-element distance of 0.17λ₀, where λ₀ is calculated at the lowest operating band) for high isolation, and a connected ground plane makes it a suitable candidate for the 5G application bands n41/n46/n48/n79.
