Research on Torque Characteristics of Vehicle Motor under Multisource Excitation

Abstract

A hub motor is integrated into an electric wheel. The external excitation is complex and the heat dissipation conditions are poor. The working temperature of the hub motor easily becomes too high, resulting in large fluctuations in the output torque, which affect its service life. Taking a four-wheel hub-driven electric vehicle as the research object and aiming to resolve the issue of inaccurate prediction of the output torque of the hub motor in the real operating environment of the vehicle, a method for analyzing the temperature rise and torque characteristics of the hub motor considering multisource excitation and magnetic–thermal bidirectional coupling is proposed. First, the multisource excitation transmission path of the hub motor and the coupling principle of the road-electric wheel-vehicle body suspension system are analyzed from three aspects: the electromagnetic effect of the hub motor itself, the tire-ground effect, and the interaction between suspension (body) and electric wheel. We concluded that the load torque and air gap change in the motor are the key factors of its torque characteristics. On this basis, a dynamic model of the road-electric wheel-suspension-vehicle body system, an electromagnetic field model of the hub motor, and a temperature field model are established, and the influence of load torque and air gap change on the loss of in-wheel motor under multisource excitation is analyzed. Furthermore, based on the magnetic–thermal bidirectional coupling method, the motor loss under the combined action of load torque and air gap change is introduced into the temperature field model, and combined with the electromagnetic field model of the hub motor, the temperature distribution law and torque characteristics of the hub motor are accurately predicted. Finally, the accuracy and effectiveness of the calculation results of the temperature and torque characteristics of the hub motor are verified via an electric wheel bench test.

1. Introduction

Distributed drives, especially hub drives, are regarded as some of the most promising drive carriers for the next generation of new energy vehicles, intelligent driving vehicles, and driverless vehicles due to their high degree of electrification, controllability, and intelligence. As the core component of distributed drive vehicles, hub motors must have a high power density, a large starting torque, and a strong overload capacity [1,2]. Under complex road conditions and variable operating conditions, and due to the narrow space of the hub motor of the distributed drive vehicle, circulation of the surrounding air is difficult, making the working temperature of the hub motor too high and aggravating the magnetic loss [3,4]. This will not only greatly affect the working life of the hub motor but also cause output torque fluctuations in such a way that the vehicle power output is unstable and uncontrollable, which can easily lead to safety accidents [5,6,7,8]. Therefore, it is very important to study the coupling mechanism of the multisource excitation of the hub motor and its influence on the temperature rise and torque output characteristics of the hub motor under the actual operating conditions of distributed drive vehicles.

Domestic and foreign scholars have performed much research on the temperature rise characteristics and torque characteristics of hub motors [9]. In [10], the thermal conductivity of the winding, stator core, and air gap of the direct drive hub motor and the heat dissipation coefficient of the inner and outer surfaces of the casing were studied. The authors in [11,12,13] studied the distribution of and variation in the electromagnetic loss and temperature characteristics of hub motors under different load conditions. The authors in [14] studied the loss and temperature rise distribution characteristics of each component of the hub motor under different air gap lengths. The authors in [15,16,17] studied the temperature rise characteristics caused by heat loss due to internal factors such as the iron core, winding, and permanent magnet in the hub motor. The authors in [18] noted that under the influence of external factors such as ambient temperature, altitude, and road excitation, the temperature of the iron core, winding, and permanent magnet inside the hub motor will further increase. The authors in [19] proposed a transient thermal model of the in-wheel motor, ignoring the influence of the leakage magnetic field and the leakage electric field. The internal temperature is constantly changing, the winding resistance value is also changing, and the ohmic loss increases. The work in [20] is based on the Bertotti theory; the iron loss is divided into hysteresis loss, eddy current loss, and additional loss according to the thermal mechanism. The time-stepping finite element analysis of each component is carried out to obtain the variation law of magnetic flux density. The classical eddy current loss is only related to the change rate of magnetic flux density. The authors in [21] analyzed the iron loss of the motor by combining the harmonic analysis method and the finite element method. Despite the machining accuracy and magnetic flux density difference of the yoke teeth, the magnetic flux density wave at any given point of the in-wheel motor was decomposed into a series of elliptical harmonic magnetic flux density vectors, and the voltage harmonic frequency that maximizes the stator iron loss was obtained. According to [22], through the JMAG built-in function block, the eddy current loss of the iron core is calculated by the fast Fourier transform (FFT), and the hysteresis loss is calculated by the loop analysis method. The authors in [23] show that due to the rotating magnetic field generated by the energization of the stator excitation winding, eddy current-like electromotive force and current will be induced in the permanent magnet. The magnitude is inversely proportional to the axial length and resistivity of the permanent magnet and is proportional to the volume of the permanent magnet, the alternating frequency of the magnetic field, the proportional constant of the electromotive force, and the maximum magnetic flux density. The eddy current loss and hysteresis loss are generated by the time-varying magnetic field at the working point of the magnet. The slot effect of the motor leads to a change in the air gap reluctance and causes additional changes in the magnetic field of the magnet, even under no-load conditions. Most of the above scholars’ research on the temperature rise characteristics of in-wheel motors analyze the variation law of the temperature rise of in-wheel motors from the internal factors such as material properties and structural parameters that affect the temperature rise of the motor and rarely consider the external complex factors that affect the temperature characteristics of the motor.

Moreover, when considering external factors, the existing research usually assumes external conditions and often ignores the various excitation effects of the hub motor in the actual operating environment of the vehicle. The authors in [24] reported that the hub motor will be excited by the vibration of the road through the tire and the vibration of the body through the suspension, indicating that the air gap between the stator and rotor of the hub motor will change under various excitations, and then, the magnetic pull of the motor will change. The authors in [25,26] studied the variation in the unbalanced magnetic pull under the influence of road excitation and motor torque fluctuation excitation. The authors in [27] characterized the force between the stator and rotor (that is, unbalanced magnetic pull) by simulating the radial magnetic pull of the hub motor under different air gap spacings and studied the relative offset of the stator and rotor of the hub motor in the actual operating environment of the vehicle with the help of a dynamic model of the hub drive suspension. The authors in [28,29] explained that when the vehicle is traveling at a constant speed on the road, it must overcome the rolling resistance from the ground, the air resistance from the air, and the slope resistance. At the same time, the vehicle speed changes, and the rolling resistance is also different. This is an essential factor for studying the actual power and cruising range of a vehicle. An increase in the temperature of the motor is unavoidable, and this temperature rise will lead to changes in the thermally sensitive materials in the motor, such as in the winding resistance and permanent magnet properties; that is, an increase in the temperature will increase the winding resistance, weaken the magnetic properties of the permanent magnet and even cause demagnetization, which will affect the actual output torque of the motor. In [30], a dynamic loss model of the electric drive system considering the change in the temperature rise characteristics of the motor was established; combined with the dynamic characteristics of the battery voltage, a torque distribution strategy with minimum loss of the electric drive system was proposed, but the influence of temperature on the torque was not considered. The authors in [31,32] studied the influence of motor temperature changes on the output torque of the hub motor through finite element simulation. When the motor temperature rises, the back EMF, air gap flux density, and output torque of the motor decrease, but these studies all ignored the various excitations experienced by the hub motor in the actual operating environment of the vehicle also affect its actual output torque. The authors in [33] studied the influence of road excitation, extracted the vibration velocity response curves of the stator and rotor from a vehicle dynamics model, loaded them into a thermal–fluid coupling analysis model of the hub motor as the excitation load, and analyzed the temperature change but did not consider the influence of the unbalanced magnetic pull of the motor on its vibration, the influence of the actual load torque of the vehicle on the temperature rise of the motor, or the relationship between the output torque and the temperature rise.

According to the research literature that has been consulted at present, most scholars’ research on the temperature rise characteristics of hub motors mainly focuses on various electromagnetic characteristics and temperature changes under steady-state conditions. Regarding the internal temperature change in the motor caused by ‘magnetic–thermal coupling’ under transient conditions, they do not consider the influence from the external environment. At the same time, the research on the torque of the hub motor focuses on the influence of temperature rise caused by its internal factors, and the influence of external excitation on the torque characteristics of the in-wheel motor under temperature rise during the actual operation of the vehicle remains to be further studied.

In view of the shortcomings of the above research on the temperature rise characteristics and torque characteristics of hub motors, this paper proposes a method for analyzing the temperature rise and torque characteristics of hub motors, given multisource excitation and magnetic–thermal bidirectional coupling. This method considers the excitation of the radial electromagnetic force generated by the rotor eccentricity of the hub motor transmitted to the suspension system, the excitation of the road surface and the body transmitted to the hub motor stator and rotor, and the rolling resistance torque excitation with the change in vehicle speed. The load torque changes in the hub motor caused by the rolling resistance torque at different motor speeds, and the air gap changes caused by the excitation of the road surface transmitted to the hub motor stator and rotor through the tire and of the body transmitted through the suspension, are studied. The two change results are fed back into the electromagnetic field model of the hub motor to analyze the loss distribution law of each component of the motor. The magnetic–thermal bidirectional coupling method is used to introduce the motor loss into the temperature field model to analyze the spatial distribution of the temperature rise characteristics in the magnetic–thermal coupling of the hub motor, and the output torque variation law caused by the temperature rise of the hub motor is obtained. The accuracy and effectiveness of the temperature rise characteristics of the hub motor calculated by the proposed method are verified by a temperature rise test of a prototype.

This article is arranged as follows: The second section presents an analysis of the multisource excitation of the hub motor. The purpose is to explain the sources of multisource excitation and the influencing factors (output torque change and air gap deformation) that affect the temperature rise of the motor and the torque change caused by the temperature rise. The third section introduces the model. The purpose is to analyze the temperature rise of the motor and the torque change caused by the temperature rise. The fourth section presents the result analysis. The purpose is to analyze the influence of the output torque and air gap deformation on the motor loss, the law of the motor temperature rise, and the law of the torque change caused by a temperature rise. The fifth section describes the experimental verification, and the simulation results are verified and compared. The sixth section presents the conclusion, which summarizes the full text.

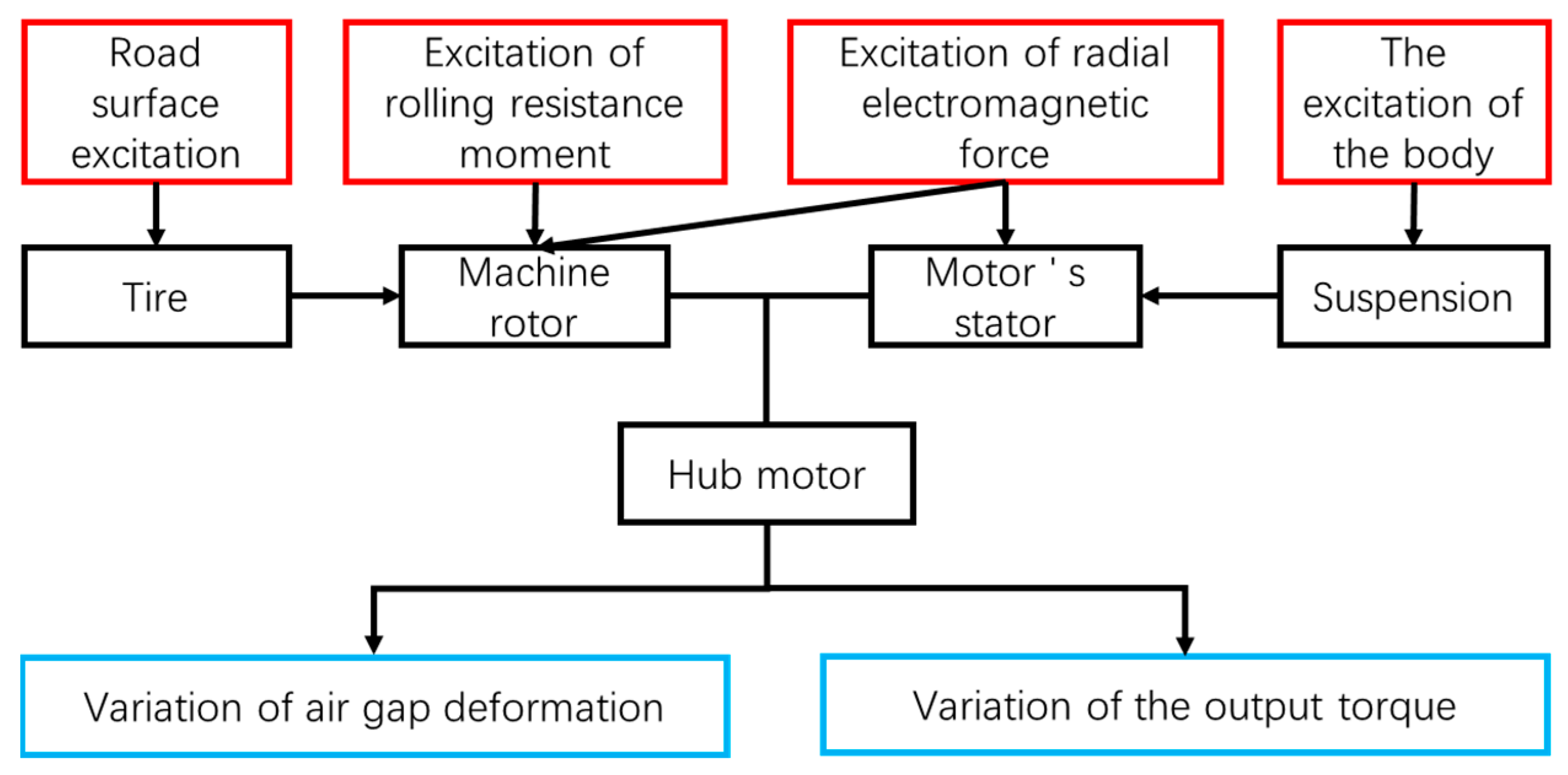

2. Multisource Excitation Analysis of the Hub Motor

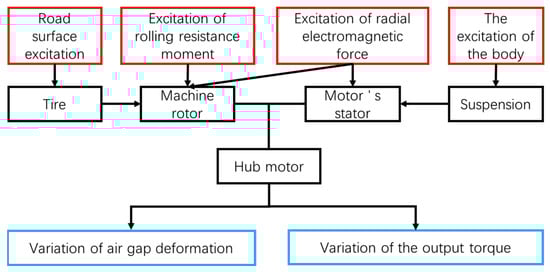

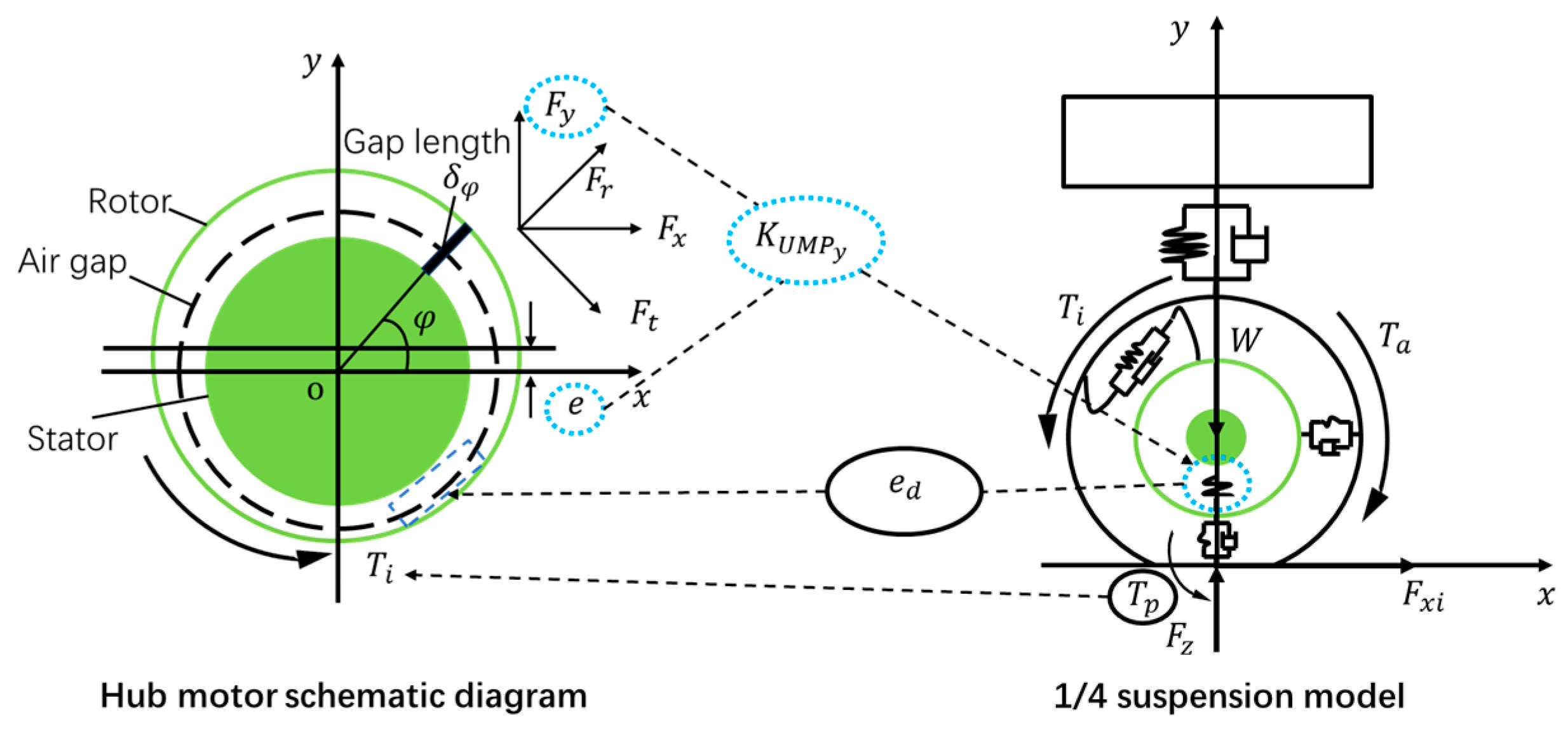

The hub motor is highly integrated with the tire and complements and interacts with the vehicle suspension system. In the process of uniform flat motion of the vehicle, the hub motor is subjected to multisource excitation from itself and from the outside world (mainly from four aspects: first, the electromagnetic force excitation caused by the relative eccentricity of the internal stator and rotor; second, the excitation of transverse and longitudinal forces of the road surface (uneven road excitation) acting on the rotor of the hub motor; third, the excitation of the body transmitted through the suspension acting on the hub motor stator; and fourth, the excitation of the rolling resistance moment transmitted to the rotor of the hub motor with the change in the vehicle speed), as shown in Figure 1. From the multisource transmission path diagram, it can be seen that the road excitation will be transmitted to the hub motor rotor through the tire, the body excitation will be transmitted to the hub motor stator through the suspension, the radial electromagnetic force generated by the eccentricity of the hub motor rotor will act on the stator and rotor, and the rolling resistance torque excitation under the influence of different speeds will act on the hub motor rotor through the tire. Under the combined action of various excitations, the vibration will affect the ride comfort of the vehicle through the suspension. Additionally, it will cause vibration of the hub motor itself and accelerate the damage of the hub motor; due to the change in the rolling resistance torque, the torque control of the motor will be unstable, which will affect the dynamic performance of the vehicle. The influence of various excitations on the hub motor is mainly reflected in the change in the air gap deformation and load torque. Through the above analysis, the coupling principle of the road surface-electric wheel-suspension system is obtained, as shown in Figure 2. To obtain the changes in the air gap deformation and load torque of the stator and rotor during motor operation, the rolling resistance torque $T_p$ of the vehicle in the actual operating environment must be calculated, and then the load torque $T_i$ of the motor can be determined. Then, the component $F_y$ of the unbalanced magnetic pull force in the $Y$ direction under different eccentricity $e$ values of the stator and rotor of the hub motor must be calculated. The relationship between the eccentricity $e$ and the component $F_y$ of the unbalanced magnetic pull force in the $Y$ direction is obtained, that is, the air gap magnetic field stiffness $K_{UM{P}_y}$. Finally, the air gap deformation $e_d$ of the hub motor and the influence of the air gap magnetic field stiffness $K_{UM{P}_y}$ are calculated. Through the above method, the important factors affecting the temperature rise of the hub motor (the change in the air gap deformation of the stator and rotor and the change in the output torque) can be obtained, and the temperature rise law of the motor can be obtained under the combined action of the two influencing factors. With increasing motor temperature, the variation law of the output torque $T_a$ of the motor can be found.

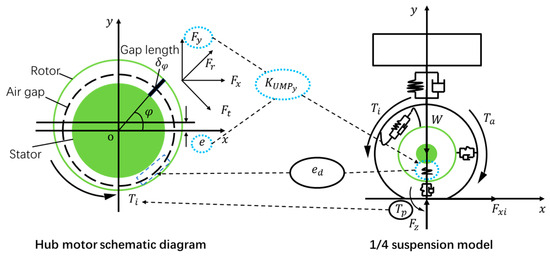

In Figure 2, $T_p$ is the rolling resistance moment of the vehicle, $T_i$ is the load torque of the hub motor, $T_a$ is the output torsion of the hub motor, $W$ is the vertical load of the tire, $e$ is the eccentricity of the stator and rotor, $e_d$ is the air gap deformation, $F_x$ and $F_y$ are the components of the radial magnetic pull in the $X$ and $Y$ directions, $F_r$ and $F_t$ are the radial magnetic pull and tangential magnetic pull, $\phi$ is the mechanical rotation angle, $K_{UM{P}_y}$ is the stiffness of the air gap magnetic field in the $Y$ direction, $F_Z$ is the normal reaction force of the ground on the tire, and $F_{xi}$ is the tangential reaction force of the ground on the tire (the value is the driving force minus the rolling resistance of the wheel).

The vehicle must overcome the rolling resistance from the ground, the air resistance from the air, and the gravity component along the ramp (slope resistance). If the air resistance and slope resistance are not considered, then only the rolling resistance from the ground needs to be calculated. When the vehicle is running at a constant speed, the rolling resistance torque $T_p$ received by the tire will act as the load torque $T_i$ on the hub motor, and the rolling resistance torque is related to the vertical load W received by the tire. As shown in Figure 3, the rolling resistance is equal to the product of the rolling resistance coefficient and the vertical load $W$ [34], i.e.,

$$F_f=Wf$$

(1)

It can also be expressed as follows:

$$F_f=\left(W_s+W_d\right)f$$

(2)

where $F_f$ is the rolling resistance; $f$ is the rolling resistance coefficient; $W_s$ is the vehicle static load; and $W_d$ is the tire dynamic load.

The rolling resistance moment is the following:

$$T_p=F_{f}R$$

(3)

where $R$ is the rolling radius of the tire.

The following empirical formula is used to calculate the tire rolling resistance coefficient $f$:

$$f=f_0+f_1\left(\frac{u_a}{100}\right)+f_3{\left(\frac{u_a}{100}\right)}^4$$

(4)

where $u_a$ is the vehicle speed, km/h, and $f_0$, $f_1$, and $f_3$ are fitting parameters; in this paper, $f_0$ = 0.012, $f_1$ = 0.0034, and $f_3$ = 0.001.

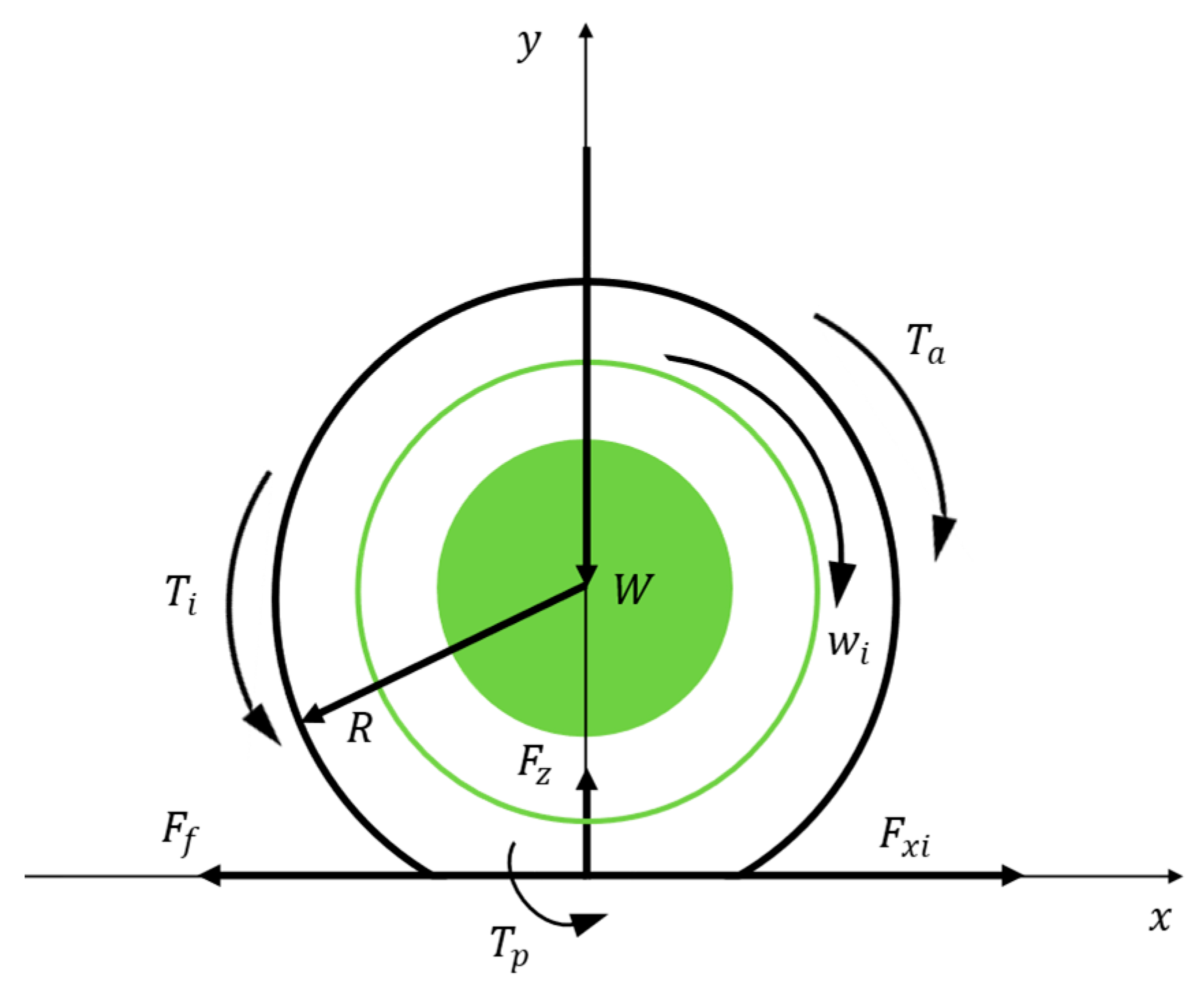

From Figure 3, the wheel rotation dynamics equation can be obtained [35] as follows:

$$T_a-F_{f}R=F_{xi}R=J_{wi}\frac{d{w}_i}{dt}$$

(5)

where $J_{wi}$ is the moment of inertia of the wheel around the wheel center and $w_i$ is the wheel angular velocity.

The tangential reaction torque $F_{xi}R$ of the ground acting on the tire is the combined torque that truly drives the vehicle, and its value equals the motor output torque $T_a$ minus the rolling resistance torque $F_{f}R$. When the vehicle is traveling at a constant speed, the wheel angular acceleration $\frac{d{w}_i}{dt}$ is zero, and the combined torque driving the vehicle is zero; that is, the motor output torque is completely used to overcome the rolling resistance torque with $T_a$ = $F_{f}R$ = $T_p$. Therefore, the actual output torque of the hub motor is related to the rolling resistance torque, and the rolling resistance torque acts on the hub motor in the form of a load torque, that is, $T_p$ = $T_i$.

To determine the actual load torque of the hub motor, the component $F_y$ of the unbalanced magnetic pull force in the $Y$ direction under different air gap spacing, $e$ values of the hub motor are calculated. Usually, the air gap magnetic field distribution is uniform, and the rotor does not bear an unbalanced magnetic pull. However, when the rotor static eccentricity leads to distortion of the radial air gap magnetic field, an unbalanced magnetic pull will be generated, which makes the rotor force uneven. After the finite element model of the hub motor is established and solved, the air gap flux density can be extracted, and then the component $F_y$ of the unbalanced magnetic pull in the $Y$ direction is obtained from the following formula [36,37,38,39]:

$$F_y=\frac{l{r}_p}{2{\mu }_0}{{\displaystyle \int }}_0^{2\pi }\left[(B_{rp}^2-B_{tp}^2)\sin \phi +2B_{rp}{B}_{tp}\cos \phi \right]d\phi$$

(6)

$$B_{rp}=B_x\cos \phi +B_y\sin \phi$$

(7)

$$B_{tp}=B_y\cos \phi -B_x\sin \phi$$

(8)

where $l$ is the axial length of the silicon steel sheet of the rotor; $r_p$ is the integral radius of the unbalanced magnetic pull; $B_{rp}$ and $B_{tp}$ are the radial magnetic density and tangential magnetic density, respectively; and $B_x$ and $B_y$ are the $X$ and $Y$ components of the magnetic induction intensity, respectively.

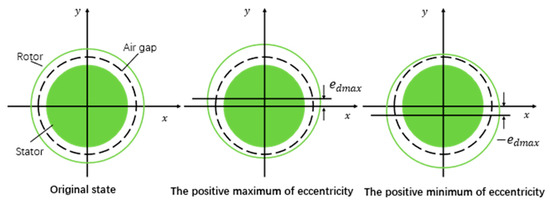

Through the relationship between the air gap spacing $e$ and the component $F_y$ of the unbalanced magnetic pull in the $Y$ direction, the force between the stator and the rotor is obtained, that is, the air gap magnetic field stiffness $K_{UM{P}_y}$, and $K_{UM{P}_y}$ is added to the hub-driven suspension dynamics model. The force and relative offset between the stator and the rotor during actual operation are simulated, and the relative offset $e_d$ of the stator and the rotor is extracted. By setting the maximum dynamic eccentricity $e_{dmax}$ of the rotor, the displacement changes in the rotor of the hub motor relative to the stator in the $\mathrm{Y}$ direction (as shown in Figure 4) are used to simulate the displacement change law of the motor under the influence of various excitations in the actual operation process. From Equation (9), the maximum dynamic eccentricity $e_{dmax}$ and the relative offset $e_d$ of the stator and rotor can be obtained.

.

$$e_d=e_{dmax}\sin \left(2\pi \frac{n}{60}t\right)$$

(9)

where $e_{dmax}$ is the maximum displacement of the relative offset $e_d$, mm; $n$ is the hub motor speed, rpm; and $t$ is time, s.

3. Model Introduction

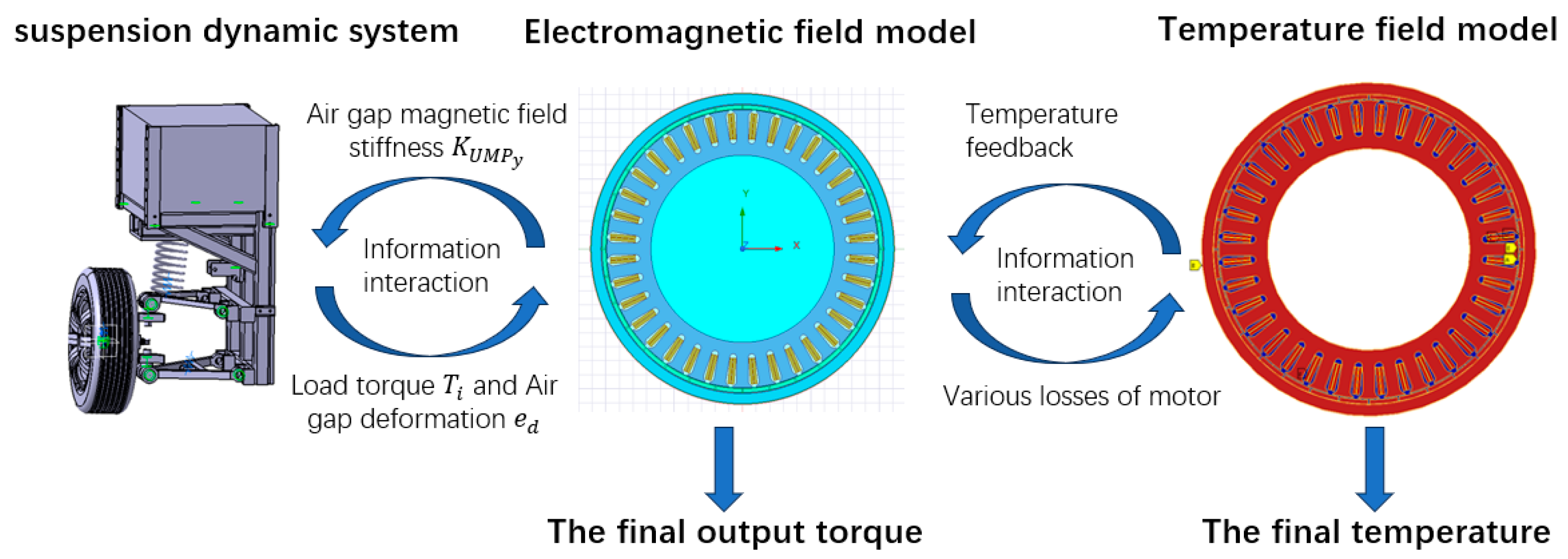

To obtain the temperature rise characteristics and output torque characteristics of the hub motor under the magnetic–thermal coupling, it is necessary to establish a suspension dynamics model under the action of the road surface and the hub motor and calculate the driving resistance torque in the vehicle operating environment, that is, the load torque of the motor. An electromagnetic field model of the hub motor is established, the variation law of the unbalanced magnetic pull is analyzed, and the stiffness of the air gap magnetic field is then obtained. The air gap deformation of the hub motor and the loss of each component of the motor are analyzed by combining the electromagnetic field model and the suspension dynamics model. On this basis, a temperature field model of the hub motor is established, and the temperature rise variation law under changes in the air gap and load torque is analyzed. Finally, the temperature calculated by the temperature field model is fed back into the electromagnetic field model to further analyze the change law of the output torque caused by the temperature rise of the motor, as shown in Figure 5.

3.1. Suspension Dynamics Model Considering the Hub Motor

The hub motor is installed in the wheel, and the radial force generated by the hub motor directly acts on the stator and rotor. At the same time, the road excitation directly acts on the rotor of the hub motor through the wheel, and the body vibration excitation also acts on the stator through the suspension, making the air gap change. During the operation of the hub motor, the driving resistance torque of the vehicle is used as the load input of the hub motor and affects the output torque of the motor. Therefore, the suspension dynamics model under the action of the road surface and hub motor must be analyzed.

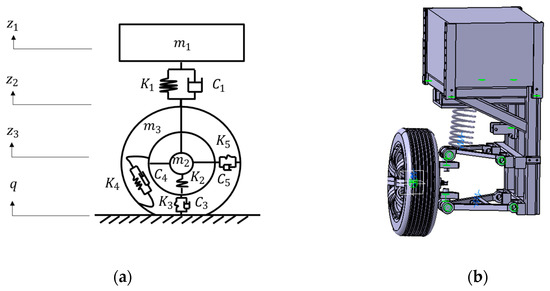

As shown in the 1/4 suspension model principle of the hub-driven suspension in Figure 6a, the tire and the hub motor rotor are connected by the sidewall, and the sidewall is equivalent to the torsional stiffness, longitudinal translation stiffness, and vertical stiffness. The stator and rotor of the hub motor are connected by bearing $m_2$, where the stiffness $K_2$ is the bearing stiffness; body $m_1$ is connected to unsprung masses $m_2$ and $m_3$ through springs and shock absorbers.

According to the dynamic model established in Figure 6, the following vertical dynamic equation is obtained:

$$m_1{\ddot{Z}}_1=-K_1\left(Z_1-Z_2\right)-C_1\left({\dot{Z}}_1-{\dot{Z}}_2\right)$$

(10)

$$m_2{\ddot{Z}}_2=-K_1\left(Z_2-Z_1\right)-C_1\left({\dot{Z}}_2-{\dot{Z}}_1\right)-K_2\left(Z_2-Z_3\right)$$

(11)

$$m_3{\ddot{Z}}_3=-K_2\left(Z_3-Z_2\right)-K_3\left(Z_3-q\right)-C_3\left({\dot{Z}}_3-\dot{q}\right)$$

(12)

where $m_1$ is the body mass; $m_2$ is the mass of the stator, bearing, and swing arm of the hub motor; $m_3$ is the mass of the hub motor rotor and tire carcass; $K_1$, $K_2$ and $K_3$ are the spring stiffness, bearing stiffness, and tire vertical stiffness, respectively; and $C_1$ and $C_3$ are the shock absorber damping coefficient and tire vertical damping coefficient, respectively.

Based on the above analysis, a multibody dynamics model is established, as shown in Figure 6b, and the parameters are shown in

Table 1. Wheel drive suspension parameters.

Parameter	Value	Parameter	Value
$\mathrm{Body} \mathrm{mass} m_1$$(\mathrm{kg}$)	181.90	$\mathrm{Tire} \mathrm{longitudinal} \mathrm{stiffness} K_1$$(\mathrm{N}·{\mathrm{m}}^{-1}$)	371,800
$\mathrm{Bearing}, \mathrm{swing} \mathrm{arm} \mathrm{and} \mathrm{other} \mathrm{mass} m_2$$(\mathrm{kg}$)	28.37	$\mathrm{Tire} \mathrm{torsional} \mathrm{stiffness} K_1$$(\mathrm{N}·{\mathrm{rad}}^{-1}$)	55,634
$\mathrm{Hub} \mathrm{motor} \mathrm{rotor} \mathrm{and} \mathrm{tire} \mathrm{carcass} \mathrm{mass} m_3$$(\mathrm{kg}$)	73.16	$\mathrm{Tire} \mathrm{vertical} \mathrm{stiffness} K_3$$(\mathrm{N}·{\mathrm{m}}^{-1}$)	220,000
Tire rolling radius (m)	0.35	$\mathrm{Shock} \mathrm{absorber} \mathrm{damping} \mathrm{coefficient} (\mathrm{N}·\mathrm{m}·{\mathrm{s}}^{-1})$	4000
$\mathrm{Spring} \mathrm{stiffness} K_1$$(\mathrm{N}·{\mathrm{m}}^{-1}$)	33,700	$\mathrm{Tire} \mathrm{vertical} \mathrm{damping} \mathrm{coefficient} (\mathrm{N}·\mathrm{m}·{\mathrm{s}}^{-1})$	50
$\mathrm{Bearing} \mathrm{stiffness} K_2$$(\mathrm{N}·{\mathrm{m}}^{-1}$)	6.2 × 106	$\mathrm{Tire} \mathrm{longitudinal} \mathrm{damping} \mathrm{coefficient} (\mathrm{N}·\mathrm{m}·{\mathrm{s}}^{-1})$	50

.

3.2. Finite Element Model of the Electromagnetic Field of the Hub Motor

In this paper, a 3 kW hub motor for pure electric vehicles is taken as the research object, and its structure consists of an outer rotor permanent magnet synchronous motor.

Table 2. Main parameters of the hub motor.

Parameter	Value	Parameter	Value
Motors’ rated speed	600 rpm	Coil diameter	0.04 mm
Motor rated power	3000 W	Permanent magnet thickness	3.1 mm
Motor rated voltage	72 V	Motor length	60.5 mm
Rotor inner diameter	200 mm	Ferrite magnetic materials	NdFe35
Rotor outer diameter	222 mm	Rotor and stator materials	DW310
Stator inner diameter	134 mm	Winding material	Copper
Stator outer diameter	198.4 mm		Hs0: 0.7 mm
Average air gap length of motor	0.8 mm		Hs2: 3.25 mm
Number of pole-pairs	16	Groove parameter	Bs0: 3.25 mm
Number of stator slots	36		Bs1: 8 mm
Number of turns per phase coil	280		Bs2: 5 mm

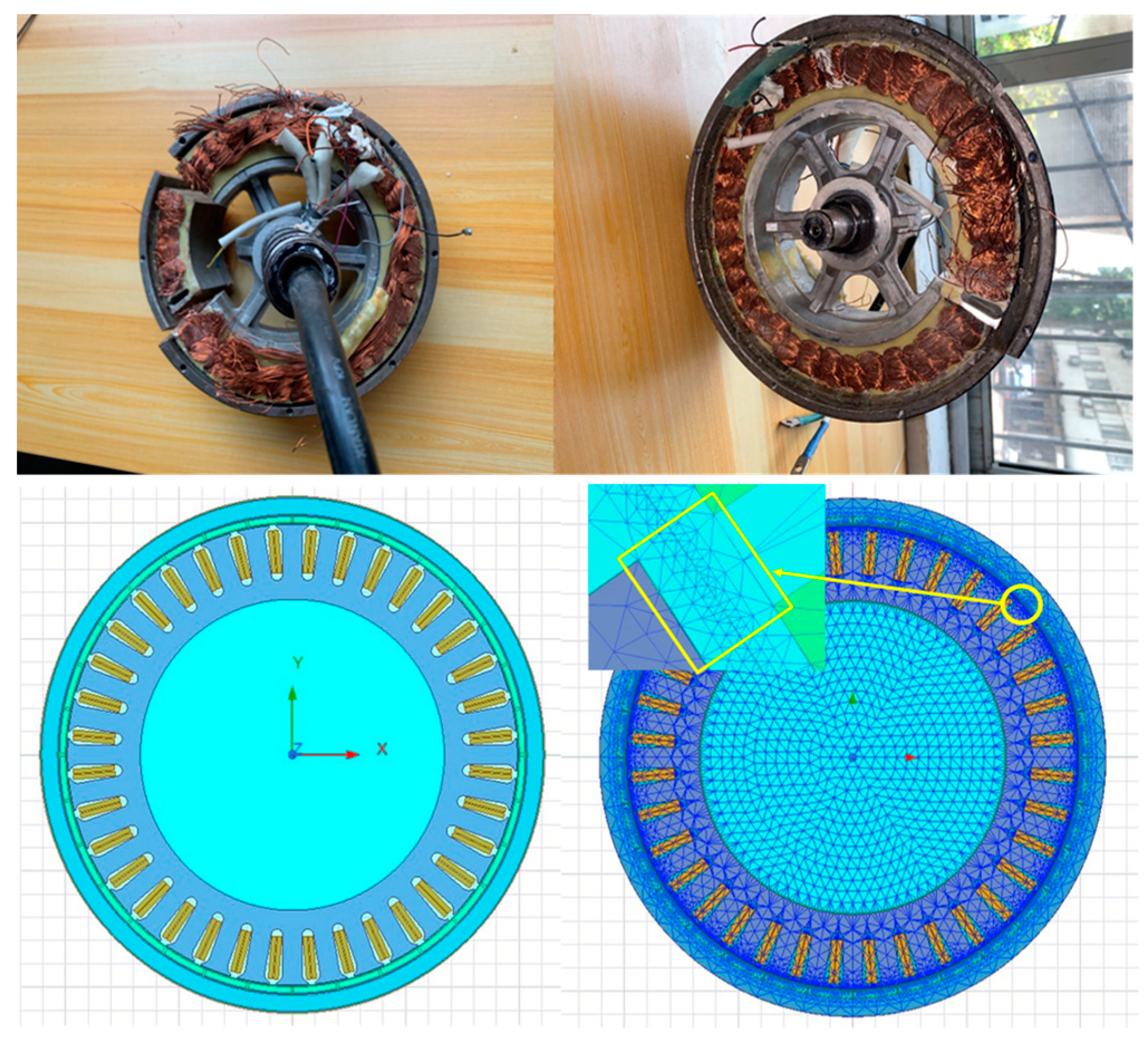

shows the main parameters of the hub motor. Figure 7 shows the finite element model of the hub motor established by Ansys/Maxwell, in which the total grid number is 89,300, the box is the grid detail at the air gap.

On the basis of the above, the relationship between the speed and the output torque is obtained by setting the voltage to 72 V and setting different speeds. The electromagnetic field model of the hub motor is verified. As shown in Figure 8, when the speed is low, the hub motor can provide a larger output torque. In contrast, when the speed is high, the output torque it can provide rapidly decreases. The simulation and test have errors to a certain extent, and the maximum error does not exceed 10.9%. The trends of the two are the same, which indicates the applicability of the theory for trend research. This paper will focus on the research and analysis of the hub motor under the three speed conditions of 200 rpm, 400 rpm, and 600 rpm (that is, speeds of 26 km/h, 52 km/h, and 78 km/h).

The finite element model of the electromagnetic field is established mainly to analyze the loss of each component of the motor, and the temperature rise of the motor is caused by various internal losses. The internal losses of the motor mainly include the core loss, winding loss, and permanent magnet loss. The loss calculation of the electromagnetic field is input into the finite element analysis of the temperature field in the form of a thermal load or input into the thermal network analysis of the temperature field in the form of a heat source.

The hub motor losses [40] can be expressed as follows:

$$P=P_{Fe}+P_{Cu}+P_e$$

(13)

They can also be written as follows:

$$P=K_b\tau B_m^2+K_e{\tau }^2{B}_m^2+K_{ex}{\left(\tau B_m\right)}^{\frac{3}{2}}+3I^{2}R+{{\displaystyle \int }}^{ }{V}_m\frac{{\left|J\right|}^2}{2\sigma }$$

(14)

where $P$ is the total loss of the motor; $P_{Fe}$ is the core loss of the hub motor; $K_b$, $K_e$, and $K_{ex}$ are the core hysteresis loss coefficient, the core eddy current loss coefficient, and the core additional loss coefficient, respectively; $\tau$ is the alternating frequency; $B_m$ is the magnetic flux density; $P_{Cu}$ is the winding loss; $I$ is the phase current of the motor winding; $R$ is the motor winding resistance; $P_e$ is the eddy current loss of the permanent magnet of the hub motor; $V_m$ is the volume of the permanent magnet; $J$ is the current density; and $\sigma$ is the conductivity of the permanent magnet.

3.3. Finite Element Model of the Hub Motor Temperature Field

Due to the need for thermal analysis of the loss calculated by the finite element model of the electromagnetic field as a heat source, a finite element model of the temperature field of the hub motor must be established to determine its temperature rise characteristics. According to the basic law of heat conduction, in the rectangular coordinate system, the transient temperature field in a certain calculation area of the motor is solved as follows [41]:

$$\{\begin{array}{c}c\gamma \frac{\partial T}{\partial t}=\lambda \left(\frac{{\partial }^{2}T}{\partial x^2}+\frac{{\partial }^{2}T}{\partial y^2}+\frac{{\partial }^{2}T}{\partial z^2}\right)+p\\ T{|}_{s_1}=T_0\\ \lambda \left(\frac{\partial T}{\partial x}{n}_x+\frac{\partial T}{\partial y}{n}_y+\frac{\partial T}{\partial z}{n}_z\right){|}_{s_2}=-q\\ \lambda \left(\frac{\partial T}{\partial x}{n}_x+\frac{\partial T}{\partial y}{n}_y+\frac{\partial T}{\partial z}{n}_z\right){|}_{s_3}=-a\left(T-T_0\right)\end{array}$$

(15)

where $c$ is the specific heat capacity; $\gamma$ is the density; $t$ is the time; $T$ is the temperature that changes with time; $\lambda$ is the thermal conductivity; $p$ is the heat source density; $T_0$ is the known temperature distribution on the boundary; $q$ is the boundary heat dissipation caused by heat conduction; $a$ is the heat dissipation coefficient; $n_x$, $n_y$, and $n_z$ are the cosines of the angle between the normal direction of the boundary and the x, y, and z axes, respectively; and $s_1$, $s_2$ and $s_3$ are the first to third types of heat transfer boundary surfaces.

The essence of solving the temperature field by the finite element method is to transform the temperature problem into the extreme value problem of the universal function. According to the variational principle, Equation (15) is transformed into energy functional $I$, as shown below [42,43]:

$$\{\begin{array}{c}I\left(T\right)=\underset{\mathsf{\Omega }}{{\displaystyle \iint }}\{\frac{\lambda }{2}\left[{\left(\frac{\partial T}{\partial x}\right)}^2+{\left(\frac{\partial T}{\partial y}\right)}^2+{\left(\frac{\partial T}{\partial z}\right)}^2\right]+\frac{c\gamma }{2}T\frac{\partial T}{\partial t}-pT\}d\mathsf{\Omega }-\underset{s_2}{{\displaystyle \int }}qTd{s}_2-\underset{s_3}{{\displaystyle \int }}\left(\frac{a}{2}{T}^2-a{T}_{0}T\right)d{s}_3\\ T{|}_{s_1}=T_0\end{array}$$

(16)

Equation (16) can be discretized into algebraic equations, and the temperature distribution problem is transformed into a problem involving a finite number of node temperatures. The temperature at each node can be obtained via this equation. After the overall synthesis, the transient temperature field in the solution domain $\mathsf{\Omega }$ is obtained.

The loss generated by the motor in actual operation will become heat, which will increase the temperature of each part of the motor. The heat transfer process is a comprehensive process of heat conduction and heat convection, which is related to the thermal conductivity and heat dissipation coefficient of the dielectric surface. The equivalent thermal conductivity of stator, rotor, and winding, and the heat dissipation coefficient of the stator end face, outer surface of rotor yoke, and winding end are very important to the calculation accuracy of motor temperature rise.

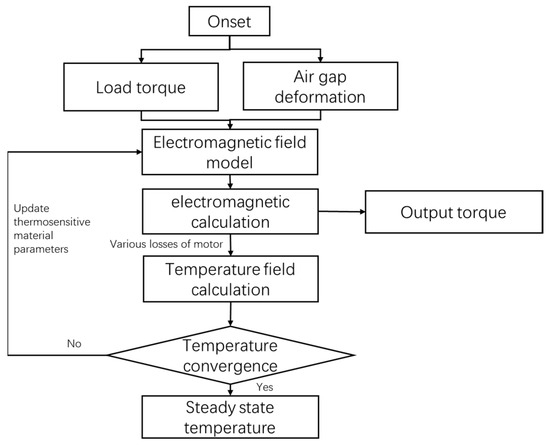

When establishing the magnetic–thermal coupling model of the hub motor, the stator winding model is simplified as follows: the winding copper wire is equivalent to a conductor with the same volume, and the wire insulation layer and the coating between the wires are equivalent to a heat conduction layer evenly distributed around the equivalent winding. The equivalent thermal conductivity of the stator, rotor, and winding [44] is as follows:

$${\alpha }_r=\frac{{\delta }_k+{\delta }_0+{\delta }_x}{\frac{{\delta }_k}{{\alpha }_k}+\frac{{\delta }_0}{{\alpha }_0}+\frac{{\delta }_x}{{\alpha }_x}}$$

(17)

where ${\delta }_k$ and ${\alpha }_k$ are the thickness and thermal conductivity of the conductor insulation in the direction of heat flow, respectively; ${\delta }_0$ and ${\alpha }_0$ are the thickness and thermal conductivity of air and the insulating paint between wires, respectively; and ${\delta }_x$ and ${\alpha }_x$ are the thickness and thermal conductivity of the conductor insulation layer, respectively.

The heat dissipation coefficient of the stator end face is [45] the following:

$$h_{sh}=15+v_r^{0.7}$$

(18)

where $v_r$ is the linear velocity of the rotor surface, m/s.

The heat dissipation coefficient of the outer surface of the rotor yoke is [46] the following:

$$h_k=7.68{\omega }_{air}^{0.78}$$

(19)

where ${\omega }_{air}$ is the air velocity of the rotor accessory, which can be taken as 75% of the speed.

The winding end heat dissipation coefficient is [47] the following:

$$h_{ci}=\frac{N_{uc}{\lambda }_{air}}{d_{et}}$$

(20)

$$N_{uc}=0.103R{e}_c^{0.66}$$

(21)

$$R{e}_c=\frac{\rho \pi R_{r}n{d}_{et}}{30\mu }$$

(22)

$$d_{et}=\frac{\left(R_{sR}+R_r\right)}{2}$$

(23)

where $N_{uc}$ is the Nusselt number at the end of the stator winding; $d_{et}$ is the equivalent diameter of the winding end, $m$; ${\lambda }_{air}$ is the thermal conductivity of air, $\mathrm{W}·{\left(\mathrm{m}·\mathrm{K}\right)}^{-1}$; $R{e}_c$ is the air gap Reynolds number at the end of the winding; $R_{sR}$ and $R_r$ are the diameter of the groove bottom and the inner diameter of the rotor, $m$; $n$ is the motor speed, $\mathrm{r}/\mathrm{s}$; $\rho$ is the air density, $\mathrm{kg}/{\mathrm{m}}^3$; and $\mu$ is the dynamic viscosity of air, $\mathrm{Pa}·\mathrm{s}$.

The air gap heat dissipation coefficient is [48] the following:

$$h_{airgap}=\frac{\left(0.386R{e}_c^{0.5}{P}_r^{0.27}\right){\lambda }_{air}}{g}$$

(24)

$$P_r=\frac{\mu c_p}{{\lambda }_{air}}$$

(25)

where $P_r$ is the Prandtl number and $c_p$ is the specific heat at constant pressure.

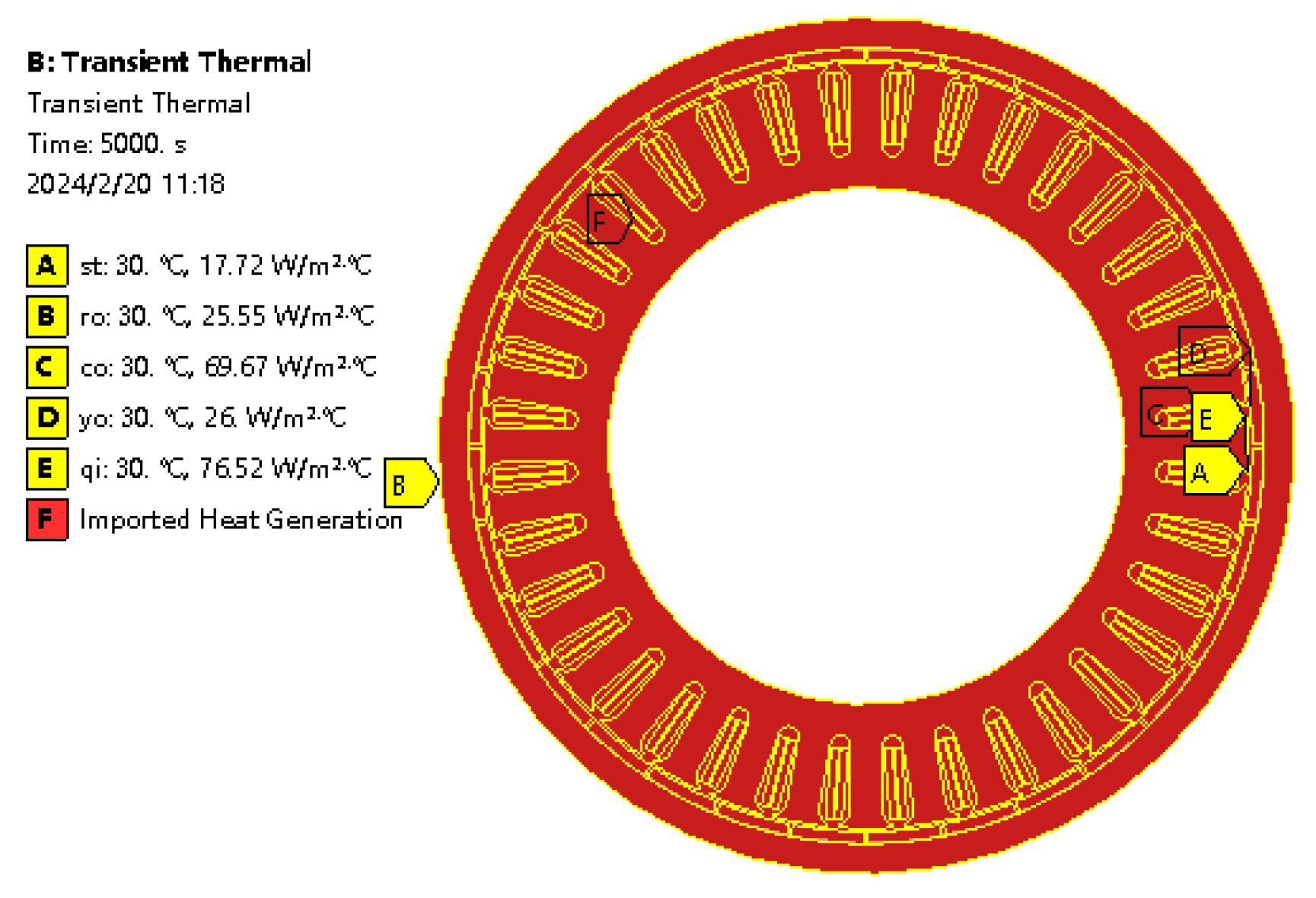

Through the above empirical formula and experience, the thermal parameters of the materials in the model are obtained, as shown in

Table 3. Thermal parameters of the hub motor materials.

Unit	Material	Density (kg/m3)	Specific Heat Capacity (J/kg · °C)	Thermal Conductivity (W/m · °C)	Coefficient of Heat Emission (W/m2 · °C)
Stator	Silicon steel	7700	426	40	17.72
Rotor	10# steel	7800	448	49.8	25.55
Winding	Copper	8954	383.1	386	69.67
Permanent magnet	Nd-Fe-Boron	7500	420	9	26
Equivalent air gap	Air	1.164	1008	0.027	76.52

.

Based on the above analysis results and the parameters required for modeling, a finite element model of the temperature field of a prototype, including the stator core, the stator winding, the rotor, and the air gap, is established. As shown in Figure 9, the model does not have any special cooling devices and relies on the natural circulation of the surrounding air to dissipate heat, ignoring axial heat transfer.

4. Results

According to the analysis of multisource excitation of the hub motor in Section 2, the influence of the load torque and air gap changes on the motor loss must be analyzed. The loss calculation results are imported into the motor temperature field model for temperature field analysis. Finally, the variation law of the motor output torque caused by the temperature rise is analyzed. A simulation comparison analysis is carried out under a working environment of 30 °C, a simulation time of 3000 s, natural air cooling, and uniform speeds of 200 rpm, 400 rpm, and 600 rpm. Two-way coupling simulations of the two-dimensional electromagnetic field and temperature field are carried out, and the temperature rise of the hub motor and the torque output changes in the hub motor are simulated and analyzed, as shown in Figure 10.

4.1. Analysis of Influencing Factors of the Motor Loss

4.1.1. Relationship between the Load Torque and Motor Loss

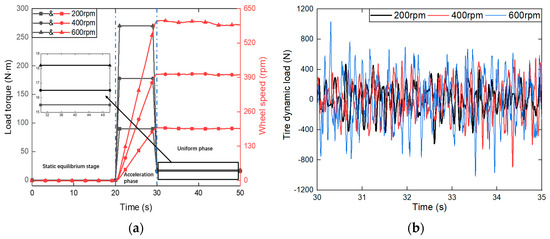

To obtain the load torque of the hub motor, it is necessary to calculate the rolling resistance torque during the actual operation of the vehicle, obtain the relationship between the load torque of the hub motor and its output torque, and then analyze the influence of the load torque on the motor loss. In the case of road grade A, in the simulation, the output torque of the hub motor is loaded at the wheel center through the suspension dynamics model to make the wheel speed reach 200 rpm, 400 rpm, or 600 rpm and then remain at the left and right of the wheel speed. The relationship between the output torque of the hub motor and the wheel speed is shown in Figure 11a, and the dynamic load $W_d$ of the tire is obtained via suspension dynamics calculations, as shown in Figure 11b. The rolling resistance moment of the vehicle at a uniform speed is calculated by theoretical Formula (3) and compared with the output torque of the hub motor loaded at the center of the wheel. As shown in

Table 4. Comparison of the rolling resistance torque theoretical and simulation values under different working conditions.

Motor Speed/rpm	Tire Dynamic Load/N	Rolling Resistance Torque (Theoretical Calculation)/N · m	Rolling Resistance Torque (Simulation Calculation)/N · m	Precision
200	165.59	13.54	15.50	87.35%
400	238.08	14.92	16.50	90.42%
600	313.40	16.64	18.10	91.93%

, the rolling resistance moment calculated by the formula is compared with the output torque loaded at the center of the wheel obtained by simulation. The accuracy is above 87%, indicating that the output torque of the hub motor loaded at the center of the wheel under the support of the theoretical formula is correct.

After the rolling resistance moment in the actual running process of the vehicle is calculated with the suspension dynamics model, it is input into the electromagnetic field model of the hub motor as the load torque to obtain the output torque of the motor and the loss of each component without considering the temperature rise. Figure 11a shows that when obtaining the output torque of the hub motor in the actual operating environment, the actual operating conditions of the vehicle need to be considered. It is not necessarily how much torque is output according to the corresponding speed shown in Figure 8 that is of interest but how much torque is output according to the actual load torque of the vehicle.

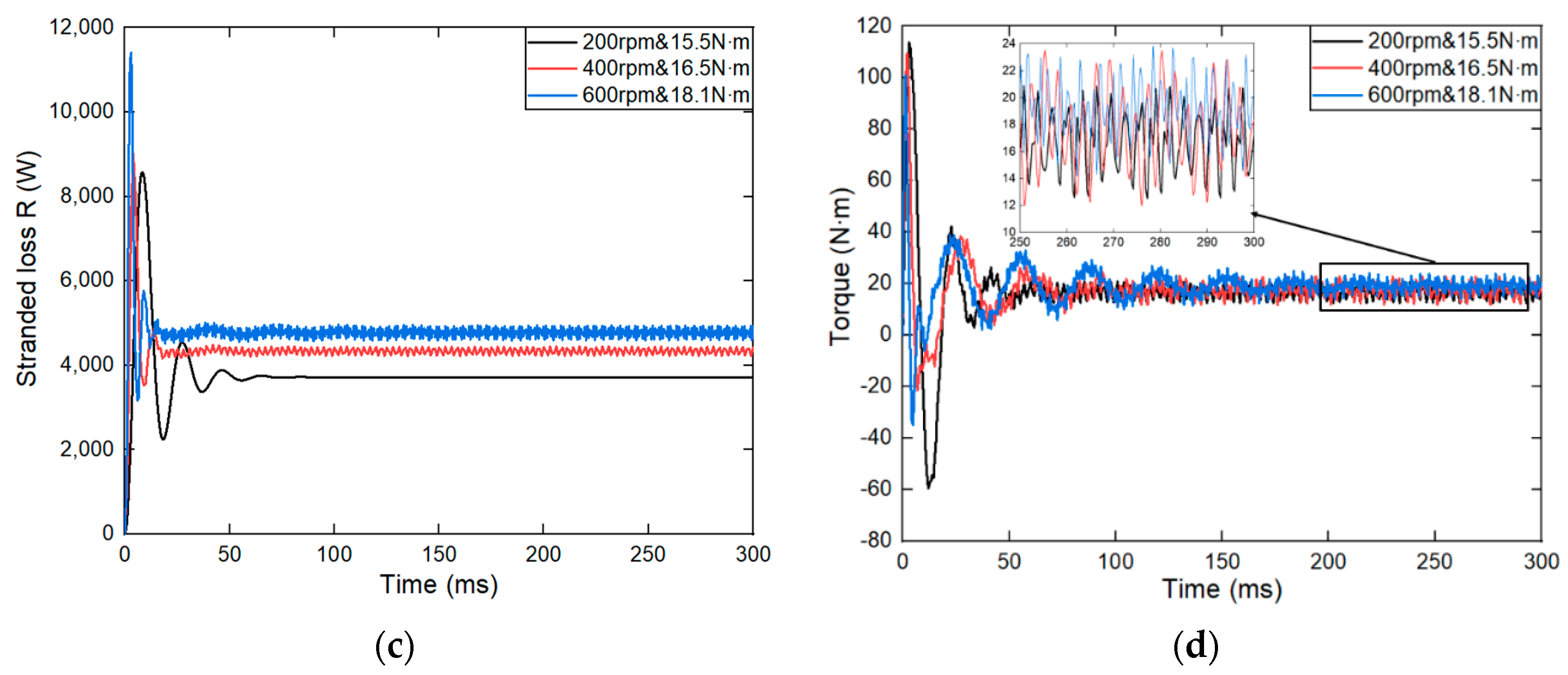

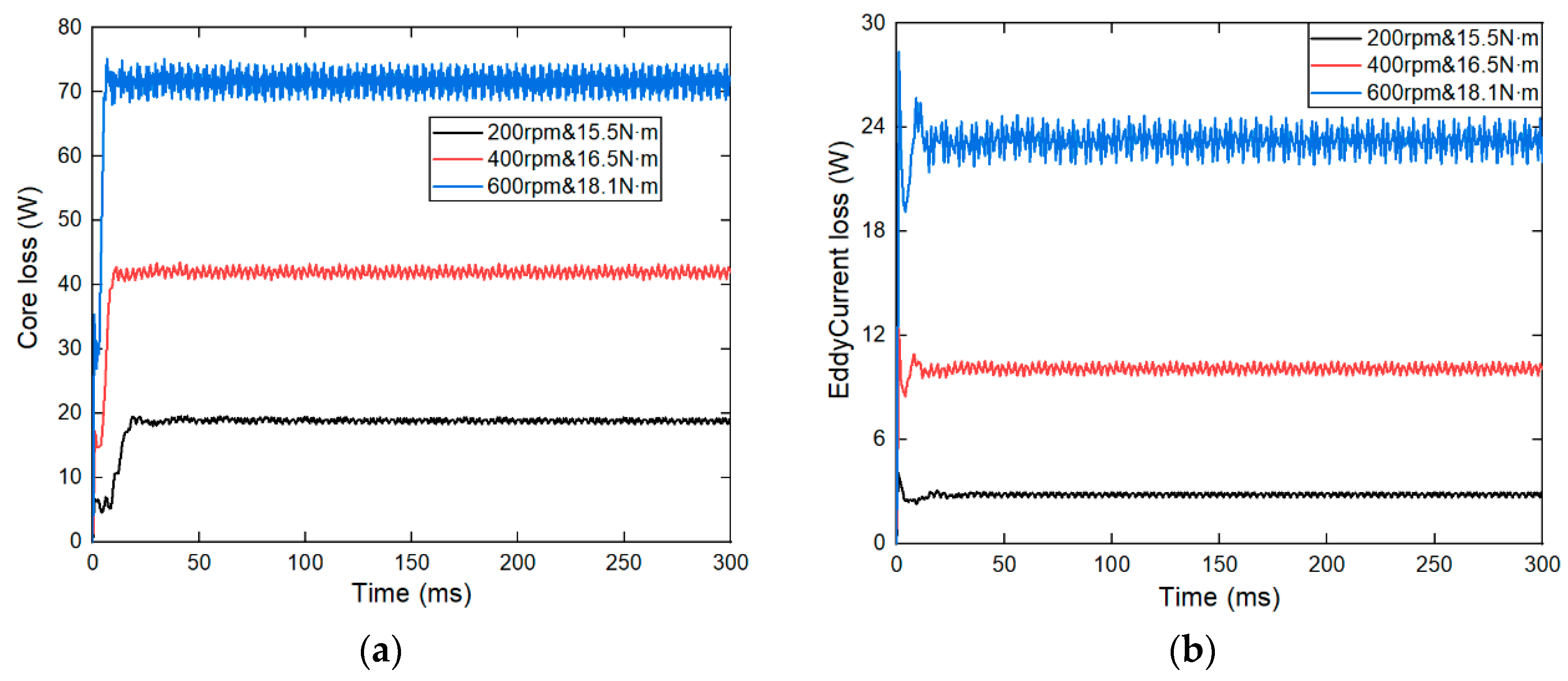

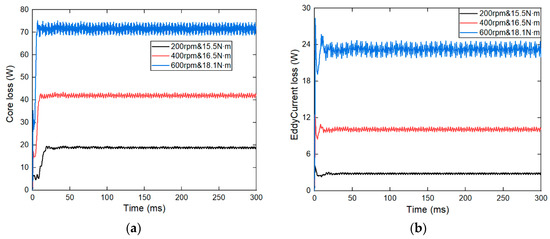

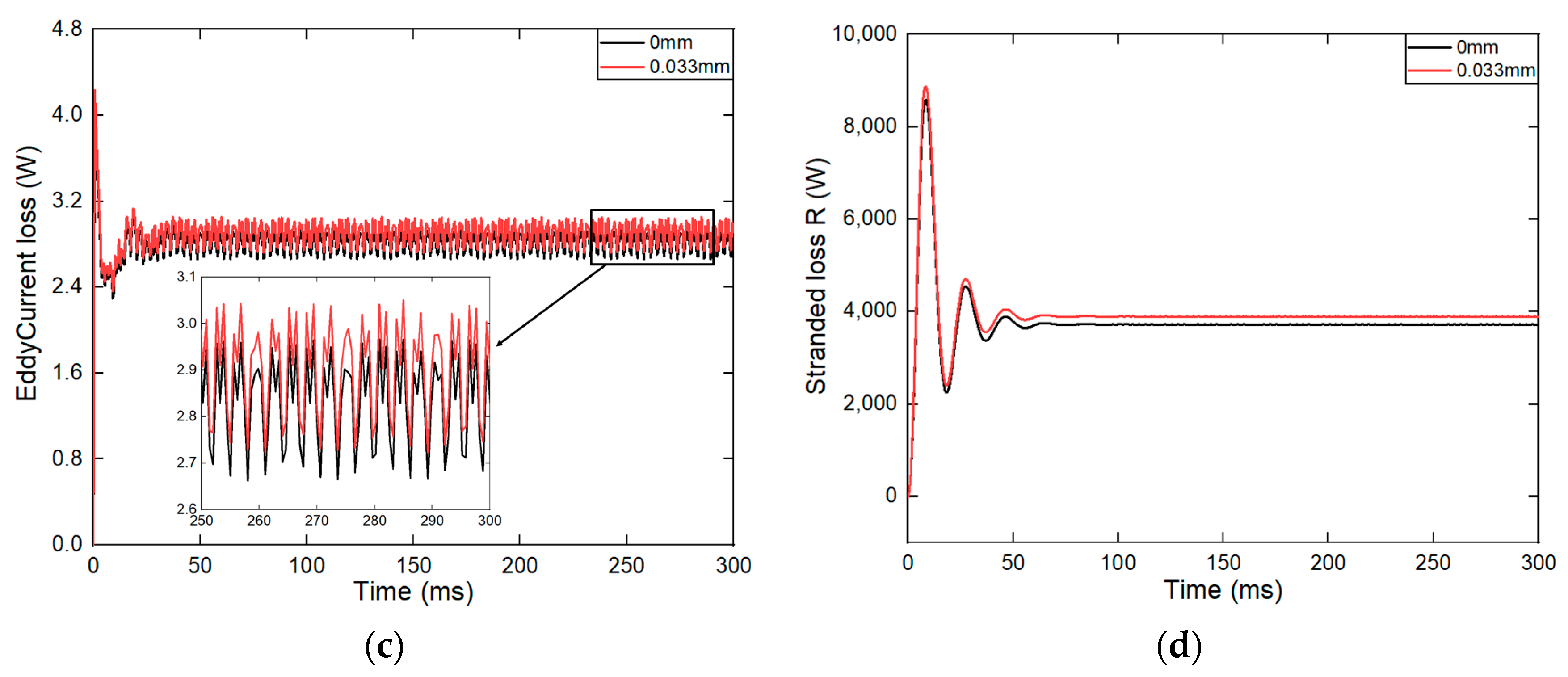

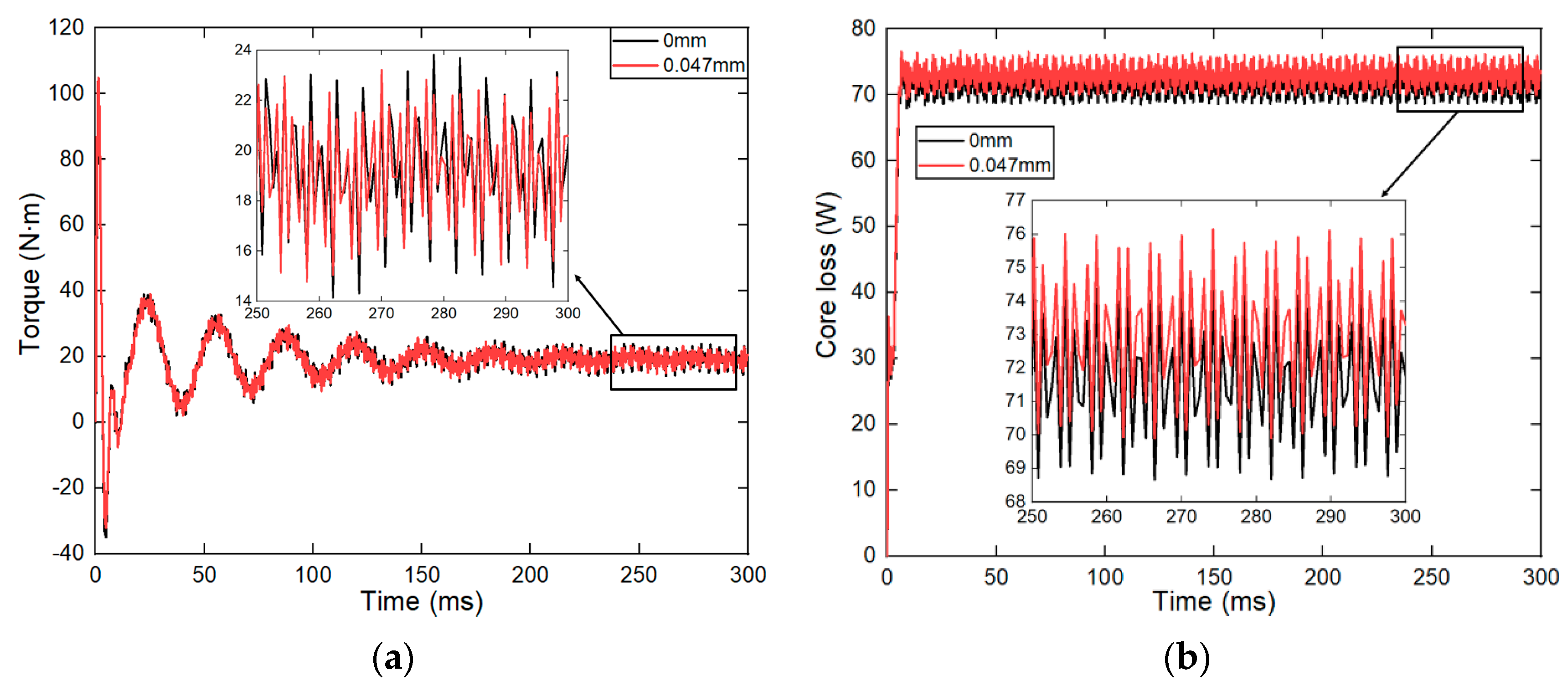

Figure 12 shows the calculation results of the loss and output torque of the hub motor under different working conditions.

Table 5. The loss and output torque of the hub motor under various working conditions.

Parameter	200 rpm and 15.5 N · m	400 rpm and 16.5 N · m	600 rpm and 18.1 N · m
Output torque/N · m	16.94	17.89	19.48
Core loss/W	18.88	41.97	71.58
Eddy current loss/W	2.84	10.09	23.26
Winding loss/W	3719.25	4335.94	4777.27

shows that when the rolling resistance torque at different speeds is applied to the electromagnetic field finite element model of the hub motor, the calculated output torque is greater than the rolling resistance torque. This may be due to the reluctance torque and cogging torque of the motor. With increasing speed, the rolling resistance torque of the car increases; that is, the load torque of the hub motor increases, the corresponding output torque also increases, and the loss of its components accordingly increases. Therefore, the variation in the loss of the hub motor in combination with the load torque of the car must be analyzed.

4.1.2. Relationship between the Air Gap and Motor Loss

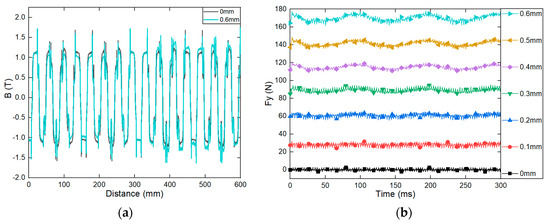

To obtain the air gap variation law of the hub motor, it is necessary to calculate the variation law of the unbalanced magnetic pull $F_y$ under different air gap spacings in the electromagnetic field model, obtain the air gap magnetic field stiffness $K_{UM{P}_y}$ between the stator and the rotor, and then add it to the suspension dynamics model to simulate the relative offset of the stator and the rotor under the influence of various excitations in the actual operation process, which is the air gap deformation. Finally, the influence of air gap changes on the motor loss is analyzed. According to the analysis results of the load torque in Section 4.1.1, the rolling resistance torque at different speeds is added to the hub motor as the load torque, and the corresponding speed is set. With a non-eccentricity value of 0 mm and a dynamic eccentricity of 0.6 mm as examples, the radial air gap flux density is extracted, as shown in Figure 13a (see Figure A1a and Figure A2a for the 200 rpm and 400 rpm conditions). With increasing speed, the radial air gap flux density does not significantly change, but with increasing dynamic eccentricity, the radial air gap flux density gradually increases, which also indicates that the unbalanced magnetic pull has a similar change rule. Therefore, the unbalanced magnetic pull under different air gaps must be studied and analyzed.

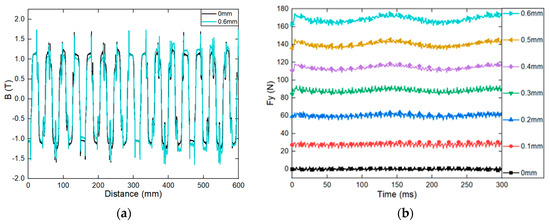

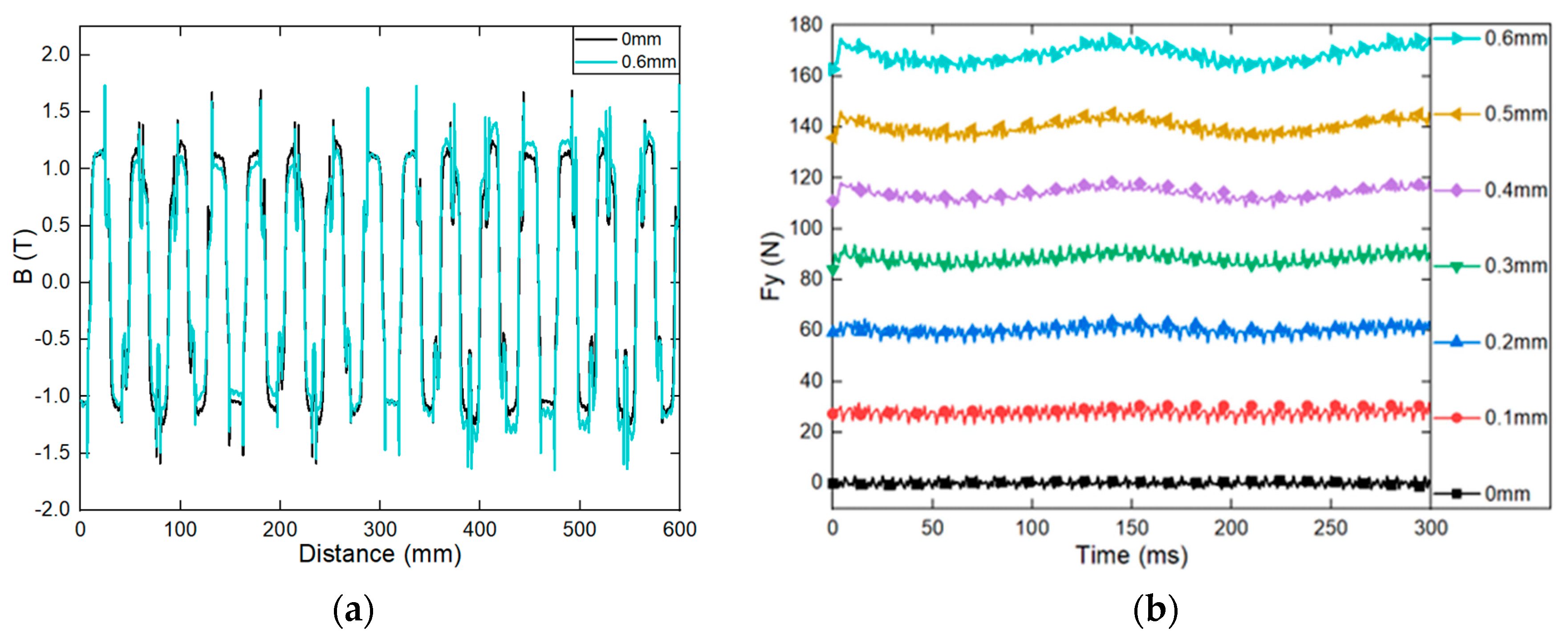

Using Equation (4), the radial magnetic density is calculated to obtain the component of the unbalanced magnetic pull force in the $Y$ direction, and the relationship between the unbalanced magnetic pull force $F_y$ and time at different speeds is obtained, as shown in Figure 13b; see Figure A1b and Figure A2b for the 200 rpm and 400 rpm conditions. As shown in

Table 6. Relationship between the unbalanced magnetic pull $F_y$ and dynamic eccentricity under different working conditions.

$\mathbf{Eccentricity} \mathit{e}$/mm	200 rpm	400 rpm	600 rpm
	$\mathbf{Unbalanced} \mathbf{Magnetic} \mathbf{Pull} {\mathit{F}}_{\mathit{y}}$/N	$\mathbf{Unbalanced} \mathbf{Magnetic} \mathbf{Pull} {\mathit{F}}_{\mathit{y}}$/N	$\mathbf{Unbalanced} \mathbf{Magnetic} \mathbf{Pull} {\mathit{F}}_{\mathit{y}}$/N
0	0.09	0.08	0.08
0.1	27.36	27.64	27.90
0.2	59.50	60.14	60.74
0.3	87.44	88.42	89.26
0.4	112.53	113.79	114.88
0.5	138.59	140.10	141.42
0.6	166.58	168.43	169.96

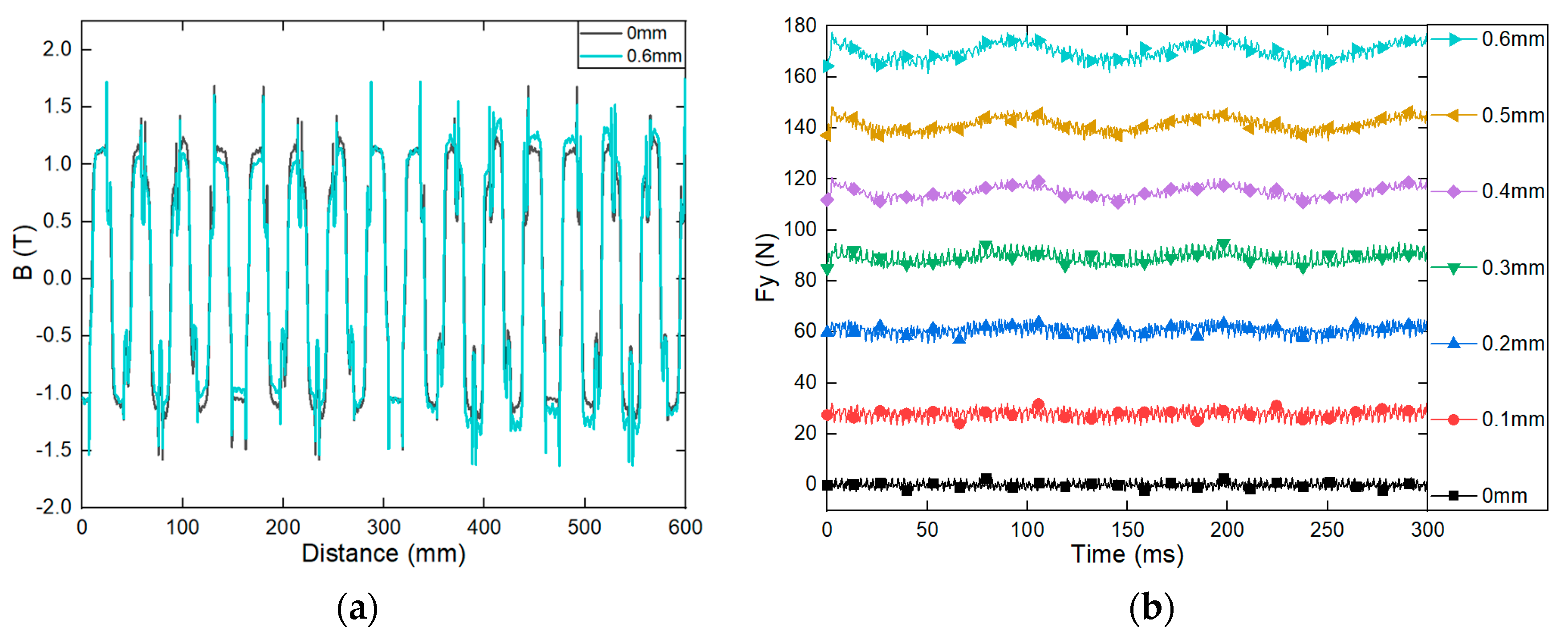

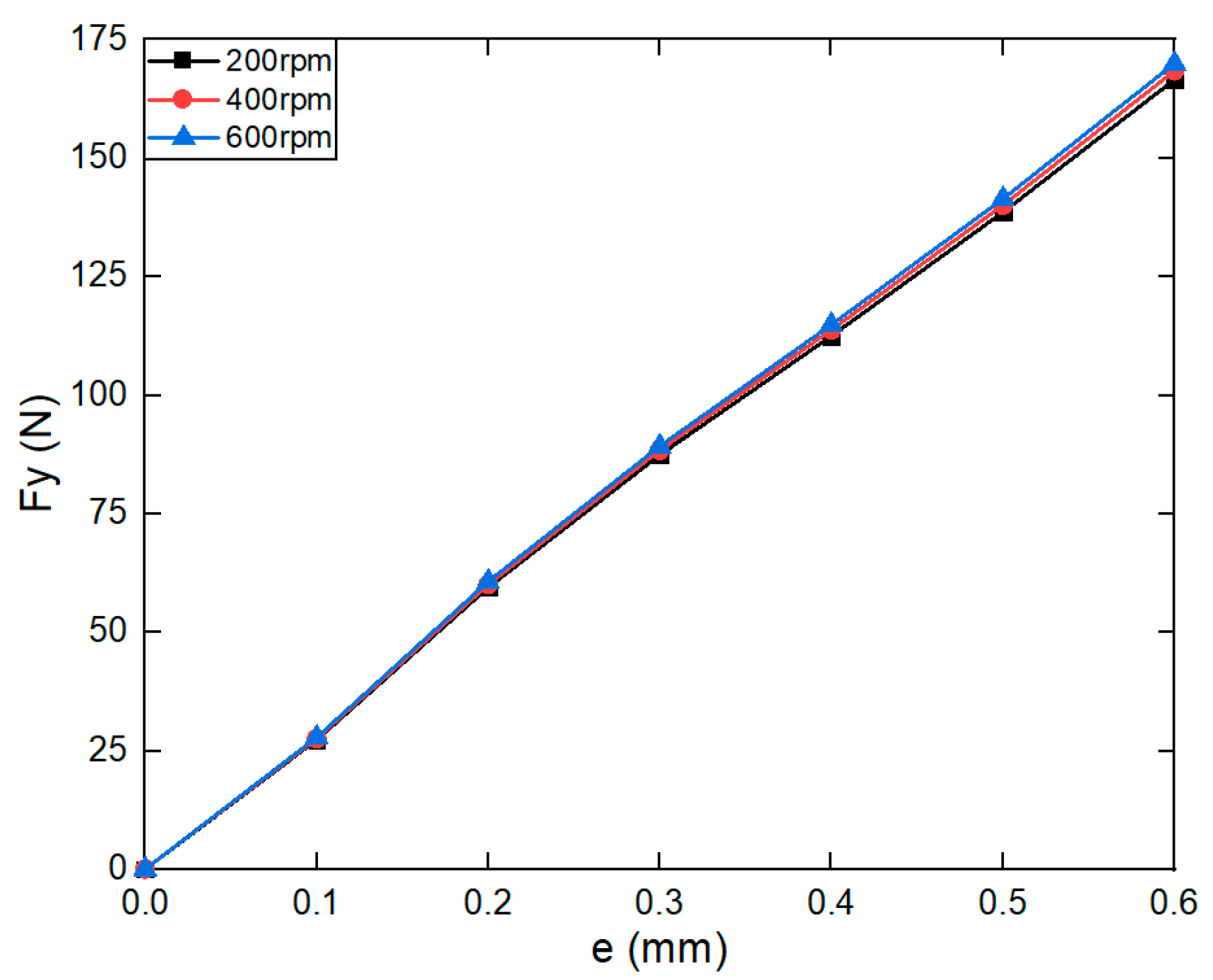

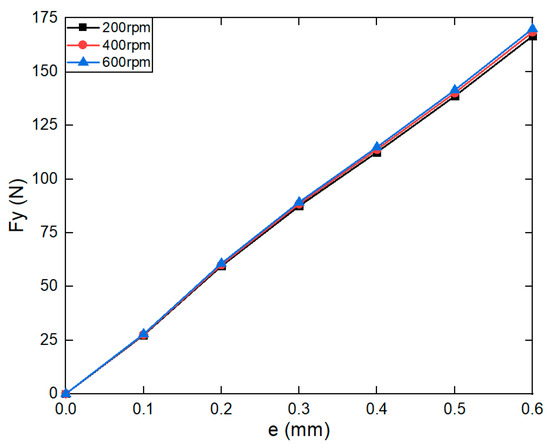

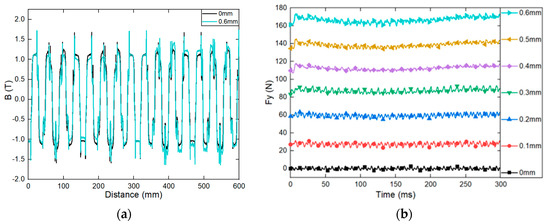

, there is a common change rule: when there is no eccentricity, $F_y$ fluctuates around zero; however, as the degree of dynamic eccentricity increases, $F_y$ also increases. Through the relationship between the eccentricity $e$ and unbalanced magnetic pull force $F_y$, the air gap magnetic field stiffness $K_{UM{P}_y}$, which is used to characterize the unbalanced magnetic pull force in the $Y$ direction, can be obtained. As shown in Figure 14, the air gap magnetic field stiffness $K_{UM{P}_y}$ curves of the motor at different speeds show that $K_{UM{P}_y}$ has a certain linearity, and then the $K_{UM{P}_y}$ of the motor at different speeds can be obtained. As shown in

Table 7. Equivalent stiffness $K_{UM{P}_y}$ of the motor at different speeds.

Parameter	200 rpm	400 rpm	600 rpm
$\mathrm{Linear} K_{UM{P}_y}$$\mathrm{value} (\mathrm{N}/\mathrm{m}$)	277,633.33	280,716.67	283,266.67

, as the motor speed exponentially increases, $K_{UM{P}_y}$ increases by no more than 1%. It can be considered that the motor speed is independent of $K_{UM{P}_y}$ when the other working conditions are constant, so the same air gap magnetic field stiffness can be used at any speed.

According to Table 7, the average value of the air gap magnetic field stiffness $K_{UM{P}_y}$ under the three motor speed conditions is set in the hub-driven suspension dynamics model. Through simulation analysis, the force between the stator and rotor $F_s$ and the relative offset of the stator and rotor $e_d$ (Figure 15a,b) are obtained. The root mean square values are shown in

Table 8. Air gap deformation simulation values.

$\mathbf{Motor} \mathbf{Speed}/\mathrm{rpm}$	$\mathbf{Rms} {\mathit{F}}_{\mathit{s}}$/N	$\mathbf{Rms} {\mathit{e}}_{\mathit{d}}$/mm	${\mathit{e}}_{\mathit{d}\mathit{m}\mathit{a}\mathit{x}}$/mm
200	2231.824	0.023	0.033
400	2265.646	0.028	0.040
600	2296.414	0.033	0.047

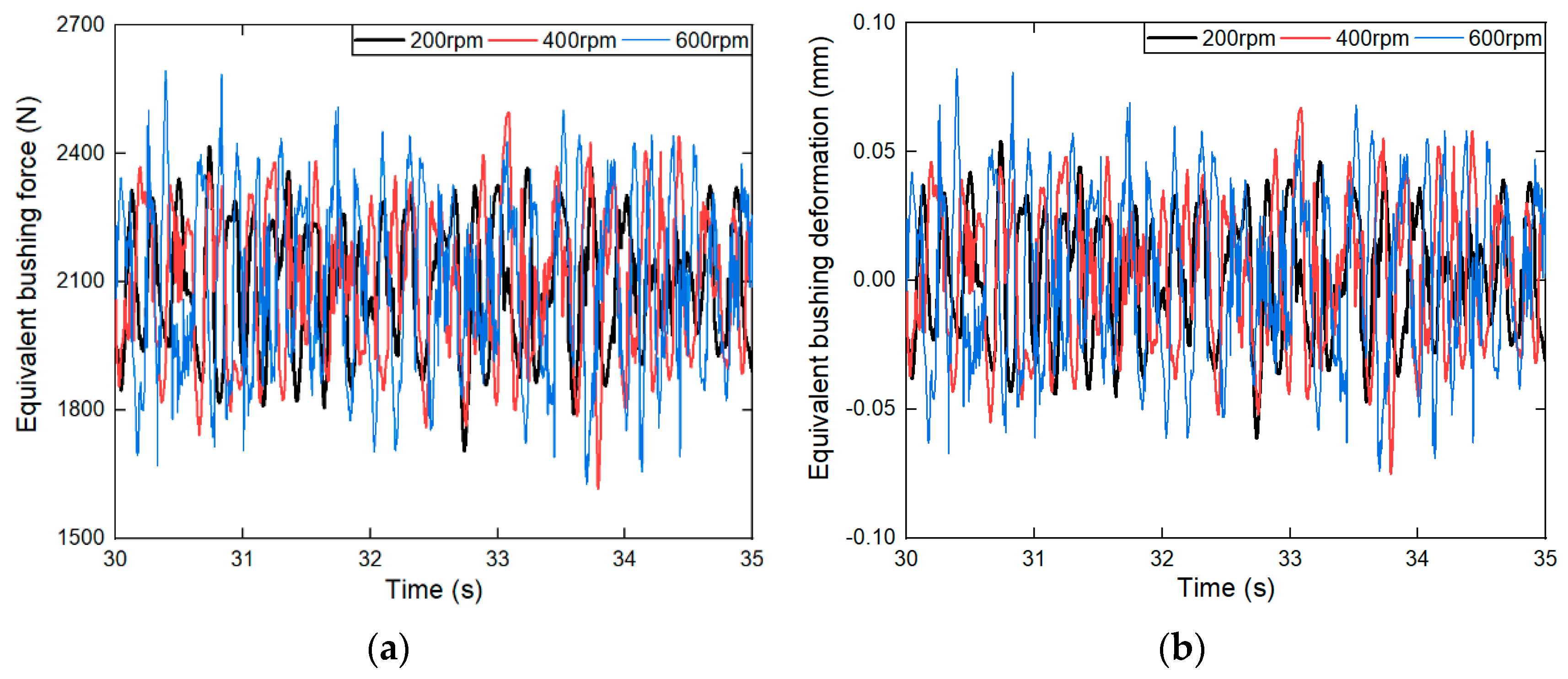

, which are used to characterize the air gap deformation of the hub motor under the coupling of the suspension and the hub motor.

Through Equation (9), the rms value of the relative offset $e_d$ of the stator and rotor can be obtained as $\frac{1}{\sqrt{2}}{e}_{dmax}$ mm; thus, the maximum displacement of the dynamic eccentricity $e_{dmax}=\sqrt{2}{e}_d$ mm, and the maximum dynamic eccentricity $e_{dmax}$ at different speeds is calculated, as shown in Table 8. Under the load torque corresponding to different speeds, the influence of the air gap deformation of the hub motor on the output torque and loss of the hub motor is studied by setting the eccentricity in the finite element model of the electromagnetic field to the non-eccentricity value and the maximum dynamic eccentricity of the motor rotor at the corresponding speed, as shown in Figure 16 (see Figure A3 and Figure A4 for the 200 rpm and 400 rpm conditions).

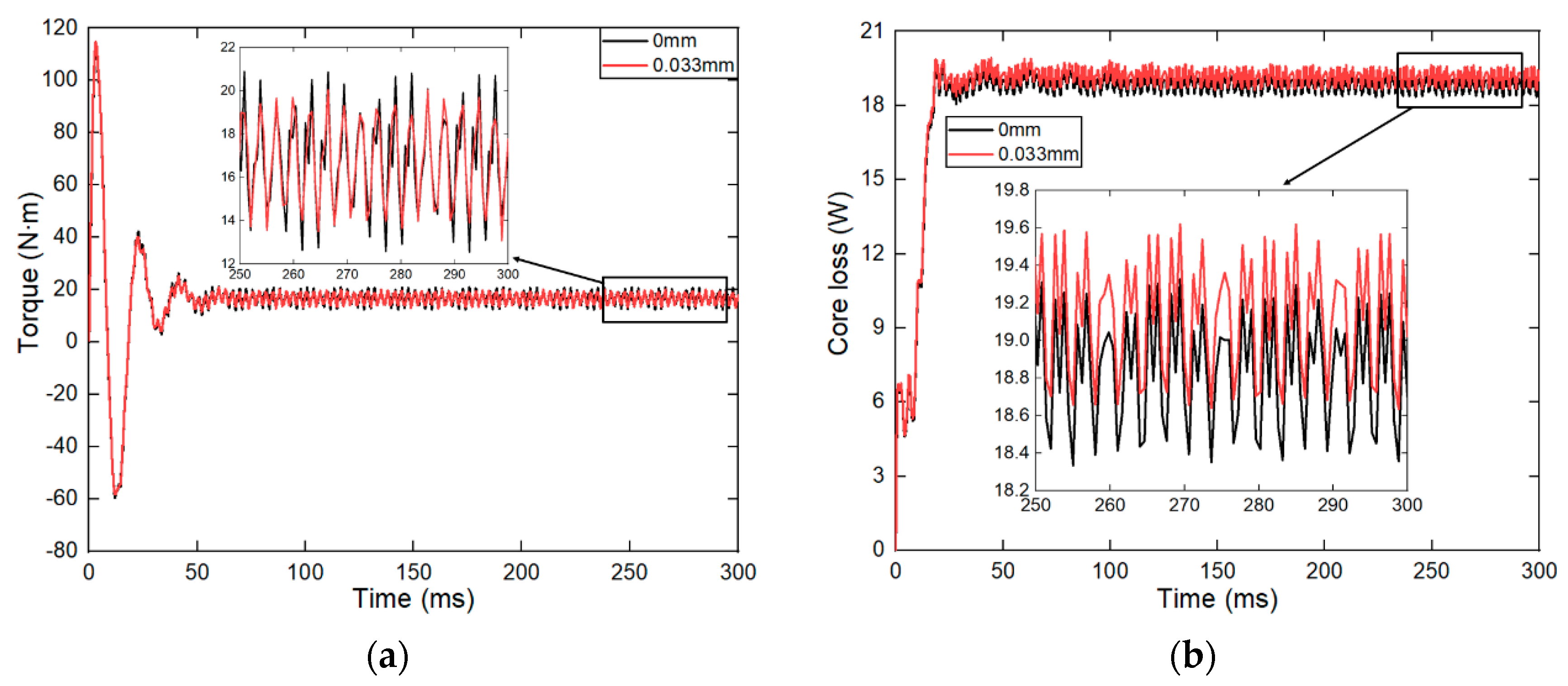

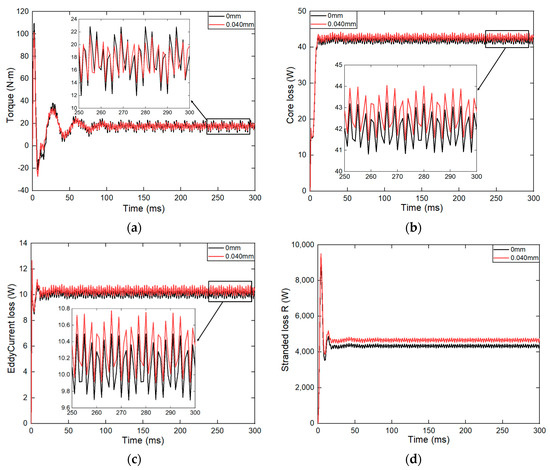

Table 9. Changes in the torque and loss of the hub motor caused by changes in the air gap under different working conditions.

Parameter	$200 \mathrm{rpm}$			$400 \mathrm{rpm}$			$600 \mathrm{rpm}$
	0 mm	0.033 mm	Rate of Change	0 mm	0.040 mm	Rate of Change	0 mm	0.047 mm	Rate of Change

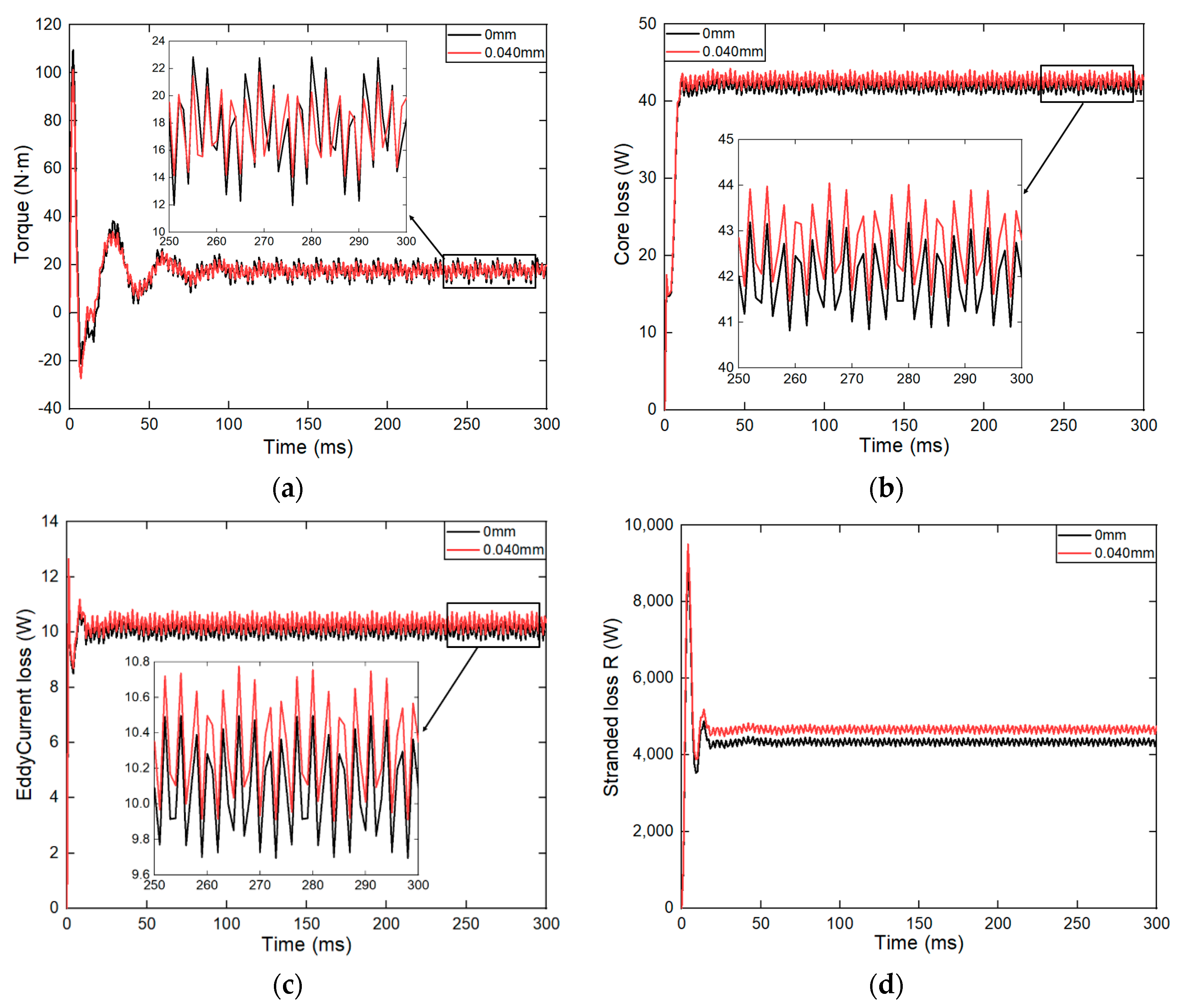

$\mathrm{Output} \mathrm{torque}/\mathrm{N}·\mathrm{m}$	16.71	16.75	0.24%	17.66	17.62	−0.23%	19.16	19.17	0.05%
$\mathrm{Core} \mathrm{loss}/\mathrm{w}$	18.88	19.16	1.48%	41.30	42.71	3.41%	71.58	73.00	1.98%
$\mathrm{Eddy} \mathrm{current} \mathrm{loss}/\mathrm{w}$	2.84	2.90	2.11%	10.05	10.32	2.69%	23.26	23.83	2.45%
$\mathrm{Winding} \mathrm{loss}/\mathrm{w}$	3719.25	3890.49	4.60%	4353.00	4665.00	7.17%	4777.27	5248.85	9.87%

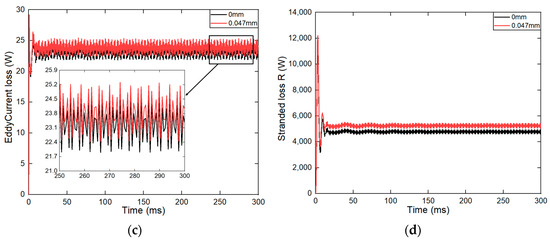

shows that during vehicle operation, as the motor speed increases, the loss of each component of the hub motor also increases, and the output torque also increases. At the same speed, based on a comparison of the results when considering the air gap deformation and not considering the air gap deformation, this deformation has little effect on the output torque of the hub motor, but it has a great influence on the loss of each component of the hub motor, among which the strongest influence is on the winding loss, whereas the other losses are slightly increased. From the above analysis results, it can be concluded that at different speeds, the deformation of the air gap differs, which greatly influences the change in the loss of each component. Therefore, the temperature characteristics of the hub motor must be analyzed in combination with the deformation of the air gap.

4.2. Temperature Field Analysis of the Hub Motor

According to the actual operating environment of the vehicle, the rolling resistance torque in the actual operation of the vehicle under different motor speeds and the influence of the air gap deformation of the hub motor caused by various excitations on the temperature characteristics of the hub motor are considered. By comparing the temperature cloud diagrams of the magnetic–thermal coupling of the hub motor at different speeds, as shown in Figure 17, the high-temperature area inside the hub motor is found to be mainly concentrated on the stator and winding, and the lowest temperature appears in the permanent magnet and rotor. With increasing motor speed, the corresponding temperature also accordingly increases. The high-temperature area is mainly concentrated in the stator and winding, and the highest temperature of the stator appears in the stator yoke. This is mainly due to the small heat dissipation area of the stator yoke, which results in a poor heat dissipation capacity. In the radial direction of the stator, from the stator yoke to the tooth, the temperature gradually decreases, and the temperature in the stator air gap suddenly decreases. This is mainly because only the permanent magnet in the air gap area produces a small amount of heat, while the winding and stator of the stator yoke tooth produce more heat. The low-temperature area is mainly concentrated on the permanent magnet and the rotor. The reason for this phenomenon is that the outermost heat dissipation condition of the rotor is better, so the temperatures of the rotor and the permanent magnet are relatively low, and the lowest temperature of the motor only appears on the outer side of the rotor.

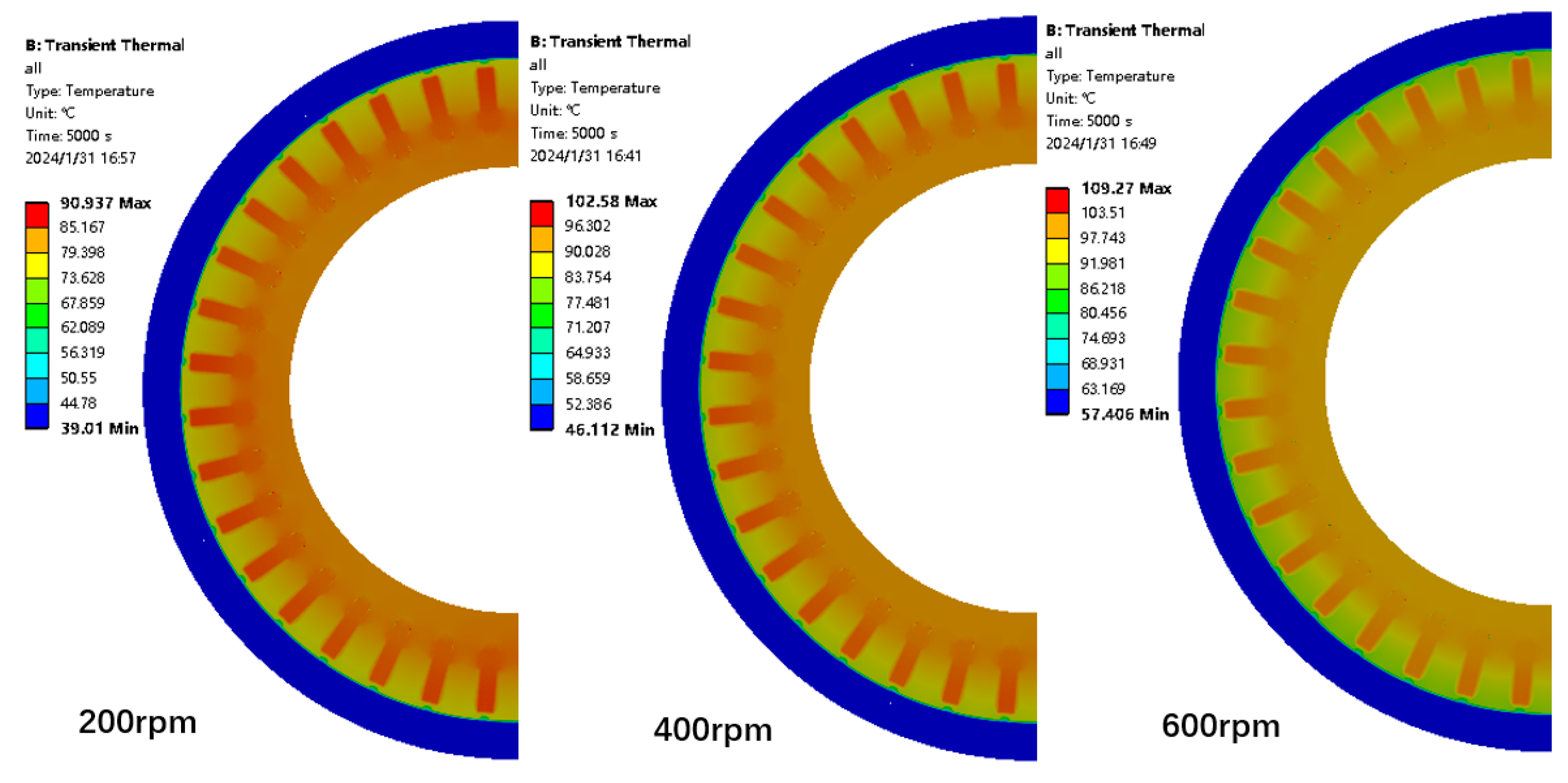

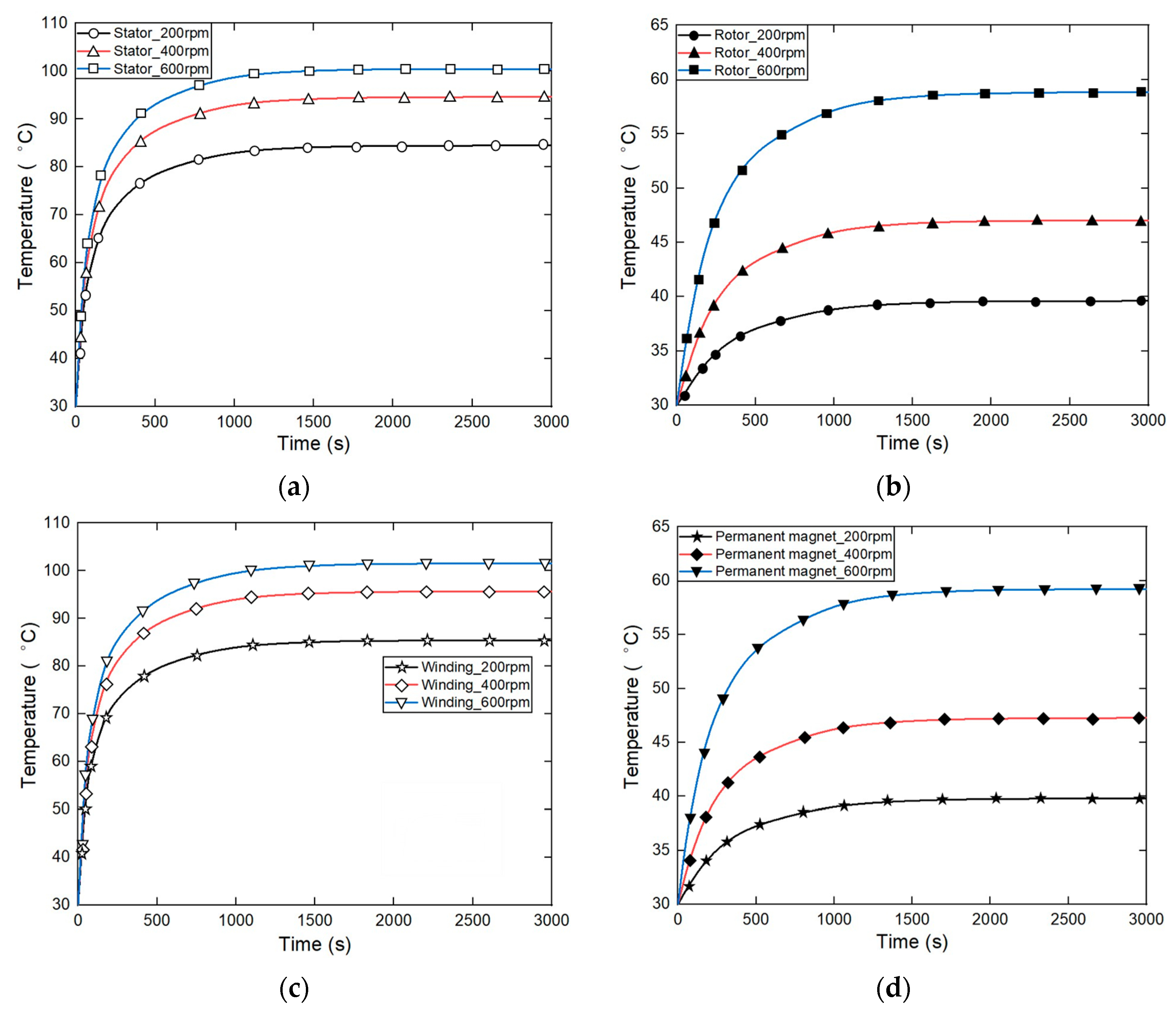

Figure 18 and

Table 10. Temperature of each component of the hub motor under different working conditions.

Working Condition	Maximum Stator Temperature/°C	Rotor Maximum Temperature/°C	Maximum Winding Temperature/°C	Maximum Temperature of Permanent Magnet/°C
200 rpm	84.48	39.61	85.43	39.79
400 rpm	94.61	47.02	95.67	47.26
600 rpm	100.47	58.84	101.56	59.23

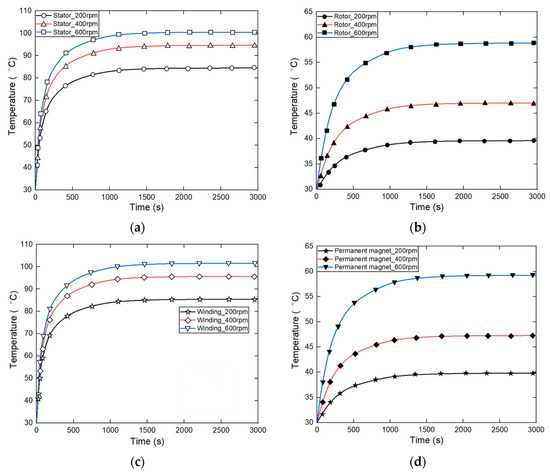

show that the temperature of each component of the hub motor gradually increases with time during vehicle operation. The temperature rises faster before 1000 s. Between 1000 s and 2000 s, the temperature rise trend of the motor gradually decreases. At different speeds, the temperature of the motor winding gradually stabilizes at 85.43 °C, 95.67 °C and 101.56 °C. After running for 2000 s, the temperature curve of each component of the hub motor gradually stabilizes, the temperatures of the motor winding and the stator gradually approach each other, and the temperatures of the permanent magnet and the rotor gradually approach each other.

4.3. Torque Output Analysis of Hub Motor

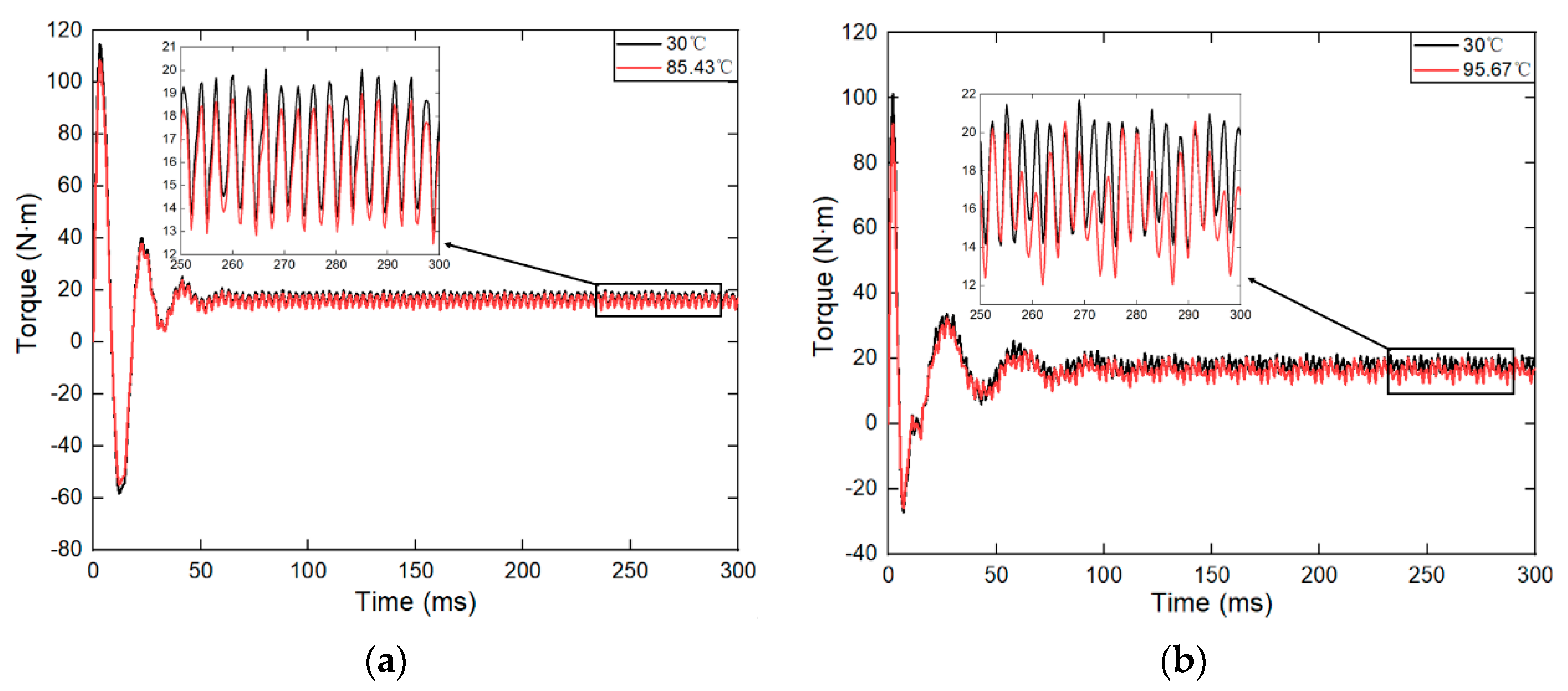

According to the actual operating environment of the vehicle, the influences of the actual operating load torque of the vehicle at different motor speeds and the air gap deformation of the hub motor caused by various excitations on the temperature characteristics of the hub motor are considered. By comparing the output torque of the hub motor at different speeds under the influence of the motor temperature rise (the maximum temperature of the motor winding), as shown in Figure 19 (see Figure A5 for the 200 rpm and 400 rpm conditions) and

Table 11. Changes in the output torque of the hub motor under different working conditions.

Working Condition	Output Torque at Room Temperature/N · m	Output Torque under Temperature Rise/N · m	Rate of Change
200 rpm	16.75	15.91	5.01%
400 rpm	17.62	16.19	8.12%
600 rpm	19.17	18.22	4.96%

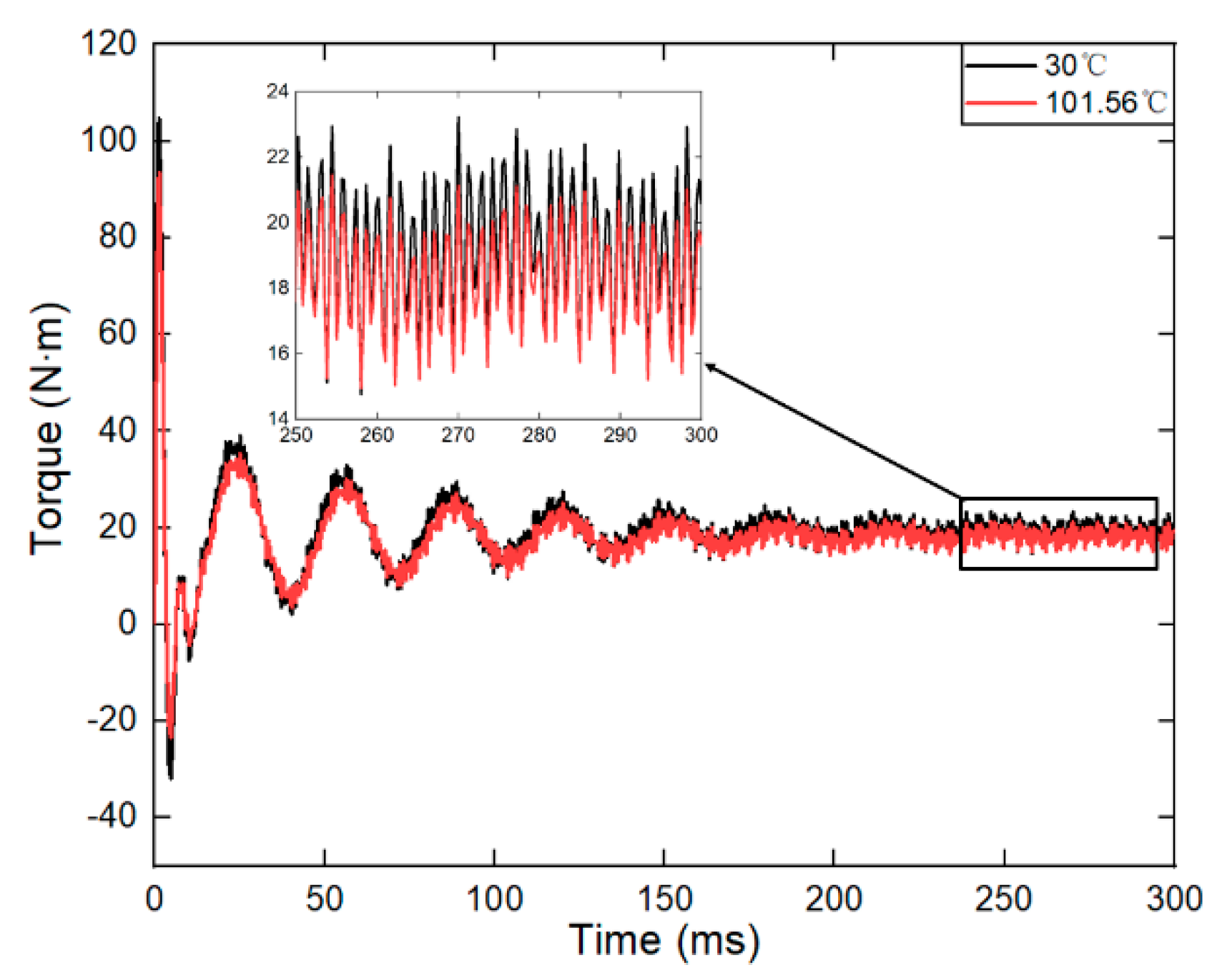

, as the internal temperature rise of the hub motor reaches a steady state, its output torque is found to be reduced to a certain extent, by 4–8% compared with the output torque at room temperature. This phenomenon occurs because, with increasing temperature, the copper wire resistance of the winding also increases, which affects the magnetic field strength inside the hub motor and consequently affects the actual output capacity of the motor. Due to the decrease in the output torque caused by the increase in the internal temperature of the hub motor, there may be problems such as insufficient power and weakness during the operation of the vehicle, and the accuracy of motor torque control will also be reduced. Therefore, the influence of the temperature rise on the output torque of the hub motor should be considered in the actual analysis process.

5. Experimental Verification

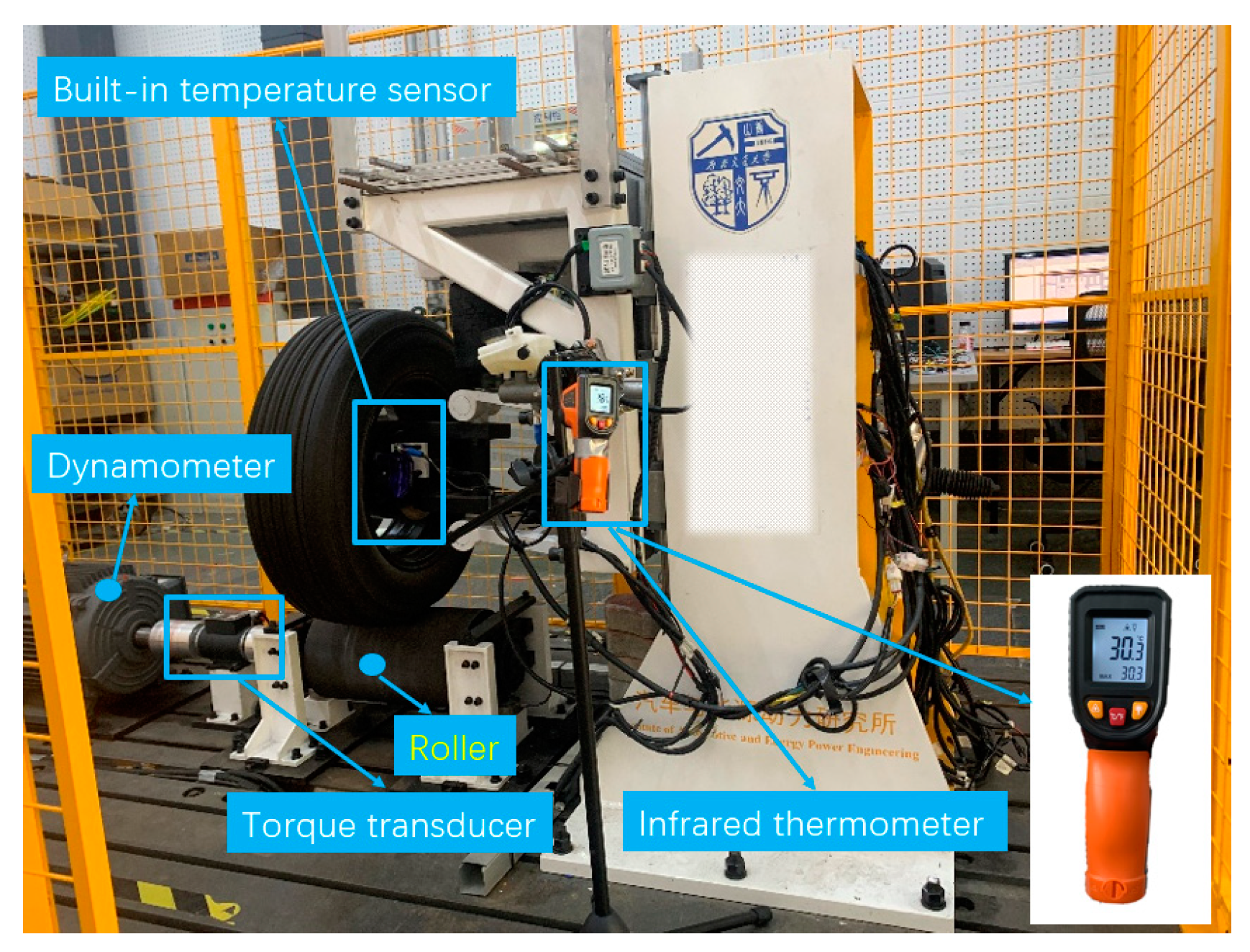

A temperature rise test of the hub motor is carried out, and the results are compared with the temperature rise simulation results. As shown in Figure 20, the temperature rise test system of the hub motor of the 1/4 suspension driven by the hub mainly includes the 1/4 suspension, a torque sensor, an infrared thermometer, and a temperature sensor. The torque sensor is used to measure the torque applied by the hub motor on the drum (i.e., the output torque of the hub motor). The temperature sensor is installed in the motor winding to measure the temperature of the internal winding of the motor, and the infrared thermometer is used to measure the surface temperature of the rotor. In the temperature rise test of the hub motor, the temperature of the measuring point is read by the temperature sensor and the infrared thermometer, as shown in Figure 21 (see Figure A6 for the 200 rpm and 400 rpm conditions) and

Table 12. Comparison of the test temperatures and calculated temperatures of the rotor and winding under different working conditions.

Working Condition	Rotor			Winding
	Simulated Temperature/°C	Measured Temperature/°C	Error	Simulated Temperature/°C	Measured Temperature/°C	Error
200 rpm	39.61	39.96	0.88%	85.43	86.50	1.24%
400 rpm	47.02	46.50	1.12%	95.67	94.00	1.78%
600 rpm	58.84	57.80	1.80%	101.56	99.80	1.76%

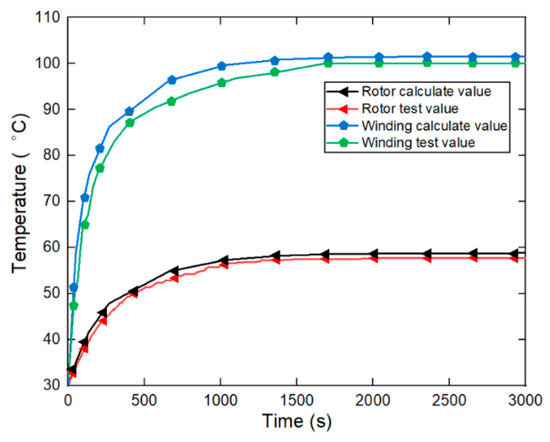

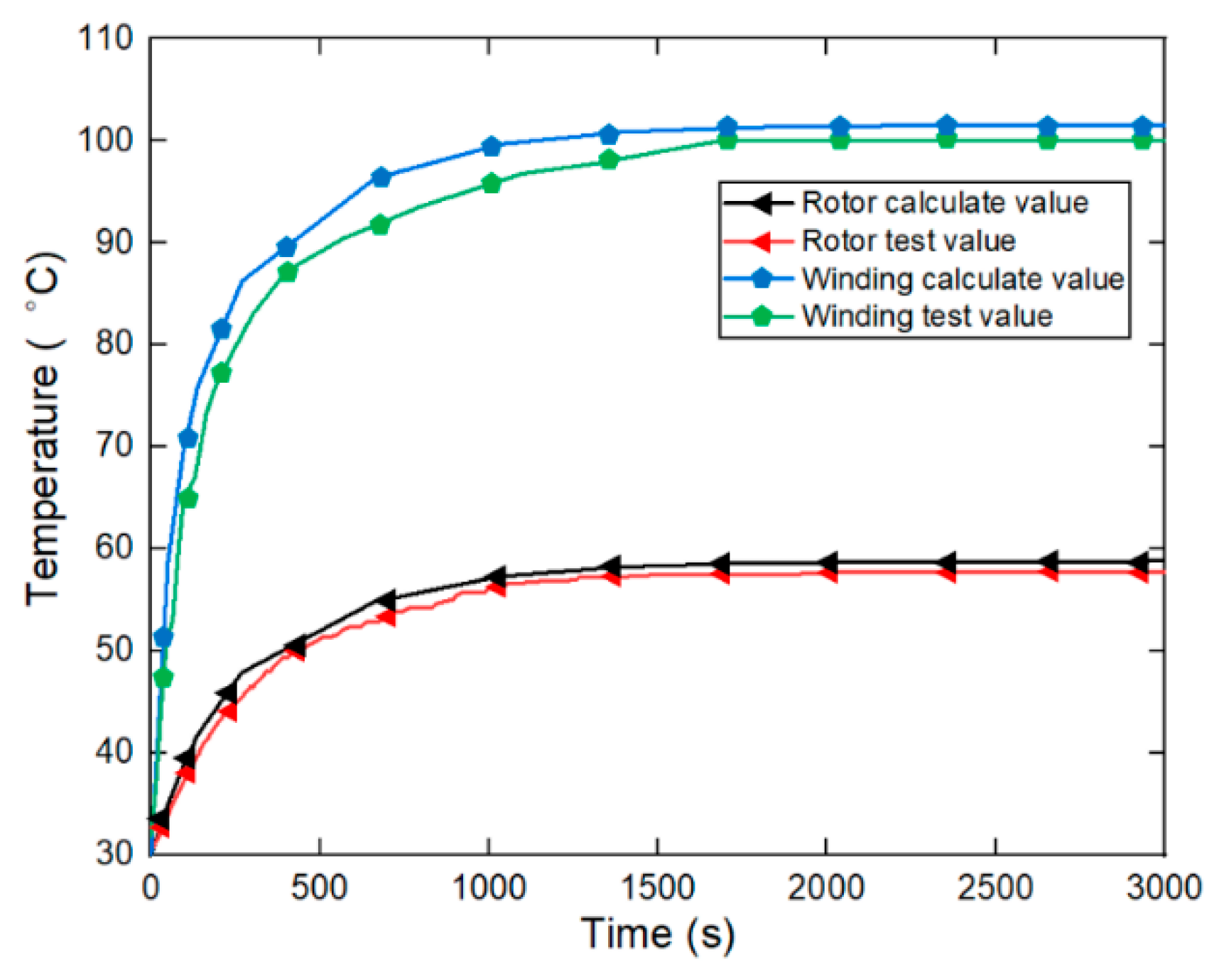

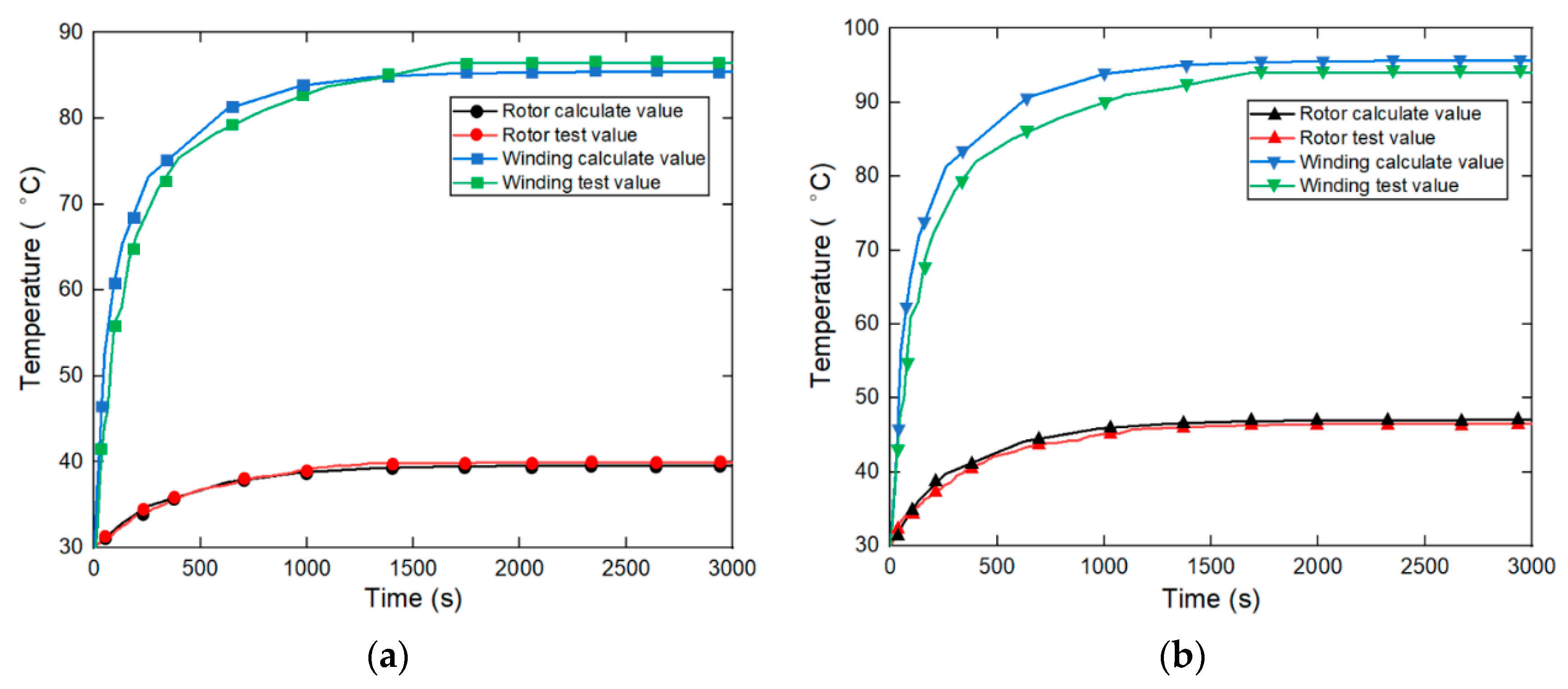

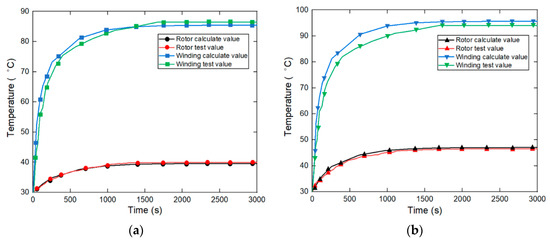

. The calculated temperature and test temperature change curves of the winding and rotor shell can be well fitted, indicating the accuracy of the calculation results, but there are some differences. The maximum error of the winding and rotor temperatures is not more than 2%. The reasons for the discrepancy may be that, on the one hand, the motor model system is simplified to a certain extent, and the calculated thermal conductivity and heat dissipation coefficient deviate from the actual values. On the other hand, there are errors in the accuracy of the test methods, means, and sensors, but the results are within a controllable range.

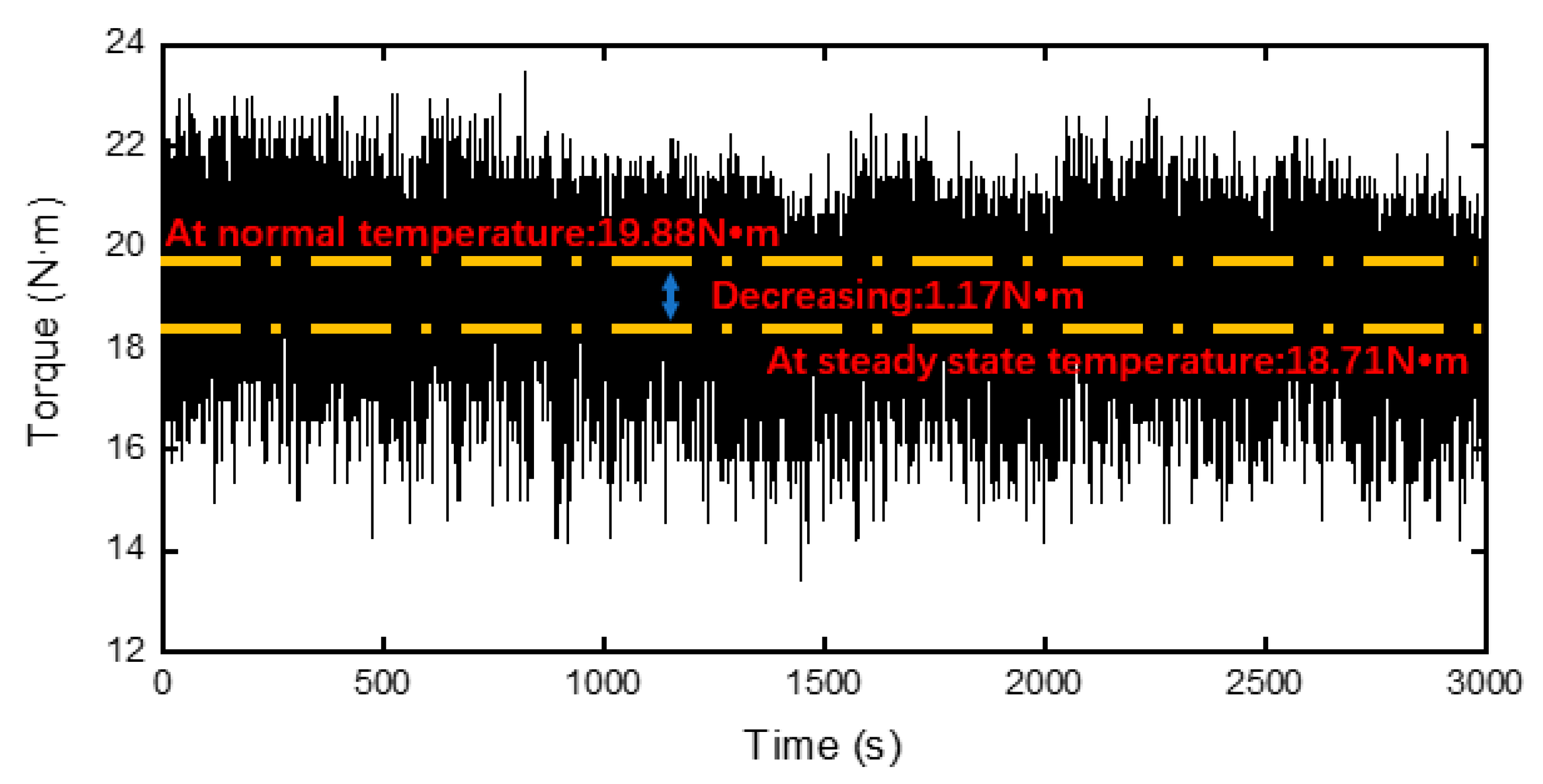

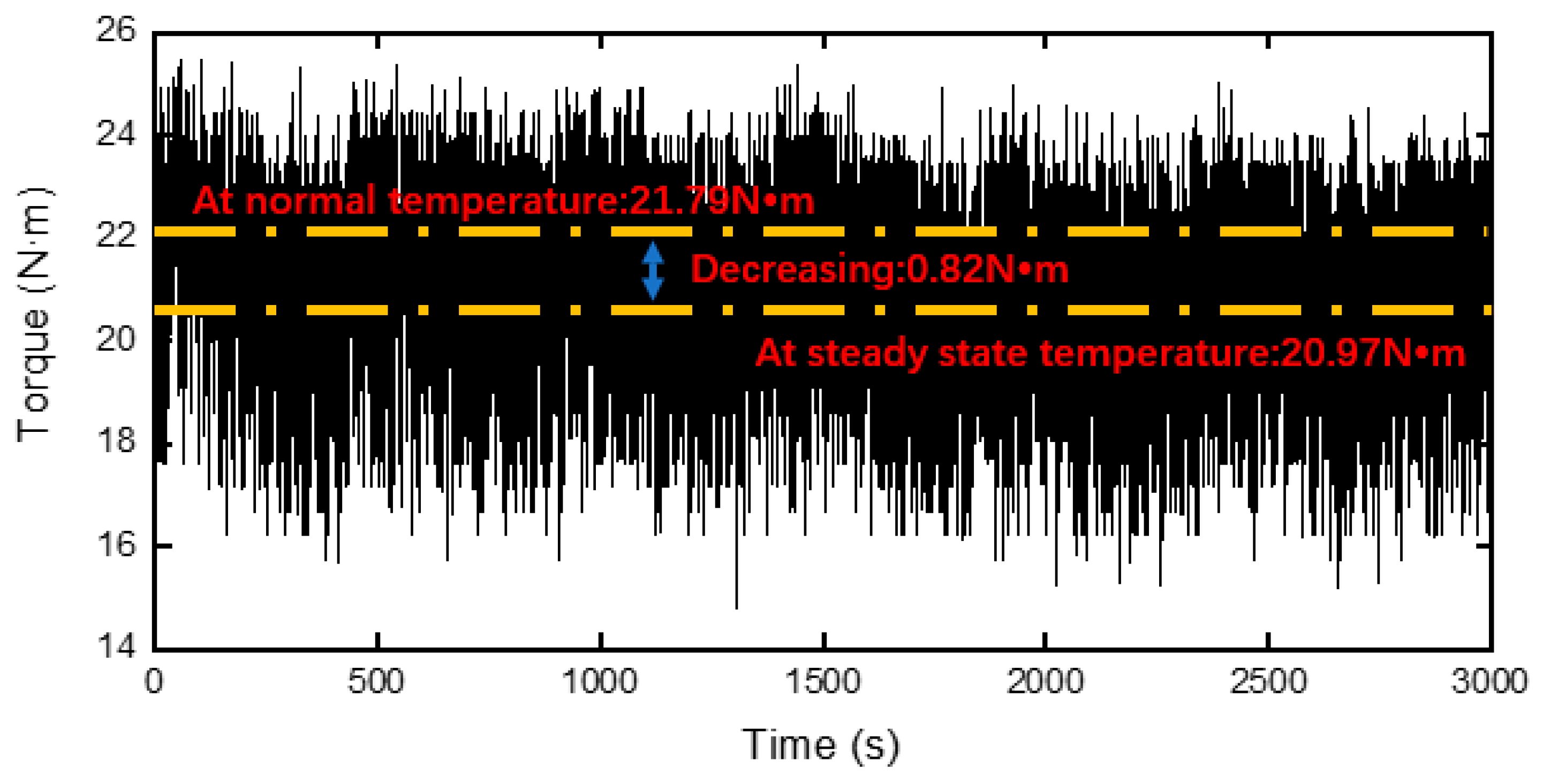

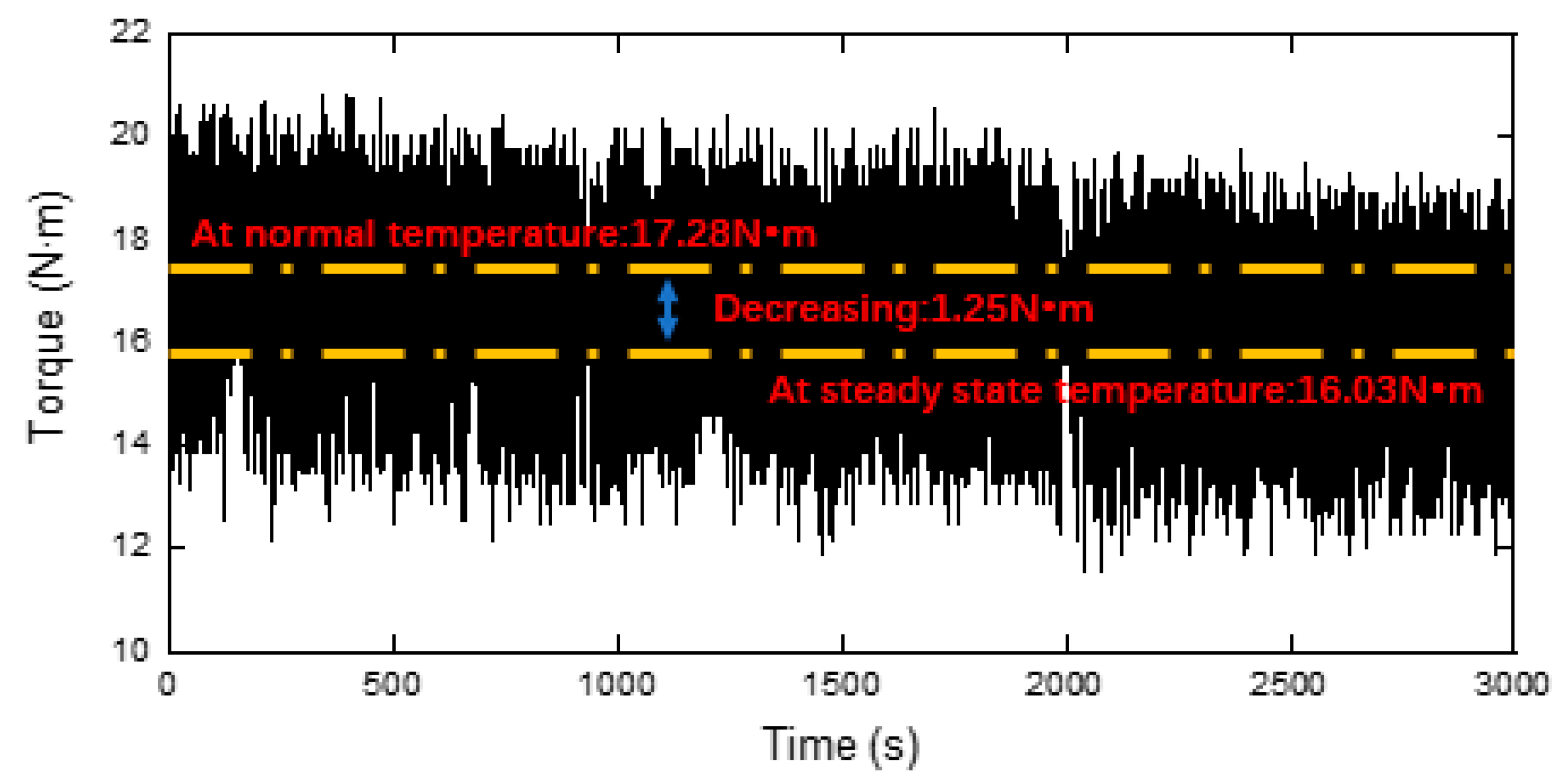

The curve of the motor test torque with time at 600 rpm is shown in Figure 22 (Figure A7 and Figure A8 for the 200 rpm and 400 rpm conditions.). The two yellow dotted lines in the figure represent the motor output torque at room temperature and the steady-state temperature, respectively. The output torque of the motor gradually increases with increasing motor speed. Over time, the output torque decreases with the increase in temperature, and the amplitude of the decrease is in the range of 0.82~1.25 N∙m. As shown in

Table 13. Comparison of simulated and tested motor torques under different working conditions.

Working Condition	Simulation			Test
	Output Torque at Room Temperature/N · m	Output Torque under a Temperature Rise/N · m	Rate of Change	Output Torque at Room Temperature/N · m	Output Torque under a Temperature Rise/N · m	Rate of Change
200 rpm	16.75	15.91	5.01%	17.28	16.03	7.23%
400 rpm	17.62	16.19	8.12%	19.88	18.71	5.89%
600 rpm	19.17	18.22	4.96%	21.79	20.97	3.76%

, by comparing the variations in the simulation and test output torques at room temperature and under a temperature rise, it can be seen that at the same speed, the test output torque values of the hub motor at room temperature and under the temperature rise are greater than the simulated values. A possible reason is that there is a bearing friction resistance inside the motor, dynamometer, and drum in practice, which increases the output torque of the hub motor. The variation trends of the simulation and test output torques of the motor are similar, and the change rate can be well matched. By comparing the temperatures and output torques from the simulation and test, it is proven that the research method for determining the temperature rise characteristics of a hub motor under multisource excitation coupling proposed in this paper is reasonable and effective.

6. Conclusions

In this paper, the hub motor of an electric vehicle is taken as the research object, and the change in the load torque of the hub motor caused by the rolling resistance torque in the actual operating environment of the vehicle and the change in the air gap deformation caused by the excitation of the hub motor stator and rotor transmitted from the road surface through the tire and by the excitation of the body transmitted through the suspension are considered. The temperature rise characteristics and output torque characteristics of the hub motor under the combined action of the two changes at different motor speeds are studied and analyzed. First, with the support of theoretical calculations, the rolling resistance torque in the actual operating environment of the vehicle is obtained through simulation analysis of the dynamic model of the hub drive suspension, which is added to the electromagnetic field model of the hub motor as the actual load torque to analyze its influence on the loss of each component of the motor. Then, on the basis of the actual load torque of the hub motor, the change in the unbalanced magnetic pull under different air gap spacings is simulated and analyzed by the electromagnetic field model. Second, the relationship between the unbalanced magnetic pull and the air gap spacing is input into the dynamic model of the hub-driven suspension as the air gap magnetic field stiffness. The air gap change caused by the vibration excitation of the road surface transmitted to the stator and rotor of the hub motor through the tire and by the excitation of the body transmitted through the suspension in the actual operating environment is simulated, and the influence of air gap deformation on the loss of each component of the motor is analyzed. Next, through the magnetic–thermal two-way coupling method, the variation law of the temperature rise characteristics of the hub motor and the variation law of the motor output torque caused by the temperature rise under the combined action of the two factors of the load torque change and air gap change are analyzed. The validity and accuracy of the method adopted in this paper are verified by the temperature rise test of a prototype. The method for analyzing the temperature rise and torque characteristics of a hub motor, considering multisource excitation magnetic–thermal bidirectional coupling proposed in this paper, is reasonable and effective. It provides a theoretical basis for the precise control of the output torque of the distributed drive vehicle hub drive motor and produces greater economic benefits.

Due to the limitation of research conditions, the comprehensiveness of vehicle driving cycle selection, model simplification methods, and principles need to be further studied in this paper. Specifically, further improvement and in-depth research can be carried out from the following aspects:

• The influence of load torque and air gap changes in the hub motor on the temperature rise characteristics and torque characteristics of hub motor under multiple driving conditions (turning, braking, acceleration, different road grades, different body mass, and composite conditions) is carried out.
• The finite element model of the electromagnetic field and temperature field of the hub motor is improved, and the 3D finite element model is established to improve the accuracy of the simulation.
• Through the research of this paper, it is found that the load torque and air gap change in the hub motor will have a certain impact on its temperature rise characteristics and torque characteristics. On the basis of this research, the rolling resistance torque and vertical vibration of the vehicle can be reduced from the suspension control so as to reduce the load torque and air gap change in the motor, reduce the temperature rise and output torque fluctuation of the motor; at the same time, it also provides some research support for the torque control of the hub motor.
• The calculation method proposed in this paper has a certain reliability. However, due to the combination of dynamics and finite element analysis methods, the calculation process of the temperature rise and torque of in-wheel motors may be more complicated than in conventional methods. However, as long as the analysis steps are correct, the torque change characteristics caused by the temperature rise of the hub motor under actual operating conditions can still be calculated efficiently.
