A High-Speed Silicon Ring Modulator with a Large Working Wavelength Range

Abstract

With the advantages of high speed, small size, and easy integration, the silicon photonic resonant ring modulator has gradually become a critical device for emerging integrated optical platforms. Ring modulators are primarily used in optical communications, optical computing, artificial intelligence, and other fields. In this work, the proposed ring modulator can operate in both the O- and C-bands. The 3 dB electro-optical (EO) bandwidth of the ring modulator is 39 GHz and 34 GHz at −4 V in the O-band and C-band, respectively. The modulation efficiency of the device is 0.92 V·cm and 0.95 V·cm in the O-band and C-band, respectively. The eye diagram of an optical output signal from the device is tested using a 100 Gbit/s non-return-to-zero (NRZ) input signal with a 2.5 V_pp in both the O-band and C-band. The modulation speed can reach 140 Gb/s and 120 Gb/s in the O-band and C-band with four-level pulse amplitude modulation (PAM-4) formats at a voltage swing of 2.5 V_pp, respectively.

1. Introduction

With the rise and development of industries such as artificial intelligence (AI), the metaverse, and fully automated driving (FSD) [1,2,3], the continuous growth of data computing has been significantly promoted, necessitating faster and more efficient interconnection technologies [4,5]. Traditional internal connections in electronic chips cannot meet the rapidly increasing demands for bandwidth and power consumption in future applications. Optical solutions have been widely proven to be superior to traditional electrical links, offering high-bandwidth and low power consumption capability [6,7,8]. Due to its high-bandwidth density, optical interconnection has become a promising solution to address the rapidly increasing demand for data transmission. Silicon photonics technology is a key technology for the rapid processing and transmission of massive amounts of information [9,10,11,12]. The preferred solution for information transmission through modulated optical signals is to use silicon-based electro-optic modulators for external modulation.

Due to the compatibility and large-scale production advantages of silicon photonics with complementary metal oxide semiconductors (CMOSs), as well as the high refractive index contrast on the Si photonics platform, microring resonators provide single-mode, high-confinement, and low-loss waveguides. The microring modulator (MRM) utilizes the inherent wavelength selectivity of the microring resonator to achieve modulation of optical signals. Compared with large silicon Mach–Zehnder modulators (MZMs) that are millimeters in length [13,14], MRMs have a smaller footprint, with a radius typically ranging from a few micrometers to tens of micrometers [15,16,17,18], and the optical resonance within the cavity effectively increases the optical path length. The compact footprint also reduces the parasitic capacitance of the device, further improving its bandwidth. Various Si PN junction configurations have been demonstrated for MRMs, including the vertical junction [19], U-junction [20,21,22], and L-shaped junction [23,24]. A simple four-step doping method can simplify the fabrication process. In 2022, Yuanang Zhang et al. proposed and fabricated an ultrafast microring modulator with a $V_{\pi }L$ of 0.825 V·cm, capable of supporting PAM-8-rate transmission at 240 Gb/s. Due to the optical peak effect, the device’s bandwidth reaches 110 GHz [25]. David W. U. Chan et al. proposed and demonstrated a high-efficiency silicon microring modulator for next-generation optical transmitters, operating at line rates above 300 Gb/s with a driving voltage of 1.8 $V_{pp}$ [26]. Additionally, Si MRM arrays used for optical interconnection have been proven to achieve transmission rates of 1 Tb/s [27,28]. Si MRMs are currently key components in the field of optical computing and interconnection, necessitating research and design of Si MRMs with a large wavelength operating range.

This article studies and manufactures a Si MRM that can operate simultaneously in both the O-band and C-band, capable of transmitting speeds exceeding 100 Gb/s in different bands.

2. Device Design

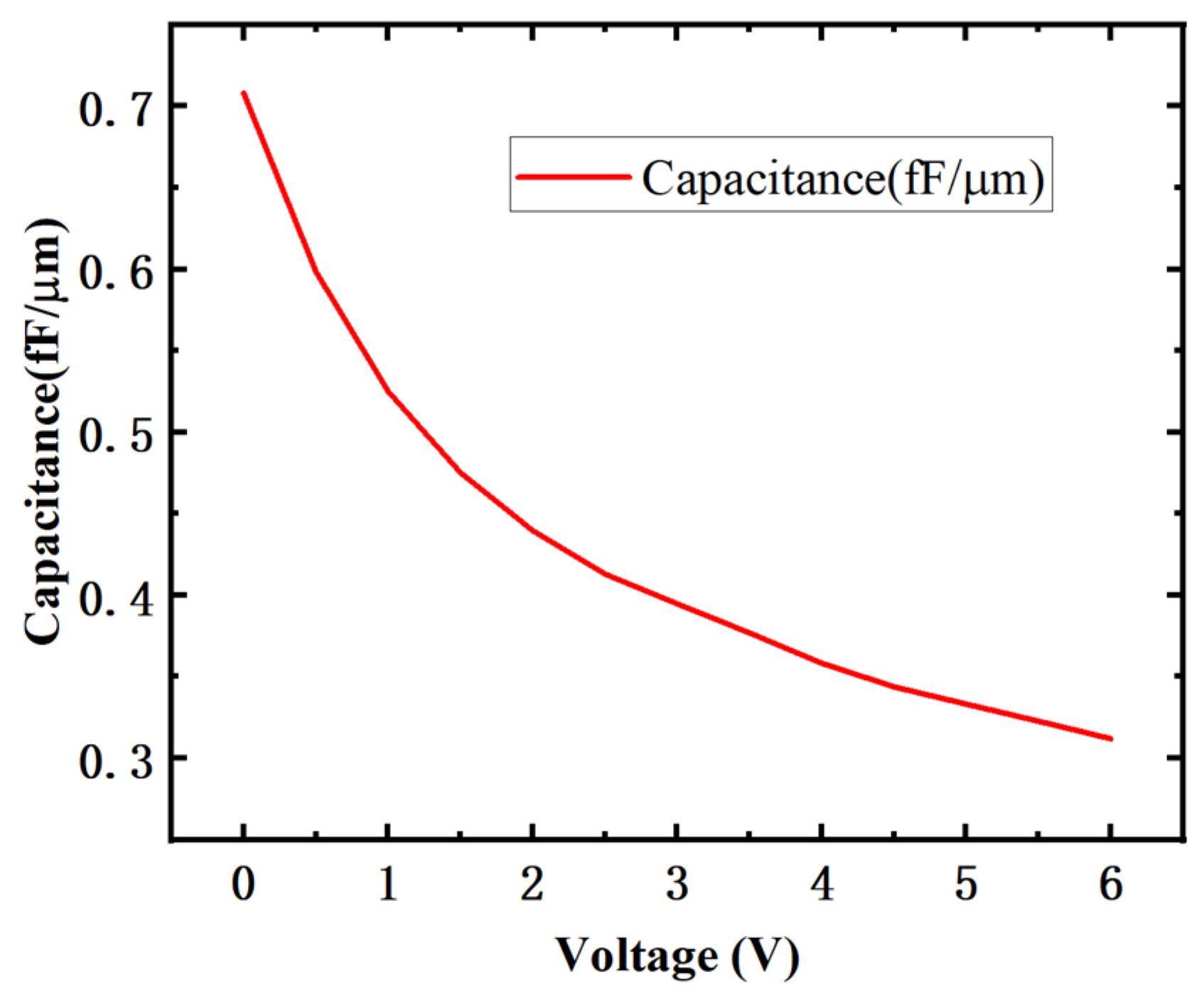

The device design involves optimizing the optical waveguide structure, refining the doping region design, and determining the distribution of charge carriers based on doping simulation results. By simulating the P and N regions separately, the resistance values of these regions can be determined, and the capacitance values can be calculated accordingly. The most common modulation method used in silicon optical devices is the plasmonic dispersion effect, in which the concentration of free charges in silicon changes the real and imaginary parts of the refractive index. Soref and Bennett [29] studied the changes in refractive index and absorption rate, and derived the following expression to evaluate the changes in carrier density in silicon. The variation in the refractive index (Δn) and the absorption coefficient (Δα) with carrier concentration is as follows:

$$\begin{gathered} \mathsf{\Delta }\mathrm{n}=-8.8 \times {10}^{-22} \mathsf{\Delta }{N}_e- 8.5 \times {10}^{-18} (\mathsf{\Delta }{N}_h{)}^{0.8} \\ \mathsf{\Delta }\mathsf{\alpha }=8.5 \times {10}^{-18}\mathsf{\Delta }{N}_e+6.0 \times {10}^{-18}\mathsf{\Delta }{N}_h \end{gathered}$$

(1)

where Δ$N_e$ is the change in electron concentration, while Δ$N_h$ is the change in hole concentration. The electron and hole densities can be converted into changes in the refractive index and absorption coefficient of the material, thereby obtaining the optical loss and modulation efficiency results of the device.

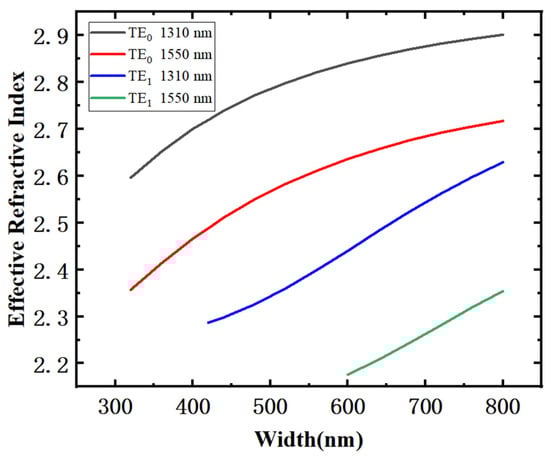

The microring structure used for the modulator design in this article consists of a single-waveguide coupling structure (a microring resonator and a straight waveguide) with a coupling region between the straight waveguide and the ring in the middle. The device is designed based on a commercially available SOI wafer with the top silicon layer thickness of 220 nm, and will be processed in Shanghai μTechnology Industry Research Institute (SITRI). Considering that SITRI’s MPW process provides an etching depth of 130 nm for the top silicon layer, the slab thickness of the ridge waveguide is set to be 90 nm. The device is designed to be worked in TE mode in both the O-band and C-band. So, the design of the waveguide width should enable single-mode transmission in both the O-band and C-band. We subsequently conducted simulations of the effective refractive index of TE mode changing with the width of the ridge waveguide at a wavelength of 1310 nm (O-band) and 1550 nm (C-band). From Figure 1, it can be seen that when the width of the ridge waveguide is greater than 420 nm, higher-order modes appear in the waveguide, causing additional losses that are not conducive to single-mode transmission. Therefore, we ultimately designed a ridge waveguide width of 420 nm.

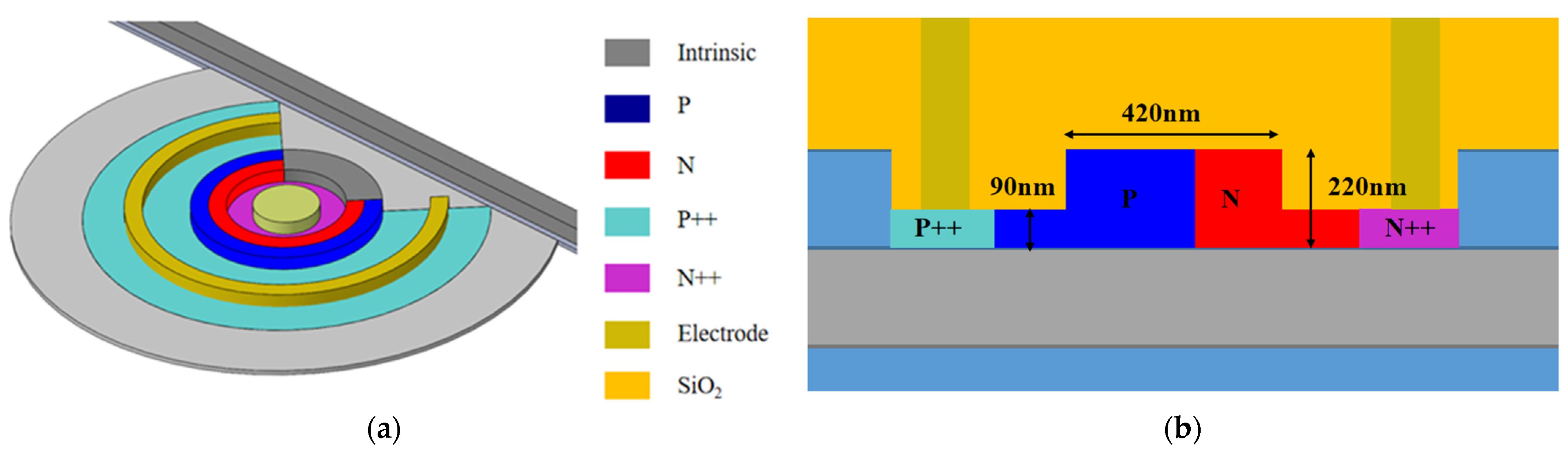

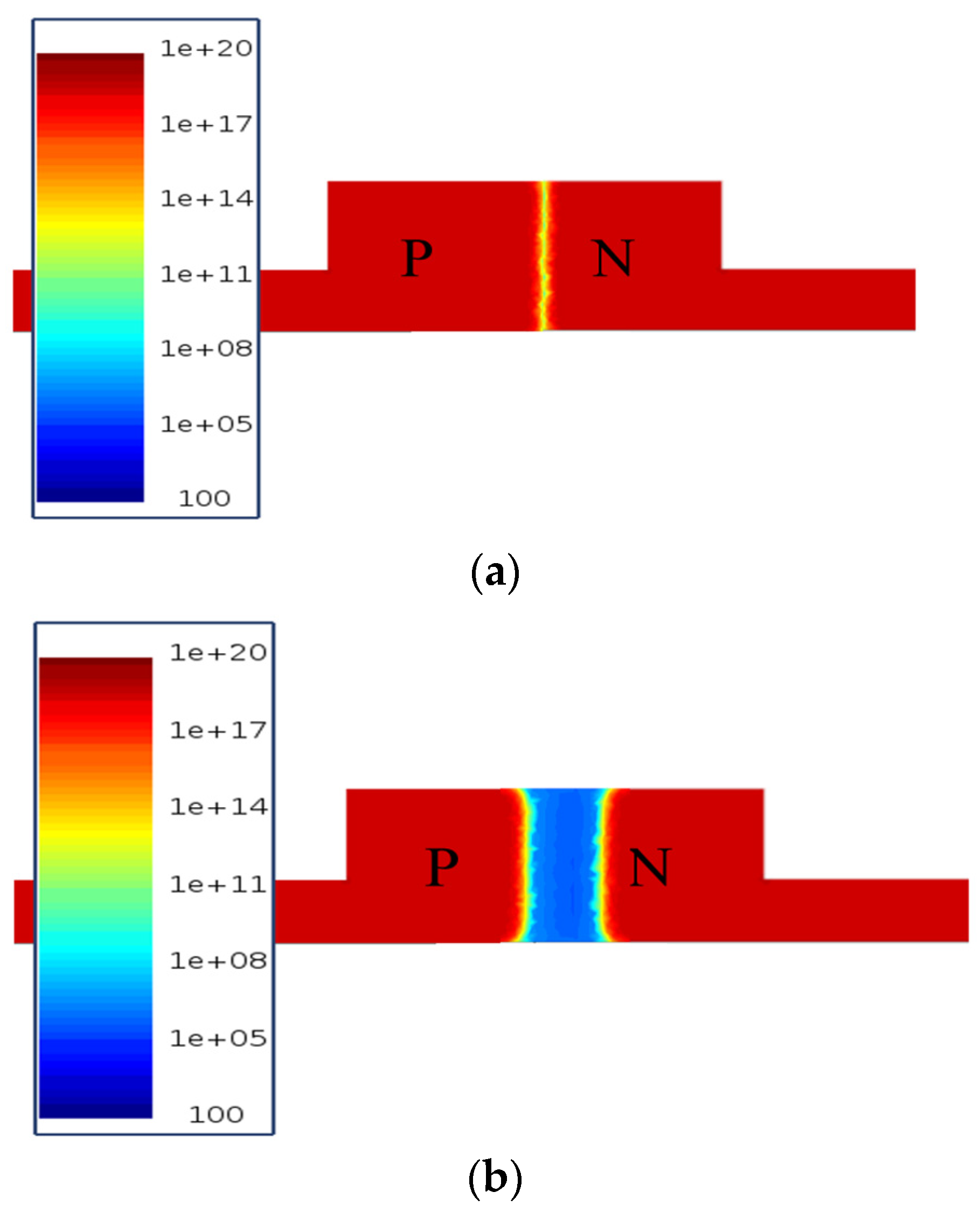

The cross-sectional diagram of the microring modulator is depicted in Figure 2. For the convenience of observation, Figure 2a omits the upper layer of silica dioxide. A horizontal transverse PN junction is embedded in the ring waveguide, with a simple four-step doping method employed, incorporating light doping in the ridge waveguide region and heavy doping in the slab layer for metal contact. To leverage the refractive index change resulting from variations in hole concentration, which is greater than that caused by changes in electron concentration (as shown in Equation (1)), a non-symmetrical PN junction structure is adopted, shifted 40 nm toward the N region, in pursuit of enhanced modulation efficiency.

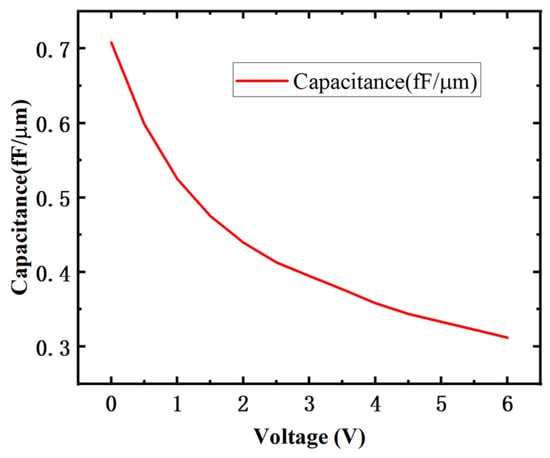

The final selected doping concentration in the P region is approximately 3 $\times {10}^{18} {\mathrm{c}\mathrm{m}}^{-3}$, in the N region, it is about 3 $\times {10}^{18} {\mathrm{c}\mathrm{m}}^{-3}$, and in the heavily doped region, it is around 1 $\times {10}^{20} {\mathrm{c}\mathrm{m}}^{-3}$, which promotes the formation of Ohmic contacts. Based on these doping conditions, the PN junction phase shift arm was doped, and the relationship between carrier distribution and reverse bias voltage was simulated through structural modeling. The red area in Figure 3 represents the concentration of different carriers. It was observed that the width of the depletion region increases with higher reverse bias voltages. Additionally, the carrier concentration on both sides of the depletion layer decreases as the bias voltage increases.

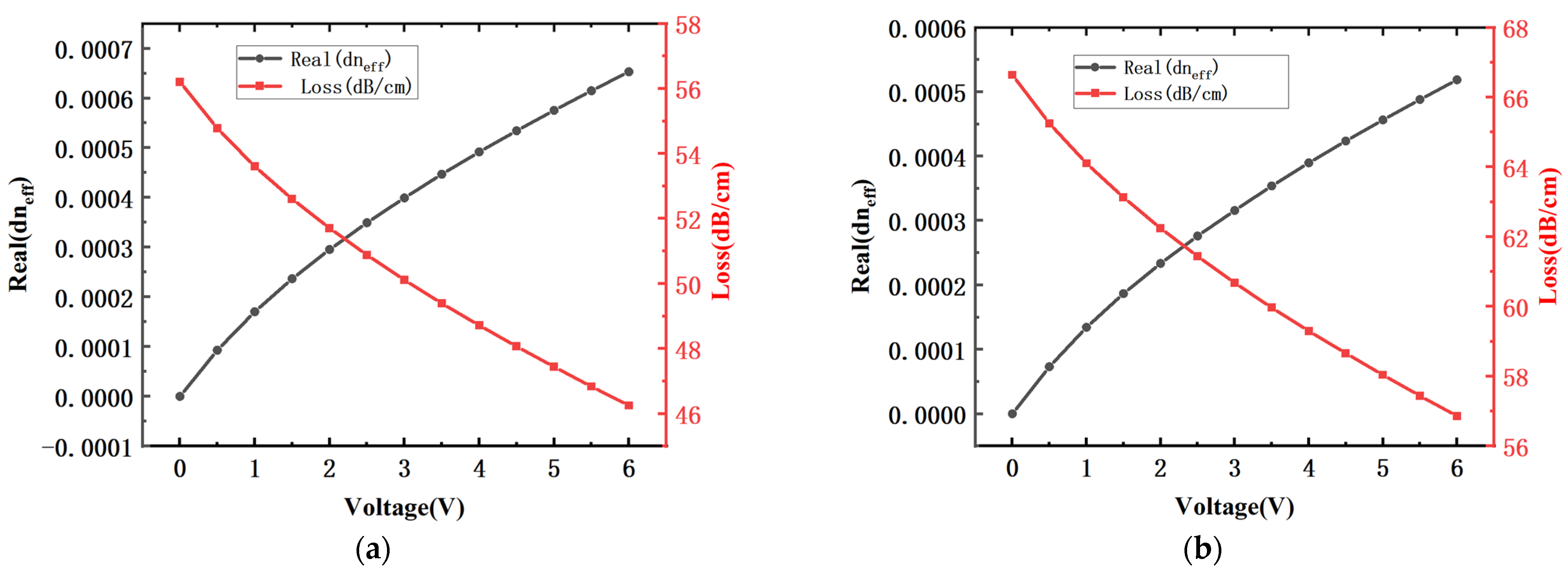

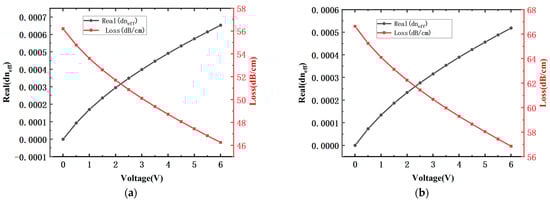

Under wavelength conditions of 1310 nm and 1550 nm, the presence of the free-carrier plasma dispersion effect causes changes in the effective refractive index and optical loss of the phase-shifting arm from a 0 V to 6 V reverse bias voltage. Figure 4a,b, respectively, show the changes in the effective refractive index and loss of O-band and C-band light transmitted in the ridge waveguide. In addition, applying a reverse bias voltage on the PN junction will reduce the carrier concentration. As the voltage increases, the carrier concentration changes slowly and tends to saturate, making the curve nonlinear. It is observed that the effective refractive index change increases with higher bias voltages, while the optical loss decreases with increasing bias voltage.

We used optical simulation software to obtain the transmission spectrum and modulation efficiency of the MRM in the O-band and C-band, respectively. The modulation efficiency can be expressed as

$$V_{\pi }L=\left({\displaystyle \frac{V_{bias}}{2}}\right)\left({\displaystyle \frac{FSR}{\Delta \mathsf{\lambda }}}\right),$$

(2)

where $V_{bias}$ is the DC bias voltage at both ends of the PN junction, L is the circumference of the MRM, FSR is the distance between the two resonant peaks of the device, and Δλ is the offset of the resonant peaks under different biases.

The modulation efficiency of the device in the O-band and C-band under −4 V bias can be calculated to be 0.72 V·cm and 1.02 V·cm, respectively, by analyzing the resonant peak offset of the Si MRM at different biases. Both the photon lifetime limited optical bandwidth and the resistance–capacitance constant limited electrical bandwidth determine the EO bandwidth of the Si MRM [27]. Among them, the optical bandwidth can be expressed as

$$f_{opt}={\displaystyle \frac{c}{\lambda Q}}$$

(3)

where λ, $Q$, and c are the resonant wavelength, the $Q$-factor, and the light speed in a vacuum. The electrical bandwidth can be expressed as

$$f_{ele}=1/2\pi \left(R_{pn}+R_{dr}\right)C_{pn},$$

(4)

where $R_{pn}$, $R_{dr}$= 50 Ω, and $C_{pn}$ are the modulator series resistance, driver impedance, and junction capacitance of the MRM, respectively. Finally, the EO bandwidth can be obtained through the above two formulas.

$${\displaystyle \frac{1}{{\left(f_{mod}\right)}^2}}={\displaystyle \frac{1}{{\left(f_{opt}\right)}^2}}+{\displaystyle \frac{1}{{\left(f_{ele}\right)}^2}}$$

(5)

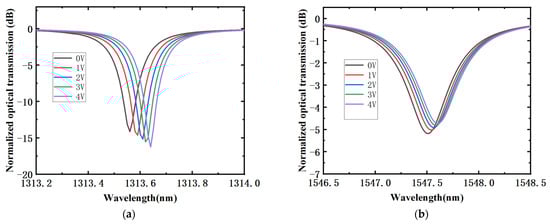

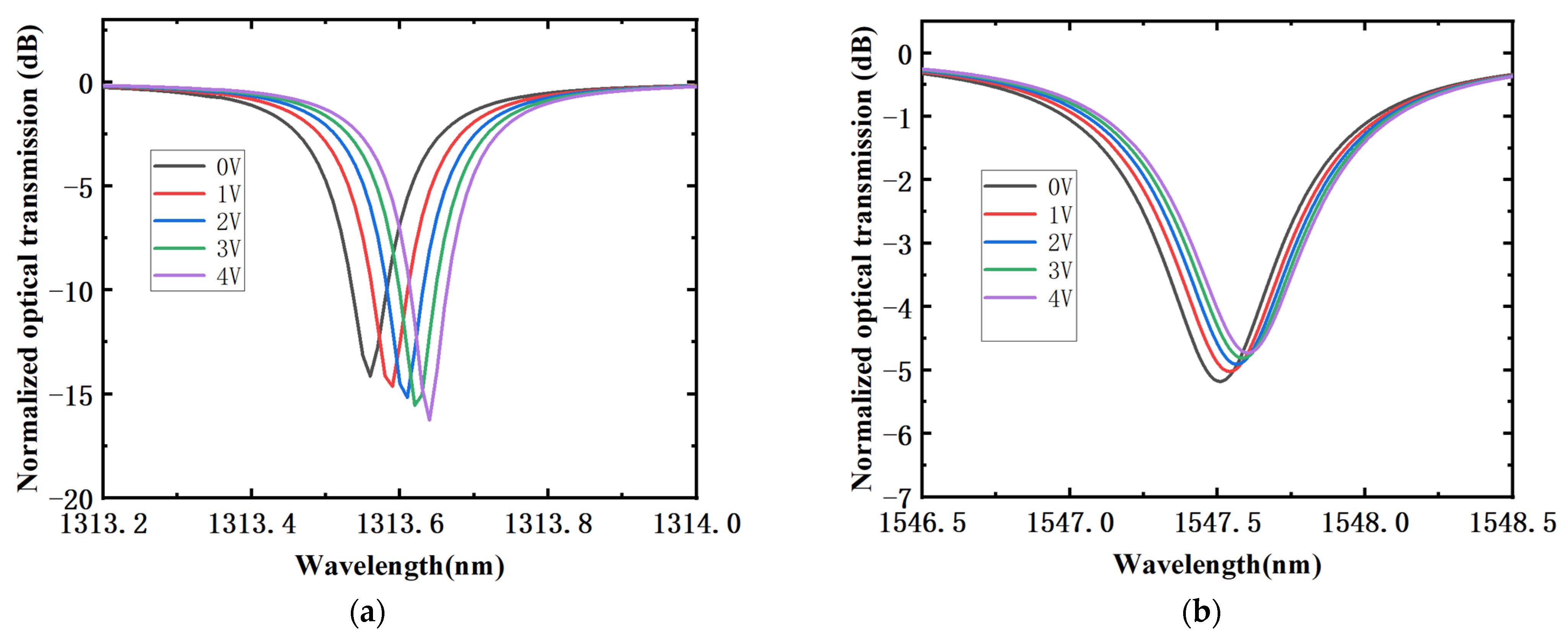

From Equation (5), one can find that to improve the EO bandwidth of the MRMs, the, $Q$-factor, $R_{pn}$, and $C_{pn}$ should be decreased, while all of them are mostly dependent on the doping concentration. According to the transmission spectral lines in (a) and (b) of Figure 5, Formula (2) can be used to obtain the $Q$ values of the device in the O- and C-bands, and the optical bandwidth of the device can be obtained, which is 38 GHz and 55 GHz, respectively. The variation in the unit junction capacitance of the PN junction depletion region with a reverse bias voltage can be obtained from the model, as shown in Figure 6. $R_{pn}$ can be calculated as 150 ohms through simulation silicon slab layer doping, and the EO bandwidth of the device can be obtained through Formula 3, which is 34 GHz in the O-band, and in the C-band, it is 41 GHz at −4 V.

3. Fabrication and Results

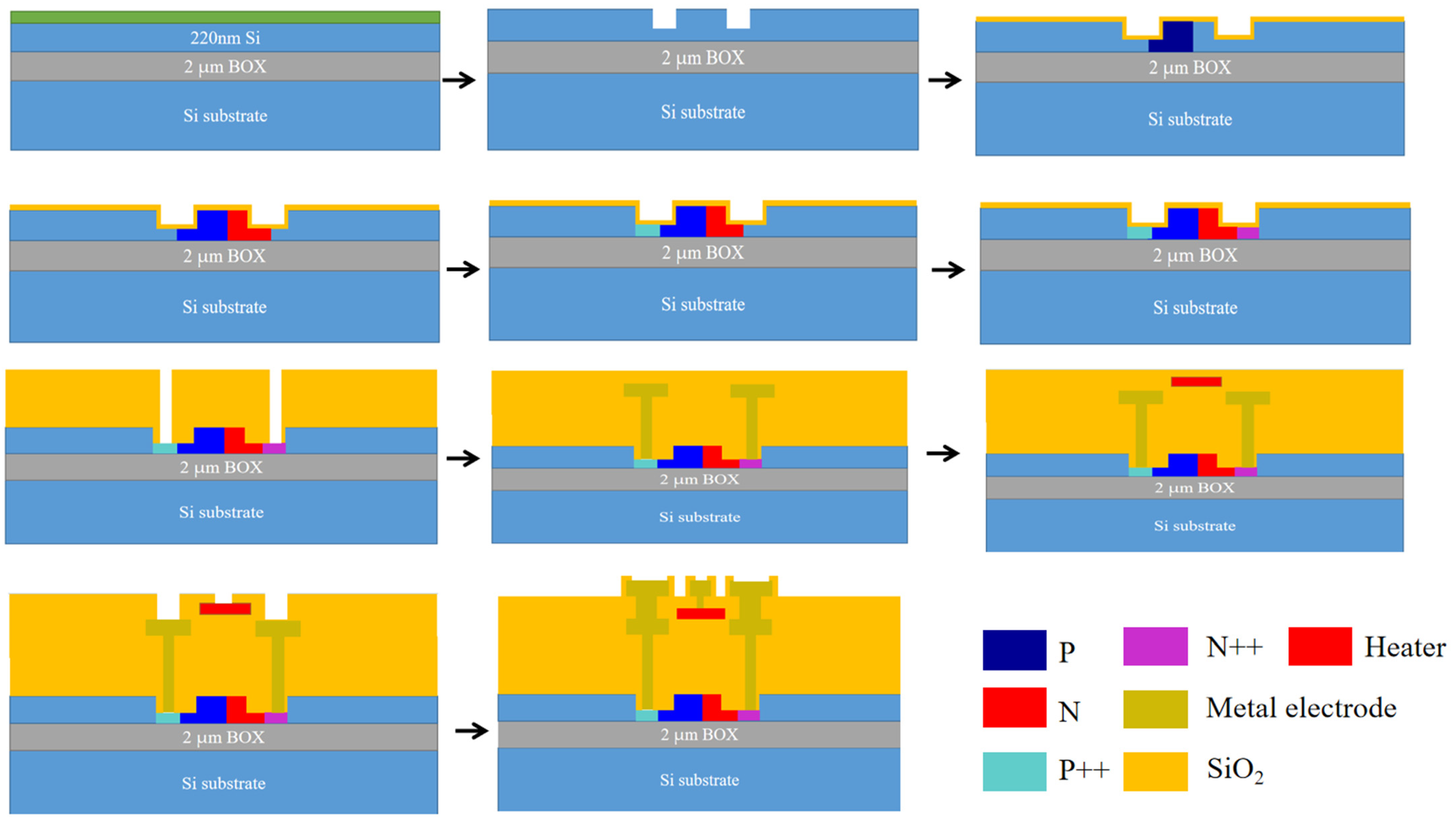

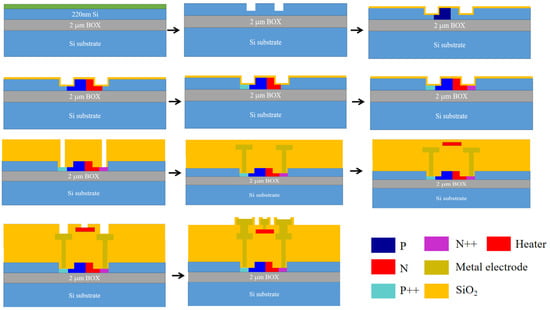

The devices are fabricated using the 8-inch silicon photonics platform from the Shanghai Industrial μTechnology Research Institute, and the standard process of device fabrication is shown in Figure 7. A layer of silicon dioxide hard mask was deposited on SOI wafers by using plasma-enhanced chemical vapor deposition (PECVD), and the top layer of 220 nm silicon was photo-lithographed, leaving behind a ridge waveguide with a height of 220 nm and a silicon slab with a height of 90 nm after removing the photoresist. The next steps were as follows: depositing a 10 nm thick silicon dioxide barrier layer on the silicon surface by using PECVD, lightly doping the ridge waveguide P and N regions, doping the silicon slab layer with heavy P and heavy N regions, then depositing silicon dioxide, and dry etching to form through holes, and exposing the heavily doped areas. Interconnecting and conducting were carried out by filling the through holes with a metal alloy AlCu (metal1). Then, silicon dioxide was deposited and followed by chemical mechanical polishing (CMP). A TiN heating layer was deposited and silicon dioxide was deposited to form an upper cladding layer. Subsequently, the upper cladding layer was etched until it made contact with metal1. Then, the metal alloy AlCu was filled to form metal2, and finally, silicon dioxide was deposited and etched to expose the metal pad to perform device testing.

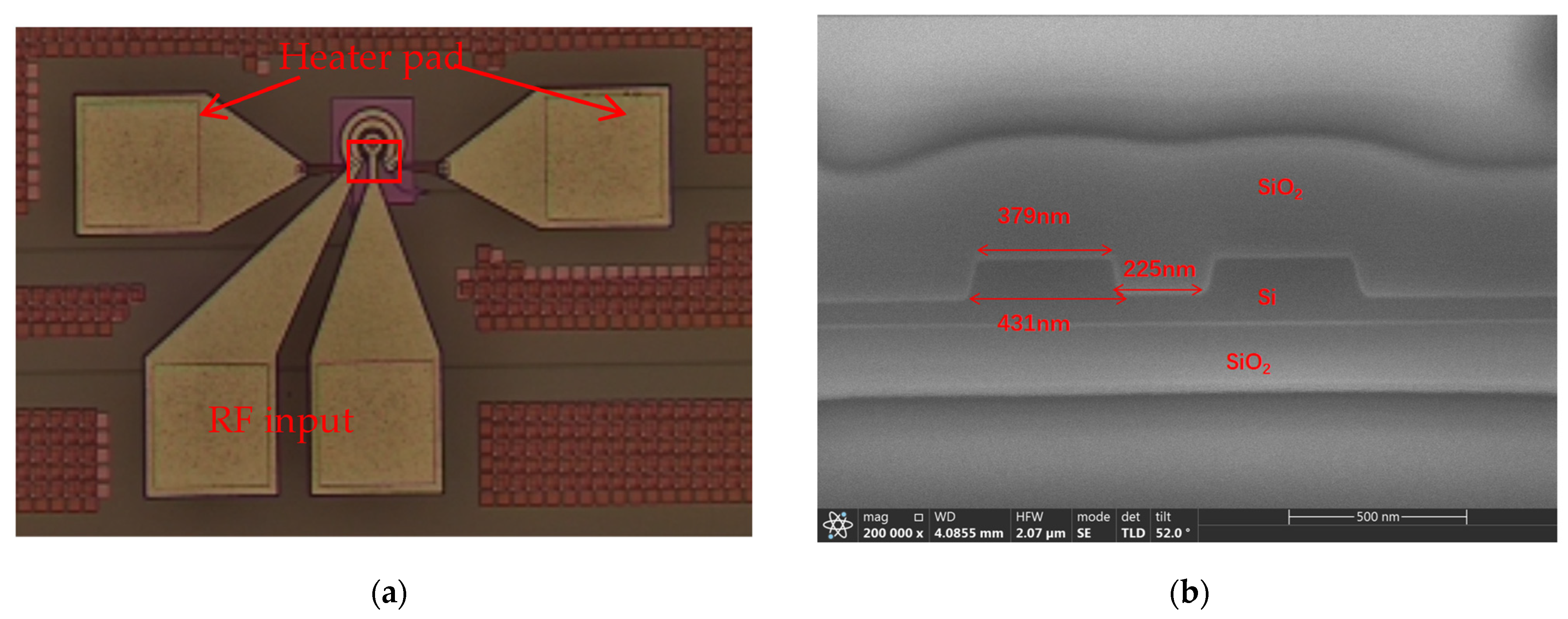

The structure of the fabricated Si MRM is shown in Figure 8a. The microring modulator fabricated by the foundry has a small footprint (approximately 100 μm²) and is easily integrated on a large scale. The testing of DC performance is relatively simple. The light output by the laser is coupled into the device through a polarization controller and then input to the power meter through a link. We tested the transmission spectra of the device by applying different biases to the DC pad, and the transmission spectra of the device under different biases are shown in Figure 9.

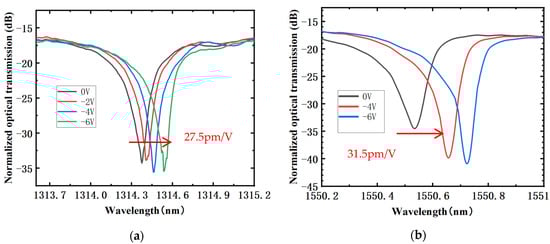

As the DC bias of the device increases, the optical transmission spectral line undergoes a red shift, moving toward longer wavelengths. The modulation efficiency of the microring resonator in the O-band and C-band has been measured and calculated to be 27.5 pm/V and 31.5 pm/V, respectively. The overall insertion loss of the device is approximately 2.5 dB. Under a reverse bias voltage of 4 V, the modulation efficiency of the device at a −4 V DC bias is 0.92 V·cm in the O-band and 0.957 V·cm in the C-band. It can be observed that the resonance depth of the resonant peak of the microring is significantly deeper than that in the simulation scenario. This discrepancy arises because, during simulation, the gap between the coupling zone microring and the straight waveguide was set at 200 nm. However, in the manufacturing process, the actual gap exceeded 200 nm, as shown in the SEM image in Figure 8b. This increased gap leads to a higher $Q$ value of the microring resonator, resulting in a decrease in the optical bandwidth of the microring and ultimately a reduction in the electro-optic (EO) response bandwidth. In the next batch of tape-outs, we will make several different widths of the bandgap between the microring and the straight waveguide to reduce the errors caused by the process. In addition, optimizing bandgaps to put the microring modulator in an over-coupled state and close to critical coupling can achieve lower $Q$ values while increasing the bandwidth of the device.

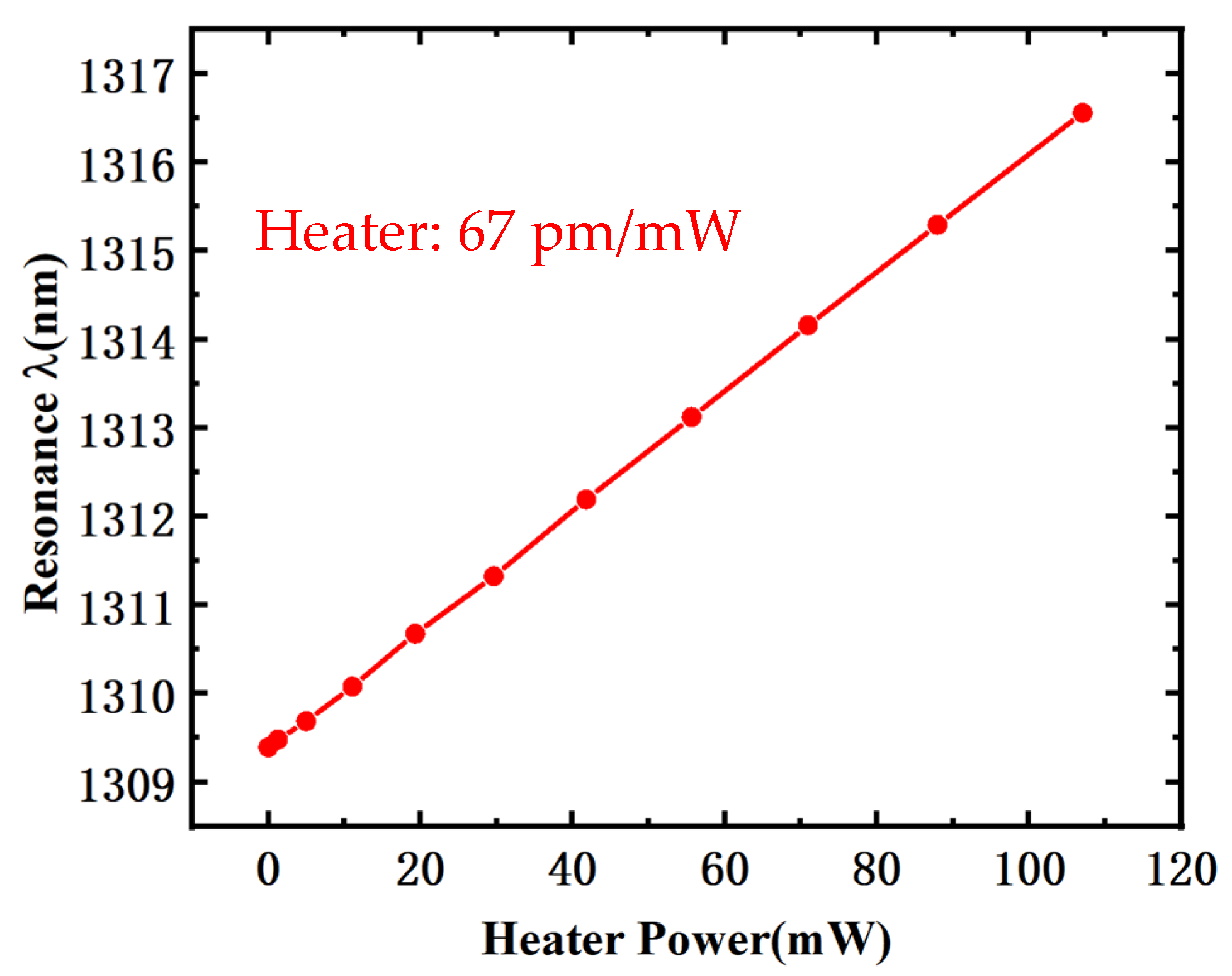

The function of the TiN heater is wavelength tuning of the microrings. The resonant wavelength shifts red with the increase in voltage, and the corresponding resonant wavelength varies with the power of the heater, as shown in Figure 10, with a red shift of about 67 pm/mW.

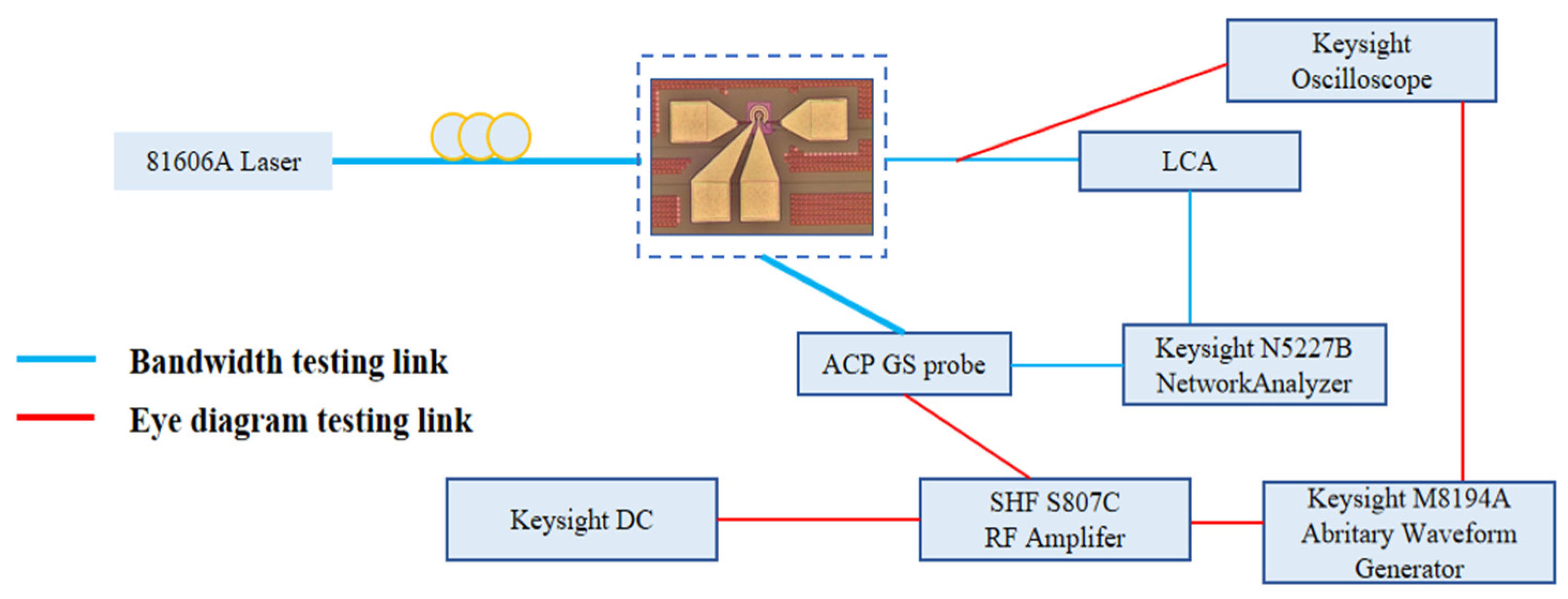

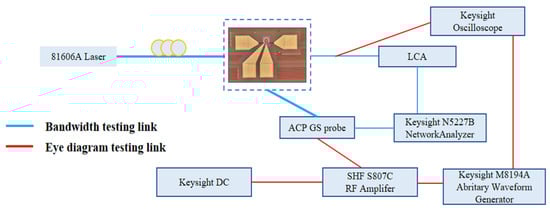

We conducted RF testing of the device, as shown in the testing setup in Figure 11, which includes bandwidth and eye diagram testing. The laser outputs light, which is fed to the device under test through a polarization controller. The DC probe biases and pressurizes the device, while the RF signal output by the network analyzer is loaded onto the device through the GS high-frequency probe. The modulated optical signal output by the modulator is input to the LCA optical interface, and the network analyzer is connected to the LCA to provide a reference electrical signal. The device’s electro-optical bandwidth was tested by adjusting the wavelength to the 3 dB operating point of the device. We tested the S21 parameters of the device under reverse bias voltages ranging from 0 V to 4 V, as shown in Figure 12. The electro-optic bandwidth of the O-band device is 30 GHz under a 0 V bias voltage; 36 GHz under a 2 V reverse bias; and 39 GHz under a 4 V reverse bias. For the C-band, the electro-optic bandwidth is 20 GHz under a 0 V bias; 31 GHz under a 2 V reverse bias; and 34 GHz under a 4 V reverse bias. As the bias voltage increases, the EO bandwidth of the device also increases.

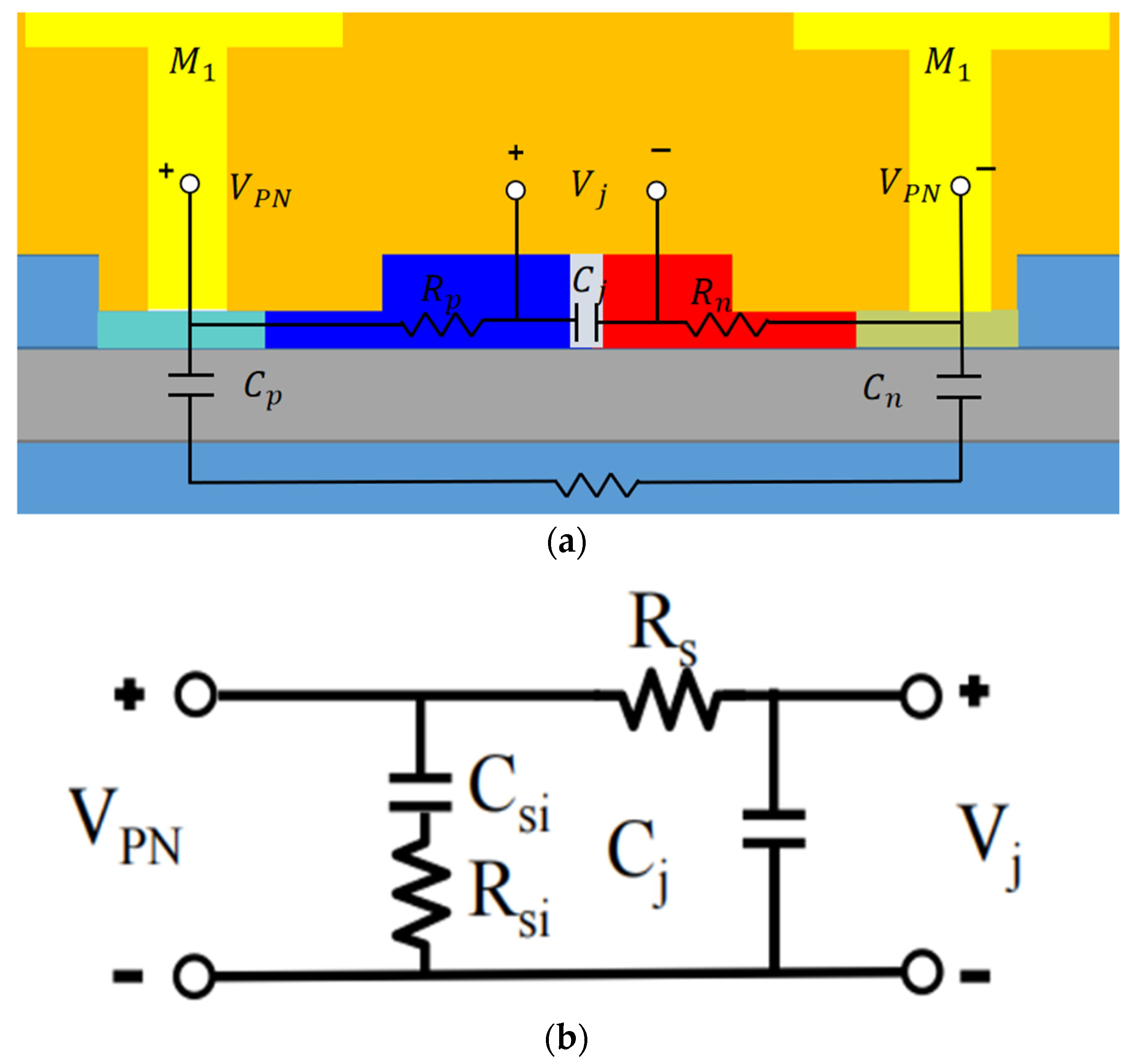

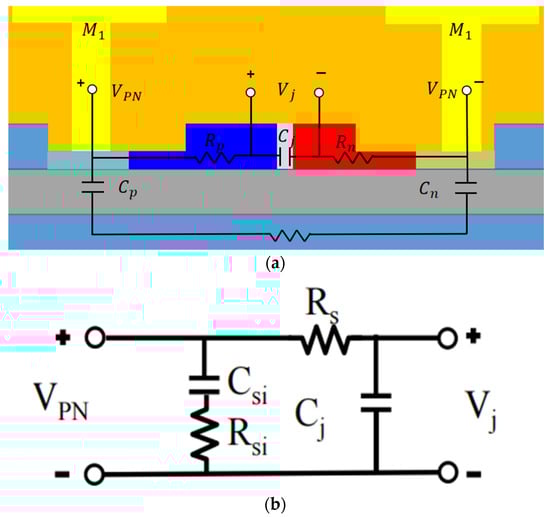

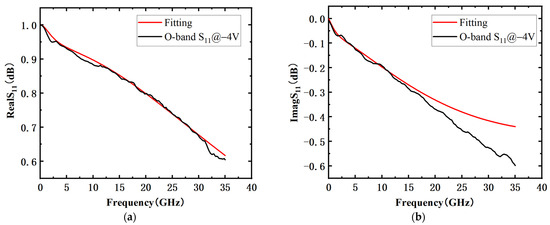

We obtained S parameters based on RF testing and performed parameter fitting. Figure 13a shows the cross-section of the device along with the equivalent circuit diagram overlaid on it. Vpn+ and Vpn- are connected to the S and G terminals of the GS high-frequency probe, respectively. Rn and Rp represent the resistances in the doped Si layer, Cn and Cp represent the capacitances between the doped silicon layer and the silicon substrate, and Rsi represents the resistance of the silicon substrate beneath the device. The capacitance in the depletion region is denoted as Cj when a negative voltage is applied across the junction, with Vj representing the voltage at the junction. Figure 13b presents the Si MRM equivalent circuit, where Rs = Rn + Rp and Csi = Cn || Cp. The real and imaginary parts of the S11 curve fitted by the Si MRM in the O-band are shown in Figure 14, and the fitted parameters are listed in

Table 1. The capacitance and resistance models extracted from the equivalent circuit model of the microring in Table 1.

Extracted Parameter	Parameter Values
$C_j$(fF)	3.34
$C_{ox}$(fF)	41.42
$C_{pad}$(fF)	31.31
$R_s$(Ω)	151.52
$R_{si}$(Ω)	1500

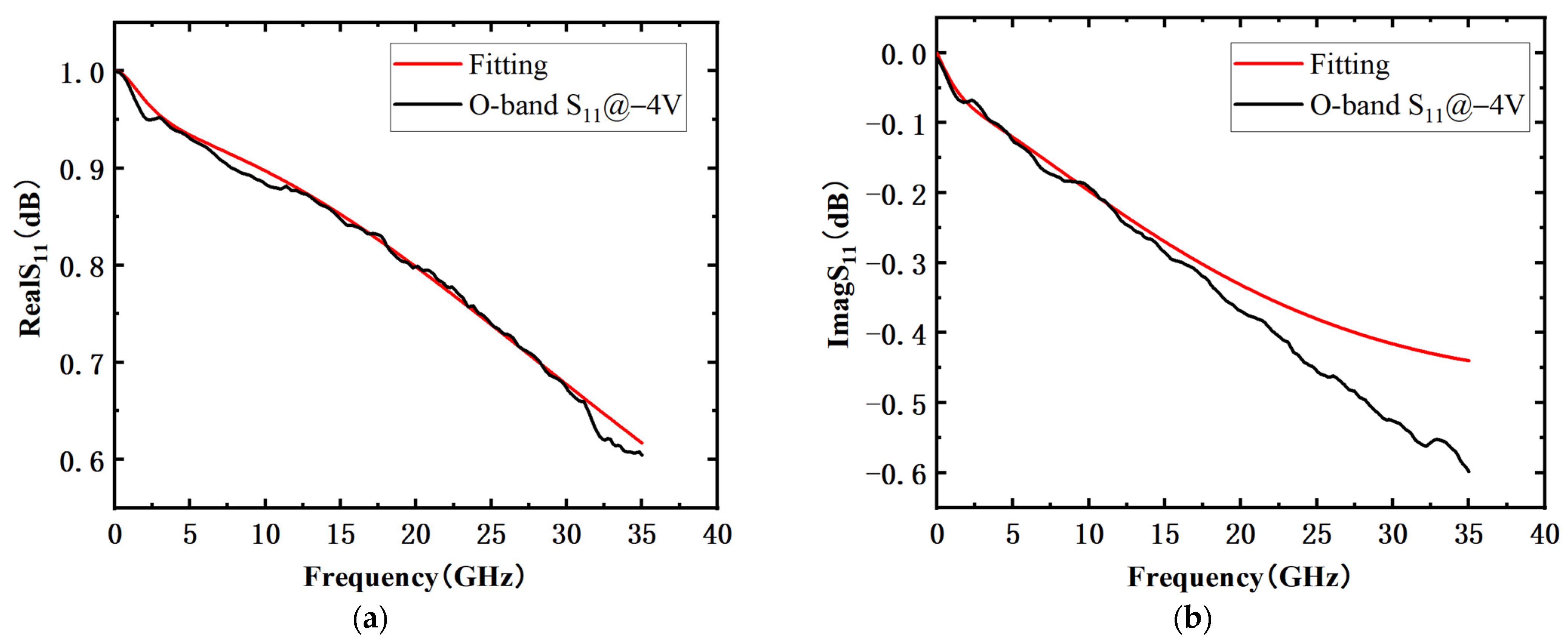

. It can be observed that the fitting of the real part of S11 closely matches the original data.

For non-return-to-zero (NRZ) modulation, the energy consumption per bit can be expressed as

$$Energy/Bit={\displaystyle \frac{C\times {V_{pp}}^2}{4}},$$

(6)

where $C$ is the device capacitance. Considering an experimentally measured junction capacitance of approximately 3.34 fF for our device and a voltage of 2.5 $V_{pp}$, the energy consumption per bit is calculated to be 5.21 fJ/bit.

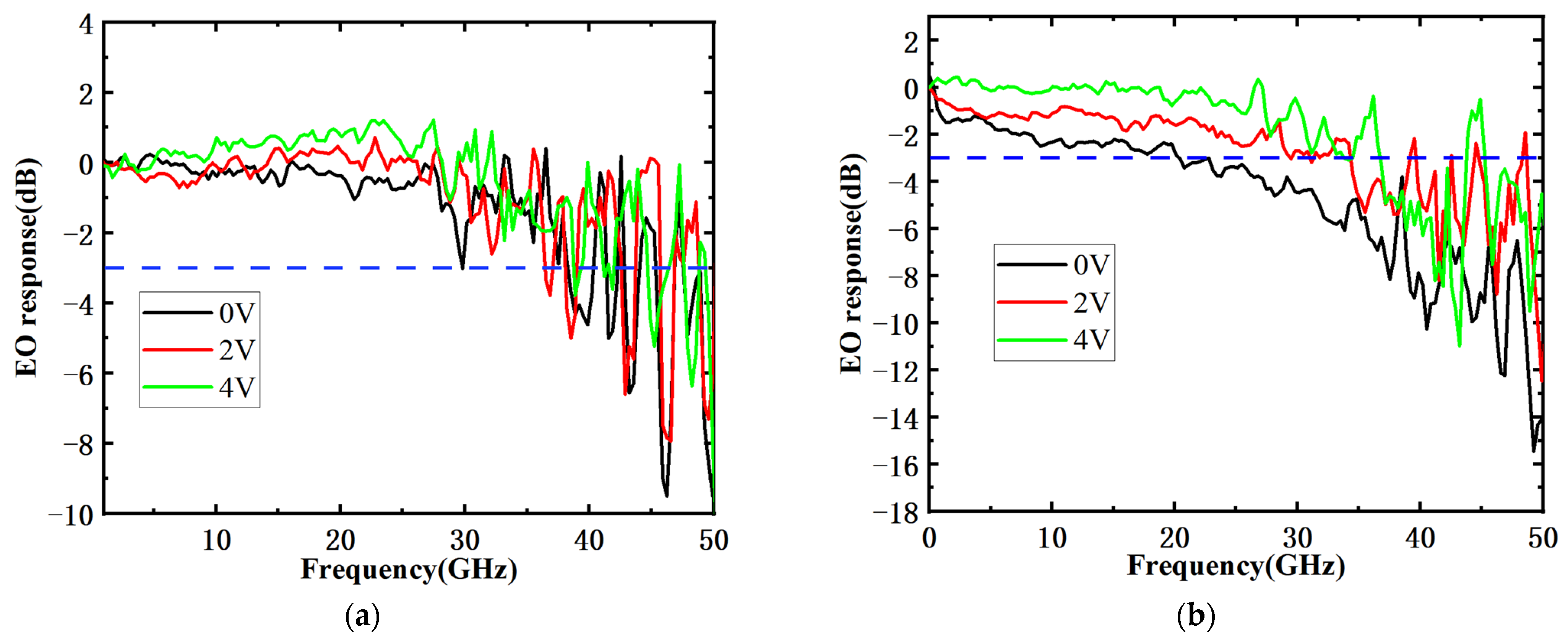

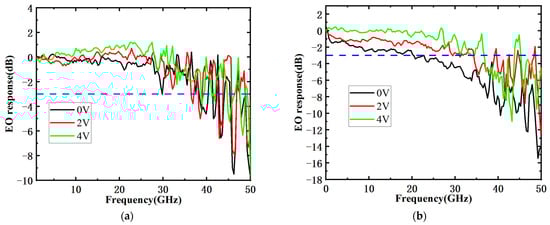

Under a reverse bias voltage of 4 V, the electro-optic bandwidths of the device in the O-band and C-band are 39 GHz and 34 GHz, respectively. Subsequently, we measured the eye diagram results using the setup shown in Figure 11 to comprehensively characterize the high-speed performance of the device. Various rates of (2¹⁵−1) NRZ Pseudo Random Bit Sequence (PRBS) electrical signals were generated by a clock and code generator, amplified to 2.5 $V_{pp}$ by an RF amplifier, and loaded onto the device. The light output from the laser was fed to the device under test through a polarization controller. The DC probe biased and pressurized the device, and the modulated light signal output by the device was sent to the oscilloscope for detection. Simultaneously, the signal output by the signal generator system was sent to the oscilloscope for reference.

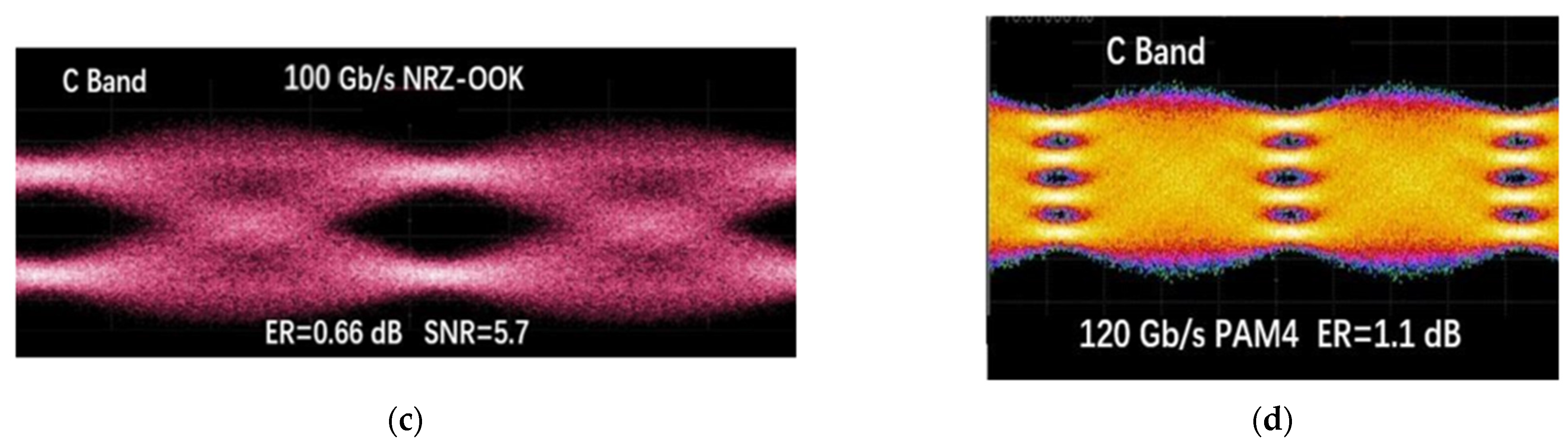

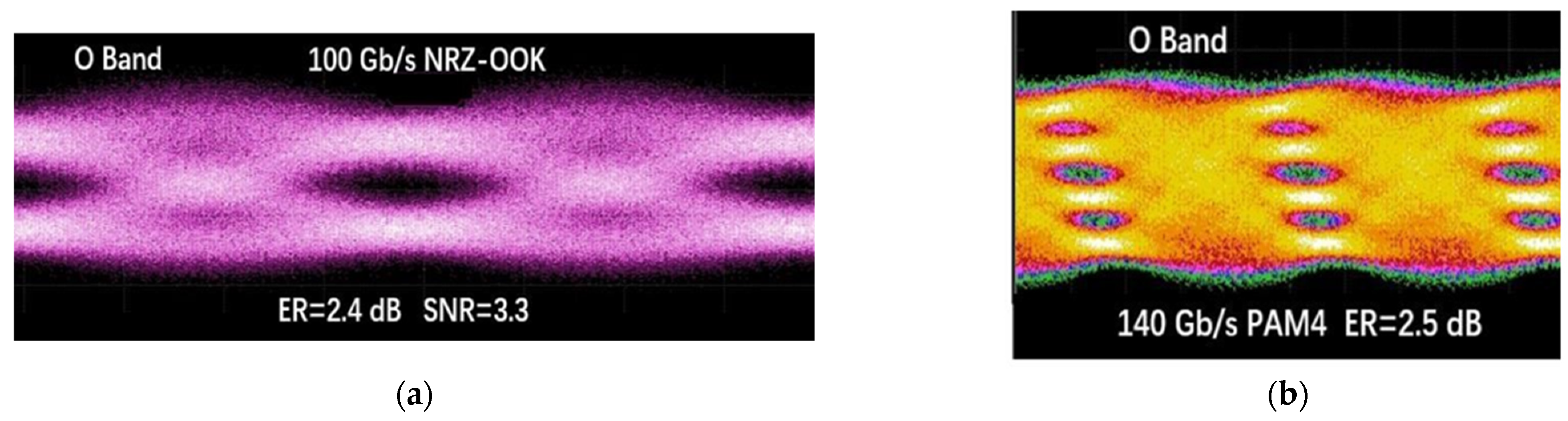

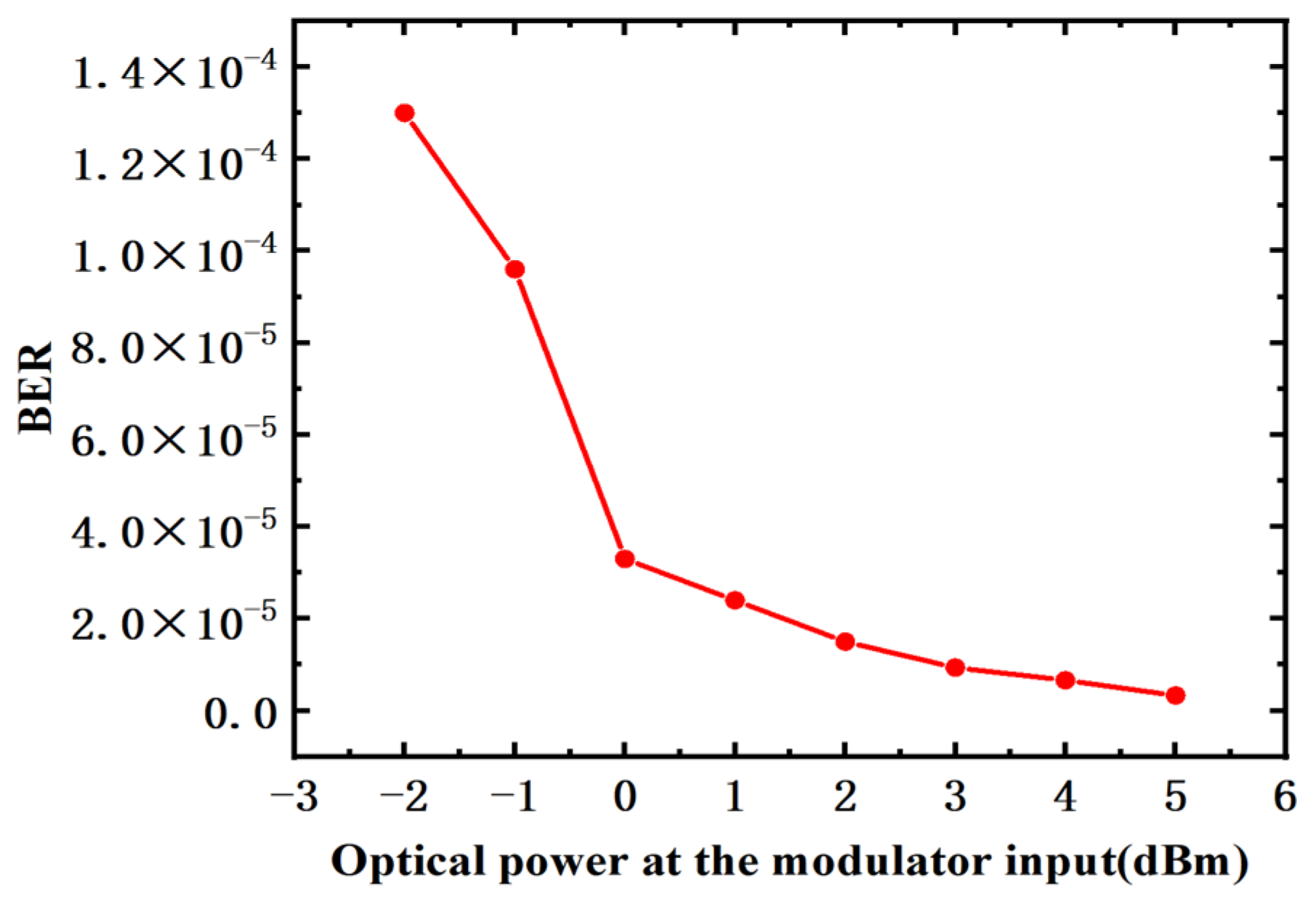

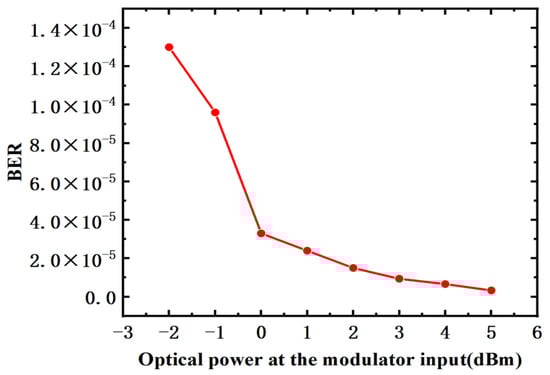

The measured eye diagrams with PRBS15 signals are shown in Figure 15. In the O-band, the NRZ modulation rate of the device reached 100 Gb/s, with an ER of 2.4 dB and a signal-to-noise ratio (SNR) of 3.3. The PAM4 modulation rate reached 140 Gb/s, with an ER of 2.5 dB. In the C-band, the device also achieved excellent performance, with an NRZ modulation rate of 100 Gb/s, an ER of 0.66 dB, and an SNR of 5.7. The PAM4 modulation rate in the C-band reached 120 Gb/s, with an ER of 1.1 dB. The MRM supports data transmission rates exceeding 100 Gbit/s, with a bit error rate (BER) lower than the hard-decision forward error correction (HD-FEC) threshold of 3.8 × 10⁻³. The relationship between the BER and the received optical power of the device is shown in Figure 16. The higher the received optical power, the lower the bit error rate.

Table 2. Performance comparison of high-speed EO modulators.

Ref.	Radius (µm)	EO Bandwidth (GHz)	Operating Waveband	${\mathit{V}}_{\mathit{\pi }}\mathit{L}$ (V·cm)	Data Rate (Gb/s)
[25]	8	>60	O-band	[email protected] V	240
[30]	9	42	C-band	[email protected] V	100
[23]	5	35	O-band	0.37@-1 V	100
[31]	10	45	O-band	0.52@-2 V	128
This work *	8	39@O-band 34@C-band	O-band and C-band	0.92@O-band 0.95@C-band	140@O-band(PAM4) 120@C-band(PAM4)

* The results of EO bandwidth and modulation efficiency both under a −4 V bias voltage.

compares our device with other high-performance devices that have been published. The advantage of our device is that it has a relatively simple doping process, can work simultaneously in the O- and C-bands, and has high speed, small size, and low power consumption. The MRM we designed has great application potential in optical transmitters, playing an immeasurable role in the future field of optical computing and interconnection.

4. Conclusions

In conclusion, we have demonstrated a compact (~100 μm²), high-speed (39 GHz) silicon electro-optic modulator with a very low voltage (2.5 $V_{pp}$) and ultralow energy consumption (5.21 fJ/bit). The device also achieved excellent eye diagram performance, with the NRZ modulation rate exceeding 100 Gb/s. The PAM4 modulation rate in the O-band reached 140 Gb/s, with an ER of 2.5 dB. The PAM4 modulation rate in the C-band reached 120 Gb/s, with an ER of 1.1 dB. This device exhibits a good modulation efficiency of 0.92 V·cm at −4 V and a high thermal tuning efficiency of 67 pm/mW. This efficient and high-speed silicon modulator will play an important role in data communication and high-density integrated circuits with a large number of channels.
