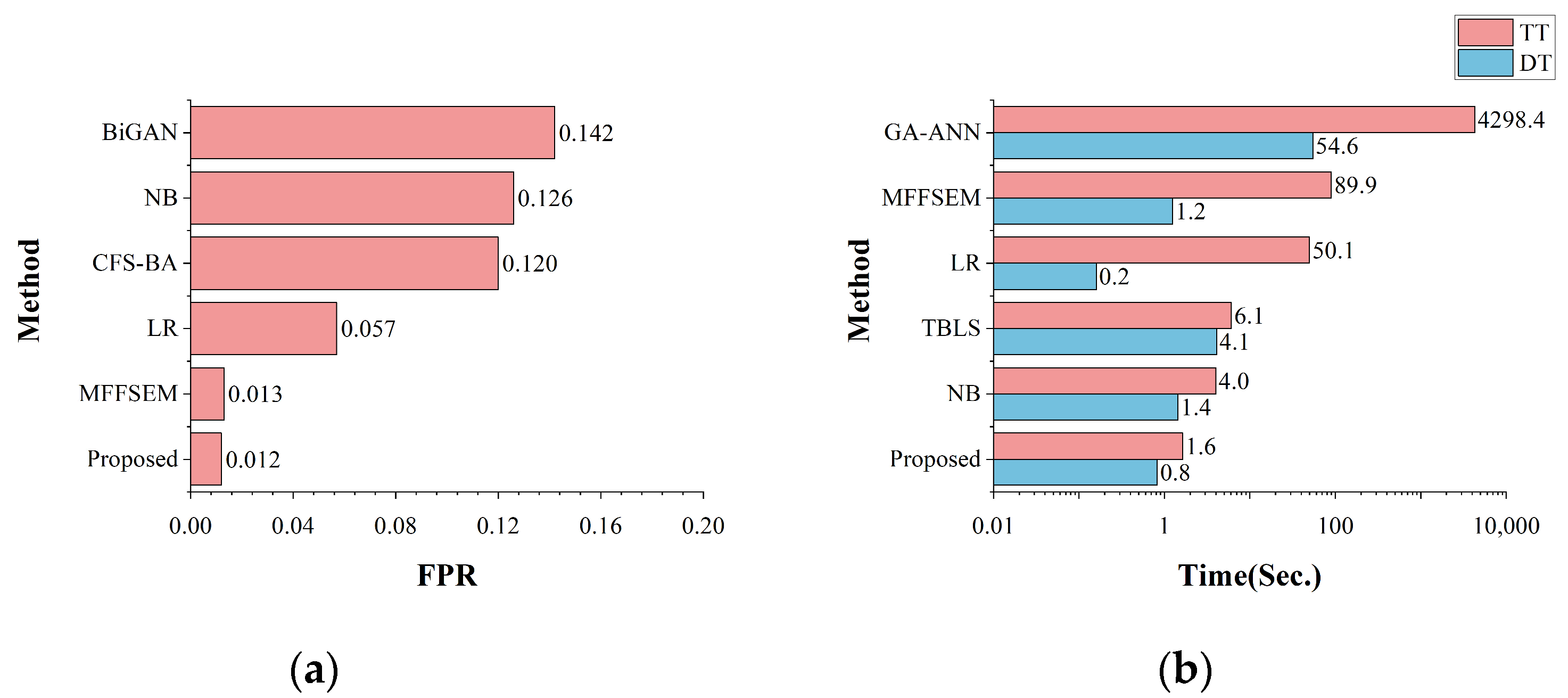

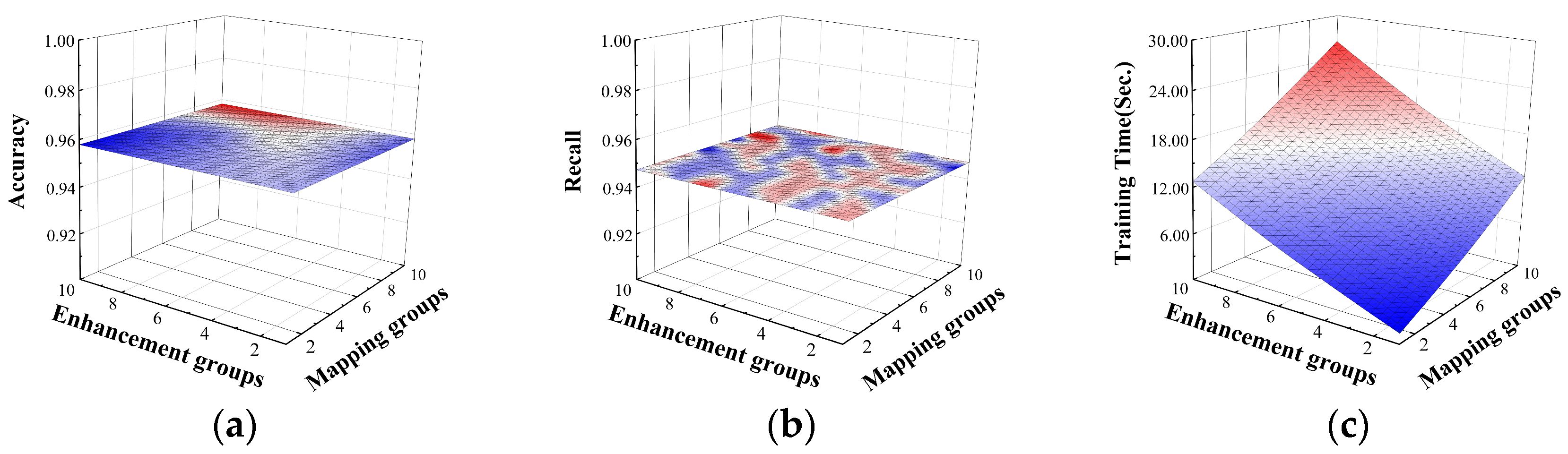

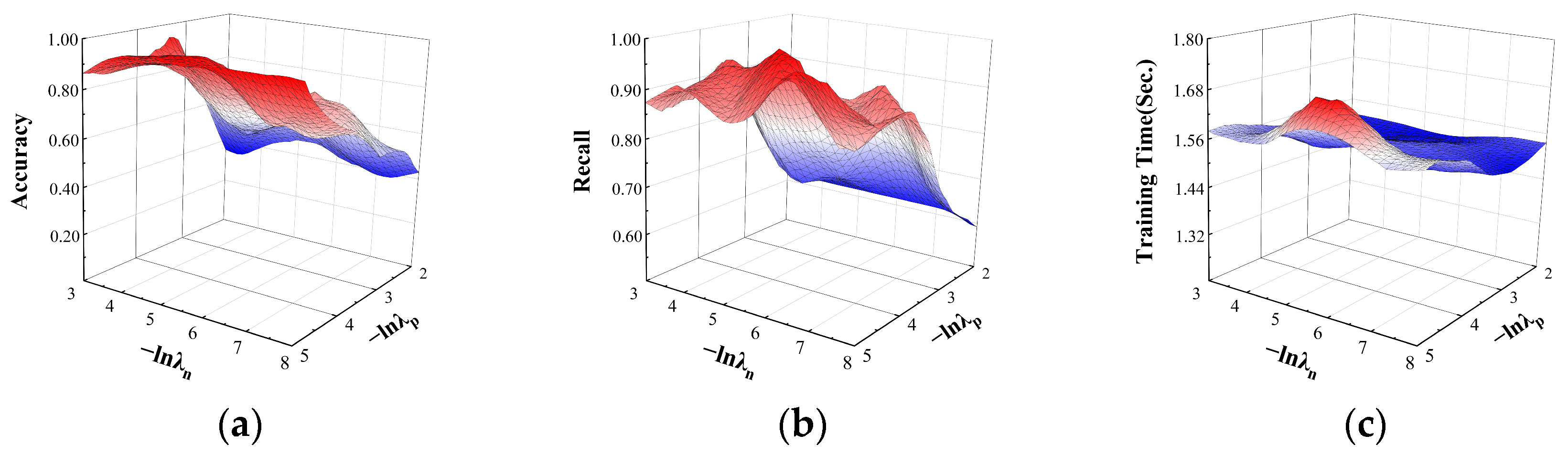

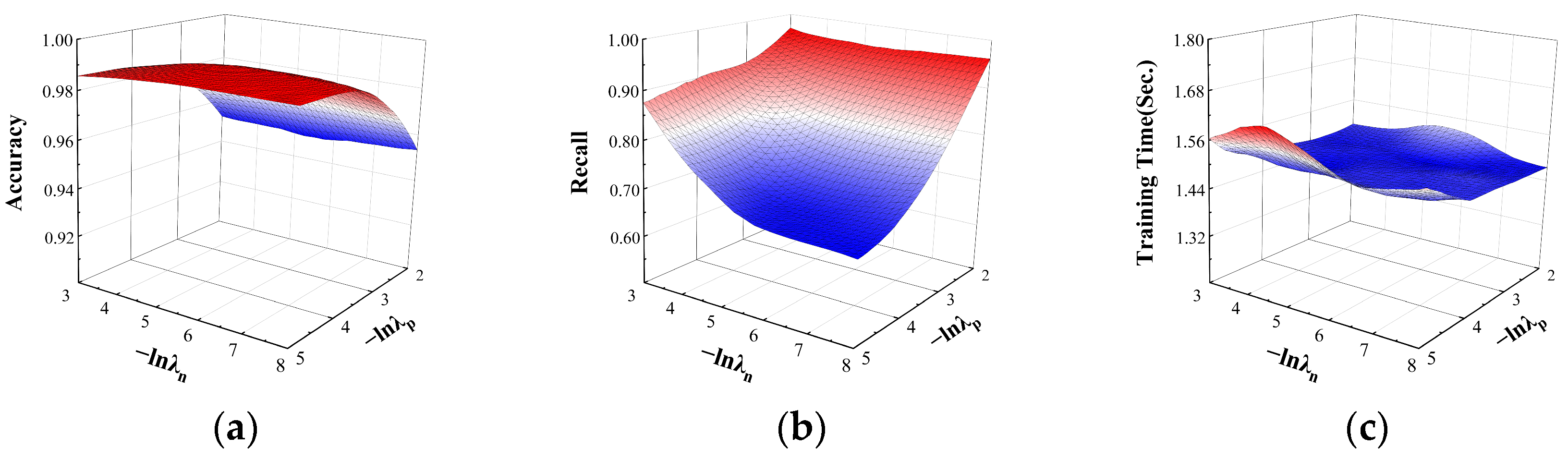

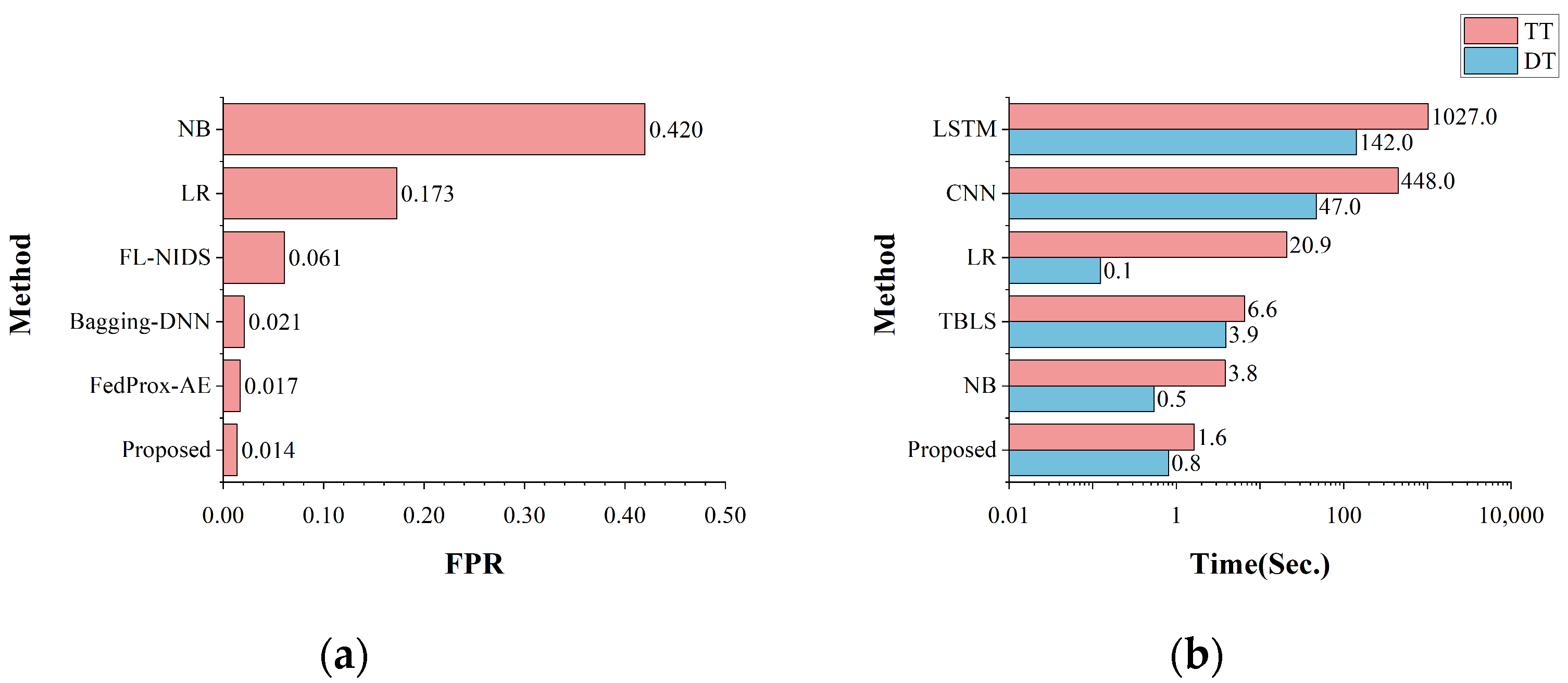

This section presents the detailed experiments. We analyze in detail the effect of hyperparameters on the model. We employ grid search to fix the positive and negative gradient factors within appropriate ranges, seeking the optimal parameter combination that maximizes the detection performance of the model. To evaluate the effectiveness of the proposed method, we conduct complete ablation experiments. Finally, we give a comparative analysis of the proposed model with other state-of-the-art methods.
4.5. Ablation Studies

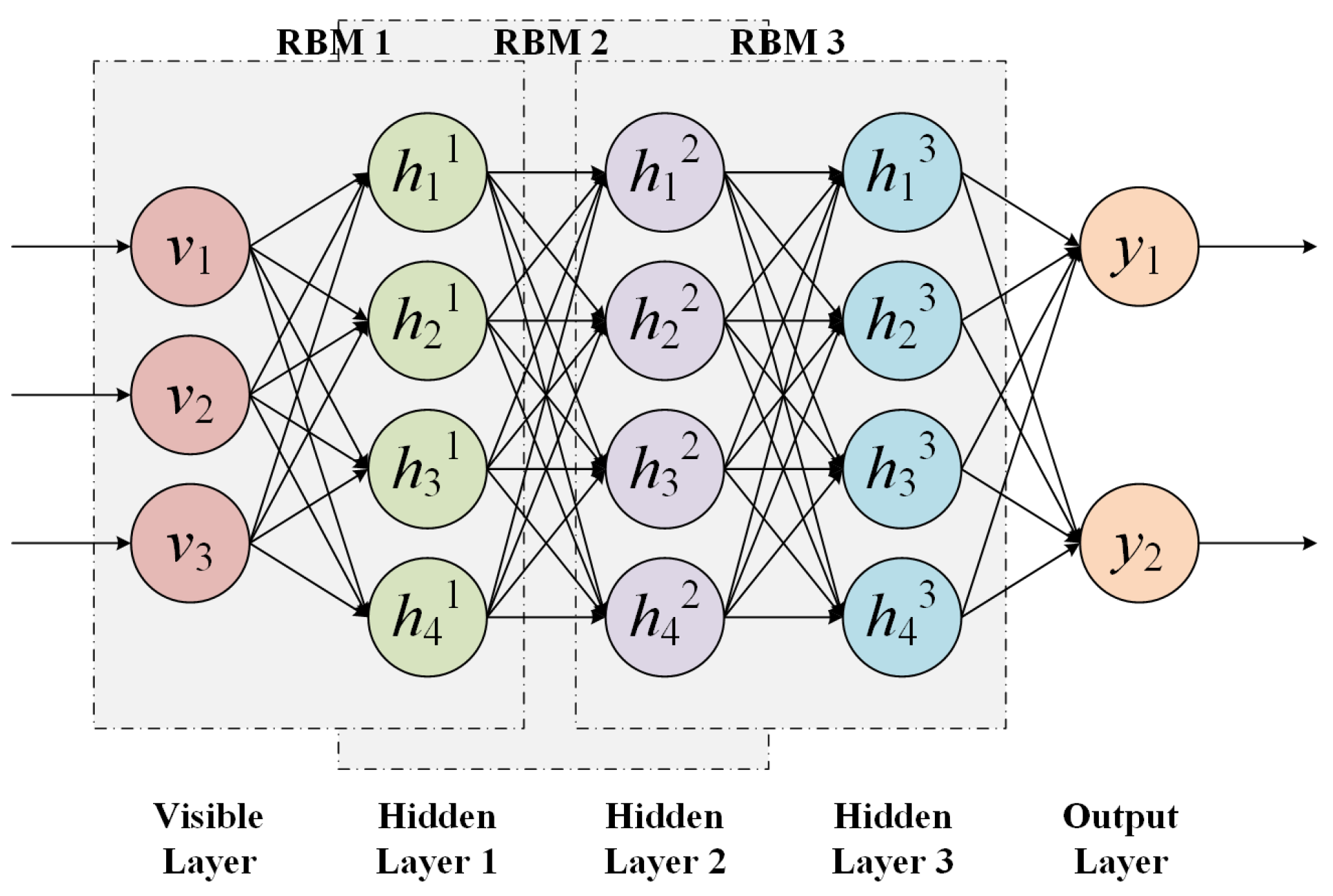

To evaluate the effectiveness of the proposed method, we performed ablation experiments based on three dimensionality reduction models and two classification models. The three dimensionality reduction models are traditional PCA, traditional DBN, and D
eBN with the introduction of EQL v2. The classification methods are traditional BLS and our improved BELS, respectively. We evaluated the detection performance of a total of eight methods under a binary classification task and multi-classification task based on the CICIDS2017 dataset. All the experiments were conducted in the same environment with identical forms of data processing, and the detection performances of different models are shown in
Table 3 and
Table 4. The recognition rate of each sample under different classification tasks is shown in
Table 5 and
Table 6.
4.5.1. Performance Analysis on Binary Classification
In the binary classification task, the traditional BLS structure is less effective in recognizing the CICIDS2017 dataset, mainly due to the high-dimensional redundant information in the dataset that affects the classification performance, resulting in lower accuracy and recall, especially the lack of attention to the minority-class samples in the imbalanced dataset. After the introduction of EQL v2, the accuracy and recall of the BELS model significantly improved, indicating that EQL v2 enhances the ability to recognize minority-class samples in dealing with the imbalance problem. The deep belief network broad learning system (DBLS) model reduces the data redundancy through the DBN dimensionality reduction, which improves the accuracy and recall, which were improved by 0.034 and 0.106, respectively. The DeBLS model overly focuses on minority-class samples during DeBN dimensionality reduction, resulting in a decrease in the detection performance for majority-class samples.
DBELS has the highest detection performance in the binary classification task, and the introduction of EQL v2 on top of the DBLS improves the accuracy and recall by 0.077 and 0.249, respectively, indicating that the combination of DBN dimensionality reduction and EQL v2 significantly improves the model performance. Although the DeBELS model introduces EQL v2 to the DeBN dimensionality reduction dataset and improves the model performance by adjusting the parameters of positive and negative gradient factors, the accuracy and recall slightly decreased by 0.004 and 0.01, respectively, compared with DBELS, which reflects the negative impact of overlearning abnormal samples on classification performance. For the principal component analysis broad learning system (PBLS) model, after the PCA dimensionality reduction, accuracy and recall decreased by 0.014 and 0.040, respectively, compared with the BLS, mainly due to more information loss during PCA dimensionality reduction and the inability to deal with imbalanced datasets efficiently. The principal component analysis broad equalization learning system (PBELS) model had an accuracy of 0.923 and a recall of 0.853, compared with PBLS, with an improvement of 0.055 and 0.262, indicating that EQL v2 can still significantly improve the detection performance of minority-class samples even when PCA dimensionality reduction is ineffective. However, the PBELS reduced accuracy and recall by 0.070 and 0.106, respectively, compared with DBELS, further demonstrating that DBN dimensionality reduction outperforms PCA dimensionality reduction in binary classification tasks.
4.5.2. Performance Analysis on Multi-Classification
In the multi-classification task, the traditional BLS performed poorly, with an accuracy of 0.975 and a recall of only 0.474, mainly due to the severe imbalance of the dataset that affects the classification performance. The BELS model after the introduction of EQL v2 had an improved recall of 0.051, mainly because EQL v2 improves the data imbalance problem, which allows the model to increase the weight of the attack samples for minority classes and thus improves the detection rate. The DBLS model, after dimensionality reduction by DBN, had an improved accuracy of 0.018 and an improved recall of 0.184, which is attributed to the fact that the DBN dimensionality reduction reduces the data redundancy, mitigates the negative impact of raw data, and improves the detection performance of the model. The DeBLS model improved recall by 0.02 compared with DBLS, which is attributed to the fact that DeBN learns more about the minority-class samples, eliminates redundancy between different samples, and at the same time retains the key features of the minority-class samples, which improves the classification and detection performance. The DBELS model improved by 0.018 in DBN dimensionality reduction, and with the introduction of EQL v2, accuracy improved by 0.017 and recall improved by 0.278; compared with DBLS, recall improved from 0.658 to 0.803, which is attributed to the fact that EQL v2 balances the learning weight of the minority-class samples and increases the focus on the minority-class samples.
The accuracy for the DeBELS model of 0.957 and recall of 0.947 was the best performance in the multi-classification task, and recall was significantly improved by 0.27 compared with DeBLS, which is because the improved BLS model is better able to deal with unbalanced datasets and enhances the ability to recognize minority-class attacks. The recall of DeBELS improved by 0.144 compared with DBELS, and the overall classification performance improved significantly. The accuracy of the PBLS model decreased by 0.037 and the recall decreased by 0.176 after PCA dimensionality reduction, since PCA dimensionality reduction leads to more loss of information, which affects the multi-classification effect. The accuracy of the PBELS model was 0.938 and recall was 0.470; compared with PBLS, accuracy and recall were improved by 0.001 and 0.173, respectively, indicating that the introduction of EQL v2 improves the detection rate of minority-class samples. However, compared with DeBELS, the accuracy and recall of PBELS were reduced by 0.019 and 0.477, respectively, which indicates that DBN dimensionality reduction is much better than the PCA dimensionality reduction model in terms of detection performance, and once again proves the superiority of the proposed model in multi-classification tasks.
4.5.3. Time-Cost Analysis
The comparison of the training times for the different models is shown in
Figure 9. For binary classification and multi-classification, the training time of the traditional BLS was about 1.8 s, reflecting the advantage of shallow networks with lower time costs in model classification. The training time of BELS was about 5 s, and the time increase was because the introduction of EQL v2 requires the additional performance of multiple matrix operations. The training time of the DBLS model was about 0.5 s, which is a significant reduction compared with the BLS model, indicating that the high-dimensional data have a significant negative effect on the model training time, and the reduced dimensionality of the dataset reduces the training time to 25% of the original one. The training time of D
eBLS was also about 0.5 s, which indicates that the introduction of EQL v2 after the dimensionality reduction of DBN has almost no effect on the training time.
The training time for DBELS was about 1.5 s, which is greatly reduced compared with BELS, thanks to the dimensionality reduction of the DBN model for high-dimensional data. However, there was an increase compared with DBLS due to some additional computations required by the improved BELS model. The training time of DeBELS was about 1.6 s, which is almost the same as that of DBELS, indicating that the introduction of the low-dimensional dataset with EQL v2 does not have a significant impact on the training time, and there is a slight increase in the cost of time due to a small number of additional computations of the positive and negative gradient matrices in comparison with DeBLS.
The results show that the hybrid DBN and BLS-based models DBELS and DeBELS maintained low time consumption compared with the traditional BLS models, following the advantages of the shallow BLS networks that are computationally fast and easy to train. Although the PCA dimensionality reduction model also reduces some of the training time, its detection performance is greatly degraded, again confirming the advantages of the DBN-based dimensionality reduction model. The proposed model is comparable with the traditional deep learning model, which has a significant advantage in time cost consumption, which is conducive to saving a certain amount of computational resources in practical applications.
4.5.4. Results Analysis for Recall of Each Sample on Binary Classification

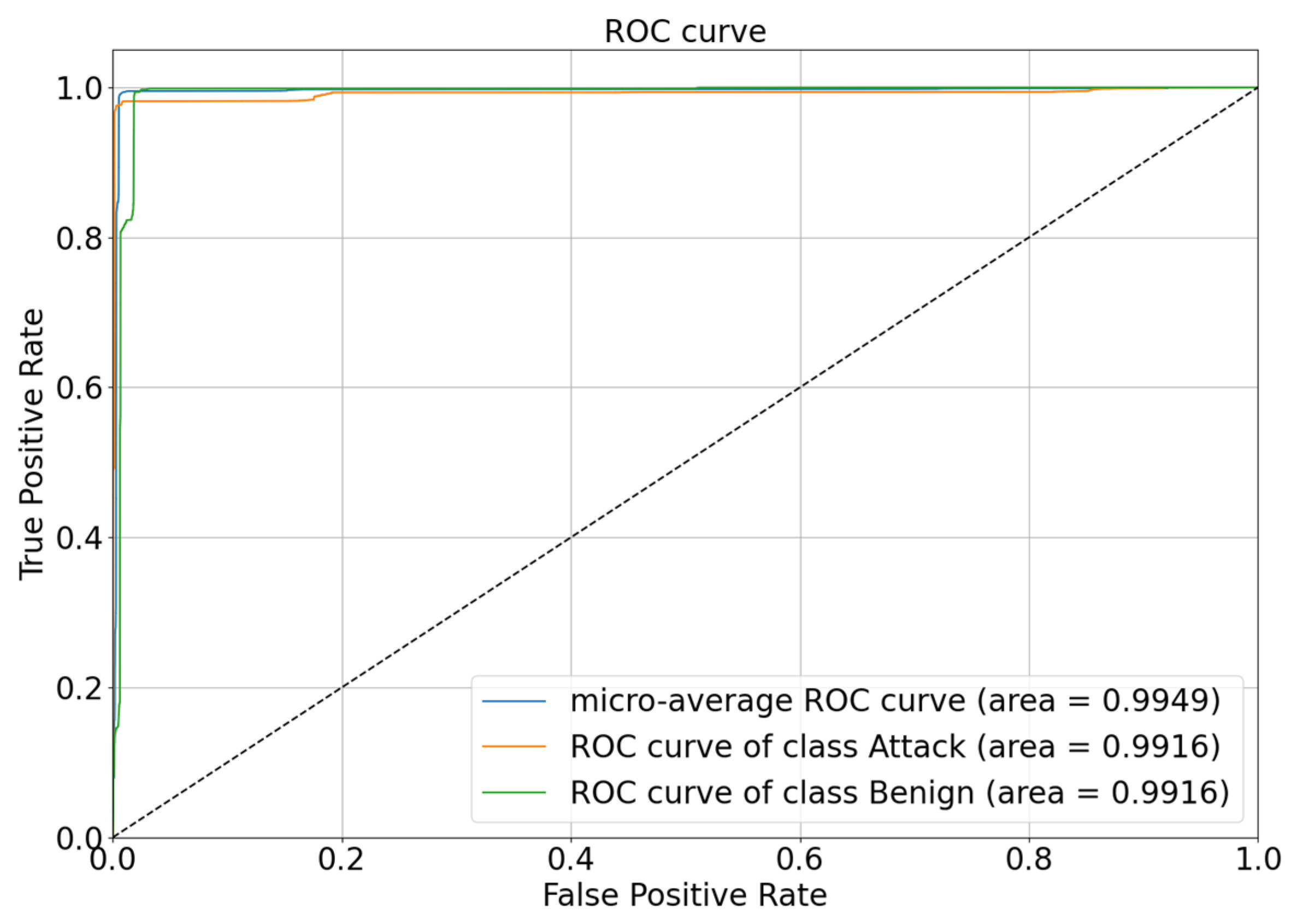

The detection rate of Benign and Attack samples under the binary classification task is shown in
Table 5. The traditional BLS performed poorly in detecting Attack samples with a recall of only 0.261, which is due to the overlearning of the majority-class samples when dealing with imbalanced datasets, resulting in a low detection rate for minority-class samples. With the introduction of the BELS model with EQL v2, the detection rate of Attack significantly improved to 0.863, which significantly improves the identification of minority-class samples. The DBLS model with DBN dimensionality reduction improved the detection rate of Attack by 0.213, which suggests that DBN dimensionality reduction reduces the data redundancy and has a positive impact on the subsequent model classification. In the D
eBLS model, the detection rate of Attack was as high as 0.996, but the detection rate of Benign was only 0.165, which shows that D
eBN dimensionality reduction focuses excessively on minority classes of samples, resulting in a decrease in the recognition performance of the majority of classes of samples.
The DBELS model, after dimensionality reduction by the introduction of EQL v2, had a detection rate of 0.996 for Benign and 0.976 for Attack, which improved the detection rate of the two classes of samples by 0.009 and 0.113, respectively, compared with the BELS model. Because DBN dimensionality reduction reduces the redundant features and improves the classification performance of the model, compared with DBLS, DBELS significantly improved the detection rate of Attack from 0.474 to 0.955, which is attributed to the fact that EQL v2 balances the sample weights so that the model focuses on each class of samples in a more balanced way. The detection rates of Benign and Attack for the DeBELS model were 0.995 and 0.955, respectively, and compared with DeBLS, the Benign detection rate was substantially higher and the Attack detection rate was slightly lower, but EQL v2 improved the detection performance by making the model more balanced in focusing on each class of samples. Compared with DBELS, the detection rate of Benign for DeBELS was almost unchanged, and the detection rate of Attack slightly decreased, which is attributed to the overlearning of minority-class samples brought by DeBN, but the classification still performed well through the adjustment of positive and negative gradient factors.
The detection rate of Attack for the PBLS model was only 0.182 after the PCA dimensionality reduction, which is a decrease from that of the BLS model of 0.080. PCA dimensionality reduction leads to information loss, which negatively affects the classification detection effect of minority-class samples. The Attack detection rate of the PBELS model was 0.749, which improved by 0.567 compared with the PBLS. The introduction of EQL v2 makes the model focus on each class of sample in a more balanced way, which improves the detection performance of the minority-class samples. Despite the improvement of the PBELS model, its Attack detection rate was still 0.227 lower than that of DBELS, which further proves the superiority of the DBN dimensionality reduction model in detection performance.
4.5.5. Result Analysis for Recall of Each Sample on Multi-Classification

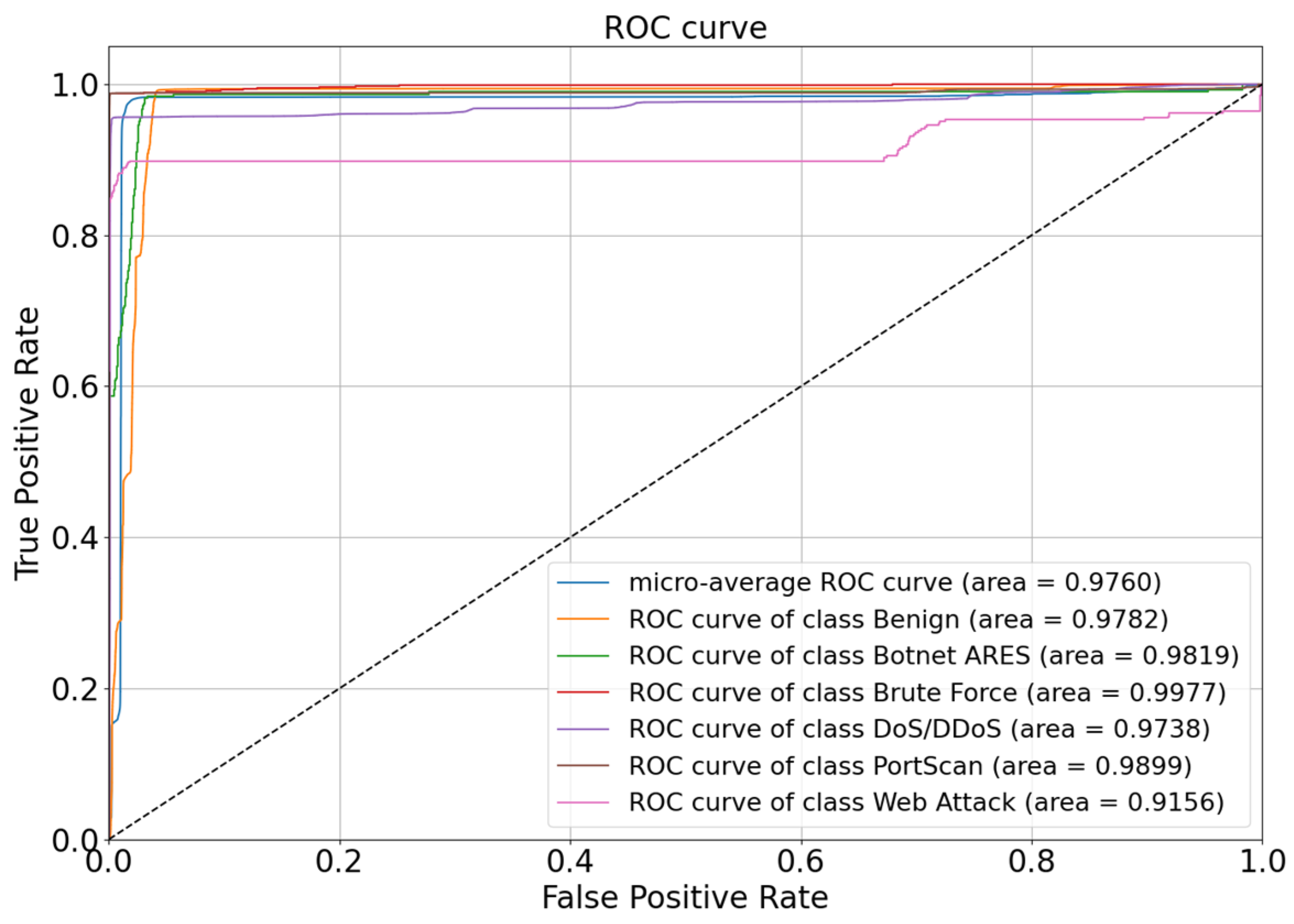

The detection rates of different methods for each type of sample under the multi-classification task are shown in
Table 6. The traditional BLS did not work well when dealing with the unbalanced CICIDS2017 dataset, and although it had better detection performance for a larger number of samples (e.g., Benign, DoS/DDoS, Port Scan), it was poor in detecting samples of a few classes (e.g., Botnet ARES, Brute Force, Web Attack). This is because the BLS model is unable to balance the contributions of various classes of samples when dealing with unbalanced datasets, resulting in a very low detection rate for minority-class samples. The introduction of the BELS model with EQL v2 significantly improved the detection rate of Brute Force attacks, which in turn improved Attack identification. However, Botnet ARES and Web Attack were still undetectable because the features of these minority-class samples are highly similar to other samples, which the model is unable to differentiate, leading to false positives. The DBLS model eliminates certain data redundancies after dimensionality reduction by DBN, which enhances the detection performance. The detection rate of Brute Force was improved to 0.985, but Botnet ARES and Web Attack were still not detected. This indicates that dimensionality reduction alone cannot solve the problem of unbalanced datasets, especially for classes with a very small number of samples.
The DeBLS model further improved the detection performance, and most of the attack types were detected, including Botnet ARES. This is because DeBN dimensionality reduction learns more about the minority-class samples and preserves their key features, but Web Attack was still undetectable, which requires further focus on the minority-class samples. The DBELS model showed a significant improvement in the detection rate of most attack types compared with BELS and DBLS, especially Web Attack, from 0 to 0.856. This is because DBN dimensionality reduction reduces the data redundancy, while EQL v2 makes the model focus better on the minority-class samples. However, Botnet ARES was still not detected, which suggests that DBN dimensionality reduction is not enough to solve the problem. The DeBELS model maintained a high detection rate on all attack types. Compared with DeBELS, the detection rate of Botnet ARES improved from 0.137 to 0.948, and Web Attack improved from 0 to 0.856. This is because the introduction of EQL v2 improves the ability to better recognize and learn the minority-class samples, which significantly improves the detection rate. DeBELS further improved the detection rate of Botnet ARES compared with DBELS because DeBN dimensionality reduction preserves the key features of the minority-class samples at a finer granularity and mitigates the data imbalance problem.
The PBLS model using PCA dimensionality reduction only detected the highest number of DoS/DDoS attacks, while Port Scan, Botnet ARES, Brute Force, Web Attack, and other attacks were not detected. Compared with the BLS model, Port Scan could not be detected due to the loss of information caused by PCA dimensionality reduction, which affects the multi-classification effect. After the introduction of EQL v2 to the PBELS model, the detection rate of Port Scan improved to 0.978, but the other few classes of attacks (e.g., Botnet ARES, Brute Force, and Web Attack) still went undetected. This suggests that PCA dimensionality reduction leads to the loss of key features. Compared with DeBELS, the detection performance of PBELS was worse, which indicates that DBN-based dimensionality reduction outperforms traditional PCA dimensionality reduction in terms of detection performance.
