1. Introduction
In Sales and Operations Planning (S&OP), automobile-demand forecasting can provide important guidance for supply planning and production planning, which play a key role in achieving coordination among production, supply, and sales in the automotive-manufacturing industry, with significant implications for intelligent manufacturing in the automobile-manufacturing industry [
1]. An inaccurate demand forecast may have negative impacts on automobile enterprises, such as oversupply, shortage, or the disruption of production rhythms [
2].
With the growth of methods using data-driven analytics, forecasting technology is commonly used in supply-chain management (SCM). Researchers have applied prediction technologies to SCM across various industries.
Table 1 briefly lists the related research. Mitra et al. [
3] propose a framework using Gaussian Mixture Model (GMM) clustering and Hierarchical Agglomerative Clustering (HAC) to analyze demand patterns and use a Random Forest algorithm to forecast sales of food and beverages. Fu et al. [
4] use K-means to identify the demand status and LSTM to forecast the demand. Van Belle et al. [
5] compare explanatory methods with extrapolative methods and argue that LASSO has the best performance in forecasting drug demand. Liu et al. [
6] proposed a BO-CNN-LSTM-based method for sales forecasting for stores and supply chains. Moalem et al. [
7] forecast electrical-power demand by ELATLBO-LSTM. The studies above prove that demand forecasting provides valuable information for optimal supply-chain management and that an understanding of the demand patterns and influencing factors is essential for forecasting.
Based on actual production needs, the focus of this study is on forecasting the monthly sales of automobiles for the next quarter. For a better understanding of how forecasting technology has been used in the automobile industry,
Table 2 briefly lists representative forecasting studies from the automobile industry. Matsumoto et al. [
8] examined the performance of the Holt−Winters model and the ARIMA model on the time-series data comprising the sales of 160 types of remanufactured alternators and starters. Gao et al. [
9] proposed a novel hybrid method based on particle-swarm optimization and ant-colony optimization (HPA) to forecast automobile sales. Rozanec et al. [
10] evaluated 21 baseline, statistical, and machine learning algorithms used to forecast automobile demand. Vijayakumar et al. [
11] forecast automobile demand using a combination model composed of the Seagull Optimization-based Holt−Winters (SO-HW) method and a Quantile Regression Neural Network. Ou-Yang et al. [
12] forecast car sales by using online sentiment data and the CNN-LSTM method. Sales forecasting is an important method for evaluating automobile demand, and most researchers have pointed out that sales series have the complex characteristics of seasonality, trends, and non-stationarity.
Common forecasting methods can be categorized into two main groups: trend-extrapolation methods [
13,
14] and causal-analysis methods [
15,
16]. Trend-extrapolation methods treat the predicted variable as a time series, extracting sequential patterns from historical data and then extending these patterns to future time points for accurate predictions. Causal-analysis methods assume that future changes in the predicted variable are influenced by a set of external variables, thus basing predictions on the establishment of a mathematical model of the relationship between the predicted variable and exogenous factors. As an economic variable, sales are typically impacted by various internal and external factors with complex characteristics such as seasonality, autocorrelation, nonlinearity, trending, and non-stationarity. These complexities pose significant challenges in constructing an automobile-sales-predictive model with good performance.
The trend-extrapolation method requires the selection of an appropriate time-series model that can summarize the historical predictors of the forecast quantity. Autoregressive integrated moving average (ARIMA) [
17], seasonal autoregressive integrated moving average (SARIMA) [
18,
19], exponential smoothing (ES) [
20,
21], grey model (GM) [
22] and others are forecasting models that are commonly used in trend-extrapolation methods. In particular, SARIMA effectively handles autocorrelation and seasonality in series, and the amount of data required for training is small; this approach is often used to deal with sales series that are greatly affected by seasonal factors [
23,
24]. However, SARIMA has high requirements with regard to the stationarity of series and cannot handle non-linear factors in the data, which affect the robustness and accuracy of prediction. Aiming to manage the problem that SARIMA model has high requirements with regard to sequence stationarity, Williams et al. [
25] proposed a time-series-modeling method based on multi-SARIMA. In that approach, locally estimated scatterplot smoothing is used to perform multi-seasonal-trend decomposition of the series, then SARIMA is used to model the decomposed multi-seasonal components. Zhao et al. [
26] proposed a wind-power-prediction method based on EEMD-SARIMA-LSTM; the aggregate-empirical-mode decomposition method is used to decompose the wind-power series into stationary series, then SARIMA and LSTM are used to predict various sub-sequences, and finally, the results are obtained by reconstruction of each predicted value. To address the problem that SARIMA cannot deal with nonlinear factors, Lippi et al. [
27] predicted traffic flow based on SARIMA, then introduced the Kalman filter algorithm to modify the predictions. The study points out that Kalman filter could improve the predictions of the SARIMA model. Zhang et al. [
28] proposed a short-term prediction method for offshore wind power based on DWT-SARIMA-LSTM. In that method, the power sequence is decomposed into multiple sub-sequences based on discrete wavelet transform and the linear and nonlinear sub-sequences are processed by SARIMA and LSTM, respectively. The above research indicates that the time-series characteristics of the forecasting quantity should be fully considered and that the appropriate model should be selected when the trend-extrapolation method is used.
Machine learning or deep learning models are often used in causal-analysis methods to construct nonlinear regression relationships between dependent variables and predictor variables [
29,
30]. However, beyond the model’’s expressive capability, clarity about the factors influencing automobile sales and the construction of reasonable characteristics play a more important role in the predictive ability of the model. Zhang et al. [
31] considered the influence of public opinion, as expressed online, and search index on automobile sales to establish a predictive model of automobile sales based on LSTM. Xia et al. [
32] considered the influence of macroeconomics, date, price, and other factors on auto sales and constructed a predictive model of auto sales based on XGBoost. Dai et al. [
33] extracted 17-dimensional characteristics of influencing factors from three categories (economy, society and policy) and constructed a multivariate predictive model for trends in the development of China’’s automobile market based on a BP neural network. The above studies indicate that the nonlinear influence of multi-dimensional factors on the forecast quantity should be considered when using causal-analysis methods.
By analyzing the timing features of monthly automobile sales and the influence of external factors, this paper constructs forecasting models from the perspective of trend extrapolation and causal analysis, respectively, then improves the prediction performance by combination forecasting [
34,
35]. Combination forecasting is a method that integrates the forecasting information of a single model, effectively avoiding the problems of poor robustness and high uncertainty associated with using one single forecasting model [
36]. Weighted-average combination combines the predictions by assigning different weights to the predictions of multiple models [
37]. Ensemble combination combines multiple models into a meta-learner through supervised learning; this meta-learner then outputs the combination forecasting results. Ensemble-combination strategies can be divided into three types: boosting, stacking, and bagging [
38].
In summary, a combination model for automobile-demand forecasting based on trend extrapolation and causality analysis is proposed. The main contributions of this paper are as follows:
- (1)
SARIMA and PR are used to mine the historical predictors of sales series, and several methods, such as empirical mode decomposition, a stationarity test, and an autocorrelation test, are introduced to separate the stationary components with strong seasonality from the original series. Then, a trend-extrapolation submodel with high robustness to nonlinearity and non-stationarity is constructed.
- (2)
Based on GBDT, the mapping of three types of influencing factors to future sales is established, and causality-analysis submodel with the capacity for nonlinear prediction is constructed.
- (3)
The forecasting effects of three kinds of combination strategies, boosting series, stacking parallel and weighted-average parallel, are tested, and the effectiveness of the proposed combination model is verified using actual sales data.

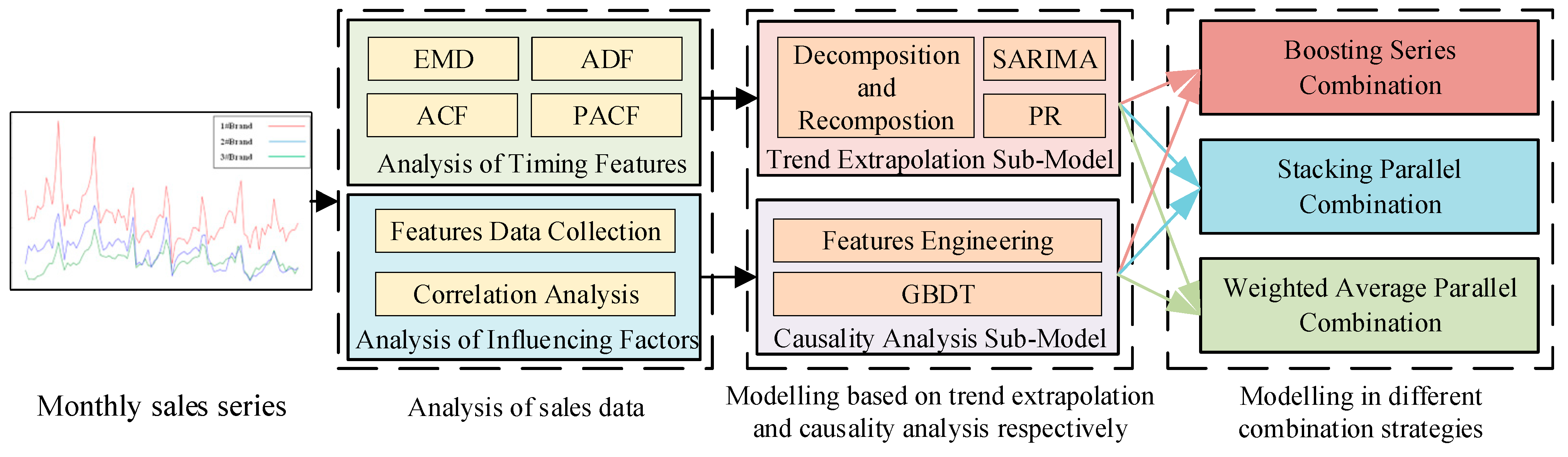

To support better understanding of the study, the flow chart of the research is shown in
Figure 1. First, timing features in the historical sales data and correlations among influencing factors were analyzed and a case study was used to improve understanding of the characteristics of automobile-sales data. Then, according to the analysis results, two submodels, trend extrapolation and causality analysis, were developed. Finally, three combination strategies were developed and tested to determine whether they yielded more accurate forecasts.
The rest of this paper is organized as follows. In
Section 2, basic theories of the algorithm involved are introduced, and timing characteristics and factors influencing monthly automobile sales are also analyzed. In
Section 3, the methods involving two submodels and three combination strategies are introduced in detail. In
Section 4, two groups of ablation experiments and two groups of comparison experiments are conducted to prove the effectiveness and superiority of the proposed model. Finally, the conclusion is given in
Section 5.
3. Proposed Methodology
3.1. Data Description
Three time series of monthly automobiles sales were collected from the sales department of Geely Holding Group, which is one of the largest private automobile manufacturers in China. Due to the confidentiality requirements of the company, the data underwent desensitization processing via range scaling and numerical offsets that did not change the distribution and sequence characteristics of the data. The brands involved are all sub-brands under Geely, and the sales periods are all from January 2016 to August 2023. Detailed information on the sales period, power types, car types, price range, and architectures of the brands for which data on automobile sales were collected is shown in
Table 5. The term “architecture” refers to the basic manufacturing platforms of Geely, among which are compact modular architecture (CMA), B-segment modular architecture (BMA), and sustainable experience architecture (SEA). Sales data for automobiles with SEA are scarce because this model was developed only in September 2020, so we collected sufficient data only for CMA and BMA.
3.2. Analysis of Automobile Sales Data

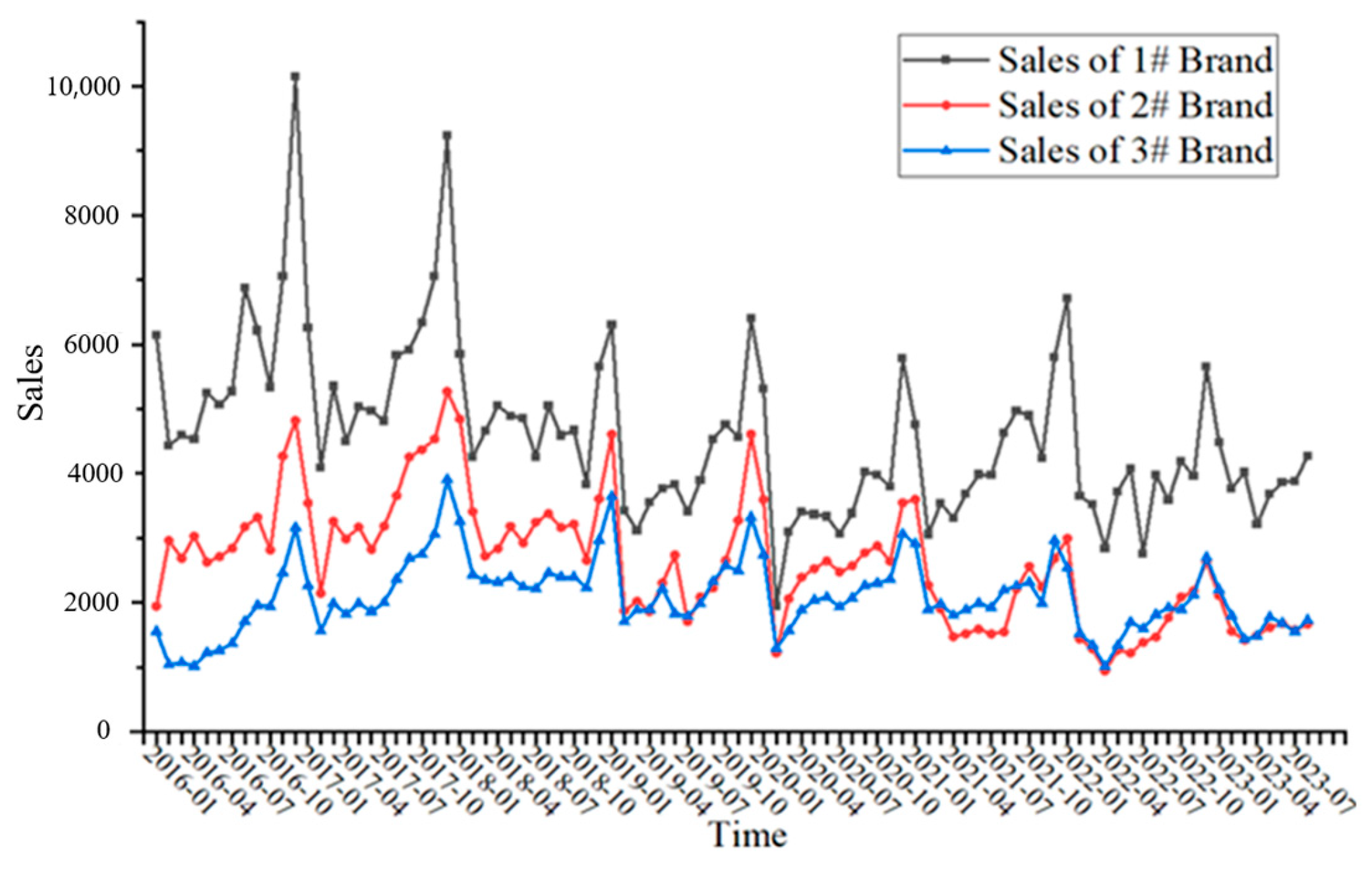

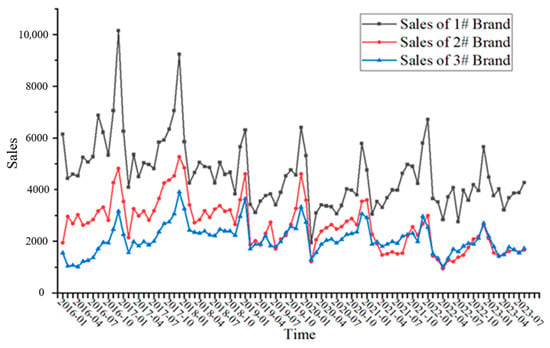

As shown in
Figure 3, all sales-volume data exhibit a certain degree of autocorrelation, trending, and non-stationarity, and none exhibits an obvious linear relationship, showing instead complex characteristics of multi-mode aliasing. Due to the impacts of the COVID-19 pandemic and the rise of new-energy vehicles on the gasoline-automobile market, sales of all brands showed a downward spike in the 50th month, which corresponds to February 2020, when the COVID-19 pandemic started. Sales of the number-two and number-three brands, which had not yet launched their own new-energy products, also show an overall downward trend in the following months. In addition, every time series shows a noticeable increase in the winters, which corresponds to the Chinese habit of purchasing automobiles before the spring festival; these trends show autocorrelation and seasonality.
3.2.1. Analysis of Timing Characteristics

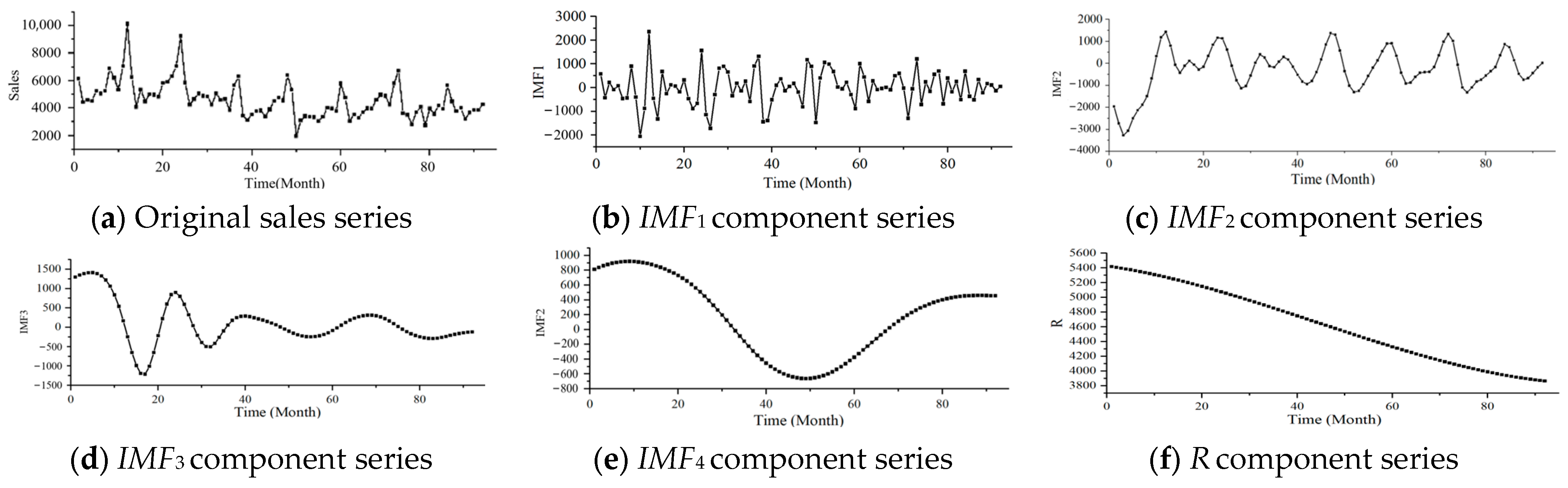

To clarify the timing characteristics of monthly automobile sales, EMD was used to decompose sales sequences into several IMFs, and the stationarity and autocorrelation test methods were used to analyze these IMFs. Monthly sales of the number-one brand are introduced as an example below.
Monthly sales sequence
is decomposed into 4 IMFs, from
to
, and one residual component,
, by the EMD method. IMFs are arranged according to the order of fluctuation frequency, from high to low.
presents low volatility or monotonicity, and the decomposition results are shown in

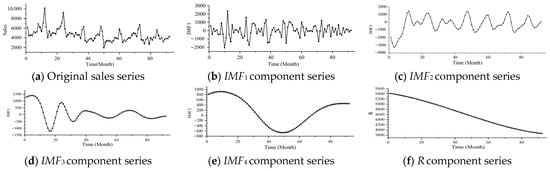

Figure 4. The results reflect the trend of change in monthly sales volume, and each IMF reflects the different nature of the associated monthly sales-volume series under the influence of various factors. ACF and PACF test results and ADF test results for the original sequence and each IMF sequence are shown in

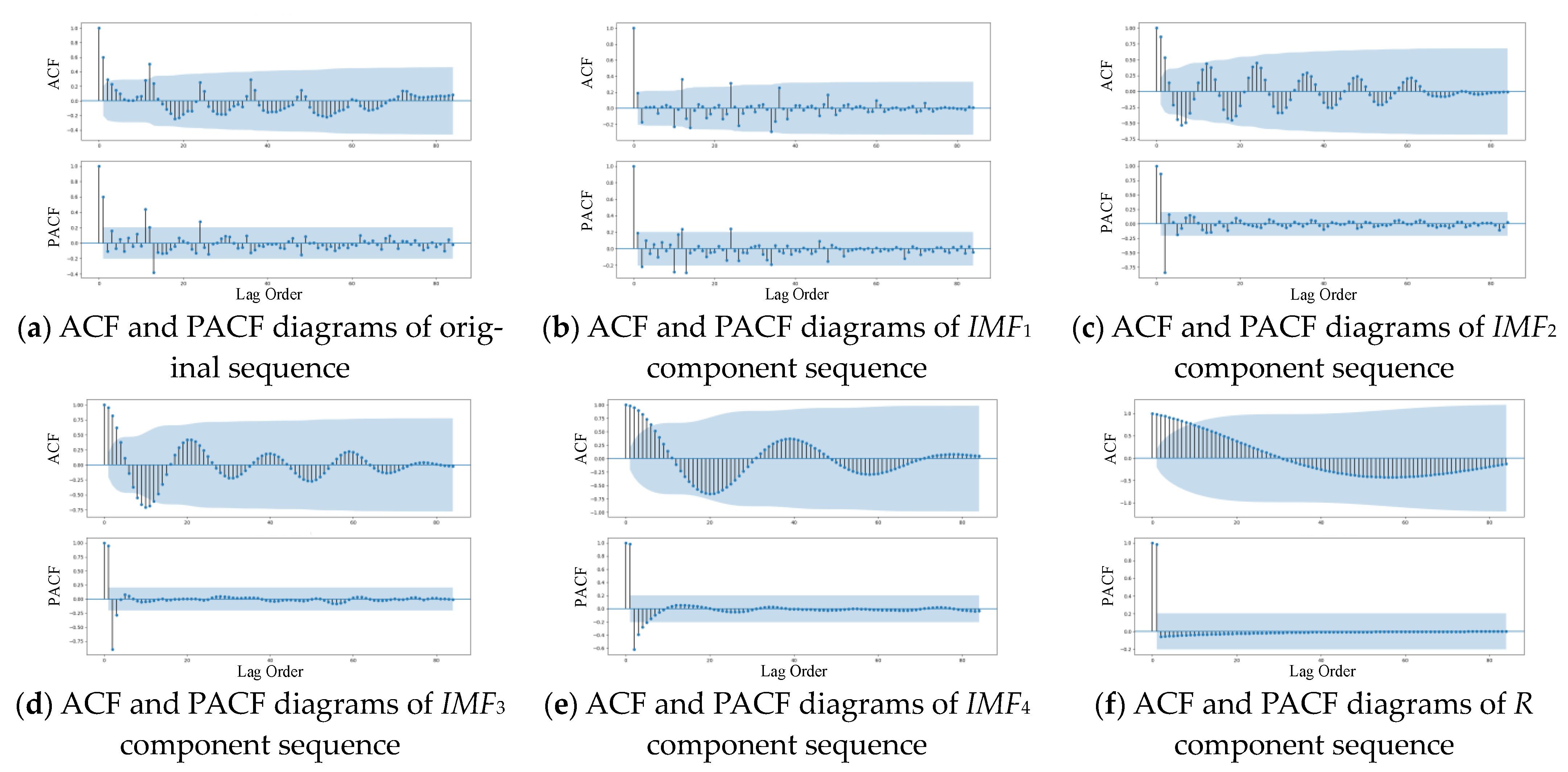

Figure 5 and
Table 6, respectively.
According to the ADF result, the significance level corresponding to the
T-value of is greater than 10% and the
p-value does not approach 0, showing non-stationarity. According to the analysis of

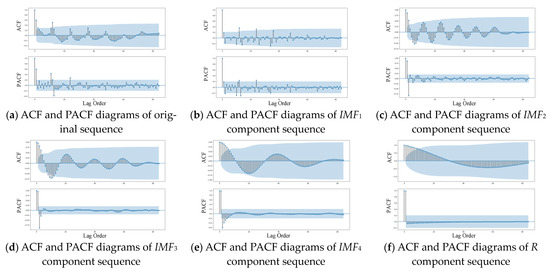

Figure 5a, ACF of
shows a certain degree of seasonality, and its PACF tends to converge with the increase of the lag order. Therefore,
is a non-stationary sequence with a certain degree of seasonality, making it difficult to obtain accurate predictions by using SARIMA modeling directly.
According to the ADF result, the significance level corresponding to the
T of
is greater than 5% but less than 1%, which meets the condition of sequence stationarity to some degree. The significance level corresponding to the
T of
is greater than 1% and the
p-value approaches 0, so this test result meets the determination condition of sequence stationarity. The ACF and PACF of
and
are shown in
Figure 5b,c respectively. The ACF of
is significant at the 12th-order and 24th-order lags, and both ACF and PACF fall into the error range quickly and are truncated at the 1st-order lags, indicating that this is an almost stationary sequence with significant seasonality. The ACF maximum of
is interrupted by 12 lag orders, showing significant seasonality, and its PACF rapidly falls within the error range at the third-order lag position, showing truncation, indicating that it is a stationary sequence with significant seasonality. Since components both show good stationary and have the same seasonality, they are reconstructed as the seasonal components,
. The significance level corresponding to the
T of
is greater than 1% and the
p-value approaches 0, indicating that it is a stationary sequence, which makes it suitable for analysis by SARIMA.
The ACF and PACF of
and
are shown in
Figure 5d,e, respectively. Both the ACF and the PACF oscillate, and the period of oscillation changes as lag order grows, reflecting the nonlinear mode in the original sequence. All the standard seasonal models assume that there is a pattern in the fixed period in the sequence, that this non-fixed periodicity cannot be described by the standard seasonal model, and that nonlinear models are required to handle this situation.
3.2.2. Analysis of Influencing Factors
In addition to timing characteristics, it is equally important to understand external factors that can influence automobile sales. This paper extracts 31-dimensional feature data from the following three types of influencing factors and analyzes their correlation.
- (1)
Date factors, including total days in the month, number of holidays, number of working days, number of working days within 30 days after a holiday, number of weekends within 30 days after a holiday, month of the year, whether January was the previous month, whether January is the next month, number of holidays after the Chinese New Year, number of working days after the Chinese New Year, number of days after the Chinese New Year, whether it is the end of the quarter, whether it is the end of the half-year, and the quarter in which it belongs. The above feature data can be obtained directly from the calendar.
- (2)
Macroeconomic factors, including purchasing-managers’’ index, produce index, new-orders index, new-export-orders index, orders-in-hand index, finished-produce index, purchase-quantity index, import index, purchase index, employment index, production-expected index, business index, inventory index, input index, sales index, and expected-business-activity index. The above features are macroeconomic monitoring indicators issued by the China National Bureau of Statistics that can comprehensively reflect the monthly situation with regard to the various links among enterprise procurement, production, circulation, etc., and are internationally accepted macroeconomic monitoring indicators.
- (3)
Consumption-promotion factors, including purchase-tax discount for the month.

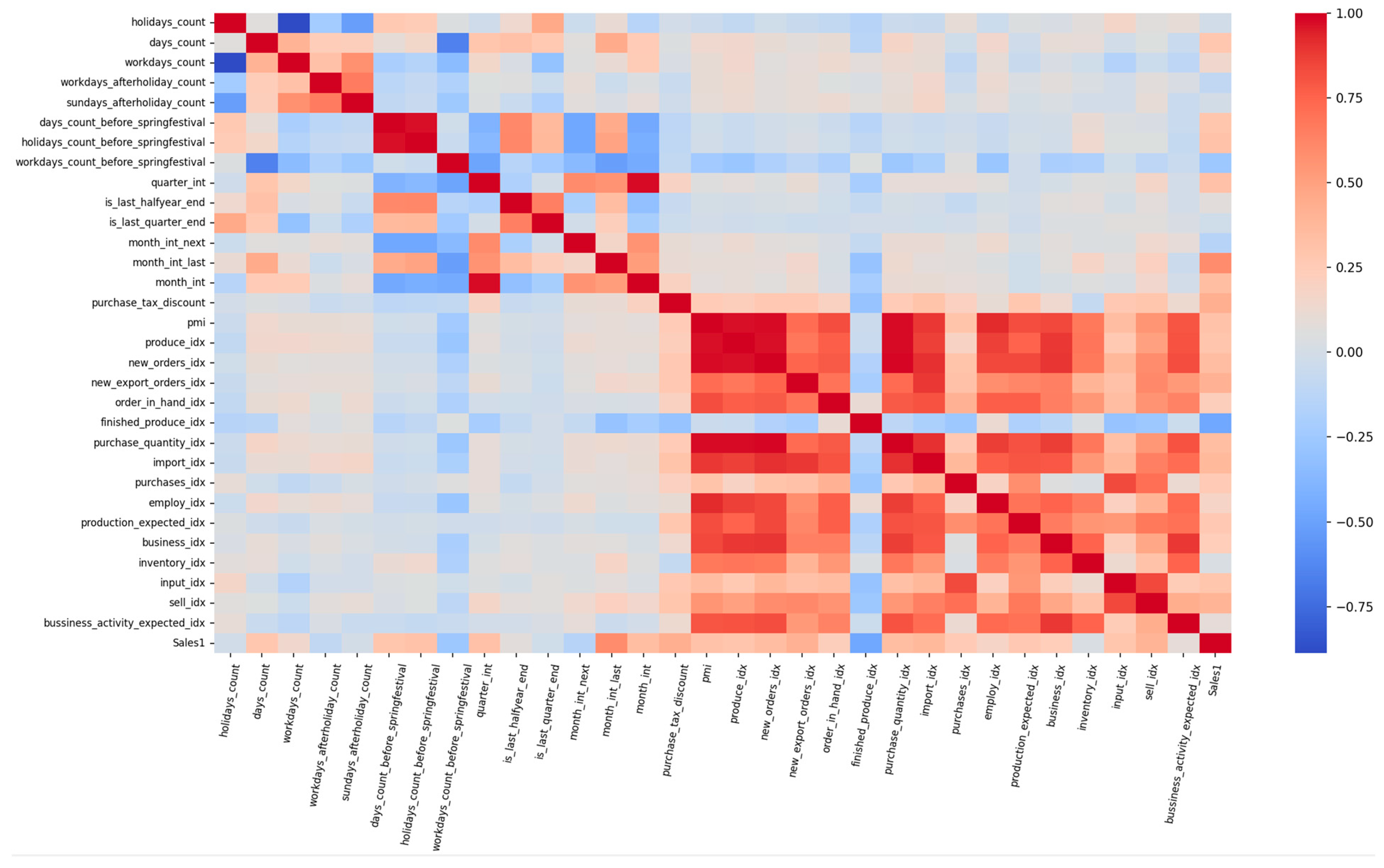

The heatmap of the correlation matrix is shown in
Figure 6.
First, the degree of correlation between the response variable (Sales) and each explanatory variable (Features) is presented in the heatmap. The correlation coefficients of most macroeconomic features are in the range [0.23, 0.4]. The correlation coefficient of purchase-tax discount in the current month is 0.43. The correlation coefficients of date factors such as month, quarter, Spring Festival, and working days are in the range [0.28, 0.59]. There is a certain degree of correlation between the extracted features and sales volume, which means that these features are useful for establishing regression models.
In addition, the similar degree of correlation among some explanatory variables shows multicollinearity, which is harmful when constructing a regression model. According to the heatmap, the correlation coefficients of most macroeconomic factors and some date factors are greater than 0.6, implying the existence of multicollinearity. For example, the correlation coefficient between factors of “days_count_before_springfestival” and “holidays_count_before_springfestival” is 0.97, which means the factors are almost linearly related and provide the same information to the regression model. The inclusion of both may reduce the stability and accuracy of the model, so further feature engineering before modeling is required.
3.3. Trend-Extrapolation Submodel

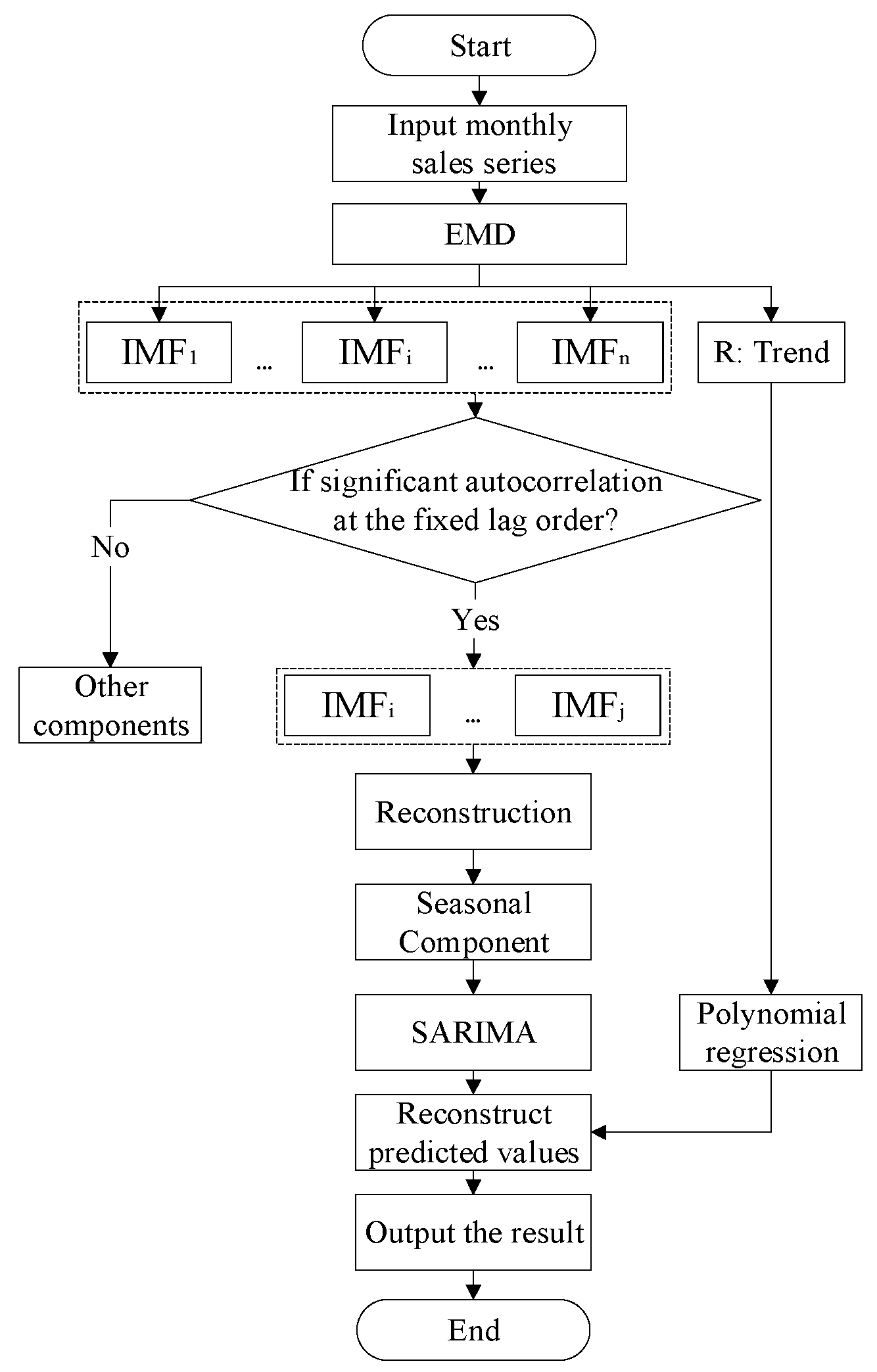

According to the analysis of the monthly sales sequence, a trend-extrapolation model based on EMD-SARMI-PR is proposed. The proposed trend-extrapolation model consists of the following five steps, and its flow chart is shown in
Figure 7.
Step 1: EMD is used to decompose the monthly sales sequence into multiple IMFs and one residual component, the relationship between which can be expressed in Equation (1) [
40], as follows:
where
is the monthly automobile-sales sequence;
is the
ith IMF sequence;
is the residual sequence; and
n is the total number of IMFs.
Step 2: Using ACF and PACF test results for each IMF, the IMF sequences are recomposed with both stationary and the same seasonality as a seasonality component.
Step 3: The seasonality component is forecast by SARIMA.
Step 4: Considering as the tendency component, it is forecast by PR.
Step 5: The predicted values of components in Step 3 and Step 4 by sampling points are summed to obtain the predicted value of the trend-extrapolation submodel .
In addition, the other IMFs do not have obvious seasonality or trending but are characterized by non-stationarity, nonlinearity, and minor amplitude. Such components are not suitable for modeling by linear methods such as SARIMA and PR, so they were not considered in the trend-extrapolator models.
3.4. Causality-Analysis Submodel
To compensate for the problem that the trend-extrapolator model has difficulty dealing with the nonlinear mode in , a causality-analysis submodel based on GBDT was constructed.
Feature fusion was necessary before the model could be trained because of the multicollinearity of features mentioned previously. Principal component analysis (PCA) [
41] was used to reduce the dimensions of the features to obtain the feature set

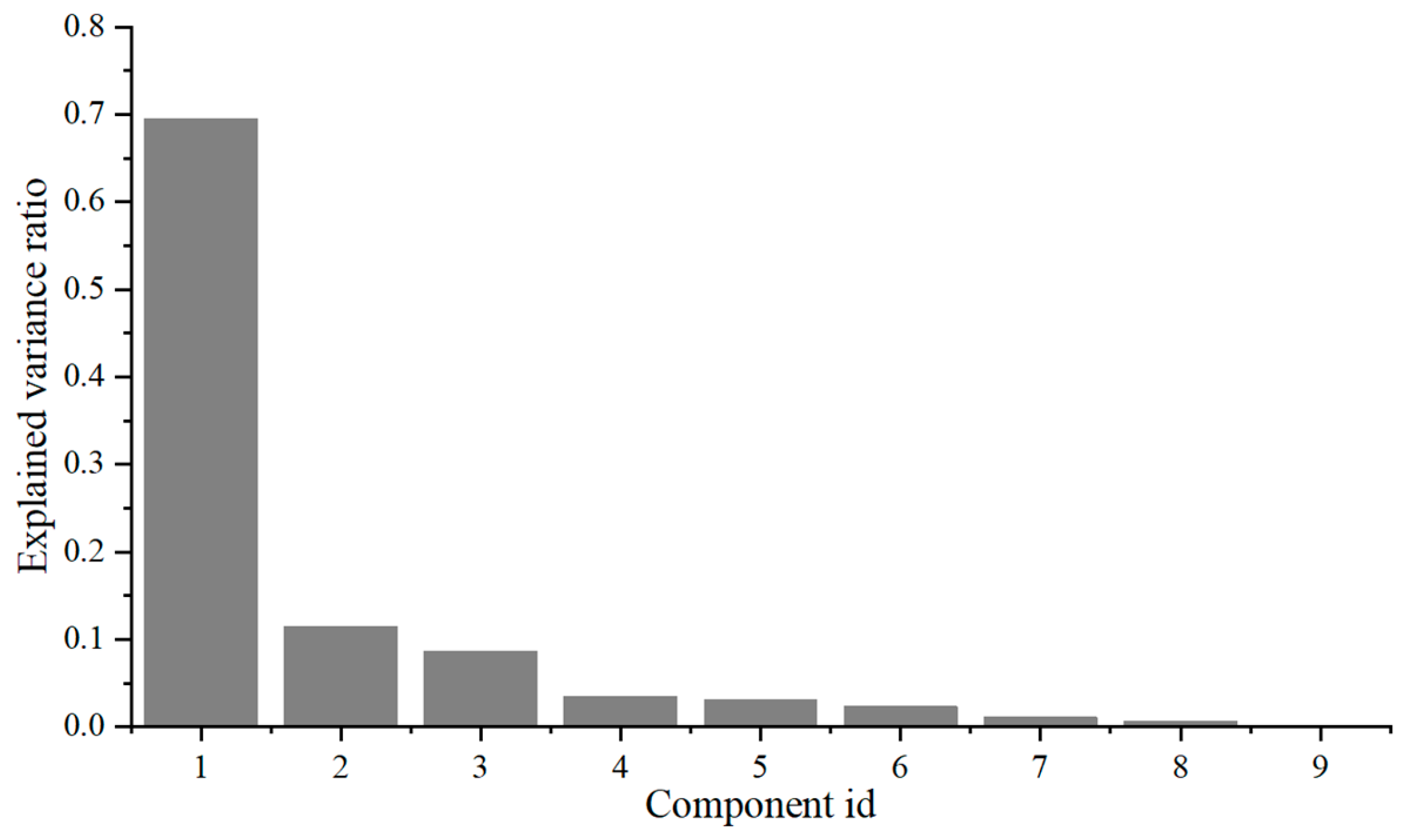

. The result of PCA analysis is shown in
Figure 8. The sum of the ratios of the first three principal components is greater than 0.9, and the first three principal components were used to train the GBDT model.
After the feature fusion was complete, the relationship between and S(t) was obtained based on GBDT, and the root mean square error between model output and actual sales volume S was reduced as a loss function, the causality-analysis submodel was finally obtained. The LightGBM framework was used for GBDT training.
The main GBDT parameters are as follows:
- (1)
num_boost_round decides the number of the tree, the larger the number, the weaker the generalization ability; the smaller the number, the weaker the learning ability.
- (2)
learning_rate decides the contribution of each tree to the result; a lower learning rate usually leads to better training results.
- (3)
max_depth, num_leaves, min_data_in_leaf, and min_sum_hessian_in_leaf determine the complexity of each decision tree, appropriate values of these values can prevent overfitting.
- (4)
feature_fraction and bagging_fraction are used in the selection of training samples and training features, introducing randomness at each iteration to prevent overfitting.
GBDT model parameters were selected by grid search, and the range of parameters and the values selected are shown in
Table 7.
3.5. Combination Strategy of Two Submodels
The combination strategies of the submodels will affect the final predictions. Models using different combination strategies were designed, and a comparative experiment, conducted to select the best combination strategy, is described in
Section 4. Combination strategies can be sorted into two types: the weighted-average strategy and the ensemble-learning strategy.
The weighted-average strategy is a linear combination method to allocate different weights to different sub-modules by their historical performance. The inverse variance weighting method is always used to determine the weights.
The ensemble-learning strategy is another commonly used method which can capture the nonlinearity of the outputs of submodels [
42]. There are three usual methods: boosting, stacking, and bagging [
43]. Boosting uses a series structure, where each model learns from the previous model and fixes the errors of the previous model. Stacking uses a parallel structure to take the output of each submodel as the input of the meta-learner, and the meta-learner determines the proportion of the predictions of each submodel. Bagging generates multiple datasets by bootstrapping samples to train different copies of the same model and then obtains the result by averaging or voting. The exact combination method should be determined by the specific problem and data; bagging is not suitable for combining two different models.

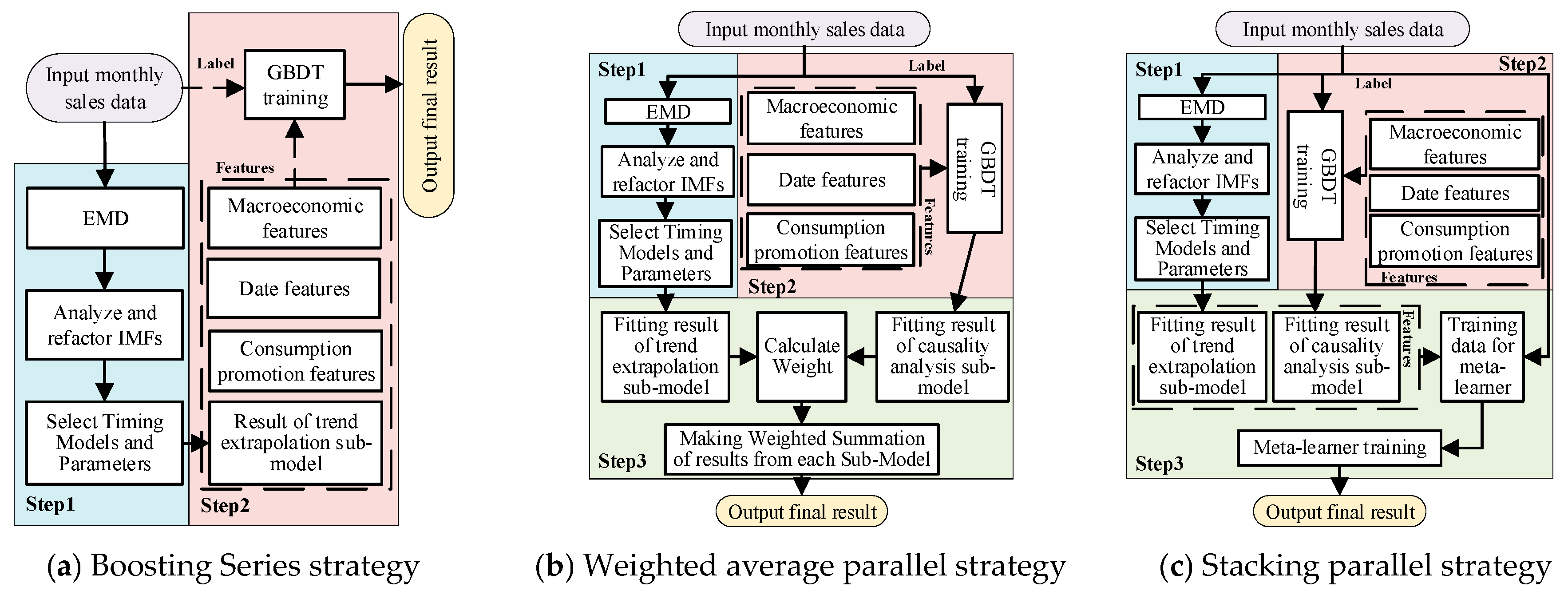

Therefore, the combination strategies tested in the experiment include the boosting series strategy, the weighted-average parallel strategy, and the stacking parallel strategy. The methods used to implement these three combination strategies are shown in
Figure 9a–c, respectively.
- (1)
Boosting series combination
First, the predictions
of the trend fader model were obtained. Furthermore, the fitting results of the trend-extrapolation submodel and the data on other influencing factors were used as the features of the causal analysis submodel for training, as shown in Equation (2), as follows:
Finally, the forecasts of the trend-extrapolation submodel and the features data of the month were input into the trained causality-analysis submodel to obtain the final predictions.
- (2)
Weighted-average parallel-combination model
The first step was to obtain the forecast of the trend-extrapolation submodel
and the causality analysis result
. Next, the variance of the forecast error and the weight of submodels for each month in the past year were calculated using Equations (3) and (4). Finally, the forecasting result was output via Equation (5) [
44], as follows:
where
S,
, and
are the forecasting results of the combination model, the trend-extrapolation submodel, and the causality-analysis submodel, respectively;
is the weight for each submodel;
is the variance of the forecast error;
is the forecast result of the
ith submodel for the
jth month; and
is the mean error of the
ith submodel.
- (3)
Stacking parallel combination
The first step was to obtain the forecast from the trend-extrapolation submodel
and the causality-analysis result
. Next, the meta-learner was trained based on GBDT, and the mapping between the forecast results of the two submodels and the actual sales data was constructed as shown in Equation (6), as follows:
Finally, the forecast was output from the meta-learner.
4. Experiment and Discussion
In this section, proposed submodels and combination strategies are evaluated and analyzed. The dataset used in this paper is described, and the experimental design is provided in detail. Additionally, several ablation experiments and comparison experiments were conducted, and their results are discussed.
4.1. Experiment Setup
Due to the large fluctuations in vehicle sales between different quarters, the effectiveness of the model cannot be objectively evaluated by relying only on the monthly sales predictions of a specific quarter, so the training set and test set of each submodel were divided as shown in

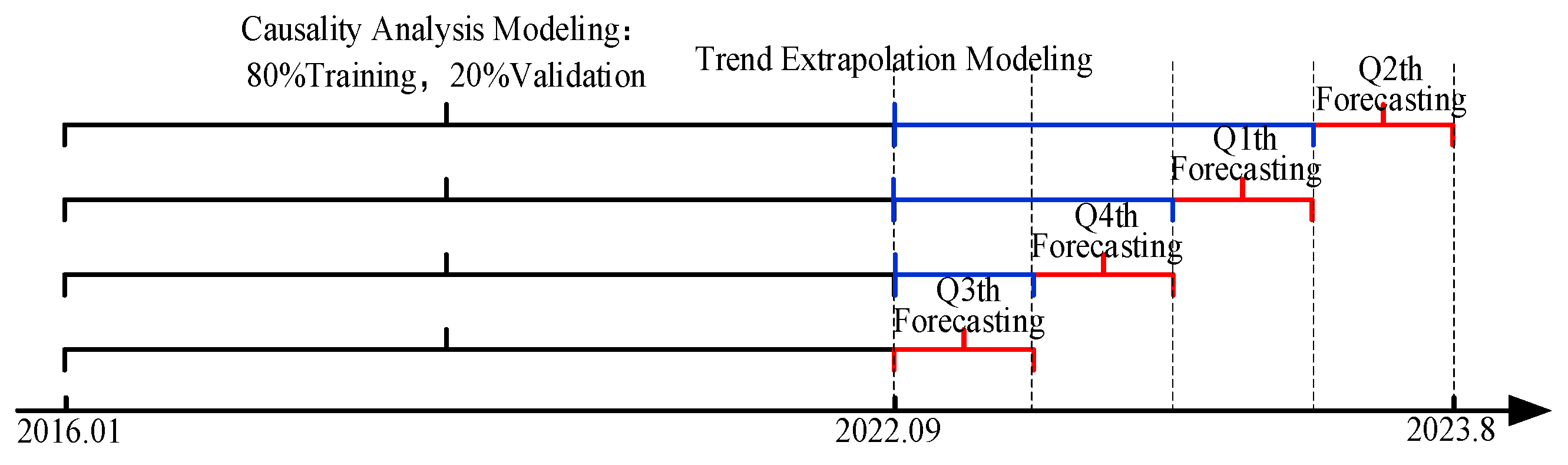

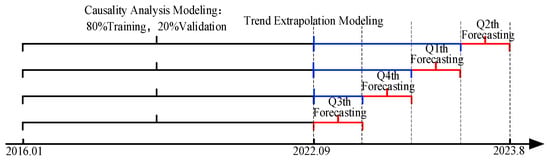

Figure 10. Monthly automobile sales for the four quarters from September 2022 to August 2023 were forecasted on a rolling basis.
The sales data from January 2016 to August 2022 (black part of
Figure 10) and the sales data from the past quarter (blue part of
Figure 10) were used to train the trend-extrapolation submodel and forecast the monthly sales of the next quarter (red part of
Figure 10). The sales data from January 2016 to August 2022 (black part of
Figure 10) were divided into 80% training set and 20% validation set to train the causality-analysis submodel and predict the sales of each month. This kind of dataset partition is more in line with the actual needs of enterprises because it allows the forecast model to learn the recent trend, thereby reducing error accumulation.
Mean Absolute Percent Error (MAPE) of monthly sales forecast results for each quarter was used as the evaluation index. The smaller the MAPE value of the model, the higher the model accuracy. The formula used to calculate MAPE is shown in Equation (7), as follows:
where
is the monthly sales forecast for the
ith month of each quarter and
is the actual sales value of the
ith month.
The following experiments were programmed using Python on a computer with 8 cores, 16 GB of RAM, 6 GB of VRAM, and 512 GB of hard-disk space.
4.2. Ablation Experiment of the Trend-Extrapolation Submodel
To validate the effectiveness of the proposed trend-extrapolation model, the forecasting performance of EMD-SARIMA-PR, EMD-SARIMA, and SARIMA were compared. In EMD-SARIMA, SARIMA is used to forecast each IMF without distinction, and the predicted values of each IMF component are summed to obtain the result. In SARIMA, SARIMA is directly used to forecast the original sales sequence. The EMD algorithm and SARIMA algorithm were implemented based on the PyEMD library and the pmdarima library, respectively.
Ablation experiments were carried out on the three groups of sales data. The comparison images and prediction residuals of the predicted sales values and actual sales values of the three models are shown in

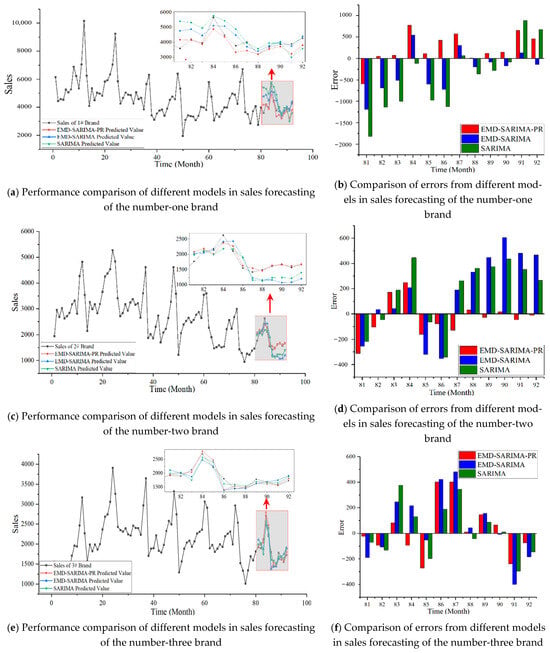

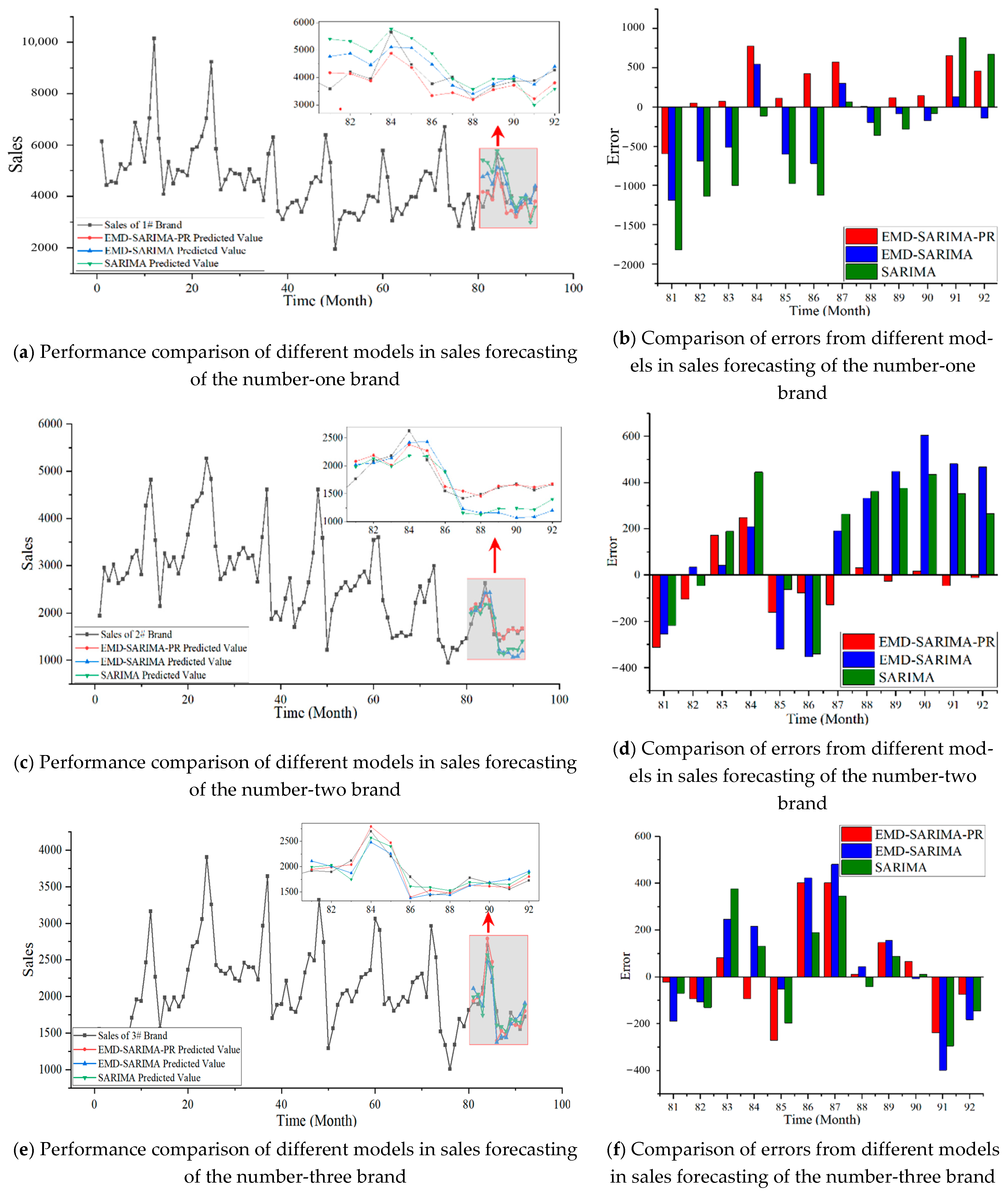

Figure 11, and the MAPE values of the predicted results are shown in
Table 8.
According to
Figure 11a,c,e, the sales sequence predicted by EMD-SARIMA-PR is most similar to the actual sales sequence. According to
Figure 10b,d,f, the residual deviation of the result from EMD-SARIMA-PR has a low degree of deviation from the 0 line and a low range of variation, lower than those of the other two models in addition.
According to
Table 8, the forecast results of EMD-SARMIA-PR have the smallest MAPE value, which means they have the highest forecast accuracy. Compared with EMD-SARIMA and SARIMA, the MAPE of EMD-SARMI-PR decreased by 26.78% and 55.65%, respectively, for the number-one-brand data; the MAPE decreased by 68.61% and 64.33%, respectively, for the number-two-brand data; and the MAPE decreased by 24.93% and 5.16%, respectively, for the number-three-brand data.
In summary, the trend-extrapolation model based on EMD-SARIMA-PR shows the best forecasting performance, and this model can effectively capture the linear law in the monthly-car-sales series.
4.3. Comparison Experiment Among Three Combination Strategies
To select the best combination strategy, the forecasting performance of the models in
Section 3 using the three combination strategies were compared. The comparison images of the forecast sales values and the residuals of the forecast models using different combination strategies are shown in

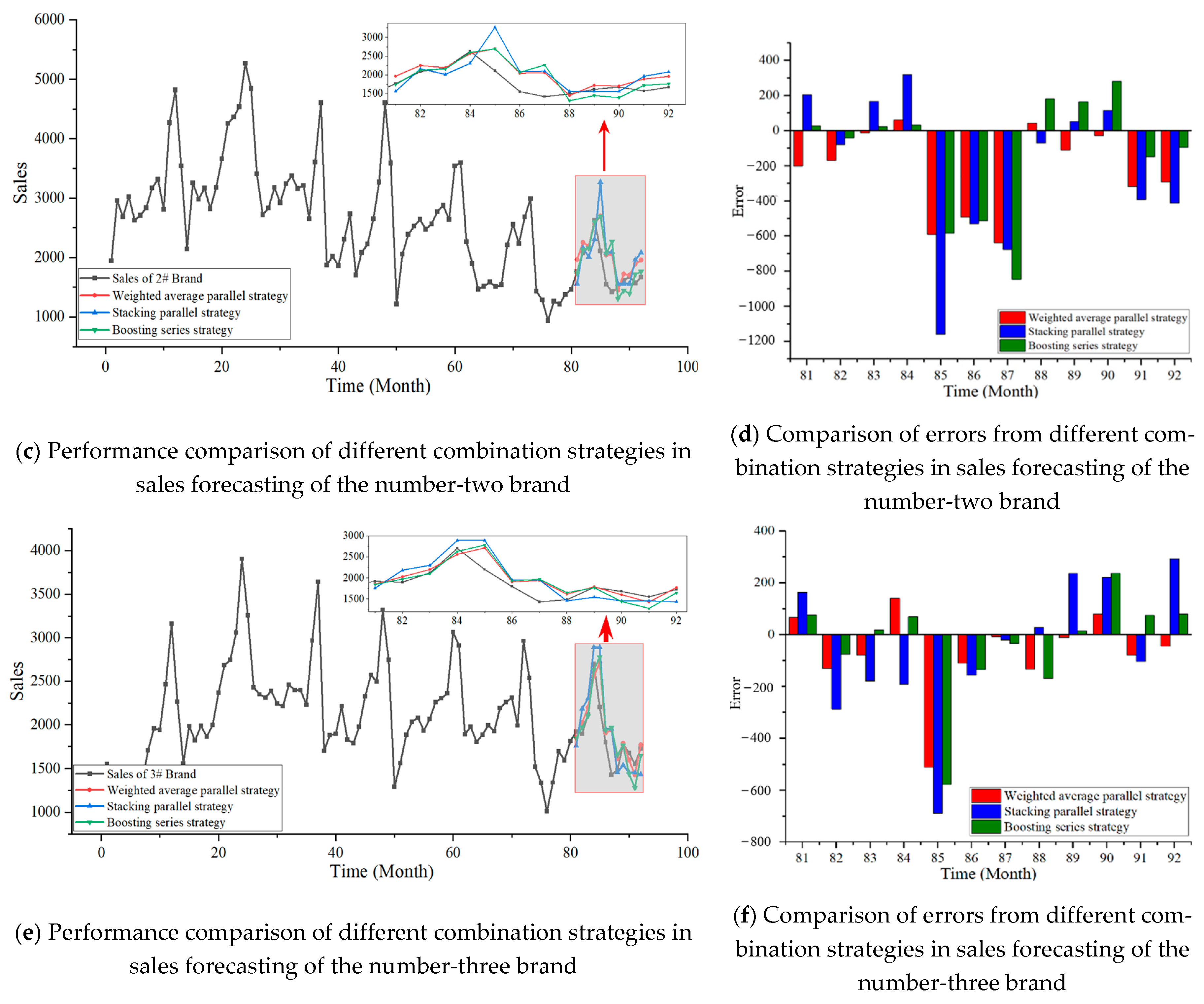

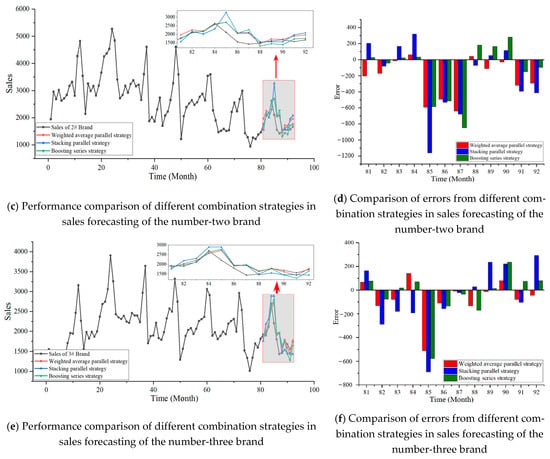

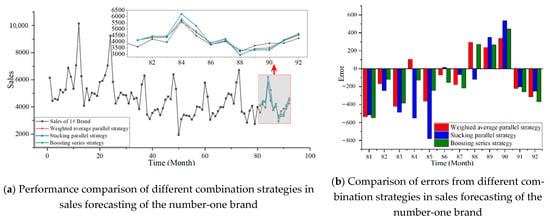

Figure 12, and the MAPE values of the predictions are shown in
Table 9.

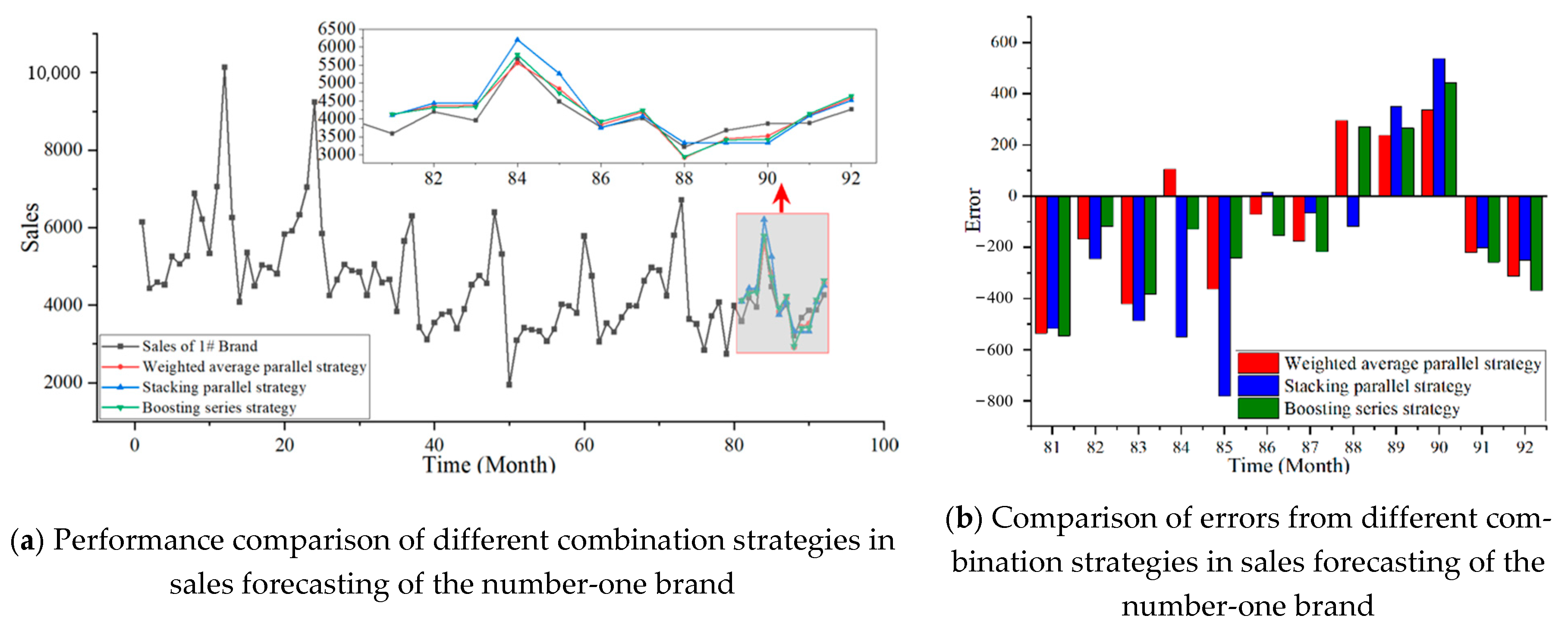

According to
Figure 12a,c,e, the change tendency of the forecast sales sequence of the weighted-average parallel-combination model is most similar to the actual sales sequence According to
Figure 12b,d,f, the weighted-average parallel-combination model has a lower variance and deviation compared to the other models.
According to
Table 9, the forecast results of the weighted-average parallel-combination model have the lowest MAPE value, which means this model has the highest prediction accuracy. For the number-one brand data, the forecast MAPE values of the weighted-average parallel-combination model were reduced by 16.81%and 4.68%, respectively, compared with the stacking parallel-combination model and the boosting series-combination model. For the number-two-brand data, the forecast MAPE values of the weighted-average parallel-combination model were reduced by 25.60% and 2.79%, respectively, compared with the Stacking parallel combination model and the Boosting series-combination model. For the number-three-brand data, the forecast MAPE values of the weighted-average parallel-combination model were reduced by 46.26% and 14.37%, respectively, compared with the stacking parallel-combination model and the boosting series-combination model.
In summary, the weighted-average parallel-combination model shows the best forecasting performance.
4.4. Ablation Experiment Conducted on the Proposed Combination Model
Through the comparison experiments in
Section 4.3, the weighted-average parallel-combination strategy was selected to construct the forecast model. In this section, ablation experiments carried out on the proposed combination model are described and the relationship between the composite model and its submodels is discussed. Images comparing the sales-forecast values and prediction residuals from the trend-extrapolation submodel, the causality-analysis submodel, and the weighted-average parallel-combination model are shown in

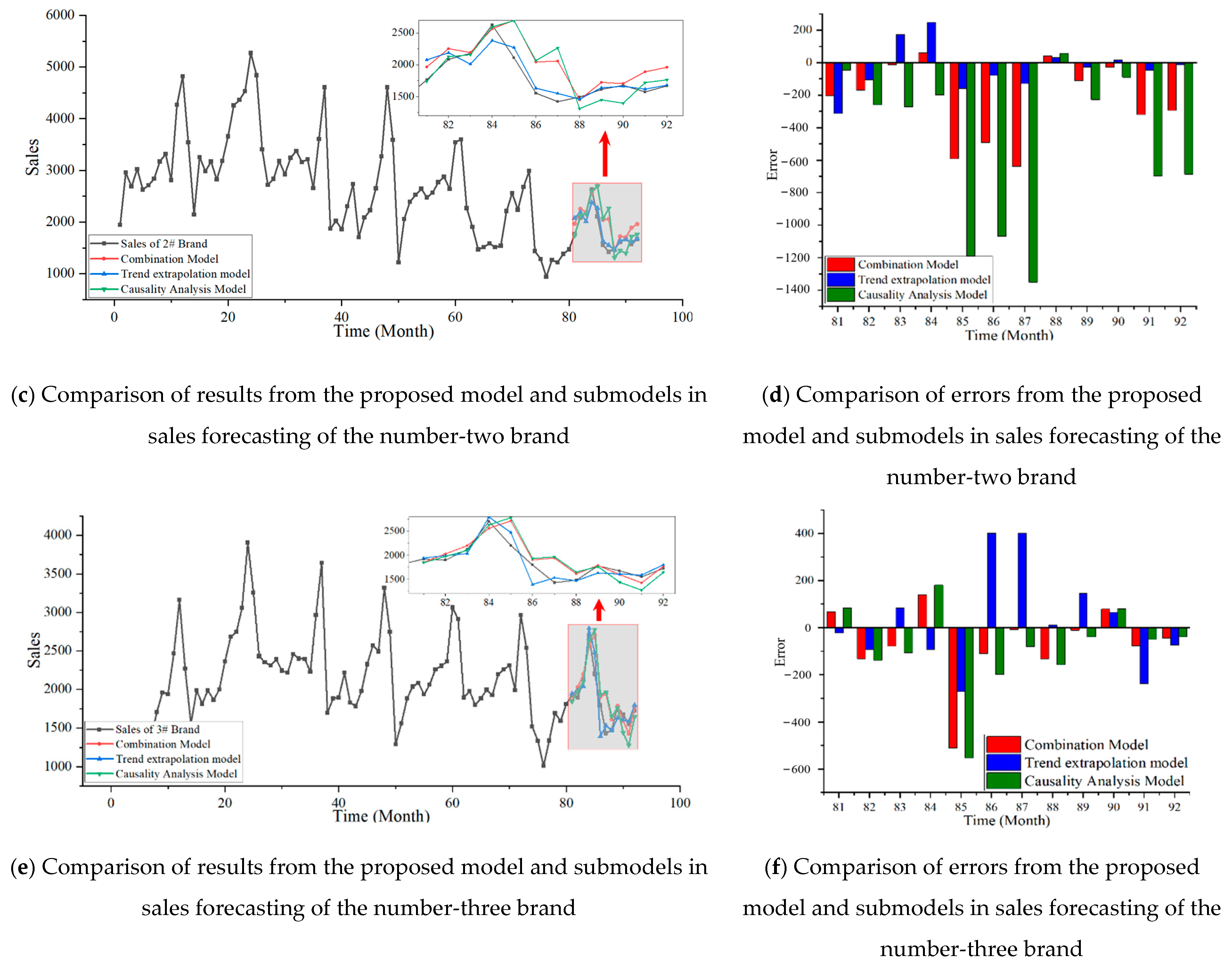

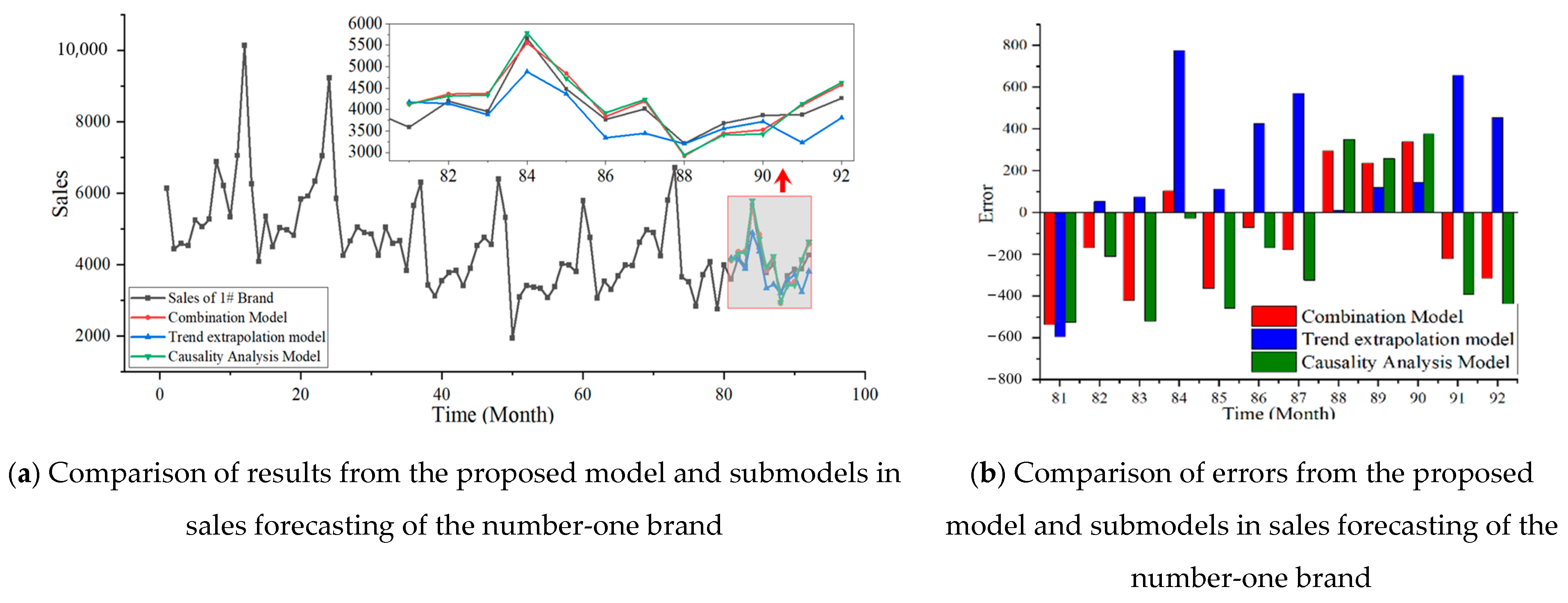

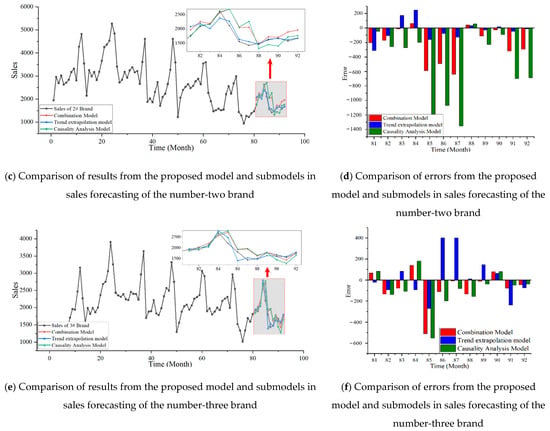

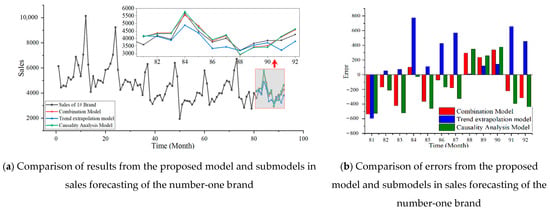

Figure 13, and the MAPEs of the forecast results are shown in
Table 10.
For the number-one-brand data, in the 84th, 86th, 87th, 91st and 92nd months, the combination model effectively reduced the forecast error of the trend-extrapolation model; in the 82nd, 83rd, 88th, 89th and 90th months, although the forecast errors of the combination model are higher than that of the trend-extrapolation model, the forecast sales sequence still shows a similar change tendency with the actual sales sequence. From the overall forecast results, the MAPE values of the combination model were 13.81% and 20.44% lower than those of the trend-extrapolation model and the causality-analysis model.
For number-two-brand data, the forecasting performance of the combination model was worse than that of the trend-extrapolation model. Compared with those of the number-one brand and the number-three brand, the sales sequence of the number-two brand has a more obvious downward trend that is not captured by the causality-analysis model, which leads to an obvious deviation in the prediction of the causal-analysis model. The trend-extrapolation model can effectively capture the trend in the historical data, so its prediction accuracy is much higher than that of causality-analysis model. The combination model synthesizes the predictions of the two models and corrects the bias of the causality-analysis model from the 83rd month to the 92nd month to some extent.
For the number-three-brand data, in the 86th, 87th, 91st and 92nd months, the combined model effectively reduced the prediction error of the trend-extrapolation model; in the 85th month, the causality-analysis model and the combination model incorrectly predicted the peak sales volume, resulting in an error. Except in the 85th month, the change trend of the forecast sales sequence of the combination model is more similar to that of the actual sales sequence and the error distribution of the combination model is the most uniform. From the overall forecast results, the MAPE of the combination model is 31.02% and 17.91% lower than those of the trend-extrapolation model and the causal-analysis model, respectively.
In summary, the trend-extrapolation model can effectively capture and extrapolate the law of historical sales data, but there is a problem of large forecast variance. The forecast variance of the causality-analysis model is smaller than that of the trend-extrapolation model, but it cannot capture the sales-series trend, which may be the cause of the deviation between the forecast and the data. The proposed combination model can effectively integrate the forecast results of the two submodels and improve the forecast accuracy.
4.5. Comparison Experiment between Proposed Combination Model and Other Common Models
The proposed combination model was compared with common time-series models and a deep learning model. The models involved in the comparison are as follows:
- (1)
ES: Forecast automobile sales based on a triple-exponential smoothing method.
- (2)
GM: Forecast automobile sales based on the first-order unary grey model GM (1,1).
- (3)

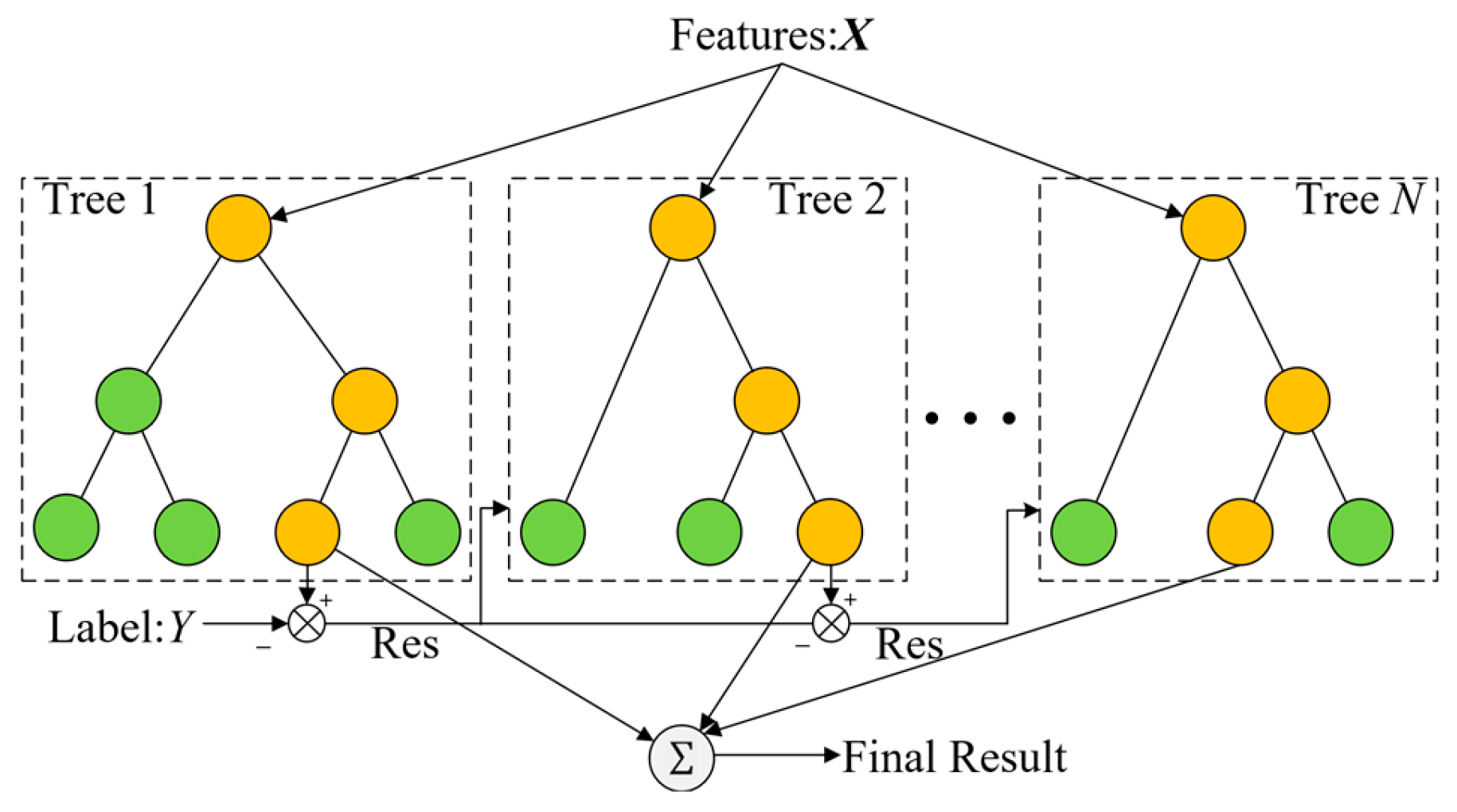

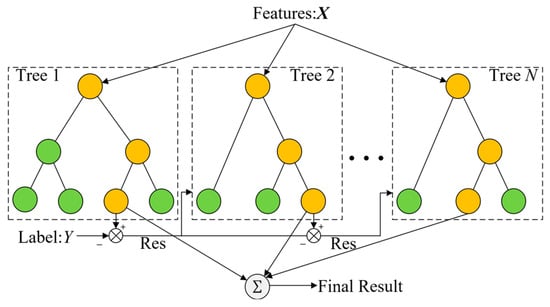

XGBoost: Forecast automobile sales based on the XGBoost model.
- (4)
SVR: Forecast automobile sales based on the SVR model with a linear kernel.
- (5)
CNN: Forecast automobile sales based on a convolutional neural network that includes two Conv1D layers, two Maxpooling1D layers, and one FC layer. The number and the size of convolution kernels in each Conv1D layer are 32 and 3, the activation function is Relu, and the loss function is the mean square error.
- (6)
LSTM: Forecast automobile sales based on a long short-term-memory neural network, which includes two LSTM layers and one FC layer. The number of hidden neurons in each LSTM layer is 50, the activation function is Relu, and the loss function is the mean square error.

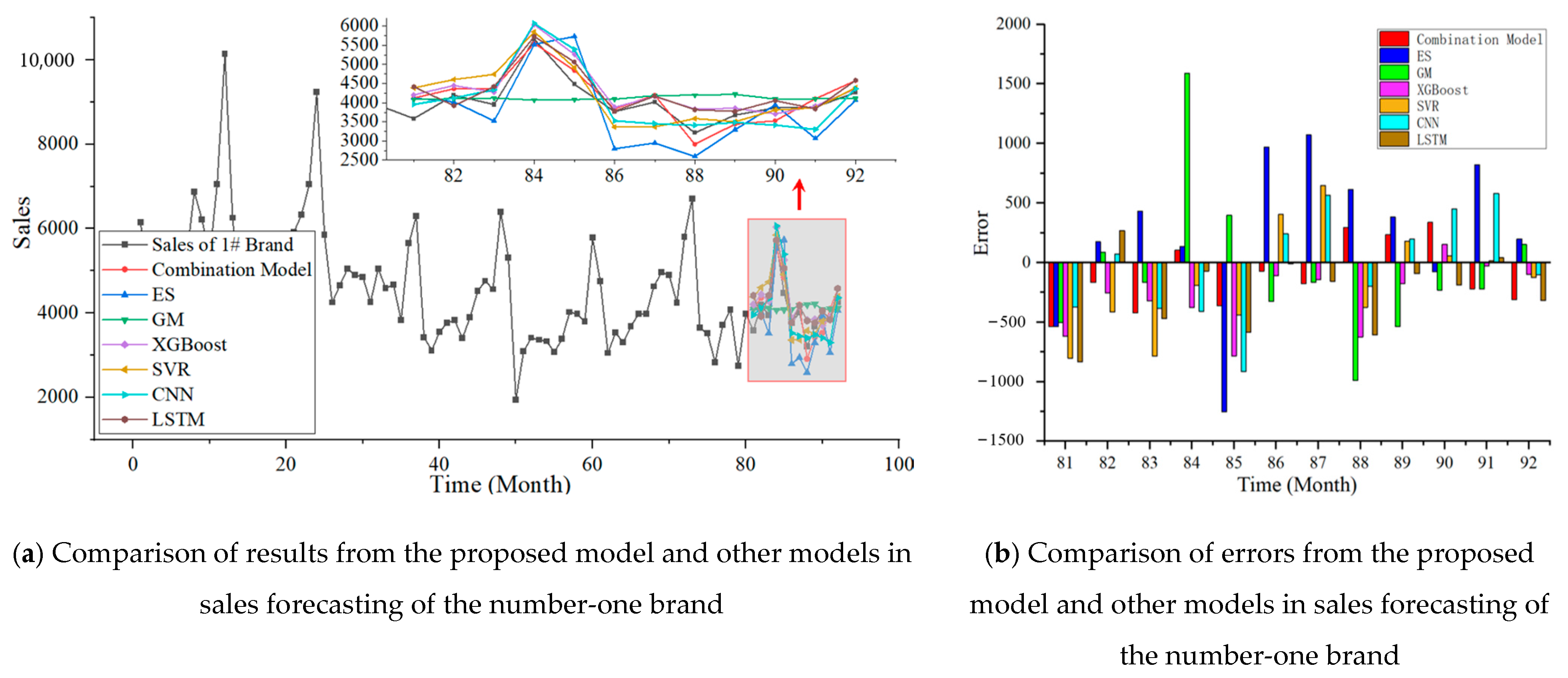

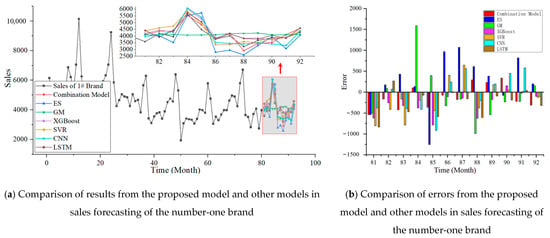

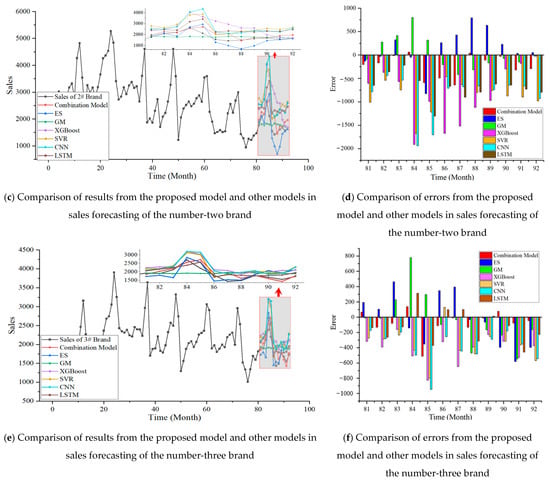

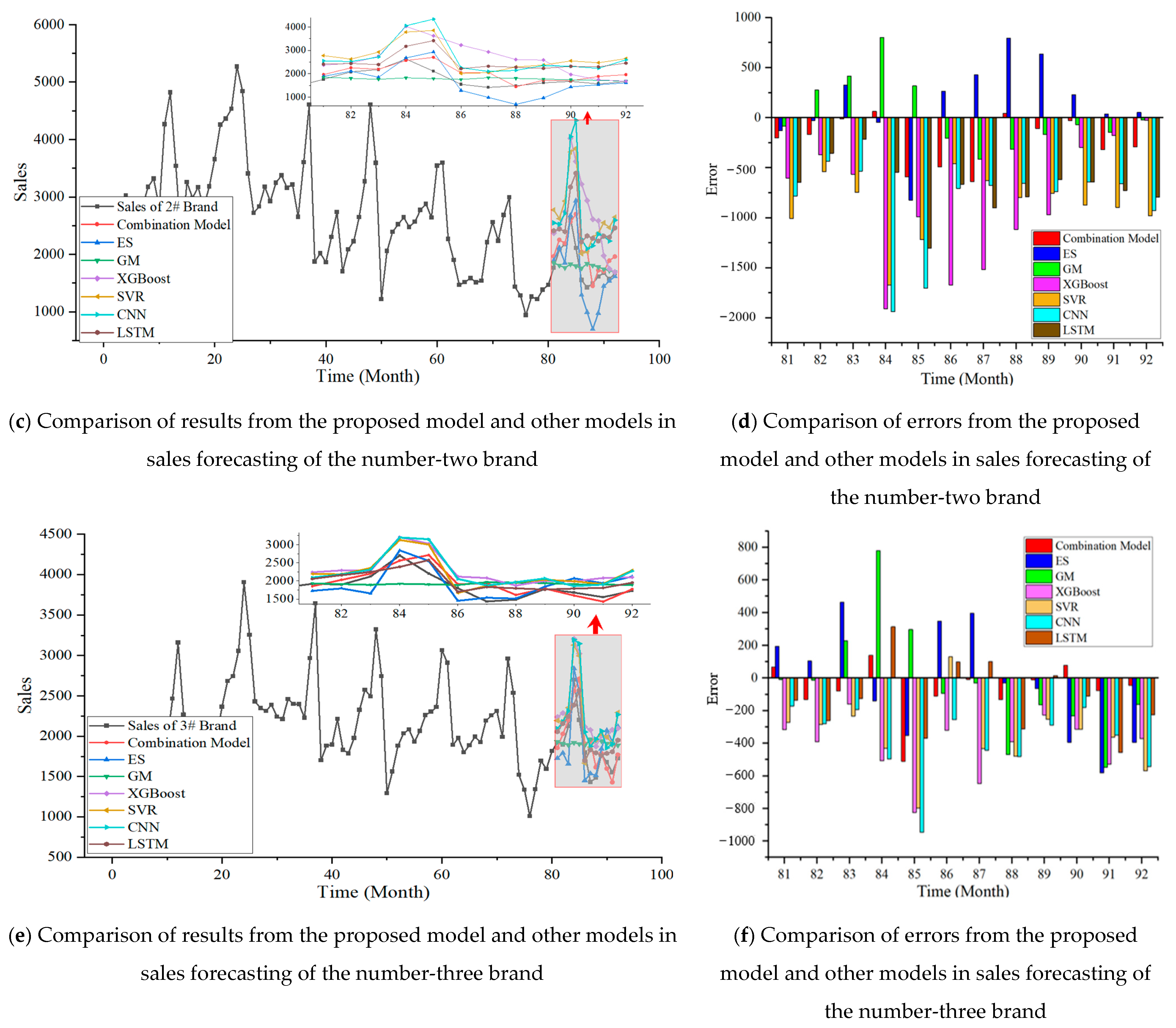

ES and GM use only historical sales data for forecasting, and their datasets are divided in the same way as are those used in the trend-extrapolation model. XGBoost, SVR, CNN, and LSTM use features data for forecasting, and their datasets are divided in the same way as that used in the causal analysis model. The comparison images of sales forecast values and forecast residuals of each model are shown in
Figure 14, and the MAPE values of forecast results are shown in
Table 11. XGBoost, SVR, ES, and LSTM forecast the seasonal characteristics in the sales sequence to some extent, but the forecast results of GM reflect only the trend.
For the number-one-brand data, the MAPE of the forecast results from the proposed combination model is the lowest, being 51.2%, 36.42%, 11.15%, 26.74%, 24.84%, and 12.28% lower than those of ES, GM, XGBoost, SVR, CNN, and LSTM, respectively. In addition, the forecast residuals of the combination model are the most balanced, which proves that its forecast results have the lowest variance and deviation.
For the number-two-brand data, the MAPE of the forecast results from the proposed combination model is lower than those of ES, XGBoost, SVR, CNN, and LSTM, being lower by 21.32%, 69.99%, 69.93%, 68.91%, and 63.03%, respectively, and is close to that of the result of the GM prediction, with an increase of 2.59%. In addition, the forecast residuals of four models from months 84 to 91 are biased to one side of the 0 line, showing different degrees of bias, with the GM having the lowest bias, followed by the combined model.
For the number-three-brand data, the MAPE of the forecast results from the proposed combination model is the lowest, being 63.07%, 56.78%, 74.2%, 71.51%, 71.71%, and 49.36% lower than those of ES, GM, XGBoost, SVR, CNN, and LSTM, respectively. In addition, the forecast residuals of the combination model are the most balanced, which proves that its forecast results have the lowest variance and deviation.
In summary, the proposed combination model shows the best forecasting performance.
