1. Introduction
Quality of service (QoS) plays an important role in networking, cloud computing, telecommunications, real-time systems, multimedia streaming, data centers, and the internet of things (IoT) to ensure reliable performance and meet specific application requirements. As a result, many techniques have been proposed to ensure fairness, response time, throughput, and stability by considering the memory’s architecture, size, and the characteristics of the applications, under the assumption that memory read and write operations are constant and processed at high speed. However, the advent of GPU- or accelerator-based AI applications, advancements in IoT technologies, or the emergence of open hardware, such as RISC-V, have demanded memory systems with low power consumption, nonvolatility, and diverse memory operation characteristics [
1]. These requirements have highlighted the limitations of conventional DRAM-based memory structures in terms of latency, bandwidth, and energy efficiency [
2]. In order to address these limitations, nonvolatile memory (NVM) technologies have been proposed to replace or complement traditional DRAM-based memories by integrating them together. The emergence of NVMs complicates the guarantee of QoS provided by existing techniques, as the latency and bandwidth of read and write operations can vary significantly depending on the specific NVM type used.
While QoS techniques have been proposed considering emerging memory technologies, they are generally designed to accommodate only one or two types of memory. Traditional QoS methods for DRAM-based homogeneous memory systems face limitations such as high power consumption and scalability issues. In order to address these limitations, hybrid memory structures combining DRAM and NVMs, such as phase-change memory (PCM), have been explored. These hybrid systems aim to leverage the fast access times of DRAM and the nonvolatility of NVMs, but they introduce new challenges in managing the different characteristics of each memory type, such as varying latency and endurance. However, new technologies such as Compute Express Link (CXL) and in-memory processing suggest that multiple types of memory devices can be used within a single system [
3,
4,
5], necessitating QoS techniques that can handle such heterogeneous memory systems. Despite this, there has been limited consideration of QoS in systems utilizing multiple NVM types simultaneously. Our analysis indicates that state-of-the-art QoS techniques, which are designed for memory systems using a single type of NVM, fail to operate correctly in environments where a different type of NVM than the one targeted is used or in heterogeneous memory systems where multiple types of NVMs are used together. Given the varying characteristics of different NVMs, the QoS of an application can differ significantly based on which memory device it is allocated to in a heterogeneous memory system.
In this paper, we propose a novel technique called dynamic affinity-based resource pairing (DARP) to enhance the QoS of applications running on multicore heterogeneous memory systems. Unlike hybrid memory systems that simply use two different types of memory, this study targets heterogeneous memory systems that can be composed of multiple types of memory devices. In these heterogeneous memory configurations, memory devices exhibit varying read and write latencies, making memory allocation and management more challenging for maintaining QoS. For instance, in a hybrid memory system with two different memory devices, the memory can be simply categorized as faster or slower. However, in a heterogeneous memory structure with multiple memory types, the memory speed spans several levels. Consequently, the QoS performance of an application can significantly vary depending on which memory device it is paired with. Furthermore, when multiple applications run on multiple memory devices, it is crucial to match applications to the optimal memory device based on their characteristics to ensure QoS.
In order to address these challenges, we introduce the concept of affinity for both programs and memory in terms of the intensity of memory operations. This affinity dynamically tracks the memory access patterns of various programs and the characteristics of NVM devices. The affinity is then used to optimally allocate program pages to the most suitable memory devices. DARP manages the pairing of programs and memory at runtime, preventing increases in memory response times due to concentrated memory requests and ensuring stable memory response times, thereby enhancing the QoS of applications. Additionally, DARP does not enforce the use of specific memory configurations and supports the flexibility to utilize various memory technologies within a single system. By defining the compatibility between programs and memory devices through the concept of affinity, DARP performs QoS-aware memory allocation and management, ensuring optimal performance in heterogeneous memory systems.
We conducted extensive experiments to evaluate the efficiency and scalability of DARP across various workloads and heterogeneous memory system configurations. The proposed scheme was evaluated not only in the most common heterogeneous memory configuration using both DRAM and NVM but also in systems where two different types of NVMs are used simultaneously and in complex heterogeneous memory environments utilizing more than three types of memory. Additionally, we compared our approach to state-of-the-art QoS techniques designed for NVM. While evaluating application QoS in terms of memory response time variability, DARP demonstrated a significantly more uniform memory response time compared to competing techniques, which exhibited large variations in memory response times between different applications. Specifically, across six different heterogeneous memory environments, DARP achieved memory response time variabilities of 90.6, 92.3, 61.3, 62.0, 67.1, and 73.3% compared to the baseline. This indicates that DARP provides substantially less variable memory response times for all running applications in various heterogeneous memory environments, leading to improved QoS.
Our contributions can be summarized as follows:
We provide a comprehensive analysis of the effect of memory configuration on QoS in heterogeneous memory systems;
We propose a novel QoS-aware memory management scheme that enhances QoS under memory resource contention;
We enable system designers to freely employ their preferred memory types while minimizing the impact of memory configuration on QoS.
The remainder of this paper is organized as follows. The background information and related studies are provided in
Section 2. DARP is discussed in detail in
Section 3, and the experimental results are presented in
Section 4. Finally, the paper is concluded in
Section 5.
3. Dynamic Affinity-Based Resource Pairing
This section discusses the proposed DARP process, a novel memory management scheme designed to enhance QoS in heterogeneous memory systems, in detail. DARP dynamically pairs program pages with the most suitable memory types based on program and memory affinities, effectively managing memory response times and preventing resource contention in multicore environments.
3.1. Key Design Considerations of DARP
Before delving into the details of DARP, we discuss three key design considerations of our approach. These observations illustrate how QoS can degrade when conventional memory management techniques are applied to heterogeneous memory systems. For clarity, we consider a system with four cores, where each core can run independent applications, and four memory channels, each potentially equipped with different types of memory.
3.1.1. Variability of Program Behavior
In heterogeneous memory systems, placing program page data into the appropriate memory types is crucial for ensuring consistent memory response times and achieving QoS due to the fundamental differences in read and write operation latencies across memory types. Moreover, the variability in program behavior regarding memory access patterns can further exacerbate these differences.

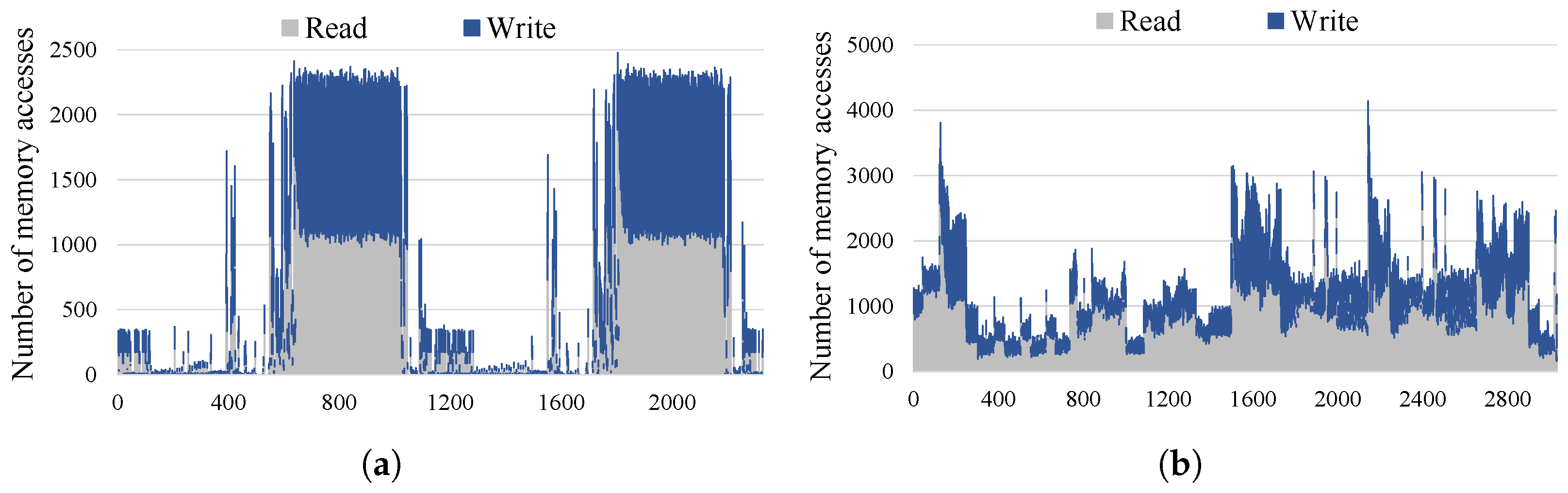

Figure 1 illustrates the changes in program behavior over time for
cam4 and
wrf, showing the number of memory read and write operations at 100 K cycle intervals. As shown in the figure, the number and ratio of read and write requests can vary significantly with changes in program phases during execution. Therefore, even memory types with small inherent differences in read and write operation latencies can experience significant cumulative response time differences during phases of concentrated memory requests, leading to increased response time variability compared to less intense phases. In a multicore environment, program variability can be exacerbated by mutual interference among multiple programs, further amplifying memory response time variability. Conventional fixed memory mapping approaches that cannot adapt flexibly to changes in memory request intensity struggle to maintain QoS as program phases change.
Consequently, effectively achieving QoS requires not only managing the latency differences between memory types but also considering the diverse memory access patterns among different programs and the inconsistent access patterns within a single program. A proper management system needs to continuously monitor application behaviors at the granularity of program phases or finer and incorporate this information into the memory mapping process.
3.1.2. Variability of Channel Access
In multicore systems, the last-level cache (LLC) is shared among programs and demonstrates relatively lower spatial locality compared to higher-level caches. This leads to irregular LLC access patterns, causing main memory access to be unevenly distributed across channels, resulting in large variations in the number of memory accesses per channel.
Figure 2 compares the channel-wise access ratios for memory read and write operations across nine workload sets during the entire program execution. Each workload set is composed of four programs (see
Table 2 for detailed experimental environments), and the ratio is normalized based on the access count of Channel 0. As shown in the figure, the memory access counts per channel are non-uniform, exhibiting fluctuations ranging from an average of 6% to a maximum of 22%. Note that these fluctuations become more pronounced when monitoring the program at finer intervals. This variability indicates that heterogeneous memory systems can exhibit significant performance differences depending on their configurations, even when the same memory type is used. Connecting relatively slow memory to heavily accessed channels results in significantly longer average memory access times compared to when fast memory is connected to those channels, posing challenges in ensuring QoS. Therefore, an appropriate data management scheme must consider the system hardware configuration.
3.1.3. Variability of Memory Response Time
Read and write latencies differ by memory type, and each type generally maintains consistent latency characteristics. However, from the perspective of memory response times, even the same type of memory can exhibit significant variation depending on the situation. Because all CPUs share memory and peripherals, such as buses and request queues, concentrating requests on a specific memory type can significantly increase congestion (wait) cycles, leading to longer overall response times.

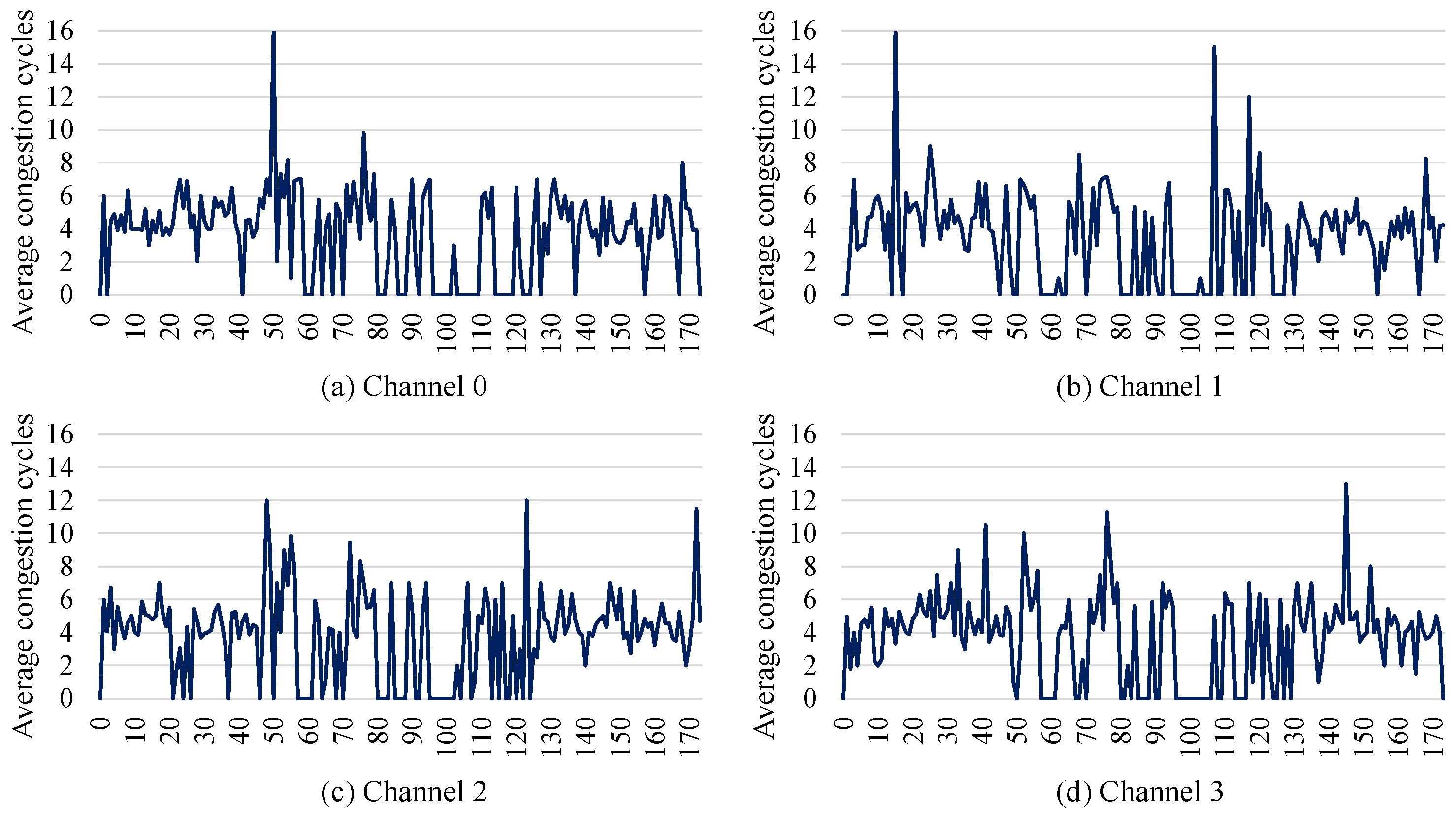

Figure 3 shows the average congestion cycles per channel for memory read accesses at 1 M cycle intervals in a homogeneous memory environment with DRAM installed across four channels, where four programs (
nab, pop2, imagick, and
exchange2) are executed simultaneously. As shown in the graph, the average congestion cycles per channel vary significantly, and memory accessed intensively by certain programs has much higher congestion cycles. For instance, in the 50th window, the average congestion cycle for Channel 0 is 16 cycles, whereas for Channel 3, it is nearly 0 cycles. This difference in response times can become even more pronounced in heterogeneous memory configurations with varying access latencies across memories. In other words, even memory types with inherently fast read and write speeds can have longer response times than those with slower speeds, and thus, simply storing data in faster memory does not guarantee quicker response times. According to our observations, these variabilities in per-channel congestion cycles are consistently found across various workload sets, indicating that a QoS-aware management system must consider not only the unique read and write latencies of each memory type but also the dynamic states of both the programs and the memories.
3.2. Affinity-Based Program and Memory Management
Based on three key design considerations, we propose a memory management technique that reflects the unique characteristics of heterogeneous memory systems, as well as the dynamic states of programs and memory, and the memory system configuration. In order to accurately reflect the dynamic states of programs and memory to the operations of DARP, we introduce the concepts of program affinity and memory affinity in terms of memory read and write operations. Program affinity is defined separately for read and write operations, and similarly, memory affinity is defined individually for read and write operations. Our scheme utilizes these affinity values to pair program pages with the most suitable memory types to ensure consistent memory response times regardless of the number of memory requests of the programs, thereby effectively enhancing their QoS.
3.2.1. Program Affinity and Memory Affinity
The program affinity quantifies the memory access intensity of a program, represented as the number of memory requests per program within a given cycle period. Memory affinity measures the relative response time of the memories used in the system, accounting for variations in response times based on the current memory state. In other words, program affinity indicates the extent to which the QoS of a program can be affected by memory read or write operations, while memory affinity indicates the suitability of a type of memory for processing read or write requests.
The program affinity values for read and write requests are computed by tallying the cumulative memory reads and writes during a 64 K cycle window. In order to normalize these cumulative values between 0 and 1, they are divided by 2048 and 512, respectively. Values exceeding 1 are set to 1. The values of 2048 for reads and 512 for writes, which represent the maximum accumulated reads and writes during the given window cycles, were chosen because they provided the best balance and accuracy in reflecting program behavior during evaluation. These values are crucial for accurately capturing program affinity and ensuring the effectiveness of the proposed scheme.
For example, if the cumulative number of reads for a program during the current window is 1536 and the read affinity value is 0.75, or if more than 2048 reads occur during the window period, the read affinity becomes the maximum value of 1. These cumulative values start from half the final value of the previous window to minimize fluctuations caused by transient program behaviors. Meanwhile, the memory affinity value for each memory type is calculated by dividing the shortest latency value among the installed memories by the respective memory latency, resulting in values ranging from 0 to 1. For instance, the write affinity values for the latencies of 15, 20, 60, and 150 ns are 1.0 (15 ns/15 ns), 0.75 (15 ns/20 ns), 0.25 (15 ns/60 ns), and 0.1 (15 ns/150 ns), respectively. During execution, the initial memory affinity values can be adjusted to reflect the runtime memory states. The adjusted affinity is calculated by multiplying the initial value by the unused queue rate. For example, a memory with an initial read affinity of 0.75 and 16 read requests queued over 64 entries has a memory affinity of 0.5625 (0.75 × (1 − 16/64)).
In summary, program affinity denotes the dependency of memory operations on the program, indicating how much the program is affected by memory response time. On the other hand, memory affinity signifies the efficiency of memory operations, reflecting how effectively memory requests can be handled. In order to ensure QoS for programs, we manage heterogeneous memory systems based on affinity values: programs with high affinity are paired with memories with high affinity, and vice versa. This approach is reasonable because it can provide fast memory response times for programs with high memory affinity while also preventing programs with low memory affinity from accessing fast memory, thereby preventing increased traffic for fast memory. In addition, because programs with low memory requests are less affected by memory response time changes, slower memory is acceptable for these programs.
3.2.2. Conceptual Behaviors of DARP

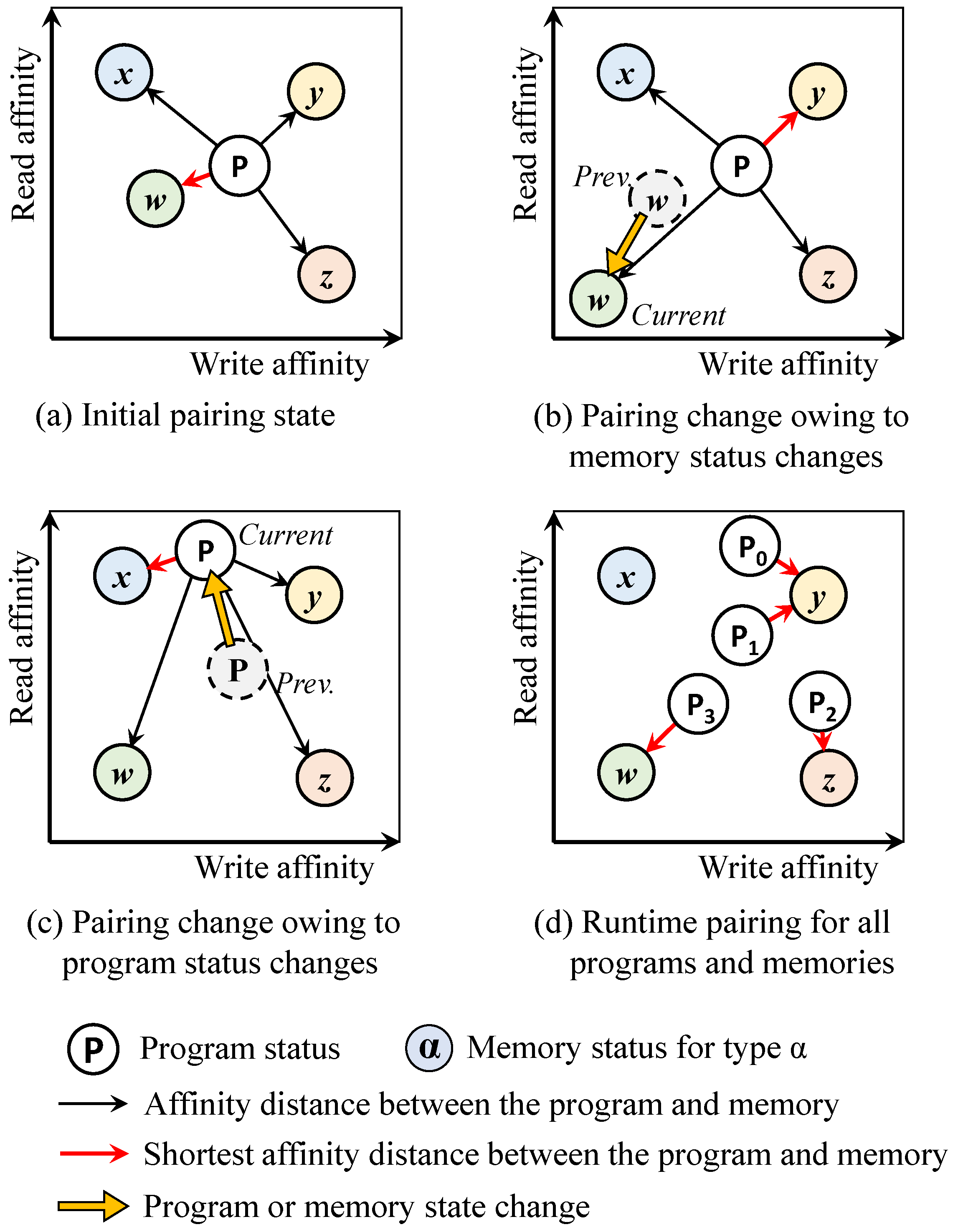

Figure 4 shows the operation of DARP, which pairs program and memory by considering changes in both program and memory affinities. In this example, we assume that the program state is initially midway along the affinity dimension (circled P) (
Figure 4a). Memory affinity is initially arranged based on the relative read and write latencies of the installed memories in the system, as discussed previously. Hence, a memory with faster read and write speeds is allocated a higher affinity dimension for both read and write (e.g., type
y). Once the read and write affinities between programs and memory are determined, the memory type with the shortest distance is selected (indicated by red arrows). In this example, a memory of type,
w, will be paired with the program.
However, the initially paired memory type may not remain the most suitable choice over time. As its paired memory handles the memory requests of the program, the increase in memory access traffic may potentially increase the waiting time in the request queue, leading to slower response times.
Figure 4b illustrates how the previously paired memory, type
w, exhibits a decrease in both memory read and write affinities due to the increase in memory traffic. Consequently, DARP replaces the paired memory with memory type
y, which exhibits the shortest affinity distance with the given program.
As memory affinities dynamically fluctuate, program behaviors also exhibit variability. When the phase of a program changes, leading to changes in the number of memory reads and writes, its affinity values are also adjusted accordingly, as depicted in
Figure 4c. Increased memory read requests result in a rise in the read affinity of a program, which necessitates the selection of memory type
x with the lowest read latency (i.e., highest memory read affinity) to handle the increased demand effectively.
In summary, DARP dynamically tracks the states of all running programs and installed memory types to pair each program with its optimal memory. The proposed scheme allows multiple programs to pair with a single memory type simultaneously, thereby simplifying memory management complexity (
Figure 4d). Note, however, that this approach rarely results in QoS degradation. When memory is paired with multiple programs, the concentrated traffic naturally lowers its affinity value, prompting programs to pair with other memory types. This mechanism prevents traffic congestion on specific memory modules and provides consistent memory response times for programs.
3.3. Operation Details of DARP
Figure 5 illustrates the read and write operations of DARP. Read accesses follow the existing memory behavior and do not perform pairing-related operations, thus avoiding excessive changes in memory pairing that could lead to significant page migration overhead. The pairing process is activated only when a dirty LLC block is evicted (i.e., during a memory write). It searches for the most suitable memory type for the page associated with the corresponding block. If the current write access hits the memory row buffer or if the new pairing is not predicted to provide sufficient benefit, the pairing process is not performed, minimizing the overhead associated with pairing changes. This policy of performing pairing at the page level and only under specific conditions enhances the convenience and efficiency of data management.
The pairing process aims to identify the shortest distance between a program and memory along the affinity dimension. However, relying solely on the shortest vector distance can often lead to incorrect pairing results that fail to guarantee QoS. This is primarily because maintaining QoS is closely tied to stable memory response times, which are more influenced by memory read latency than by write latency. Memory read requests are crucial for providing the data needed to process the currently executing program instructions, making them directly related to ensuring QoS. In contrast, memory write operations involve data that are not immediately requested by the processor, and thus, delays in write operations do not significantly impact QoS.
Given this, when a program has the same distance from a memory with high read affinity and low write affinity as that from another memory with low read affinity and high write affinity, we pair the program with the former to ensure better QoS. In order to implement this, we assign distinct weights to the read (
) and write distances (
) and compute the final affinity distance (
) using the following equation:
where
and
are the weight values for read and write distances, assigned as 0.80 and 0.20, respectively.
Furthermore, even if a new memory with the shortest affinity distance is identified, it may not be suitable from a QoS perspective. Changing pairings requires a memory data migration process to ensure data integrity, which can result in significant overhead. Therefore, pairing changes are evaluated based on whether the expected benefits outweigh the associated costs. Specifically, only memories with affinity distances of 0.25 or less are considered candidates for pairing changes. Moreover, if access to the existing paired memory is a row-buffer hit, the pairing is maintained regardless of the affinity distance.
Once a memory page is paired with a different memory type, it must be migrated to a frame of a new memory type. In order to maintain data integrity, tracking the change in physical frame location is essential, which can be easily handled by updating the physical address of the corresponding page in the translation lookaside buffer. This page-level migration approach simplifies page management and enables the individual pairing of each program page with its optimal memory type. Therefore, not all pages belonging to a program are stored in the same memory type.
The reference values, including the size of a window cycle, the maximum number of reads and writes within a window cycle, the weights for calculating read and write distances, and the thresholds for the validity of affinity distances, were determined through extensive and repetitive evaluations to ensure optimal results.
3.4. DARP Architecture and Overhead Analysis
3.4.1. Additional Hardware Components
In order to support DARP, the required additional hardware components are implemented in the memory controller, as shown in

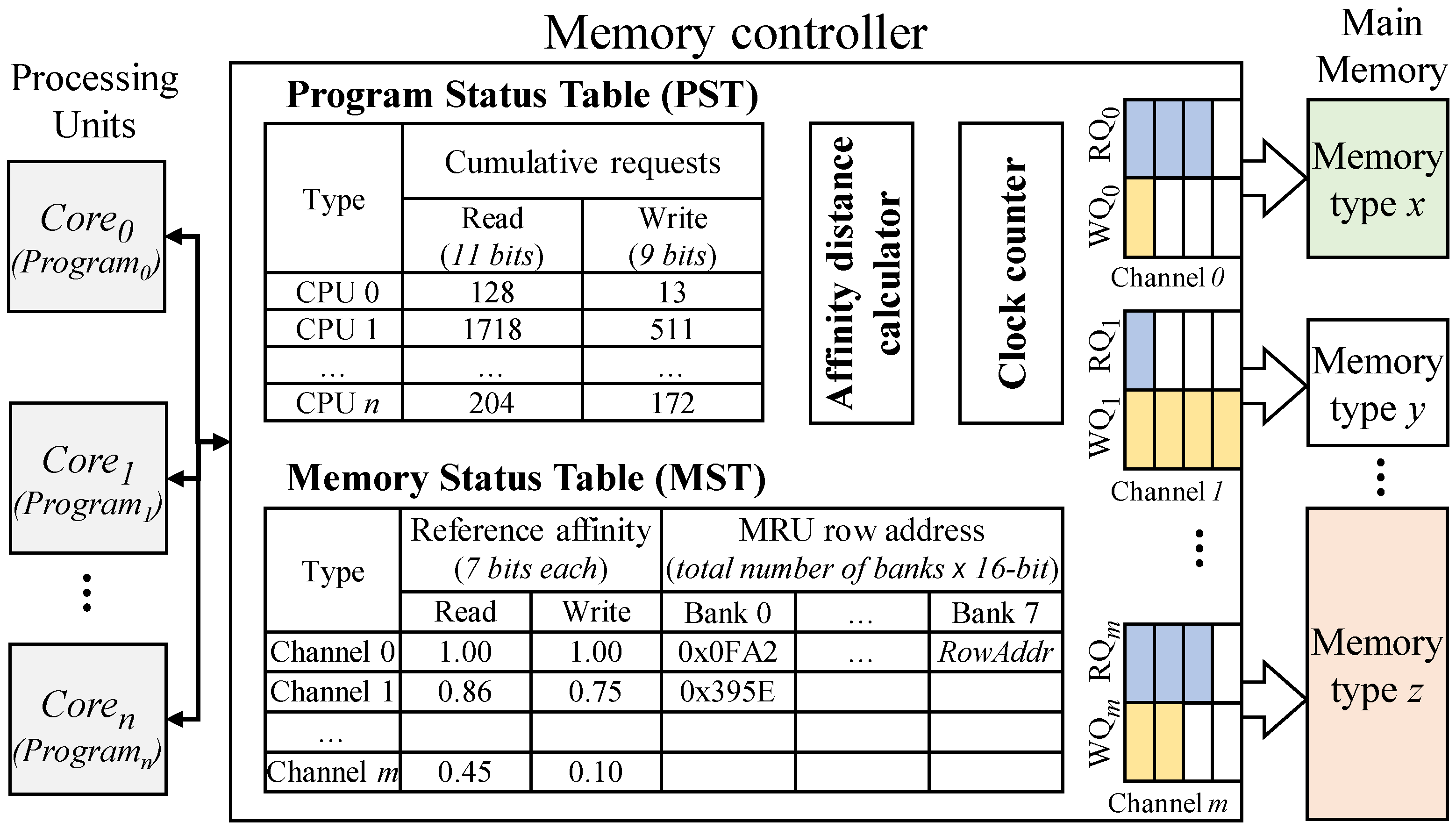

Figure 6. It includes two table-like structures: the Program Status Table (PST) and the Memory Status Table (MST). The PST stores the cumulative numbers of reads and writes for each program. This information is stored using 11-bit and 9-bit counters, respectively, so 20 bits are required for each core. The MST, on the other hand, stores memory-related information for each memory channel. This includes the initial reference affinity value for each memory type and the most recently used (MRU) address of each bank. The initial reference value is represented using 7 bits, allowing it to hold a value between 0 and 1 with a precision of 1/100. The MRU address is used to determine whether a row buffer hit occurs, and each address requires 16 bits in our baseline system configuration. The total number of bits required to implement the DARP architecture is 648 (80 bits for the PST and 568 bits (4 channels × 142 bits) for the MST), which constitutes a negligible area overhead and does not require modifications to the conventional memory system. In addition, a clock counter that records 64 K cycles (one window) and an ALU that performs vector operations to calculate the affinity distance is required. These components can be implemented using simple hardware.
3.4.2. Page Migration Overhead
Page migration may be required when DARP determines the most appropriate memory type for a certain page. When a new pairing is determined, the program pages originally residing in a memory frame must be migrated to a new memory frame. This migration involves the utilization of both the source and destination memory banks, as well as the memory bus. Consequently, memory operations intending to use these banks and buses must stall, impacting memory response times for other programs (i.e., increasing response time variability), thereby reducing QoS. However, due to multiple policies aimed at minimizing unnecessary page migrations, the proportion of memory congestion cycles attributable to migrations is relatively low.
In addition, we assume that our scheme is based on the CXL 3.0 protocol to address the migration overheads. This enables memory data bypass, also referred to as peer-to-peer communication, which facilitates direct page migration between memories. Even without CXL 3.0, the migration overhead in our scheme can be reduced by adopting migration optimization techniques [
34,
35]. These techniques manipulate the timings of migration and/or merge multiple migration requests. While these techniques are orthogonal to our approach and can be applied alongside the proposed system, adopting migration optimization techniques is beyond the scope of this study and was, therefore, not considered.
4. Experimental Results
In order to quantitatively evaluate DARP, we compared the proposed method with both a baseline system and HP, as HP shares several common features with DARP. Both methods dynamically track program behavior and incorporate this information into memory management policies to improve QoS in heterogeneous memory systems. However, unlike HP, DARP also considers the dynamic state of the memory, allowing for more effective memory data management. Additionally, DARP does not restrict the use of specific memory types, making it more flexible and scalable.
4.1. Experimental Environment
In order to implement DARP and HP, we modified Champsim [
36], which is a trace-based simulator designed for out-of-order core implementations.
Table 2 describes the detailed baseline system configuration, workload sets, and heterogeneous memory configurations. We used FR-FCFS [
37] scheduling for both the read and write queues and RoRaBaChCo address mapping for all memory types. Because of their various advantages, row buffers are utilized in our baseline memory system regardless of the memory type [
38]. Upon a row buffer hit, they all exhibit the same hit latency. Compared to the baseline system, DARP and HP differ only in their memory management schemes, while the fundamental system configuration remains identical.
We utilized a set of nine programs composed of four randomly selected benchmarks from SPEC CPU2017 [
39]. Each benchmark was fast-forwarded by one billion instructions, followed by a simulation of 200 million instructions. Since memories can have different properties even if made with the same physical elements [
40,
41], we used their properties as listed in
Table 1. We configured six different heterogeneous memory systems, which can be categorized based on whether they consist of DRAM and NVM, different types of NVMs, or more than three different memory types. Each configuration is designated using abbreviations that correspond to the types of memory used and the order in which they are installed on the channels. For instance, if STT-MRAM is used on Channels 0 and 1, and DRAM is used on Channels 2 and 3, this memory configuration is referred to as M/M/D/D.
4.2. Evaluation of Program QoS
In order to evaluate application QoS in multicore heterogeneous memory system environments, we assess the variability of memory response times. Memory response time variability is defined as the extent to which memory response times are affected when applications are executed simultaneously compared to when they are executed individually. However, evaluating the QoS of applications running together by examining them individually does not accurately reflect the overall QoS. This is because applications running concurrently compete for shared memory resources, which can stabilize the memory response time of one application at the expense of others. Therefore, to evaluate the overall QoS of concurrently running applications, we measure the standard deviation of the memory response time variabilities for each application. This standard deviation serves as an indicator of how consistently all applications can achieve consistent memory response times. A lower standard deviation indicates less disparity in memory response times among applications, suggesting improved QoS through more consistent and predictable behaviors of applications. Note that the extensive execution of a large number of instructions and the use of diverse workload sets ensure that potential outliers have minimal impact on the overall results, reducing any bias.

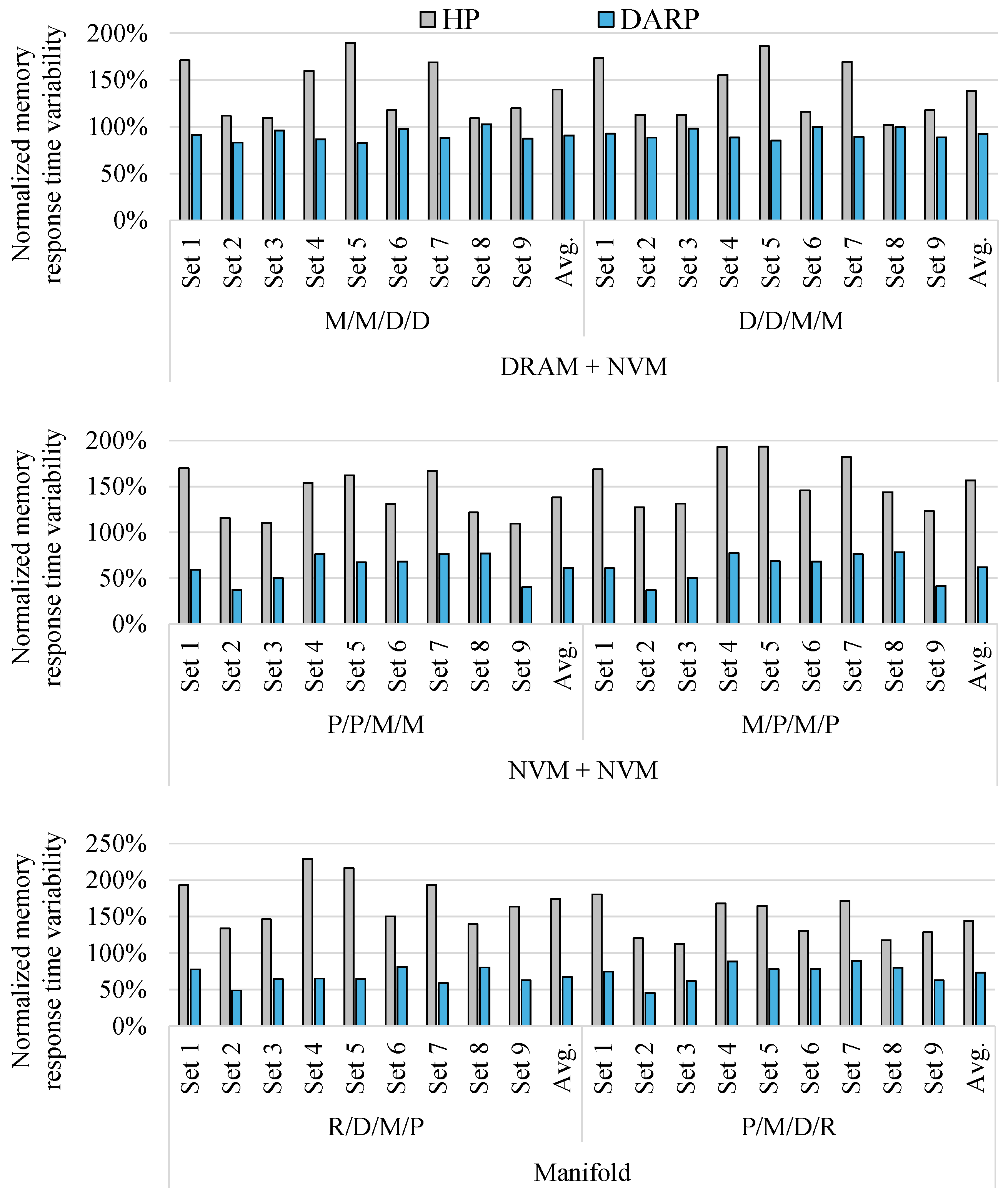

Figure 7 compares the application QoS of HP and DARP across six different heterogeneous memory environments in terms of the standard deviation of memory response time variations. These results are normalized against the standard deviation of the memory response time variability of a baseline system without any specific memory management scheme in a quad-core environment. HP suffered from significant fluctuations in memory response times due to its fixed memory mapping based on program priority. Its preferential policies for high-priority programs lead to a decrease in the QoS of lower-priority programs, thereby aggravating the variability of response times for all applications running concurrently. In addition, HP does not consider the memory system configuration, leading to differences in QoS, even when the same memory types but different channel configurations were used (e.g., M/M/D/D vs. D/D/M/M and P/P/M/M vs. M/P/M/P).
In contrast, through affinity-based pairing, DARP minimizes response time variations regardless of memory configuration. On average, compared to the baseline, DARP achieved memory response time variabilities of 90.6, 92.3, 61.3, 62.0, 67.1, and 73.3% across six different memory configurations. In different configurations using the same memory types (comparison between left and right graphs), the proposed scheme provides nearly identical memory response times, indicating that it is not significantly affected by the physical memory layout. The reduction in variability is more pronounced when there are significant differences in the read and write latencies between the memory types used, such as in PCM and STT-MRAM (NVM + NVM configurations) or manifold configurations with various memory types, compared to memory configurations consisting of types with similar read and write latencies, such as DRAM and STT-MRAM. Note that DARP provides significantly lower memory response time variability, even in environments that use multiple types of memory (i.e., manifold configurations). Consequently, the proposed scheme provides stable response times for all concurrently running applications, regardless of the memory types used or the heterogeneous memory configuration.
4.3. Impact on Memory Congestion Cycles
In this subsection, we analyze the impact of the proposed technique on memory traffic and congestion cycles. Since the various memory configurations show similar results with no significant differences, we focus on the representative configurations M/M/D/D and D/D/M/M, which use the same types of memory.

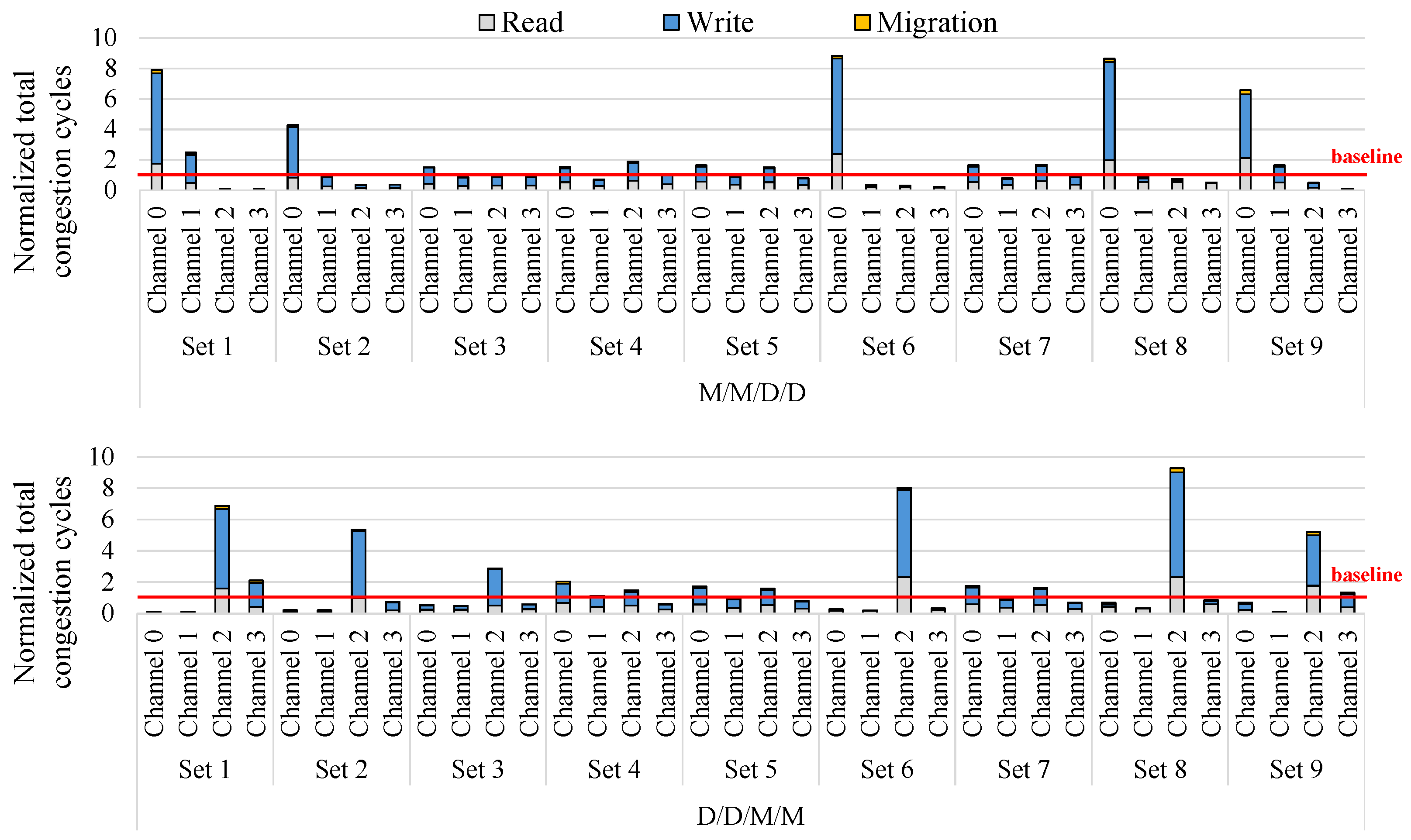

Figure 8 illustrates the distribution of the total accumulated memory congestion cycles per channel during the entire execution of each workload set, normalized to the baseline system results. Memory congestion cycles refer to periods when memory requests are delayed due to bus utilization or bank conflicts. The address mapping scheme adopted in the baseline system determines the channel number based on the requested memory address without considering the type or state of the memory. In contrast, DARP selects the appropriate type of memory based on program and memory affinity values and then intentionally accesses the channel where that memory is installed. Consequently, memory accesses are not evenly distributed across all channels, potentially leading to concentrated access to specific memory types. This imbalance is particularly evident in configurations such as Set 1, Set 2, Set 6, Set 8, and Set 9. For instance, Channel 0 in the M/M/D/D configuration and Channel 2 in the D/D/M/M configuration are specific memory channels that experience higher congestion cycles.
However, this phenomenon does not adversely affect the provision of consistent response times to applications. Most memory congestion cycles are caused by write accesses, particularly in channels equipped with relatively slower memory, such as STT-MRAM. Since memory write operations do not significantly impact the overall execution time of a program (i.e., critical path), the QoS degradation due to these delays is minimal. Additionally, as previously discussed, slower memory stores fewer memory-intensive pages, leading to minor QoS changes due to memory response time increases from congestion cycles. Therefore, program pages that do not perform memory-intensive operations are allocated to slower memory, such as STT-MRAM, thereby reducing memory traffic to channels with faster memory, such as DRAM, and preventing delays caused by congestion cycles in the faster memory. Consequently, channels with faster memory in the M/M/D/D configuration (Channels 2 and 3) and in the D/D/M/M configuration (Channels 0 and 1) experience fewer congestion cycles compared to the baseline, providing faster and less variable response times for memory-intensive applications and improving QoS. Moreover, the additional memory congestion cycles due to migration are relatively small compared to those caused by primary memory operations (less than 5%). This is because DARP initiates migration only when there are significant changes in program behavior and/or memory state, minimizing migration frequency.

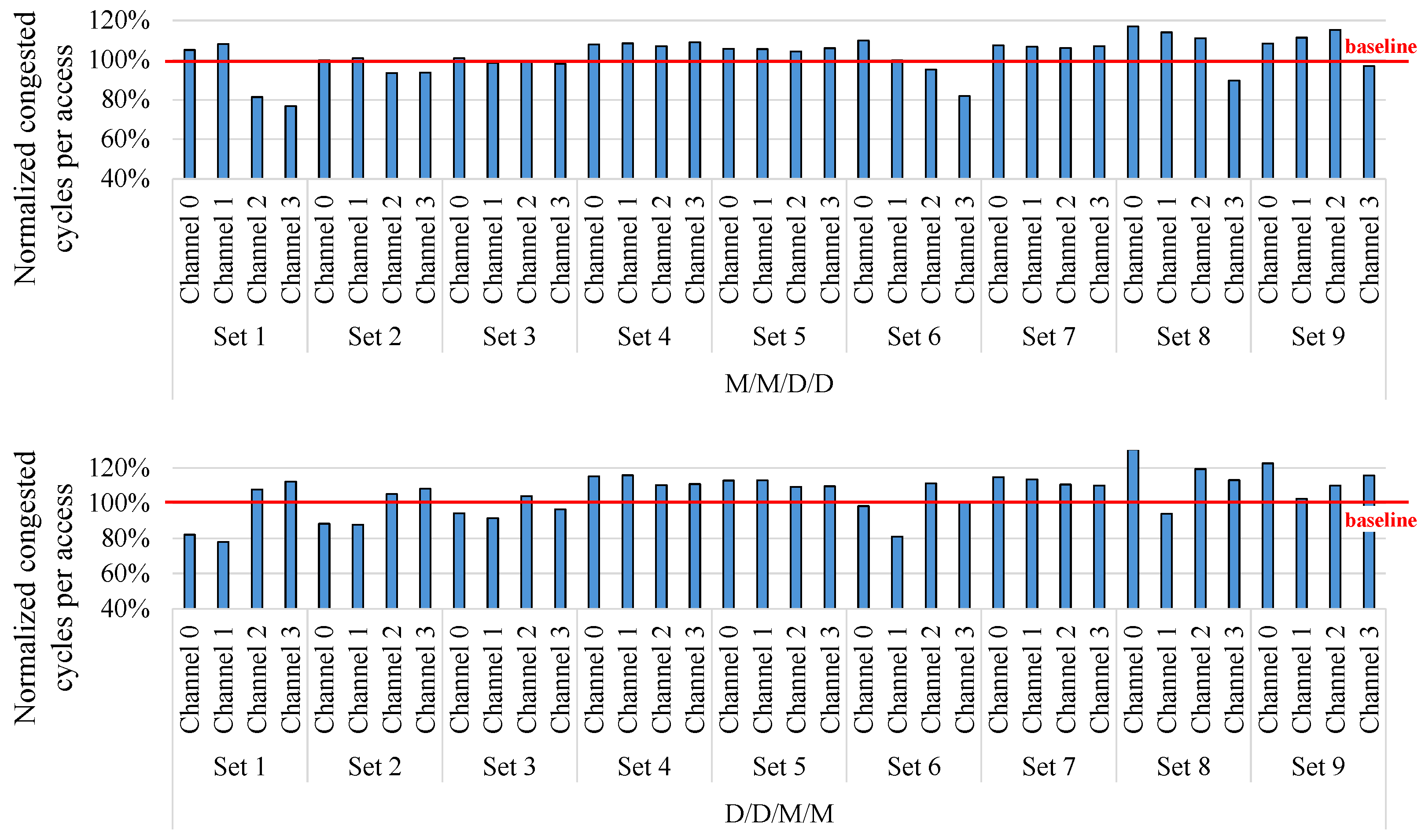

Figure 9 shows the average congestion cycles per memory access for four channels, normalized to the baseline results. The average congestion cycle is calculated by dividing the total accumulated congestion cycles by the total number of memory accesses during the program execution. This provides a different perspective from the previously discussed total accumulated congestion cycles.
Even if the total number of congestion cycles accumulated on a specific channel increases significantly, the average congestion cycle per memory access might not increase proportionally. This indicates that the memory channel is effectively handling a high volume of requests, preventing excessive delays. In such cases, other channels handle relatively fewer memory requests, providing shorter and more stable waiting times for critical and high-priority memory accesses. For example, in Set 2 with an M/M/D/D configuration, Channel 0 shows significantly higher total congestion cycles (see
Figure 8). However, the average congestion cycles per access are nearly similar to the baseline. This is because the STT-MRAM installed in Channel 0 handles many accesses, primarily processing the less memory-intensive pages of the applications. Consequently, the DRAM in Channels 2 and 3, which have lower traffic, exhibit a decrease in the average congestion cycles per access compared to the baseline.
Conversely, as shown in Set 9 of the D/D/M/M configuration, the DRAMs on Channels 0 and 1 have fewer total congestion cycles than the baseline, but the average congestion cycles per access have increased. This is due to prioritizing fast memory to handle the memory-intensive phases of applications where many memory accesses are concentrated over a short period. In other words, despite the increase in congestion cycles, if it is determined that accessing the inherently faster DRAM provides a faster and more consistent memory response time compared to the slower STT-MRAM, DARP prioritizes handling memory-intensive requests through DRAM to enhance application QoS.
