An Improved Retinex-Based Approach Based on Attention Mechanisms for Low-Light Image Enhancement

Abstract

Captured images often suffer from issues like color distortion, detail loss, and significant noise. Therefore, it is necessary to improve image quality for reliable threat detection. Balancing brightness enhancement with the preservation of natural colors and details is particularly challenging in low-light image enhancement. To address these issues, this paper proposes an unsupervised low-light image enhancement approach using a U-net neural network with Retinex theory and a Convolutional Block Attention Module (CBAM). This method leverages Retinex-based decomposition to separate and enhance the reflectance map, ensuring visibility and contrast without introducing artifacts. A local adaptive enhancement function improves the brightness of the reflection map, while the designed loss function addresses illumination smoothness, brightness enhancement, color restoration, and denoising. Experiments validate the effectiveness of our method, revealing improved image brightness, reduced color deviation, and superior color restoration compared to leading approaches.

1. Introduction

Low-light conditions often result in poor image quality, hindering accurate threat detection and compromising security measures. Traditional supervised methods require extensive labeled datasets, which are impractical to obtain in diverse and dynamic environments. Unsupervised learning approaches, on the other hand, can leverage abundant low-light images without the need for labeled counterparts, enabling the development of robust enhancement algorithms. These algorithms improve the visibility and detail of images captured under challenging lighting conditions, thus enhancing the reliability and effectiveness of security systems across heterogeneous networks. By ensuring better image quality, unsupervised low-light image enhancement contributes to more accurate monitoring and analysis, ultimately strengthening overall network security. Therefore, improving low-light images is essential for security and surveillance.

Algorithms for enhancing low-light images can be broadly divided into two categories: conventional techniques and deep learning-based methods. Among conventional techniques, histogram equalization and its related methods [1] are the most commonly used. These methods enhance image brightness by calculating the gray levels of the picture and redistributing them evenly across the full range of gray levels. The main advantage of this method is its fast computation speed, which effectively enhances the brightness of general grayscale images. However, it is less effective for RGB image enhancement, often resulting in significant noise, color deviation, and over-enhancement issues.

Researchers have developed various low-light image enhancement techniques [2,3] rooted in Retinex theory [4]. With the success of deep learning in image reconstruction and restoration, neural network-based algorithms like CNN [5] have gained considerable attention. Among them, supervised learning methods rely on large datasets of paired low-light and well-lit images for training. These methods can achieve impressive results but are limited by the availability of high-quality paired datasets. In contrast, unsupervised learning methods do not require paired datasets. Instead, they use loss functions that incorporate illumination smoothness, brightness consistency, and color restoration to guide the network. The unsupervised approaches are more flexible and practical in scenarios where paired datasets are scarce, enabling effective enhancement by training solely on low-light images. However, unsupervised learning-based algorithms still encounter challenges, including significant color distortion and the blurring of details.

Significant progress has been made in low-light image enhancement in recent years. However, in complex low-light scenarios, image enhancement methods still struggle with preserving natural colors and details while dealing with significant noise. To address these issues, this paper constructs a U-net network based on the Convolutional Block Attention Module (CBAM) to decompose images and enhance the brightness of the reflectance map. The attention mechanism allows the network to concentrate on key features and regions in the image. Retinex theory explains that image brightness is determined by both illumination and object reflection. By separating these components, we can effectively enhance image details. In our approach, we divide the initial image into a low-light RGB image and its corresponding brightness values. Since the illumination conditions in different regions of the image may be different, in order to avoid a one-size-fits-all processing method and enhance local details more finely, we propose a local adaptive enhancement function when enhancing the low-light image. Meanwhile, an unsupervised learning loss function is designed for illumination smoothness, brightness consistency, and color restoration, guiding the network to effectively enhance low-light images. The main contributions of this paper are as follows:

(1)

Combining the U-net network with the CBAM grounded in Retinex theory to achieve the decomposition of the images.

(2)

Establishing a local adaptive enhancement function that calculates the local gray mean of the image through a block operation and adjusts the enhancement effect according to the specific values of each gray block. The parameters within the function allow for the flexible adjustment of the enhancement degree, avoiding over-enhancement.

(3)

Designing an unsupervised learning loss function that introduces a color restoration loss term, further optimizing color restoration, effectively improving image brightness and preserving image details.

The structure of this paper is as follows: Section 2 reviews related research. Section 3 introduces the unsupervised low-light enhancement algorithm developed in this study, detailing the design of the local adaptive function and the loss function. The experimental results are presented in Section 4, and Section 5 offers several conclusions.

2. Related Works

2.1. Unsupervised Low-Light Image Enhancement Algorithms

Many researchers have proposed unsupervised learning-based algorithms to enhance the generalization and robustness of image enhancement models. Jiang et al. [6] proposed an unsupervised decomposition and correction network inspired by the Retinex model. Hu et al. [7] introduced a method that first used the traditional retinol-based method to pre-enhance images, and then used the thinning network for additional quality improvement. Shi et al. [8] proposed a structure-aware unsupervised network comprising four modules. Ma et al. [9] proposed a region-based, unsupervised, low-light image enhancement algorithm that utilizes explicit domain supervision to convert unsupervised segmentation into a supervised process, developing several region-based loss functions to establish semantic consistency between regions and daytime. Guo et al. [10] introduced a new hybrid loss function that combines quality, task, and perception to tackle problems such as blurring and unnatural colors. Wang et al. [11] presented a mixed-attention-guided Generative Adversarial Network (GAN) in a fully unsupervised fashion. Fu et al. [12] introduced an unsupervised learning network featuring an illumination-aware attention module and a novel identity-invariant loss.

Unsupervised learning methods leverage loss functions to guide the network without the need for paired examples. By focusing on intrinsic properties such as illumination smoothness, brightness consistency, and color restoration, unsupervised approaches offer greater flexibility and robustness.

2.2. Retinex Theory

An image is decomposed into a reflectance component that represents the inherent color of objects and an illumination component representing the varying light conditions. This decomposition allows for the enhancement of images by adjusting the illumination component without destroying the natural colors and details. Assuming the input image is $S(x,y)$, it can be expressed as follows:

$$S\left(x,y\right)=I(x,y)⨀R(x,y)$$

(1)

where $I(x,y)$ represents the image illumination component, $R(x,y)$ represents the reflectance component of the image, and $⨀$ denotes pixel-wise multiplication.

Retinex theory is commonly applied to enhance visibility and contrast without introducing significant artifacts. Wu et al. [2] proposed a Retinex-based deep unfolding network to obtain noise suppression and detail preservation. Zhao et al. [13] presented a generative strategy for Retinex decomposition, casting the decomposition as a generative problem. Jiang et al. [14] proposed a self-regularized method that preserves all colors while integrating Retinex theory solely for brightness adjustments. Liu et al. [15] constructed a deep learning framework, comprising a decomposition network and adjustment networks that address both global and local brightness. Ma et al. [16] introduced a Retinex-based variational model that effectively produces noise-free images and shows generalizability across various lighting conditions. Yang et al. [17] proposed an image enhancement algorithm that integrates a fast and robust fuzzy C-means clustering technique with Retinex theory, producing enhanced images characterized by their rich detail and texture.

Numerous studies have demonstrated the effectiveness of Retinex in this field. Retinex-based methods can effectively improve visibility and contrast in low-light conditions by accurately decomposing an image into its illumination and reflectance components.

2.3. Attention Mechanisms

To further enhance the feature-learning capability of networks and improve image enhancement results, many scholars have introduced attention mechanisms to boost performance. Chen et al. [18] proposed an attention-based network that incorporates Retinex theory, featuring an attention mechanism module integrated into the convolutional layer. Ai and Kwon [19] developed a convolutional network that integrates an attention gate with a U-net network. Lv et al. [20] separated the tasks of brightness enhancement and noise reduction and completed them separately with two attention maps. Atoum et al. [21] introduced a color-wise attention network that identifies useful color cues to assist with color enhancement. Zhang and Wang [22] proposed an illumination attention map to identify areas of different illumination levels, and a multi-scale attention Retinex network. Zhang et al. [23] developed a neural network that incorporates channel attention and spatial attention modules and achieved a positive effect.

3. Methodology

3.1. Neural Network Structure

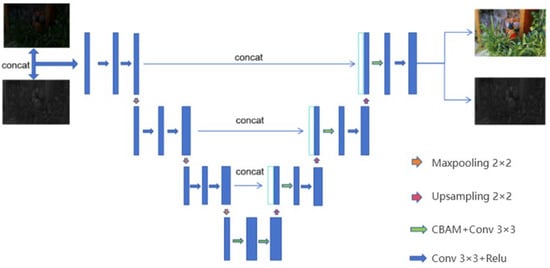

This paper constructs a U-net architecture in which the CBAM is introduced [24]. The U-net decomposes low-light images and regards the reflectance map as the enhanced image. In Figure 1, the network receives low-light RGB images and the corresponding brightness values, while the output of the network includes the decomposed reflectance and illumination maps. The encoder of the network gradually reduces the size of the input tensor and increases the number of layers through convolution and max pooling. The decoder consists of upsampling and convolution layers, which restore the tensor size through convolution and upsampling. During the upsampling process, the CBAM is employed to assign weights to the extracted feature maps to enhance feature refinement and focus during the reconstruction phase, optimizing the network performance. By applying channel attention mechanisms during decoding, we can selectively enhance important features that are identified during encoding, improving detail restoration. Spatial attention enables focus on relevant areas of the image, which is crucial for accurately reconstructing details under low-light conditions. Meanwhile, placing these mechanisms in the decoder reduces the computational load during encoding, allowing for efficient feature extraction.

The CBAM is a type of Channel and Spatial Mixed Attention (CSMA) mechanism, as shown in Figure 2. The network initially utilizes channel attention, which emphasizes the relationships and dependencies among various feature channels, enabling the network to weigh the importance of each channel differently. The channel attention mechanism can be expressed as follows:

$$M_c\left(F\right)=\sigma \left(MLP\left(AvgPool\left(F\right)\right)+MLP\left(MaxPool\left(F\right)\right)\right)$$

(2)

where $\sigma (·)$ is the S-shaped function, $MLP(·)$ denotes the multilayer perceptron, $AvgPool(·)$ represents the average pooling, and $MaxPool\left(·\right)$ is the maximum pooling. It then applies spatial attention to emphasize the significance of various spatial locations, allowing the network to focus on the relevant regions of the image. The attention module can be written as follows:

$$M_s\left(F\right)=\delta \left({Conv}^{7\times 7}\left(\left[AvgPool\left(F\right);MaxPool\left(F\right)\right]\right)\right)$$

(3)

where $\delta (·)$ denotes the sigmoid function and ${Conv}^{7\times 7}(·)$ refers to the convolution operation through a convolution kernel, sized $7\times 7$. By combining these two types of attention, the network can capture complex patterns and dependencies in the data, leading to improved performance in image enhancement where both channel and spatial information are crucial for achieving high-quality results.

3.2. Adaptive Enhancement Function

This paper proposes a local adaptive enhancement function that divides a low-light image into multiple blocks and enhances them separately. The mathematical expression is as follows:

$$L_g\left(x,y\right)=min\left({\displaystyle \frac{\alpha +L_{w,max}}{\alpha +\overline{L_w}}},{\displaystyle \frac{L_w(x,y)}{L_{w,max}}}+{\displaystyle \frac{L_w(x,y)}{\overline{L_w}}}\right)\ast {\displaystyle \frac{log(L_w\left(x,y\right)/\overline{L_w}+1)}{log(L_{w,max}/\overline{L_w}+1)}}$$

(4)

where $L_g\left(x,y\right)$ represents the corresponding pixel value of the globally adaptive output, $L_w(x,y)$ represents the corresponding input pixel value, $L_{w,max}$ represents the highest brightness value of the input image, $\alpha$ is a constant parameter that regulates the overall enhancement level, and $\overline{L_w}$ represents the logarithmic mean brightness, which can be written as:

$$\overline{L_w}=exp\left\{{\displaystyle \frac{1}{N}}\sum log\left[\delta +L_w(x,y)\right]\right\}$$

(5)

Equation (4) uses the minimum function to flexibly adjust the enhancement level based on the grayscale values of each block, preventing the excessive enhancement of brightness values.

3.3. Loss Function

By applying the ternary Bayesian theorem, the illumination and reflectance components can be derived from Equation (1):

$$P\left(R,I|S\right)\propto P\left(S|R,I\right)P\left(R\right)P\left(I\right)$$

(6)

The designed loss function includes an illumination smoothness term, a brightness enhancement term, a color restoration term, and a smoothness term. The reconstruction loss recon can be written as follows:

$$L_{rc}={‖S-R⨀I‖}_1$$

(7)

where $S$ denotes the low-light picture, $R$ represents the reflectance component, $I$ represents the illumination component, and $⨀$ denotes pixel-wise multiplication. The reconstruction loss primarily constrains the decomposition effect of the network, making the decomposed image closer to the real image. The RGB image is transformed into an HSV image and the brightness value V channel can be calculated. And then, the unsupervised learning reflectance loss $L_R$ can be obtained as follows:

$$L_R={‖\underset{C\in R,G,B}{\mathit{max}}{R}_C-F\left(\underset{C\in R,G,B}{\mathit{max}}{s}_C\right)‖}_1$$

(8)

where $\underset{C\in R,G,B}{\mathit{max}}{R}_C$ refers to the maximum value channel of the reflectance component, and $F(·)$ represents the local adaptive enhancement function which can be obtained by Equation (4). The illumination loss $L_I$ is calculated as follows:

$$L_I={‖\nabla I⨀exp(-\lambda \nabla R)‖}_1$$

(9)

where $\nabla I$ represents the gradient variation of the illumination component, controlled by the gradient change of the reflectance, and $\lambda$ is a constant parameter. The color restoration loss $L_C$ is established as follows:

$$L_C={\sum }_{i,j\in (R,G,B)}{\left|R_I-R_J\right|}^2$$

(10)

Equation (10) expresses a relationship between the RGB channels of the reflectance map, further enhancing the color restoration effect. In addition, the noise issue after enhancement is also considered. Thus, the loss function includes the reconstruction loss $L_{rc}$, the reflectance loss $L_R$, the color restoration loss $L_C$, and the denoising loss, expressed as follows:

$$\begin{gathered} L={\lambda }_1{‖S-R⨀I‖}_1+{\lambda }_2{‖\underset{C\in R,G,B}{\mathit{max}}{R}_C-F\left(\underset{C\in R,G,B}{\mathit{max}}{s}_C\right)‖}_1\hspace{1em}\hspace{1em} \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+{\lambda }_3{\sum }_{i,j\in (R,G,B)}{\left|R_I-R_J\right|}^2+{\lambda }_4{‖\nabla I⨀exp(-{\lambda }_5\nabla R)‖}_1 \\ +{\lambda }_6{‖\nabla R‖}_1\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \end{gathered}$$

(11)

where $\nabla R$ represents the gradient of the reflectance component, mainly used for image denoising. Through the illumination enhancement function, the brightness value of the reflectance map is increased, ultimately achieving low-light image enhancement.

4. Experimental Results and Analysis

4.1. Experimental Setup

The experiments are implemented with an AMD 7945HX processor (Advanced Micro Devices, Santa Clara, CA, USA), an NVIDIA GTX 4060 GPU (Colorful, Shenzhen, China), and 32 GB of memory (Crucial, Meridian, MS, USA). The experimental environment includes Python version 3.9 and TensorFlow version 2.10.0. The training dataset used is LOL, consisting of 500 pairs of low-light and normal-light images captured under various illumination conditions and scenes. In this experiment, LOL contains 485 low/normal-light image pairs for training and 15 pairs for testing. This dataset comprises images from both indoor and outdoor scenes, each with a resolution of 600 × 400. We meticulously examine various hyperparameters, including batch size, learning rate, the number of epochs, and weight decay. The search range for each hyperparameter is specified, emphasizing the optimal configuration that yields the best performance. Ultimately, we find that setting the batch size to 8, learning rate to 0.001, number of epochs to 160, and weight decay to 0.0005 result in the best performance of our model on the LOL dataset. The selection of this optimal configuration undergoes thorough experimental validation, ensuring the robustness and effectiveness of our proposed low-light image enhancement method in various aspects.

The average training duration is approximately 60 min, while the processing time for each image in the test set is 0.465 s. Through many experiments, the values of the six parameters ${\lambda }_1,{\lambda }_2,{\lambda }_3,{\lambda }_4,{\lambda }_5,{\lambda }_6$ in Equation (11) are set to 20, 1, 5, 0.1, 10, and 0.01, respectively. This parameter combination has been validated to achieve the best results on the test set. In this combination, ${\lambda }_1,{\lambda }_2,{\lambda }_3,{\lambda }_4,{\lambda }_5,{\lambda }_6$ control the weights of reconstruction loss, reflection loss, color recovery loss, illumination loss, local reflection component gradient, and global reflection component gradient, respectively. Fine-tuning in different datasets and application scenarios according to actual needs is recommended.

4.2. Experimental Results

To assess the effectiveness of the proposed algorithm, several comparative experiments are carried out with methods like Retines [25], LIME [26], SCI [27], Zero-DCE [28], EnlightenGAN [29], and GLADNet [30]. We also choose the methods of class unsupervised learning, based on deep learning techniques such as RUAS [31] and SSIE [32].

4.2.1. Subjective Evaluation Results

The enhanced results are shown in Figure 3. The SCI algorithm results in less noise and better color restoration, but its brightness enhancement is still somewhat lacking compared to normal light images. Compared to the enhancement results of the presented algorithm, the brightness of the SCI method is relatively dim. The Zero-DCE and LIME algorithms exhibit less color distortion, but their brightness enhancement is inadequate, leaving the dark areas of the image insufficiently illuminated. The Retinex-Net algorithm achieves positive brightness enhancement, but it suffers from a loss of image detail and texture, and the variation in brightness across different areas is not natural enough. The EnlightenGAN algorithm provides positive brightness enhancement, but the dark areas of the image show noticeable noise, and there is some color distortion present. The RUAS algorithm provides limited enhancement in extremely dark regions, while the brighter local areas are excessively enhanced, leading to overexposure. The SSIE algorithm clearly improves brightness, but the background color of the enhanced image shows a significant deviation.

Figure 4 illustrates the enhancement effects of various algorithms when applied to a single image. Compared with SCI, the proposed model performs better in enhancing light-colored areas. The EnlightenGAN enhancement algorithm faces certain difficulties in distinguishing between the black areas of the image, failing to differentiate between inherent color and low-light conditions. The enhanced results of Retinex-net indicate significant color deviation. The GLADNet-enhanced image has less noise but exhibits low color saturation. The enhanced results of RUAS algorithm are not obvious in the dark. The SSIE algorithm faces image color distortion. It is noted that the proposed approach results in less color distortion compared to other methods.

4.2.2. Objective Evaluation Results

The objective evaluation methods used include PSNR, SSIM [33], and NIQE [34]. In

Table 1. Objective evaluation indicators of different methods on the LOL dataset.

	SCI	EnlightenGAN	LIME	Zero-DCE	Retinex-Net	GLADNet	RUAS	SSIE	Ours
SSIM↑	0.635	0.752	0.590	0.664	0.502	0.778	0.441	0.723	0.826
PSNR↑	17.210	18.849	13.244	15.215	17.839	19.705	10.714	16.800	20.200
NIQE↓	8.878	7.174	8.640	8.497	11.250	7.084	7.833	3.882	5.05

, an upward arrow (↑) indicates that the metric is positively correlated with image quality, while a downward arrow (↓) indicates a negative correlation.

The SCI, EnlightenGAN, and Zero-DCE algorithms exhibit poor NIQE and PSNR metrics due to insufficient illumination enhancement and noise in dark areas. The GALDNet algorithm performs well across these three metrics due to its effective brightness enhancement and reduced image noise. However, subjective observation reveals significant color distortion in the results of this algorithm. LIME and Retinex-Net show poor performance in objective evaluation metrics. Their enhancement results contain substantial noise, and the Retinex-Net algorithm suffers from severe detail loss. The RUAS algorithm underperforms when using the proposed approach on all three indicators, and its dark region enhancement is insufficient. The SSIE algorithm performs best on the NIQE indicator, but not as well as the proposed approach on SSIM and PSNR, and it also has color distortion problems in terms of subjective performance.

4.3. Ablation Experiment

To demonstrate the effectiveness of the CBAM attention mechanism and the color restoration term in the loss function of the proposed algorithm, ablation studies are conducted on each module.

4.3.1. CBAM Attention Mechanism

This section quantitatively assesses the impact of the CBAM module. Training and testing are performed on the same dataset, and various evaluation metrics are compared, as shown in

Table 2. Index data with attention mechanisms.

Model	Attention Mechanism	SSIM	PSNR	NIQE
1	none	0.782	20.144	7.030
2	channel attention	0.797	20.169	5.924
3	spatial attention	0.804	20.166	5.600
4	spatial and channel attention	0.822	20.188	5.105
5 (Ours)	channel and spatial attention (CBAM)	0.826	20.200	5.057

. The addition of the attention mechanism module lowers the NIQE index, while both SSIM and PSNR show improvements, indicating that the module improves brightness. Notably, the performance is best when two attention mechanism modules are added, with the approach of applying channel attention first, followed by spatial attention (CBAM), yielding the most effective results.

4.3.2. Color Restoration Term

To validate the contribution of the color restoration term in boosting model performance, several ablation experiments are conducted, as shown in

Table 3. Index data with color restoration terms.

Model	CBAM	Color Restoration Term	SSIM	PSNR	NIQE
1	×	×	0.793	19.822	6.142
2	√	×	0.819	20.050	5.520
3	×	√	0.782	20.144	7.030
4 (Ours)	√	√	0.826	20.200	5.057

. In these experiments, the color restoration term is removed to observe changes in performance, providing a clearer understanding of its significance in enhancing overall model effectiveness. Initially, we modify a model that already uses our optimized loss function by removing the color restoration term. We then retrain the modified model using the same datasets and training parameters, documenting its performance. It is observed that the configuration using CBAM and our optimized loss function produces the highest performance. Even when CBAM is not used, the configuration using the loss function with the added color restoration loss item performs better than the configuration using the regular loss function. The color restoration loss term reduces the NIQE metric, making the enhanced images appear more natural by reducing color deviation.

5. Conclusions

In this paper, a U-net network based on attention mechanisms is built, decomposing the illumination and reflectance components of low-light images based on Retinex theory. The local, adaptive enhancement function adjusts the enhancement level for different regions of the image, ensuring that both dark and bright areas are optimally enhanced for improved overall image quality. In addition, an unsupervised learning loss function is introduced. The proposed algorithm exhibits minimal dependence on the quality of the training dataset, low computational complexity, and rapid training speed. Experimental results show that the algorithm produces enhanced outcomes that closely mimic normal lighting conditions, featuring more natural lighting enhancement, improved color restoration, minimal color deviation, and preserved image details. It also shows good model generalization and robustness, with the peak signal-to-noise ratio and structural similarity index on real images outperforming other state-of-the-art methods. However, there are still some shortcomings in this study. The proposed model is suitable for unsupervised low-light image enhancement, and can only process still images, not videos. The local adaptive enhancement function adopts the equal division strategy when it divides the image into blocks as well. In the future, we plan to extend the proposed model to handle video data, enabling real-time, low-light video enhancement. Additionally, we will explore more sophisticated image division strategies, such as adaptive or content-aware partitioning, to further improve the local adaptive enhancement function for better performance and finer detail preservation.
