Research on a Feature Point Detection Algorithm for Weld Images Based on Deep Learning

by
Shaopeng Kang
1,2,*,
Hongbin Qiang
1,2,
Jing Yang
1,2,
Kailei Liu
1,2,
Wenbin Qian
1,2,
Wenpeng Li
1,2 and
Yanfei Pan
3
1
School of Mechanical Engineering, Jiangsu University of Technology, Changzhou 213001, China
2
Jiangsu Provincial Engineering Research Center for Advanced Fluid Power and Equipment, Changzhou 213001, China
3
Jiangsu Yangtze Intelligent Manufacturing Research Institute Co., Ltd., Changzhou 213001, China
*
Author to whom correspondence should be addressed.
Electronics 2024, 13(20), 4117; https://doi.org/10.3390/electronics13204117
Submission received: 3 September 2024 / Revised: 23 September 2024 / Accepted: 30 September 2024 / Published: 18 October 2024
(This article belongs to the Special Issue Advanced Machine Learning, Pattern Recognition, and Deep Learning Technologies: Methodologies and Applications)
Browse Figures
Versions Notes

Abstract

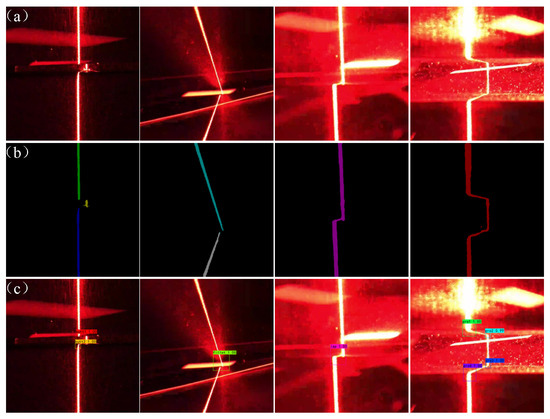

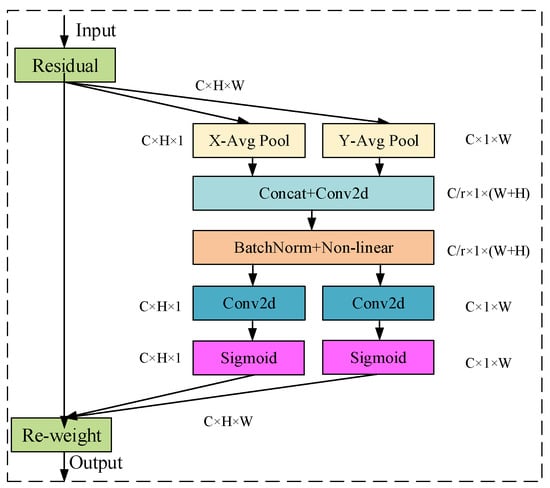

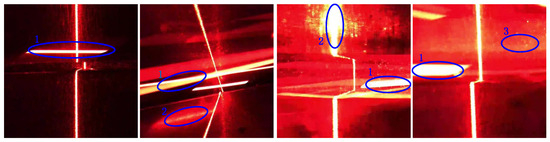

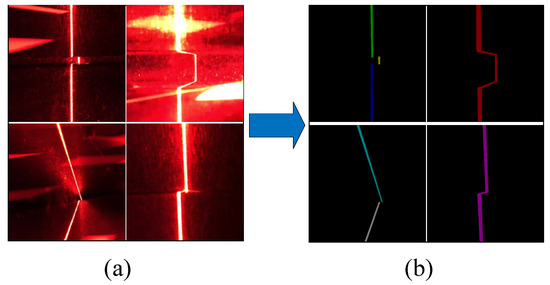

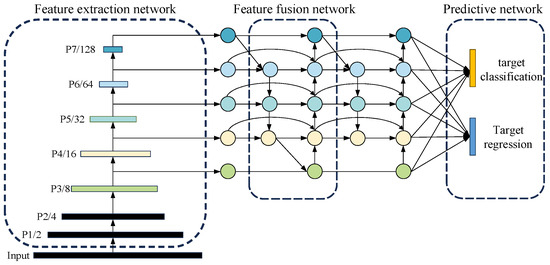

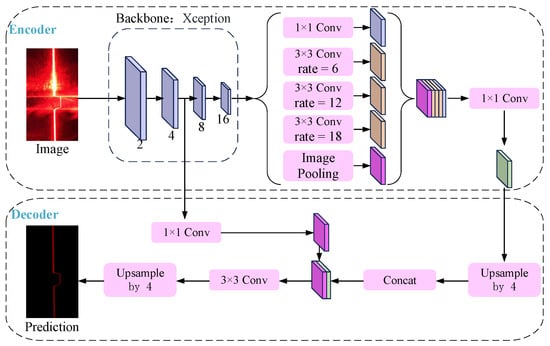

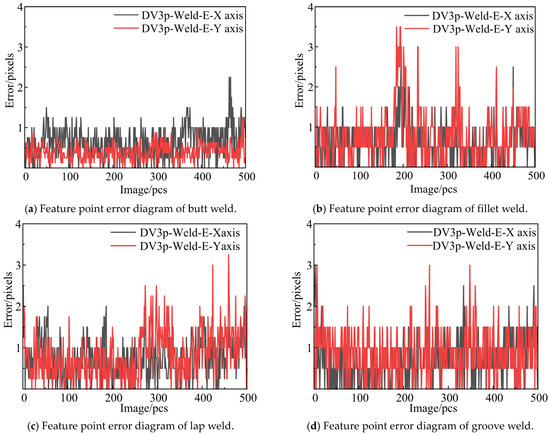

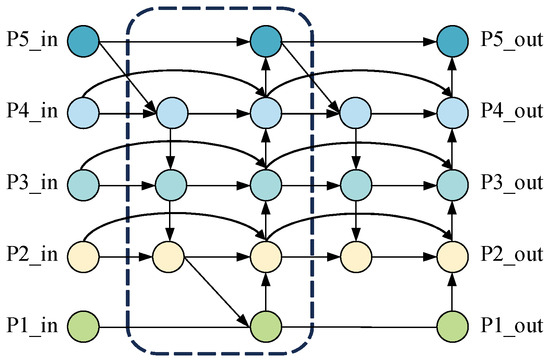

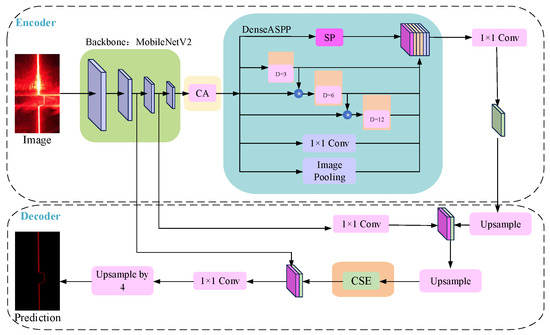

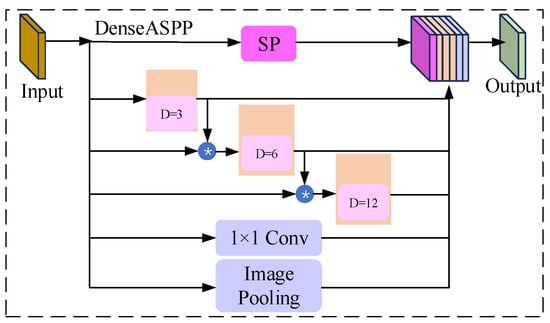

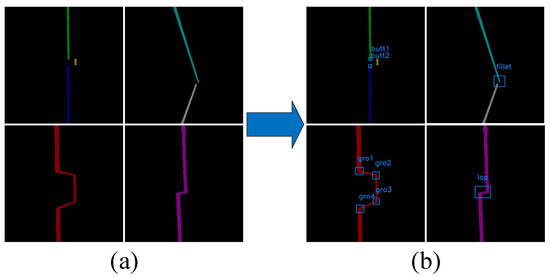

Laser vision seam tracking enhances robotic welding by enabling external information acquisition, thus improving the overall intelligence of the welding process. However, camera images captured during welding often suffer from distortion due to strong noises, including arcs, splashes, and smoke, which adversely affect the accuracy and robustness of feature point detection. To mitigate these issues, we propose a feature point extraction algorithm tailored for weld images, utilizing an improved Deeplabv3+ semantic segmentation network combined with EfficientDet. By replacing Deeplabv3+’s backbone with MobileNetV2, we enhance prediction efficiency. The DenseASPP structure and attention mechanism are implemented to focus on laser stripe edge extraction, resulting in cleaner laser stripe images and minimizing noise interference. Subsequently, EfficientDet extracts feature point positions from these cleaned images. Experimental results demonstrate that, across four typical weld types, the average feature point extraction error is maintained below 1 pixel, with over 99% of errors falling below 3 pixels, indicating both high detection accuracy and reliability.
Keywords: seam tracking; visual sensing; deep learning; feature point extraction seam tracking; visual sensing; deep learning; feature point extraction
