Intelligent Parking Service System Design Based on Digital Twin for Old Residential Areas

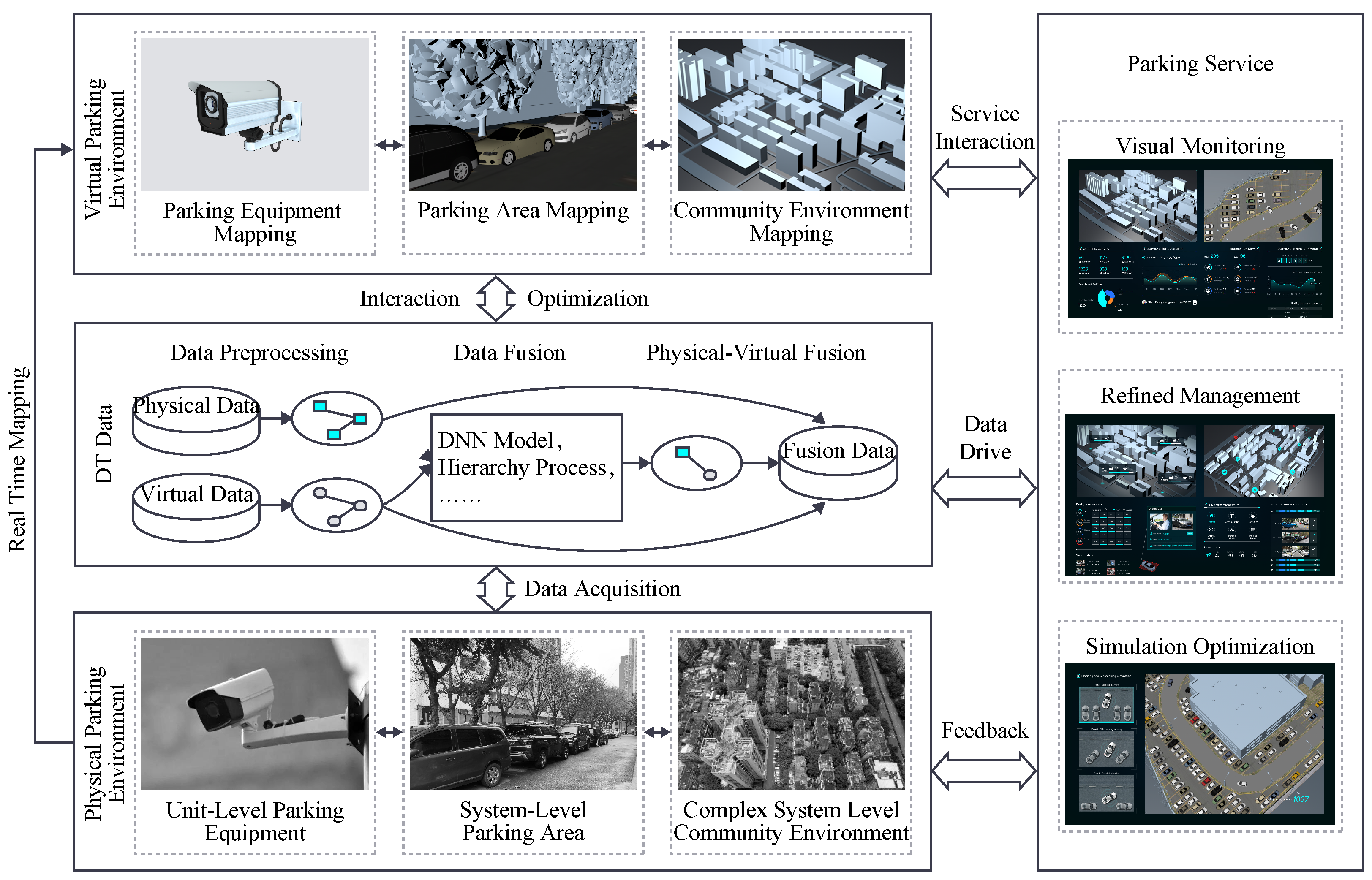

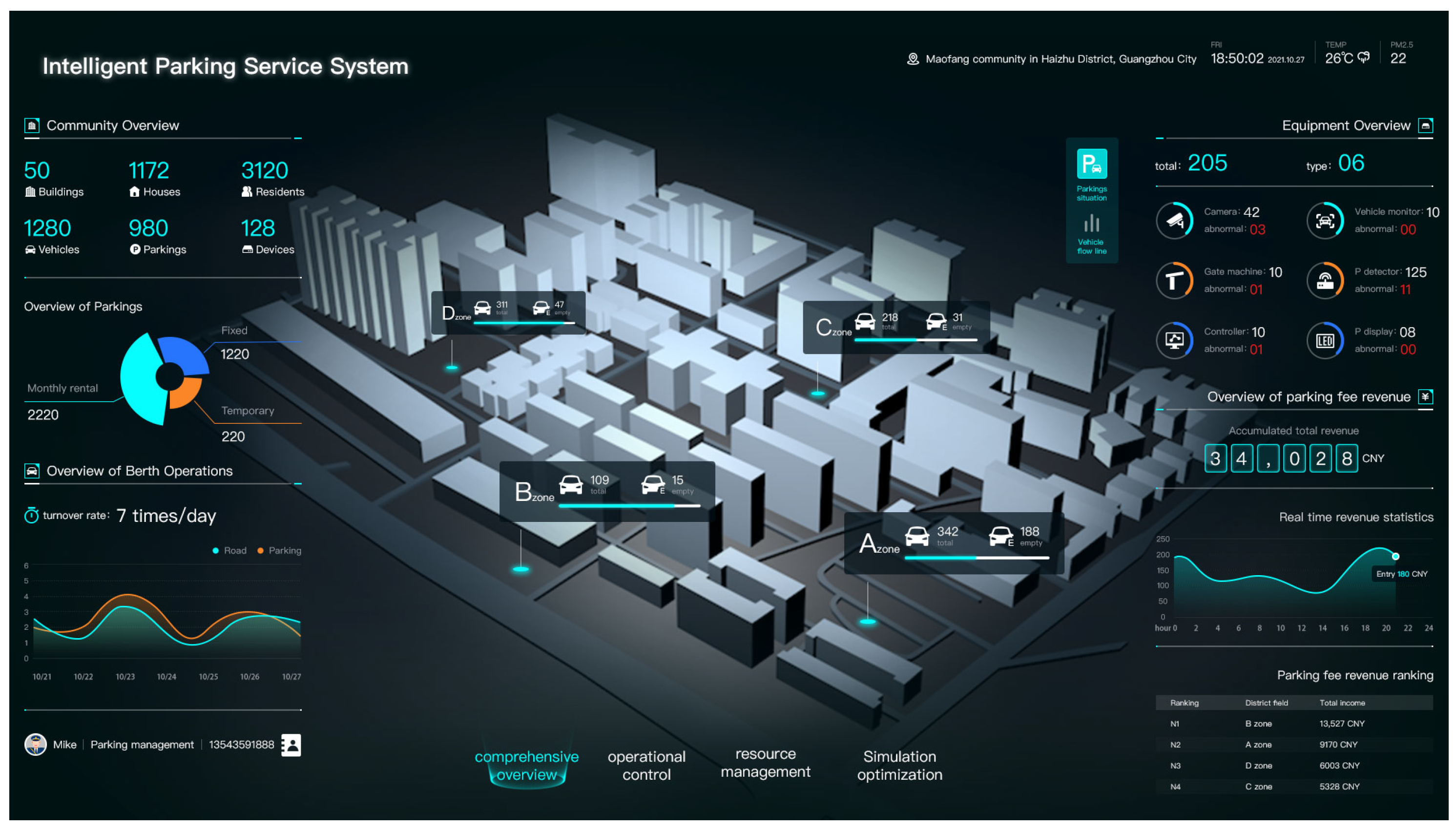

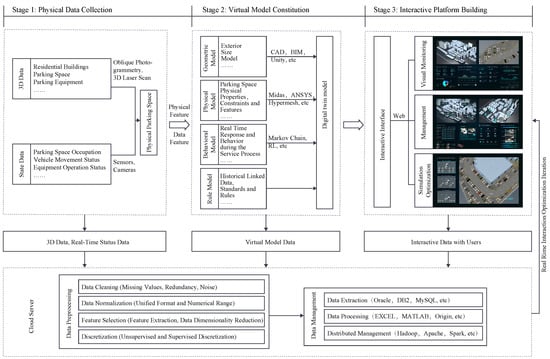

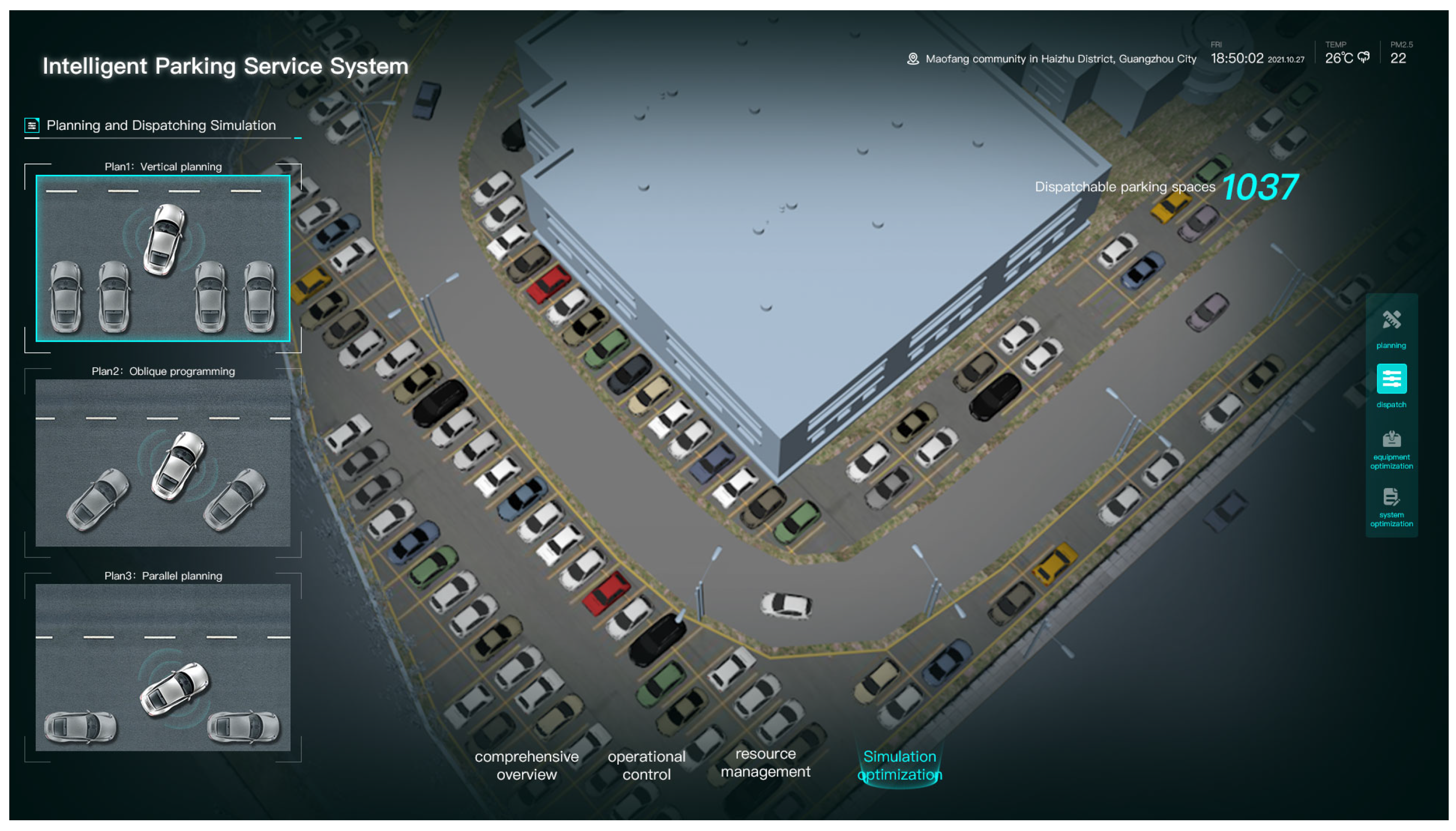

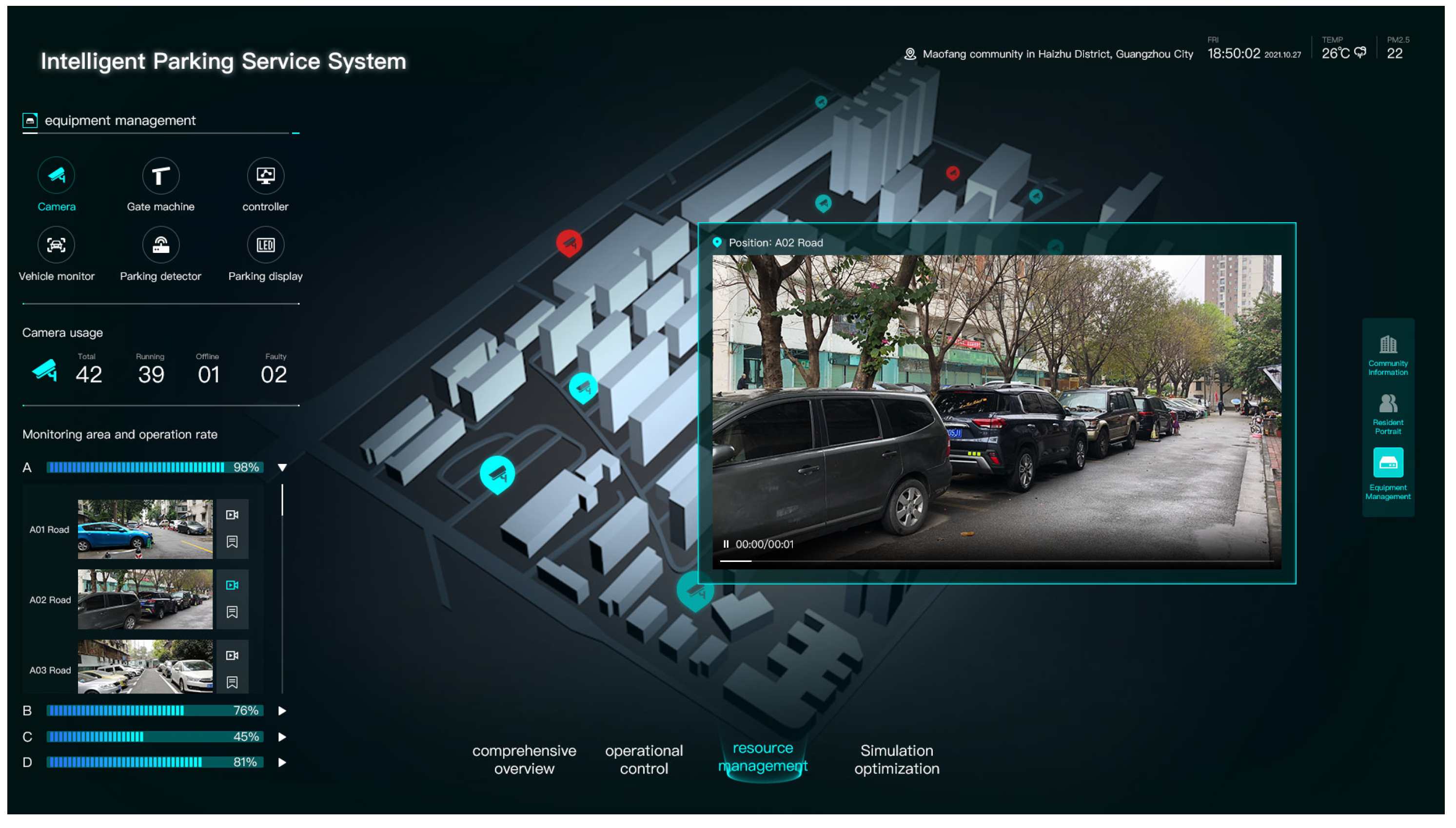

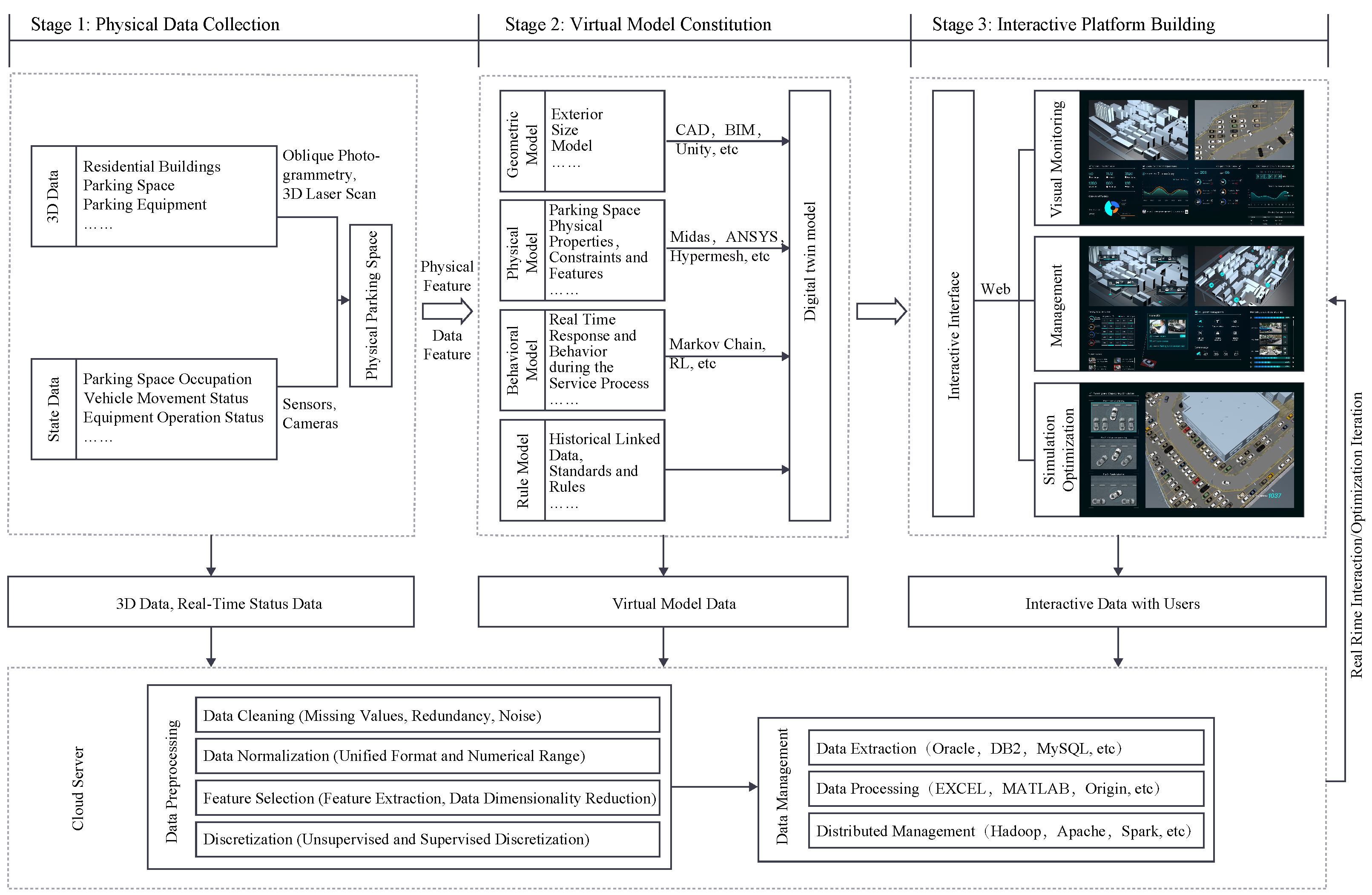

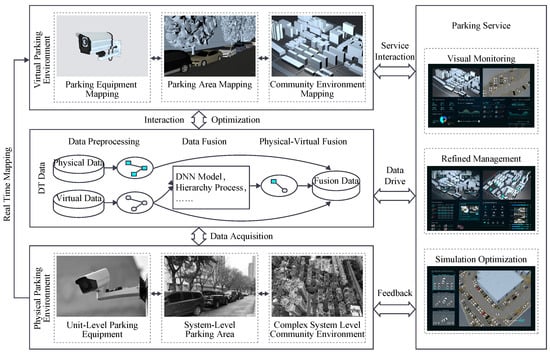

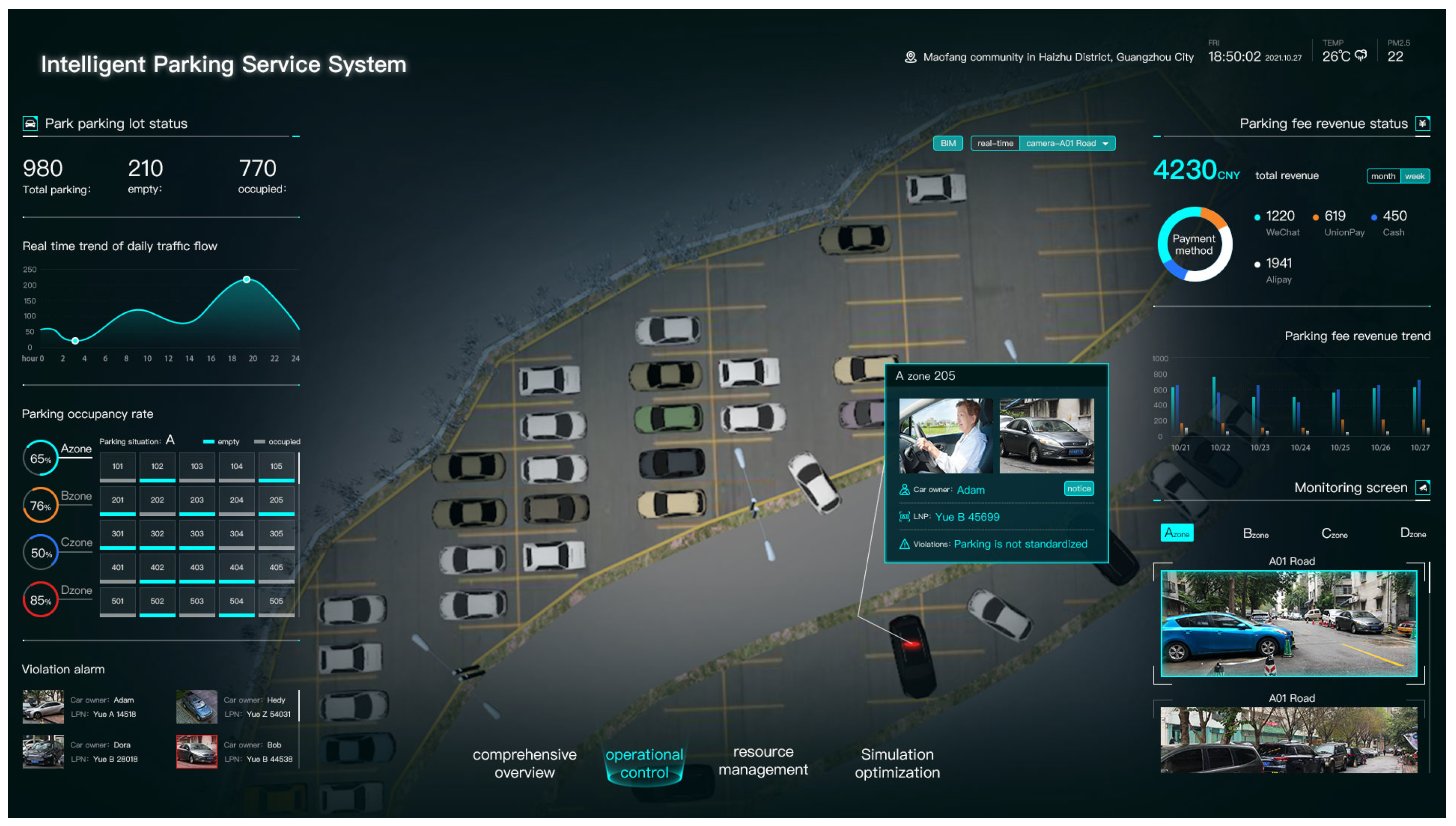

Due to the increasing number of vehicles and the limited land supply, old residential areas generally face parking difficulties. An intelligent parking service is a critical study direction to address parking difficulty since it can achieve the automatic management of parking processes and planning of parking spaces. However, the existing intelligent parking service systems have shortcomings such as low information quality, low management efficiency, and single service mode. To address the shortcomings, in this paper, we conduct a systematic study on utilizing digital twin (DT) technology to improve the intelligent parking service system. The main contributions are threefold: (1) We analyze the function requirements of the intelligent parking service for old residential areas, such as visual monitoring, refined management, and simulation optimization. (2) We design a DT-based intelligent parking service system by collecting data on physical parking space, constructing the corresponding virtual parking space, and building the user interaction platform. An old residential area in Guangzhou, China is used as a use case to show that the designed parking service system can meet the function requirements. (3) Through mathematical modeling and simulation evaluation, we utilize two typical intelligent parking services including dynamic parking planning and driving safety assessment to demonstrate the effectiveness of the proposed system. This study provides innovative solutions for parking management in old residential areas, utilizing DT technology to not only improve information quality and management efficiency, but also provide a theoretical basis and practical reference for the intelligent transformation of urban parking services.
