A Hardware Realization Framework for Fuzzy Inference System Optimization

Abstract

Fuzzy inference systems (FISs) are a key focus for decision-making in embedded systems due to their effectiveness in managing uncertainty and non-linearity. This study demonstrates that optimizing FIS hardware enhances performance, efficiency, and capabilities, improving user experience, heightened productivity, and cost savings. We propose an ultra-low power FIS hardware framework to address power constraints in embedded systems. This framework supports optimizations for conventional arithmetic and Most Significant Digit First (MSDF) computing, ensuring compatibility with MSDF-based sensors. Within the MSDF-computing FIS, fuzzification, inference, and defuzzification processes occur on serially incoming data bits. To illustrate the framework’s efficiency, we implemented it using MATLAB, Chisel3, and Vivado, starting from high-level FIS descriptions and progressing to hardware synthesis. A Scala library in Chisel3 was developed to connect these tools seamlessly, facilitating design space exploration at the arithmetic level. We applied the framework by realizing an FIS for autonomous mobile robot navigation in unknown environments. The synthesis results highlight the superiority of our designs over the MATLAB HDL code generator, achieving a 43% higher clock frequency, and 46% and 67% lower resource and power consumption, respectively.

1. Introduction

Fuzzy inference systems have emerged as a crucial component of contemporary technology, serving as a class of computational models proficient in addressing uncertainties inherent in modeling and data [1,2]. FISs find applications in diverse domains, such as information fusion [3], pattern recognition [4], prediction [5], decision-making [6,7], and control systems [8]. Their ability to handle uncertain and imprecise information makes them particularly useful in these areas, where the input data often contain noise, errors, or missing values. FISs can help to identify patterns in complex datasets, make accurate predictions based on historical data, and make informed decisions in uncertain and dynamic environments [9,10]. Furthermore, FISs can be integrated into control systems to regulate the behavior of complex systems, such as robots, vehicles, or industrial processes [5,11,12]. Additionally, FISs play a pivotal role in financial applications by predicting stock prices and analyzing market trends. In medical diagnosis systems, they assist doctors in interpreting medical test results and making informed treatment decisions [13,14]. In light of their critical role and widespread utilization, there is a compelling need to enhance the design of FISs for greater efficiency and sustainability.

The endeavor to enhance efficiency and diminish the requisite processing demands and power consumption through hardware redesign is widely embraced as a strategic approach to optimizing systems within the realm of sustainable computing [15]. On the other hand, as the need for high-speed computing intensifies, FISs have migrated to VLSI, leading to a substantial improvement in their processing speed [16]. Nonetheless, the considerable expenses associated with VLSI chip redesign or modification have necessitated the adoption of field-programmable gate arrays (FPGAs) [17,18]. Therefore, FPGAs have emerged as a favorable choice for implementing FISs owing to their cost-effectiveness and flexibility in hardware design modifications. This trend has been favorably received by research aimed at optimizing the implementation of target hardware on FPGA.

To optimize hardware through its high-level description, a range of optimization techniques can be employed across different levels of granularity, from coarse-grained levels such as task graphs to fine-grained levels such as data flow graphs [19,20]. Computer arithmetic provides a suite of efficient methods and tools for minimizing the processing requirements of specific tasks, particularly at the fine-grained level [21,22,23]. The MSDF data processing technique is one such example that enables the early termination of computation and the utilization of compact processing elements to handle data sequentially and at the bit level [24]. MSDF computing leverages the significance of digits in data to minimize the number of processing components and operations required for computation [25,26]. The technique processes data hierarchically, beginning with the most significant digit and advancing toward the least significant digit. By prioritizing the most significant digits, certain computations, such as comparison, can be terminated early [24,26]. Moreover, because the data bits are processed serially, the effect of early termination can be propagated back to the processing elements that are computing the next set of bits, resulting in reduced processing time and power consumption.

This paper introduces a hardware realization framework that leverages conventional arithmetic and MSDF computing techniques to conduct hyper-exploration on the design space and optimize FISs for sustainable computing. In addition, the proposed framework connects high-level FIS description tools, such as MATLAB, and hardware synthesis tools, such as Synopsys Design Compiler and Xilinx Vivado Design Suite. The framework proposed in this study is implemented and tested by realizing an FIS for a robot navigation case study. Our paper’s contribution and novelties are as follows: (a) Optimization strategies for sustainable computing leveraging FPGAs and MSDF computing, (b) Bridging high-level and hardware description tools through a comprehensive framework, and (c) Implementation and hardware realization in a real-world robot navigation case study using the suggested framework.

The remainder of this paper is structured as follows. Section 2 overviews the necessary background information and foundational concepts related to FIS and MSDF computing. The proposed framework is detailed in Section 3. Section 4 outlines the experimental design and case study utilized to evaluate the framework’s effectiveness. Section 5 presents the experimental results and corresponding discussions. Finally, Section 6 concludes the paper.

2. Background and Preliminaries

2.1. Fuzzy Set Theory

Fuzzy sets are an extension of the classical notion of a set, where each element has a degree of membership, enhancing its capability to handle uncertainty [27].

Definition 1.

Let X be the universe of discourse. Then, a fuzzy set A on X is characterized by membership function ${\mu }_A:X\to [0,1]$.

Definition 2.

Let A and B be two fuzzy sets defined on set X. The standard form of the set operations intersection and union calculate the membership of each $x\in X$ by Equations (1) and (2), respectively.

$${\mu }_{A\cap B}\left(x\right)=min\{{\mu }_A\left(x\right),{\mu }_B\left(x\right)\}.$$

(1)

$${\mu }_{A\cup B}\left(x\right)=max\{{\mu }_A\left(x\right),{\mu }_B\left(x\right)\}.$$

(2)

2.2. Fuzzy Inference System (FIS)

An FIS is an artificial intelligence framework that utilizes fuzzy logic for inference. An FIS consists of three main building blocks, namely fuzzification, inference, and defuzzification.

Fuzzification is the process of associating each crisp input value with a set of fuzzy values based on the corresponding linguistic terms defined for that input.

By inference, the fuzzy set operations are used to evaluate predefined rules that specify how the input variables should be combined to generate the output. Each rule is a combination of antecedent (if) and consequent (then) clauses, where the antecedent specifies the conditions under which the rule applies, and the consequent specifies the action to be taken. In the inference, the process of composing fuzzy relations is generally accomplished using either max-min or max-product compositions.

The defuzzification process involves converting each fuzzy output to a crisp numerical value. This numerical value is then sent to the control system, which adjusts the system’s behavior. Several defuzzification methods are available to accomplish this task, including the centroid method, the max or mean-max membership principles, and the weighted average method.

2.3. MSDF Computing

In MSDF arithmetic, also known as Left to Right Arithmetic, the computation commences from the Most Significant Digit (MSD) for all arithmetic operations, unlike conventional arithmetic, where addition and multiplication are performed from the least significant digit to the most significant positions. As a result, in the serial fashion of MSDF (also called Online arithmetic), the result digits can be generated upon receiving a limited number of digits from the operands, even as the remaining input digits are being received. This computational approach offers lower latency and power consumption advantages by terminating unnecessary computations. The serial nature of MSDF computing further contributes to a reduced area for the arithmetic unit, resulting in a smaller memory footprint and fewer interconnects. Furthermore, dependent operations can be executed nearly simultaneously, considering a delay parameter.

By employing MSDF arithmetic, computations can be terminated once the desired precision is achieved, eliminating the need for additional computations [24]. In contrast, conventional arithmetic requires generating the least significant part of the result, which is discarded based on the required precision. Furthermore, in specific operations, such as finding the maximum and minimum values, the result becomes evident upon encountering the first unequal digits among the operands.

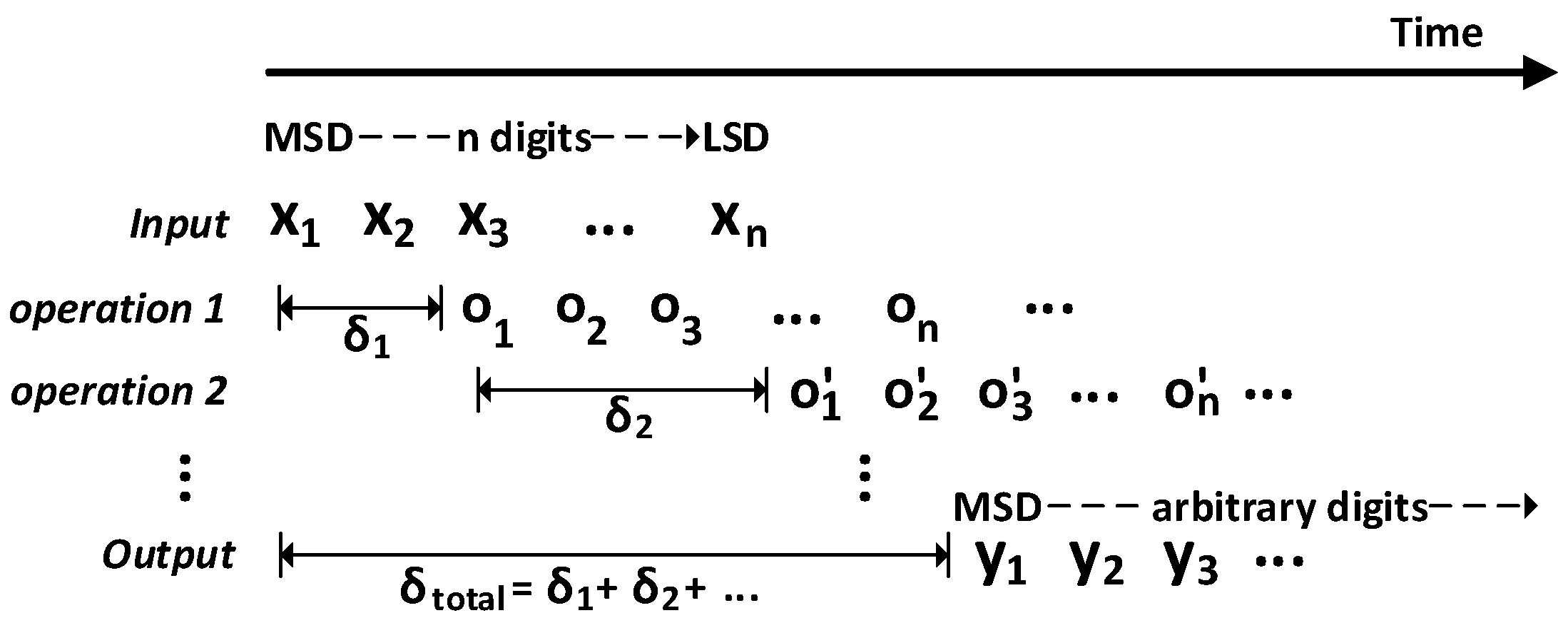

In the context of MSDF computing, the online delay is defined as the time interval required for generating the output digits while the input digits are sequentially received. It signifies the duration between the arrival of input data and the corresponding production of output digits in a serial fashion. Due to the prioritization of the most significant digits in MSDF computing, result digits are generated only after receiving a limited number of operand digits. Consequently, there is a gradual accumulation of delay until the final result is achieved. This characteristic is crucial to consider when assessing the computational efficiency and performance of MSDF computing. Figure 1 depicts the progressive accumulation of online delay in MSDF computing. In this context, each operation i contributes an online delay ${\delta }_i$ to the overall online delay ${\delta }_{total}$ of the chained operations.

3. Proposed Framework

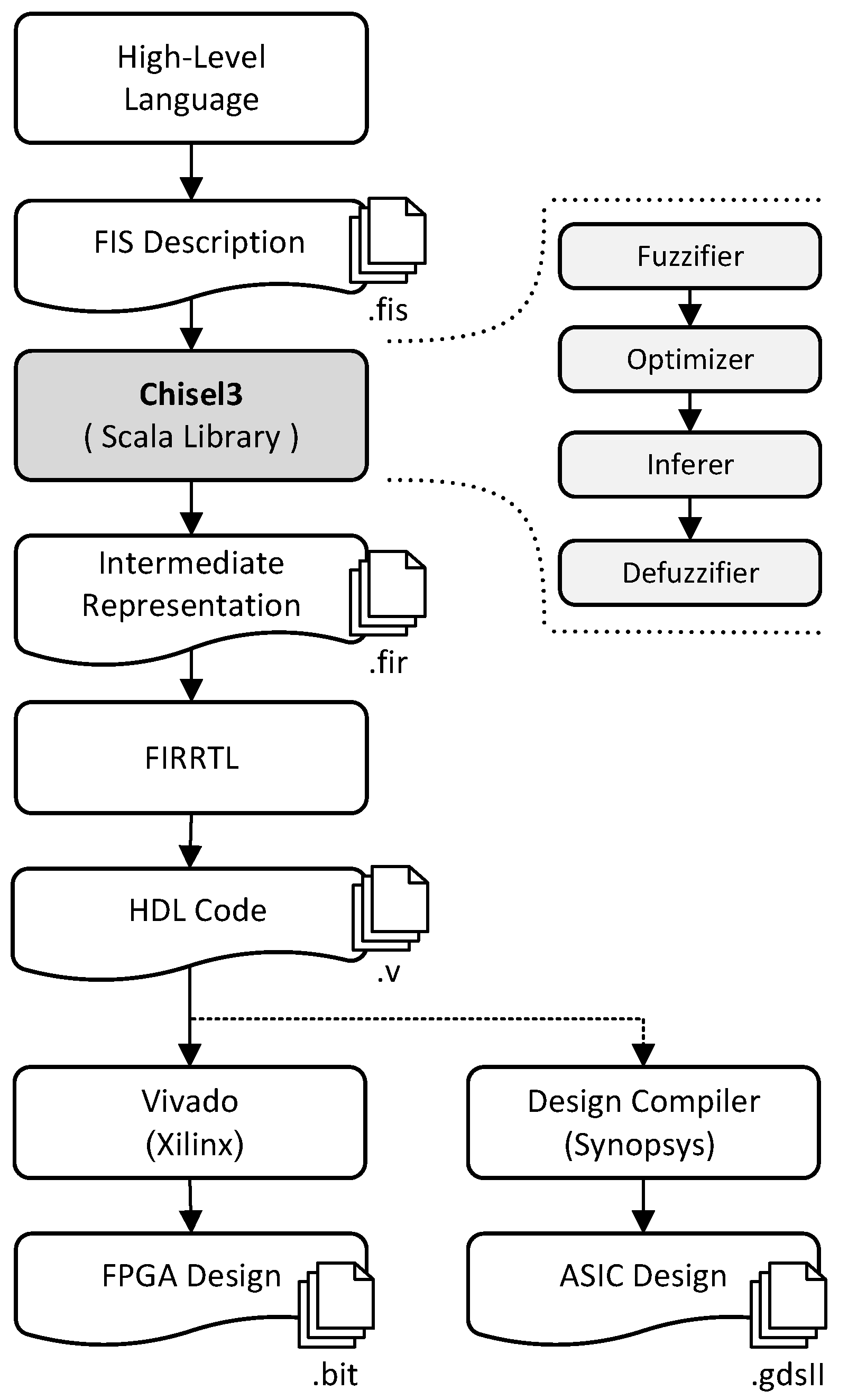

Hardware design space exploration can be conducted across various dimensions such as architecture, memory hierarchy, data path and pipeline, communication interfaces, arithmetic, and optimization metrics. The proposed framework aligns with the productivity approach of diverse computer arithmetic systems, aiming to optimize the final product regarding power and area goals. Moreover, it effectively utilizes available tools, from high-level descriptions of FIS to hardware synthesis. Figure 2 depicts the overarching structure of this framework, showcasing the processes involved and their corresponding outputs, spanning from the high-level description of FIS to its hardware representation. Additionally, a Scala library is developed in Chisel3 to establish a connection between these tools, bridging the gap. It uses Flexible Internal Representation for Register Transfer Language (FIRRTL) to generate Hardware Description Language (HDL) codes and facilitates design space exploration encompassing both conventional arithmetic and MSDF computing. Also, it comprises four primary modules to construct an FIS, namely the Fuzzifier, Optimizer, Inferer, and Defuzzifier.

3.1. Fuzzifier

The Fuzzifier module incorporates a collection of procedures designed to represent membership functions within the structure of an FIS. Also, there are potential options for implementing membership functions to facilitate support for MSDF computing and data processing in a serial bit arrangement. These options include the utilization of Lookup Tables (LUTs) or adopting unconventional methods such as online arithmetic. The LUT-based implementations on FPGAs provide a favorable equilibrium among flexibility, efficiency, programmability, and speed, rendering them a highly recommended option for function implementation on FPGA platforms [28,29].

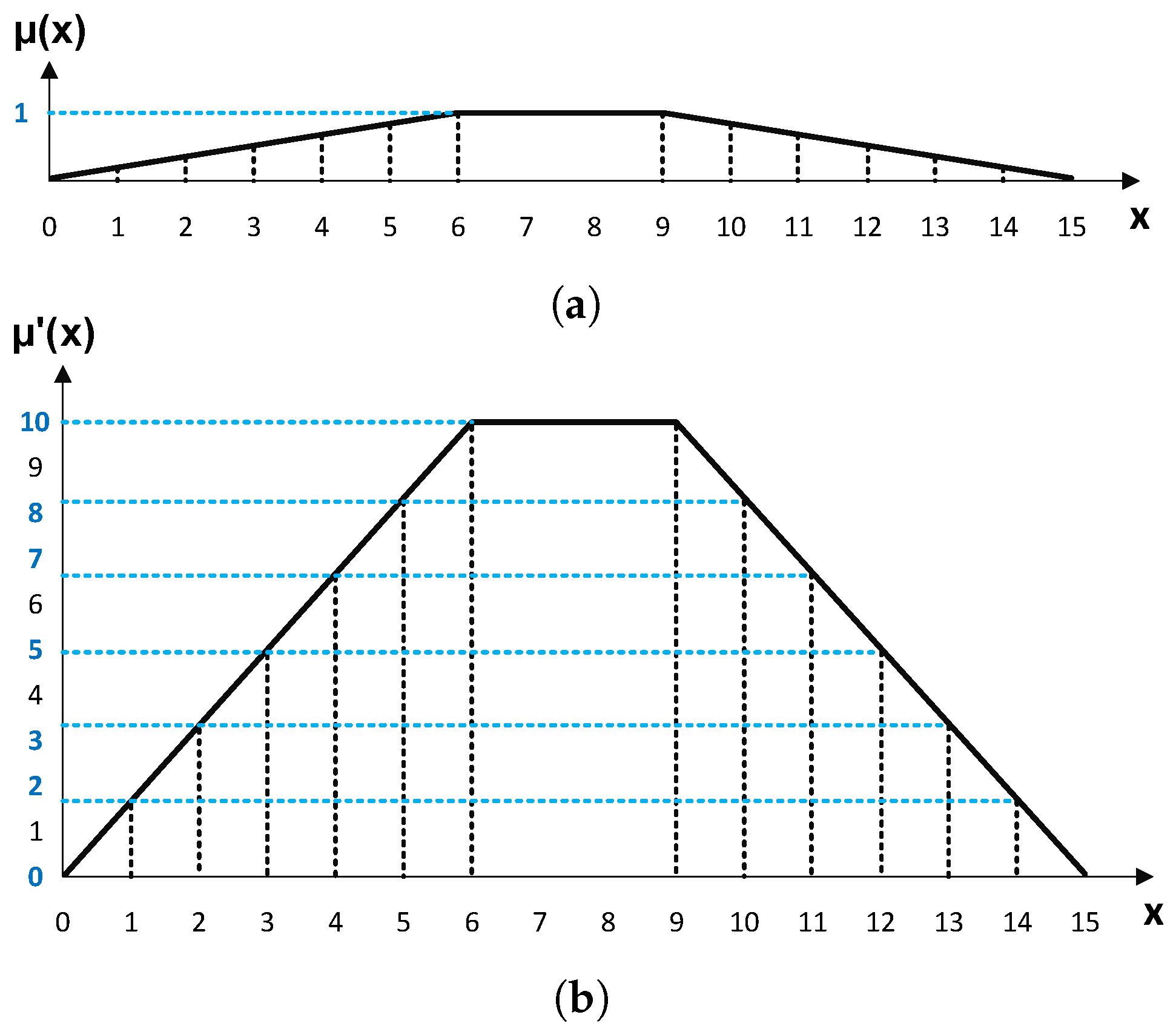

As hardware platforms typically have finite precision arithmetic capabilities, the quantization and scaling techniques are applied to represent the fuzzy values and intermediate computations within the hardware constraints accurately. Here, the output value of membership functions can be scaled using an S factor. A higher value of S corresponds to increased precision, necessitating more bits for the membership function output. Figure 3a illustrates a trapezoidal membership function, while Figure 3b depicts the same function scaled with a factor of $S=10$, resulting in a precision of $0.1$. Also, the value of $\tilde{\mu }\left(x\right)$ is rounded to the nearest value indicated by the blue numbers on the vertical axis.

Table 1. The LUT corresponding to Figure 3b.

x					$\tilde{\mathit{\mu }}\mathbf{\left(}\mathit{x}\mathbf{\right)}$
X	${\mathit{x}}_{\mathbf{1}}$	${\mathit{x}}_{\mathbf{2}}$	${\mathit{x}}_{\mathbf{3}}$	${\mathit{x}}_{\mathbf{4}}$	${\mathit{y}}_{\mathbf{1}}$	${\mathit{y}}_{\mathbf{2}}$	${\mathit{y}}_{\mathbf{3}}$	${\mathit{y}}_{\mathbf{4}}$	Y
0	0	0	0	0	0	0	0	0	0
1	0	0	0	1	0	0	1	0	2
2	0	0	1	0	0	0	1	1	3
3	0	0	1	1	0	1	0	1	5
4	0	1	0	0	0	1	1	1	7
5	0	1	0	1	1	0	0	0	8
6	0	1	1	0	1	0	1	0	10
7	0	1	1	1	1	0	1	0	10
8	1	0	0	0	1	0	1	0	10
9	1	0	0	1	1	0	1	0	10
10	1	0	1	0	1	0	0	0	8
11	1	0	1	1	0	1	1	1	7
12	1	1	0	0	0	1	0	1	5
13	1	1	0	1	0	0	1	1	3
14	1	1	1	0	0	0	1	0	2
15	1	1	1	1	0	0	0	0	0

presents the corresponding truth table, which could be used to derive the equivalent Finite State Machine (FSM) and calculate the online delay $\delta$.

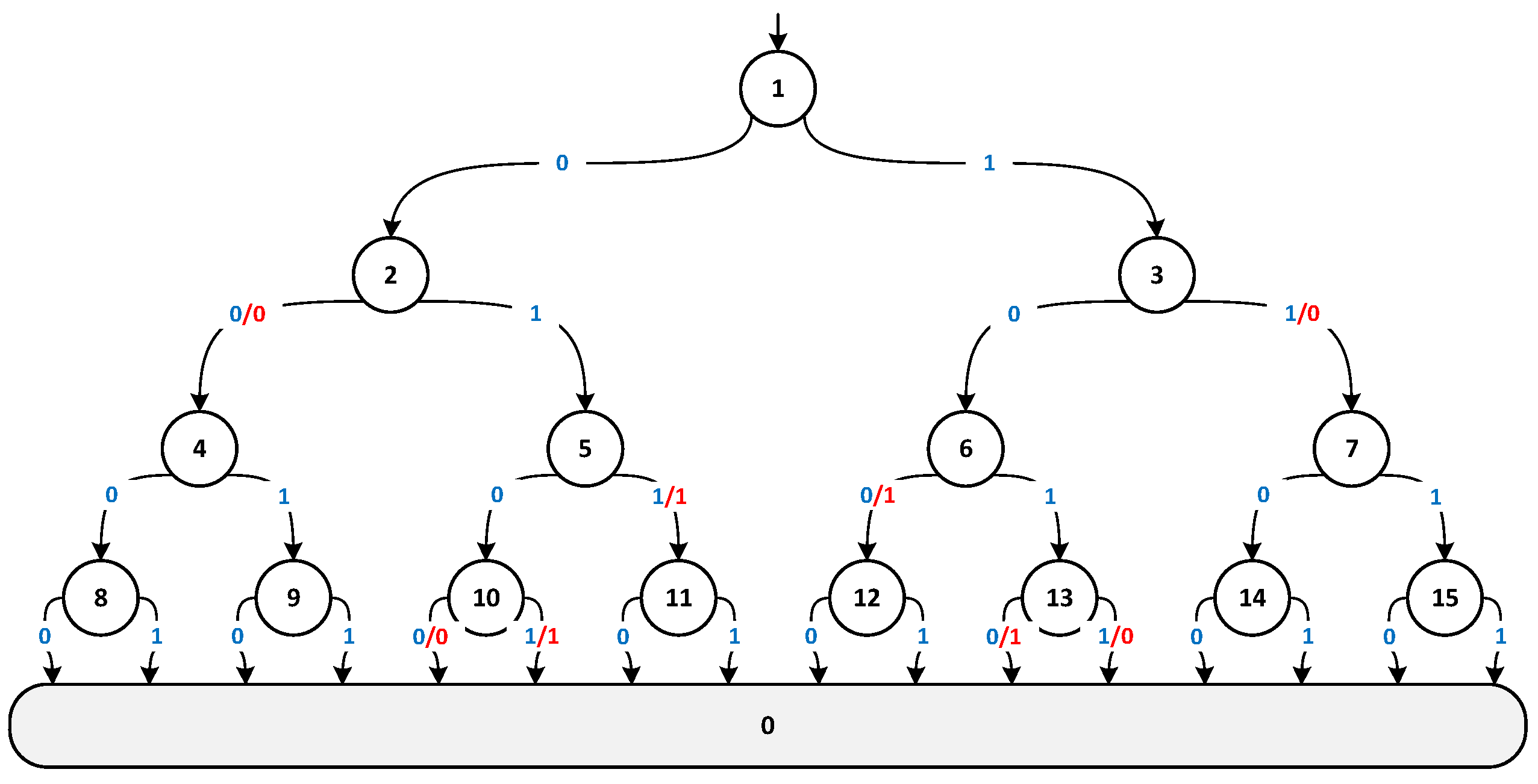

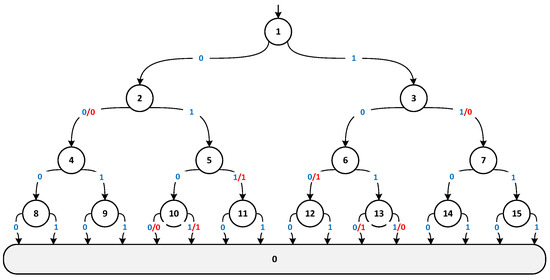

Figure 4 presents the Mealy FSM corresponding to the most significant digit of the output. This pseudo-tree structure is the same for all outputs; only the output on the edges related to the transition rules differs. Furthermore, the online delay $\delta$ is 4, indicating that the determination of the output’s fourth bit from the left directly corresponds to the determination of the value of $y_1$.

Also, if the number of input bits is n, the considered FSM has $2^n$ states, where we define the initial state as 1, and the state change formula is based on Equation (3).

$$S_{t+1}=\left\{\begin{array}{cc}2S_t+x_i\hfill & 0<S_t<2^n\hfill \\ 0\hfill & o.w.\hfill \end{array}\right..$$

(3)

3.2. Optimizer

In this research, we have devised an approximate computing approach to systematically manipulate specific bits within the LUTs. This technique effectively reduces the online delay $\delta$ associated with serial processing in MSDF computing. For example, if the controller is tolerant enough so that we can increase the value of the membership function $\tilde{\mu }$ for $X=4$ and $X=11$ by $0.1$, it results in the content of

Table 2. The $y_1$-optimized LUT corresponding to Table 1.

x					$\tilde{\mathit{\mu }}\mathbf{\left(}\mathit{x}\mathbf{\right)}$
X	${\mathit{x}}_{\mathbf{1}}$	${\mathit{x}}_{\mathbf{2}}$	${\mathit{x}}_{\mathbf{3}}$	${\mathit{x}}_{\mathbf{4}}$	${\mathit{y}}_{\mathbf{1}}^{\mathbf{\prime }}$	${\mathit{y}}_{\mathbf{2}}^{\mathbf{\prime }}$	${\mathit{y}}_{\mathbf{3}}^{\mathbf{\prime }}$	${\mathit{y}}_{\mathbf{4}}^{\mathbf{\prime }}$	${\mathbf{Y}}^{\mathbf{\prime }}$
0	0	0	0	0	0	0	0	0	0
1	0	0	0	1	0	0	1	0	2
2	0	0	1	0	0	0	1	1	3
3	0	0	1	1	0	1	0	1	5
4	0	1	0	0	1	0	0	0	8
5	0	1	0	1	1	0	0	0	8
6	0	1	1	0	1	0	1	0	10
7	0	1	1	1	1	0	1	0	10
8	1	0	0	0	1	0	1	0	10
9	1	0	0	1	1	0	1	0	10
10	1	0	1	0	1	0	0	0	8
11	1	0	1	1	1	0	0	0	8
12	1	1	0	0	0	1	0	1	5
13	1	1	0	1	0	0	1	1	3
14	1	1	1	0	0	0	1	0	2
15	1	1	1	1	0	0	0	0	0

. Therefore, $\delta$ of producing MSD is reduced to 2, as shown in Figure 5.

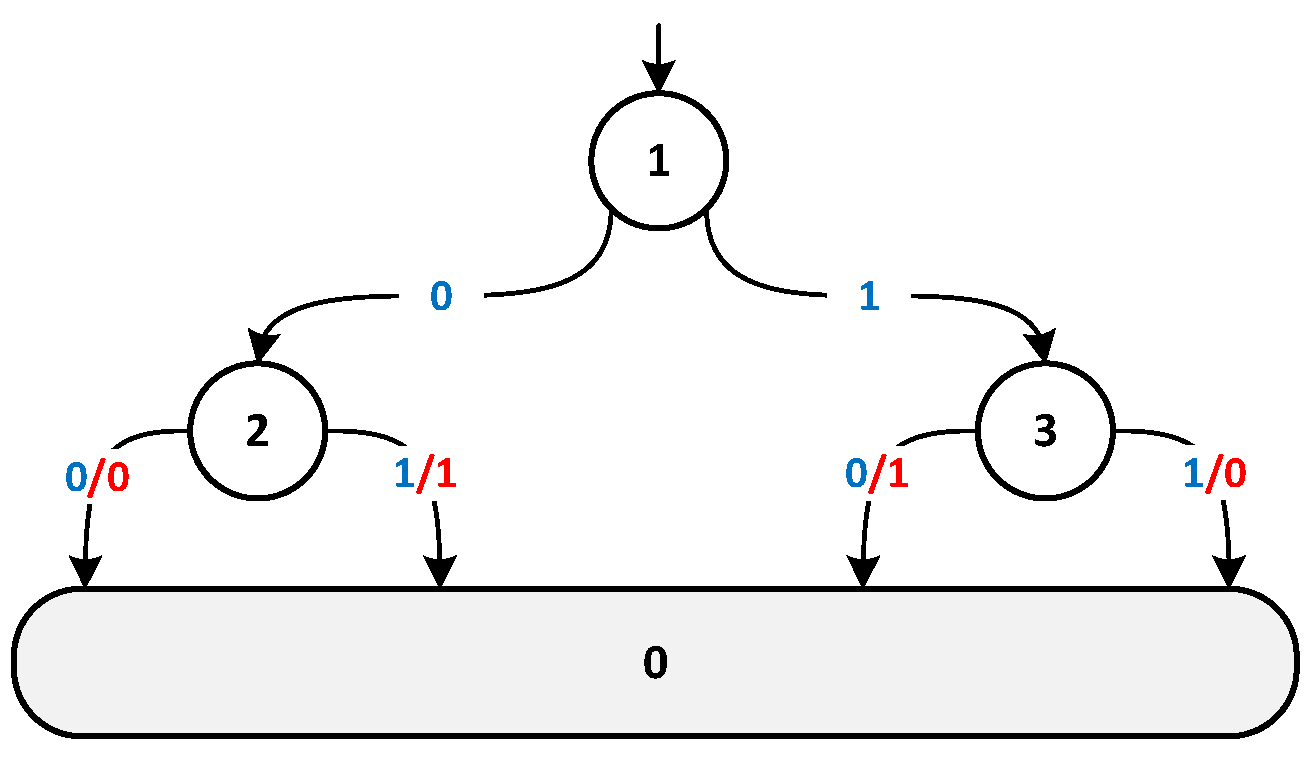

Figure 5 presents the Mealy FSM corresponding to $y_1^{\prime }$, which is the MSD of the output for the optimized LUT.

3.3. Inferer

The Inferer module encompasses the implementation of specific reductions necessary for min-max operations associated with FIS rules. Additionally, it handles the aggregation of rules that possess output with the same linguistic value.

3.4. Defuzzifier

In this research, we focus on evaluating the efficiency of MSDF computing using conventional number representation. Therefore, we implemented the Maximum Membership defuzzification method, identifying the fuzzy set with the highest membership degree. This fuzzy set represents the strongest influence on the output. The crisp output value is then determined based on the selected fuzzy set’s representative value, considering its membership function’s shape and characteristics. This crisp output value, obtained through defuzzification, provides a definitive and usable value for further processing, decision-making, or control actions.

4. Evaluation Methodology

4.1. Case Study

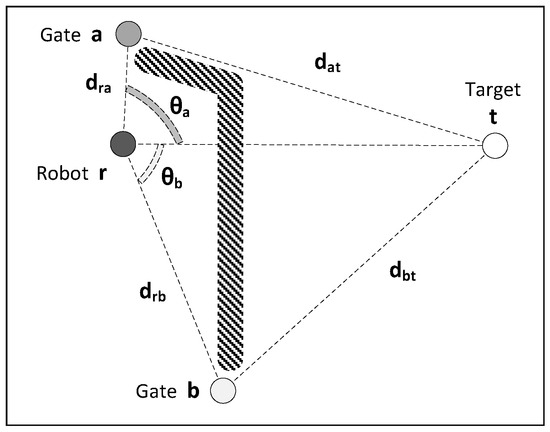

Path planning of mobile robots in unknown environments is one of the most common problems for robot navigation. The extent of the desired environment is assumed to be a rectangle, where several obstacles are located inside it. The problem is that a robot has to move from a starting point to a target point by avoiding obstacles. The fact that the environment is unknown to the robot means that it is unfamiliar with its surroundings; it can solely detect obstacles within its visual range. Figure 6 illustrates an environment including a robot, an obstacle, and two gates to move the robot to the target point. Here, the robot confronts an obstacle that obstructs its direct path toward the destination. Consequently, it is presented with two alternatives; either passing through gate a or gate b. In this situation, the FIS calculates a rank value r for each gate, and the gate with the lowest r value is selected to pass. Since the space behind the obstacle is unknown to the robot, the robot assumes that there is no obstacle behind it and considers the promising distance values $d_a=d_{ra}+d_{at}$ and $d_b=d_{rb}+d_{bt}$ for gates a and b, respectively. Then, it sends the values of $(d_a,{\theta }_a)$ and $(d_b,{\theta }_b)$ to the FIS to calculate the rank of the corresponding gates.

4.2. Experimental Design

In this section, the experimental design of an FIS is described in two steps. The first step demonstrates the desired robot navigation algorithm and the components of the corresponding FIS. The second step presents the hardware realization of the proposed FIS that supports MSDF computing.

4.2.1. Step 1 (Software Implementation)

A simple FIS-based algorithm is developed for robot navigation in an unknown environment. We implemented it in MATLAB, where the input contains information about the robots’ start points and target points, as well as the specification of the environment and obstacles inside it. Algorithm 1 presents the navigation subroutine for a robot. The main loop is repeated until the robot reaches the target point. In each iteration, the robot scans all the visible gates and calculates their ranks. In this stage, an FIS calculates the rank of each gate. Then, the gate with the best (least) rank is selected for passing.

Algorithm 1: The navigation subroutine for a robot r.

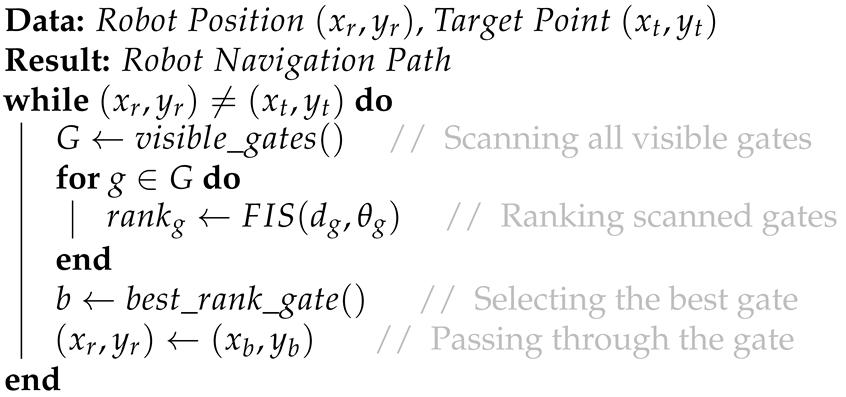

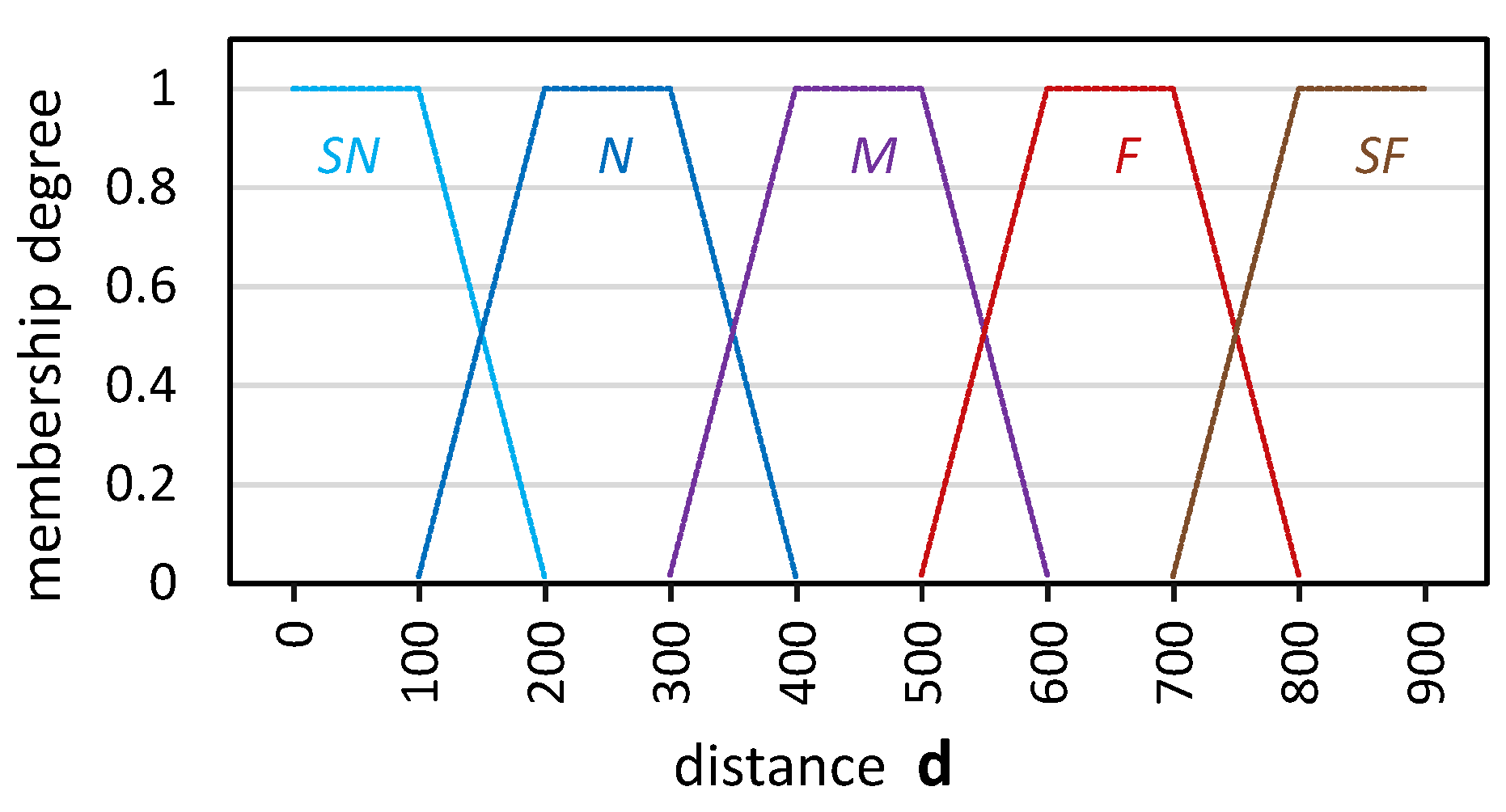

The FIS ranked each gate according to two input parameters; the promising distance d in meters, and the deviation angle $\theta$ in degrees. The distance parameter d indicates the (promising) distance of the robot to the target point by passing through the desired gate. Since the most promising distance in the defined environment is related to moving from one corner to the opposite corner from the path close to the sides, this parameter can be in the range $[0,1023]$ for a $700\times 700$ rectangular environment. Also, five linguistic values of So Near (SN), Near (N), Medium (M), Far (F), and So Far (SF) are defined for the fuzzification of this parameter. Figure 7 shows the trapezoidal membership functions of these linguistic values.

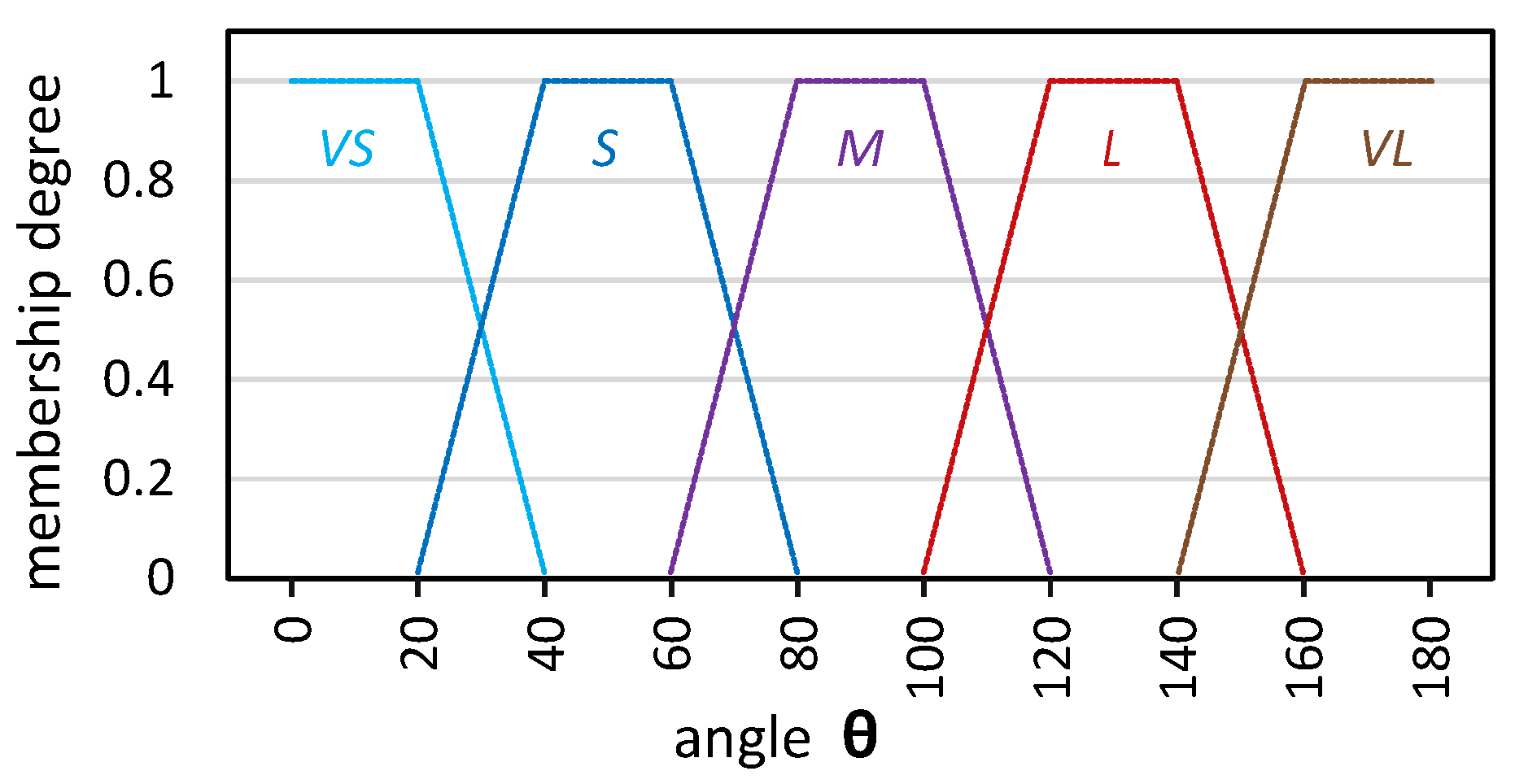

The angle parameter $\theta$ indicates the robot’s deviation (to the right or left) from the straight path to the target point. This deviation can be in the $[0,180]$ degrees range. Also, five linguistic values of Very Small (VS), Small (S), Medium (M), Large (L), and Very Large (VL) are defined for the fuzzification of the angle parameter. Figure 8 displays the trapezoidal membership functions of these linguistic values.

The FIS inference component maps the fuzzified input values to fuzzy rank values according to predefined IF-THEN rules.

Table 3. The FIS inference rules.

		Angle $\mathit{\theta }$
		VS	S	M	L	VL
Distance $\mathit{d}$	SN	0	0	1	2	3
	N	0	1	2	3	3
	M	0	1	2	3	4
	F	1	1	3	4	4
	SF	1	2	3	4	4

presents the set of 25 defined inference rules. Here, each column indicates the set of rules on an angle linguistic value, and each column indicates the set of rules on a distance linguistic value, where the output is a rank value $r\in \{0,1,2,3,4\}$ pointed in the junction. For example, the rule (IF angle IS Very-Large AND distance IS So-Far THEN rank IS 4) is presented by the cell placed in the junction of the last column and last row. It should be stated that the order of ranks from best to worst is 0, 1, 2, 3, and 4. Therefore, when the angle is $VerySmall$, and the distance is $Medium$ or less, and when the angle is $Small$, and the distance is $SoNear$, the rank is 0 (the best possible rank). Also, inference rules with similar output are aggregated together using the $max$ operator.

Also, the smallest value for which the output fuzzy set is Maximum (SOM) is used for the defuzzification. In other words, the output rank value is the best rank with the maximum degree of membership.

4.2.2. Step 2 (Hardware Realization)

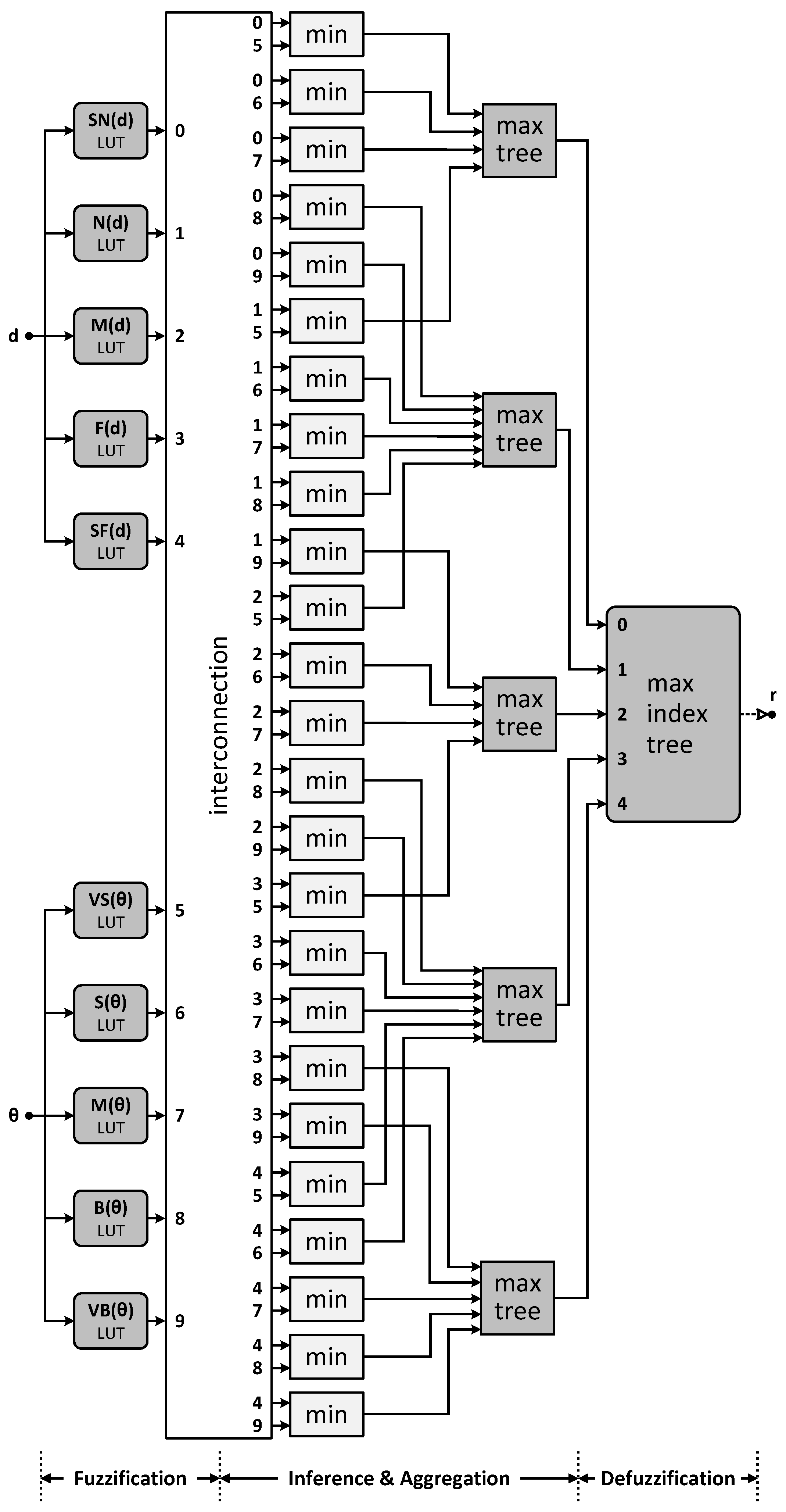

Figure 9 illustrates the structure of the fuzzy inference system described in the previous section. In the fuzzification component, membership functions are implemented as lookup tables and map the two inputs d and $\theta$ to values in the integer interval $[0,100]$.

5. Experimental Results

In this section, we elaborate on the experimental results of hardware design using the proposed framework (conventional arithmetic and MSDF computing) with MATLAB’s HDL coder (conventional arithmetic).

5.1. Experiment and Evaluation Method

Since for the design of FIS hardware we have discretized it and adopted the lookup table approach, at first, we compared it with the continuous implementation approach to show the equivalence of the outputs. Therefore, we applied the Monte Carlo approach for validation.

The experiments were conducted on a standard Avnet ZedBoard 7020 baseboard for hardware evaluation with a Zynq-7000 All Programmable SoC XC7Z020-CLG484-1. We evaluated our design using the Xilinx Vivado design suite and downloaded the synthesized bitstream to the target board. Furthermore, we undertook a comprehensive evaluation by focusing on the assessment of Maximum Clock Frequency, resource utilization, and power consumption across identical benchmarks.

It is imperative to emphasize that WNS holds paramount significance as the maximum allowable delay by which a signal can be extended without infringing upon the circuit’s specified clock period. Ensuring that WNS remains within predefined tolerances serves as a pivotal safeguard against potential timing violations, the ramifications of which could manifest as critical inaccuracies in circuit operation.

5.2. Availability

The source code of the proposed Fuzzy inference system (FIS) along with generated verilog codes (Chisel) and files for each of the phases (Fuzzification, Inference, Defuzzification) for both conventional and MSDF-based computing systems as well as MATLAB Simulink models for HDL code generation and Monte Carlo simulation are available at: https://github.com/cslab-chosun/online-fuzzy-chisel (accessed on 7 February 2024).

5.3. Validation

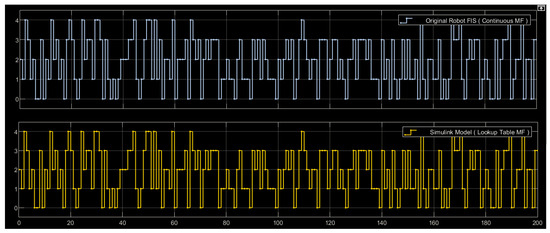

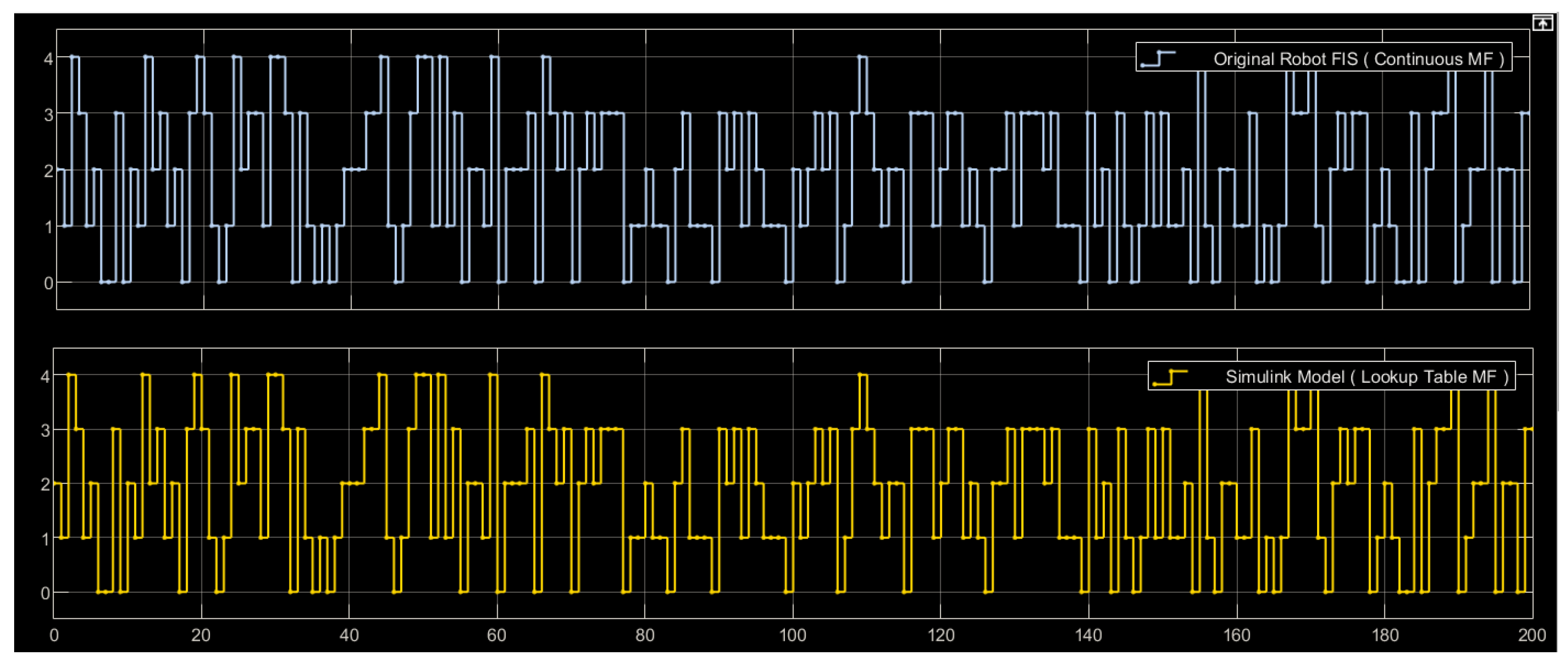

We initiated a Monte Carlo simulation involving the generation of 100,000 random inputs to validate the functionality of the FIS model with discretized membership functions. This allowed us to perform a comparative analysis between the outputs of the hardware model, where the membership functions are implemented using LUTs, and the original FIS implementation, characterized by continuous membership functions. Remarkably, throughout this experiment, the outputs of both models remained identical for all input scenarios. Figure 10 illustrates the output graphs of both models using a subset of 200 randomly selected input samples. In this context, both graphs are identical, demonstrating consistent FIS output across two implementations, the first of which utilizes continuous function membership functions, and the other which employs their discrete counterparts.

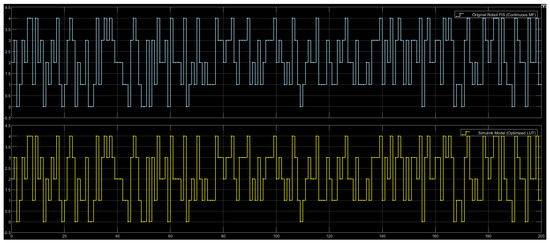

We also performed another Monte Carlo simulation involving 100,000 random inputs to validate the functionality of the FIS model with optimized LUTs. This is a comparative analysis between the outputs of the MSDF-based hardware model, where the membership functions are implemented using optimized LUTs, and the original FIS software implementation, characterized by continuous membership functions. In this experiment, the outputs of both models remained identical for all input scenarios. Figure 11 illustrates the output graphs of both models using a subset of 200 randomly selected input samples, where both graphs are identical.

5.4. Discussion

In this section, our initial focus is on the discrete examination of the outcomes of the primary subsystems within the fuzzy inference system.

Table 4. Comparing hardware components designed by MATLAB versus the proposed framework.

			MATLAB	Proposed Framework
				Conventional	MSDF
Fuzzify	BRAM (RAMB18)		2.5	1	0
	Max Clock (MHz)		157	164	225
	Resource	FF	35	273	328
		LUT	63	218	274
Inference	Max Clock (MHz)		208	175	441
	Resource	FF	56	420	253
		LUT	564	378	320
Defuzzify	Max Clock (MHz)		236	241	331
	Resource	FF	64	28	27
		LUT	41	33	16

presents the distinct results associated with the Fuzzification, Inference, and Defuzzification subsystems.

In the Fuzzification subsystem, the WNS in the proposed framework’s conventional and MSDF-based designs demonstrates substantial improvements. Specifically, the WNS values in these configurations are $7\%$ and $52\%$ superior, respectively, compared to the MATLAB design. Moreover, the maximum clock frequencies in conventional and MSDF-based designs within the proposed framework exhibit notable advancements. Specifically, these clock frequencies demonstrate improvements of $4\%$ and $43\%$, respectively, in contrast to the MATLAB design. Regarding resource consumption, the designs within the proposed framework make efficient use of Flip Flops and LUTs, resulting in a net gain in performance compared to the corresponding MATLAB design, which consumes $2.5$ blocks of RAM. Furthermore, in the MSDF-based design mode, the proposed framework excels in inferring LUTs and Flip-Flops, outperforming the conventional design mode, which necessitates the inclusion of an entire Block RAM (RAMB18) for LUT formation. As a result, the collective utilization of LUTs and Flip Flops in the MSDF-based design remains lower than that in the conventional design, all while preserving the advantageous reduction in block RAM usage. This optimized resource allocation highlights the effectiveness of the proposed framework in achieving enhanced efficiency and performance in the Fuzzification subsystem.

Within the Inference subsystem, the WNS in the conventional design configuration lags by $17\%$, while the MSDF-based design excels by $48\%$ compared to the MATLAB design. Also, the maximum clock frequencies in the conventional design exhibit a $16\%$ decrement in performance, whereas the MSDF-based design showcases a noteworthy $112\%$ improvement compared to the MATLAB design. Regarding the allocation of essential resources, it is noteworthy that there is an increased count of inferred Flip-Flops in the proposed framework designs. At the same time, the quantity of LUTs is reduced compared to the MATLAB design. Additionally, the count of both FFs and LUTs in the MSDF-based design is notably diminished in contrast to the conventional design. These outcomes unequivocally demonstrate the superior performance of the MSDF-based design.

In the defuzzification subsystem, a comprehensive evaluation across all compared criteria affirms that our conventional design surpasses the hardware generated by MATLAB, and notably, the MSDF-based design excels over both of these alternatives.

Table 5. The overall comparison of FIS hardware designed by MATLAB versus the proposed framework.

		MATLAB	Proposed Framework
			Conventional	MSDF
BRAM (RAMB18)		2.5	1	0
Max Clock (MHz)		157	164	225
Resource	FF	155	721	608
	LUT	668	629	610
Power (W)		0.018	0.010	0.006

provides a comprehensive overview of the comparative assessment between the fuzzy inference system hardware designed by MATLAB and the framework proposed in this study. It demonstrates a higher clock speed, lower WNS path, and reduced resource and block RAM consumption for the proposed framework. It is worth noting that cohesively integrating all three FIS subsystems holds the potential for enhanced results. This integration offers more excellent optimization opportunities and ensures the accurate interpretation of interconnections within the subsystems categorized as I/O, leading to improved outcomes. Furthermore, compared to MATLAB HDL Coder, our conventional and MSDF approaches exhibit a substantial reduction in power consumption, with figures of $44\%$ and $67\%$, respectively. These results underscore the remarkable advancements in power efficiency achieved through our design methodology.

6. Conclusions and Future Work

The proposed method exhibited exceptional compatibility with MSDF-based sensors, facilitating the execution of fuzzification, inference, and defuzzification processes on serially arriving data bits. Leveraging the MSDF approach enabled early decision-making for Max and Min operations, leading to improved performance and decreased power consumption by eliminating unnecessary computations at an early stage. Additionally, the adoption of serial computation resulted in reduced area requirements and a diminished memory footprint, further enhancing the overall efficiency of the approach. An FIS was implemented for autonomous mobile robot navigation in unknown environments to assess the proposed framework’s efficacy. The synthesis results provided compelling evidence of the superior design performance suggested by our framework with $67\%$ improvement in power consumption, compared with the hardware generated by MATLAB HDL coder. Also, this research showcased the potential of leveraging MSDF computing for achieving low-power FIS hardware in embedded systems. Future work could explore further optimizations and applications of the proposed approach in different domains and scenarios.
