The Genesis of AI by AI Integrated Circuit: Where AI Creates AI

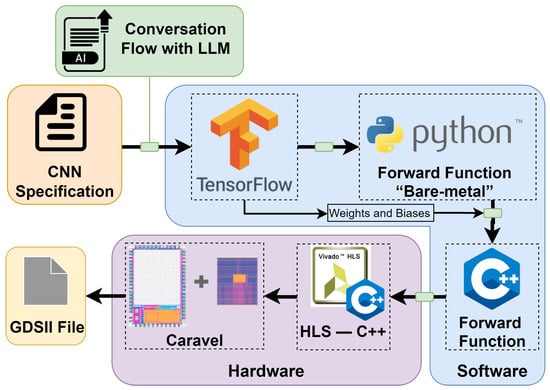

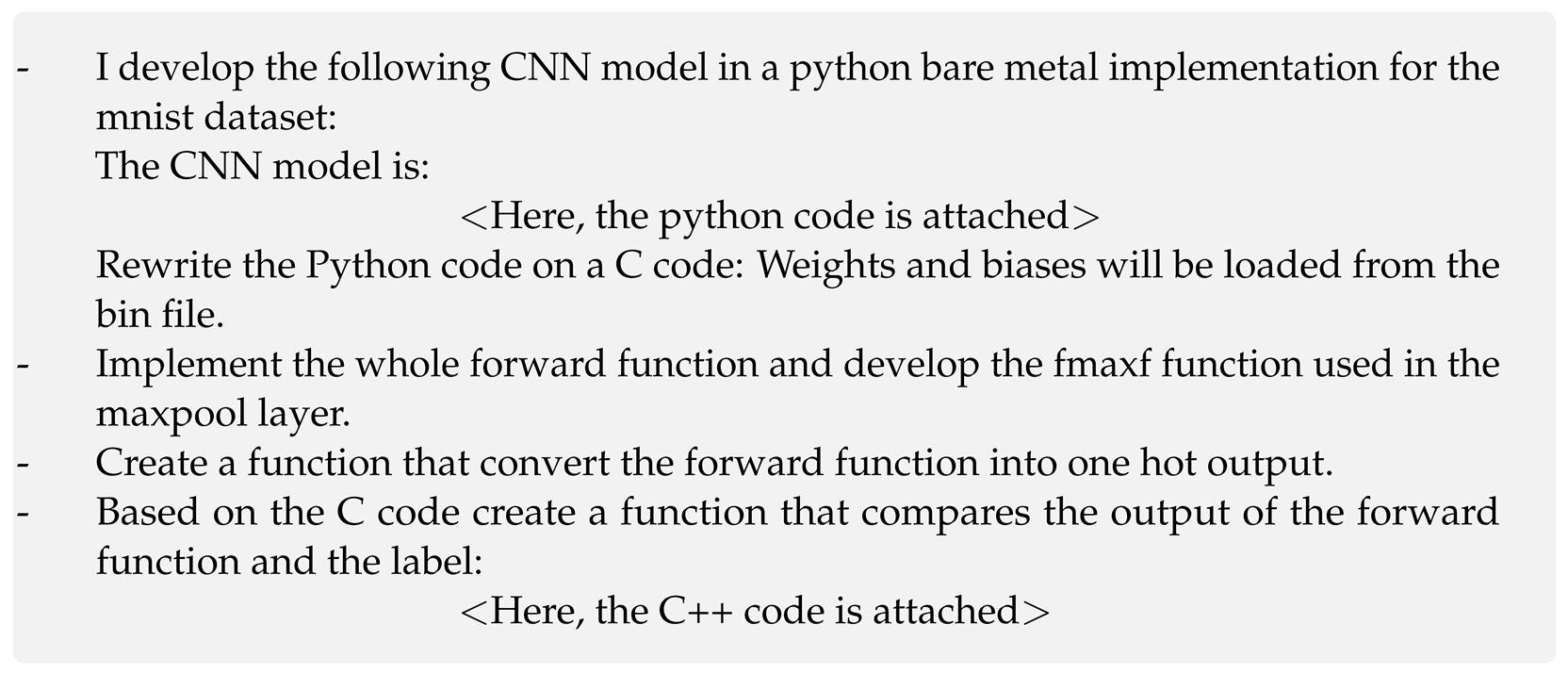

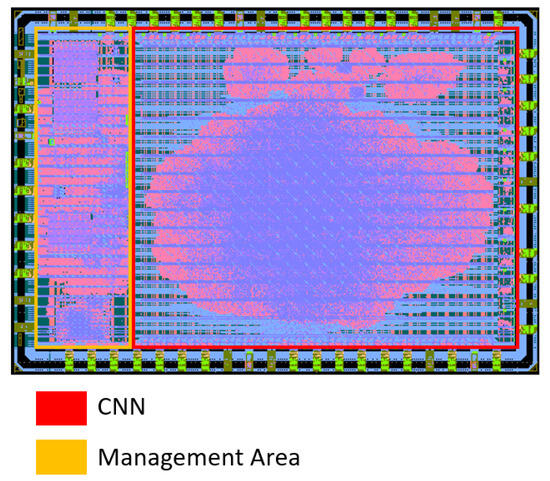

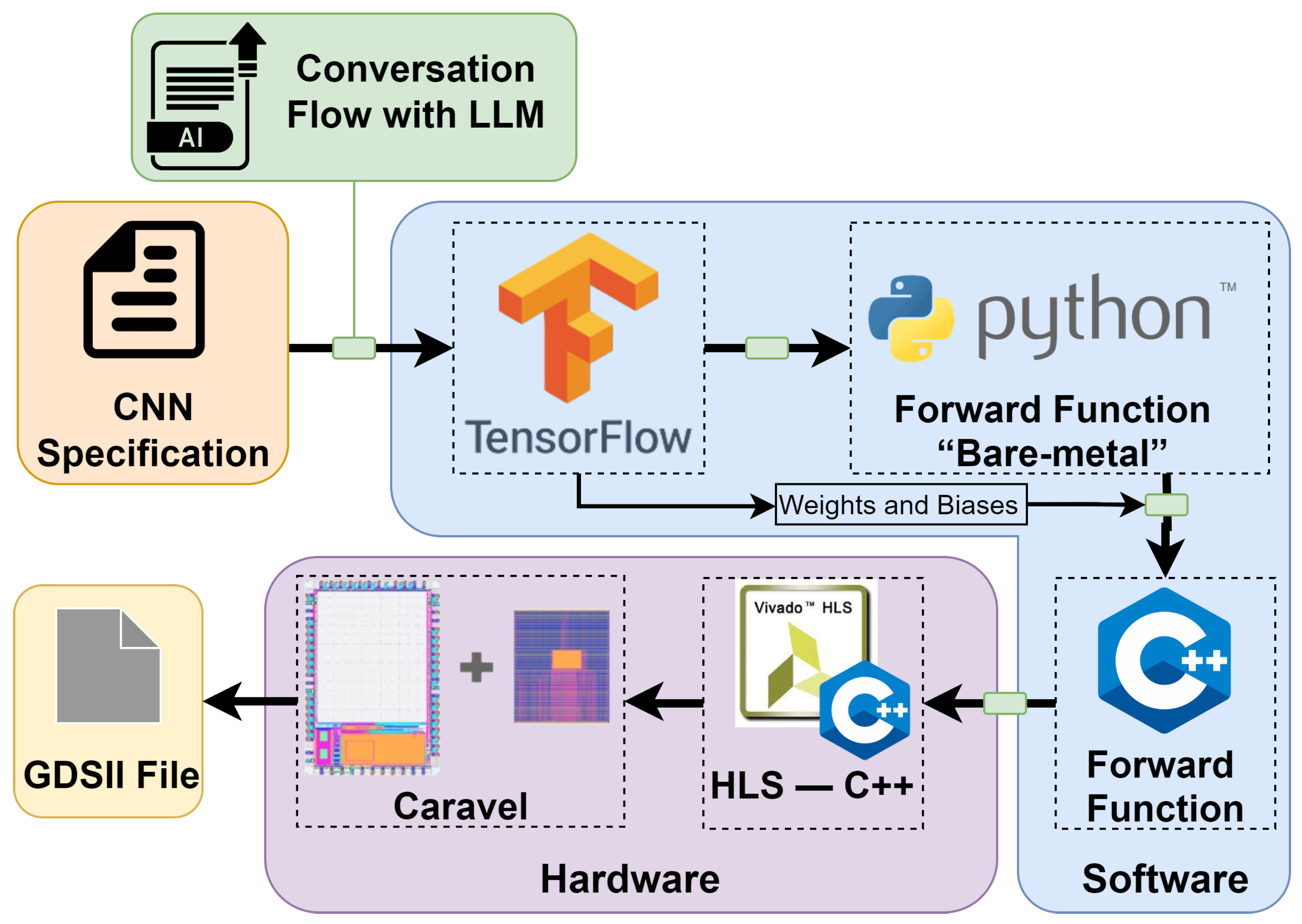

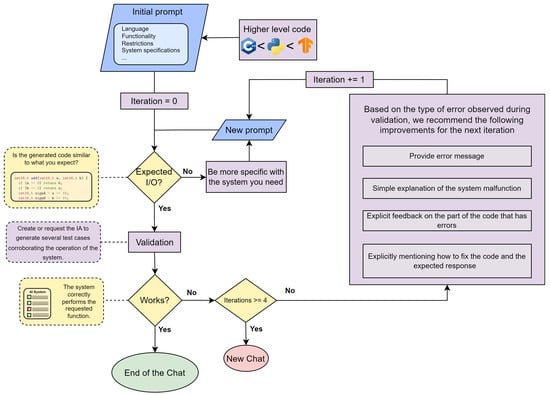

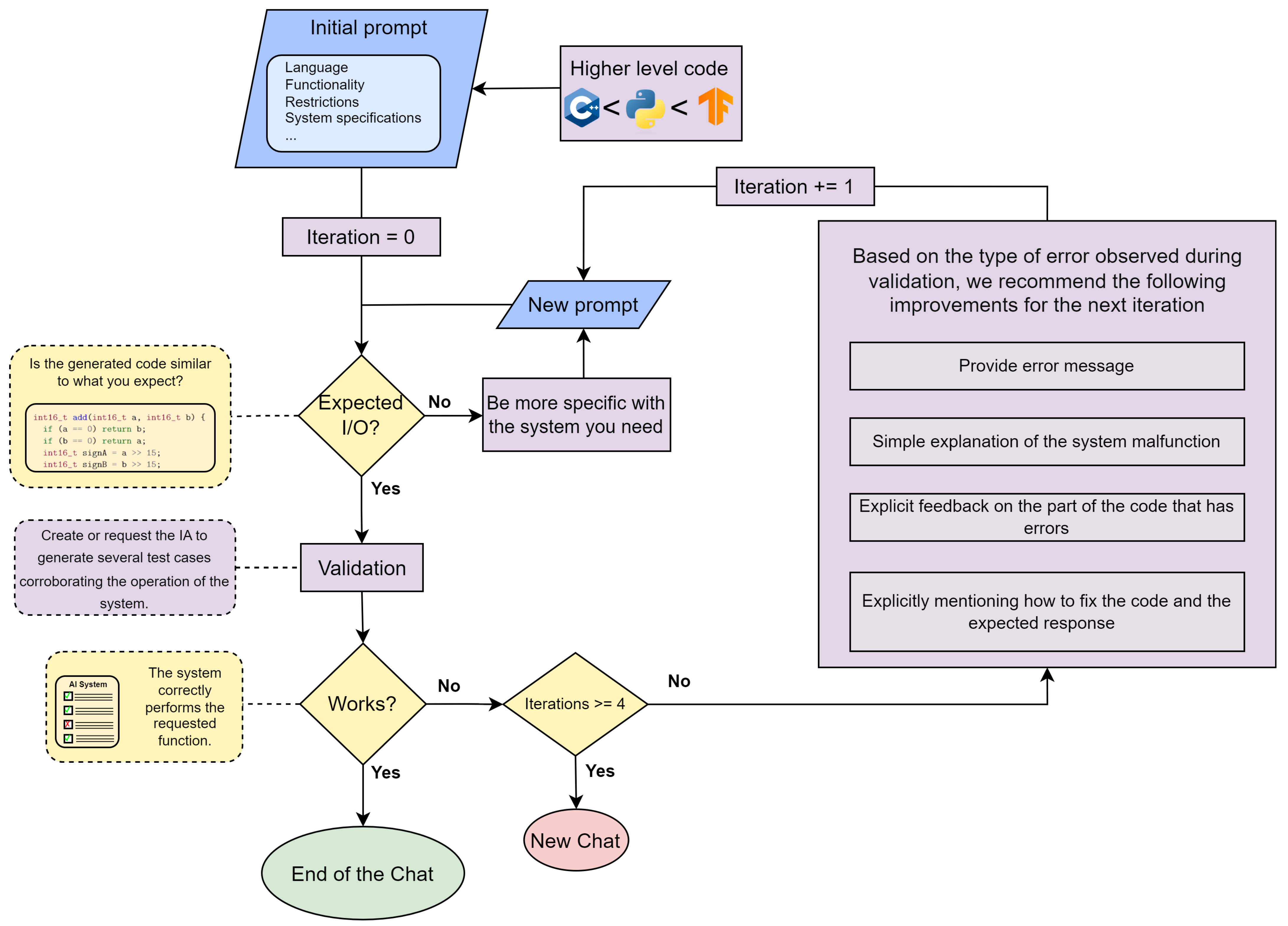

The typical Integrated Circuit (IC) development process commences with formulating specifications in natural language and subsequently proceeds to Register Transfer Level (RTL) implementation. RTL code is traditionally generated through manual efforts, using Hardware Description Languages (HDL) such as VHDL or Verilog. High-Level Synthesis (HLS), on the other hand, converts programming languages to HDL; these methods aim to streamline the engineering process, minimizing human effort and errors. Currently, Electronic Design Automation (EDA) algorithms have been improved with the use of AI, with new advancements in commercial (such as ChatGPT, Bard, among others) Large Language Models (LLM) and open-source tools presenting an opportunity to automate the chip design process. This paper centers on the creation of AI by AI, a Convolutional Neural Network (CNN) IC entirely developed by an LLM (ChatGPT-4), and its manufacturing with the first fabricable open-source Process Design Kit (PDK), SKY130A. The challenges, opportunities, advantages, disadvantages, conversation flow, and workflow involved in CNN IC development are presented in this work, culminating in the manufacturing process of AI by AI using a 130 nm technology, marking a groundbreaking achievement as possibly the world’s first CNN entirely written by AI for its IC manufacturing with a free PDK, being a benchmark for systems that can be generated today with LLMs.
