1. Introduction
The history of Integrated Circuit (IC) design is marked by innovation and technological strides. It began in the late 1950s with the introduction of the transistor [
1]. Texas Instruments pioneered the first IC in 1958, integrating two transistors on a silicon–germanium bar [
2]. Until the arrival of Computer-Aided Design (CAD) tools in 1966, ICs were manually drawn on paper [
3].
The evolution of Hardware Description Language (HDL) started in the early 1970s with Register Transfer Level (RTL), allowing for thousands of transistors per IC [
4]. DEC’s PDP-16 RT-Level Modules [
5], Instruction Set Processor Specifications [
6], and Incremental System Programming Language [
7] were significant contributions. In the late 1970s, programmable logic devices increased the demand for standard languages, and in 1985, Gateway and Intrametric introduced Verilog and VHSIC Hardware Description Language (VHDL) [
8,
9].
Alongside Verilog and VHDL, C-based hardware description languages, known as High-Level Synthesis (HLS), emerged. SystemC allowed the use of standard C++ and a class library for HDL generation in 1999, simplifying the IC development process with HLS [
10]. Today, HLS tools like LegUP, Xilinx Vivado HLS, and Intel’s HLS compiler transform C++ into HDL.
On the other hand, the journey of Artificial Intelligence (AI) started in the 1960s and improved during the 1970s and 1980s with foundational concepts and algorithms of deep learning and Artificial Neural Networks (ANN) [
11,
12]. During the late 1980s and early 1990s, the Machine Learning (ML) and AI community experienced a wave of enthusiasm as it was discovered that ANNs could tackle certain problems in novel ways. These networks had the distinct advantage of processing raw and diverse data types and developing hierarchical structures autonomously during the training phase for predictive tasks. However, the computational power at the time was insufficient for large-scale problems, limiting the application to smaller, simpler tasks [
12,
13,
14].
It was not until the end of the 2000s that technological advancements, propelled by Moore’s Law, equipped computers with the necessary power to train extensive ANNs on substantial, real-world challenges, such as the Imagenet project [
15]. This advancement was largely due to the advent of general-purpose computing on graphics processing units, which offered superior floating-point performance compared to Central Processing Units (CPUs) [
16]. This shift enabled ANNs to achieve remarkable results on complex issues of significant importance.
The last decade has been transformative for ML, especially with the rise of deep learning techniques that utilize ANN. These advancements have significantly enhanced the precision of systems in various domains [
17]. Notable progress has been made in fields such as computer vision [
18,
19,
20,
21], speech recognition [
22,
23], language translation [
24], and other complex natural language processing tasks [
25,
26,
27,
28,
29,
30]. This progress is attributed to the collective efforts and breakthroughs documented in key research papers.
Additionally, reinforcement learning shows promise in automating the design of custom Application-Specific Integrated Circuit (ASIC) by solving nondeterministic polynomial-hard optimization problems that are currently reliant on human expertise. This approach could revolutionize the synthesis, placement, and routing processes in chip design, potentially outperforming human teams by rapidly generating efficient layouts [
31,
32,
33]. Google’s preliminary experiments with this technology have yielded encouraging results, suggesting a future where machine learning accelerates and enhances the ASIC design process [
14].
Research conducted by International Business Strategies Inc. in 2014, 2018, and 2022 categorizes the IC design costs into seven components: Intellectual Property (IP), Architecture, Verification, Physical Design, Software, Prototyping, and Validation. These studies reveal that design costs fluctuate significantly due to two primary factors: the prevailing technology at the time and the nanometer scale at which it is desired to fabricate. For instance, the design cost for a 28 nm circuit was approximately USD 140 million in 2014, reduced to USD 51.3 million in 2018, and further decreased to USD 48 million in 2022. Based on the 2018 and 2022 analyses, the estimated distribution of costs is as follows: IP at 6.85%, Architecture at 5.24%, Verification at 21.24%, Physical Design at 10.2%, Software at 43.32%, Prototyping at 5.24%, and Validation at 7.92%. These percentages provide a framework for approximating the allocation of expenses in IC design.
Advancements in machine learning could streamline the entire ASIC design process, from high-level synthesis to low-level logic placement and routing. This automation could drastically cut down design time from months to weeks, changing the economic calculus by reducing costs in Prototyping, Verification, and Architecture, combined with open-source tools and IPs, design costs would be further reduced. It may be feasible to create customized chips, which are currently reserved for high-volume and high-value scenarios.
Today, commercial LLMs like OpenAI’s ChatGPT [
34], Google’s Bard [
35], and Microsoft AI chatbot [
36] have been used to introduce innovative HDL generation. These methods involve feeding the LLM with the system specifications, which then automatically produce HDL code. This synergy between AI and IC development promises enhanced efficiency and opens new frontiers in the field. Nevertheless, the state-of-the-art models fall short in their ability to effectively comprehend and rectify errors introduced by these tools, making it challenging to autonomously generate comprehensive designs and testbenches with minimal initial human intervention [
37,
38,
39].
This work combines different processes to increase the complexity of an IC and reduce the amount of work required. The primary research inquiry revolves around the capability of contemporary commercial LLMs to produce Convolutional Neural Network (CNN) hardware designs that are not only synthesizable, but also manufacturable using the first open-source Process Design Kits (PDKs) called SKY130A.
The development of
AI by AI—a CNN IC engineered for MNIST dataset classification—involves the use of LLM, Vivado HLS, Verilog, OpenLane, and Caravel.
AI by AI was entirely crafted by OpenAI’s ChatGPT-4. It began as a TensorFlow (TF) CNN architecture, followed by a downscaling from Python to C++, and then was translated to Verilog using Vivado HLS. The layout design process is made by OpenLane, resulting in a layout IP of the CNN. The journey culminated with the integration of the CNN IP with Caravel, a template System on Chip (SoC) which is ready for manufacturing using ChipIgnite shuttles, a multi-project wafer program by Efabless, with the SKY130A PDK [
40,
41]. Throughout this paper, we delve deeply into the development of
AI by AI IC from TF to tape-out.
The remainder of this work is organized as follows:
Section 2 provides an overview of the employed tools, outlining both their advantages and disadvantages;
Section 3 explains the workflow and conversation flow;
Section 4 is about the implementation of
AI by AI IC;
Section 5 shows the obtained results;
Section 6 presents the discussions; and, finally,
Section 7 concludes this work.
4. Development of AI by AI
The development of
AI by AI consists of a series of dialogues with ChatGPT-4, following the conversational structure outlined in
Figure 3. For access to the complete conversations, the generated code, and the entire project, please refer to the following GitHub repository:
https://github.com/Baungarten-CINVESTAV/AI_by_AI (accessed on 4 March 2024).
Table 4 provides the ChatGPT URL of each conversation and the main topic covered in those conversations, accessed on 4 March 2024.

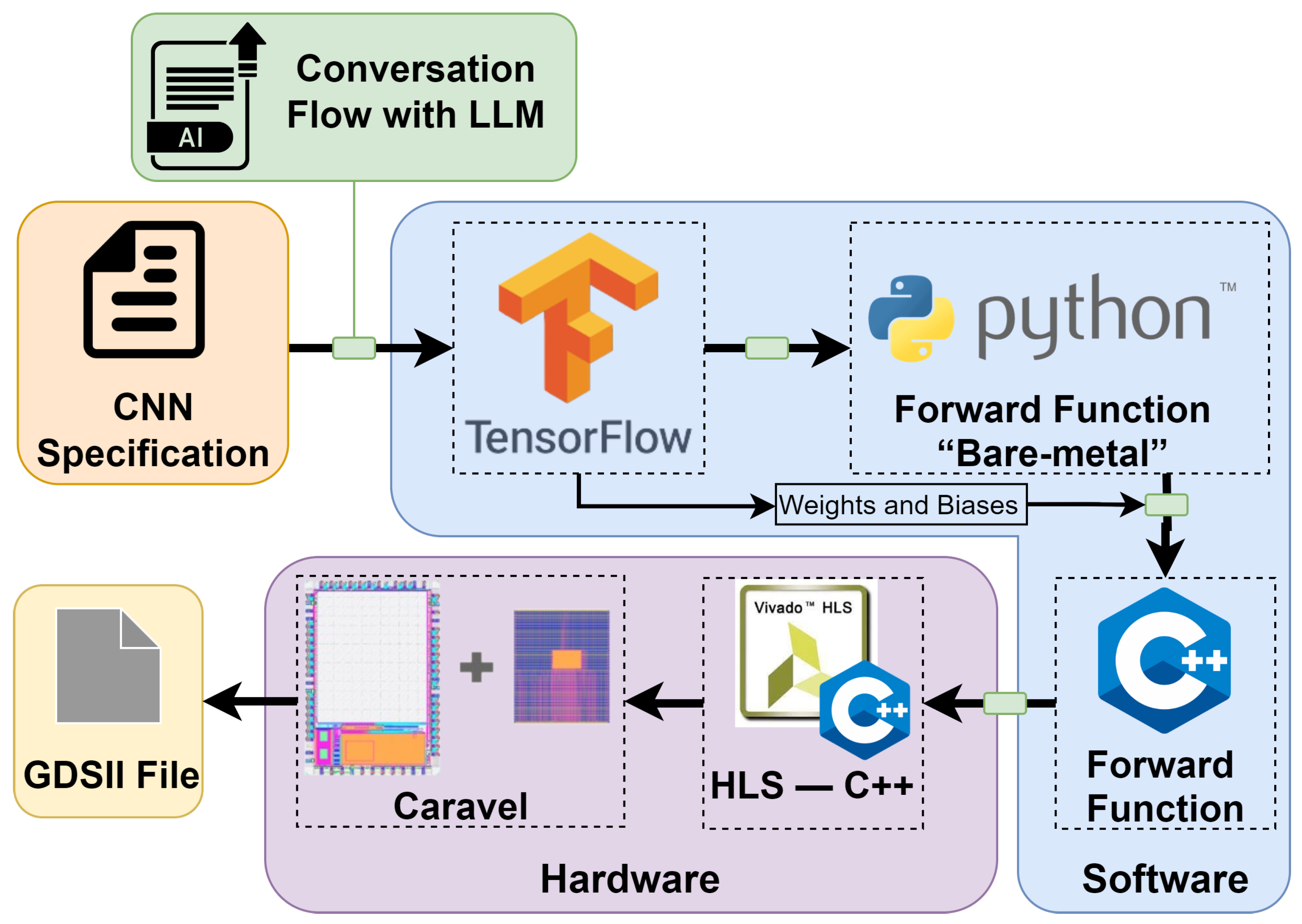

This chapter is structured into five distinct subsections, as visually represented in
Figure 4. In each of these sections, the relevant prompts, primary challenges, key considerations, and the step-by-step development process are detailed. The journey commences with the creation of the CNN using TF, and culminated with the generation of the GDSII file ready for manufacturing.
4.1. CNN with TF
The CNN was designed for image inference tasks toward the renowned MNIST dataset [
52]. To harness the power of cloud computing, we opted for Google Colab [
53], primarily due to its integration of TF libraries and the capacity to use GPUs.

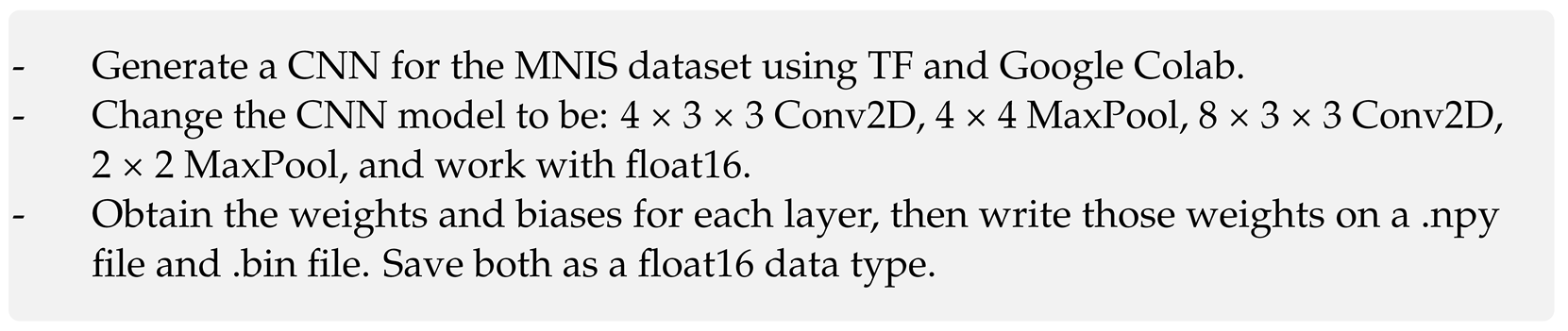

The noteworthy prompts that emerged during the interactions with ChatGPT-4 included:
The approach taken involved implementing a compact network using the following layers 4 × 3 × 3 Conv2D, 4 × 4 MaxPool, 8 × 3 × 3 Conv2D, 2 × 2 MaxPool, flatten, and finally, the dense layer, as well as the use of half-precision floating-point format to optimize resource usage.

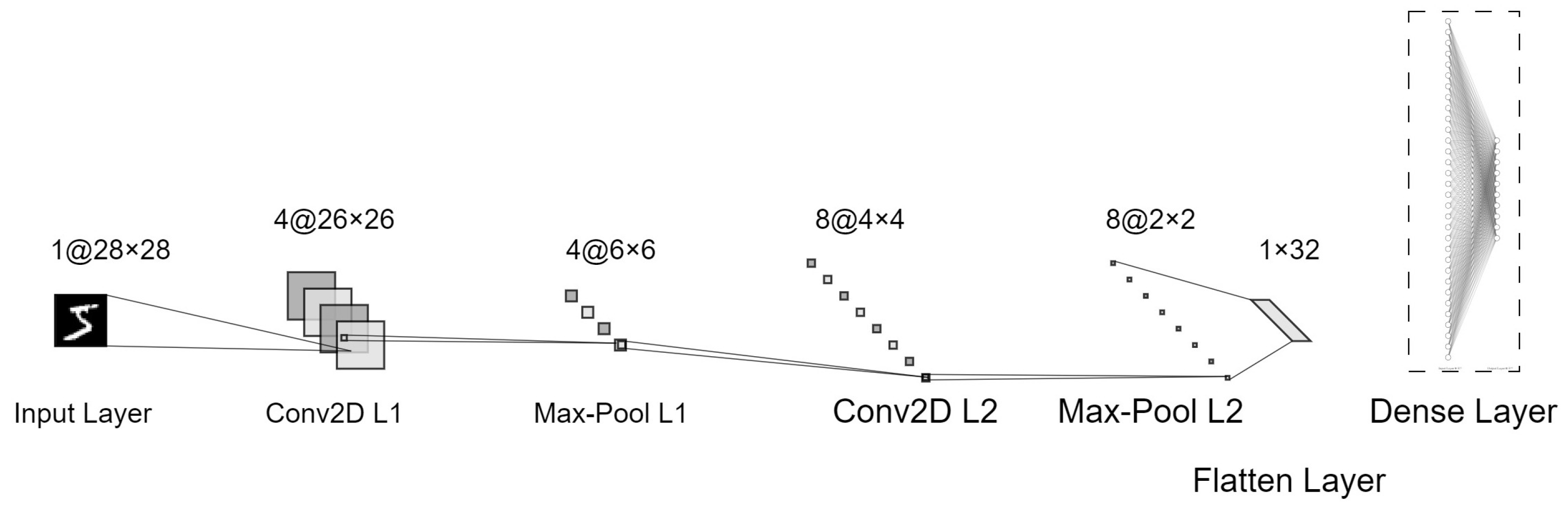

Figure 5 illustrates the CNN created.
The implemented CNN utilizes a total of 666 parameters. This breakdown encompasses 36 weights and 4 biases for the initial convolutional layer, 288 weights and 8 biases for the second convolutional layer, and, finally, 320 weights and 10 biases for the dense layer. In terms of memory consumption, this results in a total of 1.332 KB required only for storing the weights and biases. At the end of the training phase, the model showed an accuracy of 99.4%. Part of the TF code of the CNN generated by the IA can be found below.
4.2. Forward Function in Python
Implementing the inference function in Python without the use of the TF library is a critical step in the process because, as we approach lower-level languages or avoid the use of libraries, we obtain answers with a higher number of errors. To face that problem, we provide the LLM with examples in a higher level language. In this case, ChatGPT-4 is instructed to utilize the pre-existing network, created with TF, to create the inference function using the weights and biases from previously saved NumPy files.
Key prompts from interactions with ChatGPT-4:

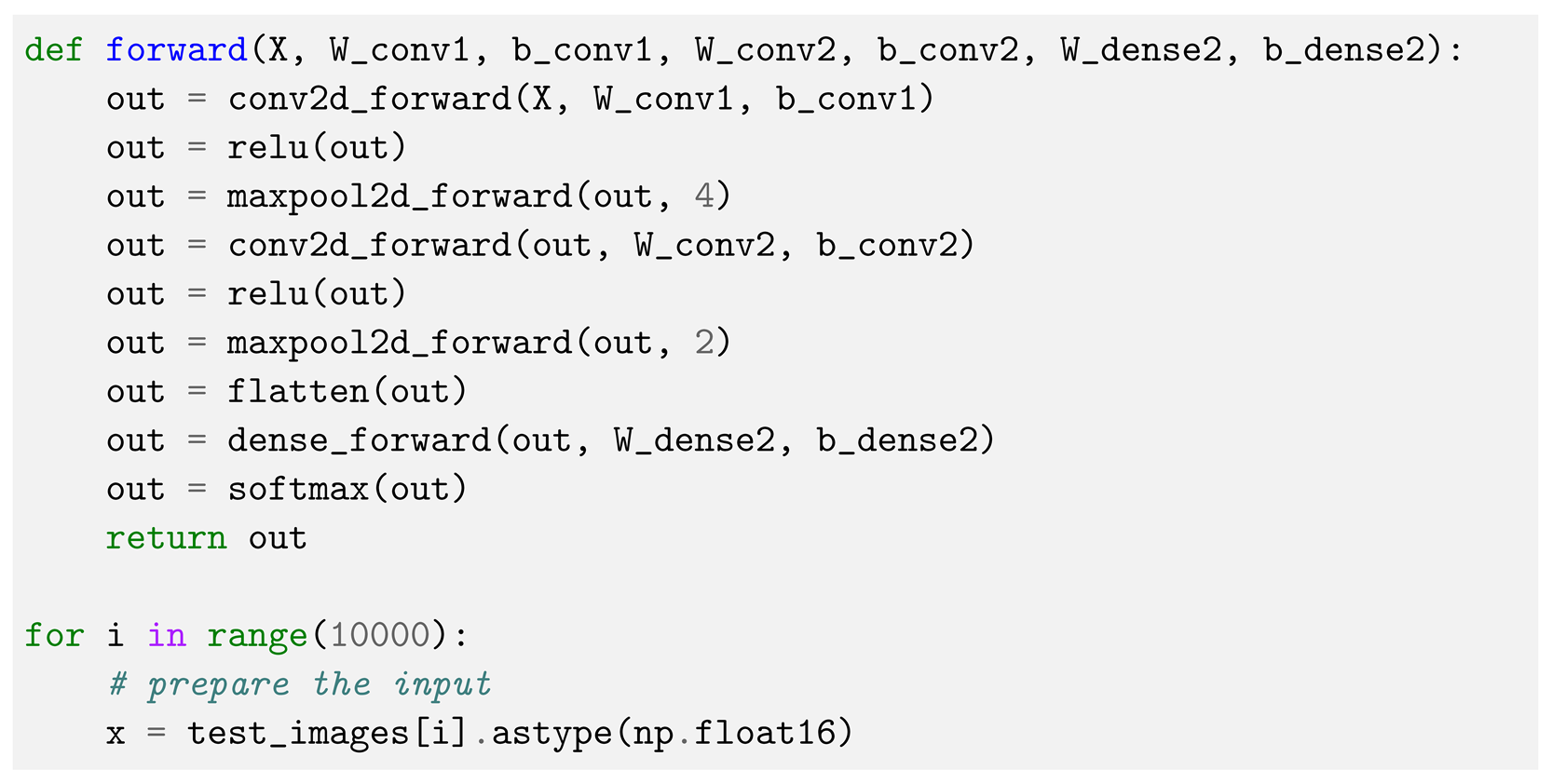

The previous chat generated six essential secondary functions required for inference implementation: relu, softmax, conv2d_forwar, maxpool2d_forward, flatten, dense_forward, and a main function named forward, which calls within it the secondary functions. The following code shows the definition of the forward function and how it was used to perform the test phase.
4.3. From Python to C++
Utilizing a low-level programming language necessitated a more explicit approach to crafting prompts. This involved providing the entire code for the seven previously generated functions and demanded a higher number of iterations.

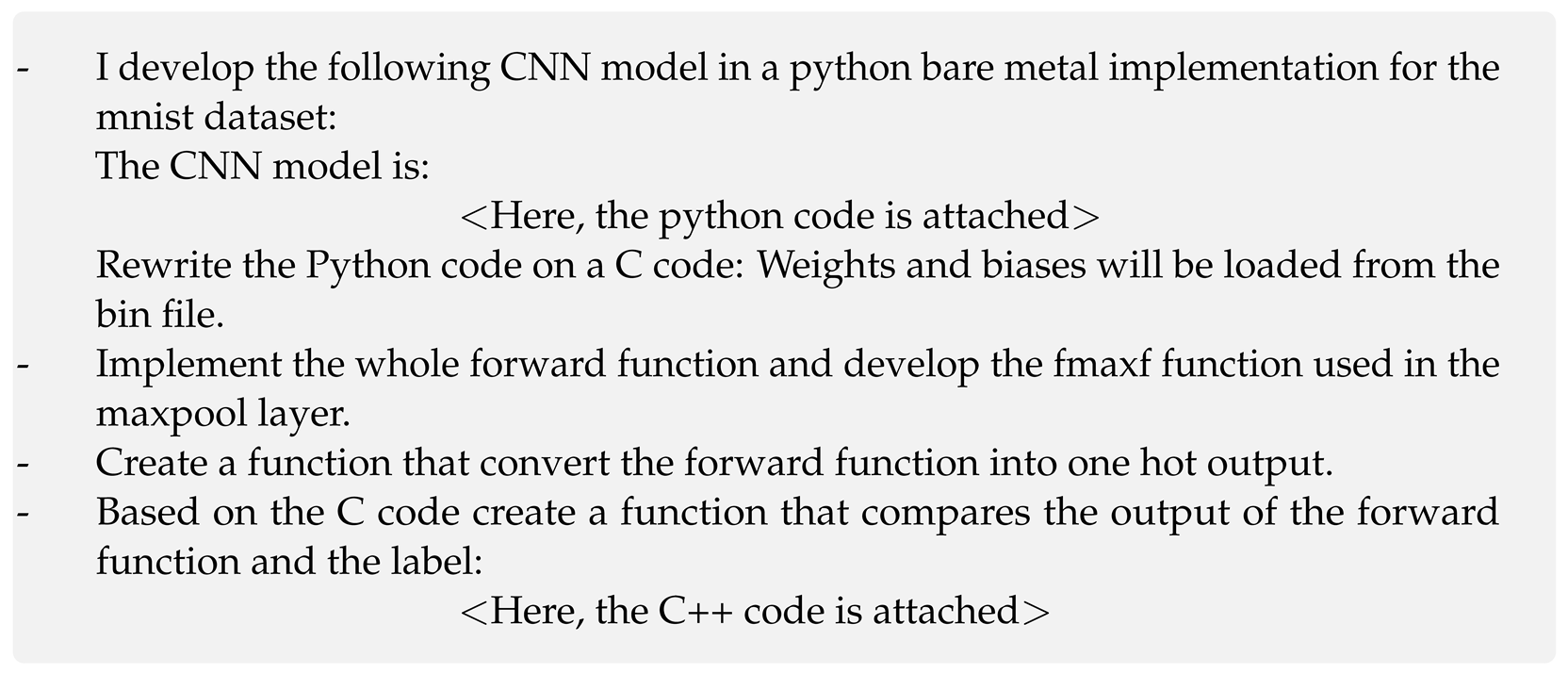

Main prompts obtained during interactions with ChatGPT-4:
After the “From Python to C code” conversations mentioned in

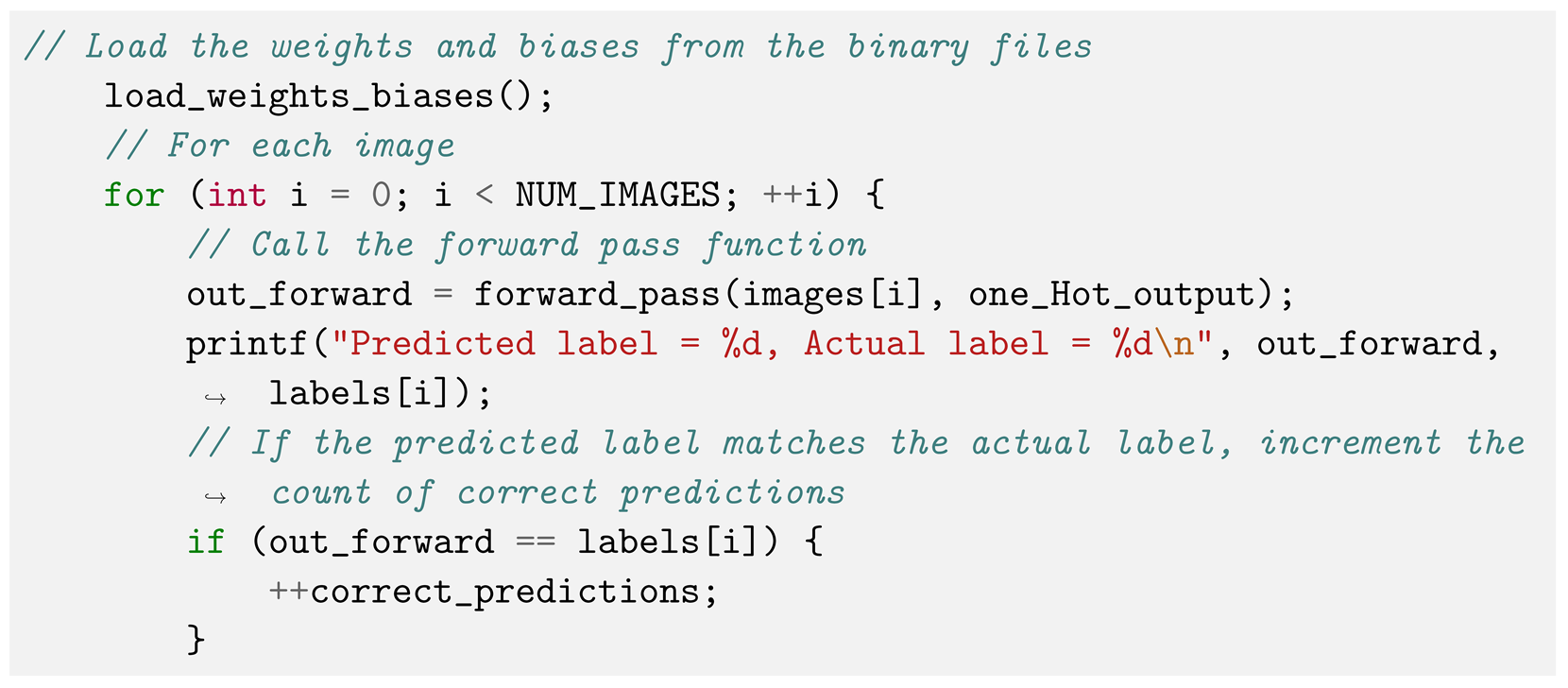

Table 4, we achieved a successful implementation of all the layers of the CNN in a short time. The C++ code presented below shows how the forward function is called N times for the test phase.

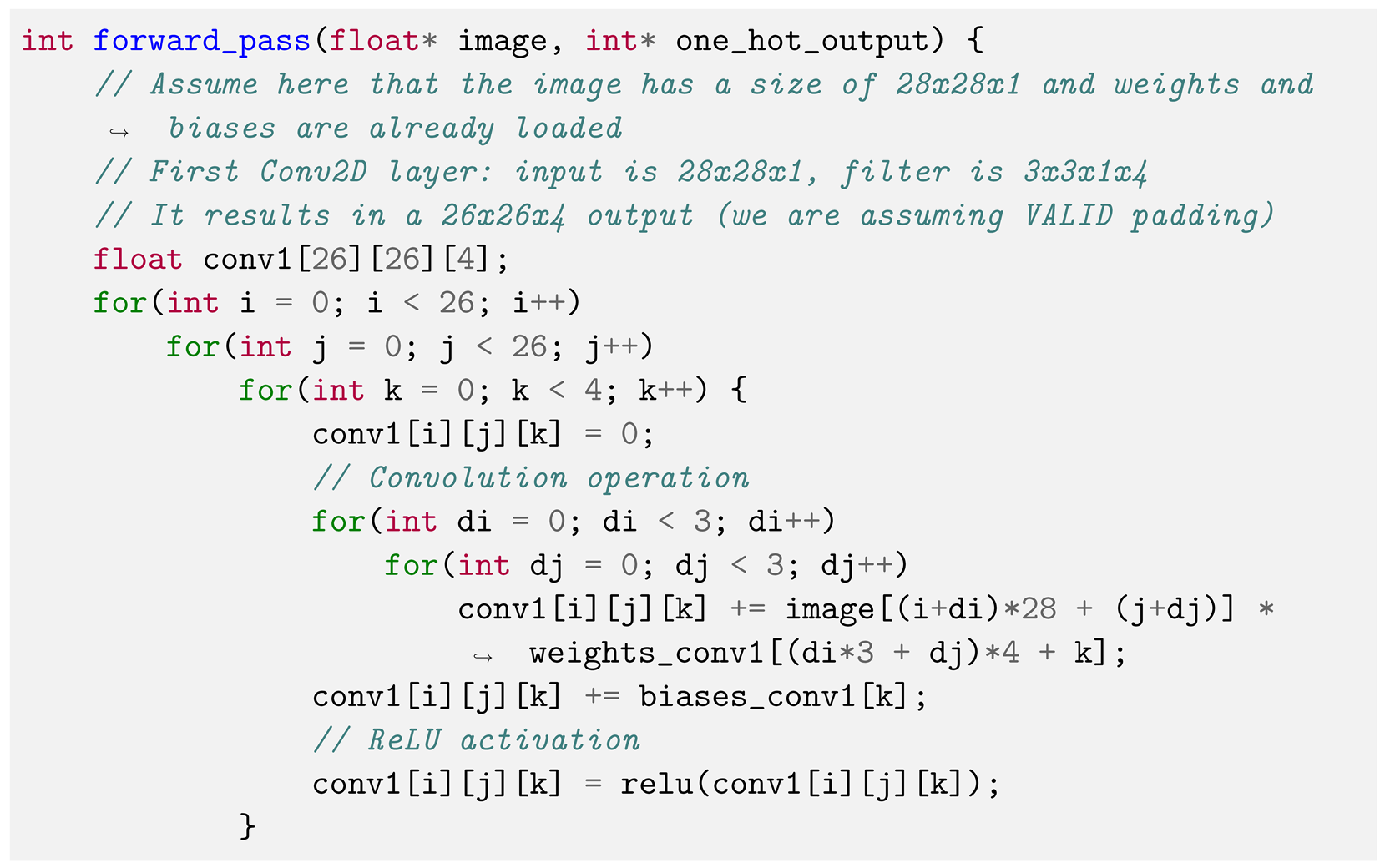

Part of the forward_pass function is presented below, where each of the layers, both convolutional and maxpool, was implemented through a series of for loops, where variable i represents the pixel coordinate in x, variable j represents the pixel coordinate in y, and variable k represents the filter number. On the other hand variables di and dj represent the kernel, being a 3 × 3 kernel for the first convolutional layer.
The C++ code provided by the AI can be easily scaled and customized to create various convolutional layers, changing only the ranges of the first two for loops that represent the size of the image, the third for represents the amount of filter that the layer has, and the last two for loops represent the size of the kernel. This versatility opens the opportunity to construct a wide range of CNNs, and all with the code provided by the AI.
4.4. Vivado HLS Considerations
The C++ code generated by the IA uses floating data types, although Vivado HLS supports this type of data when implemented at the hardware level it uses a restricted Floating Point Units (FPUs) IP, so its use is limited only to Xilinx boards.
To face this issue, C++ functions that utilize 16-bit integer data types, but perform floating-point operations at the bit level, were developed through a series of LLM conversations, keeping in mind the IEEE® 754 half-precision floating-point format.

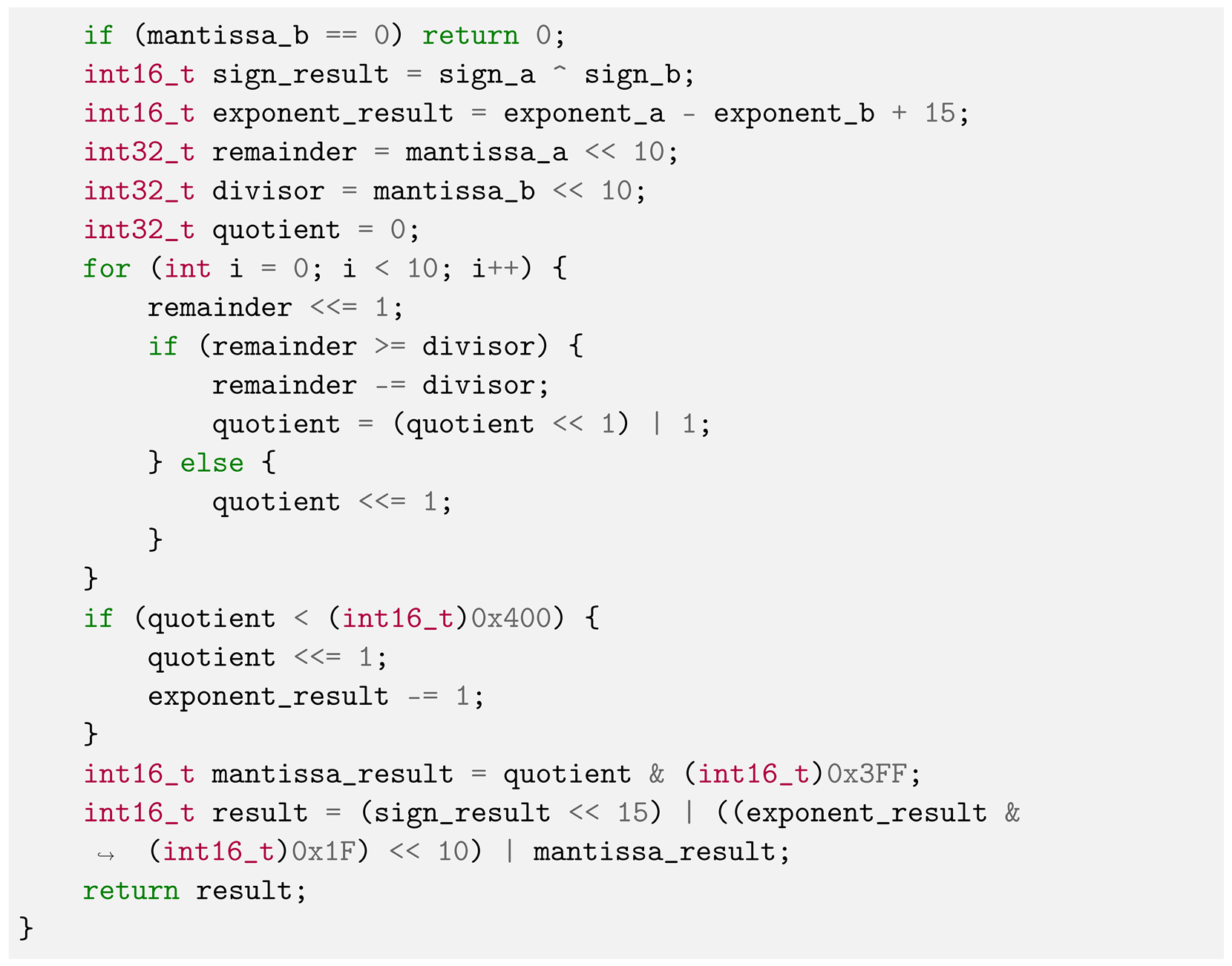

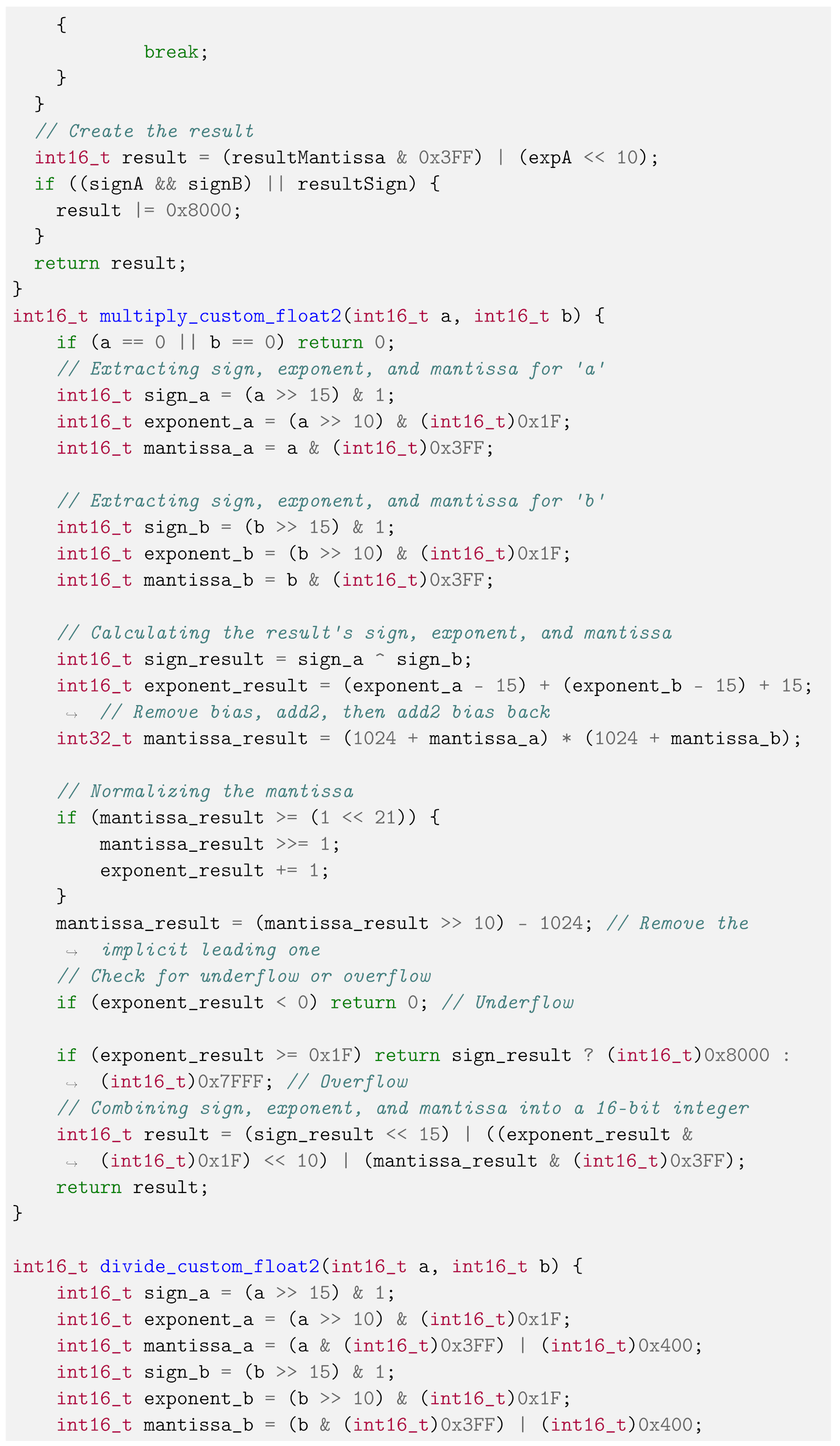

A total of eight functions were developed: addition, subtraction, multiplication, division, exponential, softmax, relu, and max. The addition, multiplication and division functions can be found in
Appendix A.

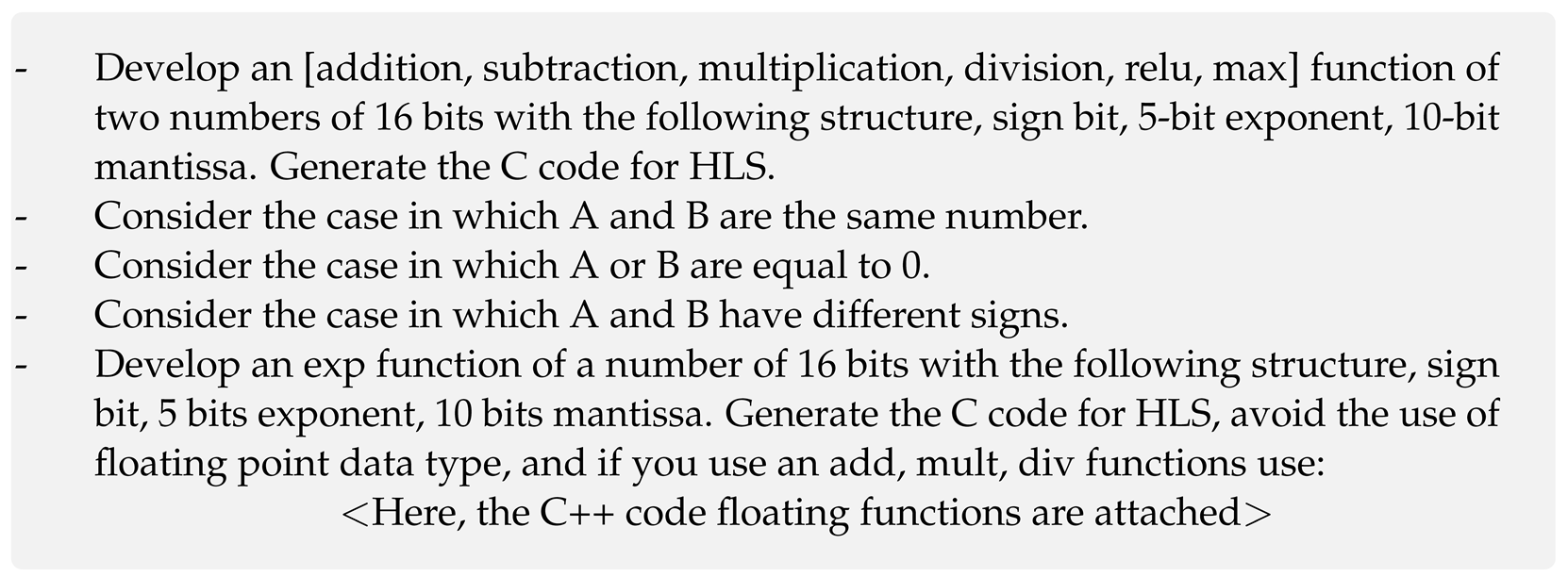

The main prompts obtained during interactions with ChatGPT-4 are:
The generated functions are then used to perform floating operations and used to replace the arithmetic symbols of the existing solution; e.g., instead of executing the
operationpresented in the forward function, the operation is executed as
where the multiplication of the pixel and the kernel is performed by the multiply_custom_floa function, and the summation of the convolution by the add function.
Due to variations in rounding methods for floating operations, the accuracy experienced a 1.4% reduction, which means that change from 99.4% to 98%. However, this error can be avoided if the floating functions created use exactly the same rounding algorithm used by TF.
4.5. Integration of the CNN with Caravel

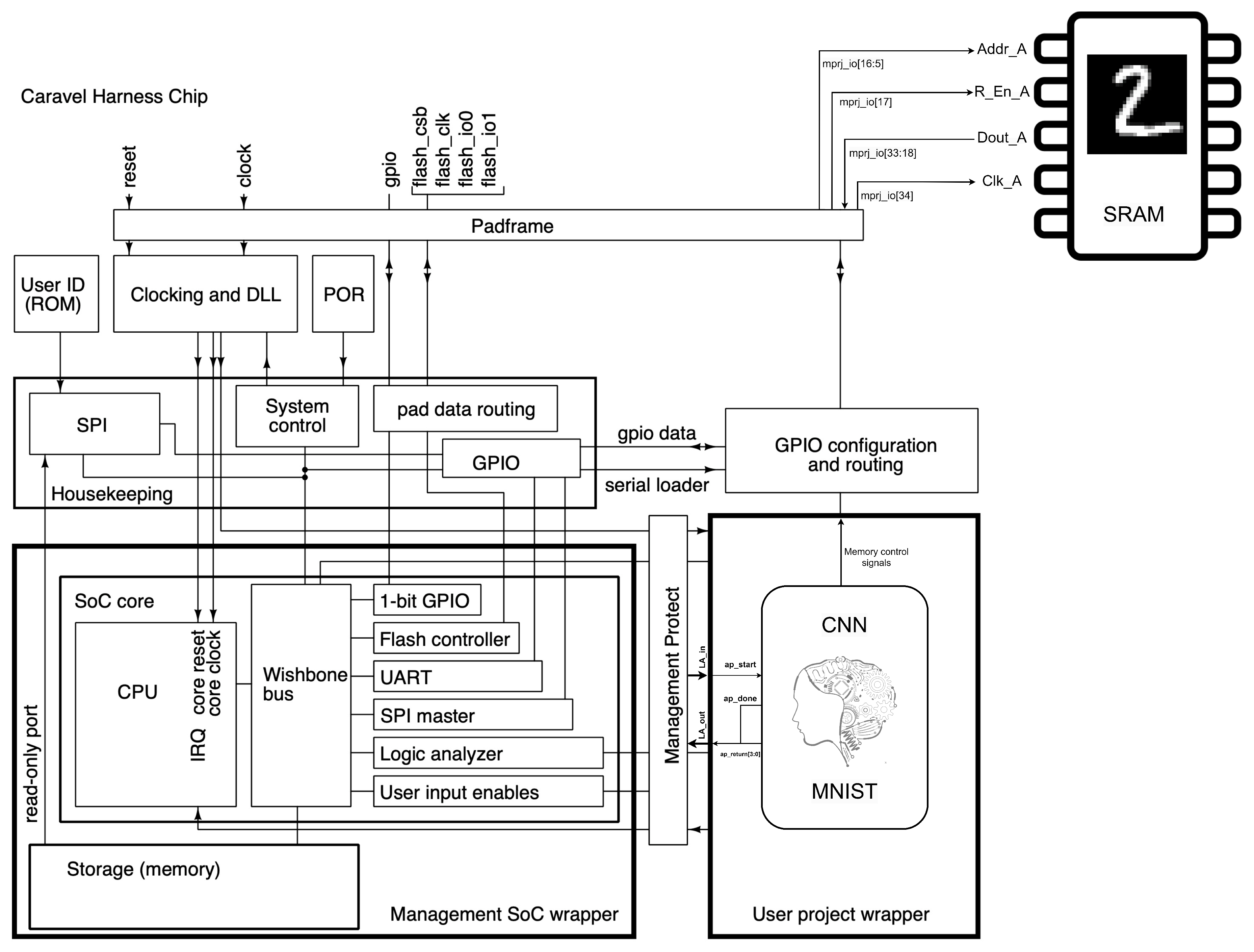

To integrate the CNN with the SoC template Caravel involves the creation of a single macro encompassing the logic of all the modules generated by HLS, because the logical density of the design utilizes the majority of the user area an external memory was employed for image storage which was connected to Caravel via GPIO ports. Meanwhile, the CNN was linked to the Caravel RISCV processor using the LA ports as
Figure 6 illustrates. This connection allowed the RISCV processor to manage the initiation of the inference process, with the signal la_data_in[2], system restarts, with the signal la_data_in[1], and receive the response of the inference from the CNN, with the signal la_data_out[31:28];
Table 5 shows the connection between
AI by AI and Caravel.

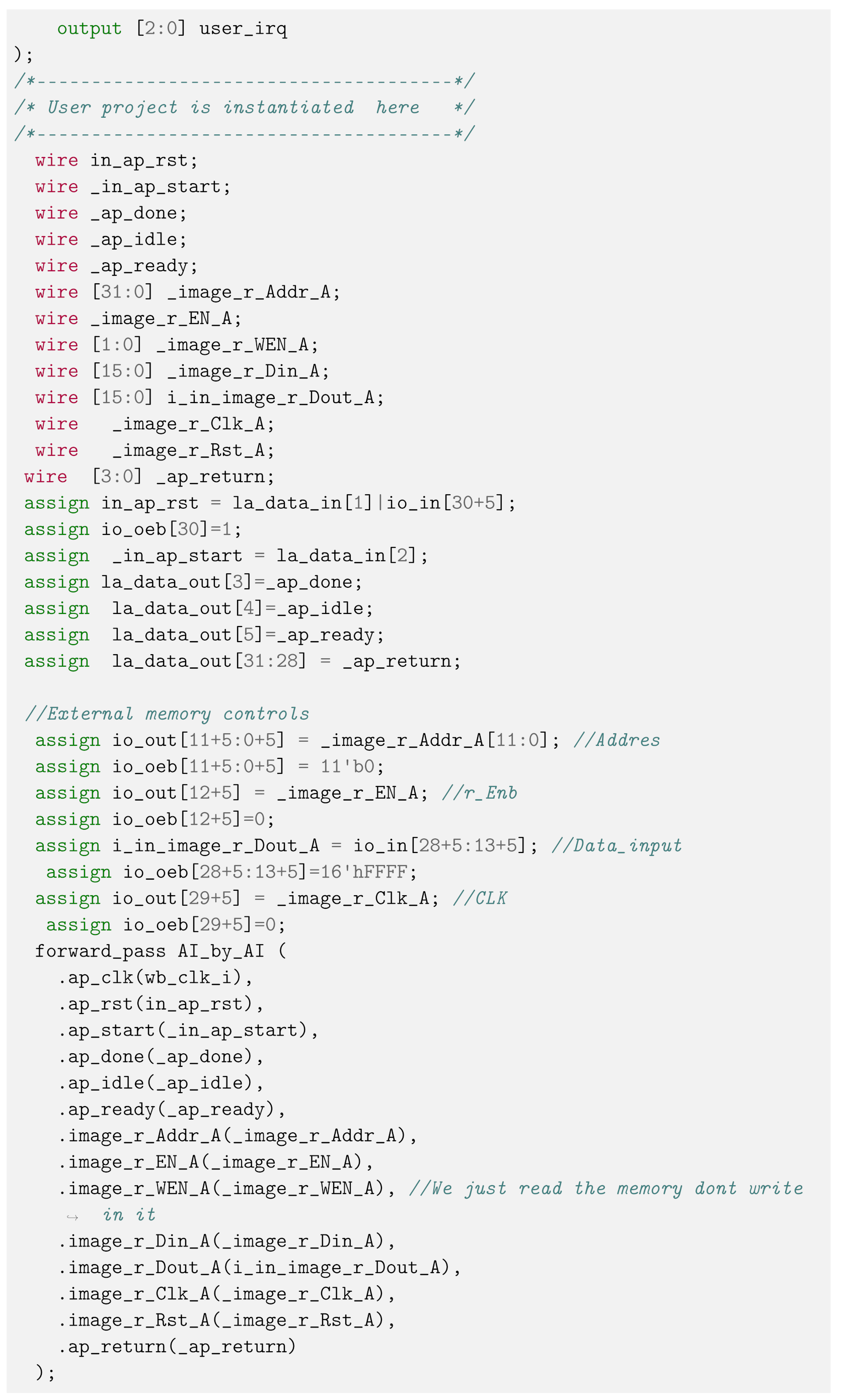

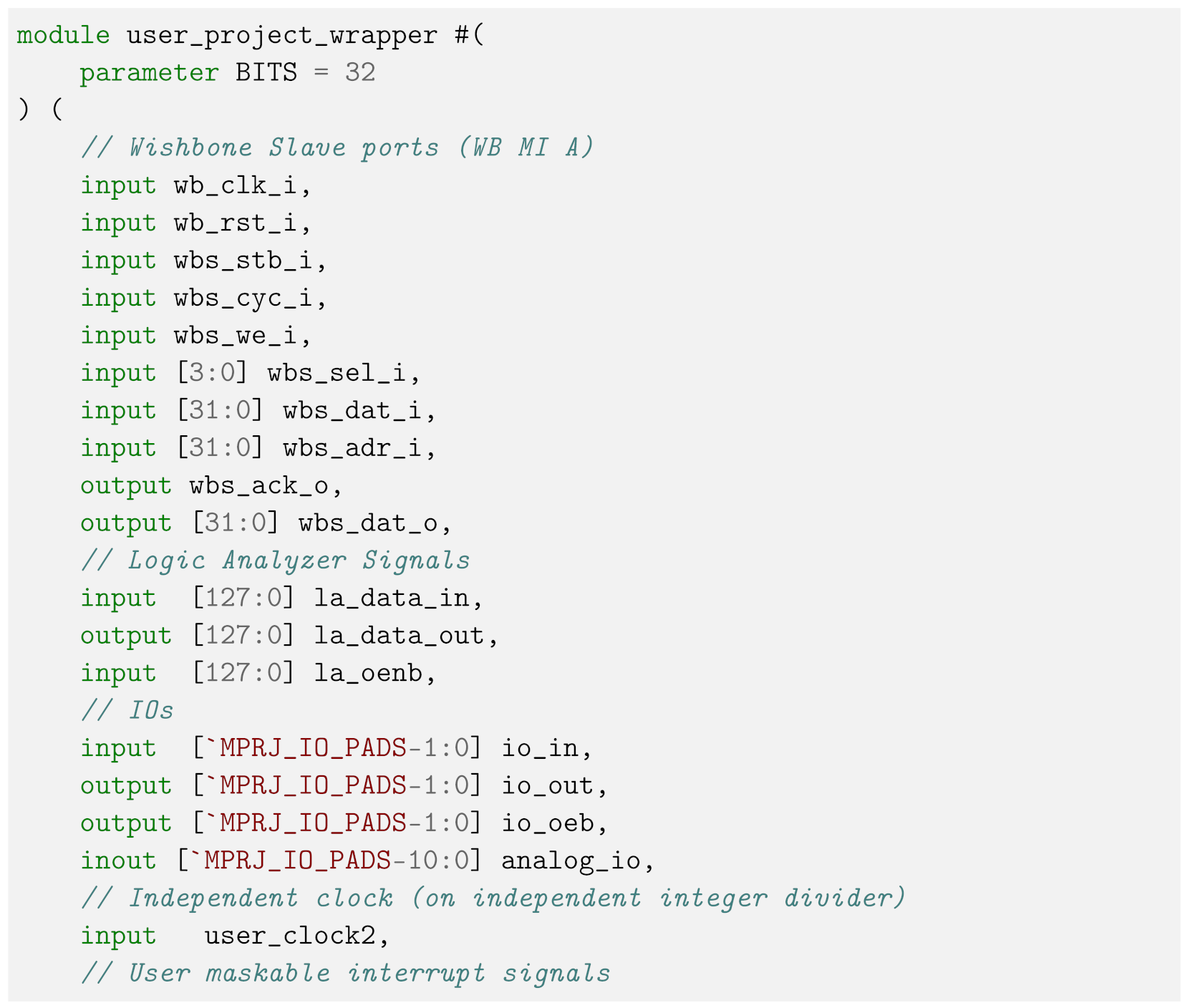

The verilog code provided to the OpenLane layout tool is just an instantiation of the IP generated by HLS connected to the Caravel ports;
Appendix B shows this instantiation.
5. Results
After establishing the connections between Caravel and the CNN, a testbench of the entire SoC was developed using the training data set to evaluate the performance of the CNN. Due to the RISC-V managing the SoC, some registers using C++ were configured to enable the utilization of LA ports, allowing communication between the CNN and the RISC-V processor, as well as GPIOs that enabled connectivity between the external SRAM and the SoC.
Figure 7 illustrates the SoC testbench, the image stored in memory, and the C++ code programmed in the RISC-V processor. The figure depicts the processor’s handling of reset signals, start processes, the waiting period for the done signal, and the resulting inference values. After 1000 iterations, the system yields the same results as the HLS test, with an accuracy of 98%, proving that it works as intended.
Table 6 presents the layout specifications, with the SKY130A PDK, for the
AI by AI system, including the gate count, die area, latency, maximum frequency, and power consumption.

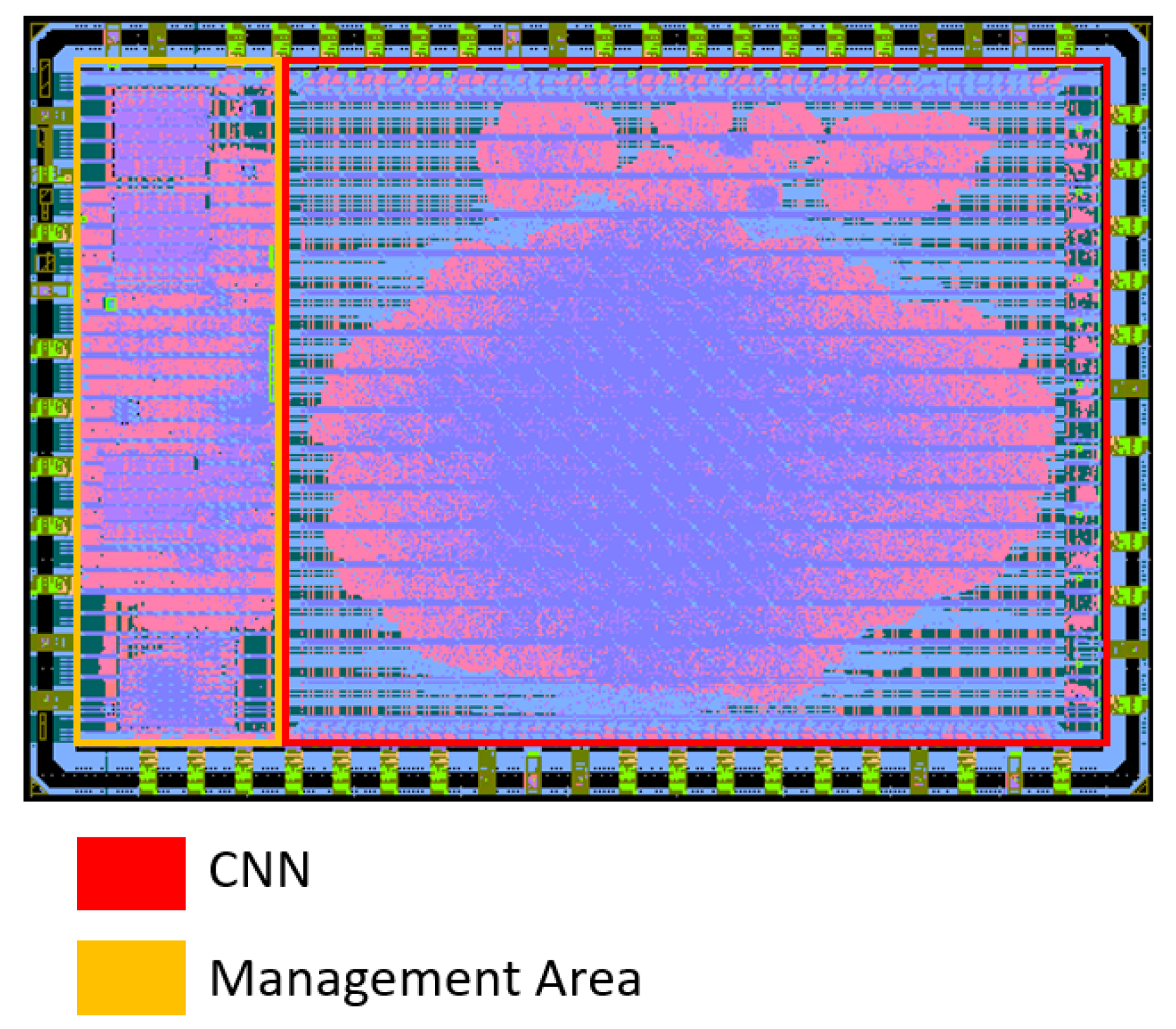

The outcome of the RTL to GDSII conversion process, along with its integration with the RISC-V made with Caravel, is visually presented in
Figure 8. It illustrates two distinct areas: the user area, representing a flat implementation of the CNN, and the management area, housing the processor and its associated peripherals.
6. Discussion
The findings of this research highlight significant aspects, such as:
The current limitations of LLMs in generating HDL code.
Establishing a workflow that utilizes LLMs to generate and downscale systems from TF to HDL.
Introducing a new approach for converting HLS to GDSII using open-source PDKs and tools.
Achieving the fabrication of a CNN IC entirely created by AI.
Setting a precedent for current AI-generated systems by providing specific system information, such as core area, cells per square millimeter, latency, power consumption, number of flip-flops, and total number of cells.
Offering open-source access to the entire project, from the initial conversation with the AI to the final GDSII files generated.
These findings directly address our central research question, “are contemporary commercial LLMs capable of producing synthesizable and manufacturable CNN hardware designs using the first open-source PDKs (SKY130A)?”,by providing new understanding and evidence that current commercial LLMs are not capable of directly creating a CNN in HDL; however, they are capable of creating synthesizable HLS code that can be used to generate IC with open-source tools. The paper elucidates the development of AI by AI, an innovative IC harnessing the power of AI. Our methodology involved the transformation of AI-generated TF code into Verilog, progressing through layout implementation and seamless integration with a RISC-V via Caravel. This process ultimately enabled us to propel AI by AI into the manufacturing phase through the ChipIgnite program.
AI by AI stands as a pioneering achievement, being the first CNN IC of its kind to be entirely conceptualized by AI and be fabricated with the open-source PDK SKY130A. Our approach harmoniously merges cutting-edge technologies, such as commercial LLMs, with more traditional ones like HLS and Verilog, creating an innovative workflow for developing intricate digital systems, particularly CNNs, and exploring the capacities of the current LLM. Frameworks like Caravel and multi-project wafer programs such as ChipIgnite have simplified and made cost-effective the layouts development and fabrication process.
While current commercial LLMs may not yet excel in rapidly and accurately producing Verilog and VHDL code, they have matured enough to proficiently handle programming tasks. The sequential transition from higher abstraction to lower abstraction languages, supplemented by tools like HLS, empowers us to generate functional Verilog code that seamlessly integrates into the silicon-level implementation process. This combination of technologies and methodologies has opened new horizons for AI-driven IC development.
