An SNR Estimation Technique Based on Deep Learning

State Key Laboratory of Complex Electromagnetic Environment Effects on Electronics and Information System, National University of Defense Technology, Changsha 410073, China
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(10), 1139; https://doi.org/10.3390/electronics8101139
Submission received: 28 August 2019 / Revised: 29 September 2019 / Accepted: 1 October 2019 / Published: 9 October 2019
(This article belongs to the Section Circuit and Signal Processing)

Abstract

:
Signal-to-noise ratio (SNR) is a priori information necessary for many signal processing algorithms or techniques. However, there are many problems exsisting in conventional SNR estimation techniques, such as limited application range of modulation types, narrow effective estimation range of signal-to-noise ratio, and poor ability to accommodate non-zero timing offsets and frequency offsets. In this paper, an SNR estimation technique based on deep learning (DL) is proposed, which is a non-data-aid (NDA) technique. Second and forth moment (M2M4) estimator is used as a benchmark, and experimental results show that the performance and robustness of the proposed method are better, and the applied ranges of modulation types is wider. At the same time, the proposed method is not only applicable to the baseband signal and the incoherent signal, but can also estimate the SNR of the intermediate frequency signal.

1. Introduction

In communication systems, signal-to-noise ratio (SNR) is a very important parameter, which characterizes channel quality. It is a priori information necessary for many signal processing algorithms or techniques, such as signal detection, power control, turbo decoding, adaptive modulation and demodulation, etc.
In general, according to the amount of knowledge available for a received signal, SNR estimators are classified into two types: a data-aid (DA) estimator and a non-data-aid (NDA) estimator. A DA estimator, such as maximum likelihood (ML) SNR estimator [1,2], Squared signal-to-noise variance (SNV) estimator [3], can usually be used if the transmitted data or pilot symbols are fully known to the receiving side. In contrast, an NDA estimator, such as second and forth moment (M2M4) estimator [4], split-symbol moment estimator (SSME) [5] and signal-to-variation ratio (SVR) estimator [6], can estimate the SNR solely from the unknown, information-bearing portion of the received signals. Although the performance of DA estimators may be better, NDA estimators do not invade on the throughput of the channel and require less a priori information. Therefore, NDA estimators are more practical, especially for non-cooperative scenarios.
During the last few decades, many SNR estimators have been proposed [7,8,9,10,11,12]. However, most of these SNR estimators still have the following limitations: (1) The application range of the modulation types is limited. For example, the ML SNR estimator is only applicable for BPSK signals, and M-ary PSK signals, and the M2M4 estimator is only applicable for MPSK signals. (2) The effective estimation range is narrow. For example, the performance of the subspace-based SNR estimation algorithms at low SNR is not ideal. The main reason is that the dimension of the signal subspace is easily overestimated under low SNR conditions. (3) Their robustness is poor. Many SNR estimators assume that the receiving system is perfectly synchronized, i.e., neither the timing offset nor the frequency offset exists. However, this requirement cannot always be met in the practical scenario, especially for non-cooperative scenarios.
On the other hand, many channel estimation methods based on deep learning (DL) have been proposed [13,14,15]. Compared to traditional channel estimation techniques, the performance and robustness of DL-based channel estimation are better. Inspired by this, an SNR estimation method based on deep learning is proposed in this paper, which aims to improve the performance of current SNR estimation, especially for non-cooperative scenarios. In view of the fact that the estimated performance of the M2M4 estimator is superior and widely studied and applied, it is used as a benchmark for the DL-based SNR estimator proposed in this paper.
The main contributions of this paper are summarized as follows:
  • Firstly, based on the derivation of the ML SNR estimator, this paper expounds the reasons for using a deep convolutional neural network to estimate the SNR of the received signal. The DL-based SNR estimator proposed in this paper is an end-to-end SNR method. Different from the traditional SNR estimation method, this method does not need to manually design an SNR estimator, and minimizes the need for expert knowledge, which effectively improves the development speed of the SNR estimation system.
  • Secondly, in order to accommodate the varying input dimensions and avoid the training problem of deep neural network caused by long input signal, an SNR estimation strategy is carefully designed in this paper. Specifically, for a received signal to be estimated (the length of which is different from the input dimension of the trained deep neural network, which may be very large), we use the following strategy to estimate its SNR: first, splitting it so that the length of each segment is consistent with the input dimension of the deep neural network. Each segment is then fed into the trained deep neural network to obtain the output. Then, inputting each segment to the trained deep neural network to obtain its output. It is worth noting that the output of the deep neural network is not an estimate of the SNR, but an estimate of its amplitude. Finally, according to a certain method, the amplitude estimate of each segment is used to calculate the SNR estimate of the received signal with a large input dimension.
  • Finally, the DL-based SNR estimation method proposed in this paper is an NDA estimator. Compared with the traditional SNR estimation methods represented by M2M4 estimator, the performance and robustness of the proposed method are better, and the application range of modulation types is wider. At the same time, the proposed method is not only applicable to the baseband signal, but can also estimate the SNR of the intermediate frequency (IF) signal.
The rest of this paper is organized as follows: In Section 2, the deep neural network used in this paper is introduced. Experiments and comparisons are shown in Section 3. Finally, Section 4 demonstrates the conclusions and discussions.

2. System Model

In this section, we first review the ML SNR estimator. Secondly, we briefly introduce the convolutional neural network. Then, based on the derivation of the ML SNR estimator, we explain the reasons for using a convolutional neural network to estimate the SNR of the received signal. Finally, we describe the proposed SNR estimation method.

2.1. ML SNR Estimator

The ML SNR estimator is optimal for the case of aid-data accessible, and it can be close to the Cramer-Rao lower bound. It is introduced by Kerr [1] and Gagliardi and Tomas [2].
A complex, discrete, baseband-equivalent, band-limited model of coherent M-ary PSK in complex additive white Gaussian noise (AWGN) is shown in Figure 1.
Assuming that the timing, phase, and frequency offsets do not exist, the received signal can be expressed as
r k = S m k + N z k
where m k is a sampled, pulsed-shaped information signal, z k is a complex, sampled, zero-mean AWGN of unit variance, S is a signal power scale factor, and N is a noise power scale factor. Rewrite it in terms of real and imaginary parts as
r k = r I k + j r Q k = S ( m I k + m Q k ) + N ( z I k + z Q k )
Let v I k = N z I k and v Q k = N z Q k denote the in-phase and quadrature components of the noise, respectively, each of which is zero mean and variance N / 2 . Assuming that the in-phase and quadrature components of the noise are independent, their joint Probability Density Function (PDF) is
f ( v I k , v Q k ) = 1 π N exp { 1 N ( v I k 2 + v Q k 2 ) }
Using Equations (2) and (3), the joint PDF of the in-phase and quadrature components of the received signal sample can be written
f ( v I k , v Q k | S , N , i ) = 1 π N exp { 1 N [ ( r I k S m I k i ) 2 + ( r Q k S m Q k i ) 2 ] }
the superscript i of m I k i and m Q k i represents the i-th transmission information sequence. Assuming that the signal and noise sequences are independent, then the joint PDF of the received sample with K = N s y m N s s points is ( N s y m is the number of source symbol and N s s is the number of samples per symbol)
f ( r I , r Q | S , N , i ) = 1 ( π N ) K exp { 1 N [ k = 0 K 1 ( r I k S m I k i ) 2 + k = 0 K 1 ( r Q k S m Q k i ) 2 ] }
Thus, the likelihood function Γ ( r | S , N , i ) is
Γ ( r | S , N , i ) = K ln ( π N ) 1 N [ k = 0 K 1 ( r I k S m I k i ) 2 + k = 0 K 1 ( r Q k S m Q k i ) 2 ]
By solving the solution of the system of partial differential equations, and E { ( 1 K k [ ( m I k i ) 2 + ( m Q k i ) 2 ] ) } = 1 / N s s , the estimated power S ^ M L of signal and the estimated power N ^ M L of noise are
S ^ M L = [ N s s K k = 0 K 1 Re { r k * m k i } ] 2
N ^ M L = 1 K k = 0 K 1 [ r I k 2 + r Q k 2 ] S ^ M L / N s s
Therefore, the ML SNR estimator of the received signal is
ρ ^ M L = S ^ M L N ^ M L = N s s 2 [ 1 K k = 0 K 1 Re { r k * m k i } ] 2 1 K k = 0 K 1 [ r I k 2 + r Q k 2 ] N s s [ 1 K k = 0 K 1 Re { r k * m k i } ] 2

2.2. Convolutional Neural Networks

A one-dimensional (1D) convolutional neural network (part) is shown in Figure 2. For the 1D convolution layer 1, the output C k ( 1 ) ( 1 ) of the k ( 1 ) -th filter is
C k ( 1 ) ( 1 ) = g ( i = 1 N 1 x i ( 1 ) w k ( 1 ) ( 1 ) + b k ( 1 ) ( 1 ) )
where x i ( 1 ) represents the i -th column of the input of this convolution layer, w k ( 1 ) ( 1 ) represents the k ( 1 ) -th filter coefficient, b k ( 1 ) ( 1 ) represents the bias of the k ( 1 ) -th filter, represents the convolution operation, and g ( · ) represents the corresponding activation function. The activation function used in this paper is rectified linear unit (Relu): g ( x ) = max { 0 , x } .
For the 1D convolution layer 2, the output C k ( 2 ) ( 2 ) of the k ( 2 ) -th filter is
C k ( 2 ) ( 2 ) = g ( i = 1 N 2 x i ( 2 ) w k ( 2 ) ( 2 ) + b k ( 2 ) ( 2 ) )
where x i ( 2 ) is the corresponding output of the previous layer. For example, if the previous layer is the convolution layer, then x i ( 2 ) = C i ( 1 ) .
Usually, the pooling layer is connected after the convolutional layer. The pooling layer is also a feature extraction process, which has the same number of feature signals (corresponding to the convolution kernel) as the convolution layer, except that the feature signal has a lower dimension. The purpose of the pooling operation is to reduce the dimension of the feature signals and enhance the invariance of the feature to deal with small disturbances. There are usually two pooling operations: maximum pooling and average pooling. When the maximum pooling function is applied, the pooling layer is defined as:
p m , k = max n = 1 N { c m , ( k - 1 ) × q + n }
where N is the pooling size and q is the slide size, which determines the degree of overlap of the adjacent pool windows. p m , k represents the i -th element of the m -th column of the output of this pooling layer. The reference [16] claims that the performance of the maximum pooling is better than the average pooling. In the work of this paper, we employ the maximum pooling operation.

2.3. Reasons for Using CNN for SNR Estimation

Assuming that the channel environment is complex AWGN, and the timing, phase, and frequency offsets do not exist, then the samples of the received signal are independent identically distributed (IID). Therefore, the following two properties from Equation (6) need to be noticed:
  • The statistical properties of segment r of length K at arbitrary time intervals are the same, i.e., E { Γ ( r m | S , N , i ) } = E { Γ ( r n | S , N , i ) } , where r m and r n represent the segments at different time intervals.
  • The signal sequence of length K can be divided into consecutive subsequences, and the likelihood function can be expressed as Γ ( r K | S , N , i ) = m = 1 M Γ ( r K M | S , N , i ) , where K = M × K M .
Property 1 indicates that the signals are identically distributed in the time domain. The signal segments at different time intervals have the same impulse response under the action of the convolution kernel, so features can be extracted at any time slot. Property 2 indicates that the likelihood function is compositional and can be approximated by a model of stacked cascade. Therefore, a CNN with a local perception domain will be more applicable than a fully-connected neural network, especially for large input dimensions CNN will be easier to train and the problem of overfitting will be lighter. Therefore, a deep (convolutional) neural network is used to estimate the SNR of the received signal in this paper and its structure is shown in Figure 3. This deep neural network consists of five convolution layers, five maximum pooling layers, and three fully connected layers. Its parameters for each layer are shown in Figure 3 (the structure of deep neural networks is one of the cores of deep learning based methods. However, the choice of the structure of the deep neural network is an open problem, usually heavily depending on the subjective experience of the researcher and certain experimental verification).
The input to the deep neural network is a raw signal vector. Before inputting this IQ signal r C N × 1 into the deep neural network, it is transformed as follows:
x i n p u t = [ r e a l ( r ) , imag ( r ) ]

2.4. CNN-Based SNR Estimation

A longer input signal can make the SNR estimation of the target signal more accurate, while the requirements of different tasks also make the input dimension of the signal used to estimate its SNR variance. On the other hand, DL-based techniques have the following two limitations: Firstly, in general, the input dimension of the deep neural network must be clear before training and the input dimension for testing remains the same. Secondly, the longer input dimension means larger deep neural networks, which will result in easier overfitting and more computational resources and training samples needed.
In order to solve this contradiction, this paper estimates the signal amplitude of the target signal instead of directly estimating its SNR. In other words, the output of our deep neural network is not an estimate of the SNR of the received signal, but an estimate of its amplitude.
From Equation (7), the estimated amplitude σ ^ of the target signal is
σ ^ = S ^ M L = N s s K k = 0 K 1 Re { r k * m k i }
Therefore, for a signal with a length of K M = M × K , its estimated amplitude is
σ ^ M = 1 M m = 0 M 1 [ N s s K k = m K ( m + 1 ) K 1 Re { r k * m k i } ] = 1 M m = 0 M 1 σ ^
After obtaining the estimated amplitude of the received signal, its estimated SNR ρ ^ D L is
ρ ^ D L = σ ^ M 2 k [ r I k 2 + r Q k 2 ] σ ^ M 2
Therefore, for each training batch, the loss function T ( θ ) of the deep neural network is
T ( θ ) = s | σ s σ ^ s | 2
where σ s represents the signal amplitude of the s -th segment of the received signal, σ ^ s represents the corresponding estimated value of σ s , and θ is the parameter set of the deep neural network. This loss function will be minimized by adaptive moment (Adam) estimation, and the model parameter is updated iteratively as
θ ( t + 1 ) θ ( t ) η θ T ( θ ( t ) )
where η denotes the learning rate. The problem of SNR estimation of the received signal with large input dimensions can be calculated by the following scheme:
  • Firstly, segmenting the received signal, the length of each segment is same as the input dimension of the deep neural network, denoted as L i n p u t .
  • Secondly, the signal amplitude σ ^ of each segment is estimated by using the trained deep neural network.
  • Then, according to the estimated amplitude σ ^ of each segment, the estimated amplitude σ ^ M of the target signal is obtained by using Equation (15).
  • Finally, the corresponding SNR of the received signal is calculated by using Equation (16).

3. Experiments

In this section, we will evaluate the performance of the DL-based SNR estimation method proposed in this paper. This paper focuses on the problem of SNR estimation under non-cooperative conditions. The M2M4 estimator, a widely used NDA estimator, will be used as the benchmark for the DL-based SNR estimator proposed in this paper.
For the received signal shown in Equation (2), assuming the signal and noise are zero-mean, independent random processes, and the in-phase and quadrature components of the noise are independent, then
M 2 = S + N
M 4 = k m S 2 + 4 S N + k z N 2
where M 2 = E { r k r k * } is the second moment of the received signal, M 4 = E { ( r k r k * ) 2 } is the forth moment of the received signal, k m = E { | m k | 4 } / E { | m k | 2 } 2 and k z = E { | z k | 4 } / E { | z k | 2 } 2 are the kurtosis of the target signal and noise, respectively. For any M-ary PSK signal, k m = 1 , and for complex noise, k z = 2 , so that
ρ ^ M 2 M 4 = 2 M 2 2 M 4 M 2 2 M 2 2 M 4
In this paper, simulation data generated by Matlab 2016b was used for experiments. The noise was a complex AWGN. The simulation data was first divided into three parts: the training data set, the validation data set, and the test data set. The deep neural network was trained according to Equation (18) by using the training data set. After each epoch training was completed, the validation data set was tested, and the deep neural network whose loss function value is minimal was saved as the optimal model. After completing all epochs’ training sessions, the test data set was used to evaluate the estimated performance of the deep learning based SNR estimator. The SNR of each training segment data was subjected to a uniform distribution of −40 dB–40 dB. The number of training data samples was 369,000, the number of validation data samples was 41,000, the epoch number was 150, and the batch size was 64. The early-stop training strategy was adopted and the optimizer used Adaptive moment estimation (Adam). The number of test data samples used to evaluate the performance was 410,000. All samples were normalized to zero mean with a unit variance, and its length was 1000.
Figure 4; Figure 5 compare the SNR estimation performance of the DL-based estimator and M2M4 estimator for baseband signal. The test dataset was baseband signal and the modulation types were QPSK and 64QAM (differentiated by different marks), the number of samples per symbol was N s s = 8 . The blue line represents the SNR estimation method proposed in this paper, and the red line represents the M2M4 estimator. The solid line represents that the dimension of the input signal was 1000 and the dotted line represents that the dimension of the input signal was 100,000. From the bias shown in Figure 4 and the mean square error (MSE) shown in Figure 5, the following conclusions can be drawn: Firstly, the SNR estimation performance of the method proposed in this paper is comparable to the M2M4 estimator for QPSK, but is superior to the M2M4 estimator for 64QAM. Secondly, longer input signal makes the MSE less, but does not affect the bias for the DL-based SNR estimator. Thirdly, for an SNR larger than 11 dB and less than −6 dB, the DL-based SNR estimator is superior to the M2M4 estimator.
Figure 6 and Figure 7 compare the estimation performance of the DL-based estimator and the M2M4 estimator for incoherent environments, i.e., phase offset or frequency offset exists (the random phase offset Δ θ and frequency offset Δ f were added to each training segment’s data. The phase offset was subjected to a uniform distribution of 0°–10°, and the frequency offset was subjected to a uniform distribution of 0 Hz–120 Hz). The test dataset was baseband signal and the modulation type was QPSK. The number of samples per symbol was N s s = 8 . The phase offset value of 30° and the frequency offset value of 1000 Hz were tested. From the bias shown in Figure 6 and the MSE shown in Figure 7, the following conclusions can be drawn: Firstly, the SNR estimation performance of the method proposed in this paper, and of the M2M4 estimator, is not affected by phase offset and frequency offset. Secondly, the SNR estimation performance of the method proposed in this paper is neck and neck with the M2M4 estimator for −4 dB–10 dB, but is better than the M2M4 estimator for −20 dB–−4 dB and 10 dB–20 dB.
Figure 8 and Figure 9 compare the SNR estimation performance of DL-based estimator and M2M4 estimator for the intermediate frequency signal. The modulation types used to test were LFM, QPSK and 64QAM IF signals (differentiated by different colors) with a carrier frequency of 10 MHz. The dotted line represents the SNR estimator proposed in this paper, and the solid line represents the M2M4 estimator. From the bias shown in Figure 8 and the MSE shown in Figure 9, the following conclusions can be drawn: Firstly, the DL-based estimator can effectively estimate the SNR of LFM (analog modulation), QPSK (constant modulus scheme), and 64QAM (multilevel constellation) IF signals from −10 dB to 20 dB. Secondly, compared with the M2M4 estimator, the DL-based estimator is superior for QPSK and 64QAM signals. For the LFM signal, the performance of the DL-based estimator is worse when the SNR is greater than −6 dB, but is superior when the SNR is smaller than −6 dB.
Table 1 lists the average time cost per sample of the DL-based SNR estimator and the M2M4 SNR estimator. The simulation platform was as follows: CPU Intel i7-6800K, GPU Nvidia 1080Ti, memory 24 GB, and OS Ubuntu 16.04. The M2M4 SNR estimator was implemented with Matlab 2016b, mainly using the CPU, while the DL-based SNR estimator runs on the Python platform, mainly using the GPU. The test data was baseband 64QAM data, incoherent QPSK data and the IF 64QAM data, their length was 1000. Since the training of deep neural networks can be performed offline, Table 1 only lists the average time cost per sample of the test data set.
The computational complexity of the proposed SNR estimation method is mainly determined by the structure of the employed deep neural network. The computational complexity of the convolutional neural network part is
O ( l = 1 L M l K l C l 1 C l )
where M l denotes the length of the input of the current convolution layer, C l 1 is the channel number of the previous layer (which is same as the convolutional kernel number), i.e., the channel number of the input of the current layer, K l is the length of the convolutional kernel, and C l is the convolutional kernel number of the current layer, i.e., the channel number of the output. For example, for the first layer of the deep neural network shown in Figure 3, M 1 = 1000 , C 0 = 2 , K 1 = 20 , C 1 = 64 . The computational complexity of the forward connected neural network part is
O ( l = 1 L D l 1 D l )
where D l 1 denotes the neuron number of previous layer, i.e., the length of the input of the current layer, and D l is the neuron number of the current layer. While the computational complexity of the M2M4 SNR estimator is
O ( N )
where N is the length of the received signal.
From Equations (22)–(23), the computational complexity of the M2M4 SNR estimator is significantly less than the DL-based SNR estimator. However, the time cost per sample of the DL-based SNR estimator can be greatly reduced, attributed to the parallel processing. The output of different convolution kernels or neurons of a layer can be implemented parallelly, and the estimation of different received signals can also be processed simultaneously. Additionaly, since the technique of accommodating the varying input length is carefully designed in this paper, the computational complexity of the proposed SNR estimation method grows linearly as the length of the received signal increases.

4. Discussion

An SNR estimation method based on deep learning is proposed in this paper, and it is an NDA SNR estimator. Firstly, the rationality of using deep convolutional neural network to estimate SNR is expounded. Secondly, a carefully designed objective function is selected to ensure the DL-based SNR method can accommodate the varying input dimensions and avoid the training difficulty introduced by large input dimensions. The M2M4 estimator is used as the benchmark for the DL-based SNR estimator proposed in this paper, and the experimental results show that the proposed SNR estimation method can be applied to more modulation types, the effective range of SNR estimation is wider, and the robustness of adapting to phase offset and frequency offset is stronger. Moreover, our method can not only estimate the SNR of the baseband signal, but can also estimate the SNR of the IF signal.

Author Contributions

K.Y., Z.H. and X.W. conceived and designed the experiments; K.Y. performed the experiments; K.Y. and F.W. analyzed the data; K.Y. wrote the paper.

Funding

This research is supported by the Program for Innovative Research Groups of the Hunan Provincial Natural Science Foundation of China (No. 2019JJ10004).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kerr, R.B. On Signal and Noise Level Estimation in a Coherent PCM Channel. IEEE Trans. Aerosp. Electron. Syst. 1966, 4, 450–454. [Google Scholar] [CrossRef]
  2. Gagliardi, R.M.; Thomas, C. PCM Data Reliability Monitoring Through Estimation of Signal-to-Noise Ratio. IEEE Trans. Commun. 1968, 16, 479–486. [Google Scholar] [CrossRef]
  3. Gilchriest, C.E. Signal-to-noise monitoring. JPL Space Programs Summ. 1966, 4, 169–184. [Google Scholar]
  4. Matzner, R.; Englberger, F. An SNR estimation algorithm using fourth-order moments. In Proceedings of the 1994 IEEE International Symposium on Information Theory, Trondheim, Norway, 27 June–1 July 1994. [Google Scholar]
  5. Shah, B.; Hinedi, S. The split symbol moments SNR estimator in narrow-band channels. IEEE Trans. Aerosp. Electron. Syst. 1990, 26, 737–747. [Google Scholar] [CrossRef]
  6. Brandao, A.L.; Lopes, L.B.; McLemon, D.C. In-service monitoring of multipath delay and cochannel interference for indoor mobile communication systems. In Proceedings of the ICC/SUPERCOMM’94-1994 International Conference on Communications, Orleans, LA, USA, 1–5 May 1994. [Google Scholar]
  7. Abeida, H. Data-aided SNR estimation in time-variant Rayleigh fading channels. IEEE Trans. Signal Process. 2010, 58, 5496–5507. [Google Scholar] [CrossRef]
  8. Liang, K.; Feng, B.; Jiao, J.; Wu, S.; Zhang, Q. An Efficient Channel Estimation Scheme based on Frozen Bits of Polar Codes over Fading Channel. In Proceedings of the 2018 10th International Conference on Wireless Communications and Signal Processing (WCSP), Hangzhou, China, 18–20 October 2018. [Google Scholar]
  9. Stéphenne, A.; Bellili, F.; Affes, S. Moment-based SNR estimation over linearly-modulated wireless SIMO channels. IEEE Trans. Wirel. Commun. 2010, 9, 714–722. [Google Scholar] [CrossRef]
  10. Pauluzzi, D.R.; Beaulieu, N.C. A comparison of SNR estimation techniques for the AWGN channel. IEEE Trans. Commun. 2000, 48, 1681–1691. [Google Scholar] [CrossRef]
  11. Krishnamurthy, S.D.; Sabat, S.L. Blind SNR estimation for M-ARY Frequency Shift Keying signal using covariance technique. Aeu-internat. J. Electron. Commun. 2016, 70, 1388–1394. [Google Scholar] [CrossRef]
  12. Cai, G.; Wang, L.; Kong, L.; Kaddou, G. SNR estimation for FM-DCSK system over multipath Rayleigh fading channels. In Proceedings of the 2016 IEEE 83rd Vehicular Technology Conference (VTC Spring), Nanjing, China, 15–18 May 2016. [Google Scholar]
  13. Ye, H.; Li, G.Y.; Juang, B.-H. Power of deep learning for channel estimation and signal detection in OFDM systems. IEEE Wirel. Commun. Lett. 2017, 7, 114–117. [Google Scholar] [CrossRef]
  14. Soltani, M.; Pourahmadi, V.; Mirzaei, A.; Sheikhzadeh, H. Deep learning-based channel estimation. IEEE Commun. Lett. 2019, 23, 652–655. [Google Scholar] [CrossRef]
  15. Balevi, E.; Andrews, J.G. Deep Learning-Based Channel Estimation for High-Dimensional Signals. arXiv 2019, arXiv:09346. [Google Scholar]
  16. Scherer, D.; Müller, A.; Behnke, S. Evaluation of Pooling Operations in Convolutional Architectures for Object Recognition. Available online: http://ais.uni-bonn.de/papers/icann2010_maxpool.pdf (accessed on 15 May 2019).

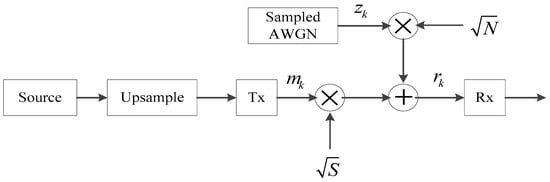

Figure 1. Baseband-equivalent system model. AWGN, additive white Gaussian noise.
Figure 1. Baseband-equivalent system model. AWGN, additive white Gaussian noise.
Electronics 08 01139 g001

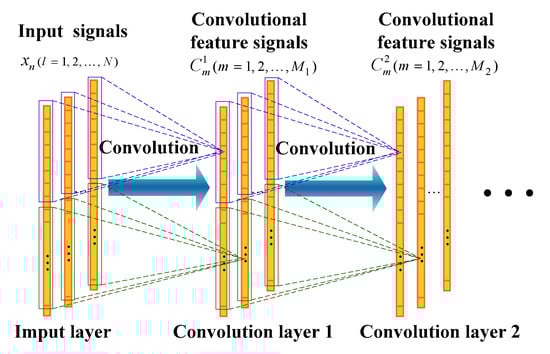

Figure 2. An illustration of a one-dimensional convolutional neural network.
Figure 2. An illustration of a one-dimensional convolutional neural network.
Electronics 08 01139 g002

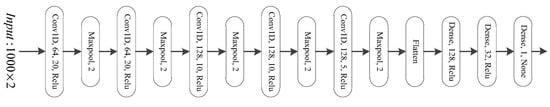

Figure 3. The deep neural network used in this paper. The text “Conv1D, 64, 20, Relu” represents that in this 1D convolution layer, the filter number is 64, each filter size is 20, and the activation function is Relu. Similarity, the text “Maxpool, 2” represents that in this Max pooling layer, the window size is 2.
Figure 3. The deep neural network used in this paper. The text “Conv1D, 64, 20, Relu” represents that in this 1D convolution layer, the filter number is 64, each filter size is 20, and the activation function is Relu. Similarity, the text “Maxpool, 2” represents that in this Max pooling layer, the window size is 2.
Electronics 08 01139 g003

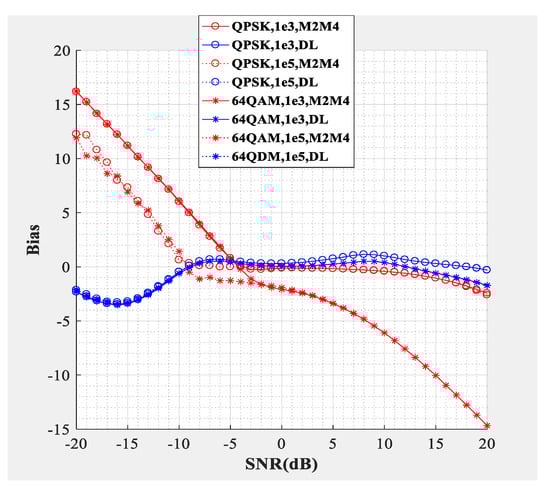

Figure 4. Bias of the deep learning (DL)-based estimator and second and forth moment (M2M4) estimator for baseband signal vs. signal-to-noise ratio (SNR) (dB).
Figure 4. Bias of the deep learning (DL)-based estimator and second and forth moment (M2M4) estimator for baseband signal vs. signal-to-noise ratio (SNR) (dB).
Electronics 08 01139 g004

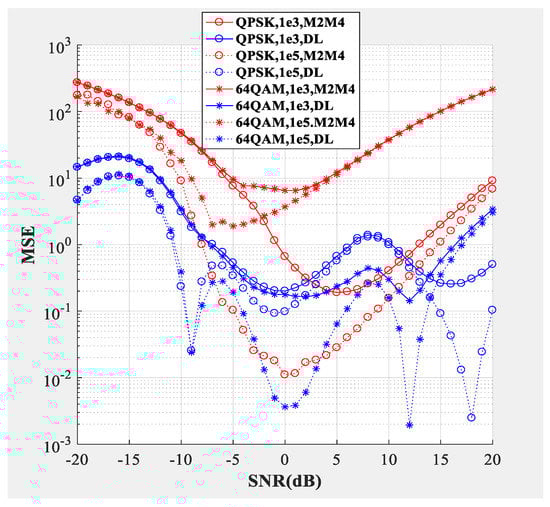

Figure 5. Mean square error (MSE) of the DL-based estimator and M2M4 estimator for baseband signal vs. SNR (dB).
Figure 5. Mean square error (MSE) of the DL-based estimator and M2M4 estimator for baseband signal vs. SNR (dB).
Electronics 08 01139 g005

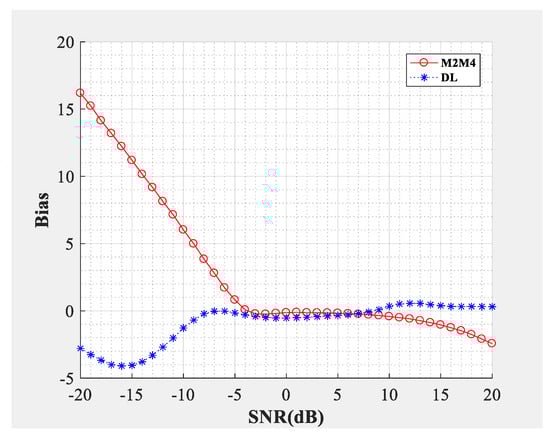

Figure 6. Bias of the DL-based estimator and M2M4 estimator for incoherent environments vs. SNR (dB).
Figure 6. Bias of the DL-based estimator and M2M4 estimator for incoherent environments vs. SNR (dB).
Electronics 08 01139 g006

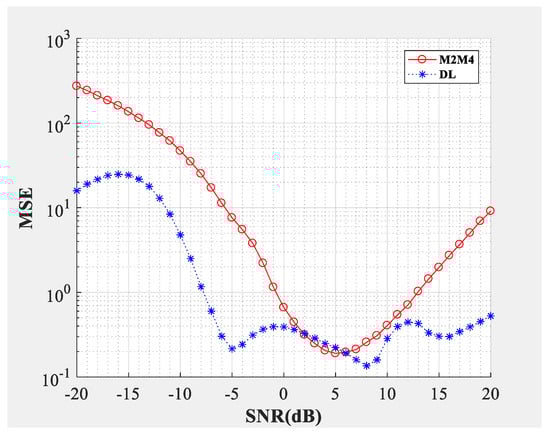

Figure 7. MSE of the DL-based estimator and M2M4 estimator for incoherent environments vs. SNR (dB).
Figure 7. MSE of the DL-based estimator and M2M4 estimator for incoherent environments vs. SNR (dB).
Electronics 08 01139 g007

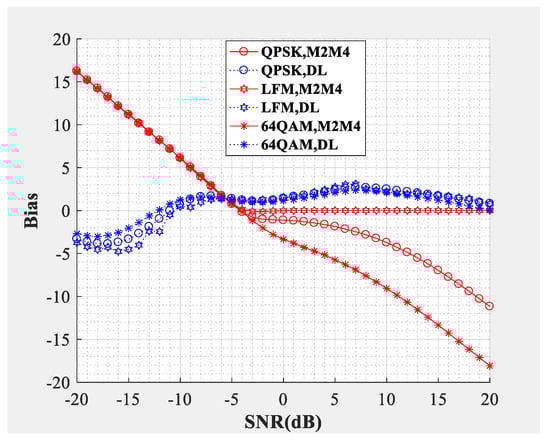

Figure 8. Bias of the DL-based estimator and M2M4 estimator for intermediate frequency signal vs. SNR (dB).
Figure 8. Bias of the DL-based estimator and M2M4 estimator for intermediate frequency signal vs. SNR (dB).
Electronics 08 01139 g008

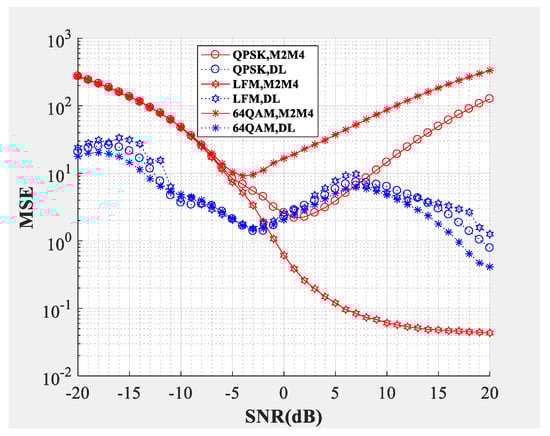

Figure 9. MSE of the DL-based estimator and M2M4 estimator for intermediate frequency signal vs. SNR (dB).
Figure 9. MSE of the DL-based estimator and M2M4 estimator for intermediate frequency signal vs. SNR (dB).
Electronics 08 01139 g009
Table 1. Average time cost per sample of two SNR estimation methods.
Table 1. Average time cost per sample of two SNR estimation methods.
ModulationM2M4DL
Baseband 64QAM3.81 us12.68 us
Incoherent QPSK3.76 us12.43 us
IF 64QAM3.79 us12.07 us
