A Ruggedness Improved Mobile Radio Frequency Power Amplifier Module with Dynamic Impedance Correction by Software Defined Atomization

Abstract

A ruggedness improved multi-band radio frequency (RF) power amplifier (PA) module applicable to mobile handsets, which are required to survive against a serious load impedance change under extreme power and bias conditions, is presented. In this method, the load impedance of PA is adaptively adjusted with a digitally controlled impedance corrector to keep the PA safe by performing a load mismatch detection. The impedance mismatch detector, impedance corrector, and other RF switches were all integrated into a single integrated circuit (IC) using silicon on insulator (SOI) complementary metal oxide semiconductor (CMOS). For the verification purpose, a 2-stage hetero junction bipolar transistor (HBT) PA module adopting this method was fabricated. At a frequency of 1915 MHz, a collector bias voltage of 4.2 V, and over a wider range of load impedance variation between a VSWR of 1 and a VSWR of 5.5, it did not fail. When this technique was not applied with a voltage standing wave ratio (VSWR) range of 1 to 4, it resulted in an acceptable RF performance degradation of 1% power added efficiency (PAE) in envelope tracking (ET) mode. Moreover, it survived at a bias voltage 1V larger than when the technique was not applied for the same mismatch condition.

1. Introduction

Since the RF PAs in a mobile device are connected to an antenna, they must go through impedance mismatches caused by environmental changes. The PA can be damaged when a load mismatch occurs, therefore the PA’s ruggedness was a main concern for Tx chain in mobile handsets. For this reason, many efforts were made to improve it and solutions for sufficient ruggedness were provided [1,2,3,4,5,6,7,8,9,10,11,12,13], including: Clamping circuit [1,2,3], resistive emitter ballasting [4], closed loop protection technique [1,5,6,7,8,9,10], high voltage process, and so on. A general ruggedness requirement for PA-duplexer (PAD) modules is to have no damage or permanent performance degradation with a full RF input power drive under high load VSWR conditions at a maximum supply voltage. Typical values for the full RF input power, VSWR, and the maximum supply voltage have been 10 dBm, 10:1, and 4.2 V, respectively. However, recent specifications for mobile handsets have changed and the required ruggedness for a mobile RF PA becomes even more challenging for the following reasons:

• Larger power requirement for High Power User Equipment (HPUE)—Average output power should increase by 3 dB.
• Signal with higher Peak to Average Power Ratio (PAPR)—Peak output power should increase more than 3 dB.
• Higher supply voltage—The voltage can be increased more than 5 V with boosting technique.
• Thermal issues with smaller module size—Effective ruggedness should degrade.

Furthermore, the cause of PA failures can vary and the failure mechanism may differ for each frequency band when one RF PA supports multi-band operation. Therefore, RF PAs need an enhanced universal solution for ruggedness improvements instead of solutions for a certain particular failure issue.

This paper presents a ruggedness improvement method for mobile RF PAs using a dynamic load impedance control technique. Since the technique has been developed based on the fact that RF PA’s ruggedness basically depends on a mismatched load impedance, the approach is very intuitive and can protect an RF PA regardless of its failure mechanism. To demonstrate the feasibility of the proposed approach, a mobile RF PA module has been fabricated and tested employing a control logic.

2. The Failure Mechanism in an HBT RF PA under a Mismatch

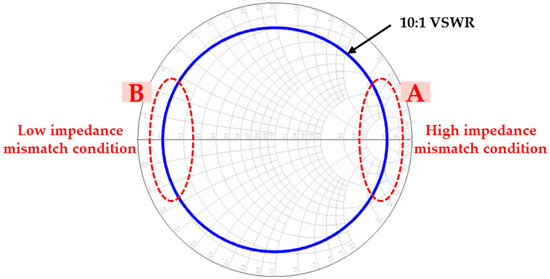

If a severe impedance mismatch occurs at the antenna port in a mobile device, it leads to a very high VSWR condition. When the mismatched impedance at the antenna port is transformed by PA’s output matching network, the impedance seen by the collector of the HBT in the PA’s final stage can be a high mismatched impedance or a low mismatched impedance depending on the phase of the load. The solid black circle in Figure 1 represents an impedance mismatch with a very large VSWR (10:1) at an antenna port. This condition can lead to PA failure and the failure mechanism varies with the phase of the load, just as the failure mechanisms in region A and B in Figure 1 differ. While the high impedance mismatch condition (region A in Figure 1) results in a very high voltage peak at the collector of the HBT in the final stage, the low impedance mismatch condition (region B in Figure 1) results in a very high current peak.

In an HBT PA, a high collector voltage, which is much larger than the collector to emitter breakdown voltage, with the base open (BV_CEO), of a power transistor, had been considered as a main cause of PA failure under a mismatch condition. However, it was revealed that a high collector current, which results in large dissipated power causing a thermal problem, is also a main cause of PA failure [10]. In addition, intermediate impedances located at high VSWR can cause PA failures. Based on these facts, several solutions have been proposed, such as closed-loop protection techniques using collector current sensing circuit [10], as well as clamping circuits [1] and closed-loop technique using a collector voltage sensing circuit [1,3,4,5,6,7,8,9]. However, as the power, voltage, and thermal environments for mobile RF PAs are much more demanding in terms of ruggedness than ever before, there is a need for a more reliable solution. In addition, due to the harsh environment, such as a very dense modular structure, factors that were not previously a problem (e.g., a serious spurious signal) may be a serious PA failure factor, and one PA can have various failure factors. In such cases, the current or voltage measurement methods cannot protect the PA. For example, thermal issue due to large dissipated power (P_diss) can cause the PA to fail and it is known that P_diss = P_dc − P_RF. Using the detected voltage/current, P_dc can be estimated, but P_RF is hard to estimate. Therefore, this kind of method is not able to protect the PA in those cases. On the other hand, since the load impedance is a parameter that directly determines the ruggedness of the PA, sensing and adjusting the load impedance can more clearly determine whether or not the situation will cause PA failure and protect the PA regardless of the cause of the failure than sensing voltage or current.

In order to adjust the load impedance to a safe region for PA protection, it is important to identify the current load impedance, which needs to detect not only load VSWR, but also the load phase. However, since detecting a load phase requires complex analog circuits or digital processors, applying it to a mobile device is not easy. By using load phase detection in a simplified way for detecting areas instead of an accurate value, this work has simplified the detector circuit and made it possible to apply the method to mobile devices.

3. Protection by Adaptive Impedance Correction

3.1. Operating Principle of Protection

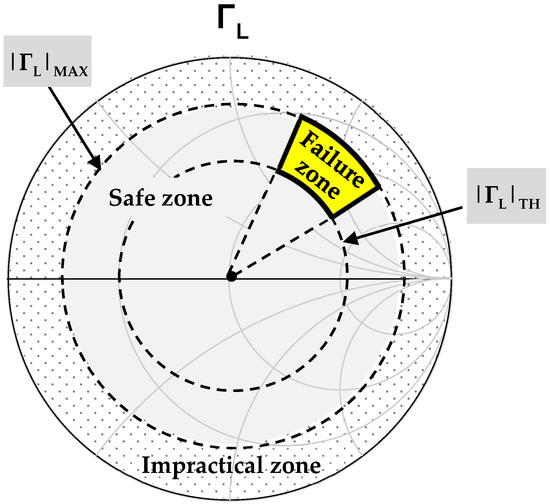

As explained in the previous section, mobile RF PAs fail at certain mismatched load impedances, which depends on PA’s characteristics. Therefore, the load impedance (Γ_L) area can be divided into three zones defined by the PA failure, as follows:

• Failure zone: A PA fails when the load impedance is inside this area.
• Safe zone: A PA does not fail when the load impedance is inside this area.
• Impractical zone: It is hard for this impedance region to exist, due to a post-PA loss when the PA output is defined as a reference plane.

Since the failure zone of an RF PA is predetermined by its load-pull characterization, the PA can be readily protected if the load impedance is adjusted inside the safe zone when the load impedance happens to be in the failure zone. For this adaptive impedance adjustment, both detection and correction of load impedance are needed. In both of the authors’ previous works [14,15], a dynamic impedance mismatch detector and corrector were proposed to recover the RF PA’s performance degradation in adjacent channel leakage ratio (ACLR) and PAE, which occur under a mismatch condition.

In this work, the same impedance mismatch detector and corrector which had been reported earlier by us has been utilized here to achieve the intended ruggedness improvement of the RF PAs. With the characterization of an RF PA, its possible load impedance can be divided into two areas: Failure zone and safe zone, as mentioned earlier. The failure zone typically locates at a large VSWR (|Γ_L|) and a limited phase (∠Γ_L) range as shown in Figure 2. The rest of area can be defined as the safe zone (gray colored area in Figure 2). |Γ_L|_TH means maximum unconditional safe |Γ_L|. For the Γ_L, whose magnitude is smaller than the |Γ_L|_TH, the PA is safe unconditionally, while the PA’s safety depends on the ∠Γ_L for the Γ_L, whose magnitude is larger than the |Γ_L|_TH. Although the range of the ∠Γ_L and the |Γ_L|_TH in Figure 2 are determined by the RF PA’s characteristic, the |Γ_L|_MAX is determined by the loss of post-PA chain (filter, switch, etc.) and its value is generally less than 0.7 (~VSWR of 5.5) because the practical post-PA loss is at least 1.5 dB for recent mobile handsets. Thus, the impedance area where |Γ_L|>|Γ_L|_MAX is impractical and not considered here.

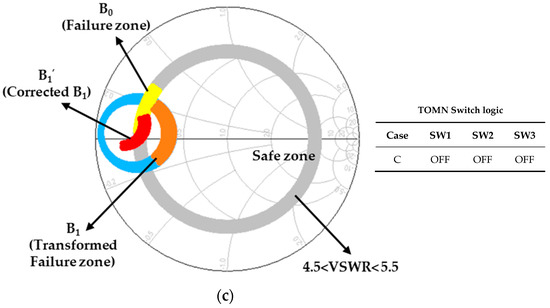

With the knowledge of the predetermined failure zone and safe zone, it is possible to protect the PA by controlling the load impedance using tunable output matching network (TOMN) with the impedance mismatch detector, which determines whether the impedance is in or out of a particular region. For instance, if Γ_L is inside the failure zone in Figure 2 then the impedance mismatch detector senses it and informs TOMN to move Γ_L into safe zone by a digital control. The proposed ruggedness improved the RF PA configuration, which employs the advanced impedance mismatch detector with a directional coupler and the advanced TOMN, is depicted in Figure 3.

3.2. Impedance Mismatch Detector

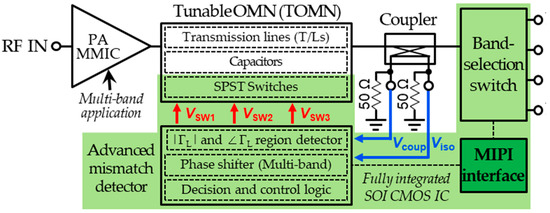

The impedance mismatch detector extracts load conditions in terms of the |Γ_L| and the ∠Γ_L regions to identify whether the PA needs to be protected or not. Figure 4a shows the configuration of the impedance mismatch detector, which is composed of the |Γ_L| detector unit, the ∠Γ_L detector unit including an advanced phase shifter (APS), and a decision and control logic (DCL) to facilitate mismatch detection.

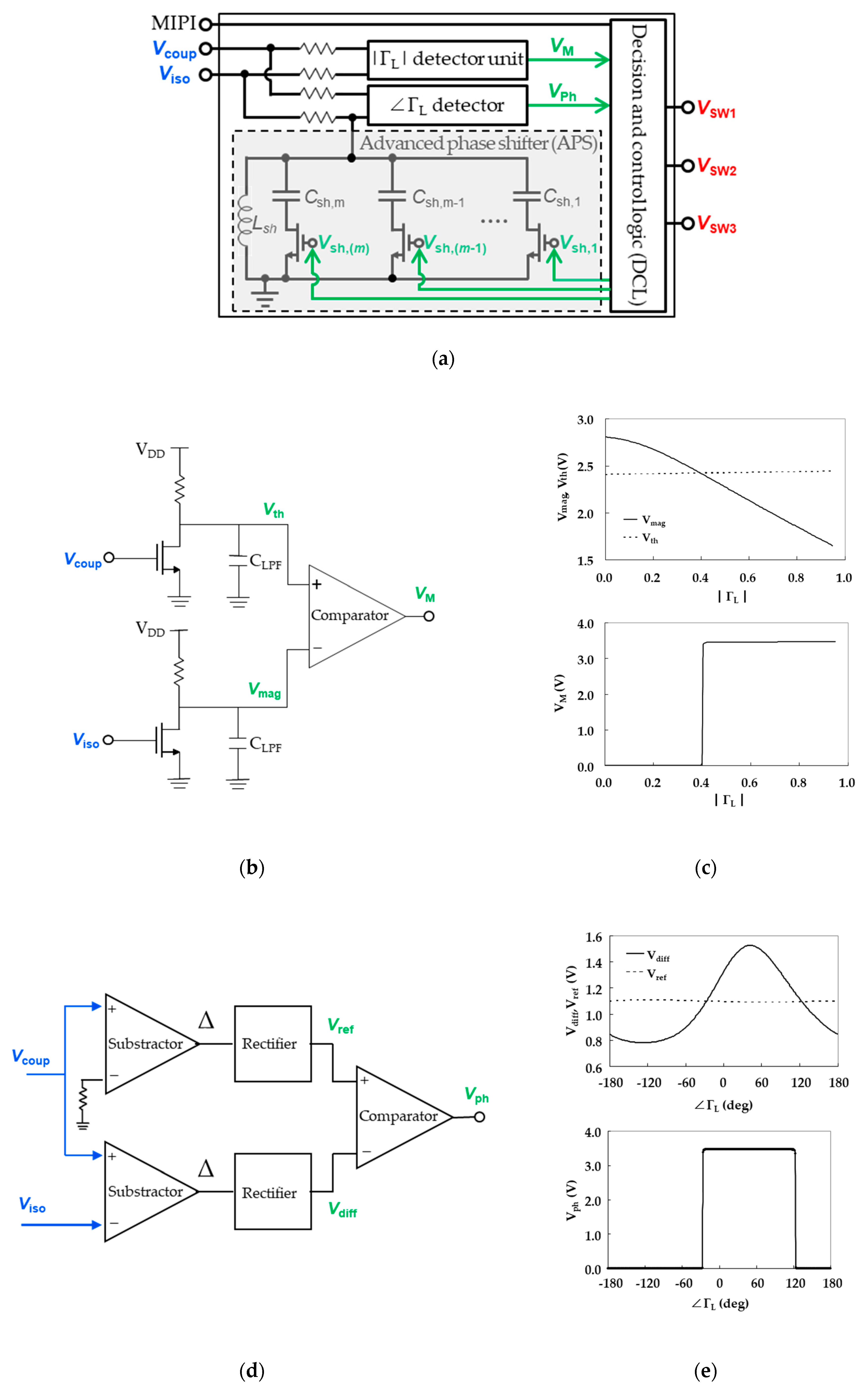

Figure 4b,d show schematics of a |Γ_L| detector and a ∠Γ_L detector, respectively. The output voltages of these circuits, V_M and V_ph, have a ‘High’ or ‘Low’ value depending on the location of Γ_L. That is, if the |Γ_L| and the ∠Γ_L exist in a specific region, they have a ‘High’ value, otherwise they have a ‘Low’ value. Taking Figure 4c,e as an example, in the region where the |Γ_L| is greater than 0.4, the V_M has a ‘High’ value and in the range where −30° <∠Γ_L <30°, V_ph has a ‘High’ value. DCL uses a combination of the two results, V_M and V_ph, to determine if the load impedance is in a certain area.

The APS controls the phase range, where the V_ph has ‘High’ value, by adjusting the phase of the V_iso applied to the phase detector. The APS consists of a shunt inductor (L_sh) and switched capacitors (C_sh,n) controlled by the DCL through a given V_sh. This given control bias (V_sh) is a parallel set ranging from V_sh,0 to V_sh,m. To detect the ∠Γ_L region, the DCL applies a given set of V_sh to the APS and stores the accompanied V_ph from the ∠Γ_L detector unit. The DCL iterates this procedure n times (twice in this work) using another given set of V_sh, after which the current ∠Γ_L region is determined by combining the stored n-V_phs. It should be noted that the sets of V_sh values can be adjusted through a MIPI, which makes the detection appropriate for various PA characteristics and multiple operating bands.

Table 1. An example of a simulated V_sh set for defining impedance sections as Figure 5a.

Iteration (n = 2)	Vsh,5	Vsh,4	Vsh,3	Vsh,2	Vsh,1
1st ( ― )	L	H	H	L	L
2nd ( ---- )	H	L	L	L	L

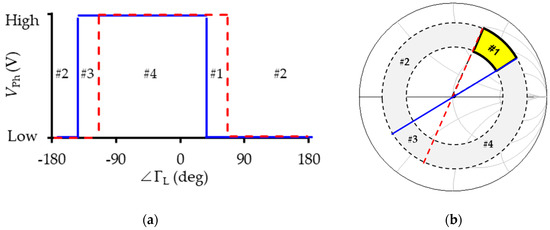

shows a simulation result of a V_sh value set, to define the impedance sections shown in Figure 5b. The total capacitance of the APS used for the first iteration was 1.5pF and for the second iteration, 2pF was used. The phase region where the V_ph has a ‘High’ value shows approximately 30 degrees offset between each iteration result, as shown in Figure 5a. After defining the impedance section by designing the |Γ_L| and the ∠Γ_L detectors, it is possible to determine in which area the Γ_L is located according to the result of the V_ph value set. Figure 5 shows an example of defining target detection area using the above stated technique.

Table 2. An example of detecting an impedance section from the V_ph value set. (Figure 5b).

Index	Vph (1st)	Vph (2nd)	Detected section 1
1	L	H	#1
2	L	L	#2
3	H	H	#3
4	H	H	#4

¹ Assuming that the |Γ_L| is determined from the VSWR detector.

describes an example of detecting impedance sections from the V_ph value set. In this manner, the impedance sections can be defined as desired by the user through changing the V_sh value set at each time iteration and are changeable through the MIPI control. Then it is used to determine the location of the gamma. The more detailed operating principles of this technique have been previously provided [14,15].

3.3. Dynamic Impedance Corrector

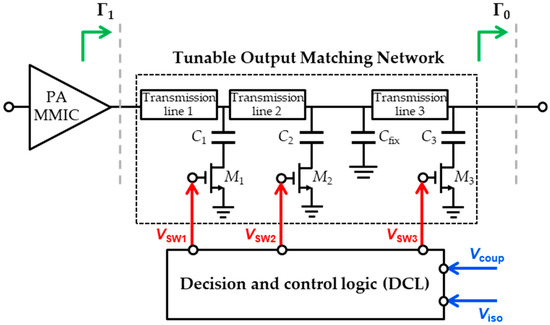

Figure 6 shows the schematic of the impedance corrector using a TOMN. Based on the mismatch detection result, DCL digitally controls the impedance corrector through applying the control voltages to the TOMN. By configuring the capacitance value by the combination of switched capacitors with transmission lines of the TOMN, the impedance adjustment from the failure zone to the safe zone can be achieved for any impedances at which the PA can fail. Considering three cases with different locations for failure zones, for example, Figure 7 shows how each of these impedance corrections are made. In each case, the yellow area (A₀, B₀, C₀) is the failure zone at the antenna port (reference plane Γ₀ in Figure 7), the orange area (A₁, B₁, C₁) indicates the failure zone which is transformed by the PA’s output matching network and seen from the collector of the PA final stage (reference plane Γ₁ in Figure 7). When the Γ_L is located in the yellow region at the antenna port, then the impedance mismatch detector recognizes it and the DCL unit controls the TOMN to protect the PA by moving the impedance at the PA collector out of the orange region to the red area (A₁′, B₁′, C₁′), which is a safe zone.

4. Experimental Verification

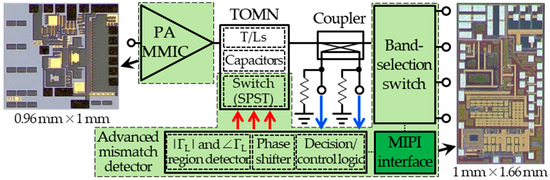

In order to verify the effectiveness of the proposed protection method, an RF PA module employing the impedance detection and correction technique was fabricated. The PA monolithic microwave integrated circuit (MMIC) was designed as a two-stage amplifier and was fabricated using a 2 μm InGaP/GaAs HBT process. The emitter areas of the first and final stage were 500 and 3600 μm², respectively. The impedance mismatch detector, the switches of the TOMN, a band-selection switch, and the MIPI interface were all integrated into a single chip using a 0.18 μm SOI CMOS process. Both ICs shown in Figure 8 were mounted on a 400-μm-thick FR4 PCB. The TOMN was implemented using transmission lines on the PCB, off-chip capacitors (C₁, C₂, C₃, and C_fix), and SPST switches (M₁, M₂, and M₃). The TOMN with the off-chip directional coupler (CP0402AE) showed loss of 0.26–0.35 dB, as per the TOMN modes, and the SOI CMOS IC consumed DC power of 25 mW.

To confirm the improvement in ruggedness of a PA module, the measured collector currents were compared with and without the improvement technique using the measurement setup where all instruments were controlled by a dedicated program, as shown in Figure 9. Specific measurement methods and results are described below.

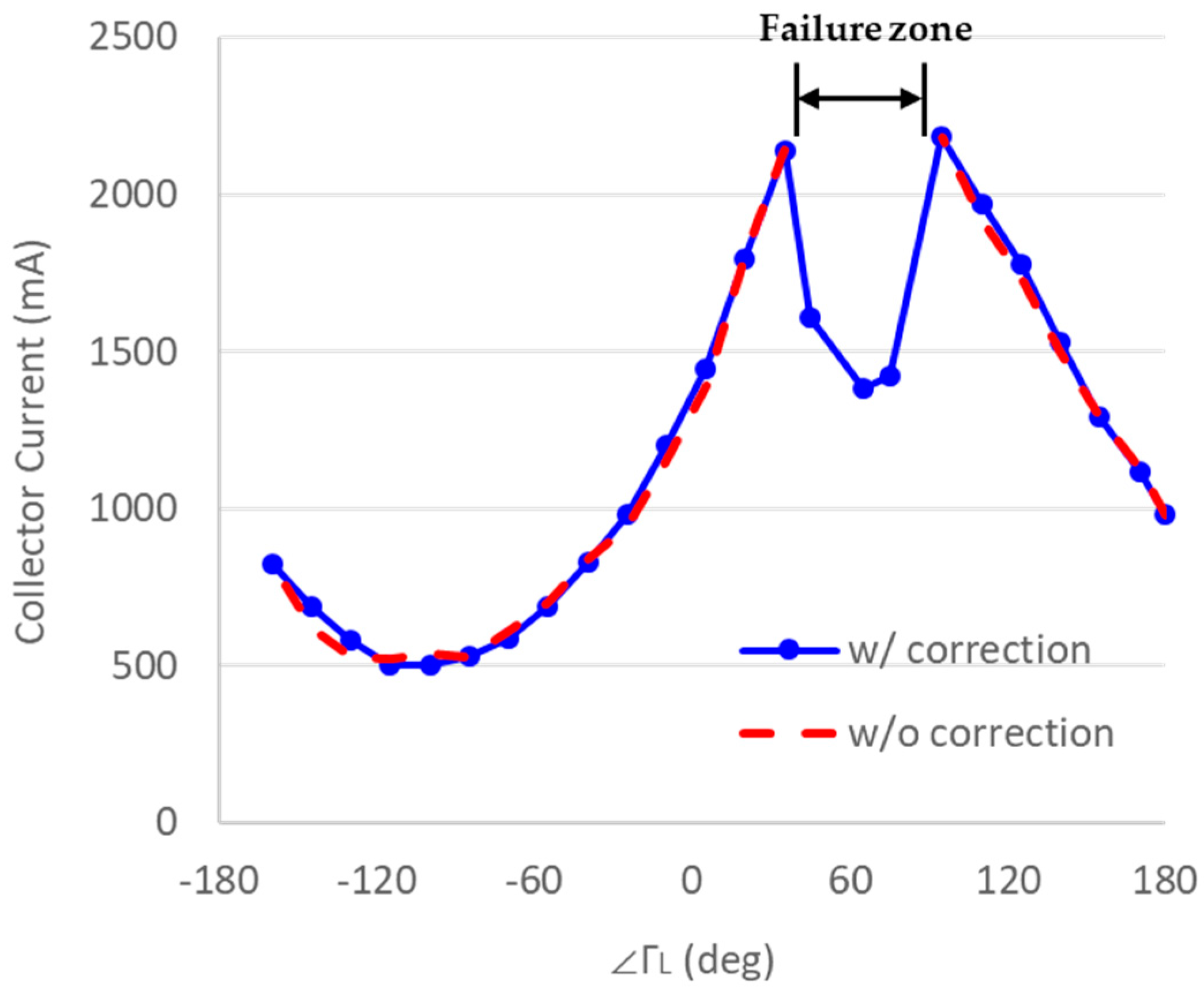

The measurements were performed at a load mismatched condition using a 5 MHz one resource block (RB) long-term evolution (LTE) signal of 10 dBm over collector voltage (V_cc). When the ruggedness improvement technique is deactivated, the PA module showed abnormal current characteristic—a shorted circuit state—over a certain ∠Γ_L range (45° < ∠Γ_L < 75°) with |Γ_L| > 0.64 at a V_cc of 4.2V, which means the module was damaged at the specific Γ_L region. This failure zone corresponds to Case A in Figure 7a. With the information of the failure zone, the impedance mismatch detector was set to identify whether Γ_L is in this area or not through MIPI; setting |Γ_L|_TH for the |Γ_L| detector as 0.64 and V_shs for the ∠Γ_L detector as Table 1. Then impedance corrector was dynamically operated to avoid the failure zone according to the detection result. As a result, the module activating the impedance detection and correction technique showed no abnormal current over the entire Γ_L region except the impractical zone, which means the module was not damaged. Figure 10 compares the current measured in two cases: When activating and deactivating the proposed technique, respectively. In Figure 10, the module with correction shows normal collector current values across the entire range, whereas the module without correction does not measure current normally in the particular phase region at the same condition. This result clearly confirms that the proposed technique improves the ruggedness of the PA. The measured ruggedness results over the V_cc at two carrier frequencies (1915/1748 MHz), given in

Table 3. A measured ruggedness comparison (|Γ_L| = 0.7).

Frequency [MHz]	Supply Voltage [V]	w/o Impedance Correction	w/ Impedance Correction
1915	3.4	Passed	Passed
1915	3.8	Passed	Passed
1915	4.2	Failed	Passed
1915	5.6	-	Failed
1748	3.8	Passed	Passed
1748	4.2	Passed	Passed
1748	4.6	Failed	Passed
1748	5.6	-	Failed

, to show that this technique is also helpful for a multi-band operation. However, it should be noted that employing this technique has a detrimental effect on the PAE under nominal operating conditions due to the inherent losses of the added components. However, it must be highlighted that envelope tracking mode indicated that this PAE degradation from the loss is of only around 1%, which is acceptable but should be improved in the future.

5. Conclusions

A ruggedness improved multi-band RF PA module that addresses the antenna load impedance mismatch has been presented based on a dynamic impedance detection and correction technique which is digitally controlled through a MIPI. It can more clearly determine whether or not the situation will cause PA failure by tracking the position of the load impedance and also it provides a relatively solid solution for ruggedness improvement by directly tuning load impedance. A two-stage RF PA module for mobile handsets employing this technique was designed and fabricated to demonstrate the improvement in ruggedness. When the ruggedness test was performed at a fixed bias voltage (V_cc) for both Band 1 and Band 3, the PA failure did not occur over the load impedance area up to a VSWR of 5.5. In this case, an acceptable ET PAE degradation of about 1% was measured. For a fixed VSWR condition of 5.5:1, the ruggedness test showed that the PA survived at about a 1 V higher V_cc condition than when this technique was not applied. In this way, the measured results confirm that the RF PAs for mobile handsets can be secured against a much more extreme environment by employing the proposed technique.
