State of Charge Estimation for Lithium-Ion Batteries Based on Temperature-Dependent Second-Order RC Model

Abstract

Accurate estimation of battery state of charge (SOC) is of great significance for extending battery life, improving battery utilization, and ensuring battery safety. Aiming to improve the accuracy of SOC estimation, in this paper, a temperature-dependent second-order RC equivalent circuit model is established for lithium-ion batteries, based on the battery electrical characteristics at different ambient temperatures. Then, a dual Kalman filter algorithm is proposed to estimate the battery SOC, using the proposed equivalent circuit model. The SOC estimation results are compared with the SOC value obtained from experiments, and the estimation errors under different temperature conditions are found to be within ±0.4%. These results prove that the proposed SOC estimation algorithm, based on a temperature-dependent second-order RC equivalent circuit model, provides accurate SOC estimation performance with high temperature adaptability and robustness.

1. Introduction

One fundamental challenge in the commercialization of electric vehicles is the battery system, and a safe and efficient battery system hinges on a reliable battery management system (BMS) [1]. At present, one of the main difficulties that hinder the development of BMS technology is the accurate estimation of state of charge (SOC). It has been pointed out that accurate SOC information is conducive to protecting batteries, preventing overcharging and over-discharging, improving battery utilization, and increasing the cruising range of electric vehicles [2,3,4].

However, the SOC cannot be directly monitored because of the battery systems’ nonlinearity, time-varying characteristics, and the complexity of electrochemical reactions [5]. To tackle this problem, plenty of SOC estimation methods have been proposed in the literature. The existing SOC estimation methods can be divided into two major categories: non-model-based methods and model-based methods. The non-model-based methods mainly include the following: ampere hour (Ah) integration method [6], open circuit voltage (OCV) method [7], internal resistance method [8], and machine learning algorithms [9]. The model-based methods mainly include the following: particle filter (PF) [10], Kalman filter (KF) [11], and its improved algorithms [12,13,14].

Among the non-model-based methods, the Ah integration method is the simplest and most commonly used. Its implementation is straightforward and its computation load is low [15]. However, as an open-loop algorithm, the existence of uncertainties, such as noise, temperature, and current variations, can lead to large errors. The OCV method and internal resistance method rely on the correlation between the battery SOC and its external static characteristic parameter (i.e., OCV or internal resistance), and employ a look-up table to determine the estimated SOC value. However, the measurement of battery OCV requires even distribution of the electrolyte inside the battery. This process takes fairly long, which makes real-time measurement of OCV impossible [16]. Similarly, real-time measurement of battery internal resistance is also very difficult. As a result, neither the OCV method nor the internal resistance method can be used independently in practical applications. Besides, the machine learning algorithms are devised based on various mechanisms such as artificial neural networks [17], fuzzy logic inference [18], and support vector regression (SVR) [19]. These algorithms require a large amount of training data to establish the nonlinear relationship between the input to the battery and the output from the battery [20,21]. The performance of these algorithms is highly dependent on the quantity and quality of the training data, which in turn restricts the applicability and accuracy of these methods.

The model-based methods are more practical in terms of SOC online estimation. These methods rely on a high-precision battery model and adopt a closed-loop structure to perform SOC estimation with an unknown initial SOC value. These methods iteratively correct the SOC estimation error, using the difference between the measured terminal voltage and the battery model output. The PF [22] can achieve good results with non-Gaussian white noise; however, it leads to higher computational load compared with the KF. The KF is widely used owing to its capability of finding the optimal solution of linear Gaussian systems. In the work of [23], the KF is employed in conjunction with the Ah integration method, which improves the SOC estimation accuracy for lithium-ion batteries. Various improved KF algorithms, such as extended Kalman filter (EKF) [11] and double extended Kalman filter [24], have been extensively studied in battery SOC estimation. In the work of [25], an EKF based on the second-order RC model is proposed to reduce the influence of noise during the measurement process.

The current literature mainly focuses on the introduction of SOC estimation methods and their advantages and disadvantages. The SOC estimation errors for the existing methods are normally investigated under some specific scenarios. Duong et al. [26] proposed a multiple adaptive forgetting factors recursive least-squares (MAFF-RLS) technique for LiFePO4 battery SOC estimation. The maximum SOC estimation error is found to be 2.8% in two standard driving cycles, Urban Dynamometer Driving Schedule (UDDS) and New European Driving Cycle (NEDC). Yang et al. [27] compared the performances of several algorithms (i.e., EKF, UKF, and PF) for cylindrical-type 18,650 (LiFePO4) battery SOC estimation under a combined dynamic loading profile, which is composed of the dynamic stress test, the federal urban driving schedule, and the US06. In most circumstances, the three algorithms provided satisfactory SOC estimation results, as well as small root mean square errors (RMSEs) (less than 4%).

In order to further improve the accuracy of SOC estimation, in this paper, the electrical characteristics of lithium-ion batteries under different ambient temperatures are analyzed, and a temperature-dependent second-order RC model is established. Then, a dual Kalman filter (DKF) algorithm is proposed based on the established model, which synthesizes the Ah integration method, the KF algorithm, and the EKF algorithm. The accuracy and temperature adaptability of the proposed SOC estimation algorithm are verified through experiments. The proposed battery model and SOC estimation method have taken into consideration the important effects of ambient temperature, and the results of this study can assist with the improvement of battery thermal management systems and enhance the reliability of electric vehicles operating in all climate conditions.

The rest of the paper is organized as follows. Section 2 describes the establishment of the temperature-dependent second-order RC model after analyzing the characteristics of lithium-ion batteries, Section 3 introduces the identification of unknown parameters involved in this model, Section 4 elaborates on the model verification process under different temperature conditions, Section 5 proposes a DKF algorithm for SOC estimation and its verification, and Section 6 concludes the paper.

2. Temperature-Dependent Second-Order RC Model

The battery characteristics vary greatly at different temperatures. In order to improve the temperature adaptability of the battery model, temperature variation factors should be taken into account in the battery modeling process. In this section, the electrical characteristics of lithium-ion batteries at different ambient temperatures are firstly introduced. Then, a temperature-dependent second-order RC model is established, taking into account the effects of ambient temperature variations.

2.1. Characteristics of Lithium-Ion Batteries

When the current of the battery external circuit is zero and the internal electrochemical reactions are in equilibrium, the potential difference between the positive and negative electrodes is called the OCV [28]. The OCV is closely related to the battery SOC and the ambient temperature, and it is crucial for lithium-ion battery modeling and SOC estimation. As shown in Figure 1a, the OCV of the lithium-ion battery gradually decreases as the ambient temperature rises.

With a certain discharge rate and a certain cutoff voltage, the amount of electricity that the battery can discharge is defined as the battery capacity [29]. The battery capacities at different ambient temperatures are shown in Figure 1b, where we see that the battery capacity increases as the ambient temperature increases.

Figure 1c shows how the battery internal resistance varies with the ambient temperature and SOC. We observe that the internal resistance decreases dramatically with the increase of ambient temperature; however, the influence of SOC on the internal resistance is insignificant.

2.2. Battery Modeling

On the basis of the influence of ambient temperature on lithium-ion batteries introduced in Section 2.1, a temperature-dependent second-order RC equivalent circuit model is established in this section, taking into account both model accuracy and model complexity. This model is composed of three modules: the OCV module, the internal resistance module, and the RC network module. The structure of the proposed model is shown in Figure 2, where V_t represents the battery terminal voltage, V_ocv indicates the OCV, V₁ and V₂ denote the voltages generated by the polarization phenomenon, I stands for the current (positive for charging and negative for discharging), T represents the ambient temperature, R₀ is the ohmic internal resistance, R₁ and R₂ are the polarization internal resistances, and C₁ and C₂ are the polarization capacitances. It must be pointed out that the effects of SOC, temperature, and current direction changes on the above parameters have been taken into account in the battery modeling, as we will explain in Section 3.

According to Kirchhoff’s laws of voltage and current, the polarization voltages V₁ and V₂ satisfy the following rules:

$$\stackrel{.}{V_1}=-\frac{V_1}{R_1{C}_1}+\frac{I}{C_1},$$

(1)

$$\stackrel{.}{V_2}=-\frac{V_2}{R_2{C}_2}+\frac{I}{C_2},$$

(2)

where $\dot{V_1}$ and $\dot{V_2}$ denote the voltage change rates. The terminal voltage V is given by the following:

$$V=V_{\mathrm{OCV}}+R_{0}I+V_1+V_2.$$

(3)

The battery SOC is dependent on the available capacity and current direction, and it can be expressed as follows:

$$SOC(t)=SOC(t_0)+{\displaystyle {\int }_{t_0}^t\frac{\eta I(\tau )}{Q}}d\tau ,$$

(4)

where SOC(t) and SOC(t₀) are the SOC values at time t and t₀, respectively; η denotes the charging/discharging efficiency (0.98 for charging and 1 for discharging); and Q represents the maximum available capacity. Assuming that the sampling time is ΔT, discretizing Equations (1), (2) and (4) yields the following:

$$V_1(k)=exp(\frac{-\Delta T}{R_1{C}_1})V_1(k-1)+R_{1}I(k)[1-exp(\frac{-\Delta T}{R_1{C}_1})],$$

(5)

$$V_2(k)=exp(\frac{-\Delta T}{R_2{C}_2})V_2(k-1)+R_{2}I(k)[1-exp(\frac{-\Delta T}{R_2{C}_2})],$$

(6)

$$SOC(k)=SOC(k-1)+\frac{\eta t}{Q}I(k).$$

(7)

Equations (3) and (5)–(7) constitute the mathematical representation of the proposed temperature-dependent second-order RC model for lithium-ion batteries. These equations describe the dynamic characteristics of lithium-ion batteries at different temperatures, in a simple mathematical form with limited number of parameters.

Similar to our previous work [30], some parameters in this proposed battery model are not known a priori and need to be determined for model implementation. The parameters to be identified are R₁, R₂, C₁, C₂, R₀, V_OCV, and Q. In the following section, we shall explain in detail how these unknown parameters can be identified.

3. Model Parameter Identification

As mentioned above, the proposed battery model involves parameters that cannot be directly measured. Hence, in this section, we explain the detailed process for identifying these unknown parameters by means of experiments.

3.1. Experiment Specifications

The equipment used in our experimentation includes an incubator (HL404C, Well Test Equipment Co., Ltd., Chongqing, China), a battery testing device (BTS-5V100A, Neware Co., Ltd., Shenzhen, China), a set of measurement and control software, and a computer. In this study, a time interval of 0.1 s is used for data acquisition. The complete battery test system is shown in Figure 3. The Panasonic 18,650 ternary lithium-ion battery is used for testing, and its specifications are shown in

Table 1. Specifications of the Panasonic 18,650 ternary lithium-ion battery.

Battery Model	Nominal Capacity	Rated Voltage	Charge Cutoff Voltage	Discharge Cutoff Voltage
18,650	3350 mAh	3.6 V	4.2 V	2.5 V

.

In order to identify the model parameters, the static capacity test (SCT), hybrid pulse power characteristic (HPPC) test, and double pulse discharge test were performed in this study, at five different ambient temperatures (5 °C, 15 °C, 25 °C, 35 °C, and 45 °C), according to the work of [31]. The SCT was used for battery capacity (Q) identification, and the double pulse discharge test was utilized to obtain the OCV (V_OCV) under specific SOC values. Parameters such as ohmic internal resistance (R₀), polarization resistances (R₁, R₂), and polarization capacitances (C₁, C₂) were obtained by the HPPC test. The major test steps of the three tests are shown in

Table 2. Major test steps of the static capacity test (SCT), hybrid pulse power characteristic (HPPC), and double pulse tests.

Test Name	Test Steps
SCT Test	1 Battery shelved for 1 h 2 0.2 C constant current charging to charge cut-off voltage 3 Constant voltage charging to charge cut-off current 4 Battery shelved for 2 h 5 0.2 C constant current discharging to discharge cut-off voltage
HPPC Test	1 1 C constant current charging to charge cut-off voltage 2 Constant voltage charging to charge cut-off current 3 1 C constant current constant capacity (0.1 SOC) discharging 4 Battery shelved for 1 h 5 1 C constant current discharging for 10 s, battery shelved for 40 s, 0.75 C constant current charging for 10 s 6 Repeat steps 3~5 to obtain battery internal resistances and power characteristics at different SOC values
Double Pulse Test	1 1 C constant current discharging to discharge cut-off voltage 2 Battery shelved for 1 h 3 0.5 C constant current constant capacity (0.1 SOC) charging 4 Battery shelved for 2 min 5 Repeat steps 1 and 2 until the voltage reaches the charge cut-off voltage 6 Battery shelved for 12 h 7 0.5 C constant current constant capacity (0.1 SOC) discharging 8 Battery shelved for 2 min 9 Repeat steps 1 and 2 until the voltage reaches the discharge cut-off voltage

.

3.2. Identification of OCV

In practice, the battery OCV cannot be directly measured. However, there exists a certain correspondence between the OCV and SOC, which is crucial for OCV estimation. This relationship can be expressed by the following empirical equation [32]:

$$V_{\mathrm{OCV}}=K_1+K_{2}SOC+K_{3}SO{C}^2+K_{4}SO{C}^3+K_{5}SO{C}^4,$$

(8)

where K_i (i = 1, 2, ... 5) are five coefficients depending on the ambient temperature. The values of K_i determine the accuracy of the empirical Equation (8), and they can be obtained from the double pulse discharge test. The obtained coefficients of Equation (8) at different ambient temperatures are shown in

Table 3. Coefficient values at different ambient temperatures.

Coefficient	5 °C	15 °C	25 °C	35 °C
K1	2.7758	2.81055	2.58785	2.4553
K2	1.6295	1.48735	1.78815	1.96495
K3	−0.04675	−0.04095	−0.07095	−0.1013
K4	−0.43585	−0.4026	−0.5894	−0.7354
K5	0.07365	0.02485	0.05735	0.05175

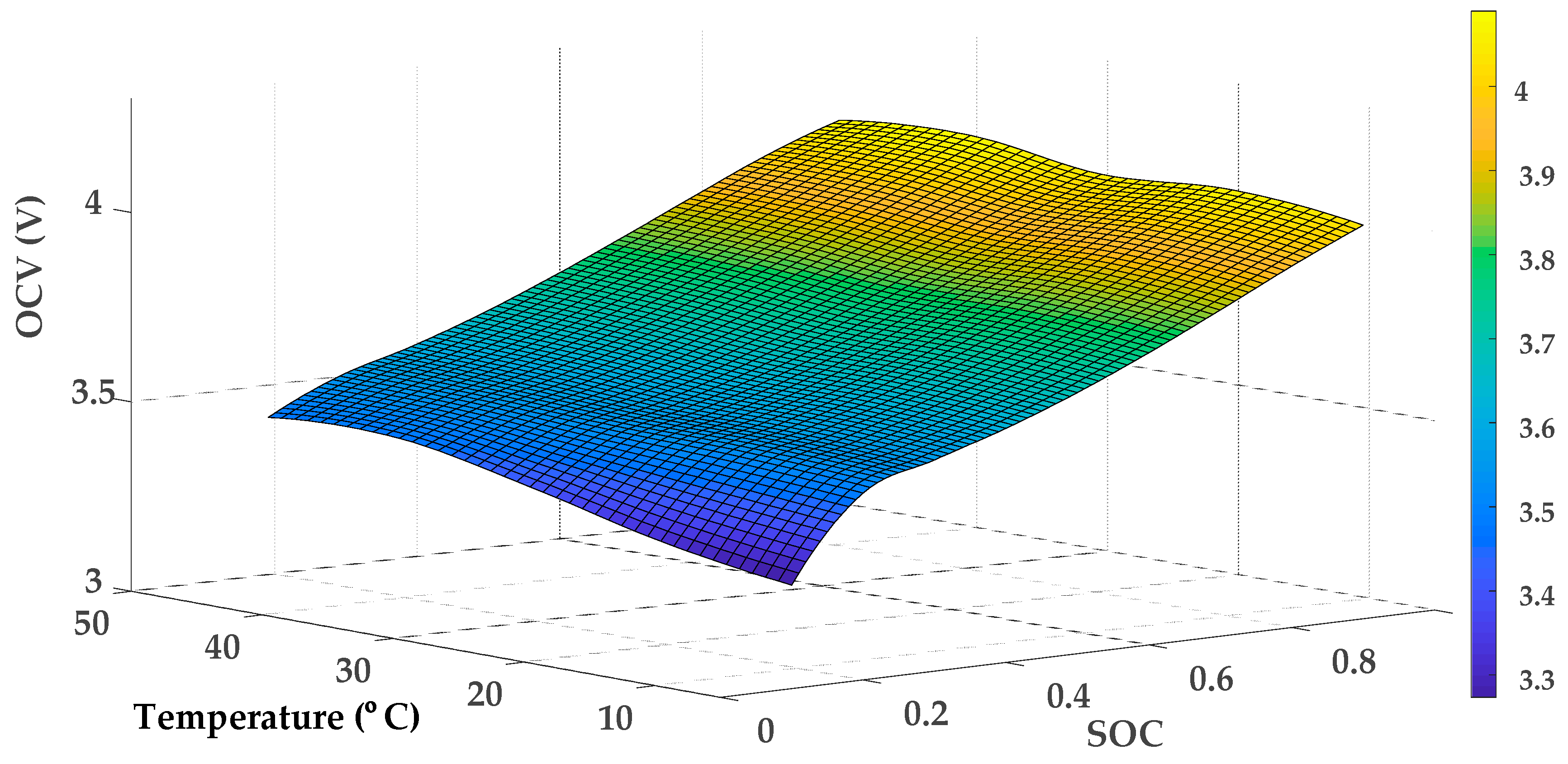

, and the resulting 3D SOC–Temperature–OCV (SOC–T–OCV) map is shown in Figure 4. This SOC–T–OCV map is indeed a 3D look-up table, from which we can determine the OCV for certain values of SOC and ambient temperature.

3.3. Identification of Internal Resistances and Capacitances

In this section, we explain how to identify the internal resistances (R₀, R₁, and R₂) and capacitances (C₁ and C₂), by means of the HPPC test. In the HPPC test, the voltage and current vary according to the patterns shown in Figure 5. In this figure, one of the charge–discharge cycles is enlarged to clearly show the details.

Considering the discharge relaxation response curve (U₄~U₅) and the charge relaxation response curve (U₈~U₉) in Figure 5, the battery terminal voltage expression (i.e. Equation (3)) can be converted to the following equation, according to the work of [33]:

$$V(t)=a+b\times exp(-t/{\tau }_1)+c\times exp(-t/{\tau }_2),$$

(9)

where a, b, and c are the fitting coefficients; and ${\tau }_1$ and ${\tau }_2$ are the time constants of the two RCs in Figure 2. The five coefficients a, b, c, ${\tau }_1$, and ${\tau }_2$ in Equation (9) can be obtained by means of curve fitting using MATLAB software.

Once the coefficients a and b are determined, the polarization internal resistances R₁ and R₂ can be calculated as follows:

$$R_1=a/I,$$

(10)

$$R_2=b/I,$$

(11)

where I is the measured current. The identification results for R₁ and R₂ are shown in Figure 6. It should be noted that the identification results for charging and discharging are different.

After the internal resistances R₁ and R₂ are determined, the polarization capacitances C₁ and C₂ can be computed as follows:

$$C_1={R_1/\tau }_1,$$

(12)

$$C_2={R_2/\tau }_2.$$

(13)

The identification results for C₁ and C ₂ are shown in Figure 7. Similar to the case of polarization internal resistances, the capacitance identification results for charging and discharging are different. It is clearly seen in Figure 6 and Figure 7 that the values of these four parameters, R₁, R₂, C₁, and C ₂, are dependent on SOC, ambient temperature, and direction of current (i.e., charging or discharging).

Substituting the voltage drop values (as shown in Figure 5) in Equations (14) and (15), the ohmic internal resistance R₀ in the battery model is obtained:

$$R_{0\mathrm{d}}=\left(\left(U_1-U_2\right)+\left(U_4-U_3\right)\right)/\left(2\times I_{\mathrm{d}}\right),$$

(14)

$$R_{0\mathrm{c}}=\left(\left(U_6-U_5\right)+\left(U_7-U_8\right)\right)/\left(2\times I_{\mathrm{c}}\right),$$

(15)

$$R_0=\left(R_{0\mathrm{d}}+R_{0\mathrm{c}}\right)/2.$$

(16)

where R_0d and R_0c represent the ohmic internal resistances during discharging and charging, respectively; and I_d and I_c denote the discharging current and charging current, respectively. The identification results for the ohmic internal resistance R₀, at different ambient temperatures, are shown in

Table 4. Identification results for the ohmic internal resistance, R₀.

Parameter	5 °C	15 °C	25 °C	35 °C	45 °C
R0	0.067551	0.056435	0.048624	0.046138	0.043975

. It is seen that the value of R₀ drops as the ambient temperature increases.

4. Model Verification and Discussion

In this section, the accuracy of the proposed temperature-dependent second-order RC equivalent circuit model is verified. The schematic of the simulation model used for verification is shown in Figure 8. The identified parameters obtained from Section 3 are employed in the proposed model, and the model accuracy is evaluated in terms of the difference (error) between the measured terminal voltage and that resulting from the proposed model.

For verification purposes, the model has undergone the discharging test, charging test, and dynamic stress test (DST) [34], under constant and varying temperature conditions. The voltages resulting from the model as well as the voltage errors are plotted in Figure 9, under a constant ambient temperature of 25 °C. It is shown that for both the discharging and charging tests, the model output voltages are very close to the measured terminal voltages, and the voltage errors are maintained within ±20 mV. As for the DST, the model output voltage follows the measured voltage very well, with a slightly increased error magnitude compared with the first two cases. Note that the error is still maintained within a very small range, that is, ±50 mV.

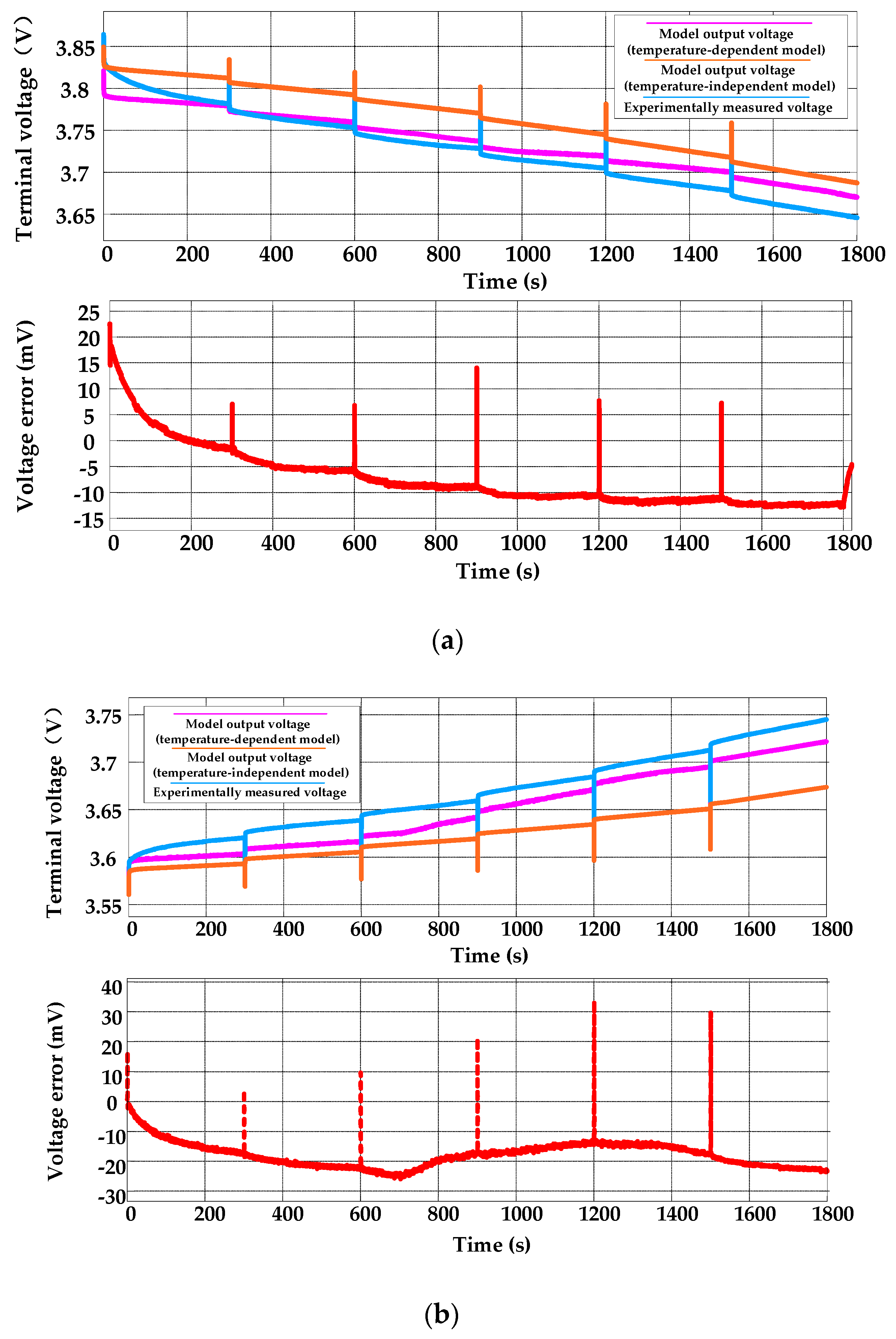

The verification results under varying temperature conditions are shown in Figure 10. In the discharging test, the ambient temperature was gradually increased from 12 °C to 20 °C. We see from Figure 10a that the model output voltage is quite close to the experimentally measured battery terminal voltage, with the voltage error remaining within ±15 mV. Besides, a traditional second-order RC model, which is independent of ambient temperature, is introduced for comparison purposes, and its output voltage is represented by an orange curve. It is clearly shown that the purple curve, generated by the proposed temperature-dependent second-order RC model, is closer to the measured voltage compared with the orange curve.

In the charging test, the ambient temperature gradually was decreased from 22 °C to 14 °C. As shown in Figure 10b, similar to the previous case, the model output voltage is close to the measured voltage and the voltage error is maintained within ±30 mV. Again, the purple curve, representing the proposed model, is closer to the measured voltage compared with the orange curve.

As for the DST, the ambient temperature was gradually increased from 25 °C to 40 °C. In this case, the model output voltage is still close to the measured battery terminal voltage, and the voltage error is kept within ±50 mV. Same as the above two cases, the proposed model outperforms traditional second-order RC model, as clearly demonstrated by the enlarged curves in Figure 10c.

The above results indicate that the established temperature-dependent second-order RC model provides not only accurate output voltage, but also good robustness against temperature variations. This verifies the superiority of the proposed model to the traditional second-order RC model under varying ambient temperature conditions.

5. SOC Estimation Based on Double Kalman Filter Algorithm

It is known that high-precision SOC estimation is crucial for batteries’ safety, power characteristics, and service life, and the accuracy of SOC estimation is directly dependent on the performance of the battery model used. In this section, a double Kalman filter (DKF) algorithm is proposed for SOC estimation, based on the established temperature-dependent second-order RC model. This algorithm combines the advantages of the Ah integration method, the KF algorithm, and the EKF algorithm, and its effectiveness is verified through comparisons with the EKF algorithm.

5.1. DKF Algorithm

The schematic that demonstrates the structure of the proposed DKF algorithm is shown in Figure 11. This algorithm employs a two-layer filtering layout to provide SOC estimation. In the first layer, the error between the measured terminal voltage (i.e., V_real) and that resulting from the proposed battery model (namely V) is employed as the input to an EKF. The output from the EKF is fed to the proposed battery model to produce a corrected SOC estimate, SOC_EKF. The purpose of this EKF is to deal with the uncertainties caused by modeling imperfections, thereby improving the SOC estimation performance. In the second layer, the error between SOC_EKF and that produced by the Ah integration method (denoted by SOC_Ah) is sent to a KF, and the output from this KF is then fed back to the Ah integration algorithm, which generates a further corrected SOC estimate, that is, the output SOC. The purpose of this KF is to suppress the cumulative error resulting from the Ah integration method, which further enhances the SOC estimation accuracy.

To implement the DKF algorithm, we first rewrite the proposed temperature-dependent second-order RC model in a discrete state space form. In this expression, the state vector is x = [SOC V₁ V₂]^T, the input is u = I (battery current), and the output is y = V (battery terminal voltage). At time k, this state space equation takes the following form:

$$\{\begin{array}{l}{x}_{\mathrm{k}+1}=A{x}_{\mathrm{k}}+B{u}_{\mathrm{k}}+{\omega }_{\mathrm{k}}\\ y_{\mathrm{k}}=C{x}_{\mathrm{k}}+D{u}_{\mathrm{k}}+{\nu }_{\mathrm{k}}\end{array},$$

(17)

where ${\omega }_{\mathrm{k}}$ denotes the process noise; ${\upsilon }_{\mathrm{k}}$ represents the measurement noise; and matrices A, B, C, and D are given by the following:

$$A=\left[\begin{array}{ccc}1& 0& 0\\ 0& \exp \left(\frac{-t}{R_1{C}_1}\right)& 0\\ 0& 0& \exp \left(\frac{-t}{R_1{C}_1}\right)\end{array}\right],$$

(18)

$$B=\left[\begin{array}{c}\frac{\eta t}{Q}\\ R_1\left(1-\exp \left(\frac{-t}{R_1{C}_1}\right)\right)\\ R_2\left(1-\exp \left(\frac{-t}{R_2{C}_2}\right)\right)\end{array}\right],$$

(19)

$$C=\left[\begin{array}{ccc}\frac{dOCV}{dSOC}& 1& 1\end{array}\right],$$

(20)

$$D=R_0.$$

(21)

The detailed implementation process of the proposed DKF algorithm is as follows:

Step 1. Determination of the initial SOC value: Obtain the initial SOC value by means of the SOC–T–OCV map.

Step 2. State initialization: Determine the SOC error covariance, the process noise variance, and the measurement noise variance.

Step 3. First layer filtering: Conduct EKF-based filtering using Equations (18)–(21), and produce a corrected SOC estimate, SOC_EKF.

Step 4. Second layer filtering: Conduct KF-based filtering using Equations (18)–(21), and produce a further corrected SOC estimate, that is, the output SOC.

Step 5. Iteration: Repeat steps 3 and 4 to provide real-time SOC estimation.

Following the above recursive filtering steps, the uncertainties caused by modeling imperfections, as well as the cumulative error resulting from the Ah integration method, can both be suppressed. Through the proposed two-layer filtering mechanism, the overall SOC estimation performance is greatly improved, as we will show in the following section.

5.2. Algorithm Verification and Discussion

The effectiveness of the proposed DKF algorithm is verified by means of the DST. Similar to Section 4, the SOC estimation accuracy is evaluated under both constant and varying temperature conditions. Figure 12 shows the SOC estimation results produced by the proposed DKF algorithm and the traditional EKF algorithm. We see that for both temperature conditions, the black curve (representing the DKF) is closer to the real value, with significantly fewer pulses and ripples, compared with the blue curve produced by the EKF. Besides, it is also shown in this figure that the SOC estimation errors resulting from the proposed DKF are maintained within a very small range, ±0.4%, for both temperature conditions. The accuracy of the EKF and the proposed DKF under different working conditions is shown in

Table 5. Accuracy comparison between extended Kalman filter (EKF) and dual Kalman filter (DKF) under different working conditions.

Working Conditions	EKF			DKF
Constant temperature	R2	Maximum error	Average error	R2	Maximum error	Average error
	0.9978	0.0134	0.0024	0.9998	0.0036	0.0006
Varying temperature	R2	Maximum error	Average error	R2	Maximum error	Average error
	0.9984	0.131	0.0018	0.9999	0.0035	0.0005

.

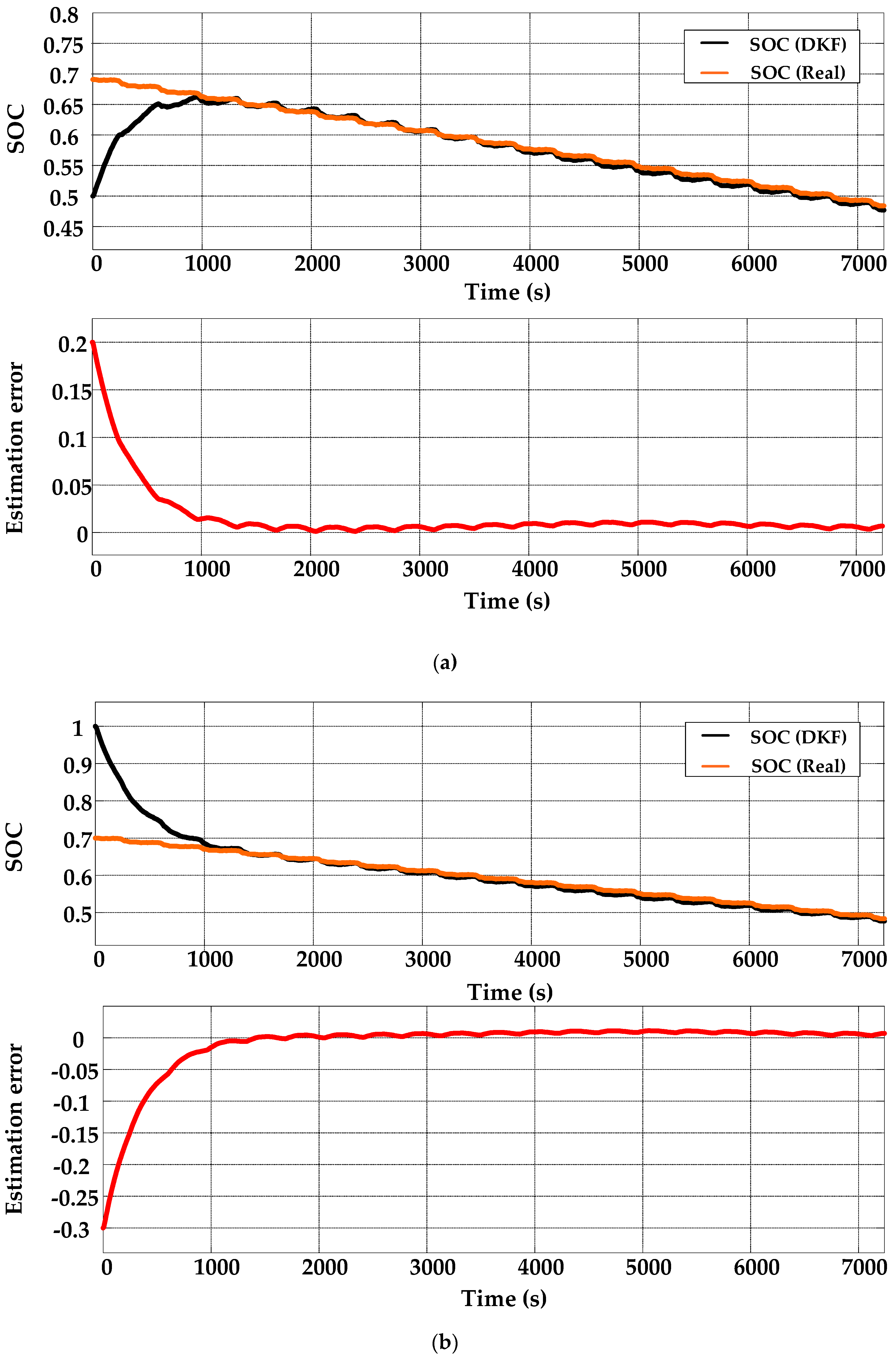

Note that the proposed DKF algorithm is robust to the initial SOC error. In other words, the proposed DKF is able to ensure the convergence of the estimated SOC to the real value, even if an error exists in the initial SOC value. We see that in Figure 13a, the initial SOC value fed to the DKF is higher than the real value, while in Figure 13b, the initial SOC value is lower than the real one. In both cases, the proposed DKF algorithm gradually drives the estimated SOC towards the real values, and the estimation errors are kept within ±0.5% after convergence.

The above verification results indicate that the proposed DKF algorithm, constructed based on the established temperature-dependent second-order RC model, outperforms the traditional and classical EKF algorithm in terms of SOC estimation, under both constant and varying temperature conditions. In addition, the proposed DKF provides good robustness against initial SOC errors, which guarantees the performance of the DKF even if the initial SOC cannot be accurately obtained.

6. Conclusions

The battery electrical characteristics are dependent on the ambient temperature; however, most existing battery equivalent circuit models have not taken into account the influences of ambient temperature. In this paper, a temperature-dependent second-order RC equivalent circuit model is established, based on the electrical characteristics of lithium-ion batteries at different ambient temperatures (5 °C, 15 °C, 25 °C, 35 °C, and 45 °C). The unknown model parameters are identified by means of experiments, and the accuracy of the proposed battery model is verified under constant and varying temperature conditions. It is shown that for both the discharging and charging tests, the model errors are maintained within ±30 mV. As for the DST, the accuracy of the model is reduced, but the error is still maintained within a very small range, that is, ±50 mV. These verification results indicate that the proposed model provides not only accurate output voltage, but also good robustness against temperature variations. Besides, it is also shown that the proposed model outperforms the traditional second-order RC model under varying ambient temperature conditions.

On the basis of the proposed temperature-dependent second-order RC model, a DKF algorithm that combines the Ah integration method, the KF algorithm, and the EKF algorithm is proposed for SOC estimation. This algorithm employs a two-layer filtering mechanism to enhance SOC estimation performance, which suppresses the uncertainties caused by modeling imperfections, as well as the cumulative error resulting from the Ah integration method. The effectiveness of the proposed DKF algorithm is verified by means of the DST, under both constant and varying temperature conditions. The verification results indicate that the proposed DKF algorithm outperforms the traditional and classical EKF algorithm, with the SOC estimation errors under different temperature conditions maintained within ±0.4%. Besides, it is also proven that the proposed DKF algorithm provides good robustness against temperature variations and initial SOC errors.

Lithium-ion batteries will age with the increase of the number of cycles. Consequently, the parameters of the battery model will also change with time. In our future work, the battery lifetime experiments will be performed to obtain battery aging data, based on which a more advanced battery model considering battery aging will be investigated and utilized for better battery state estimation.
