1. Introduction
Ambitious worldwide renewable energy targets are pushing wind energy systems (WESs) to become a mainstream power source. Depending on the turbine type, WESs offer high power availability of more than 96%. Despite this high availability rate, this system is subject to various failures, such as mechanical and electrical failures. The survey indicated that the electrical failure rate is much higher than the mechanical failure rate in WES [
1].
As it is revealed in
Figure 1, the typical structure of a WES based on a doubly-fed induction generator (DFIG) comprises the wind turbine, the gearbox, the DFIG, the transformer, and the power electronics converters (PCVs), that is, the rectifier and the inverter. The electrical part comprises the doubly-fed induction generator (DFIG), the PCVs, and the transformer [
1]. Nowadays, the actual service life of PCVs is less than the other subsystems, where the annual failure rate of PCVs is about 20% of WES total failures [
2].
Failures in PCVs can be found at several components such as capacitors, gate drives, and power semiconductor switches. According to a recent survey, the power semiconductor devices are the most vulnerable components in PCVs with a high failure rate [
1].
Noteworthily, the insulated gate bipolar transistor (IGBT) is the most widely used power semiconductor switches in PCVs medium- and high-power supplies, where about 42% of power semiconductor switch used in WES are IGBTs [
3]. In this regard, the reliability problem of IGBTs has been a research topic in the last few years [
4].
For instance, a recent WES industry survey showed that the ratio of the IGBT failure cost is around 80% of the WES cost [
5]. To prevent WES shut down due to IGBT failures, the implementation of an accurate prognostics health management (PHM) system is necessary. The investigation of the PHM optimizes the maintenance cost by predicting the damage accumulation and RUL. It is considered an intelligent maintenance way [
6,
7].
Usually, the mission profile of a component can be classified into three time-term categories; long, medium, and short cycles. As revealed in
Figure 2 electrical failure appears in around a millisecond, it is classified as a short term failure. For this reason, it is necessary to protect the WES from electrical failures by investigating a prognostic approach. It should be noted that the prediction of the damage is also varied according to the time-term.
It is common knowledge that prognostic approaches can be classified into three different types, specifically: physics-based, data-based, and hybrid approaches. Each approach makes use of different information. To begin with, the physics-based approach is based on an analytical model to follow-up the degradation process [
7,
8].
There is a considerable amount of literature on physics-based approaches. Often, the physics-based approach assumes that the degradation health state is described by a complex physical model combined with the usage conditions to define the physical model parameters. These parameters are used in the prediction of future behavior and the remaining useful life (RUL) of the IGBT device.
Several studies have been carried out on Bayesian estimation techniques employed in a physics-based approach. For instance, Haque et al. presented in [
9] a new method to estimate the IGBT health state using the collector-emitter-on state voltage. The authors investigate the auxiliary particle filter technique with an additional option that identifies the time when the destruction is evident in IGBT. Then, Saha et al. [
10] suggested a new prognostic tool for IGBT devices, wherein this prognostic method the particle filter was a starting point. Celaya et al. [
11] developed two model-based approaches; the first one is based on the extended Kalman filter technique and the second one is based on the particle filter technique. They investigated the ON-state resistance signal. They compared the results and the particle filter was more efficient.
On the other hand, many papers document the data-driven strategy, with data-driven approaches focusing on the real data collected from the test boards. This approach uses several techniques to identify the characteristics of degradation phenomena and to predict the future trend of the analyzed component. There are two kinds of data-based approaches; the first one is artificial intelligence techniques and the second one is statistical techniques.
In the literature of artificial intelligence techniques, there seems to assume that the most used tool is the artificial neural network method. For example Hong et al. investigated in [
12], an extended version of the neural network, once the training process is performed, the degradation level is extracted. This approach is realized using the junction temperature training signal. The main drawback of this method, it requires a very large database. Additionally, Alghassi et al. [
13] proposed an IGBT’s RUL prediction method using a machine learning tool. They implemented the time-delay neural network method with the investigation of the collector-emitter voltage signal as a training signal. This method suffers from complexity. Then, Hu et al. [
14] proposed an online RUL prediction method for IGBT. The RUL prediction was realized by the artificial neural network (ANN) in the input layer they use three precursor signals; the on-state collector-emitter voltage
Vce, the Miller platform voltage
Vm, and Miller platform time. The experimental results proved the effectiveness of this method however it suffers from the very high number of the precursor signals.
On the other hand, statistical approaches are habitually used in a data-based prognostic approach. For example, in [
15], Ali et al. presented an IGBT data-based prognostic approach using the on-state collector-emitter voltage. They proposed a model parameter identification using the Gaussian process method for applying a Bayesian inference on RUL estimation. Therefore, Ismail et al. presented in [
16,
17] an IGBT’s RUL prediction approach using the collector-emitter voltage signal, and the estimation model is realized through the collector-emitter voltage precursor signal, and they proposed a RUL estimation model that uses the Gaussian regression process for thermally aged power IGBTs. This method predicts accurately the RUL. Additionally; Ismail et al. presented in [
18] a modified maximum likelihood RUL estimator combined with a time-domain analysis of the available data to prognosis the IGBT failure. This approach is based on the case temperature signal. This method provides a good RUL prediction result, however, it requires initialization. Additionally, Wu et al. [
19] used the maximum likelihood estimation (MLE) to predict the IGBT life cycle; they employed the junction temperature and vibration as a precursor signal. This method suffers from complexity and a high number of precursor signals.
A comprehensive and detailed review of various data-driven algorithms with comparison can be found in [
20].
In this work, the focus has been to overcome the trend parameter choice problem. To overcome this problem, we propose to use linear feature reduction techniques. These techniques act as a fusion technique for the extracted features. In this way, we propose a new health indicator for the IGBT device. Thereby, the principal component analysis (PCA) technique is used in this work to reduce original features extracted from measured data. In the second step, we recommend using the feedforward neural network (FFNN) as a regression algorithm for prognostic purposes.
The remainder of this paper is organized into three sections as follows:
Section 2 contains a detailed description of the tools used in the proposed prognostic approach. Within
Section 3, we show the experimental results. Finally, we conclude this paper with the main finding.
2. Prognostic: Definition and Relationship
2.1. PHM Definition
The main advantage of the PHM concept is its cost-effective maintenance. Where the maintenance process is achieved based on the results provided by diagnostics and prognostic purposes.
The development of a PHM system is considered as the concatenation of seven purposes. All of them anticipate failure mechanisms and improve life cycle management [
21].
These purposes are organized as follows to generate a robust life cycle management: (1) The first stage is related to the data acquisition; this step consists in the collection of data from different sensors and (2) the second step is the data processing. This step consists of the extraction of the degradation features from the measured data. (3) The third is the condition assessment. This step is related to the analysis of the current state and the degradation state, which can also be used in (4) the fourth step corresponding to the fault detection and diagnostics. (5) The fifth step aims at predicting degradation trends to evaluate the RUL. (6) The sixth step is the decision-making step, which is considered as feedback support. (7) Finally, the seventh step presents human intervention [
21].
As is seen in
Figure 3, these purposes are grouped into three main stages; observation, analysis, and action. The observation stage starts from the data acquisition step until the data processing step. The analysis stage starts from the condition assessment step until the prognostics step. The action stage starts from the decision support step, until the human-machine step.
Indeed, the observation function has become a challenge. Even when the measured data does not show the degradation behavior clearly. There are various ways to view and survey the degradation behavior of the monitored IGBT using the data processing step. The main benefit of this step is the ability to extract the degrading trends whether the fault occurs or not yet, it is related only to the precursor data. This function provides useful features, which will be used in the analysis function (i.e., diagnostics and prognostics).
In PHM industries, the analysis function manifests the actual health state of the system through two main tasks the diagnostic and the prognostic. Furthermore, the analysis function is developed to forecast the future health state and to compute the RUL using an effective prognostic algorithm.
Finally, the action function is a decision-making unit, which executes the decided maintenance actions regarding the current health state of the asset. All these functions provide useful health information that can be used to satisfy the operating conditions.
2.2. Precursor Signal
Several measured data are used in the open literature. Therefore, the question is always arises in the last few years: what is the most suitable and the best data? The choice of the adequate data depends on many factors such as noises and fluctuation. In general, measured data contain noises and fluctuations, which raise problems for the PHM concept. Therefore, the definition of adequate measured data will surely facilitate PHM implementation [
22].
There are many measured data obtained from sensors. The main measured data can be listed as follow:
- -
Collector-emitter voltage (Vce).
- -
Collector-current (Ic).
- -
Gate-emitter voltage (Vge).
- -
Thermal and electrical resistance (turn ON (Ton) and turn OFF (Toff)).
During the analysis of the fault and the sensor system, many required performance should be considered. The relevant performances include:
Sensitivity (S): The variation of the output signal concerning the variation in the input signal (slope of the calibration curve). It is expressed as follows:
where the
M denotes measurement and
t denotes time.
Linearity (L): The relation between the calibration curve and the theoretical behavior in terms of closeness. The linearity is expressed as follows:
where the C denotes calibration and T denotes theoretical behavior.
Accuracy (A): minimizing the error between the measurement quantity value and its true value. The accuracy can be written as follows:
Online measurement: The time quantity a sensor takes to act and give a measurement.
Calibration: Both of the maximum and minimum values of the measured quantity.
For all PHM applications, the technicians, experts, and researchers need to consider all of factors detailed above.
The performances of all the measured data are summarized in
Figure 4. The performances are summarized in terms of six main metrics; sensitivity, linearity, accuracy, capability, and online measurement. As it is shown in
Figure 4 the
Vce data performances are higher compared to the other measured data [
23,
24]. Therefore, in this paper, we use only the
Vce signal. The most achievement is to use only one signal as a failure signature for the IGBT failure prognostic.
3. Methods
3.1. Proposed Prognostic Approach
The proposed approach for IGBT failure prognostic is summarized in
Figure 5. The proposed approach is divided mainly into three steps; during the first step of the proposed approach, a preprocessing phase is organized to collect data from sensors. Once the preprocessing phase has been done, we can then pass to the processing phase in which we manipulate collected data to extract useful features and extract health indicators using the PCA technique. With the completion of the processing phase, we are now ready to carry out the results and the degradation level of the analyzed IGBT component by the post-processing phase using the FFNN technique.
The basic task in the proposed approach is the feature extraction task. The crucial task is the feature reduction task. The prognostic task is the decisive task in our approach. The benefit of our approach is observed in the predicted RUL.
We believe this solution will aid the industrialists in the maintenance process.
3.2. Feedforward Neural Network (FFNN)
Several prognostic methods put forward learning automatically from previous degradation behavior to solve this issue. This learning technique can be viewed as an artificial intelligence technique. The past years have seen a renewed importance in artificial intelligence techniques, where researchers have produced numerous advances in wide fields and applications.
The artificial intelligence techniques include the neural network (NN), and the feedforward neural network (FFNN) is an extended version of NN. We chose the FFNN to investigate artificial intelligence techniques because it is the common one [
5].
Generally, the FFNN is composed of neurons, these neurons are grouped into layers, and layers are divided into three types; the first layer is named the input layer, its role is receiving data from outside. Then, the last layer named the output layer, this layer provides the processed data by the FFNN. While the hidden layer performs the interconnection between the input layer and the output layer. It should be noted that FFNN conveys information in only one direction [
25].
For a detailed description, the FFNN is based on a training process that aims to search the optimal parameters of the FFNN. There are two categories of parameters; weights and biases. Weights are the interconnection between different nodes and biases are coefficients attached to each neuron of hidden and output layers [
25].
Once the FFNN is trained, the model is founded using a transfer function. Where the FFNN parameters are the input of the transfer function.
Noteworthily, the structure of the FFNN should be determined after the analysis of the problem statement, where the structure describes the mechanism between the input layer and the output layer. In this paper, we explore the structure presented in
Figure 6.
3.3. Correlation Dimension Estimator
In this work, we investigate the estimating dimensionality purpose to estimate the new dimensional space of the extracted features. In the field of dimension estimation, various techniques can be found. One of these techniques is the correlation dimension estimator (CDE). The CDE estimates the reduced dimensional space by analyzing the relationship between nearest-neighbors within the extracted features; it is built on the assumption that the dimensional set scales (d) with its size (
r) are combined as
rd. Therefore, the number of samples covered by a hypersphere with the radius (a) grows proportionally to
rd. The algorithm that describes the CDE method is presented in Algorithm 1.
Algorithm 1 CDE |
1. find the k nearest neighbors for all features data points. |
K is the number of neighbors that are stored |
Space distance matrix D |
2. extract an index of the non-zero value D |
3. for i = 1, 2, …, N (where N is the features data cycles) |
Do |
Compute the distance |
where V is one’s vector |
Compute the number of elements within the median value S1 |
Compute the number of elements within the maximum value S2 |
End for |
Dim E |
3.4. Principal Component Analysis
In the literature, the principal component analysis (PCA) is the widely used technique for feature reduction purposes. The PCA technique was chosen because it is one of the most practical and feasible ways to reduce features. In general, the PCA is considered as a statistical technique, which transforms an original set of features in a multi-dimensional space into a smaller dimensional space, which represents most of the useful information provided by the original features. To carry out the PCA technique, a linear transform was used.
The PCA technique aims to generate principal components (PCs), they can be viewed as a new set of features. The PC should be found by sorting the eigenvectors in descending order of the eigenvalues and select the first PC with maximum eigenvalues.
The resulted PCs are characterized by; a maximum variance value, they are correlated, no redundant information, a minimum mean squared approximation error, a high variability, and finally, PCs are orthogonal to each other.

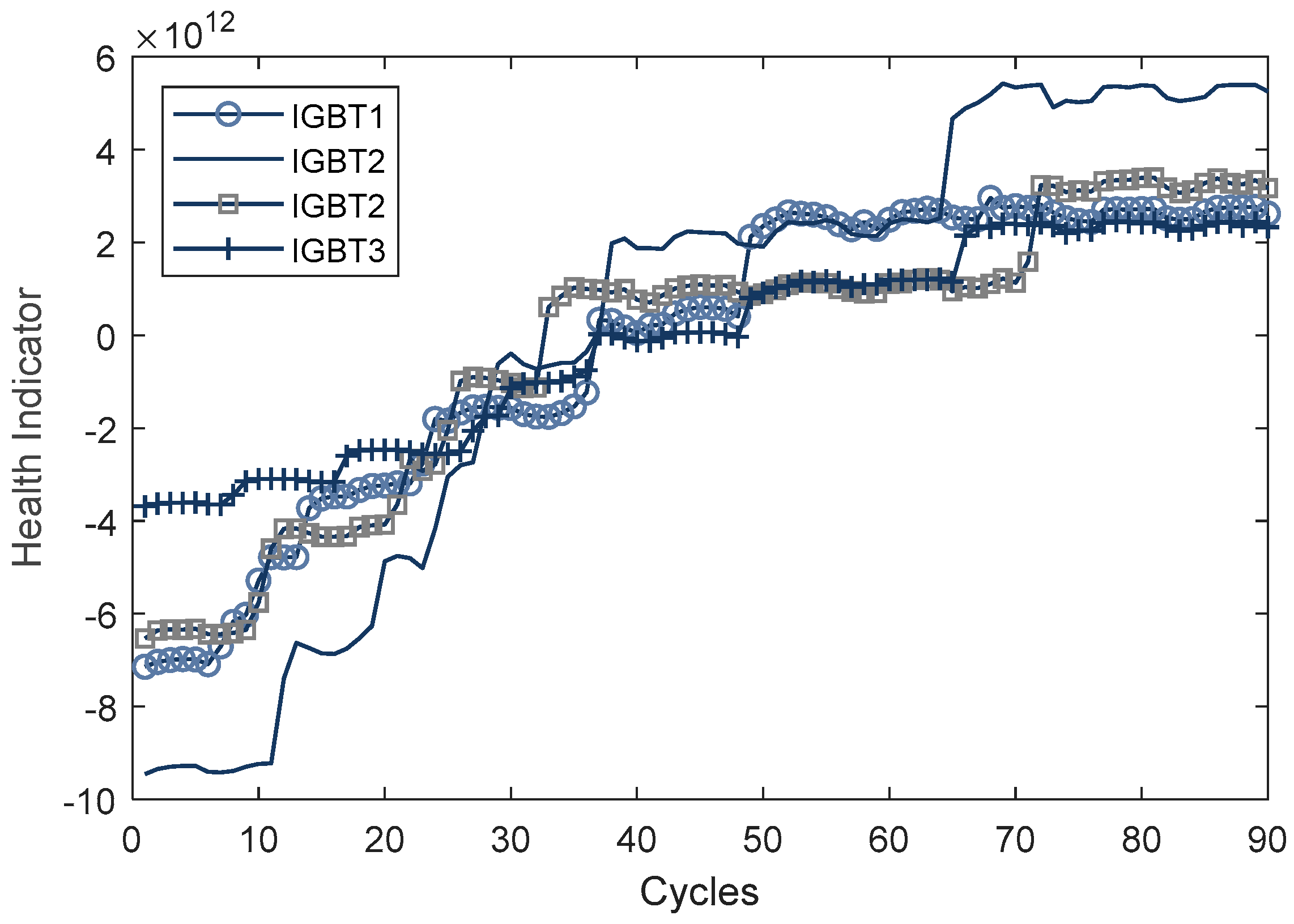

In this work, the PCA technique is investigated to provide an optimized HI from the statistical features extracted from IGBT.
