Low-Complexity Address Generation for Multiuser Detectors in IDMA Systems

Abstract

This paper presents a low-complexity address generation unit (AGU) for multiuser detectors in interleave division multiple access (IDMA) systems. To this end, for the first time, all possible options for designing AGUs are first analyzed in detail. Subsequently, a complexity reduction technique is applied to each of those architectures. More specifically, some components in AGUs are relocated to make them shareable and removable without affecting the functionality. The complete transparency of such renovation makes it applicable to any existing multiuser detector without tailoring the interfacing components therein. Measuring the hardware complexity, all the resulting AGUs are compared with each other, and a new architecture simpler than the state-of-the-art one is developed. Implementation results in a 65 nm CMOS process, demonstrating that the proposed AGU can alleviate the equivalent gate count and the power consumption of the prior process by 13% and 31%, respectively.

1. Introduction

Nonorthogonal multiple access (NOMA) is an emerging class of multiple-access technologies in 5G telecommunications and the Internet of Things [1]. Interleave division multiple access (IDMA) is one of the NOMA schemes that distinguishes multiple users according to their distinct interleaving patterns [2]. By virtue of its fine scalability and robustness, IDMA is considered as a promising NOMA candidate for the forthcoming applications [3].

Recent works in the literature have pioneered sophisticated multiuser detector architectures for IDMA systems [4,5,6,7,8,9,10,11]. As generalized in Figure 1, a U-user detector incorporates U user-wise processing blocks (UPBs) and one elementary signal estimator (ESE). Each UPB contains its own address generation unit (AGU) for accessing memories therein. Since all users employ distinct interleaving patterns and access memories in their own manners, all the U AGUs are implemented separately, making the total number of AGUs in a detector U. Accordingly, when a massive number of users are connected, i.e., U >> 1, the AGUs as a whole contribute a significant portion to the overall hardware complexity.

Despite the weightiness in implementation, only one AGU structure [5] has been presented in the literature, and it has never been studied in detail. For the first time, this paper analyzes all possible options for designing AGUs, and then a complexity reduction technique is applied to each of those architectures. More specifically, some components in AGUs are relocated to make them shareable and removable without affecting the functionality. The complete transparency of such renovation makes it applicable to any existing multiuser detector without tailoring the interfacing components therein. Measuring the hardware complexity, all the resulting AGUs are compared with each other, and a new architecture simpler than the state-of-the-art one is developed. Implementation results in a 65 nm CMOS process that will demonstrate that the proposed AGU can alleviate the equivalent gate count and the power consumption of the prior process by 13% and 31%, respectively.

The rest of this paper is organized as follows. Section 2 reviews the fundamentals of multiuser detection in IDMA systems. Section 3 compares two addressing modes for AGUs. The proposed complexity reduction technique is presented in Section 4. In Section 5, all possible options for AGUs are evaluated and discussed along with the implementation results. Concluding remarks are made in Section 6.

2. Background

At the transmitter of the uth user (Tx_u) in Figure 1, each of N information bits is first replicated S times by a spreader. The resulting sequence of J = NS chips is then permuted by an interleaver of length J. The sequences of the J chips before and after interleaving can be indexed by {j} and {π_u(j)}, respectively, for j = 0, 1, …, J – 1. π_u(∙) is the interleaving function of the uth user. In case of J = 4 and U = 2, for example, {j} = {0, 1, 2, 3}, {π₁(j)} = {2, 0, 3, 1}, and {π₂(j)} = {1, 3, 2, 0}. Note that two interleaving patterns are distinct. The chips departing from U users go through a wireless channel while interfering with each other. In a multiuser detector receiving the chips with interference, the ESE first distributes l_u(π_u(j)) to UPB_u for u = 1, 2, …, U, where l_u(π_u(j)) is the log-likelihood ratio (LLR) of the jth chip from the uth user. In return, UPB_u answers the ESE with e_u(π_u(j)), called an extrinsic LLR. After the ESE and UPBs exchange their LLRs several times, the final estimates of the N information bits are determined by the signs of LLRs.

The operation of UPB_u can be formulated for all j = 0, 1, …, J – 1 as

$$\begin{array}{ll}{e}_u\left({\pi }_u\left(j\right)\right)& =d_u\left(p_u\left(j\right)\right)-l_u\left({\pi }_u\left(j\right)\right)\\ & ={\displaystyle \sum _{s=0}^{S-1}{l}_u\left(p_u\left(j\right)S+s\right)}-l_u\left({\pi }_u\left(j\right)\right)\\ & ={\displaystyle \sum _{s=0}^{S-1}{l}_u\left(\lfloor \frac{{\pi }_u\left(j\right)}{S}\rfloor S+s\right)}-l_u\left({\pi }_u\left(j\right)\right).\end{array}$$

(1)

d_u(p_u(j)) is called a despread LLR, and p_u(j) is the index of the despread LLR that corresponds to l_u(π_u(j)). Accordingly, the first line of (1) states that an extrinsic LLR, e_u(π_u(j)), is calculated by subtracting an incoming LLR, l_u(π_u(j)), from its corresponding despread LLR, d_u(p_u(j)). Comparing the first and the second lines of (1) suggests that d_u(p_u(j)) is the sum of S LLRs associated with p_u(j). Since p_u(j) = floor(π_u(j)/S), as rewritten in the third line of (1), {π_u(j)} can be divided into J/S disjoint subsets, each of which has S elements associated with the same p_u(j). Then, d_u(p_u(j)) can be interpreted as the sum of such S LLRs in a subset. Let us exemplify with J = 4, S = 2, and {π_u(j)} = {2, 3, 1, 0}. The elements in subset {π_u(0), π_u(1)} = {2, 3} are associated with p_u(j) = 1, and d_u(p_u(j)) = d_u(1) is the sum of S = 2 LLRs, l_u(2) + l_u(3). The elements in subset {π_u(2), π_u(3)} = {1, 0} are related with p_u(j) = 0, and d_u(p_u(j)) = d_u(0) = l_u(1) + l_u(0). It is worth noting that obtaining one despread LLR by accumulating S LLRs associated with the same p_u(j) is the inverse of spreading that makes S replicas of the p_u(j)-th information bit.

The state-of-the-art scheme to calculate (1), which is called on-the-fly despreading [5], has dominantly been employed by the latest UPBs [5,6,7,8]. It comprises two phases: 1) reception and 2) response. In the first phase, UPB_u receives l_u(π_u(j)) for all j = 0, 1, …, J – 1 from the ESE, and stores them into a memory named M_L. Simultaneously, it adds l_u(π_u(j)) to the p_u(j)-th entry in a memory named M_P1. M_P1 contains J/S entries, each of which corresponds to a partial sum (PS) of d_u(p_u(j))_. After accumulating all the J LLRs as stated, the PSs become {d_u(p_u(j))}. Let us exemplify again with J = 4, S = 2, {π_u(j)} = {2, 3, 1, 0}, d_u(0) = l_u(0) + l_u(1), and d_u(1) = l_u(2) + l_u(3).

(1)

For j = 0, l_u(2) is stored into M_L, and the PS of d_u(1) in M_P1 is set to l_u(2).

(2)

For j = 1, l_u(3) is stored into M_L, and the PS of d_u(1) in M_P1, which has been l_u(2), is updated to d_u(1) = l_u(2) + l_u(3).

(3)

For j = 2, l_u(1) is stored into M_L, and the PS of d_u(0) in M_P1 is set to be l_u(1).

(4)

For j = 3, l_u(0) is stored into M_L, and the PS of d_u(0) in M_P1, which has been l_u(1), is updated to d_u(0) = l_u(1) + l_u(0).

As a result of J = 4 cycles, {l_u(π_u(j))} and {d_u(p_u(j))} have been prepared in M_L and M_P1, respectively. In the second phase, UPB_u returns e_u(π_u(j)) = d_u(p_u(j)) – l_u(π_u(j)) to the ESE for all j = 0, 1, …, J – 1. The minuend and the subtrahend are retrieved from M_P1 and M_L, respectively. The next reception phase in which new PSs are to be computed may start in the middle of the response phase. However, since {d_u(p_u(j))} in M_P1 are in use during the response phase, they should not be overwritten. Accordingly, the new PSs are stored into a duplicate memory of M_P1, named M_P2. As the phases iterate, the roles of M_P1 and M_P2 alternate. For example, in even-numbered iterations, M_P1 provides d_u(p_u(j)), while M_P2 manages new PSs. In odd-numbered iterations, vice versa.

3. AGUs Based on Sequential and Interleaved Addresses

As stated above, every UPB intensively accesses M_L, M_P1, and M_P2 every cycle to read and write LLRs and PSs, necessitating the generation of proper read and write addresses. The AGU is responsible for organizing such addresses, and interfaces with the memories as depicted in Figure 2. The nomenclature of the signals is as follows. The baseline text stands for the functionality of an address, while the subscript designates the memory associated. For example, RA_L is the read address for M_L, and WA_L is the write address for M_L. In a similar manner, RA_P1, RA_P2, WA_P1, and WA_P2 are the read and write addresses for M_P1 and M_P2, respectively. Note that both M_P1 and M_P2 take WA_P as their common write address. c[0] is the least significant bit (LSB) of the current iteration count c, it being 1 if the current iteration is odd-numbered or 0 if even-numbered.

Table 1. List of signals.

Signal	Meaning
RAL	Read address for ML
WAL	Write address for ML
RAP1	Read address for MP1
RAP2	Read address for MP2
WAP1	Write address for MP1
WAP2	Write address for MP2
c[0]	LSB of iteration count c

briefs the meanings as a prompt reference.

Let us recapitulate that M_L has J entries to store l_u(π_u(j)) for j = 0, 1, …, J – 1, and each of M_P1 and M_P2 has J/S entries to hold PSs of d_u(p_u(j)) for p_u(j) = 0, 1, …, J/S – 1. While p_u(j) is the only addressing scheme for J/S entries of M_P1 and M_P2, two different options are available for accessing the J entries of M_L. One is to use sequential addresses (SAs), {j}, and the other is to adopt interleaved addresses (IAs), {π_u(j)}. Nevertheless, only the former has been presented in the literature [5], and it has never been compared with the latter.

Figure 3 sketches the existing AGU using SAs [5]. The output of the counter at the bottom, which is a cyclic sequence of elements in {j} = {0, 1, …, J – 1}, is readily used as RA_L. The output of the other counter at the top, which precedes the bottom one by E – 1 cycles, plays the role of n_WA_L. n_WA_L is the next write address for M_L that precedes WA_L by one cycle, and E is the latency of the ESE. R_J denotes a D-type register holding log₂J bits, where the subscript J represents the argument of the logarithm. Both RA_L and WA_L are log₂J-bit long so as to address all J entries in M_L. WA_L is generated by R_J that defers n_WA_L one cycle. Given i as input, interleaver_u makes π_u(i). Given i as input, a division-by-S-and-floor unit (DFU) calculates floor(i/S). Putting it all together, given RA_L or j as input, a series of interleaver_u and a DFU bounded by dotted lines derives RA_P = floor(π_u(j)/S) = p_u(j). RA_P serves as one input of each multiplexer. By the other set of interleaver_u and the following DFU, n_WA_L is transformed into n_WA_P, which fills the remaining input of each multiplexer. According to c[0], RA_P1 and RA_P2 alternate between n_WA_P and RA_P. This implements the aforementioned role exchange of M_P1 and M_P2, i.e., one retrieves d_u(p_u(j)) to compute e_u(π_u(j)) in the response phase, while the other prefetches a PS to accumulate l_u(π_u(j)) during the reception phase. A series of R_J and a DFU that follows the upper interleaver_u makes WA_P.

On the other hand, Figure 4 depicts another possible AGU that uses IAs. Unlike the SA-based AGU (S-AGU), RA_L is the output of interleaver_u that shuffles a cyclic sequence from a counter {j}, i.e., {π_u(j)}. n_WA_L is also taken from the output of the other interleaver_u. The two counters are out of phase by E – 1 cycles as they are in Figure 3. Since RA_L is already an IA, a DFU is the only remaining stage to be undergone ahead of RA_P. Similarly, n_WA_P is made by a DFU that takes n_WA_L as input. n_WA_P and RA_P are connected to the multiplexers.

Both AGUs in Figure 3 and Figure 4 contain two counters, two interleavers, and two multiplexers. Excluding such ones in common, the remaining components are colored grey for emphasis. The IA-based AGU (I-AGU) has one less R_J than the S-AGU. On the other hand, since SAs in {j} are independent of u unlike the IAs in {π_u(j)}, the counters and R_J that generate RA_L and WA_L can be shared among all UPB_u for u = 1, 2, …, U, being an advantage of the S-AGU. Another noteworthy merit of the S-AGU is that it may employ the simplified memory subsystem in Ref. [7]. More specifically, M_L is usually implemented with a dual-port memory to accommodate two requests per cycle. When M_L is accessed by SAs, however, a pair of adjacent requests can be integrated into one, and the number of memory accesses per cycle is reduced from two to one. Then, M_L can be implemented with a single-port memory instead of a dual-port one, reducing the hardware complexity significantly.

4. DFU-Reduced Architecture

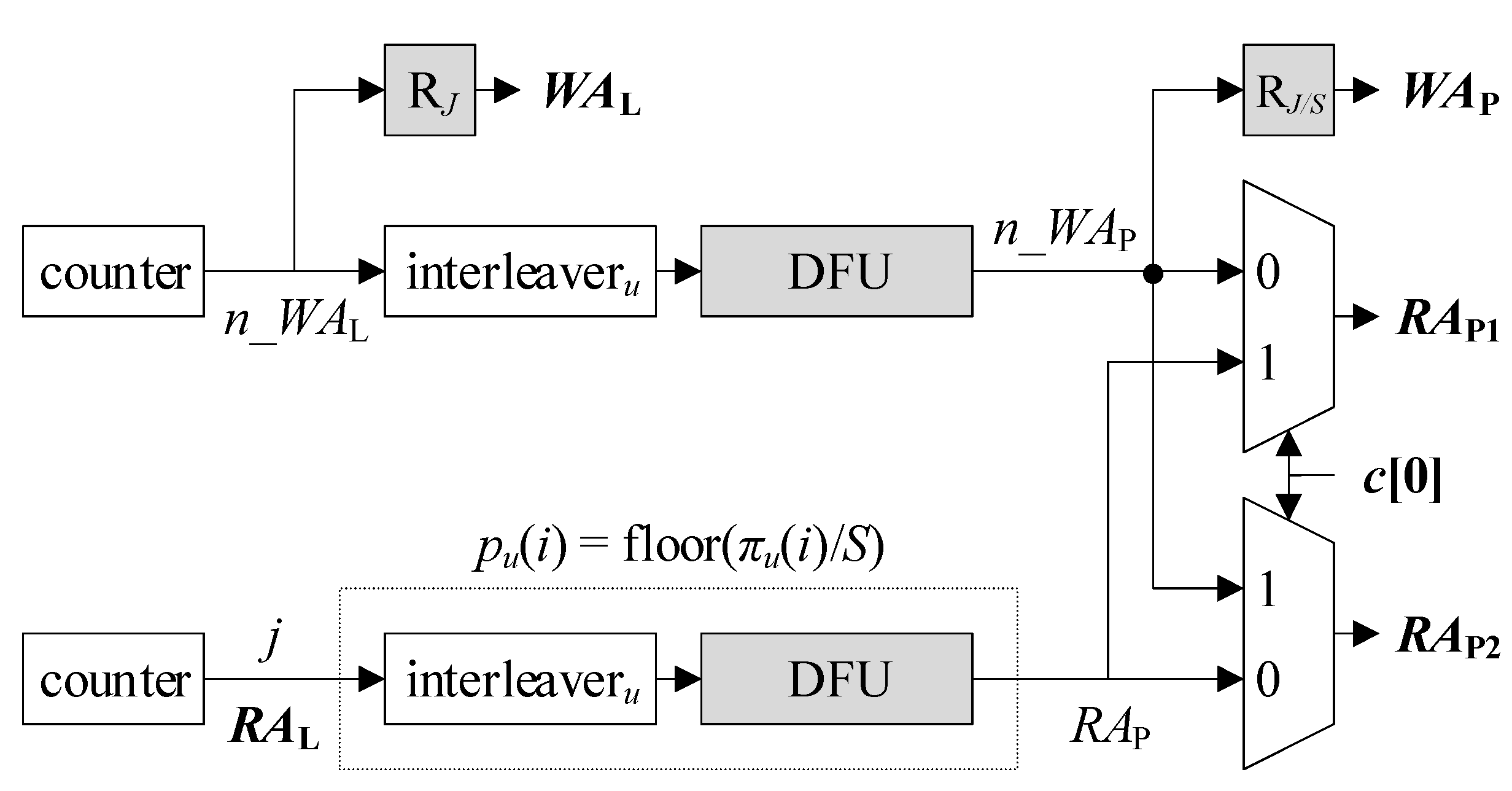

A DFU includes a division that incurs a significant hardware burden. It is therefore important to minimize the number of DFUs. To this end, we now manipulate the AGUs as follows. The top right part of Figure 3 is redrawn in step 1 of Figure 5. We exchange the location of R_J and the following DFU as illustrated in step 2, as such a change does not affect the functionality at all. Then, instead of using two separate DFUs, the output of one DFU can be shared as shown in step 3, mitigating the complexity. Besides, R_J is minified to R_J/S, which is a register holding log₂(J/S) < log₂J bits. Note that each of RA_P1, RA_P2, and WA_P are log2(J/S)-bit long so as to address J/S entries in M_P1 and M_P2. Therefore, the relocation results in not only the removal of a DFU but also the reduction of the bit-width. The entire architecture of the DFU-reduced S-AGU is illustrated in Figure 6.

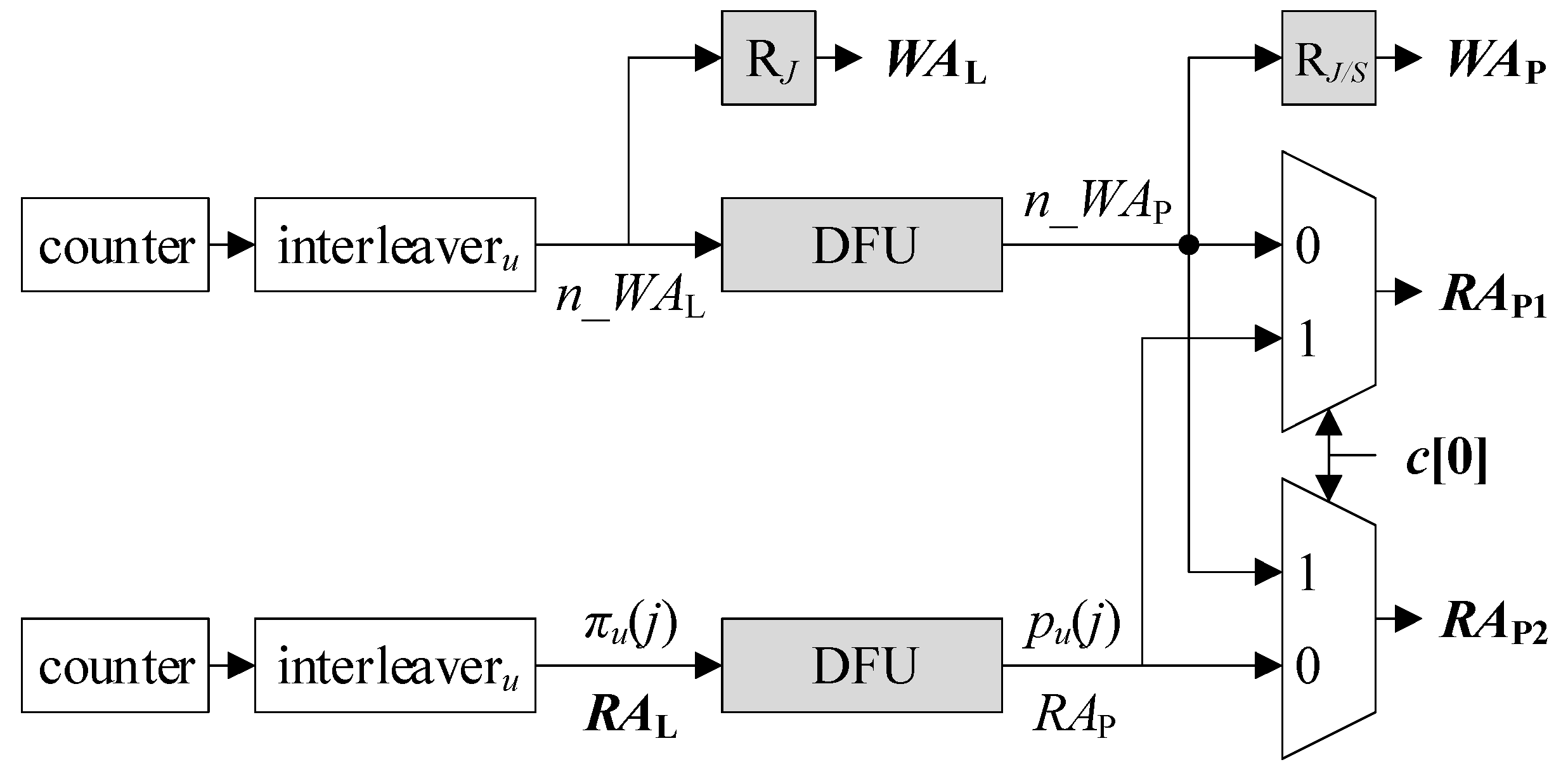

A similar approach can be taken to the I-AGU as well. Step 1 of Figure 7 redraws the top right part of Figure 4. Swapping R_J and the following DFU, we can acquire step 2 of Figure 7. Subsequently, we can share the output of the sole DFU and substitute R_J with R_J/S, as depicted in step 3. However, note that the output of the DFU is now n_WA_P, from which WA_L cannot be retrieved. To secure the indispensable WA_L from n_WA_L, we need to add R_J as illustrated in step 4. Unlike the original I-AGU which is of the lowest complexity, the DFU-reduced I-AGU in Figure 8 requires the additional register to hold n_WA_P for one cycle. Thus, while one DFU is eliminated, one register is appended. In short, the S-AGU benefits more from the relocation technique than the I-AGU.

It is worth noting that the complexity of each DFU can be somewhat relieved by confining S to be a power of two, as the division by a power of two can be easily achieved by right-shift operations. In exchange for such a benefit, however, it sacrifices the range of applicability.

5. Evaluation and Discussion

For all kinds of AGU architectures in Figure 3, Figure 4, Figure 6, and Figure 8,

Table 2. Comparison of AGU architectures.

Architecture	DFUs	Register Bits	1-Port ML
Original S-AGU	3U	(U + 1)log2J	Feasible
Original I-AGU	3U	Ulog2J	Infeasible
DFU-Reduced S-AGU	2U	log2J + Ulog2(J/S)	Feasible
DFU-Reduced I-AGU	2U	Ulog2J + Ulog2(J/S)	Infeasible

summarizes the numbers of DFUs and register bits in a U-user detector. The feasibility of single-port M_L is also tabulated. Counting all DFUs is apparent, as it is the number of DFUs per AGU multiplied by the number of AGUs in a detector, U. In contrast, register bits should be counted while taking into account the following: the R_J that produces WA_L in S-AGUs can be shared among U UPBs, as the SA-based WA_L is identical in all UPBs. In case of the original S-AGU, the number of R_J preceding the DFU is U, whereas the number of R_J producing WA_L is 1, making the total number of register bits (U + 1)log₂J. In the case of the DFU-reduced S-AGU, the numbers of R_J/S and R_J are U and 1, respectively, making the total number of register bits Ulog₂(J/S) + log₂J. All R_J’s in I-AGUs take different inputs and cannot be shared.

For the common and practical set of parameters used in Ref. [5,6,7,8], e.g., U = 16, J = 8192, and S = 16,

Table 3. Numerical example.

Architecture	DFUs	Register Bits
Original S-AGU	48 (100%)	221 (100%)
Original I-AGU	48 (100%)	208 (94%)
DFU-Reduced S-AGU	32 (67%)	157 (71%)
DFU-Reduced I-AGU	32 (67%)	352 (159%)

enumerates the numbers of DFUs and register bits. The percentages in parentheses are calculated with respect to the original S-AGU. The DFU-reduced S-AGU includes the fewest DFUs and register bits. In particular, it requires 33% fewer DFUs and 29% fewer register bits than the original S-AGU, highlighting the benefits of the proposed relocation. On top of that, it may adopt single-port M_L, making it promising in every aspect of hardware complexity.

In addition to the DFUs and the register bits, the AGUs include other components that contribute to the overall hardware complexity, as follows: algebraic interleavers [9,12]; counters; multiplexers. Besides, identical logics can be synthesized differently as fan-in, fan-out, and gate sizing in circuitry vary. To evaluate more thoroughly by taking such factors into account, the architectures were implemented in a 65 nm CMOS process using a 300 MHz clock and a 1.2 V supply. The corresponding results are summarized in

Table 4. Implementation results.

Architecture	Equivalent Gate Count	Power Consumption
Original S-AGU	153,797 (100%)	35.3691 mW (100%)
Original I-AGU	152,619 (99%)	35.1094 mW (99%)
DFU-Reduced S-AGU	134,511 (87%)	24.3076 mW (69%)
DFU-Reduced I-AGU	135,211 (88%)	27.3034 mW (77%)

. Equivalent gates were counted by regarding a two-input nand gate as one. Power consumptions were measured by back-annotating switching activities. The percentages in parentheses are again calculated with respect to the original S-AGU. The original S-AGU and I-AGU are associated with almost the same equivalent gates and powers dissipated. On the contrary, the DFU-reduced S-AGU integrates fewer gates and consumes less power than the DFU-reduced I-AGU, as the latter demands the additional registers in order to obtain WA_L. Comparing the original and the DFU-reduced pairs, the DFU-reduced ones dissipate much lower power than their counterparts, owing to the removal of computationally intensive DFUs. In particular, the DFU-reduced S-AGU can be realized with 13% fewer gates, and spends 31% less power than the original S-AGU.

6. Conclusions

We have analyzed four kinds of AGUs, and have figured out that the proposed DFU-reduced S-AGU is the most outstanding one from the viewpoint of efficient hardware implementation. The results of realization in a 65 nm CMOS have demonstrated that the equivalent gate count and the power dissipation can be mitigated by 13% and 31%, respectively. The reduction in DFUs and register bits has been achieved by exchanging the locations of a DFU and a register, and sharing the output of one DFU rather than employing multiple DFUs. As such a modification is completely transparent, i.e., it does not affect the functionality, it can be readily applied to all the existing multiuser detectors without tailoring the interfacing components therein. Future works include extending the proposed AGU to parallel IDMA architectures [6,8] that adopt different interleaving patterns. Besides this, the algebraic interleavers in AGUs will be investigated for a further reduction of the complexity, as they include several multipliers to be optimized.
