Selective Feature Anonymization for Privacy-Preserving Image Data Publishing

Abstract

There is a strong positive correlation between the development of deep learning and the amount of public data available. Not all data can be released in their raw form because of the risk to the privacy of the related individuals. The main objective of privacy-preserving data publication is to anonymize the data while maintaining their utility. In this paper, we propose a privacy-preserving semi-generative adversarial network (PPSGAN) that selectively adds noise to class-independent features of each image to enable the processed image to maintain its original class label. Our experiments on training classifiers with synthetic datasets anonymized with various methods confirm that PPSGAN shows better utility than other conventional methods, including blurring, noise-adding, filtering, and generation using GANs.

1. Introduction

The publication of various benchmark datasets enabled the emergence of a variety of current state-of-the-art deep learning models. However, excellent model performance does not always guarantee the possibility of generalization. Transfer learning and optimization techniques, such as few-shot [1], one-shot [2], and zero-shot [3] learning, might be able to bridge the gap between two different datasets, but none of these can be an optimal solution.

A promising approach for finding a model that works best on a specific data distribution is to train the model with a training set directly sampled from that distribution. The importance of the dataset increases the imbalance between those who possess it and those who do not, which increases individual researchers’ reliance on benchmark datasets. The lack of public data makes it difficult for data holders to take advantage of the current open-source flow in the deep learning community.

Although data publication can be beneficial for both data holders and individual researchers, not all data can be published freely in its raw form because of privacy issues. Datasets, including collections of images, speech, or videos, from millions of individuals are ripe with privacy risks. Without the data provider’s full consent to publication, the dataset should be either noised with an appropriate level of anonymity or substituted with a synthetic neighboring dataset that has a distribution similar to the original.

Synthetic data generation [4,5,6] is a technique wherein sensitive data is partially or fully replaced with synthetic data before it is published. Along with recent advancements in generative adversarial networks (GANs) [7,8,9,10,11,12], synthetic data generation has become the focus in recent years as a fundamental solution for privacy-preserving data publication. Beaulieu-Jones et al. [4] generate shareable biomedical data by applying an objective perturbation [13] to ACGAN [9].

Autoencoders are also widely used as a tool to convert an image into another synthetic image. Ma et al. [14] and Ren et al. [15] manually extract a pose or an action from an image and feed it to the autoencoder with the original to generate a new image with the same pose or action. Kim and Yang [16] anonymize an image by applying Laplace and Gaussian mechanisms [17] to the latent-space-level feature representation of the image and reconstructing it to the original pixel-level. Kim and Yang’s approach utilizes substantial privacy-preserving aspects of differential privacy [17] but fails to preserve the original class of the input image because of the indiscriminate noise-adding technique to the image’s feature representation.

Conventional image anonymization methods add noise to images at the pixel-level. Modifying an image at the pixel-level is simple and computationally efficient. However, it drastically decreases in utility if a significant level of privacy is applied. The idea of encoding an image at the latent-space-level allows feature manipulation rather than pixel manipulation, increasing the utility of the final result. If it is possible to add noise only to the class-independent features, we can use the processed image data for much broader research topics such as classification, anomaly detection, and data augmentation. Throughout this paper, we define class-dependent features as features common to images in the same class and class-independent features as features unique to each image.

In this work, we propose a privacy-preserving semi-generative adversarial network (PPSGAN) as a novel solution to selective feature anonymization for private data publication. The main contributions of our work focus on the improvement of PPAPNet [16] to enhance the utility of the processed image data as follows:

• We introduce PPSGAN, an image anonymization deep neural network that preserves the privacy of individuals related to the image dataset without losing the usefulness of the entire dataset.
• We use the self-attention mechanism [18] to make the noise amplifier of PPSGAN apply different levels of privacy according to the importance of the feature. This mechanism allows PPSGAN to keep the original class label of each image, even in strict privacy conditions.
• We evaluate the quality and the utility of the image data anonymized with our model from different aspects, including the performance of the classifiers trained with the original data, processed with PPSGAN, and generated or modified with other methods.

PPSGAN consists of two sets of networks: a set of encoder and decoder networks with a noise amplifier and a set of critic and classifier networks. The encoder and decoder networks add noise to class-independent features of the input image, and the critic and classifier networks evaluate the processed image via comparison with real samples. We train two sets in an adversarial setting, a common strategy for training GANs. The encoder converts an image into its latent-space representation, z, a vector that contains the essential features of the image. Unlike PPAPNet, we attach a self-attention module [18] after the encoder to distinguish class-dependent features from z. The noise amplifier references the attention matrix inside the self-attention module to set class-independent features as targets for noise-adding. The decoder reconstructs the modified latent-space representation, $\tilde{z}$, into a new image. To ensure that the decoder is not merely generating random images, we add a penalty to the training loss of the encoder and the decoder. The critic decides whether the processed image is real or fake, and the classifier decides the class. Figure 1 contains a detailed visualization of the model architecture of PPSGAN.

Unlike PPAPNet, we use the ACGAN [9] critic instead of the WGAN-GP [19] critic to guide the training of the self-attention module. The ACGAN critic has an auxiliary classifier that determines whether the image still has its class-dependent features. With feedback from the critic and the classifier, the self-attention module updates its attention matrix for improved discrimination between class-dependent and independent features. While Kim and Yang [16] penalize their model with an attacker, a network that tries to reconstruct the original image from the processed image, we use a simple penalty term, zero-noise penalty. In Figure 2, PPSGAN successfully converts images into visually different images in the same class without the attacker.

2. Background

In this section, we summarize the essential concepts of generative adversarial networks, differential privacy, and self-attention. PPSGAN utilizes the ACGAN [9] critic to perform the quality and utility evaluation of processed images. We fuse differential privacy and self-attention for selective feature anonymization.

2.1. Generative Adversarial Networks

In recent years, generative adversarial networks (GANs) [8,9,10,11,12] have played a pivotal role in the area of data generation and style transfer. The underlying idea is a two-player minimax game between a generator and a critic (discriminator) that trains two networks in an adversarial mode. This methodology minimizes a particular f-divergence between the model distribution ($P_{\theta }$) and the real distribution ($P_r$) [20]. Choosing an appropriate f-divergence is essential in preventing a mode collapse, which is a well-known problem when the GAN’s generator only draws one or a few foolish examples.The earth mover (EM) distance is one of the most popular f-divergences used in state-of-the-art GANs [7,19,21].

Making slight modifications to the original GAN structure can broaden its usefulness. By replacing the generator with deep convolutional encoder–decoder networks, researchers also perform style transfer with GANs [22,23,24,25]. Kim et al. [22] use deep convolutional encoder–decoder networks and a DCGAN [11] critic to find mappings between two different image domains. Odena et al. [9] add an auxiliary classifier to the critic and feed the generator with random noise and a target class label to make images in the target class.

The power of GAN comes from its ability to generate images from random noise that are indistinguishable from real images. If the utility of generated images is guaranteed, we can also replace the original dataset with a synthetic dataset generated with GANs for privacy-preserving purposes. Ren et al. [15] propose a video anonymizer that modifies each person’s face with minimal effect on the action detection performance. Ma et al. [14] manipulate the foreground, background, and pose of the input image using different embedding vectors. To preserve the privacy of an individual in an image, Sun et al. [26] replace the face of the target with a randomly generated face image.

While other researchers manually replace and preserve certain features to achieve privacy, Kim and Yang [16] introduce the concept of differential privacy to manipulate the features of images in a dataset with total randomness. Diluting unique features of each image makes the processed dataset immune to model inversion attacks [27] but reduces the utility of the entire dataset, resulting in a low inception score [28] on unsupervised CIFAR-10 [29].

2.2. Differential Privacy

Dwork et al. [17,30,31] first introduced differential privacy, an algorithm that captures the increased risk to one’s privacy incurred by participating in a database. Nowadays, differential privacy is a reliable standard for privacy guarantees for algorithms on aggregate databases. Differential privacy for two neighboring datasets that differ by a single element is defined as follows:

A randomized mechanism, $M:D\to R$, with domain D and range R, satisfies $(ϵ,\delta )$-differential privacy if for any two adjacent inputs $d,d^{\prime }\in D$ and for any subset of outputs $S\subseteq R$, it holds that:

$$Pr[M\left(d\right)\in S]\le e^{ϵ}Pr[M\left(d^{\prime }\right)\in S]+\delta$$

(1)

The Gaussian and Laplace noise mechanisms [17] are commonly used to approximate a deterministic real-valued function, $f:D\to R$, via additive noise calibrated to f’s sensitivity $s_f$, which is defined as the maximum of the absolute distance $|f\left(d\right)-f\left(d^{\prime }\right)|$, where d and $d^{\prime }$ are adjacent inputs. The Gaussian noise mechanism is defined as follows:

$$M\left(d\right)\triangleq f\left(d\right)+N(0,{\sigma }^2)$$

(2)

where $N(0,{\sigma }^2)$ is a normal (Gaussian) distribution with mean 0 and standard deviation $\sigma$. This mechanism satisfies $(ϵ,\delta )$-differential privacy with $\sigma =\sqrt{2log(1.25/\delta )}\frac{s_f}{ϵ}$. The Laplace noise mechanism is defined as follows:

$$M\left(d\right)\triangleq f\left(d\right)+Lap(0,b)$$

(3)

where $Lap(0,b)$ is a Laplace distribution with mean 0 and scale b. This mechanism satisfies $(ϵ,0)$-differential privacy with $b=\frac{s_f}{ϵ}$.

2.3. Self-Attention

Vaswani et al. first introduced the self-attention mechanism as a particular case of their scaled-dot-product attention [18]. The input consists of queries and keys of dimension $d_k$ and values of dimension $d_v$. They compute the dot products of the query with all keys, divide each by $\sqrt{d_k}$, and apply the softmax function to obtain the weights on the values. For computational efficiency, they packed together the queries, keys, and values into matrices Q, K, and V. The matrix of outputs is defined as follows:

$$Attention(Q,K,V)=softmax\left(\frac{Q{K}^T}{\sqrt{d_k}}\right)V$$

(4)

Compared to additive attention [32], scaled-dot-product attention is much faster and more space-efficient in practice because it can be implemented using a highly optimized matrix multiplication code. In a self-attention version of scaled-dot-product attention, the keys, values, and queries come from the same place, which, in the case of PPSGAN, is the final output of the encoder.

3. PPSGAN

Our PPSGAN methodology aims to protect the privacy of individuals related to an image dataset by generating a synthetic image dataset that can replace the original. The selective feature anonymization mechanism of PPSGAN effectively conceals the class-independent features and highlights the class-dependent features of each image.

3.1. Model Architecture

PPSGAN consists of a set of the encoder $G_e$, noise amplifier $N_a$, and decoder $G_d$ and a set of the critic $C_d$ and the classifier, $C_c$. The encoder $G_e$ converts an input image x into its original feature vector z. The noise amplifier $N_a$ adds noise to z using its novel anonymization mechanism. The decoder $G_d$ reconstructs the modified feature vector $\tilde{z}$ to an anonymized image $\tilde{x}$. The critic $C_d$ evaluates the quality of $\tilde{x}$, and the classifier $C_c$ evaluates the utility of $\tilde{x}$.

The encoder $G_e$ takes an image x of size $n\times n\times k$ and outputs a d-dimensional vector z. The decoder $G_d$ reconstructs an image $\tilde{x}$ of size $n\times n\times k$ from the d-dimensional vector $\tilde{z}$. $G_e$ is composed of four convolution layers with $5\times 5$ kernel and stride 2, each followed by the batch normalization [33] and the LeakyReLU [34]. We also add a $4096\times d$ dense layer after the last activation function to reduce the output to a d-dimensional vector z. $G_d$ starts with a $d\times 4096$ dense layer that expands $\tilde{z}$ to fit the first deconvolution layer, followed by four sets of $5\times 5$ kernel and stride 2 deconvolution (transposed convolution) layer [35], the batch normalization, and the LeakyReLU (the first three) or the sigmoid (the last).

The critic $C_d$ and the classifier $C_c$ take an image and share the four convolution layers with $5\times 5$ and stride 2, each followed by the batch normalization and the LeakyReLU. In this method, $C_d$ uses a $4096\times 1$ dense layer with the sigmoid activation function for discrimination and $C_c$ uses a $4096\times 10$ dense layer with the softmax activation function for classification.

3.2. Noise Amplifier

The noise amplifier $N_a$ adds noise to z. For $N_a$, we refine the original noise amplifier [16] using scaled-dot-product self-attention [18]. We first initialize the encoder $G_e$ and the decoder $G_d$ with a pretrained autoencoder to find the approximate sensitivity. In Kim and Yang’s work [16], the approximate sensitivity $s_e$ is defined as follows:

$$s_e=\underset{x_i,x_j\sim {\mathbb{S}}_t}{max}|G_e\left(x_i\right)-G_e\left(x_j\right)|$$

(5)

where $x_i$ and $x_j$ are images sampled from the training set, ${\mathbb{S}}_t$, and $|·|$ is the element-wise absolute value calculation of a vector. With $s_e$, the next step is to find the optimal scale vector ${\sigma }^{*}$ for the initial noise vector $\alpha$. Kim and Yang utilize the Gaussian and Laplace noise mechanisms [17] to find ${\sigma }^{*}$. With privacy budget hyperparameters $ϵ$ and $\delta$, ${\sigma }^{*}$ is defined as follows:

$$\sigma *=\left\{\begin{array}{cc}\hfill \sqrt{2log(1.25/\delta )}\frac{s_e}{ϵ}& \delta \ne 0\hfill \\ \hfill \frac{s_e}{ϵ}& \delta =0\hfill \end{array}\right.$$

(6)

If $\delta =0$, we sample $\alpha$ from the Laplace distribution $Lap(0,1)$. Otherwise, we use the normal distribution $N(0,1)$. To find class-dependent features in z, we use scaled-dot-product self-attention [18]. The attention matrix is defined as follows:

$$Attention\left(z\right)=softmax\left(\frac{z{z}^T}{\sqrt{d}}\right)$$

(7)

We use $Attention\left(z\right)$ as a weight matrix to find class-dependent features. Note that our attention matrix $Attention\left(z\right)$ is the output of the softmax function. To find a weight matrix for class-independent features, we subtract each value of $Attention\left(z\right)$ from 1 to reverse the weight. The negative-attention matrix is defined as follows:

$$NegAttention\left(z\right)=J-Attention\left(z\right)$$

(8)

where J is a matrix of ones that has the same dimension as the attention matrix. Now the final modified feature vector $\tilde{z}$ is defined as follows:

$$\tilde{z}=Attention\left(z\right)·z+NegAttention\left(z\right)·(\alpha \circ {\sigma }^{*})$$

(9)

where · is the dot product and ∘ is the Hadamard product of two matrices. In our experiments, we use various combinations of $ϵ$ and $\delta$ to train models with different levels of privacy.

3.3. Zero-Noise Penalty

The role of the decoder $G_d$ is to rebuild a modified feature vector $\tilde{z}$ into its unique image form. Since the critic $C_d$ and the classifier $C_c$ evaluate the entire $G_e$ - $N_a$ - $G_d$ network by the final output image, the performance of $G_d$ also effects the training of the noise amplifier $N_a$. If $G_d$ disregards the utility aspect, $N_a$ amplifies the initial noise $\alpha$ as a whole to help $G_d$ create realistic random images. The opposite case of $G_d$ focusing too much on the utility can also happen. In this case, $N_a$ cancels out $\alpha$, feed $G_d$ the raw feature vector z, and the $G_e$ - $N_a$ - $G_d$ network works like an autoencoder.

To guide $G_d$ in the right direction, we add a new term, zero-noise penalty $L_{zero}$, to the $G_e$ - $N_a$ - $G_d$ network’s loss function. The zero-noise penalty is the mean-squared-error loss between the original image and the reconstructed version of the original feature z using $G_d$ as follows:

$$L_{zero}=[{(x-G_d\left(z\right)]}^2$$

(10)

To calculate $L_{zero}$, we add a skip-connection [36] that jumps over $N_a$ and directly connects $G_e$ and $G_d$. Samples of $G_d\left(z\right)$ are in Figure 3.

3.4. Adversarial Training

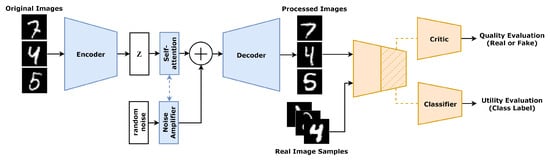

As depicted in Figure 1, the two sets of networks, $G_e$ - $N_a$ - $G_d$ and $C_d$ - $C_c$, are trained in an adversarial mode based on the training theme of ACGAN [9]. We first sample two batches of images x and $x^{\prime }$ from the real dataset ${\mathbb{P}}_r$. Then, the $G_e$ - $N_a$ - $G_d$ network anonymizes x into $\tilde{x}$, and $C_d$ - $C_c$ compares $\tilde{x}$ and $x^{\prime }$.

The critic $C_d$ attempts to label $\tilde{x}$ as fake (0) and $x^{\prime }$ as real (1). The classifier $C_c$ predicts class labels of $x^{\prime }$ and $\tilde{x}$. The objective function for $C_d$ - $C_c$ has two parts: the log-likelihood of correct discrimination, $L_d$, and the log-likelihood of correct class c, $L_c$.

$$L_d=E[logP(D=1|x^{\prime })]+E[logP(D=0|\tilde{x})]$$

(11)

$$L_c=E[logP(C=c|x^{\prime })]+E[logP(C=c|\tilde{x})]$$

(12)

Herein, $C_d$ - $C_c$ is trained to maximize $L_d+L_c$, while $G_e$ - $N_a$ - $G_d$ is trained to maximize $L_c-L_d$.

In our implementation, we use the sigmoid-cross-entropy loss for $L_d$, the softmax-cross-entropy loss for $L_c$, and the zero-noise penalty to stabilize the training of $G_d$. Therefore, $C_d$ - $C_c$ learns to minimize $L_d+L_c$, and $G_e$ - $N_a$ - $G_d$ learns to minimize $L_c-L_d+L_{zero}$.

After initializing $G_e$ and $G_d$ with a pretrained autoencoder and calculating the approximated sensitivity $s_e$, all the weights in PPSGAN are fine-tuned by carrying out an adversarial training in Algorithm 1. When the model converges, $G_e$ - $N_a$ - $G_d$ is optimized to process any image sampled from the real dataset ${\mathbb{P}}_r$ to a synthetic image in the same class, with its novel selective feature anonymization.

Algorithm 1 PPSGAN training with default values of $n=5$, $\eta =1.0\times {10}^{-4}$, ${\beta }_1=0.5$, and ${\beta }_2=0.9$. $G(w_g,x)$ stands for $G_e$ - $N_a$ - $G_d$ and $G_{zero}(w_g,x)$ stands for $G_e$ - $G_d$.

Require:  Initial $G_e$ - $N_a$ - $G_d$ parameters $w_{g0}$, initial $C_d$ - $C_c$ parameters $w_{c0}$, and batch size m. 1: while$w_g$ has not converged do 2:     for $t=1,...,n$ do 3:         for $i=1,...,m$ do 4:            Sample real data $x\sim {\mathbb{P}}_r$ and $x^{\prime }\sim {\mathbb{P}}_r$. 5:            $\tilde{x}\leftarrow G(w_g,x)$ 6:            $L_C^{\left(i\right)}\leftarrow L_d(w_c,\tilde{x},x^{\prime })+L_c(w_c,\tilde{x},x^{\prime })$ 7:         $w_c\leftarrow AdamW(\nabla \frac{1}{m}{\sum }_{i=1}^m{L}_C^{\left(i\right)},w_c,\alpha ,{\beta }_1,{\beta }_2)$ 8:     for $i=1,...,m$ do 9:         Sample real data $x\sim {\mathbb{P}}_r$ and $x^{\prime }\sim {\mathbb{P}}_r$. 10:         $\tilde{x}\leftarrow G(w_g,x)$ 11:         $\widehat{x}\leftarrow G_{zero}(w_g,x)$ 12:         $L_G^{\left(i\right)}\leftarrow L_c(w_c,\tilde{x},x^{\prime })-L_d(w_c,\tilde{x},x^{\prime })+{[x-\widehat{x}]}^2$ 13:     $w_g\leftarrow AdamW(\nabla \frac{1}{m}{\sum }_{i=1}^m{L}_G^{\left(i\right)},w_g,\alpha ,{\beta }_1,{\beta }_2)$

4. Experiments

We evaluate the performance of our model both quantitatively and qualitatively using the MNIST [37], Fashion-MNIST [38], CIFAR-10 [29], and SVHN [39] datasets. More details about each dataset are provided in

Table 1. Detailed information about datasets.

Dataset Name	Resolution	Training Set	Test Set
MNIST	$28\times 28\times 1$	60,000	10,000
Fashion-MNIST	$28\times 28\times 1$	60,000	10,000
CIFAR-10	$32\times 32\times 3$	50,000	10,000
SVHN	$32\times 32\times 3$	73,257	26,032

. We first compare the classification accuracy of classifiers trained with the original, PPSGAN-processed, and ACGAN [9]-generated dataset. We also measure the sample diversity of the anonymized images using the Fréchet inception distance [40] on the CIFAR-10 dataset.

4.1. Experimental Details

Our implementation is done using TensorFlow [41]. We used a single NVIDIA Titan V GPU with a minibatch size of 256 and optimized our model with the AdamW optimizer [42] with a learning rate of $1.0\times {10}^{-4}$, a weight decay of $1.0\times {10}^{-4}$, ${\beta }_1$ = 0.5, and ${\beta }_2$ = 0.9. $ϵ$ and $\delta$ determine the privacy level of the noise amplifier. We use four combinations of $(ϵ,\delta )$: $(1.0,0)$ and $(1.0,1.0\times {10}^{-8})$ for standard privacy and $(0.1,0)$ and $(0.1,1.0\times {10}^{-8})$ for strong privacy. We indicate each model as PPSGAN-$(ϵ,\delta )$. The dimension size of the feature vectors z and $\tilde{z}$ is 128.

For ACGAN, we use the decoder $G_d$, the critic $C_d$, and the classifier $C_c$ trained with the ACGAN training theme, feeding $G_d$ with the noise sampled from $U[-1,1]$ and class labels. We use the model structure of $C_c$ for the utility evaluation classifier.

4.2. Utility Performance on Classifier Training

Publishing a useful synthetic image dataset necessitates a level of quality close to that of the original. In particular, we would like to know that if a classifier trained only with the PPSGAN-processed dataset still shows comparable performance to a classifier trained with the original. We first train PPSGAN and ACGAN using the training set in Table 1 and process or generate a synthetic dataset of the same size and class distribution. After training classifiers with the original or synthetic training sets, we measure the classification accuracy of each classifier with test sets. The performance results of the classifiers are listed in

Table 2. Classification accuracies (%) of classifiers trained with the original or synthetic datasets. The PPSGAN-processed data show comparable performance to the original datasets, while the ACGAN-generated data show poor results.

Method	MNIST	Fashion-MNIST	CIFAR-10	SVHN
Original Data	$99.60\pm 0.11$	$96.61\pm 0.02$	$88.80\pm 0.12$	$95.56\pm 0.03$
ACGAN	$98.15\pm 0.05$	$87.35\pm 0.34$	$59.58\pm 0.87$	$86.32\pm 0.67$
PPSGAN-$(1.0,0)$	$98.23\pm 0.15$	$95.01\pm 0.08$	$76.91\pm 0.38$	$91.11\pm 0.01$
PPSGAN-$(1.0,1.0\times {10}^{-8})$	$98.51\pm 0.20$	$95.07\pm 0.03$	$72.68\pm 0.04$	$90.85\pm 0.27$
PPSGAN-$(0.1,0)$	$98.60\pm 0.11$	$94.53\pm 0.08$	$72.23\pm 0.03$	$90.56\pm 0.02$
PPSGAN-$(0.1,1.0\times {10}^{-8})$	$98.24\pm 0.09$	$94.31\pm 0.21$	$72.36\pm 0.01$	$90.63\pm 0.01$

.

This analysis shows that an anonymized dataset processed with PPSGAN preserves its original distribution and can replace the original dataset with a fair amount of utility. As shown in Table 2, our models with different privacy levels synthesize a dataset in sound quality for the classifier training, while synthetic datasets from ACGAN result in training a weak classifier. The selective feature anonymization is another strength of our model. The effect of a stronger privacy level is minimal because the majority of anonymization is applied to class-independent features.

4.3. Sample Diversity on CIFAR-10

We measure the inception score (IS) and the Fréchet inception distance (FID) of PPSGAN trained with CIFAR-10 to compare the sample diversity of PPSGAN with that of other published models. Lower inception scores and higher Fréchet inception distance indicate a lower sample diversity with a higher rate of mode collapse.

Kim and Yang [16] state that the randomness in the latent-space-level feature anonymization mechanism results in the low IS of PPAPNet, as shown in

Table 3. Inception score on CIFAR-10.

Method	Score
Original Data	$11.31\pm 0.08$
PPAP-$s_e$-$\left(ϵ\right)$ [16]	$2.83\pm 0.01$
PPAP-$s_e$-$(ϵ,\delta )$ [16]	$2.60\pm 0.01$
ACGAN	$5.70\pm 0.03$
PPSGAN-$(1.0,0)$	$5.87\pm 0.13$
PPSGAN-$(1.0,1.0\times {10}^{-8})$	$6.01\pm 0.08$
PPSGAN-$(0.1,0)$	$6.12\pm 0.05$
PPSGAN-$(0.1,1.0\times {10}^{-8})$	$5.91\pm 0.09$
ALI [44] (in [45])	$5.34\pm 0.05$
BEGAN [8]	$5.62$
DCGAN [11] (in [46])	$6.16\pm 0.07$
Improved GAN (-L+HA) [28]	$6.86\pm 0.06$
WGAN-GP Resnet [19]	$7.86\pm 0.07$

. The gap between our model and PPAPNet in the IS certifies that our selective feature anonymization is a more suitable method for privacy-preserving image data publishing. Our model also shows better results than ACGAN in the IS and FID as shown in Table 3 and

Table 4. Fréchet inception distance on CIFAR-10.

Method	Score
ACGAN	$50.01$
PPSGAN-$(1.0,0)$	$49.67$
PPSGAN-$(1.0,1.0\times {10}^{-8})$	$47.67$
PPSGAN-$(0.1,0)$	$48.99$
PPSGAN-$(0.1,1.0\times {10}^{-8})$	$46.62$
Residual Flow [43]	$46.37$
MSGAN [47]	$28.73$
FOGAN [48]	$27.4$
NCSN [49]	$25.32$
WGAN-GP + TT Update Rule [48]	$24.8$
SN-GANs [48]	$21.7$
MMD-GAN-rep [50]	$16.21$
AutoGAN [51]	$12.42$

, respectively. PPSGAN-$(0.1,0)$ shows $6.12\pm 0.05$ of the IS, which is similar to that of DCGAN [11] and PPSGAN-$(0.1,1.0\times {10}^{-8})$ shows $46.62$ of the FID, similar to that of the residual flow method [43].

The IS and the FID of our model were obtained without significant optimization or fine-tuning of the hyperparameters for sample diversity. However, as analysed in the previous paragraph, our model produced either comparable or improved performance over other approaches. In fact, our model produced fairly good results in the IS. We plan to improve PPSGAN for generating more diverse samples.

4.4. t-SNE Visualization of the Latent Features

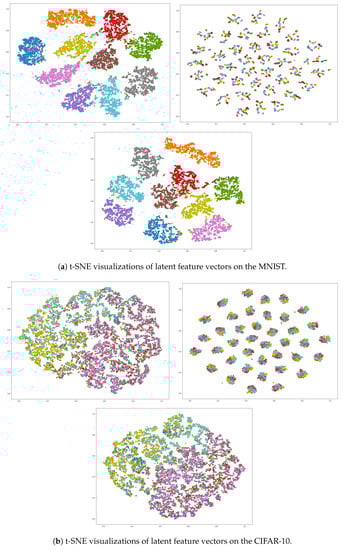

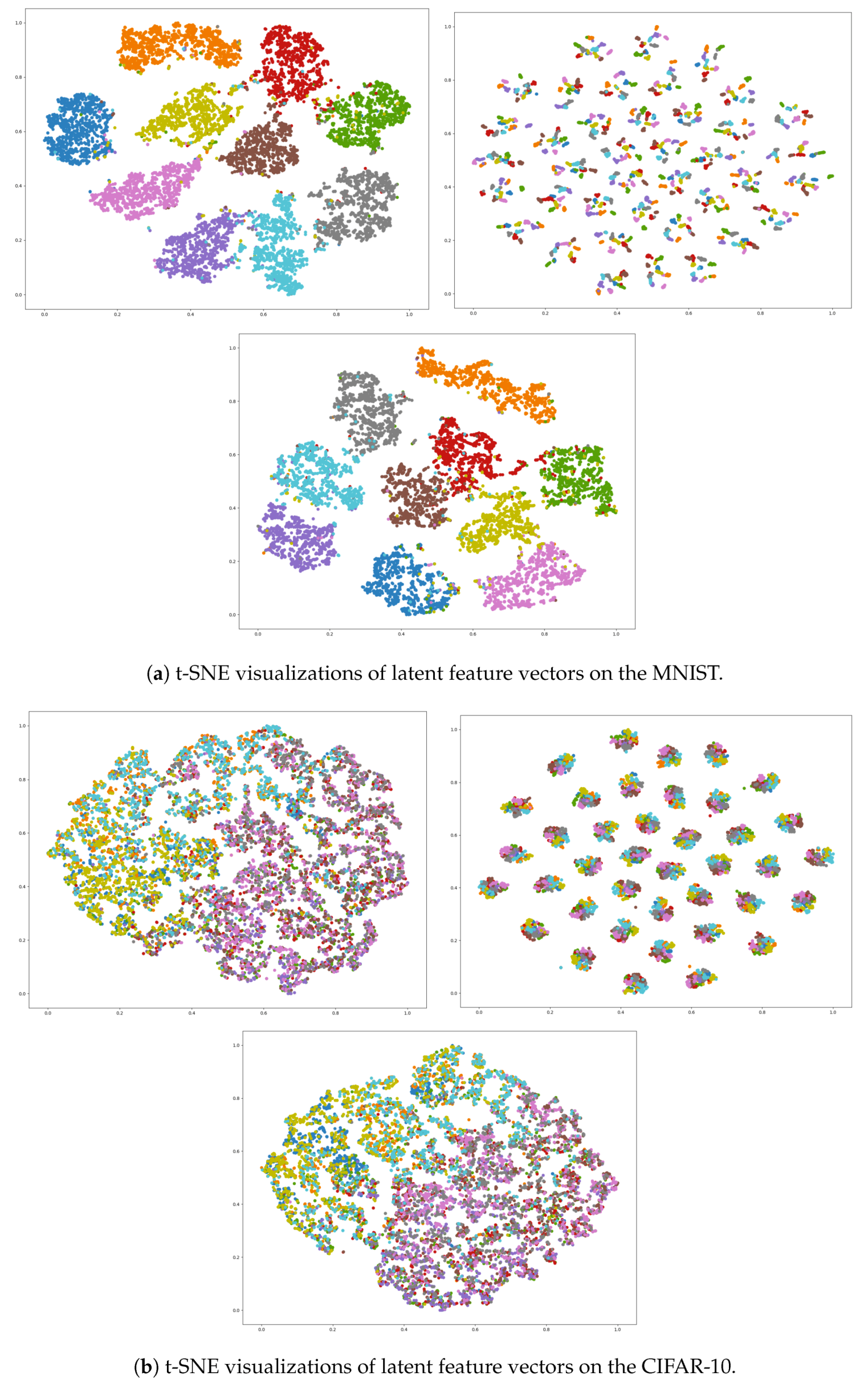

We present the t-SNE [52] visualizations of latent feature vectors of PPSGAN in Figure 4. The t-SNE visualizations of the original feature vector z, Figure 4 (left), show that the encoder $G_e$ has learned to extract class-dependent features from the input image. In Figure 4 (right), the feature vectors of the anonymized image $G_e\left(\tilde{x}\right)$ are also well clustered by the class-dependent features. Interestingly, the modified feature vector $\tilde{z}$, Figure 4 (middle), first form several clusters that do not correlate with class labels. Each cluster is then divided into smaller clusters according to each class label. As the noise amplifier $N_a$ applies the normal or Laplace distribution-sampled noise to the class-independent features, class-dependent features also affect the t-SNE embedding. This unique cluster-in-cluster structure proves that $N_a$ selectively adds noise to the class-independent features and preserves the class-dependent features.

4.5. Anonymized Samples

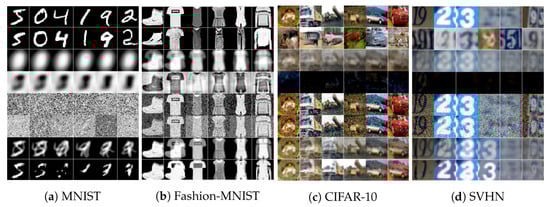

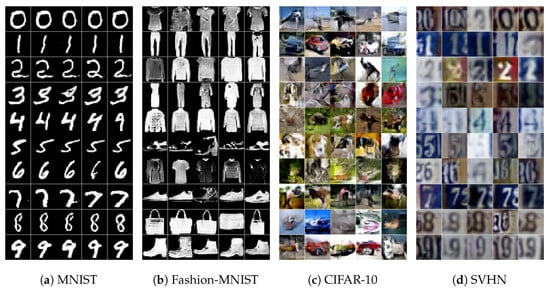

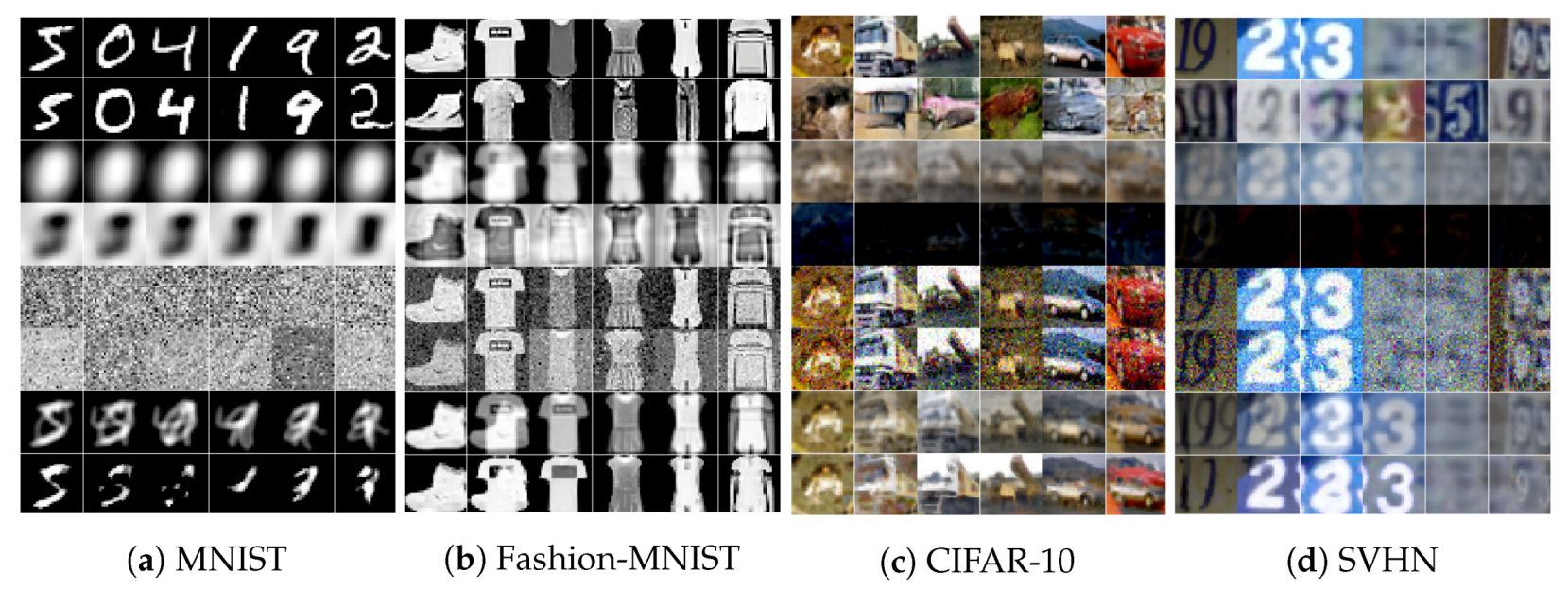

We present five anonymized image samples of each class obtained with PPSGAN in Figure 5 and six representative samples in the MNIST, Fashion-MNIST, CIFAR-10, and SVHN datasets along with their anonymized versions modified with PPSGAN and other conventional image-processing methods in Figure 6. For conventional methods, we use Gaussian-blur, Laplace-blur, Gaussian-noise-adding, Laplace-noise-adding, uniform-filtering, and median-filtering. For each method, we train classifiers with various versions of training sets processed with different hyperparameters and choose the ones that show similar performance to the results of our models in Table 2. Compared to the realistic privacy-preserved images from our model, samples modified with conventional methods are either hard to recognize or still at privacy risk, as they maintain the unique features of the original. Samples of each class obtained with PPSGAN, as displayed in Figure 5, visually show that our PPSGAN methodology is a promising option for privacy-preserving image data publication.

5. Conclusions

In this work, we present a privacy-preserving semi-generative adversarial network (PPSGAN), a methodology to selectively anonymize class-independent features of an image at the latent-space-level. In PPSGAN, a set of encoder–noise amplifier–decoder and a set of critic-classifier are trained in an adversarial mode to find the best way to modify an image in a privacy-preserving manner without losing its original class label. The noise amplifier plays a vital role in noise optimization and class-independent feature discrimination for adequate image anonymization. We evaluate the proposed PPSGAN with different metrics and datasets to demonstrate its potential.

In the future, we hope to strengthen our model with a deeper network structure to cover high-resolution image datasets, including ImageNet [53], CelebA [54], and LSUN [55]. We also intend to broaden the coverage of our novel selective feature anonymization methodology to a broader range of data domains, including video, text, and speech.
