Efficient Estimator of Rotor Temperature Designing for Electric and Hybrid Powertrain Platform
Abstract
:1. Introduction
2. Model of Estimator of Rotor Temperature
2.1. Dynamic Model of the Induction Machine
- Four equations of flux and current;
- Four equations of flux and voltage;
- One equation of electromagnetic torque.
- p—number of pole pairs
- Lm—magnetizing inductance
- LIs, LIr—stator and rotor leakage inductances
- Ls, Lr—total inductances of stator and rotor: Ls = Lm + LIs; Lr = Lm + LIr;
- Rs, Rr—resistance of stator and rotor
- ωs—stator electric pulsation
- ωm—rotor mechanical pulsation
- ϕsd, ϕsq—stator flux in the reference dq-axis
- ϕrd, ϕrq—rotor flux in the reference dq-axis
- isd, isq—stator currents in the reference dq-axis
- ird, irq—rotor currents in the reference dq-axis
2.2. Indirect Flux-Oriented Control (IFOC)
- Indirect rotor temperature estimator based on stator winding temperature experimental measurement which is the least accurate;
- Direct measurement of the temperature infrared pyrometer (Figure 1). This solution is accurate but expensive in mass production and needs the space to install it;
- Direct rotor temperature estimator via current flow estimation. This needs sophisticated calculations and tuning.
2.3. Direct Estimator of Rotor Temperature
- —resistance of rotor at 20 °C.
- α—variation coefficient of temperature of the rotor die-casting cage (alu. or copper)
- Phase shift error due to the delay in applying the control voltage to the phases of the machine.
- Amplitude deviation due to idle time and inverter losses (internal voltage drops).
3. Rapid Control Prototyping Platform
- A 230 Vac power supply providing the different voltage levels necessary for sensors and drivers: +5 V, +8 V, +15 V, −15 V;
- A module Infineon HP1 250 Arms, 400 V three-phase IGBT inverter module on a cold-water plate;
- A concepts driver board with HW protection stage (minimum dead time, over-current protection (OCP), over-voltage protection (OVP));
- Three-phase current sensors and their conditioning stage (power supply and filtering), voltage interfaces.
- The simulation assembly coupled with the physical design model (environmental load model), the simulated Model in the Loop (MIL).
- The prototyping assembly coupled to the dSpace platform driver interfaces, the computable HIL (Hardware in the Loop) model.
- Interface observing all types of sensors: speed/position sensor, temperature sensor (thermocouple, an infrared sensor for rotor cage instrumentation);
- Modification of the regulation parameters, energy parameters in real-time, no need to flash the inverter (time-saving);
- Soft highly flexible open/modifiable to improve motor control.
4. Experimental Testing Results

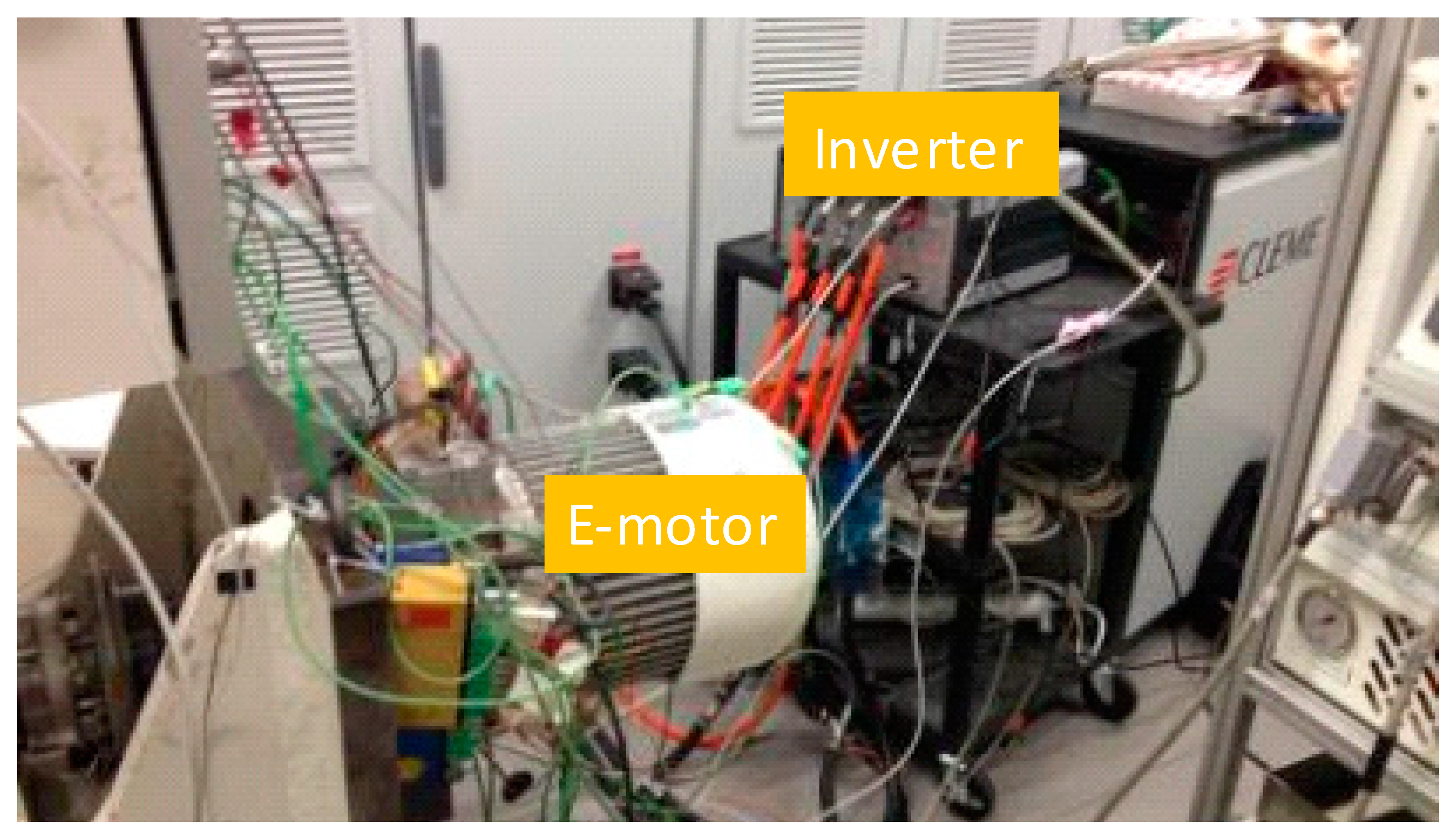

4.1. Test-Bench and E-Motor Prototype
- Ensuring torque responses ± 5% comparing to torque demand in every step, in torque-speed range as shown in Figure 7;
- Including field weakening strategy that consists to reduce automatically the flux when operating at high speed;
- Optimizing the efficiency at every grid point in the whole torque-speed range;

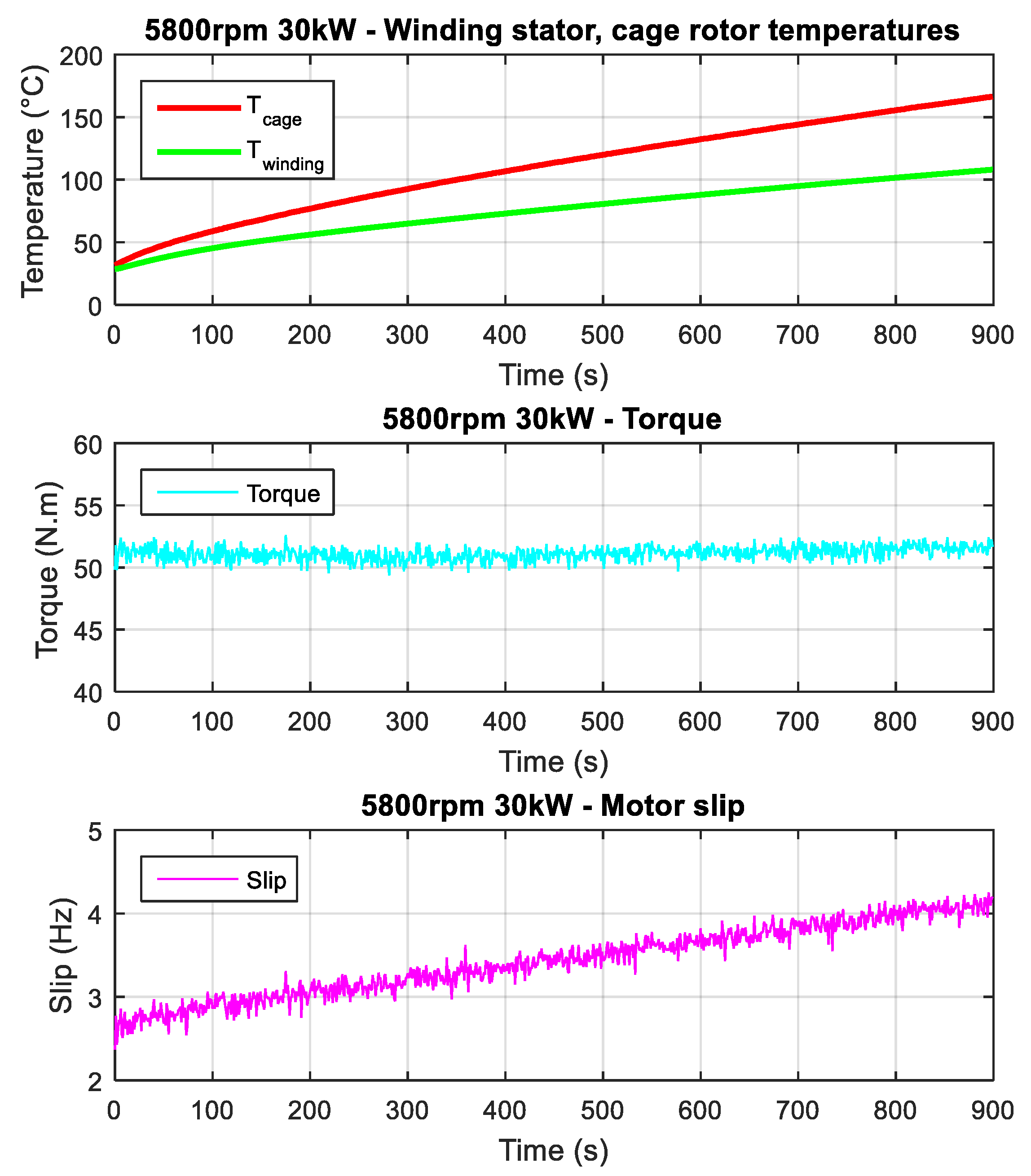

- Taking into account the variation of rotor resistance when motor temperatures increased (Figure 1);
- Realizing the derating mode when the temperature of stator winding or of rotor cage exceeds its limit, by decreasing the power.
4.2. Experimental Results of Estimator of Rotor Temperature
5. Conclusions
6. Patents
Author Contributions
Funding
Conflicts of Interest
Nomenclature
p | number of pole pairs |
Lm | magnetizing inductance |
LIs, LIr | stator and rotor leakage inductances |
Ls, Lr | total inductances of stator and rotor |
Rs, Rr | resistance of stator and rotor |
Rr20 | resistance of rotor at 20 °C |
ωs | stator electric pulsation |
ωm | rotor mechanical pulsation |
ωg | slip pulsation |
ϕsd, ϕsq | stator flux in the reference dq-axis |
ϕrd, ϕrq | rotor flux in the reference dq-axis |
isd, isq | stator currents in the reference dq-axis |
ird, irq | rotor currents in the reference dq-axis |
vsd, vsq | stator voltages in the reference dq-axis |
vrd, vrq | rotor voltages in the reference dq-axis |
Tem | electromagnetic torque of the motor |
Ωm | motor speed angular |
|ϕr|est | estimated rotor flux |
τr | rotor time constant |
s | Laplace transform variable |
θ | electric angle of the Park transformation |
Trotor | estimated rotor temperature |
α | variation coefficient of temperature of the rotor die-casting cage (alu. or copper) |
References
- International Energy Agency. Global EV Outlook 2019. Scaling up the Transition to Electric Mobility; Technology Report; OECD Publishing: Paris, France, 20 June 2019. [Google Scholar]
- Un-Noor, F.; Padmanaban, S.; Mihet-Popa, L.; Mollah, M.N.; Hossain, E. A comprehensive study of key electric vehicle (EV) components, technologies, challenges, impacts, and future direction of development. Energies 2017, 10, 1217. [Google Scholar] [CrossRef] [Green Version]
- Doerr, J.; Attensperger, T.; Wittmann, L.; Enzinger, T. The new electric axle drives from Audi. ATZelektron. Worldw. 2018, 13, 16–23. [Google Scholar] [CrossRef]
- Kim, B.; Lee, J.; Jeong, Y.; Kangi, B.; Kim, K.; Kim, Y.; Park, Y. Development of 50 kW traction induction motor for electric vehicle (EV). In Proceedings of the IEEE 2012 Vehicle Power and Propulsion Conference, Seoul, Korea, 9–12 October 2012; pp. 142–147. [Google Scholar]
- Widmer, J.D.; Martin, R.; Kimiabeigi, M. Electric vehicle traction motors without rare earth magnets. Sustain. Mater. Technol. 2015, 3, 7–13. [Google Scholar] [CrossRef] [Green Version]
- Frias, A.; Pellerey, P.; Lebouc, A.K.; Chillet, C.; Lanfranchi, V.; Friedrich, G.; Albert, L.; Humbert, L. Rotor and stator shape optimization of a synchronous machine to reduce iron losses and acoustic noise. In Proceedings of the IEEE 2012 Vehicle Power and Propulsion Conference, Seoul, Korea, 9–12 October 2012; pp. 98–103. [Google Scholar]
- Dorrell, D.G.; Popescu, M.; Evans, L.; Staton, D.A.; Knight, A.M. Comparison of permanent magnet drive motor with a cage induction motor design for a hybrid electric vehicle. IEEE Trans. Ind. Electron. 2012, 59, 3690–3699. [Google Scholar] [CrossRef]
- Pellegrino, G.; Vagati, A.; Boazzo, B.; Guglielmi, P. Comparison of Induction and PM Synchronous Motor Drives for EV Application Including Design Examples. IEEE Trans. Ind. Appl. 2012, 48, 2322–2332. [Google Scholar] [CrossRef] [Green Version]
- Guan, Y.; Zhu, Z.Q.; Afinowi, I.A.A.; Mipo, J.C.; Farah, P. Comparison between induction machine and interior permanent magnet machine for electric vehicle application. COMPEL Int. J. Comput. Math. Electr. Electron. Eng. 2015, 35, 572–585. [Google Scholar] [CrossRef]
- Yang, Z.; Shang, F.; Brown, I.P.; Krishnamurthy, M. Comparative study of interior permanent magnet, induction, and switched reluctance motor drives for EV and HEV applications. IEEE Trans. Transportation Electrific. 2015, 1, 245–254. [Google Scholar] [CrossRef]
- Seo, J.M.; Ro, J.; Rhyu, S.; Jung, I.; Jung, H. Novel hybrid radial and axial flux permanent-magnet machine using integrated windings for high-power density. IEEE Trans. Magn. 2015, 51, 1–4. [Google Scholar] [CrossRef]
- Tang, Y.; Tesla Inc. Induction Motor with Improved Torque Density. U.S. Patent 7741750B1, 30 June 2010. [Google Scholar]
- Ahmed, F.; Kar, N.C. Analysis of end-winding thermal effects in a totally enclosed fan-cooled induction motor with a die cast copper rotor. IEEE Trans. Ind. Appl. 2017, 53, 3098–3109. [Google Scholar] [CrossRef]
- Davin, T.; Pell, J.; Harmand, S.; Yu, R. Experimental study of oil cooling systems for electric motors. Appl. Therm. Eng. 2015, 75, 1–13. [Google Scholar] [CrossRef]
- Assaad, B.; Mikati, K.; Tran, T.V.; Negre, E. Experimental study of oil cooled induction motor for hybrid and electric vehicles. In Proceedings of the 2018 XIII International Conference on Electrical Machines (ICEM), Alexandroupoli, Greece, 3–8 September 2018; pp. 1195–1200. [Google Scholar]
- Gao, Z.; Habetler, T.G.; Harley, R.G.; Colby, R.S. A novel online rotor temperature estimator for induction machines based on a cascading motor parameter estimation scheme. In Proceedings of the 5th IEEE International Symposium on Diagnostics for Electric Machines, Power Electronics and Drives, Vienna, Austria, 7–9 September 2005; pp. 1–6. [Google Scholar]
- Cho, K.-R.; Seok, J.-K. Induction motor rotor temperature estimation based on a high-frequency model of a rotor bar. IEEE Trans. Ind. Appl. 2009, 45, 1267–1275. [Google Scholar]
- Gao, Z.; Colby, R.S.; Turner, L. Induction-motor rotor temperature estimation using superheterodyne receivers. IEEE Trans. Ind. Appl. 2012, 48, 1267–1278. [Google Scholar] [CrossRef]
- Mapelli, F.L.; Tarsitano, D.; Cheli, F. A rotor resistance MRAS estimator for EV induction motor traction drive based on torque and reactive stator power: Simulation and experimental results. In Proceedings of the 2014 International Conference on Electrical Machines (ICEM), Berlin, Germany, 2–5 September 2014; pp. 31–37. [Google Scholar]
- Wang, F.; Zhang, Z.; Mei, X.; Rodríguez, J.; Kennel, R. Advanced control strategies of induction machine: Field oriented control, direct torque control and model predictive control. Energies 2018, 11, 120. [Google Scholar] [CrossRef] [Green Version]
- Tran, T.V.; Negre, E.; Mikati, K.; Pellerey, P.; Assaad, B. Optimal design of TEFC induction machine and experimental prototype testing for city battery electric vehicle. IEEE Trans. Ind. Appl. 2020, 56, 635–643. [Google Scholar] [CrossRef]
- Negre, E.; Tran, T.V. Renault SAS. Gestion d’une Machine Asynchrone de Vehicule Automobile. Patent FR3033961B1, 31 March 2017. [Google Scholar]
