The Allure of High Total Angular Momentum Levels in Multiply-Excited Ions

Abstract

In the interaction of fast ions with dense matter, the collision frequency is high enough to facilitate the simultaneous excitation of several electrons. Such multiply-excited few-electron systems have been exploited variously for plasma diagnostics. Beam-foil spectroscopic techniques, benefiting from the inherent time-resolution offered by the geometry of typical experiments, have proven particularly fruitful for the study of emission patterns and level lifetimes of specific multiply-excited levels, especially those of maximum spin and total angular momentum. Typical cases are recalled to illustrate some general principles. Among many others, earlier beam-foil measurements have targeted the core-excited 2p⁵3s3p ⁴D_7/2 – 2p⁵ 3s3d ⁴F_9/2 transition in several Na-like spectra ranging from S VI to Cu XIX. Data on the six intermediate elements missing at that time are now added. The interest in such atomic systems with multiple excitations and high total angular momentum values is discussed with a variety of examples.

1. Introduction

In his 1964 Handbook of Physics article on atomic spectra [1], B. Edlén mostly treated the excitation of a single valence electron. This field is not exhausted yet more than half a century later. However, the simultaneous excitation of several electrons can also happen. While this is rare in conventional light sources, it happens frequently by collisions in dense plasmas, including the interaction of a fast ion beam with solid (foil, surface) targets, in high-power laser produced plasmas, or by inner-shell ionization processes as can be affected by photons in astrophysical plasmas or by X-ray lasers in the laboratory. Out of the vast multitude of atomic cases to study, I am selecting a small group to discuss some developments that I have witnessed or participated in. These are levels with a high value of the total angular momentum J, which have a somewhat limited number of decay channels, each of which therefore may be more prominent and thus better detectable than the many weak decay channels of other levels. The same general feature is, of course, found in singly excited atomic systems of which the structure is often simpler. The inclusion of such high-J levels in computations requires the inclusion of all lower n- and J-levels, which in earlier days might have amounted to a major challenge. A challenge remains the fact that there usually are numerous levels of non-maximum J, often of different multiplicity (total spin S). All levels of the same parity and J value interact with each other, and this complexity limits the accuracy in the computation of individual levels. Here, the maximum-J levels are easier to obtain accurately because, in many cases, they are the only ones in their shell and thus much less affected by mixing.

The review below discusses some cases of core-excited few-electron ions in which the pursuit has encountered difficulties and limitations in isoelectronic studies, and other cases with multiple excitation in outer shells (such as in Na-like ions) for which a decent theoretical systematic analysis was achieved 30 years ago but with only a patchy data record. However, some of the gaps can be filled by now. It may be useful to keep such measurement situations in mind so that the databases can be augmented and specific analyses can be improved.

2. General Remarks and Earlier Work

Doubly excited or core-excited atoms are those that have several electrons not in their ground state or of which the level series do not converge to the ground state of the next more highly charged ion but to one of its excited levels. In the 1940s, T.-Y. Wu [2] recognized the emission from doubly excited He atoms. Around the same time, negative ions of He were found, which apparently feature at least one rather long-lived excited level. In such three-electron ions (He⁻ and Li⁰), J.R. Pietenpol [3] suggested metastability against autoionization to occur for the 1s2s2p ⁴${\mathrm{P}}_{5/2}^{\mathrm{o}}$ level. In fact, he incurred that, among the usual effects that enable the mixing with autoionizing levels in the (doublet) continuum, Coulomb, spin-orbit, and spin-other-orbit matrix elements vanish and that only the magnetic spin–spin interaction permits autoionization to happen. The microsecond-lifetime of this He⁻ level even has a technical application: ion accelerators exploiting the tandem principle require negative ions to start with. The lifetime of this particular level of the He⁻ ion is sufficiently long to extract ions from the ion source and to accelerate them to the (positively charged) high voltage terminal of the machine. There, the ions pass through a stripper medium and lose electrons, thus becoming positive ions that continue being accelerated towards ground potential. Hence, intensive beams of $\alpha$ particles (He²⁺ ions) are available from tandem accelerators that otherwise cannot provide rare gas ion beams. Moreover, negative hydrogen ions (H⁻) play a significant role in the shape of the visible spectrum of the sun (and of other stars, of course) while negative ions of deuterium are the starting point for neutral beam heating in large plasma experiments for fusion research, such as ITER. Negative ions of many elements have been observed and their properties computed. They are a challenge for atomic structure theory because the extra electron is bound to the neutral parent atom only because of electron–electron interactions. However, negative ions provide a rich field for research of their own beyond the present treatise.

2.1. Satellites to Diagram Lines in He-Like Ion Spectra

The same atomic features that interest some physicists are possibly underappreciated by others and vice versa. An example is the satellite lines 1s²2ℓ – 1s2ℓ2${\ell }^{\prime }$ (involving core-excited Li-like ions) to the 1s² – 1s2ℓ diagram transitions in He-like ions. A.H. Gabriel [4] discussed the plasma diagnostic potential of the satellite lines, and in that course, he suggested an alphabetic shorthand notation for the lines. He chose w, x, y, and z as names for the primary $n=1$ to $n=2$ resonance and intercombination lines in the spectra of two-electron ions and a to v for the associated (X-ray) satellite lines in the spectra of three-electron ions. At a first glance, the discussion and alphabet-filling listings of 26 transitions in total look exhaustive. However, what is left out is the 1s2s2p ⁴${\mathrm{P}}_{5/2}^{\mathrm{o}}$ level because its decay rate is much lower than those of the other satellite transitions. Gabriel evidently judged the magnetic quadrupole ($M2$) transition to the 1s²2s ²${\mathrm{S}}_{1/2}$ ground level to be of little interest to plasma physics. A contrasting aspect arises from a different type of spectroscopy, using fast ion beams that pass through a thin foil inside of which the electrons provide a dense (solid state density, $n\approx$ ${10}^{24}$ electrons/cm⁻³) plasma. The fast ions emerge into a high vacuum (pressure $p\approx$10⁻⁶ mbar) at a very low particle density ($n\approx$ 10¹¹ atoms/cm⁻³) and can be studied practically free of interactions [5,6,7,8,9,10]. The many satellite lines of the three-electron system fall into a narrow wavelength interval and require high spectral resolution for meaningful studies [11,12,13]. The beam-foil light source, however, suffers from significant Doppler broadening, and therefore, an experimenter struggles to resolve such satellite spectra near the diagram (resonance) lines of two-electron ions. Nevertheless, the technique offers another boon: by a simple mechanical shift of the exciter foil, it facilitates the recording of time-resolved spectra and thus the measurement of atomic lifetimes in the nano- to picosecond ranges [14]. Similarly, in the study of Auger electrons (from the autoionization of multiply excited few-electron ions) [15,16], “delayed” spectra (relatively) enhance the decay signal of longer-lived levels [17]. Following the example of S. Mannervik [13] (an article recommended for a review of techniques and problems not covered in the present text), I concentrate my report on photon transitions, many of which compete with Auger decays. Most of the doubly excited three-electron levels are very short-lived, but one of them stands out in slightly “delayed” satellite spectra and thus yields access to a “forbidden” decay mode [18]. That level is the very 1s2s2p ⁴${\mathrm{P}}_{5/2}^{\mathrm{o}}$ level which in Gabriel’s treatise and tables is not even mentioned, but which has since been studied for a number of elements for the isoelectronic Z-scaling of the $M2$ transition rate. It has taken decades until, eventually, the same transition was recognized also in the X-ray spectrum of a low-density plasma discharge [19].

Among the multitude of core-excited 1s2ℓ2${\ell }^{\prime }$ levels in three-electron systems, the 1s2s2p ⁴${\mathrm{P}}_J^{\mathrm{o}}$ and 1s2${\mathrm{p}}^2$⁴${\mathrm{P}}_J$ levels are of particular interest also because of the ultraviolet (UV) transitions between these terms. The levels of the upper multiplet have three competing decay modes: intra-shell electric dipole transitions in the ultraviolet, inter-shell higher-multipole order X-ray transitions to the low-lying doublet levels, and autoionization. At low nuclear charge Z, the transition rates of the decay branches differ clearly and they scale differently with increasing Z. At low Z, the UV decay (the rate of which increases linearly with Z) dominates. The various mechanisms that permit autoionization are weak at low Z, but they scale with ${\mathrm{Z}}^3$ to ${\mathrm{Z}}^4$ and therefore gain importance along the isoelectronic sequence. The higher-multipole order X-ray transition rates scale the steepest with Z and, thus, they dominate at high Z. Atomic lifetime measurements along the isoelectronic sequence can track the individual contributions to the total decay rate [20,21]. The measurements are most easily done on the UV decay branch because, there, the spectral resolution is good enough to resolve decays of individual fine structure levels [22,23,24]. However, the fluorescence yield of the UV branch decreases when the competing decay modes increase and eventually dominate. Work by H.M. Hellmann et al. at Bochum [23] has covered M${\mathrm{g}}^{9+}$ and A${\mathrm{l}}^{10+}$; the highest-Z data published apparently are those on S${\mathrm{i}}^{11+}$ obtained by J.P. Buchet et al. at Lyon (France) [25].

So far, our examples have mentioned singly and doubly excited three-electron systems. However, all three electrons may be not in their ground state, and arguably, the most peculiar excitation level there is the triply excited 2${\mathrm{p}}^3$ ⁴${\mathrm{S}}_{3/2}^{\mathrm{o}}$ level with its notable longevity, which has been demonstrated in beam-foil spectra by Mannervik et al. [26] (see this paper also for references to earlier work, with theoretical concepts appearing already in the 1940s, and to the excellent theoretical studies by K.T. Chung and colleagues). The extreme ultraviolet (EUV) decay of this level has been searched for in elements from He ($Z=2$) up to $Z=6$ by now [27,28]. While in spectroscopy such levels and their decays may initially have appeared to be rather exotic (not to say useless) cases of little general interest, the quest for X-ray lasers in the 1980s and the upcoming interest in hollow atoms in the 1990s (produced, for example, by the interaction of highly charged ions with metallic surfaces [29]) have catalysed a much wider interest. Since then, synchrotron radiation and X-ray lasers have been applied to photoionize neutral atoms by the removal of one or more inner electrons, and atomic systems of multiple excitations equivalent to those produced before by fast ion–foil interaction are the result. Similarly, beyond the early pioneering use of satellite lines for plasma diagnostics, plasma physics has progressed to higher power density plasmas, finding more and more seemingly “nonstandard” satellite lines (see, for example, the work by F.B. Rosmej et al. [30]). Again, some of these lines had been seen in beam-foil spectroscopy decades earlier [31,32,33,34] but without a comprehensive theoretical treatment available at the time.

Such multi-electron systems with multiple excitations challenge the capabilities of atomic structure computations. A related testing ground is the study of negative ions, which rely on electron–electron interactions to keep the “surplus” electron bound. Besides the question of the binding (dissociation) energy, there is the question of whether excited states exist and whether transitions between bound states of the negative ion occur. For many negative ions, no excited state has been found, and one might suspect that, if transitions were happening, they should be very weak and thus hard to recognize. However, in the spectrum of fast Li ions after passage through a thin foil, a rather bright line defied identification for years until in 1980 theory [35] and experiment (among others [36]) concluded that the spectral line originated from a negative ion, Li⁻, and thus represented a transition that involved a triply excited (core-excited) four-electron ion. Moreover, the strong transition seen is not a ground-state transition but one that takes place between two core-excited levels, in this case, 1s2${\mathrm{p}}^3$ ⁵${\mathrm{S}}_2^{\mathrm{o}}$ and 1s2s2${\mathrm{p}}^2$ ⁵${\mathrm{P}}_1$ (for more detailed studies and references, see Reference [37]).

The same transition between the lowest quintet levels has been followed experimentally up to Ne VII at Argonne (IL, USA) [38]. A search for the corresponding transitions in Mg IX (M${\mathrm{g}}^{8+}$) at the Bochum Dynamitron tandem accelerator laboratory (DTL) in 1986 yielded no more than weak indications of (possibly) the lines of interest. The spectra were recorded with a grazing incidence spectrometer, which is not particularly well suited for observations in the long-wavelength part of the EUV spectral range [39]. The candidate spectral features seen were not far in wavelength from computational predictions by T. Brage and C. Froese Fischer [40], but not in agreement with the computations of K.T. Chung [41].

There are many such core-excited atomic systems, with numerous experimental studies aiming at the detections of electrons after autoionization or auto-detachment. On the theory side, see, for example, also the studies by J. Hata and I. P. Grant [42], by K.T. Chung and B. F. Davis (mostly on three-electron ions) [43,44,45,46], the work by the group of C.A. Nicolaides (for example, Reference [47]), by N. Vaeck and her colleagues, and by J.H. Blanke (on three- to five-electron ions) [48,49,50,51] for computations and further literature references on core-excited levels. These theoretical studies apply a wide variety of computational approaches to atomic structure, from nonrelativistic to fully relativistic, from configuration interaction to many-body perturbation theory, R-matrix, saddle-point, and complex rotation. Several of the program packages can switch between major computational options, and it is not good enough to just name the program package without detailed specifications to tell what has been done. This experimenter’s qualification is insufficient to pay justice to the plethora of basics and details involved. However, a recent policy decision by the journal Physical Review A requests that every theory treatment involves an intrinsic check of validity and accuracy. It is, of course, not good enough to claim agreement of one’s result with other computations or to state the number of decimals as proof of reliability. A realistic quality assessment is as essential in computational theory as is the error budget in experiment. As highly regarded theoreticians have stated, “if theory and experiment disagree, work on theory; if they agree, improve on the experiment”.

2.2. High-J Levels in Li-Like Ions with n > 2: 1s2p3d ⁴$F_{9/2}^o$

M. H. Chen and B. Crasemann [52] have noted that the 1s2p3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ fine structure level in Li-like ions is peculiar because of its various decay channels of different multipole order, all with their own Z-dependence of the decay rate. Their multi-configuration Dirac-Fock (MCDF) computations yield an autoionization rate (mediated by the Breit interaction, proportional to $Z^{4.6}$), electric dipole ($E1$) transition rates for the EUV transitions 2s–2${\mathrm{p}}_{3/2}$ (proportional to $Z^{2.8}$) and 3p–3d (in the UV spectral range, with the weakest Z-dependence), the electric quadrupole ($E2$) transition rate for the XUV transition 2s–3${\mathrm{d}}_{5/2}$ (proportional to $Z^{6.5}$), and the magnetic quadrupole ($M2$) transition rate for the X-ray transition 1s–2${\mathrm{p}}_{3/2}$. The spectral ranges indicated in that paper are for elements in the range of Z from about 10 to 20. The lifetimes $\tau$ of the levels J = 3/2, 5/2, and 7/2 decrease rapidly (and rather similarly) with increasing atomic number Z from $\tau \approx$ 1 ns at Z = 8 to $\tau \approx$ 10 ps near Z = 13, whereas the J = 9/2 level has a much longer lifetime of $\tau \approx$ 7 ns at Z = 8 and $\tau \approx$ 1 ns at Z = 15. The same (and related) levels are of interest in low-energy collisions with charge exchange (CX) reactions. Experiments in France (for example, by the groups at Lyon [53] and Caen), Greece (see, for example, the group at Heraklion [54]), the USA (for example, by the group at Manhattan (KS, USA) [55]), and many others have exploited the presence of long-lived (metastable) excited levels with their often very large cross sections. Closely related to the 1s2p3d ⁴F^o term in the three-electron system is the 2s2p3d ⁴${\mathrm{F}}^{\mathrm{o}}$ term in boron-like ions, as treated computationally by G. Miecznik and T. Brage [56].

The case of the 1s2p3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ fine structure level should be easily measurable in principle by beam-foil spectroscopic techniques [14] – so, why has it not? Let us look at the S${\mathrm{i}}^{11+}$ ion as an example. Silicon ion beams (P or S would do as well) have been produced at various accelerator laboratories and certainly are strong enough to yield sufficient signal even on branched decays. According to Chen and Crasemann’s computations, the 2s–3d, 2s–2p, and 3p–3d transitions are the strongest decay branches with transition rates within a factor of two of each other. The predicted wavelengths are 3.78 nm, 82.9 nm, and 282 nm, respectively, calling for at least two different spectrometers (a grazing incidence spectrometer at the short-wavelength end of operability and a normal-incidence spectrometer) with at least two different detectors (for example, a channeltron or microchannel plate or a charge-coupled device (CCD) camera working in the soft-X-ray range and EUV range and a solar-blind photomultiplier for the UV range). For each of the observation cases, a single spectral line needs to be found that should be distinguishable from the probably also present but less interesting other lines by its longevity. In practice, there usually are many other lines to be seen in spectra recorded close to the exciter foil, among which one hopes to identify lines that can serve for wavelength calibration. The line of interest, however, can become relatively prominent only some distance downbeam of the exciter foil, where it loses intensity more slowly than the others and then shows as a survivor. Most probably, this survivor appears without calibration lines nearby because, in beam-foil spectroscopy, the ion beam is isotopically pure: there will be ions of several charge states but all from only one element/isotope. Incidentally, there are no measures yet of the computational accuracy of the procedure applied by Chen and Crasemann. In each of the three spectral ranges involved, the experiment will need to be able to cover a certain wavelength range and record spectra at a set of distances from the exciter foil (delays after excitation). An optical experiment, preferably with a position-sensitive detector that offers spectral coverage of a certain wavelength range [57,58], could shed much more light on the matter, indeed.

The necessary ingredients for measurements of the three major decay branches of the 1s2p3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ fine structure level in Li-like ions of Si, P, or S have been available in several laboratories several decades ago—but not all in the same laboratory. At Lund (Sweden), spectrometers for all three spectral ranges had been deployed on ion beams, but the Lund Pelletron accelerator was not powerful enough to produce sufficiently highly charged ions. The Lund group of I. Martinson frequently collaborated with the group of P.H. Heckmann at Bochum (Germany), 750 km southwest of Lund. The Bochum Dynamitron accelerator was able to provide ions of the right energy and high beam current. However, the Bochum group owned grazing-incidence scanning monochromators that served excellently in the EUV but that were barely sufficient in terms of spectral resolving power in the soft-X-ray range. One of the instruments reached the long-wavelength part of the EUV range but was somewhat too slow to be practical there. A suitable normal-incidence monochromator was eventually built by the group of H.H. Bukow at the same institute, but it was used for dedicated work at a much smaller accelerator in the same laboratory only. Nowadays, there are few, but some, accelerator laboratories left that could provide a suitable combination of ion beam production and beam-foil spectroscopic equipment for studying this particular problem.

2.3. Al-Like Ions: The 3s3p3d ⁴$F_{9/2}^o$ Level

A fair number of computations have addressed Al-like ions, that is, ions with a closed n = 2 shell and three electrons in the n = 3 valence shell. Early studies stated that the physics community had interest in only those transitions that connect to the ground configuration and that the 3s3p3d configuration was thus left out. This argument surely reflected the limitations of computer resources at the time. Later on, the 3s3p3d configuration and even the ⁴${\mathrm{F}}^{\mathrm{o}}$ term were eventually included in atomic structure computations, but the highest-J level, J = 9/2, was still left out. With the inner shells filled, the 3s3p3d ⁴${\mathrm{F}}_J^{\mathrm{o}}$ levels are fully bound and cannot autoionize, but nevertheless, the lifetimes of the fine structure levels differ because of relativistic effects and some differences in the decay paths. While the lifetimes of the J = 3/2, 5/2, and 7/2 levels differ slightly from each other (in the range of ns for Fe XIV), the J = 9/2 level lifetime is much longer (in the range of several ms for Fe XIV) because the only J = 7/2 level lower in energy is another fine structure level of the same term and not any $E1$, but only an $M1$ decay of low transition energy is permitted.

S.S. Churilov and V.E. Levashov [59] have studied laser-produced plasmas and observed decays from higher n = 3 levels to the 3s3p3d ⁴F^o term. Practically concurrently, decays of the 3s3p3d ⁴${\mathrm{F}}_J^{\mathrm{o}}$ levels (with the exception of the J = 9/2 level, the decay of which falls into a much longer-wavelength band) were observed in EUV spectra recorded on foil-excited ion beams of Ti, Fe, and Ni at Bochum [60]. (Having been involved in the latter experiment, I dare to report my relief that the two evaluations agreed on the positions of the 3s3p3d ⁴${\mathrm{F}}_J^{\mathrm{o}}$ levels.) An important point about both experiments is the high density environment (solid-state density inside the foil of the fast-ion beam experiment, $n_e\approx$10²⁴ cm⁻³, and not quite as high a density in the laser-produced plasma, maybe $n_e\approx$${10}^{20-22}$ cm⁻³ at the time) which—as stated above—facilitates the excitation of multiply excited levels. After the ion beam has left the exciter foil, the ambient vacuum typically is of $p\approx$10⁻⁶ mbar.

The elusive J = 9/2 level decay has reappeared and demonstrated its role in a different context. Among the prominent emission lines of the solar corona is “the green iron line”, the magnetic dipole ($M1$) transition ($\lambda \approx$ 530.3 nm) in the Fe XIV 3s²3p ²P^o ground term of the Al-like ion of iron. Three types of experiments have aimed at measuring the transition rate, and the results have been strikingly different, considering the accuracies claimed for such measurement techniques (for a detailed discussion and individual references, see Reference [61]). In short, two measurements at electron beam ion traps (EBIT) agreed best with what had been predicted from a combination of (rather straightforward) Racah algebra and the experimental transition energy (accurate wavelength measurements). Two measurements employing electrostatic (Kingdon) ion traps deviated some 2 to 5% from this (disregarding the measurement uncertainties here), and a measurement at the TSR heavy-ion storage ring differed by 8%, all differences pointing to a lower transition rate (longer level lifetime). Thus, all of the measurements employed ion traps with excellent vacuum (very low density) but the trend of the deviations from the perceived-to-be-true atomic level lifetime value of about 16.7 ms was reminiscent of beam-foil spectroscopy, where the excitation takes place in a high-density environment before the observation occurs in a low-density environment. At high density, frequent collisions result in the excitation of many high-lying levels, the decay of which causes cascade repopulation of lower levels; this process can systematically distort the decay curves of the latter levels and usually results in apparent lifetimes that are longer than the true ones. Then, where is the origin of the suspected systematic error caused by a poorer vacuum?

In an EBIT, the excitation of the ions of interest takes place inside the actual ion trap at an excellent high vacuum, especially in a cryogenic EBIT cooled by liquid He (vacuum $p\approx$10⁻¹⁰ mbar or better). Here, the lifetime measurement result agreed with expectation and can, in fact, be used to test theory. The ions for the Kingdon trap experiment (operated maybe at $p\approx$10⁻⁸ mbar) were provided by an electron cyclotron resonance (ECR) ion source and then sent to the ion trap. In the ECR ion source, a plasma discharge is operated at not quite such a high vacuum (maybe $p\approx$10⁻⁶ mbar), and multiple excitations may be possible. The Heidelberg TSR heavy-ion storage ring ($p\approx$10⁻¹⁰ mbar) draws ions from a regular accelerator built in the days when high vacuum meant $p\approx$10⁻⁶ mbar; moreover, the tandem accelerator at Heidelberg used a foil or gas stripper to produce highly charged ions, and thus, the production of highly excited ions is a given. However, the question is whether in Al-like ions there is a high-lying level of a lifetime long enough not only to survive the transfer to the storage ring (≈10 $\mathsf{\mu }$s) but also to affect the lifetime measurement of a level with a multi-millisecond lifetime, an effect not seen in many earlier measurements on other ion species. The answer is yes, there is: the 3s3p3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ level, with theoretical predictions very close to the lifetime of the 3s²3p ²${\mathrm{P}}_{3/2}^{\mathrm{o}}$ level. Measurements on the Al-like ions of Fe, Co, and Ni ($Z=26-28$) [61] corroborate the assumption that there is such a cascade contribution, but the associated signal is weak. The lifetime evaluation results therefore are too imprecise to yield a meaningful lifetime value of the “culprit” level. This small contribution, however, is sufficient to perturb the intended high-accuracy lifetime measurements on the 3s²3p ²${\mathrm{P}}_{3/2}^{\mathrm{o}}$ level of principal interest. An accurate lifetime measurement on that lower level is of particular interest because it might test a detail of atomic structure (the electron anomalous magnetic moment (EAMM) contribution to the $M1$ line strength, an uncommonly large quantum electrodynamics (QED) effect at 0.45%; see Reference [62]). It has been conjectured that a test of the EAMM might reveal the presence of “new physics beyond the Standard Model”. As it happens, the scatter of the various predictions for the level lifetime mentioned above so far is larger than the small effect searched for and larger than the claimed experimental uncertainty reached so far. Atomic structure computations as well as experiment are being challenged to improve for a decisive step further in accuracy.

2.4. Na-Like Ions: The 2p⁵3s3p ⁴$D_{7/2}$ – 2p⁵3s3d ⁴$F_{9/2}^o$ Transition

The 3s–3p and 3p–3d lines of singly excited Na-like ions stand out in many spectra and thus help the experimenter in the search for calibration lines and the subsequent establishment of a wavelength scale. This process is facilitated by the fact that, in the spectrum of ions with a single valence electron outside closed shells, there are just a few prominent lines. In contrast, most of the spectra of core-excited ions are calculated to be rich in lines; there are open shells with many coupling opportunities, and there are competing decay channels. Hence, predictions are less accurate and relative line intensities are generally lower and less easily predicted. There also is autoionization, which, for example, has been studied with the Na-like ion Si³⁺ [63]. However, I am putting emphasis on photon detection, which is more likely to succeed if autoionization is suppressed as is the case for high-spin and high-J levels. These levels are much more limited in the number of their decay paths and, because of less level mixing, may be computed relatively accurately. For example, C. Jupén et al. [64] have identified the most prominent line of the multiplet, 2p⁵ 3s 3p ⁴${\mathrm{D}}_{7/2}$ – 2p⁵ 3s3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$, in the spectra of a number of Na-like ions. As this means a single spectral line in a given element, any such classification might seem daring, but would be helped by similar observations of many elements in an isoelectronic sequence. In fact, several of the identifications proposed by Jupén et al. concerned lines that had been classified differently before, and only the combination of many measurements ascertained the interpretation and systematic consistency of the sample. In a second step, Jupén et al. [65] have analyzed the line pattern of the 2p⁵3s3p ⁴D – 2p⁵ 3p^{2 4}D multiplet (and some others) in the Na-like spectra of S, Cl, and Ar. This analysis encompasses quite a number of spectral features in computation and measurement, corroborating the identification analogously to a multi-digit combination lock.

Jupén et al. used the Cowan code (see Reference [66,67]) for guidance, a nonrelativistic Hartree-Fock (HF) atomic structure code that permits the external scaling of the Slater parameters. While the code yields sometimes shockingly inaccurate transition wavelengths when used in the ab initio mode (wavelength uncertainties of 20% are common), the results are much closer to reality when the Slater parameters are subjected to “standard scaling” values. The results can be notably improved even further by a least-squares fit of some of the computed wavelengths to experimental wavelength data, with the adjustment being performed on the atomic parameters. A semi-empirically scaled result has a limited predictive power per se (which, in contrast, we would expect from a valid theory), but after such scaling of key atomic parameters, the relative properties in a computed spectrum still correspond to the underlying atomic structure theory. Thus, lines not included in the scaling process as well as isoelectronic trends can now be predicted reasonably well. In the work by Jupén et al. [64], the ab initio results are listed alongside the scaled ones. The former already represent a rather good approximation because the valence electrons are close to hydrogenic orbits without too much core polarization, while the scaled results match experiment very well indeed (

Table 1. Comparison of experimental 2s²2p⁵3s3p ⁴${\mathrm{D}}_{7/2}$ – 2s2p⁵3s3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ transition wavelengths (in nm) in ions of the Na I isoelectronic sequence with single-configuration Hartree–Fock (HF, Cowan code) calculations, semi-empirical adjustment of the same by fitting the calculation to the data, and ab initio Multi-reference Møller-Plesset (MR-MP) calculations.

Z	Experiment	HF a	Fit a	MR-MP b
17	53.270 ± 0.010 a	52.75	53.267	53.307
18	47.134 ± 0.005 a	46.71	47.122	47.213
19	42.29 ± 0.01 c	41.97	42.305	42.391
20	38.420 ± 0.005 c	38.13	38.415	38.473
21	35.20 ± 0.01 c	34.96	35.198	35.252
22	32.487 ± 0.002 a	32.28	32.489	32.488
23	30.17 ± 0.01 c	29.98	30.169	30.179
24	28.167 ± 0.005 a	27.99	28.160	28.170
25	26.40 ± 0.01 c	26.25	26.398	26.407
26	24.836 ± 0.005 a	24.71	24.839	24.848
27	23.44 ± 0.01 c	23.33	23.448	23.458
28	22.200 ± 0.010 a	22.09	22.198	22.209
29	21.070 ± 0.005 a	20.97	21.068	21.079
30	-	19.95	20.039	20.051

^a Jupén et al. [64]; lines partly reassigned from earlier work; ^b Vilkas and Ishikawa [72]; ^c this work.

). They also indicate with high reliability the transition wavelengths for the elements not covered at the time, which were about as many as had been measured.

While semi-empirically scaled calculations are very helpful, one wishes for ab initio computations of accuracy to prevent observer bias in the selection of the reference lines used in the least-squares fitting procedure and other human errors. Such a relativistic MCDF computation for this specific case has been performed by M.H. Chen soon after [68], covering 18 elements with $18\le Z\le 92$, that is, for but a few of the elements of Table 1. In fact, explicit data are given for only three elements (Ar $Z=18$, Ti $Z=22$, and Fe $Z=26$) and only for the electron configuration of the lower level of the transition of present interest and, thus, not for the particular transition of present interest. Since then, M. J. Vilkas and Y. Ishikawa have applied their Multi-reference Møller-Plesset (MR-MP) approach [69,70,71] to all 14 elements with $17\le Z\le 30$. Table 1 shows that, for the lower-Z elements of this sequence, the deviation of the MR-MP results from the scaled HF results is only about a fourth of that of the unscaled HF results. At the high-Z end of this range, the ab initio computation agrees closely with the results of the scaled HF calculation.

3. Recent Work on the 2${\mathrm{p}}^{\mathbf{5}}$3s3p ⁴${\mathrm{D}}_{\mathbf{7}/\mathbf{2}}$–2p⁵3s3d ⁴${\mathrm{F}}_{\mathbf{9}/\mathbf{2}}^{\mathrm{o}}$ Transition

At the time of the experiment and data reanalysis described by Jupén et al. [64], there were no experimental data available for six of the elements in the range $17\le Z\le 29$. Various beam-foil measurements at Bochum by now have covered the wavelength range in which the 2p⁵ 3s 3p ⁴${\mathrm{D}}_{7/2}$ – 2p⁵ 3s3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ transition in Na-like ions is expected. Sample spectra are shown in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8. The new experiments used the same equipment and procedures as described by Jupén et al. [64]. On the accelerator side, this was the 4 MV Dynamitron Tandem heavy-ion accelerator at the Bochum DTL laboratory, equipped with a Middleton-type sputter source that is capable of producing rather intense ion beams of most elements. The high voltage terminal construction and the tandem accelerator working principle on one side and the quest for Na-like ions (11 electrons) after ion–foil interaction on the other set has a practical upper limit of $Z\approx$30. The ion beams of a given ion species and energy were guided to a vacuum chamber with a displaceable foil wheel and passed through a thin (typically 10 $\mathsf{\mu }$g/cm²) carbon foil. Light from the foil-excited ion beam was dispersed by a grazing-incidence spectrometer (McPherson Model 247 scanning EUV monochromator, grating 600 L/mm, R = 2.2 m) and detected by a channeltron. The spectra were Doppler corrected for the known ion energy (in the few-MeV range for the lighter ions, up to 30 MeV for the heavier ones) and were calibrated with known in-beam reference lines. The linearity of the experimental wavelength scale was improved by monitoring the spectrometer exit slit head displacement during spectral scans by a Moiré fringe length gauge.

For a typical slit width of 50 $\mathsf{\mu }$m, the line width produced by this EUV spectrometer was 0.035 nm. While at wavelengths near 35 nm this corresponds to a resolving power of $\lambda /\Delta \lambda \approx$1000, in the same experiment at a wavelength near $\lambda =17$ nm, the resolving power is only 500. The typical step motor increment was chosen to yield 3 to 4 channels per line width. With narrower slits, the resolving power increases but the detection solid angle and thus the signal rate decreases. Moreover, the wavelength increments have to be smaller in order to maintain a sensible coverage of each line profile. The measurement is further affected by the finite time the exciter foil lasts under ion beam irradiation. A higher ion beam current is beneficial for the data rate, but it also increases the need for foil replacement and the risk of introducing artefacts to the spectra at the time of the beginning of foil breakage (which is not necessarily noted because the data recording time interval is normalized to the integrated ion beam current behind the foil). Replacement foils, even of the same production batch, do not all work out similarly in terms of light yield. Last, but not least, accelerator run time is scarce, especially at a multi-user facility. Covering a wide spectrum in detail and with high statistical reliability often is prohibitively costly in terms of beam time. It might have many advantages to have dedicated accelerator runs for one element after the other in order to cover all elements of present interest in sequence and sufficient detail as well as a capture of the spectral vicinity of a feature of interest. However, the present data have been culled from different measurements, executed over the time of several years. Consequently, the ion beam energy was not always at the optimum indicated by Delaunay [73] or Shima et al. [74], the spectral coverage was not necessarily tailored for the optimum coverage of the 2p⁵ 3s3p ⁴${\mathrm{D}}_{7/2}$ – 2p⁵ 3s3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ and all related lines, and the proper bracketing of the line of present principal interest by calibration lines was not considered. This becomes apparent in the sample spectra shown and discussed below, and it limits the accuracy of the measurements, which are included in Table 1. As it happens, none of the new measurements reaches an accuracy quite as high as the older ones, although they fully corroborate the earlier analysis on the totally different set of elements. Nevertheless, such data recorded “in passing” evidently have their value, even as sometimes only hindsight reveals the treasures.

Available Data

Spectroscopic data have been published in many journals or institutional reports. It is very helpful that compilations exist and that some of them have involved a critical evaluation of the data. However, it is a daunting task to strive for completeness and to keep up with corrections and updates. For example, while writing this manuscript, the numbers of lines of a specific sample listed in the NIST ASD online database [75] increased by some 10% for some elements. One set of samples comprised Ne- to P-like spectra data holdings in the wavelength interval 10–90 nm. The typical number of entries for each element was in the range 300 to 550 lines, with Ti VIII–XIII being the top ranking one with 743 entries, Ca VI–XI having only 58 entries, Cu XV–XX having 148 lines, and Zn XVI–XXI having none. The Kelly tables [76]—which have not been updated in several decades—list only a few (but several) Zn lines in the sample range. Clearly, this difference in coverage is a result of the earlier (1970s) interest in controlled fusion device research which asked for data on elements up to (but not heavier than) Ni ($Z=28$). At the time, heavy elements were seen as a detrimental contamination of any fusion plasma. Cu evidently has found some interest (partly because Cu contamination from antennas and electrical conductors inside plasma vessels had to be expected), and Zn has found very little. The CHIANTI database (see Reference [77] for their version 8) is oriented towards solar observations, and therefore, the interest is on elements that are most abundant in the solar corona; Cu and Zn are but rather minor contributors to solar spectra. The poor representation of Ca data in the NIST ASD database reflects the fact that Ca is difficult to exploit as a light source. Recent work at a tokamak plasma has indicated possible inconsistencies in the term analysis of highly charged Ca ions [78]. Of course, the above sample does not cover all charge states that might be present in the data.

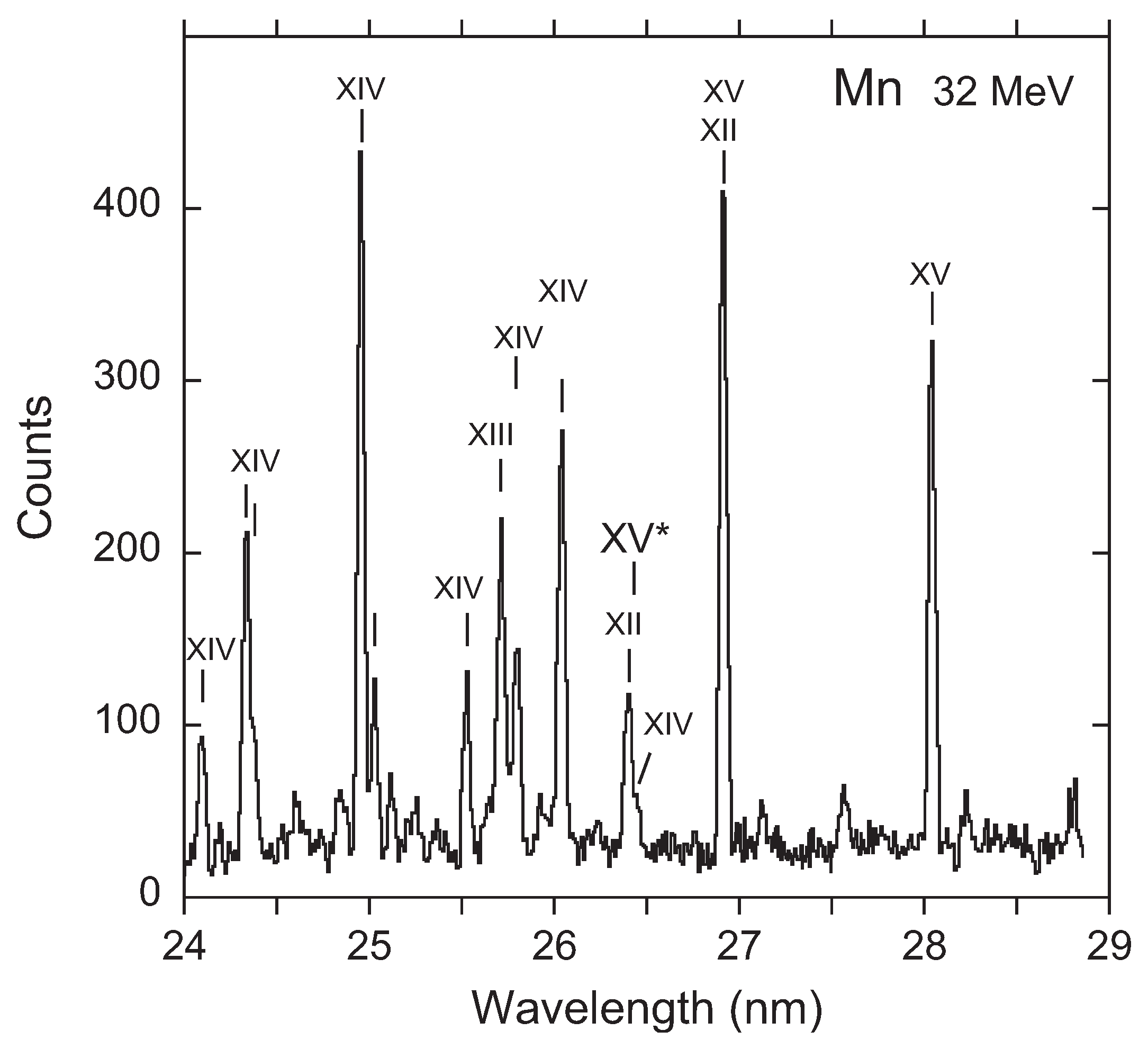

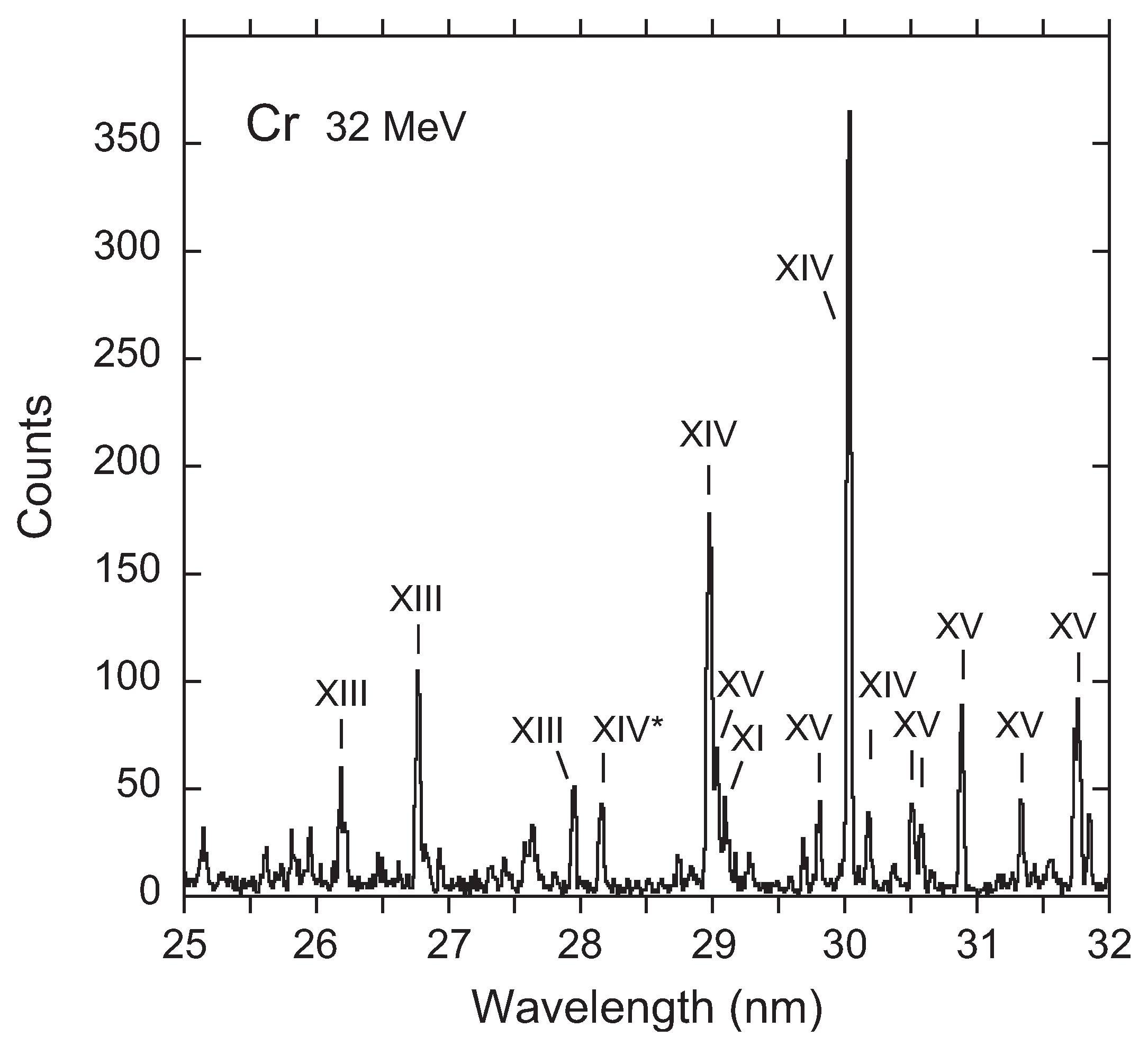

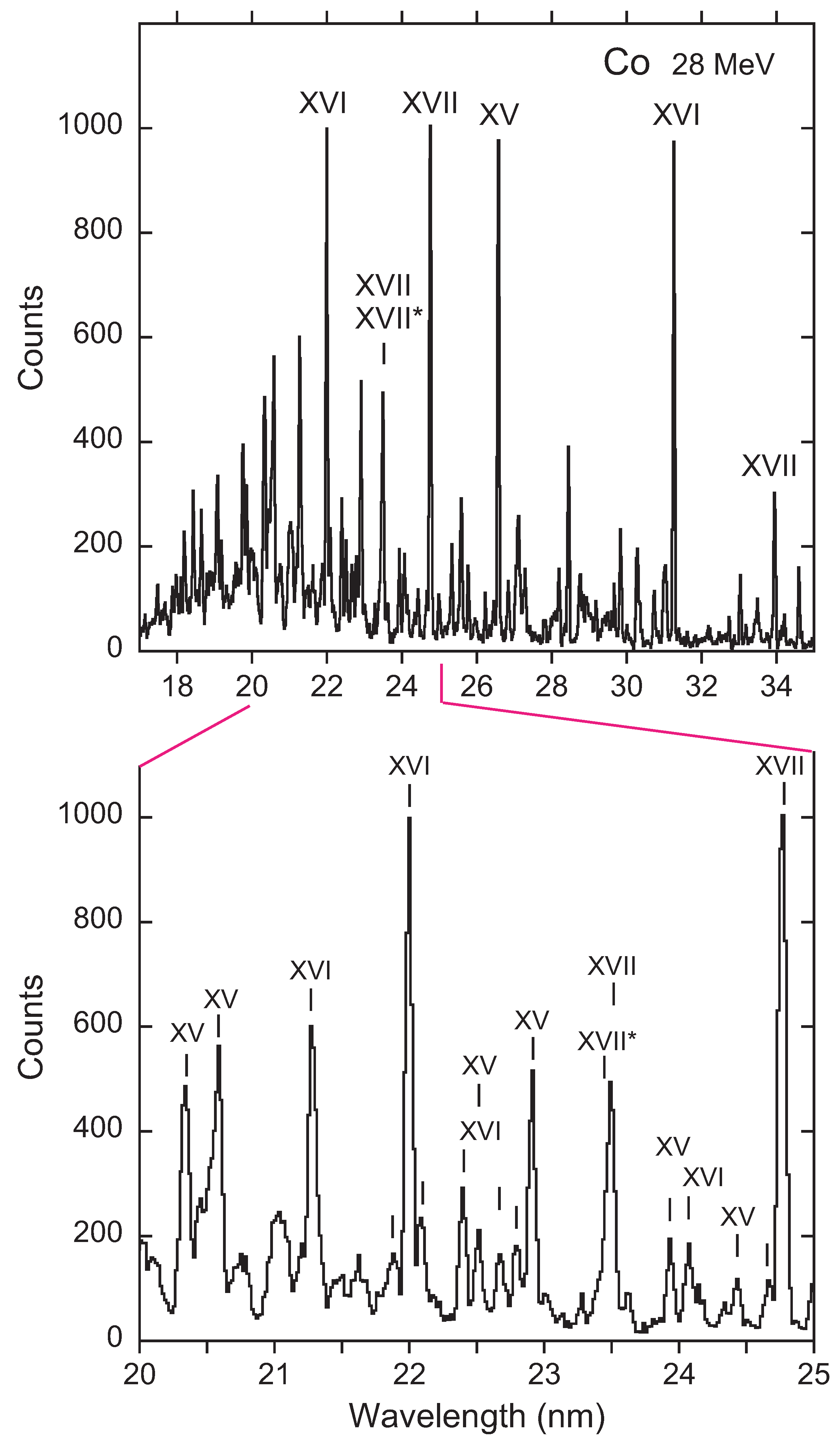

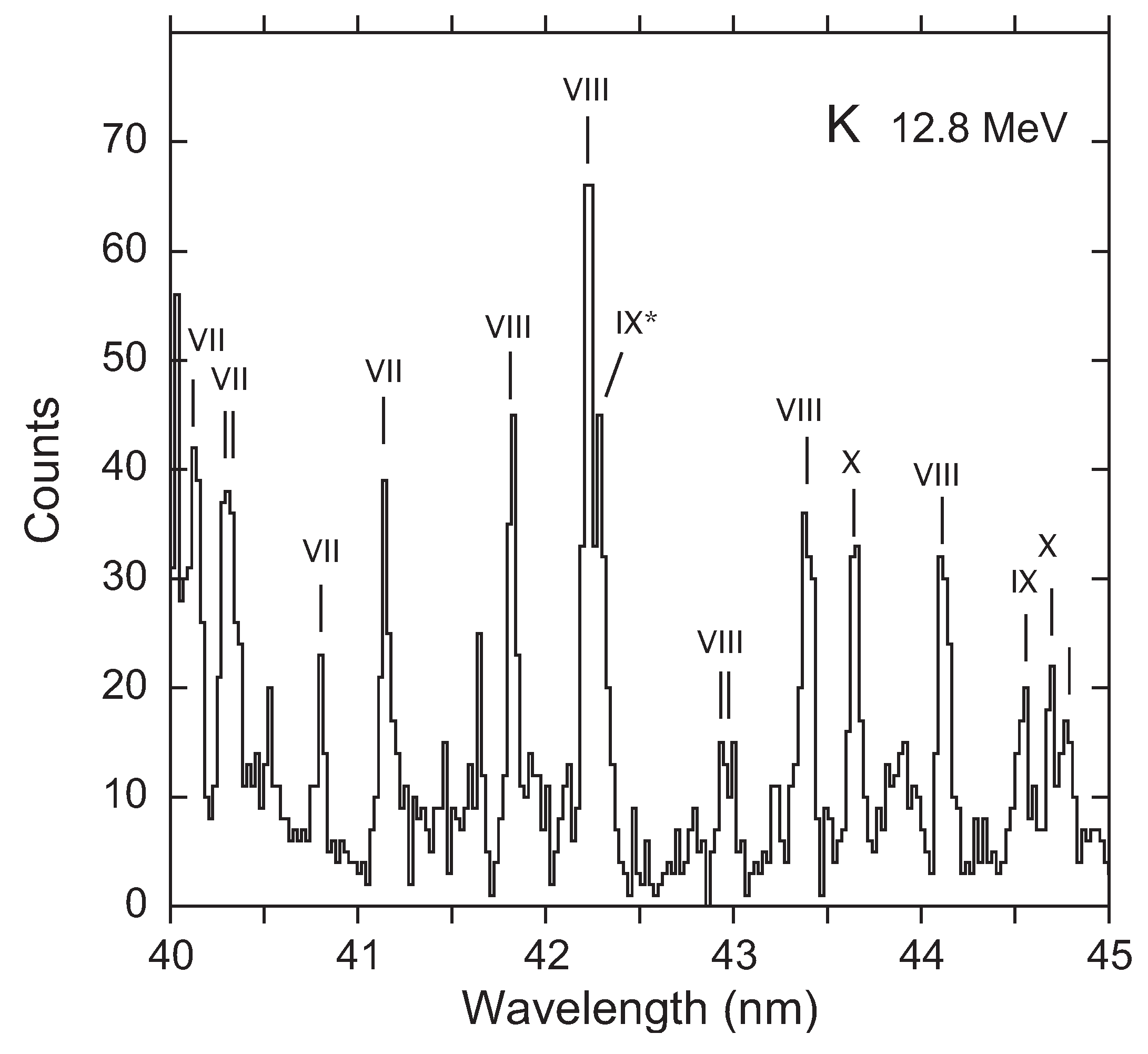

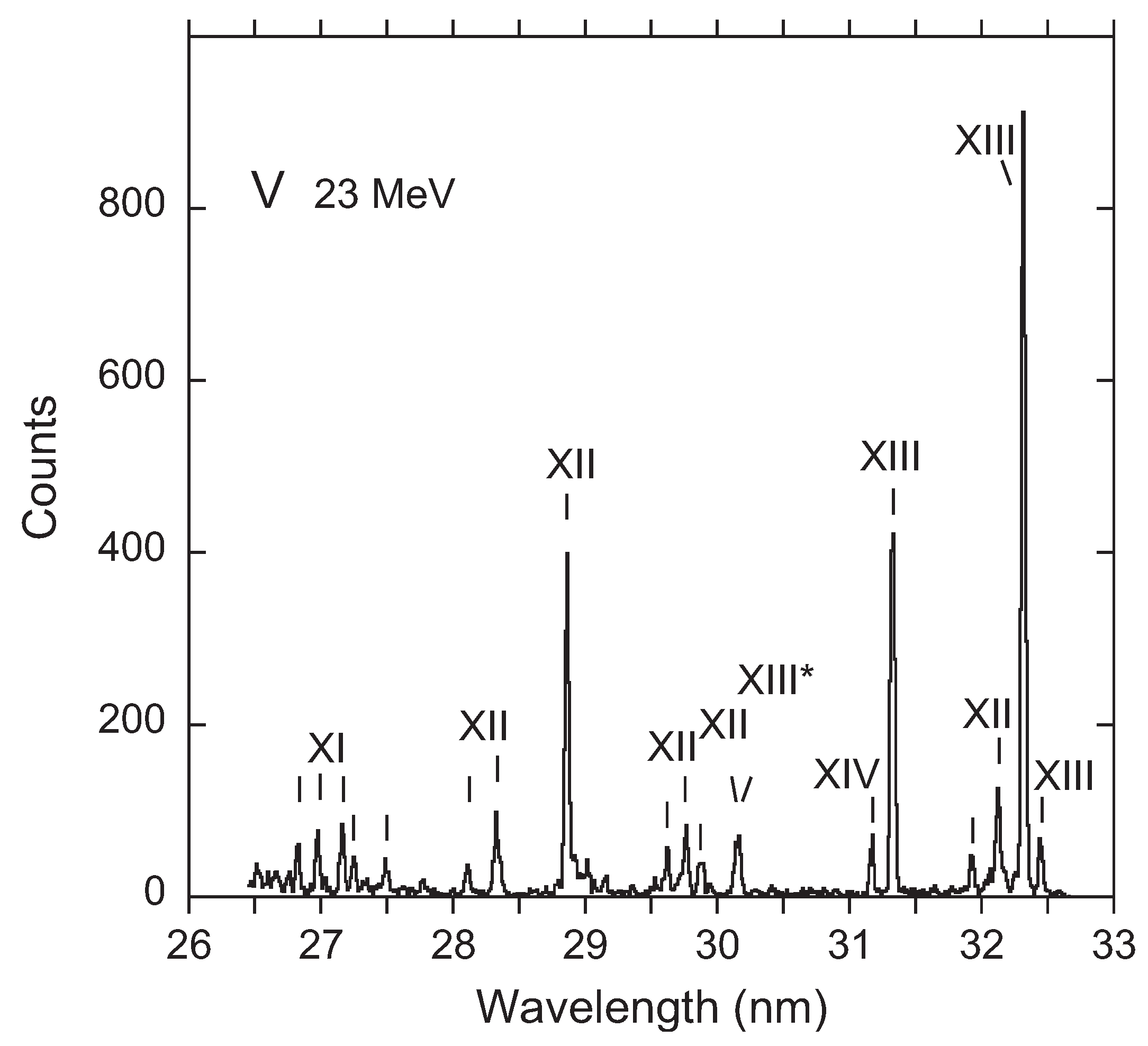

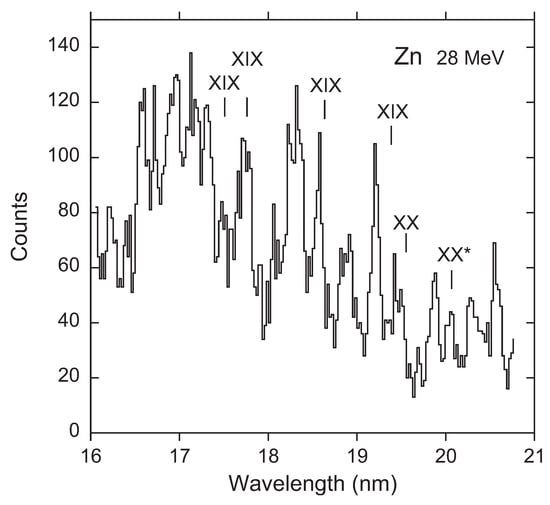

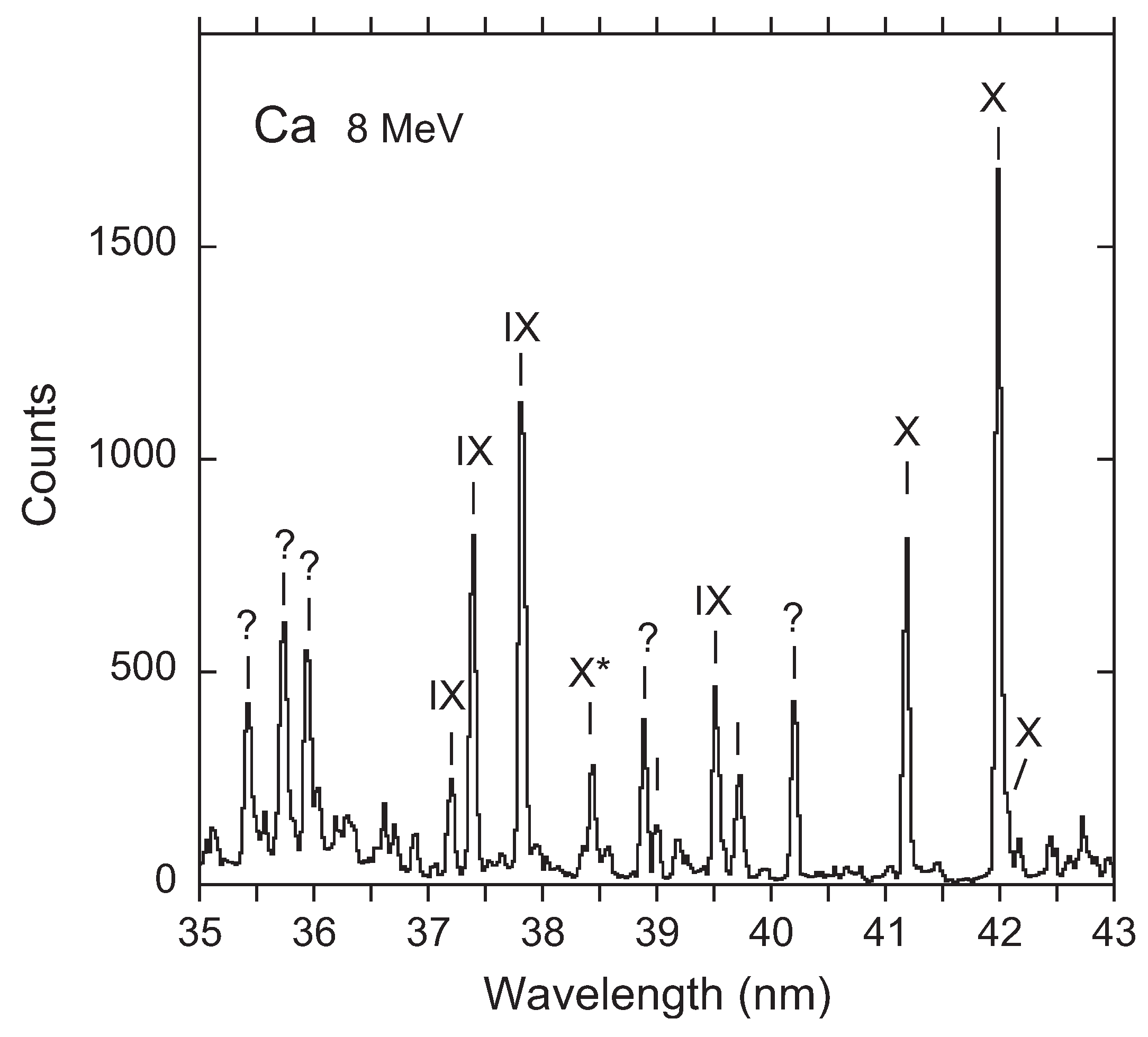

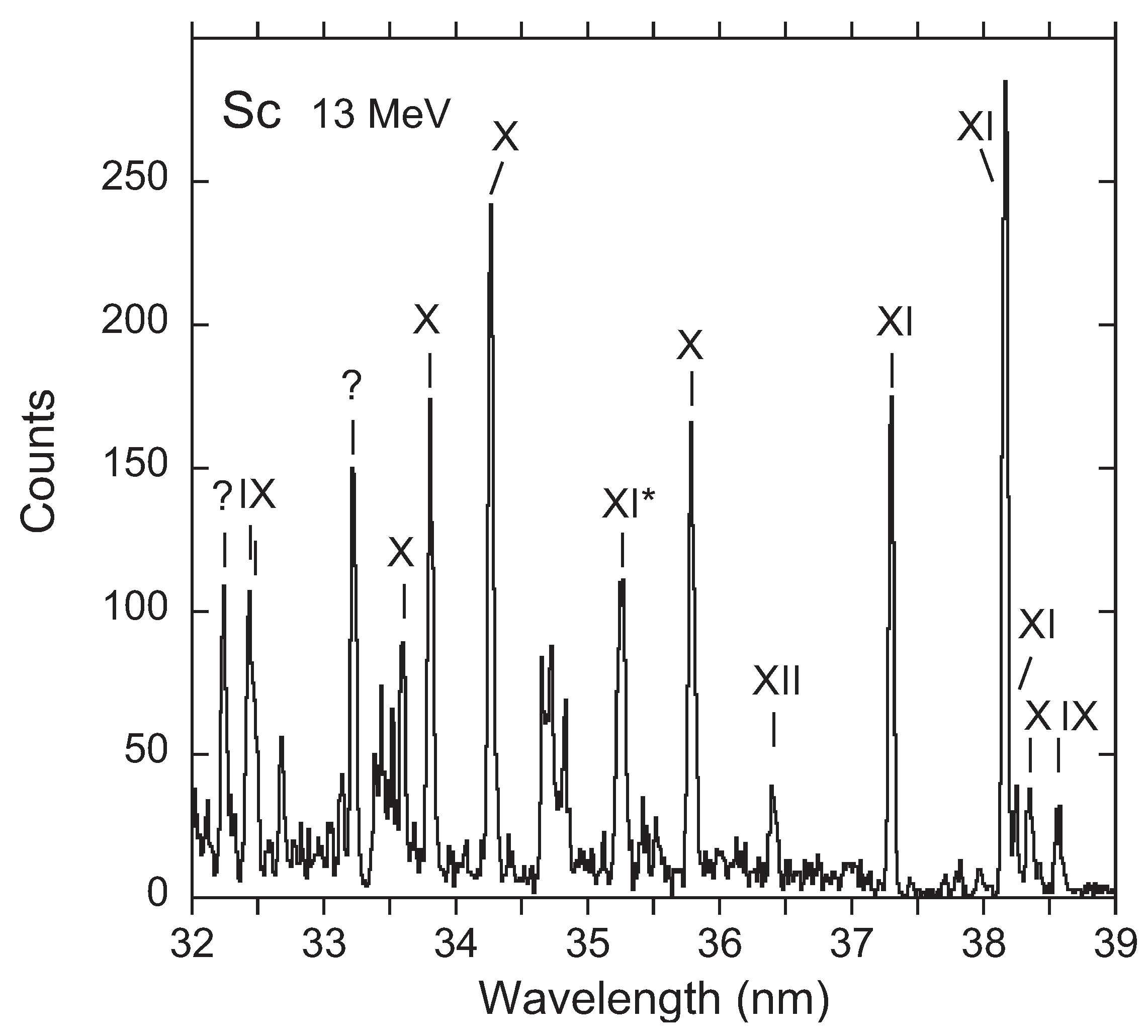

The study by Jupén et al. [64] included beam-foil spectroscopic data recorded at the Bochum tandem accelerator. Since then, further measurements have addressed the EUV spectra of all elements from K to Zn. Local development work on the commercial sputter ion source of the accelerator has been essential in producing high output currents of various elements that used to be claimed “difficult”. Some of these currents (for K, Ca, and Zn) nevertheless remained lower (by an order of magnitude) than the ion currents achieved for others (Ti, Ni, and Cu). Moreover, the accelerator terminal voltage limits the ion beam energy that can be provided. Hence, there is a technical limit to the range of elements along an isoelectronic sequence that can be produced in the desired Na-like ion charge state. Consequently, our sample spectra reach only up to Co ($Z=27$). Of the iron group elements, Ti ($Z=22$), Fe ($Z=26$), Ni ($Z=28$), and Cu ($Z=29$), some of them observed in experiments elsewhere, have already been discussed by Jupén et al. [64]. Sample spectra of the vicinity of the 2p⁵ 3s 3p ⁴${\mathrm{D}}_{7/2}$ – 2p⁵ 3s3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ transition are shown in Figure 1 on K, Figure 2 on Ca, Figure 3 on Sc, Figure 4 on V, Figure 5 on Cr, Figure 6 on Mn, Figure 7 on Co, and Figure 8 on Zn. In most of the spectra, all the prominent lines are known, except for the spectrum of Ca, whereas in the spectrum of Zn, practically all lines remain to be classified. The information associated with the individual spectra is given in the captions.

Prominent in most of the spectra shown are the 3p–3d transitions in singly excited Na-like ions. These are, of course, closely related to the 2p⁵ 3s 3p ⁴${\mathrm{D}}_{7/2}$ – 2p⁵ 3s3d ⁴${\mathrm{F}}_{9/2}^{\mathrm{o}}$ in the multiply excited Na*-like ions. Both are 3p–3d transitions, but the active electron experiences a different electron core. Consequently, the transition energies scale differently with Z, as becomes obvious by the migration of the 3p–3d lines along the isoelectronic sequence from the long-wavelength edge of the spectrum shown for K (Figure 1, with the Na*-like line in the center) to an actual blend with the line of principal interest in Co (Figure 7). A spectrum of Zn has been included in our plot presentation for the purpose of demonstrating visually that the proper charge state of interest in this element was beyond reach. The evidence for this lies in the fact that the usually strong Zn XX lines, that is the same spectrum as the hoped-for weak line of Zn XX*, were not seen. Our spectrum demonstrates at the same time how poor the literature coverage of the Zn spectrum is.

4. Discussion and Outlook

Few-electron multiply excited ions are helpful tools in plasma diagnostics. The high total angular momentum (J) levels of such ions usually live much longer than their nearby relatives, and thus, they offer a different access to the measurement of atomic properties. A reliable knowledge of these properties is essential for the comprehensive modeling of simulated spectra and the interpretation of measured spectra. Early on, the satellite spectra of core-excited three-electron ions seemed to be all that could be expected to be useful for plasma diagnostics, but instruments of higher resolving power, the recognition of inner-shell photoionization in astrophysical sources, as well as experiments with X-ray lasers have extended the view to core-excited atomic systems with more than three electrons. In any case, levels with a high J stand out and extend the diagnostic toolbox.

The analysis of the 2p⁵3s3p ⁴${\mathrm{D}}_{7/2}$ – 2p⁵ 3p^{2 4}${\mathrm{D}}_{7/2}$ multiplet in the Na-like spectra of S, Cl, and Ar [65] has been a door opener on atomic systems with a regularly filled electron core but multiple excitation in the outer shells. This largely nonrelativistic analysis has been followed up by, for example, a relativistic computation of the Fe XVI* 2p⁵3ℓ3${\ell }^{\prime }$ levels [72]. At the time of the earlier study by Jupén et al. [64], the NIST ASD database had few such transitions in their holdings, but now, there are many line entries for ions of iron-group elements. In fact, many of these lines can now be identified straightaway in beam-foil spectra which are particularly productive in terms of multiple excitation.

The appearance of levels of high-J relates to the excitation process because these levels cannot be excited in a single step ($E1$ transition) from the ground state but regularly require an intermediate high-lying level or a collision with other atomic systems. This poses an interesting challenge, which is reminiscent of the situation in beam-foil spectroscopy where excitation occurs in a high-electron density environment while the detection profits from the low-density environment experienced by the ion after leaving the exciter foil. When X-rays were detected from comets, their soft-X-ray spectra showed uncommon spectral characteristics. Charge-exchange (CX) processes have been invoked to explain the peculiarities in the interaction of comets with the solar wind [79]. However, outer space is largely a very-low density environment, and it soon became obvious that CX processes in this context ought to be studied in electron beam ion traps (EBIT) [80,81,82,83]. An electron beam ion trap continually provides the low-density environment, and thus, the level populations of the two light sources, beam-foil, and EBIT differ significantly [84,85]. However, in an EBIT, one can modulate the electron density as well, although the “high” electron density is some 13 orders of magnitude lower than that encountered in a solid. The high electron density (on the order of $n_e\approx$10¹¹ c${\mathrm{m}}^{-3}$) relates to the electron beam being switched on, as is necessary for ionization (producing highly charge ions) and excitation (most of the trapped ions are in their electronic ground state). When the electron beam is switched off, the strong magnetic field and the electrically charged drift tubes continue to act as a Penning ion trap [86]. Excited ions decay radiatively and mostly on a short timescale (usually within fs to ms). However, photons are still detected seconds later and even many seconds later if the vacuum is excellent. These photons originate from collisions among the stored ions and of ions with atoms or molecules of the residual gas. The more highly charged collision partner may capture an electron (or more) from the collision partner. This charge exchange (CX) often ends in an excited state, notably a high-angular momentum state, in particular, at very low (eV) collision energies. Whereas most sources of highly charged ions provide ions at the keV to MeV energy scale, the ions produced and trapped in an EBIT can be manipulated so that the representative kinetic energies amount to no more than a few eV. It is interesting to see in experiments how clearly the spectra change under such conditions, underlining the differences in the excitation process. Levels of maximum total angular momentum surely are of particular interest.
