Effects of Atmospheric Correction and Image Enhancement on Effective Plastic Greenhouse Segments Based on a Semi-Automatic Extraction Method

Abstract

To improve the multi-resolution segmentation (MRS) quality of plastic greenhouses (PGs) in GaoFen-2 (GF-2) images, the effects of atmospheric correction and image enhancement on effective PG segments (EPGSs) were evaluated. A new semi-automatic method was also proposed to extract EPGSs in an accurate and efficient way. Firstly, GF-2 images were preprocessed via atmospheric correction, orthographical correction, registration, fusion, linear compression, or spatial filtering, and, then, boundary-removed point samples with adjustable density were made based on reference polygons by taking advantage of the characteristics of chessboard segmentation. Subsequently, the point samples were used to quickly and accurately extract segments containing 70% or greater of PG pixels in each MRS result. Finally, the extracted EPGSs were compared and analyzed via intersection over union (IoU), over-segmentation index (OSI), under-segmentation index (USI), error index of total area (ETA), and composite error index (CEI). The experimental results show that, along with the change in control variables, the optimal scale parameter, time of segmentation, IoU, OSI, USI, and CEI all showed strong changing trends, with the values of ETA all close to 0. Furthermore, compared with the control group, all the CEIs of the EPGSs extracted from those corrected and enhanced images resulted in lower values, and an optimal CEI involved linearly compressing the DN value of the atmospheric-corrected fusion image to 0–255, and then using Fast Fourier Transform and a circular low-pass filter with a radius of 800 pixels to filter from the spatial frequency domain; in this case, the CEI had a minimum value of 0.159. The results of this study indicate that the 70% design in the experiment is a reasonable pixel ratio to determine the EPGSs, and the OSI-USI-ETA-CEI pattern can be more effective than IoU when it is needed to evaluate the quality of EPGSs. Moreover, taking into consideration heterogeneity and target characteristics, atmospheric correction and image enhancement prior to MRS can improve the quality of EPGSs.

1. Introduction

Plastic greenhouses (PGs) have been widely built for decades [1]; consequently, pixel-based indexes [2,3,4], supervised classification [5,6,7,8,9], or semantic segmentation [10,11,12,13,14], window-based detection [10,13,15,16], and object-based analysis [17,18,19,20,21,22,23,24,25] have been proposed to extract the location, boundary, or number of PGs. Generally, the three classification units have their own advantages and disadvantages in different image resolutions or scales, and object-based analysis of PGs is still a significant approach.

In China, since the PGs with walls are generally nearly in quarter-cylindroid shape, and the PGs without walls are generally nearly in semi-cylindroid shape [26], the film covering PGs interacts with sunlight and scattered light from the sky in various angles. As a result, the DN values of pixels belonging to the same PG often show strong heterogeneity in high-resolution remote sensing images [27,28], which increases the difficulty of segmenting the PG pixels in a Gaofen-2 (GF-2) fusion image [29].

Although various segmentation methods have been proposed in recent years, multi-resolution segmentation (MRS) [30] still plays a vital role [31] as a data preprocessing tool for machine learning methods such as nearest neighbor [17,32], decision tree [18], support vector machine [17,25], and random forest [17,23,24,25]. Moreover, the estimation of scale parameter (ESP) 2 [33], which was proposed to calculate the optimal scale parameter (OSP) on multiple layers, has improved the practicability of MRS. Furthermore, mean shift and MRS are also utilized as a preprocessing step for deep learning application [34,35]. Nevertheless, there are still several problems with obtaining and evaluating effective PG segments (EPGSs).

First, it is known that it is not necessary to evaluate all the segments containing PG pixels; however, the criteria for effective segments are much less restrictive in previous studies [29,36], while guaranteeing that EPGSs contain enough PG pixels to be representative is critical to later classification.

Second, the efficiency of obtaining representative EPGSs of each experimental group is not high enough. Most previous studies extract the spot-check samples of EPGSs [18,20,21,22] in less time, but a small number of EPGSs cannot represent the whole quality. Yao et al. used whole samples that were manually selected, whereas the more convincing comparative trials require indignantly more time [29].

Third, atmospheric correction has the potential to improve the quality of images; thus, the effects of atmospheric correction on EPGSs of Worldview-3 have been evaluated by local sampling [22] via modified Euclidean distance 2 (ED2) [21]. However, as with the original system of ED2 [37], modified ED2 also ignores the difference between the attributes of the quantity-based indicator and those of the area-based indicator, and gives the larger indicator a bigger weight than the smaller one in calculation [29]. In order to reduce the uncertainty caused by the sampling process and dimensional difference in evaluation, a new pattern composed of the over-segmentation index (OSI), under-segmentation index (USI), error index of total area (ETA), and composite error index (CEI) was proposed to evaluate the effects of linear compression and mean filtering on EPGSs of GF-2 fusion image by full samples [29]. However, the effects of atmospheric correction and image enhancement on EPGSs have not yet been evaluated by the new pattern.

To improve the MRS quality of PG in GF-2 images, in this study, a new proportion of 70% was used to determine whether a segment can be an EPGS by analyzing the relationship between extraction results and reference polygons, and an accurate and efficient method was proposed to extract EPGSs by boundary-removed point samples with adjustable density. Moreover, the effects of atmospheric correction and image enhancement on EPGSs were evaluated by intersection over union (IoU) and the OSI-USI-ETA-CEI pattern [29]. The experimental results show that:

• The proportion of 70% designed in the experiment is a reasonable pixel ratio to determine the EPGSs;
• The OSI-USI-ETA-CEI pattern can be more effective than IoU when it is needed to evaluate the quality of EPGSs of GF-2 images in the study area;
• With the consideration of heterogeneity and target characteristics, the atmospheric correction and image enhancement prior to MRS can improve the quality of EPGSs of GF-2 images in the study area;
• The combination of atmospheric correction, Fast Fourier Transform (FFT), and a circular low-pass (CLP) filter with a radius of 800 pixels obtained the lowest CEI in this study.

2. Materials and Methods

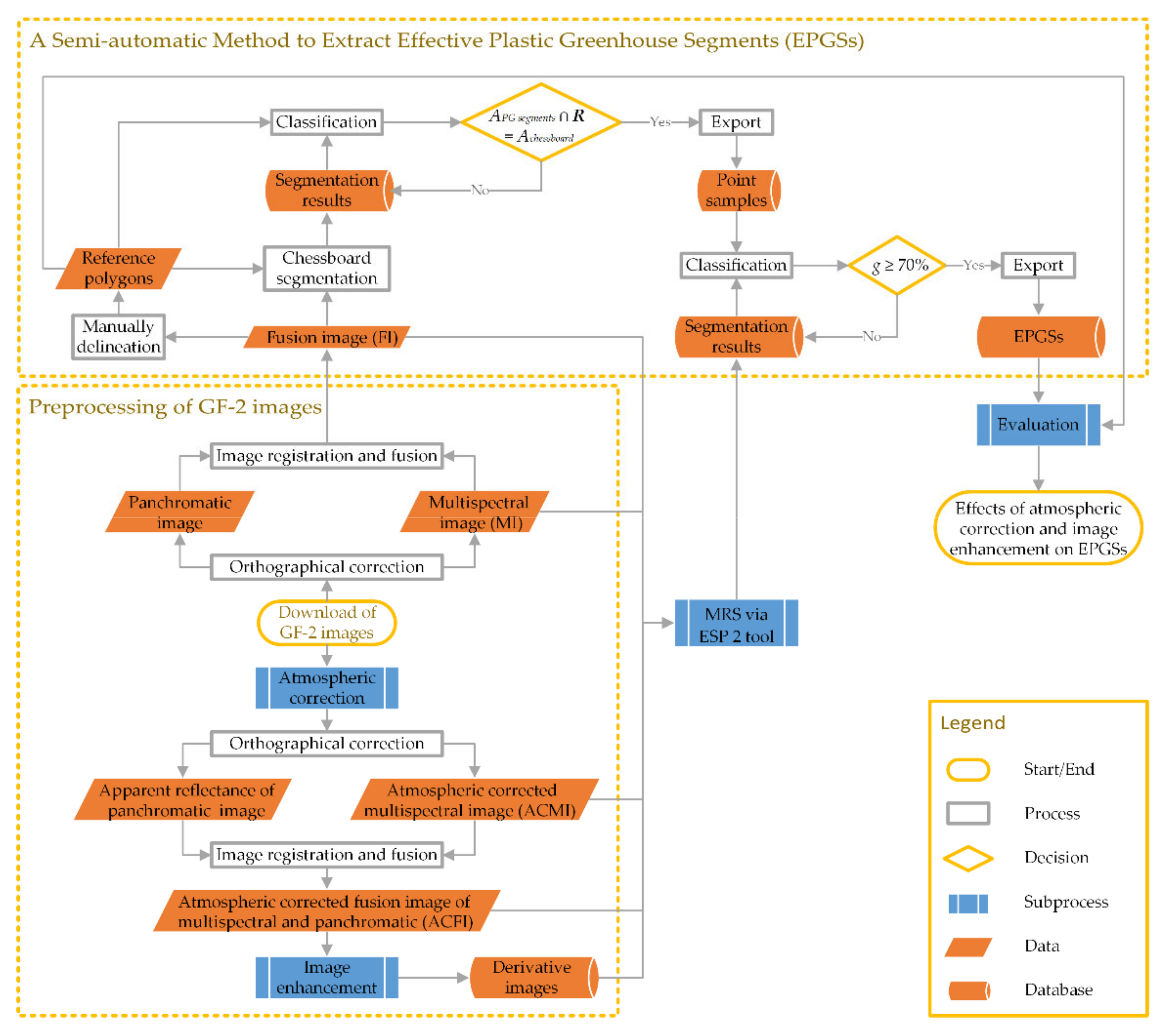

The GF-2 images in the study area were preprocessed using image correction, registration, fusion, or enhancement, and then the reference polygons were made into point samples with adjustable density and boundary removal using the characteristics of chessboard segmentation. Finally, the effect of atmospheric correction and image enhancement on EPGSs was analyzed using the IoU and OSI-USI-ETA-CEI pattern for full sample evaluation. A technical flowchart and the configuration of the computer used in the study are shown in Figure 1 and

Table 1. Configuration of the computer in this research.

Item	Configuration
CPU	Intel® Core™ i7-8700K (Intel Corporation, Santa Clara, CA, USA)
Memory	SAMSUNG® DDR4 2400 MHz, 48 GB (Samsung, Seocho District, Seoul, Republic of Korea)
System	Microsoft® Windows® 10 Professional, 64-bit (Microsoft Corporation, Redmond, WA, USA)

, respectively:

2.1. Study Area and Data

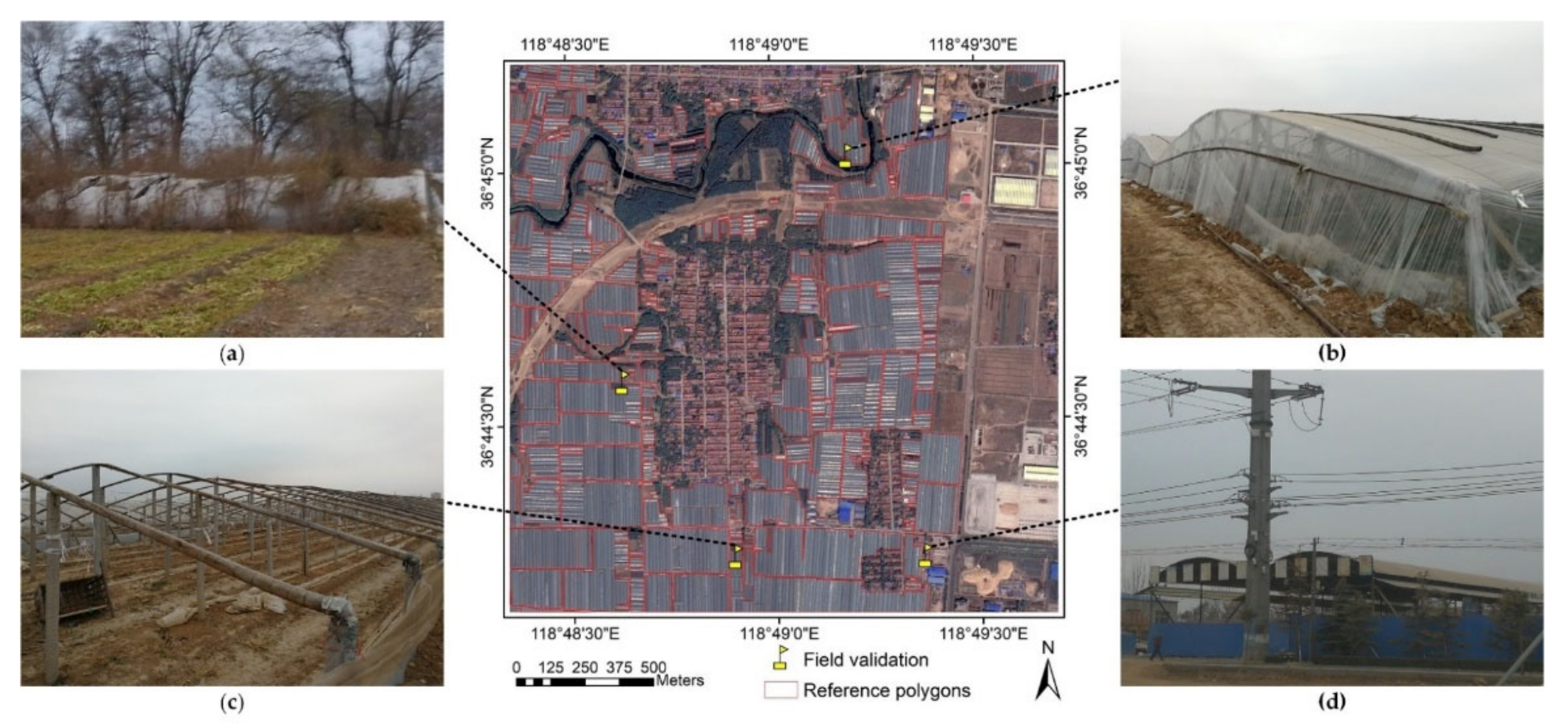

The GF-2 image, reference polygons, and ground verification photos and their locations are shown in Figure 2, among which the original images and photos are the same as those of a study by Yao et al. [29], while the reference polygons were improved manually through visual interpretation in some places. For instance, because the imaging time of the GF-2 image is earlier than that of the photo in Figure 2a, the weeds and shrubs that covered the PG with walls in the photo do not appear on the GF-2 image; thus, a PG with walls was added to the new reference polygons. PGs both with and without walls [26], and water, trees, buildings with high reflectance, residences, and barren land, are contained in the study area, which is a typical one in Shouguang City, Shandong Province, China. As a footnote,

Table 2. Band no., spectral range, spatial resolution, and bit depth of GF-2 images.

Image Type	Band No.	Spectral Range (μm)	Spatial Resolution (m)	Bit Depth
Panchromatic	1	0.45–0.90	0.8	16
Multispectral	2	0.45–0.52	3.2
	3	0.52–0.59
	4	0.63–0.69
	5	0.77–0.89

presents basic parameters of the GF-2 images in this study [38].

2.2. Preprocessing of GF-2 Images

Three schemes were designed for the comparative experiments: the first was used to generate the control group, and the other two were used to generate experimental groups. All preprocessing operations were conducted in ENVI (L3Harris Geospatial Solutions, Inc., Broomfield, CO, USA) software.

2.2.1. Orthographical Correction, Image Registration and Fusion

Firstly, we orthorectified the GF-2 images using rational polynomial coefficients and ASTER GDEM version 2 [39]; secondly, we registered the multispectral image without atmospheric correction (MI) to the panchromatic image that is only orthorectified, and then fused them using the Gram Schmidt Pan Sharpening tool, which outperforms most of the other pan sharpening methods in terms of both maximizing image sharpness and minimizing color distortion [40,41]; thus, a multispectral and panchromatic fusion image without atmospheric correction (FI) with 0.8 m resolution could be obtained.

2.2.2. Atmospheric and Orthographical Correction, Image Registration and Fusion

The difference between this schedule and the first one is the radiometric calibration and atmospheric correction prior to the orthographical correction; thus, an atmospheric-corrected multispectral image (ACMI) with 3.2 m resolution and an atmospheric-corrected fusion image (ACFI) with 0.8 m resolution can be obtained. The atmospheric correction was conducted using the Fast Line-of-sight Atmospheric Analysis of Spectral Hypercubes (FLAASH) [42].

2.2.3. Image Enhancement

Linear compression is a concept opposite to linear stretching. The uniform expansion of the image gray value is called linear stretching, whereas the uniform reduction is called linear compression. The maximum digital number (MDN) value is the maximum gray value of a single-band image in a monochrome or multispectral image, and the gray value of each pixel in each band can be reassigned between 0 and MDN according to the frequency of each original gray value, thereby changing the distribution range of the gray value. When the MDN is reduced, the gray values of the pixels in the image will be compressed to a smaller range [43]. The MDNs adopted in this study were 511, 255, and 127.

Spatial filtering is also an important method for enhancing image information by changing the DN value of an image for a specific purpose. In order to further improve the heterogeneity among pixels and reduce the noise, the input image is filtered from the spatial domain (x, y) and the spatial frequency domain (ξ, η), respectively [43,44]. In this study, mean Gaussian low-pass (GLP) and median convolution filters with a size of 3 × 3 were selected in the spatial domain, and the circular low-pass (CLP) filter combined with FFT was selected in the spatial frequency domain.

2.3. MRS via ESP 2 Tool

Focusing on the effect of atmospheric correction and image enhancement on MRS, the uniform shape and compactness were set as 0.3 and 0.5, respectively [29]. Thus, each optimal scale parameter (OSP) in this research was automatically calculated using the ESP 2 tool [33] with the algorithm parameters [29] set as shown in

Table 3. Algorithm parameters and settings in the ESP 2 tool.

Parameter	Value	Parameter	Value
Use of Hierarchy (0 = no; 1 = yes)	1	Starting scale_Level 3	10
Hierarchy: TopDown = 0 or BottomUp = 1?	1	Step size_Level 3	100
Starting scale_Level 1	10	Shape (between 0.1 and 0.9)	0.3
Step size_Level 1	1	Compactness (between 0.1 and 0.9)	0.5
Starting scale_Level 2	10	Produce LV Graph (0 = no; 1 = yes)	1
Step size_Level 2	10	Number of Loops	200

. Level 1 and its segments in the exported results were adopted for the next stage of analysis.

2.4. A Semi-Automatic Method to Extract EPGSs

The automatic extraction of EPGSs from different segmentation results requires different object samples, features, parameters, and thresholds, which is cumbersome and makes it difficult to avoid the error of false extraction and omission. In this study, the EPGSs were extracted by a semi-automatic process.

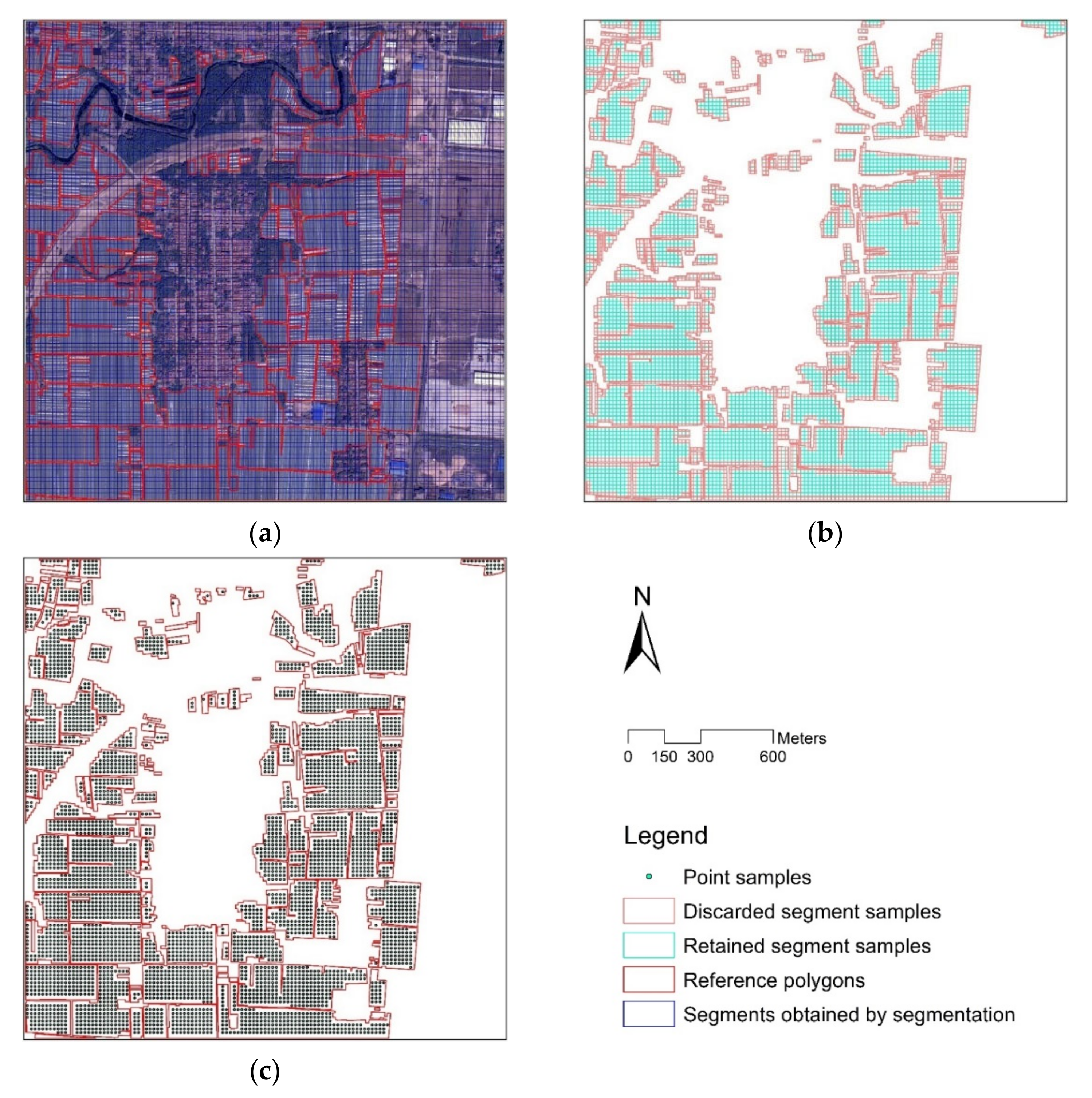

Firstly, the point samples used to select PG segments were made, and then the segments that intersected with the point samples were automatically extracted as the PG segments by the eCognition classification algorithm. Finally, visual interpretation and manual selection were carried out to extract the EPGSs. The geometric error of manual selection results has a theoretical minimum, but the error of total extraction area does not, because the total extraction area will be close to the real area of the PGs when the omission error is close to the false error.

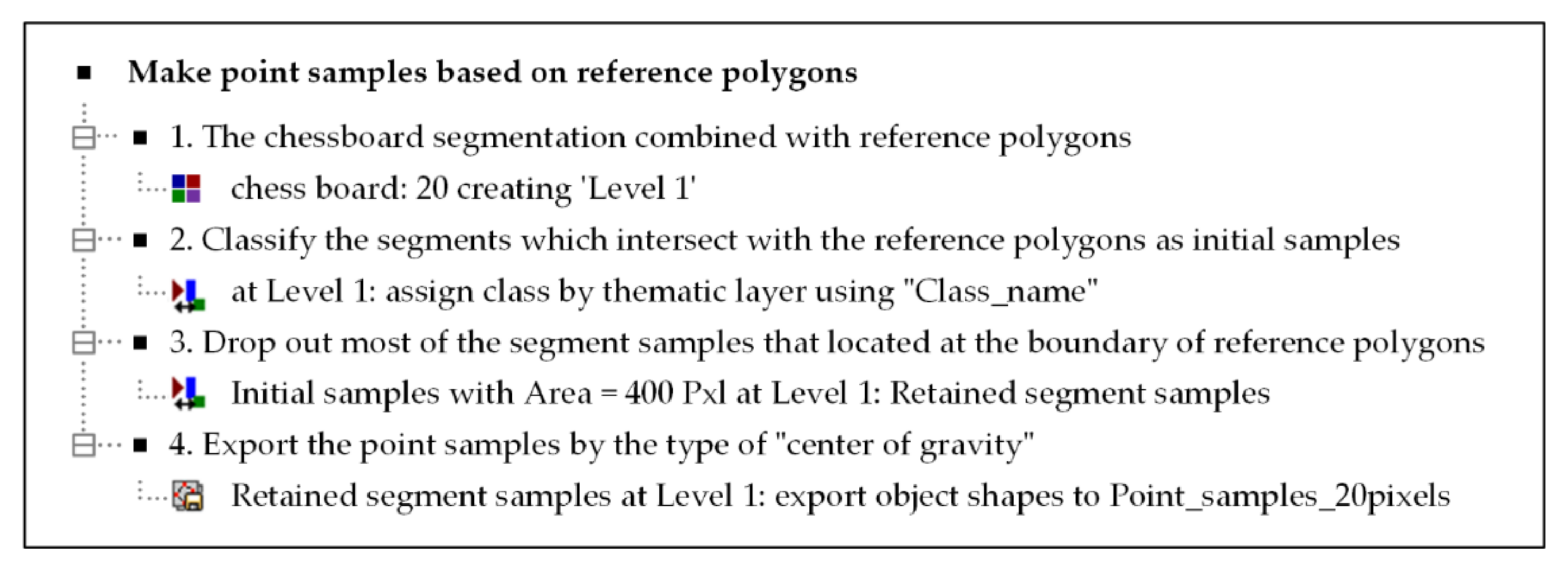

2.4.1. Production of Point Samples

Segments overlapping with the reference polygons can be quickly classified using the assign algorithm in eCognition; however, the PG pixel proportion of the segments classified by the boundary of reference polygons is often less than 50%. In order to improve the efficiency of visual interpretation, this study first segmented the GF-2 image by using a chessboard segmentation algorithm combined with the reference polygons (Figure 3a). Thus, the segments that intersected with the reference polygons were classified as initial samples and, then, we discarded most of the segment samples that were located at the boundary of the reference polygons by area calculation and filtering (Figure 3b). Finally, the point samples used for extracting PG segments could be derived using the export algorithm in eCognition (Figure 3c), and the “center of gravity” type was chosen when exporting them.

In this study, the size of the chessboard was set as 10 pixels or 20 pixels according to the characteristics of the PG segments. For the segmentation results with a large number of segments and a small average area, a denser chessboard was used; otherwise, we used a sparser one. Figure 4 shows the specific algorithm steps of making point samples based on reference polygons and a chessboard with 20 pixels as an example.

2.4.2. Criterion for Determining EPGSs

In a broad sense, the PG segment refers to all the segments containing PG pixels when the characteristics of non-PG pixels are not obvious. If the proportion of PG pixels in these segments form a finite set G = {g₁, g₂, …, g_i, …}, then PG segments with g above or equal to a set value g_set (g ≥ g_set) can be defined as EPGSs, in which the patches composed of non-PG pixels can be called extra fragments (EF), which are treated as false errors in the subsequent analysis. Moreover, those segments with g < g_set can be regarded as invalid PG segments in a narrow sense, and the patches composed of PG pixels can be called lost fragments (LF), which are treated as omission errors in the subsequent analysis.

Generally speaking, the boundary of PG segments cannot completely coincide with the reference polygons. Supposing that the total area of EPGSs is S, and the total area of corresponding reference polygons is R, the area of extra fragments is EF, and the area of lost fragments is LF. For a specific segmentation result, with the g_set decreasing, EF will increase, while LF will decrease accordingly. When g = g_min, the area of EPGSs reaches the maximum value S_max, EF and the difference between S and R reaches the maximum value EF_max = S_max− R, while LF reaches the minimum value LF_min = 0 and the producer accuracy (PA) reaches the maximum (PA_max = 1).

Conversely, with the g_set increasing, EF will decrease, and LF will increase accordingly; so, when g = g_max, the area of EPGSs reaches the minimum value S_min, and EF reaches the minimum value EF_min, while LF and the difference between S and R reaches the maximum value LF_max = R − S_min, and the PA reaches the minimum. In this process, because the numerator and denominator of the user accuracy will change at the same time, it is difficult to judge the g value corresponding to its maximum and minimum values.

According to the inference above, when different g values are used to extract the EPGSs in a specific segmentation result, EF and LF are in a trade-off relationship. From an application perspective, the reasonable g_set value should make the difference between S and R (which is equal to the difference between EF and LF) close to 0. Since the higher the g_set value, the more stringent the evaluation criterion [36], and when g_set is set as 60%, EF is much higher than LF. If the g_set is set too high (for example, 80%), many segments containing PG pixels will not be classified as EPGSs, which leads to LF being much higher than EF; hence, the value of g_set can be set as 70%.

2.4.3. Extraction of EPGSs

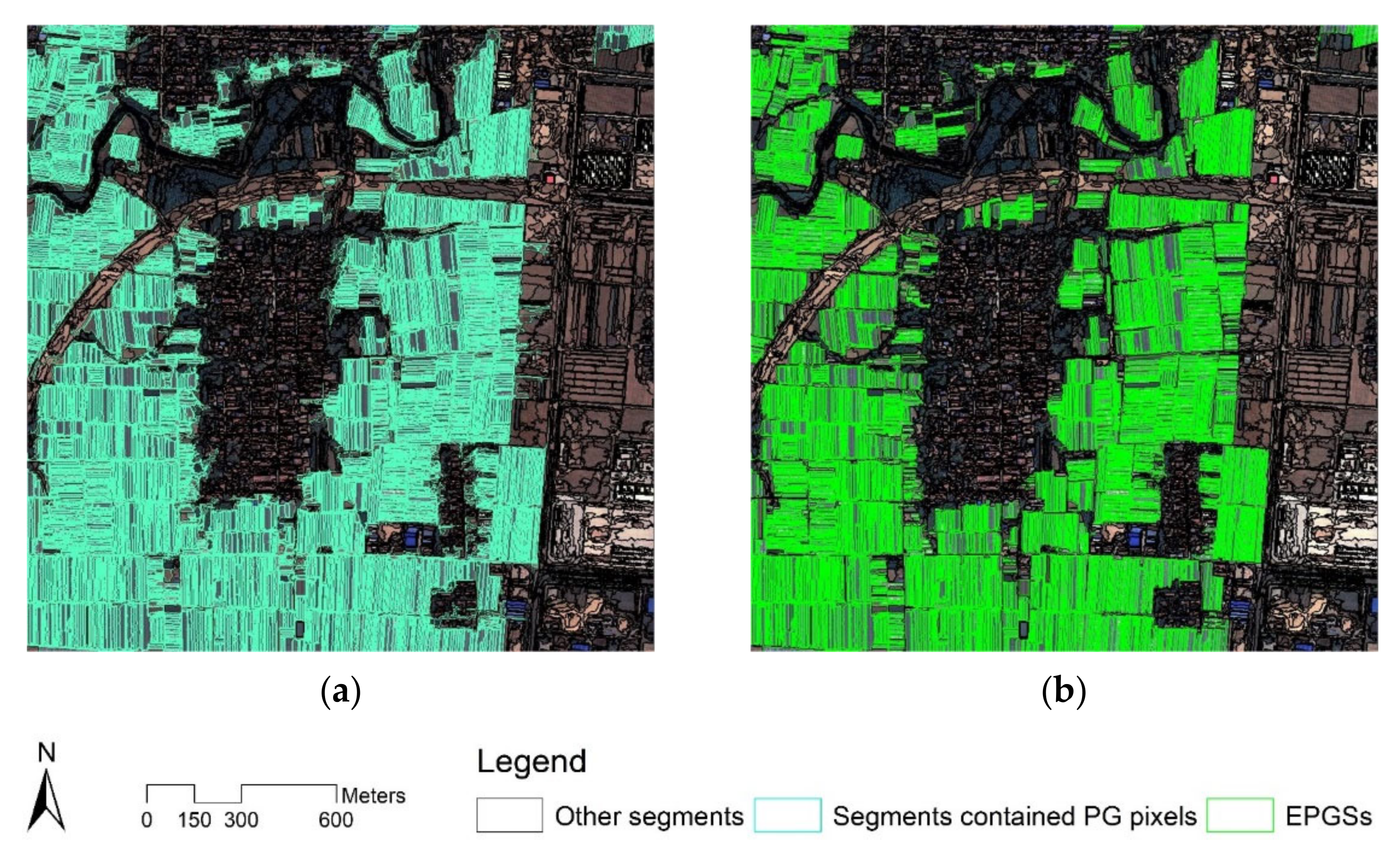

Taking the extraction of EPGSs from FI as an example: Firstly, the point samples were used to obtain the segments that intersected with them (Figure 5a). Then, a small number of segments that did not qualify with “above or equal 70% pixels belonging to the PG” were discarded; hence, the retained PG segments were those needed in the subsequent analysis. Moreover, a few omitted segments that did not intersect with point sample points but satisfied the criterion were added as the EPGSs (Figure 5b).

2.5. Evaluation System

According to the single variable principle, all MRS times T in this study were obtained off-line with the running of a single program. In order to evaluate the rationality of the experimental settings, intersection over union (IoU) was used to preliminarily evaluate the accuracy of EPGSs, and then the OSI-USI-ETA-CEI pattern [29] was used to evaluate the segmentation error. In order to facilitate comparison, the value of 1 − IoU was taken as the evaluation parameter for subsequent analysis. The description or expression of each parameter is shown in

Table 4. The description or expression of evaluation parameters.

Parameter	Description or Expression
OSP	The optimal scale parameter of segmentation
T (min)	MRS time via ESP 2 tool
IoU	$IoU=\frac{\left(\mathit{S}\cap \mathit{R}\right)}{\left(\mathit{S}\cup \mathit{R}\right)}$
1 − IoU	$1-IoU=1-\frac{\left(\mathit{S}\cap \mathit{R}\right)}{\left(\mathit{S}\cup \mathit{R}\right)}$
OSI	$OSI=\frac{v}{v_1}$
USI	$USI=\frac{\mathit{L}\mathit{F}+\mathit{E}\mathit{F}}{\mathit{R}}$
ETA	$ETA=\frac{\left|\mathit{S}-\mathit{R}\right|}{\mathit{R}}=\frac{\left|\mathit{E}\mathit{F}-\mathit{L}\mathit{F}\right|}{\mathit{R}}$
CEI	$CEI=\lambda \times OSI+USI+ETA$$(\lambda =USI+ETA$)

.

In the formula, the set S represents the total area of EPGSs, and the set R represents the total area of reference polygons; v represents the number of EPGSs of the optimal segmentation result obtained by the ESP 2 tool, and v₁ specifically refers to the number of EPGSs in the fusion image without atmospheric correction in the study area. The higher the OSI value, the heavier the over-segmentation degree. The sets LF and EF represent the total area of lost fragments and extra fragments of EPGSs, respectively; the higher the USI, the greater the error of under-segmentation, and the higher the ETA value, the greater the error of the total area. Regarding the CEI, λ is used to rescale the value of quantity-based OSI so that the indicator will not overwhelm the value of area-based USI and ETA.

3. Results

3.1. Contrast Experiment

As a comparative experiment, the segmentation evaluation parameters of FI can be obtained as shown in

Table 5. Segmentation evaluation parameters of fusion image without atmospheric correction.

Parameter	Value	Parameter	Value
OSP	81	OSI	1.000
T (min)	5.653	λ × OSI	0.109
v1	3000	USI	0.108
IoU	0.898	ETA	0.001
1 − IoU	0.102	CEI	0.218

.

3.2. Effect of Atmospheric Correction on EPGSs of MI

After the MRS via ESP 2 tool, the segmentation and EPGSs extraction results of the multispectral image without atmospheric correction (MI) and the atmospheric-corrected multispectral image (ACMI) were obtained. These results are shown in Figure 6 and the relevant parameters are presented in

Table 6. Comparison of segmentation evaluation parameters of MI and ACMI.

Image Type	OSP	T (min)	v	IoU	1 − IoU	OSI	λ × OSI	USI	ETA	CEI
MI	84	0.461	105	0.823	0.177	0.035	0.009	0.199	0.053	0.261
ACMI	103	0.600	309	0.846	0.154	0.103	0.018	0.168	0.010	0.196

.

It can be seen from Table 6 that, compared with MI, both the OSP and T of ACMI had a small increase, and the values of v and OSI increased significantly, indicating that the atmospheric correction can increase the heterogeneity of DN values of GF-2 multispectral image. The values of USI, ETA, and CEI decreased by 0.032, 0.043, and 0.066, respectively, indicating that the atmospheric correction can significantly improve the quality of EPGSs of GF-2 multispectral image, which is consistent with the hypothesis, although the value of USI still has significant room for improvement.

3.3. Effect of Linear Compression and Mean Filtering on EPGSs of ACFI

Firstly, ACFI was enhanced to obtain compressed floating format images with MDNs of 511, 255, and 127, and, then, the DN values of the four images were filtered in turn using the mean filter with 3 × 3; thus, seven derivative images were obtained, and their segmentation and EPGSs extraction results are shown in Figure 7, while the relevant parameters appear in

Table 7. Effects of linear compression and mean filtering on segmentation evaluation parameters of ACFI.

MDN	Filter	OSP	T (min)	v	IoU	1 − IoU	OSI	λ × OSI	USI	ETA	CEI
Initial	None	126	7.820	3563	0.909	0.091	1.188	0.109	0.090	0.002	0.201
511	None	117	5.467	692	0.856	0.144	0.231	0.035	0.147	0.006	0.188
255	None	93	4.971	589	0.866	0.134	0.196	0.029	0.143	0.004	0.176
127	None	59	4.397	680	0.877	0.123	0.227	0.034	0.132	0.017	0.183
Initial	Mean 3 × 3	208	8.353	1388	0.875	0.125	0.463	0.067	0.131	0.012	0.210
511	Mean 3 × 3	133	5.730	501	0.850	0.150	0.167	0.030	0.163	0.017	0.210
255	Mean 3 × 3	98	5.052	509	0.860	0.140	0.170	0.026	0.151	0.002	0.179
127	Mean 3 × 3	73	4.544	454	0.865	0.135	0.151	0.026	0.146	0.024	0.196

.

As shown in Figure 7 and Table 7, the number of EPGSs in the experimental area significantly reduced after linear compression or mean filtering, which is more conducive to feature analysis and algorithm extraction.

By analyzing Table 5 and Table 7, it can be found that, compared with FI, the OSP and OSI of ACFI increased by 45 and 0.188, respectively. This further shows that the nonlinear stretching of the image DN value by atmospheric correction increases the heterogeneity between pixels and leads to an increase in the number of EPGSs. Nevertheless, the values of 1 − IoU, USI, and CEI of ACFI decreased by 0.011, 0.018, and 0.017, respectively, and the change in ETA was close to 0. Hence, the atmospheric correction in this study is conducive to improving the accuracy of the segmentation boundary, which lays the foundation for continuing to use image enhancement to improve the quality of EPGSs. By visualizing the relevant parameters in Table 7, the comparison of OSP and T, IoU, and 1 − IoU, and the OSI-USI-ETA-CEI pattern, can be obtained, as shown in Figure 8.

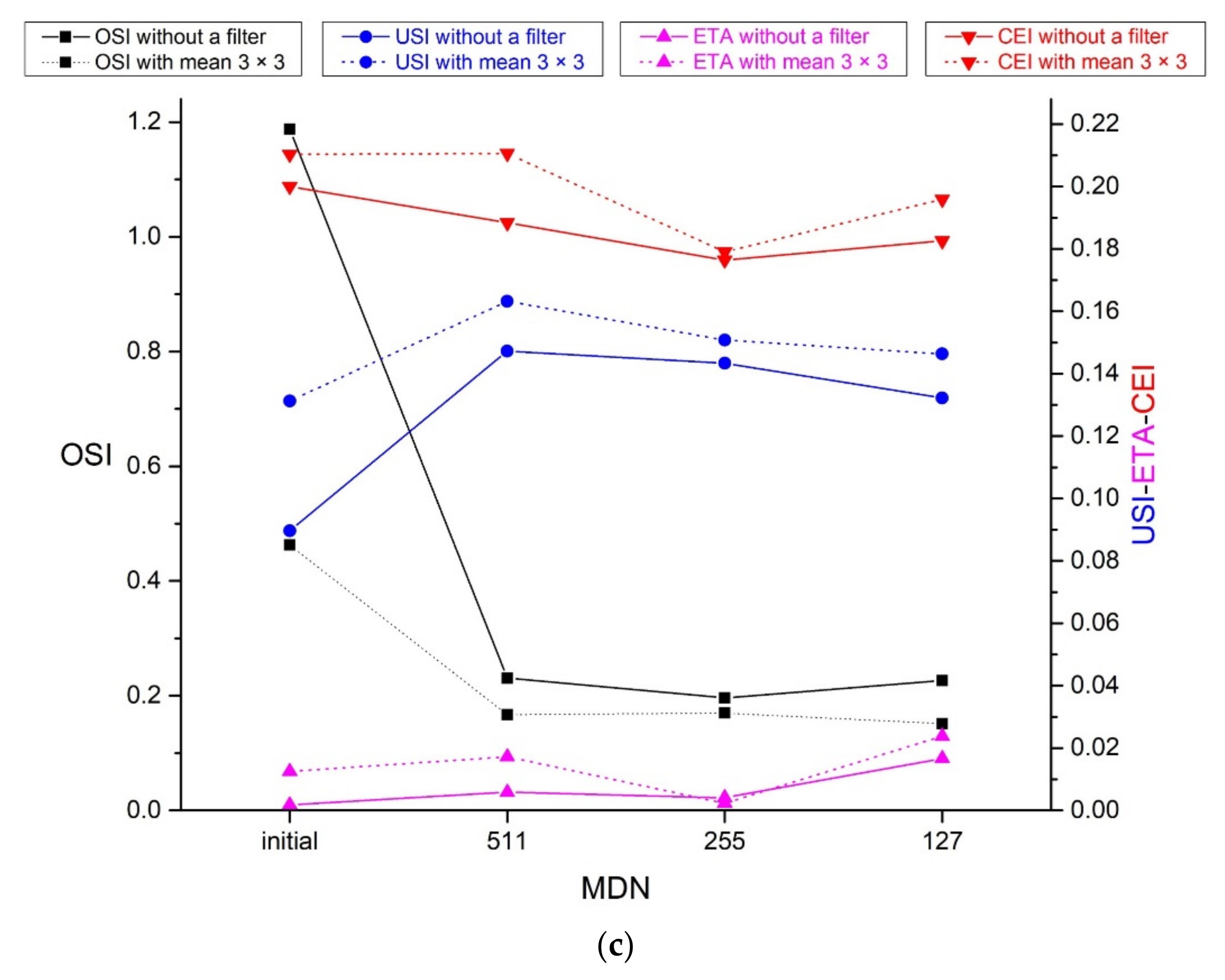

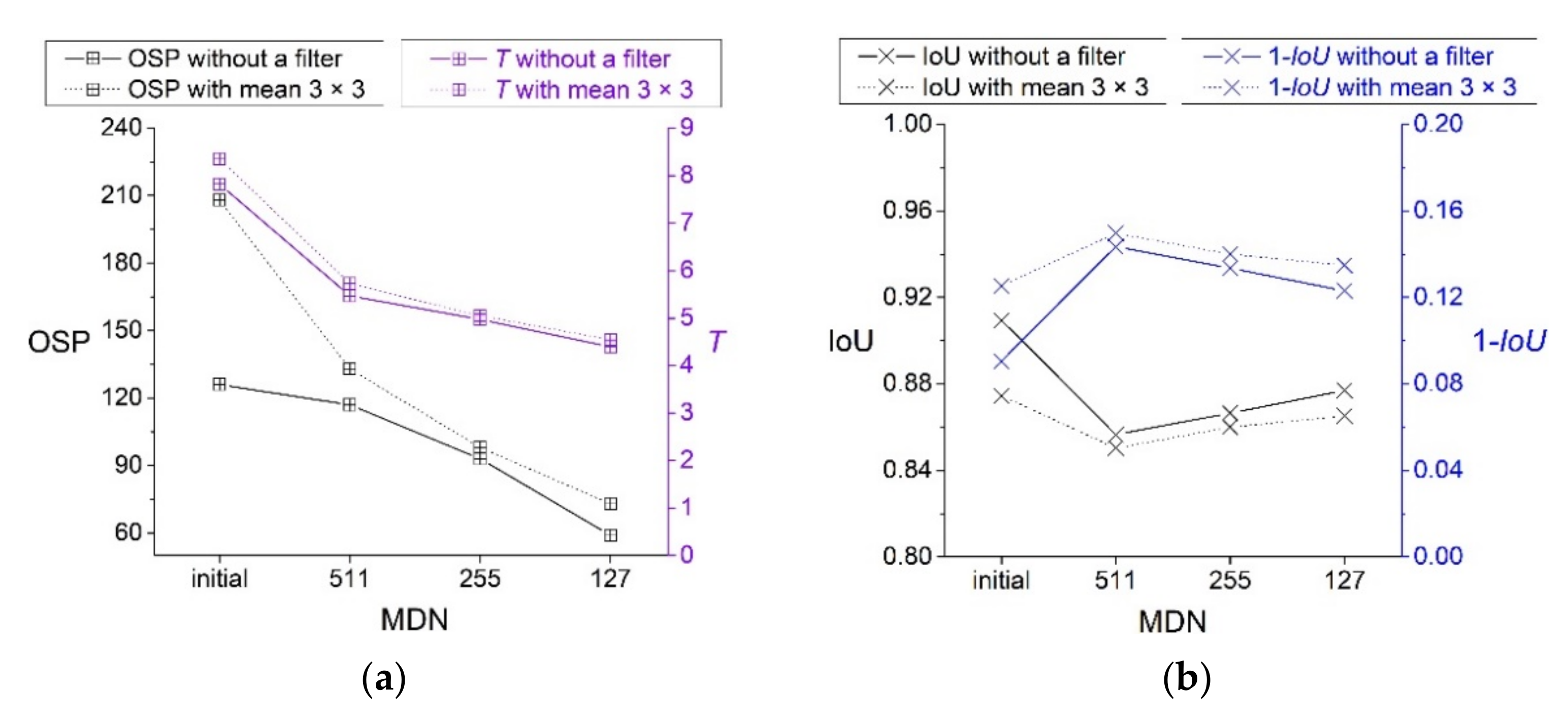

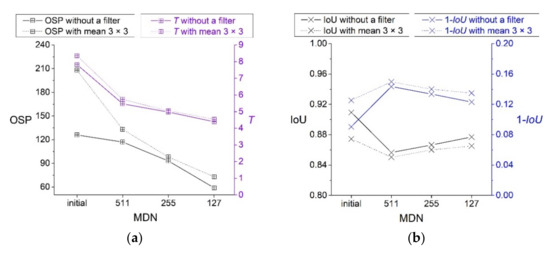

It can be seen from Table 7 and Figure 8 that, compared with the case without image enhancement, when the DN value of ACFI is linearly compressed to MDN 511, 255, and 127, the OSP and the segmentation time T (Figure 8a) can be significantly reduced, because the reduction in the DN value of the image reduces the calculation amount of MRS, and thus increases the computational efficiency of the software. Moreover, the values of 1 − IoU and USI increased first and then decreased gradually, and the values of ETA were close to 0, while the values of OSI and CEI decreased first and then increased slightly. Hence, the minimal value of CEI in the experiment was 0.176 when the DN value of ACFI was linearly compressed to 0–255.

When the mean filter with 3 × 3 was used on the linearly compressed ACFI, the OSI was lower than that without a filter, but OSP, T, 1 − IoU, USI, and CEI were increased, indicating that a mean filter with a size of 3 × 3 will reduce the segmentation quality when it is used to enhance the linearly compressed ACFI.

3.4. Effect of Spatial Filtering on EPGSs of ACFI Compressed to MDN 255

In order to improve the segmentation quality based on ACFI compressed to MDN 255, a Gaussian low-pass (GLP) and median convolution filter in the spatial domain, and a circular low-pass (CLP) filter in the spatial frequency domain, were applied. The sizes of GLP and median filter were also set to 3 × 3, while the standard deviation of GLP filter was 0.375, as calculated by dividing the kernel size into 8. Moreover, the radius size of the CLP filter was tested with 1000, 900, 800, and 700 pixels according to the image size. The experimental results are shown in Figure 9 and

Table 8. Effects of spatial filtering on segmentation evaluation parameters of compressed ACFI.

MDN	Filter	OSP	T (min)	v	IoU	1 − IoU	OSI	λ × OSI	USI	ETA	CEI
255	GLP 3 × 3	91	4.996	602	0.870	0.130	0.201	0.028	0.138	0.002	0.168
255	Median 3 × 3	84	4.839	679	0.867	0.133	0.226	0.032	0.143	0.000	0.175
255	CLP 1000	84	4.927	716	0.872	0.128	0.239	0.033	0.137	0.001	0.171
255	CLP 900	75	4.744	874	0.878	0.122	0.291	0.037	0.128	0.000	0.165
255	CLP 800	79	4.825	765	0.878	0.122	0.255	0.032	0.127	0.000	0.159
255	CLP 700	91	5.013	601	0.865	0.135	0.200	0.029	0.145	0.000	0.174

.

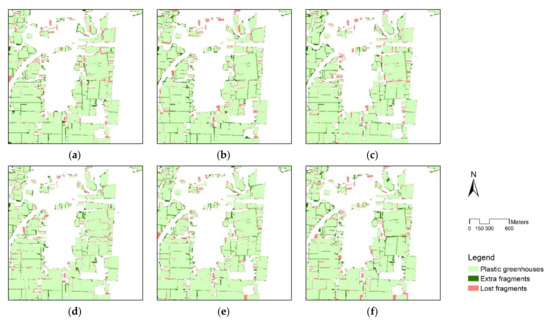

As shown in Figure 9, the EF of each filtering experiment is mainly distributed on the roads adjacent to the greenhouses, while the distribution areas of the LF include many scattered PGs in addition to the roads. Therefore, it is possible extract the roads first or use the existing information about the road to improve segmentation quality in a follow-up study.

Combining the relevant data in Table 7 and Table 8, the relevant parameters can be organized into the comparison chart shown in Figure 10. It can be seen from Figure 10a that, although the variation range of T in each scheme is small, it still shows strong consistency with the variation trend of dimensionless OSP.

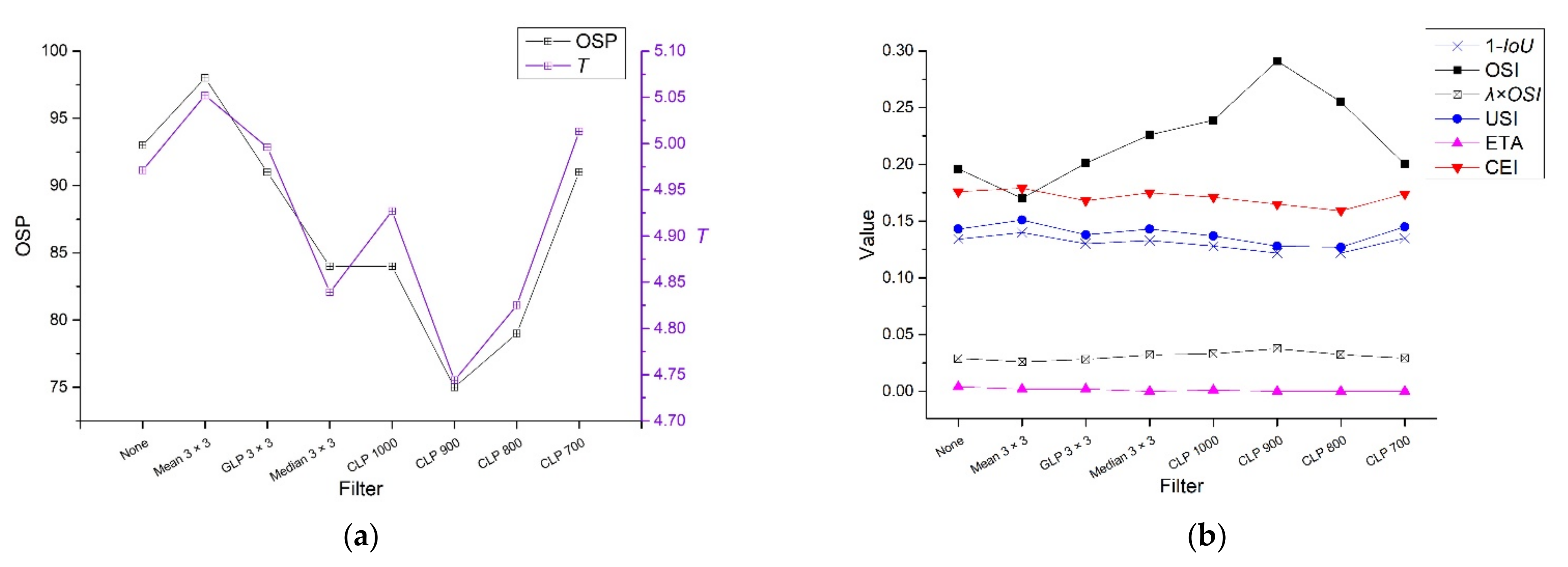

As shown in Figure 10b, although the change trend of OSI is opposite to that with 1 − IoU, USI, and CEI, and the range is larger, the change range of λ × OSI and ETA is small, and the values of ETA are close to 0. Thus, the change trend of CEI and USI is consistent, which suggests that the CEI in the comparative experiment is mainly affected by USI. In general, all the spatial filtering schemes in this study other than the mean filter have a CEI that is lower than 0.176, which is the minimal CEI of compressed ACFI without a filter. Thus, the optimal preprocessing scheme of the study area is to linearly compress the DN value of ACFI to 0–255, and then use FFT and a circular low-pass filter with a radius size of 800 pixels for filtering in the spatial frequency domain. By applying this scheme, the CEI has a minimum value of 0.159.

4. Discussion

4.1. Comparison of IoU and OSI-USI-ETA-CEI Pattern

Since the IoU is widely applied, the consistent trend of 1 − IoU and USI in Figure 8 and Figure 10 illustrates the validity of USI. However, the IoU cannot indicate the variation in the degree of over-segmentation, nor the change trend of the difference between S and R, whereas the OSI and the ETA can do that, respectively. Thus, the OSI-USI-ETA-CEI pattern can be more effective than IoU when it is needed to evaluate the quality of EPGSs.

4.2. Comparison with Related Research

For comparison, Yao et al. obtained the lowest CEI of 0.185 using the image enhancement method of gray compression and mean filtering on the fusion image without atmospheric correction in the same area [29]. Even though the criterion of EPGS (the proportion of PG pixels in the segment) was raised from 60% to 70%, the CEI of nine atmospheric correction and image enhancement schemes in this study was lower than 0.185. The main reasons for the improvement are the use of atmospheric correction to optimize the DN value of the image, the use of new filters, and the point samples, which were made by improved reference polygons, which improved the extraction efficiency and accuracy of the EPGSs.

4.3. Hypothesis of Why Atmospheric Correction and Image Enhancement Works

From the results in Section 3, it is suggested that not only the CEIs of ACMI and ACFI, but also those of the linearly compressed ACFI, are lower than that of the MI, FI, and ACFI, respectively. In order to find the reason for this, the line and symbol plots shown in Figure 11 were obtained by counting the pixel number of each DN interval of the blue bands of MI, ACMI, FI, and ACFI.

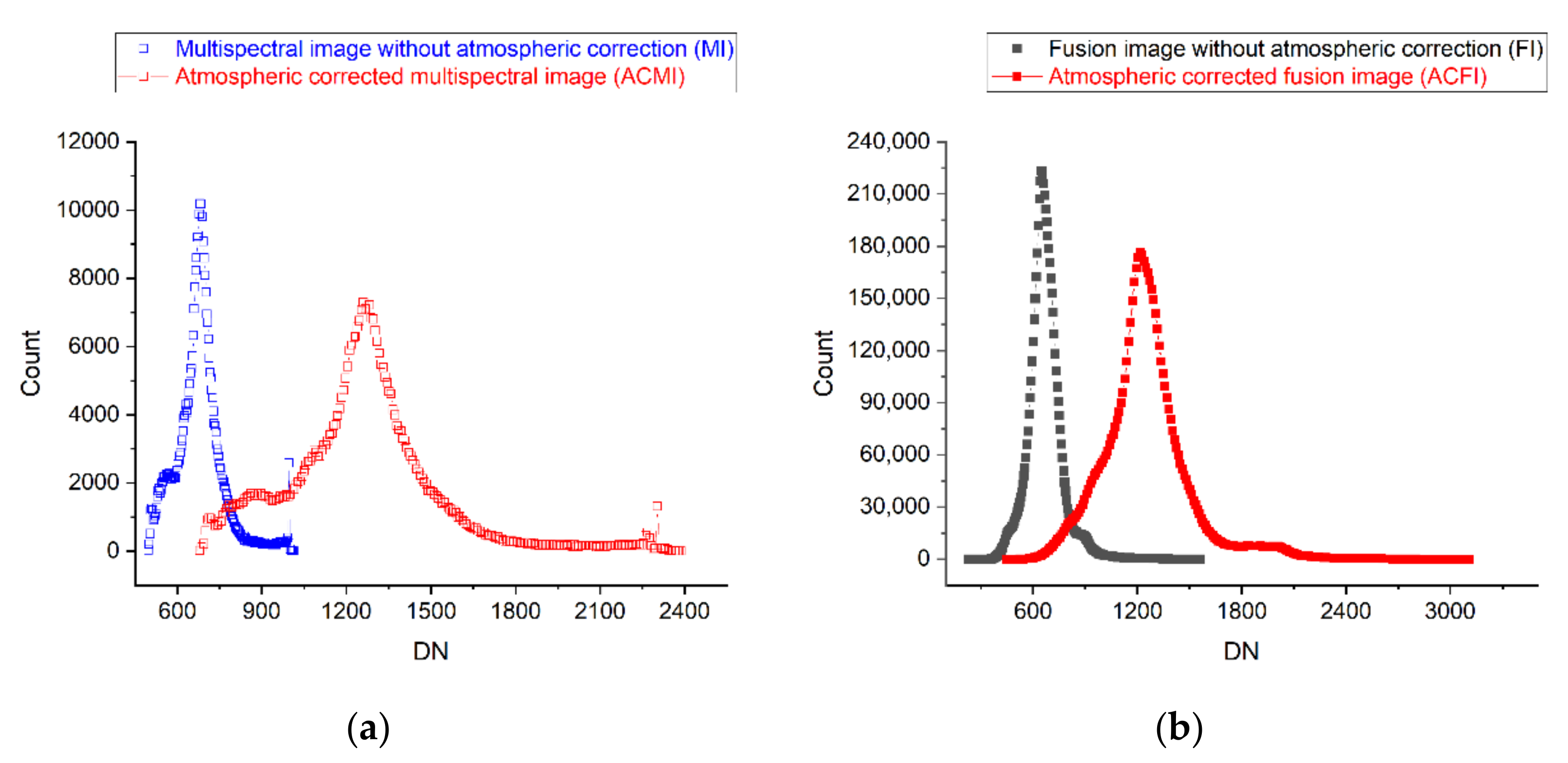

It can be seen from Figure 11a that atmospheric correction has the effect of expanding the DN value range of the MI, which can be regarded as the nonlinear stretching of the DN value. Since the radiometric calibration process also stretches the DN value of the panchromatic image, the DN value range of ACFI is significantly higher than that of the fusion image without atmospheric correction (Figure 11b). Combined with the increase in OSIs and the decrease in USIs, it is suggested that atmospheric correction can improve the heterogeneity between the PG pixels and non-PG pixels; thus, the CEIs of ACMI and ACFI are lower than those of MI and FI, respectively.

Alternatively, since the ACFI can easily lead to over-segmentation, the linearly compressed ACFI can obtain better segmentation results by decreasing the heterogeneity of the whole image.

Regarding filters, whether they help improve the quality of EPGSs is still determined by heterogeneity, since the filters can remove image noise, while the homogeneity between the PG pixels and non-PG pixels can be increased at the same time.

Therefore, a hypothesis can be inferred combined with the theory of MRS that, if the increase in heterogeneity between the PG pixels and non-PG pixels is greater than that of the homogeneity during image preprocessing, then the quality of EPGSs will increase; otherwise, it will decrease.

4.4. Next Steps

Limited by the experimental conditions, this research only analyzed the effects of atmospheric correction on EPGSs of GF-2 multispectral image, and the effects of atmospheric correction, linear compression, and spatial filtering on EPGSs of GF-2 fusion image in the study area. Other image correction and enhancement methods or segmentation algorithms to improve the quality of EPGSs in the study area or other areas can be further discussed in a follow-up study.

PGs in China can be divided into two kinds according to whether they are built with walls [26]. However, some research has mistakenly identified PGs with walls as PGs without walls. For instance, Figure 7 in the study of Ma et al. [10] mistakenly matches a photograph of PGs without walls to the satellite image of PGs with walls, which can be very misleading to the reader. It is essential to distinguish the two main types of PG, both in field investigation and image interpretation, in addition to the extraction.

In order to extract the surface object from various satellite images with better accuracy, many kinds of machine learning models have been applied in computing [45,46], which are also worthy of being assessed adequately in subsequent PG extraction.

5. Conclusions

The main conclusions are as follows:

• Through chessboard segmentation combined with reference polygons, in addition to filtering and exporting, boundary-removed point samples with adjustable density can be made to improve the accuracy and efficiency of PG segment extraction, and lay the data foundation for comparative experiments under control variables.
• With the control of experimental variables, the OSP and segmentation time showed a consistent trend, which indicates the stability of the ESP 2 tool. Moreover, OSI, USI, and CEI all showed obvious rules, and the values of ETA were close to 0, indicating that the proportion of 70% designed in the experiment is a reasonable g_set value.
• The OSI-USI-ETA-CEI pattern can be more effective than IoU when it is needed to evaluate the quality of EPGSs of GF-2 images in the study area.
• The CEIs of the EPGSs of ACMI and ACFI, and of the enhanced ACFI, have lower values than the control groups. This illustrates the rationality of the experiment. Moreover, the atmospheric correction and image enhancement, with heterogeneity and target characteristics taken into account prior to segmentation, are helpful in improving the quality of EPGSs of GF-2 images in the study area.
• Even though the mean filter with a size of 3 × 3 did not improve the quality of EPGSs of the linearly compressed ACFI, in this study, the filter of GLP and median, and the filter of CLP after FFT, improved the quality of EPGSs of ACFI with MDN compressed to 255. Of these, the CLP filter with a radius of 800 pixels obtained the lowest CEI in this study.
