An Integrated Environment for Monitoring and Documenting Quality in Map Composition Utilizing Cadastral Data

by
Ioannis Kavadas
1 and
Lysandros Tsoulos
2,*
1
Internal Quality Unit, Hellenic Cadastre, Holargos, 15562 Athens, Greece
2
Cartography Laboratory, School of Rural, Surveying and Geoinformatics Engineering, National Technical University of Athens, 15780 Zografou, Greece
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2022, 11(6), 348; https://doi.org/10.3390/ijgi11060348
Submission received: 22 April 2022 / Revised: 26 May 2022 / Accepted: 2 June 2022 / Published: 14 June 2022

Abstract

:
Topographic maps show both physical and artificial entities of the surface of the Earth which represent distinct features forming the building blocks in map composition. Their portrayal on the map is subject to constraints dependent on the method of data collection, the map scale, the data processing procedures and the requirements of map users. In addition to constraints, geospatial data contain uncertainties and errors that are either inherent in the data or a result of the map composition process. The type and significance of these errors determine the quality of maps. This paper elaborates on the development of an integrated environment for monitoring and documenting quality in the map composition process. In this environment, quality plays a vital role in all phases of map production whereby it is continuously assessed and documented. The methodology described involves the design and implementation of a “quality model” based on international Standards. An integrated software application for the utilization of cadastral information to produce and update topographic maps at a scale of 1:25,000 was also developed. The aim is to implement the proposed methodology in a real production environment and to use it as a proof of concept.

1. Introduction

In geospatial data, quality is a multidimensional characteristic that is involved in different ways in all phases of their lifespan, from the collection of primary information to the creation of the final product. Although it is commonly accepted that “quality” has a significant impact on the utilization of geospatial data, it constitutes a concern for the scientific community in geoinformatics.
In the literature, two basic concepts are presented depending on the perspective of quality. According to the first concept, a “quality product” is one that fully complies with the requirements of the specifications or is free from errors, and reflects mainly the perspective of producers of geospatial data [1,2,3]. The term “quality” from the point of view of the geospatial data producer can be defined as “the measure of the difference between the digital data and the geographical reality they represent”. It decreases as this difference increases [4]. The other view focuses mainly on the suitability of geospatial data for a specific use as it emerges from the expectations of the data user [5,6]. From the point of view of the data user, quality is more focused on their suitability for the application or use for which they are intended, in other words it “is a measure of suitability for the use of data for a specific purpose” [4].
The internationally accepted definition of quality is contained in the vocabulary of terms of the ISO 9000 family, where the term “quality” is defined as: “the degree to which a set of inherent characteristics of an object fulfills requirements” [7]. This definition adequately covers both the producer’s and the user’s perspective. The requirements set by the producer relate to the requirements of the product specifications on the basis of which the product is created. On the other hand, the requirements set by the user refer to the characteristics that the dataset must possess in order to make it suitable for the expected use. A more detailed definition of geospatial data quality, which captures the above, is contained in the now-defunct ISO 19113:2002 [8] that has been incorporated into ISO 19157:2013 [1], which adopted the definition of ISO 9000. Geospatial data quality can also be defined as “fitness for use”, including both quality of design, conformance to the design (production-oriented quality), customer satisfaction, and the fulfillment of the needs of the society or the environment [9].
In map composition, cartographers use different sources and various types of geospatial data usually collected for other purposes. These data are then incorporated into their applications and processed through transformations that are additional sources of error for the resulting product. It is important for cartographers, who exploit and integrate geospatial data in the map production line, to adopt quality management as a key factor to produce reliable maps.
In order to achieve the above-mentioned objective, the cartographer, drawing on international experience, should implement a quality policy and adopt a quality management system (QMS)/project management system (PMS) as an integral part of the map composition/production process [10]. The adoption of internationally recognized standards such as ISO 9001:2015 [11], ISO 10005:2018 [12], ISO 10006:2017 [13] or PMBOK [14] is considered best practice. By applying a QMS/PMS to map production, quality management is involved in all production phases, from the identification of the user’s requirements to the delivery of the final product (Figure 1).
Table 1 indicates the way quality management is involved in the three main phases of the geospatial data production process, namely, “before production”, “production” and “after production”. It is now clear that in order for the cartographer to be able to evaluate map quality, it must be adequately assessed and documented. The best way to achieve this is to make quality management part of the production process. Interpreting the contents of Table 1, the core of the quality system to be implemented is the design and implementation of a quality model.

2. Quality Model (QM)

A definition of the quality model for geospatial data is given in [16]. It is defined as “a model describing the quality of a spatial data set according to the technical specifications” (Fit for purpose QM). According to [15] a quality model for geospatial data handles the differences between the dataset and the “Universe of Discourse” (UoD) [17] and identifies how these differences can be characterized, defined, measured and documented as metadata for spatial data. A quality model also includes organizational issues related to data quality management, e.g., the management of the differences between the dataset and the UoD. Based on the above, a geospatial data quality model is defined as “a conceptual framework for measuring and representing the quality of a dataset”. A more comprehensive definition is proposed by the Quality Knowledge Exchange Network (Q-KEN) Committee of Eurogeographics, which defines a geospatial data quality model as “A framework for defining, evaluating, documenting, and presenting the quality of spatial data sets and geo-services according to their specifications” [18]. Complementing the above definition, the quality model, in addition to an integrated quality management framework, is a “tool” for standardized and systematic actions that continuously improve the quality of products and services.
The goal of successfully implementing a quality model is to ensure that the needs of map users are met in a timely and effective manner. When a QM is implemented, it provides (a) a common understanding of data quality issues across all stakeholders, (b) improved performance, (c) lower production costs, (d) confidence in the data and (e) more effective data quality management and monitoring. In geospatial data, quality information is usually referenced at the entity level. The quality model shall identify the quality requirements at the entity level, detect sources of potential errors that affect the quality of the data and define the metrics required to assess and ensure their quality.
In the context of this work, as best practice, guidelines are provided concerning the design and development of a quality model, based on the international standard ISO 19157:2013 [1] for quality monitoring in map production. The same principles can also be used to develop and implement a quality model for any product derived from geospatial data.
The effective implementation of a quality model includes the following components:
  • Design of the quality model: The QM consists of several discrete modules. The depth to which each module will be applied depends on the user’s needs, the characteristics of the geospatial data under assessment and the importance of the product or service for the data/map producer [18]. The methodological approach includes: (a) a study of user requirements and identification of quality requirements, (b) a selection of quality elements using data quality (DQ) elements of the ISO19157:2013 [1], (c) an identification of quality measures using the standardized DQ measures of Annex D of ISO 19157:2013 [1] and (d) an identification of evaluation methods. In addition, the quality model may include the required levels of quality compliance (achievement of quality objectives), details of any additional methods used to control quality in the production flow line, definition of test plans, and instructions for the production of metadata.
  • Evaluation/assessment of quality by applying the quality model: The map data are tested using the evaluation methods defined in the quality model. To produce a quality result for each quality predefined measure, the flow of the process for the evaluation of data quality of ISO 19157:2013 [1] is used.
  • Quality Model improvement: The quality results obtained from the map data evaluation are compared to the quality objectives set by the map producer. Failure to achieve any of the quality objectives leads to a repetition of the design. Furthermore, the implementation of the QM may result in: (a) an update of the QM in terms of identifying new quality requirements, quality measures and more effective evaluation methods based on the “knowledge” gained from its implementation, and (b) the results of its implementation may also result in an update of the project management procedures.
The above-mentioned components are interdependent, and the results produced by each one of them have an effect on the other. To make the quality model “stable”, it is necessary to test it on a subset of geospatial data.
In order to properly design a QM, certain basic conditions should be set, which should be met so that it can be used effectively [10]. One of the most important conditions for its design is the use of international standards and general concepts which have already been formulated. The application of quality standards in the development of a quality model requires a full understanding of certain factors, such as the nature of the domain from which the data originate, the manner of their representation in a digital environment, organization and evaluation, etc. [19].

3. Geospatial Standards

Standards related to geospatial information have been developed by a number of international and non-international organizations (ANSI, ASPRS, FGDC, IEC, IHO, ISO, OGC, etc.) and are divided into different categories and levels depending on the scope they refer to. Like all standards, geospatial data standards include guidelines for their effective implementation and in no case constitute or include product specifications. A standard is a conceptual/abstract description, which in order to be practically applied requires further elaboration on the manner of its application. Generally, geospatial data standards are open to interpretation as to how they are to be applied and implemented at a practical level.
The most important factors to be considered in the identification of the appropriate standards are: (a) meeting the requirements of the producer and the user, (b) the cost/benefit ratio of their implementation and (c) the interdependence between them. Since geospatial information is complex and diverse in terms of its content and management, to address any problems in understanding how to use standards, standardization organizations provide a series of standards that are mutually supportive, e.g., the ISO 19000 series. Table 2 lists the phases where the geospatial standards can be applied in the different stages of the map production process. Table 3 is an example of the application of the international standards of the ISO 19000 family.
The standard that covers almost all the quality parameters in a satisfactory way, is the ISO 19157:2013 [1]. Adopted by FGDC [20] and OGC [21], it can be used effectively as a reference for the definition of quality elements and their evaluation as well as for the assessment/recording the quality of a geospatial dataset/map through audit reports and metadata.

4. Quality Monitoring in Map Composition

In map composition, geospatial data originate from: (a) a larger-scale map through generalization, (b) data collected for the purpose of map composition and (c) data collected for other purposes. In each case, the cartographer is required to evaluate, quantify and document the quality of the produced map. In case the map to be produced is derived from the use of geospatial data collected for other purposes, the cartographer is required to evaluate their quality and to assess their suitability for map composition. In the context of the research for the design, analysis, documentation and implementation of an integrated quality monitoring environment for map composition, the proposed methodology is applied to the composition of a topographic map at a scale of 1:25,000. Cadastral information collected and maintained by the Hellenic Cadastre was selected as the basic geospatial information and is considered as meeting the quality requirements for use in map composition.
In the map composition process, the workflow involves three main steps: (a) the creation and updating of a geospatial database, (b) the transition and generalization of the entities of the geospatial database and the creation of a cartographic database that will include only the features to be portrayed on the map and (c) the composition of the map. In order for the cartographer to be able to monitor map composition, it is proposed to adopt and implement the following three (3) quality models designed based on ISO 19157:2013 [1]:
  • Geospatial data quality model: The QM implementation results to quantified quality information for the geospatial entities to be included in the geospatial database. The main objectives are: (a) to confirm the suitability of the data selected for map composition and (b) to obtain exact knowledge of the inherent and residual errors at the entity level due to processing.
  • Cartographic features quality model: The QM implementation results in quantified quality information for the geospatial entities to be included in the cartographic features database. The main objectives are: (a) the exact knowledge of the errors at the feature level due to generalization and transition and (b) to detect if the transition process did not create new errors in the dataset.
  • Quality model of the composed map: The QM implementation results in quantified quality information for the map. The aim is to provide users with evidence of control and inspection of the map, while giving, through metadata, information related to the quality of the final product.

5. Software Application for the Map Composition Process

The 1:25,000-scale topographic map is an accurate and detailed representation of the cartographic features at the particular scale, including the names of the main sites, administrative boundaries, etc. The 1:25,000 scale map is mainly used as reference material (base map) for the composition of other maps used in the planning of development projects, forest management, the production of maps at smaller scales as well as the production of thematic maps.

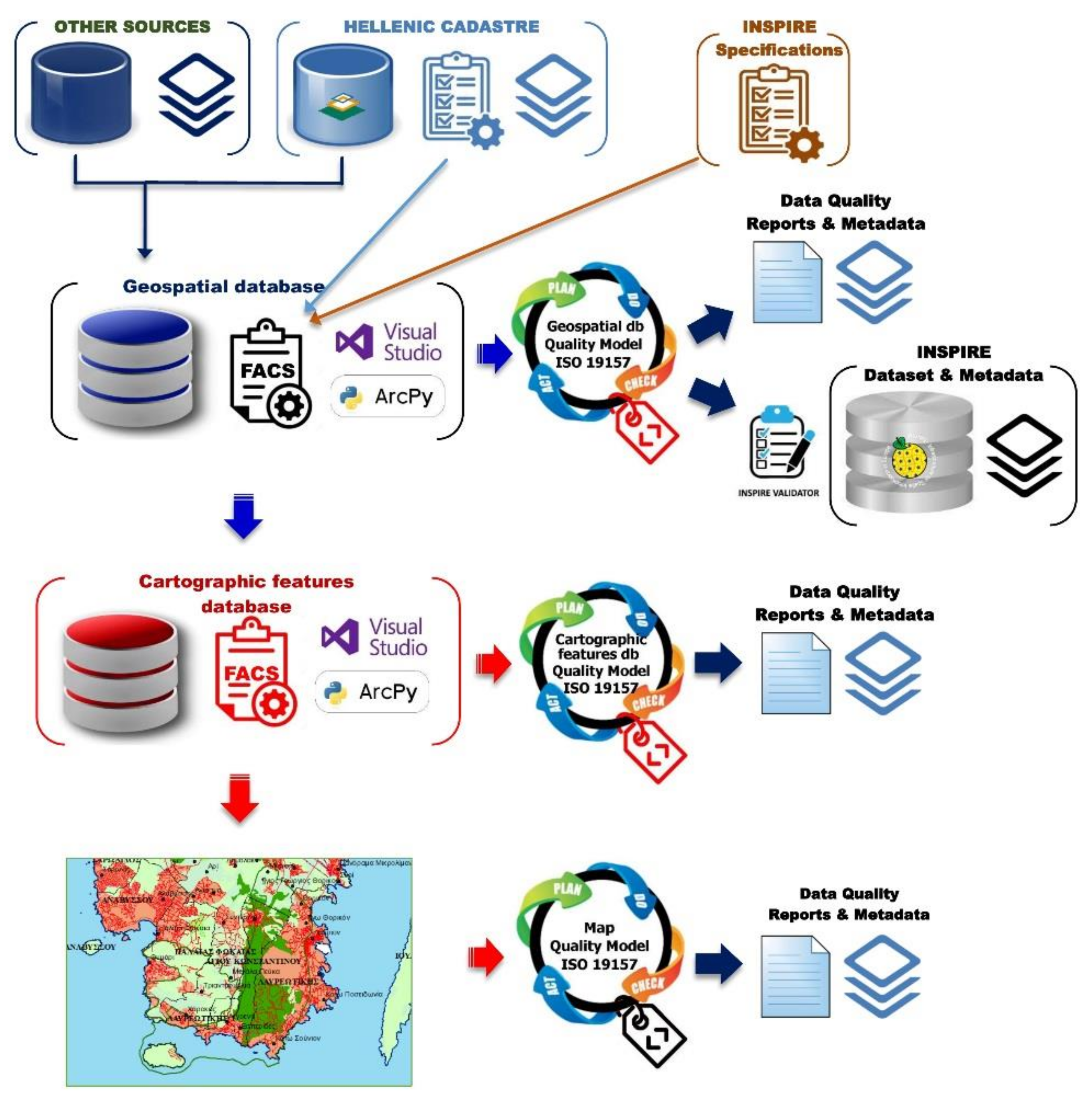

As part of this work, an integrated software application was developed for the integration of cadastral information at scales 1:1000 and 1:5000 provided by the Hellenic Cadastre to produce the topographic map at scale 1:25,000. A summary workflow of the process is shown in Figure 2.
The geospatial data of the Hellenic Cadastre were selected as the main reference information for the composition of the map. The main advantages of the geospatial information of the Hellenic Cadastre are: (a) it covers the whole country, (b) the information is available in digital form, (c) it is updated continuously in real time, (d) it is referenced to a single geodetic reference system, (e) its geometric accuracy exceeds the accuracy of the map and (f)it has appropriate and documented quality at the entity level. The software application enables the user to compose the map by selecting the area of interest. This functionality accelerates the production processes and allows the producer to better monitor and manage its quality.
The software application was developed in the Microsoft Visual Studio environment and is a stand-alone desktop application for the Microsoft Windows operating system. Visual Studio is the main management platform of the application and is used in the development of its user interface, while the basic code is developed in the Python programming language using the ArcPy site package. The storage and management of geospatial information (both spatial and non-spatial) takes place in the ArcMap environment and pre-defined database files.

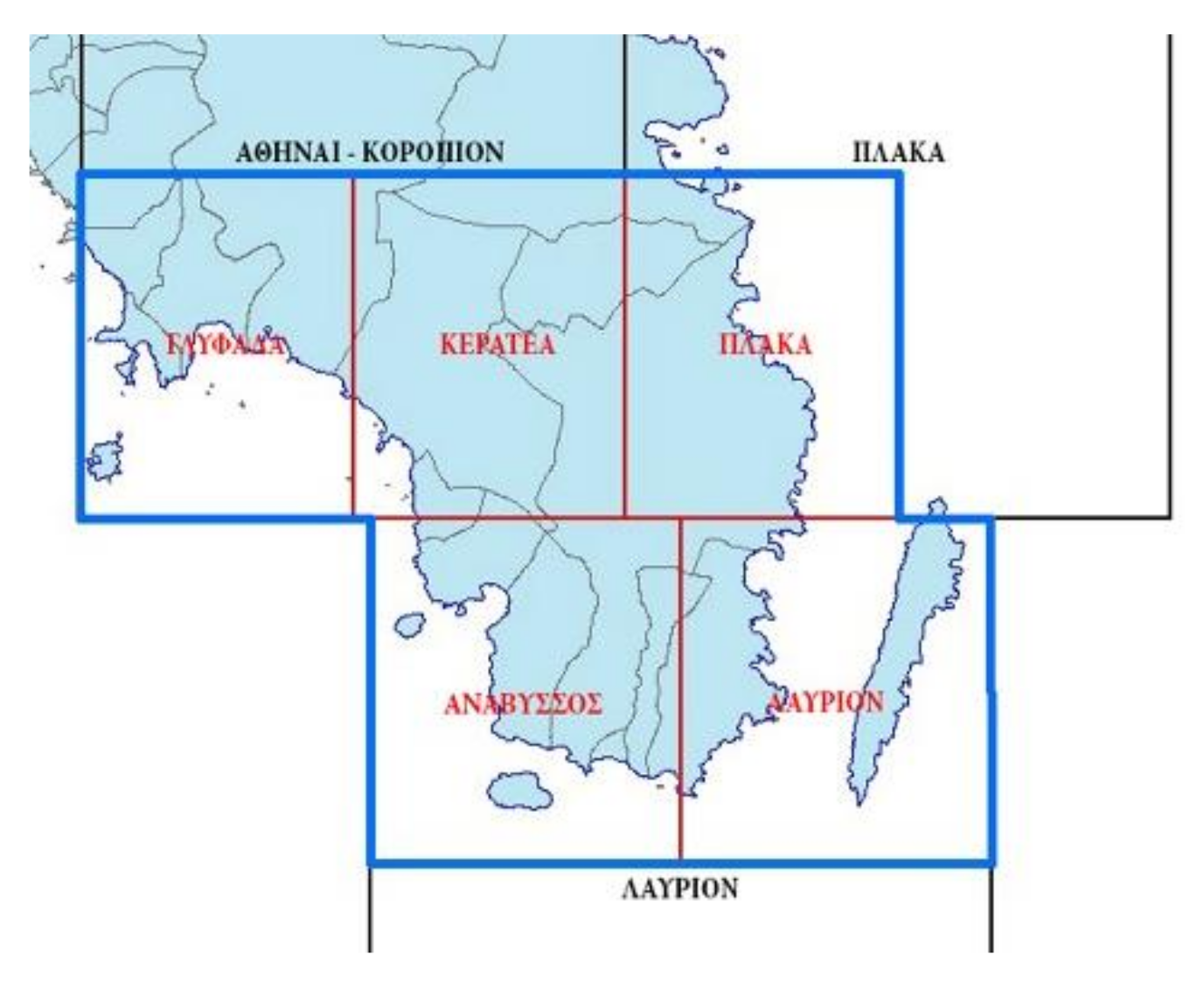

As the area of study and application of the methodology, part of East Attica (Figure 3) was selected. This area was selected due to the fact that it includes almost all kinds of features and covers a 434 km2 area attributed to five 1:25,000-scale map sheets.

5.1. Geospatial Data and Map Specifications

The methodology for the development of a quality model requires the availability of technical specifications for products generated from geospatial data. The compilation of map specifications was carried out in the following steps:
  • The specifications of the 1:25,000 maps describing all the entities depicted on the specific map category were compiled from various European cartographic organizations and subsequently analyzed. Selected specifications from ADV of Germany, Instituto Geographico Nacional of Spain, Ordnance Survey of United Kingdom and Swisstopo of Switzerland, were used.
  • The entities’ structure was compared to each other in terms of: (a) their content, (b) their grouping into thematic units, (c) the hierarchy in their representation and (d) their symbology.
  • The main categories and individual entities to be included for portrayal on the final map were selected and the list of entities was created. The technical specifications of the INSPIRE Directive were used to encode the entities and select their properties where available [22,23,24,25,26,27,28,29,30]. The aim was to produce geospatial data in full compliance with the Directive for the population of the database to be set up.
  • On the basis of the selected entities, those required to populate the geospatial database were selected from the geospatial database of the Hellenic Cadastre (HC). As the data available from the HC did not fully cover the requirements, some entities/properties were selected from other sources.
For those entities, where technical specifications were available, compliance with the INSPIRE Directive was chosen for each category and entity [22,23,24,25,26,27,28,29,30]. For each entity, the use of the common names of entities and their properties, the use of the set of mandatory properties per entity, the inclusion of non-mandatory properties (where deemed necessary) and that of code lists/enumerations was adopted. In addition, complementary properties and corresponding code lists were included in order to make the list more specific to the composite map and to seamlessly migrate the HC data to the geospatial database.
For each category of entities, the corresponding UML class diagram and the list of entities/properties were compiled. Table 4 shows the list of entities/features.
Entities marked with ● refer to the content of the geospatial database and features marked with refer to the features of the cartographic database. Topographic symbols related to the terrain relief were not included in the list, as the background of the map was chosen to be displayed as a raster surface with shading of elevation zones (hillshade).

5.1.1. Development and Implementation of Quality Models

Following the building of the FACS for each database, the conceptual, logical and physical model of the data was compiled. Quality information refers to the entity/feature level. The quality model formulates the specification of quality requirements at the entity level, detects the sources of potential errors affecting data quality and identifies the metrics required to quantify quality.
Based on the requirements of the specification and taking into account the requirements of map users, the quality requirements for each individual entity were identified. Initially, the basic quality requirements for each entity as described in the INSPIRE technical specifications were adopted [31]. These were subsequently supplemented and enriched with additional quality requirements. For each quality requirement, quality elements were identified and selected. For each quality element the quality measures and their evaluation methods were identified. Provided that each quality requirement could be checked with more than one quality element, quality measures and evaluation methods, the choice of the most appropriate combination lies with their evaluator. The quality parameters were selected, analyzed and compared with the knowledge of the evaluator and the applicability of these parameters to this dataset was decided. On the basis of the above, the entity/feature-level quality model was developed using ISO 19157:2013 [1,32,33]. The model structure proposed by the European Spatial Data Infrastructure Network program (ESDIN) was adopted [19] (see Table 5, Table 6 and Table 7).
For quality checks included in the quality model, fully automated (full inspection) or semi-automated (sampling inspection) were implemented through the software application developed. In the Table 5, Table 6 and Table 7, the colored cells describe the quality element as applied at the entity/feature or the entity/feature attribute level depending on the respective QM. The number in the cell indicates the standardized data quality measure code chosen to quantify the quality of the quality element as contained in the Annex D of ISO 19157:2013 [1]. To quantify the quality measure, there were three procedures provided for the inspections:
Attribute inspection by sampling according to ISO 2859-1: 1999 [34] (yellow cells);
Variable inspection by sampling according to ISO 3951-1:2013 [35] for the sample size and FGDC standard [36,37] for the distribution of the check points (green cells);
Full inspection (orange cells).
Table 5 shows a part of the quality model of the geospatial database. It includes the quality elements and measures referring to: (a) the dataset of administrative units (AU) that were inserted as polygons into the geodatabase from the reference data of the Hellenic Cadastre, and (b) the dataset of administrative boundaries (AB) as they resulted from the processing of the administrative units dataset (automated transition from AU to AB within the software application).
Table 6 lists part of the cartographic database quality model. It includes the quality elements and measures related to the dataset of administrative boundaries as derived after importing and generalizing the administrative boundaries dataset of the geospatial geodatabase.
Table 7 shows the part of the quality model for a section of the map. It includes the quality elements and measures related to the dataset of administrative boundaries as they will be portrayed on the map.
From Table 5 and Table 6, it is derived that the quality parameters and quality measures chosen in the compilation of the quality models of the geospatial database and the cartographic database are similar. The similar quality models are the result of a methodological choice to include from the outset in the geospatial database also entities/properties of the cartographic database that are essential for the composition of the final map. For example, in the entity related to dams, properties related to the representation of the symbol on the map are added, such as DamFaceDirection and DamFaceAngle.
This choice enabled the evaluator to perform all the checks of the cartographic database in a fully automated way, using as reference data the entities/properties of the geospatial database. After comparing the quality results, any differences that arose were due to the transition and generalization of entities from the geospatial database to the cartographic features database and were related to residual errors.

5.1.2. Creation of the Geospatial Database

For the most part, the geospatial entities and the descriptive information to be used to “populate” the geospatial database came from the Digital Cadastral Data Base (DCDB) of the Hellenic Cadastre. The Hellenic Cadastre stores geospatial data at a scale of 1:1000 for urban areas and 1:5000 for rural and other areas. The spatial entities of the DCDB are structured in subcategories, kept at the level of municipalities and are available in a shapefile format. The descriptive information is fully linked to the spatial entities and is available in MS Access format files. The creation of the geodatabase and its population with entities and attribute values was mostly performed automatically (with python scripts) using the software application developed (see step 4 below).
The information originating from other sources than the cadastre mainly concerned attribute values and was encoded in digital reference files (shapefile and MS Access accdb).
The methodology for populating the database using the software application developed follows seven steps (Figure 4):
1st step: The user enters into the application a closed polygon that delineates the area to be covered by the map. Then, the application automatically generates a list of codes of the municipalities located within the delineated polygon.
2nd step: The geospatial database is automatically created at the spatial entity level per category, based on FACS and the input and reference geospatial data are stored automatically.
3rd step: Automated consolidation of HC and other sources spatial and non-spatial data. Single files per entity are automatically produced for the whole work area.
4th step: A shapefile is automatically created for each entity and updated with the corresponding spatial entities and their attributes as defined in FACS. For each entity, a script was developed in the Python programming language (using the ArcPy site package), which was used for the automated transition of the entities to the geospatial database and for updating their attributes.
The following is an example of updating one of the “RoadNode” entity attributes that define the hierarchy of road centerline representations at multi-level nodes. It is implemented in three stages:

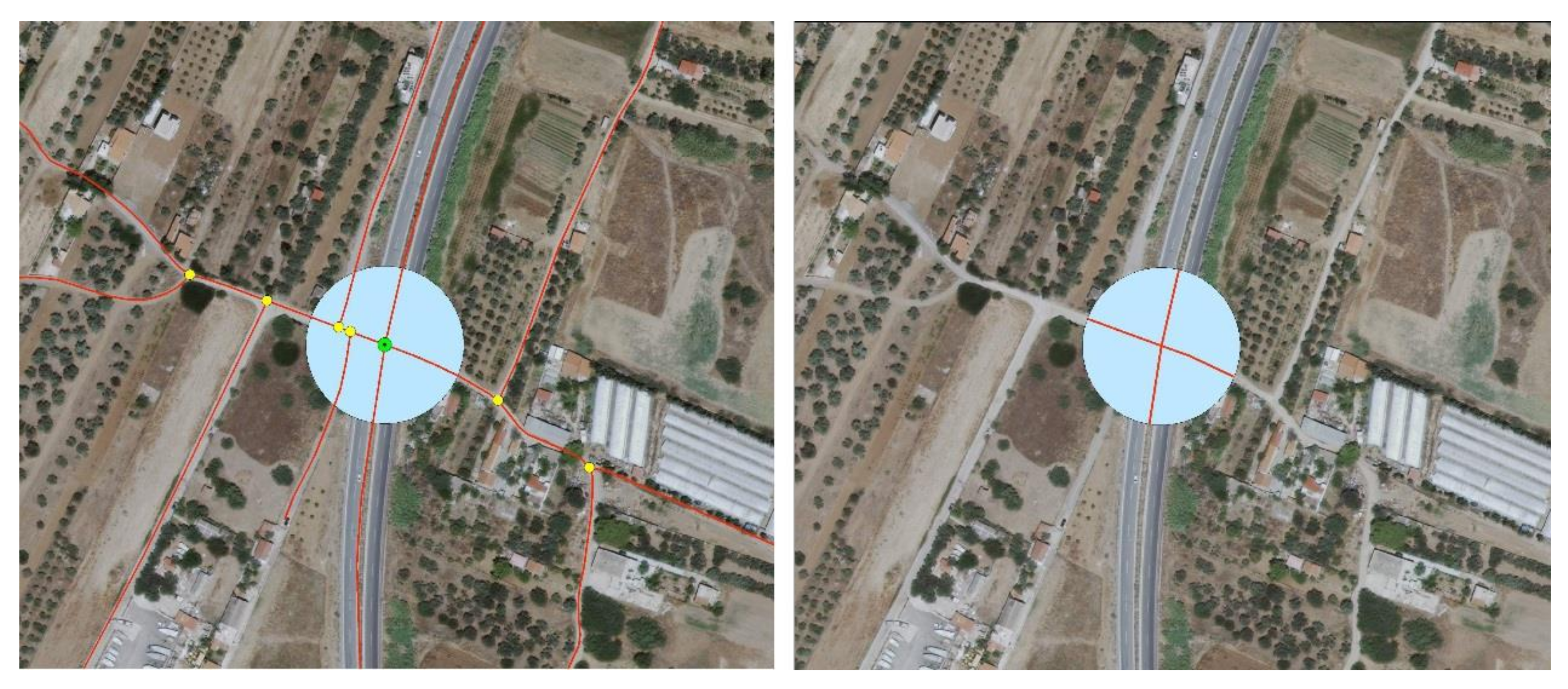

  • Automated node detection from the road line network (Figure 5).
ii.
Automated node detection with ≥4 line segments involved, marking areas for processing and cutting sections of road centerlines for processing (Figure 6).
iii.

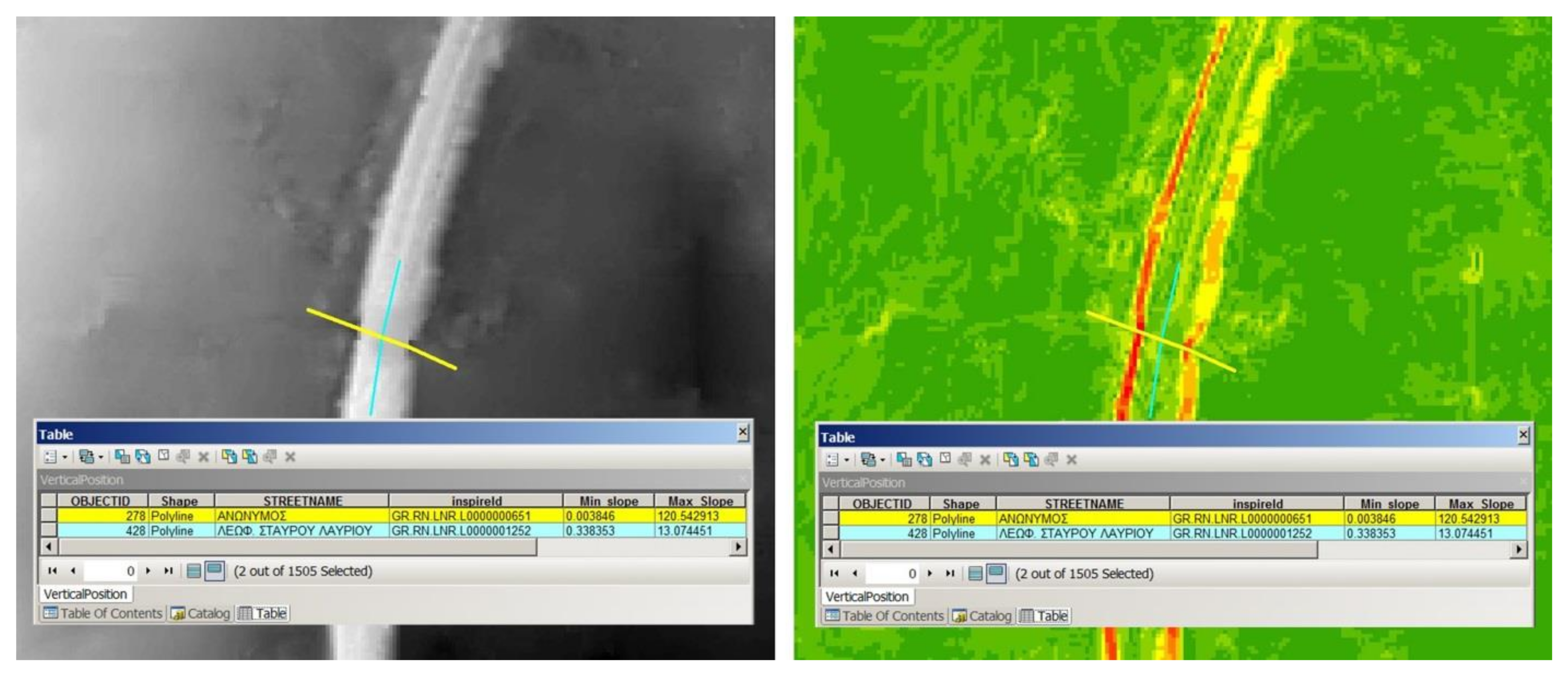

Automated slope map extraction using the digital elevation model and checking of the maximum slope attribute value (Figure 7). The maximum value of the attribute indicates whether the node is multi-level or not and determines which road centerline passes over.
5th step: Implementation of the quality model. Automated and semi-automated quality inspection of spatial and descriptive information and acquisition of quantified quality information for each quality parameter of the QM. If one of the populated entities has appropriate and documented quality information, it is not necessary to inspect it using the software application. In this case, the evaluator will manually enter the existing quality measures in a specific table within the application. As the geodatabase update is implemented by processing and transforming the input data, it is recommended to perform all the automated checks foreseen in the quality model.
6th step: Automated generation of quality reports and metadata related to the results of quality inspection at entity level. The information structure is stored in full compliance with ISO standards 19157:2013 [1], ISO 19115-1:2014 [38] and ISO 19915-3:2016 [39].
7th step: Automated generation of the files of spatial entities in accordance with the technical specifications of the INSPIRE Directive and the corresponding metadata. At this stage, the spatial entity files are stripped off the attributes added to accommodate the data model specifications that are not included in the technical specifications of the INSPIRE Directive.

5.1.3. Creation of the Cartographic Features Database

The entities resulting from the previous stage of the work are transferred into the cartographic database that will be used for the production of a topographic map at the 1:25,000 scale. According to standard practice, an intermediate “transition” database will have to be created that will contain only the entities and their attributes required by the map’s FACS. Since the whole process is executed automatically, the transition of the geospatial database entities, the deletion of non-useful attributes and their generalization were implemented in a single step of the process (step 2). This methodological approach was chosen because the full automation of the process has a minimal impact on the implementation time.
The methodology for the transition of entities to the cartographic features database using the software application developed follows four steps (Figure 8):

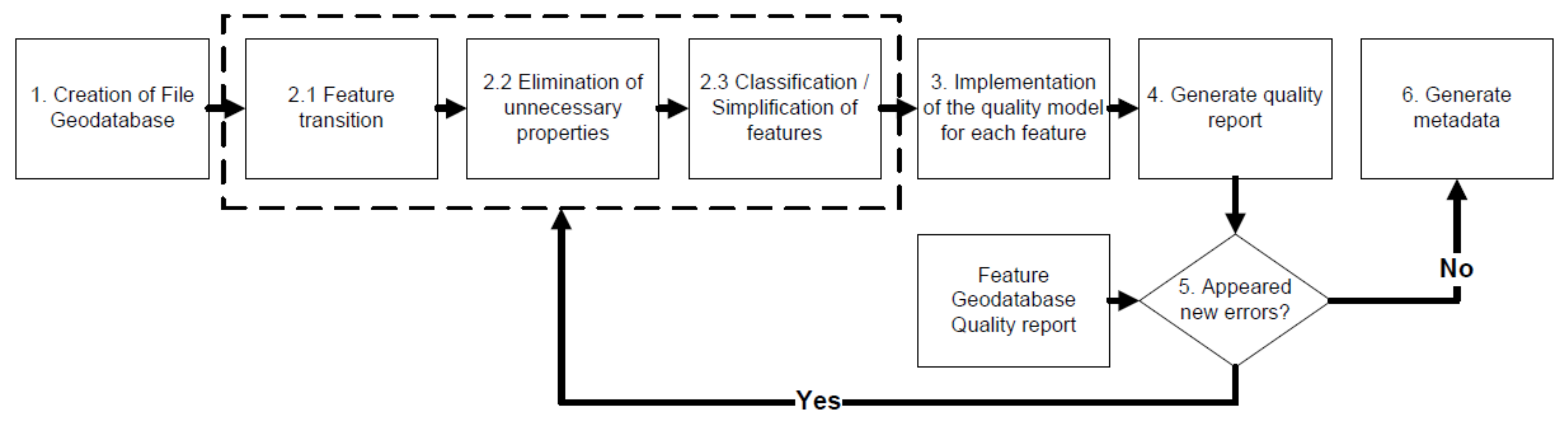

1st step: The cartographic database is automatically created at the spatial entity level per category, based on FACS.
2nd step: Transition of geospatial database entities to the created cartographic database. It is implemented in three individual steps using a single python script in the following order:
  • Transition of entities: A shapefile file is generated automatically for each entity and updated with their respective spatial entities and their attributes.
  • Elimination of non-useful entity attributes: Attributes that are not useful in map production are removed. Entities, due to the need of complying with the INSPIRE Directive, include many attributes that are not necessary for the composition of the map.
  • Generalization: Apply generalization rules to entities where necessary based on the scale of the map produced. This includes the classification and simplification of linear and areal entities.

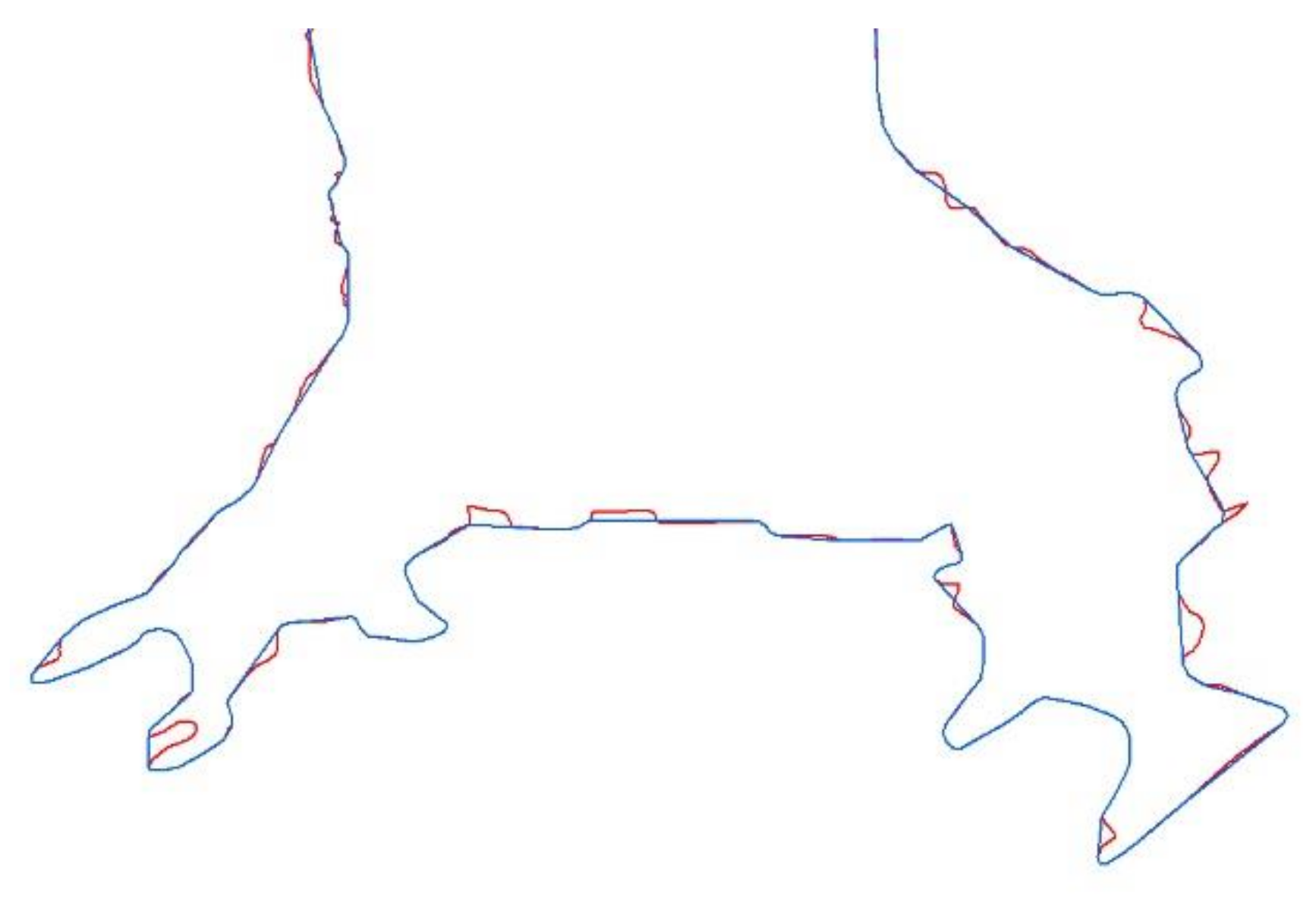

An example of simplification of the ‘LandWaterBoundary’ entity is given below for the parts representing the natural coastline. The generalization methodology is based on [40]. It is implemented in three stages:
  • Automated line simplification using bend simplification algorithm with a 15 m tolerance (Figure 9). Automated evaluation of simplification using 12.5 m buffer zone on both sides (Figure 10).
ii.
Automated line simplification using the point removal method (Figure 11). As a basic rule, the small sections of the line are integrated into new ones with a length between 7.5–10 m.
iii.
Island management
  • Automated simplification with conversion of islands with area <625 m2 into point entities (Figure 12 and Figure 13). The transformed islands are shown as red dots in Figure 13.
    Figure 12. Island detection.
    Figure 12. Island detection.
    Ijgi 11 00348 g012
    Figure 13. Conversion to point entities.
    Figure 13. Conversion to point entities.
    Ijgi 11 00348 g013
  • Aggregation of islands located in proximity to the mainland coastline with respect to the chart compilation scale. Integration of the islands that are located within a distance of less than 25 m from the coastline (Figure 14).
    (a)
    Calculation of the distance of islands from the closest coastline.
    (b)
    Selection of islands, located within a distance less than 25 m from the coastline and demarcation of minimum bounding area.
    (c)
    The islands/islets amalgamate to the closest coastline.

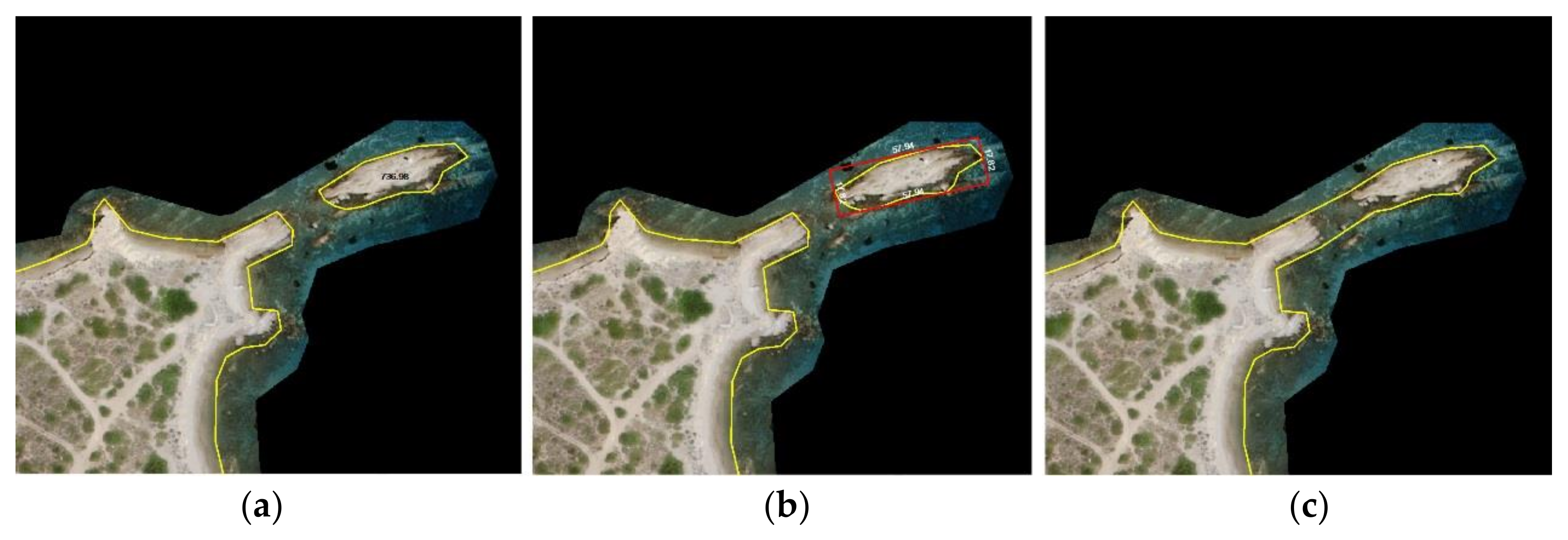

    Figure 14. Integration of islands with coastline.
    Figure 14. Integration of islands with coastline.
    Ijgi 11 00348 g014
As a result of the software application on the above, the cartographic database includes the features in the way they will be portrayed on the final map.
3rd step: Implementation of the quality model. Automated and semi-automatic quality inspection of spatial and descriptive information and acquisition of quantified quality information for each quality parameter of QM.
4th step: Automated generation of quality reports related to the results of quality inspection at the entity level. The information structure is stored in full compliance with the ISO 19157:2013 [1] standard.
5th step: Benchmarking of quality results at the entity and quality element level. If the evaluation results contain new errors, these were obviously created during the transition or/and generalization of the data. In this case, the producer can review the methods used (step 2) so that new errors are eliminated or minimized.
6th step: Automated generation of metadata related to the results of quality inspection at the entity level. The information structure is stored in full compliance with ISO 19115-1:2014 [1], ISO 19115-1:2014 [38] and ISO 19915-3:2016 [39].

5.1.4. Map Composition

The cartographic composition is to consolidate and assign, in accordance with the rules of cartographic symbolization and cartographic design, the set of the thematic levels of the cartographic data collected and processed in the previous phases of the process [41]. In addition, to complete the map composition, all the elements necessary for the map layout should be added, such as nomenclature, grid, box, graphic scale, legend, title, etc. The principles of cartographic design refer to the characteristics that a map should have as a product of graphic design [42]. These characteristics are: (a) symbol legibility, (b) visual contrast, (c) image-background organization and (d) hierarchical organization.
The map depicts the content of the cartographic database and the spatial relationships between the entities. Map composition briefly includes the following tasks (Figure 15):

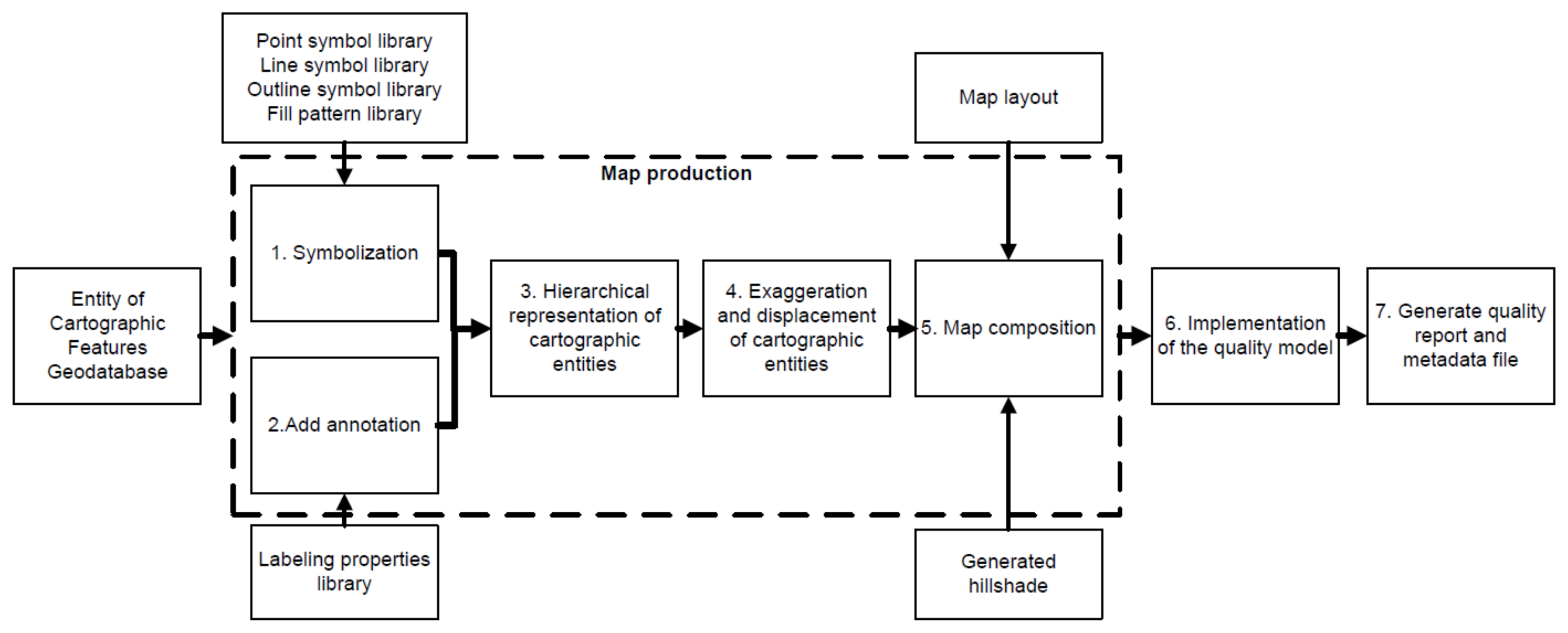

1st step: Symbolization. Each element is automatically assigned the predefined symbol from the corresponding symbol library created for the 1:25,000 map scale. It concerns the representation of points (point symbol library, point symbol, size, rotation, color), lines (line symbol library, line symbol type, width, color) and areas (outline symbol library, outline symbol type, outline width, outline color, fill pattern library, fill color, fill pattern).
2nd step: Automated addition of geographical names. Representation of labels using the properties of the corresponding library, predefined for each type of geographical name. The properties define the font’s name, width factor, height, style, slope, alignment, rotation and color.
3rd step: Automated hierarchical representation of cartographic features, according to the value of the corresponding property assigned to the hierarchy level.
4th step: Semi-automated exaggeration and displacement of cartographic features to make the map visually balanced.
5th step: Synthesis of the final map. Automated addition of shaded terrain as a background for the rendering of cartographic data and cutting the area into sections based on a predefined map sheet distribution. Automated application of the predefined map layout created based on a predefined template.
6th step: Implementation of the quality model. Visual inspection of cartographic features and acquisition of quantified quality information for each quality parameter of the QM.
7th step: Automated generation of quality reports related to the results of quality inspection at the cartographic feature level. The information structure is stored in full compliance with the ISO 19157:2013 [1] standard.

6. Results

The application developed includes a specific functionality to assist in the evaluation of each distinct set of entities/cartographic features. The results of the evaluation are stored at the entity/feature level in the database in a special MS Access table. The evaluator can then automatically export the evaluation results, in the form of a quality report and/or in the form of metadata (XML format files), based on the requirements of the ISO 19157:2013 standard [1]. Where the data have appropriate and documented quality information at the entity level, the evaluator is not required to perform the inspection. In this case, the functionality of the software application gives the evaluator the option to record the quality measurements manually. In the authors’ opinion, it is strongly recommended that in these cases all automated checks be performed, as the cost to the execution time is limited.
After the inspection checks are completed, the software application enables the evaluator to automatically export the quality results at the entity level in the form of a quality report (Figure 16) and/or metadata.
The cadastral data used have documented but unpublished quality. The only published quality documentation relates to the positional accuracy of the geospatial information [43]. Although the quality information could be obtained from the HC quality results, for the requirements of the research and the evaluation of the functionality of the software application, the inspections foreseen in the quality model were carried out. A comparative check between similar quality results was then carried out in order to check the correctness of the application.
An example of the application of the quality models is given below. The model was selected for the administrative units dataset at all stages of the map composition.

6.1. Geospatial Database

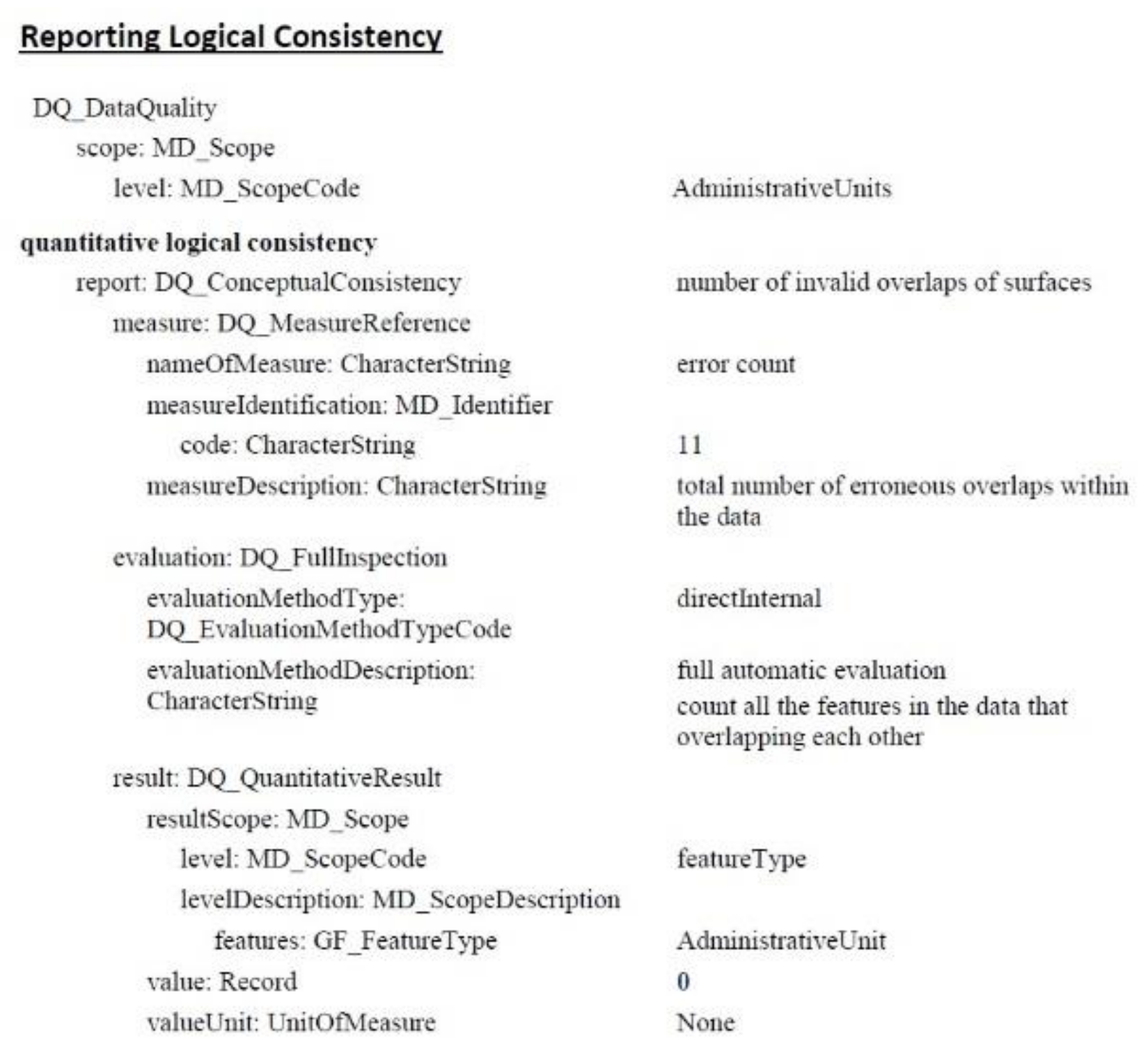

Table 8 and Table 9 shows the results of the implementation of the quality model as extracted from the software application.
The administrative division of Greece and digital orthophoto maps were used as reference data for the sample inspections. Commenting on the quality results, it is shown that in terms of completeness and thematic accuracy, as expected, the results are zero. By contrast, when checking for logical consistency, three cases of invalid slivers were detected. The data were examined and it was found that three slivers were intrinsic to the data and did not arise due to their transition to the geospatial database (Table 8).
The administrative boundaries of the municipalities resulted from the transition of the dataset administrative unit entities. With an already inspected reference dataset, we can adopt compliance levels on specific quality measures (Table 9). If any of the generated data do not comply with the default compliance level, the evaluator may revise the transition methodology of that entity and re-run the inspection. As the entities of the Administrative Unit dataset were used as reference data for the administrative boundary checks, the checks were fully automated.

6.2. Cartographic Features Database

The geospatial database entities were used as reference data, and for this reason the checks were fully automated. Again, as the import information was of known quality, the producer could pre-define compliance levels. The quality results show that the slivers identified in the administrative unit dataset were eliminated (Table 10). This was achieved because their existence and their exact location was known from the beginning, so the evaluator could choose an appropriate methodology in the transition of entities in order to eliminate them.

6.3. Map

The sampling inspection is carried out visually on the final map. At the moment it has not yet been executed and therefore in Table 11 the values of the quality result (column “DQ_QuantitativeResult”) are not filled in. The reference data for the inspection are: (a) cartographic base for completeness, thematic accuracy, hierarchical layers, etc., (b) orthophoto maps for classification correctness, multilevel nodes, unpaved roads, etc., (c) symbol library for symbol representation and (d) labeling properties library for geographical names.

7. Discussion

This paper proposes the adoption of quality models as fundamental tools of an integrated environment for monitoring and documenting quality at all stages of the map production line. It also provides guidelines for the creation of a quality model to quantify, monitor and document the quality of geospatial data. As part of the research, an integrated software application for the utilization of the country’s cadastral information for the composition of a 1:25,000-scale map was also developed. As the cadastral information is collected and maintained digitally using the tools available with the GIS software, the production of the map was largely automated.
The results of the implementation of the quality model at each individual stage of map production show the significant advantages it offers in quality management.
For the creation of the geospatial database, the workflow includes the acquisition of the required geospatial information, its input and storage in the geodatabase, the manipulation and its processing. In the process of establishing the geospatial database, because of the above operations, errors can occur that affect its quality [44]. These errors, whether random or systematic, will be carried forward to the next stage of the map compilation process, and it is important that they be identified, recognized, quantified and recorded. The result of the application of a quality model to the data of the geospatial database is the acquisition of quantified quality information on specific quality measures and its documentation. The application of the quality model enables the producer to know exactly which entities include errors, as well as their type, their number and their location. An accurate knowledge and mapping of errors enables the cartographer to assess how they will affect its final product and to use an appropriate methodology during the next stage of the process in order to either eliminate them or minimize their impact on the quality of the composite map. In addition, the producer may also set in the quality model compliance criteria at the entity/quality level. By using them, after evaluating the input data, the known quantified quality information enables him/her to decide whether and to what extent the data are suitable for the composite map. If he/she decides to reject them, he/she can choose a new dataset and repeat the evaluation using the quality model.
The cartographic database is derived from the transition of the geospatial data of the geospatial database. The process of transition involves the input and storage of data in the cartographic geodatabase and the simplification/generalization of the geospatial information of the database. Regarding the monitoring of the quality of the cartographic database, in addition to any errors transferred over from the geospatial database, the process of the transition and generalization of information may also create new errors. The best way to evaluate, document and present the quality of the cartographic features database is to adopt a quality model. The quality model of the cartographic database, although based on a different FACS, can nevertheless use in most entities similar quality measures to the geospatial database quality model. The adoption of similar-quality enables the producer to compare them, so that he knows whether a particular error was transferred from the geospatial database or arose during data transition and generalization. Where the comparison identifies new errors, it shall be given the opportunity to revise the methodology applied with a view to eliminating or minimizing them.
At the cartographic composition stage, generalized features are presented graphically. The process of the transposition of the features of the cartographic database includes their hierarchical rendering as well as the portrayal of lines, points, surfaces, symbols and labels—a task that is likely to generate errors in their portrayal. The adoption of a quality model for the evaluation and documentation of the quality of the produced map enables the producer to fully control the production process and its quality as well as the users with evidence of control and inspection, while providing more information about the final product through metadata.

8. Conclusions and Future Research

The outcome of the research confirms that the design and implementation of a quality model at each stage of the process provides a structured framework for defining, evaluating and documenting quality and managing quality information. It also provides an integrated structured quality assurance environment at every stage of the map composition process. It enables the producer to have a high level of control over the production process, to identify and manage errors, and to improve the production process and the quality of a product. At the same time, the use of international standards in the development and implementation of the quality model and the harmonization of quality information with them (a) ensures the interoperability of quality information, and (b) provides an environment for applying consistent and objective quality inspection methods.
Future research may focus on the following:
-
To analyze the needs, in terms of quality, of the different users of spatial data, by identifying and effectively recording how many and which of the quality parameters users want to be recorded and how.
-
To improve the way in which the results of the quality inspection are recorded and presented so that they are more comprehensible to the average user. ISO 19157:2013 [1], although estimated to be complete and detailed in the documentation of the quality results and their recording, is mainly intended for specialized users.
For different types of data, identification of quality requirements, selection of quality parameters that may be applied for the particular type of data and their definition are required for each quality parameter to be assessed.

Author Contributions

Conceptualization, I.K. and L.T.; methodology, I.K. and L.T.; software, I.K.; validation, I.K. and L.T.; formal analysis, I.K.; investigation, I.K.; resources, I.K.; data curation, I.K.; writing—original draft preparation, I.K.; writing—review and editing, L.T.; supervision, L.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. ISO 19157; Geographic Information—Data Quality. International Organization for Standardization: Geneva, Switzerland, 2013.
  2. Taylor, F.W. The Principles of Scientific Management; Harper & Brothers: New York, NY, USA, 1911. [Google Scholar]
  3. Crosby, P. Quality is Free; McGraw Hill: New York, NY, USA, 1979. [Google Scholar]
  4. Tsoulos, L. Digital Cartography, 2nd ed.; Cartography Laboratory, School of Rural and Surveying Engineering, National Technical University of Athens: Athens, Greece, 2004. (In Greek) [Google Scholar]
  5. Garvin, D.A. Competing on the Eight Dimensions of Quality; Harvard Business Review 65, No. 6; Harvard Business Publishing: Brighton, MA, USA, 1987. [Google Scholar]
  6. Juran, J. Quality Handbook, 5th ed.; McGraw Hill: New York, NY, USA, 1979. [Google Scholar]
  7. ISO 9000; Family International Standard Quality Management Systems—Fundamentals and Vocabulary. International Organization for Standardization: Geneva, Switzerland, 2015.
  8. ISO 19113:2002; Geographic Information—Quality Principles. 1st ed. International Organization for Standardization: Geneva, Switzerland, 2002.
  9. Jakobsson, A.; Tsoulos, L. The Role of Quality in Spatial Data Infrastructures. In Proceedings of the 23rd International Cartographic Conference, Moscow, Russia, 4–10 August 2007. [Google Scholar]
  10. Kavadas, I.; Tsoulos, L. ISO standards in the development of a spatial information quality model. In Proceedings of the 10th National Cartography Conference, Ioannina, Greece, 12–14 November 2008; Hellenic Cartographic Society: Thessaloniki, Greece; pp. 459–481. (In Greek). [Google Scholar]
  11. ISO 9001; Quality Management Systems—Requirements. International Organization for Standardization: Geneva, Switzerland, 2007.
  12. ISO 10005; Quality Management—Guidelines for Quality Plans. International Organization for Standardization: Geneva, Switzerland, 2018.
  13. ISO 10006; Quality Management—Guidelines to quality management in projects. International Organization for Standardization: Geneva, Switzerland, 2017.
  14. Project Management Institute. A Guide to The Project Management Body of Knowledge (PMBOK Guide), 5th ed.; Project Management Institute: Newtown Square, PA, USA, 2013. [Google Scholar]
  15. Jakobsson, A.; Giversen, J. (Eds.) Guidelines for Implementing the ISO 19100 Geographic Information Quality Standards in National Mapping and Cadastral Agencies; Eurogeographics Expert Group on Quality: Brussels, Belgium, 2007. [Google Scholar]
  16. Rocha, L.A.; Montoya, J. Spatial Data Quality Model for “Fit-For-Purpose” Methodology in Colombia; FIG Working Week 2020: Amsterdam, The Netherlands, 2020. [Google Scholar]
  17. ISO 19101-1; Geographic Information—Reference model—Part 1: Fundamentals. International Organization for Standardization: Geneva, Switzerland, 2017.
  18. Eurogeographics Quality-Knowledge Experts Network (Q-KEN). Creating a Data Quality Model. In Proceedings of the 3rd International Workshop on Spatial Data Quality, Valetta, Malta, 28–29 January 2020; Eurogeographics Q-KEN: Brussels, Belgium, 2020. [Google Scholar]
  19. Beare, M.; Henriksson, R.; Jakobsson, A.; Marttinen, J.; Onstein, E.; Tsoulos, L.; Williams, F.; Mäkelä, J.; De Meulenaer, L.; Persson, I.; et al. D8.4 ESDIN Quality Final Report. ESDIN Program WP8 Deliverables; Eurogeographics: Brussels, Belgium, 2010. [Google Scholar]
  20. Federal Geographic Data Committee. Available online: https://www.fgdc.gov/standards/list (accessed on 14 April 2022).
  21. Open Geospatial Consortium. Available online: https://www.ogc.org/projects/groups/dqdwg (accessed on 14 April 2022).
  22. INSPIRE Thematic Working Group Administrative Units. D2.8.I.2 Data Specification on Administrative Units—Technical Guidelines, Version 3.1. Available online: https://inspire.ec.europa.eu/id/document/tg/au (accessed on 3 May 2022).
  23. INSPIRE Thematic Working Group Cadastral Parcels. D2.8.I.6 Data Specification on Cadastral Parcels—Technical Guidelines, Version 3.1. Available online: https://inspire.ec.europa.eu/id/document/tg/cp (accessed on 3 May 2022).
  24. INSPIRE Thematic Working Group Geographical Names. D2.8.I.3 Data Specification on Geographical Names—Technical Guidelines, Version 3.1. Available online: https://inspire.ec.europa.eu/id/document/tg/gn (accessed on 3 May 2022).
  25. INSPIRE Thematic Working Group Hydrography. D2.8.I.8 Data Specification on Hydrography—Technical Guidelines, Version 3.1. Available online: https://inspire.ec.europa.eu/id/document/tg/hy (accessed on 3 May 2022).
  26. INSPIRE Thematic Working Group Protected Sites. D2.8.I.9 Data Specification on Protected Sites—Technical Guidelines, Version 3.2. Available online: https://inspire.ec.europa.eu/id/document/tg/ps (accessed on 3 May 2022).
  27. INSPIRE Thematic Working Group Transport Networks. D2.8.I.7 Data Specification on Transport Networks—Technical Guidelines, Version 3.2. Available online: https://inspire.ec.europa.eu/id/document/tg/tn (accessed on 3 May 2022).
  28. INSPIRE Thematic Working Group Elevation. D2.8.II.1 INSPIRE Data Specification on Elevation—Technical Guidelines, Version 3.0. Available online: https://inspire.ec.europa.eu/id/document/tg/el (accessed on 3 May 2022).
  29. INSPIRE Thematic Working Group Land Use. D2.8.III.4 INSPIRE Data Specification on Land Use—Technical Guidelines, Version 3.0. Available online: https://inspire.ec.europa.eu/id/document/tg/lu (accessed on 3 May 2022).
  30. INSPIRE Thematic Working Group Coordinate Reference Systems. D2.8.I.1 Data Specification on Coordinate Reference Systems—Technical Guidelines, Version 3.2. Available online: https://inspire.ec.europa.eu/id/document/tg/rs (accessed on 3 May 2022).
  31. Kavadas, I.; Tsoulos, L. Spatial Data Quality in the Framework of INSPIRE. In Proceedings of the 7th Conference of HellasGIS, Athens, Greece, 17–18 May 2012. [Google Scholar]
  32. Kavadas, I. ISO Standards in the Development of a Spatial Information Quality Model. Postgraduate thesis, Geoinformatics Postgraduate Programme, School of Rural and Surveying Engineering, National Technical University of Athens, Athens, Greece, 2007. (In Greek). [Google Scholar]
  33. Kavadas, I. Assessment of Spatial Information Quality using the ISO International Standards. In Proceedings of the 11th National Cartography Conference, Nafplio, Greece, 8–10 November 2010; Hellenic Cartographic Society: Thessaloniki, Greece; pp. 467–483. (In Greek). [Google Scholar]
  34. ISO 2859-1; Sampling Procedures for Inspection by Attributes—Part 1: Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-By-Lot Inspection. International Organization for Standardization: Geneva, Switzerland, 2006.
  35. ISO 3951-1; Sampling Procedures for Inspection by Variables—Part 1: Specification for Single Sampling Plans Indexed by Acceptance Quality Limit (AQL) for Lot-By-Lot Inspection for a Single Quality Characteristic and a Single AQL. International Organization for Standardization: Geneva, Switzerland, 2013.
  36. No FGDC-STD-007.3-1998; Geospatial Positioning Accuracy Standards—Part 3: National Standard for Spatial Data Accuracy. FGDC: Washington, DC, USA, 1998.
  37. No FGDC-STD-002-1999; Spatial Data Transfer Standard (SDTS). FGDC: Washington, DC, USA, 1999.
  38. ISO 19115-1; Geographic Information—Metadata—Part 1: Fundamentals. International Organization for Standardization: Geneva, Switzerland, 2014.
  39. ISO/TS 19115-3; Geographic Information—Metadata—Part 3: XML Schema Implementation for Fundamental Concepts. International Organization for Standardization: Geneva, Switzerland, 2016.
  40. Skopeliti, A.; Tsoulos, L.; Pe’eri, S. Depth Contours and Coastline Generalization for Harbour and Approach Nautical Charts. ISPRS Int. J. Geo-Inf. 2021, 10, 197. [Google Scholar] [CrossRef]
  41. Tsoulos, L.; Skopeliti, A.; Stamou, L. Cartographic Synthesis & Rendering in a Digital Environment; Greek Academic Electronic Textbooks: Athens, Greece, 2015; p. 223. (In Greek) [Google Scholar]
  42. Robinson, A.; Morrison, J.; Muehrcke, P.C.; Kimerling, J.; Guptill, S.C. Elements of Cartography, 6th ed.; John Wiley and Sons Inc.: New York, NY, USA, 1995. [Google Scholar]
  43. Hellenic Cadastre. Technical Specifications of the Cadastral Studies for the Creation of the National Cadastre in the Rest of the Country; Hellenic Cadastre: Athens, Greece, 2016. (In Greek)
  44. Collins, F.C.; Smith, J.L. Taxonomy for error in GIS. In Unlocking the Puzzle, Proceedings of the International Symposium on Spatial Accuracy in Natural Resource Data Bases, Williamsburg, VA, USA, 16–20 May 1994; Congalton, R.G., Ed.; American Society for Photogrammetry and Remote Sensing: Baton Rouge, LA, USA, 1994; pp. 1–7. [Google Scholar]
Figure 1. Quality in general production process [15].
Figure 1. Quality in general production process [15].
Ijgi 11 00348 g001
Figure 2. 25K map application workflow.
Figure 2. 25K map application workflow.
Ijgi 11 00348 g002
Figure 3. Study area.
Figure 3. Study area.
Ijgi 11 00348 g003
Figure 4. Workflow of geospatial database creation.
Figure 4. Workflow of geospatial database creation.
Ijgi 11 00348 g004
Figure 5. Automated node detection.
Figure 5. Automated node detection.
Ijgi 11 00348 g005
Figure 6. Selection of road sections for editing.
Figure 6. Selection of road sections for editing.
Ijgi 11 00348 g006
Figure 7. Check max slope attribute value from slope map.
Figure 7. Check max slope attribute value from slope map.
Ijgi 11 00348 g007
Figure 8. Workflow of cartographic features database creation.
Figure 8. Workflow of cartographic features database creation.
Ijgi 11 00348 g008
Figure 9. Bend simplification.
Figure 9. Bend simplification.
Ijgi 11 00348 g009
Figure 10. Evaluation of bend simplification.
Figure 10. Evaluation of bend simplification.
Ijgi 11 00348 g010
Figure 11. Simplification using point removal.
Figure 11. Simplification using point removal.
Ijgi 11 00348 g011
Figure 15. Workflow of map composition.
Figure 15. Workflow of map composition.
Ijgi 11 00348 g015
Figure 16. Quality report (part).
Figure 16. Quality report (part).
Ijgi 11 00348 g016
Table 1. Interpretation of quality in different phases of production [15].
Table 1. Interpretation of quality in different phases of production [15].
PhaseQuality DocumentationGoal for QualityQuality MethodsLevel
Before productionSpecification
Quality model
Define quality requirementsAnalysis of customer
requirements
Entity/Feature type level
ProductionDatabase
Process history
Meet the specifications
Record expected quality to database
InspectionEntity/Feature instance
After productionMetadata
Test reports
Measure conformance to quality requirementsEvaluation
Reporting
Dataset level
Table 2. Interpretation of geospatial standards in different phases of production.
Table 2. Interpretation of geospatial standards in different phases of production.
PhaseScope of Geospatial Standards
Before productionUser requirements (product specifications)
Define quality requirements (product specifications)
Methods and rules of data collection
ProductionCompliance with specifications
Best practices in data/map production
Methods and tools of analysis and processing
Quality evaluation
After productionQuality assurance
Metadata
Presentation of data
Data access services
Data portability and interoperability
Quality improvement
Knowledge transfer
Table 3. Application of the ISO 19000 family of geospatial standards to quality management in the production process.
Table 3. Application of the ISO 19000 family of geospatial standards to quality management in the production process.
PhaseScope of StandardsStandardImplementation
Before productionProduct specificationsISO 19131Guidelines for creating specifications
Product specificationsISO 19157Guidelines for determining compliance levels
Define quality requirementsISO 19157Quality model design and documentation
ProductionQuality elementsISO 19157Selection of applicable quality elements
Quality measuresISO 19157Selection of quality measures
ISO 19115-1Quantitative measures according to ISO 19157
ISO 19115-2Non-quantitative measures according to ISO 19115-1/19115-2
Quality evaluation methodsISO 19157Quality evaluation according to ISO 19157
ISO 2859-1Sampling methods according to the series of standards ISO 2859 or ISO 3951 depending on the type of quality element under evaluation
ISO 3951-1
Reporting metadataISO 19157ISO 19157 specifies the data to be recorded in the metadata and quality reports
ISO 19115-1ISO 19115-1/19115-2 specify the format required to describe geographic information and services through metadata
ISO 19115-3
After productionQuality assuranceISO 19158Measuring compliance with quality requirements
ReportingISO 19115-1Metadata
ISO 19115-3Quality reports
Metadata exchangeISO 19139XML schema implementation
Table 4. Feature attributes coding system (FACS).
Table 4. Feature attributes coding system (FACS).
Entity/Feature Category
AdministrativeUnitsHydrography
AdministrativeUnit LandWaterBoundary
AdministrativeBoundaryWatercourseArea
PopulatedPlacesWatercourseLine
PopulatedPlaceStandingWater
TransportNetworksDamOrWeir
ERoadCrossing
RoadFalls
RoadTunnelsSpring
RoadBridgesWetland
RoadAreaLandUse
RoadNodeExistingLandUseDataSet
RailwayLineExistingLandUseObject
RailwayTunnelsProtectedSites
RailwayBridgesProtectedSite
RailwayAreaTopography
RailwayNodeContourLine
RailwayStationNodeMine
AerodromeAreaSpotElevation
PortAreaSpotElevation
NamedPlacesCableLinks
NamedPlaceCablewayLink
GeneralFeaturesCablewayNode
GeneralFeature
Table 5. Quality model of the geospatial database (part).
Table 5. Quality model of the geospatial database (part).
Geospatial Database—QUALITY MODEL
ISO 19157
FEATURE TYPE &
Attribute
QUALITY ELEMENTS
COMPLETENESS LOGICAL CONSISTENCY POSITIONAL ACCURACY TEMPORAL ACCURACY THEMATIC ACCURACY
COMMISSION OMISSION CONCEPTUAL
CONSISTENCY
DOMAIN
CONSISTENCY
FORMAT
CONSISTENCY
TOPOLOGICAL
CONSISTENCY
ABSOLUTE
ACCURACY
RELATIVE
ACCURACY
GRIDDED DATA
ACCURACY
ACCURACY
OF A TIME MEASUREMENT
TEMPORAL
CONSISTENCY
TEMPORAL
VALIDITY
CLASSIFICATION
CORRECTNESS
NON-QUANTITATIVE
ATTRIBUTE
CORRECTNESS
QUANTITATIVE
ATTRIBUTE
ACCURACY
AdministrativeUnitError count
id 2
Error count
id 6
Error count
id 9
Error indicator
id 119
Error count
id 60
Error count
id 6
inspireId Error indicator
id 14
country Error indicator
id 14
geometryError count
id 4
Error count
id 11
Error count
id 25
id 26
id 27
Id 39
name Error count
id 60
Error count
id 65
nationalCode Error indicator
id 14
Error count
id 65
HCCode Error indicator
id 14
Error count
id 65
nationalLevel Error indicator
id 14
Error count
id 65
nationalLevelName Error indicator
id 14
Error count
id 65
surfaceArea LE99.8
id 73
beginLifespanVersion
endLifespanVersion
AdministrativeBoundaryError count
id 2
Error count
id 6
Error count
id 9
Error indicator
id 119
inspireId Error count
id 65
country Error count
id 65
geometryError count
id 4
Error count
id 21
id 23
id 24
id 27
nationalLevel Error count
id 65
length LE99.8
id 73
beginLifespanVersion
endLifespanVersion
Table 6. Quality model of cartographic database (part).
Table 6. Quality model of cartographic database (part).
Cartographic Database—QUALITY MODEL
ISO 19157
FEATURE TYPE &
Attribute
QUALITY ELEMENTS
COMPLETENESS LOGICAL CONSISTENCY POSITIONAL ACCURACY TEMPORAL ACCURACY THEMATIC ACCURACY
COMMISSION OMISSION CONCEPTUAL
CONSISTENCY
DOMAIN
CONSISTENCY
FORMAT
CONSISTENCY
TOPOLOGICAL
CONSISTENCY
ABSOLUTE
ACCURACY
RELATIVE
ACCURACY
GRIDDED DATA
ACCURACY
ACCURACY
OF A TIME MEASUREMENT
TEMPORAL
CONSISTENCY
TEMPORAL
VALIDITY
CLASSIFICATION
CORRECTNESS
NON-QUANTITATIVE
ATTRIBUTE
CORRECTNESS
QUANTITATIVE
ATTRIBUTE
ACCURACY
AdministrativeBoundaryError count
id 2
Error count
id 6
Error count
id 9
Error indicator
id 119
inspireId Error count
id 65
country Error count
id 65
geometryError count
id 4
Error count
id 21
id 23
id 24
id 27
Error count
id 30
nationalLevel Error count
id 65
length LE99.8
id 73
beginLifespanVersion
endLifespanVersion
Table 7. Quality model of map (part).
Table 7. Quality model of map (part).
Map—QUALITY MODEL
ISO 19157
FEATURE TYPE &
Attribute
QUALITY ELEMENTS
COMPLETENESSLOGICAL CONSISTENCYPOSITIONAL ACCURACYTEMPORAL ACCURACYTHEMATIC ACCURACY
COMMISSIONOMISSIONCONCEPTUAL
CONSISTENCY
DOMAIN
CONSISTENCY
FORMAT
CONSISTENCY
TOPOLOGICAL
CONSISTENCY
ABSOLUTE
ACCURACY
RELATIVE
ACCURACY
GRIDDED DATA
ACCURACY
ACCURACY
OF A TIME MEASUREMENT
TEMPORAL
CONSISTENCY
TEMPORAL
VALIDITY
CLASSIFICATION
CORRECTNESS
NON-QUANTITATIVE
ATTRIBUTE
CORRECTNESS
QUANTITATIVE
ATTRIBUTE
ACCURACY
AdministrativeBoundaryError count
id 2
Error count
id 6
Error count
id 6
hierarchyLevel Error count
id 65
lineSymbol Error count
id 65
lineWidth Error count
id 65
lineColor Error count
id 65
Table 8. Implementation results of the QM of the geospatial database—administrative unit.
Table 8. Implementation results of the QM of the geospatial database—administrative unit.
IDFeatureType/AttributeDQ
ELEMENT
DQ
Sub_ELEMENT
NameOfMeasureMeasureIdentificationDQ_QuantitativeResultResultValueType
1AdministrativeUnitCompletenessCommissionError count20Integer
2AdministrativeUnitCompletenessOmissionError count60Integer
3AdministrativeUnitLogical
consistency
Conceptual
Consistency
Error count90Integer
4AdministrativeUnitLogical
consistency
Format consistencyError indicator119TrueBoolean
5AdministrativeUnitThematic accuracyClassification
Correctness
Error count600Integer
6inspireIdLogical
consistency
Domain consistencyError indicator14TrueBoolean
7countryLogical
consistency
Domain consistencyError indicator14TrueBoolean
8geometryCompletenessCommissionError count40Integer
9geometryLogical
consistency
Conceptual
Consistency
Error count110Integer
10geometryLogical
consistency
Topological
Consistency
Error count253Integer
11geometryLogical
consistency
Topological
Consistency
Error count260Integer
12geometryLogical
consistency
Topological
Consistency
Error count270Integer
13geometryPositional accuracyAbsolute accuracyRoot mean square error391.22Meters
14nameThematic accuracyNon-quantitative attribute correctnessError count600Integer
15nameThematic accuracyNon-quantitative attribute correctnessError count650Integer
16nationalCodeThematic accuracyNon-quantitative attribute correctnessError count650Integer
17nationalCodeLogical
consistency
Domain consistencyError indicator14TrueBoolean
18HCCodeThematic accuracyNon-quantitative attribute correctnessError count650Integer
19HCCodeLogical
consistency
Domain consistencyError indicator14TrueBoolean
20nationalLevelThematic accuracyNon-quantitative Attribute correctnessError count650Integer
21nationalLevelLogical
consistency
Domain consistencyError indicator14TrueBoolean
22nationalLevelNameThematic accuracyNon-quantitative Attribute correctnessError count650Integer
23nationalLevelNameLogical
consistency
Domain consistencyError indicator14TrueBoolean
24surfaceAreaThematic accuracyQuantitative attribute correctnessLE99.873TrueBoolean
Table 9. Implementation results of the QM of the geospatial database—administrative boundary.
Table 9. Implementation results of the QM of the geospatial database—administrative boundary.
IDFeatureType/AttributeDQ
ELEMENT
DQ
Sub_ELEMENT
NameOfMeasureMeasureIdentificationDQ_QuantitativeResultResultValueType
1AdministrativeBoundaryCompletenessCommissionError count20Integer
2AdministrativeBoundaryCompletenessOmissionError count60Integer
3AdministrativeBoundaryLogical
consistency
Conceptual
Consistency
Error count90Integer
4AdministrativeBoundaryLogical
consistency
Format ConsistencyError indicator119TrueBoolean
5inspireIdThematic accuracyNon-Quantitative Attribute CorrectnessError count650Integer
6countryThematic accuracyNon-quantitative Attribute correctnessError count650Integer
7geometryCompletenessCommissionError count40Integer
8geometryLogical
consistency
Topological
Consistency
Error count210Integer
9geometryLogical
consistency
Topological
Consistency
Error count230Integer
10geometryLogical
consistency
Topological
Consistency
Error count240Integer
11geometryLogical
consistency
Topological
Consistency
Error count270Integer
12nationalLevelNameThematic accuracyNon-quantitative Attribute correctnessError count650Integer
13lengthThematic accuracyQuantitative attribute CorrectnessLE99.873TrueBoolean
Table 10. Implementation results of the QM of the cartographic features geodatabase—administrative boundary.
Table 10. Implementation results of the QM of the cartographic features geodatabase—administrative boundary.
IDFeatureType_AttributeDQ
ELEMENT
DQ
Sub_ELEMENT
NameOfMeasureMeasureIdentificationDQ_QuantitativeResultResultValueType
1AdministrativeBoundaryCompletenessCommissionError count2TrueInteger
2AdministrativeBoundaryCompletenessOmissionError count6TrueInteger
3AdministrativeBoundaryLogical
consistency
Conceptual
Consistency
Error count90Integer
4AdministrativeBoundaryLogical
consistency
Format consistencyError indicator119TrueBoolean
5inspireIdThematic accuracyNon-quantitative Attribute CorrectnessError count650Integer
6countryThematic accuracyNon-quantitative attribute correctnessError count650Integer
7geometryCompletenessCommissionError count40Integer
8geometryLogical
consistency
Topological
Consistency
Error count210Integer
9geometryLogical
Consistency
Topological
Consistency
Error count230Integer
10geometryLogical
consistency
Topological
Consistency
Error count240Integer
11geometryLogical consistencyTopological
Consistency
Error count270Integer
12geometryPositional accuracyAbsolute accuracyNumber of positional uncertainties above a given threshold309.28Meters
13nationalLevelThematic accuracyNon-quantitative attribute correctnessError count650Integer
14lengthThematic accuracyQuantitative attribute correctnessLE99.873TrueBoolean
Table 11. Implementation results of the QM of the map—administrative boundary.
Table 11. Implementation results of the QM of the map—administrative boundary.
IDFeatureType_AttributeDQ
ELEMENT
DQ
Sub_ELEMENT
NameOfMeasureMeasureIdentificationDQ_QuantitativeResultResultValueType
1AdministrativeBoundaryCompletenessCommissionError count2 Integer
2AdministrativeBoundaryCompletenessOmissionError count6 Integer
3AdministrativeBoundaryThematic accuracyClassification
Correctness
Error count60 Integer
4hierarchyLevelThematic accuracyNon-quantitative attribute correctnessError count65 Integer
5lineSymbolThematic accuracyNon-quantitative attribute correctnessError count65 Integer
6lineWidthThematic accuracyNon-quantitative attribute correctnessError count65 Integer
7lineColorThematic accuracyNon-quantitative attribute correctnessError count65 Integer
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kavadas, I.; Tsoulos, L. An Integrated Environment for Monitoring and Documenting Quality in Map Composition Utilizing Cadastral Data. ISPRS Int. J. Geo-Inf. 2022, 11, 348. https://doi.org/10.3390/ijgi11060348

AMA Style

Kavadas I, Tsoulos L. An Integrated Environment for Monitoring and Documenting Quality in Map Composition Utilizing Cadastral Data. ISPRS International Journal of Geo-Information. 2022; 11(6):348. https://doi.org/10.3390/ijgi11060348

Chicago/Turabian Style

Kavadas, Ioannis, and Lysandros Tsoulos. 2022. "An Integrated Environment for Monitoring and Documenting Quality in Map Composition Utilizing Cadastral Data" ISPRS International Journal of Geo-Information 11, no. 6: 348. https://doi.org/10.3390/ijgi11060348

APA Style

Kavadas, I., & Tsoulos, L. (2022). An Integrated Environment for Monitoring and Documenting Quality in Map Composition Utilizing Cadastral Data. ISPRS International Journal of Geo-Information, 11(6), 348. https://doi.org/10.3390/ijgi11060348

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
