Regional Responses of the Northern Hemisphere Subtropical Jet Stream to Reduced Arctic Sea Ice Extent

by
José Luis Rodriguez Solis
*,†,
Cuauhtémoc Turrent
† and
Markus Gross
†,‡
Department of Physical Oceanography, Ensenada Center for Scientific Research and Higher Education, CICESE, Ensenada 22860, Mexico
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
Deceased 25 January 2022.
Climate 2022, 10(7), 108; https://doi.org/10.3390/cli10070108
Submission received: 15 June 2022 / Revised: 9 July 2022 / Accepted: 10 July 2022 / Published: 16 July 2022
(This article belongs to the Special Issue Feature Papers for Section "Climate Dynamics and Modelling")
Browse Figures
Versions Notes

Abstract

:
The effect of Arctic sea ice loss on the boreal winter regional trends of wind speed and latitudinal position of the Northern Hemisphere subtropical jet stream (STJ) in 1980–2012 is investigated. Two sets of global simulations with reduced Arctic sea ice extent are analyzed: simulations that, south of 70 N, use a climatological annual cycle of the sea surface temperature (SST) and a second set that uses full SST variability. Results with the climatological SST have a significant but weak response of the STJ wind speed and latitudinal position to the warmer Arctic: the wind speed generally decreases and the jet core is displaced equatorward. However, in the realistic SST simulations, the effect of Arctic warming is only slightly evident in a small equatorward shift of the jet over the Atlantic basin. Over the Pacific basin the STJ is mostly driven by tropical and mid-latitude SST variability, with little influence from the Arctic region. A weakening and poleward shift of the STJ that is observed in the realistic SST simulations over the Pacific basin is attributed to negative SST trends in the tropical Pacific and the consequent weakening of the mid-latitude meridional gradient of geopotential height in the upper troposphere.

1. Introduction

The temperature contrast between the tropics and polar regions is the cause of subtropical jet streams (STJ) [1,2]. In the Northern Hemisphere, the recent rapid Arctic warming [3,4,5,6] has weakened the mid-latitude meridional temperature gradient in the lower atmosphere [5,7]. Furthermore, recent studies have found that the warming of the subtropical oceans observed since 1979 has induced an expansion of the Hadley Cells (HC) [8,9]. These two competing elements have led to a “tug of war” for the latitudinal position and strength of the STJ [10,11,12,13]. Observational studies indicate that in recent decades the STJ has shifted poleward [14,15,16,17] and is weaker [18]. These trends have been attributed to the widening of the tropics through the poleward shift of the latitude at which the meridional temperature gradients are largest [8,9]. Furthermore, the STJ responses to climate forcings have been found to differ regionally due to specific large-scale teleconnections patterns [14,16,17,19].
The rapid warming of the high latitudes has been proposed to cause an increase of geopotential heights in the polar troposphere, reducing both meridional thickness and surface temperature gradients, which in turn favor a weakening of the mid-latitude upper-level zonal wind field through the thermal wind relationship and ultimately cause the STJ to be wavier and slower [5,7,20]. In contrast to observational studies, numerical experiments with global climate models in which Arctic near-surface air temperatures are caused to increase through reduction of the sea ice extent have produced an equatorward displacement of the jet stream [21,22,23,24,25,26,27,28] and the sensitivity of its response to Arctic warming has also been found to differ regionally [29,30]. The link between the STJ and the Arctic is not well established and continues to be the subject of scientific research due to the low statistical significance found in the corresponding observations [11,31,32,33].
Like all other components of the atmospheric circulation, the STJ are subject to natural variability and are involved in different teleconnection patterns that depend on the jet’s position and strength [34]. For example, on the Pacific basin interannual time scale, the El Niño Southern Oscillation (ENSO) modulates upper ocean heat content in the tropics, and is associated with the contraction (El Niño) and expansion (La Niña) of the HC, which in turn displaces the STJ from its climatological position towards the equator or polewards, e.g., [8,35,36,37]. Similarly to ENSO, the Pacific Decadal Oscillation (PDO) has a strong influence on the size of the HC [38,39]. During boreal winter, the speed -and to some extent the latitudinal position- of the North Atlantic STJ is affected by the North Atlantic Oscillation (NAO) [40,41]. At high latitudes, the dominant mode of variability of the sea level pressure (SPL) is the Arctic Oscillation (AO) [42], which has regionally differing effects on the STJ and mid-latitude eddy activity [43]. For example, when the AO is in its positive phase, the STJ strengthens over Northwest Europe, but weakens over the Pacific basin [44]. Over East Asia and the Pacific Ocean, a major low-frequency variability mode is the Pacific North America pattern (PNA). Its positive phase is associated with an increase in the strength of the STJ over Asia which extends over the western Pacific, while its negative phase is related to a westward contraction over Asia [45].
In this work, we examine the variability of the intensity and latitudinal position of the boreal winter STJ over different regions of the Northern Hemisphere through the use of numerical experiments. The effect of Arctic warming (AW) induced by the loss of sea ice on the variability of the STJ is studied using a global climate model forced by two ocean states. The first uses a climatological sea surface temperature (SST) annual cycle to establish the STJ response to Arctic forcing, while a second set of experiments use complete SST variability to examine STJ trends in the context of natural climate variability. The 200 hPa geopotential height field and mid-latitude eddy activity are used to evaluate the influence of Arctic warming on the latitudinal position and intensity of the STJ over a 33 year period.

2. Methods and Data

The numerical model and experimental designs used in this work to simulate a warmer Arctic through reduction of its sea ice extent are described below. Indices and geographic regions used to analyze the STJ variability are also detailed.

2.1. Model Description

The atmospheric model used in this study is the Community Earth System Model (CESM) version 1.2.2 [46]. The full CESM model consists of coupled components for the atmosphere, ocean, land, and sea-ice. However, only the standard CESM component set F_AMIP_CAM5 was used, which runs the Community Atmosphere Model version 5 (CAM5) [47] in stand-alone mode, coupled to the Community Land Model version 4 [48]. The selected component set follows the Atmospheric Model Intercomparison Project (AMIP) protocol [49]. The simulations have a horizontal resolution of 2.5 ∘ longitude and 1.9 ∘ latitude with 30 vertical levels, extending to 3.6 hPa in a hybrid sigma-pressure vertical coordinate. Prescribed sea ice cover and SST data used for the surface boundary conditions are based on the reanalysis product from the Met Office Hadley Center Sea Ice and Sea Surface Temperature data set (HadISST) [50]. Data for the initial condition fields were obtained from the National Center for Atmospheric Research at https://svn-ccsm-inputdata.cgd.ucar.edu/trunk/inputdata (accessed on June 2022) and greenhouse gas concentrations, aerosols, solar variability, etc., are based on observational estimates [46,51]. The numerical simulations, described in the following section, were run to produce fifteen member ensembles for each control and experimental condition. Each model run has 34 years of integration, starting on the 1st of January 1979, with the first year discarded as spin-up. Therefore, each ensemble is made of a total of 495 simulated years. The individual members of any given ensemble differ from each other by random perturbations (magnitude of 1 × 10 − 14 ) to the initial conditions of the atmospheric 3D temperature field [52], which, combined with the ensemble’s size, ensure a reasonable spread over the possible pathways of the climate system in the model [53].

2.2. Experimental Design

We calculated two SST scenarios, each with control and reduced Arctic sea ice extent (low_ice) experimental ensembles. The scenarios consist of:
  • simulations with a climatological SST annual cycle and,
  • simulations using full global SST variability.
The difference between the control and experimental simulations, in both experimental settings, was the treatment of the SST and sea ice extent fields in the Arctic region. For the low_ice experiments, the annual cycles of the sea ice and SST fields at latitudes greater than 70 ∘ N were fixed to the 2012 annual cycle for all the simulated years. Observed data for this year marked a record (up to that year) for the lowest Arctic sea ice extent in recent decades as reported by the National Snow and Ice Center, NSIDC. In the 60 ∘ N to 70 ∘ N latitude band, the sea ice and SST data were linearly interpolated between the respective 2012 values and their corresponding lower latitude values, as necessary to avoid abrupt discontinuities in the SST fields. The description of the two experiments is given below.
Global climatological lower boundary condition experiments: We calculated control and experimental ensembles using a climatological (1979–2012) SST annual cycle below 60 ∘ N (referred to as SSTclim). This configuration eliminates SST variability and its leading modes, such as ENSO, as the major source of internal climate variability (ICV, e.g., [54,55,56]). In the control simulations, Arctic SST and sea ice conditions above 70 ∘ N were updated monthly with corresponding real values of each year. This maintained the long-term contribution of the Arctic warming to the polar lower boundary conditions in the control simulations. For the low_ice experiments, the SST and sea ice annual cycles for the year 2012 were repeated annually poleward of 70 ∘ N.
Global variable lower boundary condition experiments: In these simulations (referred to as SSTreal), the control simulations use real SST and sea-ice conditions, updated mont y for the global domain. They therefore have the influence of tropical and midlatitude SST variability. As before, the low_ice experiments repeat the 2012 Arctic surface boundary conditions northward of 70 ∘ N for every simulated year.

2.3. Regionalization and STJ Indices

Jet streams are not continuous across the globe over fixed latitude bands. In order to distinguish regional STJ variability, six sectors were defined a priori throughout the mid-latitudes of the Northern Hemisphere based on the calculations of wind speed and wind speed trends shown in Figure 1. The first two sectors cover the continental regions of Europe (Eu) and Asia (As) (Figure 1). The Pacific Ocean was divided into two parts: the Western Pacific (wP), which spans the section of the STJ with the highest wind speeds (Figure 1a), and the Eastern Pacific (eP), where the jet is weaker and more variable. These two regions are characterized by having very clear trends in the intensity of the STJ [18] (Figure 1b). Another continental region was defined over North America and the sixth one over the North Atlantic. STJ intensity and position indices were calculated for each of the regions, in addition to indices that describe the variability of the meridional geopotential gradients and mid-latitude grid-resolved eddy activity. The descriptive indices of the STJ are addressed below.
The latitudinal position and wind speed of the Northern Hemisphere STJ were calculated using mass flux-weighted averages between 400 hPa and 100 hPa and 15 N–60 N, following the metrics proposed by Archer and Caldeira [18]. The approach used to estimate the latitudinal position and intensity of the STJ is to weigh values by the mass transport. The idea of Archer and Caldeira [18] is that jet streams are regions characterized by high wind speed and mass transport. Therefore, the contribution of regions with low wind speeds to the value of the indices is minimized. Both the upper limit of atmospheric layer (100 hPa) and latitudinal band (15 N–60 N) used in the calculations were selected to focus the values of the indices on the STJ, avoiding the influence of the high latitude polar jet. An area-weighted average for each individual region of Figure 1 was also applied.
The 200 hPa geopotential height field was used to analyze changes in the meridional gradients using spherical coordinates. The term − r − 1 ∂ ϕ / ∂ θ was area-weighted for each region in Figure 1 as follows:
G I = − ∑ j = 1 m ∑ i = 1 n 1 r ∂ ϕ i , j ∂ θ a i , j A .
Here, ϕ is the geopotential height at 200 hPa, a i , j is a corresponding grid area, A indicates the total area of a given region, r is the radius of Earth, i and j indicate the latitude and longitude position of the grid points, θ is the latitude, and n and m are the longitude and latitude grid sizes. This expression is normalized with the standard deviation (S) to obtain a Normalized Gradient Index ( N G I ):
N G I = − G I − μ c t l S c t l ,
where μ c t l is the temporal average and S c t l is the standard deviation of G I , both for the control ensemble. The index has values between −3 and 3. Positive (negative) values imply strong (weak) meridional gradients of the geopotential field.
Mid-latitude eddy activity was quantified using the eddy momentum flux convergence, as proposed by Li and Wettstein [58]:
E = 1 r c o s 2 θ ∂ ( u ′ v ′ c o s 2 θ ) ∂ θ ,
where primed values were obtained with a 10th order Butterworth bandpass filter [59] with a 2–8 day cutoff period, which is appropriate for the mid-latitude synoptic timescales such as those of extratropical cyclones or Rossby waves [60,61,62,63]. Using spherical coordinates, the index ( i E ) is also defined as a mass- and area-weighted average:
i E = ∑ k = p 1 p 2 ∑ j = 1 m ∑ i = 1 n E i , j , k Δ p i , j , k a i , j , k P · A .
Here, Δ p i , j , k is the pressure difference between levels k and k − 1 , and P = p 1 − p 2 . The values for p 1 and p 2 are 400 hPa and 100 hPa, respectively. As in N G I , the i E index was normalized with the standard deviation. All indices were time-averaged over the winter season, December to February (DJF).

2.4. Other Statistics and Climatic Indices

Additionally, the two-tailed Student’s t-test was performed to determine the statistical significance of the differences between the control and experimental ensembles. All trends were calculated using the ‘Sen’ slope estimate method [64], using the non-parametric Mann-Kendall test for statistical significance [65].
Different winter climatic indices were used to explore their relationship with the intensity and latitudinal position of the STJ in the control and experimental ensembles. Indices for the AO, NAO, and PNA were calculated from the definitions compiled by the Climate Prediction Center (available online at https://www.cpc.ncep.noaa.gov/products/precip/CWlink/daily_ao_index/teleconnections.shtml (accessed on June 2022) and references therein) with data from the control and experimental ensembles of the SSTreal case.
The AO index is computed from the normalized series of the leading mode of the Empirical Orthogonal Function (EOF) analysis of geopotential height anomalies at 700 hPa in the 20 N–90 N domain. Likewise, the NAO index is calculated from the first EOF mode of the 500 hPa standardized geopotential height anomalies in the 20 N–80 N and 90 W–40 E domain. The index for the PNA was calculated using the modified Pointwise method used in Wallace and Gutzler [66] with standardized 500 hPa geopotential height anomaly data. The anomalies used in the computation of the climatic indices are referenced to the period 1981–2000.
The Oceanic Niño Index (ONI) was used to represent the Pacific Ocean tropical variability. ONI data were obtained from https://www.cpc.ncep.noaa.gov (accessed on June 2022). The Pacific Decadal Oscillation (PDO) index was obtained from https://www.ncdc.noaa.gov (accessed on June 2022), calculated using the HadISST1.1 dataset.
For the NAO and PNA composites, only winters with a strong index value (|index|>0.5) were selected. Positive phase ENSO winter composites were calculated for the winters: 80, 83, 87, 88, 92, 95, 98, 03, 05, 07, 10 and 11, and negative ENSO: 84, 85, 89, 96, 99, 00, 01, 06, 08, 09, 12. Winters were selected with the DJF mean ONI index and are referred to here by the year of the month of February of each selected season.

3. Results

The results are organized as follows. First, in Section 3.1, we examine the large scale winter atmospheric response to the imposed changes in the sea ice and SST fields over the Arctic region through the responses of the near-surface air temperature (T2m) and sea level pressure (SLP), and upper troposphere (200 hPa) geopotential height. Zonal winds are analyzed in Section 3.2. Statistics for the position and wind speed of the STJ are presented in Section 3.3. Regional time series of the STJ indices are analyzed in Section 3.4. Finally, in Section 3.5 we explore changes in the relation between the STJ and the different climate oscillations under Arctic warming conditions, using the SSTreal simulations.

3.1. Large Scale Climate Response in the Arctic Warming Experiments

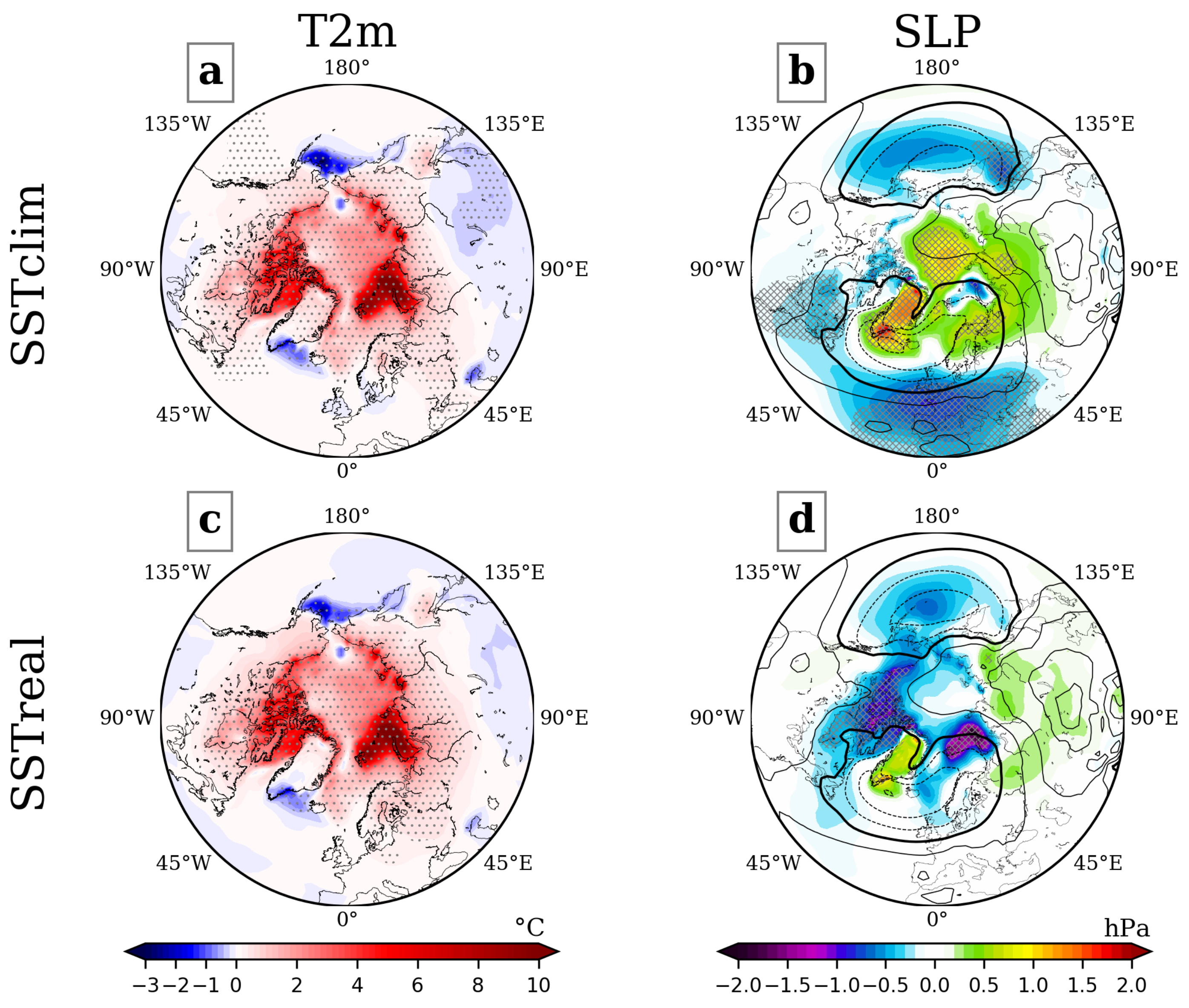

Both experimental ensembles with low sea ice extent in the Arctic produced warmer conditions in the high latitude lower atmosphere (Figure 2a,c). The near-surface temperature responses in both cases have similar spatial patterns. The strongest warming occurred over the Barents and Kara Seas, with winter mean temperature differences greater than 10 ∘ C between the control and experimental ensembles. The experimental conditions produced warming greater than 5 ∘ C over the Canadian Archipelago. Negative anomalies, of up to −3 ∘ C, occurred in the Aleutian and Icelandic Low regions. Weaker anomalies of −0.5 ∘ C occurred over Asia and Eastern Europe, but they were only statistically significant in the SSTclim case. Even though the negative anomalies over Eurasia are small, this feature is similar to the “Warm Arctic—Cold Continents” (WACC) pattern that has been recognized as an effect of the reduction of Arctic sea ice [5,67,68,69,70]. Some studies have suggested that this pattern results from warmer Arctic conditions favoring the occurrence of negative NAO/AO events, which in turn are associated with more severe winters over Eurasia [5,28,67,68,71,72]. The WACC pattern has also been identified in General Circulation Models (GCMs) that used low prescribed Arctic sea ice extent., e.g., [28,68,73].
In the SSTclim case, the SLP response has positive anomalies over most of the Arctic Ocean (Figure 2b). Positive responses greater than 1 hPa were observed from the East Siberian Sea to the Kara Sea, as has been described in previous studies [28,68,74,75,76]. These anomalies are related to the strengthening and northward elongation of the Siberian high pressure system, which in turn is linked to the small negative temperature anomalies that occurred in that region. The slight northward shift of the Siberian high produced a southward displacement and weakening of the Icelandic Low and hence the positive anomalies over Greenland and negative anomalies over the North Atlantic. Small negative anomalies, −0.5 hPa, were observed in the Aleutian Low region. Although in our results these anomalies are nonsignificant, they correspond to an intensification of that pressure system [12,74,76,77,78].
In the SSTreal case, negative anomalies also occurred in the Aleutian Low region. This SLP response has been consistently reported by numerical studies that used low prescribed Arctic sea ice extent and climatological SST [76], similar to our SSTclim case. It is noteworthy to observe that the intensification of the Aleutian low as a response to Arctic sea ice loss persisted even when full SST variability is used (Figure 2d). The positive SLP response over Siberia in SSTreal has a smaller magnitude compared to the SSTclim case and is not significant. Because the Siberian High did not extend northward in SSTreal as it did in SSTclim, the SLP response over the Arctic was more influenced by the near-surface warming produced by sea ice loss in the former than in the latter case. This explains the differences observed between both SLP responses, despite the fact that the T2m responses are similar.
The response of the upper troposphere to the experimental conditions was examined with the winter 200 hPa geopotential height field (Z200). In Figure 3a, positive anomalies are observed over the Arctic, extending to 60 N and even lower latitudes over Eurasia and the North Atlantic. The largest differences are observed in the SSTclim case, with anomalies greater than 20 m coinciding with locations where the T2m anomalies are also strongest. The magnitude of the response over the Arctic decreased in the SSTreal case (Figure 3b) because of the greater interaction between high and lower latitudes driven by the SST variability and the corresponding increased variance of Z200.
The Z200 response in the mid-latitudes was markedly different in the two experimental cases. Strong mid-latitude negative Z200 anomalies were observed in the SSTclim case over eastern Asia, eastern North America and western Europe. Previous studies have found a similar atmospheric response to reduced Arctic sea ice that resembles the negative AO phase, with tropospheric expansion and a weakened polar vortex [30,67,79,80,81]. The mid-latitude negative anomalies seen in Figure 3a are related to blocking patterns over those regions that have also been addressed in previous literature [82,83,84,85].
In the SSTreal case (Figure 3b), the mid-latitude negative anomalies are only observed over the southern Bering Sea and they are weak and non-significant. In addition, the negative anomalies observed over Europe in SSTclim shifted to a weak positive response in SSTreal.
The clear differences in the low-sea ice experimental responses between the idealized SSTclim case and the realistic SSTreal case illustrate that the mid-latitude response to Arctic warming is diminished by natural variability. The effects of the Arctic low-level atmospheric warming on the upper tropospheric expansion are meaningfully different when the full variability of the SST is used, as is illustrated by the results presented below.

3.2. Regional Response of the Zonal Wind

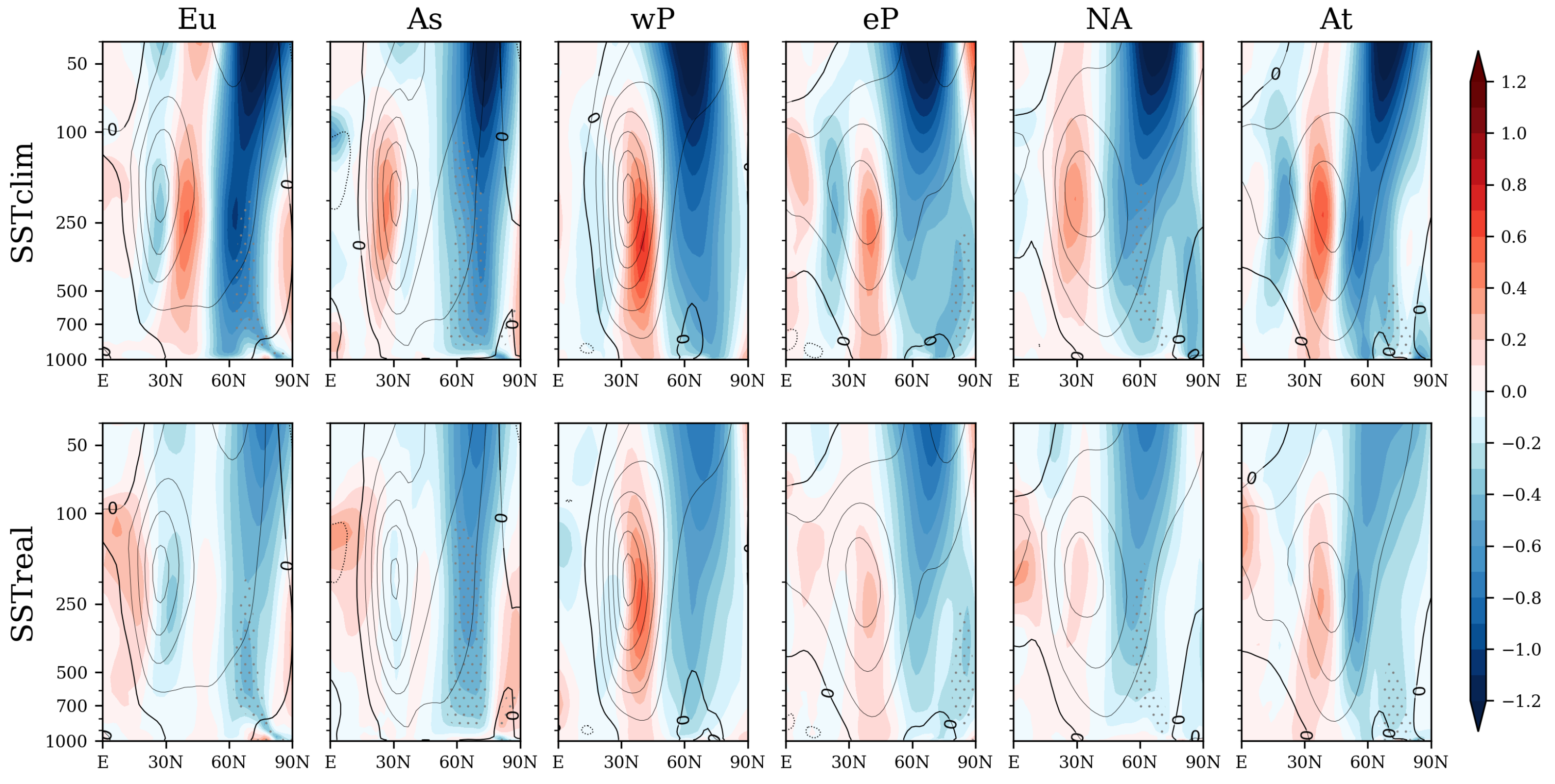

The mean zonal wind response for each region is shown in Figure 4. A robust characteristic of the zonal wind response to the reduction of Arctic sea ice in numerical models has been the weakening of the westerly winds north of 50N, in the poleward flank of the jet [28,76]. A similar response was found in this work. Both SST cases had weaker zonal winds in the high latitudes (approximately 50 N to 80 N) that extended from the surface to the upper troposphere and lower stratosphere. This weakening of the zonal wind was greatest in the upper atmosphere and is consistent with the Z200 pattern seen in Figure 3. It is therefore the response of the circulation to the thermal expansion of the troposphere over the Arctic region, as expected from the thermal wind relation. As with Z200, the magnitude of the response was also weaker in the SSTreal case.
In the mid-latitudes, the response pattern in Figure 4 has alternating signs, especially near the height of the STJ core (between 500 hPa and 100 hPa). Similar results have been reported in other studies, and the pattern is attributed to an equatorward shift of the STJ [28,74,75,76]. A detailed discussion of this point is given below. Again, the differences were smaller in magnitude in the SSTreal case.

3.3. STJ Wind Speed and Position

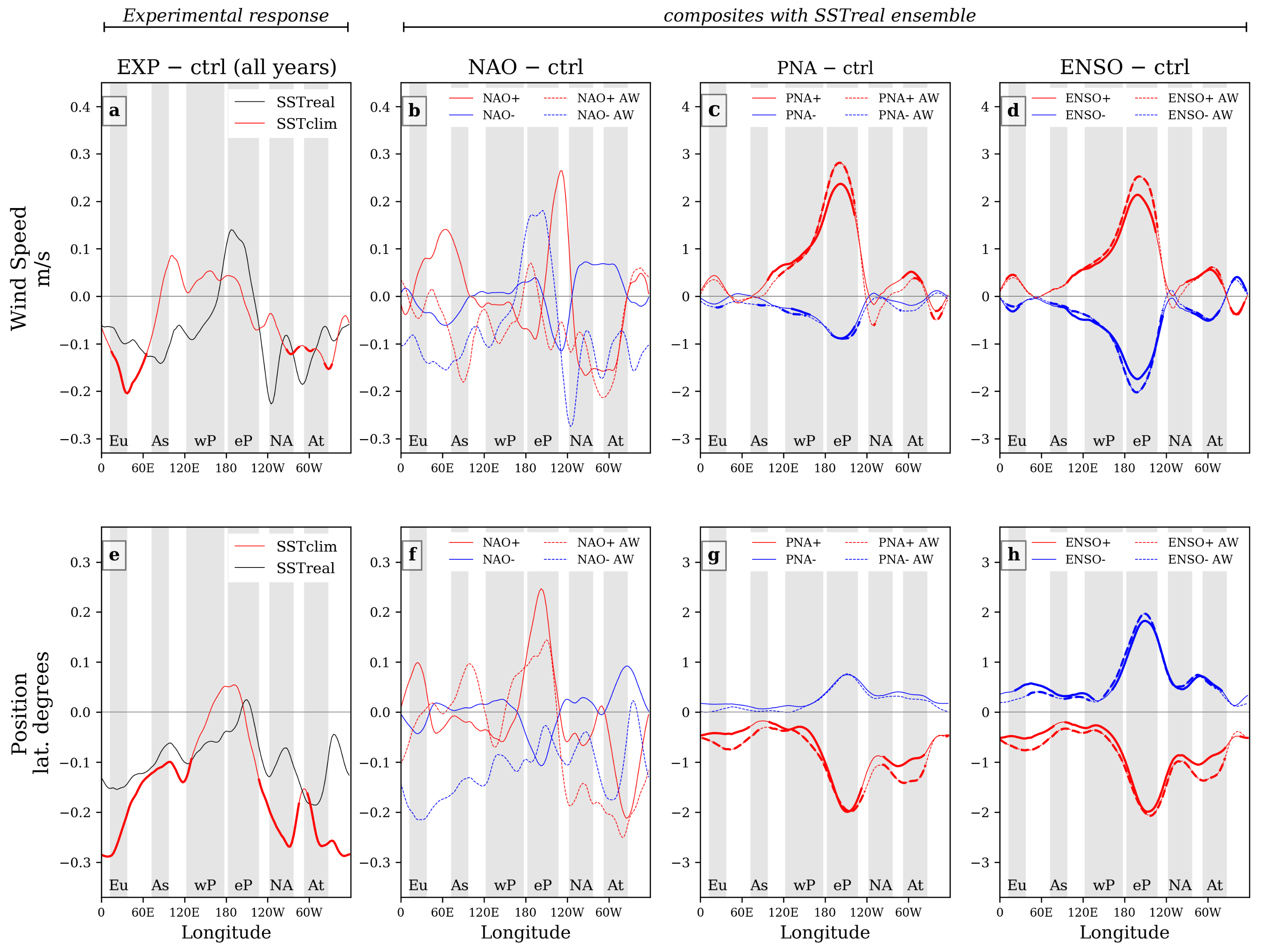

The longitudinal responses of the wind speed and latitudinal position of the STJ that are shown in Figure 5 were calculated using the metrics described above (Section 2.3). This calculation was made to determine which regions had larger STJ responses to Arctic warming and how those responses compare to different measures of the internal climate variability. In the SSTclim case (red curve, Figure 5a) the winter STJ was significantly weaker compared to the control ensemble in the Eu region, with a mean difference in intensity of −0.2 m/s. Similar negative responses occurred in the NA and At sectors. In the SSTreal case the STJ was weakened in the experimental ensembles throughout most of the Northern Hemisphere except in the eP region, but the response was not significant. A positive response of the STJ intensity occurred in the As region and in most of the Pacific basin in the SSTclim case, and in the eP region in SSTreal.
The STJ generally responded to the Arctic low-ice forcing with an equatorward displacement of the jet core (Figure 5e). This result agrees well with recent studies, e.g., [27,28,76]. The displacements were larger and statistically significant in the SSTclim case (>0.2 degrees of latitude in the Eu, NA and At regions). Notably, the displacement did not occur in the central (in the case of SSTclim) or eastern (for SSTreal) Pacific regions.
Using well established methodologies (see Section 2.4), climate indices for the NAO, PNA and ENSO were calculated from the SSTreal simulations. A composite analysis of the STJ wind speed and latitudinal position was then computed for each climate oscillation (Figure 5b–h). The corresponding long term mean of the SSTreal control ensemble was subtracted from the average winter values of positive and negative years of the NAO, PNA and ENSO, for both the control and experimental results of SSTreal.
The positive NAO winter composite for the control ensemble (red continuous curve in Figure 5b) had a stronger STJ over Eurasia and the eastern Pacific compared to the long term mean. During negative phase events, the STJ was weaker over Eurasia and the eastern Pacific, and stronger in the NA and At regions, mirroring the behaviour of the positive NAO phase. Despite the fact that the effect of the NAO on the STJ wind speed and latitudinal position was not significant in either SSTreal ensemble, the positive and negative NAO composites from the control ensemble have a response that roughly mirrors each other in every region. This result suggests that the NAO climatic pattern is well captured in the modeled atmosphere, as is its influences on the strength and position of the STJ. It is interesting to note that this mirrored relation is lost in the warmer Arctic ensemble. Compared to the results from the control ensemble, both positive and negative NAO events in the warmer Arctic ensemble produced a weaker STJ in all regions except in eP.
In the NAO analysis for the STJ latitudinal position (Figure 5f), the most notable difference with a warmer Arctic was the greater equatorward displacement of the jet stream during negative NAO events (again with the exception of the eP region). This result can be related to the occurrence of more blocking patterns over Greenland, as has been suggested by previous studies, e.g., [40,82,84,86] that have linked stronger negative NAO events to Arctic warming conditions [72,87,88].
Unlike the NAO composites, which have differences that are of similar magnitudes to those of both experimental responses to Arctic warming (compare Figure 5a vs. Figure 5b and Figure 5e vs. Figure 5f), the ENSO and PNA oscillations produced STJ wind speed and latitudinal position responses that are an order of magnitude greater. The positive ENSO and PNA composites had an increase in STJ wind speed greater than 2 m/s in the eP region in the SSTreal control ensemble (Figure 5c,d). Responses to the negative ENSO and PNA events largely mirror those of the positive phase events. The strength of the responses to positive phase events increased slightly in the Arctic warming ensemble (red continuous and dashed lines in Figure 5c,d), but the experimental conditions had no effect on the STJ position response to ENSO and the PNA (Figure 5g,h).

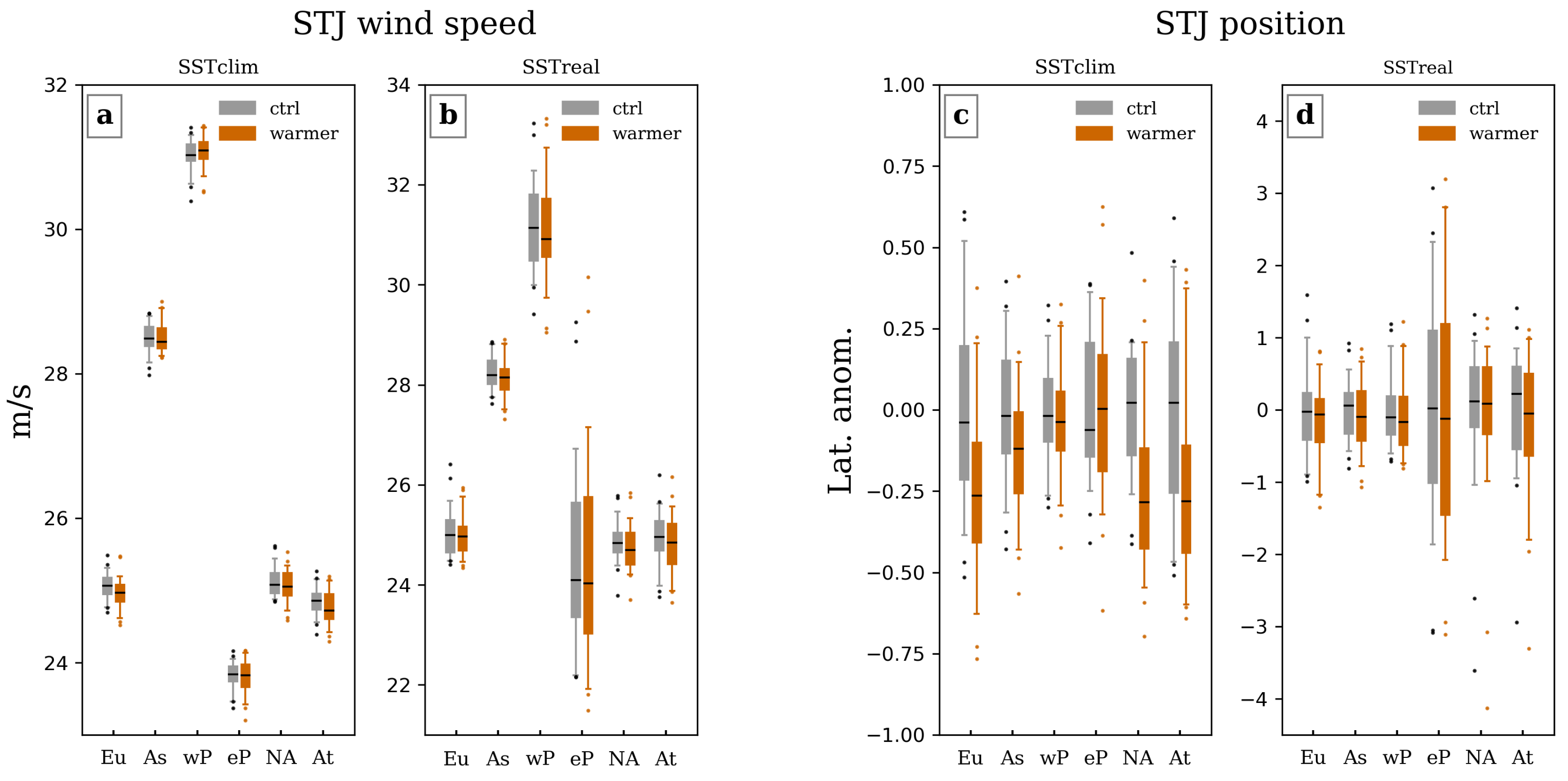

Some aspects of the distributions of the wind speed and latitudinal position of the STJ are presented in Figure 6. The wind speed distributions of the STJ (Figure 6a,b) are similar in the control and experimental ensembles of both SST cases. However, the greater variability of the STJ wind speed in the SSTreal ensembles is also evident, especially over oceanic regions. In particular, the interquartile range increased by a factor of roughly ten over the Pacific Ocean in the realistic SST ensembles. The SSTreal wind speed response to the Arctic forcing (Figure 5a) is therefore reduced to a greater degree by the STJ variability (compared to SSTclim), which is a likely explanation for why it was not significant. The clearest effect of the Arctic warming on the STJ is the equatorward displacement which is evident in Figure 6c. Again, the greater climate variability of the SSTreal ensembles diminished this response. However, it is interesting to note to what degree the latitudinal position of the STJ (Figure 6d) is controlled by tropical, rather than polar, processes, especially over the Pacific basin.

3.4. STJ Indices

The following two subsections include results for the time evolution of the STJ wind speed, latitudinal position, N G I and i E indices, for both SST scenarios.

3.4.1. SSTclim Case

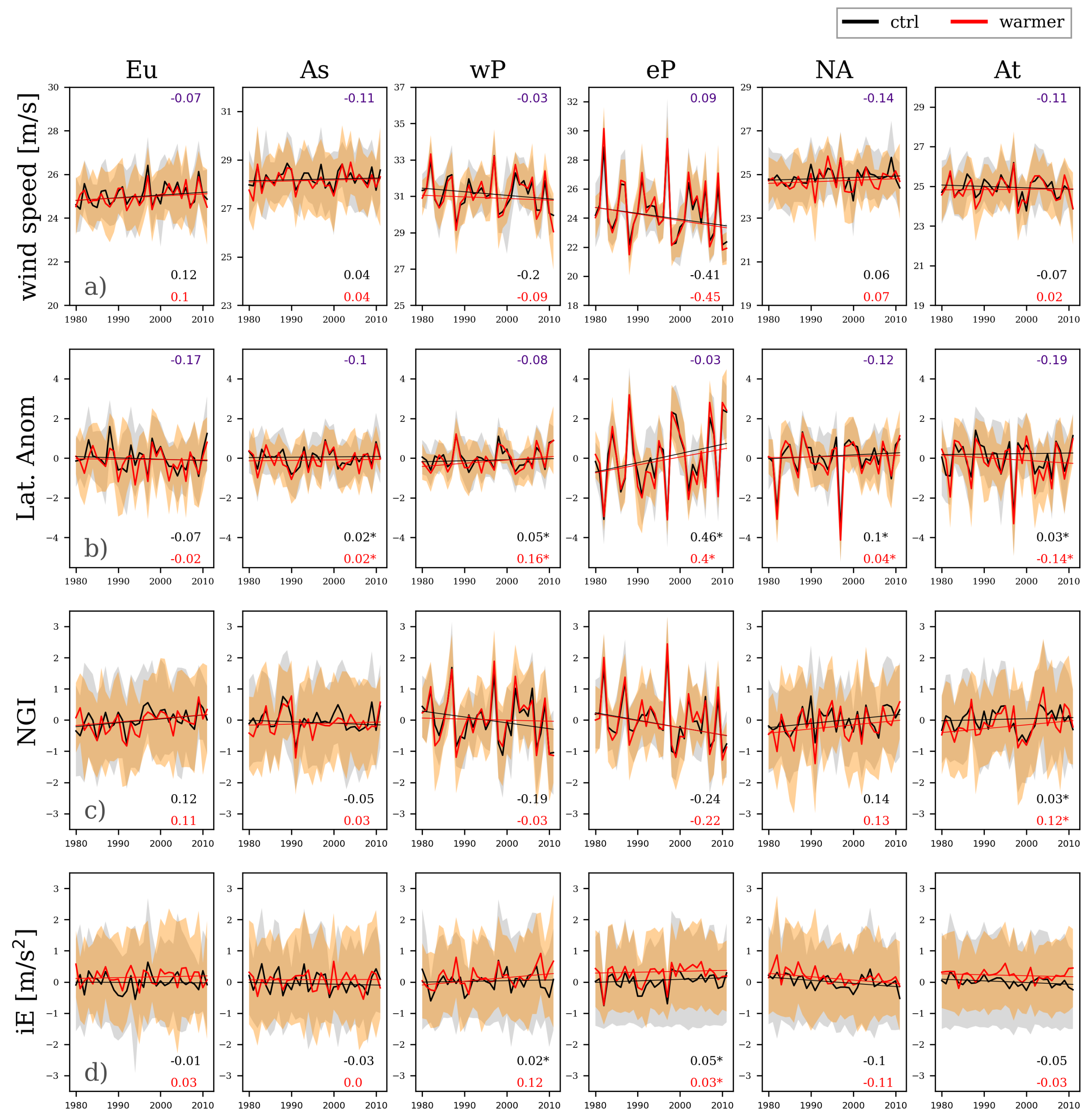

Figure 7a,b show the variability of the STJ wind speed and latitudinal position for the SSTclim case. No significant trends over the study period that are attributable to the low sea-ice Arctic warming condition are observed. However, as mentioned above, an equatorward displacement of the STJ of ∼0.25 lat. degrees occurred in the Eu, NA and At regions (Figure 7b). The gradient index, shown in Figure 7c, indicates no significant changes over the study period in the mid-latitude meridional geopotential gradients, except in the NA and At regions, where a slight weakening of the gradients occurred. The iE index did not change under the warmer Arctic conditions, indicating that the mid-latitude eddy activity remained the same as in the control ensemble.

3.4.2. SSTreal Case

In this more realistic case, with full SST variability, no meaningful changes were observed between the control and experimental ensembles. The climatic variability induced by the SST diminished the southward positions of the STJ that are observed in SSTclim. However, the following observations can be made of the SSTreal results. There are strong negative trends of the STJ wind speed over the Pacific Ocean, mostly in the eP region (Figure 8a), both in the control and the experimental ensembles. Similar trends were found with observational data on the jet stream intensity [7,14,18]. Here, it is observed that when realistic SST variability is used, the Arctic sea-ice reduction does not influence the STJ wind speed (Figure 6b and Figure 8a). However, another climatic factor that influenced both the experimental and control ensembles did weaken the STJ wind speed over the Pacific basin. It is addressed below.
As with the STJ wind speed, no significant changes occurred between the control and experimental ensembles for the latitudinal position (Figure 8b), with the exception of the At region, where the STJ was displaced southward by 0.19 lat. degrees in the experimental ensemble. This equatorward displacement was accompanied with a weakening of the meridional gradients (Figure 8c), and an increase of the mid-latitude eddy activity (Figure 8d). Furthermore, in the eP region, a significant positive trend was observed such that the jet stream shifted poleward in both SSTreal ensembles throughout the study period.
The wind speed and latitudinal position variability of the jet stream over the Pacific basin are explained by the trends in the meridional geopotential gradients. Figure 8c presents the time series for the N G I index. When the N G I is positive (negative), the STJ wind speed increases (decreases) and is displaced equatorward (poleward). An intense (and more zonal) jet allows less elongations and synoptic events at mid-latitudes. Hence the iE decreases (increases). This relation is stronger in the eP region ( r ( N G I , E N S O ) = 0.91 ) than in the wP ( r ( N G I , E N S O ) = 0.81 ) sector. It can be most clearly observed in years with strong El Niño events in Figure 8a,b (1983 and 1998). This result suggests that STJ variability over the Pacific basin is mostly thermally driven [58,89].

3.5. Correlations between the STJ and Ocean-Atmosphere Climate Oscillations

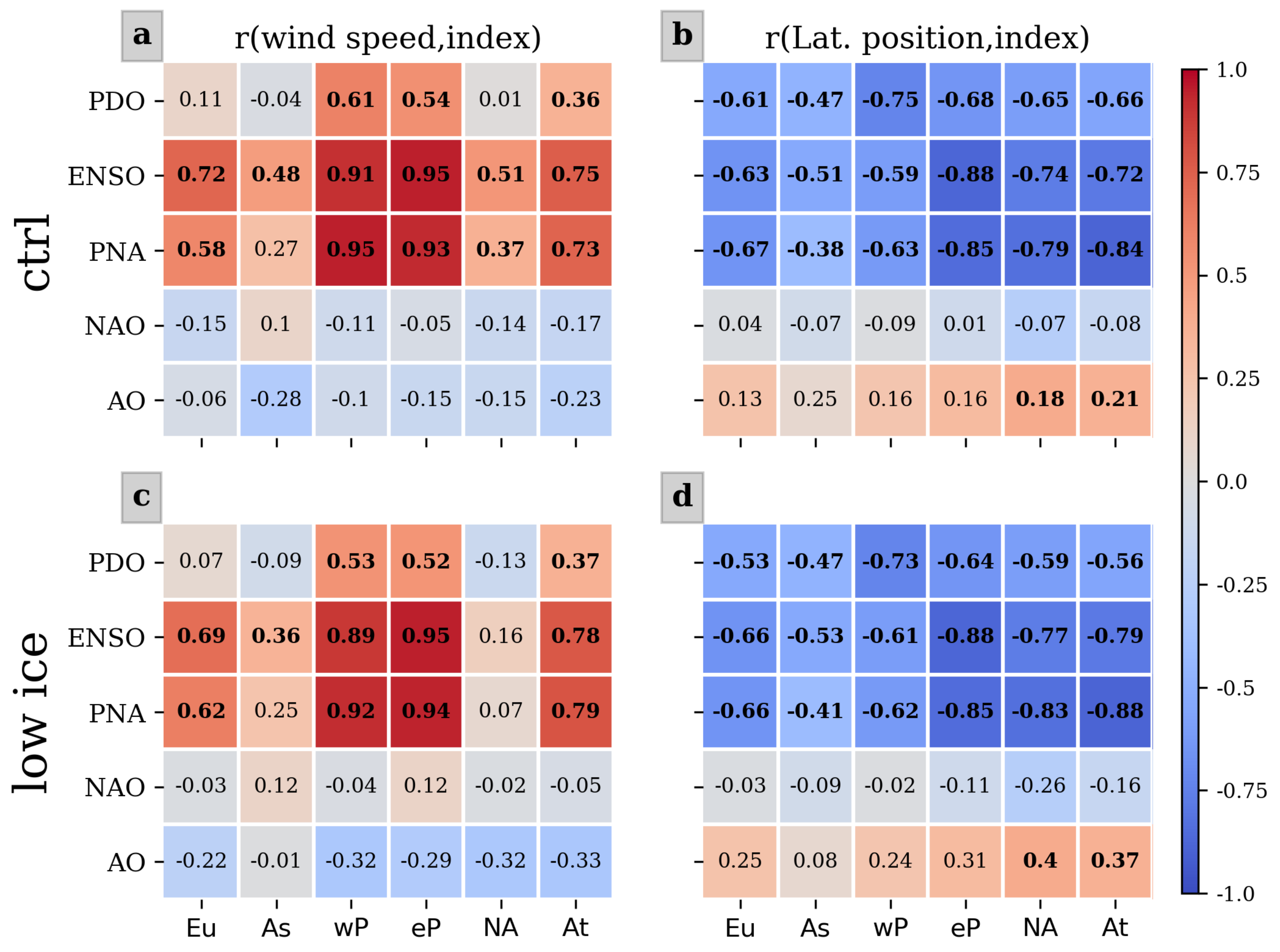

Correlations between the wind speed and latitudinal position ensemble mean series from SSTreal (showed in Figure 8a,b) and corresponding ocean-atmosphere oscillation indices (PDO, ENSO, PNA, NAO, and AO) were computed. The results show that ENSO, PNA and the PDO are the leading modulators of the winter variability of the STJ strength and latitudinal position. The STJ strengthens (weakens) when the tropical Pacific SST increases (decreases) (Figure 9a). A concurrent equatorward (poleward) displacement of the STJ is also observed (Figure 9b). Furthermore, it was also found that the relationship between the STJ and climatic oscillations may be affected by warming of the Arctic region, with changes strongly depending on the specific climatic oscillation and the STJ region (compare Figure 9a–c and Figure 9b–d).
The correlation between the STJ wind speed and the ENSO and PNA indices decreased strongly over the NA continental region in the SSTreal Arctic warming experiments (Figure 9c). The ENSO correlation with STJ wind speed also decreased to a non-significant value over the continental As region. However, this weakening of the ENSO and PNA correlations over continental regions did not occur with the latitudinal position of the STJ (Figure 9d). The corresponding analysis with the NAO index does not have significant correlations for either STJ variable. However, the results for the AO index showed an interesting doubling of the strength of the correlation with the latitudinal position of the STJ in the NA and At regions in the warmer Arctic ensemble.

3.6. Discussion and Conclusions

The warmer Arctic conditions of the SSTclim experimental ensemble resulted in weaker STJ wind speeds over the North American, Atlantic, and European regions. These regions were also more sensitive to equatorward shifts of the jet in response to Arctic sea ice loss. The southward shift of the STJ is related to the geopotential height response in the upper troposphere, and could be explained by an increase in the frequency of occurrence of blocking patterns in these regions. Furthermore, in the North American and Atlantic regions, the N G I index showed that the meridional gradients of geopotential height were weakened when the Arctic sea ice extent was reduced.
It is interesting to note that opposite trends have been observed in the Southern Hemisphere, where Antarctic cooling in the upper atmosphere, a product of the ozone hole, has lead to a strengthening and poleward shift of the westerly winds [90,91].
In the SSTreal case, an equatorward shift in the latitudinal position of the STJ was also observed in the At region. Using observational data, Woollings et al. [40,86] suggest that the negative NAO regime favors a southern displacement of the jet position, with positive geopotential height anomalies over Greenland and negative ones over the Atlantic. Similar results were found in this work in the SSTreal simulations, although the negative geopotential height anomalies over the Atlantic were weak and not significant.
The correlations of the STJ latitudinal position with the AO roughly doubled in the NA, At, and Eu regions under the warmer Arctic conditions. It also increased for the NAO in the eP, NA, and At regions, though not to the statistically significant level. The increased relation in those regions between the position of the STJ and the AO in the warmer Arctic SSTreal ensemble is consistent with previous results based on observations and climate model outputs that have suggested that reduced sea ice over the Arctic tends to produce winter circulation patterns that resemble the negative phases of the NAO/AO [22,72,79,80,92]. Similar high latitude atmospheric responses were found in this work (Section 3.1). Negative AO events weaken the polar vortex [30,79,80,81], positioning the STJ equatorward.
The SSTreal ensemble showed that the STJ is weakening and shifting poleward over the Pacific basin, especially in the eP region. The model results suggest that these trends are not forced by Arctic sea ice loss because both the control and experimental ensembles have similar trends over the study period.
Figure 10a shows the SST trend for the period 1980–2012 estimated from the HadSS T1.1 [50] reanalysis data. Unlike most of the global ocean, a cooling trend that has been addressed in previous studies [93,94,95,96,97] is observed in the Central and Eastern tropical Pacific Ocean. It extends poleward along the Americas and is related to the phase change (from positive to negative) of the Pacific Decadal Oscillation that occurred during the study period [39,94,98,99]. The effects on the atmosphere of the negative Pacific SST trends are visible in the tropical upper troposphere, where the geopotential height trend is close to zero. Significant positive Z200 trends are observed over the North Pacific (Figure 10b) induced by positive SST trends. The net effect of the SST trend pattern in the mid-latitude North Pacific is a weakening of the meridional upper geopotential height gradients (as a direct response to the weakening of the meridional SST gradient), as shown in Figure 8c. Thus the jet stream is weakened and shifted poleward, and increased synoptic activity occurs in the mid-latitudes (Figure 8d) due to a wavier STJ [100,101]. In addition, the PDO phase change from positive to negative is related to a poleward expansion of the Hadley Cell [39,94], which drives the STJ in the same direction. This argument is supported by studies that have shown that the Northern Hemisphere Pacific STJ is mostly modulated by central Pacific SST variability [58,89,102,103,104,105].
In summary, numerical experiments in which Arctic warming is induced by the loss of sea-ice have a consistent but limited Arctic influence on the STJ latitudinal position over Europe, North America and the North Atlantic basin. A slight effect on the STJ wind speed is also observed in those regions, but is diminished below statistically significant levels when realistic internal climate variability is used in the numerical simulations. The experiments with full SST variability demonstrated that the weakening trend and poleward drift of the Pacific STJ that occurred over the period 1980–2012 and that are addressed by other studies [14,18] are not a consequence of Arctic sea ice loss but rather were forced by the Pacific Decadal Oscillation phase change. The variability of the STJ in the NA and At regions are closely related to the AO, and the results of the numerical simulations presented here suggest that they can have a greater influence on the STJ under warmer Arctic conditions.
As a final remark, we note that in this work thirty year trends of the wind speed and latitudinal position of the STJ are analyzed under warmer Arctic conditions using numerical simulations that are similar to those used in previous studies, e.g., [22,24,79,106]. However, here, we have also included a set of experiments in which the full observed variability of the SST over the period 1979–2012 was used. These types of realistic simulations have not been broadly used to analyze the sensitivity of climate teleconnections to the effects of Arctic sea ice loss, which our study only begins to address. Future work that analyzes the mechanisms involved in SST-driven STJ variability is needed, as are studies that focus on the individual climate oscillations (e.g., perpetual ENSO simulations with experimental conditions for the Arctic similar to those used here). In addition, results from climate models that use active ocean-atmosphere-sea ice coupling might differ from those presented here because of the importance of different feedback mechanisms.

Author Contributions

Conceptualization, J.L.R.S., C.T. and M.G.; Data curation, J.L.R.S.; Formal analysis, J.L.R.S.; Funding acquisition, C.T. and M.G.; Investigation, J.L.R.S., C.T. and M.G.; Methodology, J.L.R.S., C.T. and M.G.; Project administration, C.T. and M.G.; Resources, C.T. and M.G.; Supervision, C.T. and M.G.; Validation, J.L.R.S.; Visualization, J.L.R.S.; Writing—original draft, J.L.R.S.; Writing—review & editing, C.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Council of Science and Technology (CONACYT) grant no. 414615 and by the Laboratorio Nacional de Supercomputo del Sureste de Mexico (LNS) through project No. 201803026.

Acknowledgments

We thank CONACYT for the Ph.D. Scholarship Grant 414615 awarded to the first author and the Graduate Program of the Department of Physical Oceanography at CICESE for additional financial support to the first author and for access to the Tsunami cluster. The authors thankfully acknowledge computer resources, technical advice and support provided by Laboratorio Nacional de Supercómputo del Sureste de México (LNS) through project No. 201803026. We also thank Christopher L. Castro, Ramón Fuentes Franco, and Julio Sheinbaum for their helpful comments when discussing the manuscript. J. Sheinbaum also provided access to the Kanik cluster. In addition, we thank three anonymous reviewers for their comments.

Conflicts of Interest

The authors declare no conflict of interest.
