1. Introduction
Currently, with the increasing maturity of scramjet technology, hypersonic flight technology has been developed rapidly. Hypersonic vehicles are able to reach a speed of over Mach 5, with outstanding characteristics of various launching platforms, a strong maneuverability and a strong penetration ability [
1,
2]. Besides, compared with traditional vehicles, hypersonic vehicles can perform weave maneuvers [
3,
4], which results in overturning the traditional concept of warfare so that it poses a great threat to the existing defense system. Therefore, research on a more advanced guidance strategy for intercepting hypersonic vehicles has become an important issue.
The guidance law is the core of a missile’s guidance system. Based on the information obtained in real time, the missile generates a guidance command through the guidance law and guides it to the target in an appropriate way. Therefore, the performance of the guidance law determines the damage effect of the missile on the target to a certain extent. The proportional navigation (PN) guidance law has been widely used due to its simple form and easy implementation [
5,
6]. Based on differential geometry and true proportional navigation (TPN) guidance, Zhao et al. [
7] proposed a combined guidance law that could intercept the target in a short time, reducing the possibility of target escape. Kumar et al. [
8] proposed a proportional-navigation-based guidance scheme for intercepting a high maneuvering target based on anticipating the target’s trajectory, which could improve the interception accuracy and be easily applied for real time applications. However, the guidance laws on the basis of PN or its modified forms have a great guidance performance in intercepting stationary or uniformly moving targets. For hypersonic vehicles, the PN is prone to overload saturation caused by the divergence of the line-of-sight (LOS) angular rate at the end of the interception moment, which will result in a failure to intercept or a full deflection of the actuator.
Sliding mode control (SMC) has been widely utilized in nonlinear systems due to its high precision, rapidity and strong robustness [
9,
10,
11], and has been a hotpot in the guidance area in recent years. SMC divides the control process into two stages: converging to the sliding surface and moving along the sliding surface. By designing different reaching laws and sliding surfaces, the control quality of the two stages can be adjusted separately. Based on the combination of the traditional PID control, SMC in Filippov’s sense and relative degree concepts, Kada [
12] designed a robust sliding-PID tracking motion controller for the flight control system of missiles, where the high-level performances, robustness and fast convergence of the closed-loop system were guaranteed. Shtessel et al. [
13] proposed an integrated autopilot and guidance scheme by using higher-order SMC for missiles steered by a combination of aerodynamic lift, sustainer thrust and center-of-gravity divert thrusters, which showed great robustness to the uncertainties of the missile model. Based on the SMC method, Idan et al. [
14] designed an integrated autopilot and guidance algorithm for a missile with forward and aft control surfaces. The designed integrated controller could simultaneously account for the guidance and autopilot requirements by using the additional degree of freedom offered by the dual-control configuration. In order to improve the performance of tracking and intercepting a low-altitude target, Chen et al. [
15] proposed a nonlinear integral sliding mode guidance law that guaranteed that the line-of-sight (LOS) angle converged to a desired tracking angle in a finite time. Liu et al. [
16] designed an impact time control guidance (ITCG) scheme with field-of-view (FOV) constraint to achieve a saturation attack for ships based on the equivalent SMC method. By using a terminal sliding surface, Zhang et al. [
17] proposed a guidance scheme with impact angle constraint for the missile attacking its target with zero miss distance. Aiming at the requirement that the guidance law should meet the minimum miss distance and the desired terminal angle at the same time, Wang et al. [
18] designed a fuzzy neural SMC guidance law with terminal angle constraint for attacking a maneuvering target that could increase the attack effectiveness on the large maneuvering target. Zhu et al. [
19] proposed a novel head-pursuit guidance law, considering the dynamic characteristics of a missile control system and the target mobility by combining a fast power reaching law with back-stepping SMC. However, the guidance command generated by the SMC method may appear as a chattering phenomenon because of the existence of a system delay and measurement error, which brings difficulties and challenges to the practical application.
In the last decades, fractional-order control (FOC) has been used in the control structure to increase the controller flexibility and enhance the controller performance [
20,
21]. Unlike the discontinuous change in the integer-order differential, FOC extends the traditional integer order and calculus order to a non-integer order that can comprehensively make full use of the historical and global distributed system information, reflecting a phenomenon of memory and time dependence. The main advantages of FOC are its few parameters, simple form, special memory function and stable characteristics, and it has been widely used in the field of guidance and control. In order to control the trajectory of the missile’s flight path with six degrees of freedom, Aboelela et al. [
22] introduced the fractional-order operator into a PID controller. By using the particle swarm optimization (PSO) method to optimize the parameters of the controller, the designed controller could improve the dynamics of the missile system and could reduce chattering in the control signal. Aimed at controlling the trajectory of a nonlinear missile model in the pitch channel, Ahmed et al. [
23] conducted cooperative experiments between a fractional PID controller (FPID) and a gain schedule fractional PID controller (GSFPID). The simulation results showed that the GSFPID controller gave the best performance, stability and deflection actuator. For the terminal guidance problem of an unpowered lifting reentry vehicle attacking the stationary target, Sheng et al. [
24] proposed a fractional-order theory that combined the sliding mode guidance law, which was more robust against the disturbance of random noise and ensured a higher precision in terms of the impact angle error and miss distance. Considering a class of skid-to-turn (STT) missiles with impact angle constraint to intercept a maneuvering target, Zhou et al. [
25] designed a three-dimensional integrated guidance and control law based on the fractional integral terminal SMC. In order to intercept the maneuvering targets, Golestani et al. [
26] proposed a new guidance scheme considering control loop dynamics by using a fractional-order calculation at an integer-order control to improve the robustness and performance properties. However, the above mentioned guidance schemes based on the FOC are aimed at the stationary targets or low-speed moving targets, which are not suitable for intercepting hypersonic targets.
For the problem of intercepting hypersonic vehicles, the concept of the zero angular rate of the LOS angle is usually adopted to design the corresponding guidance schemes. Indeed, the guidance command calculated by this method usually changes drastically and the total energy consumption is large. In this paper, for intercepting hypersonic vehicles, we are mainly concerned with the following two aspects: (1) how to overcome the disadvantages of the PN guidance law to guide a low-speed missile to accurately intercept a hypersonic vehicle with various maneuver modes; (2) under the premise of intercepting the hypersonic vehicle accurately, how to design a guidance law that can ensure the guidance command can converge fast and consume less energy.
Thus, motivated by the above mentioned studies, based on the SMC method, we introduce the fractional-order operator into the sliding surface to design a fractional-order fast power reaching (FOFPR) guidance law to accurately and effectively intercept a hypersonic vehicle with less energy consumption. The main contributions of the paper can be summarized as follows:
Aiming at the scenario of a low-speed missile intercepting a hypersonic vehicle in the longitudinal plane, a guidance law based on the SMC method is proposed that can effectively overcome the disadvantage of the PN to avoid the divergence of the LOS angular rate at the end of the interception moment;
By introducing the fractional-order operator into the sliding surface, a fractional-order fast power reaching (FOFPR) guidance law is proposed based on the fast power reaching law. It can not only improve the convergence speed of the guidance command, but can also effectively consume less energy in the interception process.
The remainder of this paper is organized as follows:
Section 2 addresses the problem of missiles intercepting the hypersonic vehicle in the longitudinal plane; the design of the guidance law is outlined in
Section 3; numerical simulations are presented in
Section 4; and conclusions are drawn in
Section 5.
2. Problem Formulation

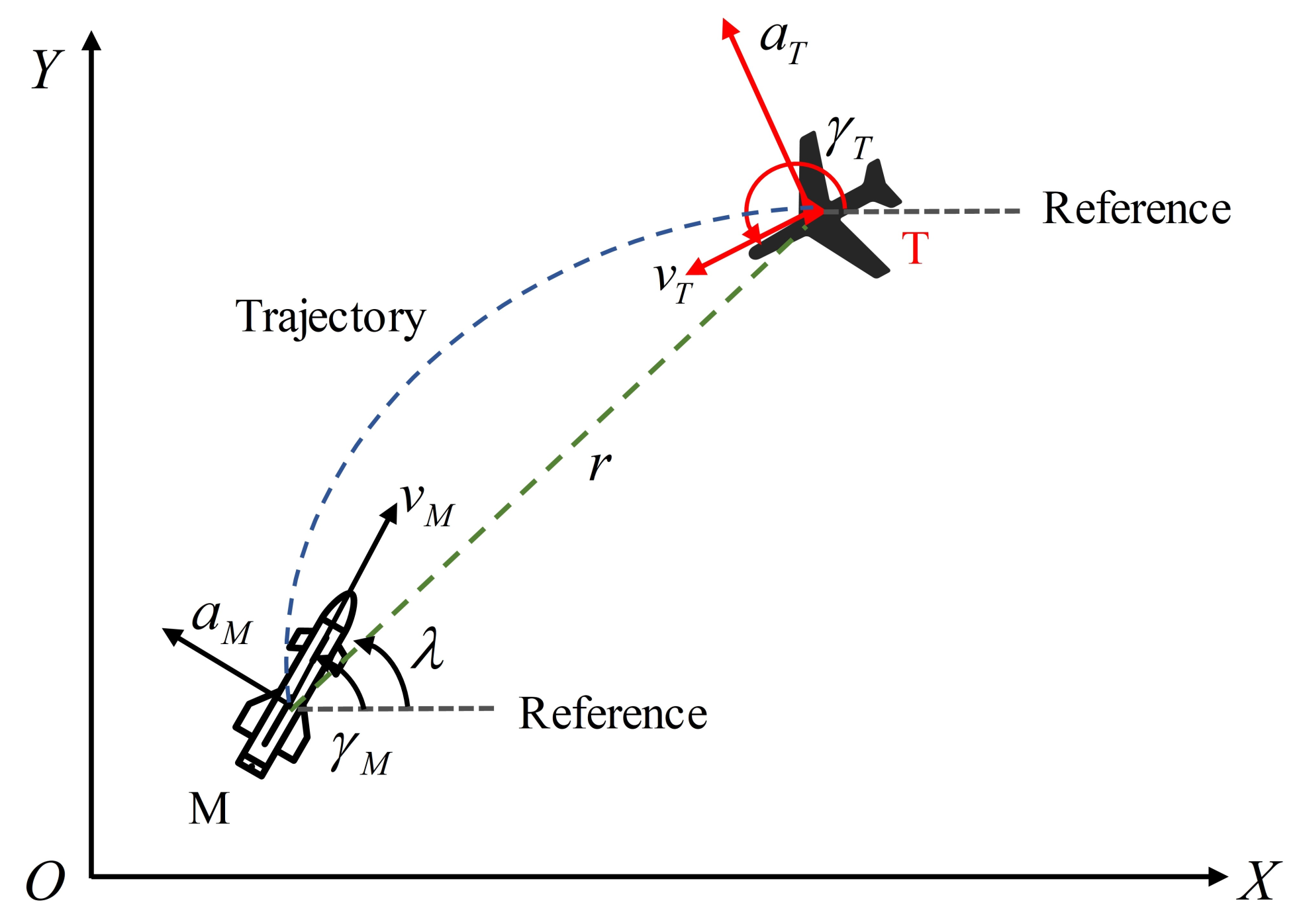

In this section, we consider the problem of a missile intercepting a hypersonic vehicle, and the schematic view of the longitudinal planar geometry between the missile and the hypersonic vehicle is presented in
Figure 1, where
OXY denotes the inertial coordinate system. In order to facilitate the design and analysis of the guidance law, the following assumptions are put forward in advance.
Assumption 1. Both the specific shapes of the missile and hypersonic vehicle can be ignored.
Assumption 2. The influence of the rotation of the earth and the external environment on the missile and hypersonic vehicle can be ignored.
Based on
Figure 1, the relative motion relationship between the missile and hypersonic vehicle established in the line-of-sight (LOS) coordinate system can be described as Equations (
1)–(
4).
where
M and
T denote the missile and hypersonic vehicle, respectively;
r denotes the relative range between the missile and hypersonic vehicle;
denotes the LOS angle between the missile and hypersonic vehicle;
and
denote the speed of the missile and hypersonic vehicle, respectively;
and
denote the path angle of the missile and hypersonic vehicle, respectively;
and
denote the acceleration commands of the missile and hypersonic vehicle respectively, which are normal to their speed directions.
Besides, the missile speed is governed by
where
m denotes the missile mass and
g denotes the gravity coefficient;
D denotes the aerodynamic drag, which is defined as
where
denotes atmospheric density,
denotes the reference area of the missile and
denotes the drag coefficient.
Moreover, the kinematics equations of the missile and hypersonic vehicle in the inertial coordinate system can be presented as follows:
where
and
denote the trajectory that is projected on the
X axis and
Y axis in the inertial coordinate system, respectively.
Then, taking the derivative of Equations (
1) and (
2) yields
where
and
denote the acceleration components of
and
that are along the LOS, respectively;
and
denote the acceleration components of
and
that are normal to the LOS, respectively.
Assume that the acceleration of the hypersonic vehicle can only change in the direction of speed, which indicates that the speed of the hypersonic vehicle is unchanged.
Then, based on Equations (
3) and (
4), Equation (
9) can be rewritten as follows:
Usually, there are external noise- and time-delays for the seeker and the actuator in the real interception scenario. Thus, in order to make the guidance model closer to the practical scenario, the seeker and the actuator models are presented as follows:
Then, based on the concept of the zero angular rate of the LOS angle, defining a state variable
and combining Equation (
10) yields the guidance system, which is described as follows:
where
It can be seen from Equation (
13) that the core of the guidance law is to design the guidance command
so that the missile can accurately intercept the hypersonic vehicle while ensuring that
converges to zero. Thus, the guidance objectives in this paper can be summarized as follows:
where
denotes the final interception moment.
4. Simulation Analysis
In this section, numerical simulations are performed to evaluate the performance of the proposed FOFPR guidance law (
29) in two cases where the hypersonic vehicle adopts bang-bang and sinusoidal maneuver modes, respectively. The simulation block diagram of the proposed FOFPR guidance law is shown in

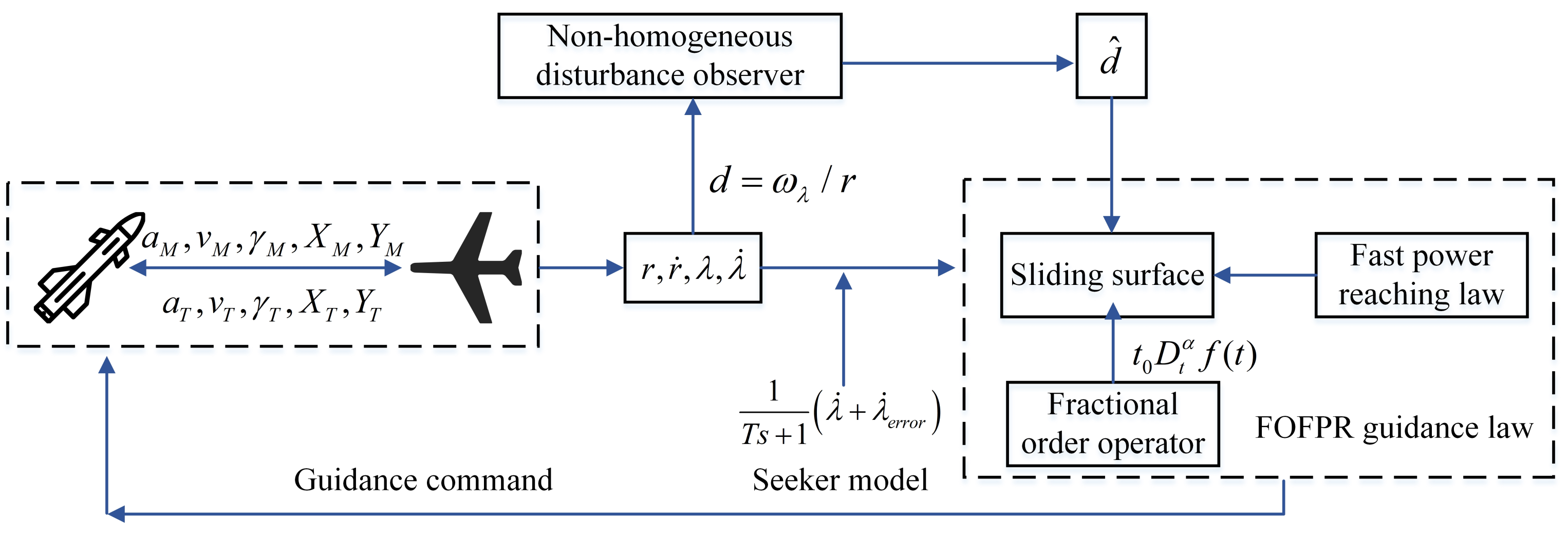

Figure 2. For the two simulation cases, if not specifically given, the initial conditions of the missile and hypersonic are set as
Table 1. The missile mass
kg. The reference area
m
. The atmospheric density
kg/m
. The gravity coefficient
m/s
. The upper bound of the missile acceleration is considered as
g. The drag coefficient
can be interpolated based on
Table 2 and the parameters of the non-homogeneous disturbance observer (
21) are shown in
Table 3. Moreover, the parameters of the seeker and actuator are chosen as
s,
and
s.
Moreover, in order to vertify the superiority of the FOFPR, we design an integer-order fast power reaching (IOFPR) guidance law based on an integer-order sliding surface (
44) and the reaching law in Equation (
27). Comparative numerical simulations are conducted among the PN, IOFPR and FOFPR guidance laws, respectively. The parameters related to the three guidance laws in the Equations (
29), (
45) and (
46) are shown in
Table 4. In all simulations, the fractional-order operator is approximated with high-order integer transfer functions based on Ref. [
35]. According to Ref. [
36], the energy consumption
J consumed by the missile in the interception process is defined as Equation (
47).
4.1. Hypersonic Vehicle Adopts the Bang-Bang Maneuver Mode
In this subsection, the simulation analysis is performed, with the hypersonic vehicle adopting the bang-bang maneuver mode. The acceleration of the hypersonic vehicle changes, as shown in Equation (
48). The simulation results are presented in
Table 5 and

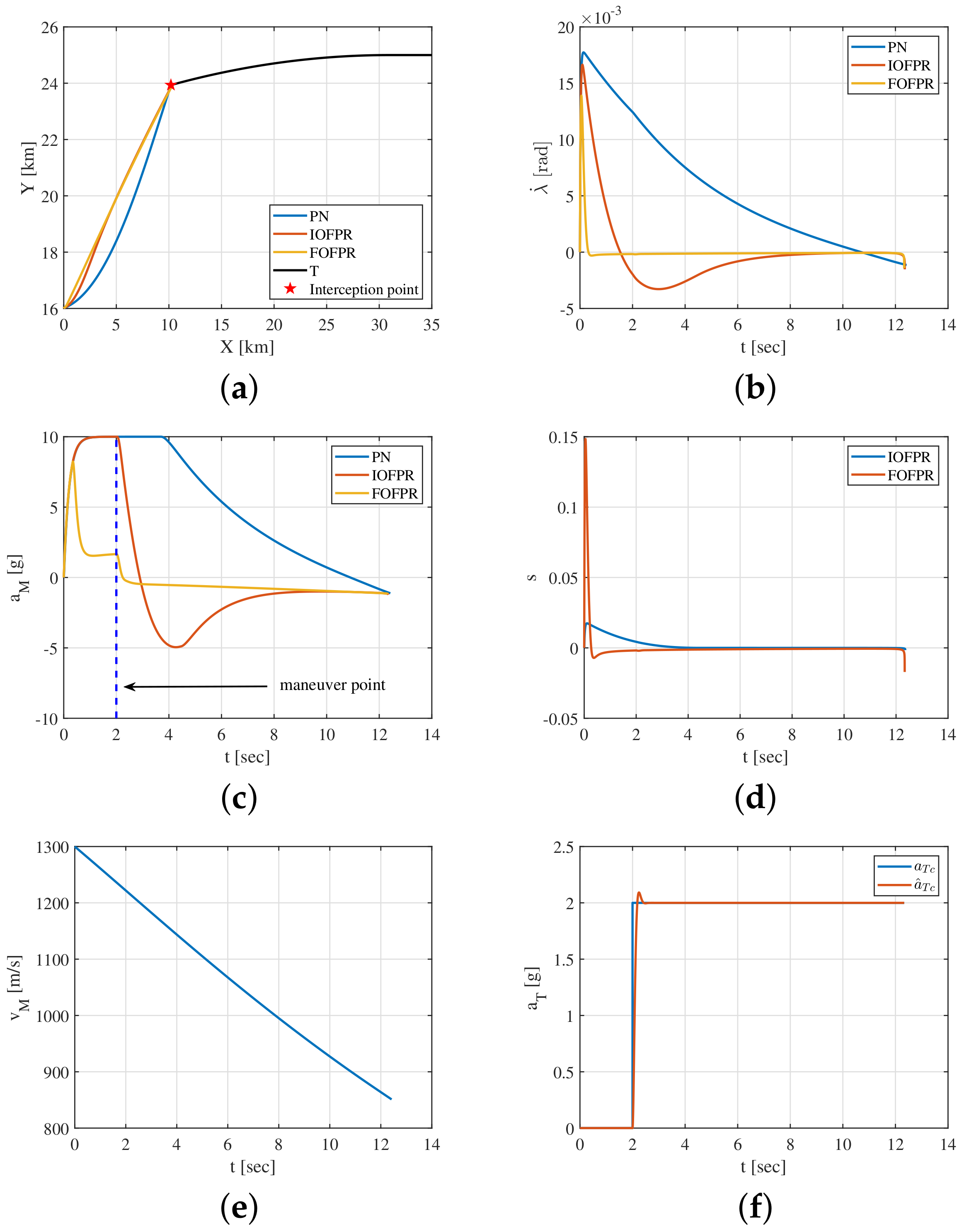

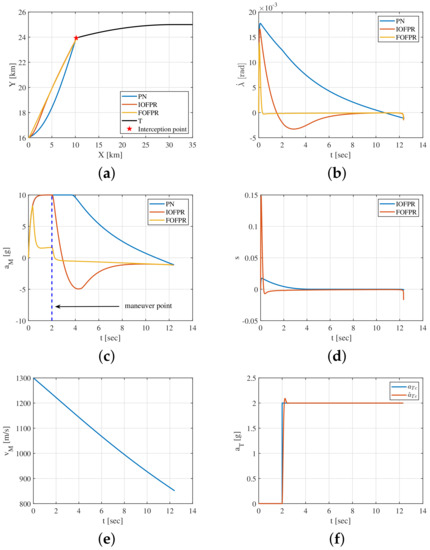

Figure 3.
It can be seen from
Table 5 that the missile can successfully intercept the hypersonic vehicle under the action of three guidance laws, respectively, and that there is not a significant difference in the interception time. However, the FOFPR has great advantages in its interception accuracy and energy consumption. Compared with the PN, the FOFPR improves the guidance accuracy by
and consumes
less energy. In comparison to the IOFPR, the FOFPR promotes the guidance accuracy by
and consumes
less energy. As shown in
Figure 3a, when the missile is guided by the FOFPR and IOFPR guidance laws, the interception trajectories are more straight than that of the PN, and the ballistic curvature is smoother. In
Figure 3b, under the action of the PN, the LOS angular rate decreases with the interception time and does not converge strictly to zero. Nevertheless, for the IOFPR and FOFPR guidance laws, the LOS angular rate can converge to the neighbor of zero, and the FOFPR shows a greater performance in the convergence speed and accuracy than that of the IOFPR. It can be observed from
Figure 3c that, compared to the PN and IOFPR guidance laws, when the hypersonic vehicle adopts the bang-bang maneuver mode, the acceleration command does not exceed the maximum limit
g and changes smoothly under the action of the FOFPR. In
Figure 3d, the two designed sliding surfaces can converge to zero without a chattering phenomenon in the process of convergence. However, when the missile is guided by the FOFPR, the convergence speed and accuracy of the sliding surface are better than those of the IOFPR. It can be observed from
Figure 3e that the missile speed gradually decreases due to the aerodynamic drag, and that the speed at the final interception moment is approximately 851 m/s. As shown in
Figure 3f, the designed non-homogeneous observer can effectively estimate the maneuvering information of the hypersonic vehicle accurately.
4.2. Hypersonic Vehicle Adopts the Sinusoidal Maneuver Mode
In this subsection, a simulation analysis is conducted, with the hypersonic vehicle adopting the sinusoidal maneuver mode. The acceleration of the hypersonic vehicle changes, as shown in Equation (
49). The simulation results are presented in
Table 6 and

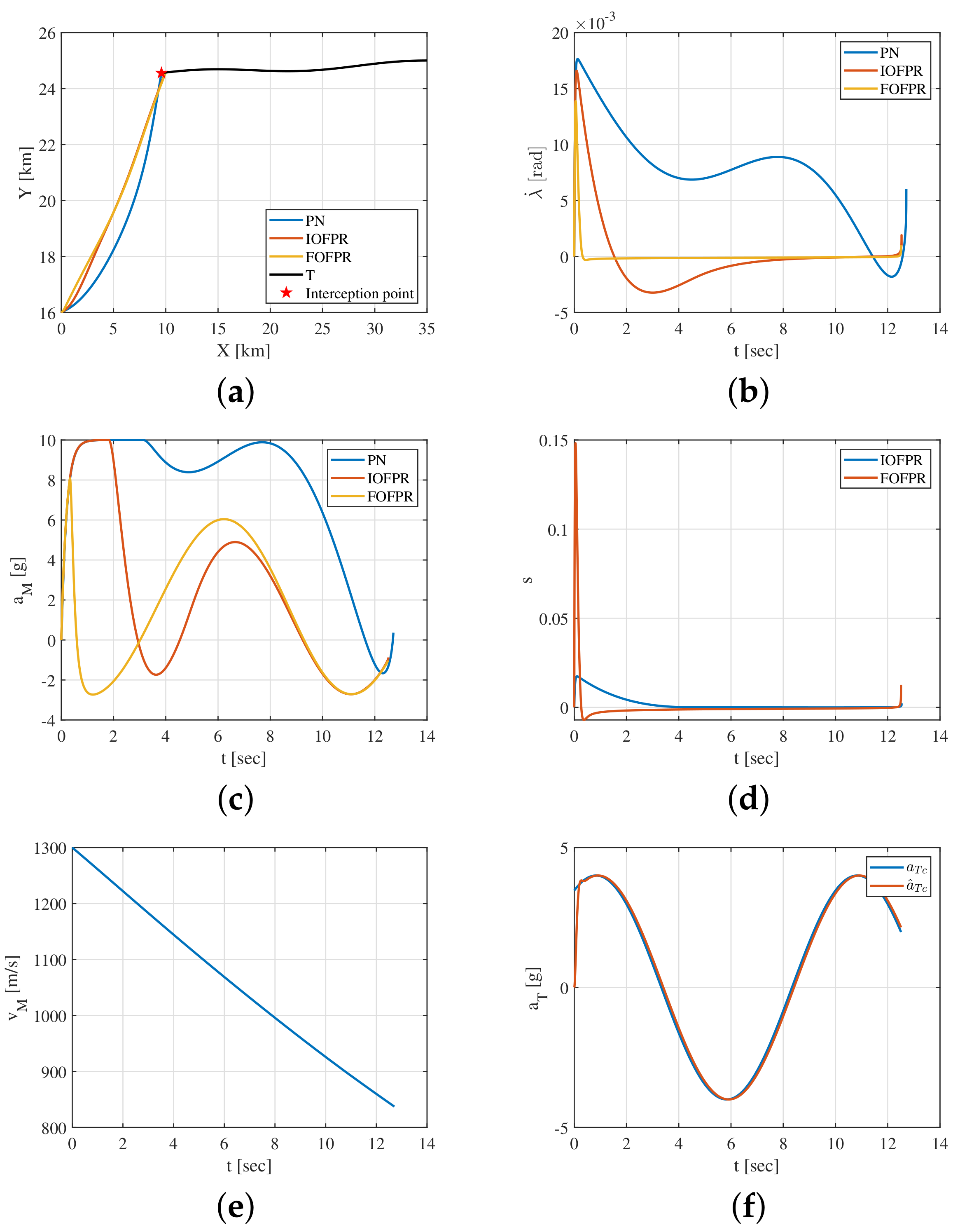

Figure 4.
As shown in
Table 6, when the hypersonic vehicle adopts the sinusoidal maneuver mode, the missile can successfully intercept the hypersonic vehicle under the action of the three guidance laws, and the interception time is basically the same. However, the value of the miss distance and energy consumption are the largest for the PN, which is not acceptable and is ineffective in the application of actual interception scenarios. Compared with the PN, the FOFPR improves the guidance accuracy by
and consumes
less energy. In comparison to the IOFPR, the FOFPR promotes the guidance accuracy by
and consumes
less energy. It can be observed from
Figure 4a that, under the action of the three guidance laws, the missile can move towards the hypersonic vehicle, and that the ballistic trajectory is the straightest based on the FOFPR. In
Figure 4b, when guided by the PN, the LOS angular rate does not converge to around zero effectively and tends to disperse. Nevertheless, based on the IOFPR and FOFPR guidance laws, the LOS angular rate has always been stable around zero, and the convergence speed and accuracy of the FOFPR are better than those of the IOFPR. It effectively satisfies the guidance objectives. It can be observed from
Figure 4c that, compared with the PN and IOFPR guidance laws, the acceleration command does not exceed the maximum limit
g and changes smoothly under the action of the FOFPR. As shown in
Figure 4d, under the action of the IOFPR and FOFPR guidance laws, the two sliding surfaces change at the neighbor of zero, and there is no chattering phenomenon in the process of convergence. However, the convergence speed and accuracy of the FOFPR are better than those of the IOFPR. It can be observed form
Figure 4e that the missile speed gradually decreases due to the aerodynamic drag, and that the speed at the final interception moment is approximately 837 m/s. As shown in
Figure 4f, the disturbance observer enables the quick and precise tracking of the maneuver information of the hypersonic vehicle, which ensures the efficient implementation of the interception mission.
