An Adaptive Approach for Impulsive Formation Maintenance Relevant to Distributed SAR Missions

Abstract

This paper proposes an approach for impulsive formation maintenance tailored to distributed synthetic aperture radar, i.e., a spaceborne system composed by several antennas working together to provide enhanced remote sensing capabilities. The analyzed configuration is designed to guarantee the presence of a safety tube surrounding each satellite as the dynamics evolve. Formation requirements are related to general constraints on the acceptable along-track and radial/cross-track separations. The paper introduces an adaptive maintenance logic which fulfills these constraints. Specifically, the formation is adaptively redesigned around the chief every time geometry constraints are violated by means of a procedure developed by the authors in previous works and based on relative orbit parameters. Once these parameters are defined, the optimal impulsive burns required for orbit transfer are computed using state-of-the-art approaches. Performance in terms of delta-v and maneuver frequency is analyzed for a two-spacecraft formation exploiting a simulation environment based on MATLAB and GMAT. In ideal conditions, it is shown that maintenance costs are limited, while close proximity requires fine sensitivity on the applied impulses. A first assessment of the impact of relative navigation and maneuvering execution errors indicates that they play an important role in defining the overall control effort.

1. Introduction

It is widely agreed that many upcoming space missions will rely on distributed systems exploiting co-flying, cooperating platforms to replace current monolithic systems, and to implement missions otherwise impossible (e.g., those requiring very large sensor apertures) or extremely complex [1].

Unleashing the potential of such evolution requires the addressing of challenges both at a payload and at a system level, which are closely related to each other. Fractionating the payload on multiple space platforms requires the development of processing approaches that account for (and take advantage from) the spatial diversity of measurements. At a system level, the necessity that multiple different spacecraft act as a single entity leads to proper architectures and algorithmic approaches for relative trajectory design, relative navigation and control, inter-satellite communication, and distributed/centralized decision making. In fact, the development of distributed space systems is consistent with other major technological trends in the space field, such as increased autonomy and enhanced capabilities of small satellites.

Distributed space mission concepts have been proposed in fields such as planetary and astronomical applications [2], and Earth observation [1]. Within the latter category, the concept of distributed synthetic aperture radar (DSAR) has received increasing attention during the last years [3,4]. DSAR is defined as a synthetic aperture radar in which the signal emitted by the transmitter and scattered from the area of interest is not collected by a single receiver, but by many conveniently distributed formation flying receivers. The concept of distributed aperture is a generalization of the conventional synthetic aperture radar (SAR) principle [5], and of standard interferometric SAR (InSAR) techniques [6], towards a flexible system able to implement a wide range of different working modes.

As these different working modes require specific observation geometries, formation flying represents a key technology for DSAR implementation, and aspects such as relative navigation accuracy, control accuracy, and $\Delta v$ expense are key factors for mission design and feasibility.

Within this framework, this paper proposes a formation maintenance approach that is tailored to DSAR applications. In particular, working modes requiring linear or quasi-linear formation geometries are considered. These do not need a regular separation among receivers but impose more general constraints on relative motion. As a main original aspect of the proposed approach, DSAR requirements are translated into three-dimensional constraints that the relative geometry must fulfil, and not into nominal trajectories that must be followed with a given tolerance as it happens in other formation control papers.

The presented approach is adaptive since, when geometric requirements are violated, the formation is redesigned as a function of the actual chief orbital parameters. The design methodology, introduced by the authors in previous studies [7,8], works in the domain of mean orbital parameters and is based on the concept of passively safe ellipses, that are relative configurations conceived to meet both payload and collision risk requirements. Therefore, unlike other contributions in the open literature, the adaptive maintenance strategy is not aimed at preserving either constant differences in orbital parameters or constant relative orbit parameters [9], but at guaranteeing DSAR requirements and safe formation flying. Once the required orbital parameters differences are calculated, control actions are determined using a state-of-the-art approach [9]. Maintenance performance and cost are assessed within a realistic simulation environment that exploits MATLAB and the NASA General Mission Analysis Tool (GMAT), while also accounting for the effects of relative navigation errors and thruster errors.

The paper is organized as follows. Section 2 recalls the geometric requirements relevant to DSAR operations and summarizes the formation design approach and the long-term stability properties of the designed trajectories. The formation maintenance approach is described in Section 3, which also recalls the method to determine control actions and the system organizational architecture that has been assumed. Finally, Section 4 briefly describes the adopted simulation environment and discusses formation maintenance performance in different cases, while also considering moderate relative navigation and maneuvering execution errors.

2. Relative Geometries for Distributed SAR Applications

In general, DSAR applications require proper acquisition geometries to be fulfilled by the spacecraft formation. As described in [10], DSAR working modes and applications include: signal-to-noise ratio (SNR) improvement, resolution enhancement (in azimuth and in range), pulse repetition frequency (PRF) reduction (which enables high resolution wide swath—HRWS), 3D imaging, ground moving target indication (GMTI), and miscellaneous applications. While some of these applications, such as HRWS [11] and GMTI [12], require along-track observation geometries, i.e., a linear distribution of the receivers, other ones, such as coherent range resolution enhancement [13], exploit relatively-large radial/cross-track baselines.

In this work, the focus is set on radar modes, such as HRWS, which require linear observation geometries and a constrained along-track separation to enable coherent processing of gathered signals. Indeed, a regular separation among the receivers is not strictly necessary, while the baselines need to be known accurately in the post processing phase. Formation design and maintenance are aimed at combining payload requirements with system-level constraints, such as minimization of collision risk, reduction of control effort, and implementation of inter-satellite link architectures with reasonable budgets.

Relative motion design and long-term stability analyses are recalled in the next sub-sections. Within the paper, relative motion is described in the Hill reference frame of a reference platform (defined as chief, while the other satellites are named deputies)—with $x$ axis in the orbit radius direction, $z$ axis parallel to the orbit momentum vector, and $y$ axis completing the right-handed coordinate system.

2.1. Formation Design: The Safety-Tube Concept

As stated above, radar processing requires a linear distribution of the receivers and a constrained along-track separation. Assuming operation in the X band, this constraint is set equal to 500 m [10]. In order to partially decouple collision risk from along-track dynamics, thus allowing the satellites to drift in the along-track direction, the assumed geometry is not purely linear, and a small radial/cross-track baseline is achieved along the whole orbit. This radial/cross-track separation generates a topographic phase to be compensated by DSAR processing [14]. While research is under way to develop compensation algorithms tailored to DSAR, and to analyze the impact of uncertainties relevant to adopted digital elevation models (DEMs), it is assumed here that the acceptable radial/cross-track baseline is limited to a few tens of meters.

Configurations selected in this paper fall within the class of passively safe ellipses: the relative motion of each satellite (deputy) with respect to the reference platform (chief) never trespasses an imaginary safety tube of radius $d_{xz}$ encompassing the chief itself. This also implies the presence of a minimum radial/cross-track baseline between each couple of deputies. These patterns allow the different spacecraft composing the fractionated antenna to fly very close, but in a passively safe condition. In detail, the differences in orbital parameters for each deputy are retrieved by means of the procedure described in [8], which identifies the differences $\delta$ between deputies and chief semi-major axes $\left(a\right)$, eccentricities $\left(e\right)$, inclinations $\left(i\right)$, right ascensions of the ascending node $(\Omega )$, arguments of perigee $\left(\omega \right)$, and mean anomalies $\left(M\right)$ moving from the set of design parameters $\left[d_{xz},A_x,\tilde{z}\right]$ able to characterize the shape of relative motion. The procedure is here recalled for the sake of clarity. More specifically, $A_x$ is the amplitude of the radial oscillation and $\tilde{z}$ the out-of-plane component of relative trajectory when the along-track separation nullifies. The choice of the latter parameter generally decides for $A_z$ [8], which is the amplitude of the cross-track oscillation. In the case under consideration, $\tilde{z}$ is set equal to zero (it means that the out-of-plane baseline is entirely radial when $y=0$) and the design set $\left[d_{xz},A_x,\tilde{z}\right]$ turns into $\left[d_{xz},A_x,A_z\right]$.

Configurations characterized by a set of parameters so that $A_x=A_z=d_{xz}$ are analysed in the following sections. Hence, the differences in orbital parameters $\left[\delta a, \delta e, \delta i, \delta \Omega , \delta \omega ,\delta M\right]$ identifying a “safety-tube” formation around a chief satellite are determined through the pseudo-code in Algorithm 1, which summarizes the design procedure for the fixed cross-track safe ellipses described in [8].

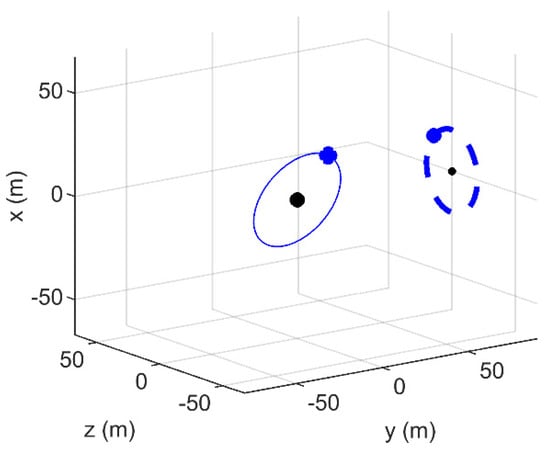

Figure 1 shows a two-spacecraft formation designed by means of the presented approach, where a platform whose features are described in

Table 1. Properties of reference satellite.

Spacecraft Features
Mass (kg)		Frontal Area (m2)		Ballistic Coef. (kg/m2)
50		1		22.73
Initial mean orbit elements
$\mathit{a}$(km)	$\mathit{e}$	$\mathit{i}$(°)	$\mathbf{\Omega }$(°)	$\mathbf{\omega }$(°)	$\mathit{M}$(°)
6928.1	0.001	97.59	0	45	0

has been considered as the reference one. The deputy is a satellite equal to the chief and arranged with respect to it so that it cannot cross a safety tube with radii equal to 20 m.

Algorithm 1: Relative motion design based on safety tubes

Assign design parameter for deputy: $\begin{array}{cccc}{d}_{xz}& \to & A_x& A_z\end{array}$

Assign chief orbital parameter: $\left[a,e,i,\omega ,\Omega ,M\right]$

Determine relative orbit parameters for deputy j: - set $\delta a=\delta i=0$ - set $\delta \Omega =-A_z/\left(a\sin i\right)$ - solve $\frac{A_x}{a}-\sqrt{{\left(\delta e+2e{\sin }^2\frac{\delta M}{2}\right)}^2+{\left(e\sin \frac{\delta M}{2}\right)}^2}$ for $\delta M$, where $\delta e=\frac{e\sin \delta M}{\tan \left(\omega -\delta \Omega \cos i-\delta M+\frac{\pi }{2}\right)}-2e{\sin }^2\frac{\delta M}{2}$ - compute $\delta e$ - compute $\delta \mathsf{\omega }=-\delta \Omega \cos i-\delta M$

2.2. Free Evolution of Configurations Based on Safety Tubes

The method recalled in the previous section allows the formation to be designed according to safety requirements and operational constraints. Nonetheless, perturbation sources that have not been included during its mathematical derivation would be responsible for corruption of nominal geometries. Furthermore, unavoidable errors on initial conditions of relative motion, and residual differential effects, make formation maintenance necessary.

Before analyzing the proposed formation maintenance approach, it is useful to analyze the free evolution of the cluster (i.e., without any formation control) assuming ideal initial conditions.

A similar analysis has been conducted in [10], where a five-spacecraft formation was propagated numerically through GMAT while accounting for main low Earth orbit (LEO) perturbing effects (Earth gravity field, atmospheric drag, third body accelerations from Moon and Sun, and solar radiation pressure). Results can be summarized as follows:

• The difference in terms of ballistic coefficients among the platforms has to be minimized since differential drag is the primary reason for disruption of relative patterns;
• The precession of the arguments of perigee produces the deformation of the radial/cross-track trajectories and thus a reduction of the minimum distance in the radial/cross-track plane, particularly that of the deputy closest to the chief;
• The impact of the operational altitude (within the range 500–600 km) on spacecraft relative motion is not very significant when differential drag is minimized.

To give the reader some quantitative insight into the free dynamic evolution of the designed trajectories, an analysis was performed in GMAT by considering a formation made of a chief-transmitter and a deputy-receiver (the black-blue configuration shown in Figure 1). Satellites were assumed to be characterized by the same ballistic coefficient and to orbit at an altitude $\left(h\right)$ of 550 km. Formation stability was investigated in both a low-inclination ($i=20°$) and a Sun-synchronous ($i=97.59°$) scenario. Additional details in terms of spacecraft features and orbit elements are provided in Table 1.

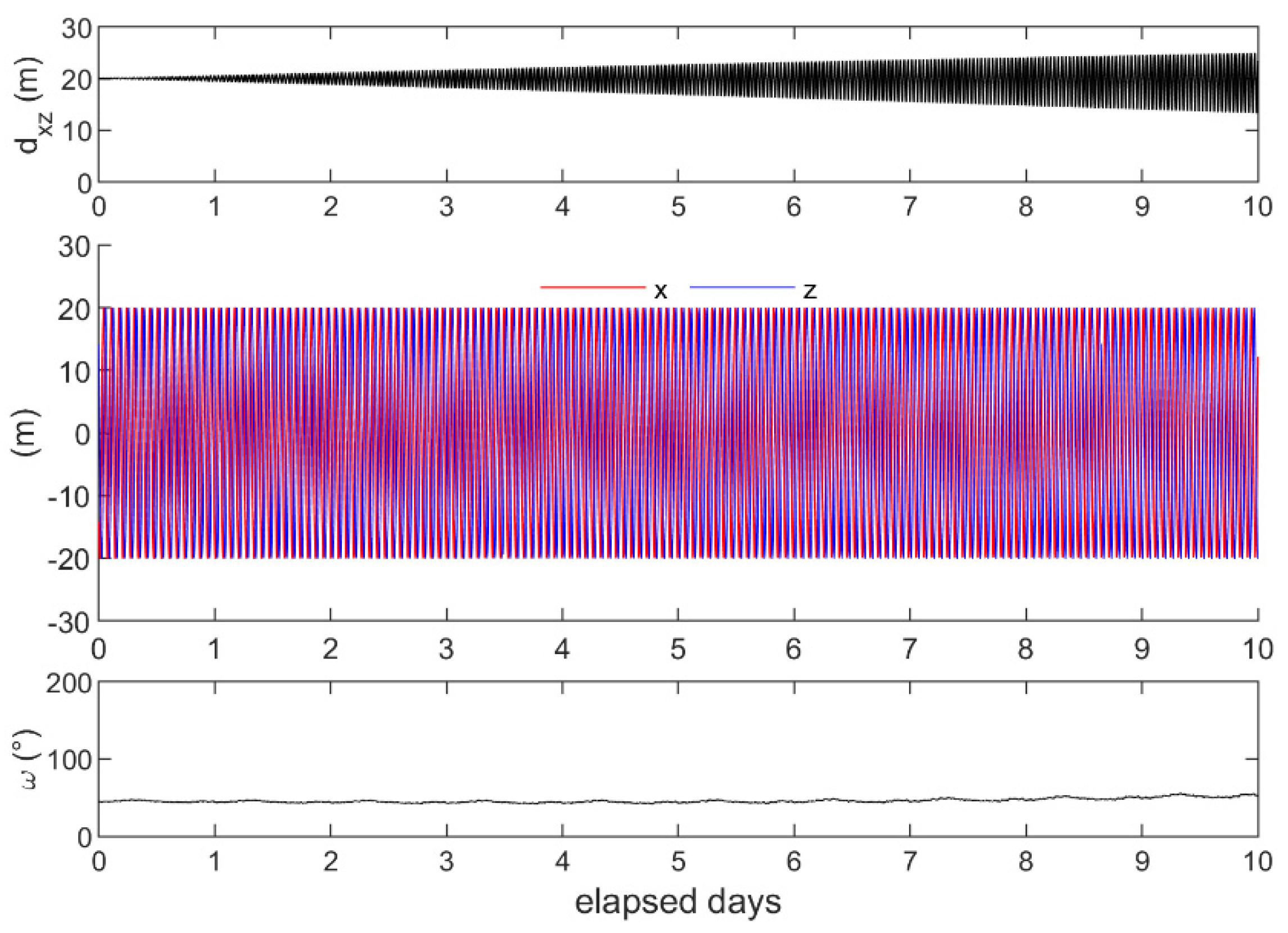

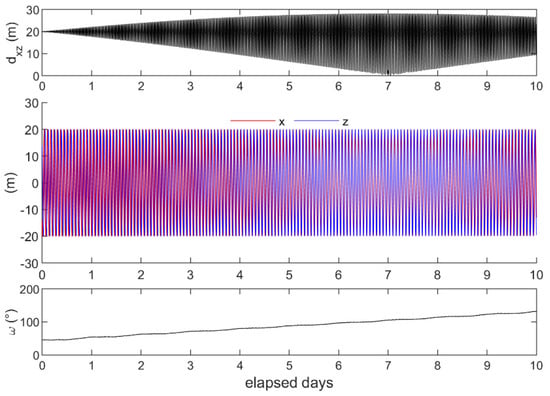

Figure 2 shows the results of orbit propagation for the low-inclined formation in terms of time variation of four main parameters: the radial/cross-track baseline $\left(d_{xz}\right)$, the radial component $\left(x\right)$ and cross-track component $\left(z\right)$ of the relative trajectory, and the argument of perigee of the reference orbit $\left(\omega \right)$.

Since there is no observable drift of the x and z coordinates, the $d_{xz}$ deformation has to be attributed to the progressive phase shift between radial and cross-track oscillations. The latter is caused by the perigee’s precession, which in turn mainly depends on absolute non sphericity (mostly J2) effects. An important feature that arises from this analysis is the non-divergence of the radial/cross-track baseline, which is closely related to the choice of imposing equal inclinations as a design constraint, thus preventing J2-induced differential nodal rates to be activated. Hence, a correct sizing of the x and z oscillations prevents the possibility of $d_{xz}$ exceeding any operational constraints dictated by the payload. On the contrary, the relative motion will in general diverge along the $y$ direction because of the along-track drift, that is only partially compensated when selecting orbits at equal altitudes [15].

Therefore, maintenance of safety tube-based geometries requires the deformation of the $d_{xz}$ baselines to be monitored, together with the along-track separation $y$ among the platforms.

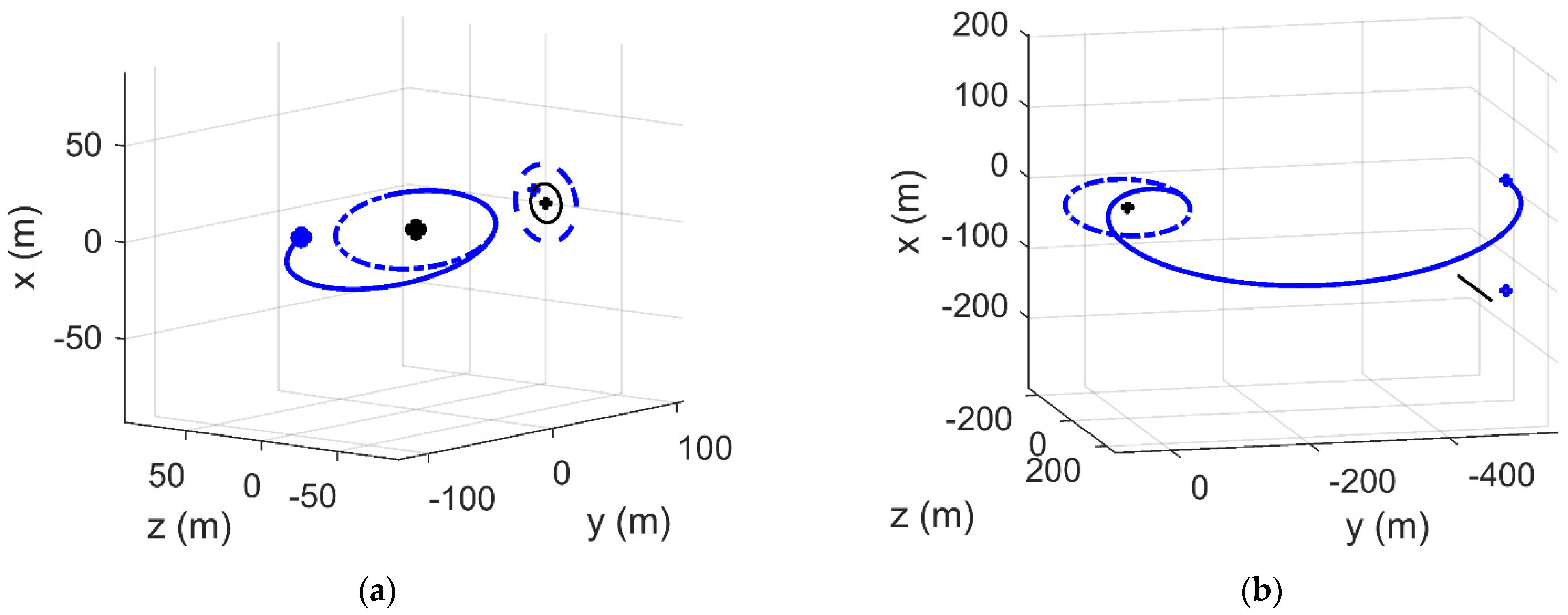

The same analysis is repeated for a near-polar formation too (Figure 3). In such a scenario, the formation is stable for longer time periods because of the slower perigee precessions.

The effect of the inclination on formation stability is summarized in

Table 2. Comparison between number of days needed to violate a $d_{min}$ = 10 m threshold for different altitudes.

h (km)	Low-Inclination Orbit (Days)	Sun-Synchronous Orbit (Days)
500	3.67	13.86
525	3.75	14.07
550	3.77	14.31
575	3.86	14.52
600	3.88	14.77

, where the time interval required for the radial/cross-track baseline $d_{xz}$ (nominally constant and equal to 20 m) to violate a 10 m threshold is calculated for different operational altitudes (thus showing the negligible influence of this parameter). As for the along-track separation, the time required to exceed a 500 m threshold is estimated to be over 20 days for the two different inclinations.

3. Formation Maintenance

An adaptive strategy is proposed for maintenance of relative configurations. Indeed, every time some geometric conditions characterizing a specific formation are violated, a series of reconfiguration maneuvers are elaborated which are aimed at restoring nominal trajectories while accounting for the system’s current state.

With reference to patterns based on safety tubes, control actions are necessary when:

• At least one of the imaginary tubes encompassing each satellite is trespassed;
• At least one of the along-track baselines exceeds a $Y_{MAX}$ threshold, that is assumed as the maximum separation for coherent processing of radar signals.

If one of the above-mentioned situations occurs, the cluster is reconfigured. In detail, the target geometry is computed according to the current state of a reference satellite of the formation. Assuming a reconfiguration time $t_r=KT$, where $K$ indicates an integer number and $T$ is the formation’s orbit period, it is possible to propagate the chief’s state for $t_r$ and to determine the new geometry related to the design set $\left[d_{xz},A_x,A_z\right]$ through software that replicates the steps defined in Algorithm 1.

With the cluster’s current state known and the desired one to be reached within $t_r$, the control actions required to transfer each deputy from its initial state (⁰) to the final one (^F) have to be retrieved in terms of burn location and magnitude.

It is worth underlining that the key concept of relative motion control is that the formation is adaptively redesigned following the dynamic evolution of its chief. In general, this implies that the required differences in mean orbital parameters will also change in time. Furthermore, as the trajectory design process does not require any special constraint for the chief orbital parameters, this means that effects such as perigee precession are not counteracted but are accounted for in the maintenance process.

3.1. Determination of Control Actions

Each spacecraft is assumed to be equipped with a propulsive system able to provide a thrust along every main direction of its Hill reference frame. In order to determine the intensity and the location of each burn, the impulsive approach described in [9] is considered, that is conceived for fuel-optimal reconfiguration of formations on near-circular orbits. More specifically, the three-impulse strategy is implemented. Two impulses are used for variation of the in-plane components of relative motion (_ip) and the other one is exploited for modification of the out-of-plane baseline (_oop).

Such a technique enables the $\Delta v$-s and the set $\left(u_{ip}^1,u_{ip}^2,u_{oop}\right)$—whose elements identify the arguments of latitude for applications of the corresponding burns—to be determined in the Hill reference frame of each orbiting platform. Moreover, the formulation relies on the relative orbit elements:

$$\delta o{e}_j=\left[\begin{array}{c}\delta a\\ \delta \lambda \\ \delta e_x\\ \delta e_y\\ \delta i_x\\ \delta i_y\end{array}\right]=\left[\begin{array}{c}\left(a-a_j\right)/a_j\\ u-u_j+\left(\Omega -{\Omega }_j\right)\cos i_j\\ e\cos \omega -e_j\cos {\omega }_j\\ e\sin \omega -e_j\sin {\omega }_j\\ i-i_j\\ \left(\Omega -{\Omega }_j\right)\sin i_j\end{array}\right]$$

(1)

where the j subscript identifies the jth satellite in the formation (while no subscript is used to characterize the chief satellite) and the $\delta \lambda$ parameter is the relative mean longitude, defined as $\delta \lambda =\delta u+\delta i_y\cot i$. The employment of such a non-singular orbital set, especially of the $\delta \lambda$ variable instead of $\delta u$, allows the in-plane relative motion to be completely decoupled with respect to that occurring in the cross-track direction [9].

Hence, a maneuver that modifies the out-of-plane component of the relative trajectory entails a $\Delta$ variation of the relative orbit parameters $\delta i_x$ and $\delta i_y$. The change of these elements from the initial condition to the final one (i.e., $\Delta \delta i_x=\delta i_x^F-\delta i_x^0$ and $\Delta \delta i_y=\delta i_x^F-\delta i_x^0$) is produced by maneuvering the deputy j at the argument of latitude $u_{oo{p}_j}$ with a $\Delta v_{z_j}$ so that [9]

$$\begin{array}{c}{u}_{oo{p}_j}={\tan }^{-1}\left(\frac{\Delta \delta i_y}{\Delta \delta i_x}\right)+K\pi \\ \Delta v_{z_j}=v_j\sqrt{\Delta \delta i_x^2+\Delta \delta i_y^2}\end{array}$$

(2)

where $v$ represents the spacecraft velocity and $K$ is the integer number previously introduced to set the reconfiguration time.

The resolution of the in-plane reconfiguration problem from state $0$ to state $F$, that for arbitrary values of $u_{i{p}_j}^1$ and $u_{i{p}_j}^2$ requires the solving of the linear system [9]

$$\Delta v_{i{p}_j}=\left[\begin{array}{c}\delta v_x^1\\ \delta v_y^1\\ \delta v_x^2\\ \delta v_y^2\end{array}\right]=n{\mathit{M}}^{-1}\left[\begin{array}{c}\Delta \delta a\\ \Delta \delta \lambda \\ \Delta \delta e_x\\ \Delta \delta e_y\end{array}\right],\mathit{M}=\left[\begin{array}{cccc}0& 2& 0& 2\\ -2& -3\left(u_j{}_F-u_{ip}^1{}_j\right)& -2& -3\left(u_j{}_F-u_{i{p}_j}^2\right)\\ \sin u_{i{p}_j}^1& 2\cos u_{i{p}_j}^1& \sin u_{i{p}_j}^2& 2\cos u_{i{p}_j}^2\\ -\cos u_{i{p}_j}^1& 2\sin u_{i{p}_j}^1& -\cos u_{i{p}_j}^2& 2\sin u_{i{p}_j}^2\end{array}\right]$$

(3)

is handled by optimization software, that determines the values of $u_{i{p}_j}^1$ and $u_{i{p}_j}^2$ by minimizing the cost function $J=\Delta v_{i{p}_j}^T\Delta v_{i{p}_j}$ through resolution of the necessary conditions [9]

$$\begin{array}{cc}\frac{\partial J}{\partial u_{i{p}_j}^1}=0& \frac{\partial J}{\partial u_{i{p}_j}^2}=0\end{array}$$

(4)

In detail, the problem in Equation (4) is solved through a Newton–Raphson routine, whose initial guess corresponds to the cluster state at the beginning of the reconfiguration (the n variable in Equation (3) represents the spacecraft mean angular motion).

3.2. Considerations on System Organizational Architecture

The space system is assumed to rely on a distributed architecture [16]. This means that each platform is considered to be provided with autonomous computational and data-handling capabilities, thus being able to determine its transfer orbit once the initial and final conditions are known. This requires the satellites to be connected on a local network for mutual data broadcasting, which should not pose significant technological challenges given the short baselines among the satellites and the limited data rate related to exchange of navigation information. Such a situation would allow every spacecraft to detect any deviation of the baselines from their nominal values, and hence to compute the new configuration through exploitation of an on-board algorithm devoted to formation design.

In the case under consideration, the deputy satellite is meant to orbit without trespassing a safety tube around the chief, so that the $xz$ components of relative motion never fall below a threshold $d_{min}$. Moreover, the fractionated nature of the spaceborne SAR sets a limit to the maximum separation tolerable in the y direction. An example of reconfiguration maneuvers for adaptive formation maintenance is shown in Figure 4, in case of both violation of cross-track constraints (on the left) and of extreme along-track separations (on the right).

4. Assessment of the Maintenance Strategy

This section presents the results of an analysis performed using GMAT as orbit propagation software. Beyond proving the effectiveness of the adaptive procedure for maintenance of relative geometries, this section aims to provide an estimate of the control efforts required to preserve the spacecraft formation geometry. An overview of performance achievable in the presence of navigation errors and maneuvering execution errors is given too.

In the remaining part of this section, the focus is set on a two-spacecraft formation, with the chief considered as the fixed satellite and the deputy as the platform maneuvering around it. Considerations about the possibility to invert the roles, or about the need of a task-assignment strategy disciplining the reconfiguration of multi-spacecraft formations, are linked with ongoing research and are included in the conclusions.

4.1. Simulation Environment

The simulation environment relies on GMAT and MATLAB. In detail, GMAT was used to realistically propagate the spacecraft orbits in the presence of external perturbations. MATLAB was the programming language used for evaluation of target configurations (Algorithm 1) and generation of transfer trajectories (Equations (2)–(4)).

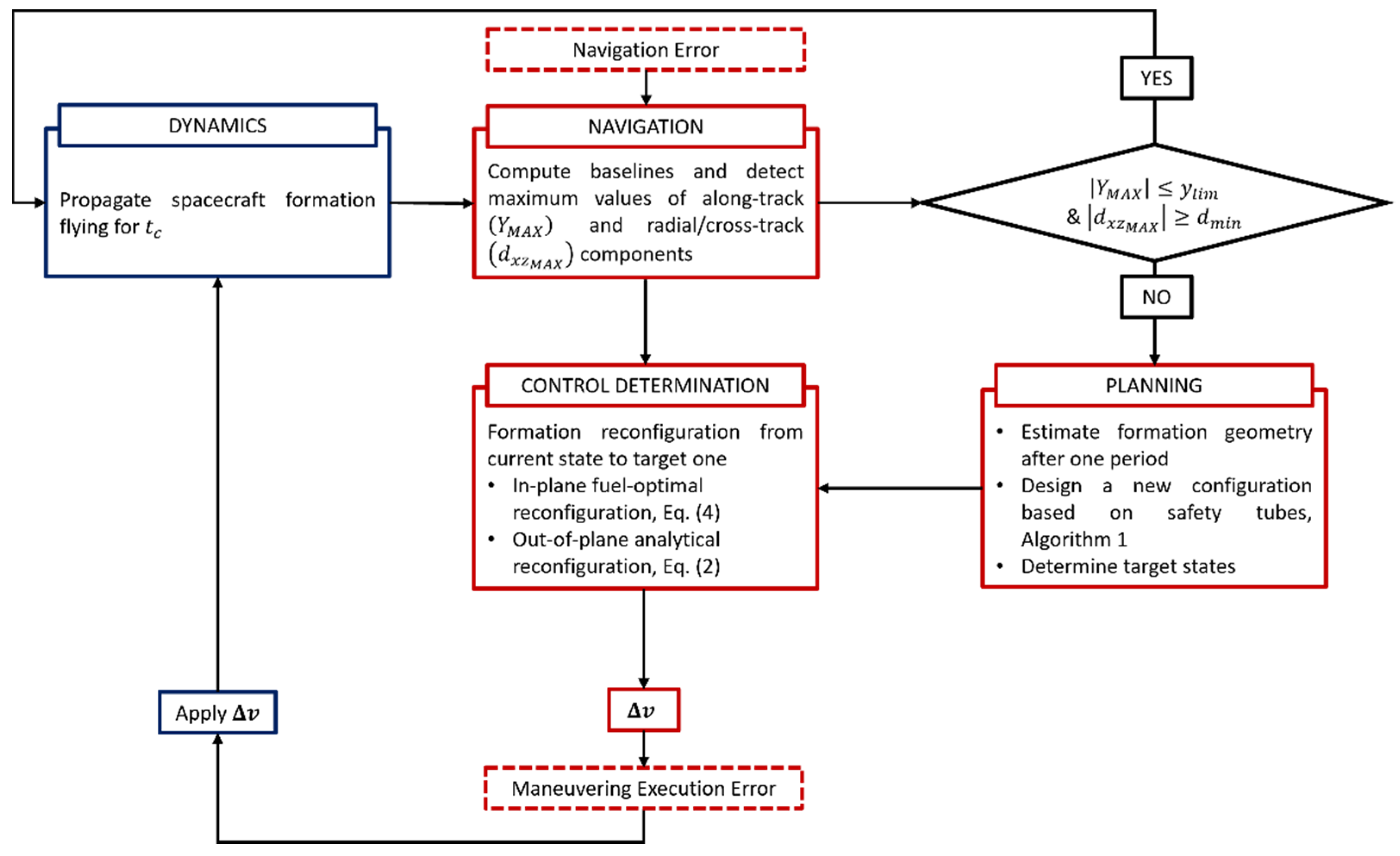

Figure 5 summarizes the general architecture of the simulator.

The system dynamics were entrusted to GMAT, which was exploited to calculate the formation relative geometry in the presence of external perturbations (Earth oblateness, aerodynamic drag, Sun radiation pressure, third body effects). The baselines were then processed in MATLAB to account for navigation errors. Relative navigation errors were assumed to be zero-mean white Gaussian variables with standard deviation ${\sigma }_p$ for position and ${\sigma }_v$ for velocity.

Hence, the cluster configuration was monitored as the spacecraft dynamics evolve. More specifically, the maximum cross-track baseline $\left(d_{x{z}_{MAX}}\right)$ was verified to not violate a threshold $d_{min}$, while the maximum separation in the along-track $\left(Y_{MAX}\right)$ was checked to be always below $y_{lim}$. If both these conditions were satisfied, then the cluster motion was propagated in GMAT for a time $t_c$, which is the update time for the controller ($t_c=300$ s in considered simulations). On the contrary, the nonoccurrence of at least one of the above-mentioned circumstances triggers the planning and control determination sequence.

In detail, the planning algorithms were implemented in MATLAB to propagate the state of the chief satellite from its current condition $t_0$ till $t_0+t_{rec}$ (based on the current state, the chief was propagated using a Keplerian motion model complemented with the inclusion of secular J2 effects), where $t_{rec}$ represents the time required to complete the reconfiguration (in the considered scenario, $t_{rec}$ equals the chief’s orbital period $T$). With the chief’s predicted state available, a new configuration based on safety tubes can be designed through the pseudo-code described in Algorithm 1, which identifies the target pattern that has to be reached by specifying the differences in orbital parameters, and thus the set of relative orbit elements that the deputy should return to.

At this point, all the information required for computation of control actions was available. According to the methodology presented in Section 3.1, the control determination block is thus able to determine in the Hill reference frame of the deputy and the three impulses required for orbit maintenance, both in terms of magnitude ($\Delta v_{i{p}_j},\Delta v_{z_j}$) and location $\left(u_{i{p}_j}^1,u_{i{p}_j}^2,u_{oo{p}_j}\right)$. In particular, the best pair of in-plane maneuvers was derived through numerical optimization of Equation (4), while the out-of-plane burst was analytically computed from Equation (2).

The impulsive maneuver was thus executed in GMAT according to the outputs provided by MATLAB routines, which were conceived to potentially include maneuvering execution errors too.

4.2. Performance Estimations

Performance of the proposed maintenance strategy has been evaluated in terms of $\Delta v$ and maneuver frequency.

Simulations were performed by considering the spacecraft formation designed as in Section 2.2, with the reference satellite assumed in either a low-inclination (LI) or a Sun-synchronous (SS) orbit. The parameters that characterize the chief are always those specified in Table 1, except for the inclination, which is 20° in the LI scenario. As for the formation design parameters, they were $d_{xz}=A_x=A_z=20$ m.

4.2.1. Ideal Case

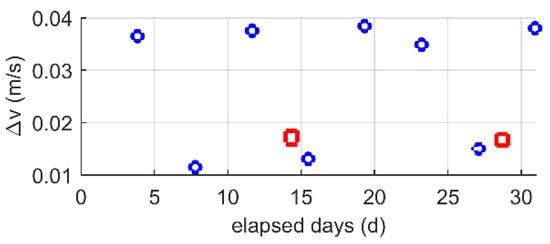

Figure 6 shows the results relative to the first month of the mission. In such a circumstance, navigation errors are neglected, and the same considerations of Section 2.2 apply; that is, SS configurations are more stable than LI configurations. More specifically, the average period required for cluster reconfiguration is 3.88 days in the latter scenario (blue circular markers in Figure 6), while only 14.3 days occur between consecutive orbital corrections in the SS case (red square markers in Figure 6). The simulation results show that the mean $\Delta v$ per maneuver is 26.7 mm/s in the LI scenario, with a total $\Delta v$ expenditure for the deputy satellite of 225 mm/s. The Sun-synchronous case requires a reduced control effort, with a total delta-v of 34 mm/s that corresponds to a mean $\Delta v$ per orbit of 17 mm/s.

A complete characterization of the maintenance strategy in the absence of navigation errors is provided in

Table 3. Maneuvering frequency and $\Delta v$ required for maintenance of safety tube-based formations over the first 6 months of mission—$h=550$ km, no navigation errors.

Formation	$\mathbf{\Delta }{\mathit{v}}_{\mathit{TOT}}$ (m/s)	$\Delta \mathit{v}$ Mean (m/s)	$\mathbf{\Delta }\mathit{v}$ Std (m/s)	Reconf. Time Mean (h)	Reconf. Time Std (h)
LI	0.2248	0.0281	0.0124	92.8220	0.8882
SS	0.0340	0.0170	0.0005	344.4637	0.3023

.

4.2.2. Navigation Errors

To preliminary evaluate the impact of navigation errors on formation maintenance, the same simulations were performed by adding to position and velocity measurements from GMAT zero-mean random errors characterized by a standard deviation on both position $\left({\sigma }_p\right)$ and velocity $\left({\sigma }_v\right)$. Concerning the orders of magnitudes for ${\sigma }_p$ and ${\sigma }_v$, these were selected in order to be consistent with the nominal performance of carrier phase differential GNSS techniques [17,18].

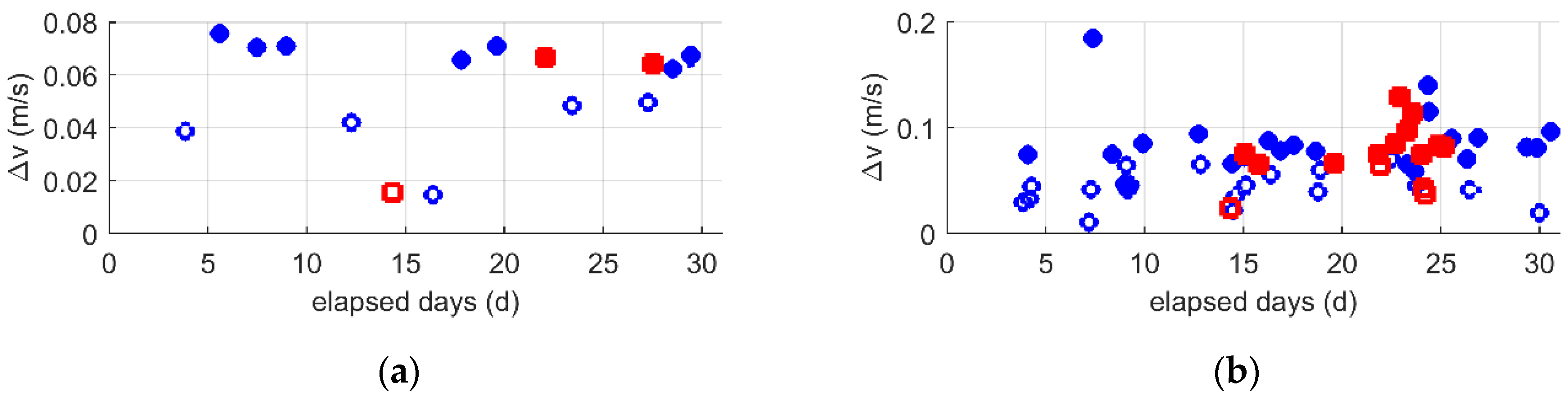

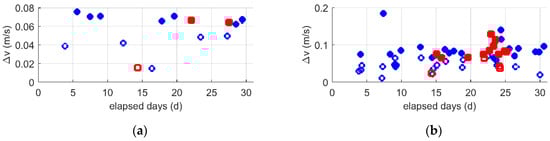

Figure 7 shows the reconfigurations occurring over 1 month, assuming ${\sigma }_p$ = 1 cm and different values of ${\sigma }_v$ (1 and 5 mm/s, respectively).

As expected, the reconfiguration frequency increases. Moreover, the main reason for destruction of nominal geometries is the along-track drift among the spacecraft, whose occurrence is shown in Figure 7 by means of filled markers (the empty ones are used to identify reconfigurations triggered by alterations of the radial/cross-track baselines $d_{xz}$). Such an effect is predominant in both the scenarios, with relative percentages of 61% (${\sigma }_v$ = 1 mm/s)/64% (${\sigma }_v$ = 5 mm/s) in the low-inclination cases, and 86% (${\sigma }_v$ = 1 mm/s)/54% (${\sigma }_v$= 5 mm/s) in case of Sun-synchronous formations.

A sensitivity analysis is presented and discussed in the remaining of this section. For each case—that is, for a given set of ${\sigma }_p$ and ${\sigma }_v$ values—results were derived by considering the formation evolution over 1 month and by running the simulation multiple times in order to obtain a significant amount of maneuvers. Then, statistics were derived.

In general, the presence of increasing navigation errors on spacecraft velocities is responsible for an erroneous reconstruction of the relative geometry. This entails an incorrect estimation of the separation among the satellites, and hence an increasing number of reconfiguration maneuvers. Since the nominal formation that must be reinstated is the same, the required delta-v per maneuver is almost similar in both the LI and SS scenarios. Instead, the main differences arise when the total delta-v expenditure $\left(\Delta v_{TOT}\right)$ and the time length between consecutive reconfigurations are considered.

As discussed in Section 2, low-inclined formations are characterized by a faster perigee precession with respect to the Sun-synchronous case because of Earth-induced perturbations. This causes a fast deformation of the $d_{xz}$ baseline and calls for a superior maintenance effort. Such an effect is further stressed in the presence of navigation errors. Figure 8a shows the result of multiple runs with ${\sigma }_v$ values of 0.5, 1, 2.5, and 5 mm/s. Statistics have been then interpolated for trend reconstruction. In this case, the higher ${\sigma }_v$ is, the higher $\Delta v_{TOT}$ is in terms of both mean and standard deviations. Differently, the maneuvering period reduces in terms of mean values (from 80.9 h for ${\sigma }_v$ = 0.5 mm/s to 16.8 h for ${\sigma }_v$ = 5 mm/s), but a similar trend cannot be found when considering standard deviations because of the higher formation instability. The main results of LI-related simulations are summarized in

Table 4. Statistics related to the sensitivity analyses for maintenance of low-inclined formations in the presence navigation errors (${\sigma }_p=1$ cm).

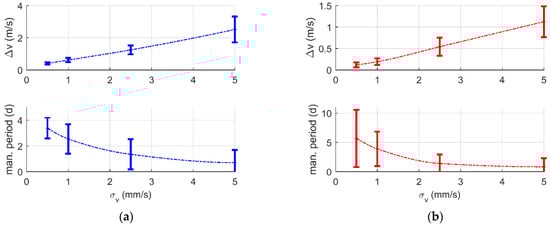

${\mathit{\sigma }}_{\mathit{v}}$ (mm/s)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Mean (m/s)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Std (m/s)	$\Delta \mathit{v}$ Mean (m/s)	$\Delta \mathit{v}$ Std (m/s)	Reconf. Time Mean (h)	Reconf. Time Std (h)
0.5	0.400	0.070	0.049	0.018	80.957	18.867
1	0.614	0.129	0.058	0.018	61.062	27.426
2.5	1.247	0.276	0.063	0.019	32.378	28.329
5	2.516	0.802	0.069	0.028	16.832	23.507

.

Concerning Sun-synchronous formations, these were designed to account for J2 effects. Therefore, the total control effort is less than that required to maintain LI formations. As an example, the worst-case analyzed scenario (that is ${\sigma }_v$ = 5 mm/s) is characterized almost by half the $\Delta v_{TOT}$ required in the LI case (1.12 m/s with respect to 2.52 m/s). This happens because of the less frequent maneuvering periods needed when exploiting orbits at high inclinations, which in turn are less affected by perigee precession. These conclusions can be derived looking at the trends in Figure 8b. Here, the main difference with respect to Figure 8a concerns the maneuvering period, that decreases for higher ${\sigma }_v$ values both in terms of mean and standard deviations. The statistics relative to the SS configurations are summarized in

Table 5. Statistics related to the sensitivity analyses for maintenance of Sun-synchronous formations in the presence navigation errors (${\sigma }_p=1$ cm).

${\mathit{\sigma }}_{\mathit{v}}$ (mm/s)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Mean (m/s)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Std (m/s)	$\Delta \mathit{v}$ Mean (m/s)	$\Delta \mathit{v}$ Std (m/s)	Reconf. Time Mean (h)	Reconf. Time Std (h)
0.5	0.117	0.056	0.044	0.022	136.594	117.525
1	0.191	0.077	0.050	0.021	93.506	70.831
2.5	0.541	0.209	0.058	0.019	33.657	36.573
5	1.125	0.359	0.066	0.027	19.809	35.336

.

4.2.3. Maneuvering Execution Errors

In nominal conditions, maintenance maneuvers do not constitute a threat for formation safety. Indeed, the natural effect of the maneuvers is to increase the radial/cross-track separation. When erroneous delta-v are applied, instead, some risks are generated due to the short distance between the spacecraft. While analysis of reactive closed-loop strategies is certainly a very important point to be addressed in future works, this section is meant to further assess the impacts of a non-nominal operational environment on delta-v budget.

The followed approach is similar to the one described in Section 4.2.2: besides navigation errors, several simulations were performed by adding to each burst a zero-mean random error with a standard deviation that is a percentage of its magnitude. The formation evolution was monitored over a month, and multiple runs were considered to obtain a significant number of maneuvers and derive statistics. The results of such a sensitivity analysis are reported in Figure 9, where the blue and red trends show the control effort required for maintenance of LI and SS formations. In this case, navigations errors are assumed to be ${\sigma }_p$= 1 cm and ${\sigma }_v$ = 2.5 mm/s.

In general, due to the thruster errors, the desired configuration cannot be fully restored. Consequently, the relative geometry degrades faster, and the number of orbital maneuvers increases.

Results can be summarized as follows: for moderate execution errors (5%), mean values are comparable with those reported in Table 4 and Table 5 (lines with ${\sigma }_p=2.5$ mm/s), and thus underlining that navigation errors are still driving the budget. If the thruster accuracy becomes worse, this error source takes over navigation errors. In particular, the estimated $\Delta v_{TOT}$ values double for burst errors up to 25% (2.48 m/s in the LI case and 1.12 m/s in the SS case), while mean maneuvering times approximately halve (16.5 and 19.6 h for the LI and SS configurations, respectively). Further details can be found in

Table 6. Statistics related to the sensitivity analyses for maintenance of low-inclined formations in the presence navigation errors (${\sigma }_p=1$ cm, ${\sigma }_v=2.5$ mm/s), maneuvering execution error, and ballistic coefficient differences.

Execution Error $\left(\Delta \mathit{v}\mathit{\%}\right)$	Ballistic Coeff. Diff. (%)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Mean (m/s)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Std (m/s)	$\Delta \mathit{v}$ Mean (m/s)	$\Delta \mathit{v}$ Std (m/s)	Reconf. Time Mean (h)	Reconf. Time Std (h)
5	0	1.238	0.220	0.063	0.020	32.526	29.275
5	10	2.555	0.131	0.069	0.025	18.802	11.546
10	0	1.576	0.546	0.064	0.023	25.385	25.347
10	10	2.996	0.165	0.067	0.027	15.702	11.803
25	0	2.482	0.928	0.065	0.030	16.497	24.428
25	10	4.511	0.340	0.073	0.036	11.166	11.191

and

Table 7. Statistics related to the sensitivity analyses for maintenance of Sun-synchronous formations in the presence navigation errors (${\sigma }_p=1$ cm, ${\sigma }_v=2.5$ mm/s), maneuvering execution error, and ballistic coefficient differences.

Execution Error $\left(\Delta \mathit{v}\mathit{\%}\right)$	Ballistic Coeff. Diff. (%)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Mean (m/s)	$\Delta {\mathit{v}}_{\mathit{TOT}}$ Std (m/s)	$\Delta \mathit{v}$ Mean (m/s)	$\Delta \mathit{v}$ Std (m/s)	Reconf. Time Mean (h)	Reconf. Time Std (h)
5	0	0.568	0.476	0.060	0.020	34.692	48.670
5	10	2.317	0.191	0.072	0.018	21.873	13.945
10	0	0.610	0.290	0.059	0.023	33.246	47.201
10	10	2.560	0.144	0.070	0.021	18.979	13.943
25	0	1.117	0.616	0.066	0.031	19.560	35.413
25	10	4.118	0.229	0.076	0.034	12.635	13.071

.

Assuming the same boundary conditions, the analyses were then repeated by considering different ballistic coefficients between the satellites. Indeed, even if the system is designed to minimize any deviation of these parameters from a reference value, a more realistic operational scenario should account for potential differences due to other mission constraints (attitude variation along the orbit, mass reduction, etc.).

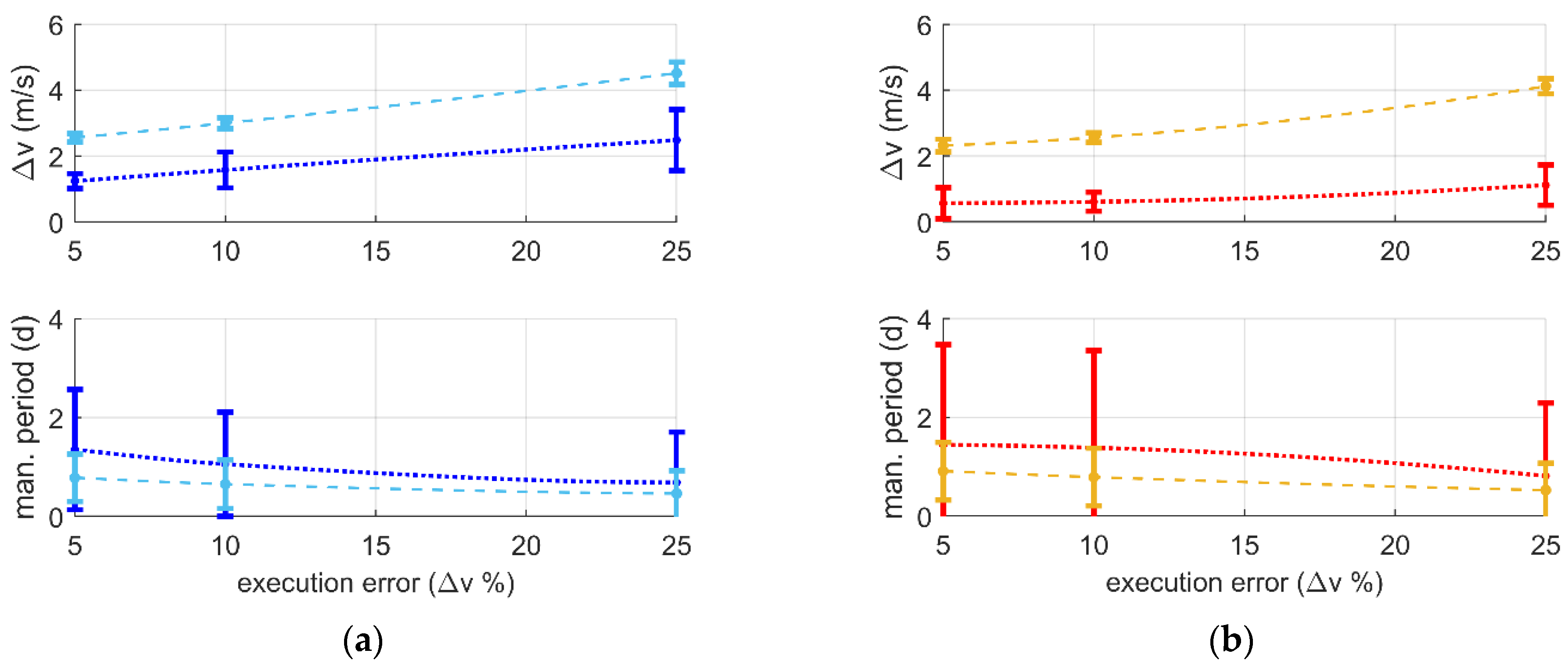

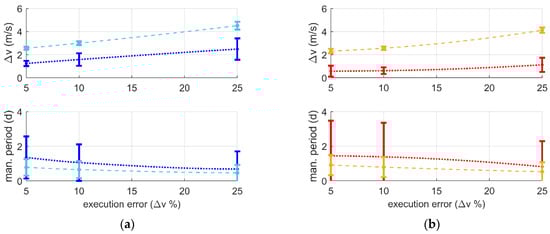

The derived results are represented in Figure 9 with dashed lines (light blue for the LI case and yellow for the SS case). They refer to a framework that accounts for a 10% difference between the ballistic coefficients. Under such a circumstance, the differential drag contributes to distortion of nominal patterns to a greater extent. Moreover, since the planning algorithms are based on a dynamic model that does not take this perturbation into account, the computed delta-v are not accurate enough and maneuvers occur more frequently due to the short satellite distances. The main outcome is that, with equal perturbing sources, the resulting $\Delta v_{TOT}$ and maneuvering period are very similar, whatever the orbital inclination. For the sake of clarity, the statistics shown in Figure 9 are reported in Table 6 and Table 7.

5. Conclusions

In this paper, a strategy for formation maintenance was proposed, with emphasis on the two-satellites case. The main aim was to preserve the formation flight of spacecraft orbiting very close to each other in order to realize a distributed SAR.

An adaptive strategy was proposed that sets the arrival pattern according to the expected state of a chief satellite at the end of the maneuver. Orbital corrections only affect the deputy, which moves around such a reference platform till reaching the configuration defined by a formation design algorithm based on safety tubes.

The developed approach is effective in preserving such a kind of geometries.

In absence of navigation errors, the baseline deformation in the $xz$ plane (mainly induced by perigee precession) is the primary reason of reconfiguration. The maneuvering frequency is estimated around 4 days for LI orbits, contrary to the 15 days required when considering SS cases. The total $\Delta v$ per maneuver is of some cm/s.

Inclusion of moderate relative navigation errors allows a more realistic estimation of control efforts. Under these circumstances, the maintenance is mostly triggered by an excessive separation between the platforms in the $y$ direction—especially for the SS scenario, where it is responsible for almost the entirety of reconfigurations. Therefore, the maneuvering frequency increases, while the $\Delta v$-s per maneuver are always of the order of several cm/s and a moderate increase can be detected. The main difference is in the total delta-v, which is higher in the LI scenarios owing to a superior formation instability. In the analyzed worst-case frameworks, the $\Delta v_{TOT}$ for maintenance are estimated to be of the order of 2.5 m/s per month (LI case) and of 1 m/s per month (SS case).

Such a behavior is further emphasized when adding maneuvering execution errors, which become relevant for magnitudes above 5% of the delta-v required from each burst. A similar effect is induced by the presence of different ballistic coefficients: these introduce differential drag perturbations that are not considered by the path-planning models. The result is a less accurate delta-v, and hence an increased maneuver frequency (regardless of the orbital inclination).

As a general conclusion, while the stability of the designed trajectories and the limited requirements of the distributed payload allow a reduced control effort, relative navigation errors play a major role, which is emphasized by the tight separation among spacecraft. This tight separation also impacts the control requirements in terms of accuracy, and the safety concerns in case of non-nominal thrust application or failures. These aspects encourage the adoption of closed-loop control strategies and low thrust solutions such as electric propulsion. It is also clear that allowing a larger radial/cross-track separation in DSAR operations is the primary way to relax relative navigation requirements, reduce safety concerns, and guarantee a prolonged remote sensing activity (that on the other hand would be interrupted by continuous reconfiguration maneuvers). Future research will be aimed at further investigating the impact of relative navigation errors and at implementing low thrust control strategies for adaptive formation maintenance, based on both open- and closed-loop approaches. In view of multi-satellite architectures comprising a chief and more than a single deputy, a task assignment logic will be also defined, as to provide the DSAR formation with enhanced autonomy. Moreover, innovative solutions will be investigated aimed at optimizing the total propellant consumption. The main emphasis will be given to strategies conceived to modify the role of the chief within a formation. In this way, the propellant for orbital correction can be redistributed among the component satellites. This will ensure a global mass balancing and reduce the difference among ballistic coefficients over time.
